IoT Communication Protocols, Socket Programming with Python, MQTT & HTTP

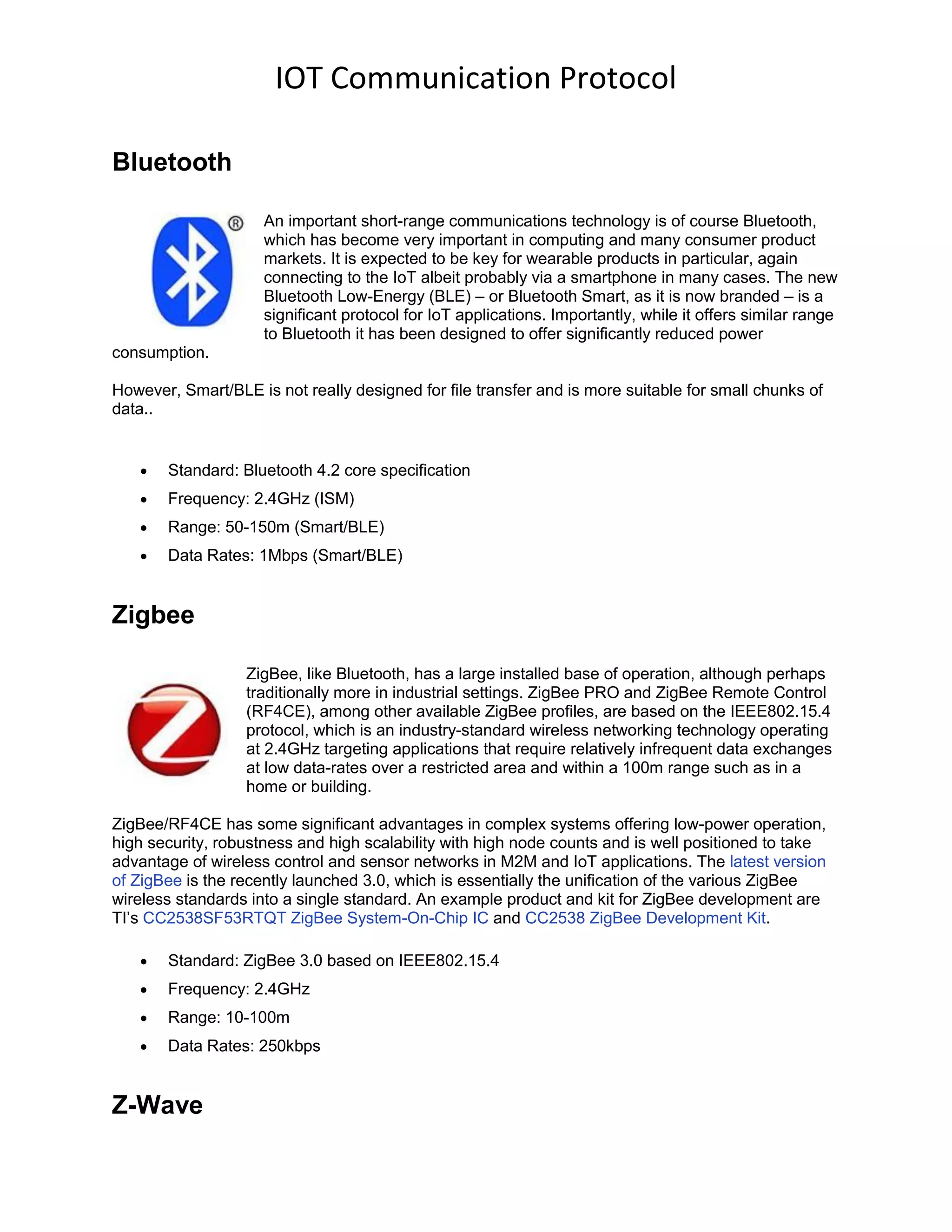

IOT Communication Protocol
Bluetooth
An important short-range communications technology is of course Bluetooth,
which has become very important in computing and many consumer product
markets. It is expected to be key for wearable products in particular, again
connecting to the IoT albeit probably via a smartphone in many cases. The new
Bluetooth Low-Energy (BLE) – or Bluetooth Smart, as it is now branded – is a
significant protocol for IoT applications. Importantly, while it offers similar range
to Bluetooth it has been designed to offer significantly reduced power
consumption.
However, Smart/BLE is not really designed for file transfer and is more suitable for small chunks of
data..
 Standard: Bluetooth 4.2 core specification
 Frequency: 2.4GHz (ISM)
 Range: 50-150m (Smart/BLE)
 Data Rates: 1Mbps (Smart/BLE)
Zigbee
ZigBee, like Bluetooth, has a large installed base of operation, although perhaps
traditionally more in industrial settings. ZigBee PRO and ZigBee Remote Control
(RF4CE), among other available ZigBee profiles, are based on the IEEE802.15.4
protocol, which is an industry-standard wireless networking technology operating
at 2.4GHz targeting applications that require relatively infrequent data exchanges
at low data-rates over a restricted area and within a 100m range such as in a
home or building.
ZigBee/RF4CE has some significant advantages in complex systems offering low-power operation,
high security, robustness and high scalability with high node counts and is well positioned to take
advantage of wireless control and sensor networks in M2M and IoT applications. The latest version
of ZigBee is the recently launched 3.0, which is essentially the unification of the various ZigBee
wireless standards into a single standard. An example product and kit for ZigBee development are
TI’s CC2538SF53RTQT ZigBee System-On-Chip IC and CC2538 ZigBee Development Kit.
 Standard: ZigBee 3.0 based on IEEE802.15.4
 Frequency: 2.4GHz
 Range: 10-100m
 Data Rates: 250kbps

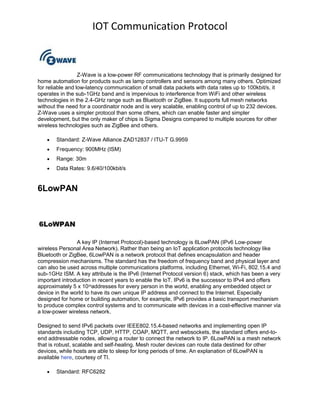

Z-Wave

Z-Wave is a low-power RF communications technology that is primarily designed for
home automation for products such as lamp controllers and sensors among many others. Optimized
for reliable and low-latency communication of small data packets with data rates up to 100kbit/s, it
operates in the sub-1GHz band and is impervious to interference from WiFi and other wireless
technologies in the 2.4-GHz range such as Bluetooth or ZigBee. It supports full mesh networks
without the need for a coordinator node and is very scalable, enabling control of up to 232 devices.
Z-Wave uses a simpler protocol than some others, which can enable faster and simpler
development, but the only maker of chips is Sigma Designs compared to multiple sources for other
wireless technologies such as ZigBee and others.
 Standard: Z-Wave Alliance ZAD12837 / ITU-T G.9959
 Frequency: 900MHz (ISM)
 Range: 30m
 Data Rates: 9.6/40/100kbit/s
6LowPAN
A key IP (Internet Protocol)-based technology is 6LowPAN (IPv6 Low-power
wireless Personal Area Network). Rather than being an IoT application protocols technology like
Bluetooth or ZigBee, 6LowPAN is a network protocol that defines encapsulation and header
compression mechanisms. The standard has the freedom of frequency band and physical layer and
can also be used across multiple communications platforms, including Ethernet, Wi-Fi, 802.15.4 and
sub-1GHz ISM. A key attribute is the IPv6 (Internet Protocol version 6) stack, which has been a very
important introduction in recent years to enable the IoT. IPv6 is the successor to IPv4 and offers
approximately 5 x 1028
addresses for every person in the world, enabling any embedded object or
device in the world to have its own unique IP address and connect to the Internet. Especially
designed for home or building automation, for example, IPv6 provides a basic transport mechanism
to produce complex control systems and to communicate with devices in a cost-effective manner via
a low-power wireless network.
Designed to send IPv6 packets over IEEE802.15.4-based networks and implementing open IP
standards including TCP, UDP, HTTP, COAP, MQTT, and websockets, the standard offers end-to-
end addressable nodes, allowing a router to connect the network to IP. 6LowPAN is a mesh network
that is robust, scalable and self-healing. Mesh router devices can route data destined for other
devices, while hosts are able to sleep for long periods of time. An explanation of 6LowPAN is
available here, courtesy of TI.
 Standard: RFC6282

 Frequency: (adapted and used over a variety of other networking media including Bluetooth
Smart (2.4GHz) or ZigBee or low-power RF (sub-1GHz)
 Range: N/A
 Data Rates: N/A

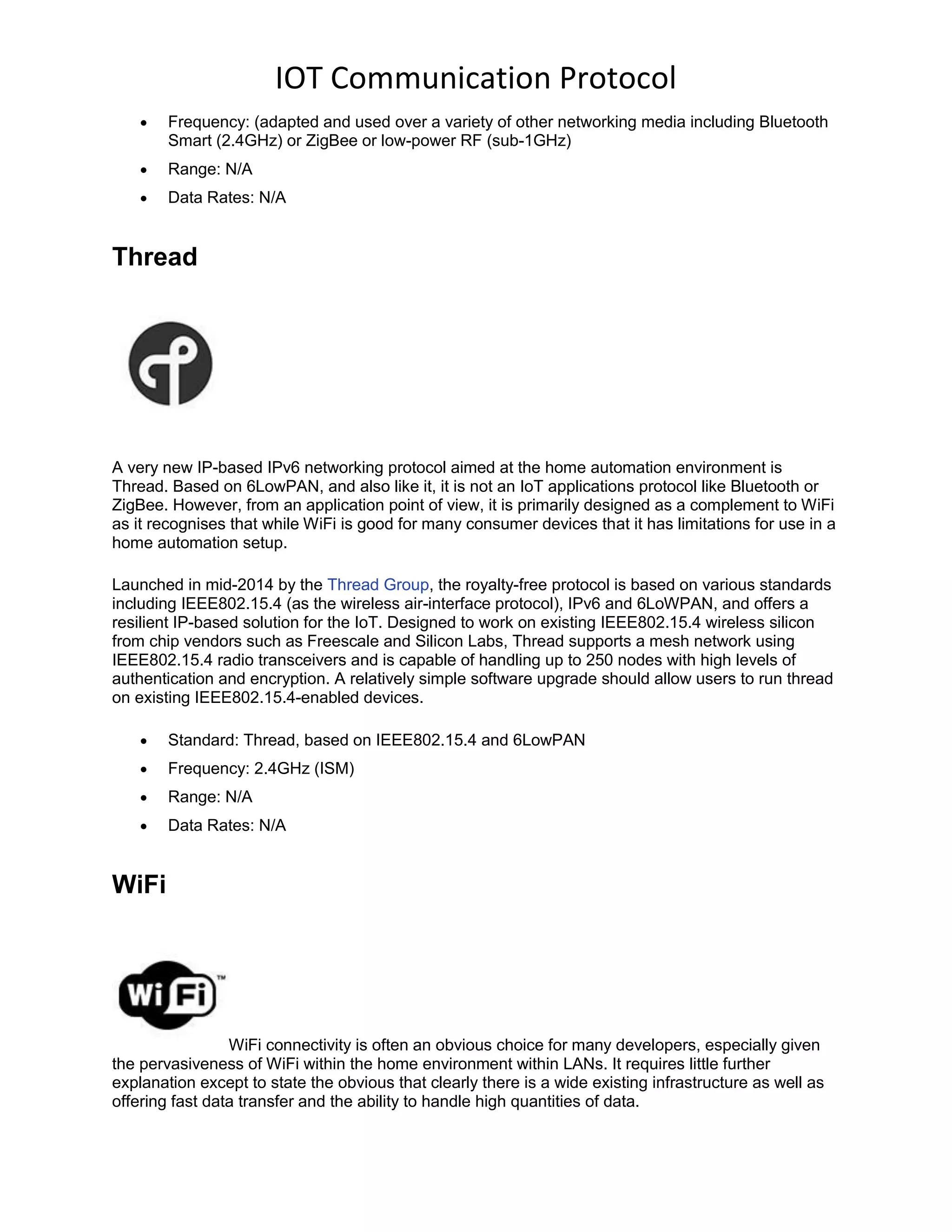

Thread
A very new IP-based IPv6 networking protocol aimed at the home automation environment is
Thread. Based on 6LowPAN, and also like it, it is not an IoT applications protocol like Bluetooth or
ZigBee. However, from an application point of view, it is primarily designed as a complement to WiFi
as it recognises that while WiFi is good for many consumer devices that it has limitations for use in a
home automation setup.
Launched in mid-2014 by the Thread Group, the royalty-free protocol is based on various standards
including IEEE802.15.4 (as the wireless air-interface protocol), IPv6 and 6LoWPAN, and offers a
resilient IP-based solution for the IoT. Designed to work on existing IEEE802.15.4 wireless silicon
from chip vendors such as Freescale and Silicon Labs, Thread supports a mesh network using
IEEE802.15.4 radio transceivers and is capable of handling up to 250 nodes with high levels of
authentication and encryption. A relatively simple software upgrade should allow users to run thread
on existing IEEE802.15.4-enabled devices.
 Standard: Thread, based on IEEE802.15.4 and 6LowPAN
 Frequency: 2.4GHz (ISM)
 Range: N/A
 Data Rates: N/A
WiFi
WiFi connectivity is often an obvious choice for many developers, especially given
the pervasiveness of WiFi within the home environment within LANs. It requires little further
explanation except to state the obvious that clearly there is a wide existing infrastructure as well as
offering fast data transfer and the ability to handle high quantities of data.

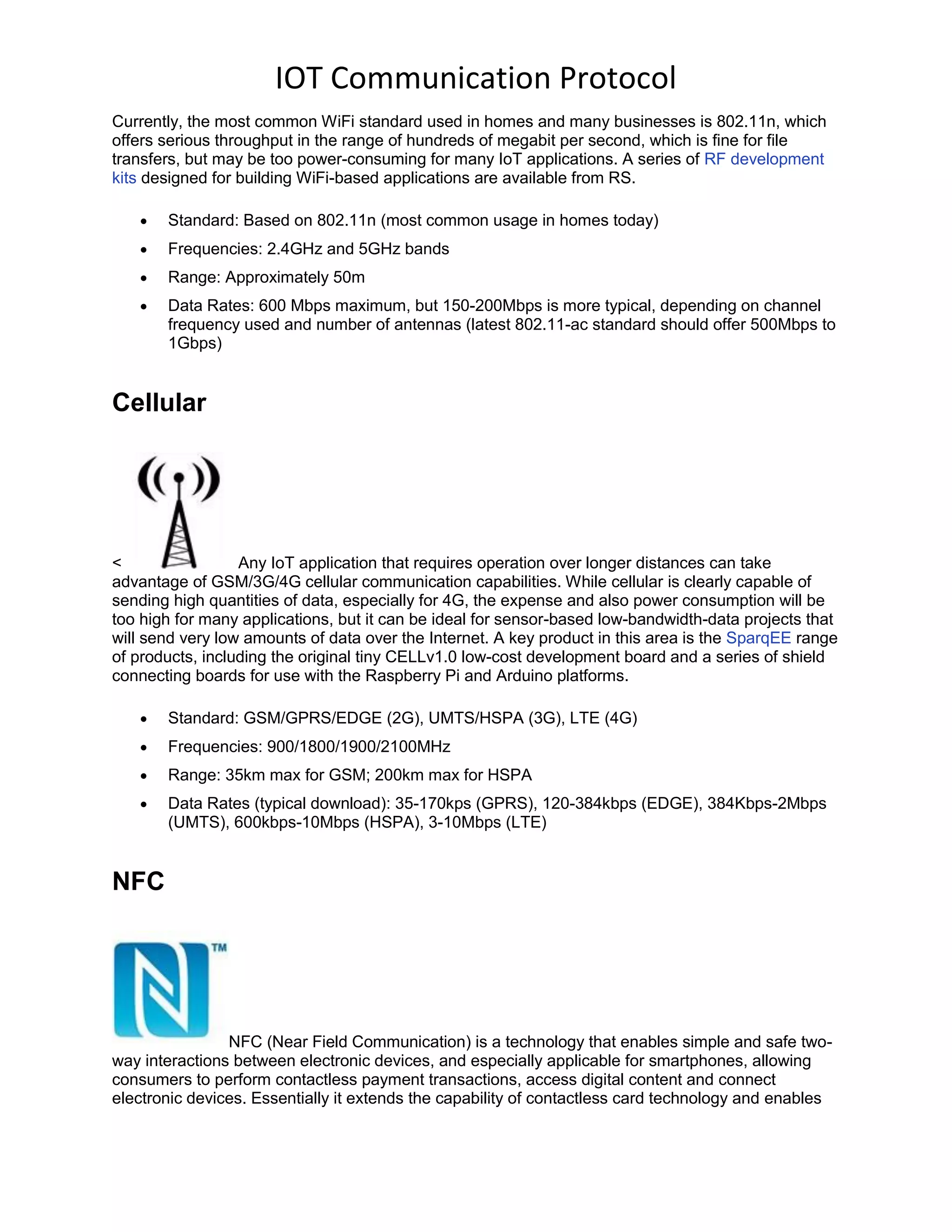

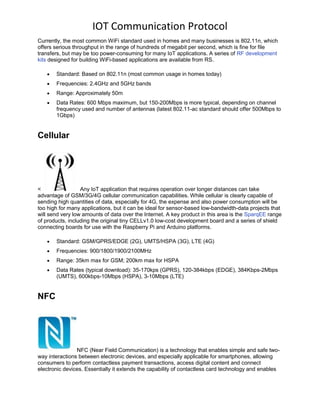

Currently, the most common WiFi standard used in homes and many businesses is 802.11n, which
offers serious throughput in the range of hundreds of megabit per second, which is fine for file
transfers, but may be too power-consuming for many IoT applications. A series of RF development
kits designed for building WiFi-based applications are available from RS.
 Standard: Based on 802.11n (most common usage in homes today)
 Frequencies: 2.4GHz and 5GHz bands
 Range: Approximately 50m
 Data Rates: 600 Mbps maximum, but 150-200Mbps is more typical, depending on channel
frequency used and number of antennas (latest 802.11-ac standard should offer 500Mbps to
1Gbps)
Cellular
< Any IoT application that requires operation over longer distances can take
advantage of GSM/3G/4G cellular communication capabilities. While cellular is clearly capable of
sending high quantities of data, especially for 4G, the expense and also power consumption will be
too high for many applications, but it can be ideal for sensor-based low-bandwidth-data projects that
will send very low amounts of data over the Internet. A key product in this area is the SparqEE range
of products, including the original tiny CELLv1.0 low-cost development board and a series of shield
connecting boards for use with the Raspberry Pi and Arduino platforms.
 Standard: GSM/GPRS/EDGE (2G), UMTS/HSPA (3G), LTE (4G)
 Frequencies: 900/1800/1900/2100MHz
 Range: 35km max for GSM; 200km max for HSPA
 Data Rates (typical download): 35-170kps (GPRS), 120-384kbps (EDGE), 384Kbps-2Mbps
(UMTS), 600kbps-10Mbps (HSPA), 3-10Mbps (LTE)
NFC
NFC (Near Field Communication) is a technology that enables simple and safe two-
way interactions between electronic devices, and especially applicable for smartphones, allowing
consumers to perform contactless payment transactions, access digital content and connect
electronic devices. Essentially it extends the capability of contactless card technology and enables

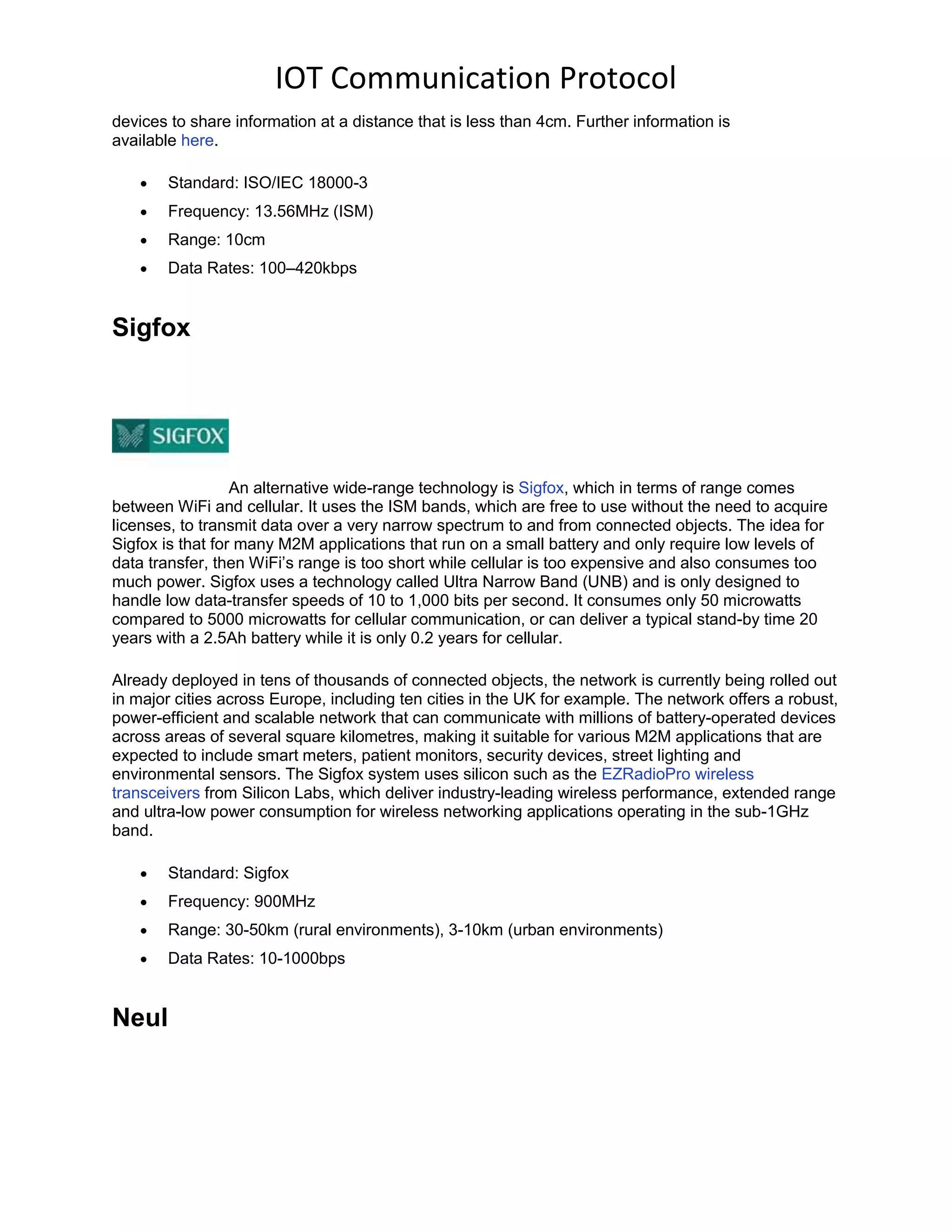

devices to share information at a distance that is less than 4cm. Further information is
available here.
 Standard: ISO/IEC 18000-3
 Frequency: 13.56MHz (ISM)
 Range: 10cm
 Data Rates: 100–420kbps
Sigfox
An alternative wide-range technology is Sigfox, which in terms of range comes
between WiFi and cellular. It uses the ISM bands, which are free to use without the need to acquire
licenses, to transmit data over a very narrow spectrum to and from connected objects. The idea for
Sigfox is that for many M2M applications that run on a small battery and only require low levels of
data transfer, then WiFi’s range is too short while cellular is too expensive and also consumes too
much power. Sigfox uses a technology called Ultra Narrow Band (UNB) and is only designed to
handle low data-transfer speeds of 10 to 1,000 bits per second. It consumes only 50 microwatts
compared to 5000 microwatts for cellular communication, or can deliver a typical stand-by time 20
years with a 2.5Ah battery while it is only 0.2 years for cellular.
Already deployed in tens of thousands of connected objects, the network is currently being rolled out
in major cities across Europe, including ten cities in the UK for example. The network offers a robust,
power-efficient and scalable network that can communicate with millions of battery-operated devices
across areas of several square kilometres, making it suitable for various M2M applications that are
expected to include smart meters, patient monitors, security devices, street lighting and
environmental sensors. The Sigfox system uses silicon such as the EZRadioPro wireless
transceivers from Silicon Labs, which deliver industry-leading wireless performance, extended range
and ultra-low power consumption for wireless networking applications operating in the sub-1GHz
band.
 Standard: Sigfox
 Frequency: 900MHz
 Range: 30-50km (rural environments), 3-10km (urban environments)
 Data Rates: 10-1000bps

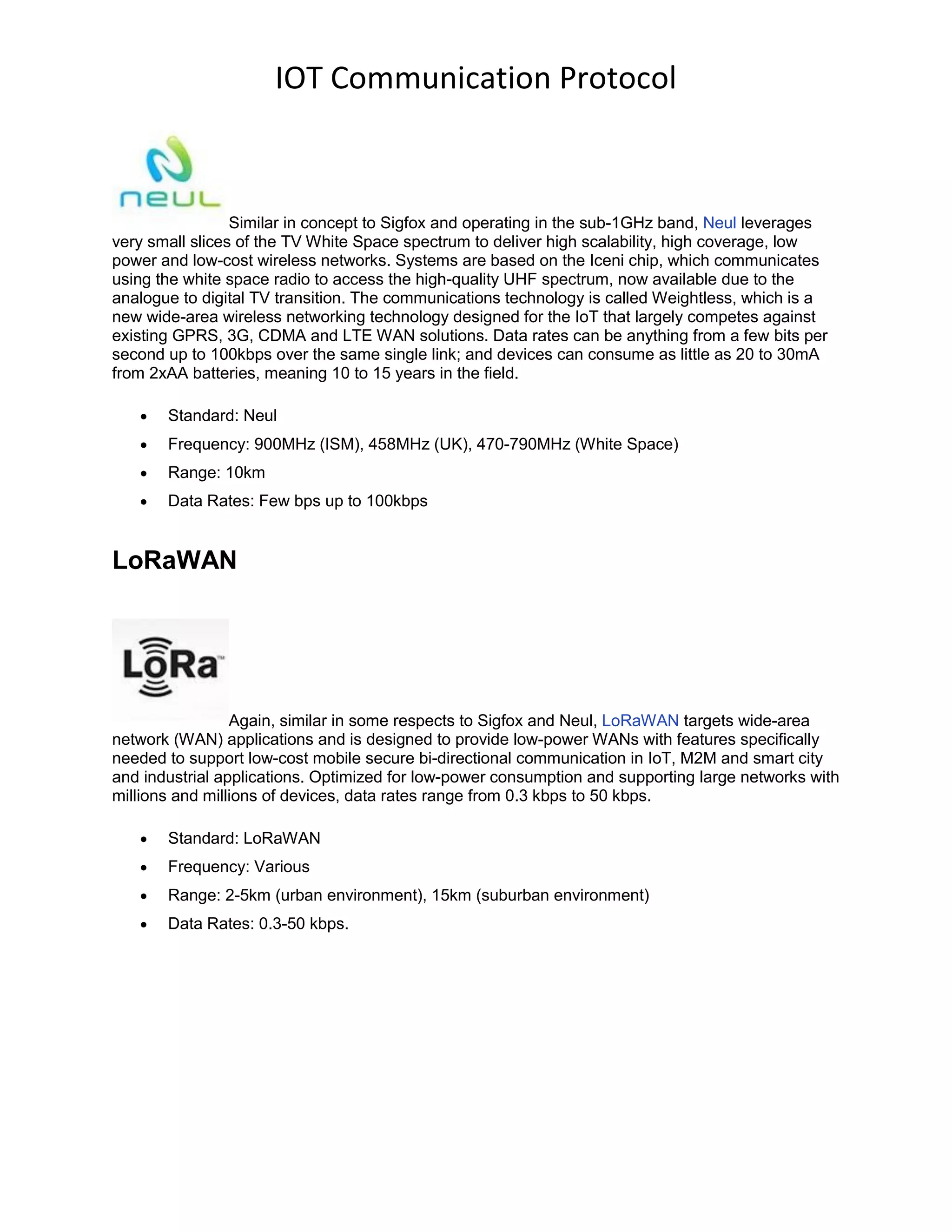

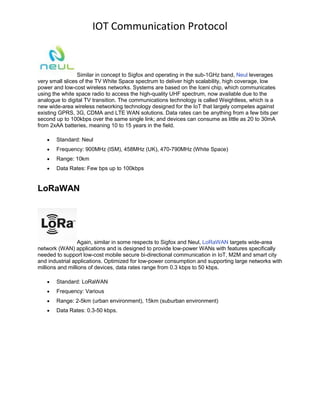

Neul

Similar in concept to Sigfox and operating in the sub-1GHz band, Neul leverages
very small slices of the TV White Space spectrum to deliver high scalability, high coverage, low
power and low-cost wireless networks. Systems are based on the Iceni chip, which communicates
using the white space radio to access the high-quality UHF spectrum, now available due to the
analogue to digital TV transition. The communications technology is called Weightless, which is a
new wide-area wireless networking technology designed for the IoT that largely competes against
existing GPRS, 3G, CDMA and LTE WAN solutions. Data rates can be anything from a few bits per
second up to 100kbps over the same single link; and devices can consume as little as 20 to 30mA
from 2xAA batteries, meaning 10 to 15 years in the field.
 Standard: Neul
 Frequency: 900MHz (ISM), 458MHz (UK), 470-790MHz (White Space)
 Range: 10km
 Data Rates: Few bps up to 100kbps
LoRaWAN
Again, similar in some respects to Sigfox and Neul, LoRaWAN targets wide-area
network (WAN) applications and is designed to provide low-power WANs with features specifically
needed to support low-cost mobile secure bi-directional communication in IoT, M2M and smart city
and industrial applications. Optimized for low-power consumption and supporting large networks with
millions and millions of devices, data rates range from 0.3 kbps to 50 kbps.
 Standard: LoRaWAN
 Frequency: Various
 Range: 2-5km (urban environment), 15km (suburban environment)
 Data Rates: 0.3-50 kbps.

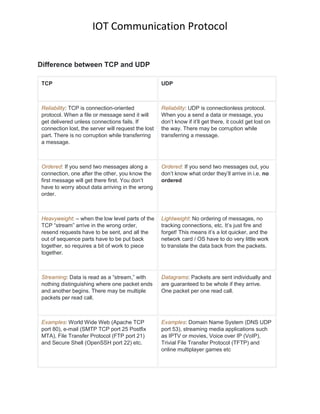

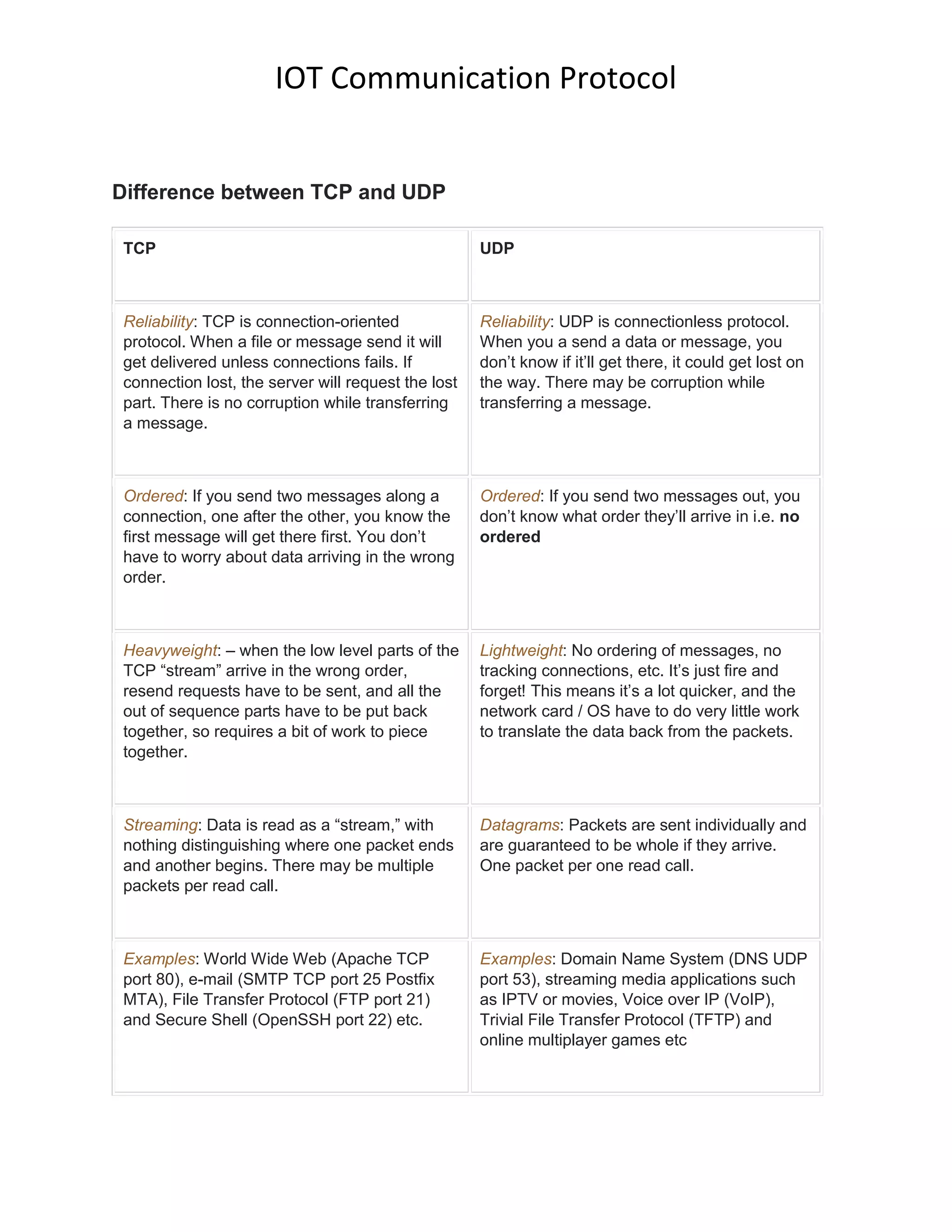

Difference between TCP and UDP
TCP UDP
Reliability: TCP is connection-oriented
protocol. When a file or message send it will
get delivered unless connections fails. If
connection lost, the server will request the lost
part. There is no corruption while transferring
a message.
Reliability: UDP is connectionless protocol.
When you a send a data or message, you
don’t know if it’ll get there, it could get lost on
the way. There may be corruption while
transferring a message.
Ordered: If you send two messages along a
connection, one after the other, you know the
first message will get there first. You don’t
have to worry about data arriving in the wrong
order.
Ordered: If you send two messages out, you
don’t know what order they’ll arrive in i.e. no
ordered
Heavyweight: – when the low level parts of the
TCP “stream” arrive in the wrong order,
resend requests have to be sent, and all the
out of sequence parts have to be put back
together, so requires a bit of work to piece
together.
Lightweight: No ordering of messages, no
tracking connections, etc. It’s just fire and
forget! This means it’s a lot quicker, and the
network card / OS have to do very little work
to translate the data back from the packets.
Streaming: Data is read as a “stream,” with
nothing distinguishing where one packet ends
and another begins. There may be multiple
packets per read call.
Datagrams: Packets are sent individually and
are guaranteed to be whole if they arrive.
One packet per one read call.
Examples: World Wide Web (Apache TCP
port 80), e-mail (SMTP TCP port 25 Postfix
MTA), File Transfer Protocol (FTP port 21)
and Secure Shell (OpenSSH port 22) etc.
Examples: Domain Name System (DNS UDP
port 53), streaming media applications such
as IPTV or movies, Voice over IP (VoIP),
Trivial File Transfer Protocol (TFTP) and
online multiplayer games etc

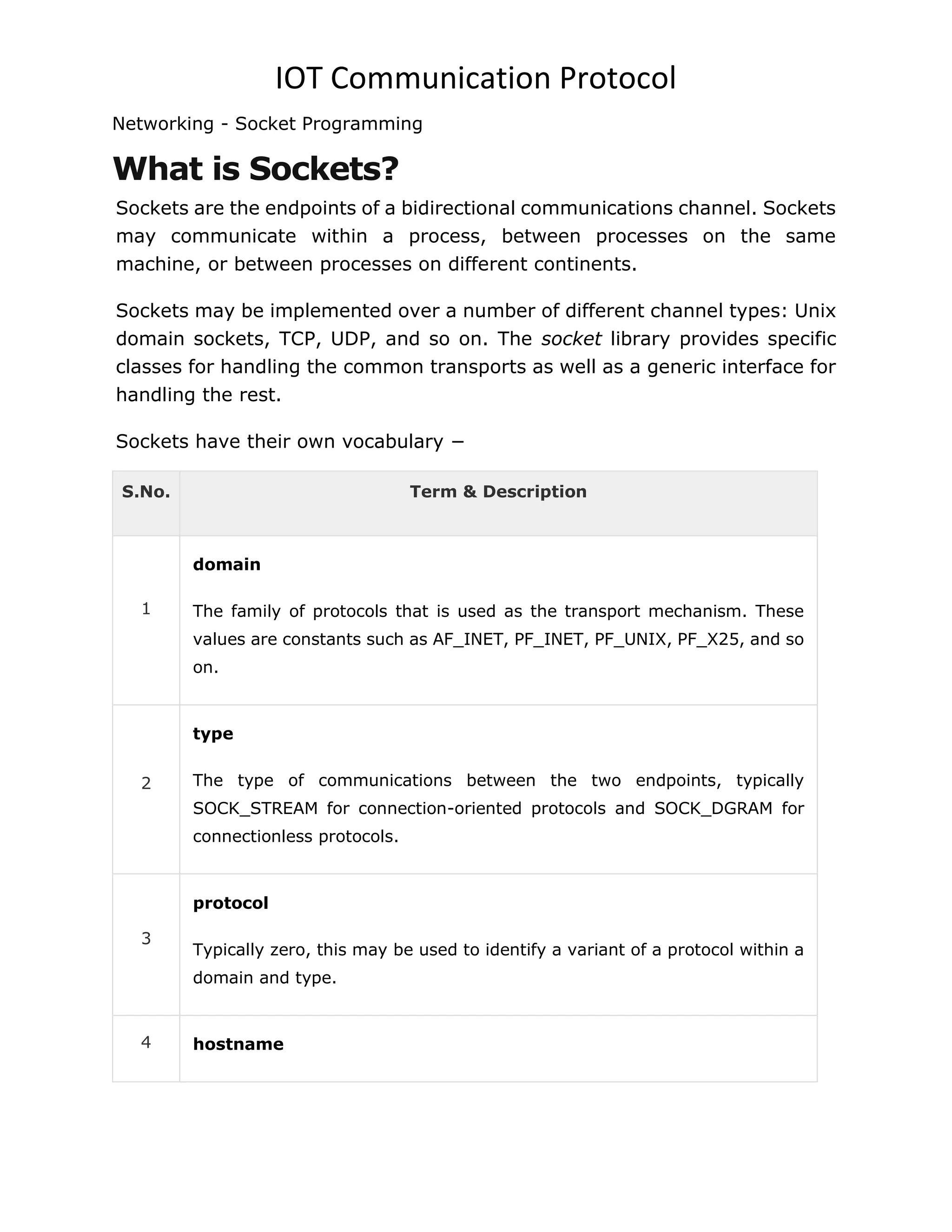

Networking - Socket Programming
What is Sockets?
Sockets are the endpoints of a bidirectional communications channel. Sockets
may communicate within a process, between processes on the same
machine, or between processes on different continents.
Sockets may be implemented over a number of different channel types: Unix
domain sockets, TCP, UDP, and so on. The socket library provides specific
classes for handling the common transports as well as a generic interface for
handling the rest.
Sockets have their own vocabulary −
S.No. Term & Description
1
domain
The family of protocols that is used as the transport mechanism. These
values are constants such as AF_INET, PF_INET, PF_UNIX, PF_X25, and so
on.
2
type
The type of communications between the two endpoints, typically
SOCK_STREAM for connection-oriented protocols and SOCK_DGRAM for
connectionless protocols.
3
protocol
Typically zero, this may be used to identify a variant of a protocol within a
domain and type.

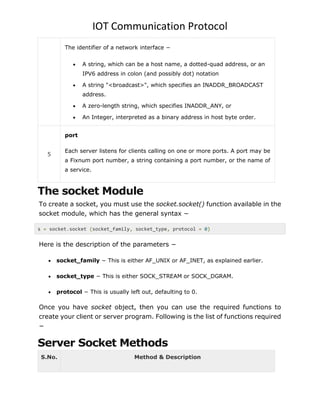

4 hostname

The identifier of a network interface −
 A string, which can be a host name, a dotted-quad address, or an
IPV6 address in colon (and possibly dot) notation
 A string "<broadcast>", which specifies an INADDR_BROADCAST
address.
 A zero-length string, which specifies INADDR_ANY, or
 An Integer, interpreted as a binary address in host byte order.
5
port
Each server listens for clients calling on one or more ports. A port may be
a Fixnum port number, a string containing a port number, or the name of
a service.
The socket Module
To create a socket, you must use the socket.socket() function available in the
socket module, which has the general syntax −
s = socket.socket (socket_family, socket_type, protocol = 0)
Here is the description of the parameters −
 socket_family − This is either AF_UNIX or AF_INET, as explained earlier.
 socket_type − This is either SOCK_STREAM or SOCK_DGRAM.
 protocol − This is usually left out, defaulting to 0.
Once you have socket object, then you can use the required functions to
create your client or server program. Following is the list of functions required
−
Server Socket Methods
S.No. Method & Description

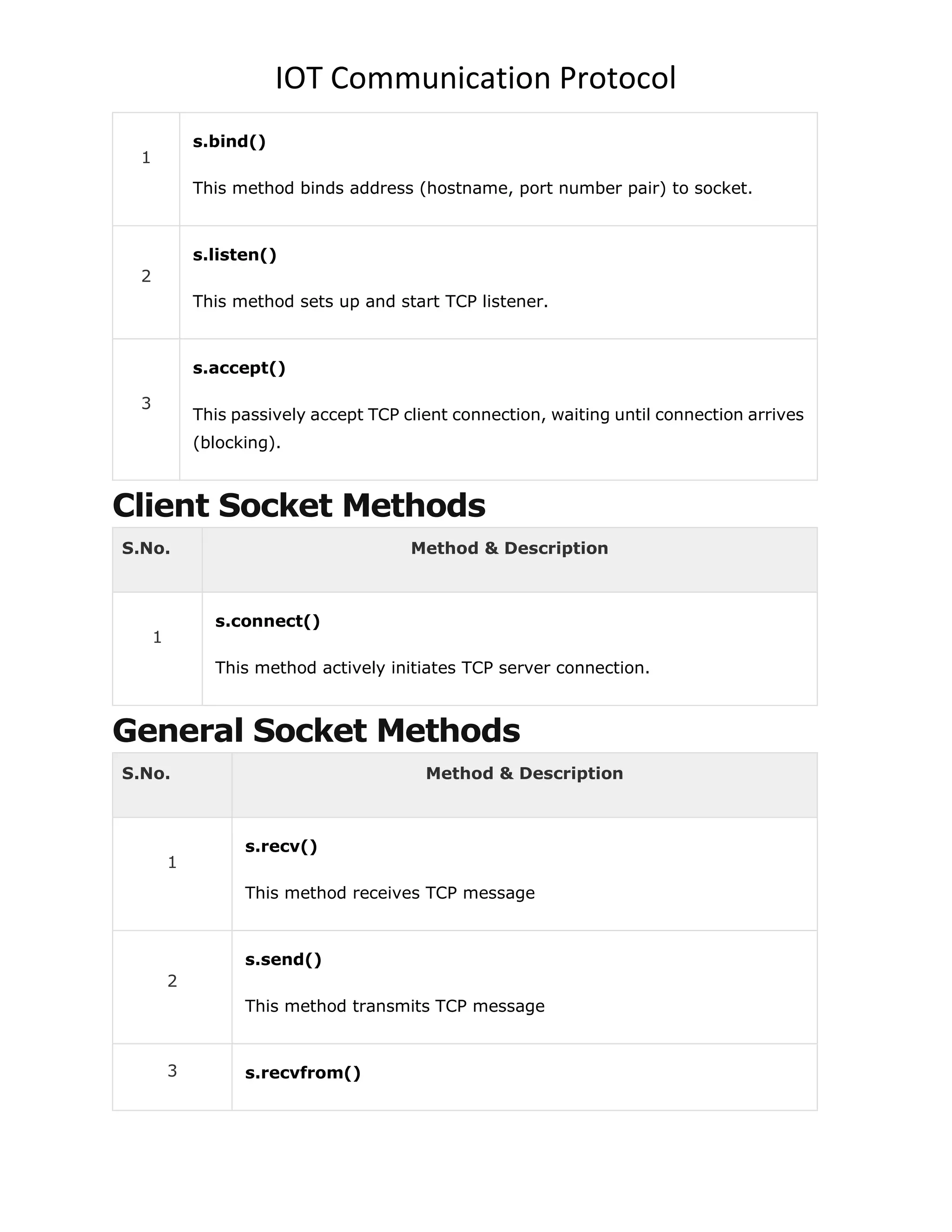

1
s.bind()
This method binds address (hostname, port number pair) to socket.
2
s.listen()
This method sets up and start TCP listener.
3
s.accept()
This passively accept TCP client connection, waiting until connection arrives
(blocking).
Client Socket Methods
1
s.connect()
This method actively initiates TCP server connection.
General Socket Methods
1
s.recv()
This method receives TCP message
2
s.send()
This method transmits TCP message

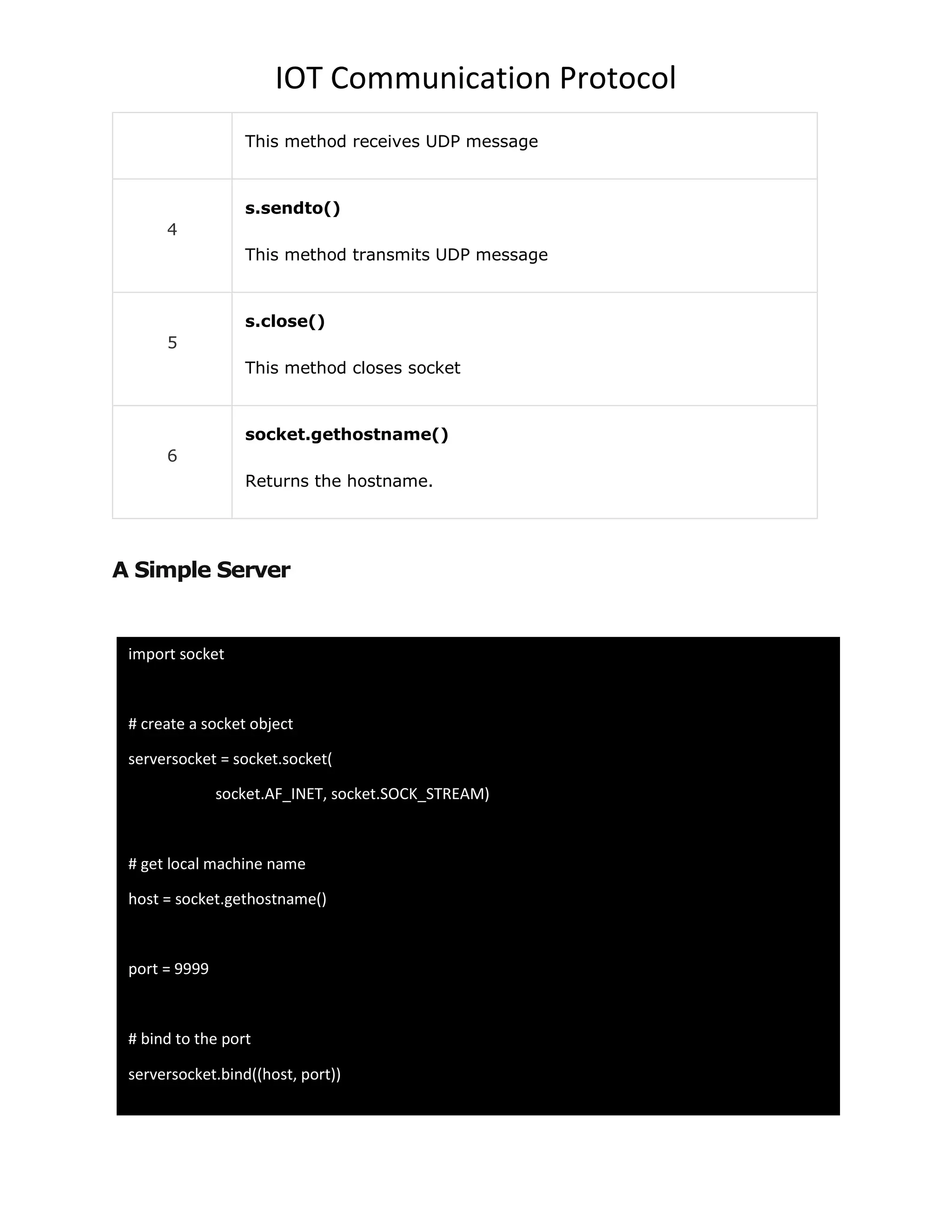

3 s.recvfrom()

This method receives UDP message
4
s.sendto()
This method transmits UDP message
5
s.close()
This method closes socket
6
socket.gethostname()
Returns the hostname.
A Simple Server
import socket
# create a socket object
serversocket = socket.socket(
socket.AF_INET, socket.SOCK_STREAM)
# get local machine name
host = socket.gethostname()
port = 9999
# bind to the port
serversocket.bind((host, port))

Client side

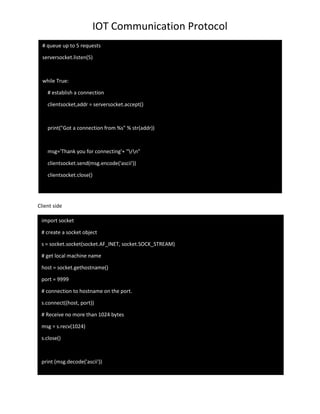

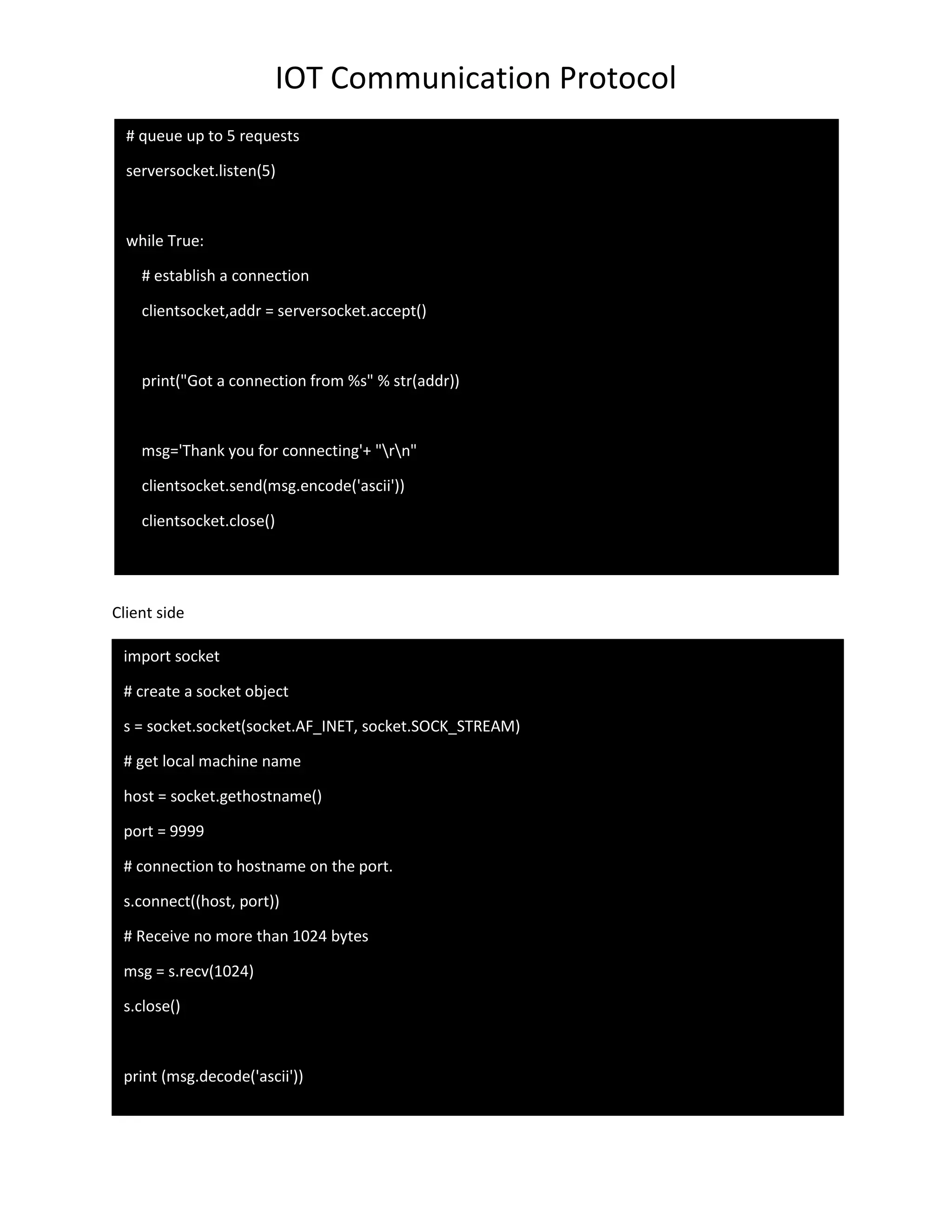

# queue up to 5 requests
serversocket.listen(5)
while True:
# establish a connection
clientsocket,addr = serversocket.accept()
print("Got a connection from %s" % str(addr))
msg='Thank you for connecting'+ "rn"
clientsocket.send(msg.encode('ascii'))
clientsocket.close()
import socket
# create a socket object
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
# get local machine name
host = socket.gethostname()
port = 9999
# connection to hostname on the port.
s.connect((host, port))
# Receive no more than 1024 bytes
msg = s.recv(1024)
s.close()
print (msg.decode('ascii'))

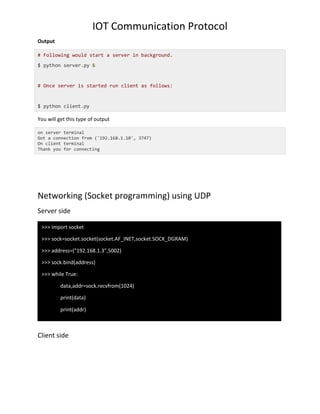

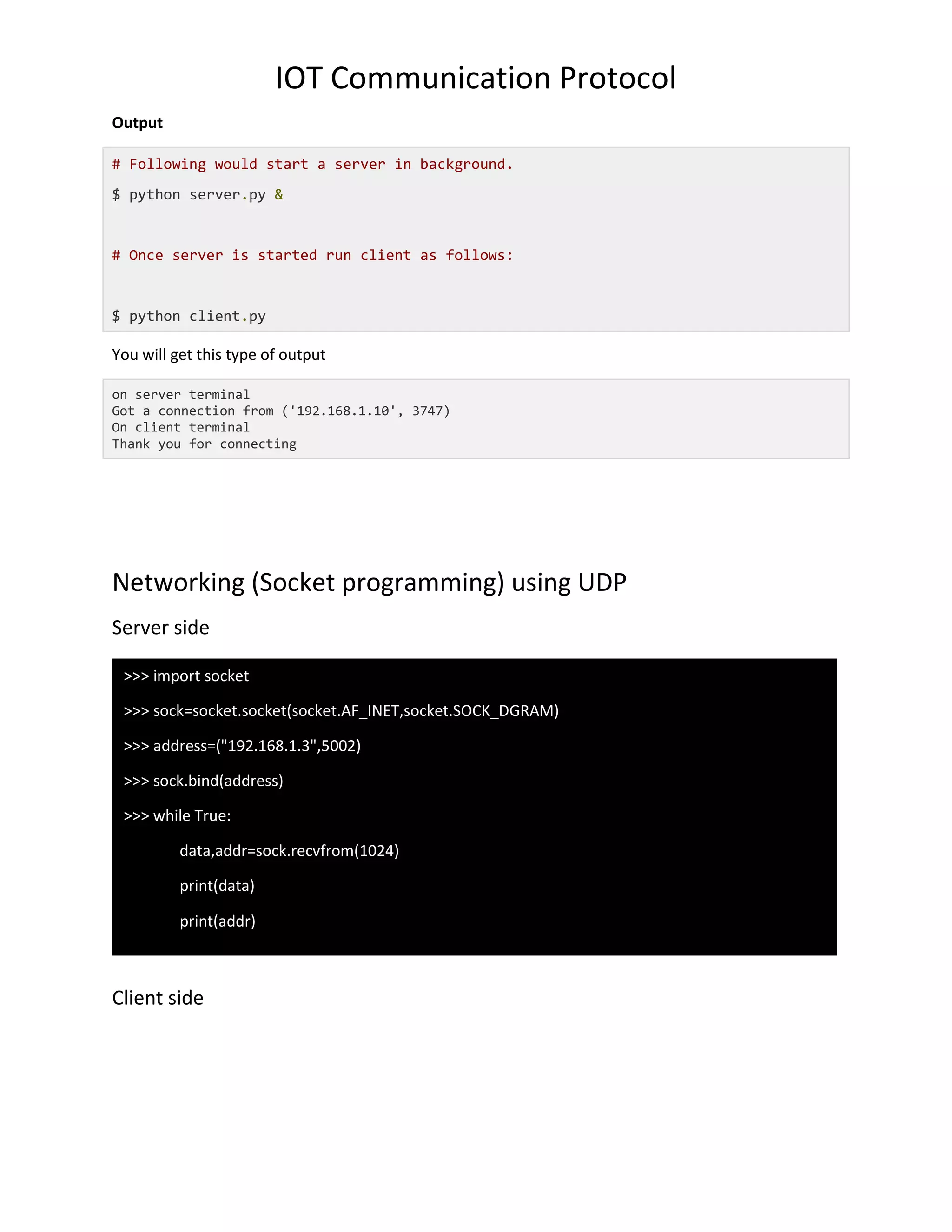

Output
# Following would start a server in background.
$ python server.py &
# Once server is started run client as follows:
$ python client.py
You will get this type of output
on server terminal
Got a connection from ('192.168.1.10', 3747)
On client terminal
Thank you for connecting
Networking (Socket programming) using UDP
Server side
Client side
>>> import socket
>>> sock=socket.socket(socket.AF_INET,socket.SOCK_DGRAM)
>>> address=("192.168.1.3",5002)
>>> sock.bind(address)
>>> while True:
data,addr=sock.recvfrom(1024)
print(data)
print(addr)

Now run both program you will get output.

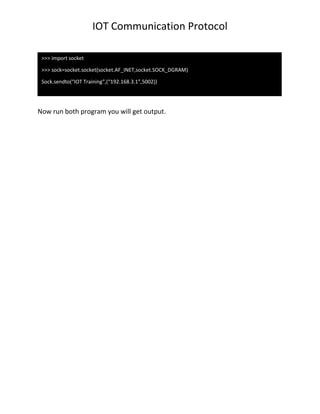

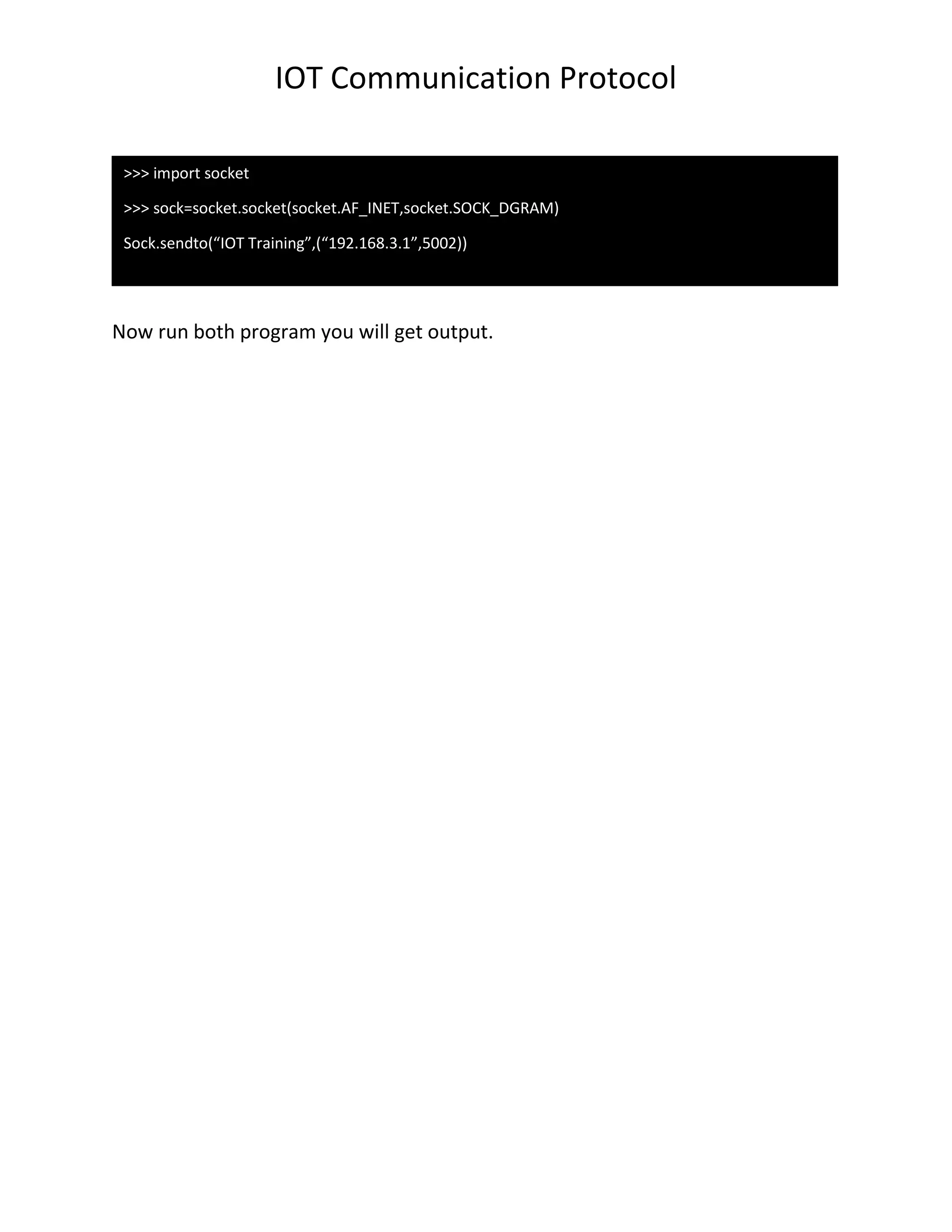

>>> import socket
>>> sock=socket.socket(socket.AF_INET,socket.SOCK_DGRAM)
Sock.sendto(“IOT Training”,(“192.168.3.1”,5002))

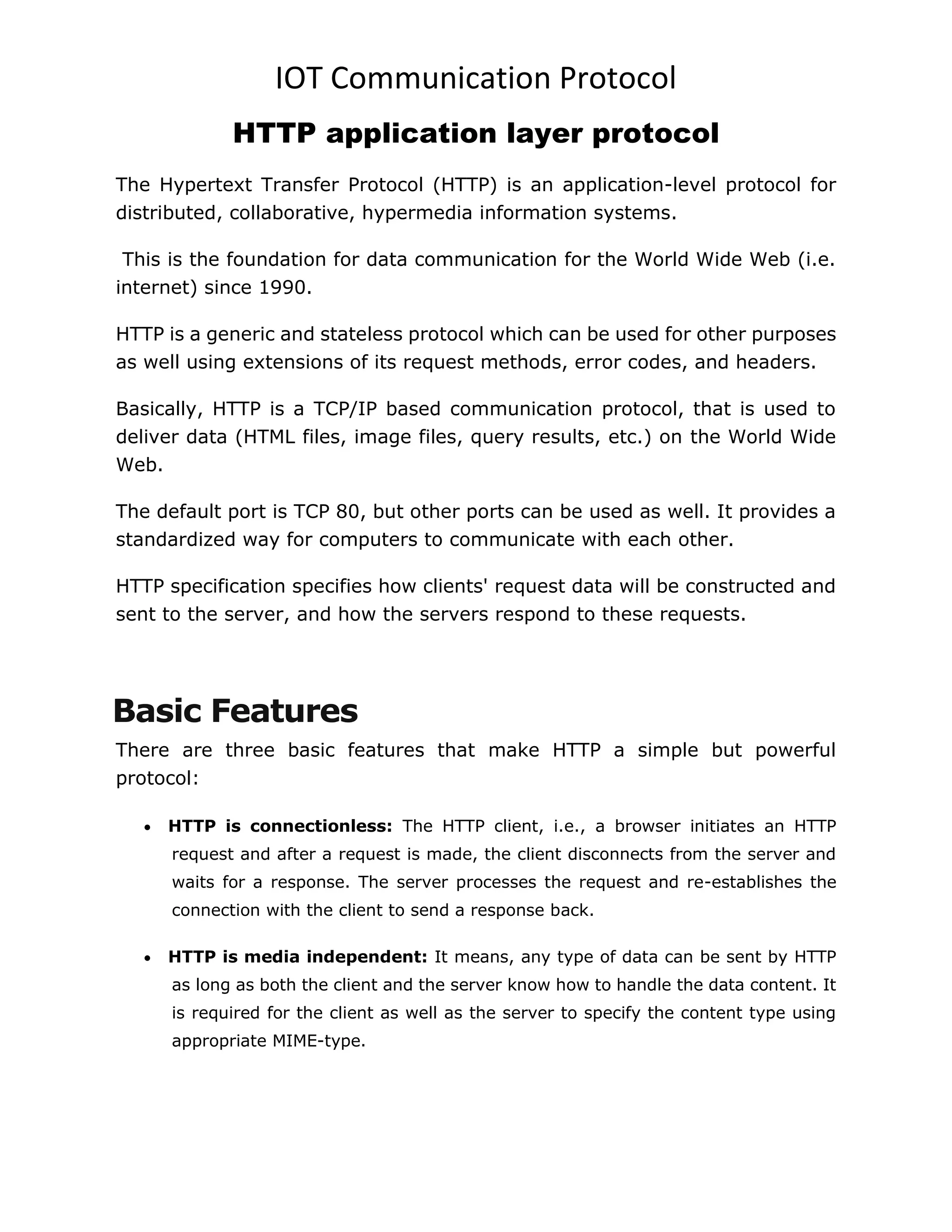

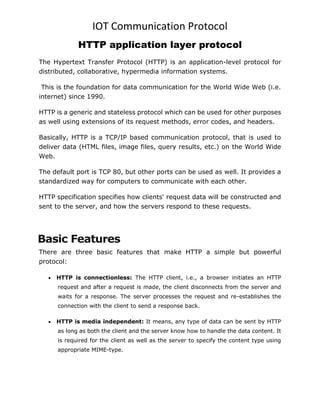

HTTP application layer protocol
The Hypertext Transfer Protocol (HTTP) is an application-level protocol for
distributed, collaborative, hypermedia information systems.
This is the foundation for data communication for the World Wide Web (i.e.
internet) since 1990.
HTTP is a generic and stateless protocol which can be used for other purposes
as well using extensions of its request methods, error codes, and headers.
Basically, HTTP is a TCP/IP based communication protocol, that is used to
deliver data (HTML files, image files, query results, etc.) on the World Wide
Web.
The default port is TCP 80, but other ports can be used as well. It provides a
standardized way for computers to communicate with each other.
HTTP specification specifies how clients' request data will be constructed and
sent to the server, and how the servers respond to these requests.
Basic Features
There are three basic features that make HTTP a simple but powerful
protocol:
 HTTP is connectionless: The HTTP client, i.e., a browser initiates an HTTP
request and after a request is made, the client disconnects from the server and
waits for a response. The server processes the request and re-establishes the
connection with the client to send a response back.
 HTTP is media independent: It means, any type of data can be sent by HTTP
as long as both the client and the server know how to handle the data content. It
is required for the client as well as the server to specify the content type using
appropriate MIME-type.

 HTTP is stateless: As mentioned above, HTTP is connectionless and it is a direct
result of HTTP being a stateless protocol. The server and client are aware of each
other only during a current request. Afterwards, both of them forget about each
other. Due to this nature of the protocol, neither the client nor the browser can
retain information between different requests across the web pages.

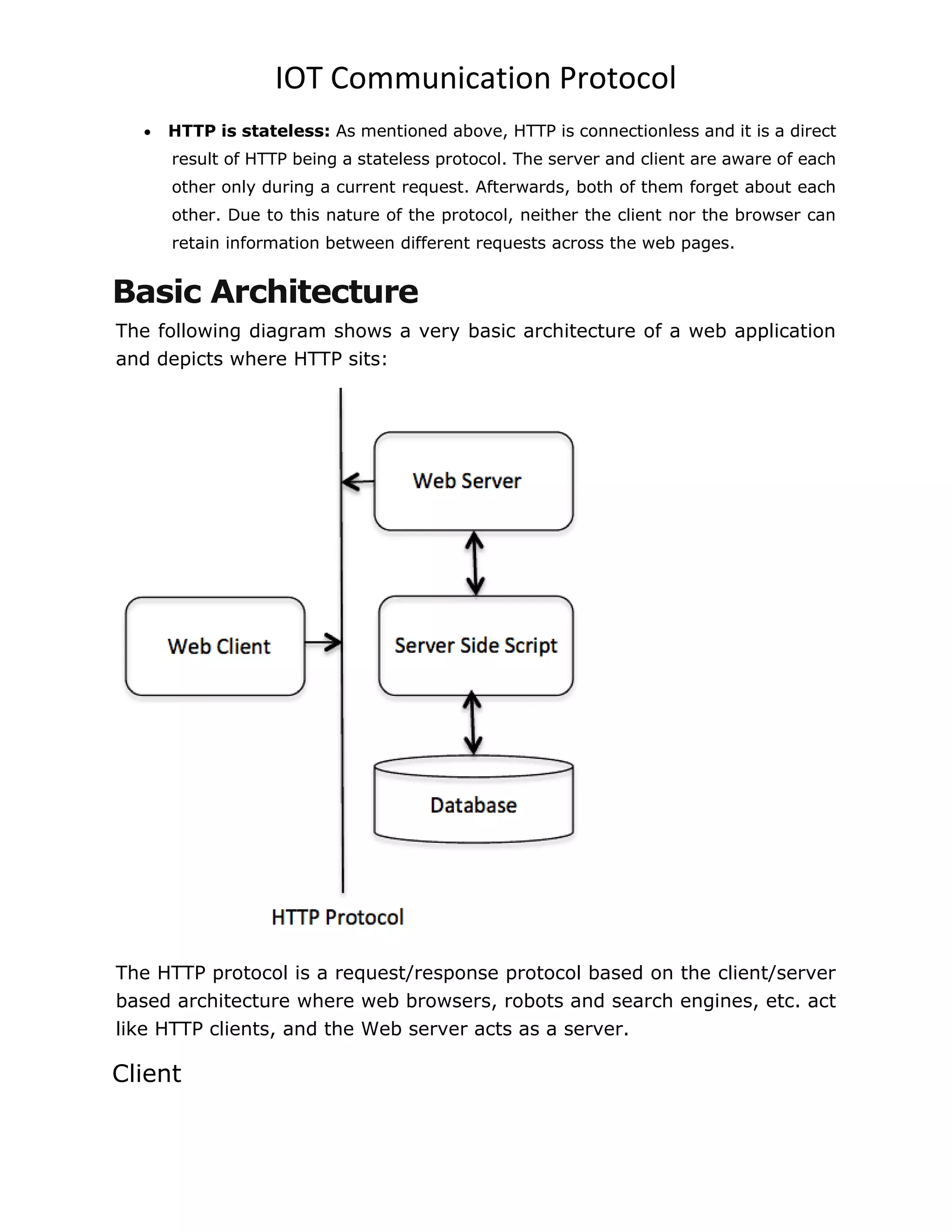

Basic Architecture
The following diagram shows a very basic architecture of a web application
and depicts where HTTP sits:
The HTTP protocol is a request/response protocol based on the client/server
based architecture where web browsers, robots and search engines, etc. act
like HTTP clients, and the Web server acts as a server.
Client

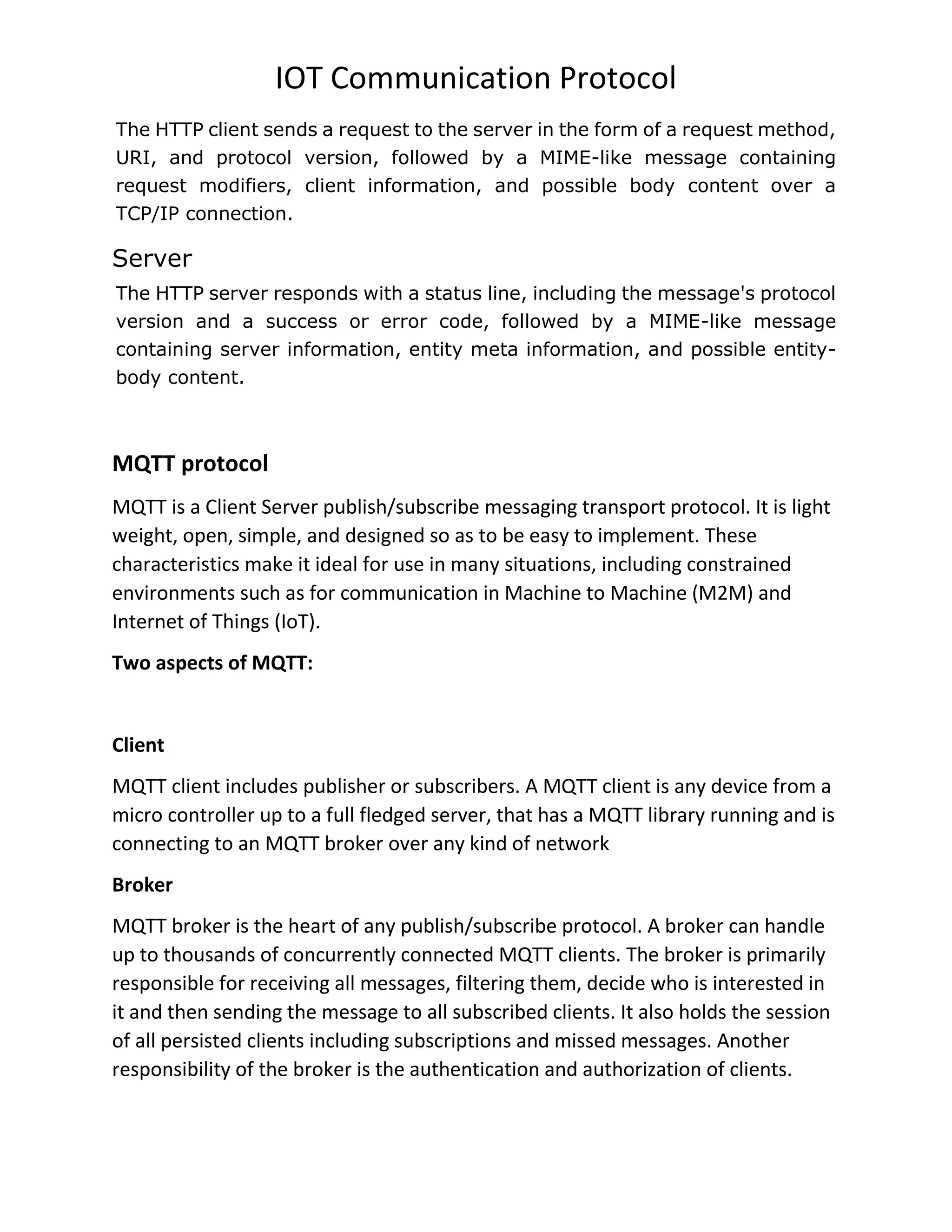

The HTTP client sends a request to the server in the form of a request method,
URI, and protocol version, followed by a MIME-like message containing
request modifiers, client information, and possible body content over a
TCP/IP connection.
Server
The HTTP server responds with a status line, including the message's protocol
version and a success or error code, followed by a MIME-like message
containing server information, entity meta information, and possible entity-
body content.
MQTT protocol
MQTT is a Client Server publish/subscribe messaging transport protocol. It is light
weight, open, simple, and designed so as to be easy to implement. These
characteristics make it ideal for use in many situations, including constrained
environments such as for communication in Machine to Machine (M2M) and
Internet of Things (IoT).
Two aspects of MQTT:
Client
MQTT client includes publisher or subscribers. A MQTT client is any device from a
micro controller up to a full fledged server, that has a MQTT library running and is
connecting to an MQTT broker over any kind of network
Broker
MQTT broker is the heart of any publish/subscribe protocol. A broker can handle
up to thousands of concurrently connected MQTT clients. The broker is primarily
responsible for receiving all messages, filtering them, decide who is interested in
it and then sending the message to all subscribed clients. It also holds the session
of all persisted clients including subscriptions and missed messages. Another
responsibility of the broker is the authentication and authorization of clients.

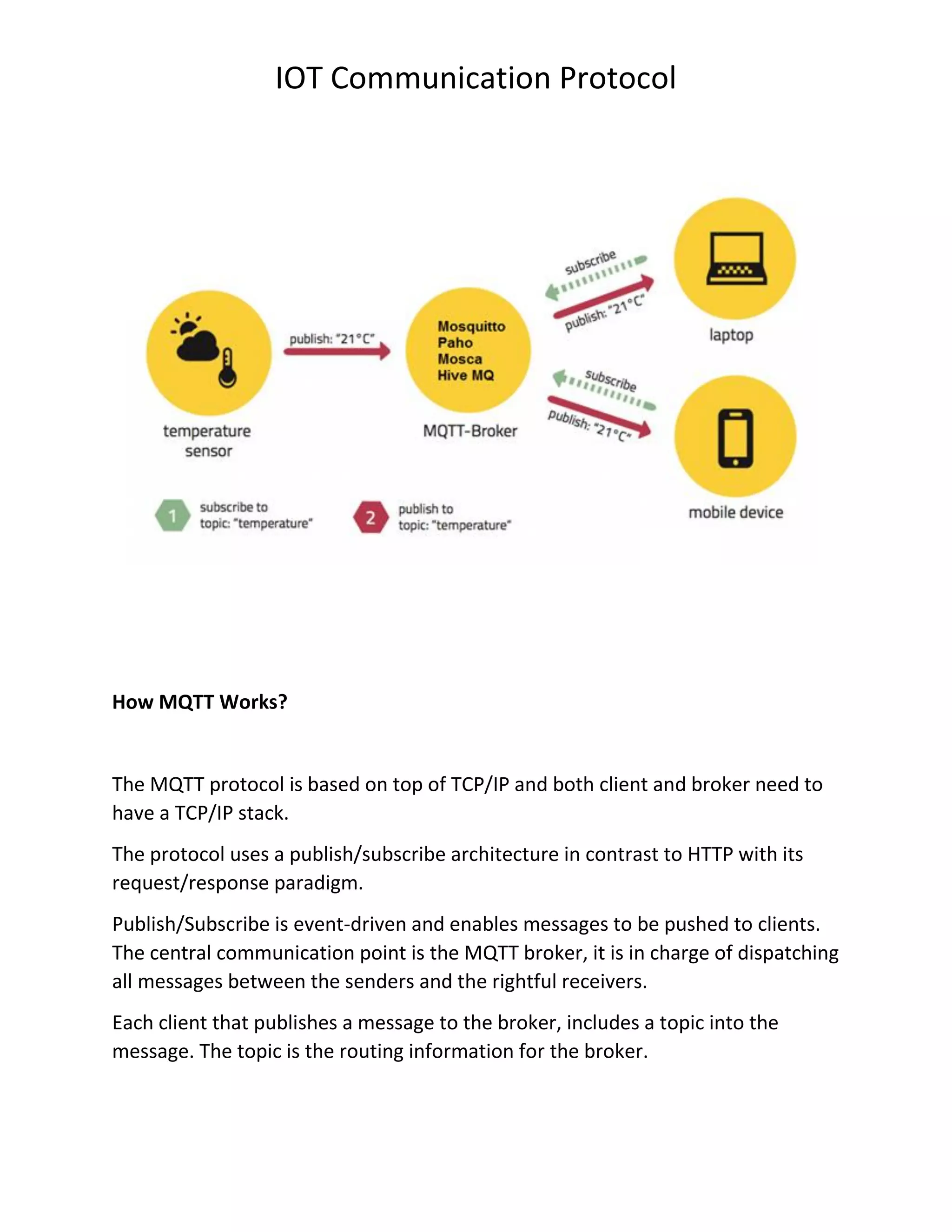

How MQTT Works?
The MQTT protocol is based on top of TCP/IP and both client and broker need to
have a TCP/IP stack.
The protocol uses a publish/subscribe architecture in contrast to HTTP with its
request/response paradigm.
Publish/Subscribe is event-driven and enables messages to be pushed to clients.
The central communication point is the MQTT broker, it is in charge of dispatching
all messages between the senders and the rightful receivers.
Each client that publishes a message to the broker, includes a topic into the
message. The topic is the routing information for the broker.

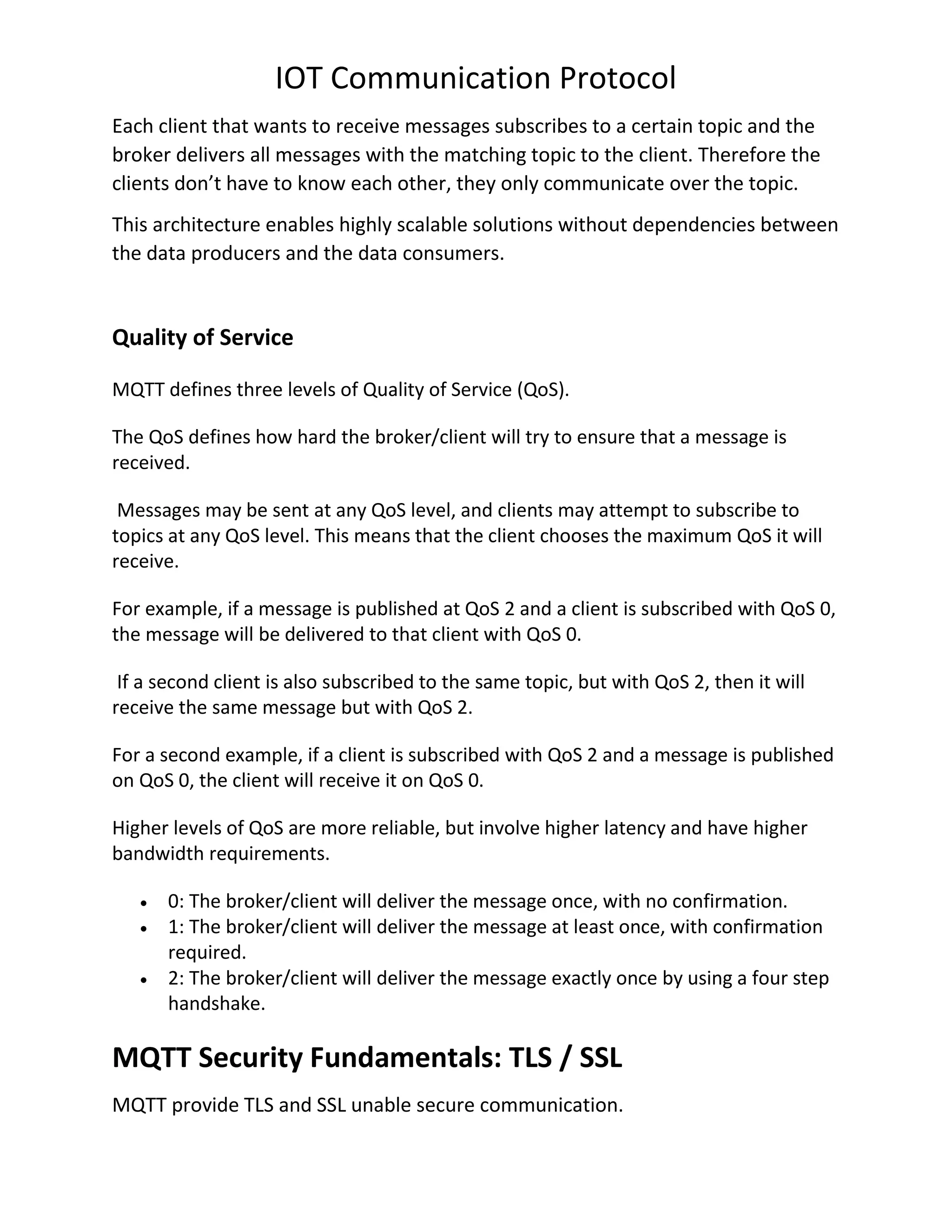

Each client that wants to receive messages subscribes to a certain topic and the
broker delivers all messages with the matching topic to the client. Therefore the
clients don’t have to know each other, they only communicate over the topic.
This architecture enables highly scalable solutions without dependencies between
the data producers and the data consumers.
Quality of Service
MQTT defines three levels of Quality of Service (QoS).
The QoS defines how hard the broker/client will try to ensure that a message is
received.
Messages may be sent at any QoS level, and clients may attempt to subscribe to
topics at any QoS level. This means that the client chooses the maximum QoS it will
receive.
For example, if a message is published at QoS 2 and a client is subscribed with QoS 0,
the message will be delivered to that client with QoS 0.
If a second client is also subscribed to the same topic, but with QoS 2, then it will
receive the same message but with QoS 2.
For a second example, if a client is subscribed with QoS 2 and a message is published
on QoS 0, the client will receive it on QoS 0.
Higher levels of QoS are more reliable, but involve higher latency and have higher
bandwidth requirements.
 0: The broker/client will deliver the message once, with no confirmation.
 1: The broker/client will deliver the message at least once, with confirmation
required.
 2: The broker/client will deliver the message exactly once by using a four step
handshake.
MQTT Security Fundamentals: TLS / SSL
MQTT provide TLS and SSL unable secure communication.

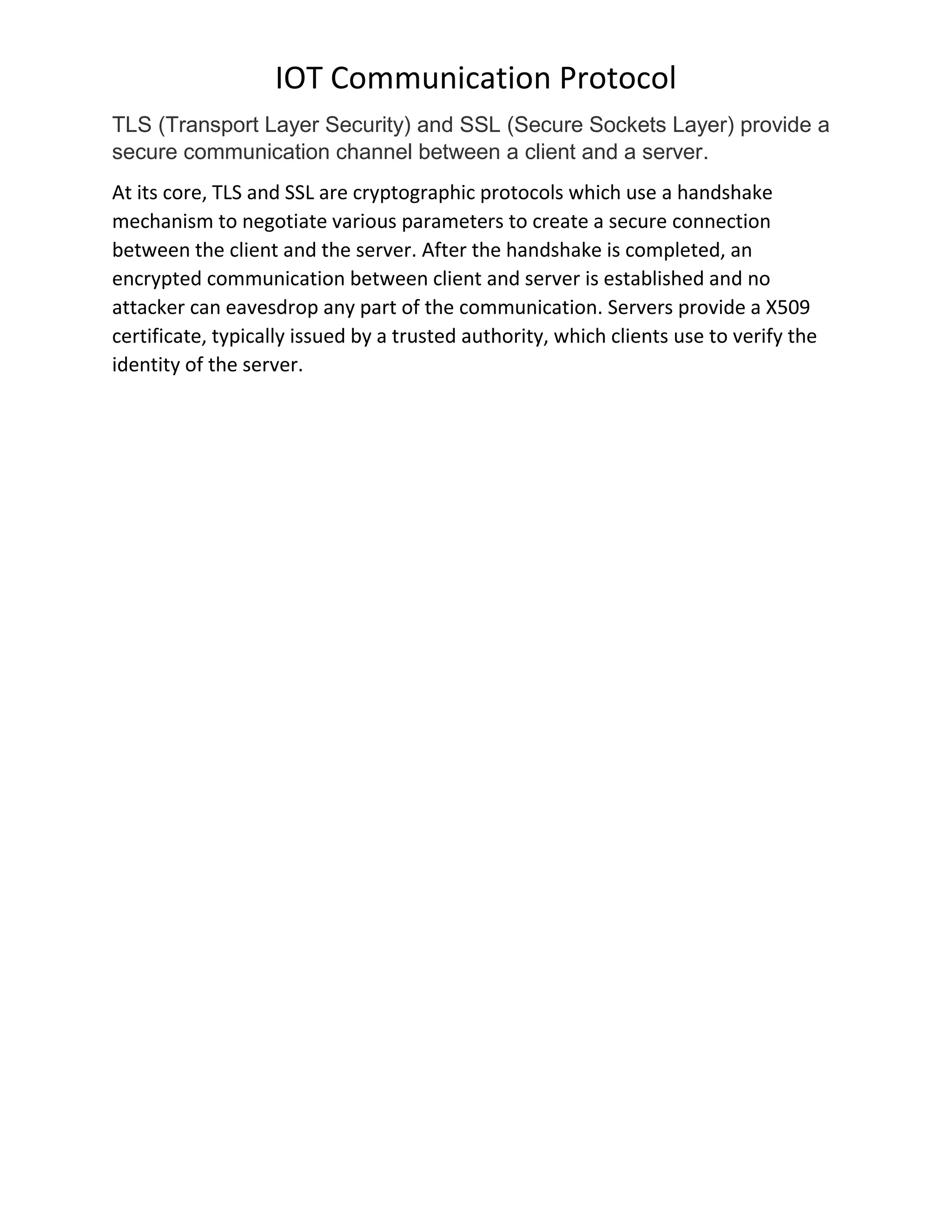

TLS (Transport Layer Security) and SSL (Secure Sockets Layer) provide a
secure communication channel between a client and a server.
At its core, TLS and SSL are cryptographic protocols which use a handshake
mechanism to negotiate various parameters to create a secure connection
between the client and the server. After the handshake is completed, an
encrypted communication between client and server is established and no
attacker can eavesdrop any part of the communication. Servers provide a X509
certificate, typically issued by a trusted authority, which clients use to verify the
identity of the server.

IoT Communication Protocols, Socket Programming with Python, MQTT & HTTP

More Related Content

What's hot

Similar to IoT Communication Protocols, Socket Programming with Python, MQTT & HTTP

More from Anshu Pandey

Recently uploaded

IoT Communication Protocols, Socket Programming with Python, MQTT & HTTP
