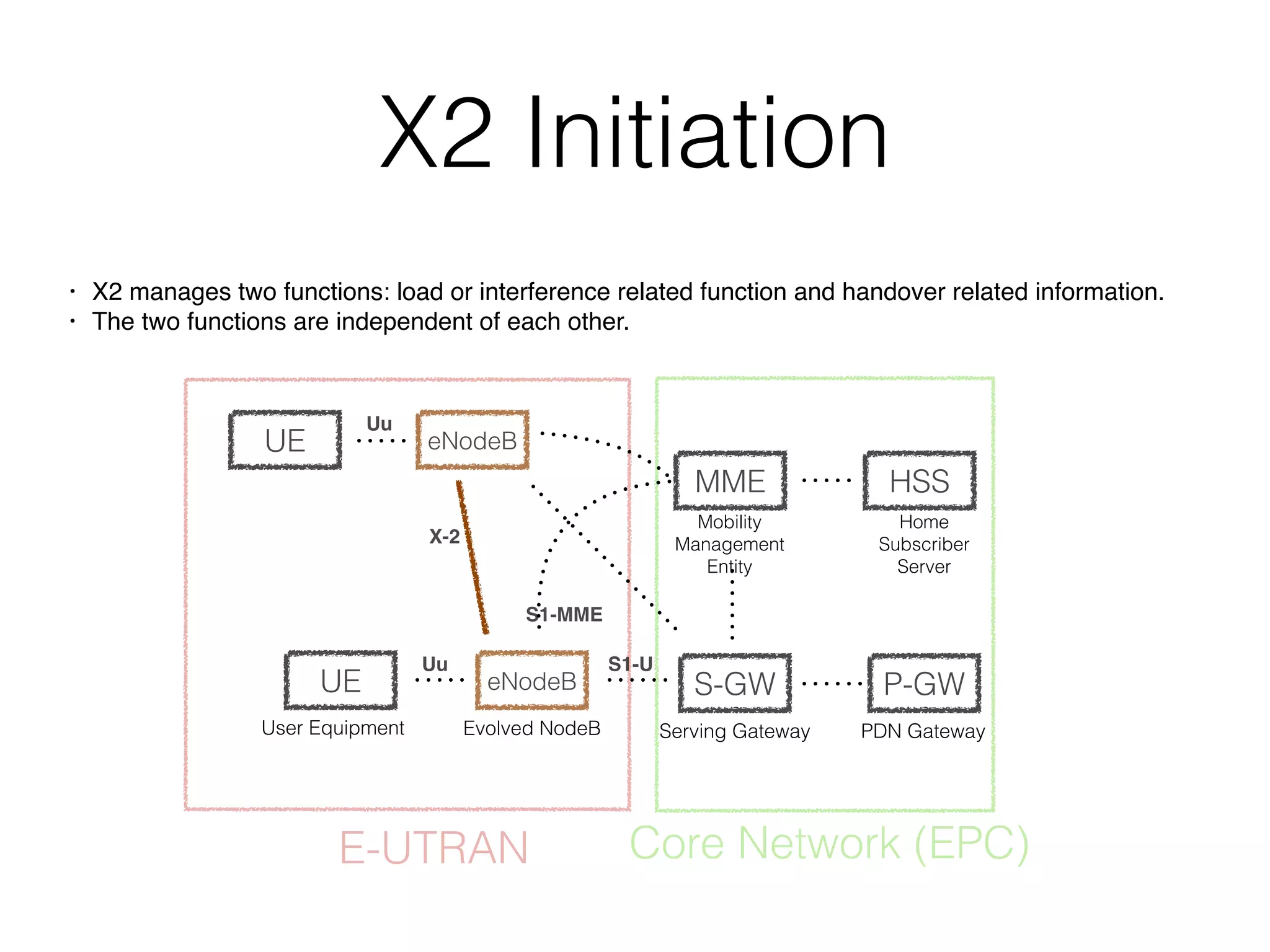

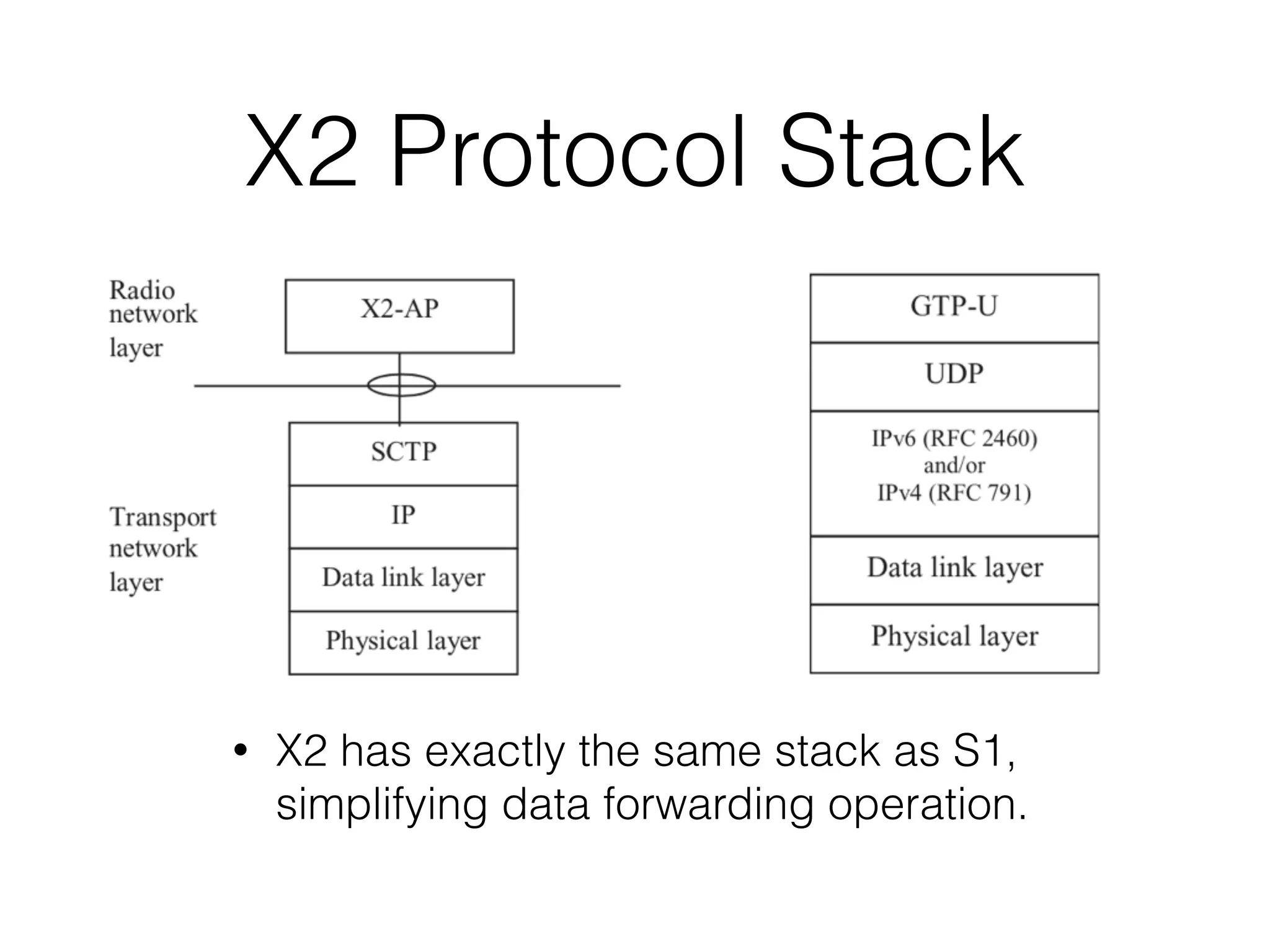

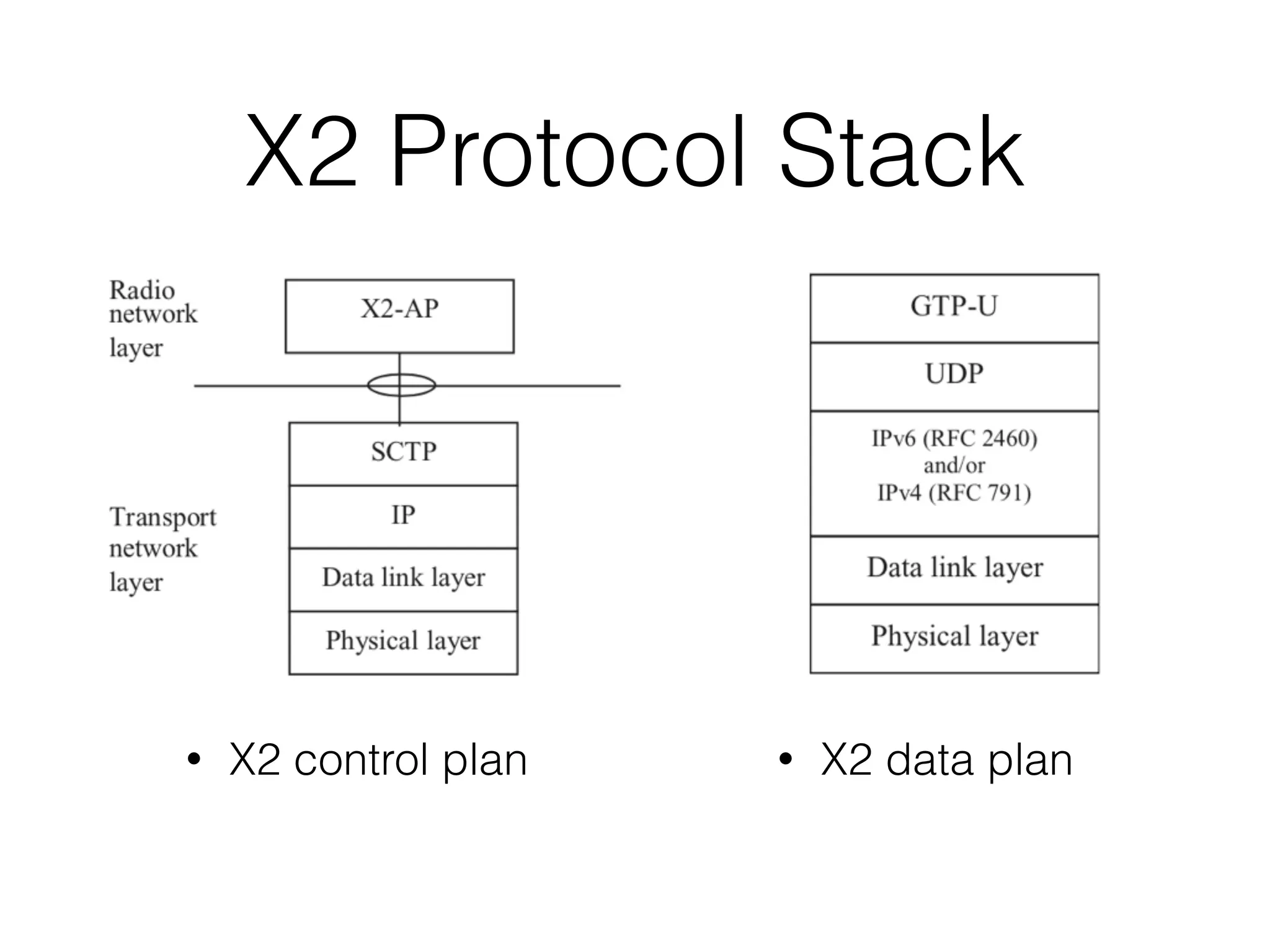

5. X2 Initiation
• X2 manages two functions: load or interference related function and handover related information.
• The two functions are independent of each other.
UE eNodeB
MME
S-GW P-GW
HSS
User Equipment Evolved NodeB Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
Uu
S1-MME
S1-U
E-UTRAN Core Network (EPC)
UE
Uu
eNodeB
X-2

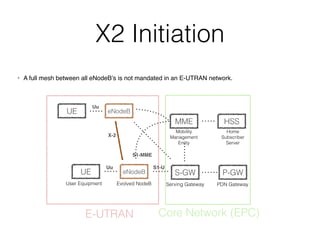

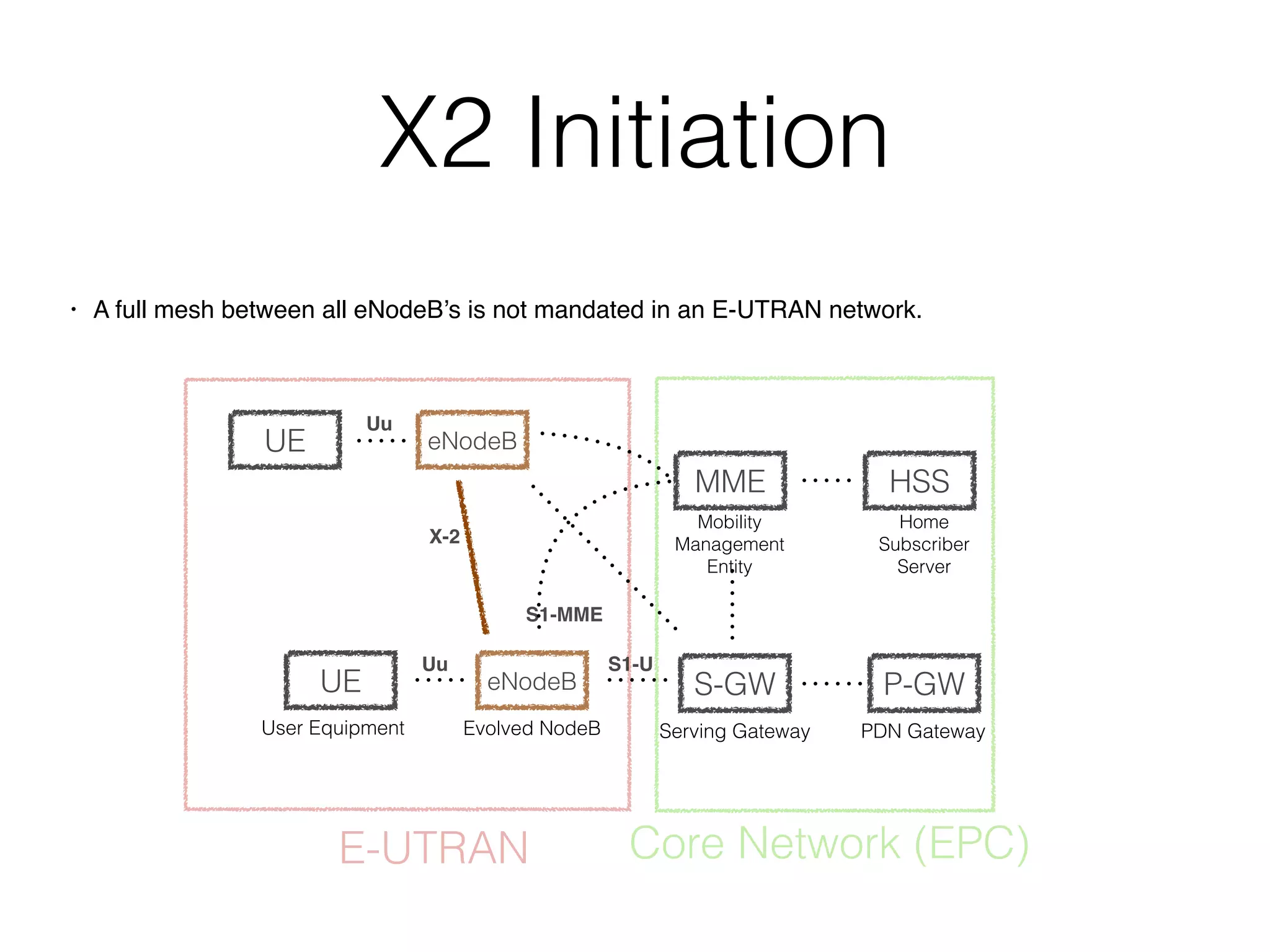

6. X2 Initiation
• A full mesh between all eNodeB’s is not mandated in an E-UTRAN network.
UE eNodeB
MME
S-GW P-GW
HSS
User Equipment Evolved NodeB Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
Uu
S1-MME
S1-U
E-UTRAN Core Network (EPC)
UE
Uu
eNodeB
X-2

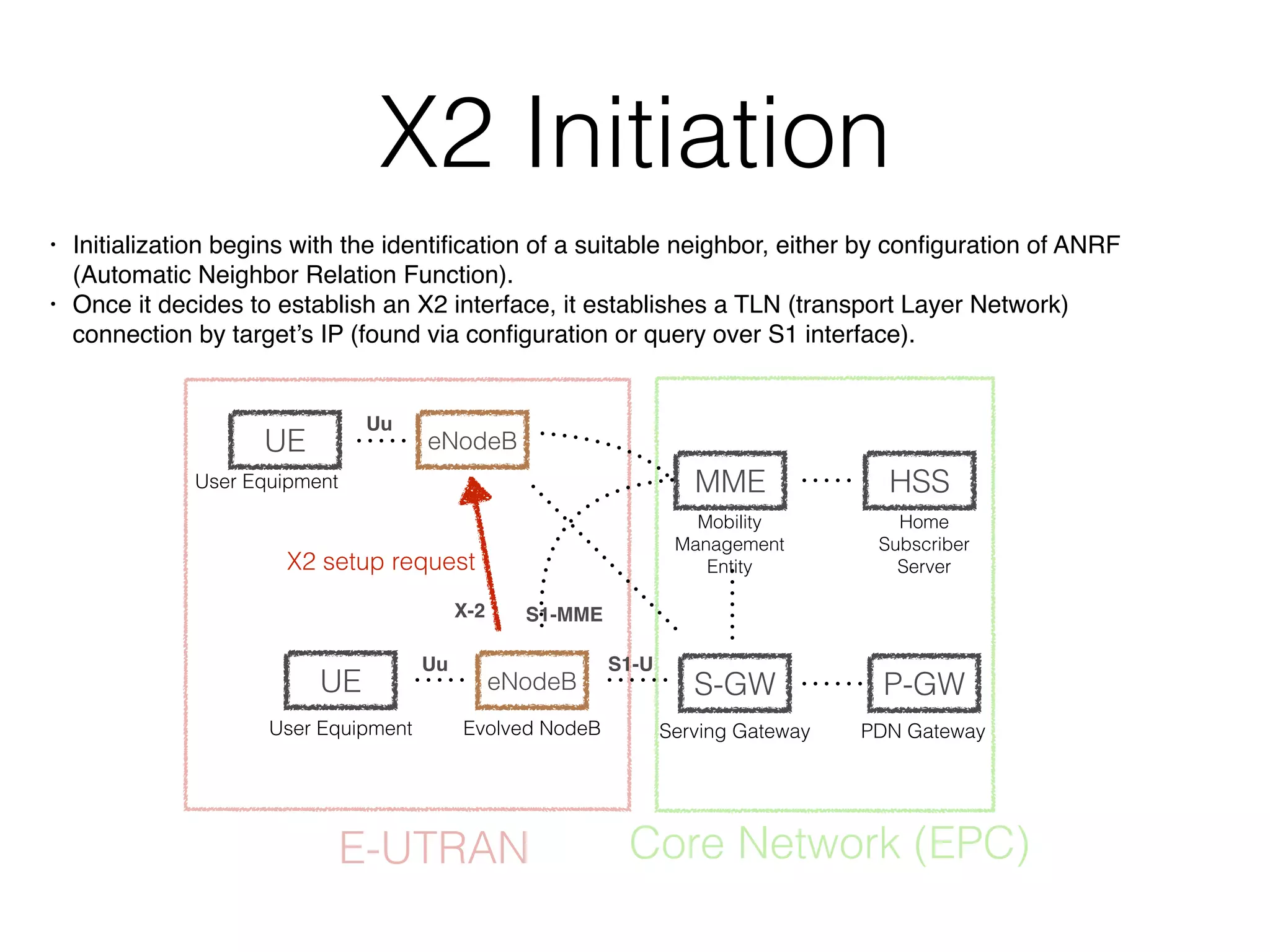

7. X2 Initiation
• Initialization begins with the identification of a suitable neighbor, either by configuration of ANRF
(Automatic Neighbor Relation Function).
• Once it decides to establish an X2 interface, it establishes a TLN (transport Layer Network)
connection by target’s IP (found via configuration or query over S1 interface).
UE eNodeB
MME
S-GW P-GW
HSS
User Equipment Evolved NodeB Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
Uu
S1-MME
S1-U
E-UTRAN Core Network (EPC)
UE
User Equipment
Uu
eNodeB
X-2
X2 setup request

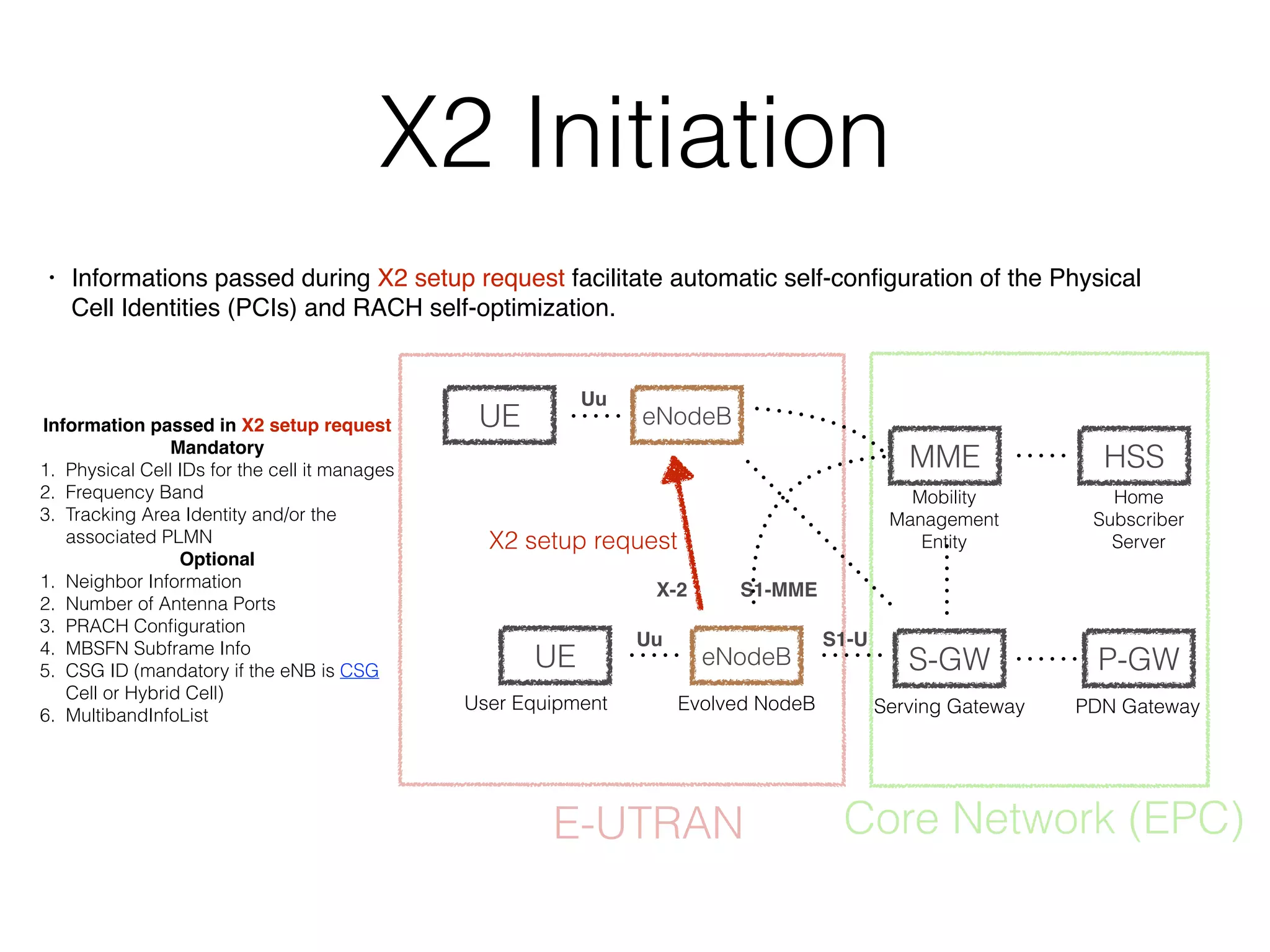

8. X2 Initiation
Information passed in X2 setup request
Mandatory
1. Physical Cell IDs for the cell it manages
2. Frequency Band
3. Tracking Area Identity and/or the
associated PLMN
Optional
1. Neighbor Information
2. Number of Antenna Ports
3. PRACH Configuration
4. MBSFN Subframe Info
5. CSG ID (mandatory if the eNB is CSG
Cell or Hybrid Cell)
6. MultibandInfoList
UE eNodeB
MME
S-GW P-GW
HSS
User Equipment Evolved NodeB Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
Uu
S1-MME
S1-U
E-UTRAN Core Network (EPC)
UE
Uu
eNodeB
X-2
• Informations passed during X2 setup request facilitate automatic self-configuration of the Physical
Cell Identities (PCIs) and RACH self-optimization.
X2 setup request

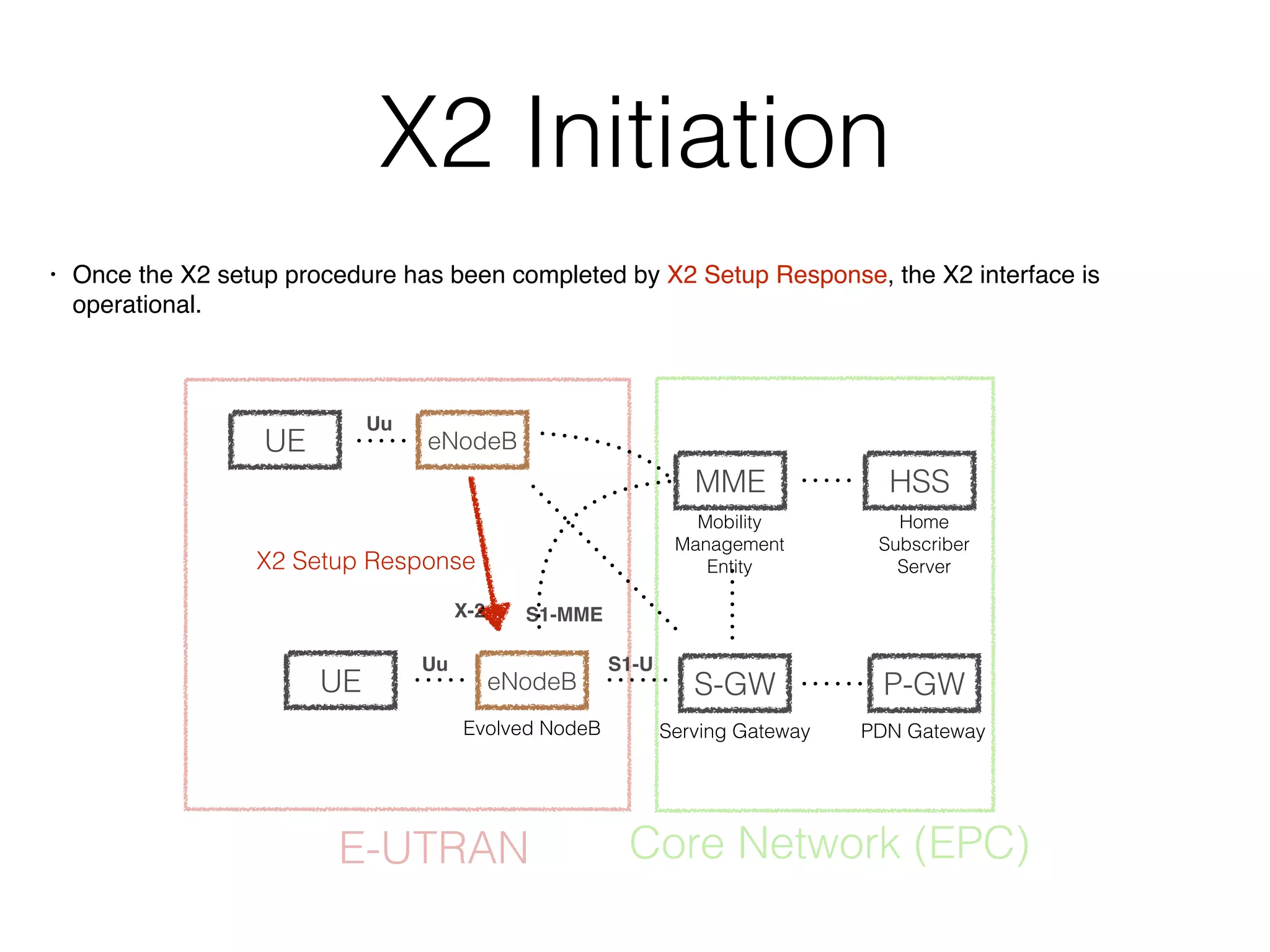

9. X2 Initiation
• Once the X2 setup procedure has been completed by X2 Setup Response, the X2 interface is
operational.
UE eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
Uu
S1-MME
S1-U
E-UTRAN Core Network (EPC)
UE
Uu
eNodeB
X-2
X2 Setup Response

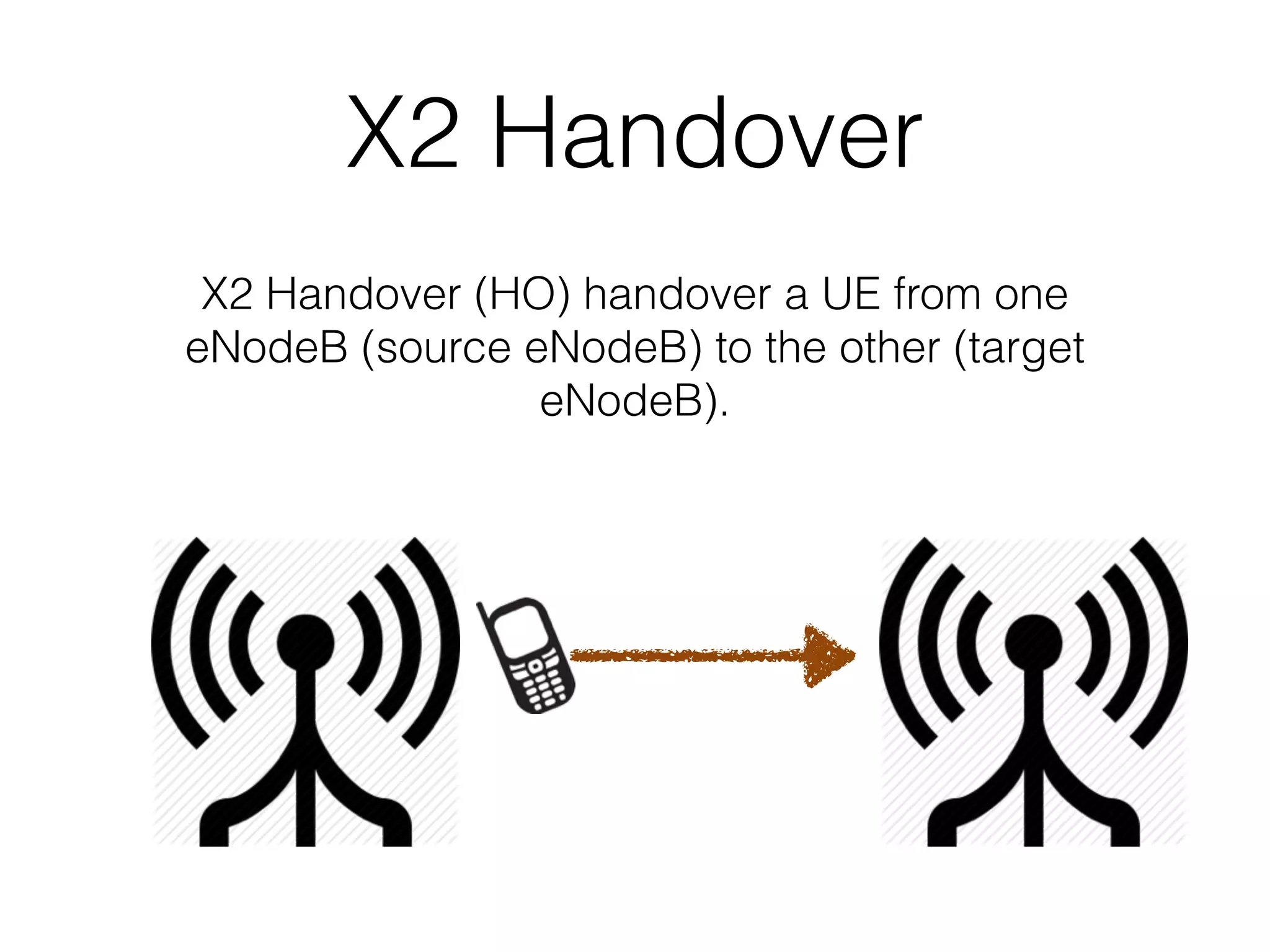

10. X2 Handover
X2 Handover (HO) handover a UE from one
eNodeB (source eNodeB) to the other (target
eNodeB).

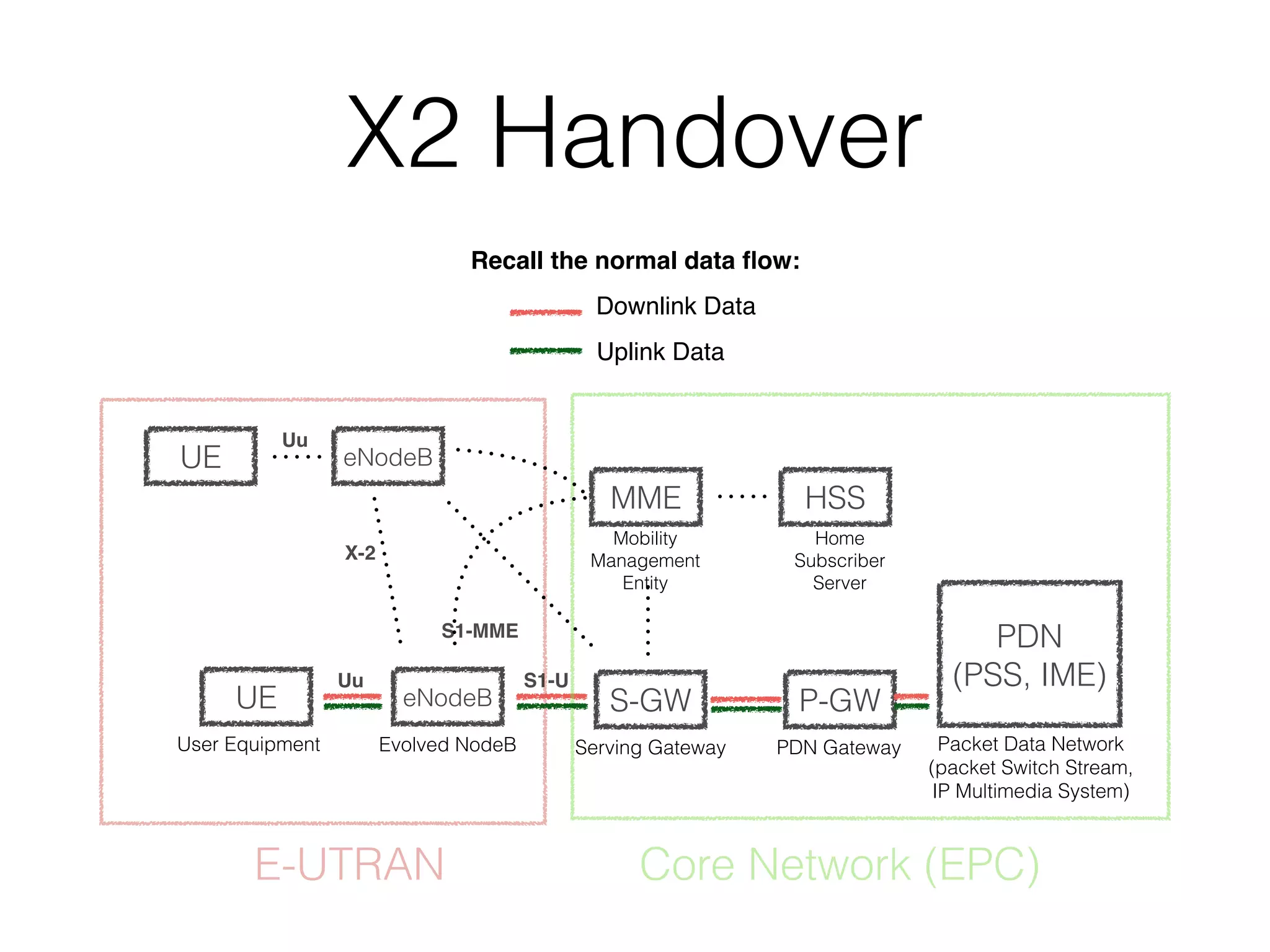

11. X2 Handover
UE eNodeB
MME
S-GW P-GW
PDN
(PSS, IME)
HSS
User Equipment Evolved NodeB Serving Gateway PDN Gateway Packet Data Network
(packet Switch Stream,
IP Multimedia System)
Mobility
Management
Entity
Home
Subscriber
Server
Downlink Data
Uu
S1-MME
S1-U
E-UTRAN Core Network (EPC)
UE
Uu
eNodeB
X-2
Uplink Data
Recall the normal data flow:

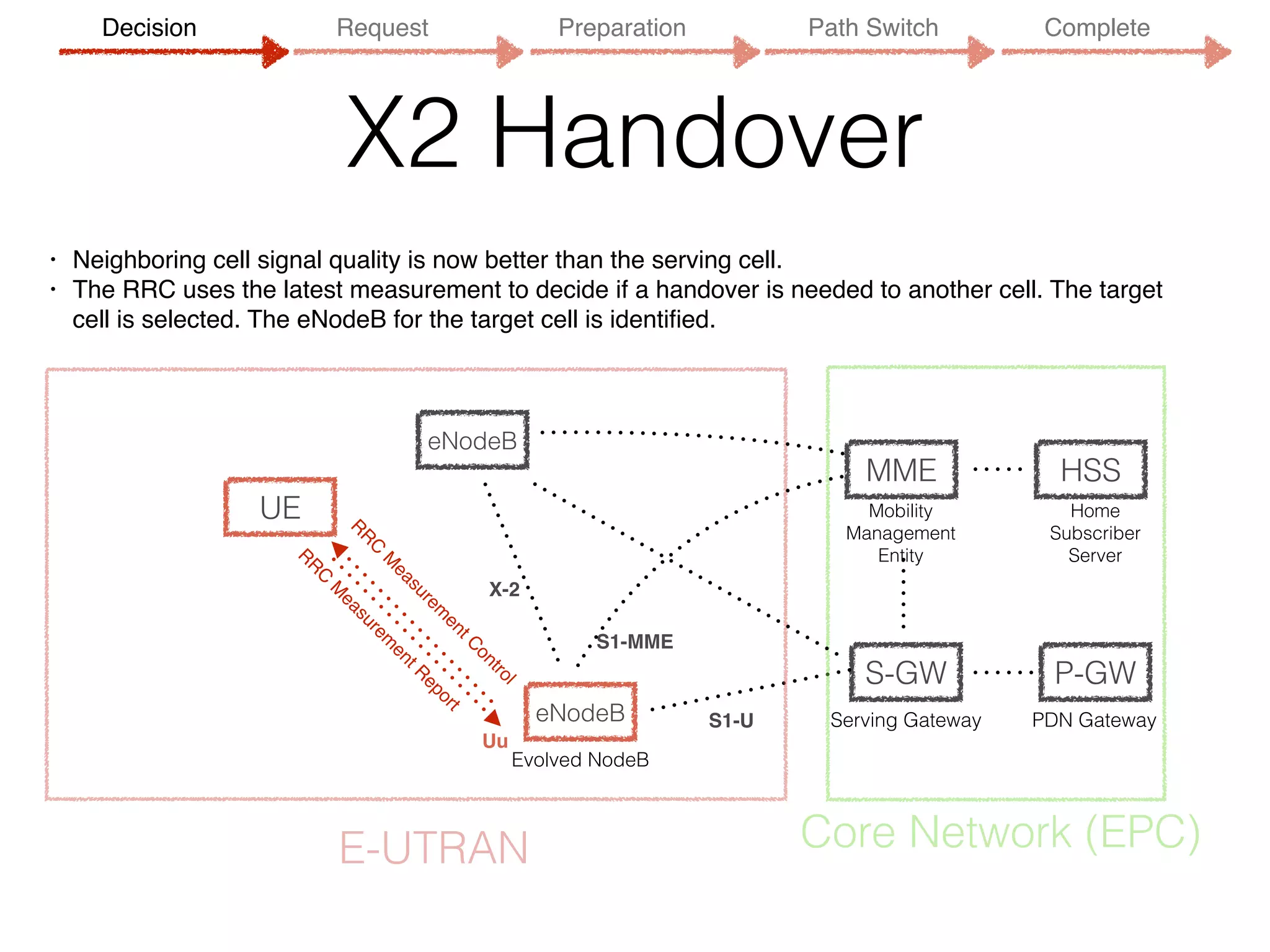

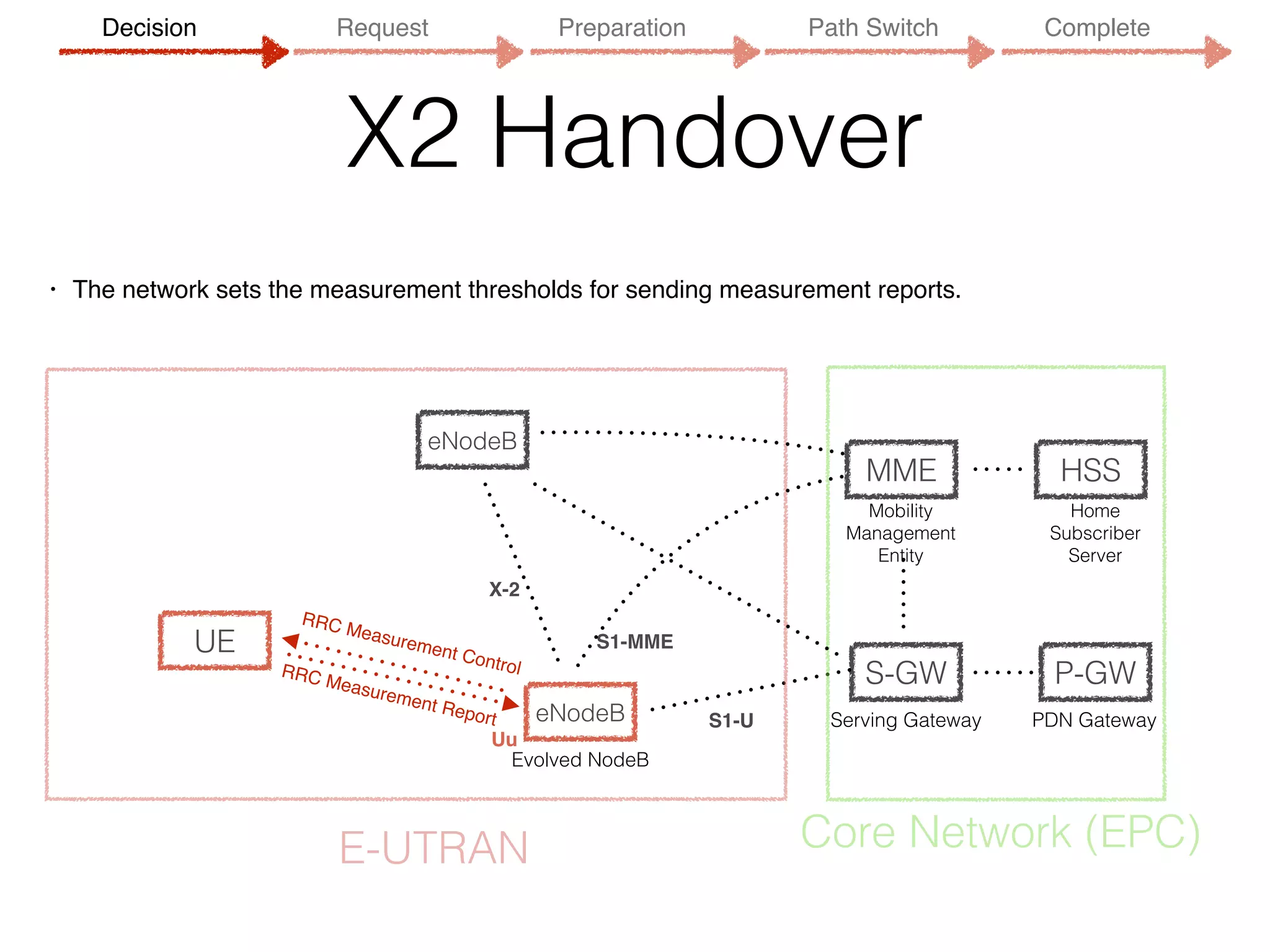

13. X2 Handover
• Neighboring cell signal quality is now better than the serving cell.
• The RRC uses the latest measurement to decide if a handover is needed to another cell. The target
cell is selected. The eNodeB for the target cell is identified.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
Uu
S1-MME
S1-U
E-UTRAN Core Network (EPC)
eNodeB
X-2
R
R
C
M
easurem
entC
ontrol
R
R
C
M
easurem
entR
eport
Decision Request Preparation Path Switch Complete

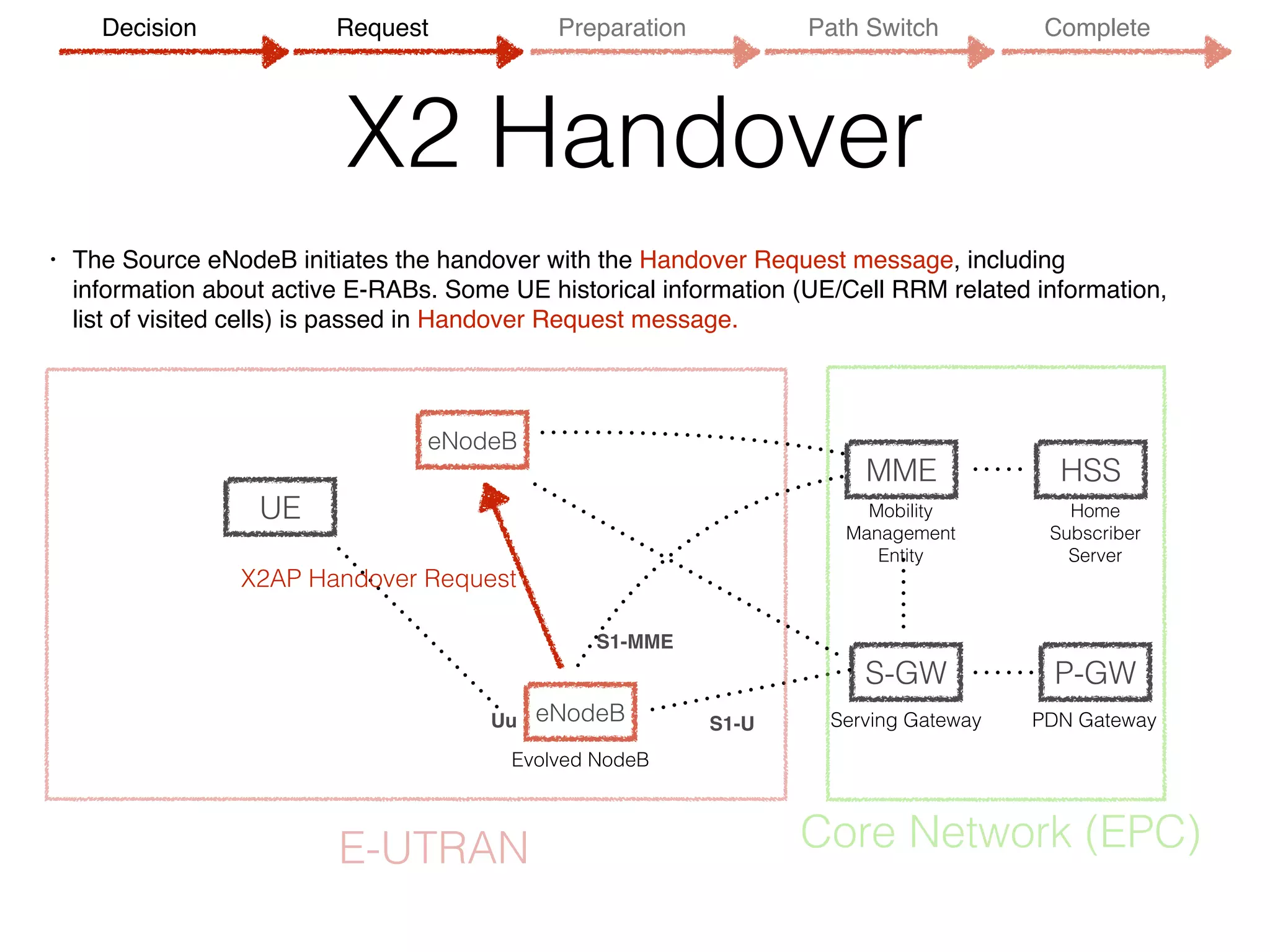

14. X2 Handover
• The Source eNodeB initiates the handover with the Handover Request message, including
information about active E-RABs. Some UE historical information (UE/Cell RRM related information,
list of visited cells) is passed in Handover Request message.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-MME
S1-U
E-UTRAN Core Network (EPC)
eNodeB
X2AP Handover Request
Uu
Decision Request Preparation Path Switch Complete

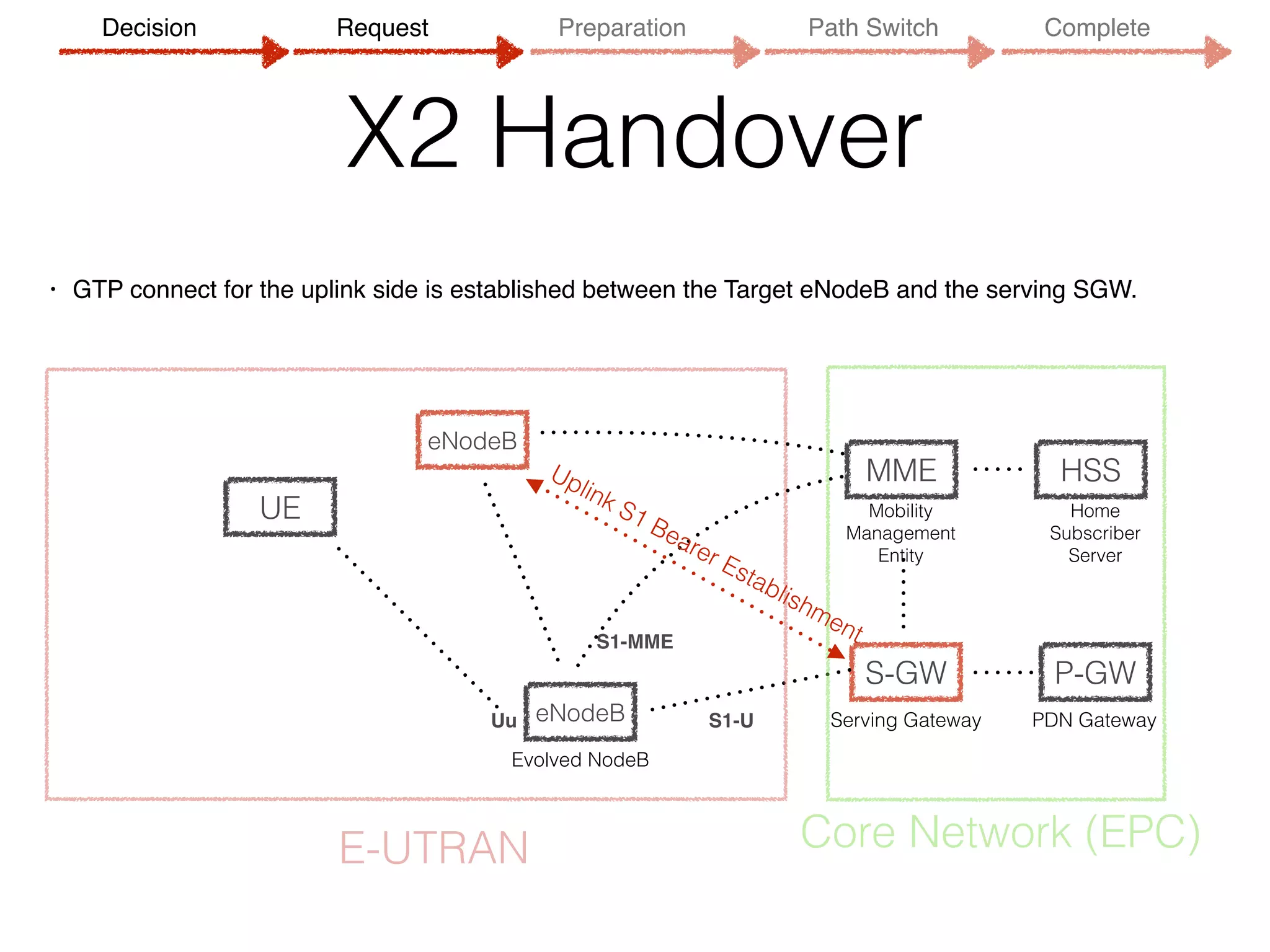

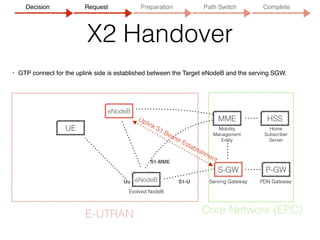

15. X2 Handover
• GTP connect for the uplink side is established between the Target eNodeB and the serving SGW.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
Uu
S1-MME
S1-U
E-UTRAN Core Network (EPC)
eNodeB
Uplink S1 Bearer Establishment
Decision Request Preparation Path Switch Complete

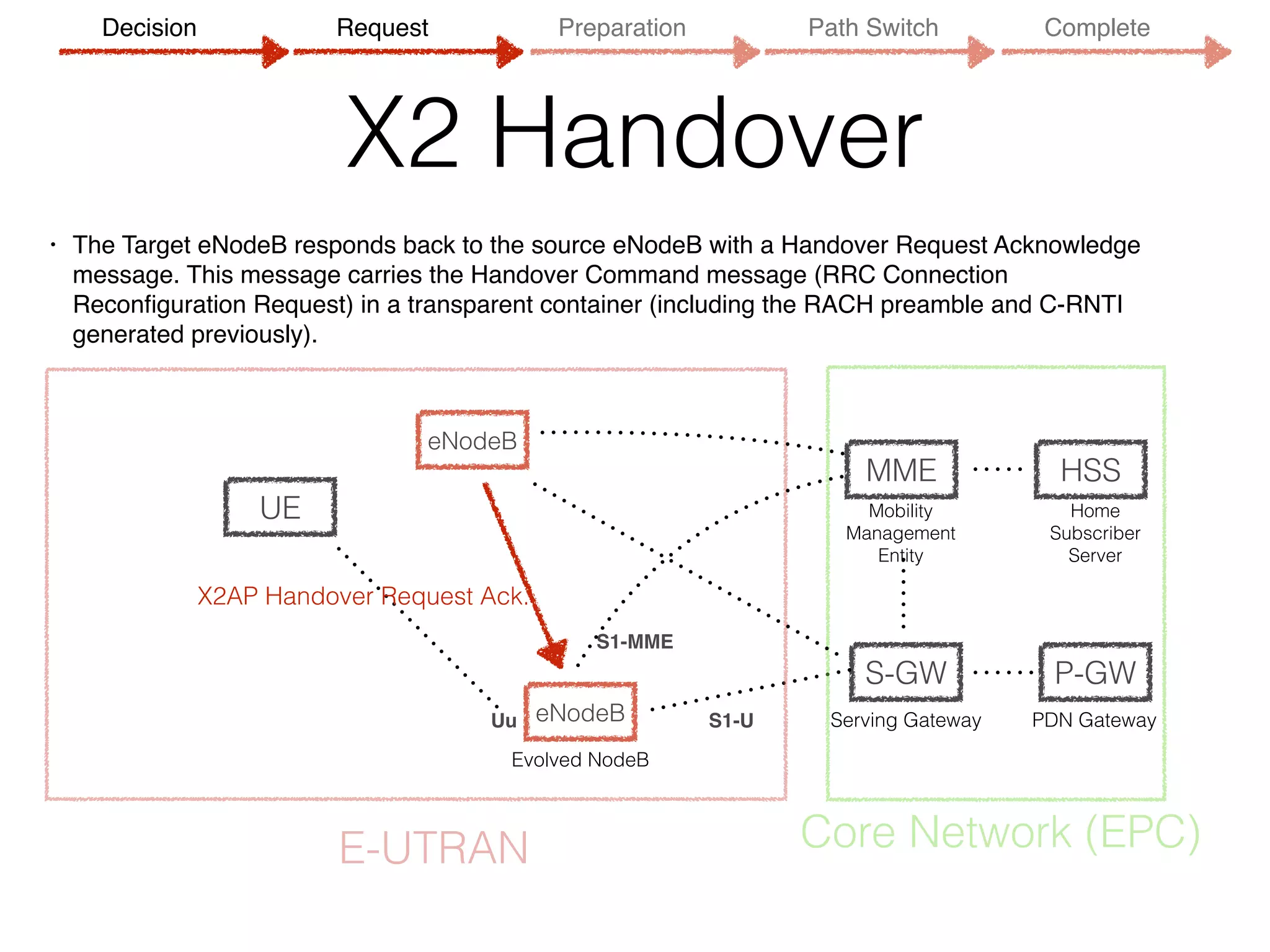

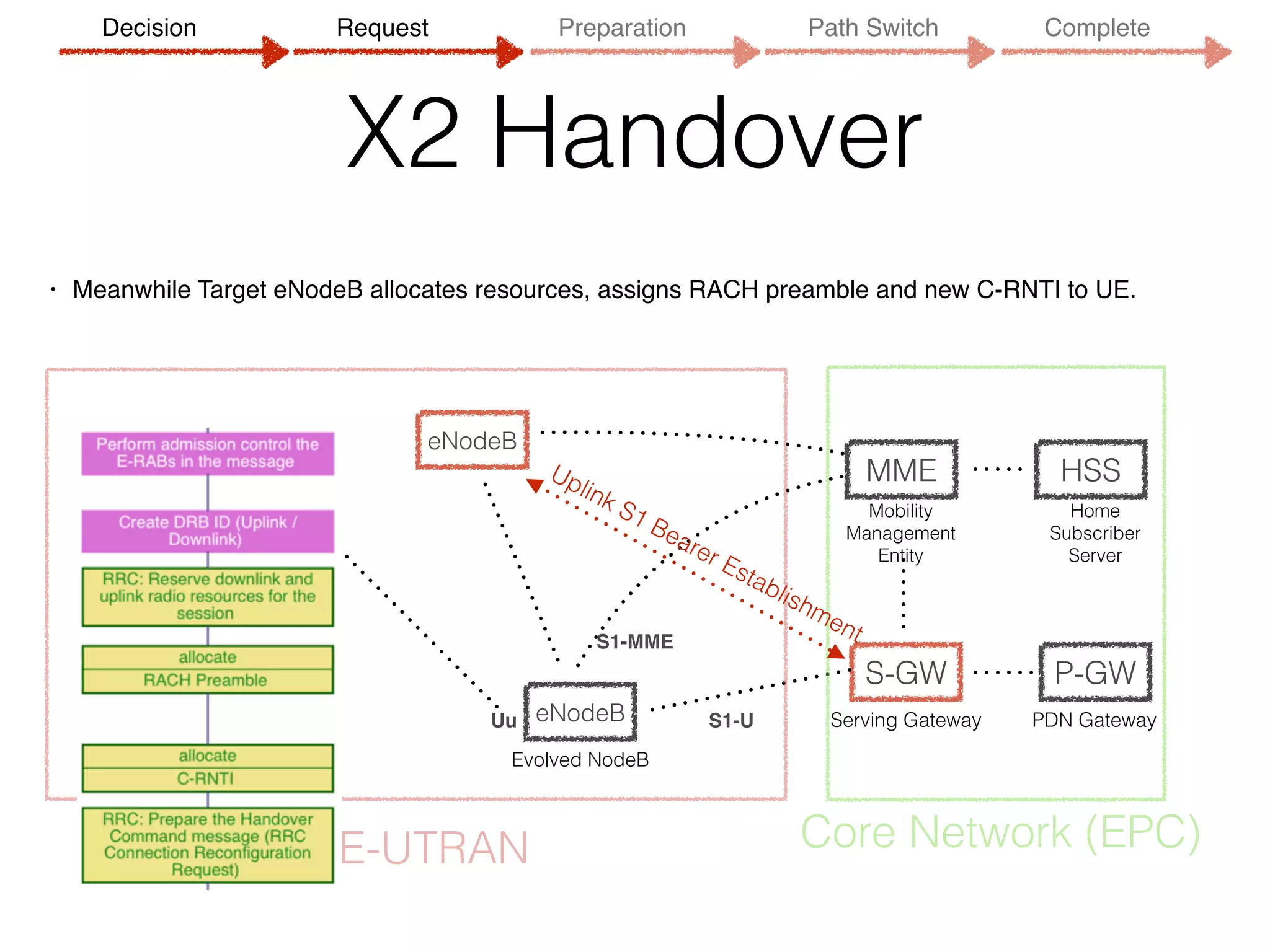

17. X2 Handover
• The Target eNodeB responds back to the source eNodeB with a Handover Request Acknowledge
message. This message carries the Handover Command message (RRC Connection
Reconfiguration Request) in a transparent container (including the RACH preamble and C-RNTI
generated previously).
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-MME
S1-U
E-UTRAN Core Network (EPC)
eNodeB
X2AP Handover Request Ack.
Uu
Decision Request Preparation Path Switch Complete

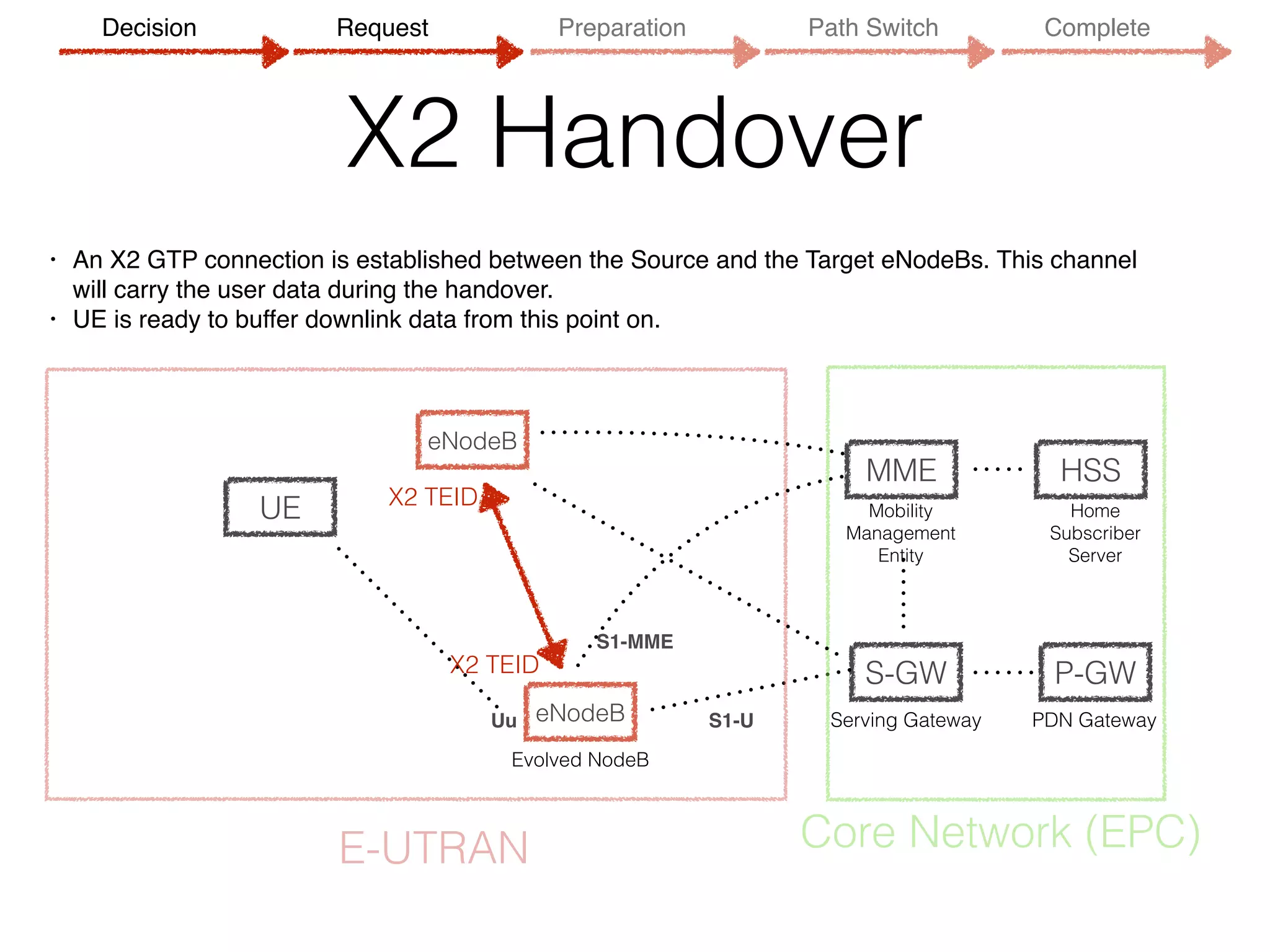

18. X2 Handover
• An X2 GTP connection is established between the Source and the Target eNodeBs. This channel
will carry the user data during the handover.
• UE is ready to buffer downlink data from this point on.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-MME
S1-U
E-UTRAN Core Network (EPC)
eNodeB
X2 TEID
X2 TEID
Uu
Decision Request Preparation Path Switch Complete

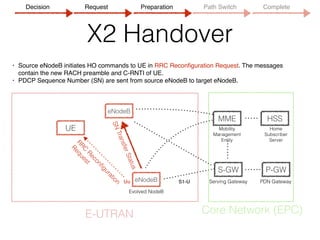

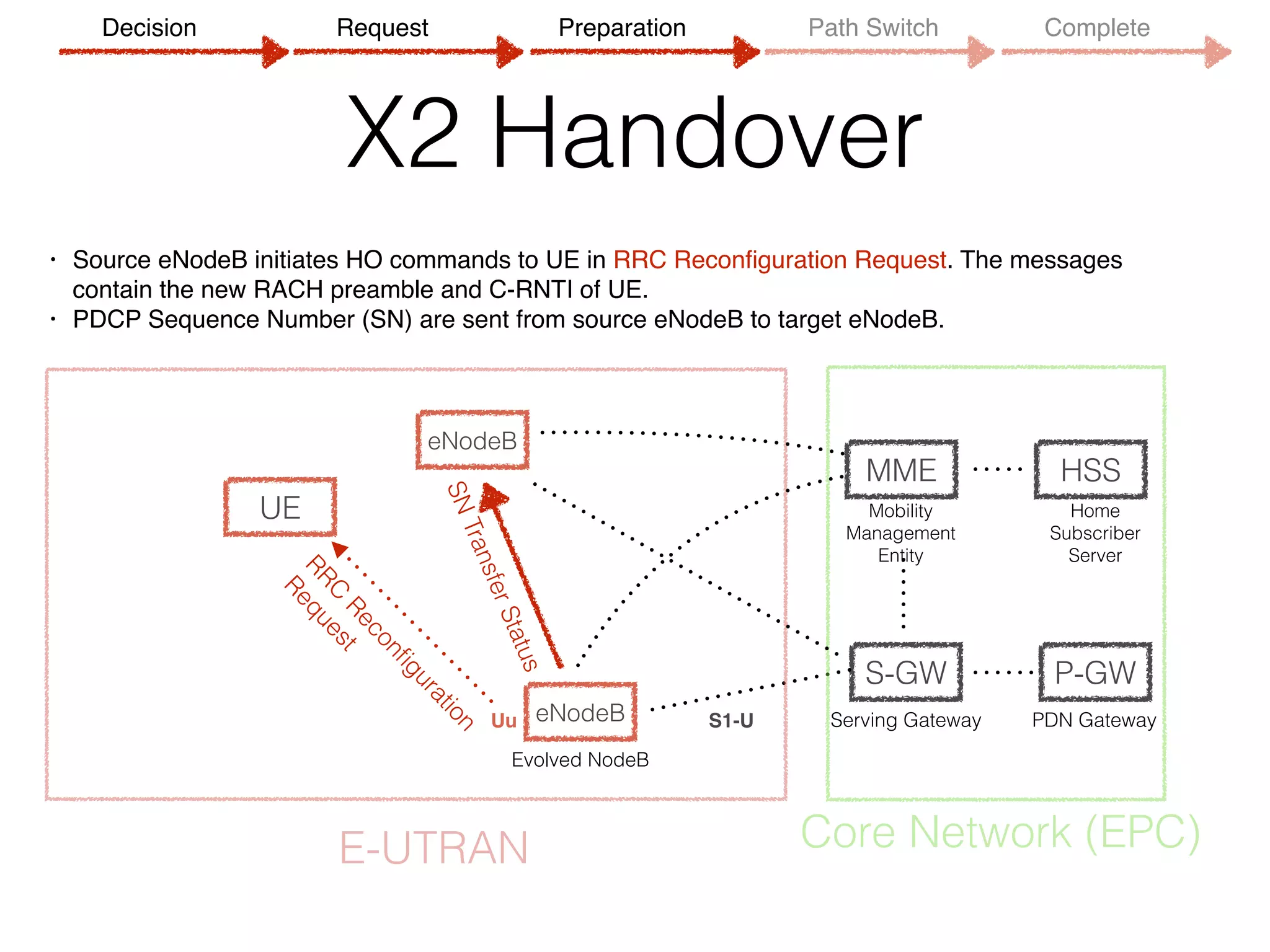

19. X2 Handover
• Source eNodeB initiates HO commands to UE in RRC Reconfiguration Request. The messages
contain the new RACH preamble and C-RNTI of UE.
• PDCP Sequence Number (SN) are sent from source eNodeB to target eNodeB.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeBSNTransferStatus
RRC
Reconfiguration
Request
Uu
Decision Request Preparation Path Switch Complete

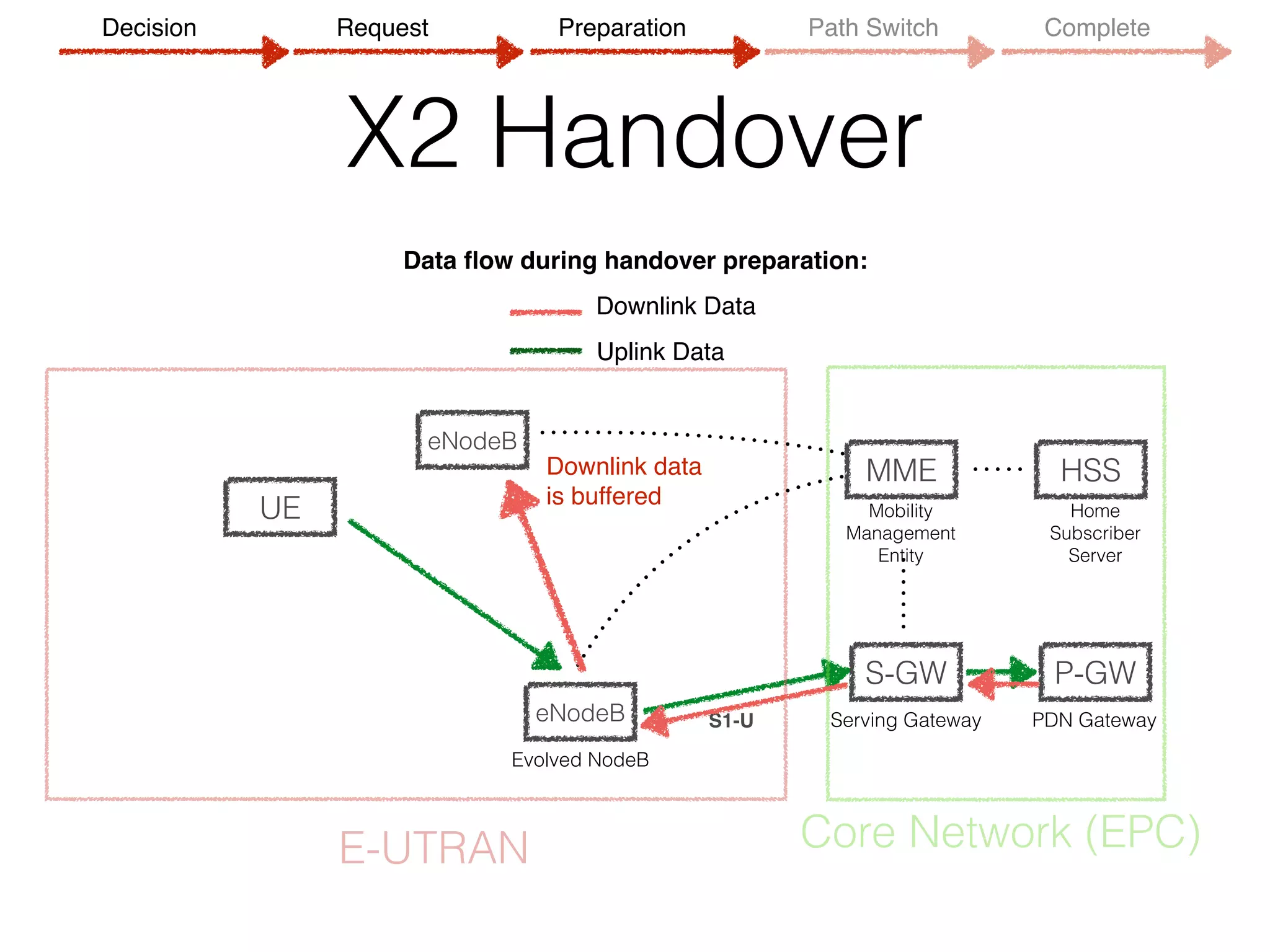

20. X2 Handover
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeB
Downlink Data
Uplink Data
Data flow during handover preparation:
Downlink data
is buffered
Decision Request Preparation Path Switch Complete

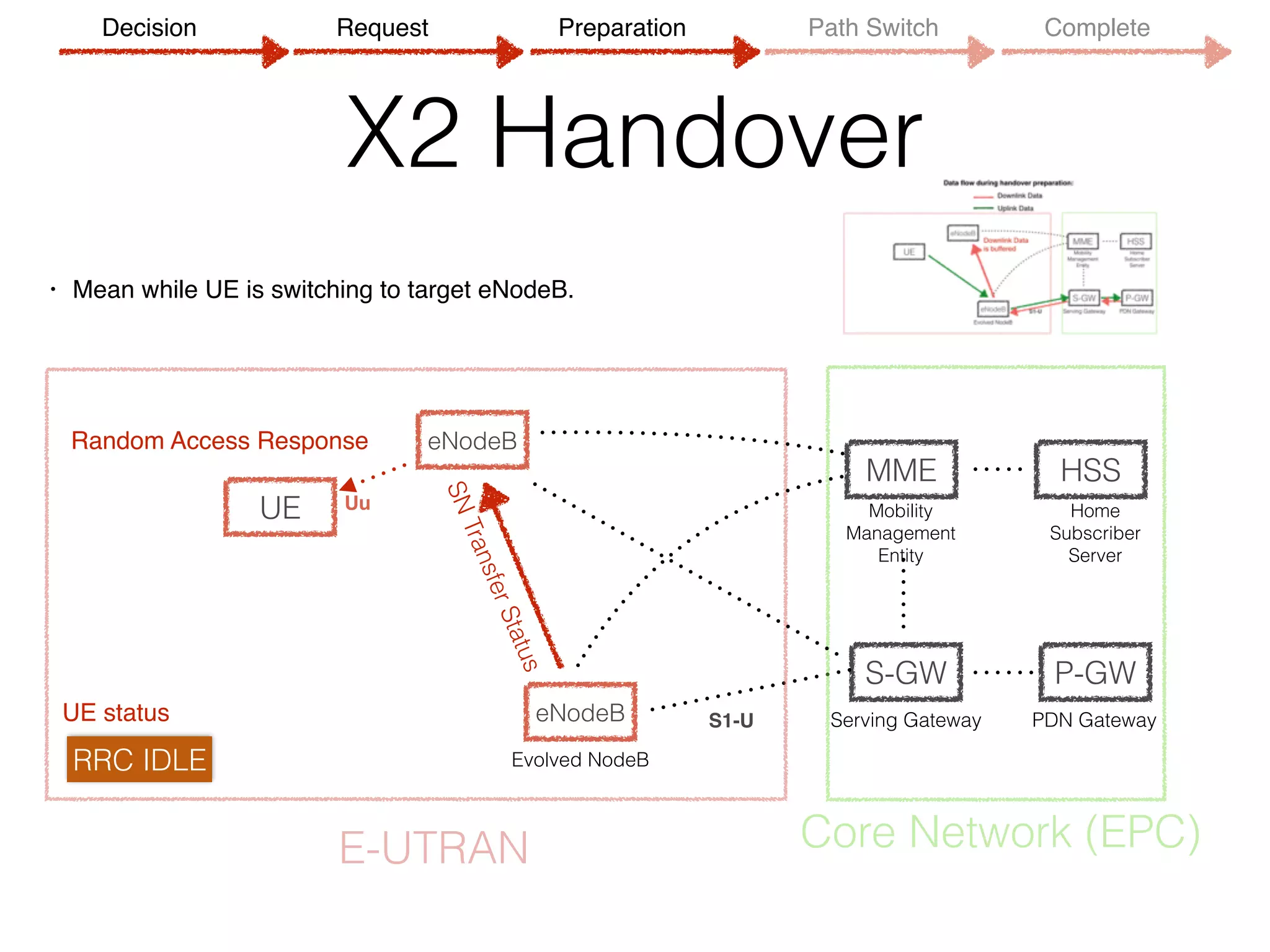

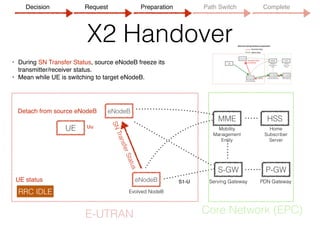

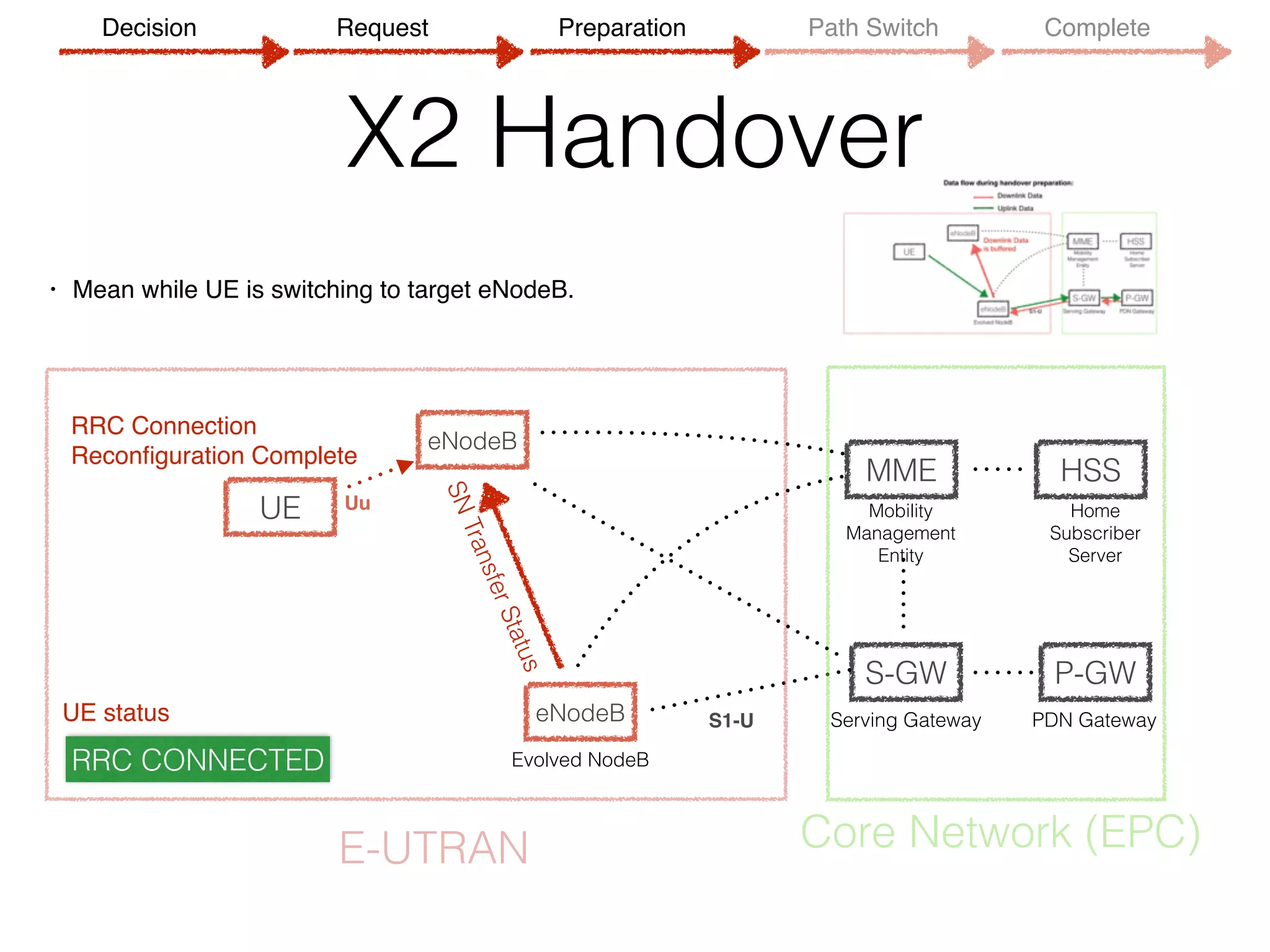

21. X2 Handover
• During SN Transfer Status, source eNodeB freeze its
transmitter/receiver status.

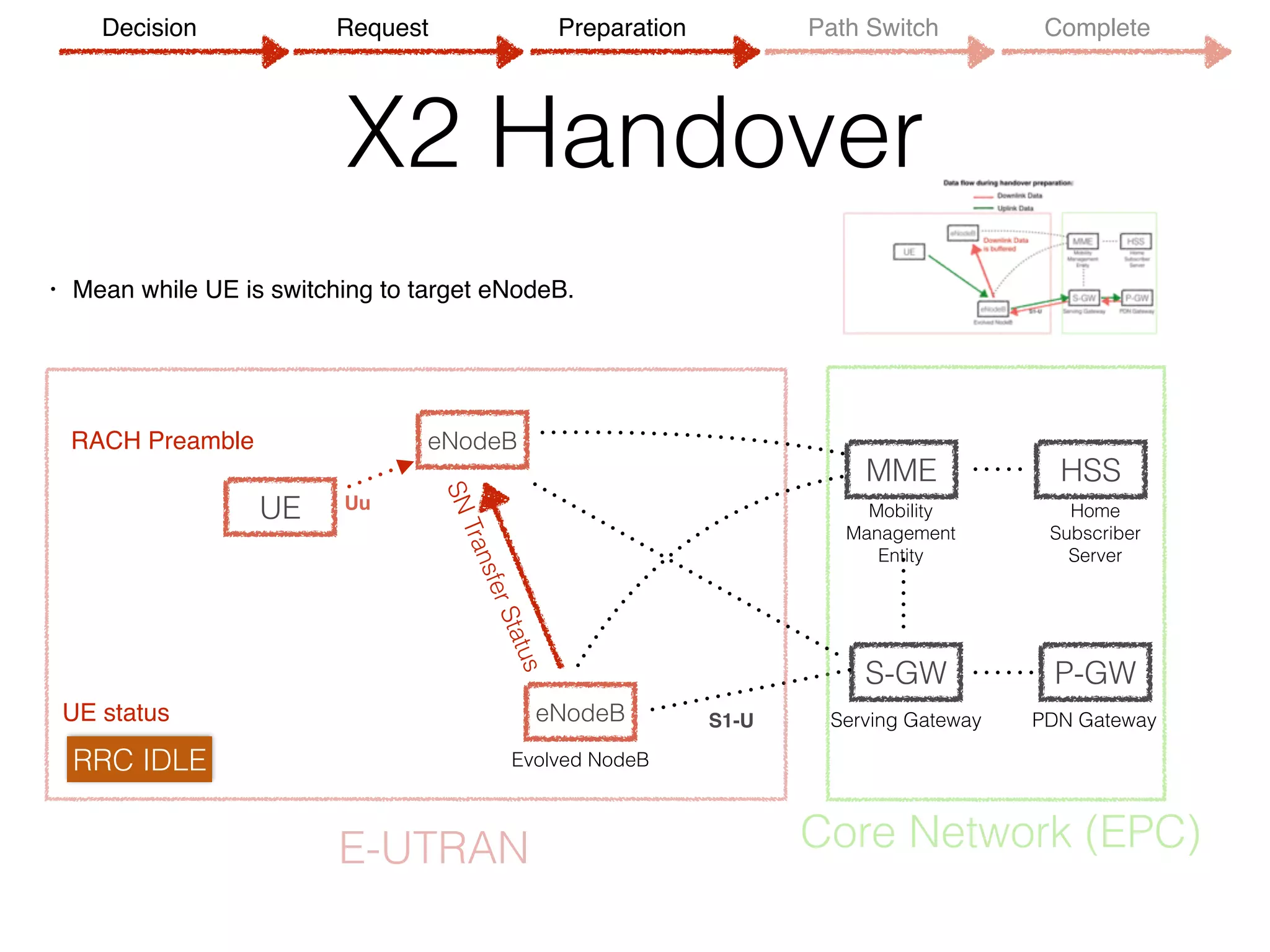

• Mean while UE is switching to target eNodeB.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeBSNTransferStatus
Detach from source eNodeB
RRC IDLE
UE status
Uu
Decision Request Preparation Path Switch Complete
22. X2 Handover
• Mean while UE is switching to target eNodeB.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeBSNTransferStatus
RACH Preamble
RRC IDLE
UE status
Uu
Decision Request Preparation Path Switch Complete
23. X2 Handover
• Mean while UE is switching to target eNodeB.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeBSNTransferStatus
Random Access Response
RRC IDLE
UE status
Uu
Decision Request Preparation Path Switch Complete
24. X2 Handover
• Mean while UE is switching to target eNodeB.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeBSNTransferStatusUu
RRC Connection
Reconfiguration Complete
RRC CONNECTED
UE status
Decision Request Preparation Path Switch Complete
25. X2 Handover
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeBUu
Downlink Data
Uplink Data

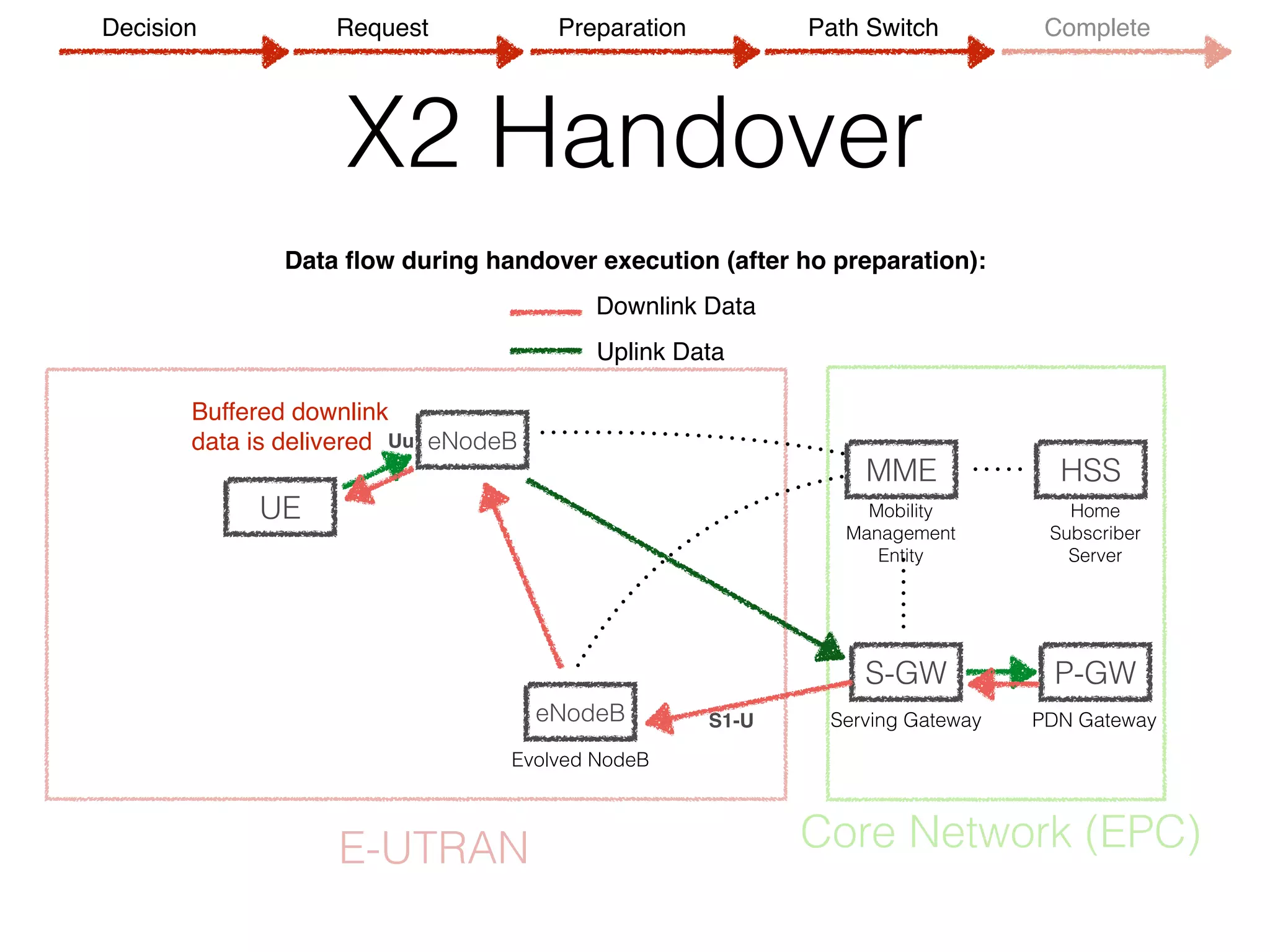

Data flow during handover execution (after ho preparation):
Buffered downlink
data is delivered
Decision Request Preparation Path Switch Complete

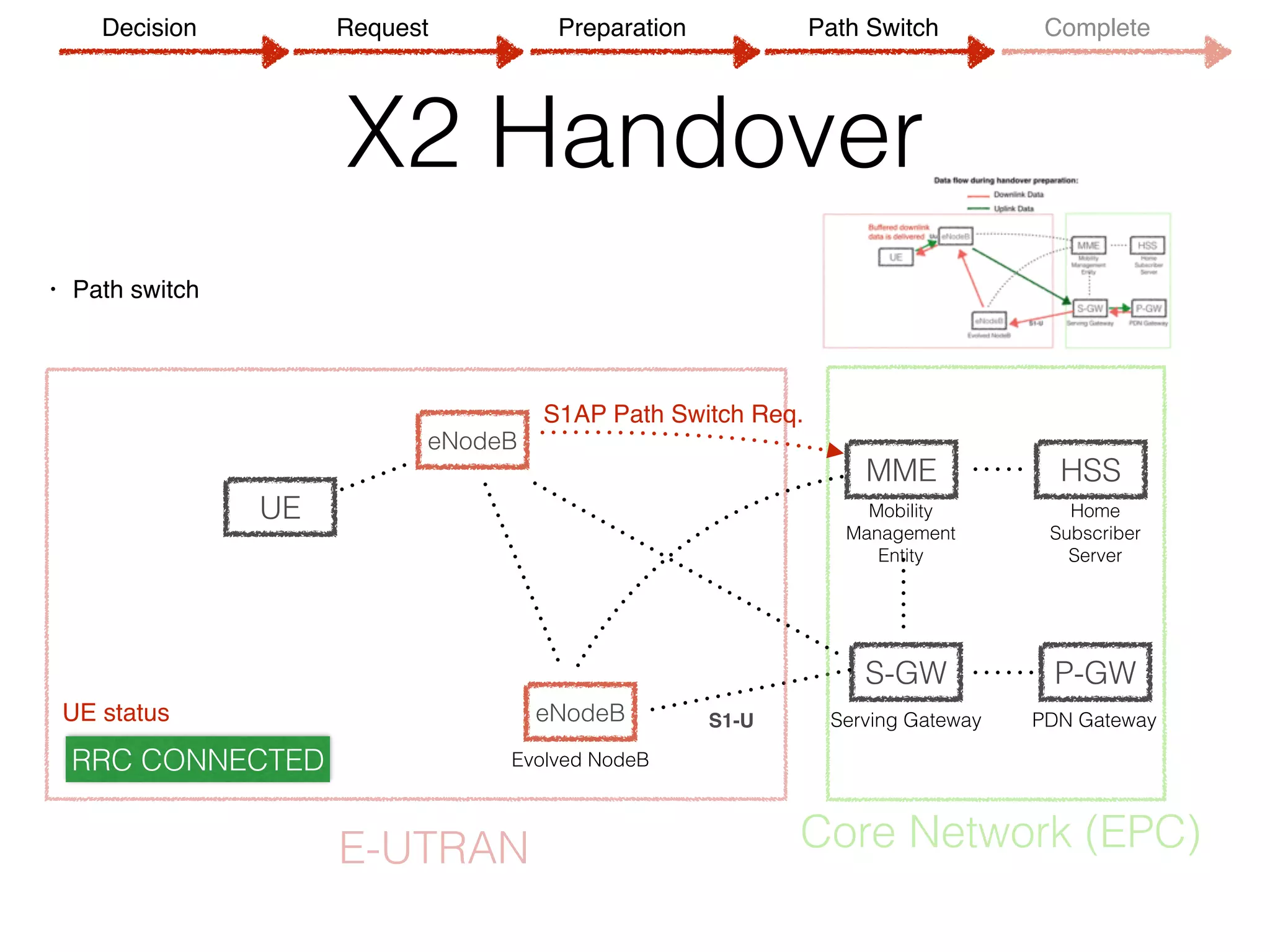

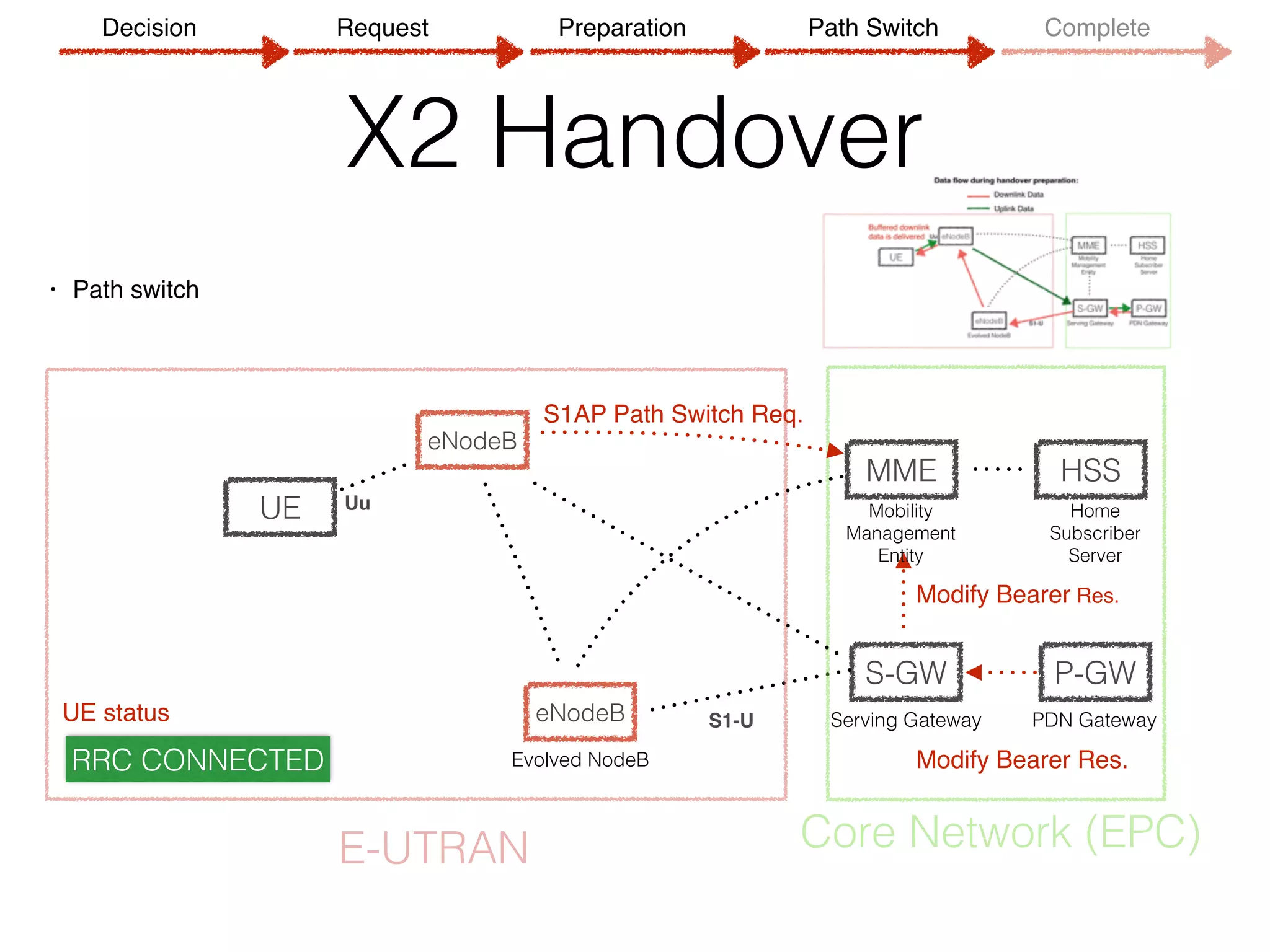

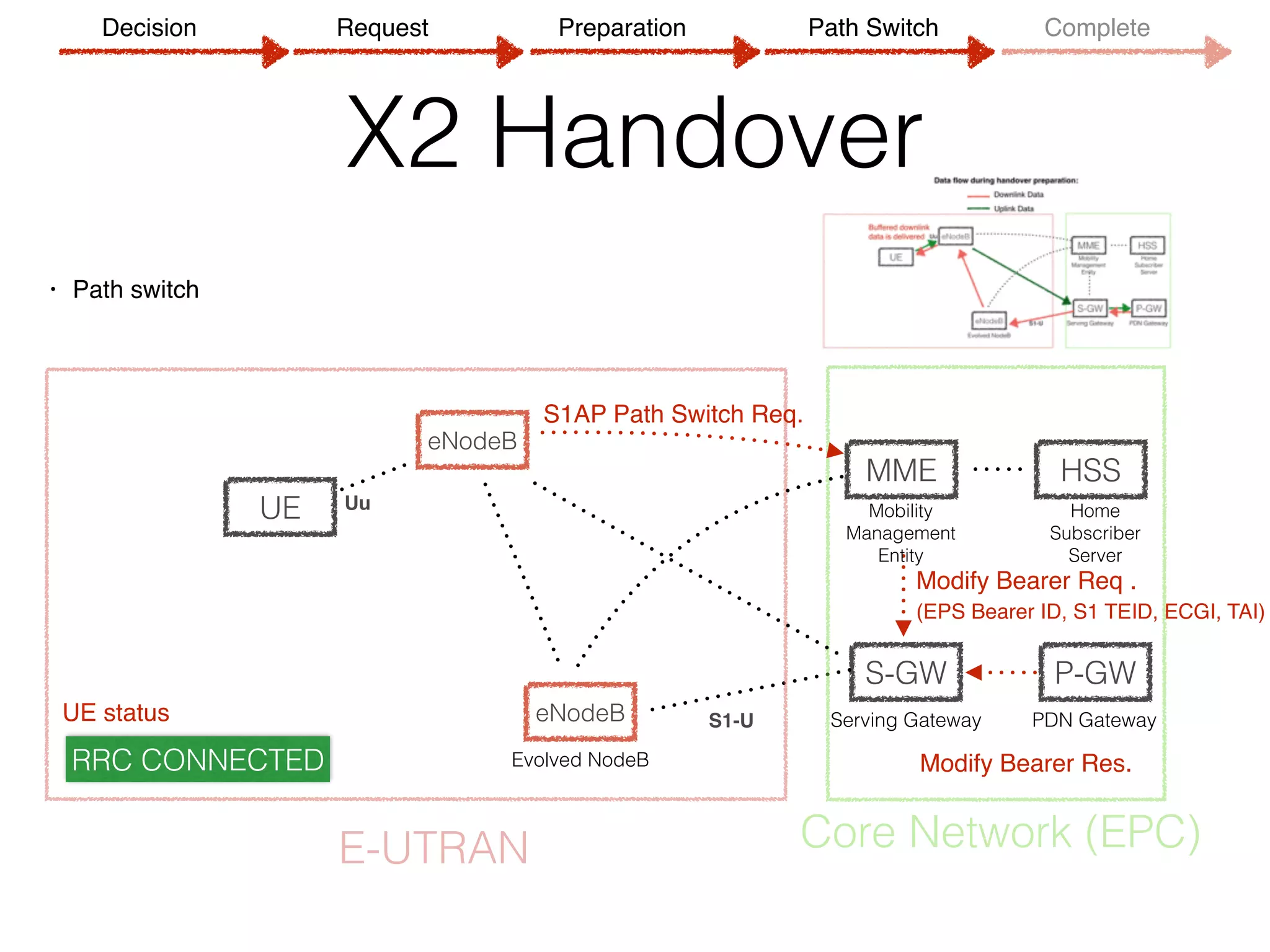

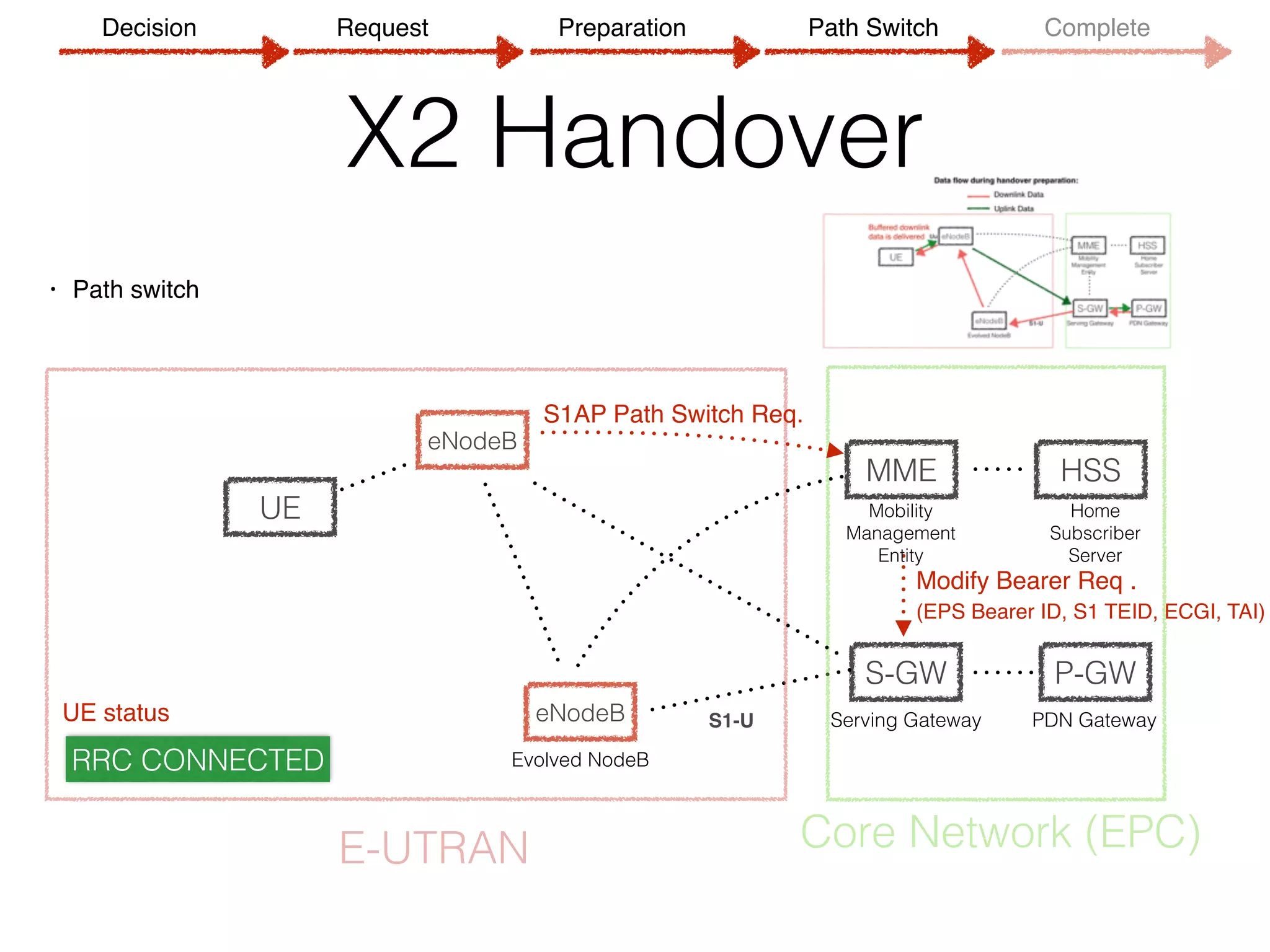

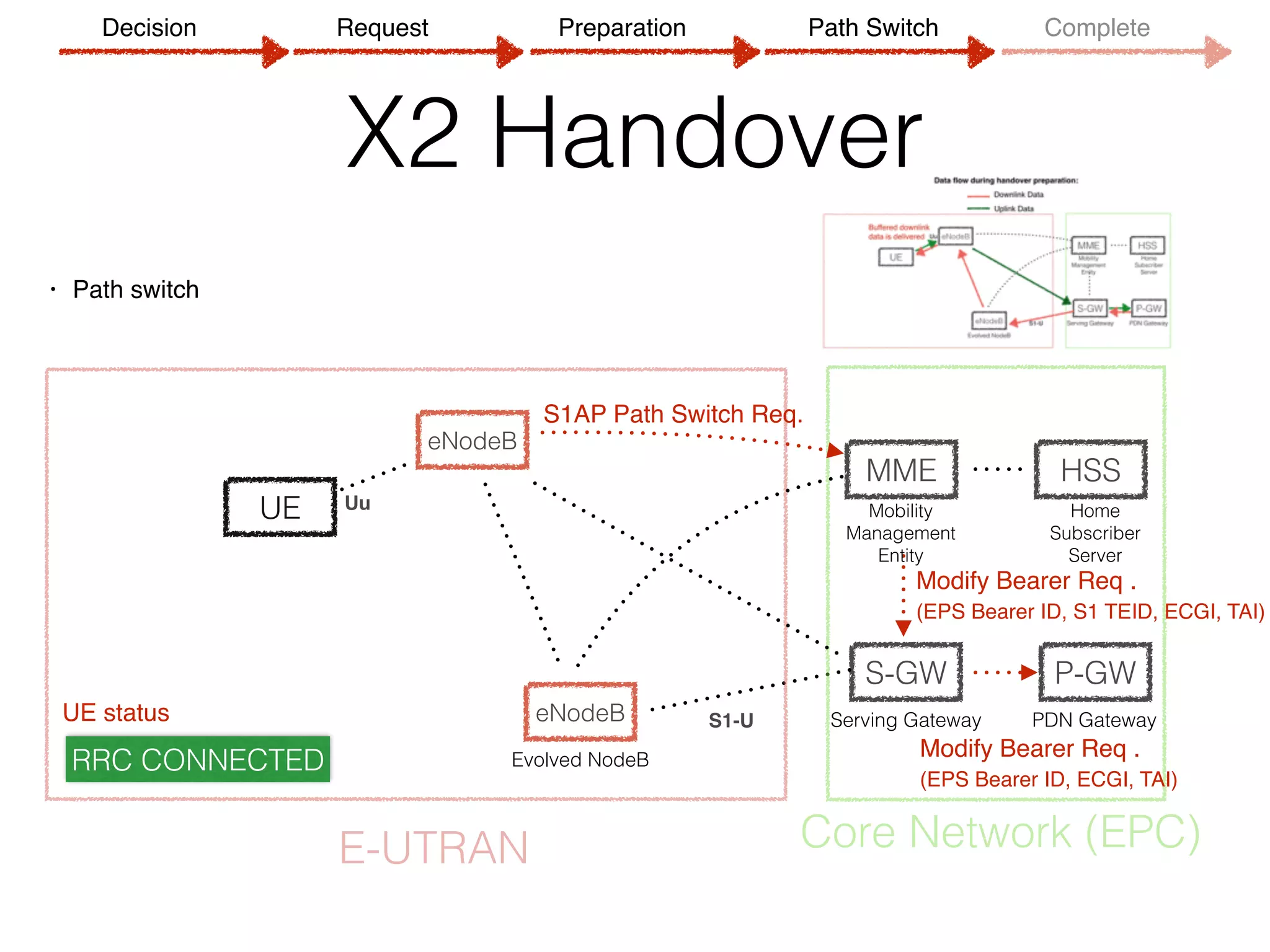

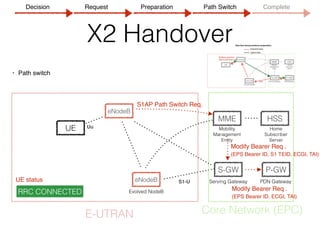

31. X2 Handover
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeB
RRC CONNECTED
UE status
Uu
S1AP Path Switch Res.

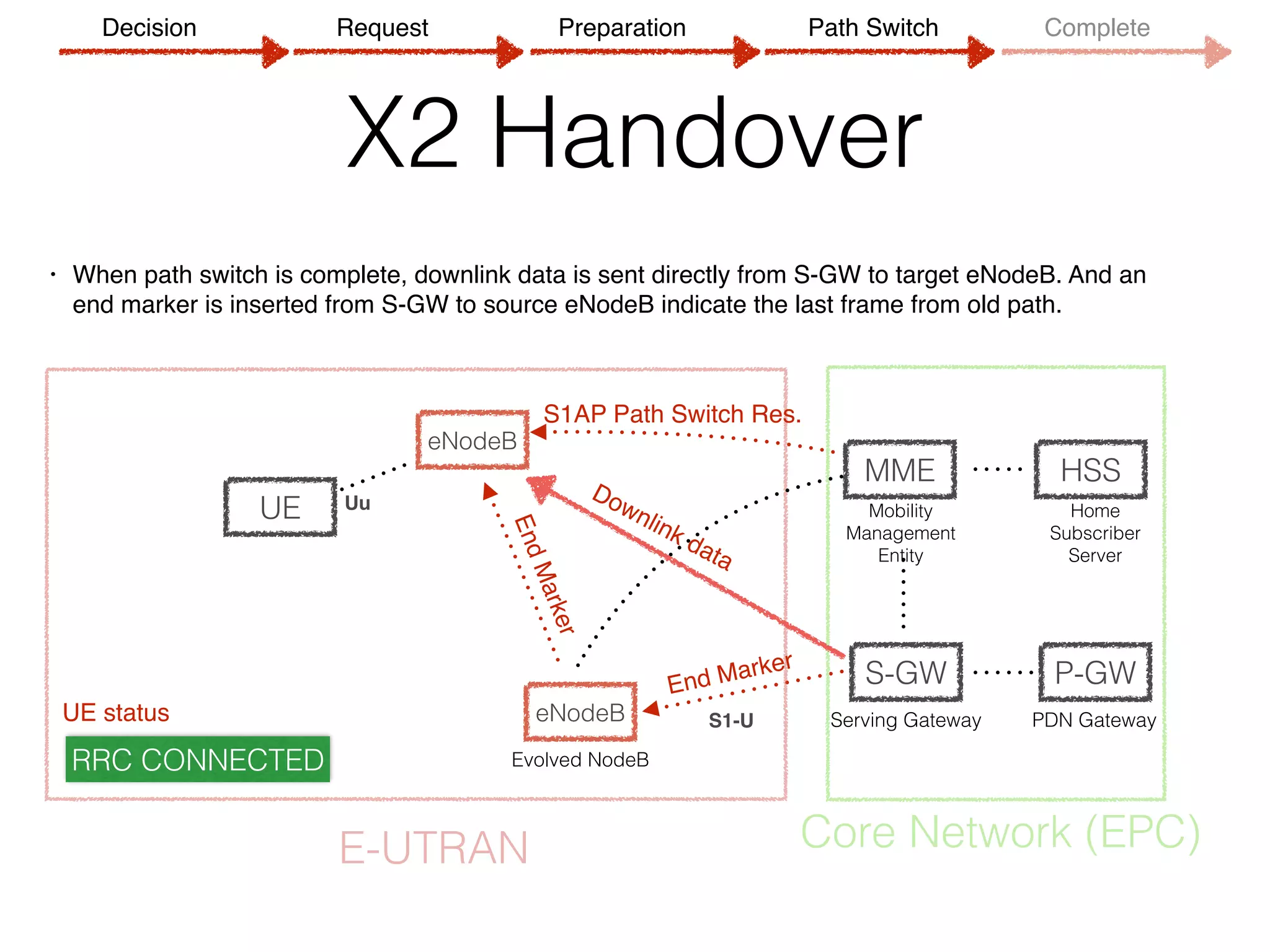

• When path switch is complete, downlink data is sent directly from S-GW to target eNodeB. And an
end marker is inserted from S-GW to source eNodeB indicate the last frame from old path.
Downlink data
EndMarker
End Marker
UE
Decision Request Preparation Path Switch Complete
32. X2 Handover
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-U
E-UTRAN Core Network (EPC)
eNodeBUu
Downlink Data
Uplink Data

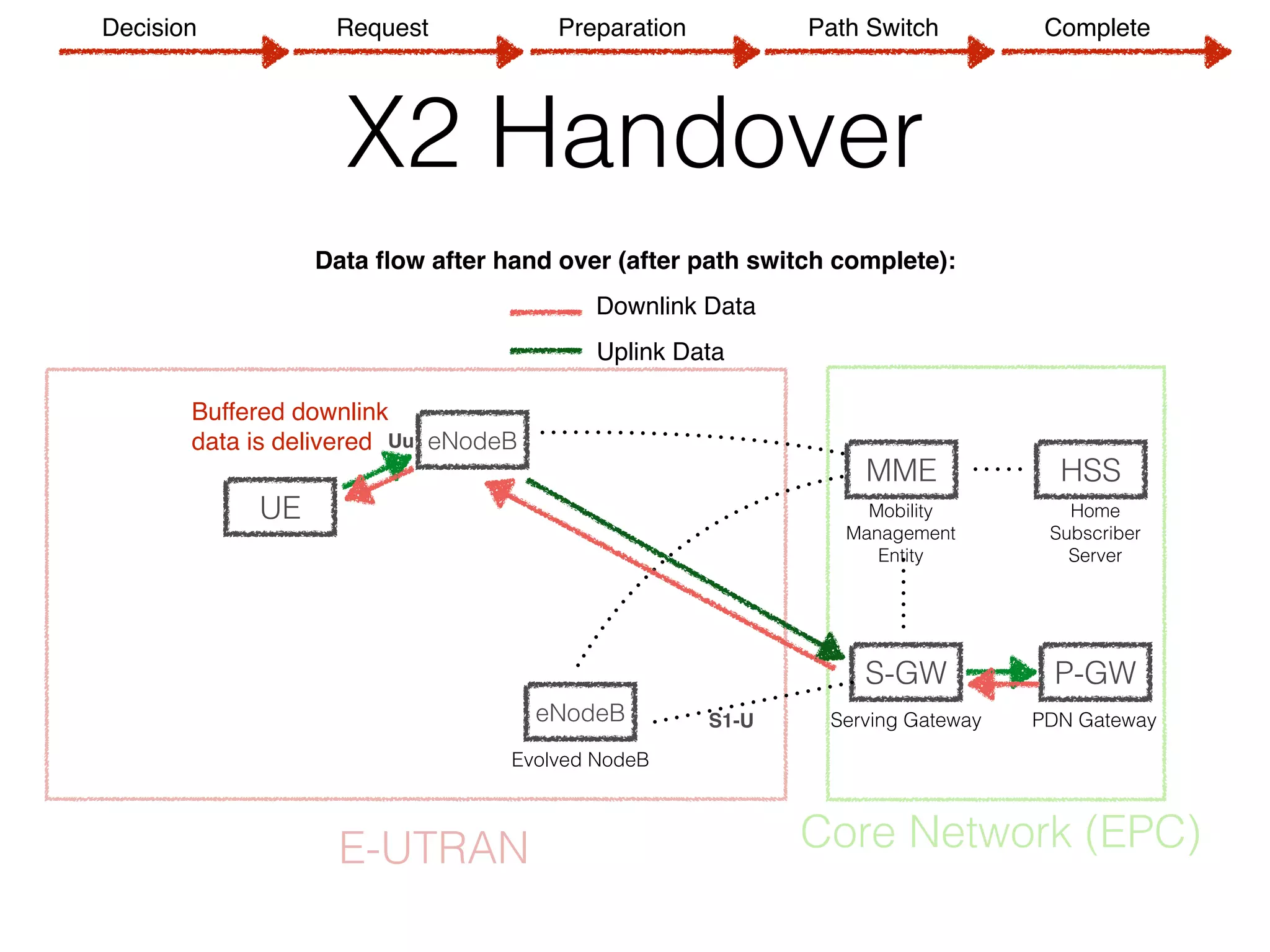

Data flow after hand over (after path switch complete):
Buffered downlink
data is delivered
Decision Request Preparation Path Switch Complete

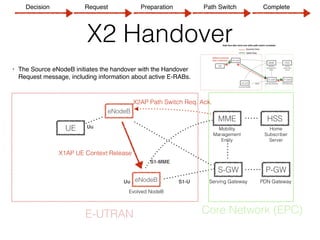

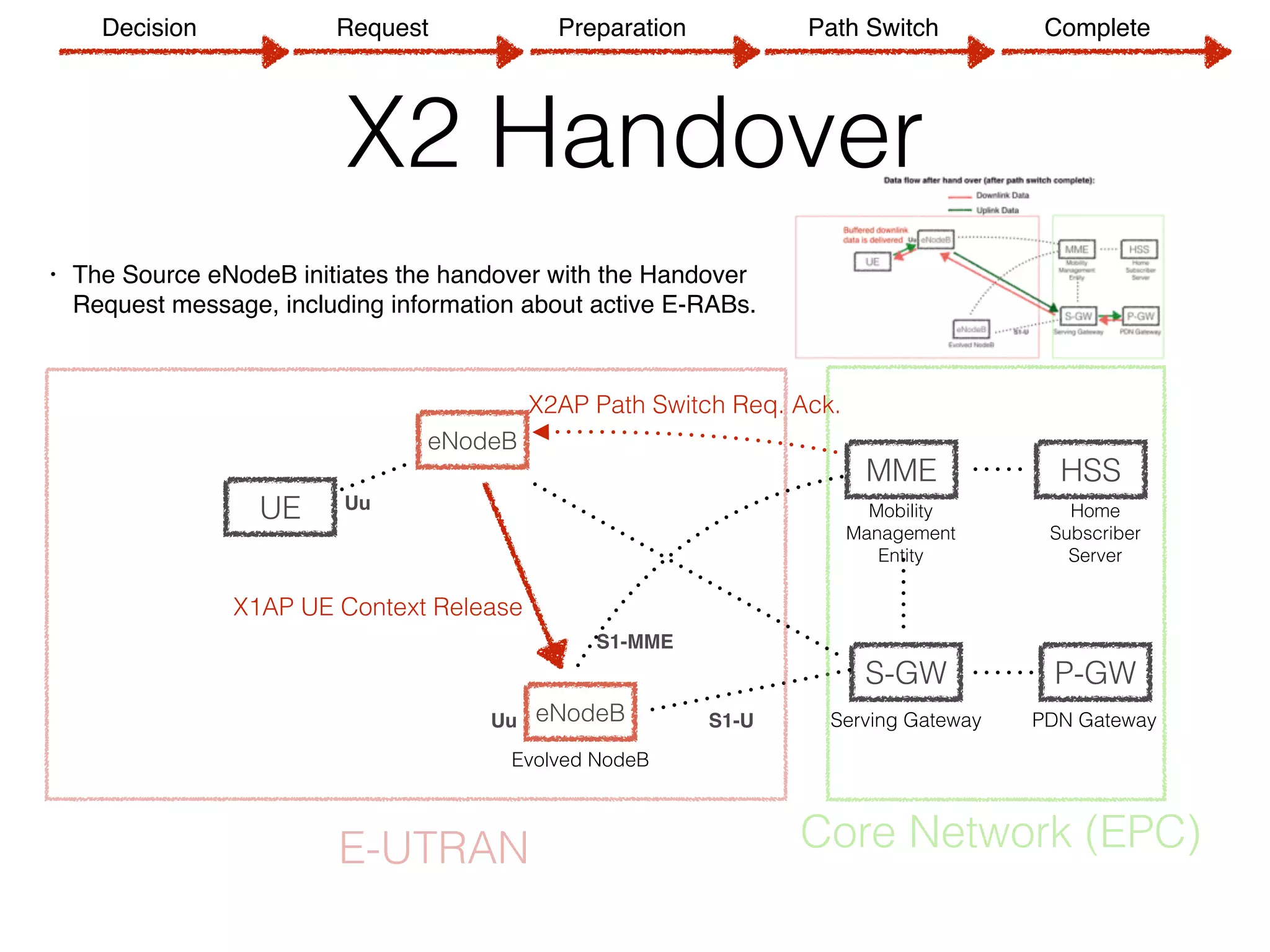

33. X2 Handover
• The Source eNodeB initiates the handover with the Handover
Request message, including information about active E-RABs.
UE
eNodeB
MME
S-GW P-GW
HSS
Evolved NodeB
Serving Gateway PDN Gateway
Mobility
Management
Entity
Home
Subscriber
Server
S1-MME
S1-U
E-UTRAN Core Network (EPC)
eNodeB
X2AP Path Switch Req. Ack.
Uu
Uu
X1AP UE Context Release
Decision Request Preparation Path Switch Complete

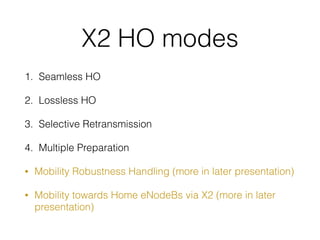

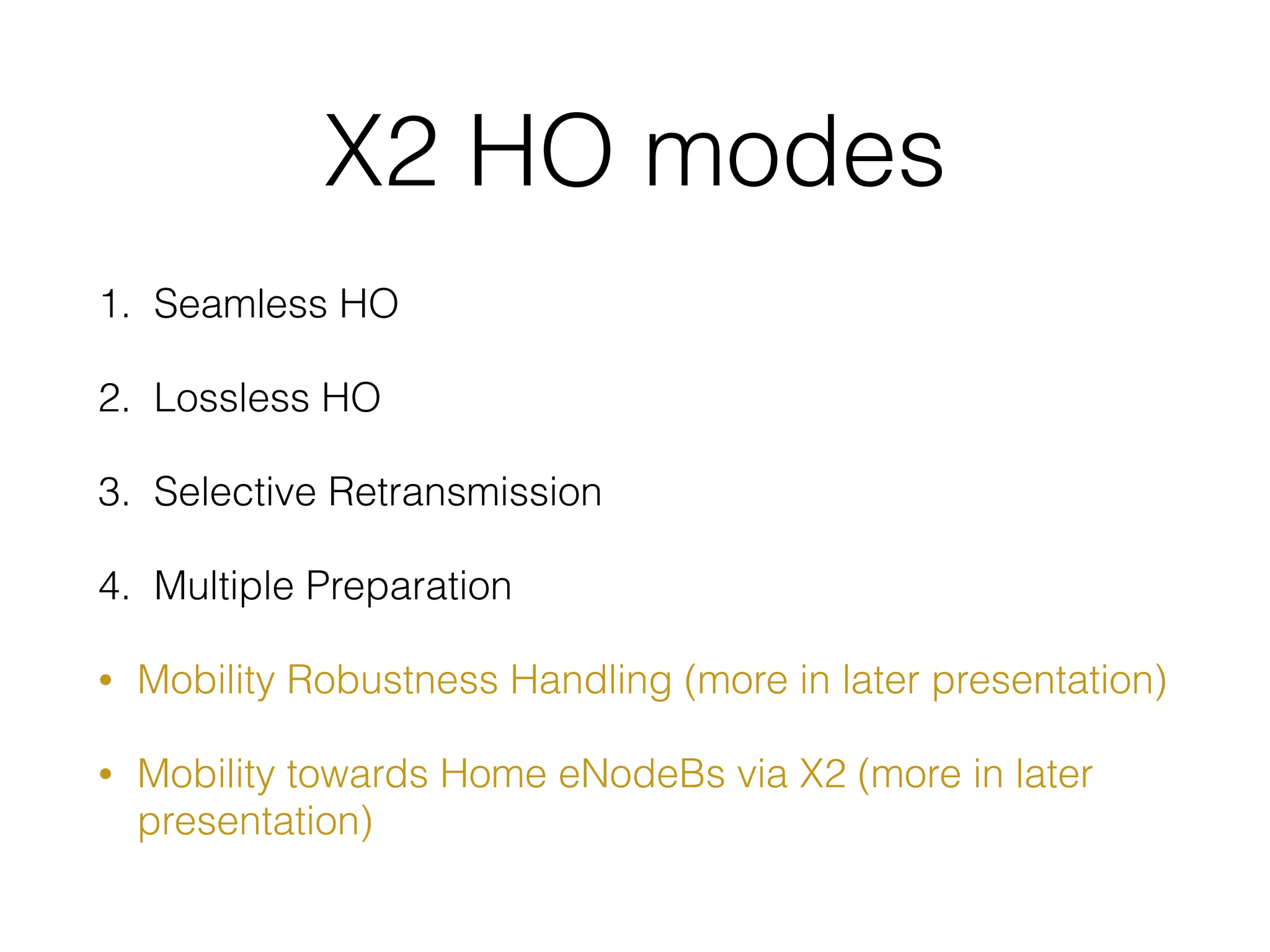

34. X2 HO modes
1. Seamless HO
2. Lossless HO
3. Selective Retransmission
4. Multiple Preparation
• Mobility Robustness Handling (more in later presentation)
• Mobility towards Home eNodeBs via X2 (more in later
presentation)

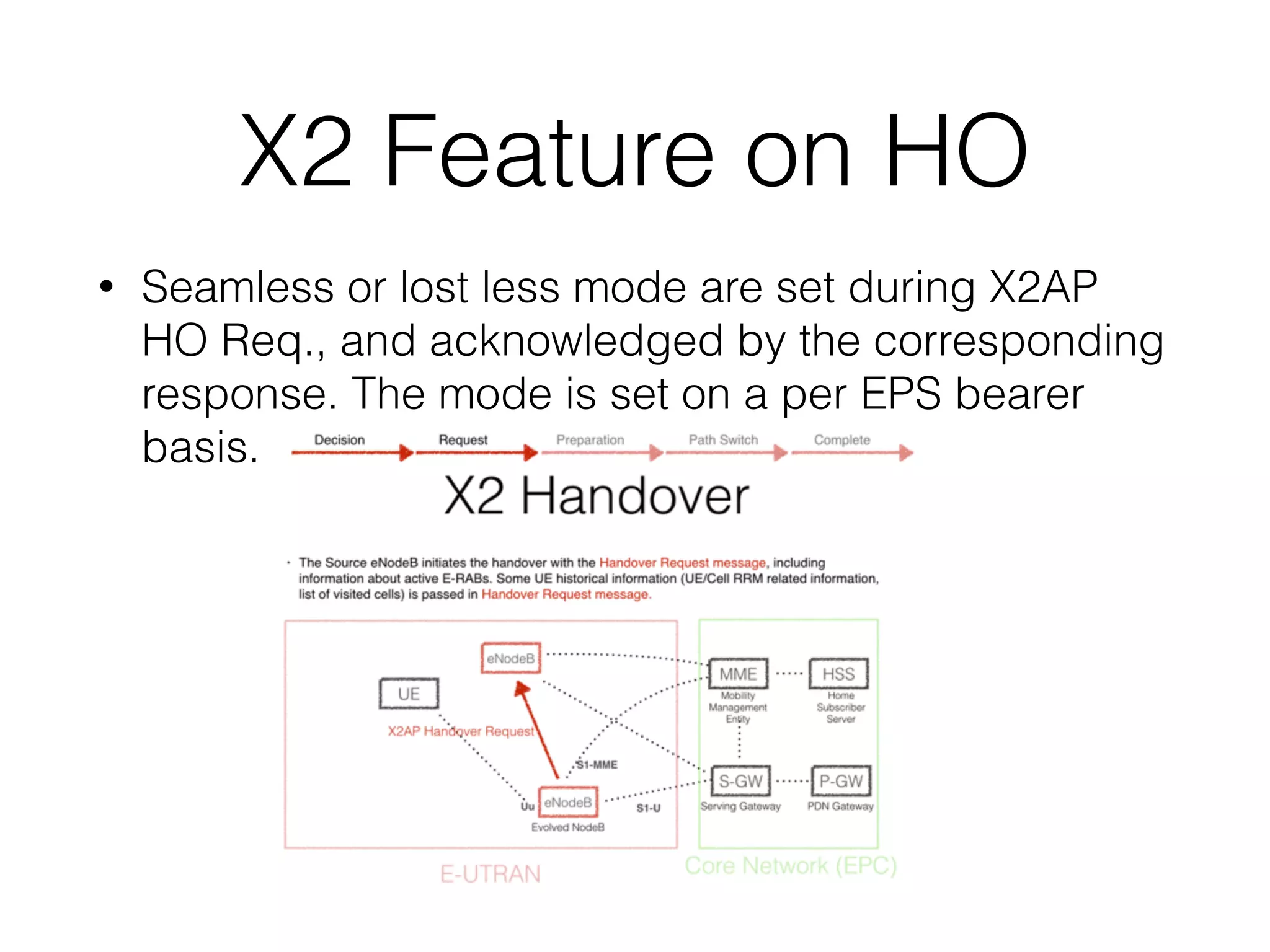

35. X2 Feature on HO
• Seamless or lost less mode are set during X2AP
HO Req., and acknowledged by the corresponding
response. The mode is set on a per EPS bearer
basis.

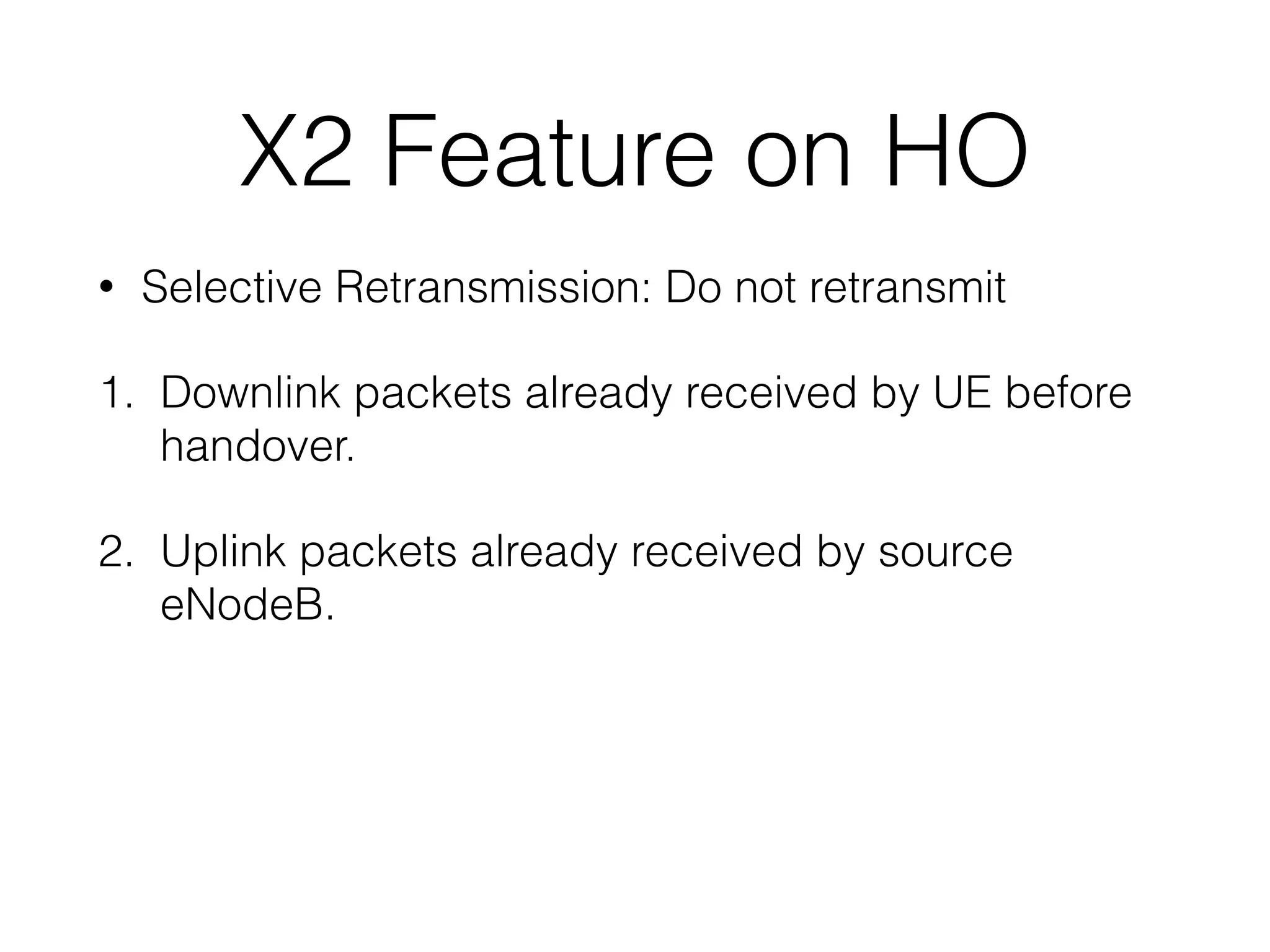

36. X2 Feature on HO
• Selective Retransmission: Do not retransmit
1. Downlink packets already received by UE before
handover.
2. Uplink packets already received by source
eNodeB.

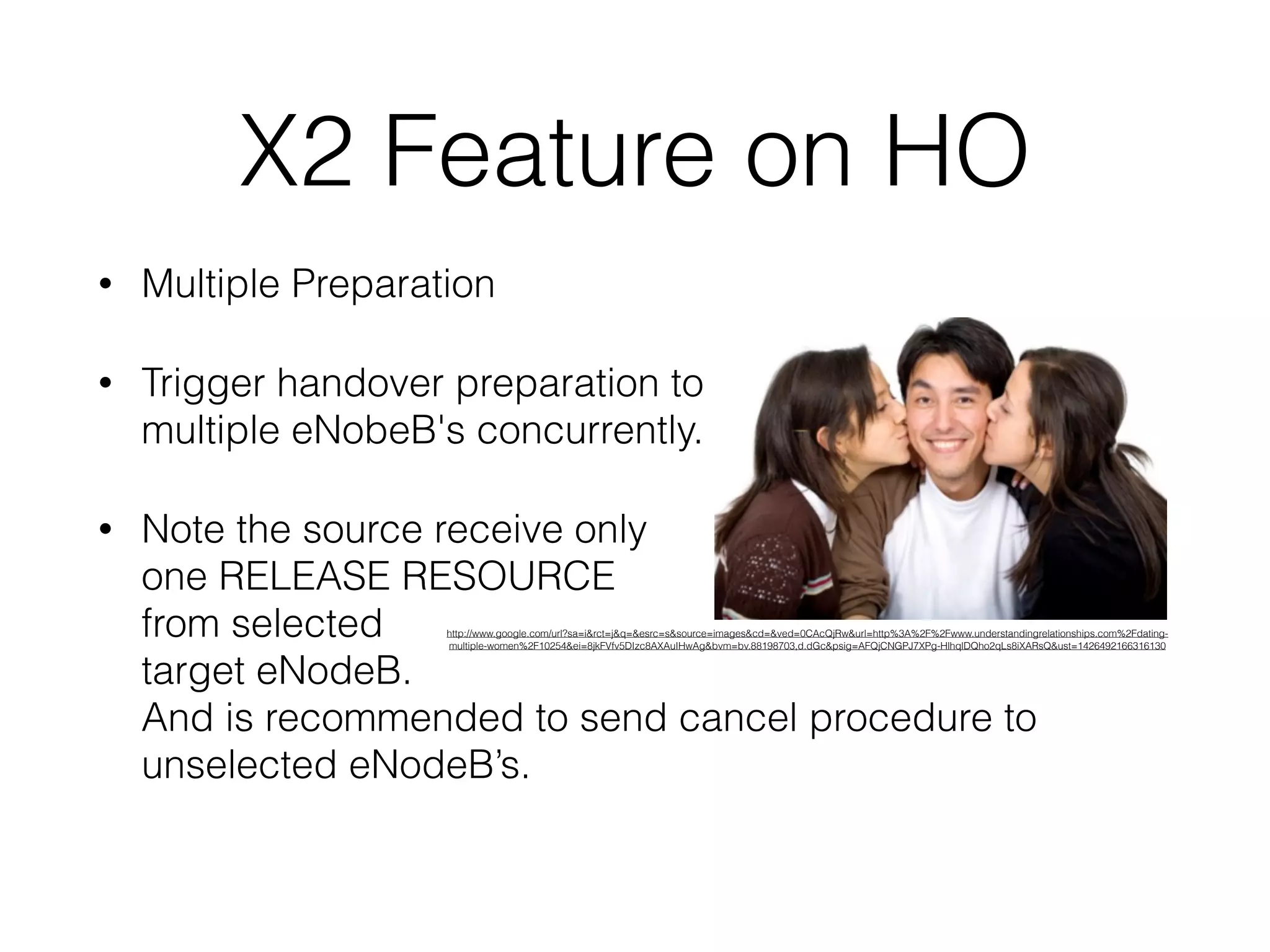

37. X2 Feature on HO
• Multiple Preparation
• Trigger handover preparation to
multiple eNobeB's concurrently.
• Note the source receive only
one RELEASE RESOURCE
from selected
target eNodeB.
And is recommended to send cancel procedure to
unselected eNodeB’s.
http://www.google.com/url?sa=i&rct=j&q=&esrc=s&source=images&cd=&ved=0CAcQjRw&url=http%3A%2F%2Fwww.understandingrelationships.com%2Fdating-
multiple-women%2F10254&ei=8jkFVfv5DIzc8AXAuIHwAg&bvm=bv.88198703,d.dGc&psig=AFQjCNGPJ7XPg-HlhqlDQho2qLs8iXARsQ&ust=1426492166316130

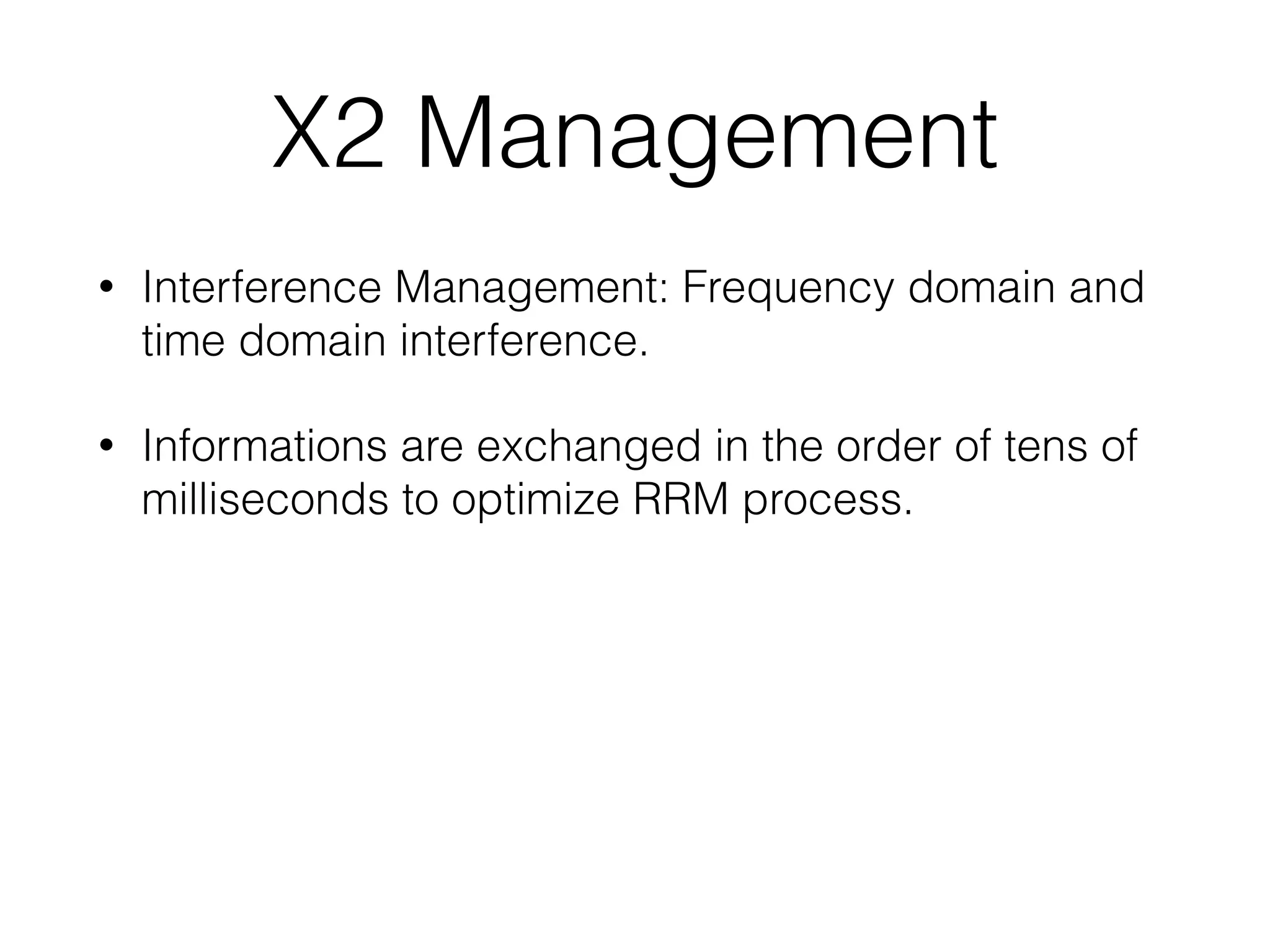

39. X2 Management
• Interference Management: Frequency domain and
time domain interference.
• Informations are exchanged in the order of tens of
milliseconds to optimize RRM process.

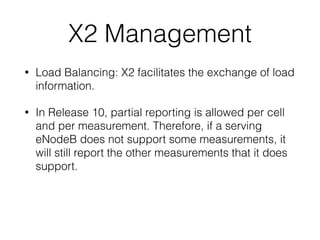

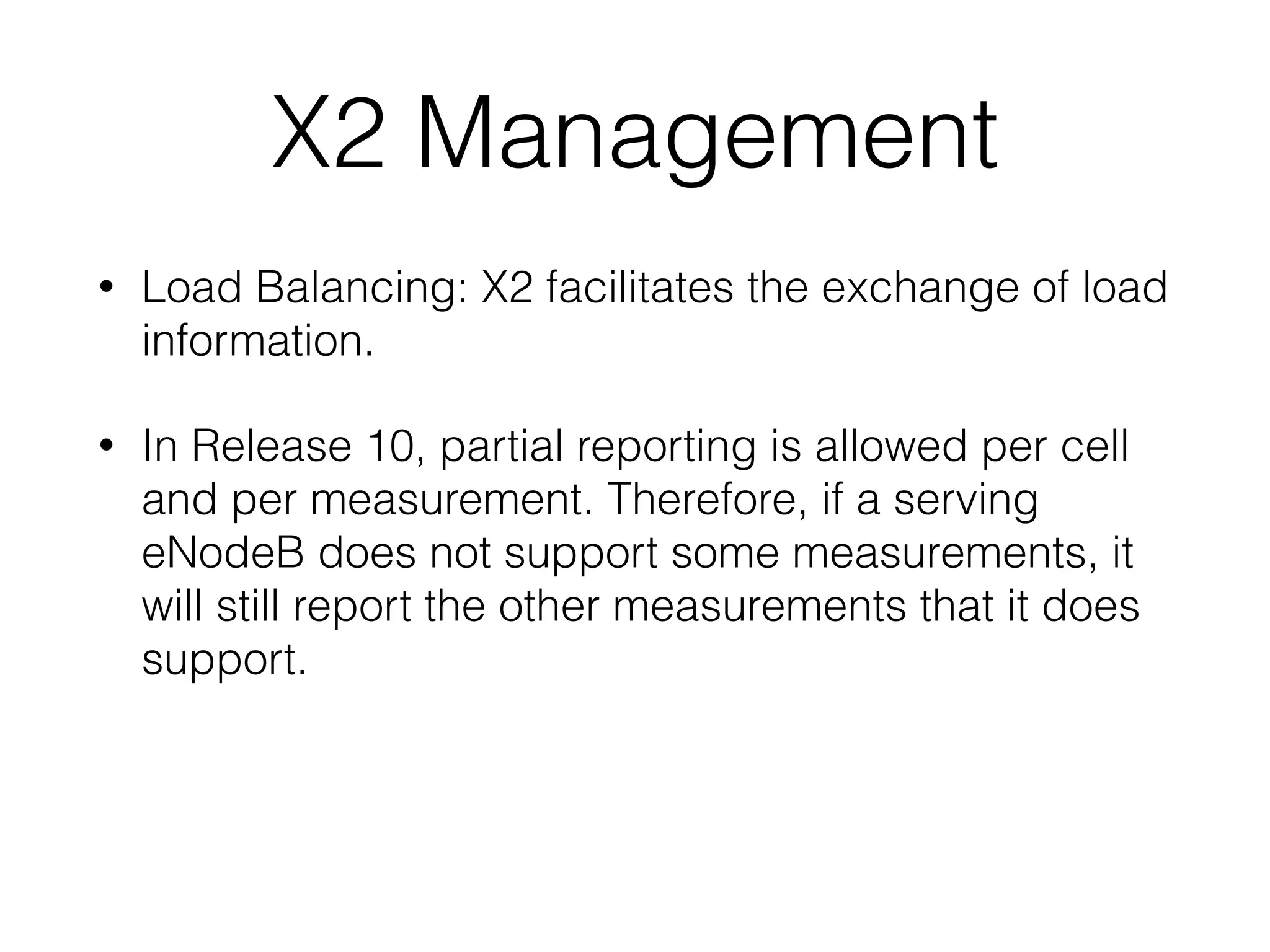

40. X2 Management
• Load Balancing: X2 facilitates the exchange of load
information.
• In Release 10, partial reporting is allowed per cell
and per measurement. Therefore, if a serving
eNodeB does not support some measurements, it
will still report the other measurements that it does
support.
41. References
1. LTE: the UMTS long term evolution. New York: John Wiley & Sons, 2009.
2. LTE X2 handover sequence diagram: https://www.eventhelix.com/lte/
handover/x2/lte-x2-handover-sequence-diagram.htm#.VQOlCELfK-I
3. TE X2 Handover Messaging: http://www.eventhelix.com/lte/handover/
LTE-X2-Handover-Messaging.pdf
4. summary of LTE Identifiers: http://www.nmcgroups.com/en/expertise/lte/
identifiers.asp
5. Random Access Procedure in LTE: http://4g-lte-world.blogspot.tw/
2013/04/random-access-procedure-rach-in-lte.html
6. 4G introduction: http://www.slideshare.net/schwannden/4g-intriduction
