This document introduces basic components of DC circuits. It defines a complete circuit as one where electron flow can travel from negative to positive terminals, and an incomplete circuit as one where flow is disrupted. Circuits must have four basic components: conductors to carry current, a load that uses power, a power supply to provide energy, and optional controllers to manage the circuit. Schematic symbols represent components in schematic diagrams, which are blueprints showing a circuit's construction. Common symbols are introduced for wires, loads like LEDs, power sources like batteries and cells, and switches as controllers. Assignments include an electronics reference chart to document websites on topics.

1. Introduction to Electronics Unit One: DC Circuits Section One Basic Components of a Circuit

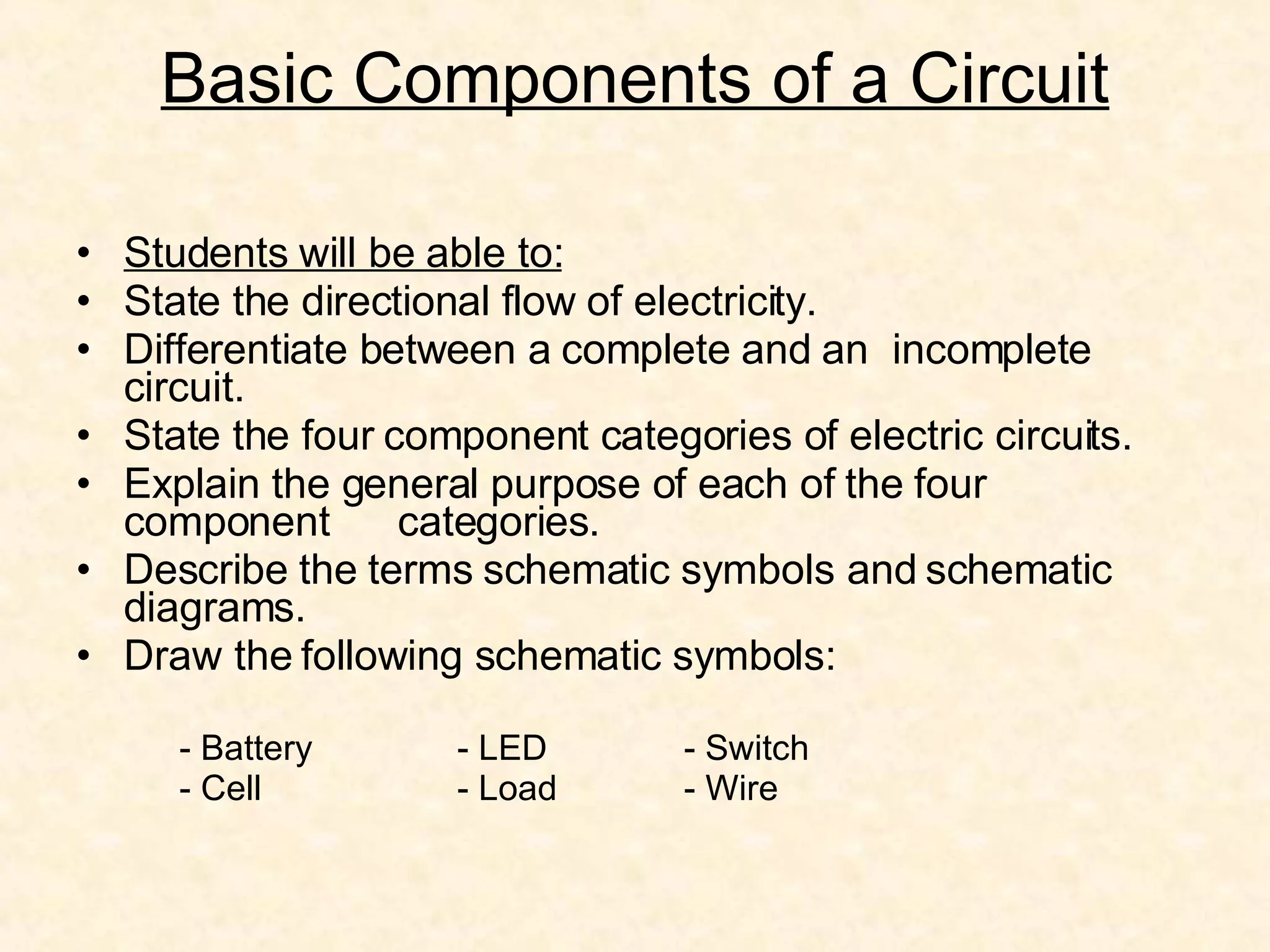

2. Basic Components of a Circuit Students will be able to: State the directional flow of electricity. Differentiate between a complete and an incomplete circuit. State the four component categories of electric circuits. Explain the general purpose of each of the four component categories. Describe the terms schematic symbols and schematic diagrams. Draw the following schematic symbols: - Battery - LED - Switch - Cell - Load - Wire

3. Complete and Incomplete Circuits A complete circuit is one in which the electron flow can travel from the negative terminal to the positive terminal, allowing the circuit to function as intended. An incomplete circuit is when the electron flow is disrupted at some point along the circuit. The circuit is therefore broken and will not function.

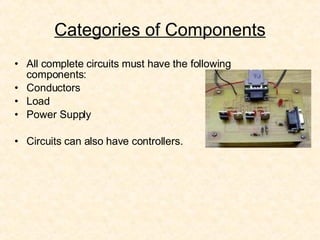

4. Categories of Components All complete circuits must have the following components: Conductors Load Power Supply Circuits can also have controllers.

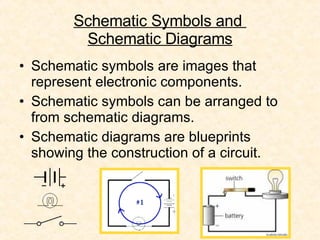

5. Schematic Symbols and Schematic Diagrams Schematic symbols are images that represent electronic components. Schematic symbols can be arranged to from schematic diagrams. Schematic diagrams are blueprints showing the construction of a circuit.

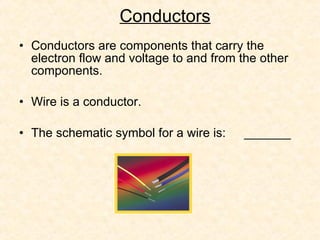

6. Conductors Conductors are components that carry the electron flow and voltage to and from the other components. Wire is a conductor. The schematic symbol for a wire is: _________

7. Loads Loads are the components in a circuit that use the supplied power to give an output. Examples of loads that we will be using are: LED, buzzers, speakers. If the type of load is not specified then the general schematic symbol is used. The schematic symbol for a load is: The schematic symbol for an LED is:

8. Power Supply The power supply is the component in the circuit that provides the energy to push the electrons through the circuit. The voltage is the ingredient that allows the circuit and loads to function. Examples of power supplies are: a cell and a battery. A battery is when more then one cell are combined together. The schematic symbol for a cell is: The schematic symbol for a battery is:

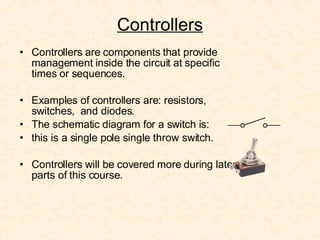

9. Controllers Controllers are components that provide management inside the circuit at specific times or sequences. Examples of controllers are: resistors, switches, and diodes. The schematic diagram for a switch is: this is a single pole single throw switch. Controllers will be covered more during later parts of this course.

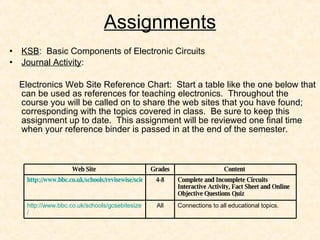

10. Assignments KSB : Basic Components of Electronic Circuits Journal Activity : Electronics Web Site Reference Chart: Start a table like the one below that can be used as references for teaching electronics. Throughout the course you will be called on to share the web sites that you have found; corresponding with the topics covered in class. Be sure to keep this assignment up to date. This assignment will be reviewed one final time when your reference binder is passed in at the end of the semester. Connections to all educational topics. All http:// www.bbc.co.uk/schools/gcsebitesize / Complete and Incomplete Circuits Interactive Activity, Fact Sheet and Online Objective Questions Quiz 4-8 http://www.bbc.co.uk/schools/revisewise/science/physical/11_act.shtml Content Grades Web Site

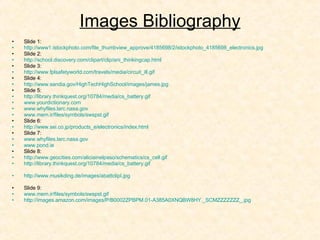

11. Images Bibliography Slide 1: http://www1.istockphoto.com/file_thumbview_approve/4185698/2/istockphoto_4185698_electronics.jpg Slide 2: http:// school.discovery.com/clipart/clip/ani_thinkingcap.html Slide 3: http:// www.fplsafetyworld.com/travels/media/circuit_ill.gif Slide 4: http:// www.sandia.gov/HighTechHighSchool/images/james.jpg Slide 5: http://library.thinkquest.org/10784/media/cs_battery.gif www.yourdictionary.com www.whyfiles.larc.nasa.gov www.mem.ir/files/symbols/swspst.gif Slide 6: http://www.sei.co.jp/products_e/electronics/index.html Slide 7: www.whyfiles.larc.nasa.gov www.pond.ie Slide 8: http:// www.geocities.com/aliciainelpaso/schematics/cs_cell.gif http://library.thinkquest.org/10784/media/cs_battery.gif http:// www.musikding.de/images/abattclipI.jpg Slide 9: www.mem.ir/files/symbols/swspst.gif http://images.amazon.com/images/P/B0002ZPBPM.01-A385A0XNQBW8HY._SCMZZZZZZZ_.jpg
