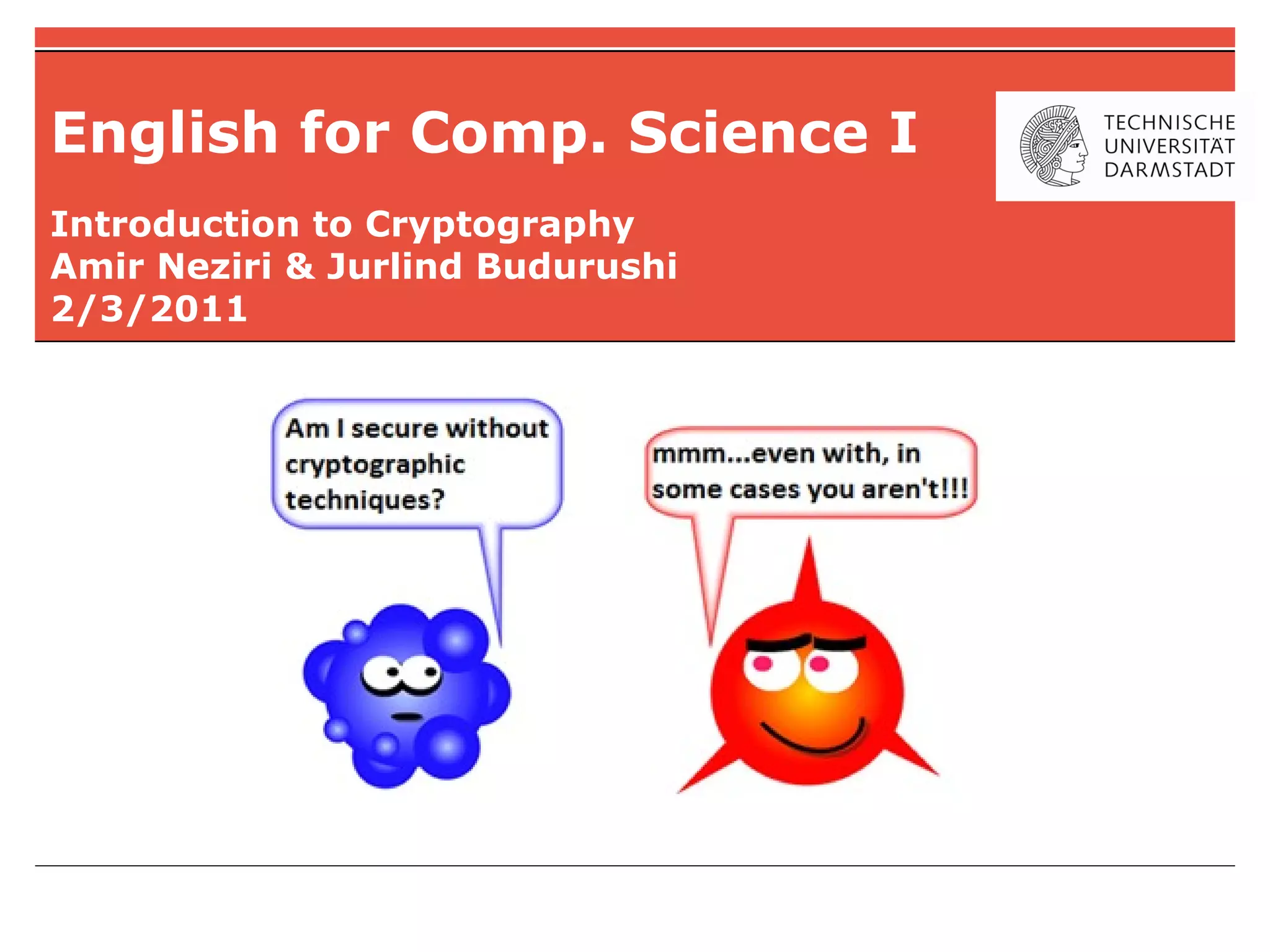

1. English for Comp. Science I
Introduction to Cryptography
Amir Neziri & Jurlind Budurushi
2/3/2011

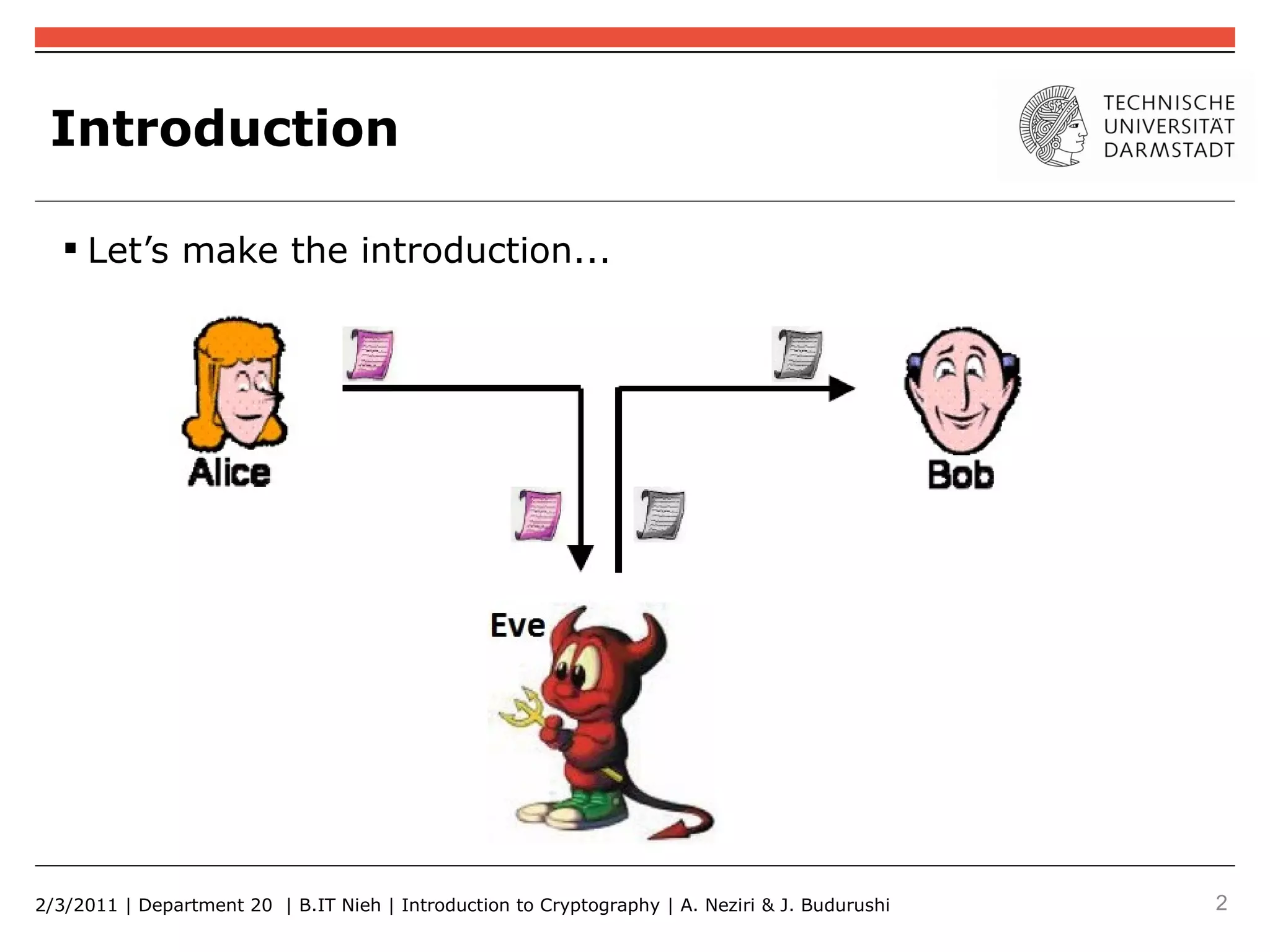

2. Introduction
 Let’s make the introduction...
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 2

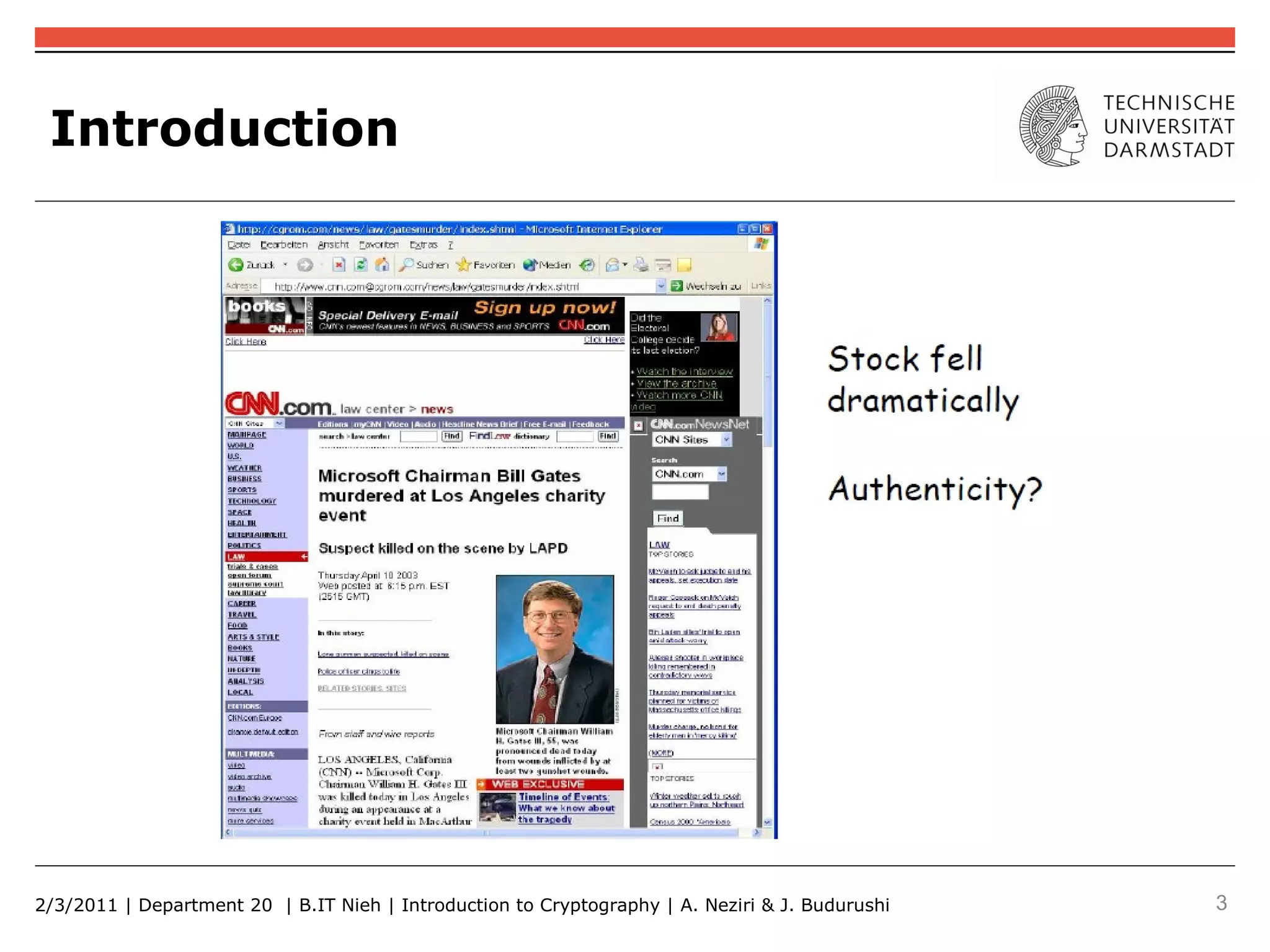

3. Introduction
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 3

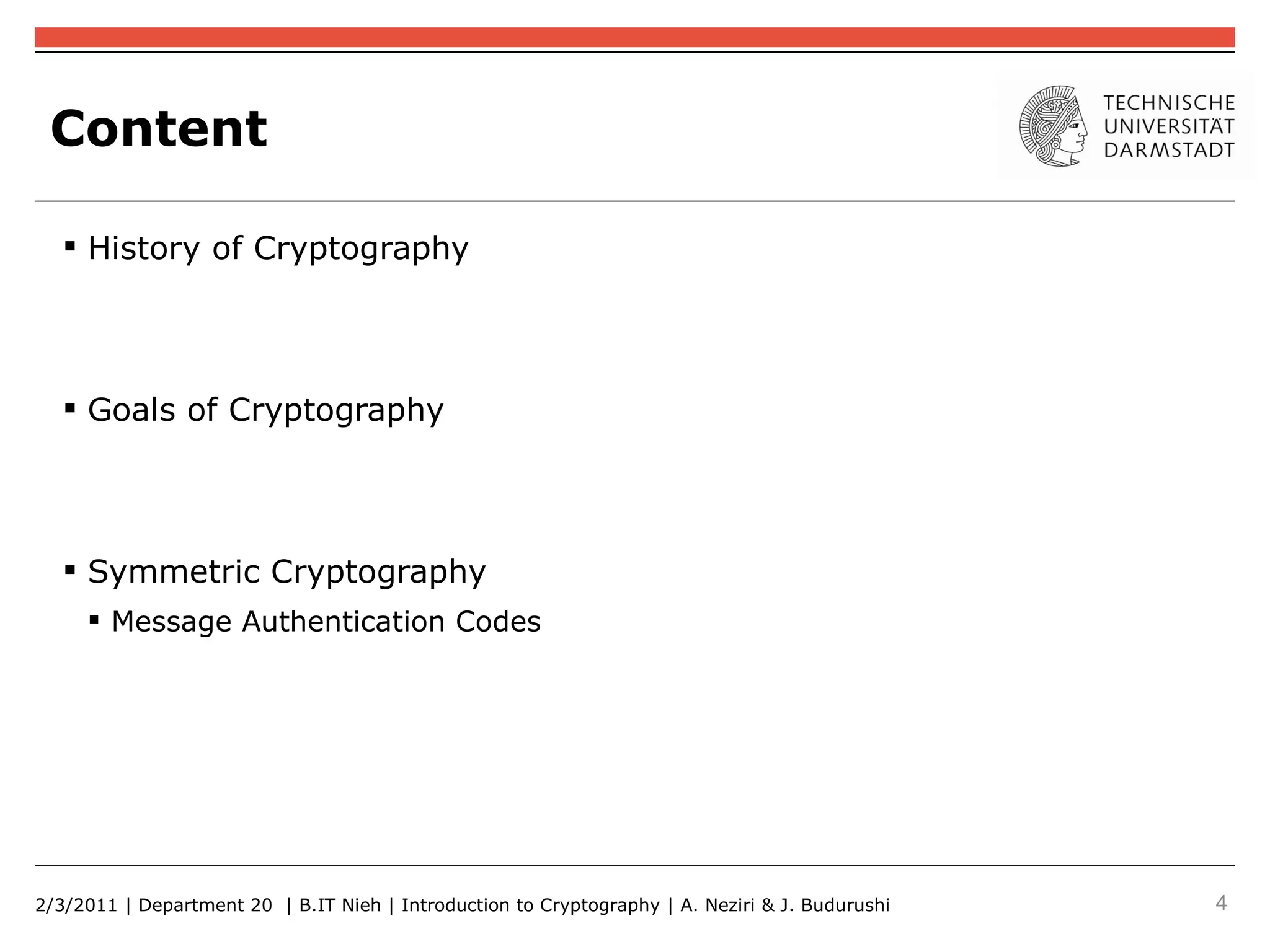

4. Content
 History of Cryptography
 Goals of Cryptography
 Symmetric Cryptography
 Message Authentication Codes
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 4

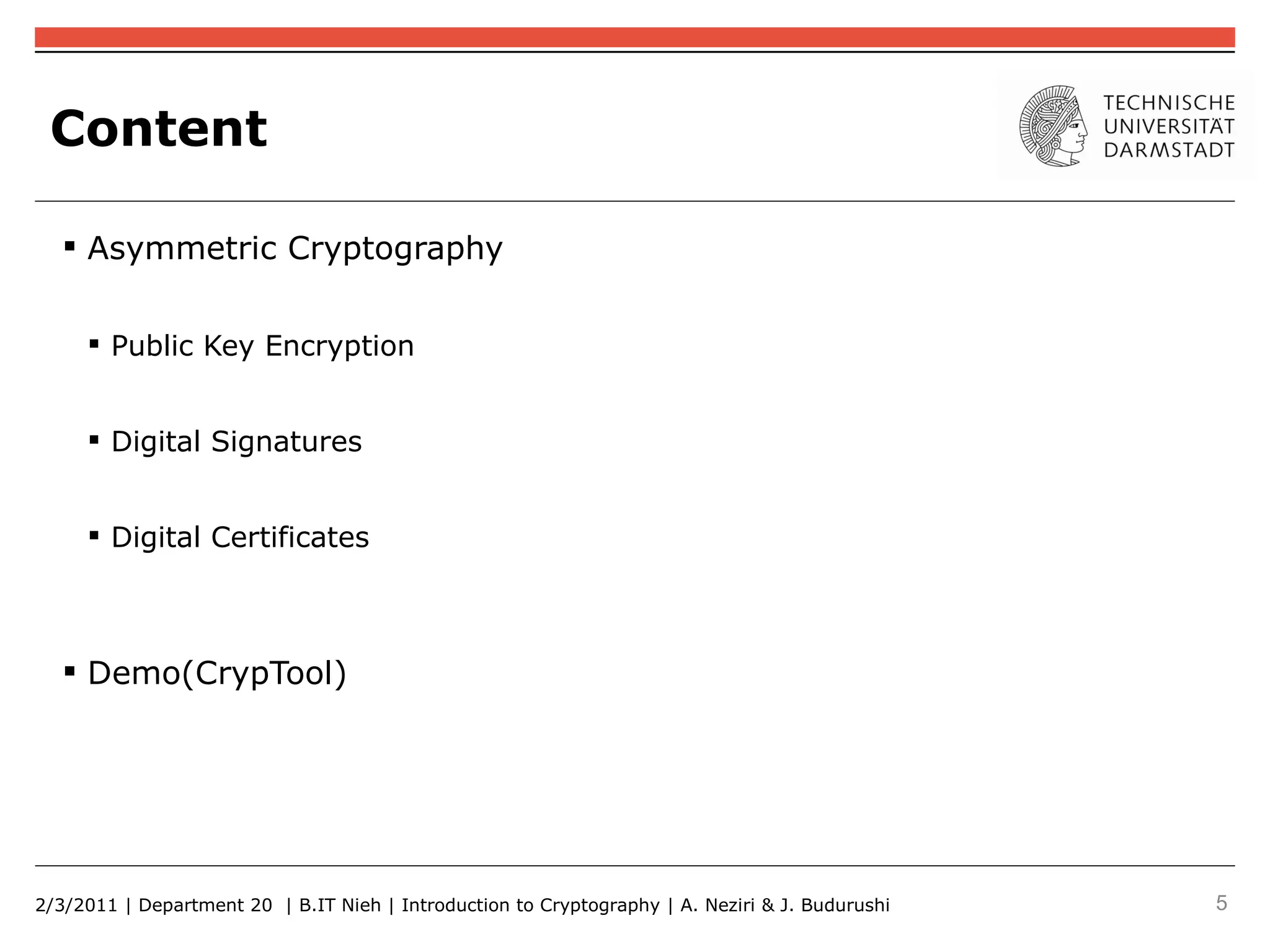

5. Content
 Asymmetric Cryptography
 Public Key Encryption
 Digital Signatures
 Digital Certificates
 Demo(CrypTool)
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 5

6. History of Cryptography
 Substitution ciphers:
 a->Z, b->T, c->E,…
 Encryption determined by Permutation of
alphabet
 Special case of Caesar Cipher:
 a->D, b->E, c->F,…
 Example: amir -> DPMLU
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 6

7. Goals of Cryptography
 Confidentially
 Encryption
 Integrity
 MAC / Digital Signatures
 Authenticity
 MAC / Digital Signatures
 Non-Repudiation
 Digital Signatures
 Others...
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 7

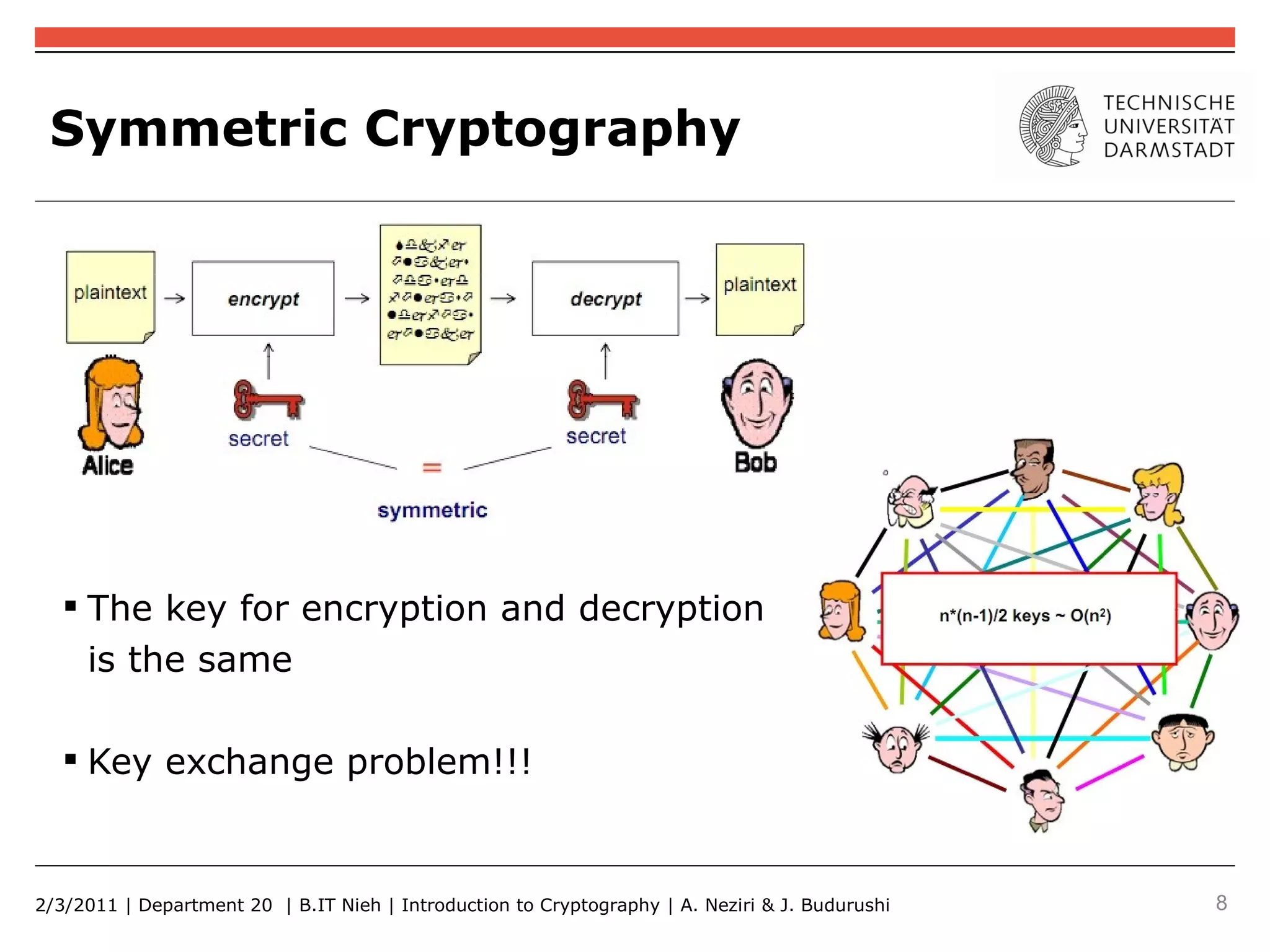

8. Symmetric Cryptography
 The key for encryption and decryption
is the same
 Key exchange problem!!!
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 8

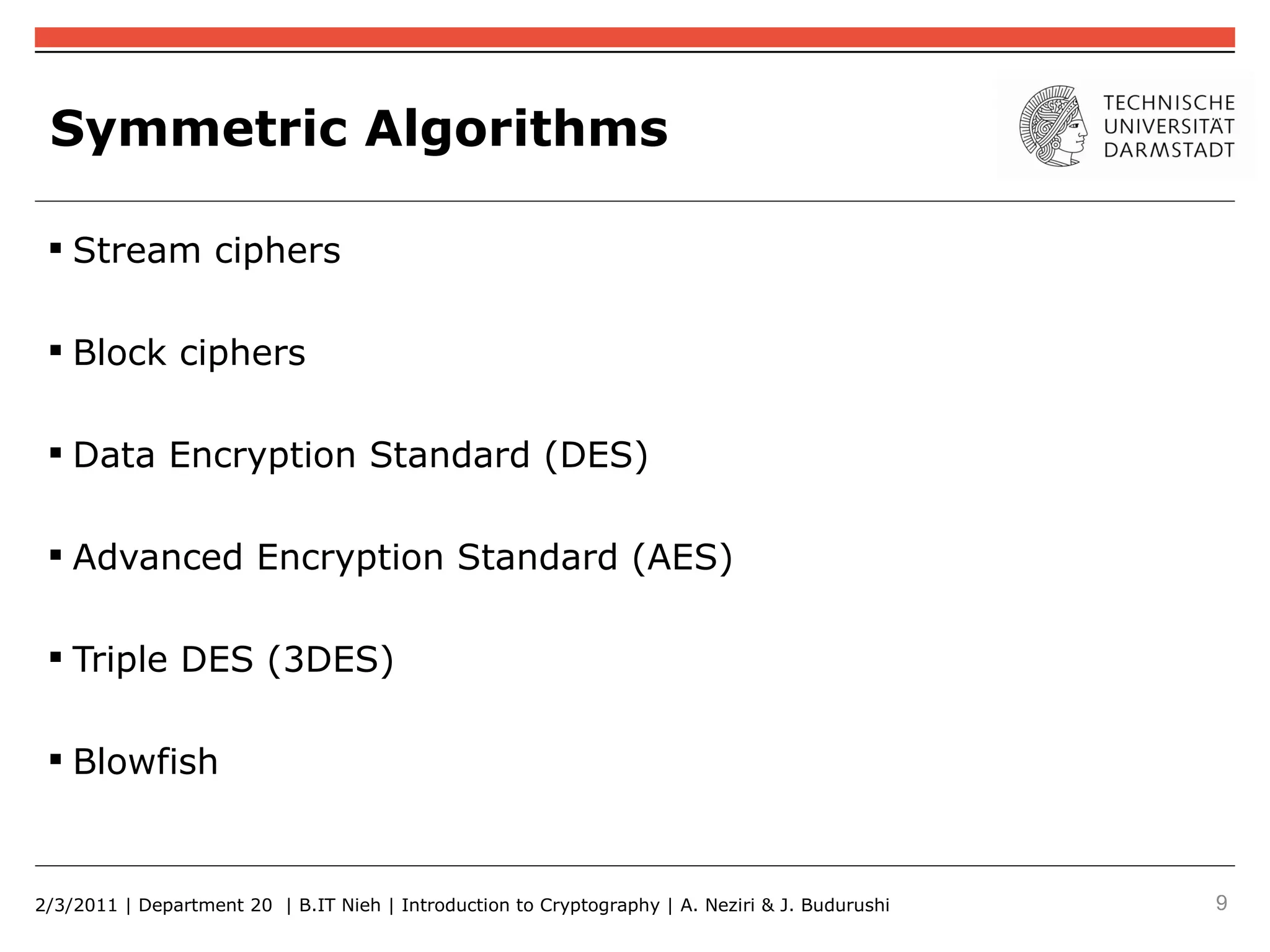

9. Symmetric Algorithms
 Stream ciphers
 Block ciphers
 Data Encryption Standard (DES)
 Advanced Encryption Standard (AES)
 Triple DES (3DES)
 Blowfish
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 9

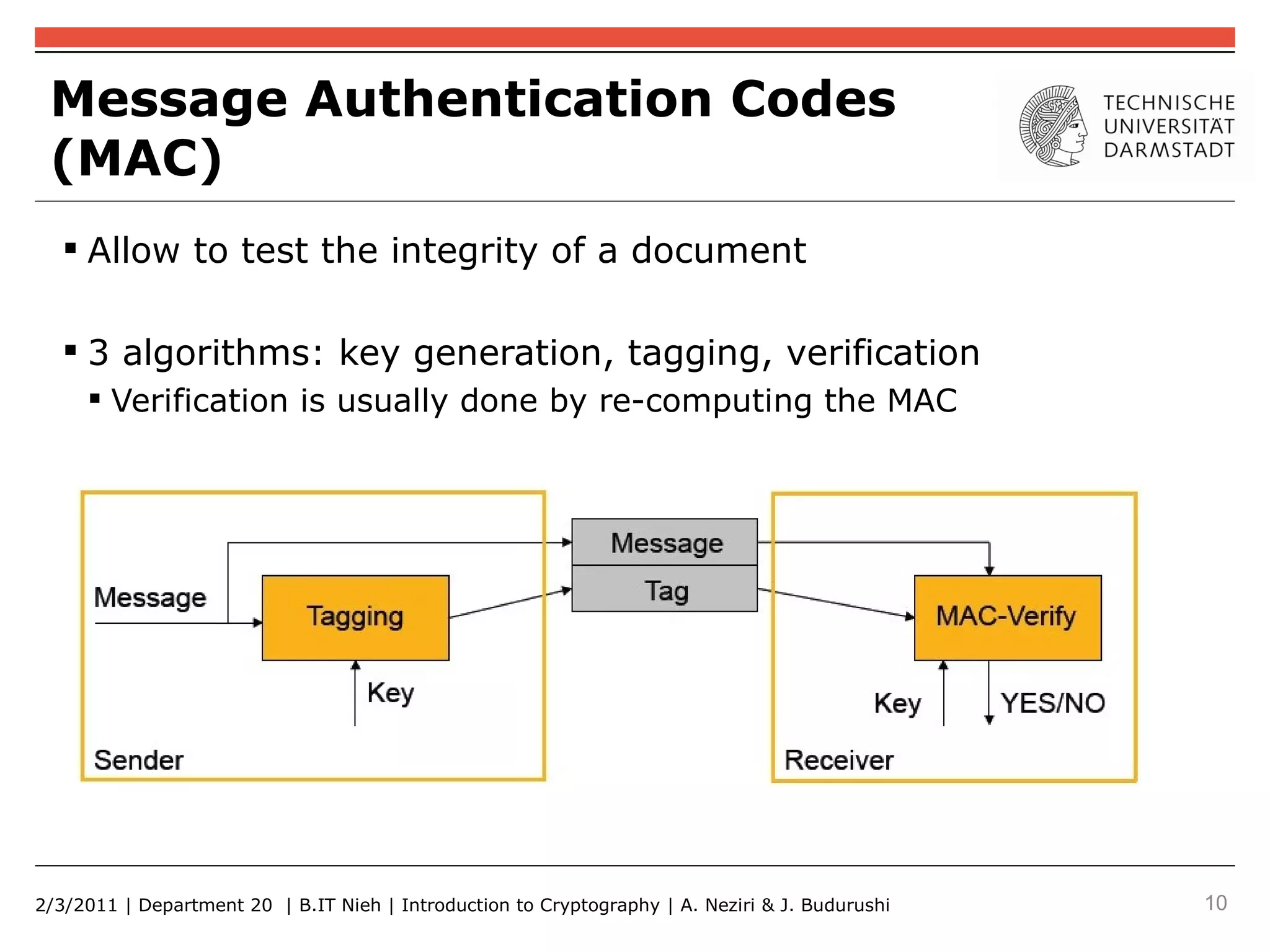

10. Message Authentication Codes
(MAC)
 Allow to test the integrity of a document
 3 algorithms: key generation, tagging, verification
 Verification is usually done by re-computing the MAC
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 10

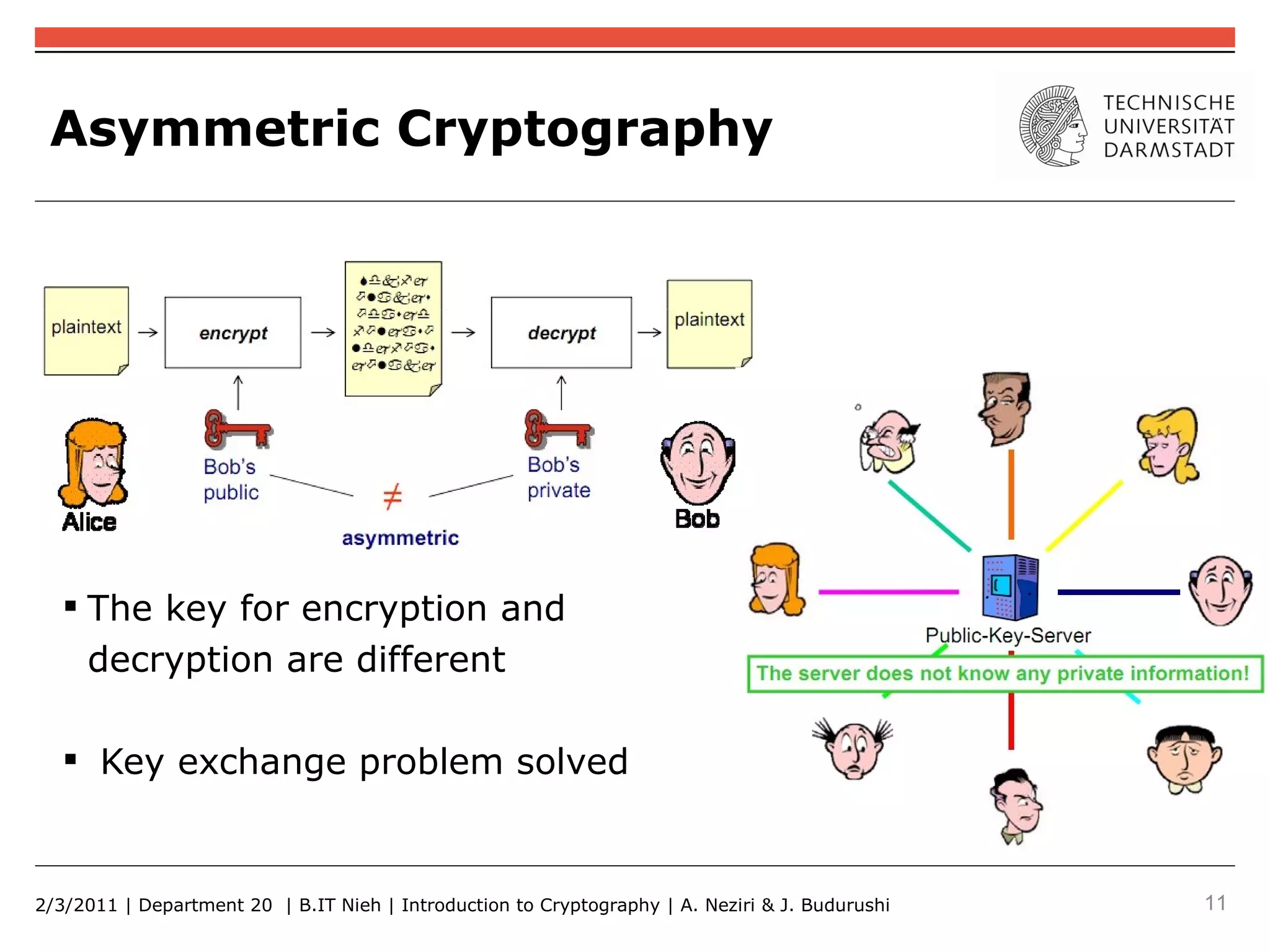

11. Asymmetric Cryptography
 The key for encryption and
decryption are different
 Key exchange problem solved
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 11

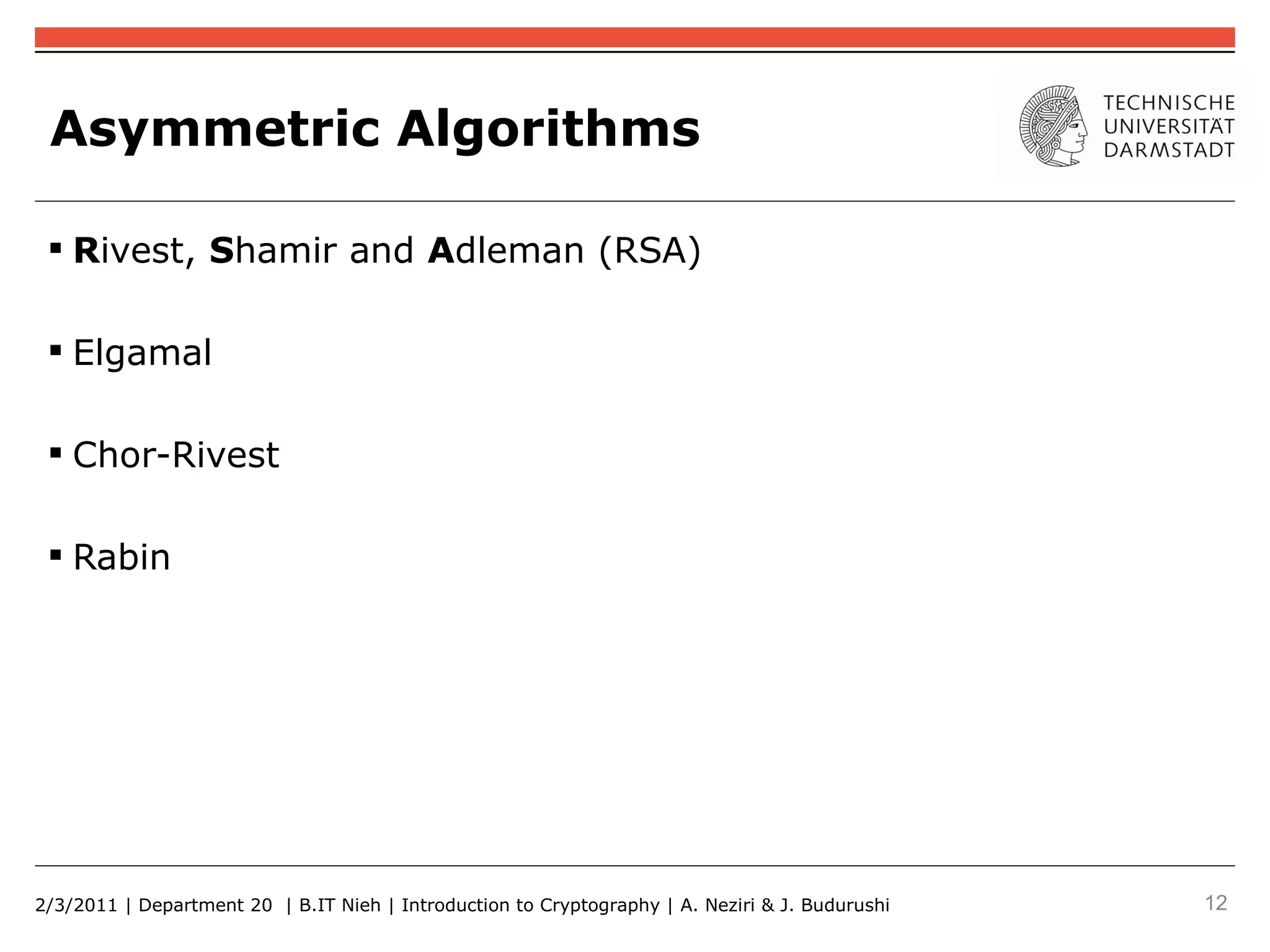

12. Asymmetric Algorithms
 Rivest, Shamir and Adleman (RSA)
 Elgamal
 Chor-Rivest
 Rabin
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 12

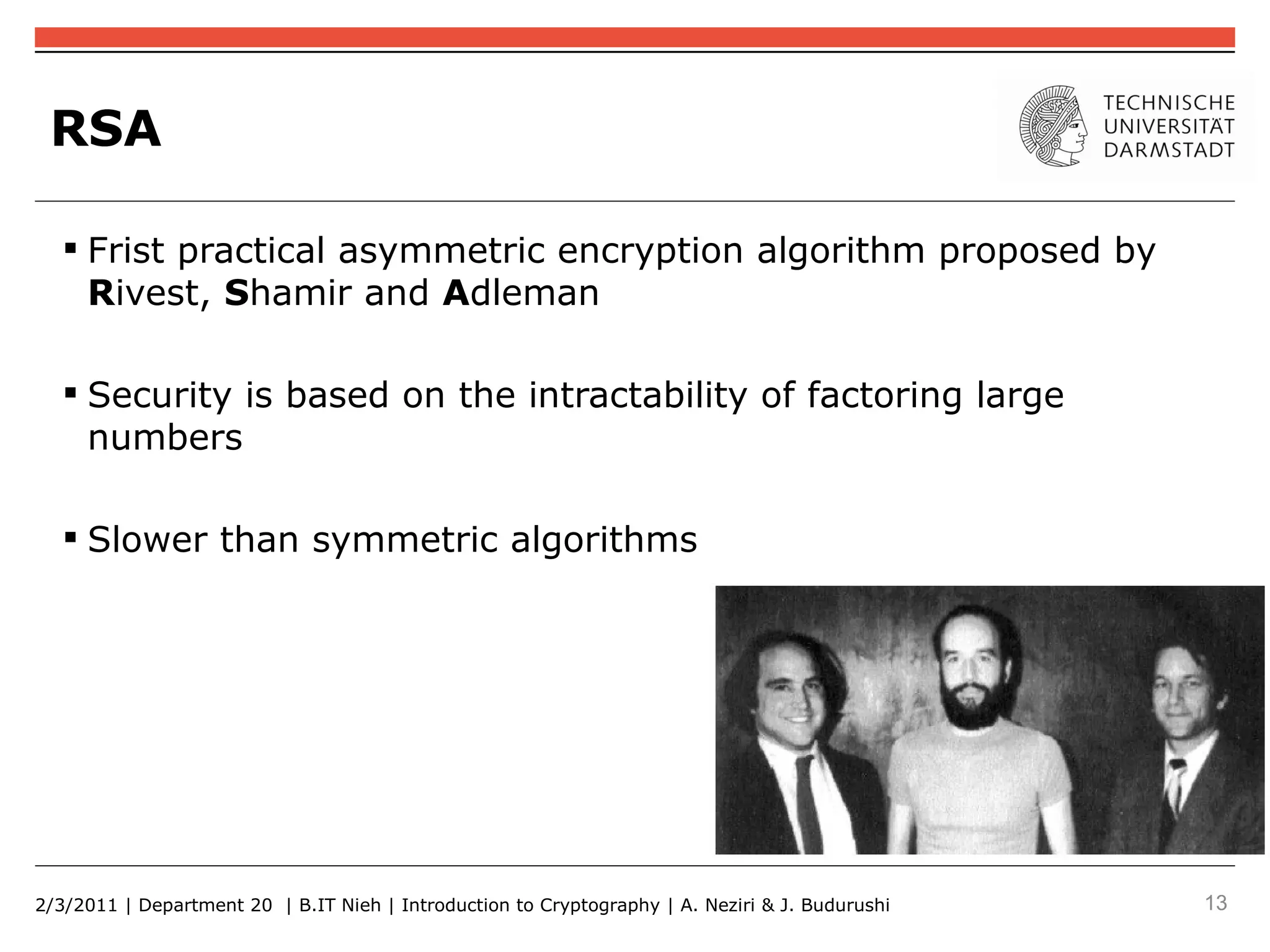

13. RSA
 Frist practical asymmetric encryption algorithm proposed by
Rivest, Shamir and Adleman
 Security is based on the intractability of factoring large
numbers
 Slower than symmetric algorithms
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 13

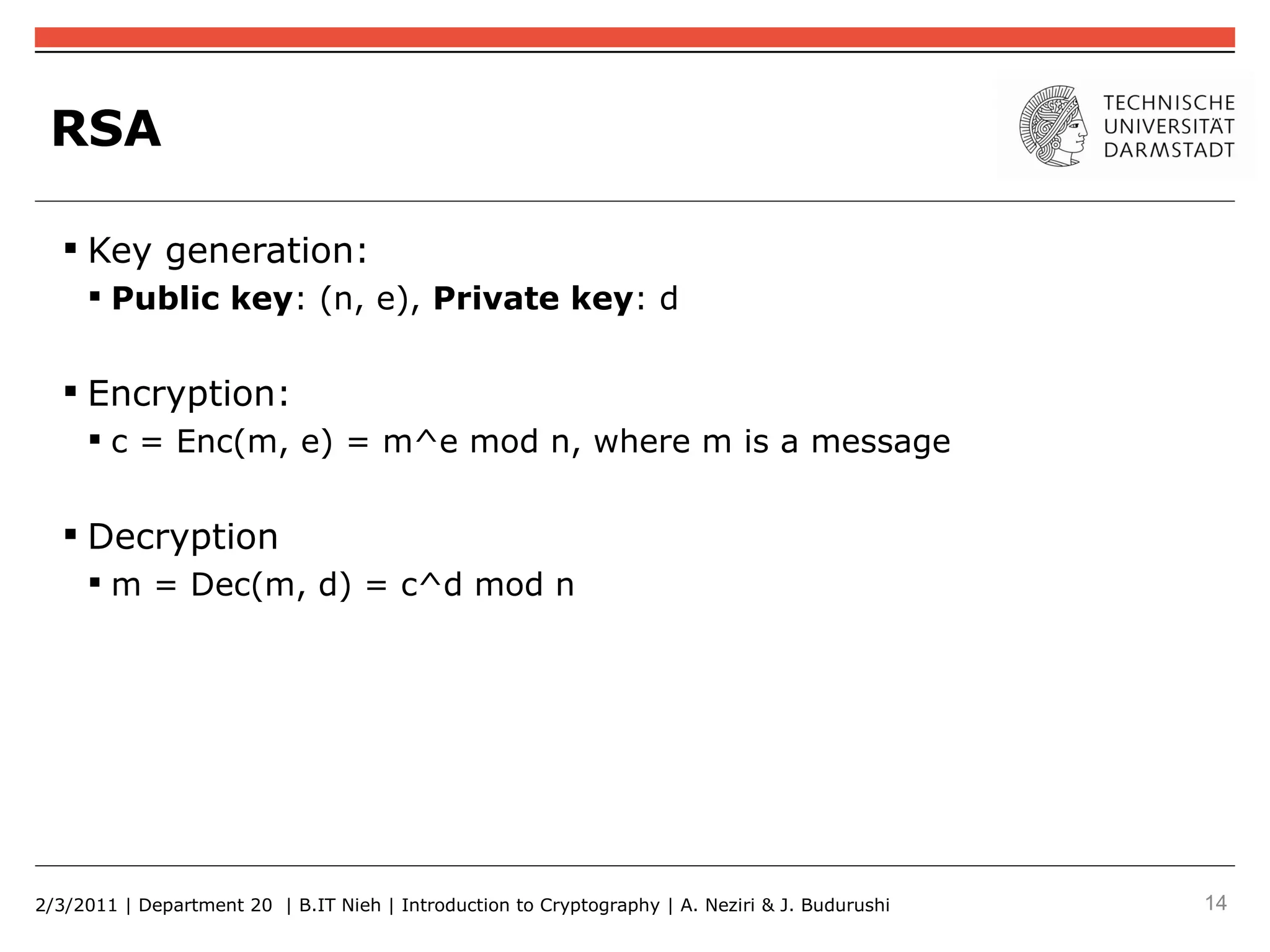

14. RSA
 Key generation:
 Public key: (n, e), Private key: d
 Encryption:
 c = Enc(m, e) = m^e mod n, where m is a message
 Decryption
 m = Dec(m, d) = c^d mod n
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 14

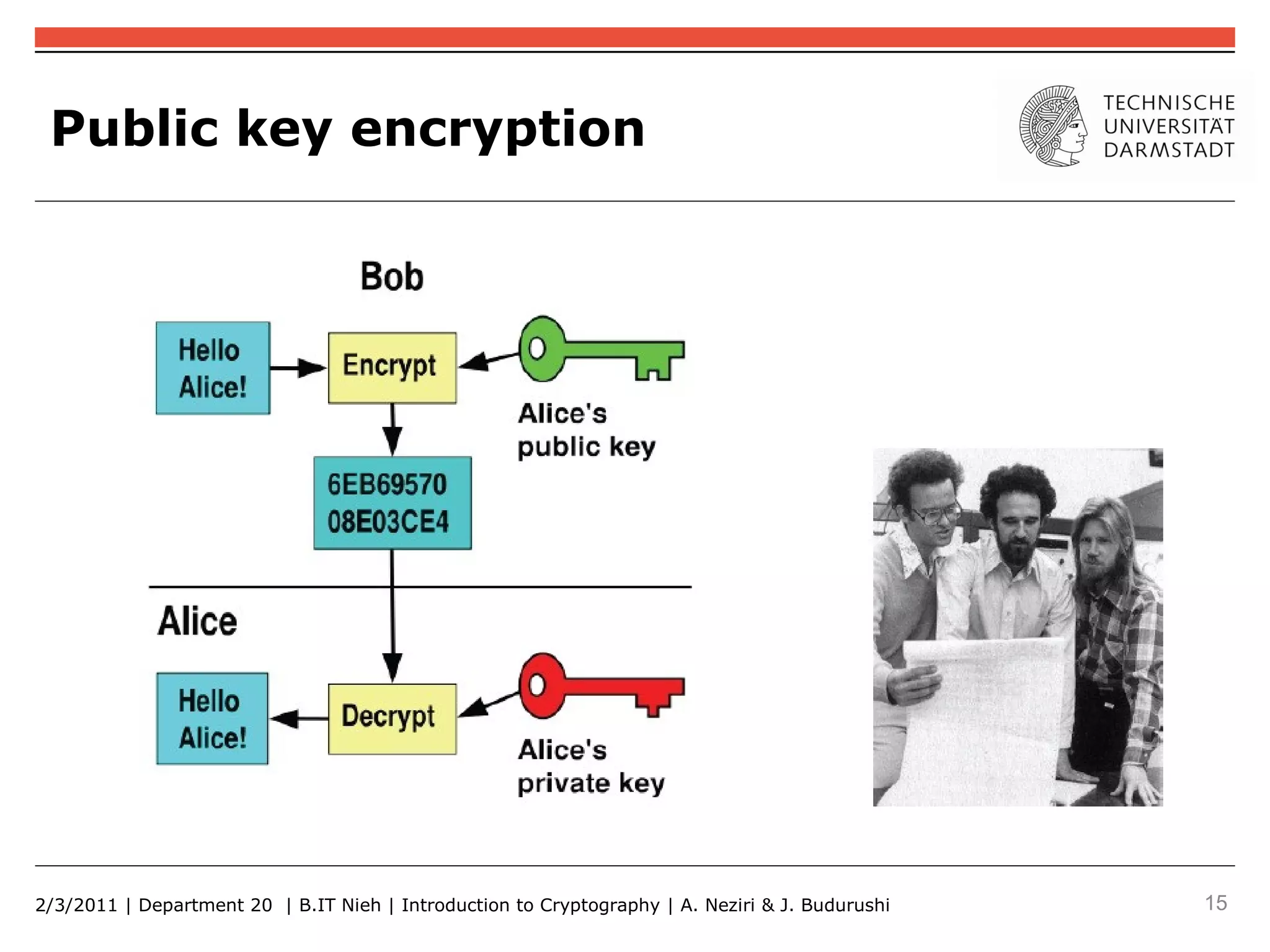

15. Public key encryption
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 15

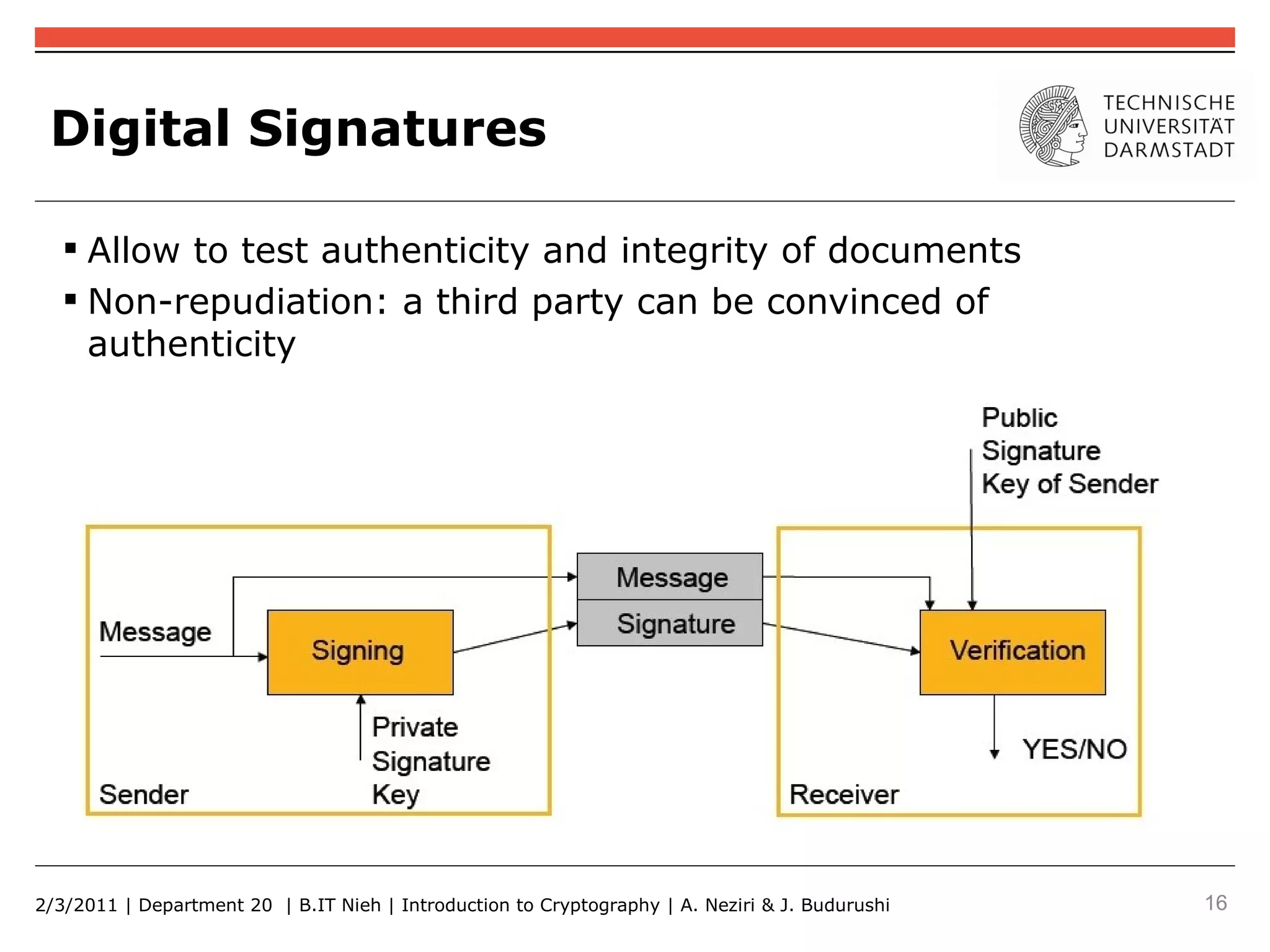

16. Digital Signatures
 Allow to test authenticity and integrity of documents
 Non-repudiation: a third party can be convinced of
authenticity
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 16

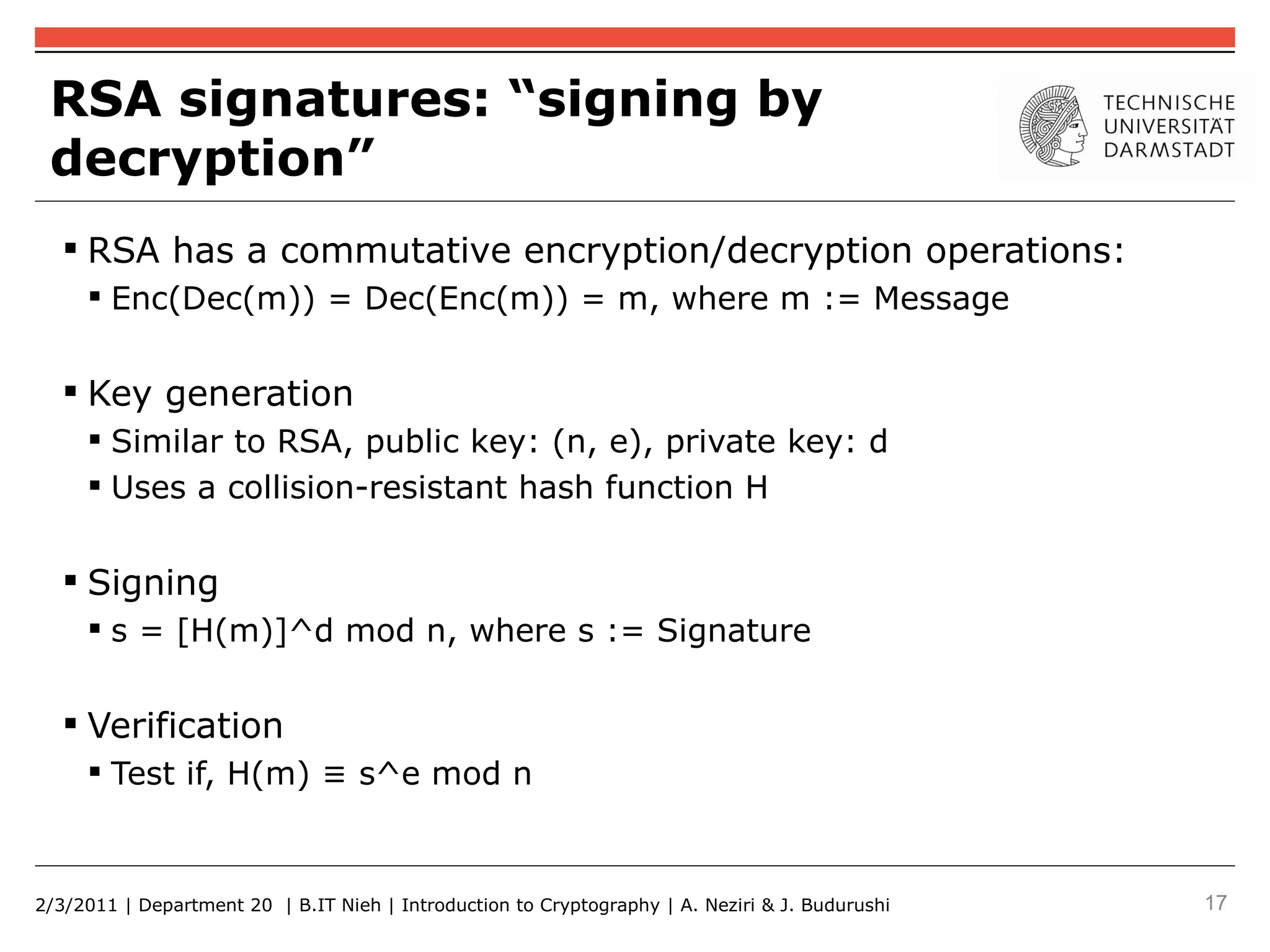

17. RSA signatures: “signing by
decryption”
 RSA has a commutative encryption/decryption operations:
 Enc(Dec(m)) = Dec(Enc(m)) = m, where m := Message
 Key generation
 Similar to RSA, public key: (n, e), private key: d
 Uses a collision-resistant hash function H
 Signing
 s = [H(m)]^d mod n, where s := Signature
 Verification
 Test if, H(m) ≡ s^e mod n
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 17

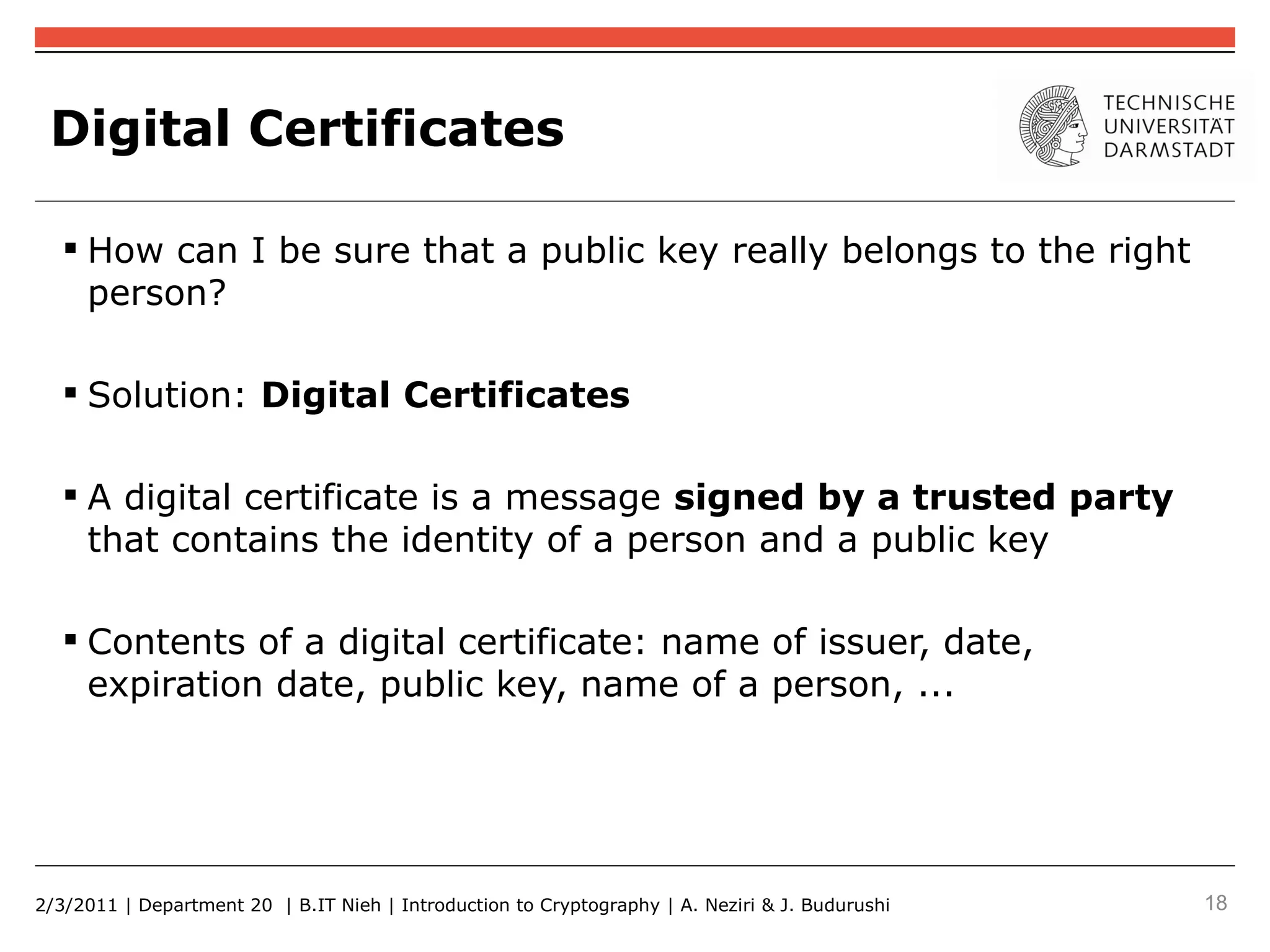

18. Digital Certificates
 How can I be sure that a public key really belongs to the right
person?
 Solution: Digital Certificates
 A digital certificate is a message signed by a trusted party
that contains the identity of a person and a public key
 Contents of a digital certificate: name of issuer, date,
expiration date, public key, name of a person, ...
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 18

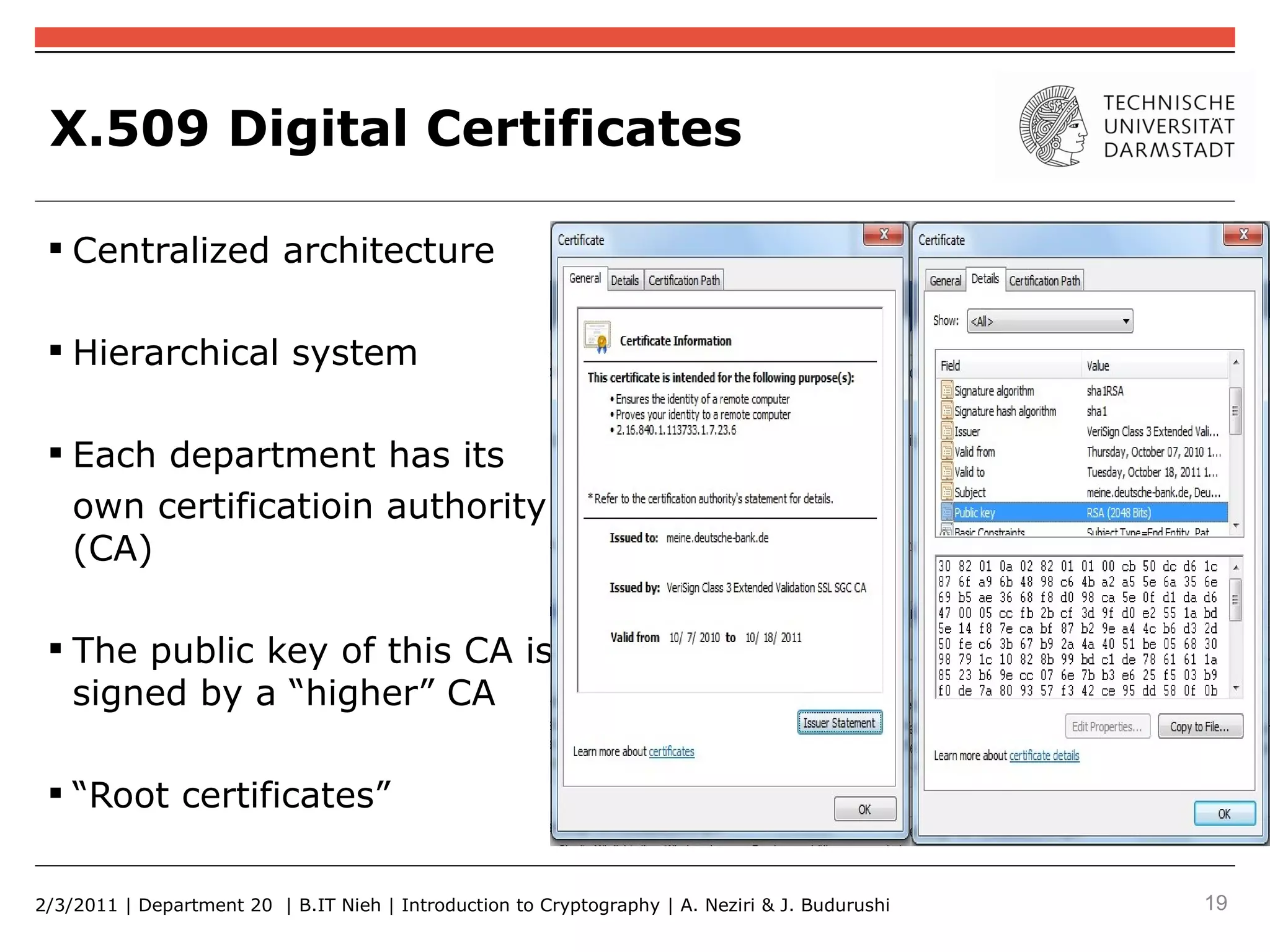

19. X.509 Digital Certificates
 Centralized architecture
 Hierarchical system
 Each department has its
own certificatioin authority
(CA)
 The public key of this CA is
signed by a “higher” CA
 “Root certificates”
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 19

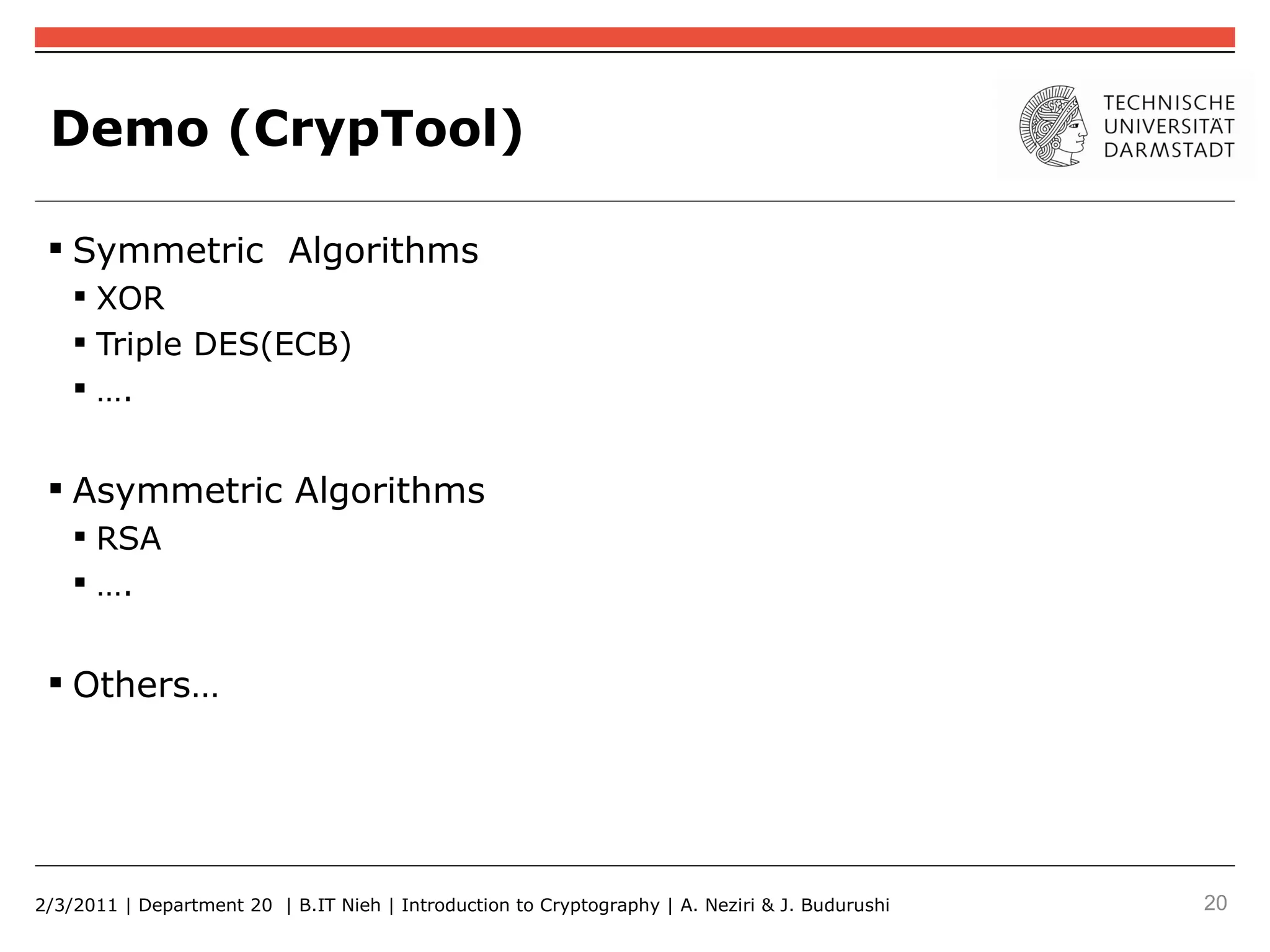

20. Demo (CrypTool)
 Symmetric Algorithms
 XOR
 Triple DES(ECB)
 ….
 Asymmetric Algorithms
 RSA
 ….
 Others…
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 20

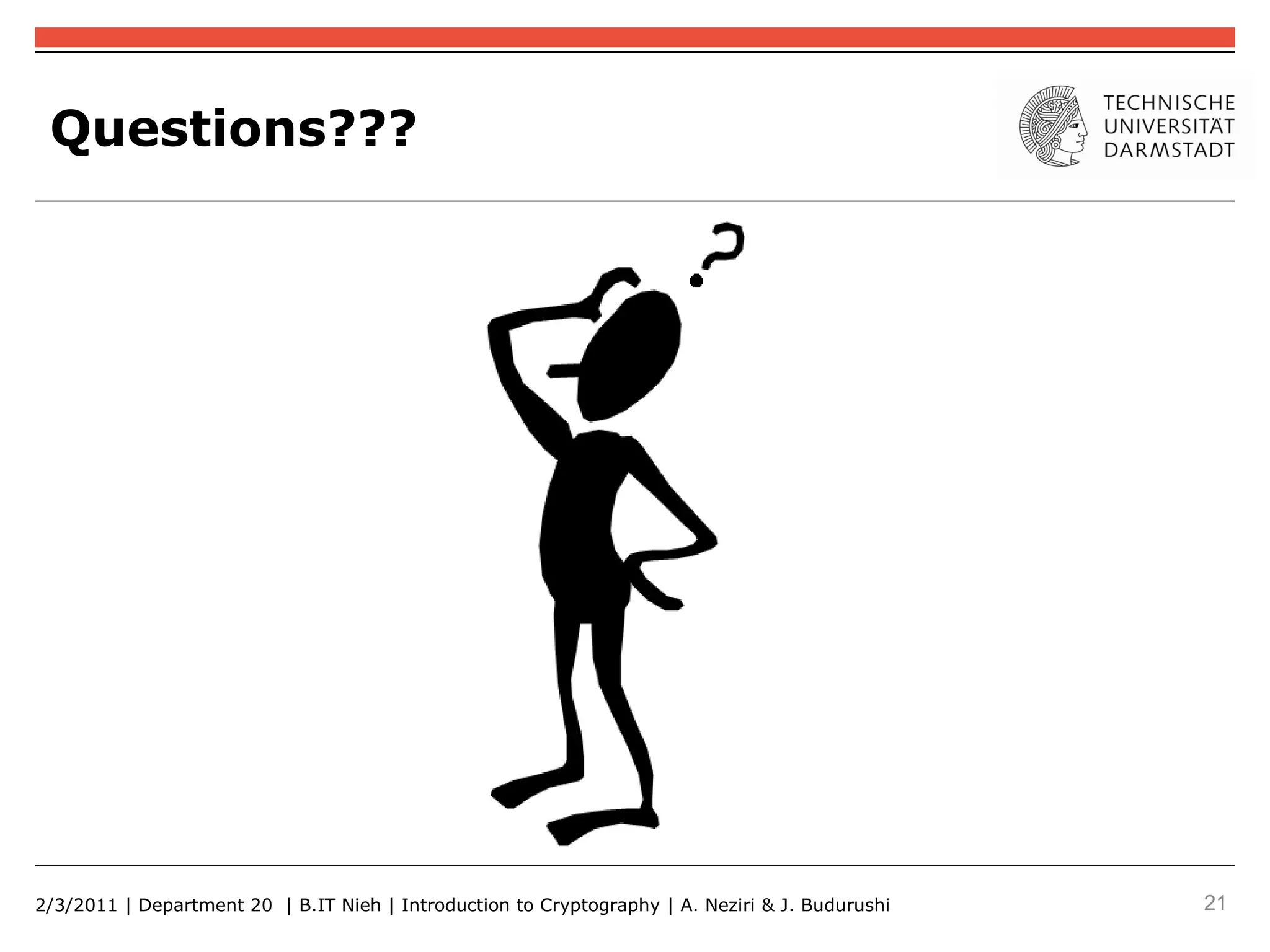

21. Questions???
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 21

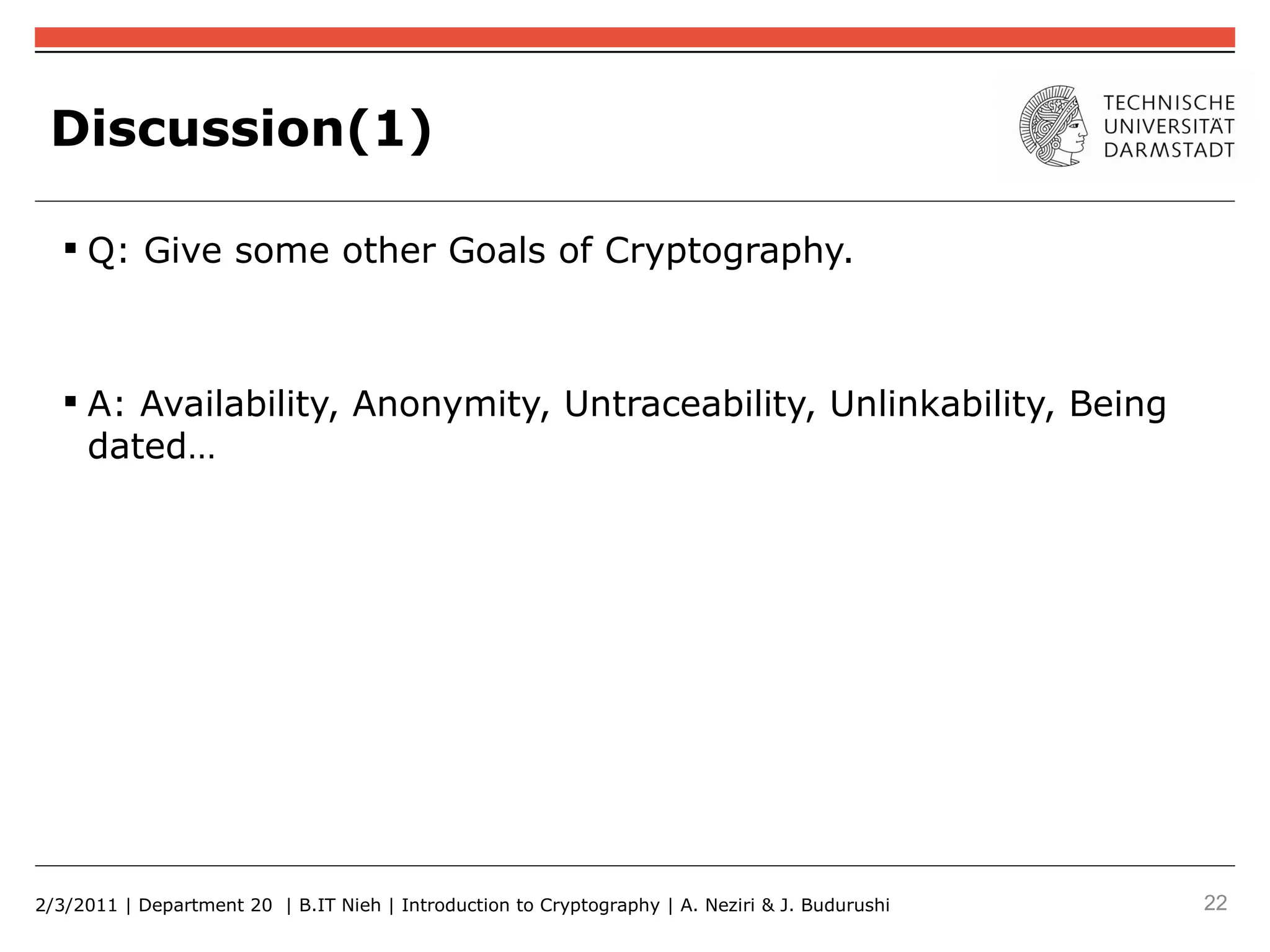

22. Discussion(1)
 Q: Give some other Goals of Cryptography.
 A: Availability, Anonymity, Untraceability, Unlinkability, Being
dated…
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 22

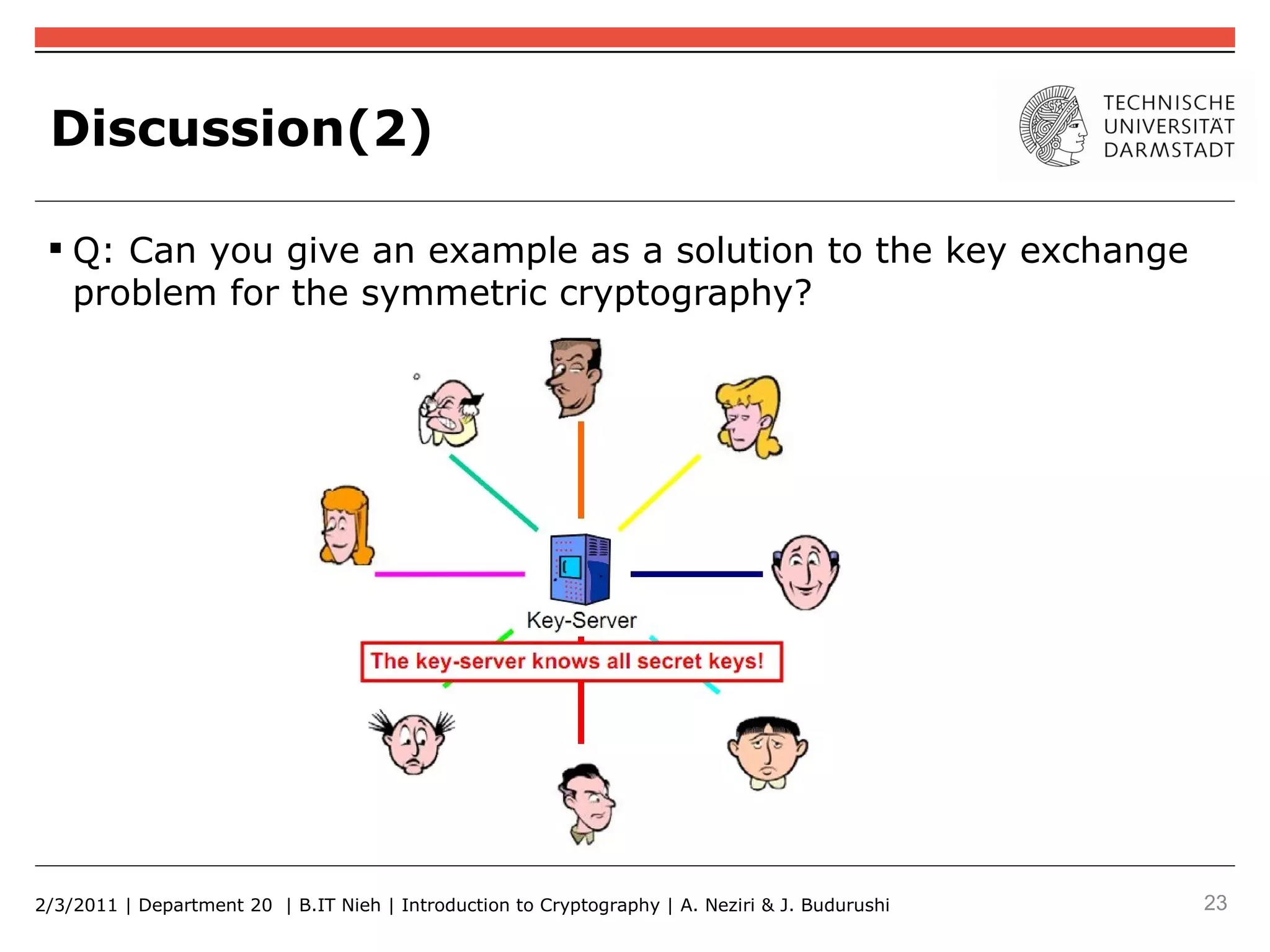

23. Discussion(2)
 Q: Can you give an example as a solution to the key exchange
problem for the symmetric cryptography?
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 23

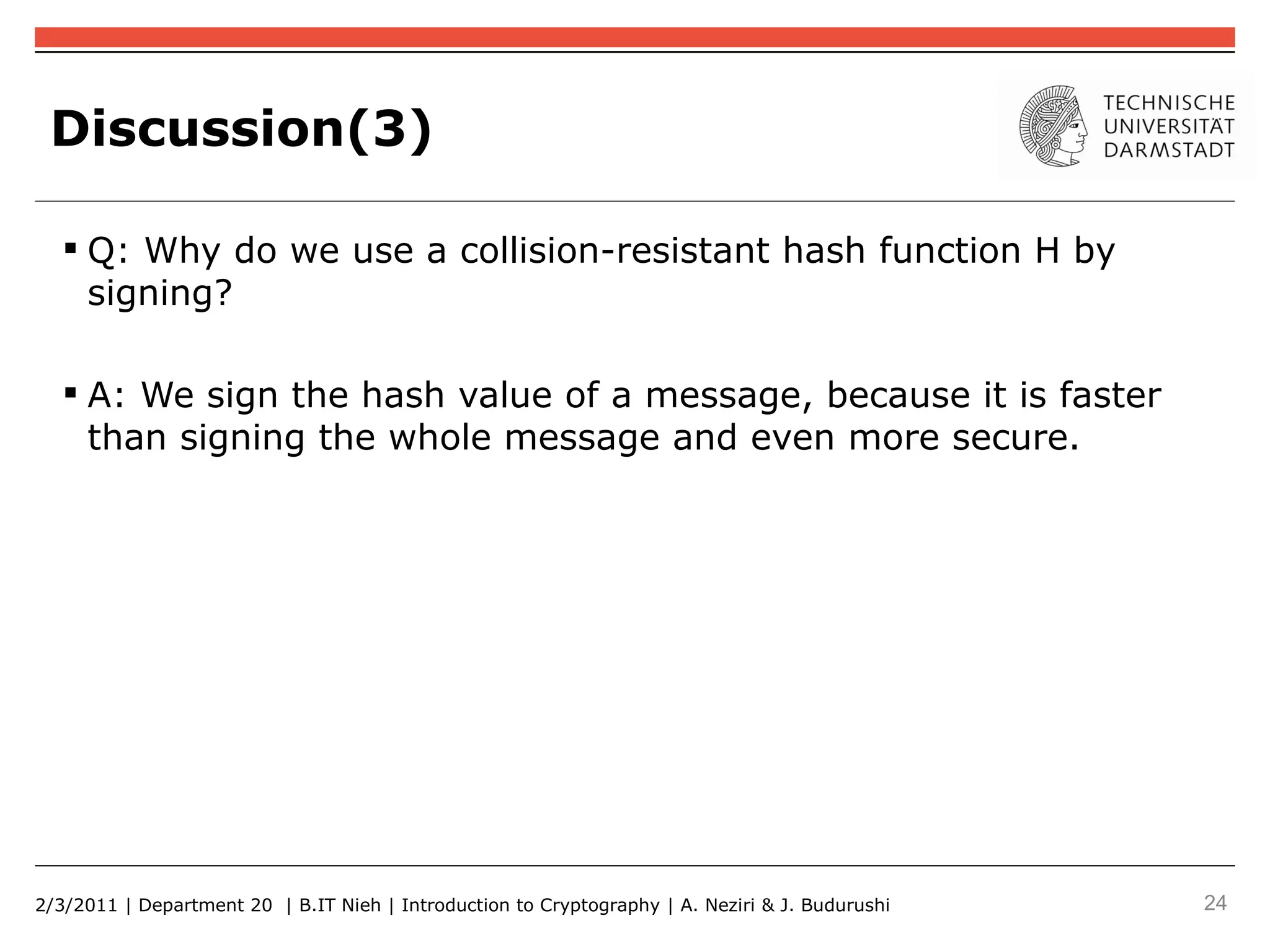

24. Discussion(3)
 Q: Why do we use a collision-resistant hash function H by
signing?
 A: We sign the hash value of a message, because it is faster
than signing the whole message and even more secure.
2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 24

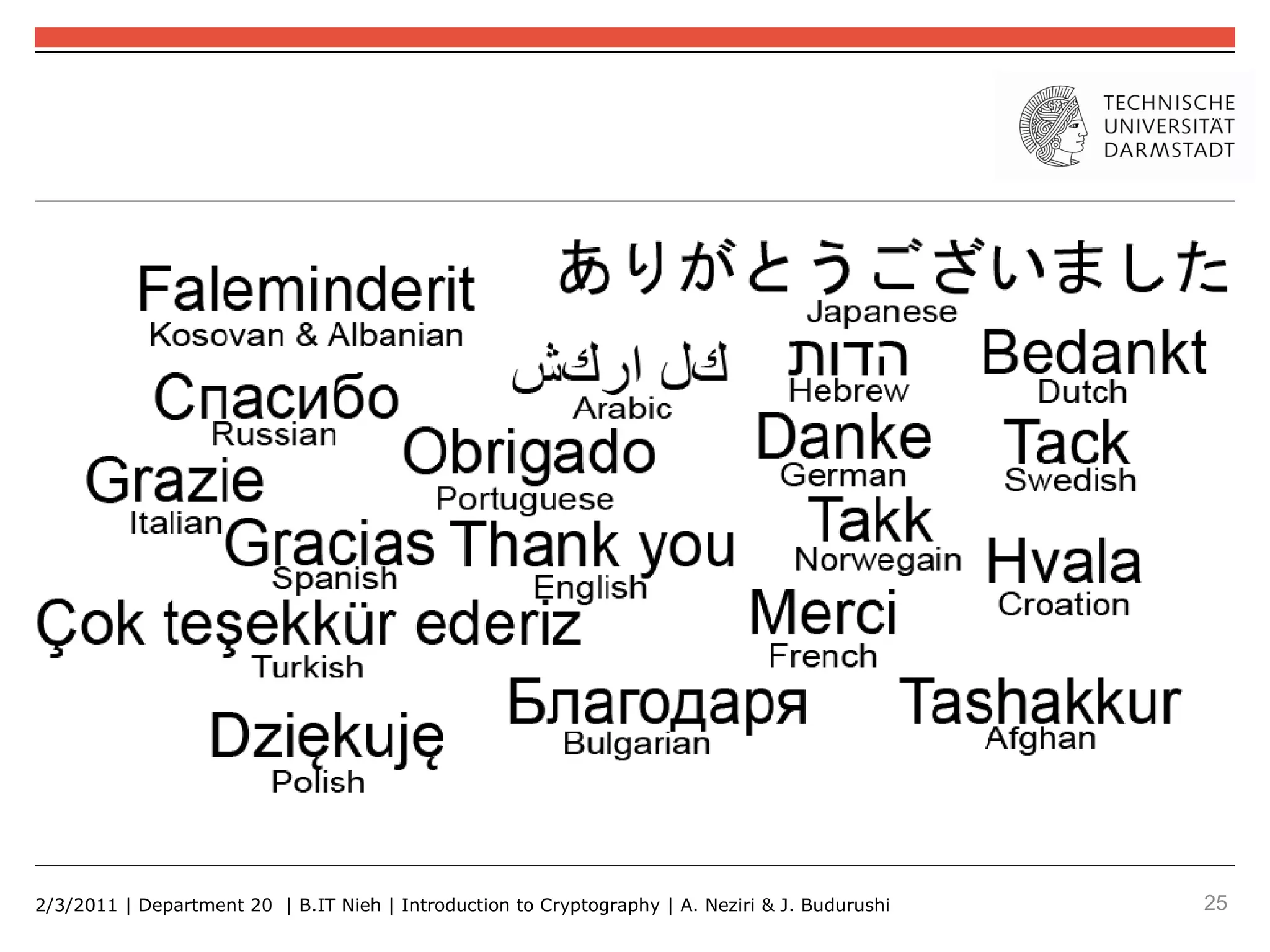

25. 2/3/2011 | Department 20 | B.IT Nieh | Introduction to Cryptography | A. Neziri & J. Budurushi 25

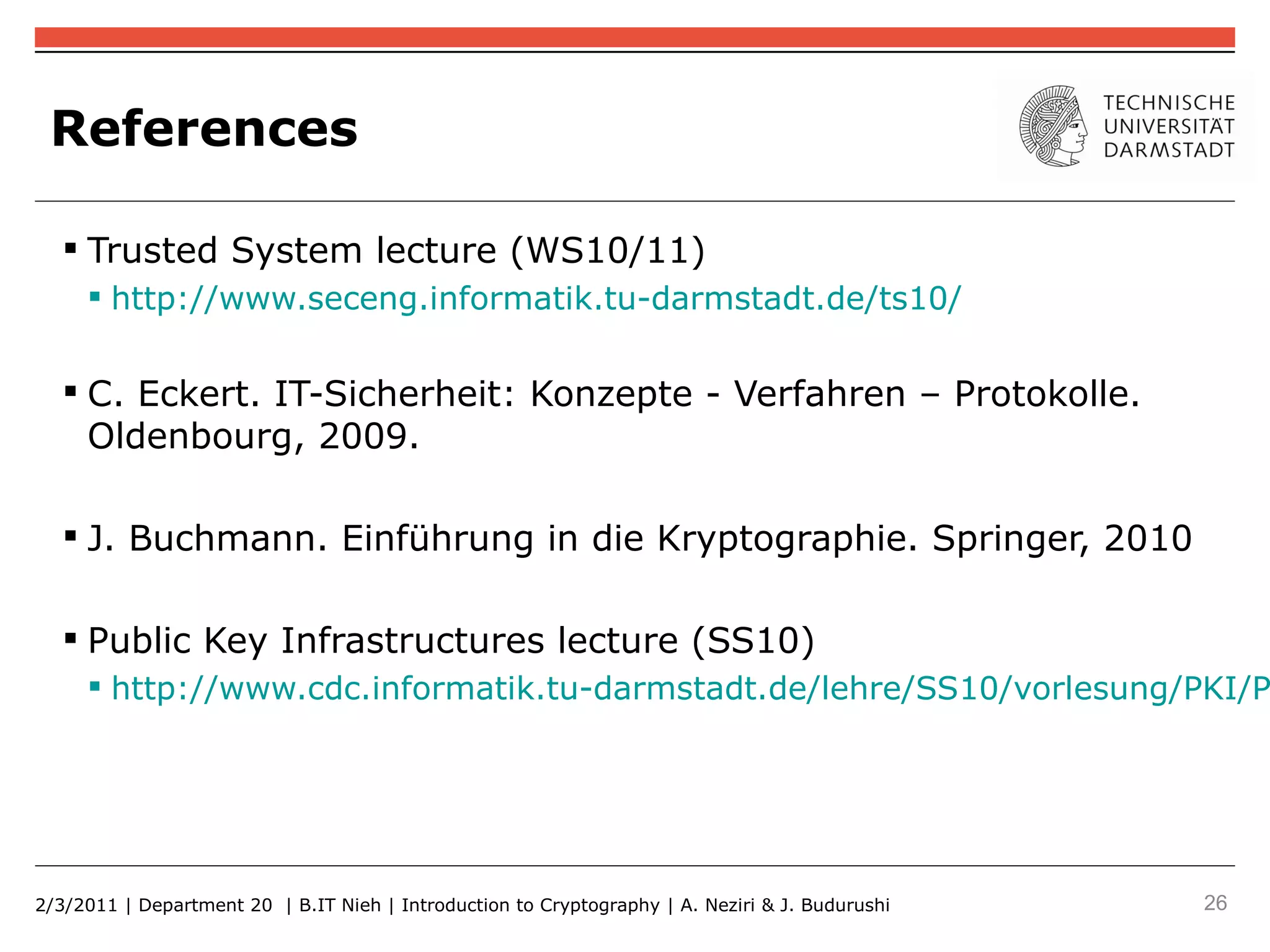

26. References
 Trusted System lecture (WS10/11)
 http://www.seceng.informatik.tu-darmstadt.de/ts10/
 C. Eckert. IT-Sicherheit: Konzepte - Verfahren – Protokolle.
Oldenbourg, 2009.
 J. Buchmann. Einführung in die Kryptographie. Springer, 2010
 Public Key Infrastructures lecture (SS10)
 http://www.cdc.informatik.tu-darmstadt.de/lehre/SS10/vorlesung/PKI/P
