1. Introduction to AJAX
Venkat pinagadi

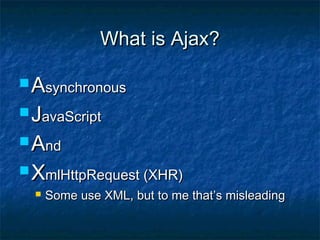

2. What is Ajax?
 Asynchronous
 JavaScript
 And
 XmlHttpRequest (XHR)

Some use XML, but to me that’s misleading

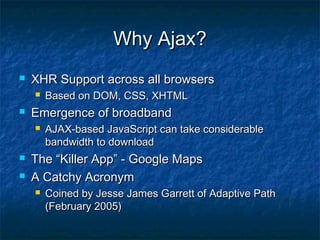

3. Why Ajax?

XHR Support across all browsers


Emergence of broadband



Based on DOM, CSS, XHTML
AJAX-based JavaScript can take considerable
bandwidth to download
The “Killer App” - Google Maps
A Catchy Acronym

Coined by Jesse James Garrett of Adaptive Path
(February 2005)

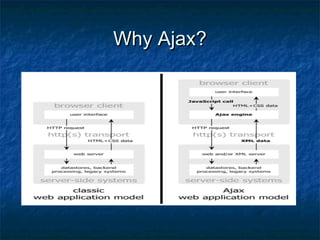

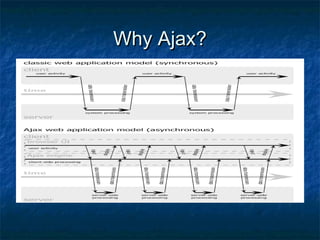

4. Why Ajax?

5. Why Ajax?

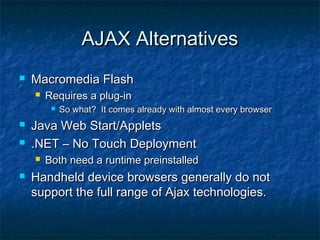

6. AJAX Alternatives

Macromedia Flash

Requires a plug-in



Java Web Start/Applets
.NET – No Touch Deployment


So what? It comes already with almost every browser
Both need a runtime preinstalled
Handheld device browsers generally do not
support the full range of Ajax technologies.

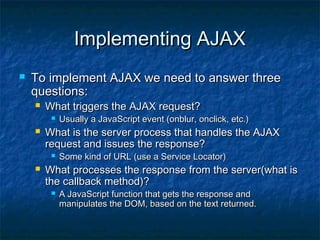

7. Implementing AJAX

To implement AJAX we need to answer three
questions:

What triggers the AJAX request?


What is the server process that handles the AJAX
request and issues the response?


Usually a JavaScript event (onblur, onclick, etc.)
Some kind of URL (use a Service Locator)
What processes the response from the server(what is
the callback method)?

A JavaScript function that gets the response and
manipulates the DOM, based on the text returned.

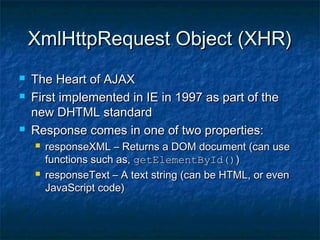

8. XmlHttpRequest Object (XHR)



The Heart of AJAX
First implemented in IE in 1997 as part of the
new DHTML standard
Response comes in one of two properties:


responseXML – Returns a DOM document (can use
functions such as, getElementById())
responseText – A text string (can be HTML, or even
JavaScript code)

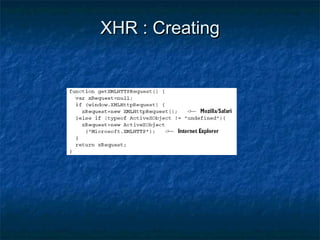

9. XHR : Creating

10. XHR : Sending the Request
true = asynchronous

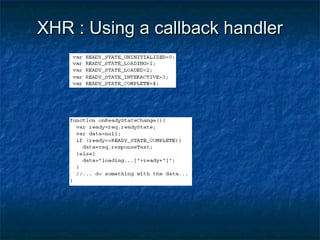

11. XHR : Using a callback handler

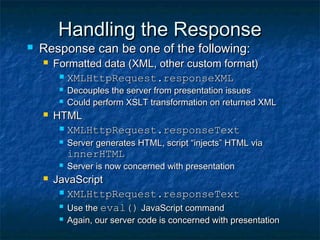

12. Handling the Response

Response can be one of the following:

Formatted data (XML, other custom format)
 XMLHttpRequest.responseXML



Decouples the server from presentation issues
Could perform XSLT transformation on returned XML
HTML
 XMLHttpRequest.responseText

Server generates HTML, script “injects” HTML via
innerHTML


Server is now concerned with presentation
JavaScript
 XMLHttpRequest.responseText
 Use the eval() JavaScript command

Again, our server code is concerned with presentation

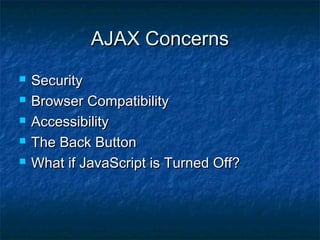

13. AJAX Concerns





Security
Browser Compatibility
Accessibility
The Back Button
What if JavaScript is Turned Off?

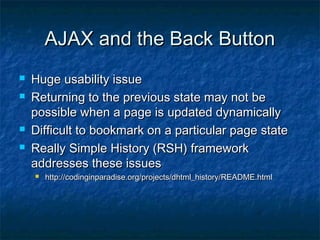

14. AJAX and the Back Button




Huge usability issue
Returning to the previous state may not be
possible when a page is updated dynamically
Difficult to bookmark on a particular page state
Really Simple History (RSH) framework
addresses these issues

http://codinginparadise.org/projects/dhtml_history/README.html

15. AJAX Security – Server of Origin
Policy

16. AJAX Security

Browsers impose security restrictions

Cannot make requests via the XHR outside of
the domain the web page came from
Can set security on IE to get around this (but you
really don’t want to)
 Mozilla-based browsers require digitally signing
your script (Yuck!)


User must approve going to site.

Firefox requires additional code

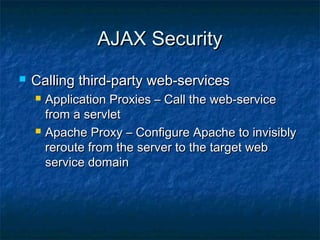

17. AJAX Security

Calling third-party web-services


Application Proxies – Call the web-service
from a servlet
Apache Proxy – Configure Apache to invisibly
reroute from the server to the target web
service domain

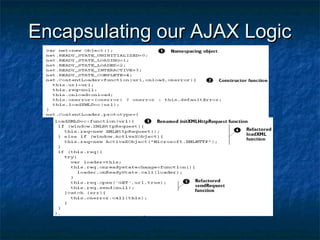

18. Encapsulating our AJAX Logic

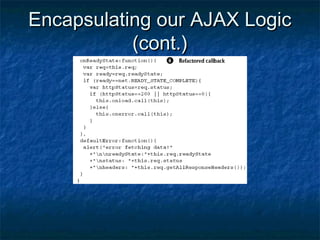

19. Encapsulating our AJAX Logic
(cont.)

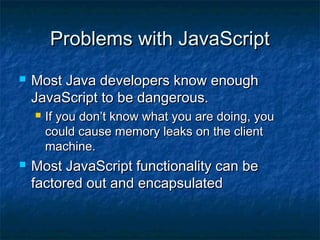

20. Problems with JavaScript

Most Java developers know enough
JavaScript to be dangerous.


If you don’t know what you are doing, you
could cause memory leaks on the client
machine.
Most JavaScript functionality can be
factored out and encapsulated

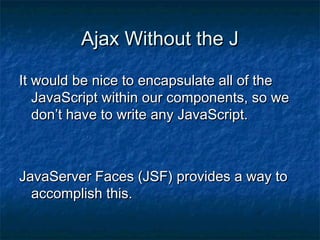

21. Ajax Without the J
It would be nice to encapsulate all of the
JavaScript within our components, so we
don’t have to write any JavaScript.
JavaServer Faces (JSF) provides a way to
accomplish this.

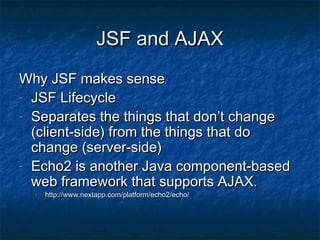

22. JSF and AJAX
Why JSF makes sense
- JSF Lifecycle
- Separates the things that don’t change
(client-side) from the things that do
change (server-side)
- Echo2 is another Java component-based
web framework that supports AJAX.
-
http://www.nextapp.com/platform/echo2/echo/

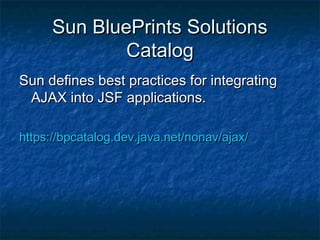

23. Sun BluePrints Solutions
Catalog
Sun defines best practices for integrating
AJAX into JSF applications.
https://bpcatalog.dev.java.net/nonav/ajax/

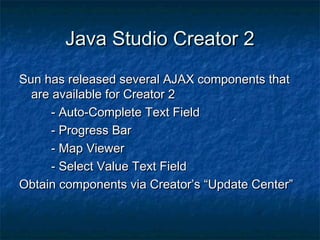

24. Java Studio Creator 2
Sun has released several AJAX components that
are available for Creator 2
- Auto-Complete Text Field
- Progress Bar
- Map Viewer
- Select Value Text Field
Obtain components via Creator’s “Update Center”

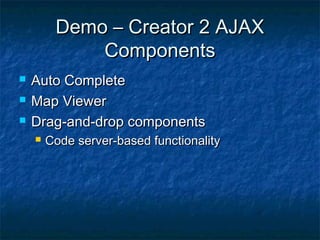

25. Demo – Creator 2 AJAX
Components



Auto Complete
Map Viewer
Drag-and-drop components

Code server-based functionality

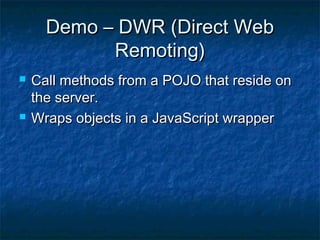

26. Demo – DWR (Direct Web
Remoting)


Call methods from a POJO that reside on
the server.
Wraps objects in a JavaScript wrapper

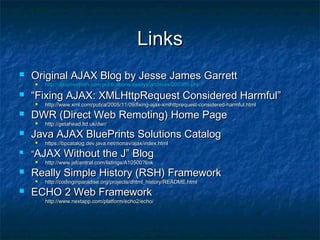

27. Links

Original AJAX Blog by Jesse James Garrett


“Fixing AJAX: XMLHttpRequest Considered Harmful”


http://www.jsfcentral.com/listings/A10500?link
Really Simple History (RSH) Framework


https://bpcatalog.dev.java.net/nonav/ajax/index.html
“AJAX Without the J” Blog


http://getahead.ltd.uk/dwr/
Java AJAX BluePrints Solutions Catalog


http://www.xml.com/pub/a/2005/11/09/fixing-ajax-xmlhttprequest-considered-harmful.html
DWR (Direct Web Remoting) Home Page


http://adaptivepath.com/publications/essays/archives/000385.php
http://codinginparadise.org/projects/dhtml_history/README.html
ECHO 2 Web Framework
-
http://www.nextapp.com/platform/echo2/echo/

28. Questions

My E-mail is:
Venkat.pinagadi@gmail.com
