Smart building controls and energy management system trends
This document summarizes trends in smart building controls and energy management systems. It identifies key trends such as modular/off-site construction, LEDs, wireless communicating controls, mobility/apps, decentralization/integration, analytics, and wearables. It also provides overviews of the smart home market, home automation evolution, the North American smart homes market breakdown, new studies on hydronic valves and controls, and the dimensions of the North American intelligent buildings market. Finally, it discusses threats and opportunities in the building automation and control systems market and the growing world building energy management systems market.
More Related Content
Similar to Smart building controls and energy management system trends
Smart building controls and energy management system trends
- 1. Smart Building Controlsand Energy Management System Trends Jeremy Towler Senior Manager Energy and Smart Technologies January 2015

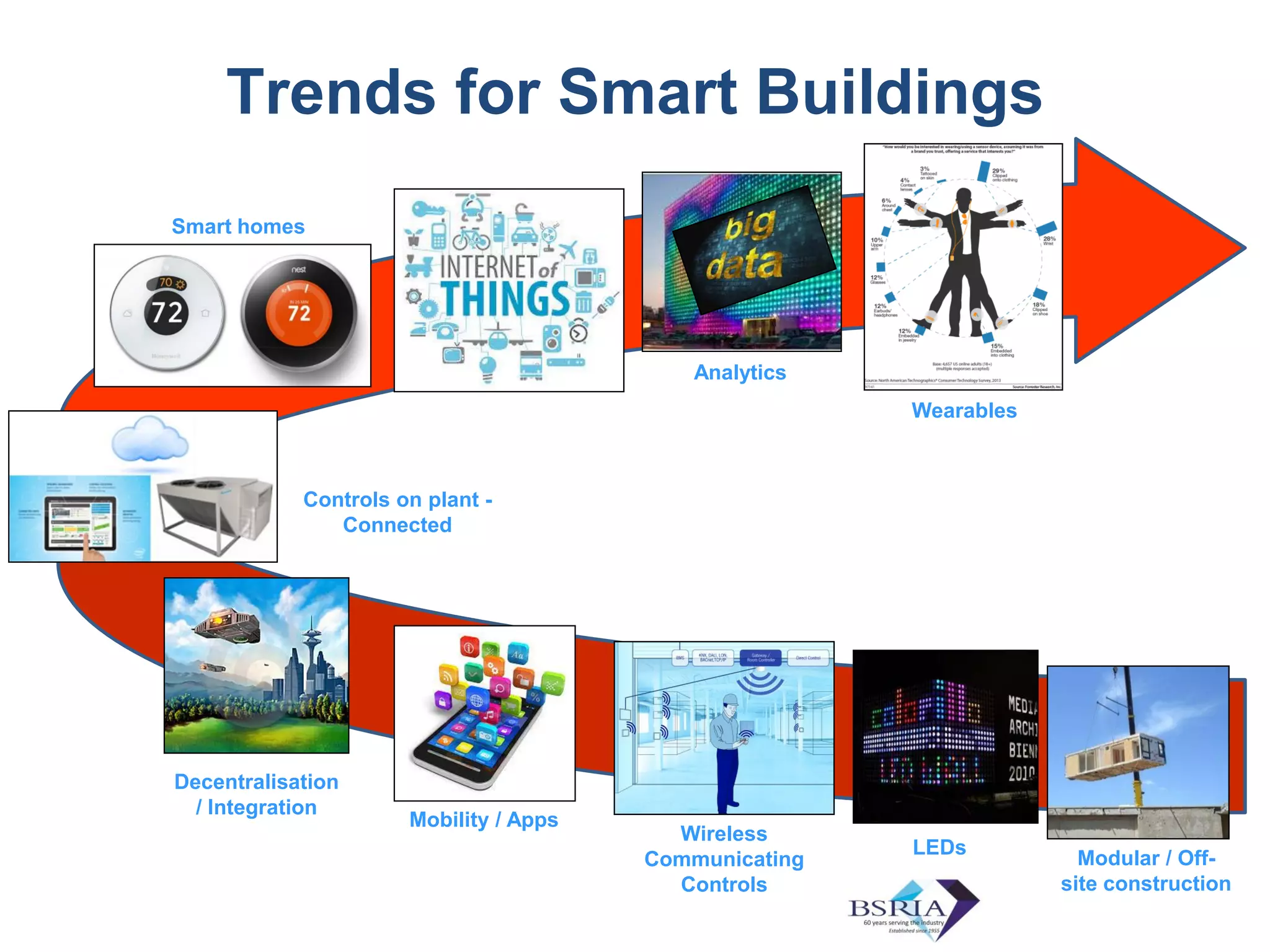

- 2. Trends for SmartBuildings Modular / Off- site construction LEDs Wireless Communicating Controls Mobility / Apps Controls on plant - Connected Decentralisation / Integration Analytics Wearables Smart homes

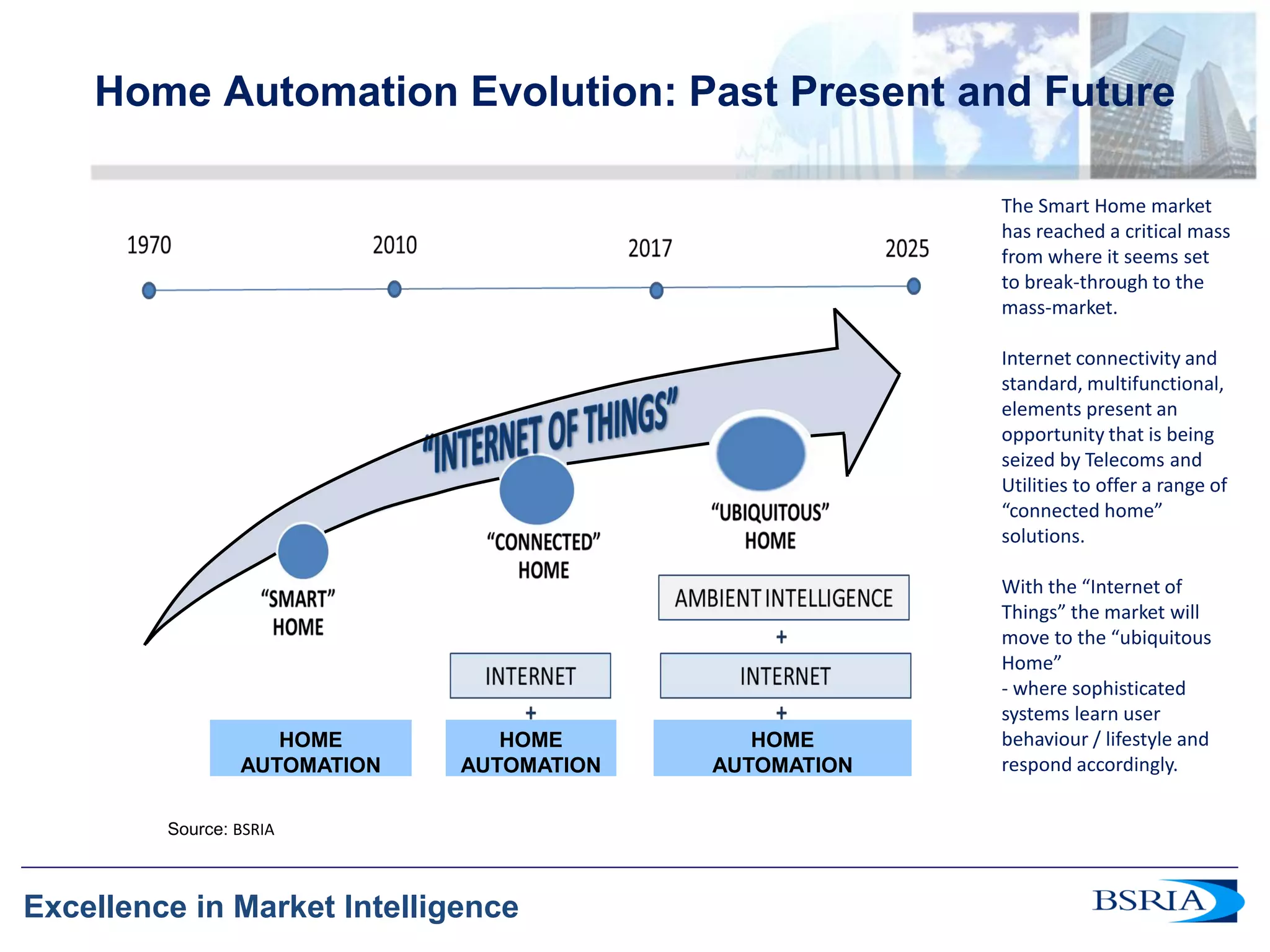

- 3. 3 Excellence in MarketIntelligence Home Automation Evolution: Past Present and Future Source: BSRIA The Smart Home market has reached a critical mass from where it seems set to break-through to the mass-market. Internet connectivity and standard, multifunctional, elements present an opportunity that is being seized by Telecoms and Utilities to offer a range of “connected home” solutions. With the “Internet of Things” the market will move to the “ubiquitous Home” - where sophisticated systems learn user behaviour / lifestyle and respond accordingly. HOME AUTOMATION HOME AUTOMATION HOME AUTOMATION

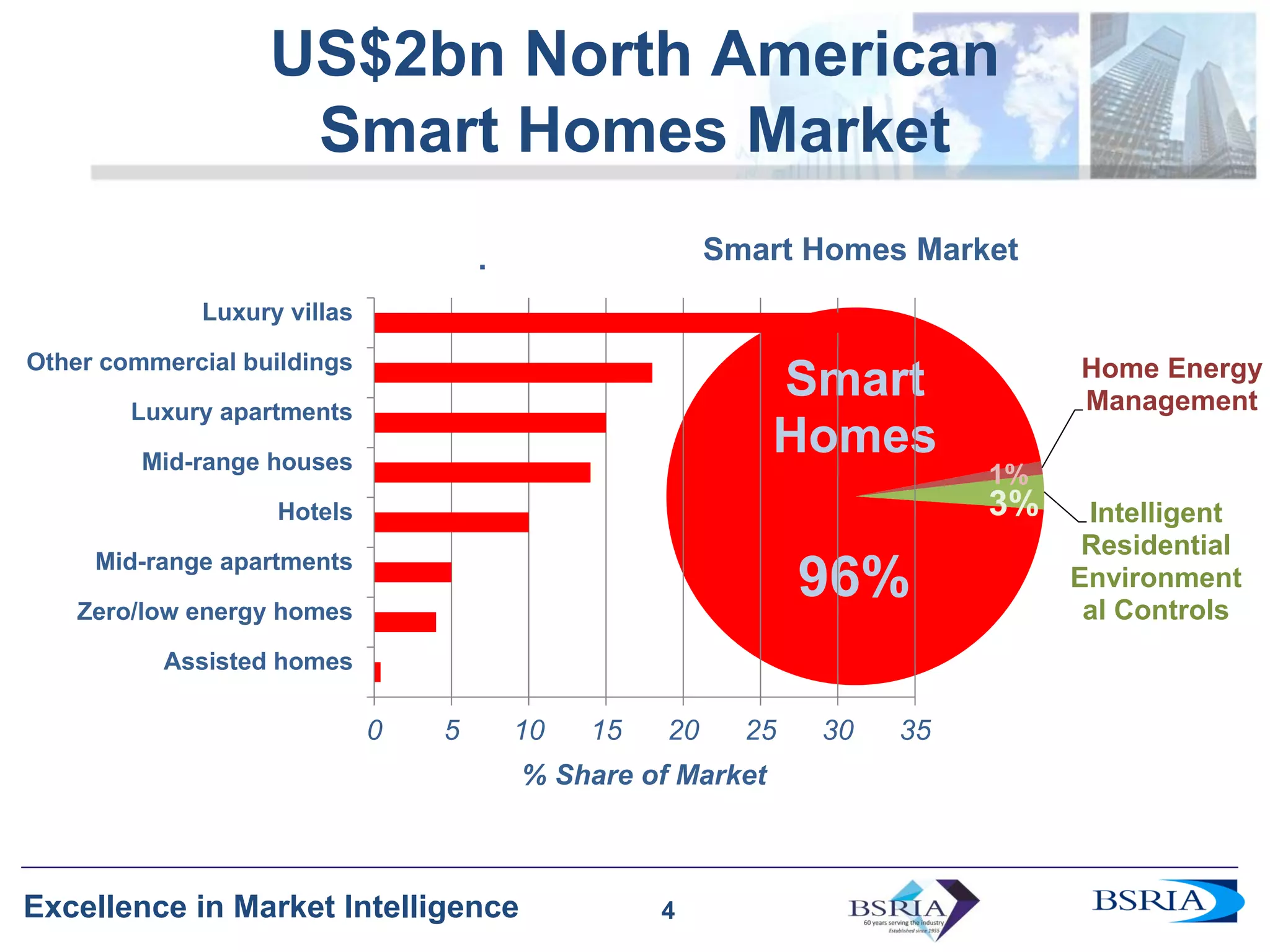

- 4. 4 Excellence in MarketIntelligence US$2bn North American Smart Homes Market Smart Homes Home Energy Management Intelligent Residential Environment al Controls Smart Homes Market 4 96% 3% 1% 0 5 10 15 20 25 30 35 Assisted homes Zero/low energy homes Mid-range apartments Hotels Mid-range houses Luxury apartments Other commercial buildings Luxury villas . % Share of Market

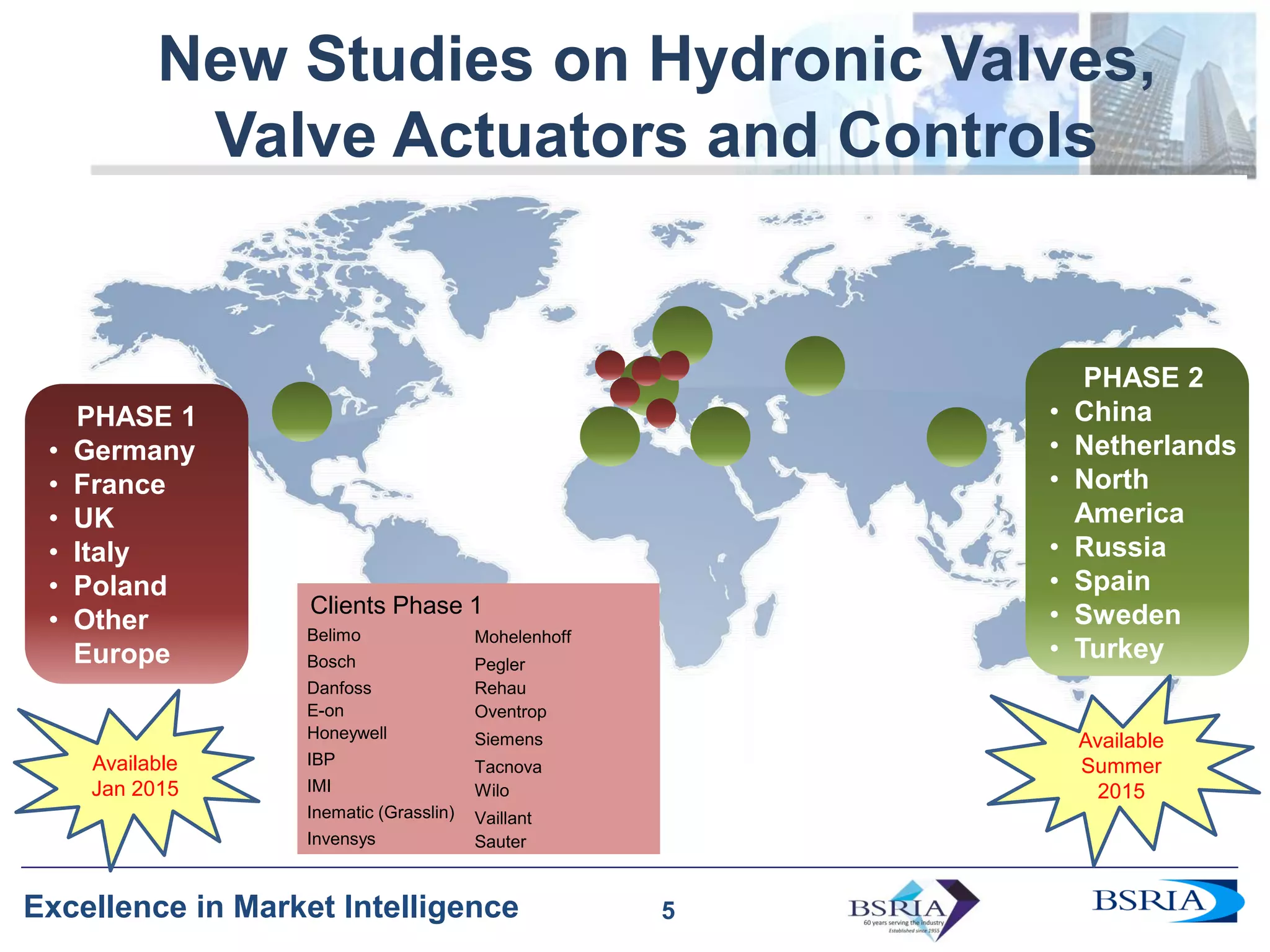

- 5. 5 Excellence in MarketIntelligence PHASE 1 • Germany • France • UK • Italy • Poland • Other Europe New Studies on Hydronic Valves, Valve Actuators and Controls 5 PHASE 2 • China • Netherlands • North America • Russia • Spain • Sweden • Turkey Belimo Bosch Danfoss E-on Honeywell IBP IMI Inematic (Grasslin) Invensys Mohelenhoff Pegler Rehau Oventrop Siemens Tacnova Wilo Vaillant Sauter Clients Phase 1 Available Jan 2015 Available Summer 2015

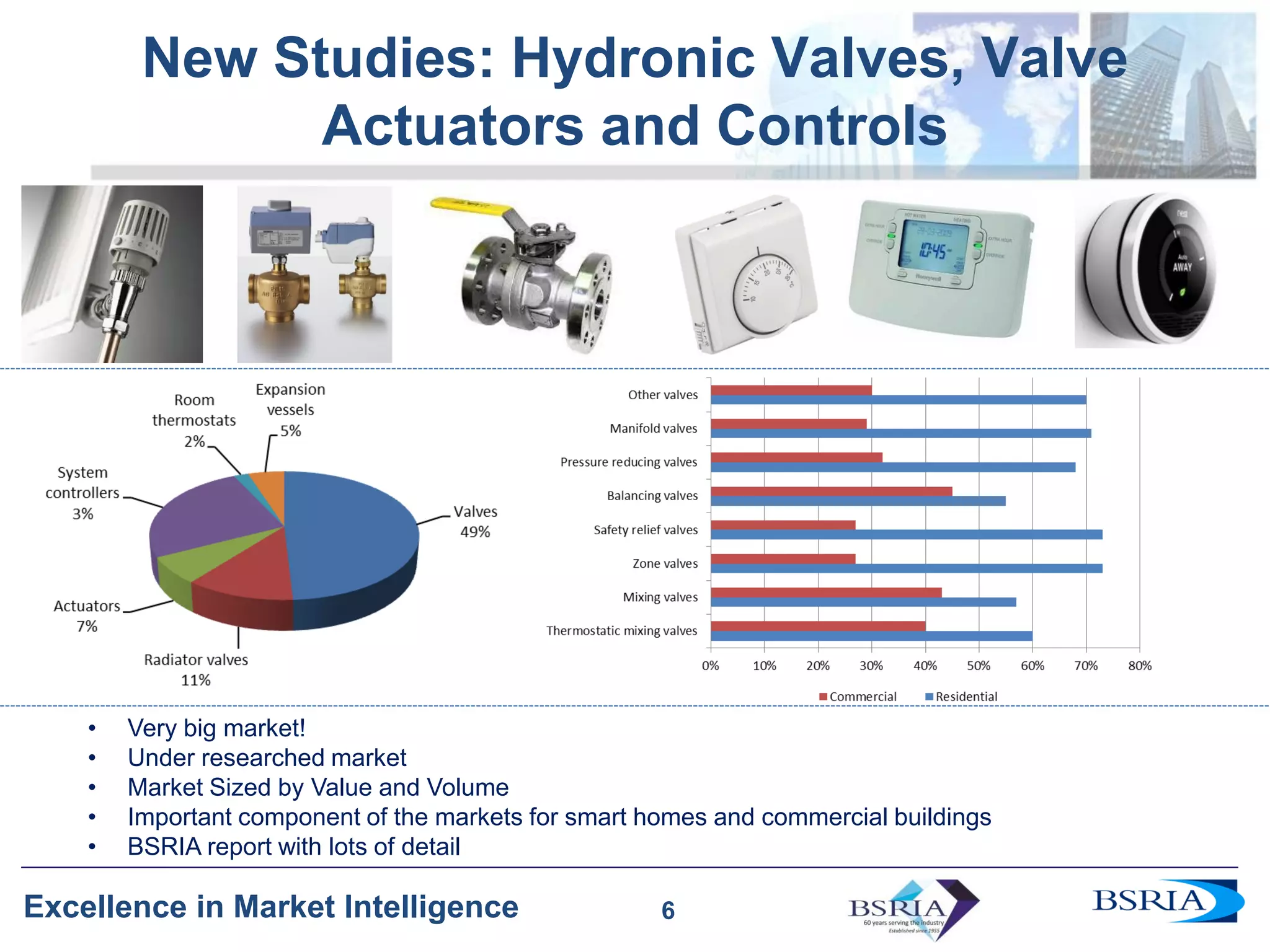

- 6. 6 Excellence in MarketIntelligence New Studies: Hydronic Valves, Valve Actuators and Controls 6 • Very big market! • Under researched market • Market Sized by Value and Volume • Important component of the markets for smart homes and commercial buildings • BSRIA report with lots of detail

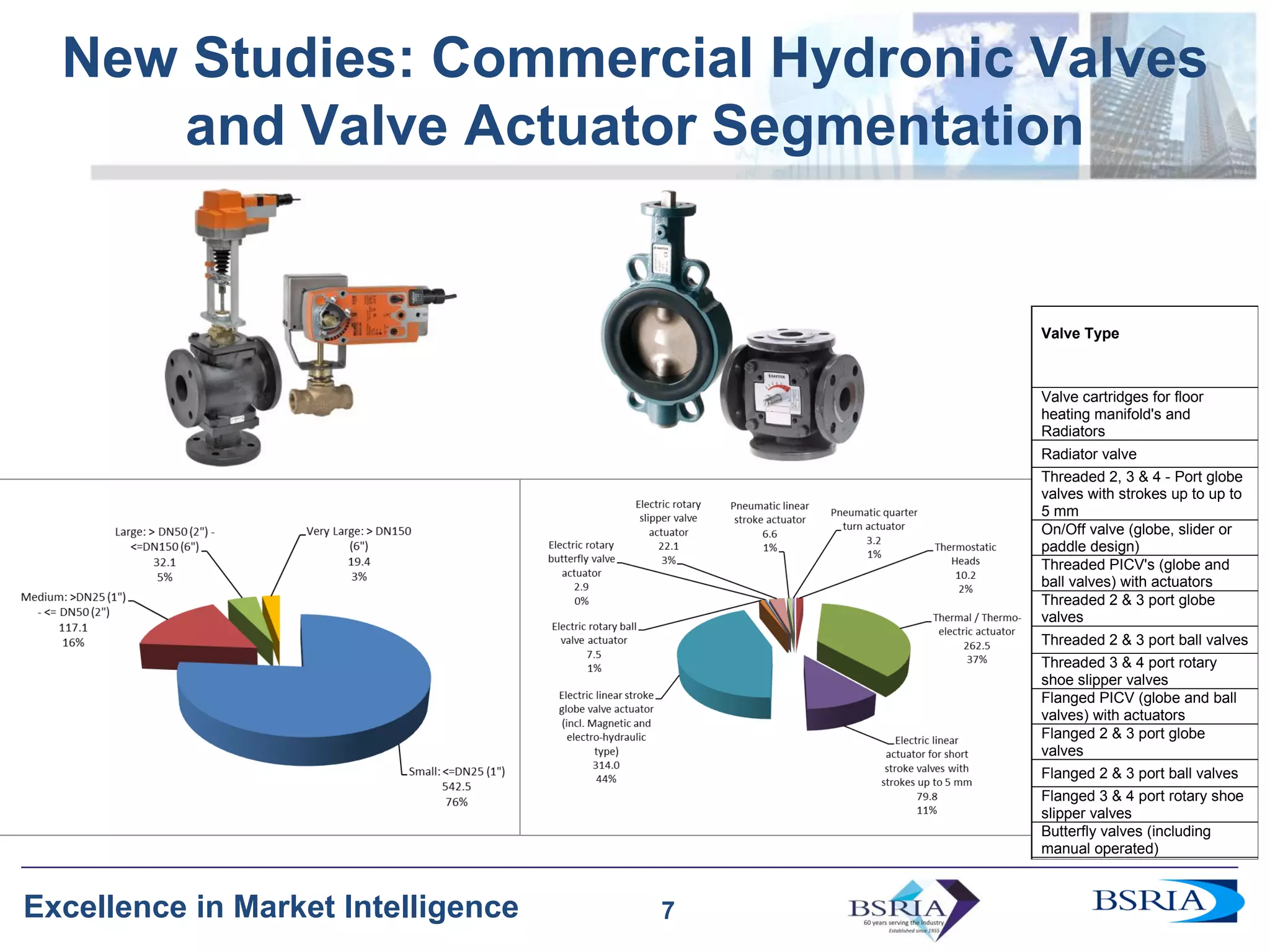

- 7. 7 Excellence in MarketIntelligence New Studies: Commercial Hydronic Valves and Valve Actuator Segmentation 7 Valve Type Valve cartridges for floor heating manifold's and Radiators Radiator valve Threaded 2, 3 & 4 - Port globe valves with strokes up to up to 5 mm On/Off valve (globe, slider or paddle design) Threaded PICV's (globe and ball valves) with actuators Threaded 2 & 3 port globe valves Threaded 2 & 3 port ball valves Threaded 3 & 4 port rotary shoe slipper valves Flanged PICV (globe and ball valves) with actuators Flanged 2 & 3 port globe valves Flanged 2 & 3 port ball valves Flanged 3 & 4 port rotary shoe slipper valves Butterfly valves (including manual operated) Subtotal

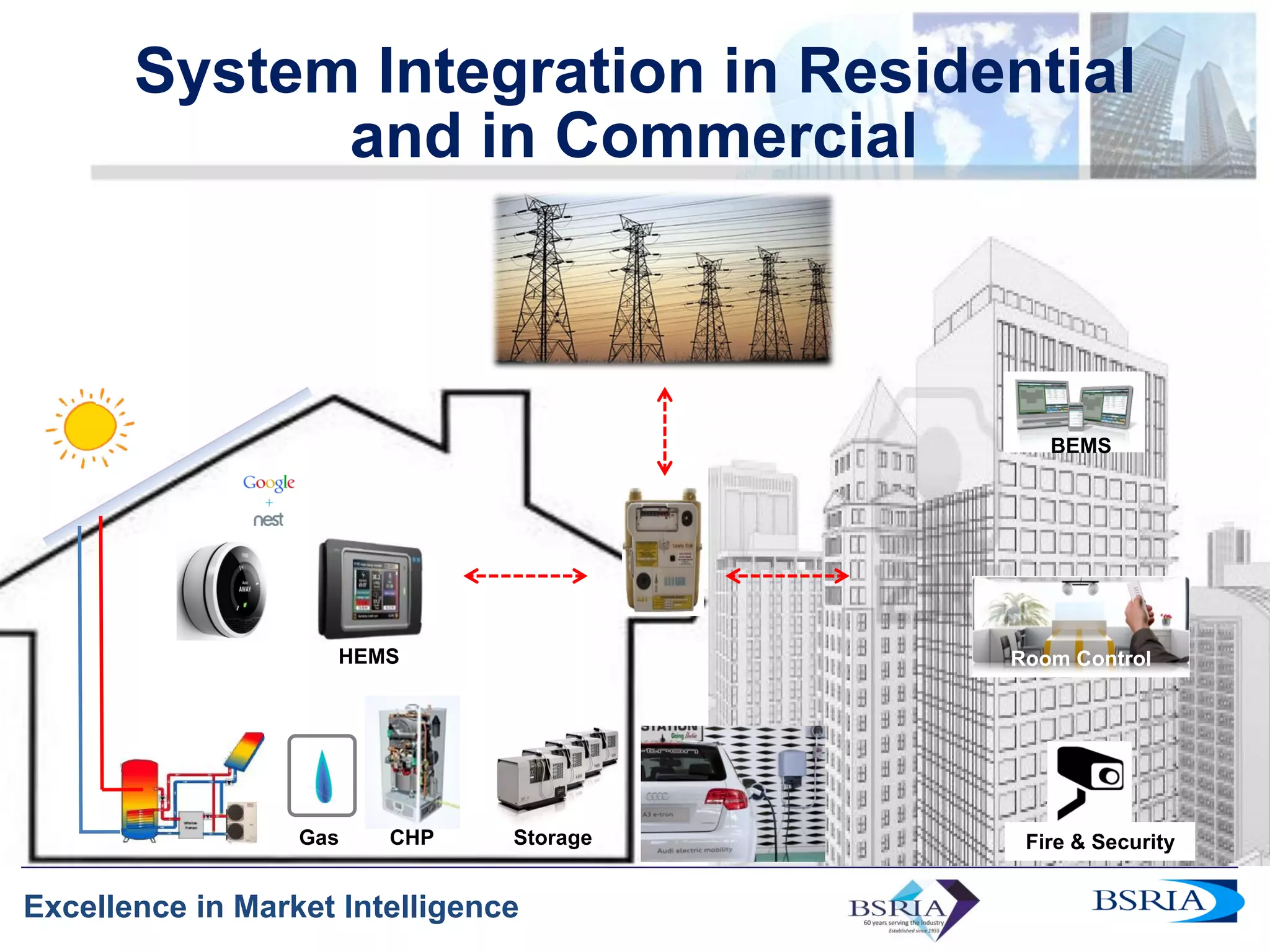

- 8. 8 Excellence in MarketIntelligence BEMS Room Control Fire & Security System Integration in Residential and in Commercial CHP StorageGas HEMS

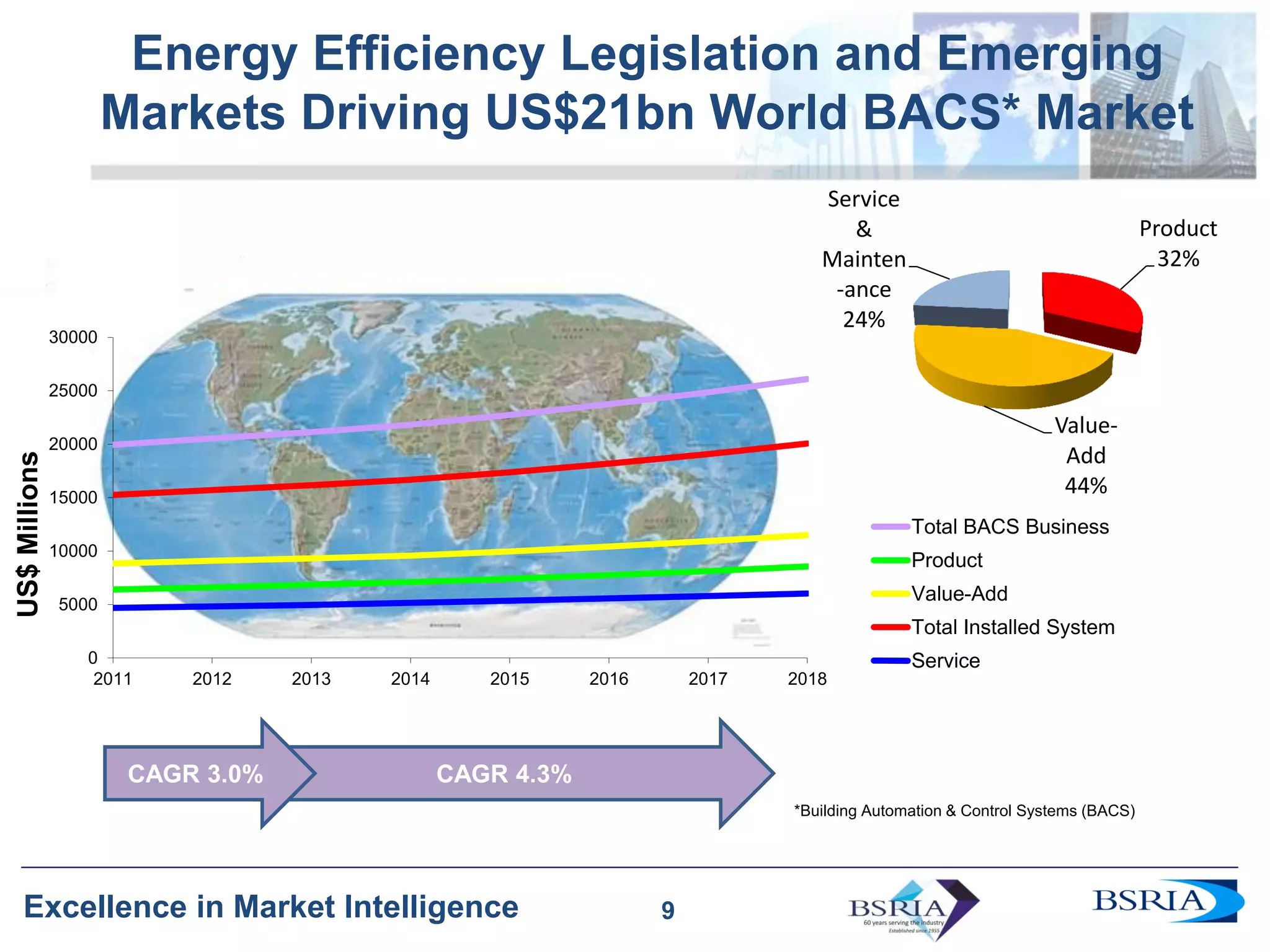

- 9. 9 Excellence in MarketIntelligence 9 Energy Efficiency Legislation and Emerging Markets Driving US$21bn World BACS* Market CAGR 3.0% CAGR 4.3% US$Millions *Building Automation & Control Systems (BACS) Product 32% Value- Add 44% Service & Mainten -ance 24% 0 5000 10000 15000 20000 25000 30000 2011 2012 2013 2014 2015 2016 2017 2018 Total BACS Business Product Value-Add Total Installed System Service

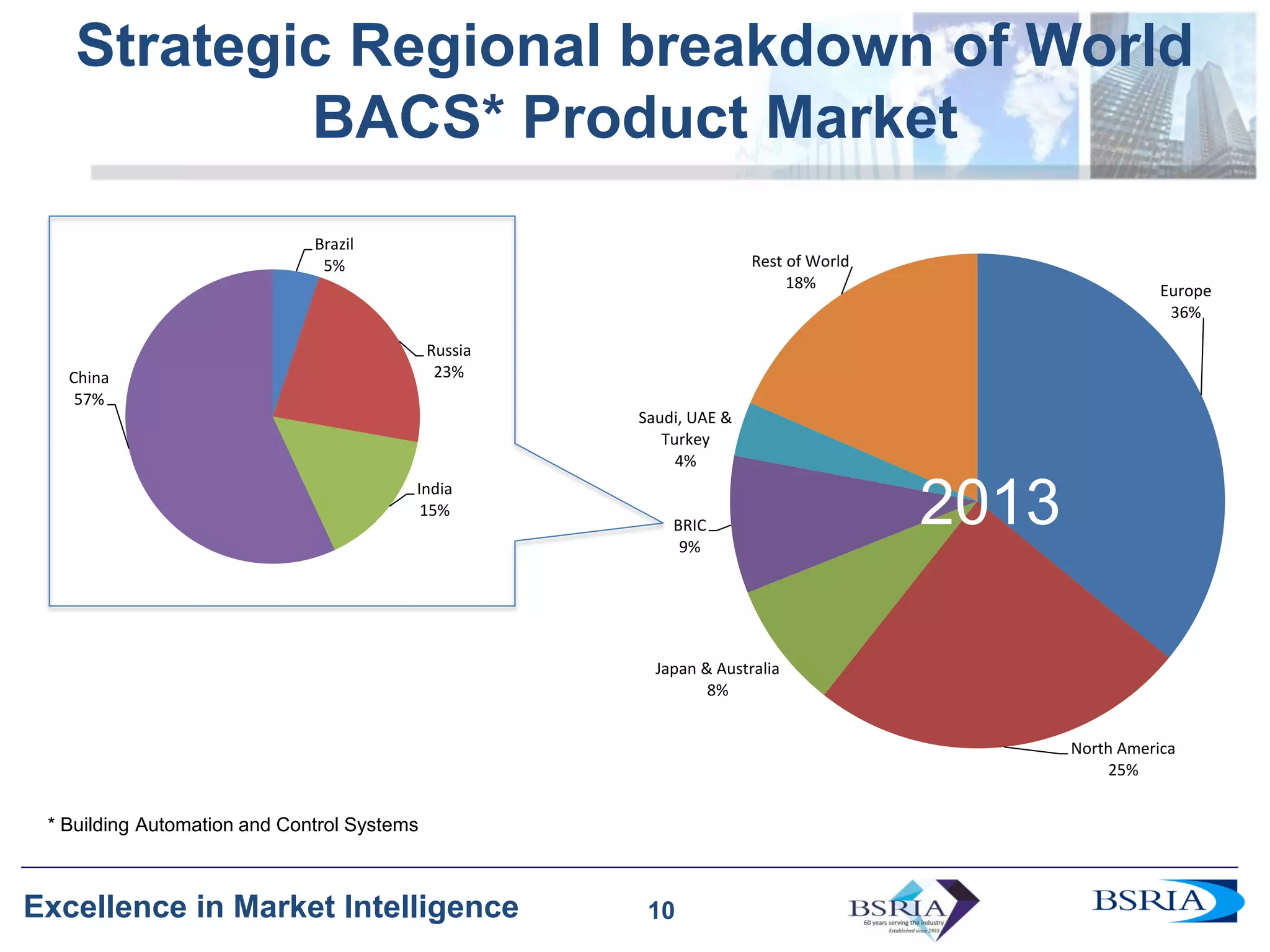

- 10. 10 Excellence in MarketIntelligence Strategic Regional breakdown of World BACS* Product Market * Building Automation and Control Systems 2012 10 Europe 36% North America 25% Japan & Australia 8% BRIC 9% Saudi, UAE & Turkey 4% Rest of World 18% Brazil 5% Russia 23% India 15% China 57% 2013

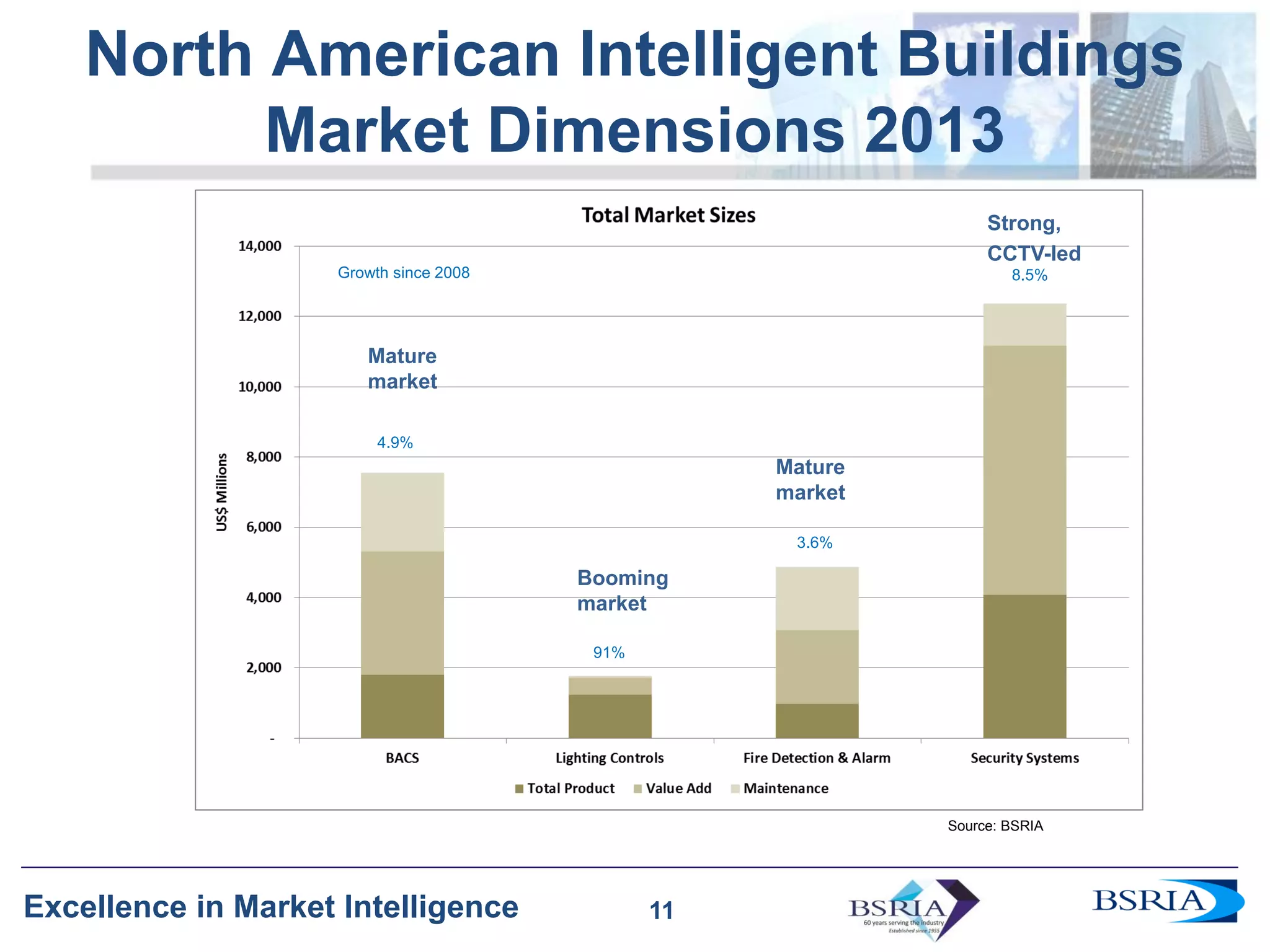

- 11. 11 Excellence in MarketIntelligence North American Intelligent Buildings Market Dimensions 2013 11 Source: BSRIA 3.6% Growth since 2008 91% 4.9% 8.5% Source: BSRIA Mature market Mature market Booming market Strong, CCTV-led

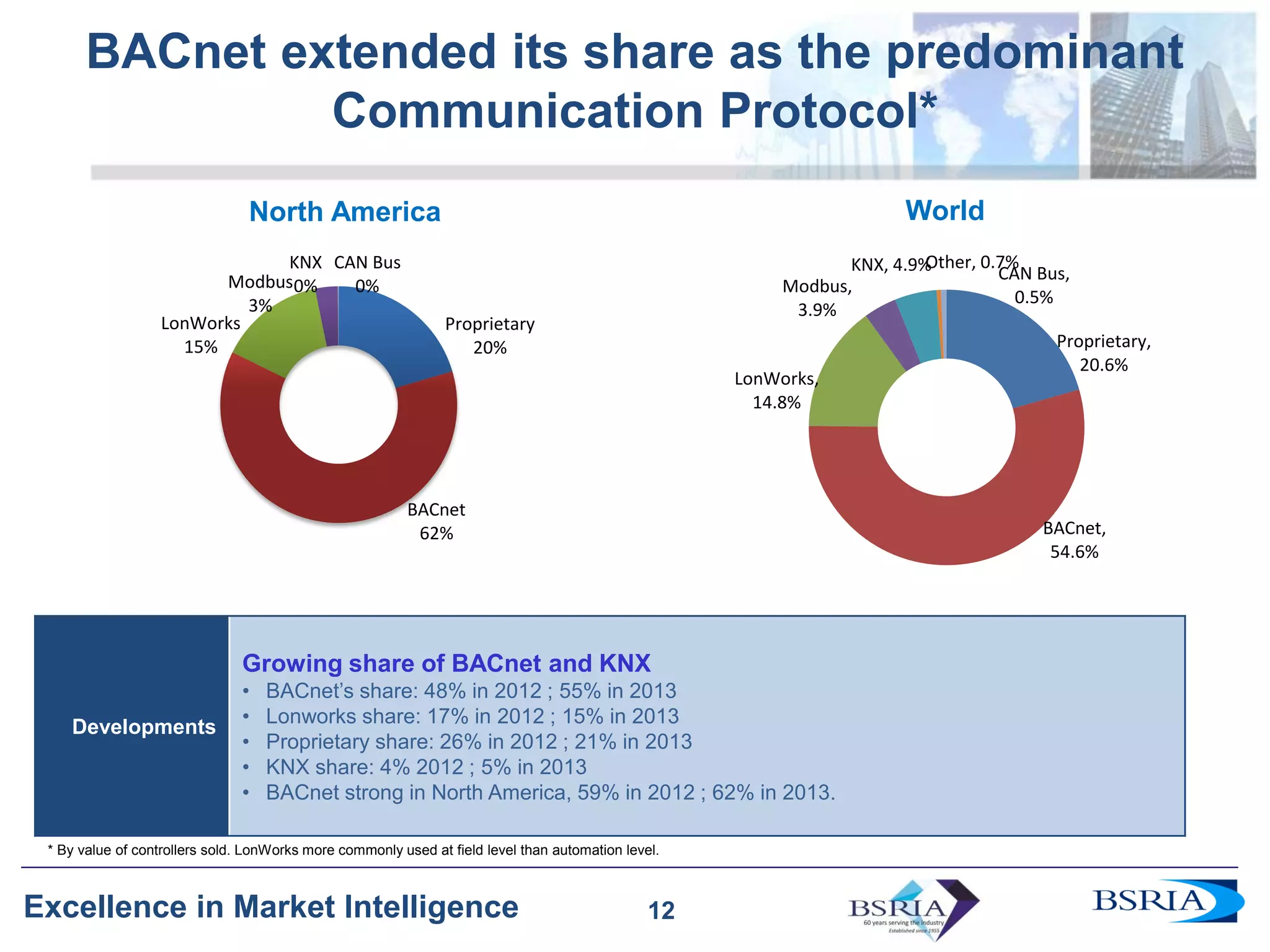

- 12. 12 Excellence in MarketIntelligence 12 BACnet extended its share as the predominant Communication Protocol* North America World * By value of controllers sold. LonWorks more commonly used at field level than automation level. Proprietary 20% BACnet 62% LonWorks 15% Modbus 3% KNX 0% CAN Bus 0% Developments Growing share of BACnet and KNX • BACnet’s share: 48% in 2012 ; 55% in 2013 • Lonworks share: 17% in 2012 ; 15% in 2013 • Proprietary share: 26% in 2012 ; 21% in 2013 • KNX share: 4% 2012 ; 5% in 2013 • BACnet strong in North America, 59% in 2012 ; 62% in 2013. Proprietary, 20.6% BACnet, 54.6% LonWorks, 14.8% Modbus, 3.9% KNX, 4.9% CAN Bus, 0.5% Other, 0.7%

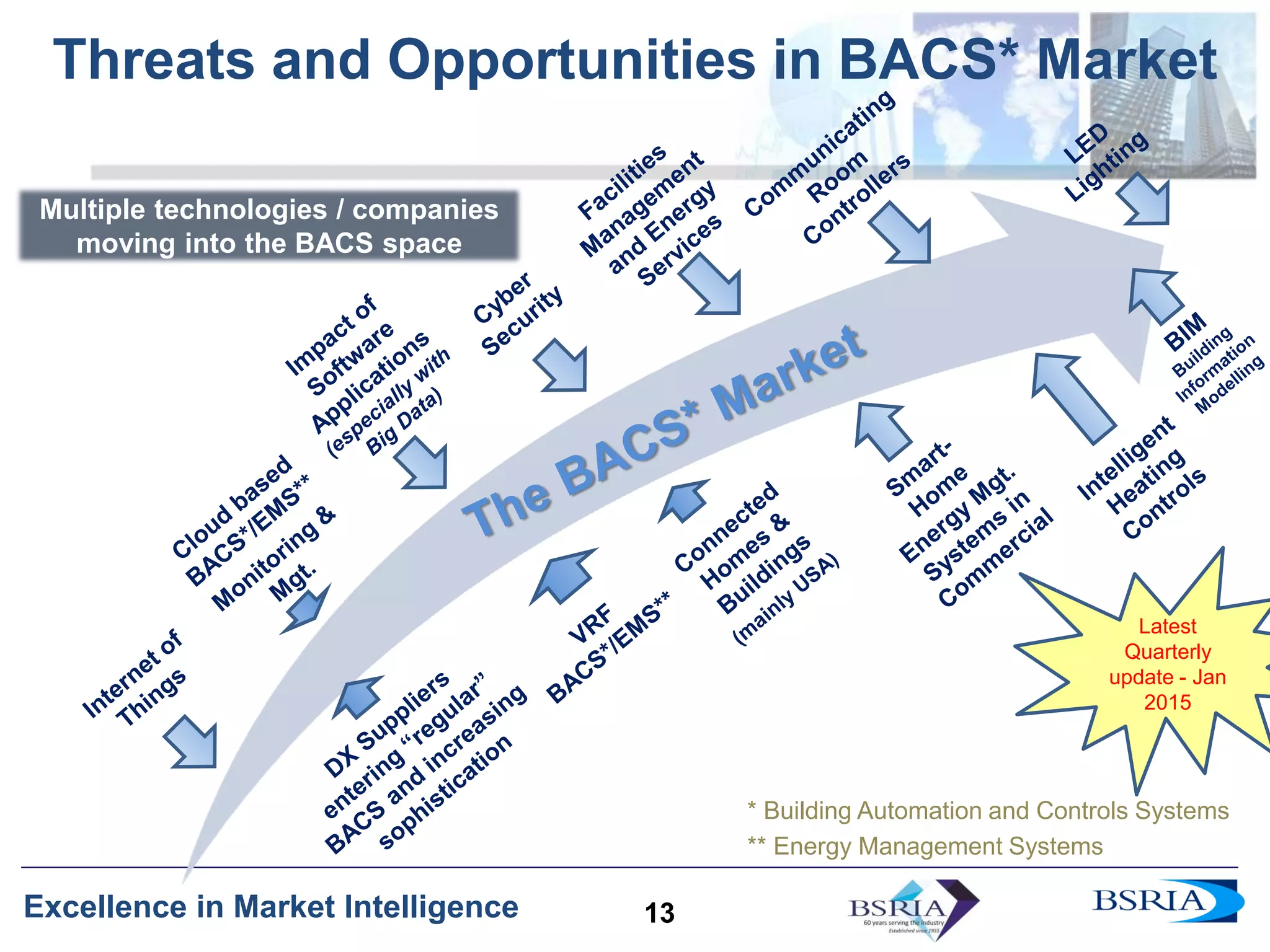

- 13. 13 Excellence in MarketIntelligence Threats and Opportunities in BACS* Market Multiple technologies / companies moving into the BACS space 13 * Building Automation and Controls Systems ** Energy Management Systems Latest Quarterly update - Jan 2015

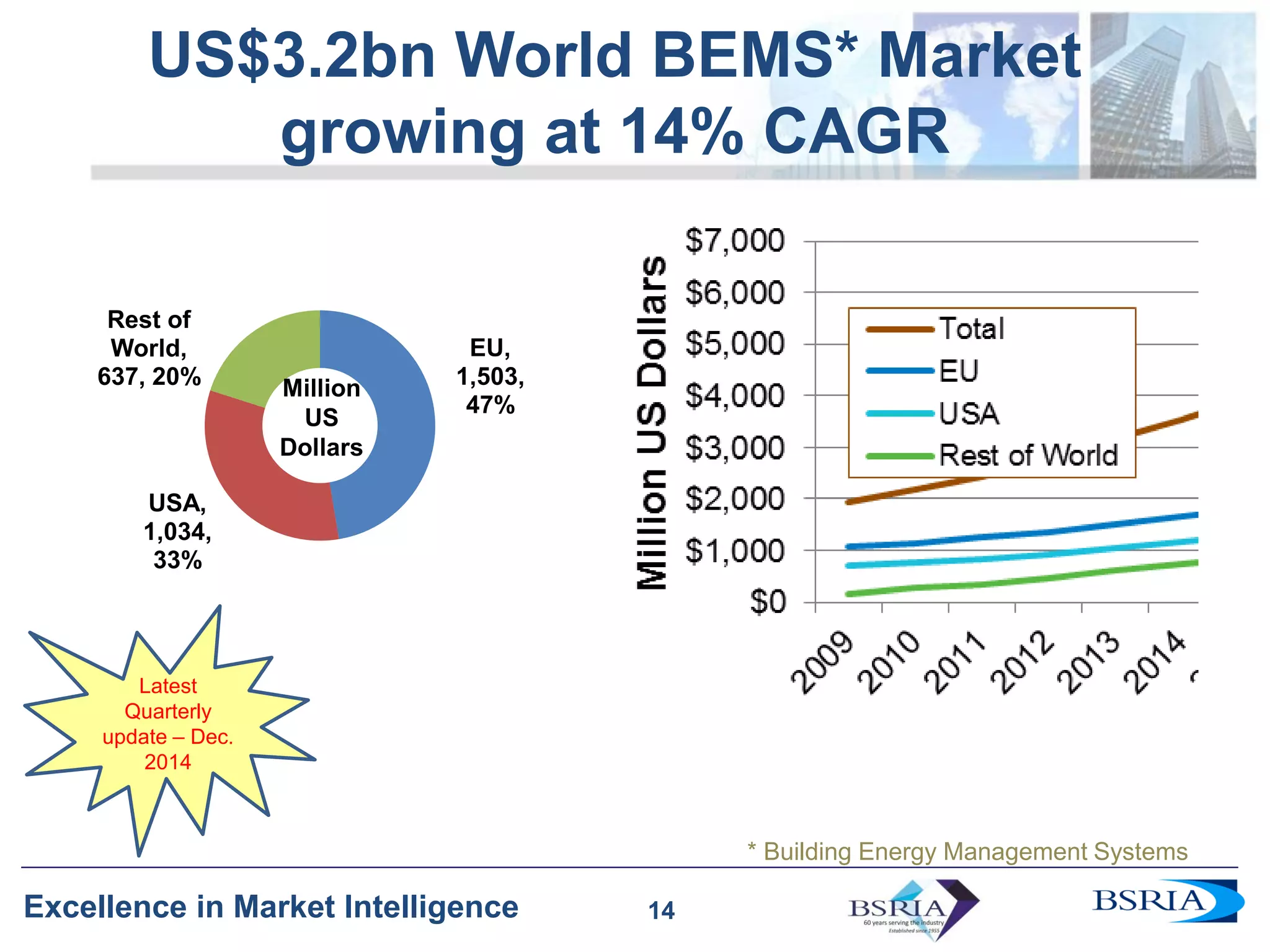

- 14. 14 Excellence in MarketIntelligence 14 US$3.2bn World BEMS* Market growing at 14% CAGR Latest Quarterly update – Dec. 2014 * Building Energy Management Systems EU, 1,503, 47% USA, 1,034, 33% Rest of World, 637, 20% Million US Dollars

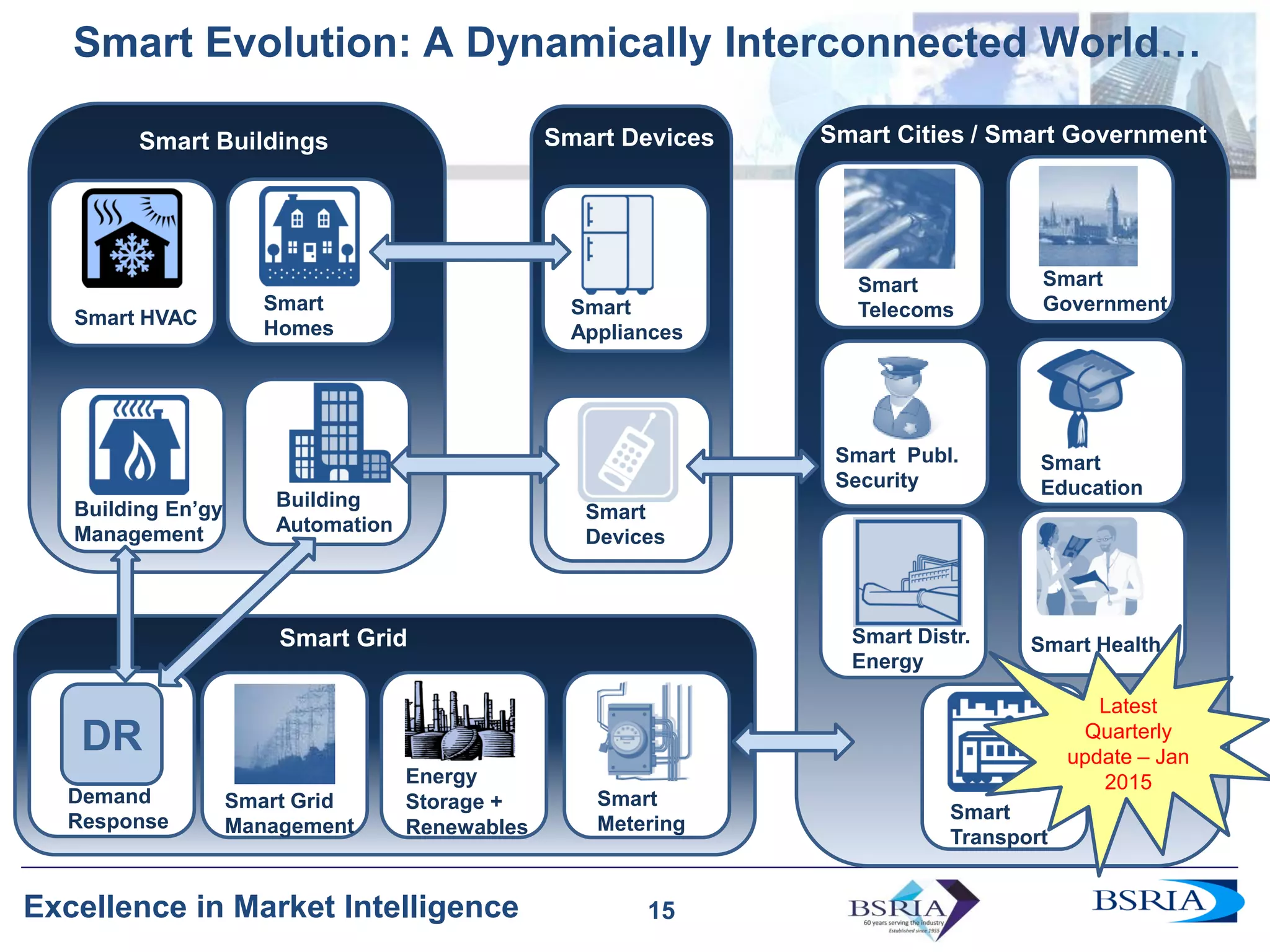

- 15. 15 Excellence in MarketIntelligence 15 Smart Evolution: A Dynamically Interconnected World… Smart Devices Smart Appliances Smart Devices Building Automation Building En’gy Management Smart Homes Demand Response Smart Grid Management Smart Metering Smart Cities / Smart Government Smart Transport Smart Distr. Energy Smart Education Smart Government Smart Health Smart Publ. Security Smart TelecomsSmart HVAC DR Energy Storage + Renewables Smart Grid Smart Buildings Latest Quarterly update – Jan 2015

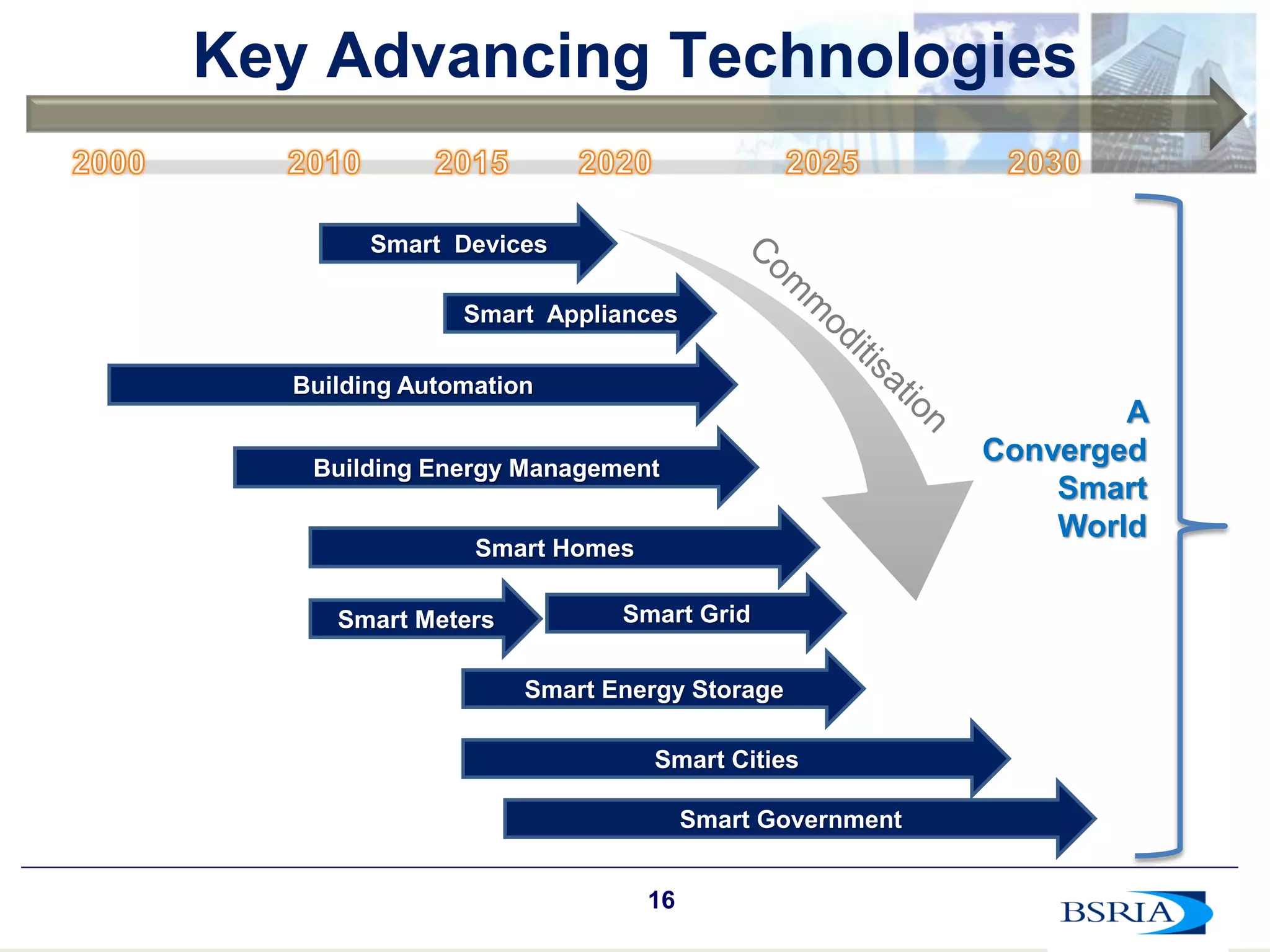

- 16. 16 Key Advancing Technologies SmartMeters Smart Cities Smart Grid Building Automation Smart Government Smart Appliances Smart Devices A Converged Smart World Smart Homes Smart Energy Storage Building Energy Management

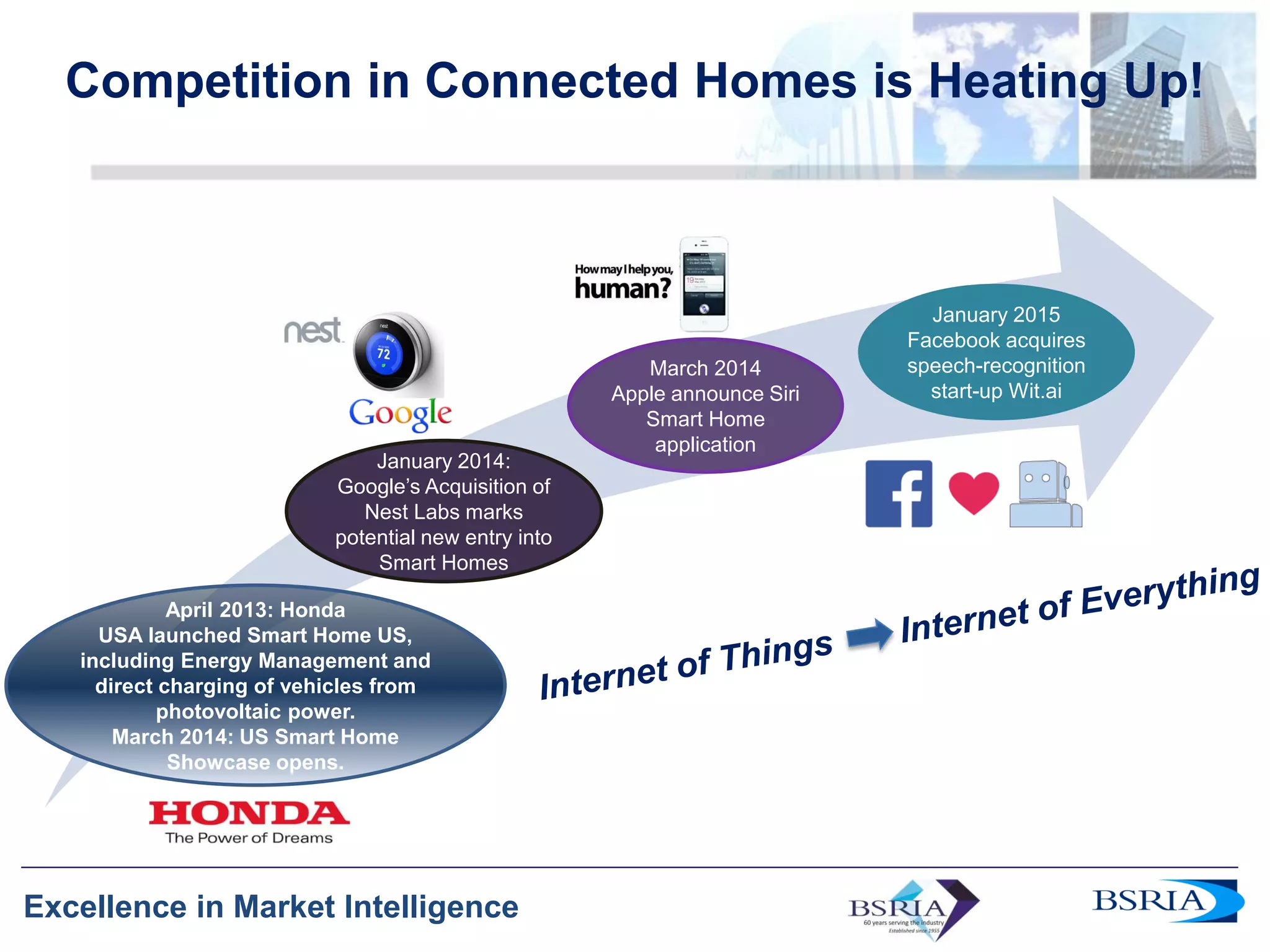

- 17. 17 Excellence in MarketIntelligence Competition in Connected Homes is Heating Up! January 2014: Google’s Acquisition of Nest Labs marks potential new entry into Smart Homes March 2014 Apple announce Siri Smart Home application April 2013: Honda USA launched Smart Home US, including Energy Management and direct charging of vehicles from photovoltaic power. March 2014: US Smart Home Showcase opens. January 2015 Facebook acquires speech-recognition start-up Wit.ai
- 18. 18 Excellence in MarketIntelligence Thank you! 18 Jeremy Towler BBA (GSBA Zurich). Betriebsoekonom dipl. oek. Senior Manager Energy and Smart Technologies Old Bracknell Lane West, Bracknell, Berkshire RG12 7AH D : +44 (0)1344 465573 F : +44 (0)1344 465626 M : +44 (0)77 2527 8637 E : jeremy.towler@bsria.co.uk W : www.bsria.co.uk
