2. BIM and Project Controls
Omar Selim
Founder of BIMarabia
www.thebig5constructqatar.com STRATEGIC PARTNERORGANISED BY
BIM 4D Modeling - Through the project life cycle

3. Agenda
• General introduction about BIM.
•Why is BIM important now?
•Enhanced & optimized performance
•BIM : RETURN ON INVESTMENT

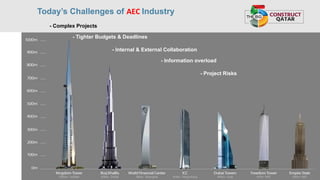

4. Today’s Challenges of AEC Industry
- Tighter Budgets & Deadlines
- Complex Projects
- Internal & External Collaboration
- Information overload
- Project Risks

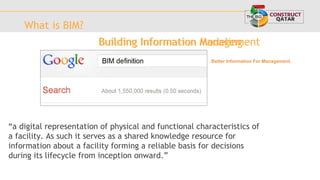

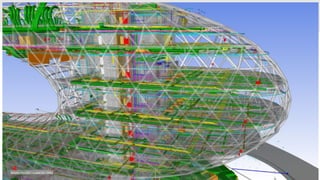

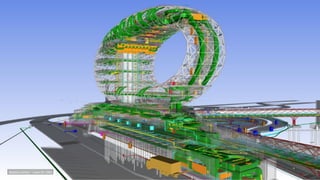

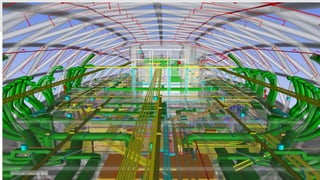

9. What is BIM?
“a digital representation of physical and functional characteristics of
a facility. As such it serves as a shared knowledge resource for
information about a facility forming a reliable basis for decisions
during its lifecycle from inception onward.”
Building Information ModelingBuilding Information Management
Better Information For Management.

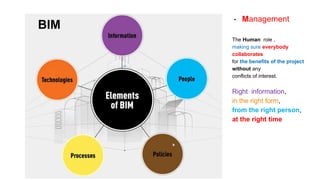

10. - Management
The Human role ,
making sure everybody
collaborates
for the benefits of the project
without any
conflicts of interest.
Right information,
in the right form,
from the right person,
at the right time
BIM

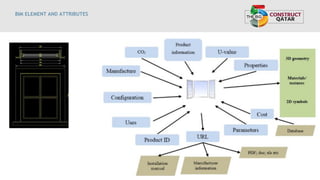

11. BIM ELEMENT AND ATTRIBUTES

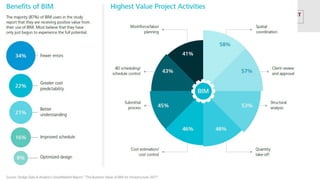

14. Why BIM?
● Better, faster, more cost effective built assets
● …across whole life - Build, Operate & Maintain
● Earlier visual understanding - clients, operators, users
● Early Employer's Information Requirements
● Greater outcome & cost certainty, fewer changes
● Lower risk premium, higher utilisation
● Lower carbon, waste & H&S incidents
● Target 20% CAPEX, 33% WHOLE LIFE savings

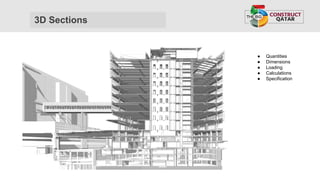

17. 3D Sections
● Quantities
● Dimensions
● Loading
● Calculations
● Specification

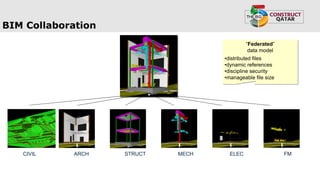

18. BIM Collaboration
ARCH STRUCT MECH ELEC FMCIVIL
“Federated”
data model
•distributed files
•dynamic references
•discipline security
•manageable file size

19. ✓ All project partners – uses a single, shared 3D
model, cultivating collaborative working
relationships.
✓ This ensures everyone is focused on achieving best
value, from project inception to eventual
decommissioning.
Better outcomes through collaboration

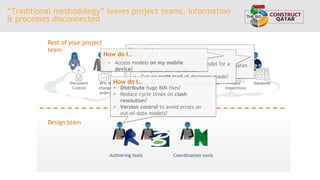

20. Design team
Rest of your project
team
Document
Control
RFIs &
change
orders
Bidding &
Tenders
Workflows &
approvals
Commissioning Submittals Field
Inspections
Handover
Authoring tools Coordination tools
“Traditional methodology” leaves project teams, information
& processes disconnected
How do I…
• View models without special software?
• Link RFIs with objects for resolution of clashes
and issues
How do I…
• Link information into my model for a
complete BIM handover?
• Get an audit trail of decisions made?
How do I…
• Distribute huge BIM files?
• Reduce cycle times on clash
resolution?
• Version control to avoid errors on
out-of-date models?
How do I…
• Access models on my mobile
device?

21. Rest of your project
team
Coordination tools
Document
Control
RFIs &
change
orders
Bidding &
Tenders
Workflows &
approvals
Commissioning
Packages &
Deliverables
Field
Inspections
Handover
Document
Control
RFIs &
change
orders
Bidding &
Tenders
Workflows &
approvals
Commissioning Submittals Field
Inspections
Handover
Native model data
Open BIM, IFC, COBie
Driving everyone project-wide to Share in BIM
Open
BIM
Handover
Design team

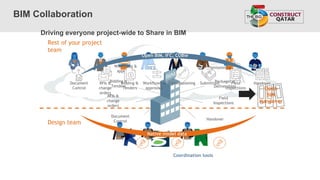

BIM Collaboration

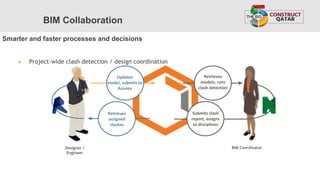

22. Updates
model, submits to
Aconex
Retrieves
models, runs
clash detection
Submits clash
report, assigns
to disciplines
Retrieves
assigned
clashes
Smarter and faster processes and decisions
▶ Project-wide clash detection / design coordination
Designer /
Engineer
BIM Coordinator
BIM Collaboration

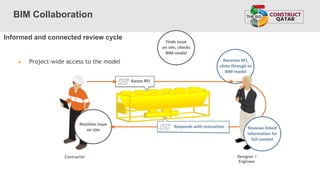

23. Finds issue
on site, checks
BIM model
Resolves issue
on site
Responds with instruction
Receives RFI,
clicks through to
BIM model
Reviews linked
information for
full context
Raises RFI
Informed and connected review cycle
▶ Project-wide access to the model
Contractor Designer /
Engineer
BIM Collaboration

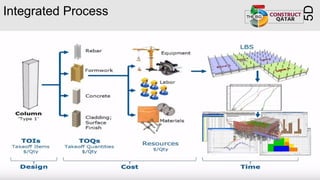

24. Integrated Process
5D

25. Decision making with complete information
• in BIM Right information, in the right form, from the right person, at the right time

26. ▶ is a mix of science and art that is used
particularly in the process and infrastructure
sectors as a standalone discipline to control
what are often large and complex projects with
the aim of bringing the project to a successful
conclusion from the aspect of time, cost, and
quality.
Project Controls

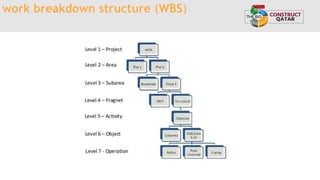

28. work breakdown structure (WBS)

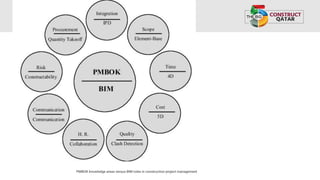

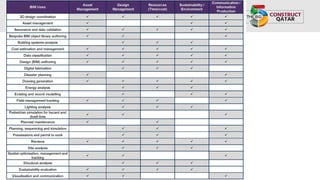

29. PMBOK knowledge areas versus BIM roles in construction project management

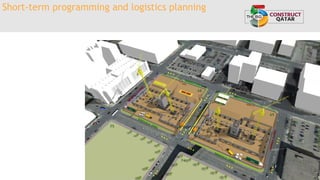

32. Short-term programming and logistics planning

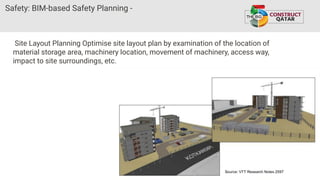

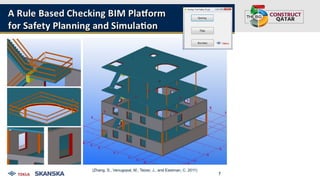

33. Safety: BIM-based Safety Planning -
Site Layout Planning Optimise site layout plan by examination of the location of
material storage area, machinery location, movement of machinery, access way,
impact to site surroundings, etc.

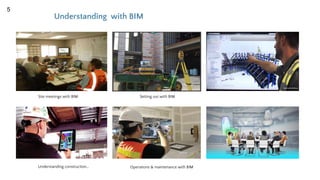

36. Understanding with BIM
5
Site meetings with BIM
Understanding construction…
Setting out with BIM
Operations & maintenance with BIM

38. 4D MODELING OVERALL BENEFITS
Traditional Planning and
scheduling
4D Planning and scheduling
Which do
you prefer
???

39. 4D MODELING OVERALL BENEFITS

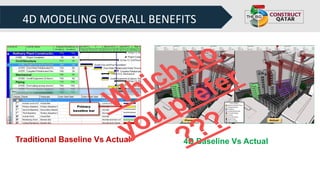

Traditional Baseline Vs Actual 4D Baseline Vs Actual
Which do
you prefer
???

40. 4D MODELING OVERALL BENEFITS

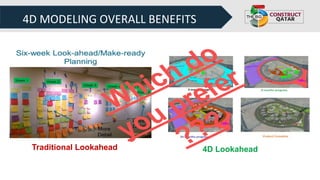

Traditional Lookahead 4D Lookahead
Which do
you prefer
???

41. 4D MODELING OVERALL BENEFITS
Traditional Progress meeting
discussion
4D Progress meeting discussion
Which do
you prefer
???

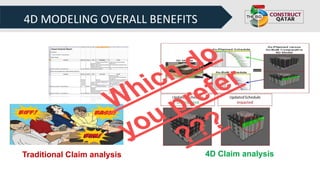

42. 4D MODELING OVERALL BENEFITS
Traditional Claim analysis 4D Claim analysis
Which do
you prefer
???

43. 4D MODELING OVERALL BENEFITS
Traditional Documentation 4D Documentation
Which do
you prefer
???

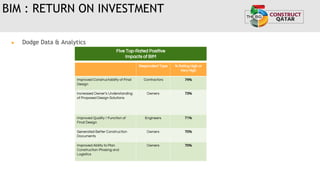

44. BIM : RETURN ON INVESTMENT
▶ Dodge Data & Analytics
Five Top-Rated Positive
Impacts of BIM
Respondent Type % Rating High or
Very High
Improved Constructability of Final
Design
Contractors 74%
Increased Owner’s Understanding
of Proposed Design Solutions
Owners 73%
Improved Quality / Function of
Final Design
Engineers 71%
Generated Better Construction
Documents
Owners 70%
Improved Ability to Plan
Construction Phasing and
Logistics
Owners 70%

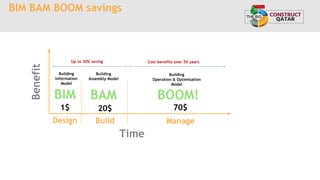

45. BIM BAM BOOM savings
Time
Benefit
Design Build Manage
1$ 20$ 70$
BIM
Building
Information
Model
BAM
Building
Assembly Model
BOOM!
Building
Operation & Optimisation
Model
Up to 30% saving Cost benefits over 50 years
