The document discusses installing Oracle Enterprise Manager 12c. It covers the architecture, concepts, installation types, requirements, and process. The process involves installing the Oracle database software, creating a database, and then installing Enterprise Manager. It also discusses alternatives for installation like using Oracle VM templates or configuration management tools like Puppet and Chef.

1. sysco.no
Enterprise Manager 12c Installation
EM 12c Deep dive

2. sysco.no
Overview
• Architecture
• Concepts
• Install types
• Requirements
• Database install
• EM install
• What then ?
• Alternatives

3. sysco.no

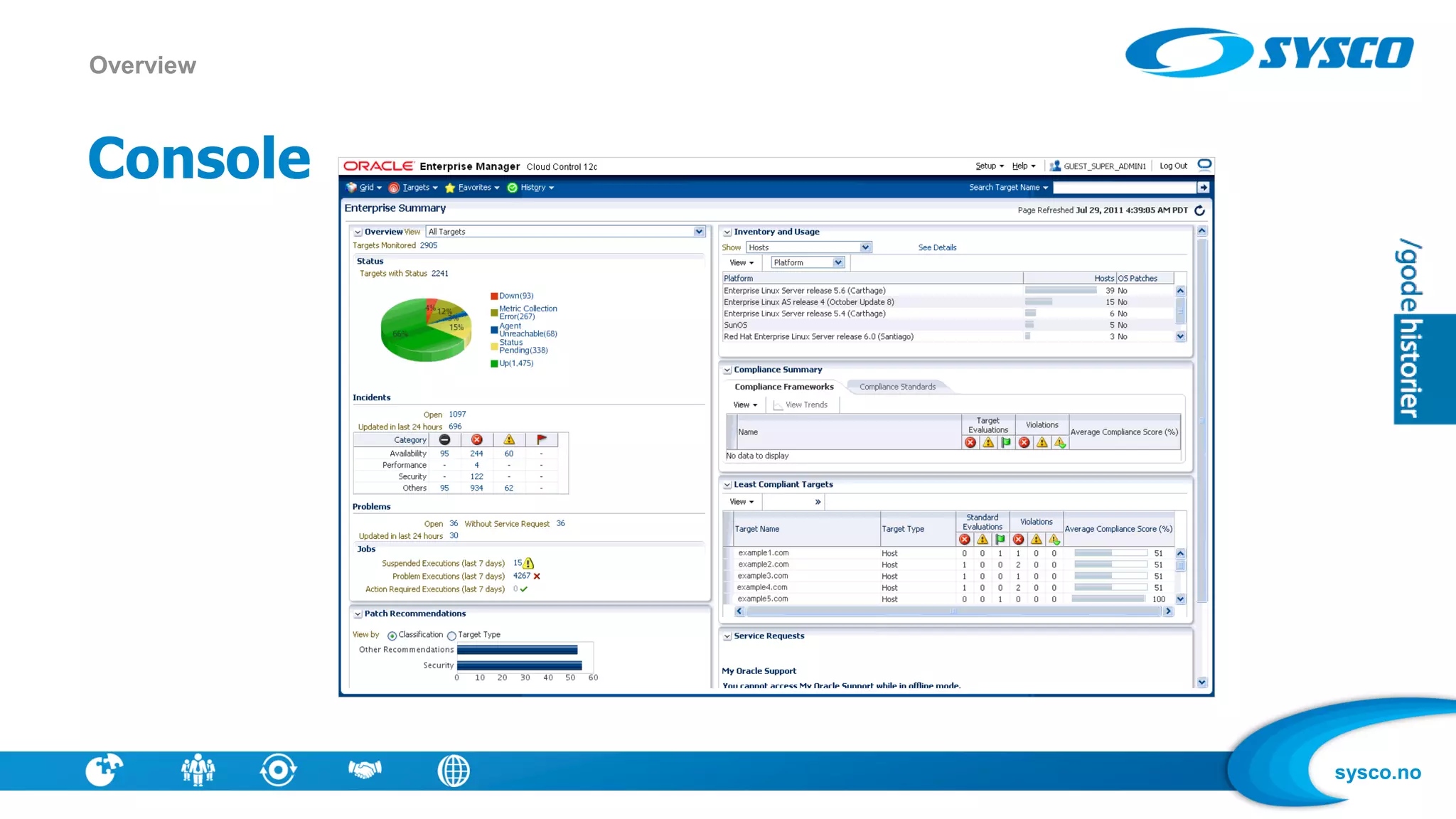

Console
Overview

4. sysco.no

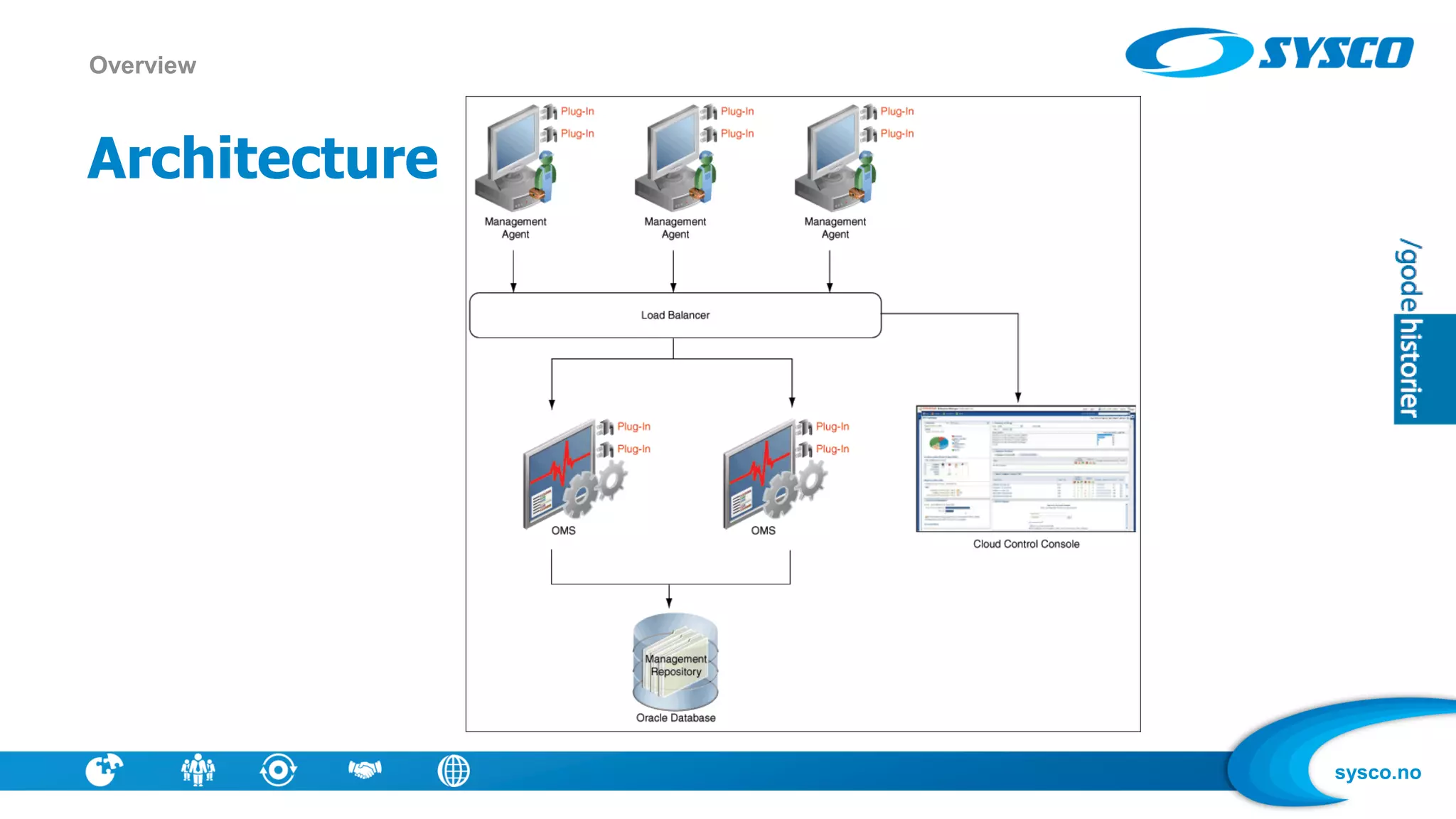

Architecture
Overview

5. sysco.no

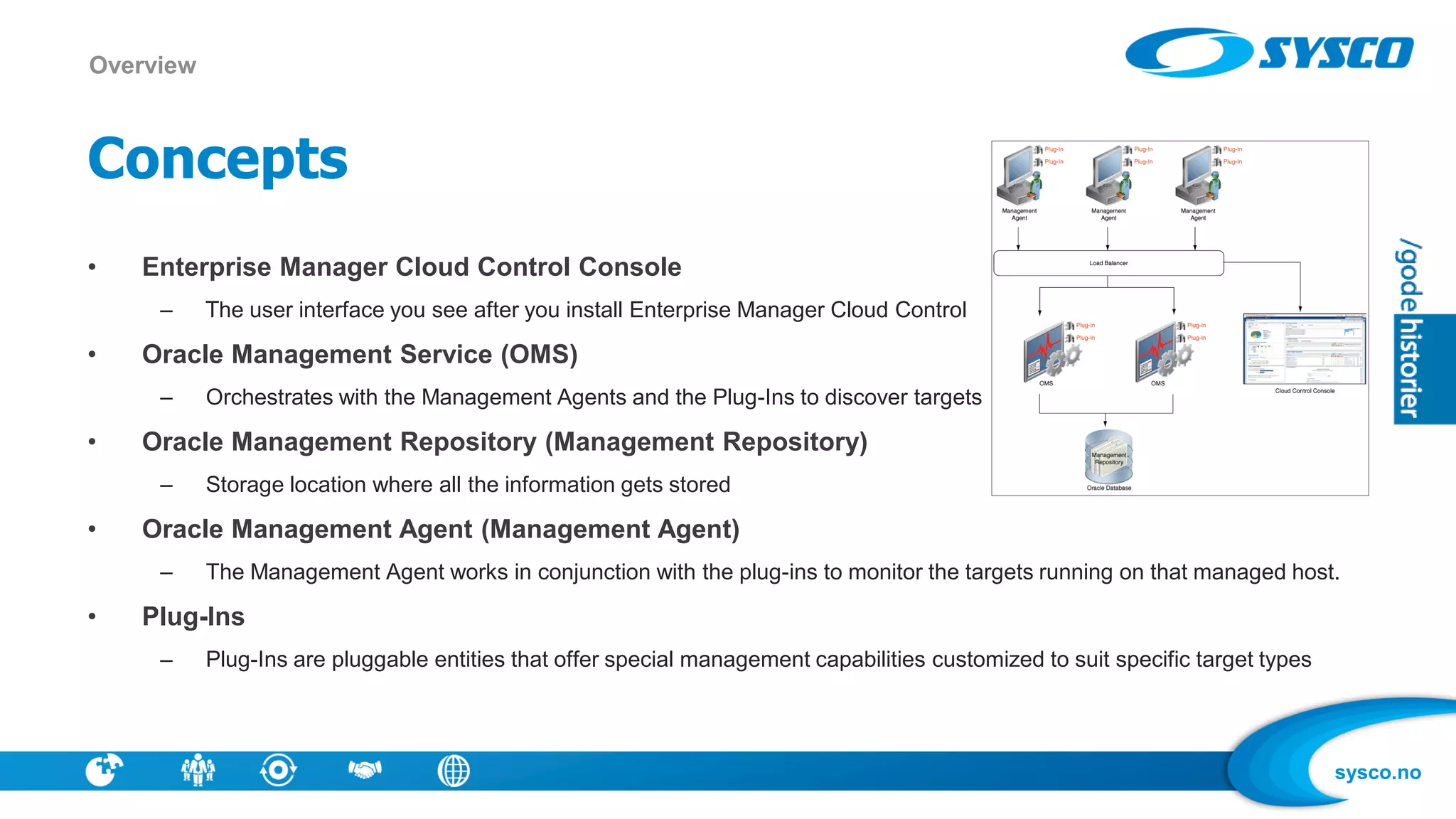

Concepts
• Enterprise Manager Cloud Control Console
– The user interface you see after you install Enterprise Manager Cloud Control
• Oracle Management Service (OMS)
– Orchestrates with the Management Agents and the Plug-Ins to discover targets
• Oracle Management Repository (Management Repository)
– Storage location where all the information gets stored
• Oracle Management Agent (Management Agent)
– The Management Agent works in conjunction with the plug-ins to monitor the targets running on that managed host.
• Plug-Ins
– Plug-Ins are pluggable entities that offer special management capabilities customized to suit specific target types
Overview

6. sysco.no

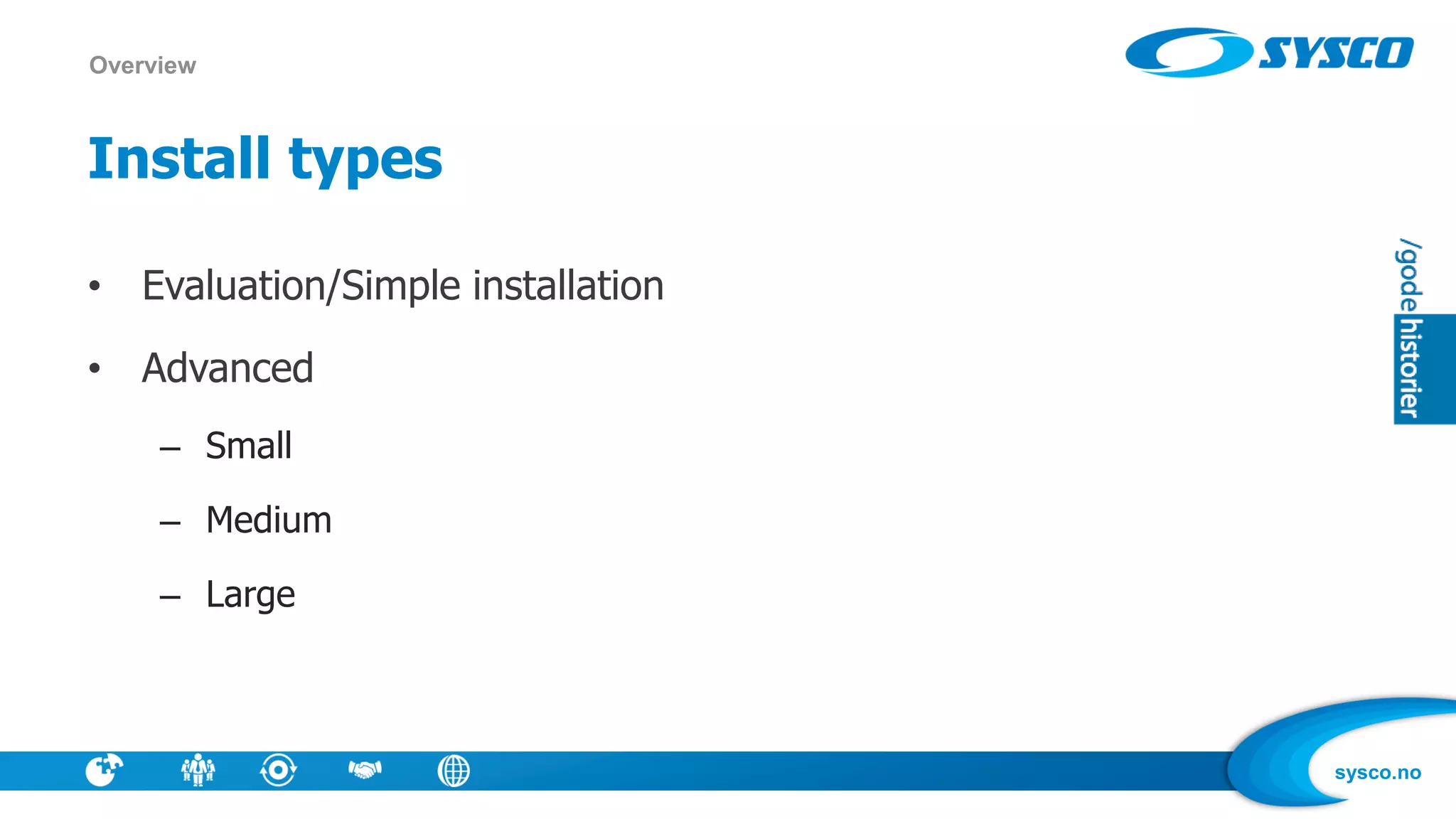

Install types
• Evaluation/Simple installation
• Advanced
– Small
– Medium
– Large
Overview

7. sysco.no

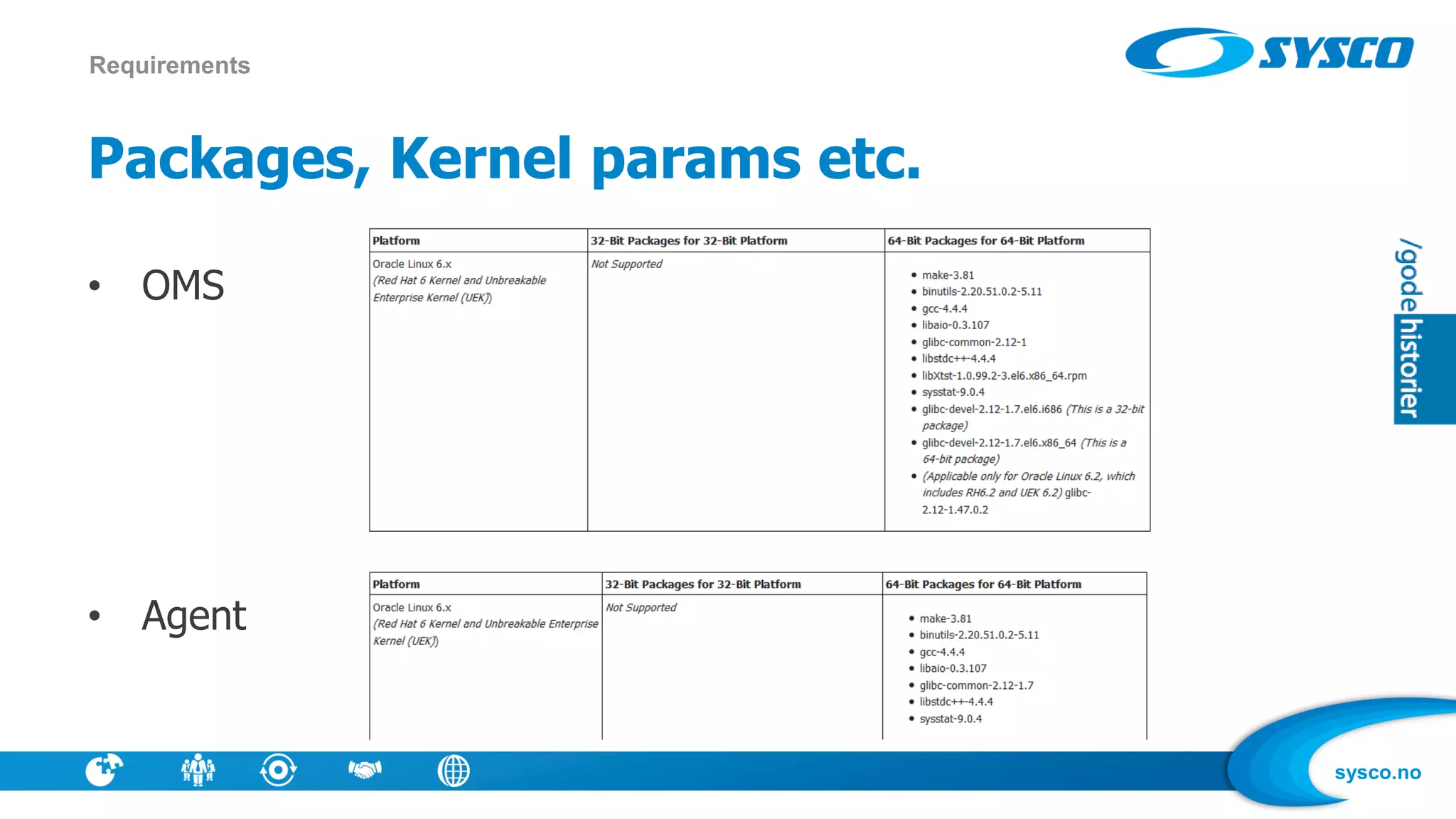

Packages, Kernel params etc.
• OMS
• Agent
Requirements

8. sysco.no

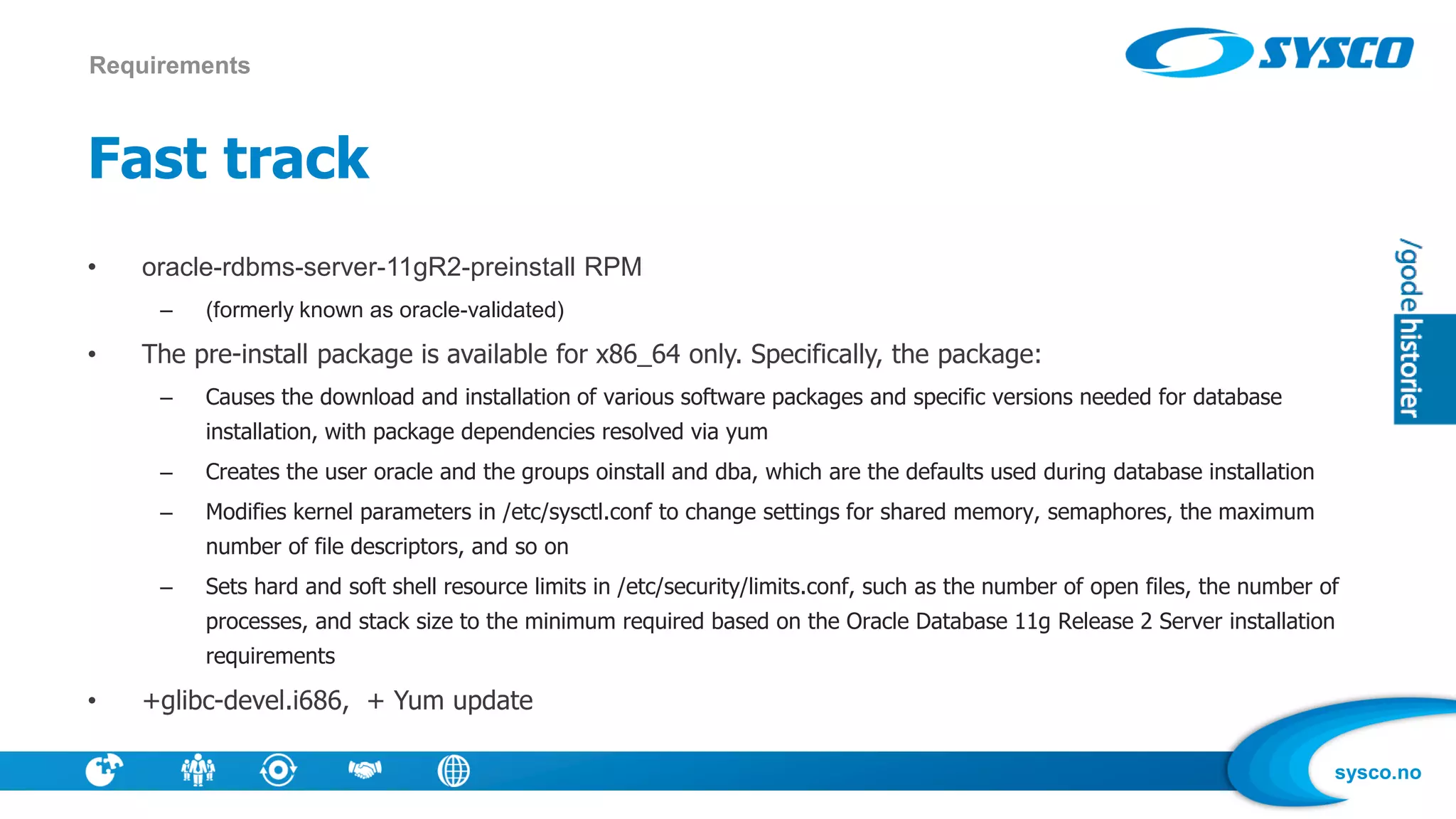

Fast track
• oracle-rdbms-server-11gR2-preinstall RPM
– (formerly known as oracle-validated)
• The pre-install package is available for x86_64 only. Specifically, the package:
– Causes the download and installation of various software packages and specific versions needed for database
installation, with package dependencies resolved via yum
– Creates the user oracle and the groups oinstall and dba, which are the defaults used during database installation
– Modifies kernel parameters in /etc/sysctl.conf to change settings for shared memory, semaphores, the maximum
number of file descriptors, and so on
– Sets hard and soft shell resource limits in /etc/security/limits.conf, such as the number of open files, the number of
processes, and stack size to the minimum required based on the Oracle Database 11g Release 2 Server installation
requirements
• +glibc-devel.i686, + Yum update
Requirements

9. sysco.no

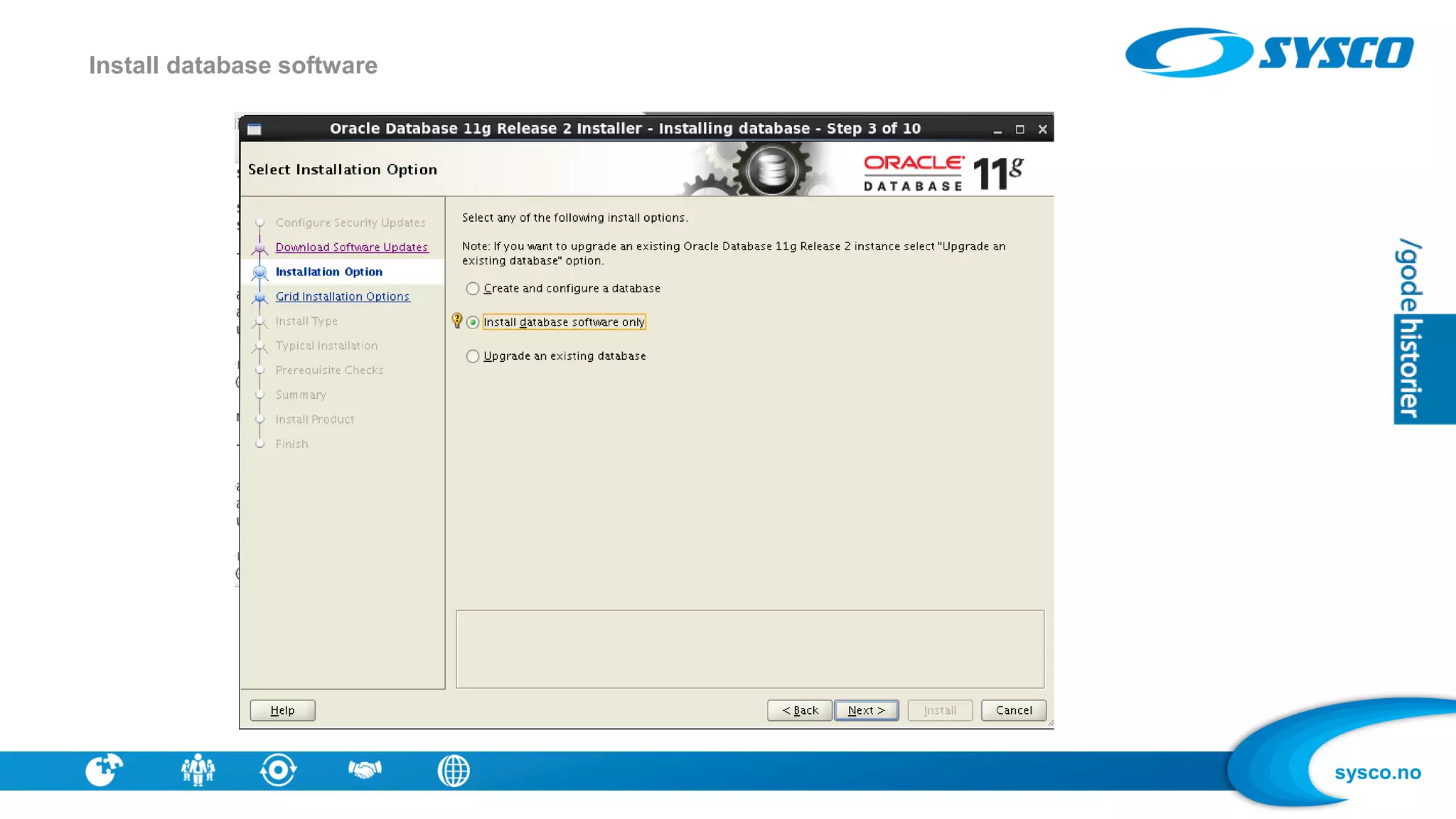

Install database software

10. sysco.no

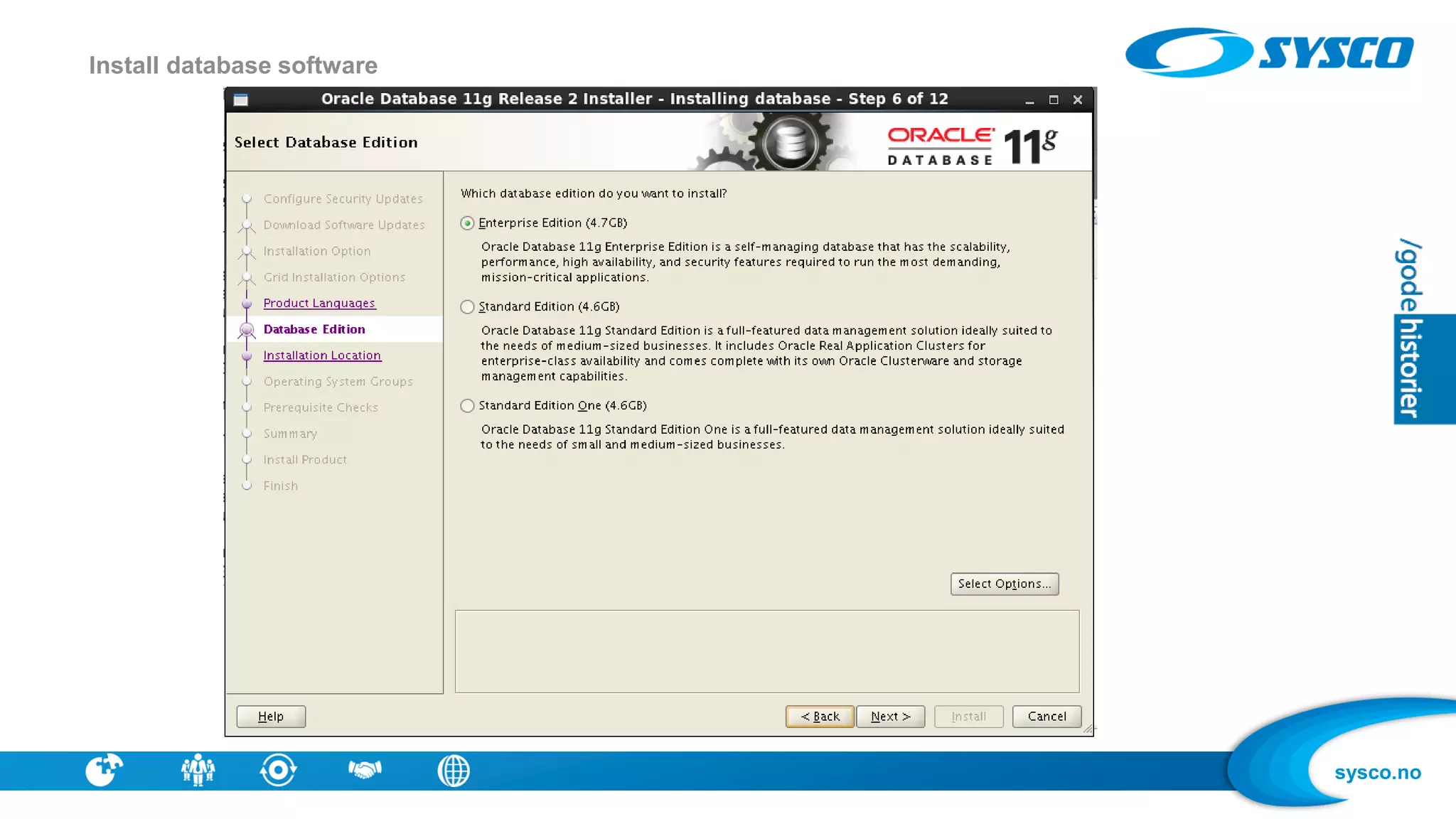

Install database software

11. sysco.no

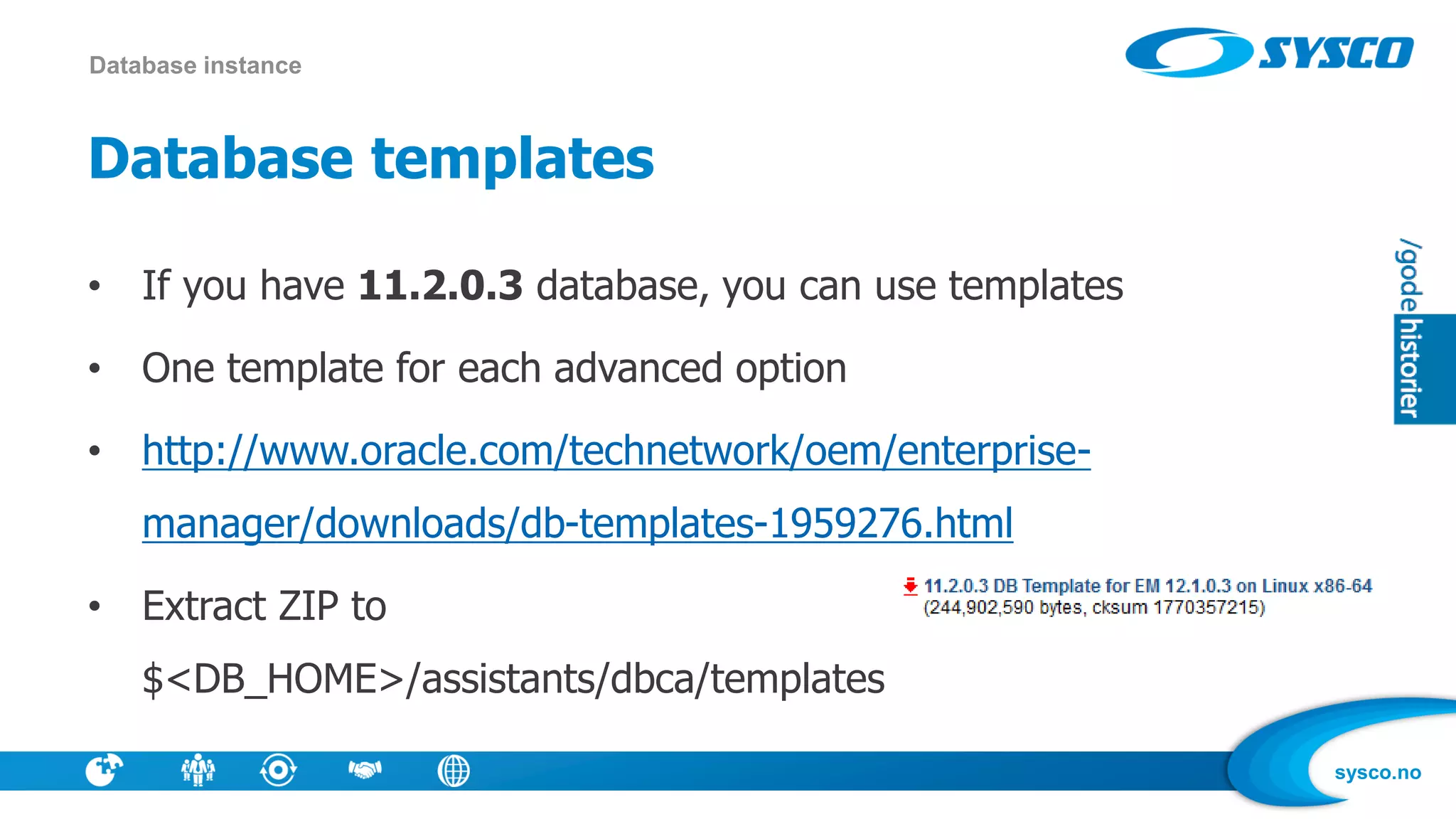

Database templates
• If you have 11.2.0.3 database, you can use templates
• One template for each advanced option
• http://www.oracle.com/technetwork/oem/enterprise-
manager/downloads/db-templates-1959276.html
• Extract ZIP to
$<DB_HOME>/assistants/dbca/templates
Database instance

12. sysco.no

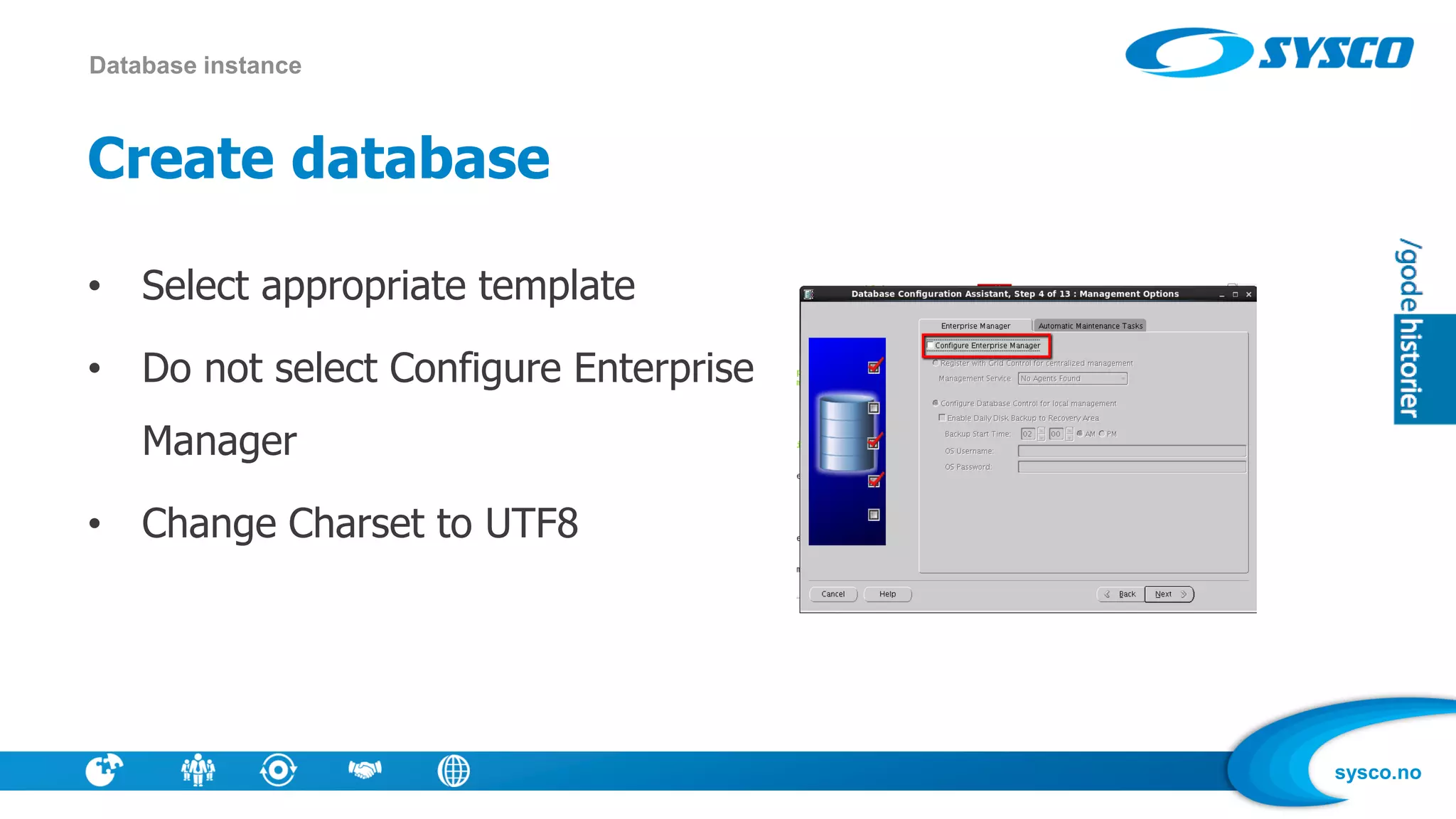

Create database
• Select appropriate template
• Do not select Configure Enterprise
Manager
• Change Charset to UTF8
Database instance

13. sysco.no

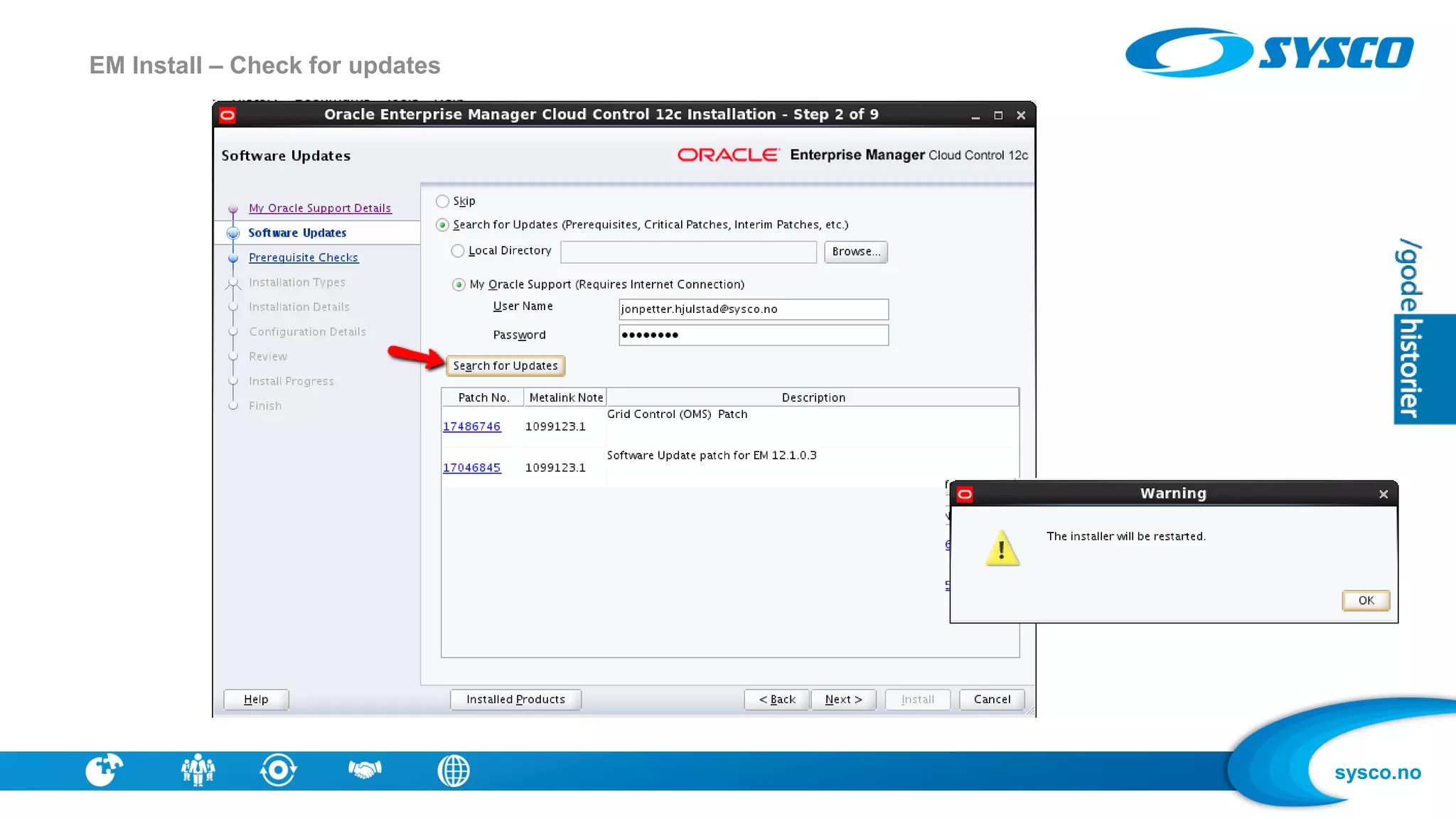

EM Install – Check for updates

14. sysco.no

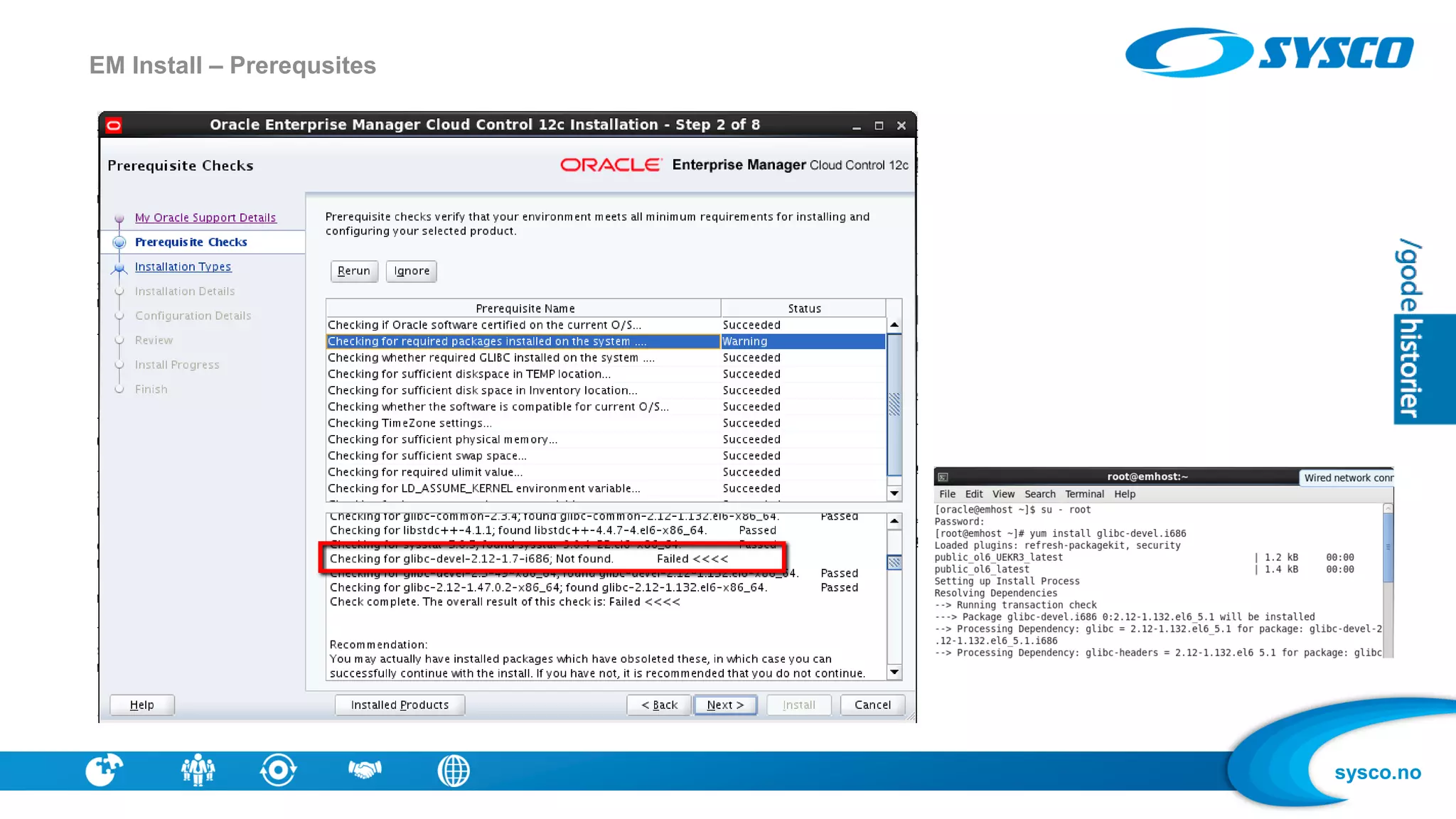

EM Install – Prerequsites

15. sysco.no

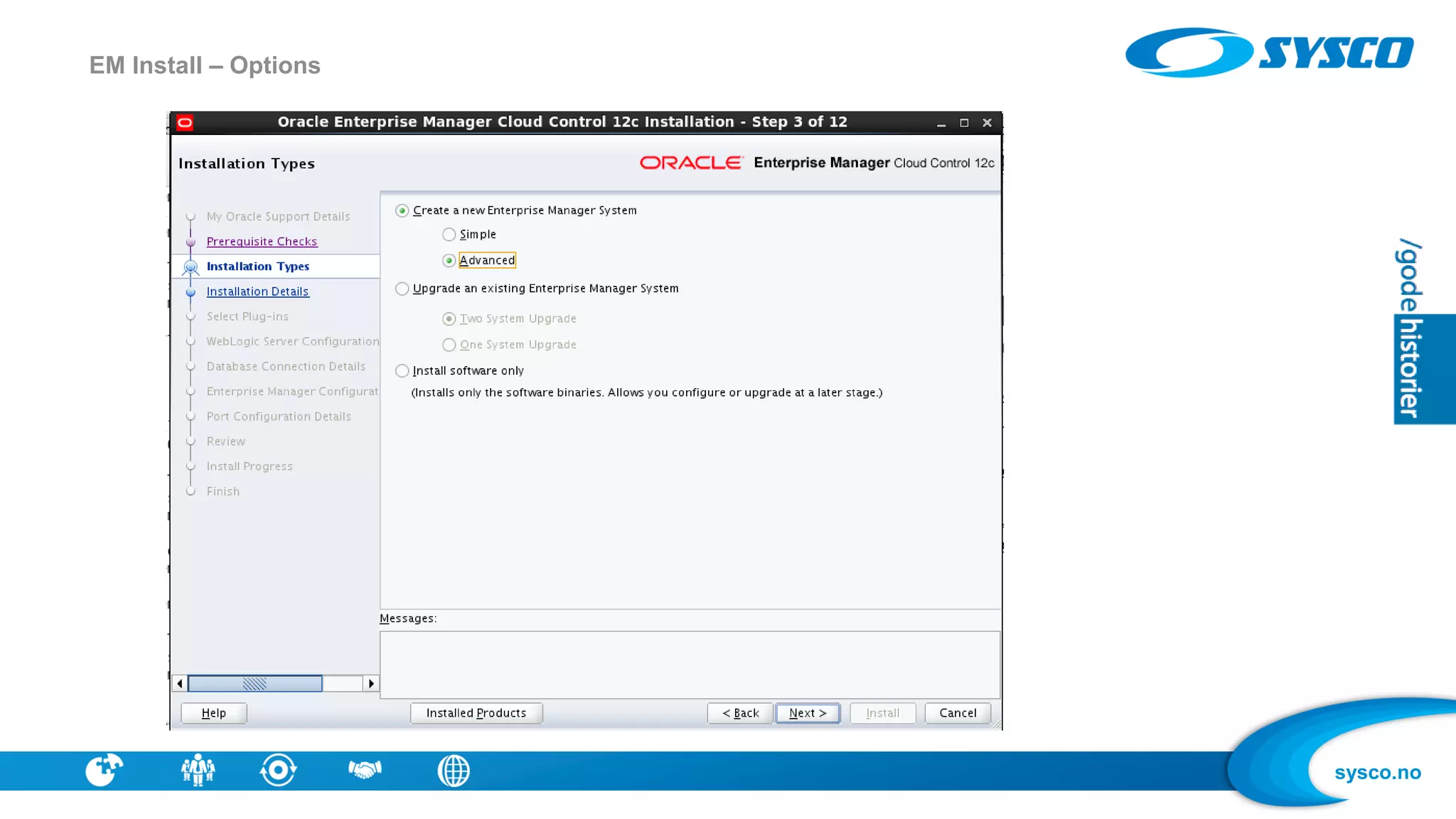

EM Install – Options

16. sysco.no

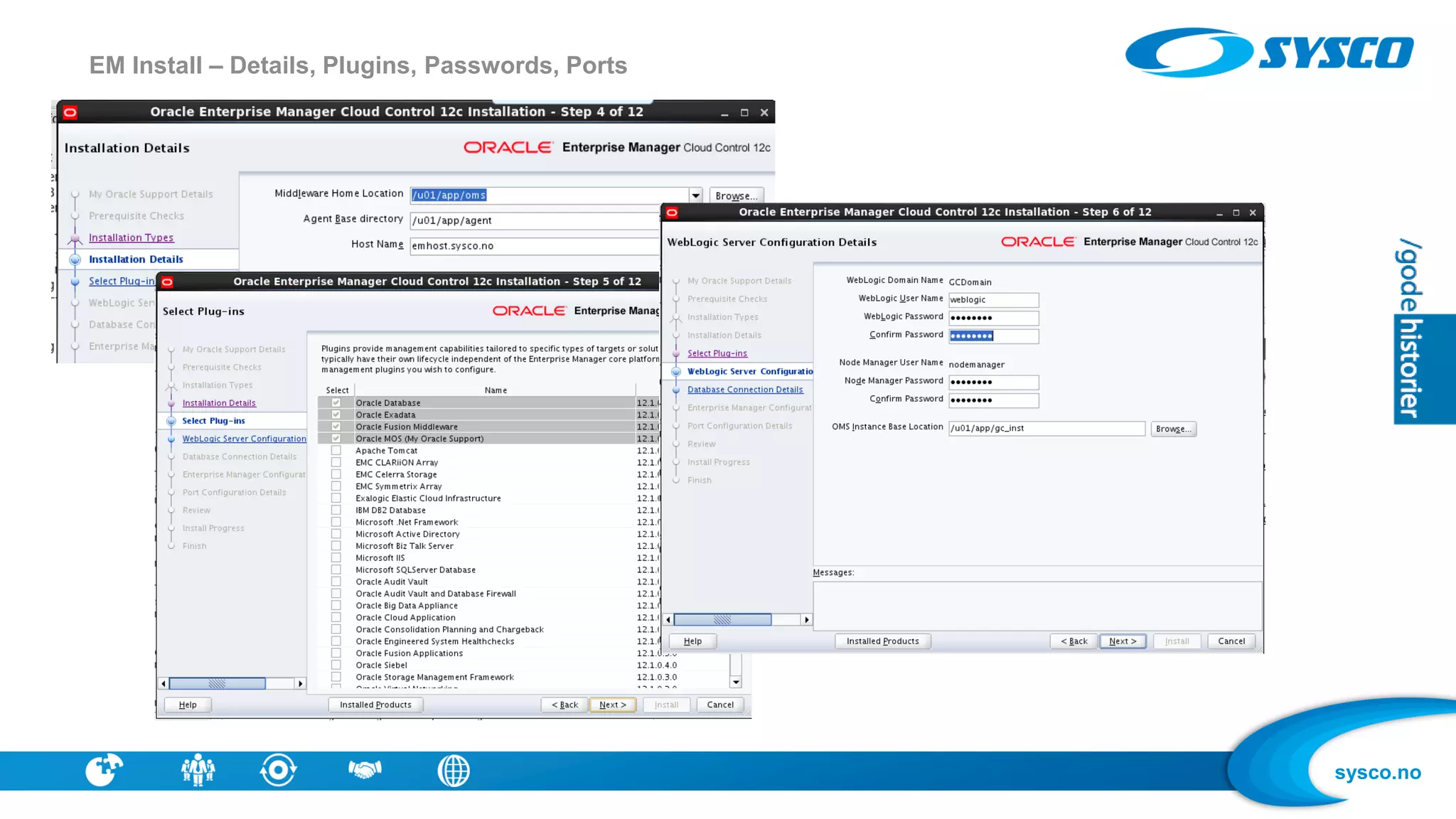

EM Install – Details, Plugins, Passwords, Ports

17. sysco.no

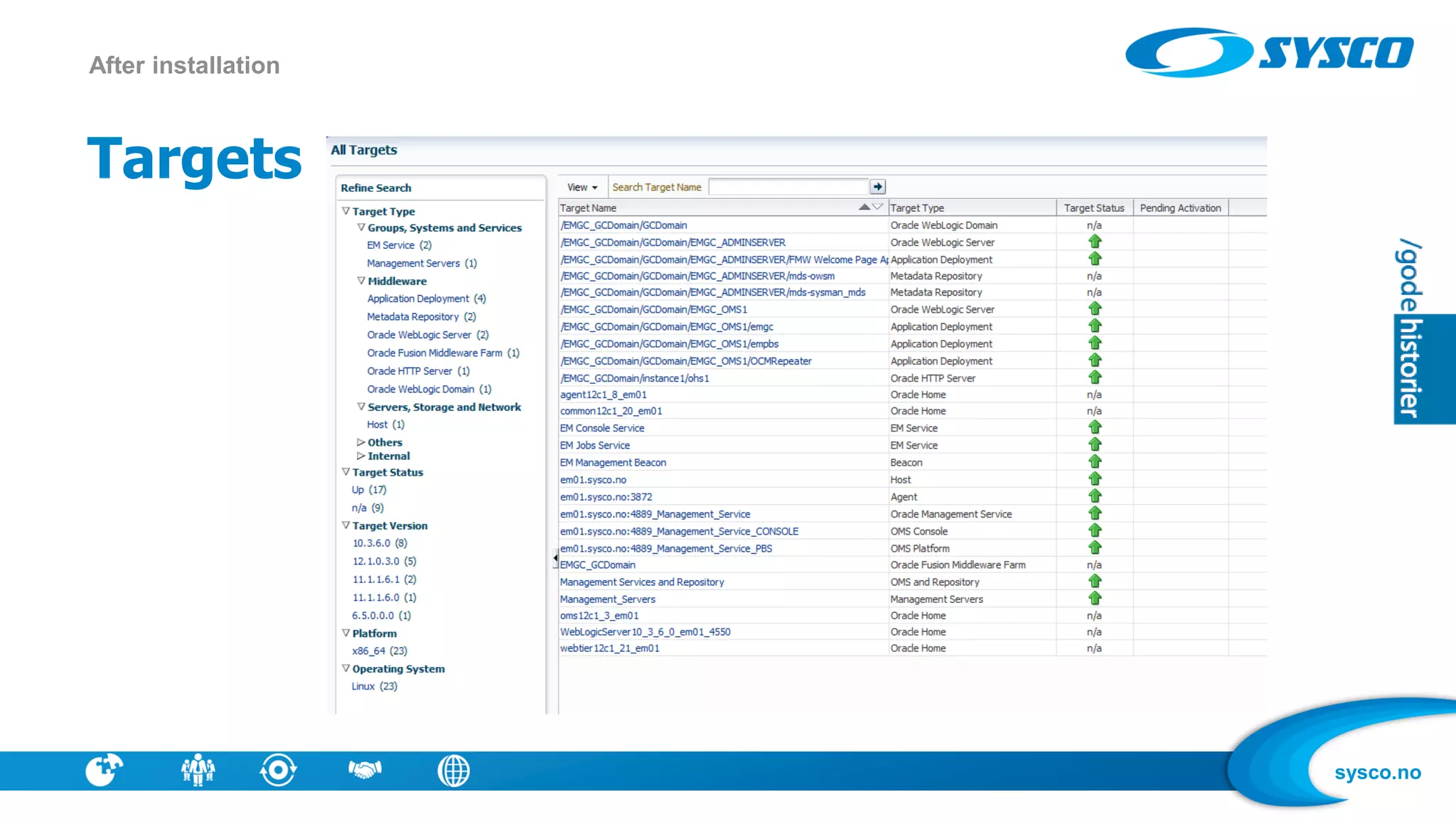

Targets
After installation

18. sysco.no

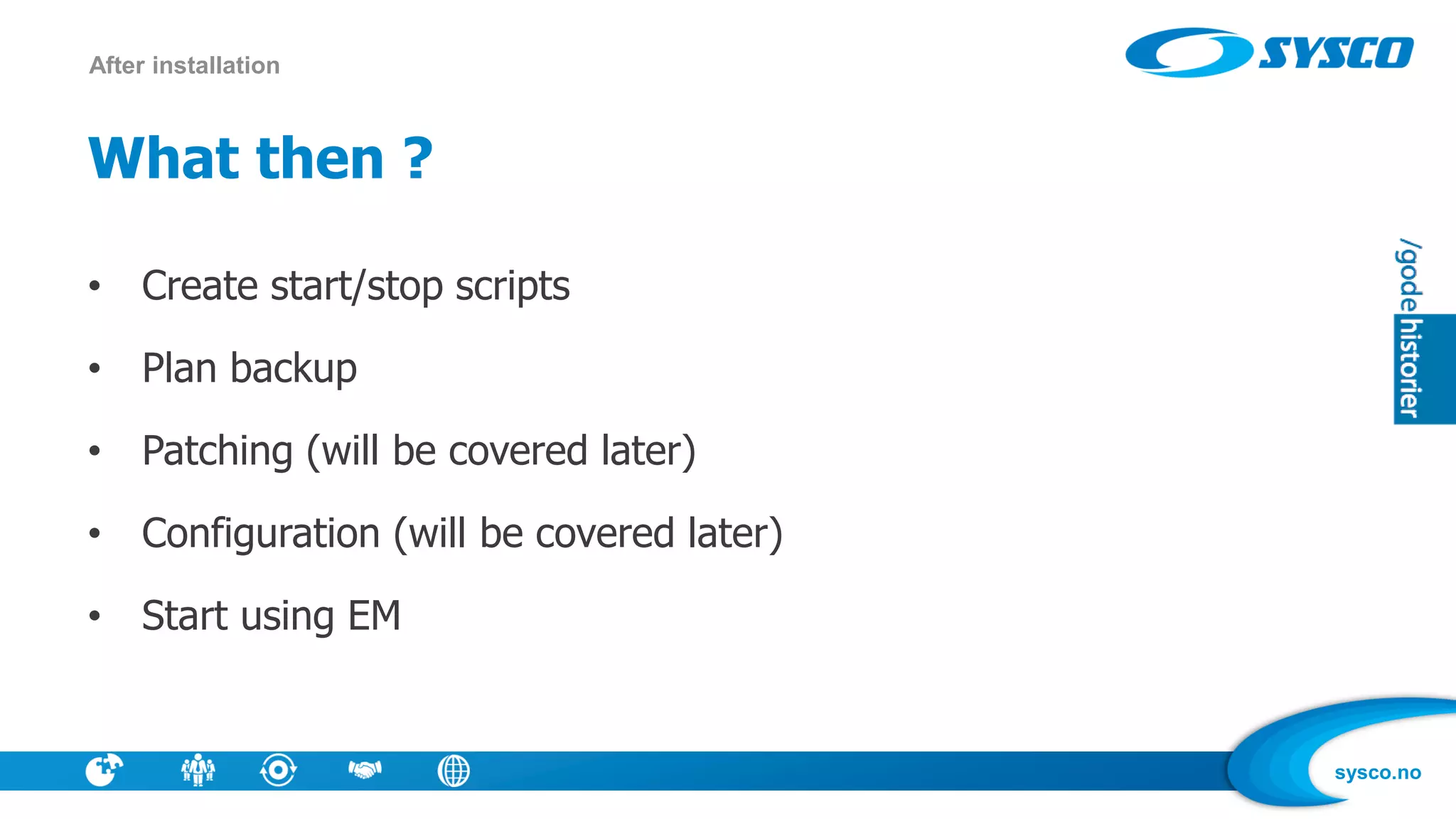

What then ?
• Create start/stop scripts
• Plan backup
• Patching (will be covered later)
• Configuration (will be covered later)
• Start using EM
After installation

19. sysco.no

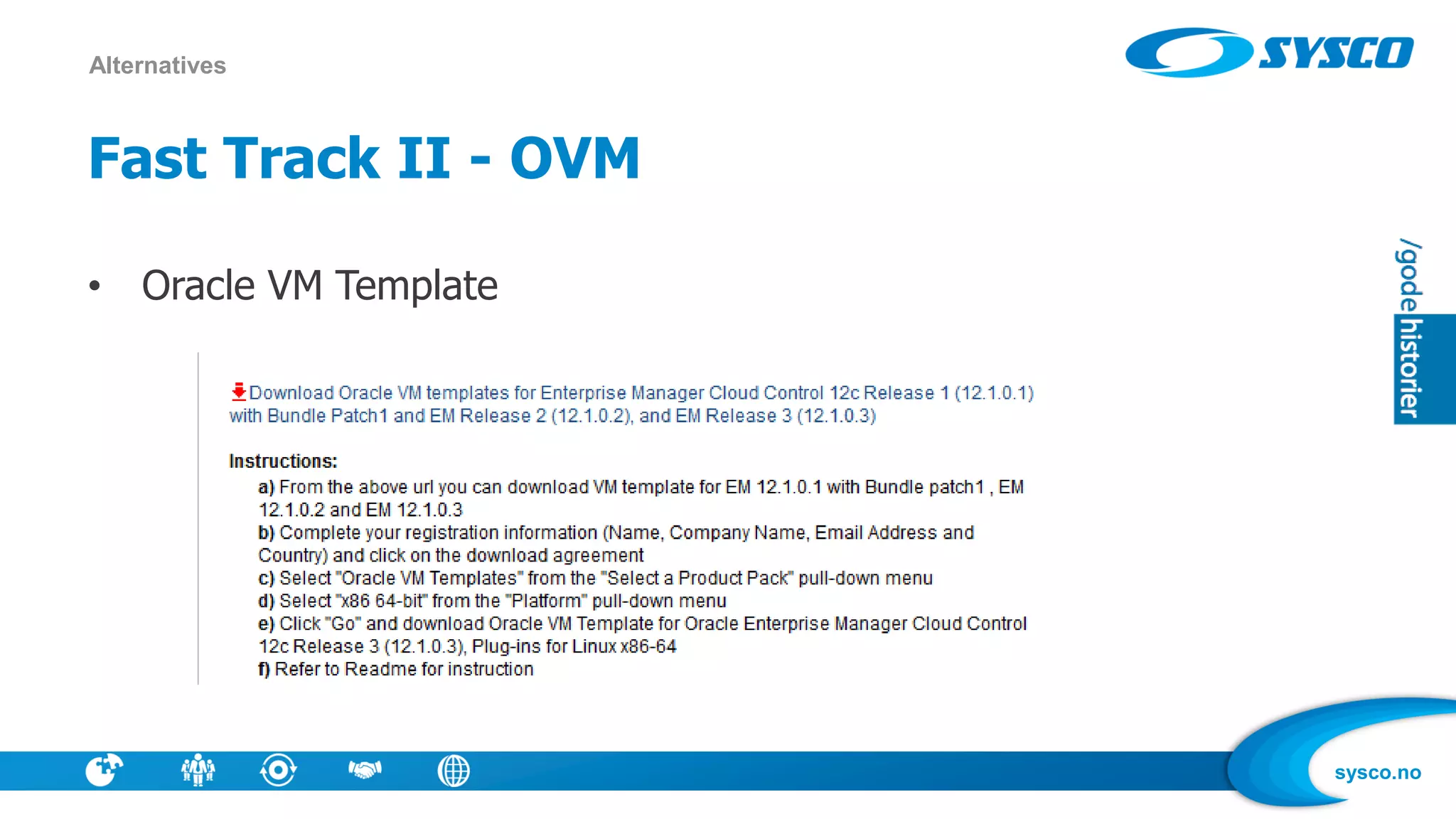

Fast Track II - OVM
• Oracle VM Template
Alternatives

20. sysco.no

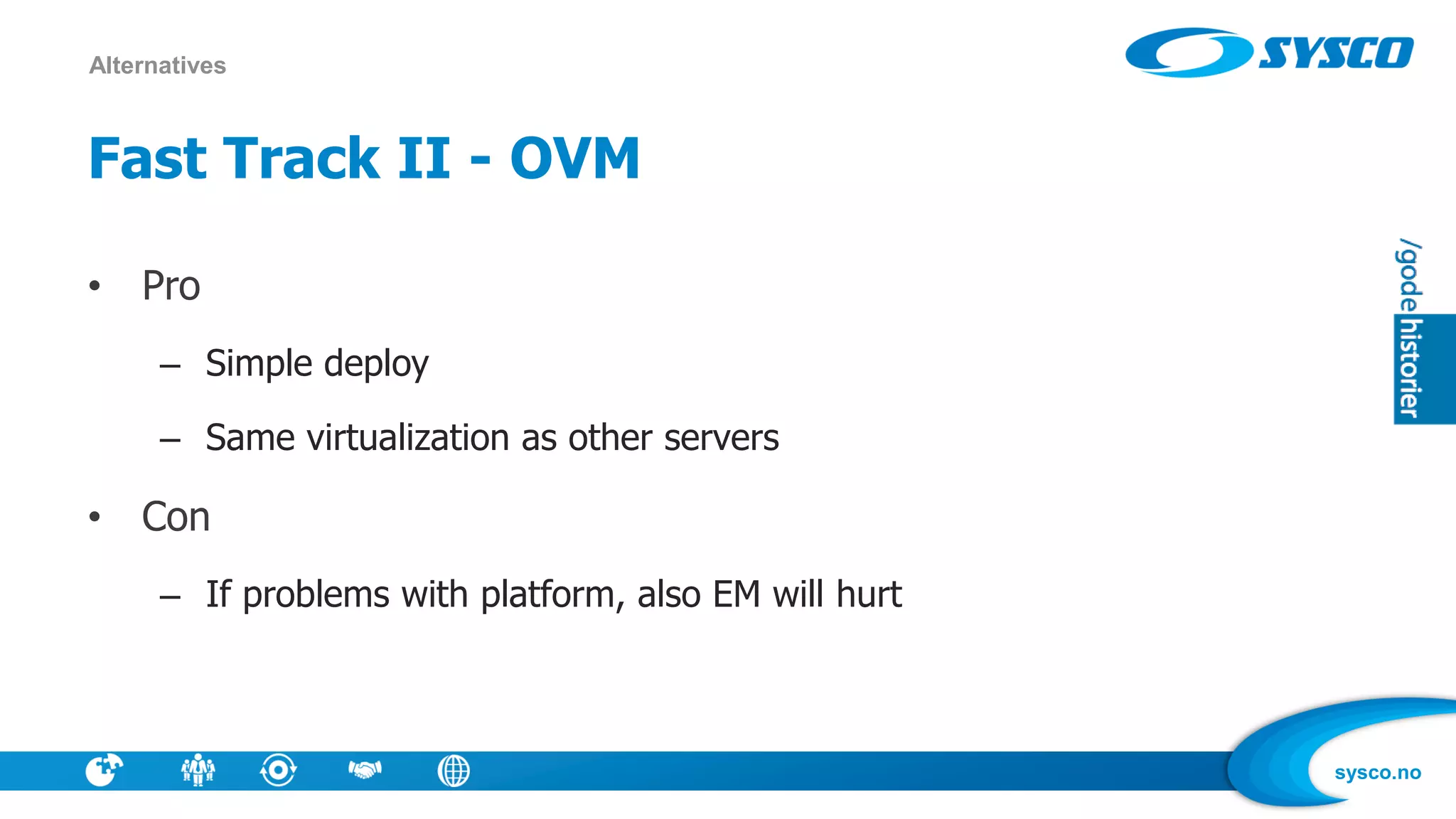

Fast Track II - OVM
• Pro
– Simple deploy
– Same virtualization as other servers
• Con
– If problems with platform, also EM will hurt
Alternatives

21. sysco.no

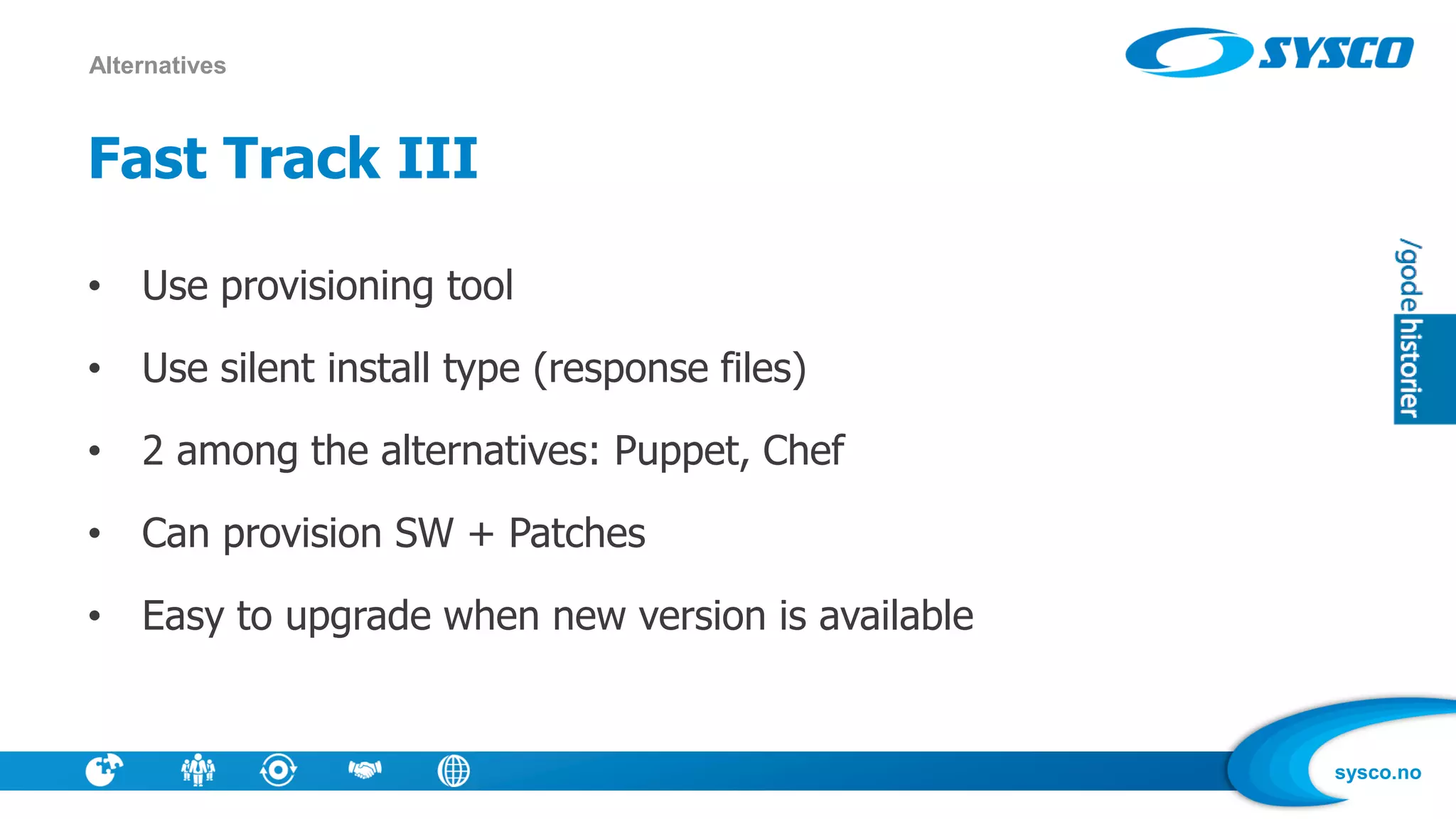

Fast Track III
• Use provisioning tool
• Use silent install type (response files)
• 2 among the alternatives: Puppet, Chef
• Can provision SW + Patches
• Easy to upgrade when new version is available
Alternatives

22. sysco.no

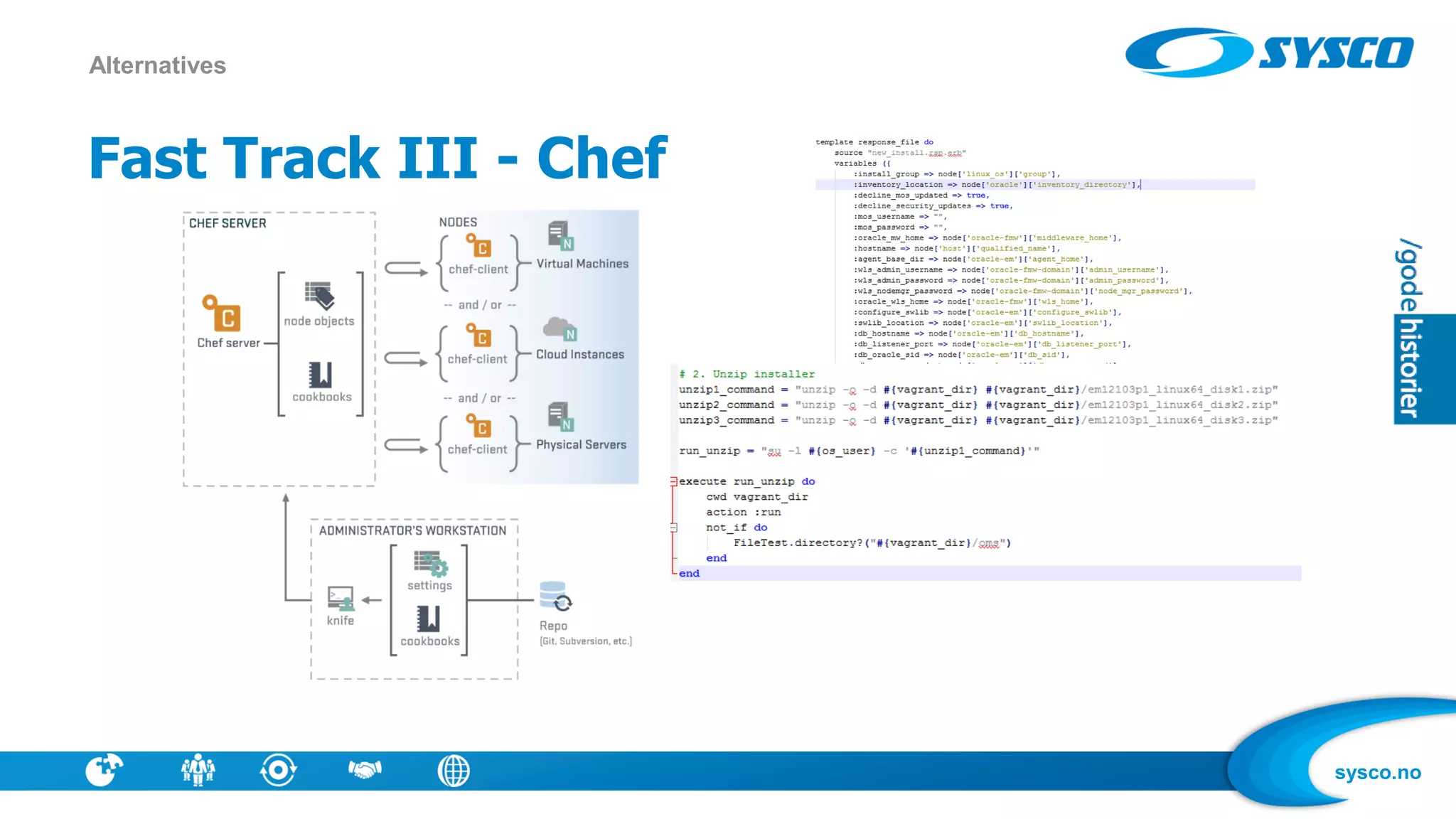

Fast Track III - Chef
Alternatives

23. sysco.no
Q&A
• Email: jonpetter.hjulstad@sysco.no
• Twitter: jphjulstad
