Managing Oracle Enterprise Manager Cloud Control 12c with Oracle Clusterware and High Availability
- 1. 1 Managing Oracle Enterprise Manager Cloud Control 12c with Oracle Clusterware Leighton L. Nelson #EM12c

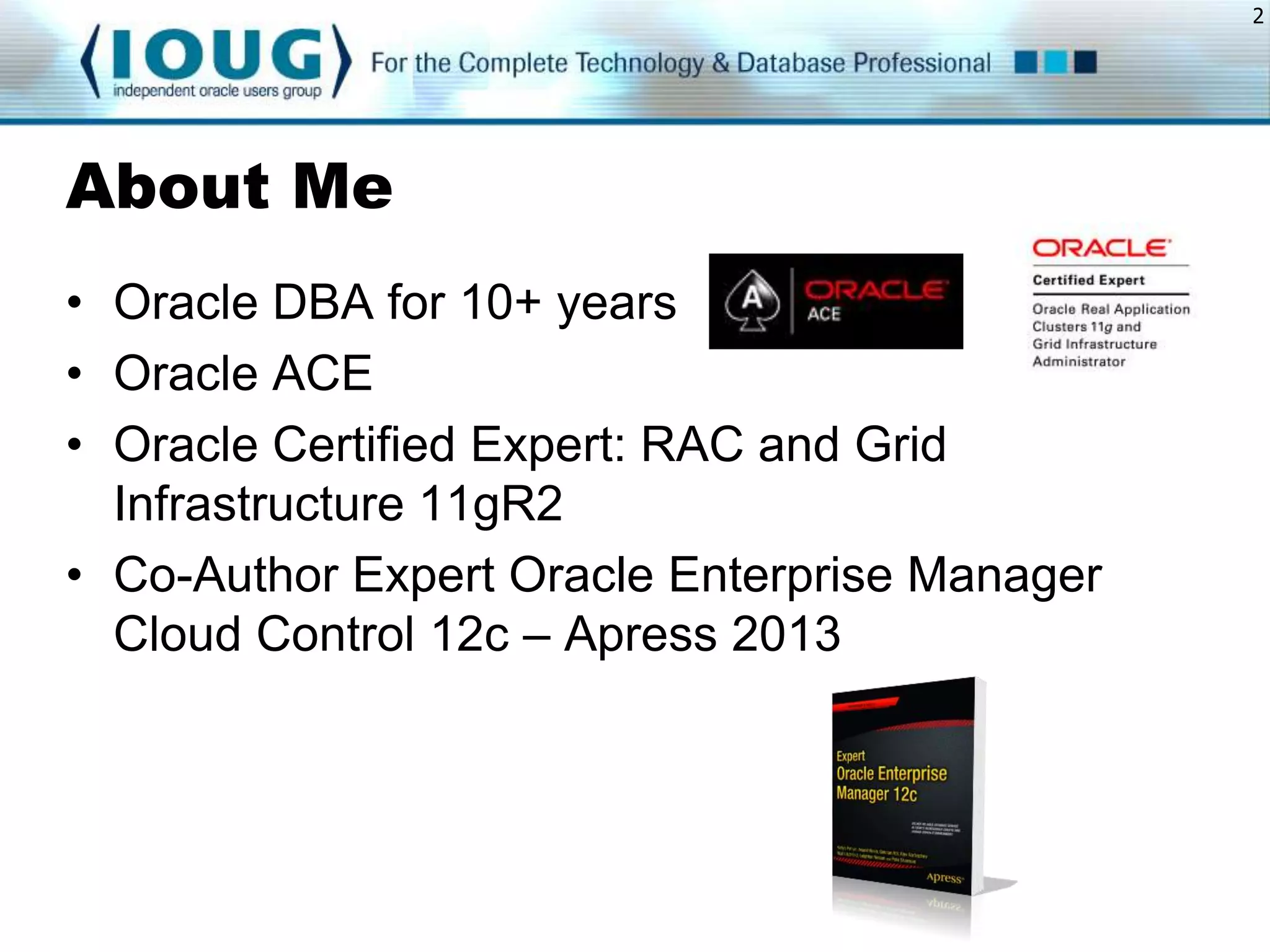

- 2. 2 About Me • Oracle DBA for 10+ years • Oracle ACE • Oracle Certified Expert: RAC and Grid Infrastructure 11gR2 • Co-Author Expert Oracle Enterprise Manager Cloud Control 12c – Apress 2013
- 3. See Me Speak at COLLABORATE 14 – IOUG Forum ■ 5 days of training with more than 5,500 expert Oracle users ■ List speaking sessions ■ User-driven training in: ▪ ▪ ▪ ▪ ▪ Big Data BI Cloud Computing Database Performance Database Development ▪ ▪ ▪ ▪ Engineered Systems High Availability OEM Security ■ Learn more at collaborate14.ioug.org
- 4. COLLABORATE 14 – IOUG Forum ■ 5 days of training with more than 5,500 expert Oracle users ■ Case studies and sessions cover the latest in: ▪ ▪ ▪ ▪ ▪ Big Data BI Cloud Computing Database Performance Database Development ▪ ▪ ▪ ▪ Engineered Systems High Availability OEM Security ■ Learn more at collaborate14.ioug.org
- 5. 5 Agenda • • • • • • • • Oracle Clusterware Overview OEM 12c Architecture Overview OEM High Availability Level 2 HA Configuration Oracle Clusterware Setup OEM Installation OEM Failover Management Repository Configuration
- 6. 6 Oracle Clusterware ASM + Clusterware = Grid Infrastructure 6
- 7. 7 OEM 12c Architecture Overview
- 8. 8 OEM High Availability Levels Level 1 2 3 4 Description Load Balancer Required OMS and Repository on separate hosts. No No redundancy. OMS installed on shared storage with VIP used in No active/passive failover. Repository Database using local Data Guard. Multiple OMSs in active/active configuration. Yes, At primary site Repository using RAC Database with local Data Guard Primary OMS in active/active configuration with RAC Yes. At pimary and standby Repository database. Standby OMS at DR site in sites active/active configuration. Standby RAC database at DR site Cost $ $$ $$$ $$$$
- 9. 9 Level 2 – Active/Passive HA • A minimum of 2 Servers Required • OMS binaries installed on shared filesystem • NFS/OCFS2/DBFS/ACFS • OMS can run on one node in cluster at any given time • Data Guard for Management Repository
- 10. 10 Level 2 – Active/Passive OMS
- 11. 11 Level 2 – Active/Passive OMS Setup virtual hostname and IP address (VIP) • Clusterware VIP • Virtual hostname should resolve to unique IP Install OMS on shared disk Create Clusterware resource for OMS Failover
- 12. 12 Oracle Clusterware Setup • Clusterware can be used to create/manage VIP • 11.2+ uses appvipcfg for VIP <GRID_HOME>/bin/appvipcfg create -network=1 -ip=192.168.1.0 -vipname=omsvip -user=root • VIP can be created on non-default network • In Oracle 12c Flex Clusters app vips can be created on leaf nodes • Allow Oracle Grid Infrastructure software owner (e.g. grid) to run the script to start the VIP. <GRID_HOME>/bin/crsctl setperm resource omsvip -uuser:grid:r-x
- 13. 13 Oracle Clusterware Setup • Start the VIP as the GI owner e.g. grid <GRID_HOME>/bin/crsctl start resource omsvip • Check the status of the VIP <GRID_HOME>/bin/crsctl status resource omsvip The status of the output should be similar to the following: NAME=omsvip TYPE=app.appvip_net1.type TARGET=ONLINE STATE=ONLINE on oms1 • View full configuration with -f <GRID_HOME>/bin/crsctl status resource omsvip –f
- 14. 14 Oracle Clusterware Setup • Check if virtual hostname and VIP are resolvable nslookup <omsvip> • Also do a reverse lookup of the IP address. nslookup <virtual IP address> • Verify that the IP address returned from the nslookup output is running on the OMS host. ifconfig –a | grep <virtual IP address>
- 15. 15 OEM Installation • Create ORACLE_HOME for the OMS on the shared storage on all nodes in the cluster mkdir –p /u01/app/oms_share • Create Oracle Inventory directory under ORACLE_HOME for the OMS on all nodes mkdir /u01/app/oms_share/oraInventory • Create the inventory pointer in the oraInventory directory vi oraInst.loc inventory loc=/u01/app/oracle/oms_share/oraInventory inst_group=oinstall
- 16. 16 OEM Installation • Install OEM by setting ORACLE_HOSTNAME environment variable runInstaller -invPtrloc /u01/app/oms_share/oraInst.loc ORACLE_HOSTNAME=omsvip.example.com – debug
- 17. 17 OEM Failover • To manually relocate the VIP to another host in the cluster issue the following command. $crsctl relocate res omsvip CRS-2673: Attempting to stop 'omsvip' on 'oms1' CRS-2677: Stop of 'omsvip' on 'oms1' succeeded CRS-2672: Attempting to start 'omsvip' on 'oms2' CRS-2676: Start of 'omsvip' on 'oms2' succeeded • Check if the IP address associated with the VIP is running on the relocated host. ifconfig –a|grep<vip>
- 18. 18 OEM Failover • • • • Establish IP on failover server (done through Clusterware) Start listener (if part of same failover group) Start database (if required) Set the ORACLE_HOSTNAME environment variable to the virtual hostname. Continuing with our example we use the command below. export ORACLE_HOSTNAME=omsvip.example.com • Start the OMS on the new node $OMS_HOME/bin/emctl start oms
- 19. 19 Add OEM Clusterware resource • OEM can be added as Clusterware resource • Administrator managed (static, 2 – nodes) • Policy managed (dynamic, > 2 nodes) • Handled through Agent Framework • C/C++ • Create Action Script • Store on shared storage • Specify START/STOP/CHECK/ABORT routines
- 20. 20 Example $ crsctl add serverpool oem_sp -attr "PARENT_POOLS=Generic, SERVER_NAMES=oms1 oms2” $ crsctl add resource oem -type cluster_resource -attr "ACTION_SCRIPT=/opt/cluster/scripts/oem12c.scr, PLACEMENT='restricted', SERVER_POOLS=oem_sp, CHECK_INTERVAL=‘60', RESTART_ATTEMPTS='2', START_DEPENDENCIES='hard(omsvip)', STOP_DEPENDENCIES='hard(omsvip)'"
- 21. 21 Clusterware resource • Oracle 12c introduced a new generic_application resource type crsctl add resource oem -type generic_application -attr "START_PROGRAM='$OMS_HOME/bin/emctl start oms', STOP_PROGRAM='$OMS_HOME/bin/emctl stop oms -all', CLEAN_PROGRAM='$OMS_HOME/bin/emctl stop oms –all -force', CHECK_PROGRAM='$OMS_HOME/bin/emctl status oms'
- 22. 22 Use OEM to “dogfood” HA configuration 22
- 23. 23 Adding OEM Resources using OEM 23
- 24. 24 24
- 25. 25 25
- 26. 26 26
- 27. 27 27
- 28. 28 28
- 29. 29 29
- 30. 30 30
- 31. 31 31
- 32. 32 32
- 33. 33 33
- 34. 34 34
- 35. 35 35
- 36. 36 36
- 37. 37 37
- 38. 38 Management Repository • Use OEM to Create Standby Database! • Can be configured using Data Guard with FastStart-Failover • Also can be configured with RAC/RAC One Node • Storage becomes SPOF • Listeners should be reachable from all nodes in cluster • Database should be started before starting OEM
- 39. 39 Configure OEM with Data Guard Repo Create database services for fast failover. • srvctl add service -demrep -soemsvc -l PRIMARY -q TRUE -e SESSION -m BASIC w 10 -z6 • srvctladd service -d emrep2 -soemsvc -l PRIMARY -q TRUE -e SESSION -m BASIC w 10 -z 6
- 40. 40 Configure OMS with Data Guard Repo emctl config oms -store_repos_details repos_conndesc '"(DESCRIPTION=(FAILOVER=ON)(ADDRESS_ LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=r epo1)(PORT=1521))(ADDRESS=(PROTOCOL= TCP)(HOST=repo2)(PORT=1521)))(CONNECT_ DATA=(SERVICE_NAME=oemsvc))(FAILOVER _MODE=(TYPE=select)(METHOD=basic)))"' repos_user sysman
- 41. 41 Configure OMS with RAC/RAC One Node Repo emctl config oms -store_repos_details repos_conndesc " (DESCRIPTION= (ADDRESS=(PROTOCOL=TCP) (HOST=emrep-scan.example.com)(PORT=1521) ) (CONNECT_DATA=(SERVER=DEDICATED) (SERVICE_NAME = emrep)))" -repos_user sysman
- 42. 42 Licensing 42
- 43. 43 Caveats •Shared File System becomes SPOF for OMS •Incurred downtime between failover (minutes) •May require additional licenses if Data Guard is used 43
- 45. 45 References • How to Configure Grid Control OMS in Active/Passive CFC Environments failover / HA (Doc ID 405642.1) • How to Configure the OMS Connect String when Repository is in a Dataguard setup [ID 1328768.1] • Oracle® Clusterware Administration and Deployment Guide12c Release 1 • How To Configure Grid Control Components for High Availability Note 406014.1 • Oracle Clusterware 11gR2 Whitepaper http://www.oracle.com/technetwork/database/cluster ware/overview/oracle-clusterware-11grel2-owp-1129843.pdf
Editor's Notes
- Released in 10gR1 for RAC DATABASESIndependent Clusterware InfrastructureProtects any kind of application ASM + Clusterware = Grid Infrastructure
- Each component within the Enterprise Manager architecture should be made highly available to enable a complete High Availability configuration. The main components to be considered are (see Figure 13-1):Enterprise Manager Agent - Communicates with and sends metrics to the OMSManagement Server - the heart of the Enterprise ManagerRepository -Stores persistent data from the monitored targets. Software library - Stores files for patching, provisioning and agent and plug-in deployment
- Different levels of high availability can be configured for each component with varying levels of complexity and cost. When considering your high availability requirements, there should be minimal trade-offs in cost, complexity, performance and data loss. Generally, the complexity and level of high availability are proportional to each other.
- Also called a cold-failover cluster (CFC)In order to reduce OMS downtime during planned or unplanned outage, some redundancy should be introduced into the configuration. A level 2 configuration uses a shared filesystem for the management service to achieve an active/passive or cold failover cluster solution. The filesystem is shared between two or more hosts and is only active on one host at a time. The shared filesystem for the OMS can be installed on a general-purpose cluster file system including NFS, Oracle Cluster File System (OCFS2), and Oracle Automatic Storage Management (ASM) Cluster File System (ACFS). If NFS is used as the shared storage, then ensure the correct mount options are set in /etc/fstab (/etc/filesystems on AIX) to prevent potential I/O issues. Specifically, the rsize and wsize should be set.The example below shows and entry in the /etc/fstab file on a Linux server where the NFS share is mounted on a filer named filer1 under the /vol1/oms_share directory.filer:/vol1/oms_share /u01/app/oms_share nfsrw,bg,rsize=32768,wsize=32768,hard,nointr,tcp,noac,vers=3,timeo=600 0 0Binaries for the OMS along with the inventory should be installed on the shared filesystem. Setup the virtual hostname and IP address (VIP) using Oracle Clusterware or third-party software and hardware. Failover is achieved by using the virtual hostname for the OMS along with a unique IP address which resolves to the hostname.
- Also called a cold-failover cluster (CFC)In order to reduce OMS downtime during planned or unplanned outage, some redundancy should be introduced into the configuration. A level 2 configuration uses a shared filesystem for the management service to achieve an active/passive or cold failover cluster solution. The filesystem is shared between two or more hosts and is only active on one host at a time. The shared filesystem for the OMS can be installed on a general-purpose cluster file system including NFS, Oracle Cluster File System (OCFS2), and Oracle Automatic Storage Management (ASM) Cluster File System (ACFS). If NFS is used as the shared storage, then ensure the correct mount options are set in /etc/fstab (/etc/filesystems on AIX) to prevent potential I/O issues. Specifically, the rsize and wsize should be set.The example below shows and entry in the /etc/fstab file on a Linux server where the NFS share is mounted on a filer named filer1 under the /vol1/oms_share directory.filer:/vol1/oms_share /u01/app/oms_share nfsrw,bg,rsize=32768,wsize=32768,hard,nointr,tcp,noac,vers=3,timeo=600 0 0Binaries for the OMS along with the inventory should be installed on the shared filesystem. Setup the virtual hostname and IP address (VIP) using Oracle Clusterware or third-party software and hardware. Failover is achieved by using the virtual hostname for the OMS along with a unique IP address which resolves to the hostname.
- It’s recommended to use the appvipcfg utility in Oracle Clusterware 11gR2 to create application VIPs. The VIP is created with a set of pre-defined settings suitable for an application VIP such placement policy and the failback option.The default value of the failback is set to 0, which means that the VIP and its dependent resources will not automatically fail back to the original node once it becomes available again. VIP can be created on the non-default network (default ora.net1.network)Non-default network should be created with srvctl add network command
- A VIP can be created in the same was any other Clusterware resource. However, it is recommended to use the appvipcfg utility in Oracle Clusterware 11gR2 to create application VIPs. The VIP is created with a set of pre-defined settings suitable for an application VIP such placement policy and the failback option.The default value of the failback is set to 0, which means that the VIP and its dependent resources will not automatically fail back to the original node once it becomes available again.Use the –f option to view all attributes
- The virtual hostname is defined in DNS, and should resolve to the application VIP address created using the steps above. Check if the virtual hostname and VIP are resolvable using nslookup or the dig command.$ nslookup omsvipThis should resolve to a unique IP address of the virtual hostname on every node in the cluster.Also do a reverse lookup of the IP address.$nslookup <virtual IP address>Verify that the IP address returned from the nslookup output is running on the OMS host.ifconfig –a|grep <virtual IP address>
- Install the OMS on the first host by following the installation steps as described in the Oracle Enterprise Manager Cloud Control 12c Basic Installation Guide. You only need to complete the installation once. Since the location is shared, the binaries will be accessible from another host that shares the filesystem.
- The ORACLE_HOSTNAME should be also set when starting the OEM on each node in the cluster. This should be the same as the Virtual Hostname defined in DNS for the VIP.
- Once the OMS has been successfully installed and is up and running, if the host were to go down then the VIP will be automatically relocated to another node. The management service can then be manually started on any remaining node in the cluster on which the VIP is running.
- Oracle Clusterware can be configured to fully manage the OMS by creating start, check, stop, clean and abort routines that tell it how to operate on the OMS.
- You must decide whether to use administrator or policy management for the application. Use administrator management for smaller, two-node configurations, where your cluster configuration is not likely to change. Use policy management for more dynamic configurations when your cluster consists of more than two nodes. For example, if a resource only runs on node 1 and node 2 because only those nodes have the necessary files, then administrator management is probably more appropriate.An action script is a shell script (a batch script in Windows) that a generic script agent provided by Oracle Clusterware calls. An application-specific agent is usually a C or C++ program that calls Oracle Clusterware-provided APIs directly.
- To add the OEM server as a resource that uses a named server deployment, assume that you add the resource to a server pool that is, by definition, a sub-pool of the Generic server pool. You create server pools that are sub-pools of Generic using the crsctl add serverpool command. These server pools define the Generic server pool as their parent in the server pool attribute PARENT_POOLS. In addition, they include a list of server names in the SERVER_NAMES parameter to specify the servers that should be assigned to the respective pool.
- generic_application cluster type can model any application requiring high availability without specifying action scripts
- Install OEM using virtual hostname/VIP and then create OEM Cluster resources using OEM.
- Use generic_application resource type in 12c to model any application. No action scripts are required with this resource type.Starting in Oracle Clusterware12c you can add application resources to hub or leaf nodes.
- Modify script/start/stop timeout values since the default maybe too low for OEM.
- Additional start/stop dependencies including ACFS/Filesystems, Listeners etc. can be added.
- Manage OEM tasks (start/stop) using Clusterware. Using OEM to start and stop OEM may cause inconsistencies in Clusterware resourceDisable upstart scripts (Linux) or services in Microsoft Windows.
