Where did my day go?: Oracle
Enterprise Manager 12c Administration
Prepared by:
Alfredo Krieg
Sr. Oracle Enterprise Cloud Administrator
The Sherwin-Williams Company
Session ID#: 230
@alfredokrieg

Where did my day go?: Oracle
Enterprise Manager 12c
Administration
Session ID#: 230

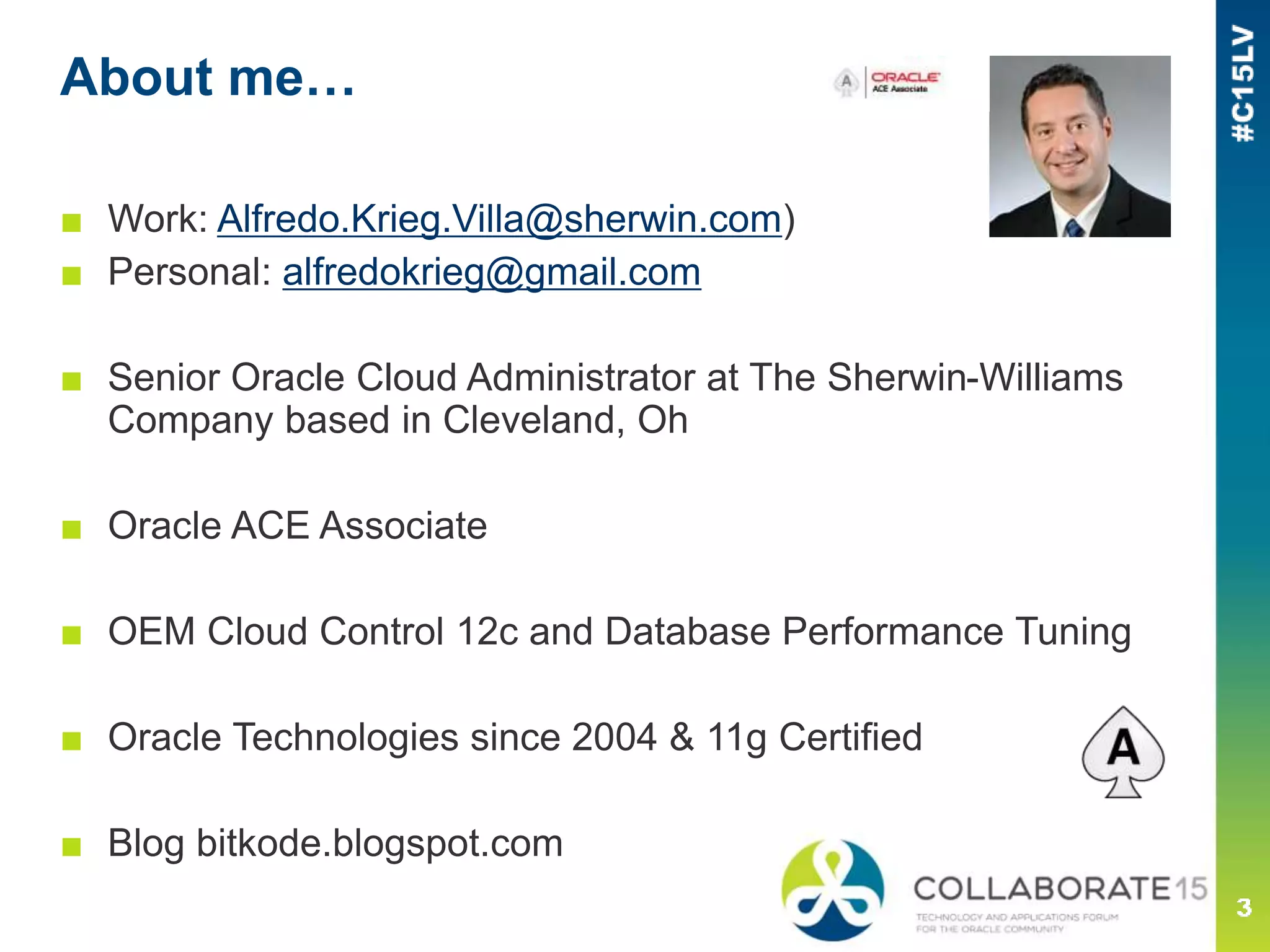

About me…
■ Work: Alfredo.Krieg.Villa@sherwin.com)
■ Personal: alfredokrieg@gmail.com
■ Senior Oracle Cloud Administrator at The Sherwin-Williams
Company based in Cleveland, Oh
■ Oracle ACE Associate
■ OEM Cloud Control 12c and Database Performance Tuning
■ Oracle Technologies since 2004 & 11g Certified
■ Blog bitkode.blogspot.com

■ Largest Producer of Paint & Coatings in US, among Top 3 worldwide
■ Founded in 1866 in Cleveland, OH
■ 2016 is 150th Anniversary
■ 2013 - $10.19 billion in sales
■ Business in 120+ Countries
■ 34,000+ employees
■ 4,000+ Company Owned Stores
■ 90+ Manufacturing Facilities Globally

The Sherwin-Williams Company was founded by
Henry Sherwin and Edward Williams in 1866.
Today, we are global leader in the manufacture,
development, distribution and sale of coatings and related
products to professional, industrial, commercial and retail
customers.
The Company manufactures products under well-known brands such as
Sherwin-Williams®, Dutch Boy®, Krylon®, Minwax®, Thompson’s®
Water Seal® and many more. With global headquarters in Cleveland,
Ohio, Sherwin-Williams® branded products are sold exclusively through
more than 4,000 company-operated stores and facilities, while the
Company’s other brands are sold through leading mass merchandisers,
home centers, hardware stores, automotive retailers and industrial
distributors.
www.sherwin-williams.com

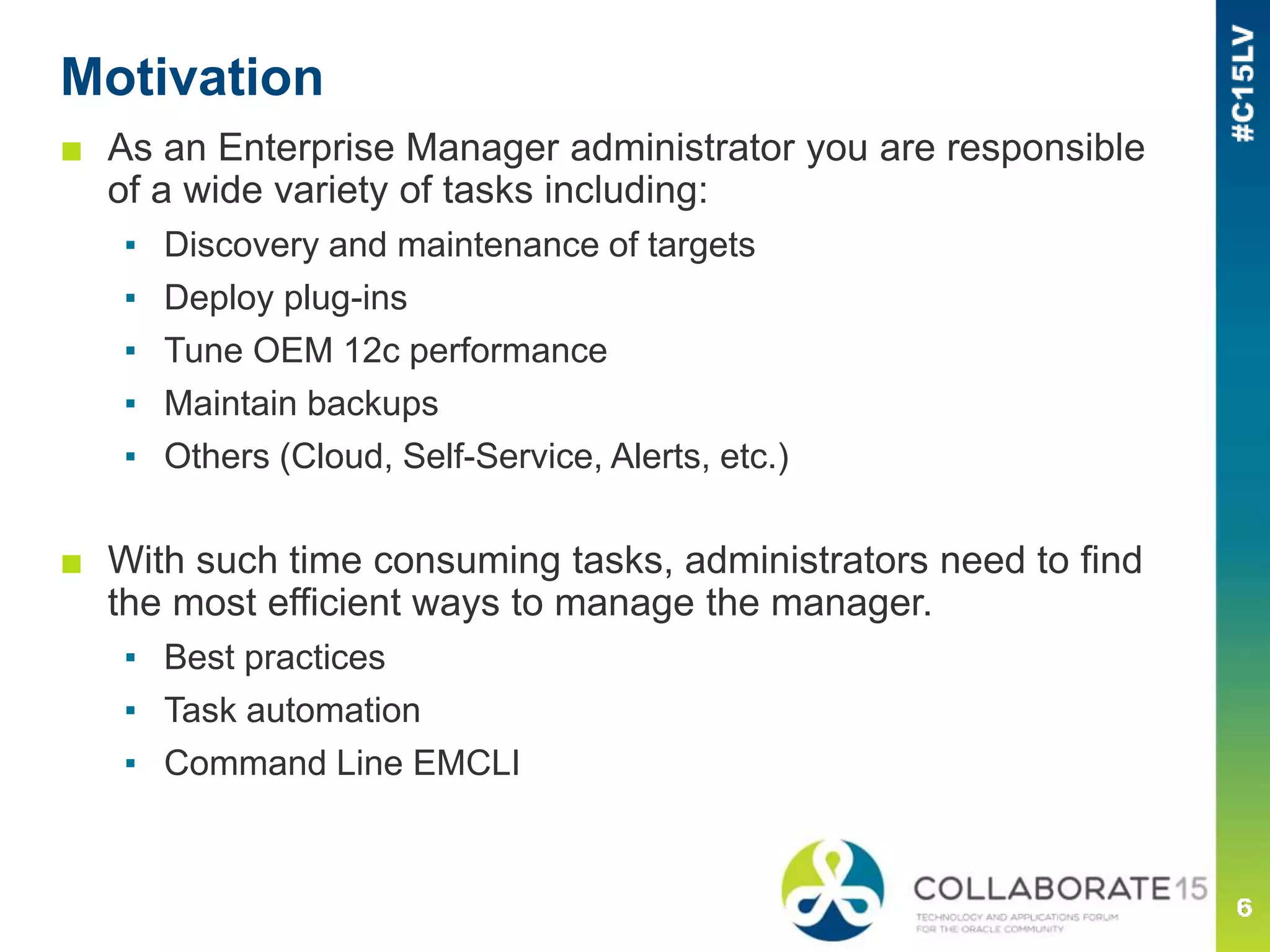

Motivation
■ As an Enterprise Manager administrator you are responsible
of a wide variety of tasks including:
▪ Discovery and maintenance of targets
▪ Deploy plug-ins
▪ Tune OEM 12c performance
▪ Maintain backups
▪ Others (Cloud, Self-Service, Alerts, etc.)
■ With such time consuming tasks, administrators need to find
the most efficient ways to manage the manager.
▪ Best practices
▪ Task automation
▪ Command Line EMCLI

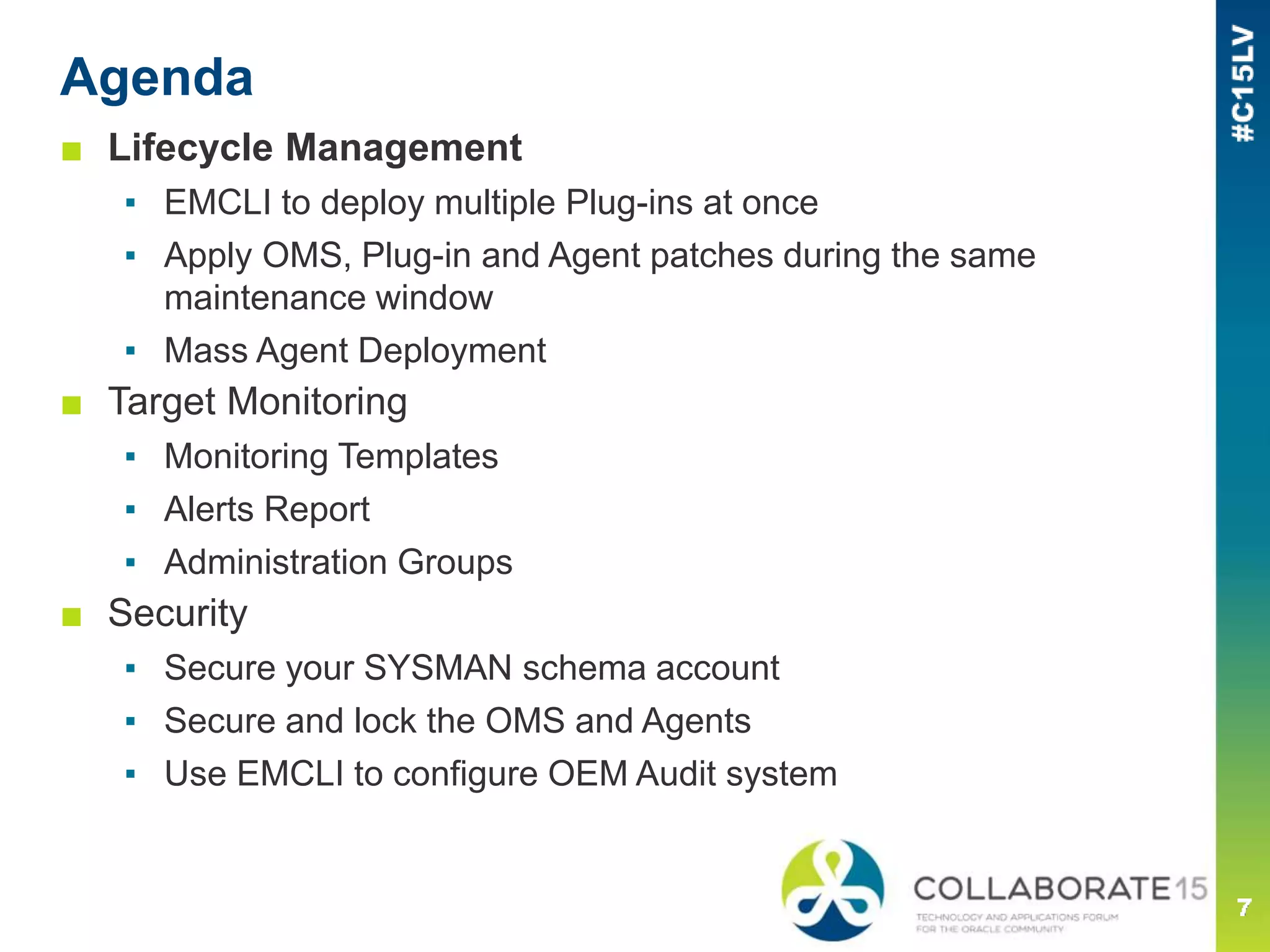

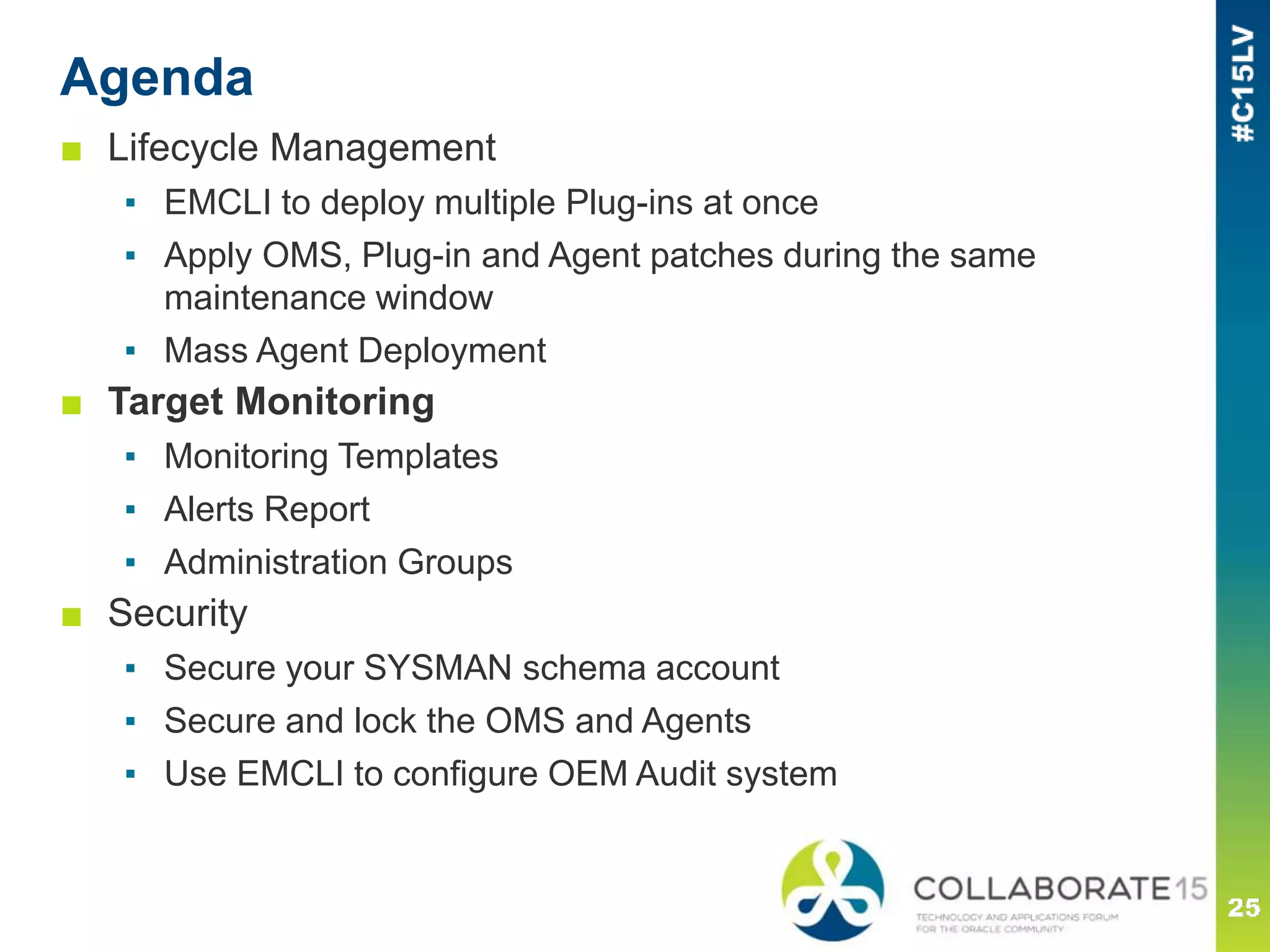

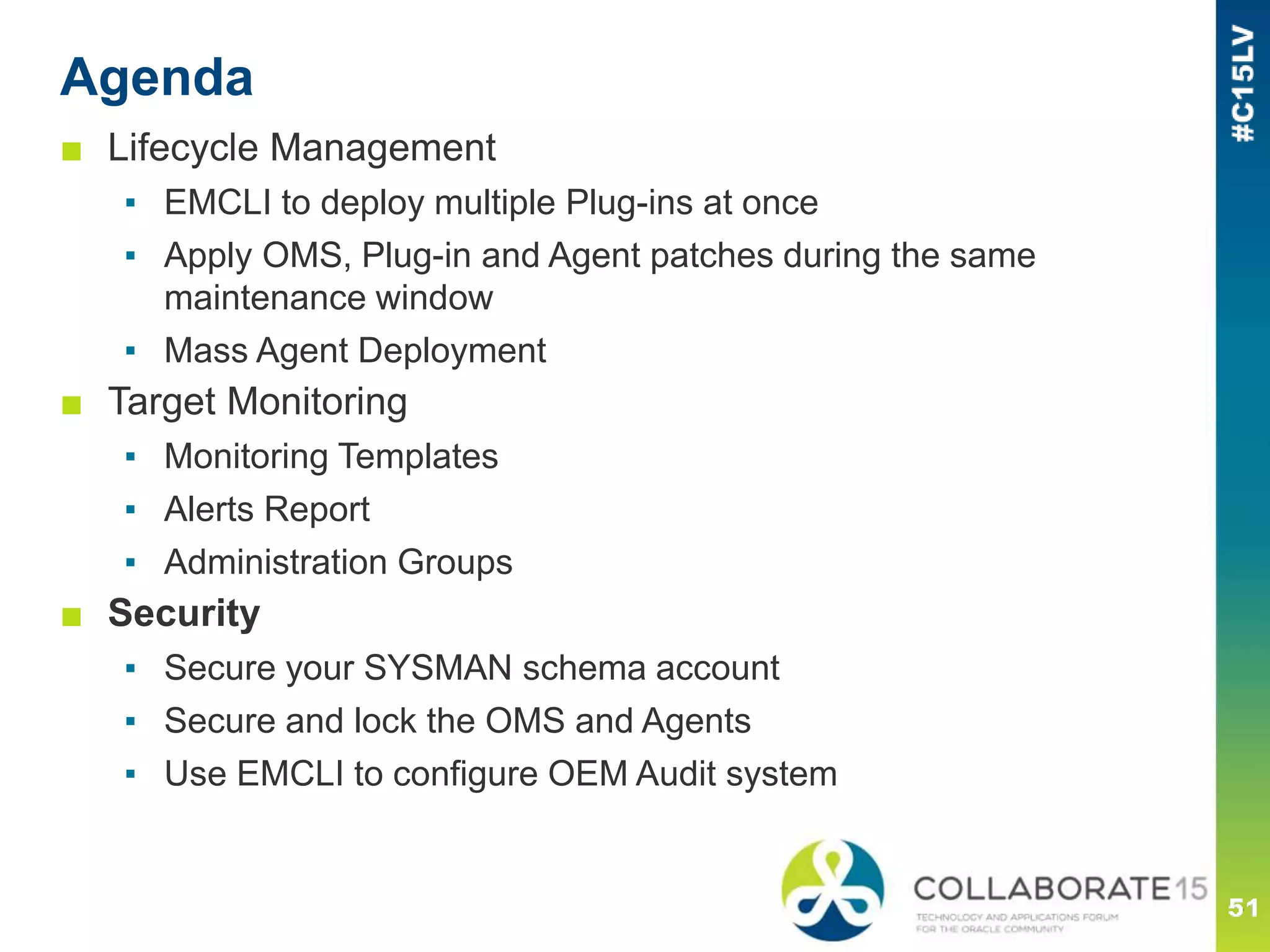

Agenda
■ Lifecycle Management
▪ EMCLI to deploy multiple Plug-ins at once
▪ Apply OMS, Plug-in and Agent patches during the same
maintenance window
▪ Mass Agent Deployment
■ Target Monitoring
▪ Monitoring Templates

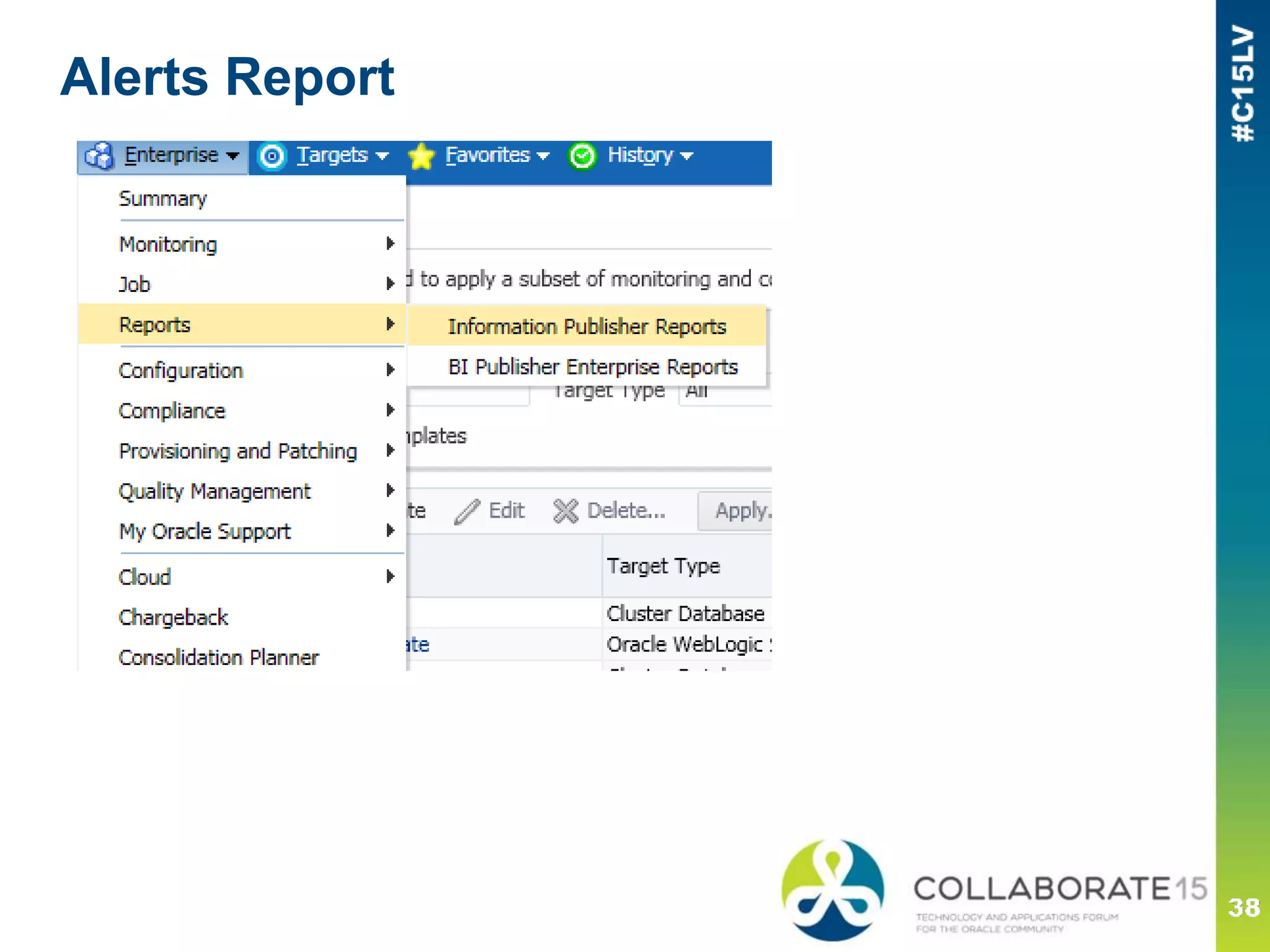

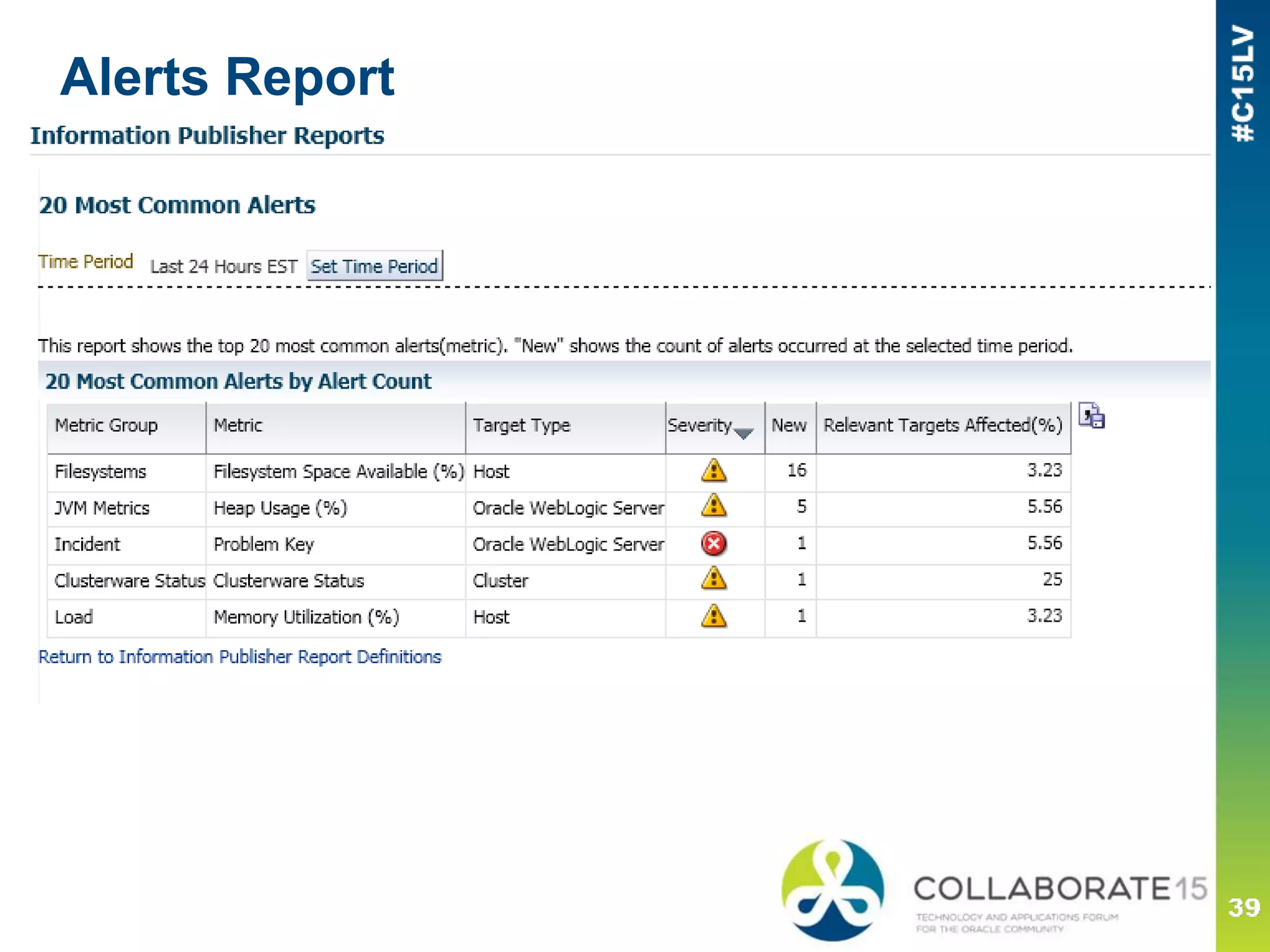

▪ Alerts Report
▪ Administration Groups
■ Security
▪ Secure your SYSMAN schema account
▪ Secure and lock the OMS and Agents
▪ Use EMCLI to configure OEM Audit system

Lifecycle Management

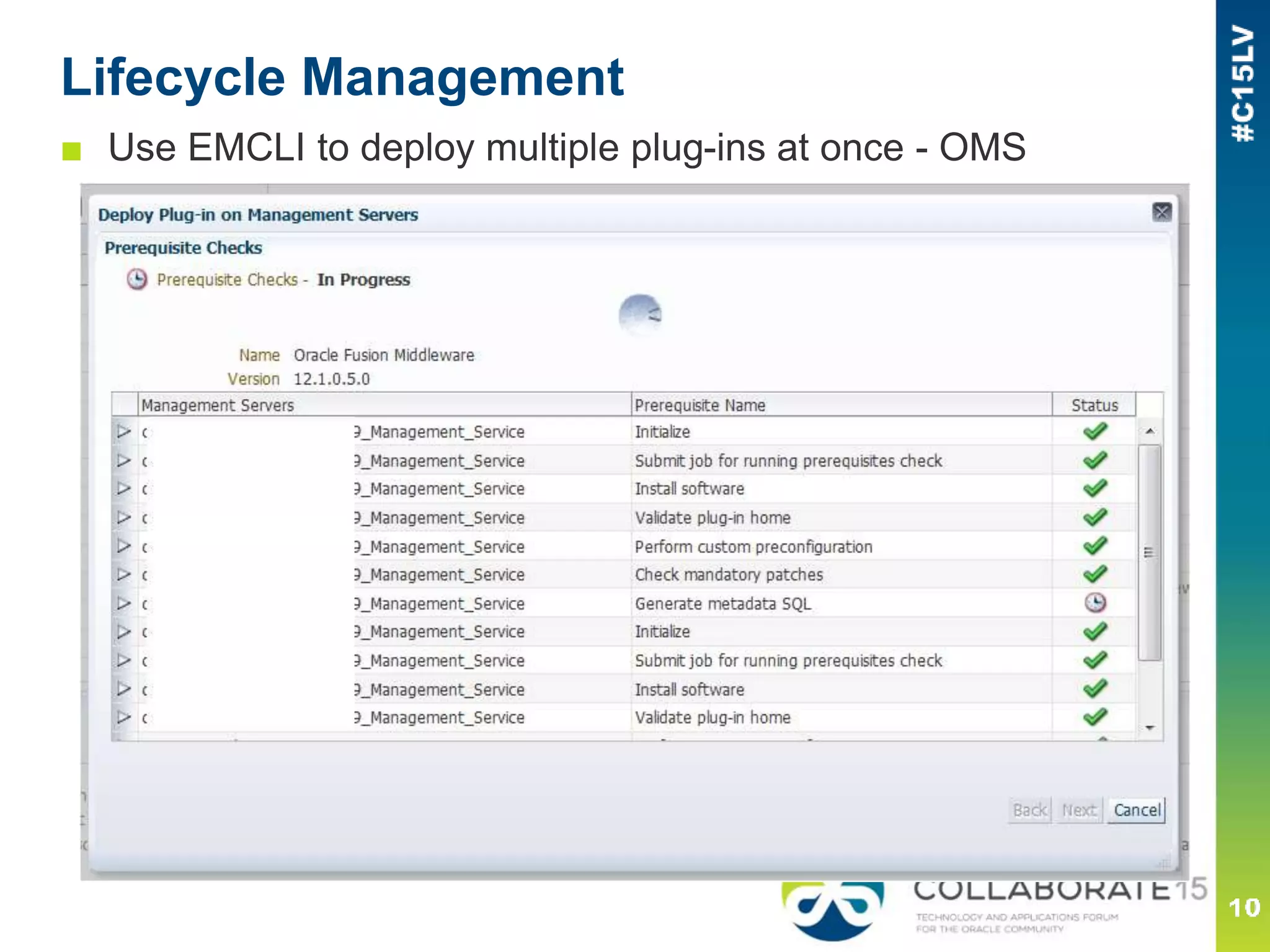

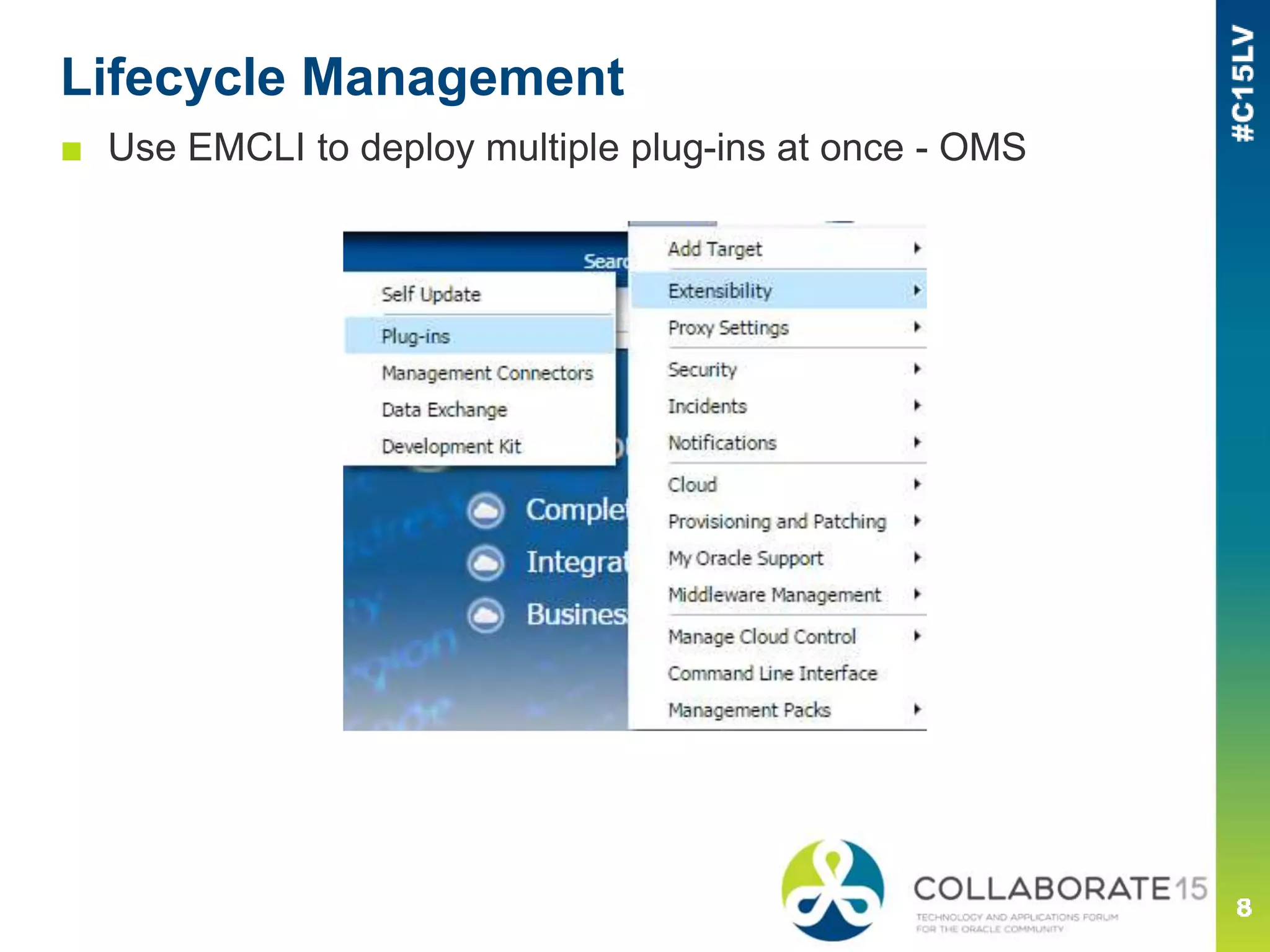

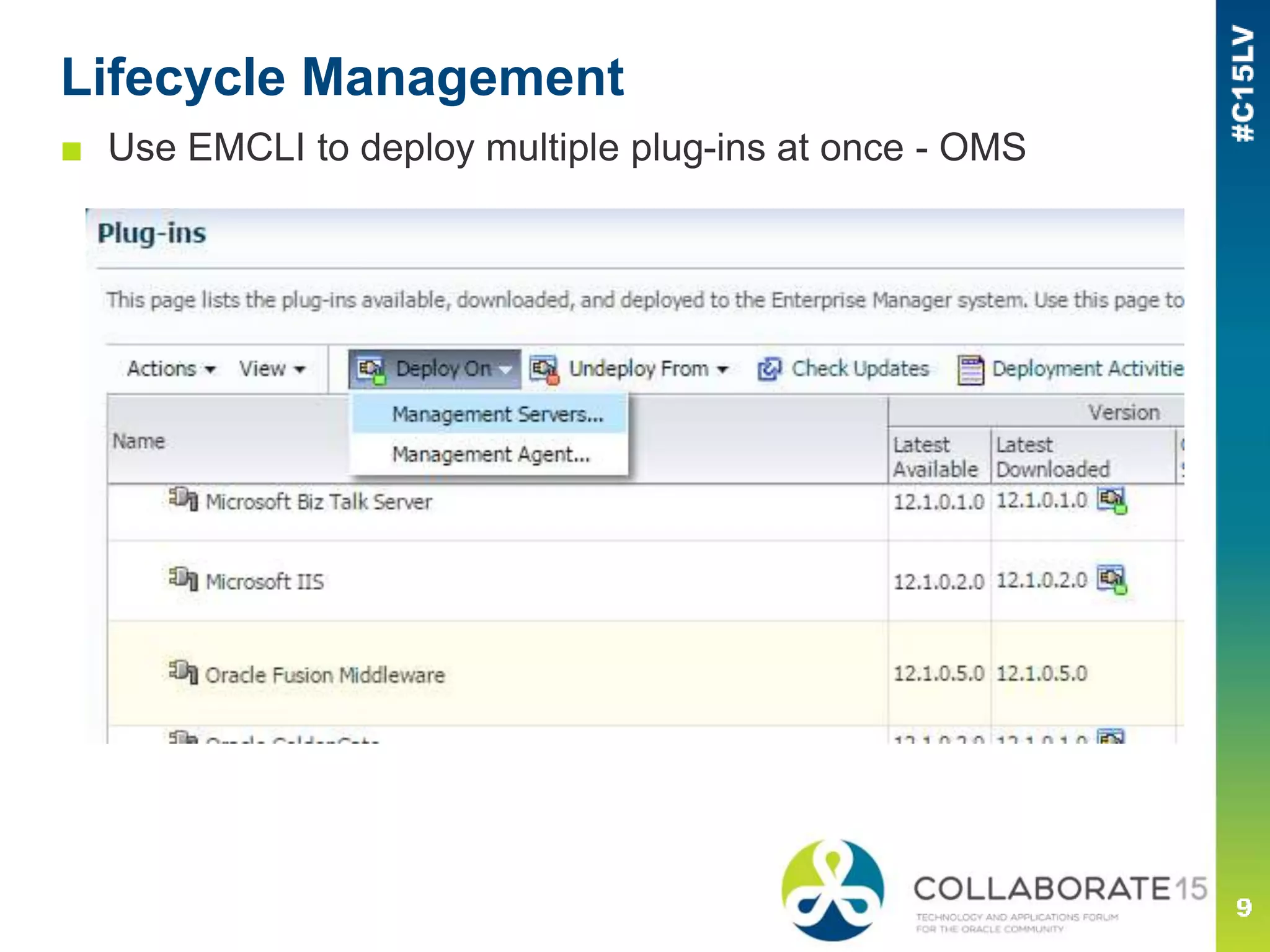

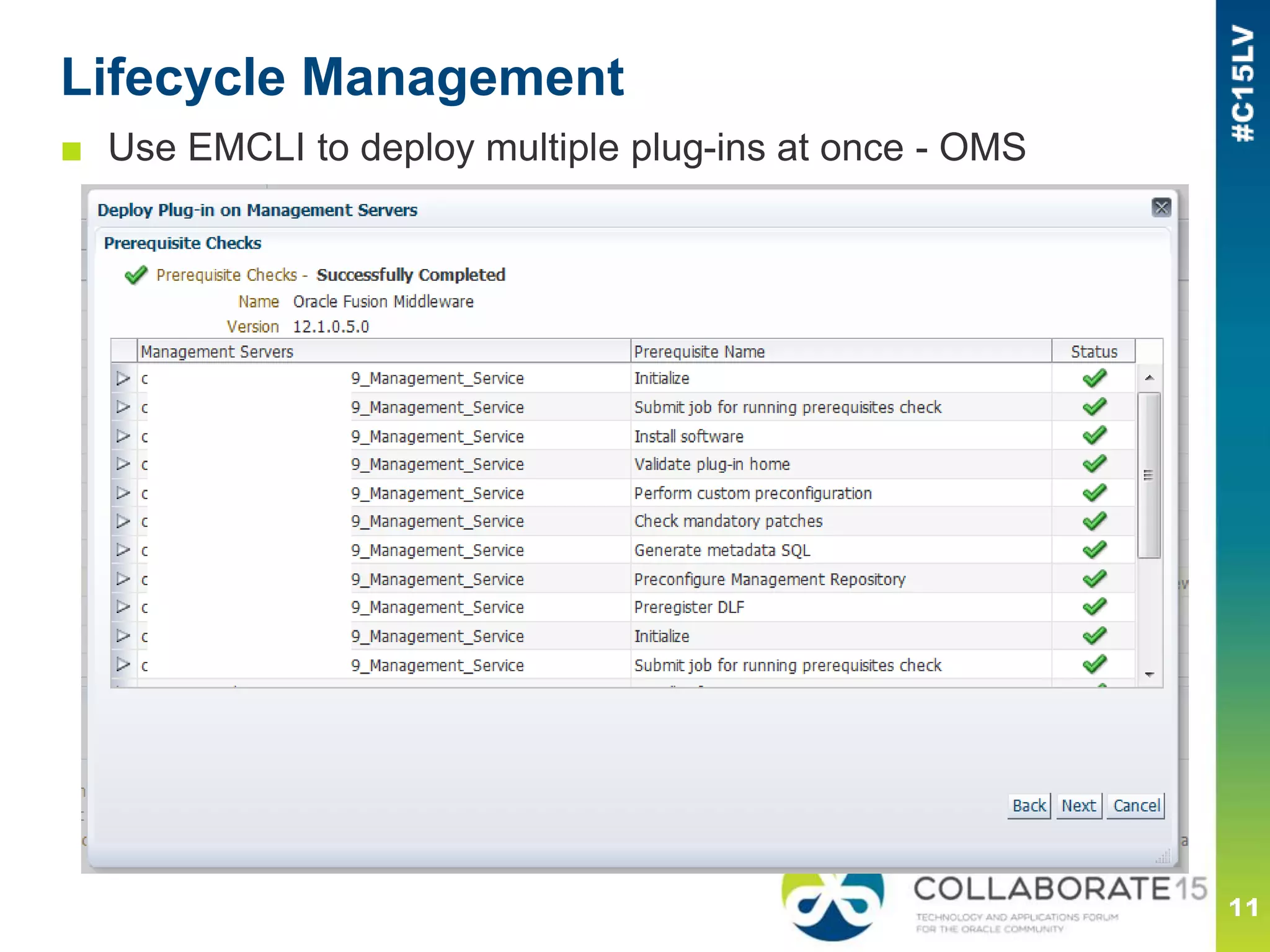

■ Use EMCLI to deploy multiple plug-ins at once - OMS

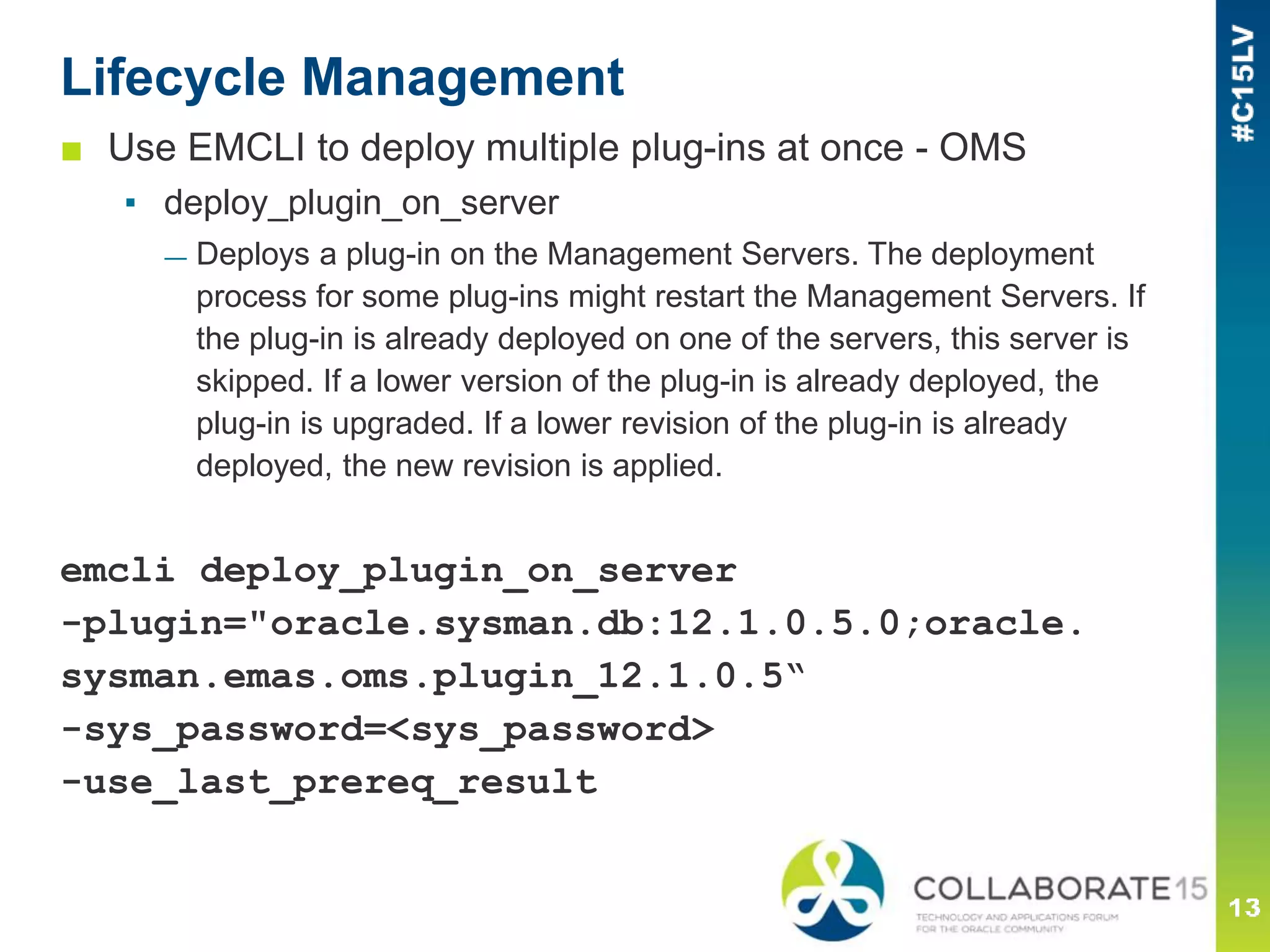

■ Use EMCLI to deploy multiple plug-ins at once - OMS
▪ deploy_plugin_on_server
— Deploys a plug-in on the Management Servers. The deployment
process for some plug-ins might restart the Management Servers. If
the plug-in is already deployed on one of the servers, this server is
skipped. If a lower version of the plug-in is already deployed, the
plug-in is upgraded. If a lower revision of the plug-in is already
deployed, the new revision is applied.
emcli deploy_plugin_on_server
-plugin="oracle.sysman.db:12.1.0.5.0;oracle.
sysman.emas.oms.plugin_12.1.0.5“
-sys_password=<sys_password>
-use_last_prereq_result

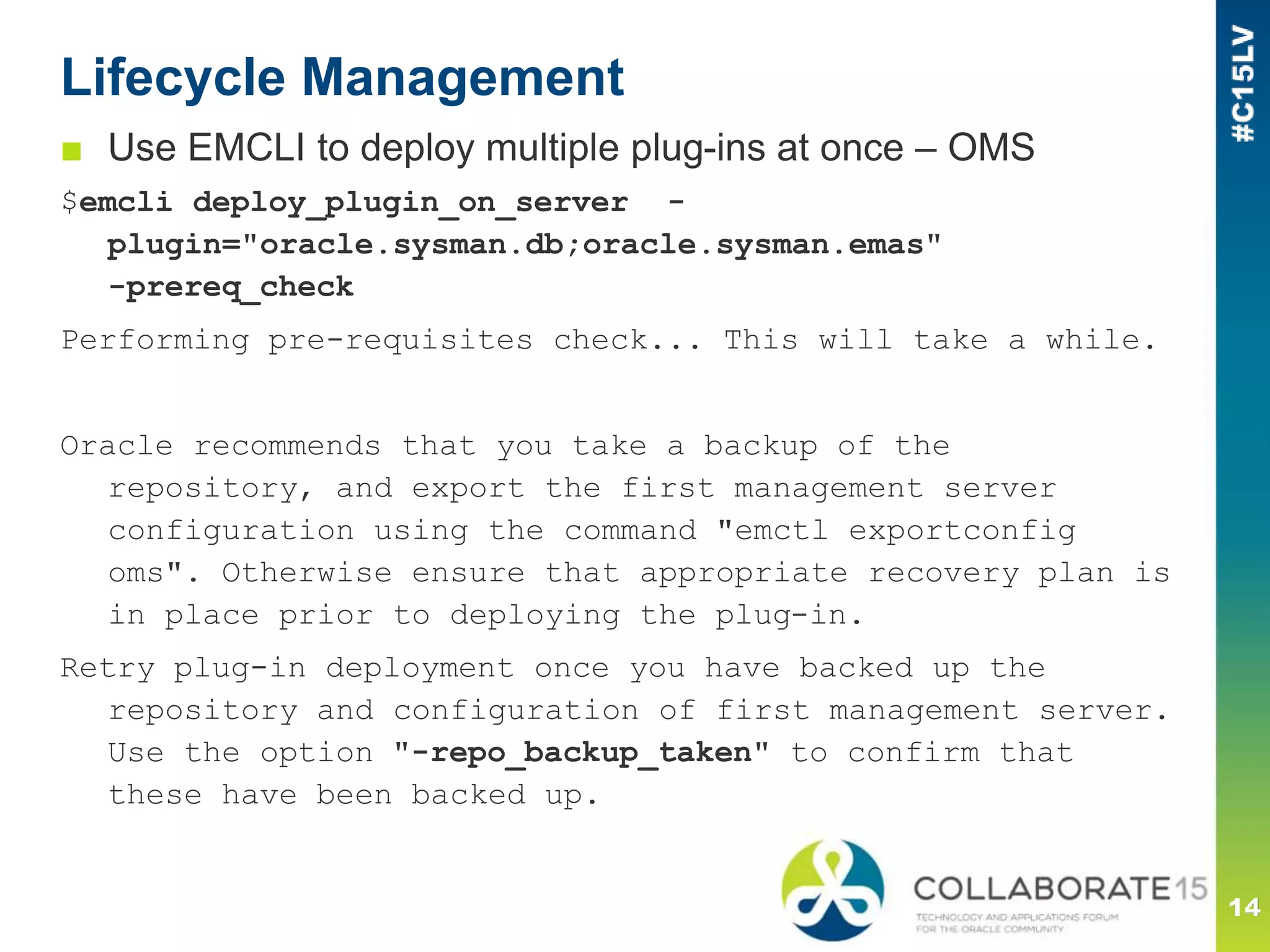

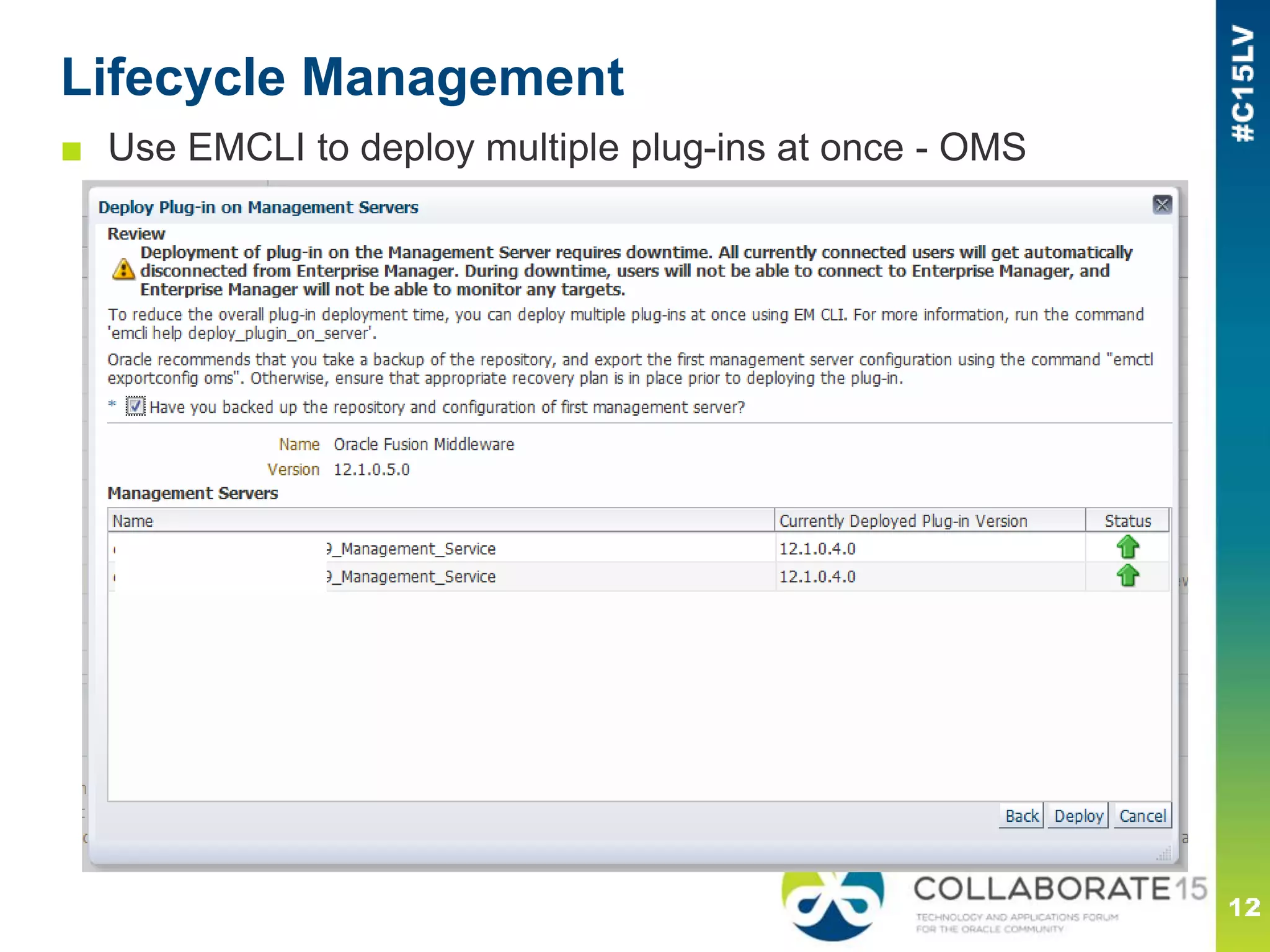

■ Use EMCLI to deploy multiple plug-ins at once – OMS
$emcli deploy_plugin_on_server -
plugin="oracle.sysman.db;oracle.sysman.emas"
-prereq_check
Performing pre-requisites check... This will take a while.
Oracle recommends that you take a backup of the
repository, and export the first management server
configuration using the command "emctl exportconfig
oms". Otherwise ensure that appropriate recovery plan is
in place prior to deploying the plug-in.
Retry plug-in deployment once you have backed up the
repository and configuration of first management server.
Use the option "-repo_backup_taken" to confirm that
these have been backed up.

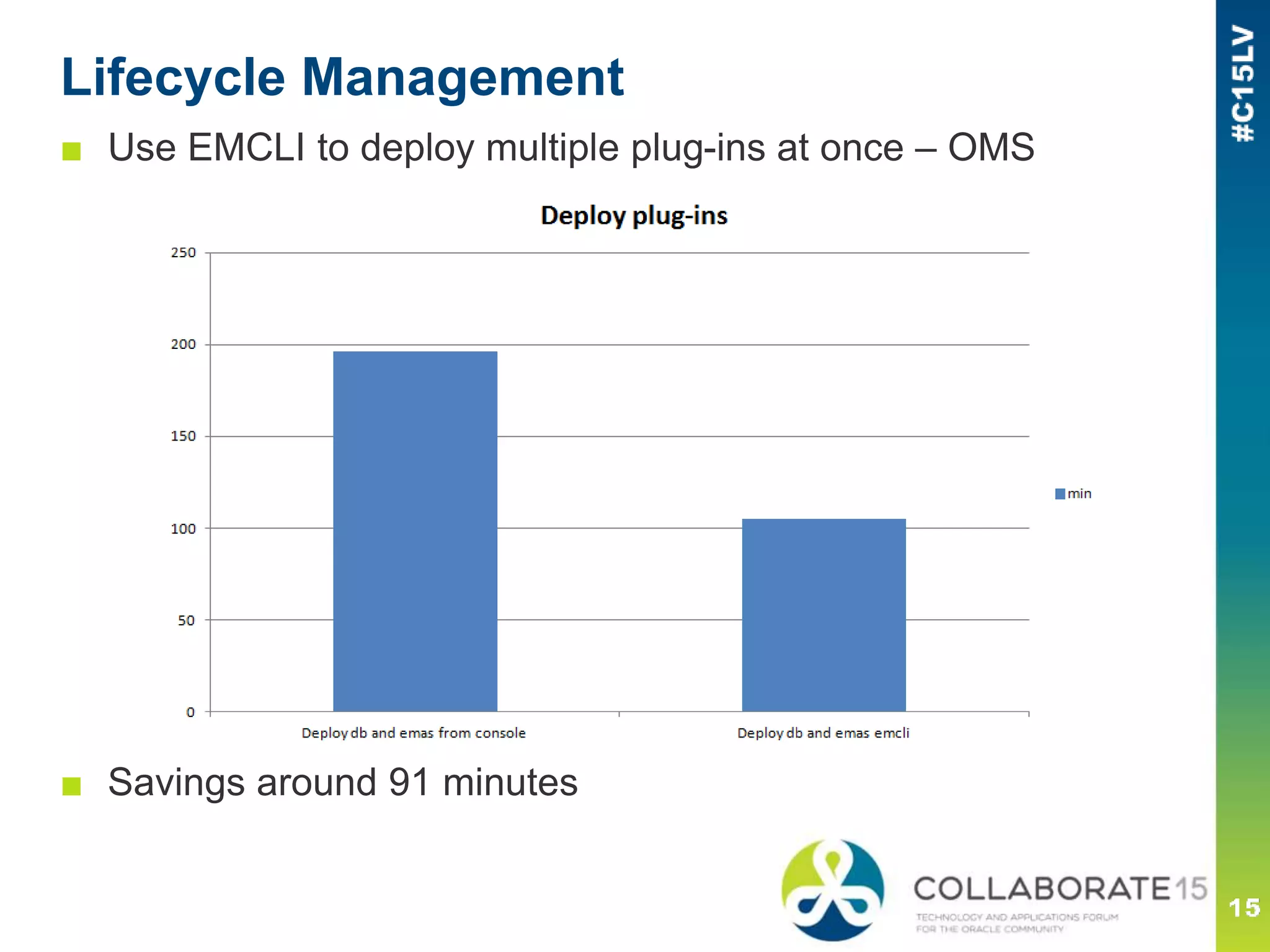

■ Use EMCLI to deploy multiple plug-ins at once – OMS
■ Savings around 91 minutes

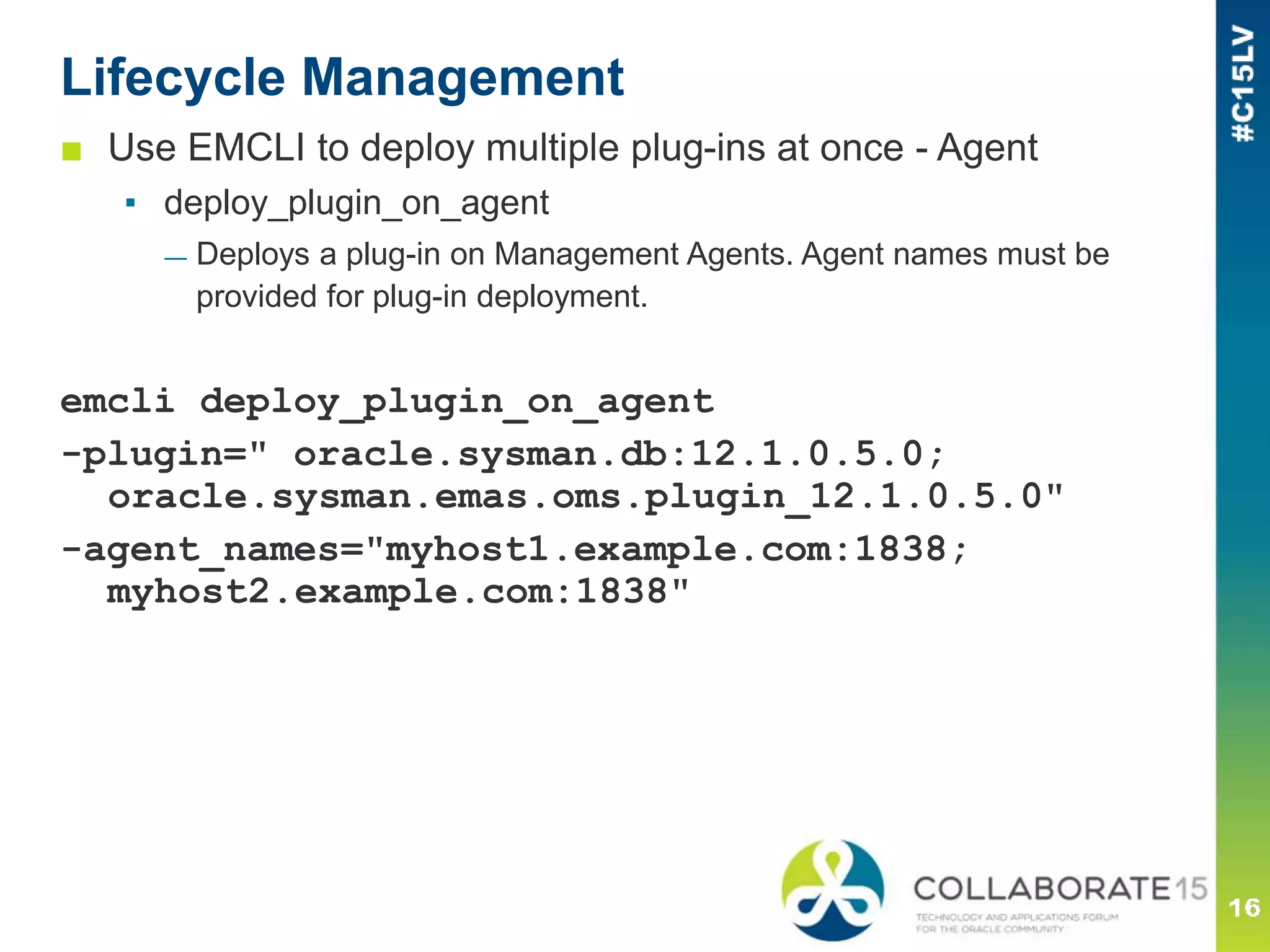

■ Use EMCLI to deploy multiple plug-ins at once - Agent
▪ deploy_plugin_on_agent
— Deploys a plug-in on Management Agents. Agent names must be
provided for plug-in deployment.
emcli deploy_plugin_on_agent
-plugin=" oracle.sysman.db:12.1.0.5.0;
oracle.sysman.emas.oms.plugin_12.1.0.5.0"
-agent_names="myhost1.example.com:1838;
myhost2.example.com:1838"

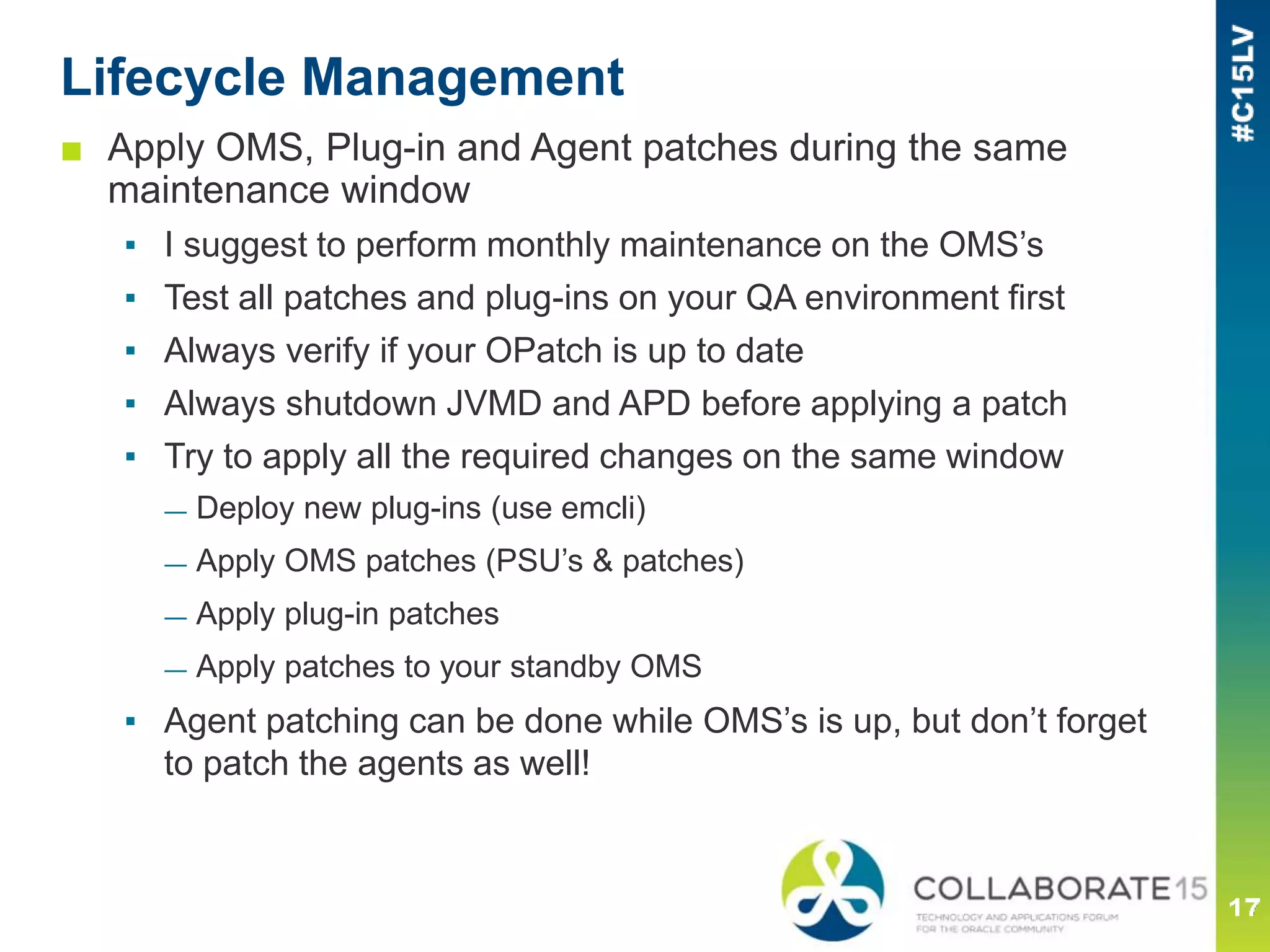

■ Apply OMS, Plug-in and Agent patches during the same
maintenance window
▪ I suggest to perform monthly maintenance on the OMS’s
▪ Test all patches and plug-ins on your QA environment first
▪ Always verify if your OPatch is up to date
▪ Always shutdown JVMD and APD before applying a patch
▪ Try to apply all the required changes on the same window
— Deploy new plug-ins (use emcli)
— Apply OMS patches (PSU’s & patches)
— Apply plug-in patches
— Apply patches to your standby OMS
▪ Agent patching can be done while OMS’s is up, but don’t forget
to patch the agents as well!

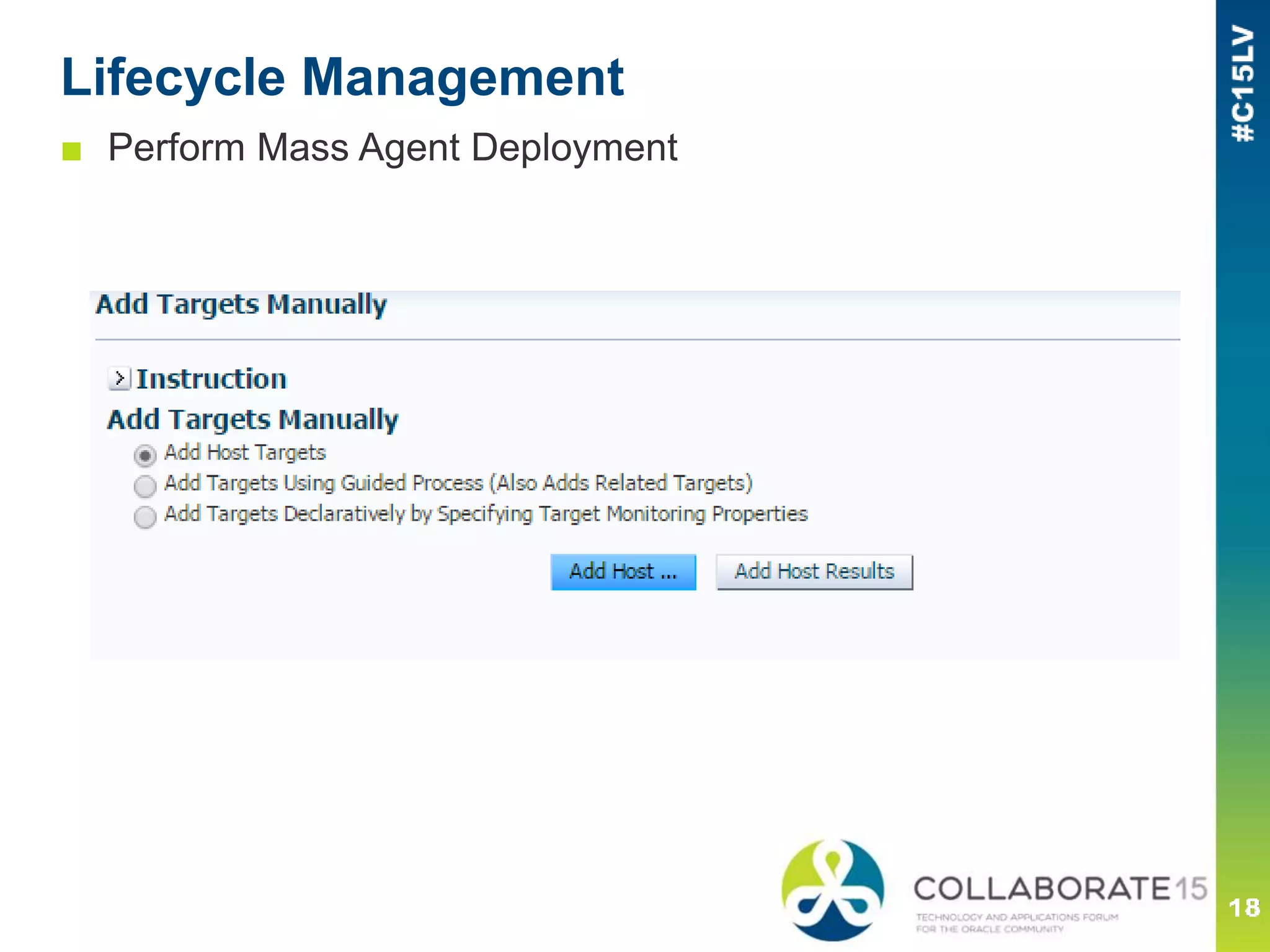

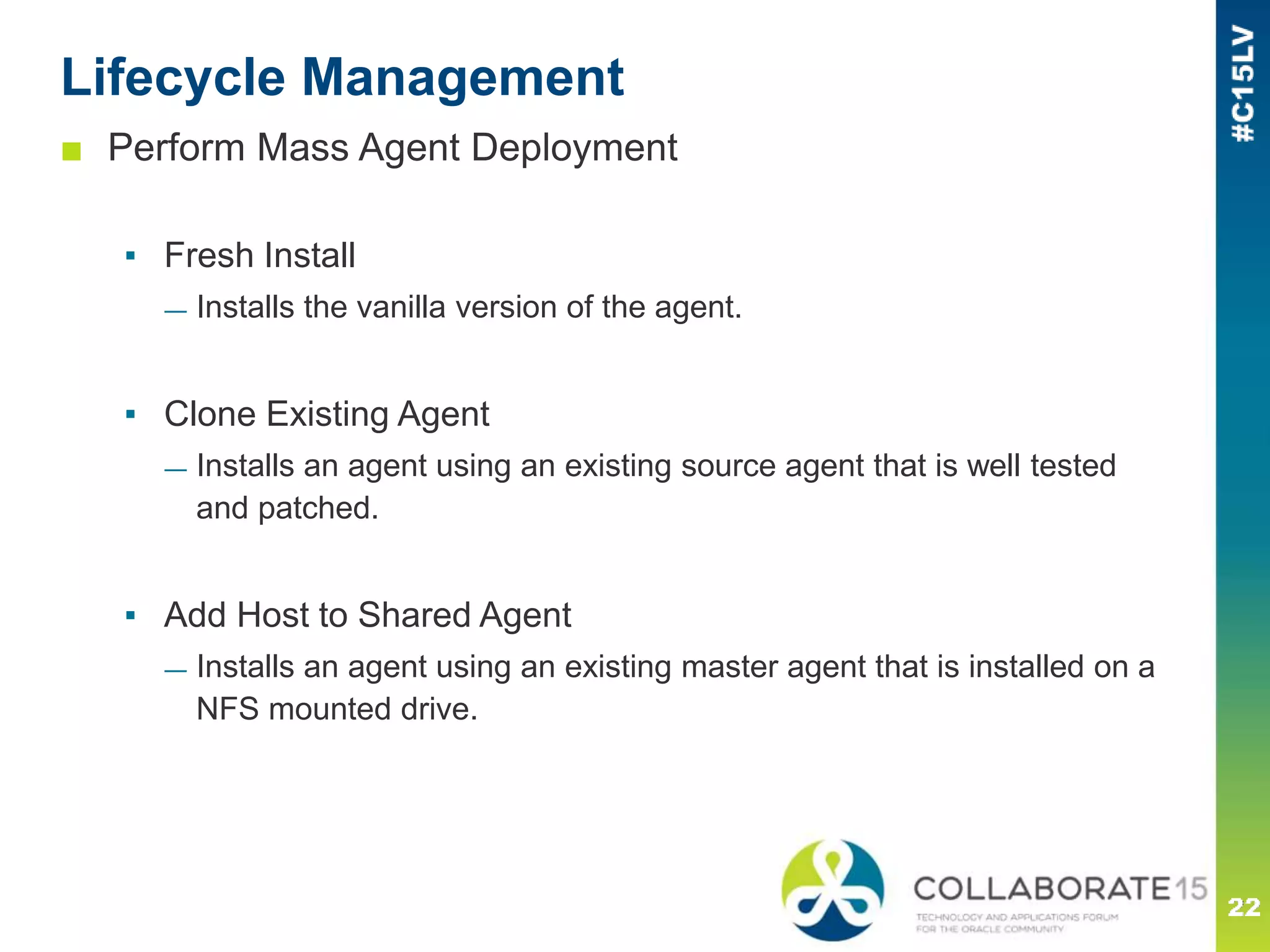

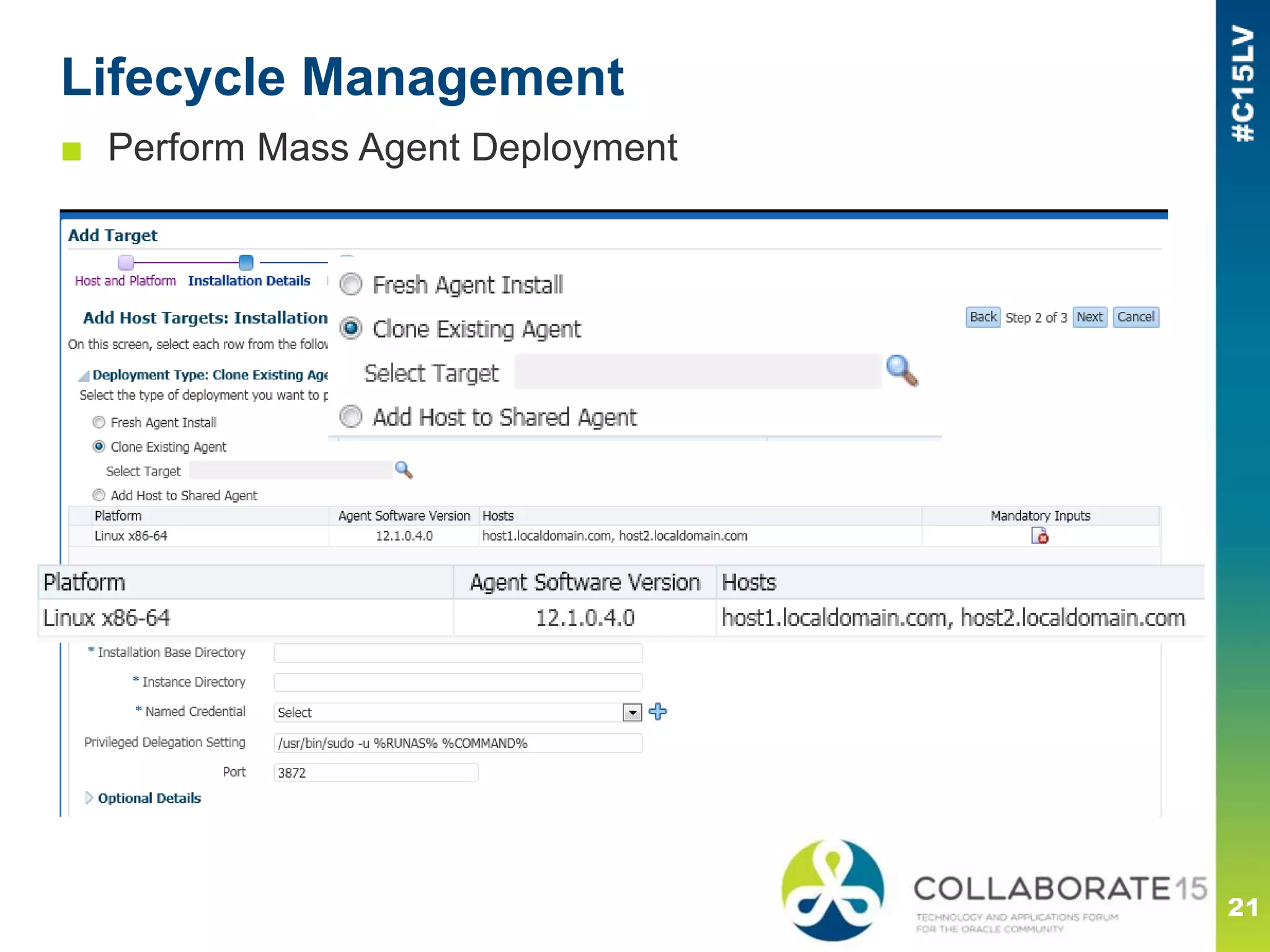

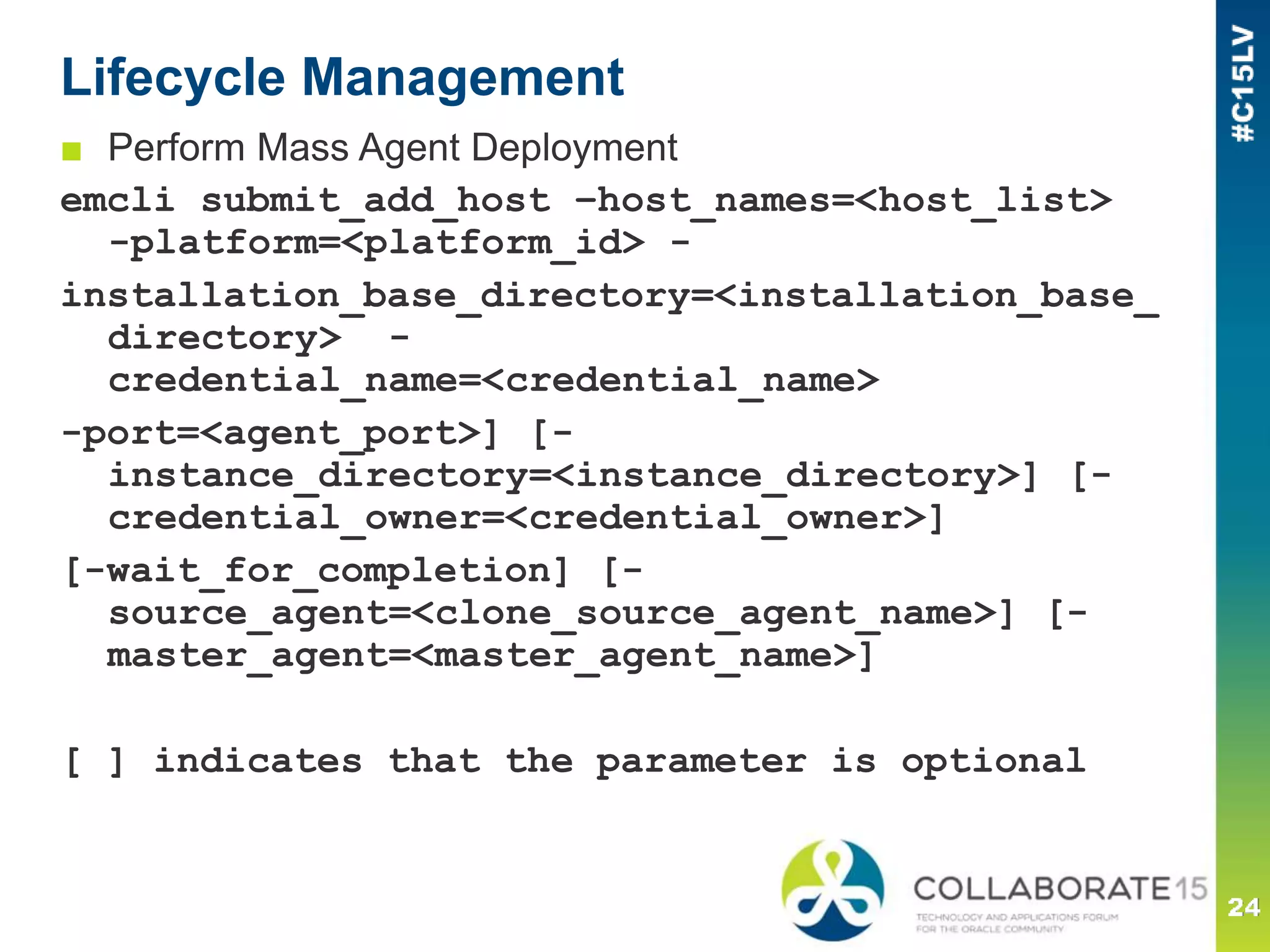

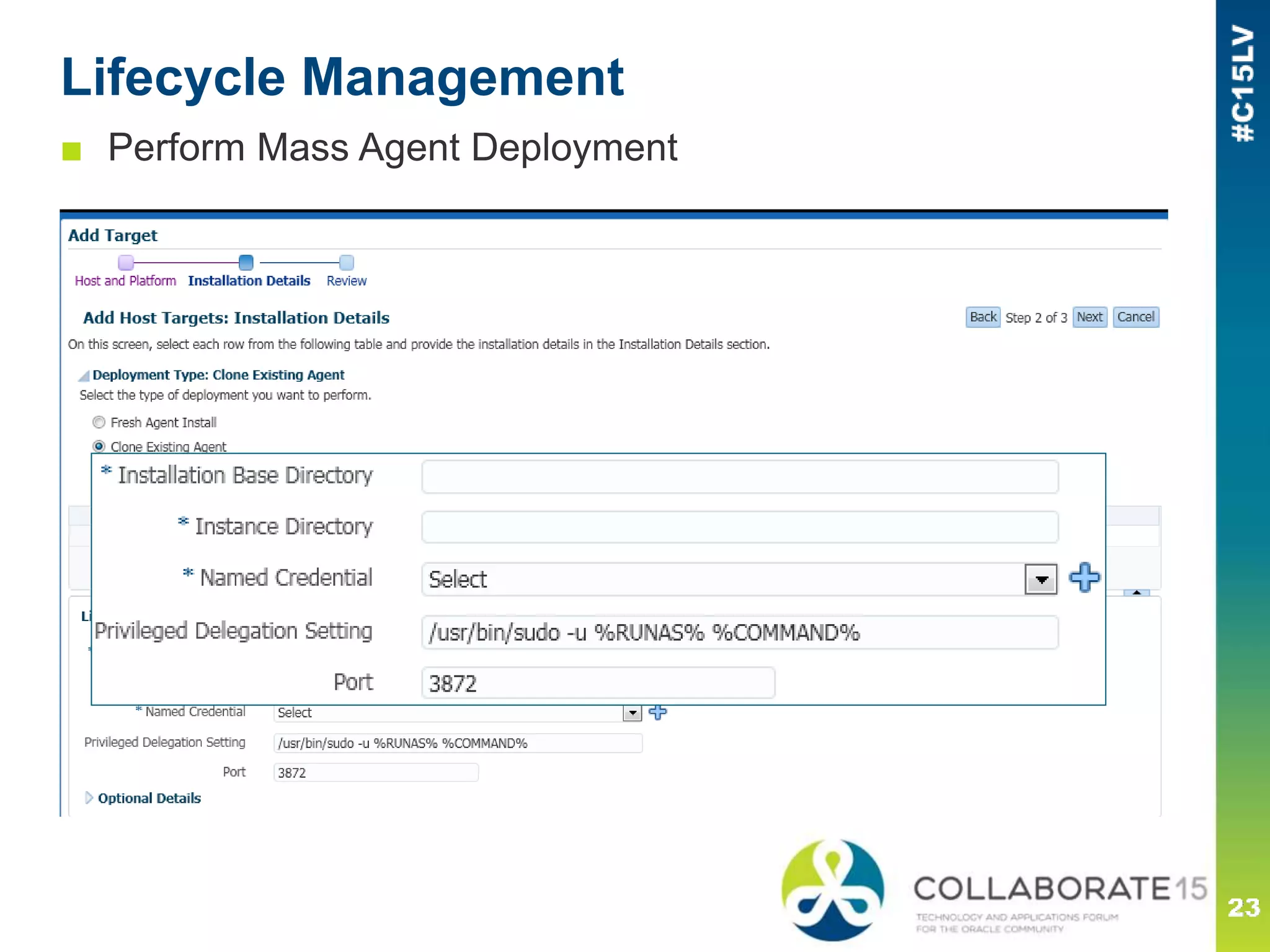

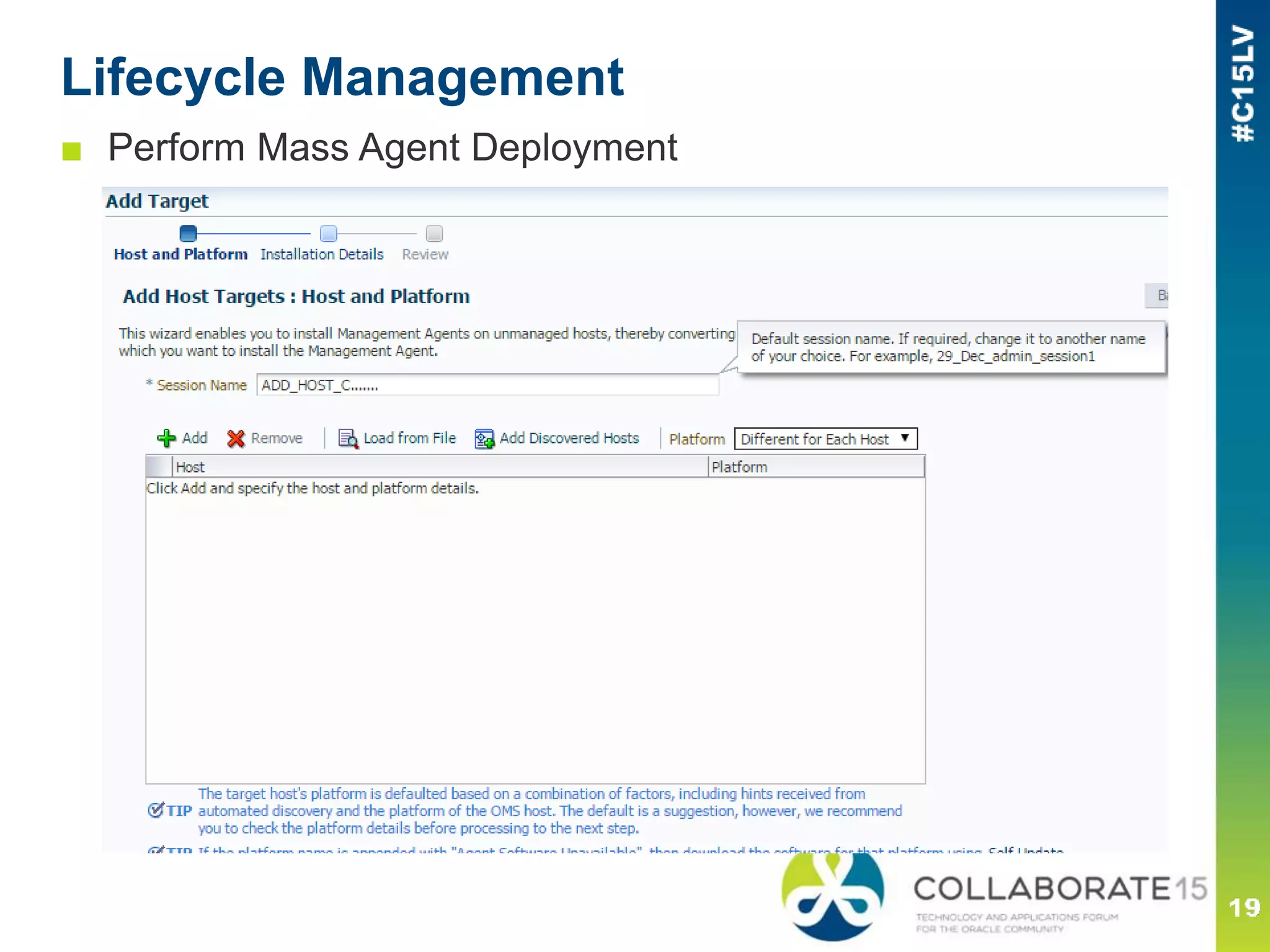

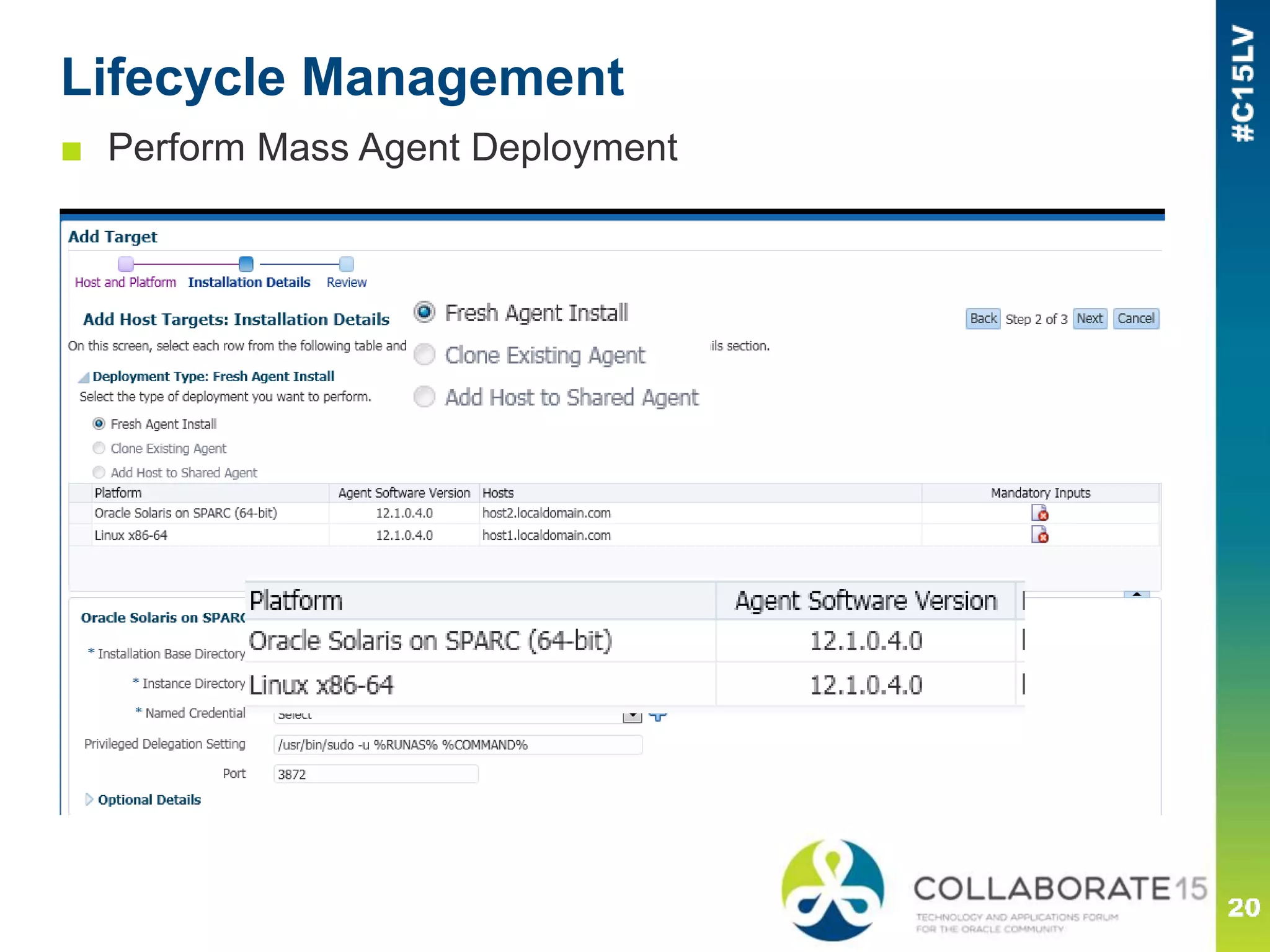

■ Perform Mass Agent Deployment

▪ Fresh Install
— Installs the vanilla version of the agent.
▪ Clone Existing Agent
— Installs an agent using an existing source agent that is well tested
and patched.
▪ Add Host to Shared Agent
— Installs an agent using an existing master agent that is installed on a
NFS mounted drive.

emcli submit_add_host –host_names=<host_list>
-platform=<platform_id> -
installation_base_directory=<installation_base_
directory> -
credential_name=<credential_name>
-port=<agent_port>] [-
instance_directory=<instance_directory>] [-
credential_owner=<credential_owner>]
[-wait_for_completion] [-
source_agent=<clone_source_agent_name>] [-
master_agent=<master_agent_name>]
[ ] indicates that the parameter is optional

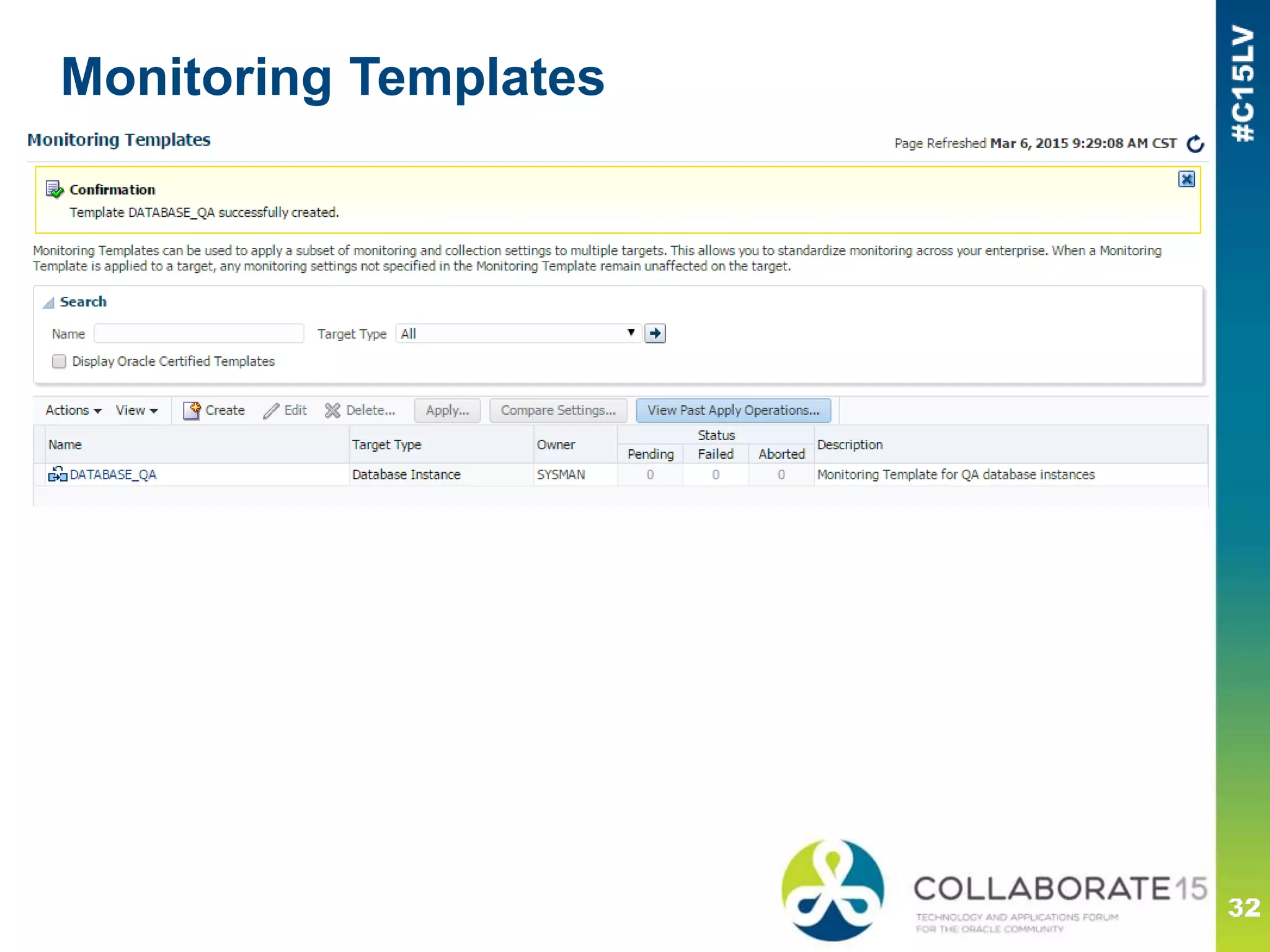

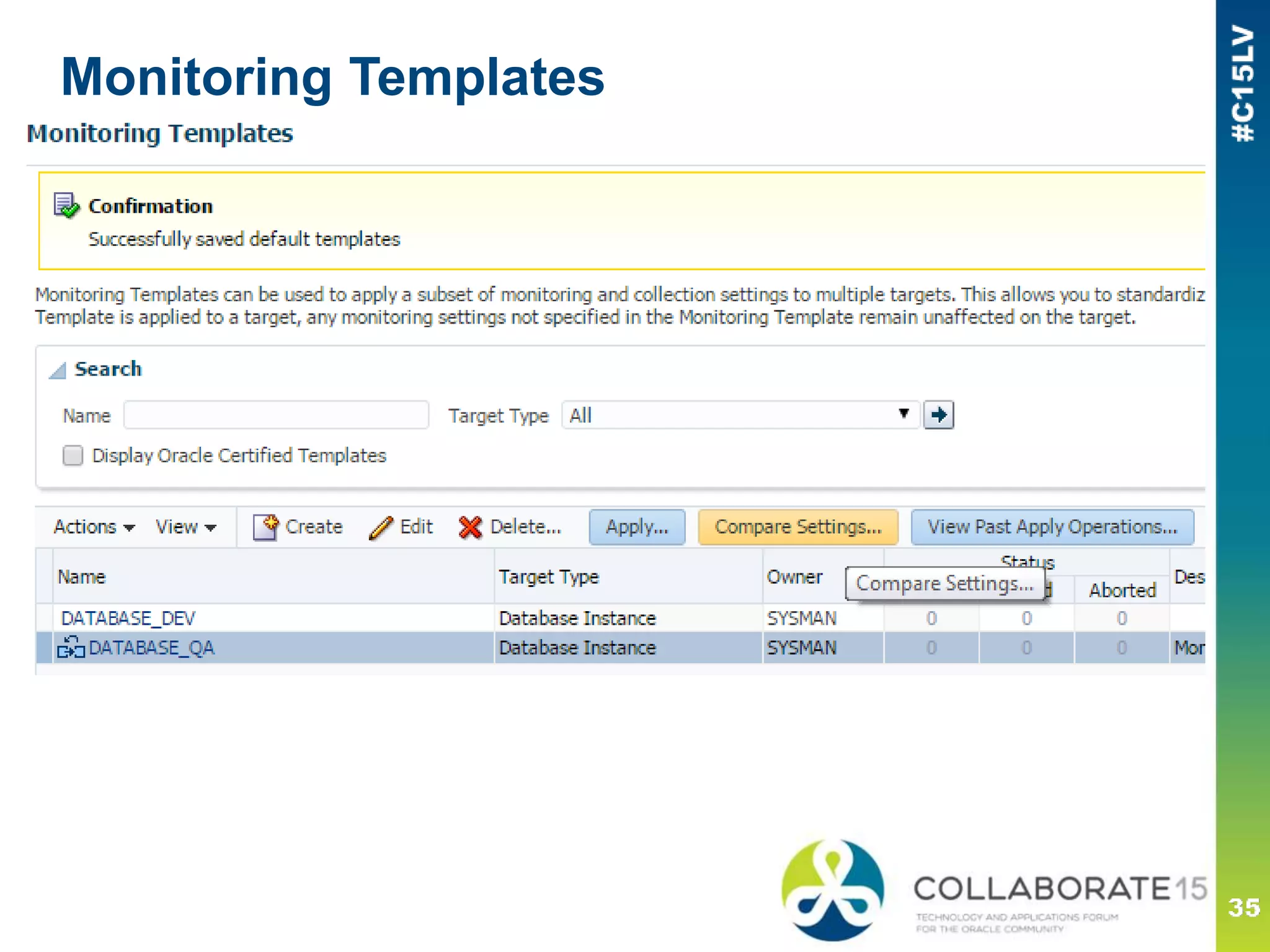

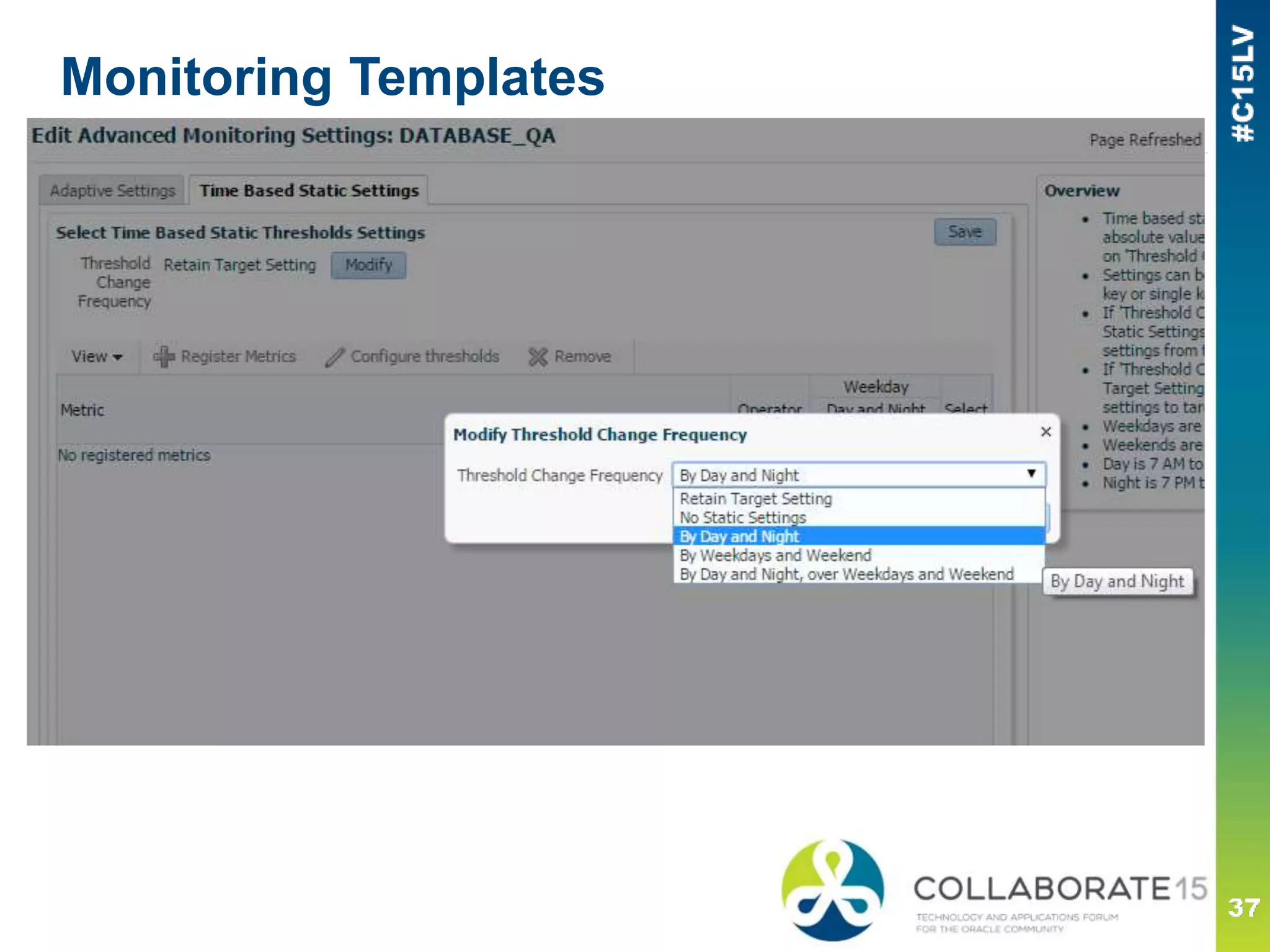

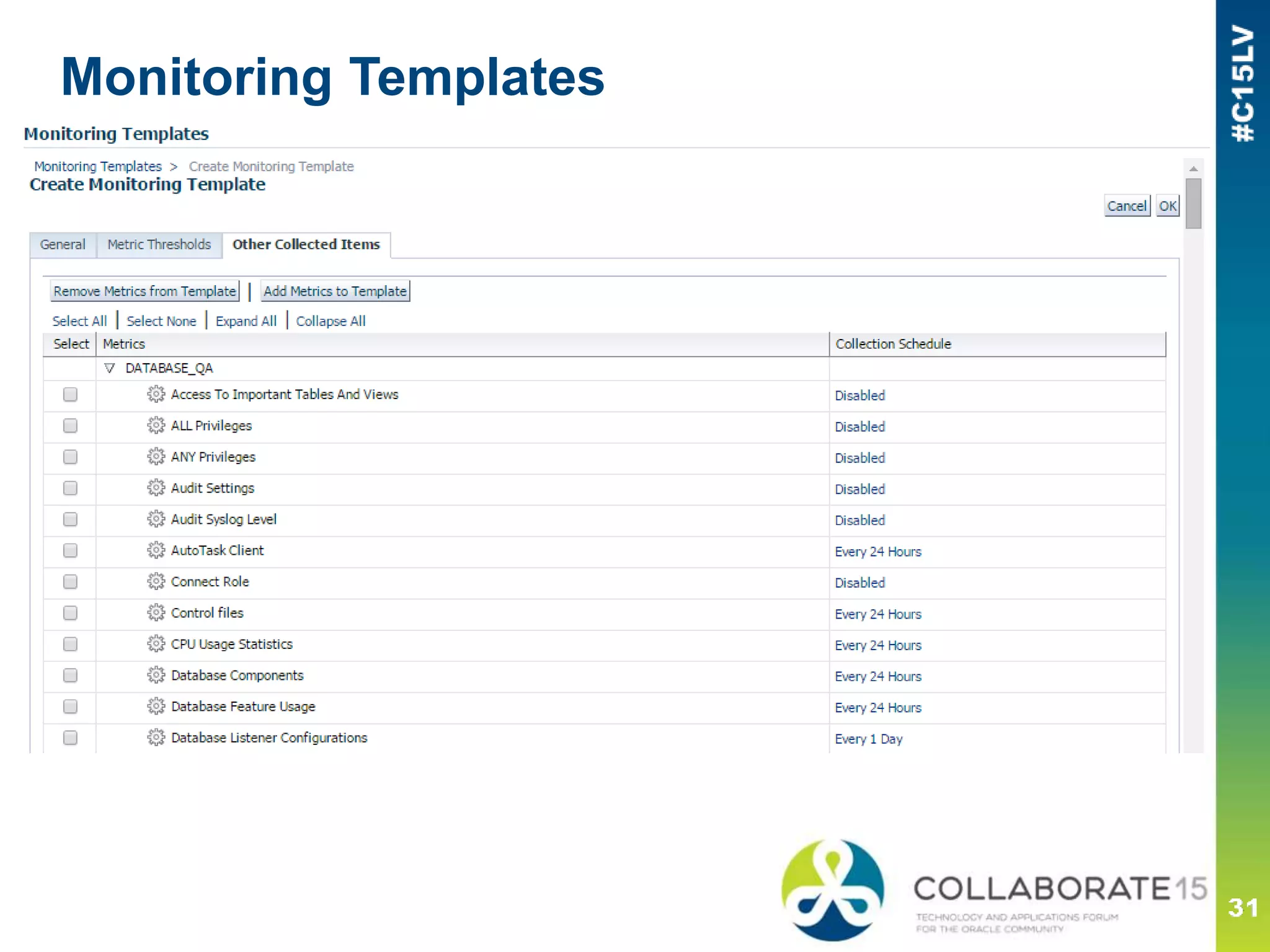

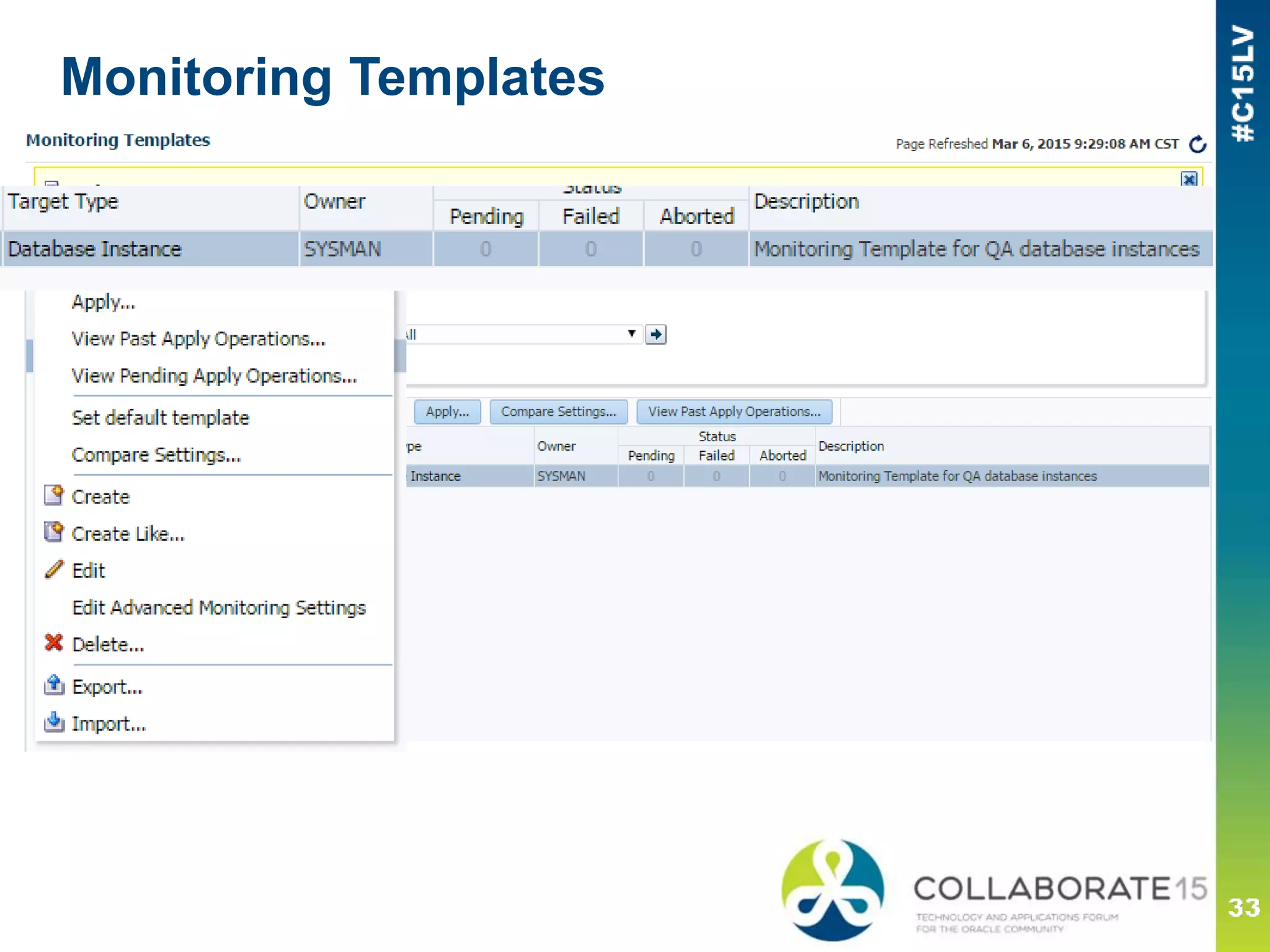

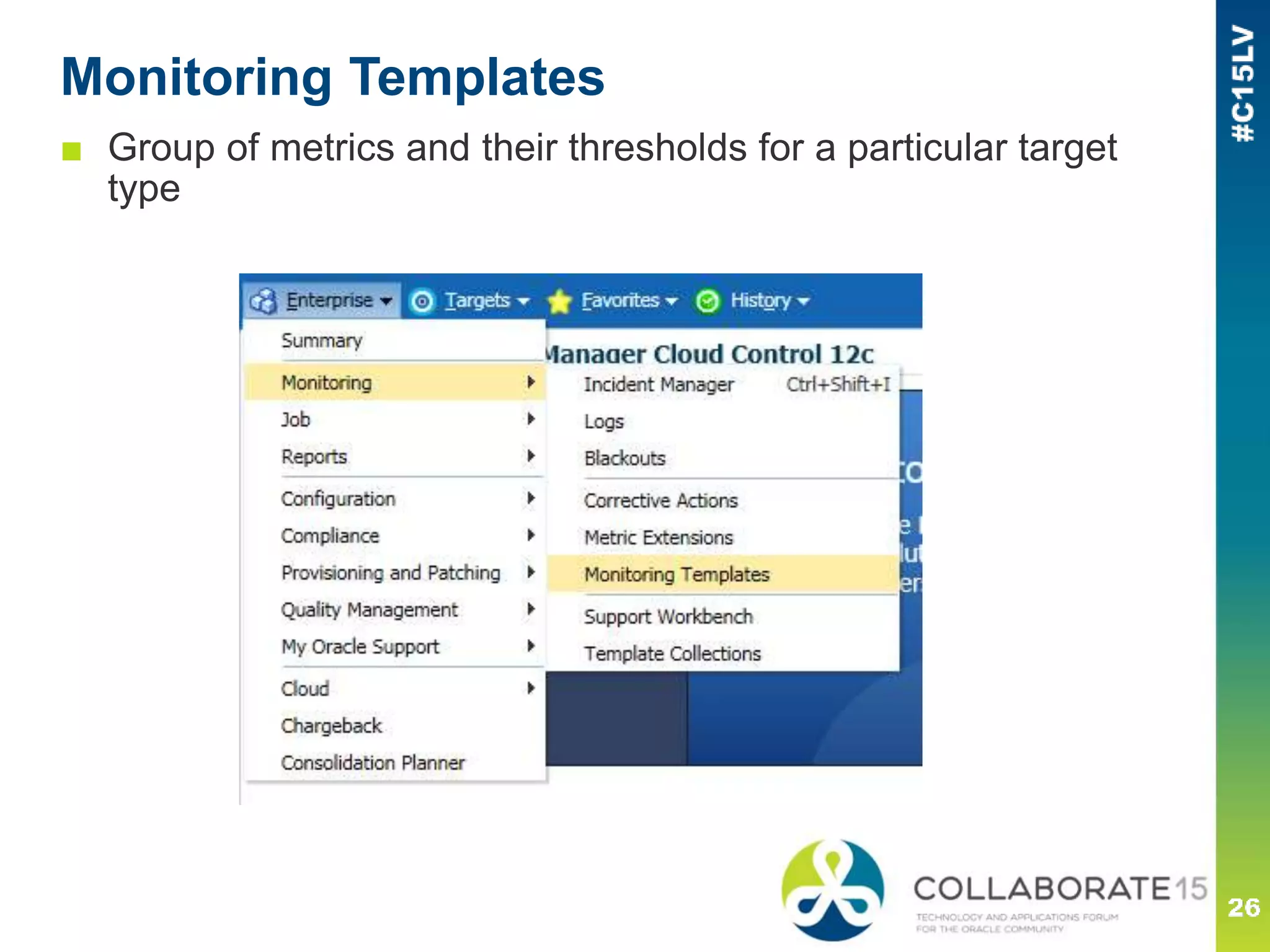

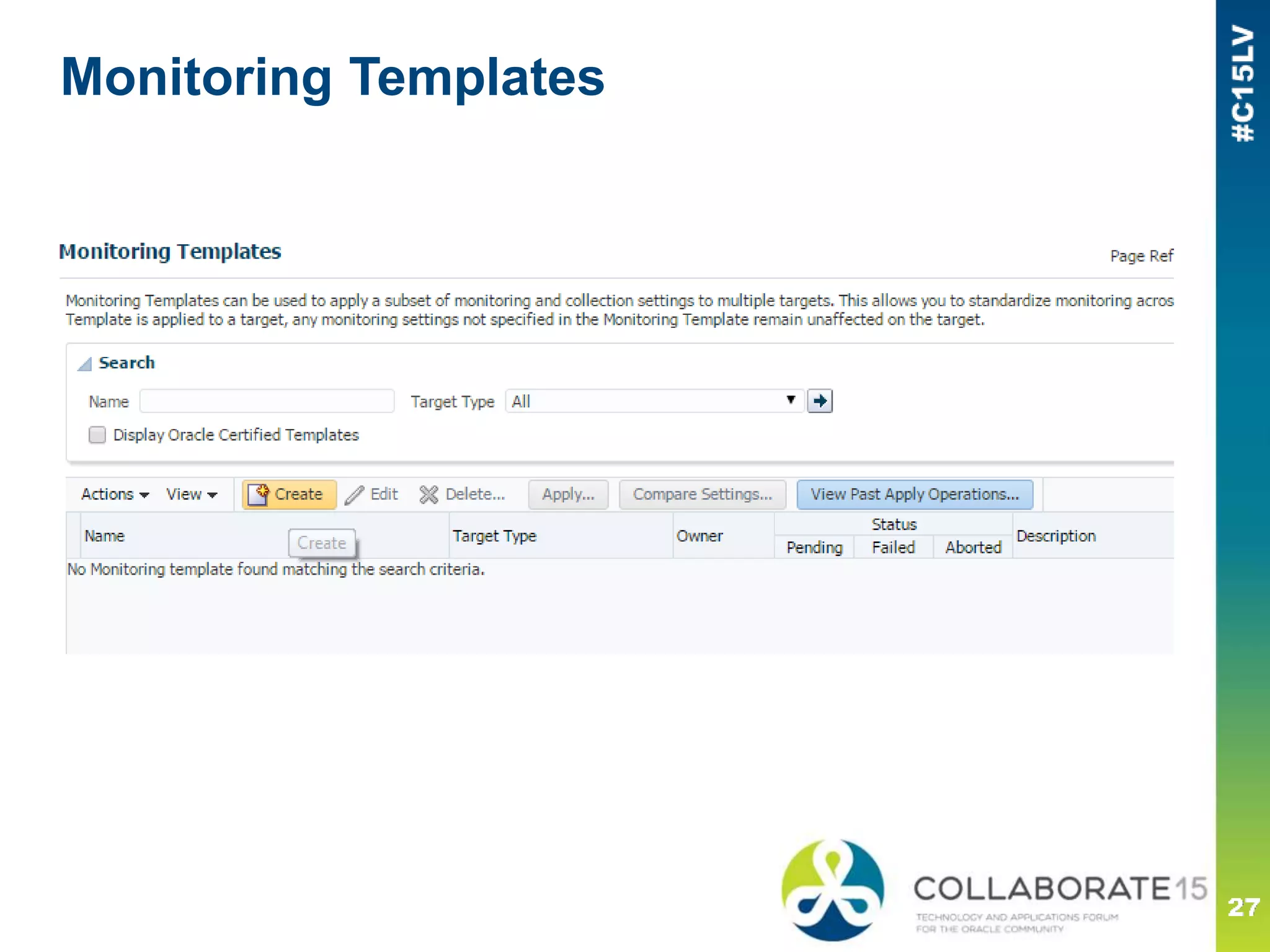

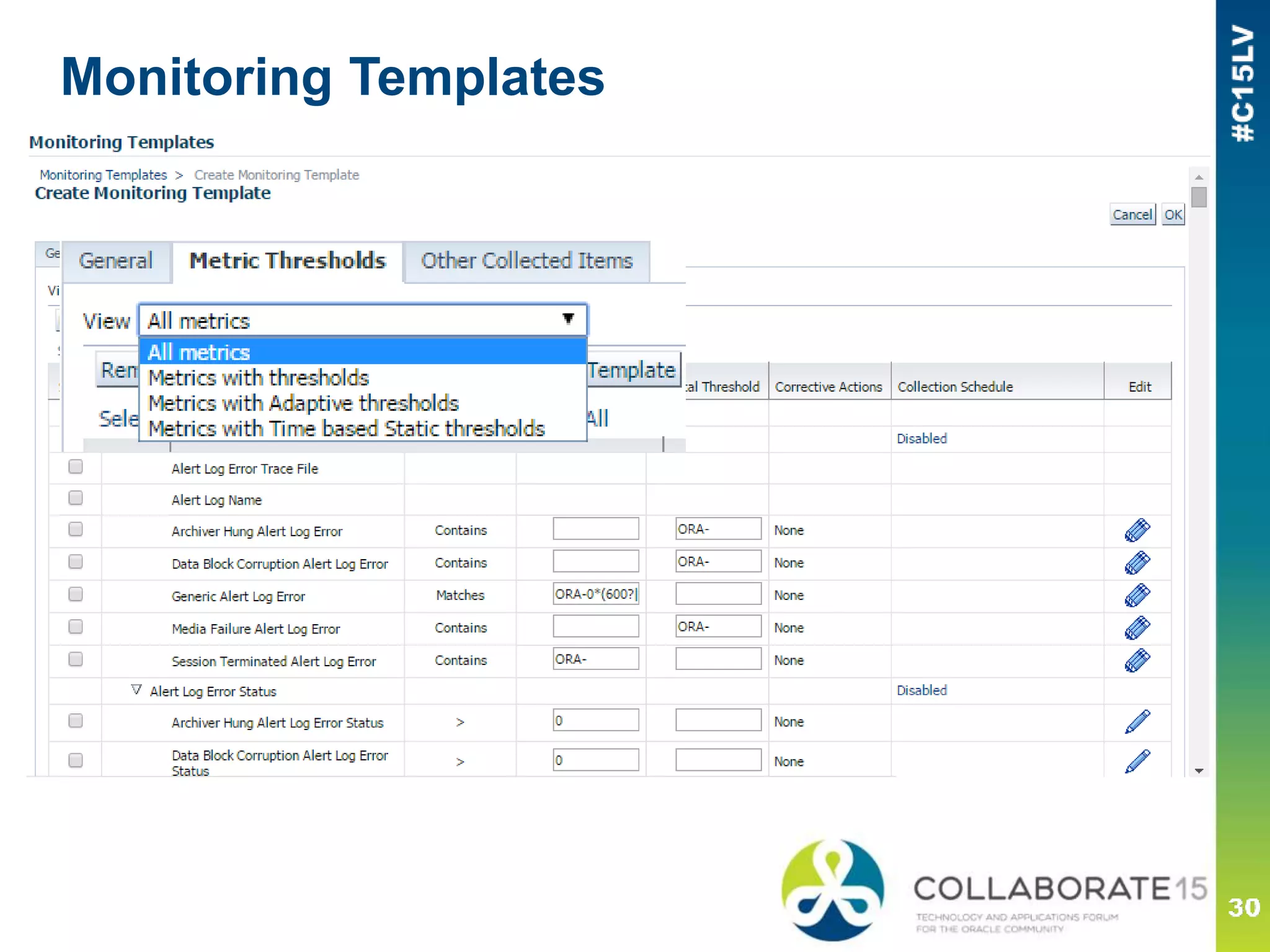

Monitoring Templates
■ Group of metrics and their thresholds for a particular target
type

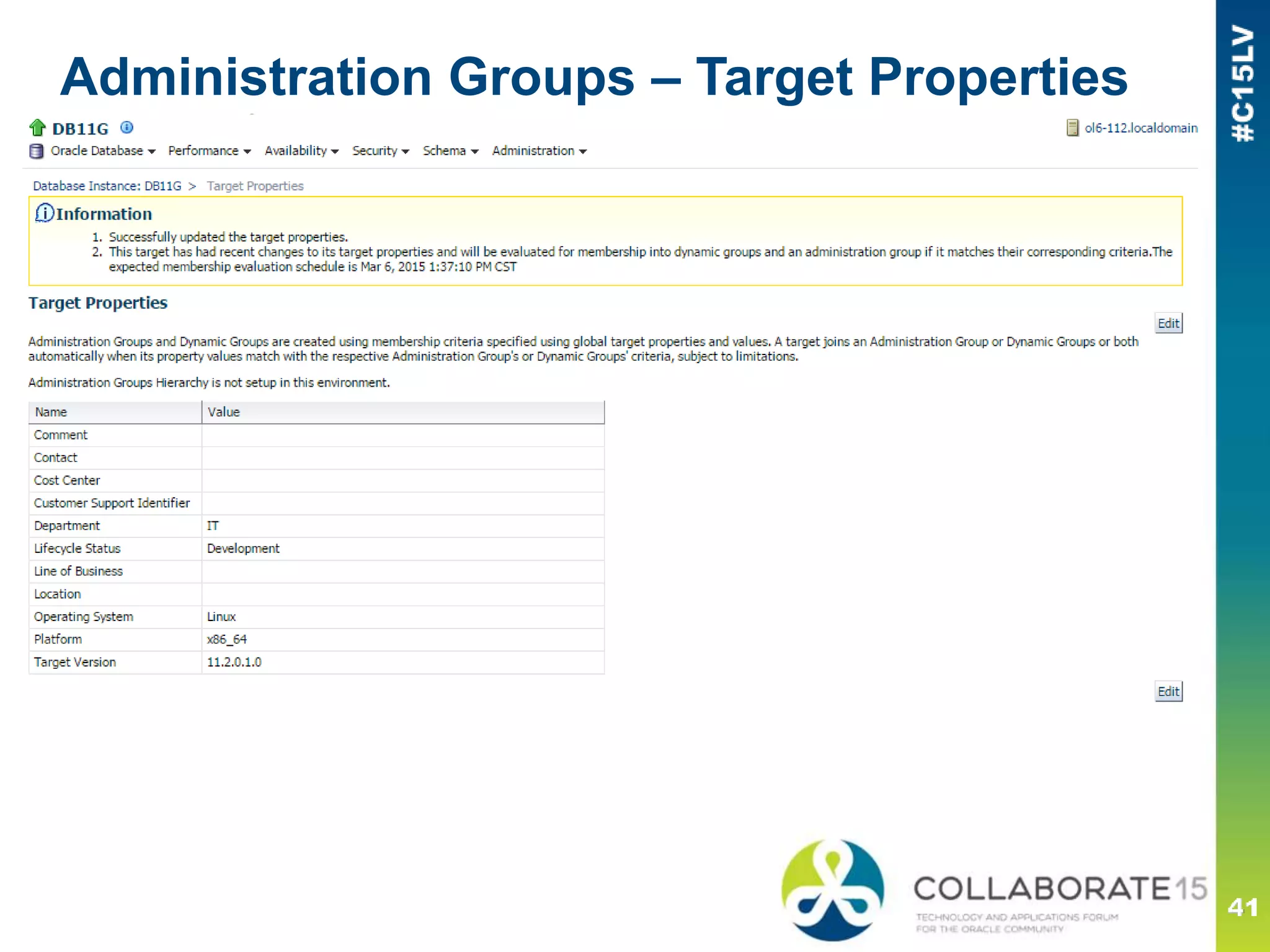

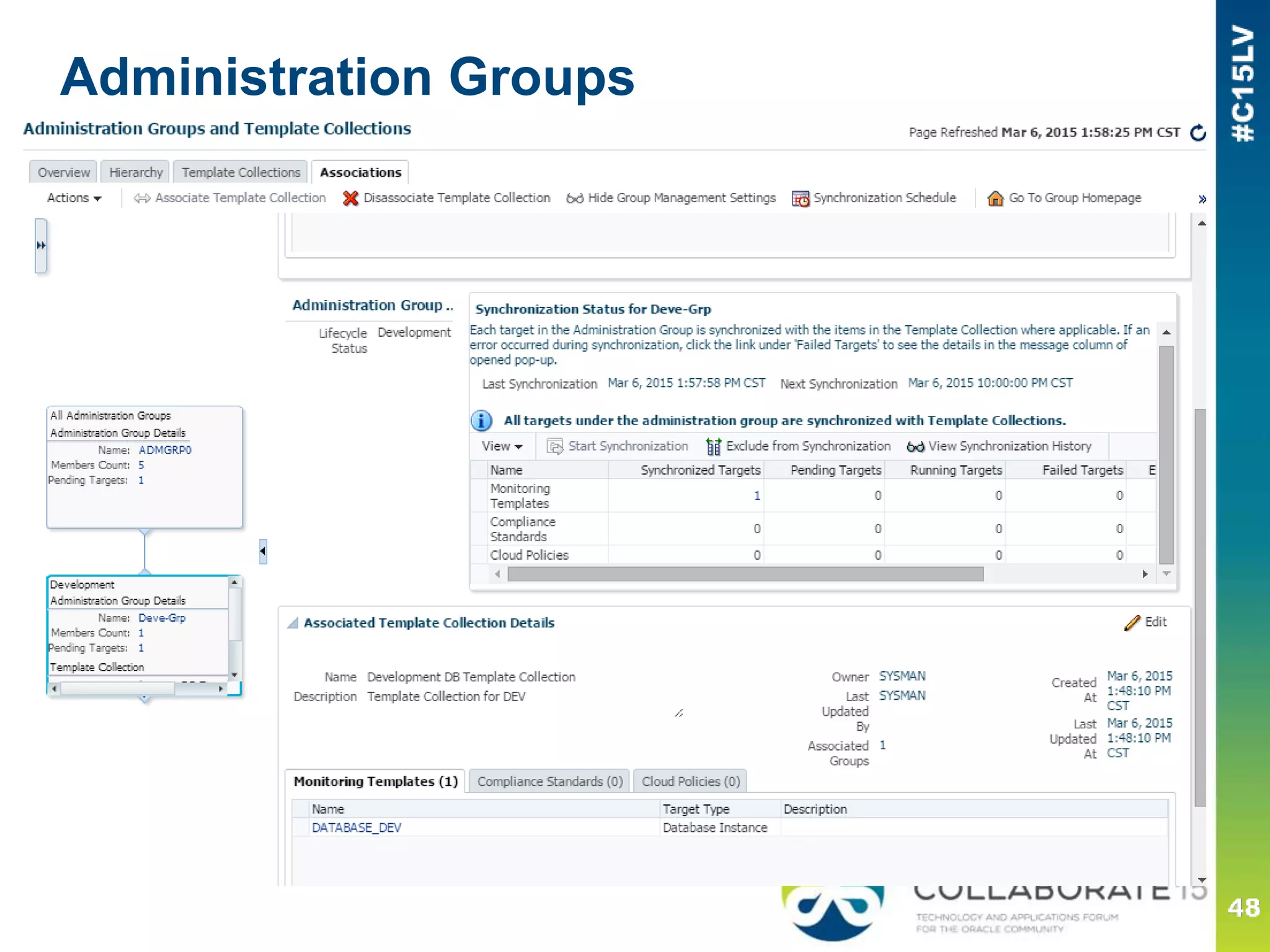

Administration Groups – Target Properties

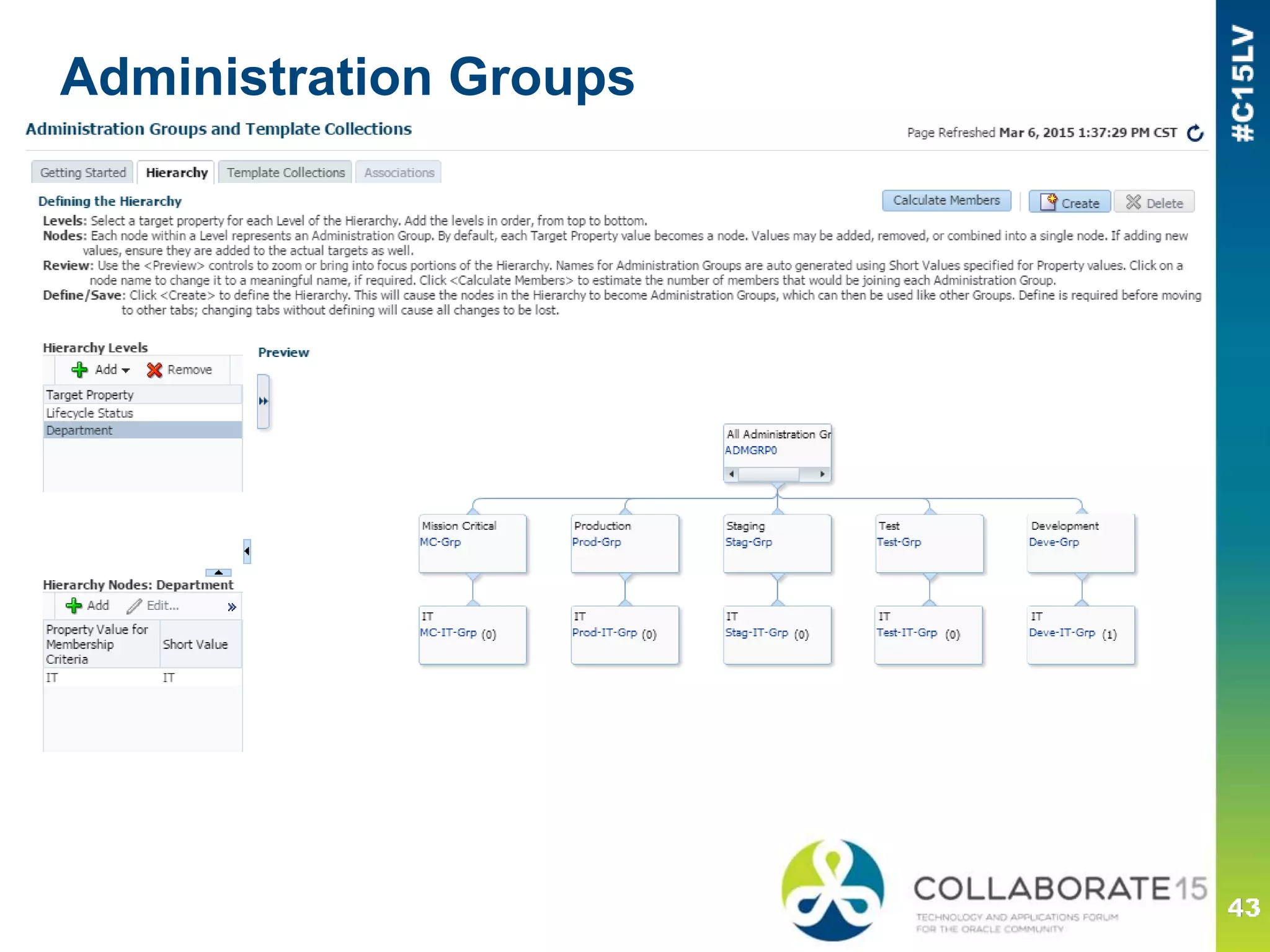

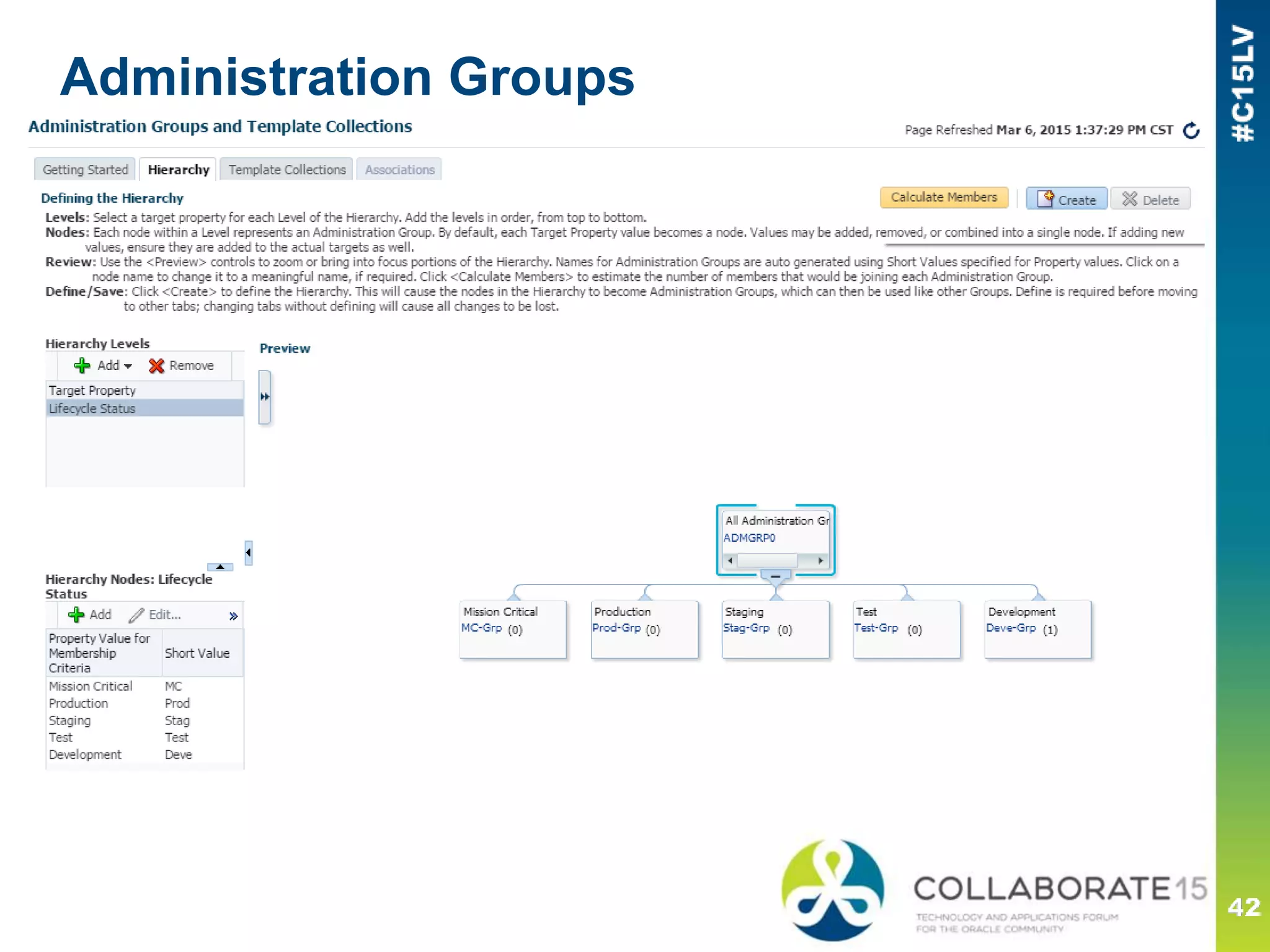

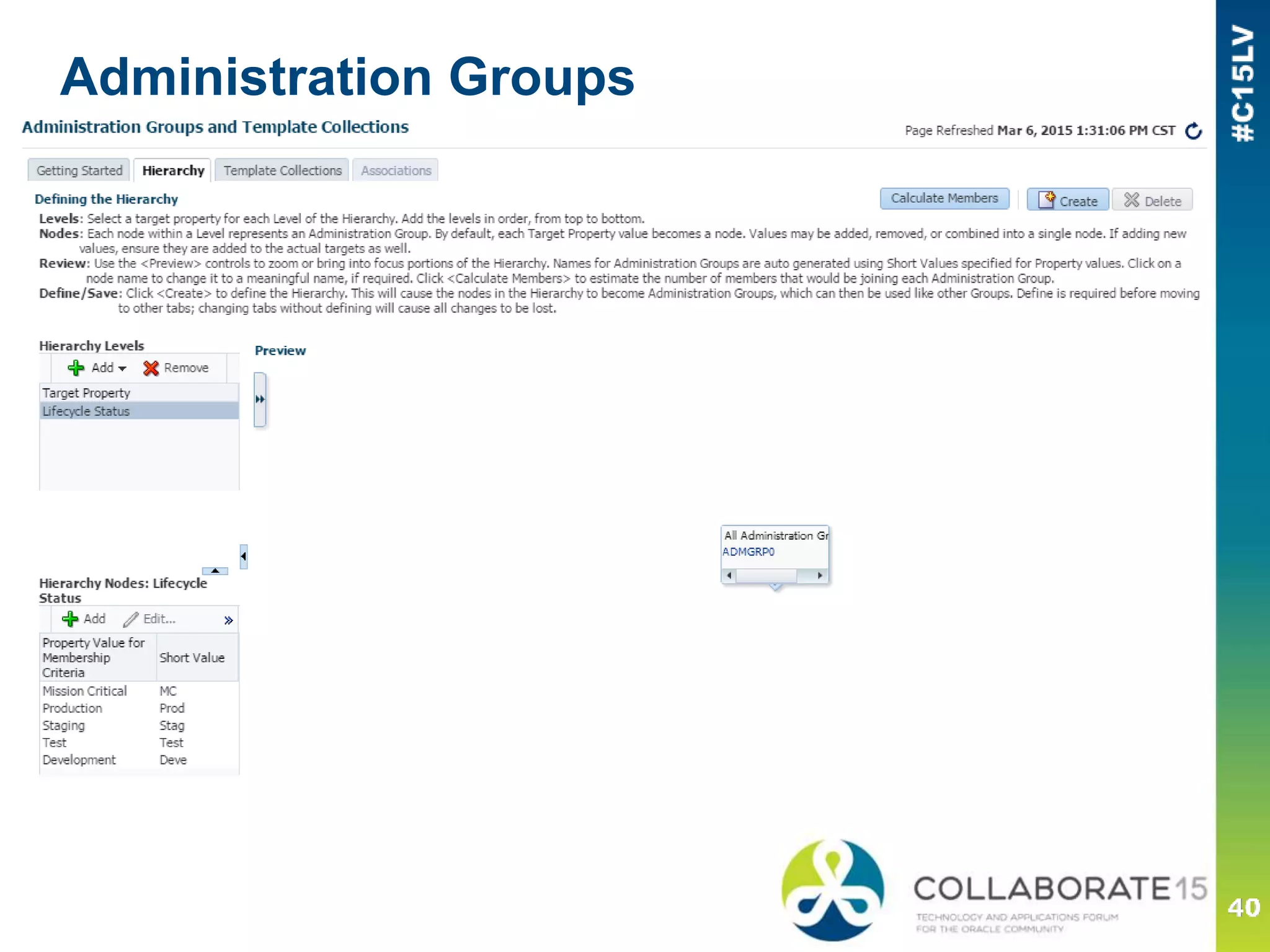

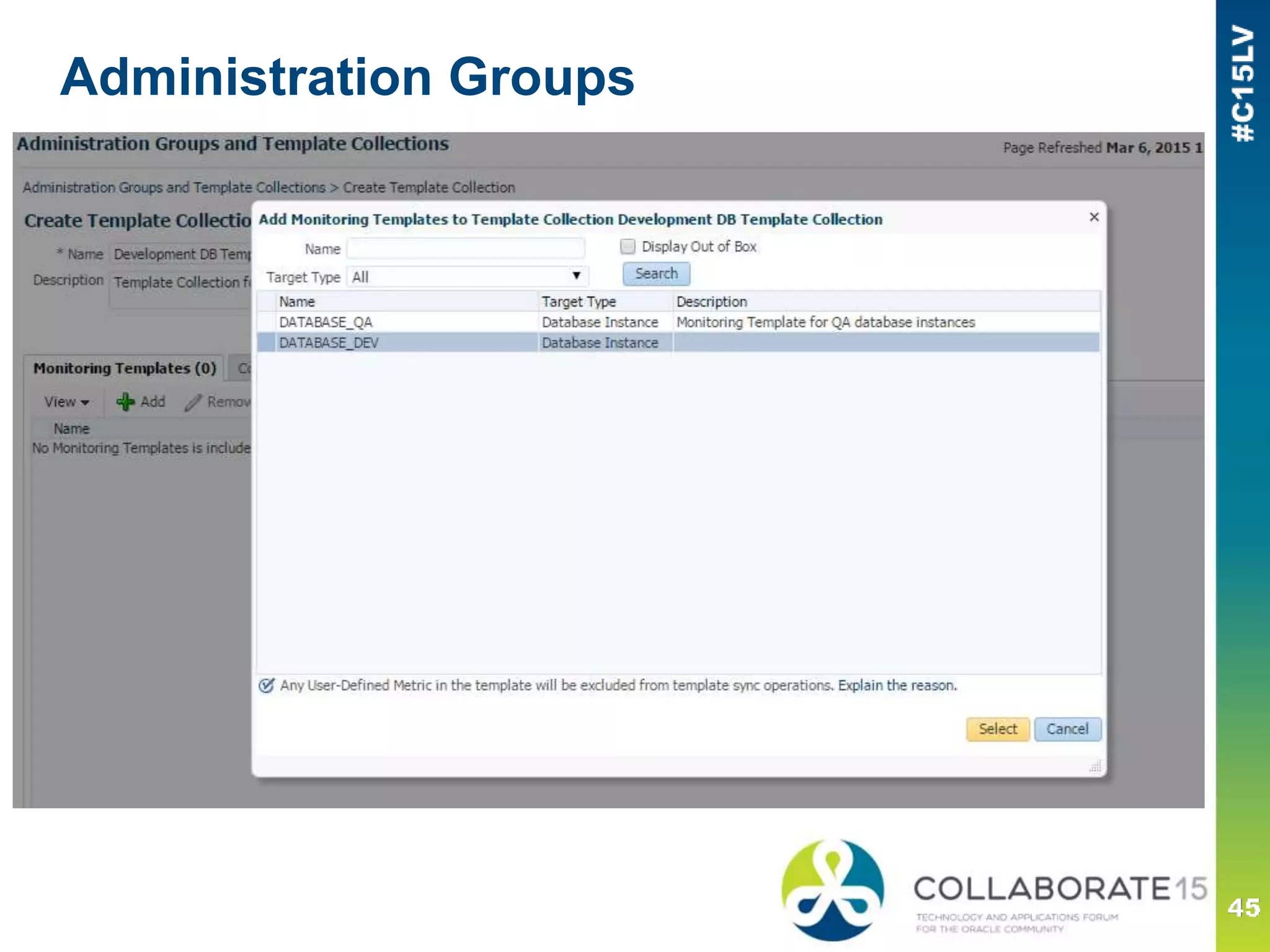

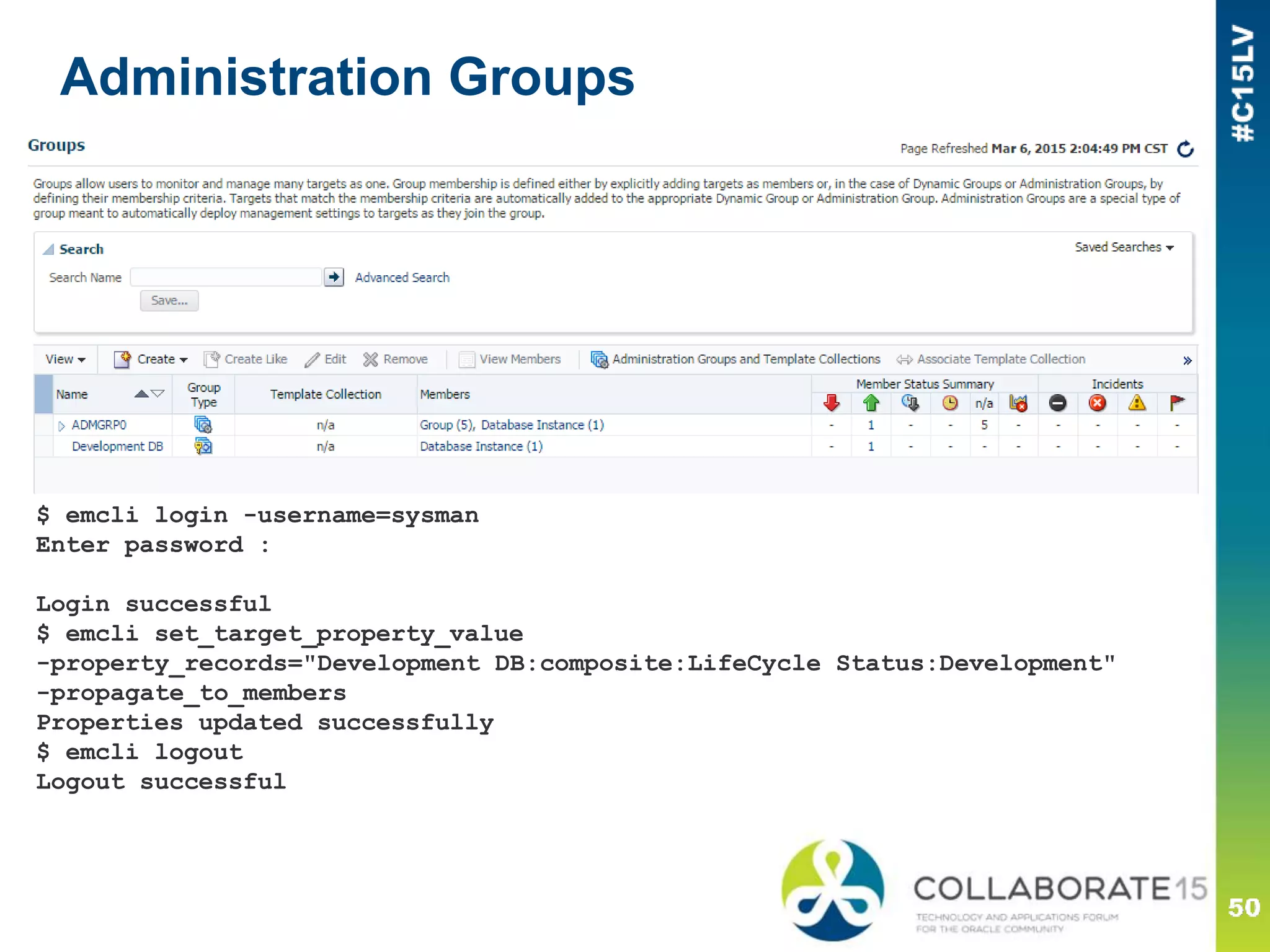

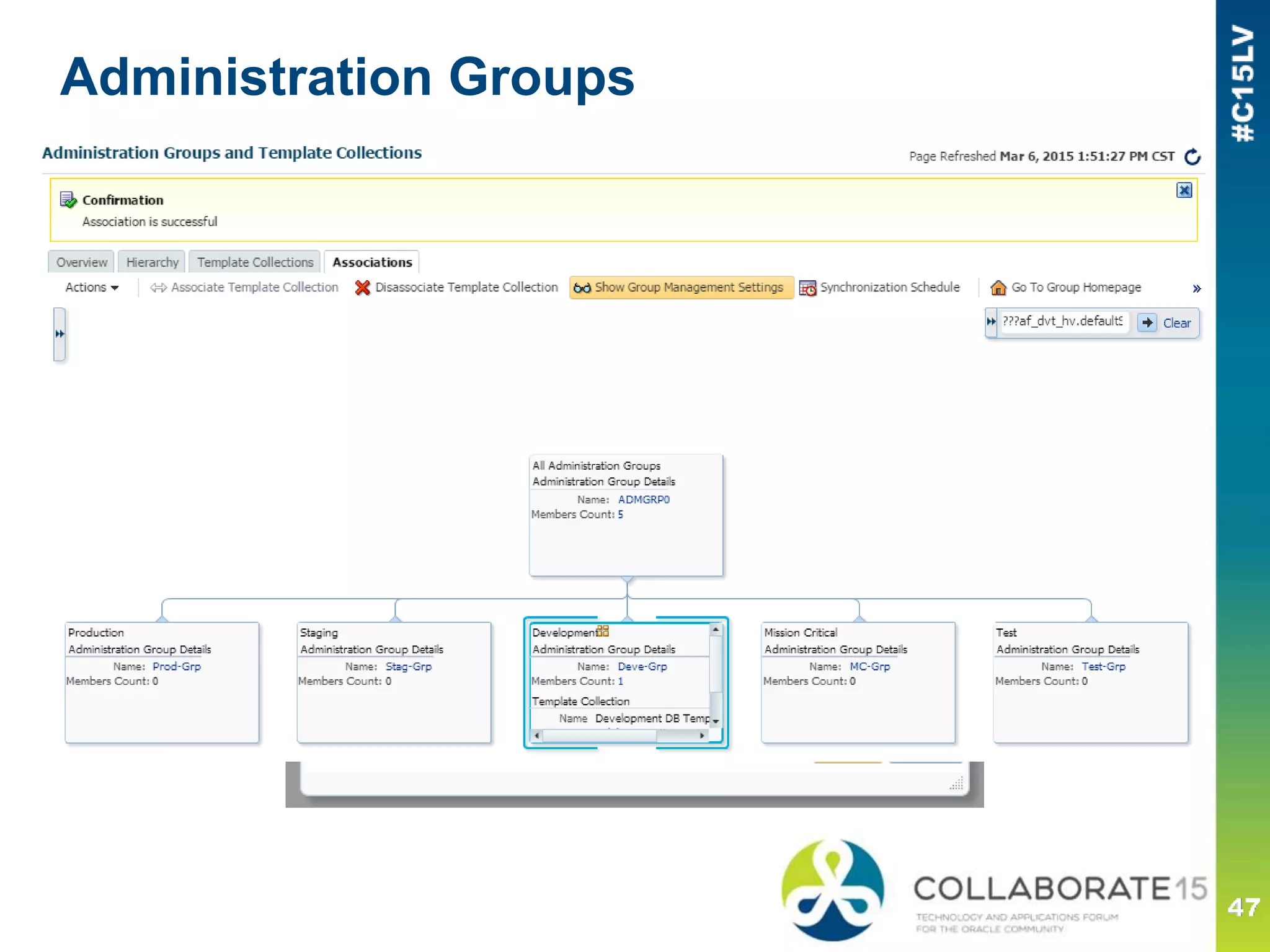

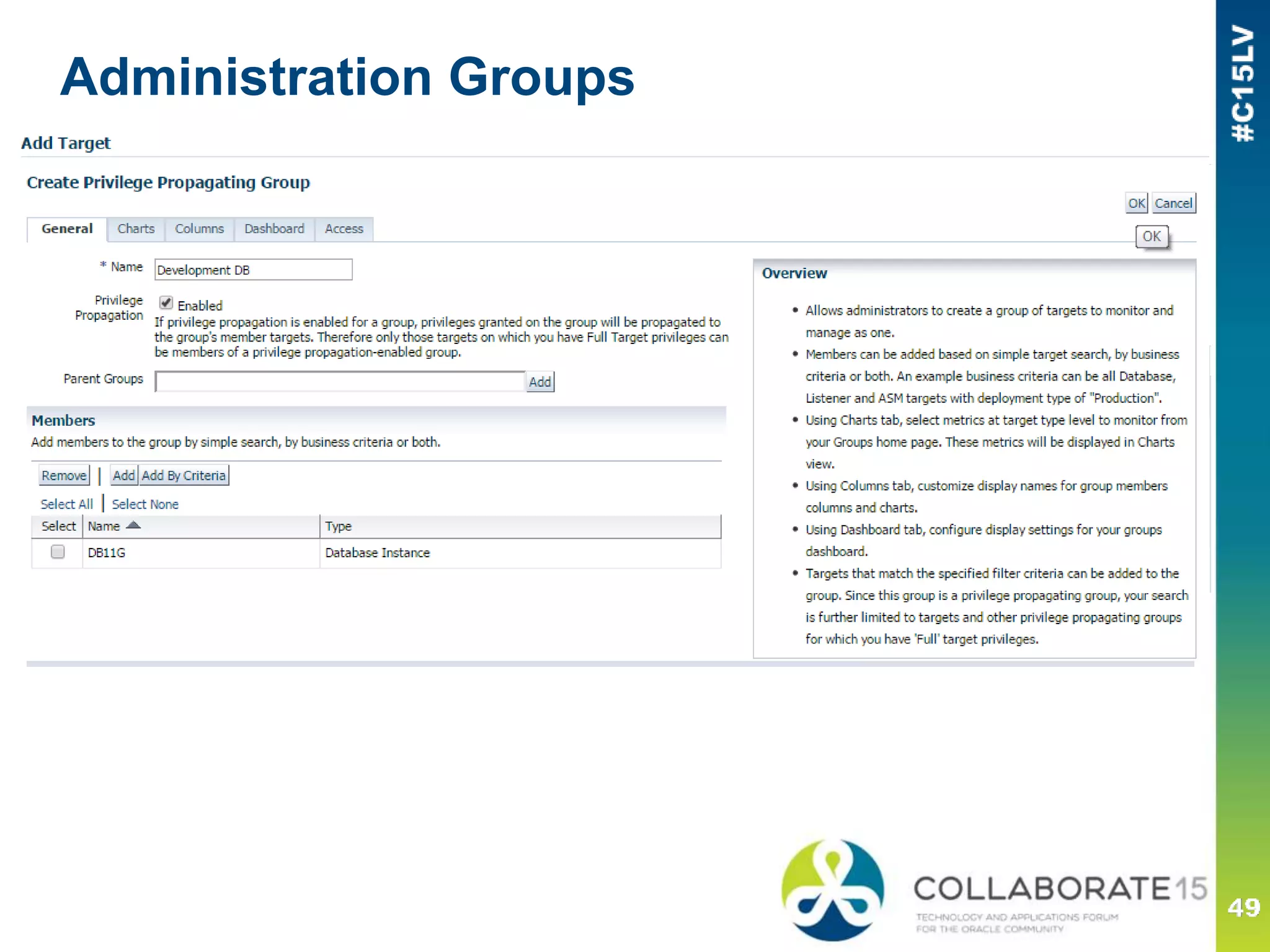

Administration Groups
$ emcli login -username=sysman
Enter password :
Login successful
$ emcli set_target_property_value
-property_records="Development DB:composite:LifeCycle Status:Development"
-propagate_to_members
Properties updated successfully
$ emcli logout
Logout successful

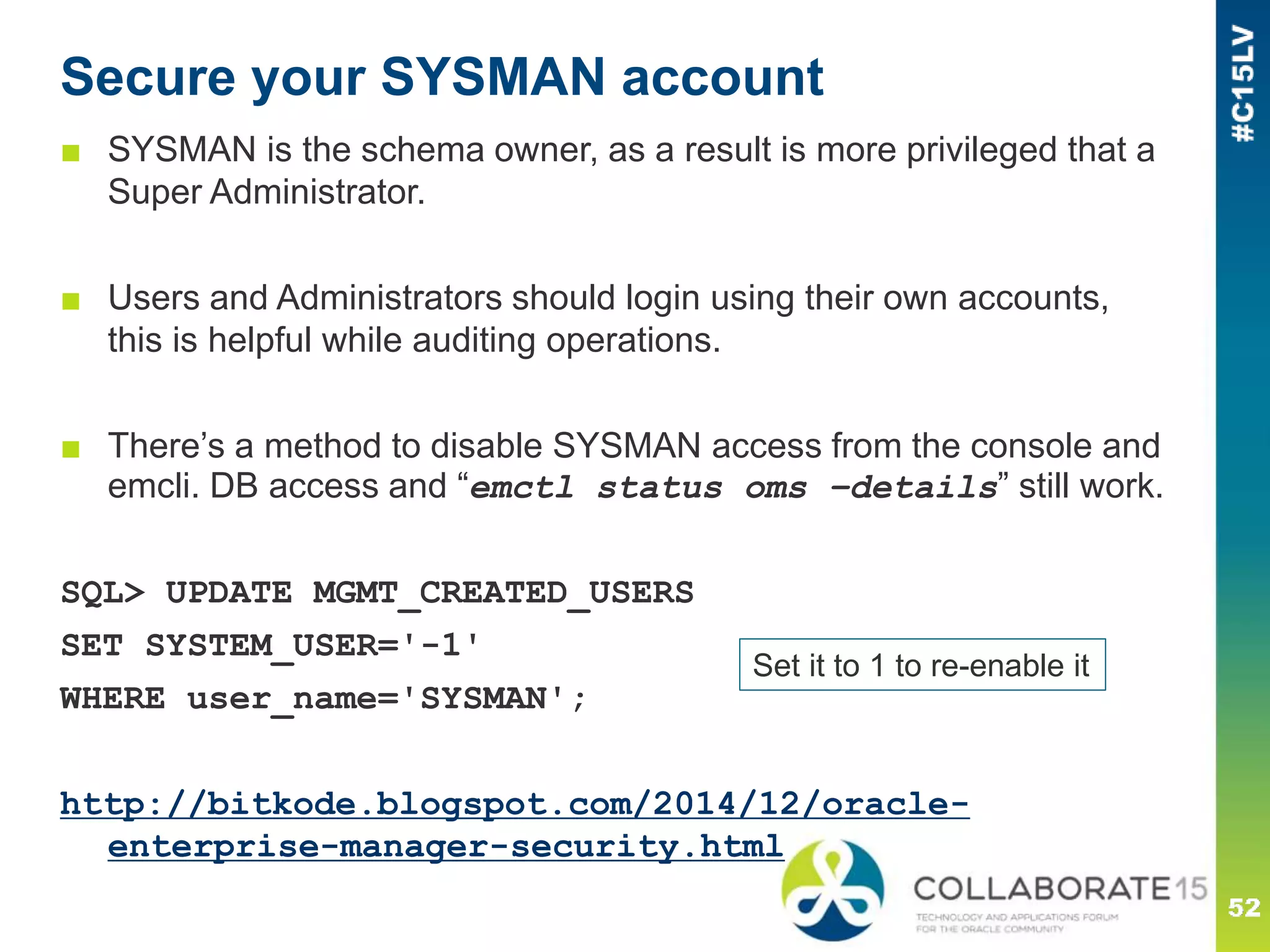

Secure your SYSMAN account
■ SYSMAN is the schema owner, as a result is more privileged that a
Super Administrator.
■ Users and Administrators should login using their own accounts,
this is helpful while auditing operations.
■ There’s a method to disable SYSMAN access from the console and
emcli. DB access and “emctl status oms –details” still work.
SQL> UPDATE MGMT_CREATED_USERS
SET SYSTEM_USER='-1'
WHERE user_name='SYSMAN';
http://bitkode.blogspot.com/2014/12/oracle-
enterprise-manager-security.html
Set it to 1 to re-enable it

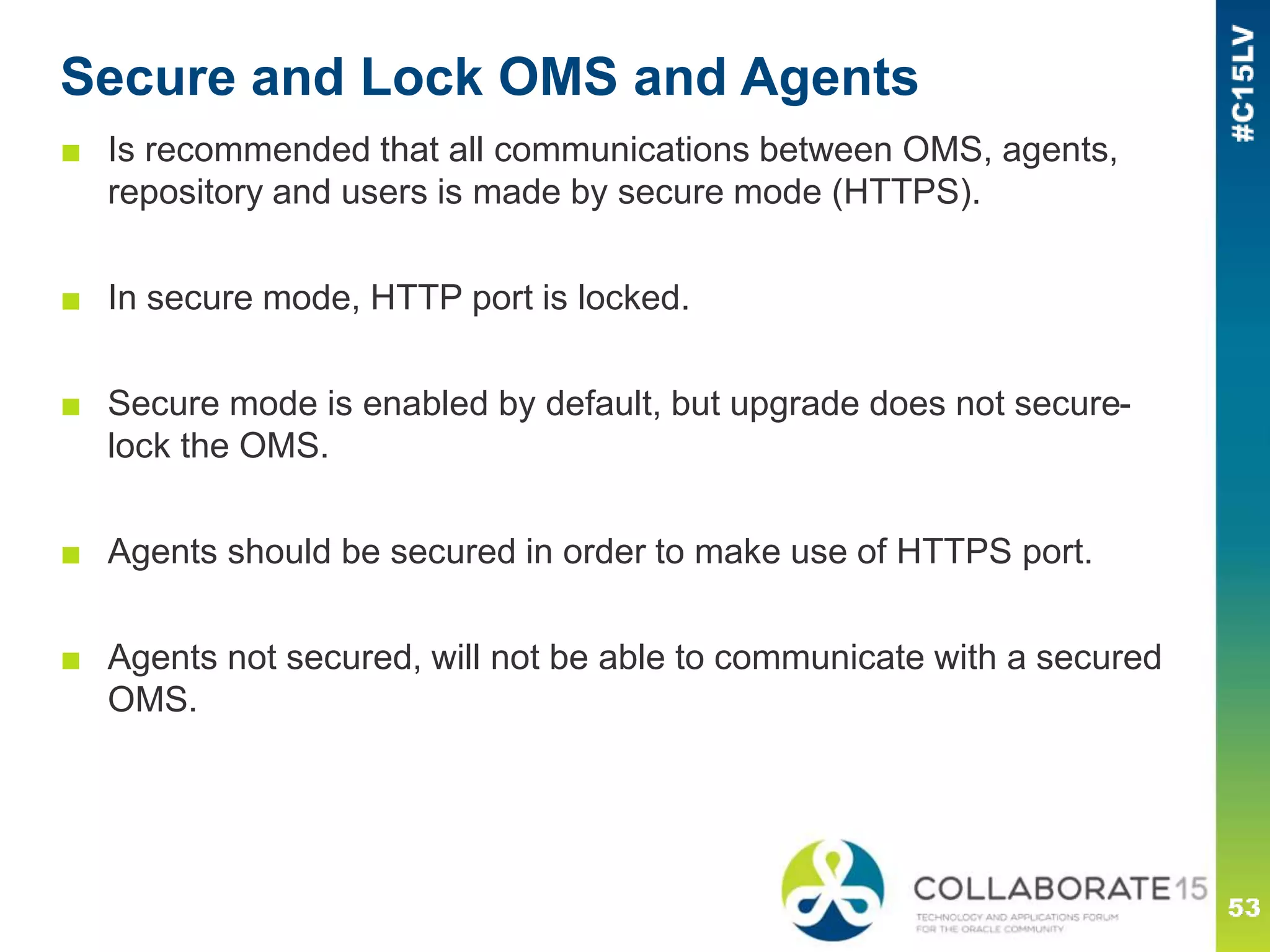

Secure and Lock OMS and Agents
■ Is recommended that all communications between OMS, agents,
repository and users is made by secure mode (HTTPS).
■ In secure mode, HTTP port is locked.
■ Secure mode is enabled by default, but upgrade does not secure-
lock the OMS.
■ Agents should be secured in order to make use of HTTPS port.
■ Agents not secured, will not be able to communicate with a secured
OMS.

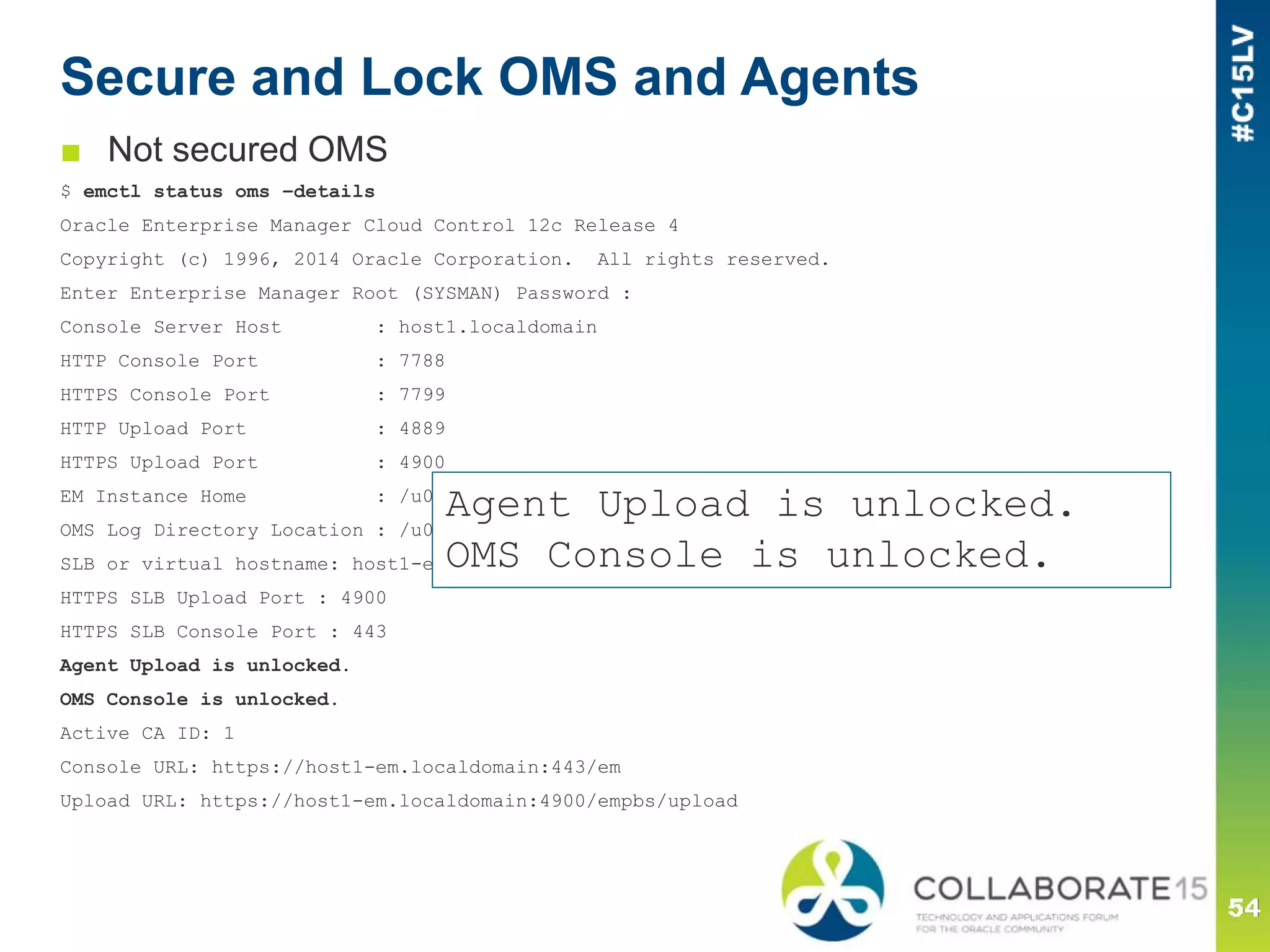

■ Not secured OMS
$ emctl status oms –details
Oracle Enterprise Manager Cloud Control 12c Release 4
Copyright (c) 1996, 2014 Oracle Corporation. All rights reserved.
Enter Enterprise Manager Root (SYSMAN) Password :
Console Server Host : host1.localdomain
HTTP Console Port : 7788
HTTPS Console Port : 7799
HTTP Upload Port : 4889
HTTPS Upload Port : 4900
EM Instance Home : /u01/oracle/oms/12.1.0.4/gc_inst/em/EMGC_OMS1
OMS Log Directory Location : /u01/oracle/oms/12.1.0.4/gc_inst/em/EMGC_OMS1/sysman/log
SLB or virtual hostname: host1-em.localdomain
HTTPS SLB Upload Port : 4900
HTTPS SLB Console Port : 443
Agent Upload is unlocked.
OMS Console is unlocked.
Active CA ID: 1
Console URL: https://host1-em.localdomain:443/em
Upload URL: https://host1-em.localdomain:4900/empbs/upload
Agent Upload is unlocked.
OMS Console is unlocked.

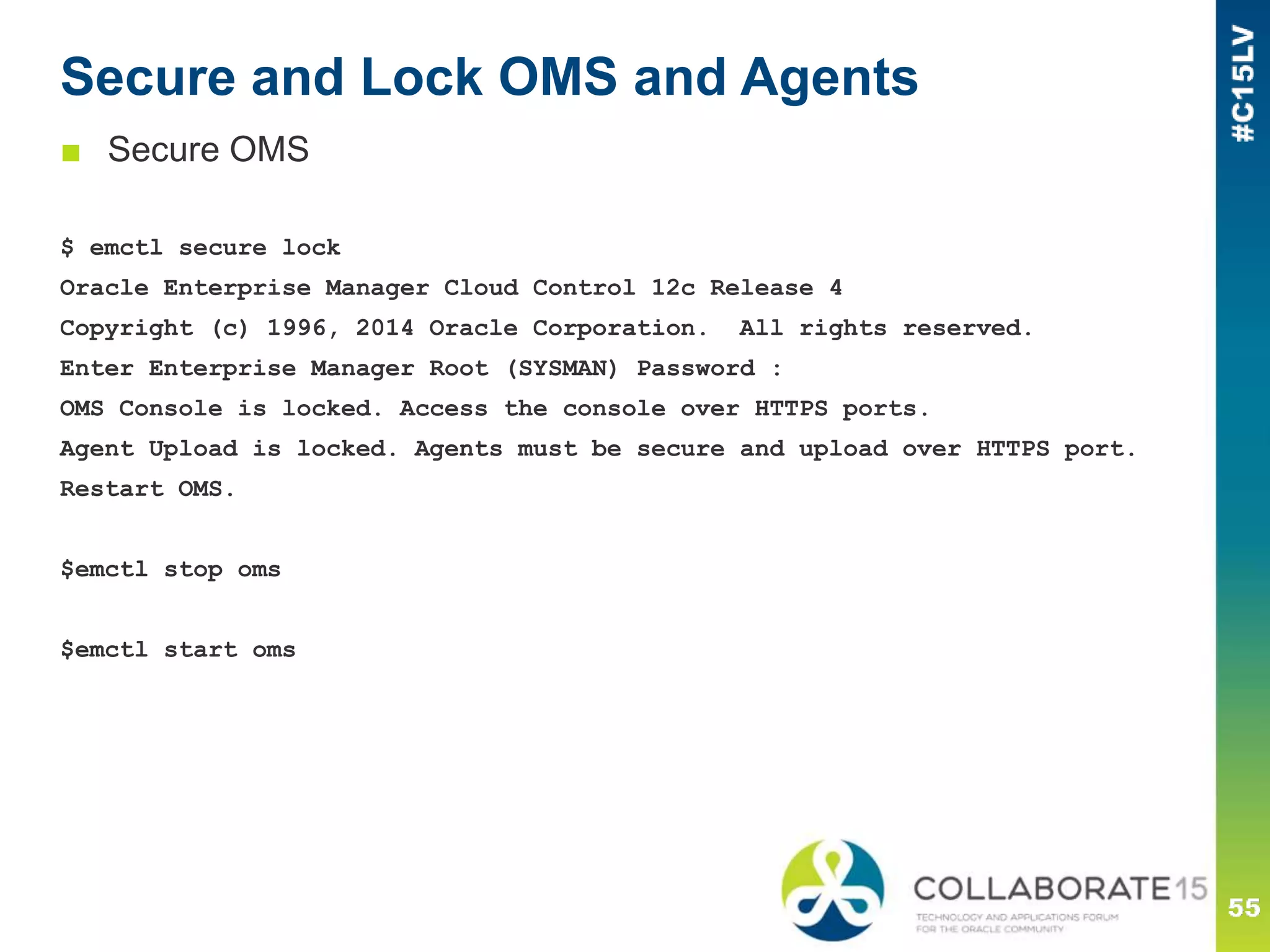

■ Secure OMS
$ emctl secure lock
OMS Console is locked. Access the console over HTTPS ports.
Agent Upload is locked. Agents must be secure and upload over HTTPS port.
Restart OMS.
$emctl stop oms
$emctl start oms

■ Secured OMS
$ emctl status oms –details
Console Server Host : host1.localdomain
HTTP Console Port : 7788
HTTPS Console Port : 7799
HTTP Upload Port : 4889
HTTPS Upload Port : 4900
EM Instance Home : /u01/oracle/oms/12.1.0.4/gc_inst/em/EMGC_OMS1
OMS Log Directory Location : /u01/oracle/oms/12.1.0.4/gc_inst/em/EMGC_OMS1/sysman/log
SLB or virtual hostname: host1-em.localdomain
HTTPS SLB Upload Port : 4900
HTTPS SLB Console Port : 443
Agent Upload is locked.
OMS Console is locked.
Active CA ID: 1
Console URL: https://host1-em.localdomain:443/em
Upload URL: https://host1-em.localdomain:4900/empbs/upload
Agent Upload is locked.
OMS Console is locked.

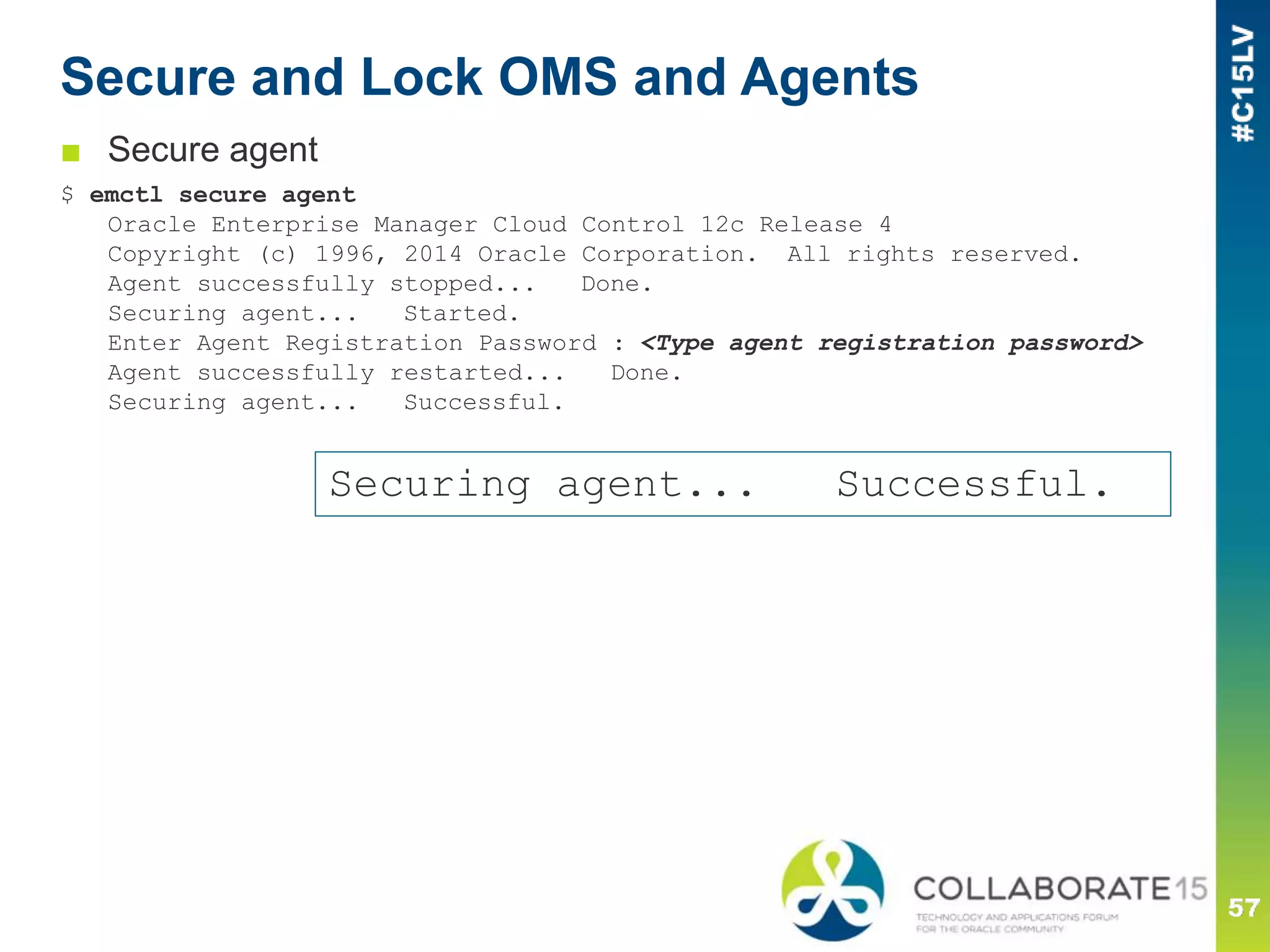

■ Secure agent
$ emctl secure agent
Agent successfully stopped... Done.
Securing agent... Started.
Enter Agent Registration Password : <Type agent registration password>
Agent successfully restarted... Done.
Securing agent... Successful.
Securing agent... Successful.

Use EMCLI to configure OEM Audit system
■ Basic OEM audit is enabled by default.
■ Whenever a user login-logout, the action is audited.
■ More default audit operations include:
▪ Apply Update
▪ Change MGMT_VIEW User Password
▪ Change Repository Password
▪ Configure Authentication
▪ Copy EM Key to Repository
▪ Remove EM Key from Repository
▪ Create Custom CA
▪ Remove Update
▪ Secure Console
▪ Secure Lock
▪ Secure OMS

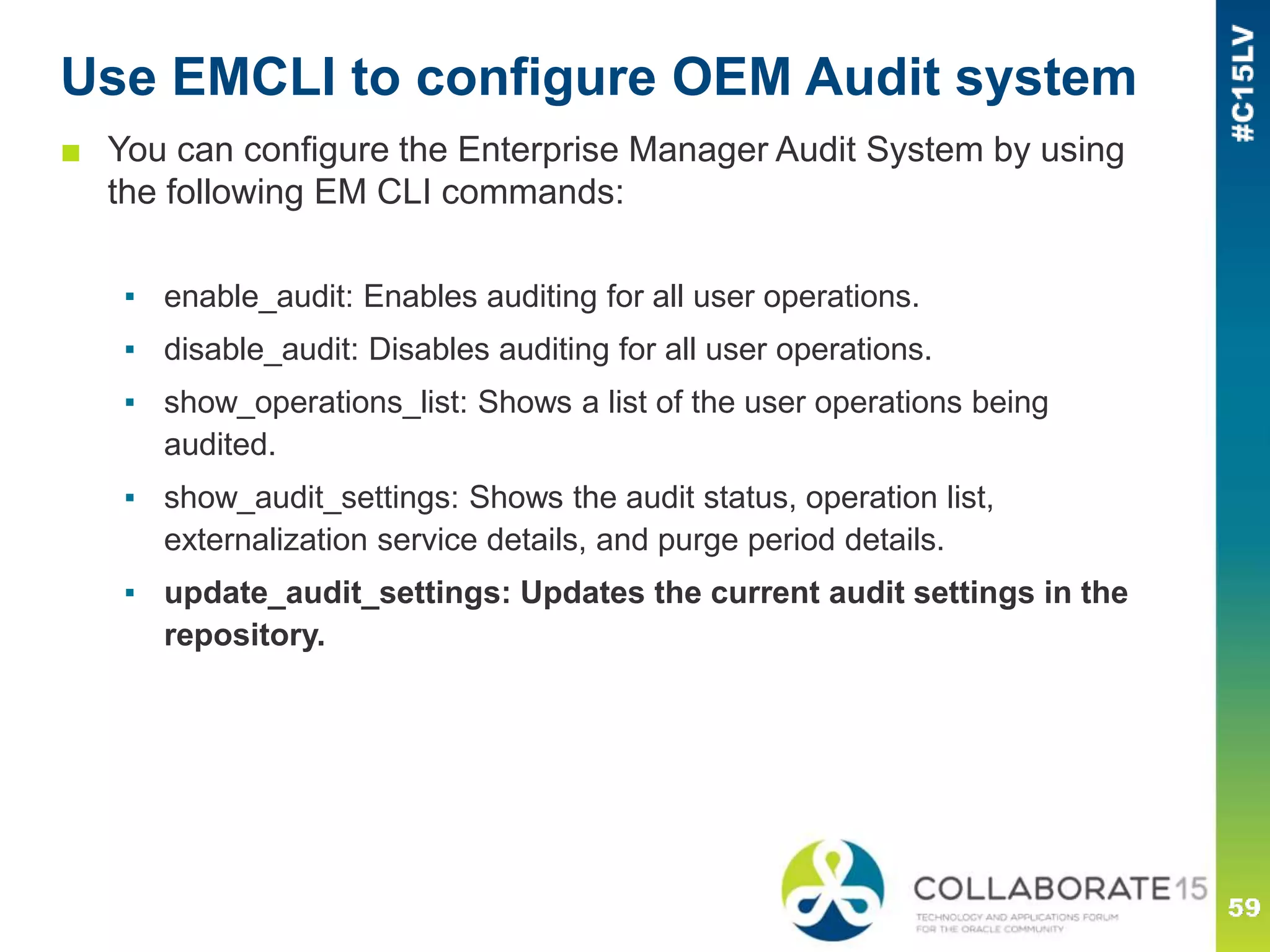

■ You can configure the Enterprise Manager Audit System by using
the following EM CLI commands:
▪ enable_audit: Enables auditing for all user operations.
▪ disable_audit: Disables auditing for all user operations.
▪ show_operations_list: Shows a list of the user operations being
audited.
▪ show_audit_settings: Shows the audit status, operation list,
externalization service details, and purge period details.
▪ update_audit_settings: Updates the current audit settings in the
repository.

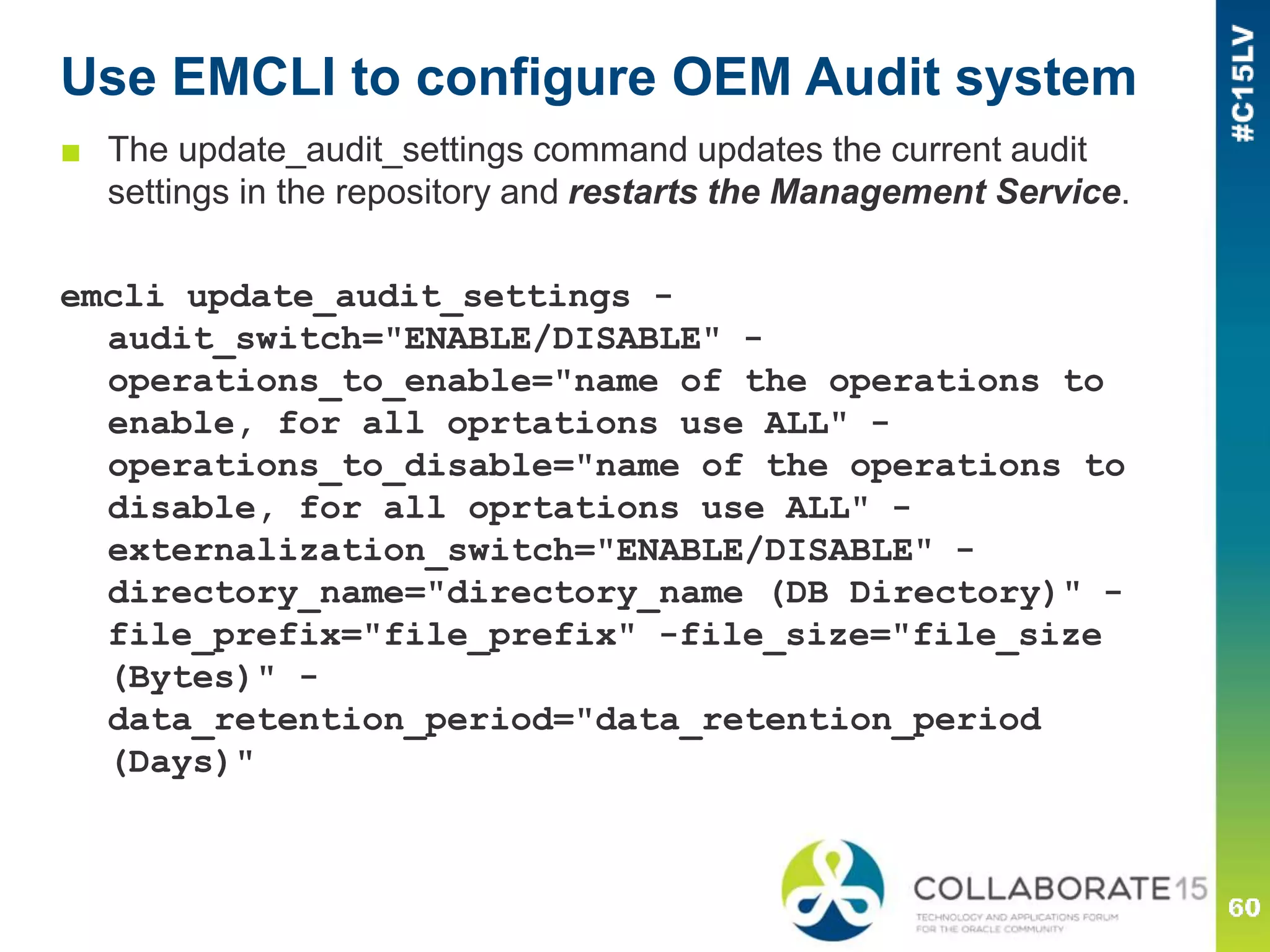

■ The update_audit_settings command updates the current audit
settings in the repository and restarts the Management Service.
emcli update_audit_settings -
audit_switch="ENABLE/DISABLE" -
operations_to_enable="name of the operations to
enable, for all oprtations use ALL" -
operations_to_disable="name of the operations to
disable, for all oprtations use ALL" -
externalization_switch="ENABLE/DISABLE" -
directory_name="directory_name (DB Directory)" -
file_prefix="file_prefix" -file_size="file_size
(Bytes)" -
data_retention_period="data_retention_period
(Days)"

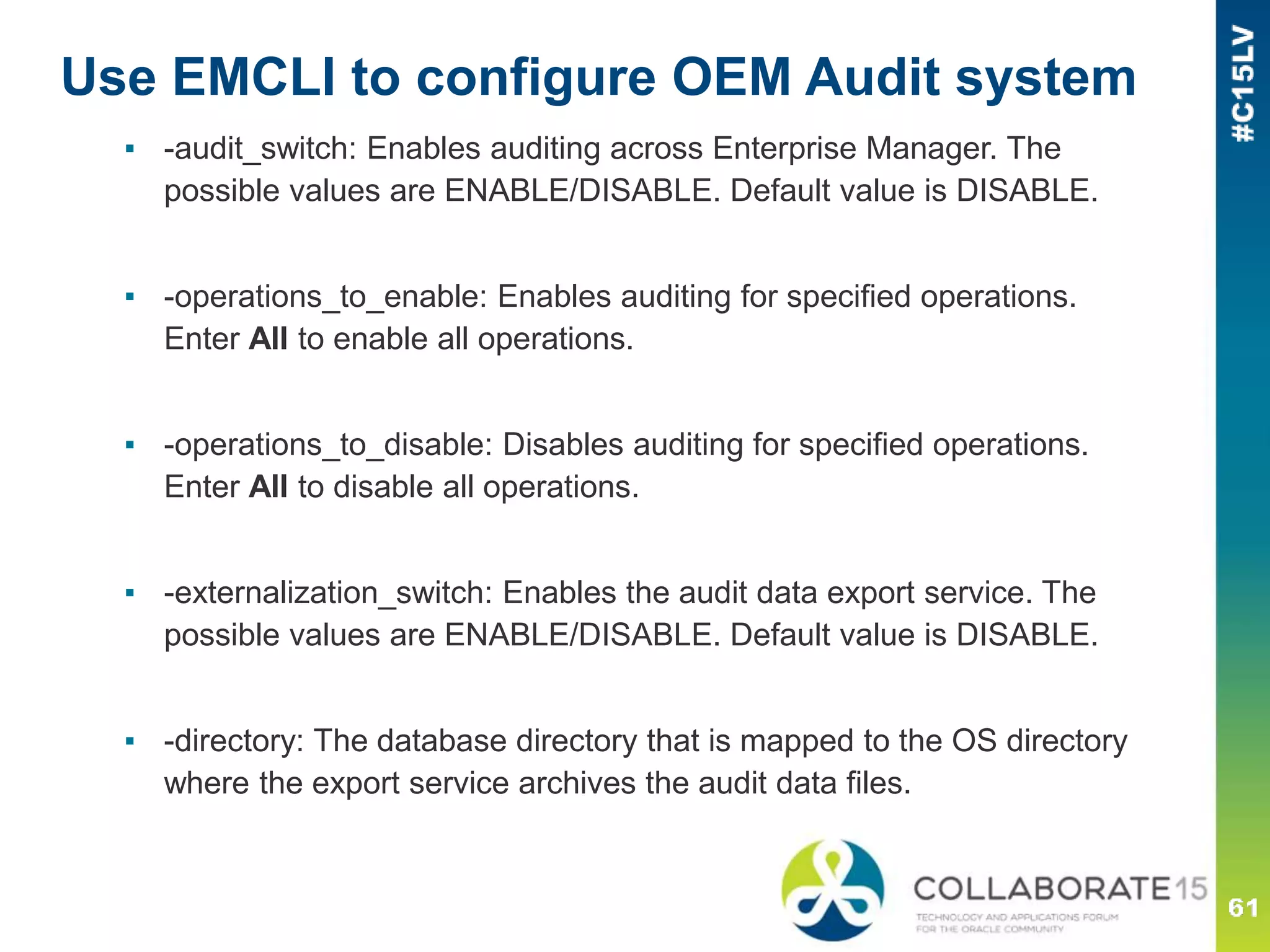

▪ -audit_switch: Enables auditing across Enterprise Manager. The
possible values are ENABLE/DISABLE. Default value is DISABLE.
▪ -operations_to_enable: Enables auditing for specified operations.
Enter All to enable all operations.
▪ -operations_to_disable: Disables auditing for specified operations.
Enter All to disable all operations.
▪ -externalization_switch: Enables the audit data export service. The
possible values are ENABLE/DISABLE. Default value is DISABLE.
▪ -directory: The database directory that is mapped to the OS directory
where the export service archives the audit data files.

▪ -file_prefix: The file prefix to be used by the export service to create the
file in which audit data is to be stored.
▪ -file_size: The size of the file on which the audit data is to be stored.
The default value is 5000000 bytes.
▪ data_retention_period: The period for which the audit data is to be
retained inside the repository. The default value is 365 days.
http://docs.oracle.com/cd/E24628_01/doc.121/e36415/sec_features.ht
m#EMSEC12907

Want More?
■ Enterprise Manager Cloud Control Security Guide
http://docs.oracle.com/cd/E24628_01/doc.121/e36415/toc.htm
■ Enterprise Manager Cloud Control Administrator's Guide
http://docs.oracle.com/cd/E24628_01/doc.121/e24473/toc.htm
■ Enterprise Manager Command Line Interface
http://docs.oracle.com/cd/E24628_01/em.121/e17786/cli_verb
_ref.htm#EMCLI200

Please complete the session
evaluation
We appreciate your feedback and insight
You may complete the session evaluation either
on paper or online via the mobile app

Where did my day go?: OEM 12c Administration #em12c #C15LV @IOUG

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Where did my day go?: OEM 12c Administration #em12c #C15LV @IOUG

Similar to Where did my day go?: OEM 12c Administration #em12c #C15LV @IOUG (20)

More from Alfredo Krieg

More from Alfredo Krieg (9)

Recently uploaded

Recently uploaded (20)

Where did my day go?: OEM 12c Administration #em12c #C15LV @IOUG
