- Veeam provides hyper-availability solutions to back up any application, data across any cloud including physical, public, private, and edge environments. - It offers high-speed recovery of VMs and files within 15 minutes through instant VM recovery, migration, and granular file-level recovery capabilities. - Veeam uses Microsoft VSS for consistent image-based backups of SQL Server instances and databases, and provides SQL log backups and exploration tools for restore and export of SQL data. - It enables disaster recovery of workloads to Microsoft Azure through direct restore of backups to provision VMs in Azure, helping maintain business continuity.

1. Tanawit Chansuchai
System Engineer, Thailand
Tanawit.chansuchai@veeam.com
SQL Backups trough
Veeam *AND* SQL
Any App, Any Data , Across any Cloud
The Hyper-Availability solutions

2. VEEAM

3. Veeam
Hyper-Availability
Platform
Physical
Public Cloud
SaaSManaged
Cloud
Private
Cloud
Edge/
IoT
Any data, any app, across any cloud.
Universal APIs
Veeam Backup & Replication
Veeam ONE
Backup
for Office 365
Availability
for AWS
Agents for
Windows & Linux

4. Availability for The Always-ON Enterprise
Agentless protection

5. High-speed Recovery
instant VM recovery
vPower
migrate online

6. High-speed Recovery RTO < 15 Minutes!
Granular File level Recovery

7. High-speed Recovery RTO < 15 Minutes!
Application File Level Recovery

8. Veeam Explorer for Storage Snapshots
Restore VM / File / Mailbox from Storage Snapshots

9. Data Loss Avoidance
Replication Backup file to offsite
Create
Backup Job
Create
Backup
copy Job

10. Hyper-converge System
Data Loss Avoidance
3-2-1 Rule with Veeam
Hyper-converge System
Host-based
replication
Assisted failover
Real failback

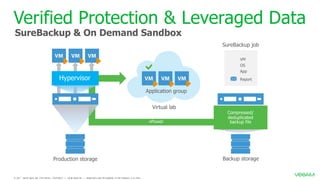

11. Verified Protection & Leveraged Data
SureBackup & On Demand Sandbox

12. Host-based
Replication
Verified Protection & Leverage Data
SureReplica & On Demand Sandbox
VM
Verification job
OS
Report
App

13. Disaster Recovery Plan
Sure Replica report
You can schedule automatic report delivery for result of sure replica, you can to receive
report by email, Note that you can schedule report after sure replica job done.

14. Verification Option for SQL

15. NAT SWITCH
• Test update patch
• Troubleshoot issues
• Train IT Staff
• Provision dev application
Verified Protection & Leverage Data
SureReplica & On Demand Sandbox

16. SQL

17. SQL Server architecture basics
• Database Server – Windows machine with one or more SQL
Instances installed
• There may be multiple SQL Instances on a single Windows
server
• Every SQL Server Instance is represented by a Windows Service
• Every SQL Server instance can have multiple Databases

18. Databases
Database is just a set of files until it’s attached to a SQL instance.
SQL Server provides SQL/T-SQL to interact with databases.
Main tools that DBAs and database users work with:
-SQL Server Management Studio
- SQL Log files
-sqlcmd
SELECT first_name, last_name FROM people WHERE hair_color = "red"

19. Data and Log files
Every database always has at least one data file (.MDF) and one log file
(.LDF)
It’s a good idea to put data and log files on separate disks for
maximizing I/O performance.
.MDF _log.LDF

20. Microsoft VSS and SQL
• VSS is a Windows subsystem that allows for consistent
online backups
Windows
App App SQL
VSS
VSS Provider
1
2
3
4
5

21. VEEAM, Microsoft VSS and SQL
• Veeam Backup & Replication use VSS for consistent Image-
based backups.
Windows
App App SQL
VSS
VSS Provider
1
2
3
4
5

22. Veeam Explorer for SQL Server
Support for Point in time restore and
restore to a specific transaction
Easy way to restore or export SQL
databases
• To original location
• To any other SQL server (also physical)
• As a set of database files to any location of
your choosing

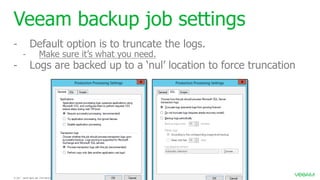

23. Veeam backup job settings
- Default option is to truncate the logs.
- Make sure it’s what you need.
- Logs are backed up to a ‘nul’ location to force truncation

24. Veeam SQL Log Backups
- Only for databases in full and bulk-logged recovery models
- Set up interval to meet you RPO/RTOs
- Per VM

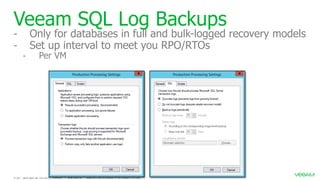

25. Veeam SQL Log Backups
• Frequent log backups require some resources, so make
sure to test your settings.

26. Disaster Recovery
as a Service
SQL SERVER to The Azure (Public)

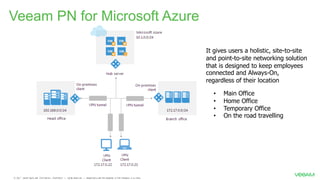

28. Veeam PN for Microsoft Azure

29. Veeam PN for Microsoft Azure
• Main Office
• Home Office
• Temporary Office
• On the road travelling
It gives users a holistic, site-to-site
and point-to-site networking solution
that is designed to keep employees
connected and Always-On,
regardless of their location

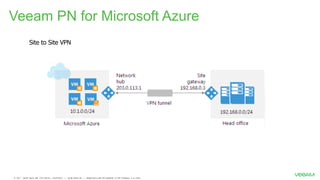

30. Veeam PN for Microsoft Azure
Site to Site VPN

31. Veeam PN for Microsoft Azure
Point to Site VPN

32. Non-Stop
Business Continuity
2.5 x less Failures
3 x more Speed
91% SLA
Direct Restore
To Azure

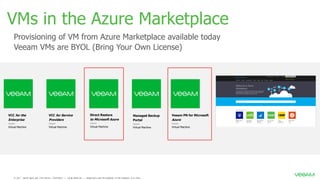

33. Provisioning of VM from Azure Marketplace available today
Veeam VMs are BYOL (Bring Your Own License)
VMs in the Azure Marketplace
VCC for the
Enterprise
Veeam
Virtual Machine
VCC for Service
Providers
Veeam
Virtual Machine
Direct Restore
to Microsoft Azure
Veeam
Virtual Machine
Managed Backup
Portal
Veeam
Virtual Machine
Veeam PN for Microsoft
Azure
Veeam
Virtual Machine

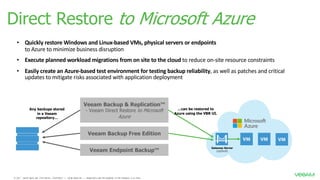

34. Direct Restore to Microsoft Azure
Veeam Backup & Replication™
- Veeam Direct Restore to Microsoft
Azure
Veeam Backup Free Edition
Veeam Endpoint Backup™
Any backups stored
in a Veeam
repository…
…can be restored to
Azure using the VBR UI.
Gateway Server
(optional)
• Quickly restore Windows and Linux-based VMs, physical servers or endpoints
to Azure to minimize business disruption
• Execute planned workload migrations from on site to the cloud to reduce on-site resource constraints
• Easily create an Azure-based test environment for testing backup reliability, as well as patches and critical
updates to mitigate risks associated with application deployment

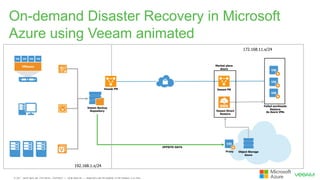

35. On-demand Disaster Recovery in Microsoft
Azure using Veeam animated
Veeam Backup
Repository
Object Storage
Azure
OFFSITE-DATA
Veeam Direct
Restore
Failed workloads
Restore
As Azure VMs
Veeam PNVeeam PN
Market place
Azure
Proxy
192.168.1.x/24
172.168.11.x/24

36. AVAILABILITY
virtual physical cloud
24.7.365

37. Thank you
Tanawit chansuchai, ++66 909 615 246
www.veeam.com
http://era-cloud.blogspot.com/
