2. Insect legs are typically segmented type
Legs are present in pro, meso and metathoracic
segments
Each leg consists of 5 segments
1. Coxa
2. Trochanter
3. Femur
4. Tibia
5. Tarsus
Pretarsus
Legs are modified into severaltypes based on
habitat and food habit
@Bhubanananda Adhikari
Legs of Insect
3. First or proximal leg segment
It is freely movable and attached with
thoracic pleuron
@Bhubanananda Adhikari
1. Coxa (Pl. Coxae)
Legs of Insect
2. Trochanter
Second segment of leg which is small
and single segmented
Seems to be 2 segmented in dragonfly,
damselfly etc
The apparent 2nd trochanter is called
“trochantellus” (actually a part of
femur)
4. Largest and stoutest part of leg closely attached to
trochanter.
@Bhubanananda Adhikari
3. Femur
Legs of Insect
4. Tibia
Long and provided with downward projecting
spines (help in climbing and footing). Tibia in many
insects armed with large movable spurs near apex
5. Tarsus
Segmented structure, Individual segment known as
tarsomere (1-5) except in protura, diplura and some
larval forms. Basal tarsomere is larger and called
basitarsus
5. @Bhubanananda Adhikari
Legs of Insect
Pretarsus
It is the 6th segment or last part of legs representing the
foot. It is characterized by possessing a pair of terminal
little curved, claws. The claw is also known as ungues.
The tarsus at its end consists of pretarsus which is in the
form of a pair of claws and cushion like pulvilli.
The pulvilli bear a large number of pores and hairs which
secreate the adhesive secreation that help in walking on
the slippery surfaces.
In between the claws, if there is lobe like structure, it is
known as “aroleum” as in Orthoptera (grass hopper).
If bristle like structure, it is called “empodium” as in
Diptera.
6. Adapted for walking
Femur flat, long tibia & well defind femoro-
tibial joint. It can move perfectly on smooth &
rough surfaces
Ex- Dermaptera, Bugs, some beetles, Fore and
middle legs of grasshopper
@Bhubanananda Adhikari
1. Ambulatorial (Walking) leg
7. Adapted for running
Thin & tubular with flattened femur
Highly muscular coxa
Tibia & tarsi slender & elongated
Ex- Cockroach, Tiger beetle
@Bhubanananda Adhikari
2. Cursorial (Running) leg
8. Adapted for leaping or jumping
Trochanter fused with femur.
Femur is enlarged to accommodate
powerful extensor muscles of tibia
Long and slender tibia with two rows of
spines along the ventrolateral edges
At tibial end, four spurs are fopr gaining
grip against substratum.
Ex- Hind leg of Grasshoppers, Crickets
@Bhubanananda Adhikari
3. Saltatorial (Jumping) leg
9. Adapted for clinging
Single segmented tarsus bears a long
hook like curved claw with ventral
pad.
Tibia possess a thumb like fleshy lobe
at its apex
Ex-head louse, body louse, bird lice
(Mallophaga)
@Bhubanananda Adhikari
4. Scansorial (Climbing or Clinging) leg

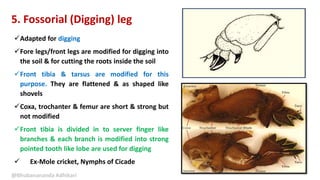

10. Adapted for digging
Fore legs/front legs are modified for digging into
the soil & for cutting the roots inside the soil
Front tibia & tarsus are modified for this
purpose. They are flattened & as shaped like
shovels
Coxa, trochanter & femur are short & strong but
not modified
Front tibia is divided in to server finger like
branches & each branch is modified into strong
pointed tooth like lobe are used for digging
Ex-Mole cricket, Nymphs of Cicade
@Bhubanananda Adhikari
5. Fossorial (Digging) leg
11. Forelegs are for capturing the prey, not used for
locomotion
Coxa is long and mobile (helps in capturing prey)
Femur is large and grooved along the ventral
surface with spines
Spiny tibia fits into femoral groove when it snaps
down over the prey
Tarsus consisting of 5 tarsomeres
Ex- Forelegs of preying mantids
@Bhubanananda Adhikari
6. Raptorial (Grasping) leg
12. Hind legs are adapted for swimming
Femur, tibia, and first four tarsomeres
are broad and flattened.
Edges are provided with flattened setae
Ex- Hind legs of water bug and water
beetle
@Bhubanananda Adhikari
7. Natatorial (Swimming) leg
13. Pairs of lateral adhesive pads under claw
called pulvilli
Arolium is absent but median spine like
structure empodium is present
Pulvilli covered with glandular tenant hairs.
Secretions of these tenant hairs help the
insect I walking and clinging to smooth
surface
Ex- All legs of housefly
@Bhubanananda Adhikari
8. Sticking leg
14. Legs are situated just behind the head and
are anterior in position
Legs are spiny and closely placed useful for
seizing the prey and captured insects are
kept in the leg basket.
vesicle- Modified arolium
Legs are not useful for locomotion.
Ex- Legs of dragonfly and damselfly
@Bhubanananda Adhikari
9. Basket like leg
15. The forelegs of same aquatic beetles are
provided with suckers on the metatarsi &
stumpy tarsomers in males for holding the
female during mating.
Tarsus id flattened with adhesive disc
A viscous secretion from the sucker in the
tarsus is discharged so that they adhere to
surfaces they are applied.
@Bhubanananda Adhikari
10. Suctorial (Clasping) leg
16. Thick, fleshy and not segmented (found
in caterpillar, 2-5 pairs)
They are shed with larval moult
Tip of proleg is called planta, clawas are
known as crochets
Last pair of abdominal proleg is Clasper.
Ex- Abdominal legs of caterpillar
@Bhubanananda Adhikari
11. Prolegs/ False legs/ Pseudolegs

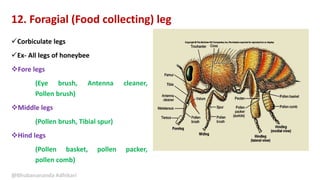

17. Corbiculate legs
Ex- All legs of honeybee
Fore legs
(Eye brush, Antenna cleaner,
Pollen brush)
Middle legs
(Pollen brush, Tibial spur)
Hind legs
(Pollen basket, pollen packer,
pollen comb)
@Bhubanananda Adhikari
12. Foragial (Food collecting) leg
18. Corbiculate legs
Ex- All legs of honeybee
Fore legs
(Eye brush, Antenna cleaner,
Pollen brush)
Middle legs
(Pollen brush, Tibial spur)
Hind legs
(Pollen basket, pollen packer,
pollen comb)
@Bhubanananda Adhikari
12. Foragial (Food collecting) leg
19. Corbiculate legs
Ex- All legs of honeybee
Fore legs
(Eye brush, Antenna cleaner,
Pollen brush)
Middle legs
(Pollen brush, Tibial spur)
Hind legs
(Pollen basket, pollen packer,
pollen comb)
@Bhubanananda Adhikari
12. Foragial (Food collecting) leg
20. Corbiculate legs
Ex- All legs of honeybee
Fore legs
(Eye brush, Antenna cleaner,
Pollen brush)
Middle legs
(Pollen brush, Tibial spur)
Hind legs
(Pollen basket, pollen packer,
pollen comb)
@Bhubanananda Adhikari
12. Foragial (Food collecting) leg
