1. INSECT THORAX
And abdomen

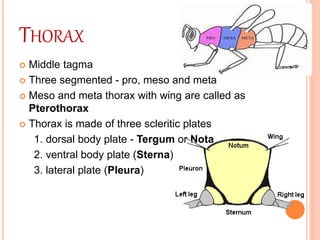

2. THORAX
 Middle tagma
 Three segmented - pro, meso and meta
 Meso and meta thorax with wing are called as
Pterothorax
 Thorax is made of three scleritic plates
1. dorsal body plate - Tergum or Nota
2. ventral body plate (Sterna)
3. lateral plate (Pleura)

3. THORACIC NOTA
 3 segments - pronotum, mesonotum & metanotum
respectively
 Pronotum - undivided & Saddle shaped in grass hopper,
Shield like in cockroach
 Pterothoracic notum - have 3 transverse sutures
(Antecostal, Pre scutal and Scuto-scutellar)
&5 tergites(Acrotergite, Prescutum, Scutum, Scutellum
and Post-scutellum)

4. THORACIC STERNA
 Vental body plate - prosternum,
mesosternum and metasternum
 Made up of a segmental plate called
Eusternun and a intersternite called Spinasternum
 Eusternum - made of three sclerites -
presternum, basisternum and sternellum

5. THORACIC PLEURA
 Lateral body wall between notum & sternum
 Selerites of pleuron is called as pleurites
 fuse to form Pleural plate
 Pleural plate is divided into anterior episternum
and posterior epimeron by Pleural suture
 Pterothoracic pleuron provides space for
articulation of wing and
 Two pairs of spiracles are also present in the
mesopleuron and metapleuron.

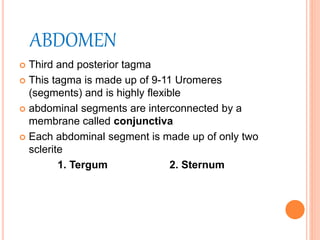

6. ABDOMEN
 Third and posterior tagma
 This tagma is made up of 9-11 Uromeres
(segments) and is highly flexible
 abdominal segments are interconnected by a
membrane called conjunctiva
 Each abdominal segment is made up of only two
sclerite
1. Tergum 2. Sternum

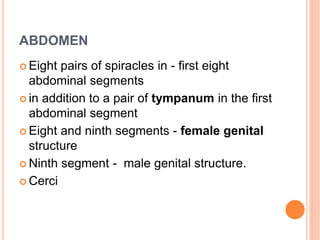

7. ABDOMEN
 Eight pairs of spiracles in - first eight
abdominal segments
 in addition to a pair of tympanum in the first
abdominal segment
 Eight and ninth segments - female genital
structure
 Ninth segment - male genital structure.
 Cerci

8. Thanks
