Nursyafiqah Ismail completed her 10-week industrial training with Pembinaan Thin Chai Sdn. Bhd, a construction company established in 1970. She gained experience in design analysis, preparing method statements and bills of quantities, conducting site inspections, and ordering materials. Some of her responsibilities included designing fencing for a bridge project, drafting repair methods for concrete beams, and inspecting construction progress at sites in Gua Musang and Port Klang. Through hands-on learning and documentation tasks, she enhanced her skills in areas like structural analysis and software like AutoCAD.
More Related Content
Similar to Industrial training presentation
Industrial training presentation
- 1.

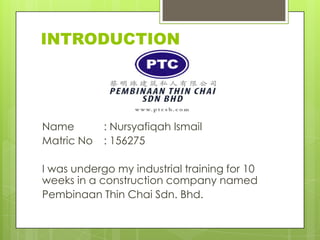

- 2. INTRODUCTION Name Matric No : NursyafiqahIsmail : 156275 I was undergo my industrial training for 10 weeks in a construction company named Pembinaan Thin Chai Sdn. Bhd.

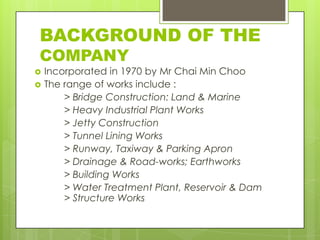

- 3. BACKGROUND OF THE COMPANY Incorporatedin 1970 by Mr Chai Min Choo The range of works include : > Bridge Construction: Land & Marine > Heavy Industrial Plant Works > Jetty Construction > Tunnel Lining Works > Runway, Taxiway & Parking Apron > Drainage & Road-works; Earthworks > Building Works > Water Treatment Plant, Reservoir & Dam > Structure Works

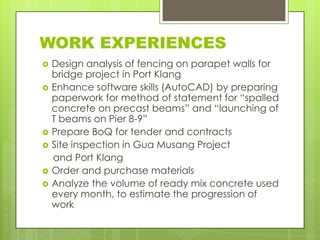

- 4. WORK EXPERIENCES Design analysisof fencing on parapet walls for bridge project in Port Klang Enhance software skills (AutoCAD) by preparing paperwork for method of statement for “spalled concrete on precast beams” and “launching of T beams on Pier 8-9” Prepare BoQ for tender and contracts Site inspection in Gua Musang Project and Port Klang Order and purchase materials Analyze the volume of ready mix concrete used every month, to estimate the progression of work

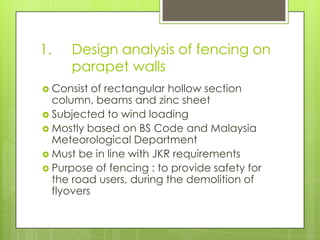

- 5. 1. Design analysis offencing on parapet walls Consist of rectangular hollow section column, beams and zinc sheet Subjected to wind loading Mostly based on BS Code and Malaysia Meteorological Department Must be in line with JKR requirements Purpose of fencing : to provide safety for the road users, during the demolition of flyovers

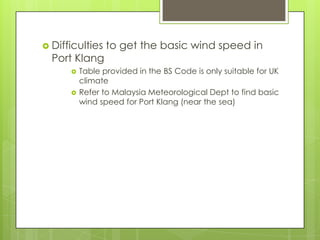

- 6. Difficulties Port Klang toget the basic wind speed in Table provided in the BS Code is only suitable for UK climate Refer to Malaysia Meteorological Dept to find basic wind speed for Port Klang (near the sea)
- 9. 2. Method ofstatement MoS “Patch repair of spalled concrete on precast beam” and “modification of rib beam”. Steps to repair the defect occurred on the beam Approved by Professional Engineers before proceed with repair process MoS launching of T Beams Draw the sequence of launching T Beams by using AutoCAD Take into account, Mobilization and demobilization of crane Closure of Traffic Construct alternative road for road users, to avoid traffic congestion during launching

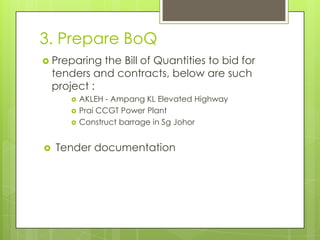

- 10. 3. Prepare BoQ Preparing the Bill of Quantities to bid for tenders and contracts, below are such project : AKLEH - Ampang KL Elevated Highway Prai CCGT Power Plant Construct barrage in Sg Johor Tender documentation
- 11. 4. Site Inspection– Gua Musang Inspect the formwork of diaphragm wall on Bridge 2 Monitor concrete work of parapet walls Get to see the process of launching T Beam on pier 8-9 Update the record of diesel on site Update the summary record of ready mix concrete for July 2013

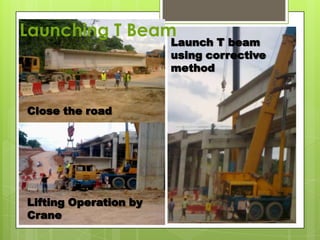

- 12. Launching T Beam LaunchT beam using corrective method 1 Close the road Lifting Operation by Crane

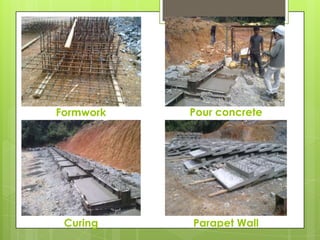

- 13.

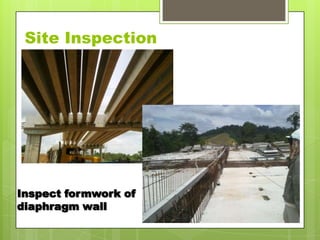

- 14. Site Inspection Inspect formworkof diaphragm wall

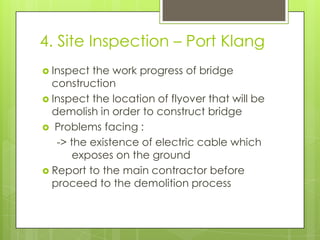

- 15. 4. Site Inspection– Port Klang Inspect the work progress of bridge construction Inspect the location of flyover that will be demolish in order to construct bridge Problems facing : -> the existence of electric cable which exposes on the ground Report to the main contractor before proceed to the demolition process
- 16. Skeleton structure of Diaphragmwall Installing the pile cap

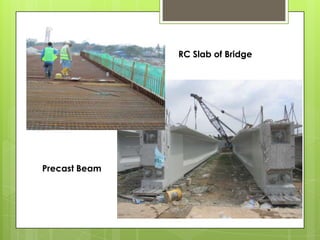

- 17. RC Slab ofBridge Precast Beam

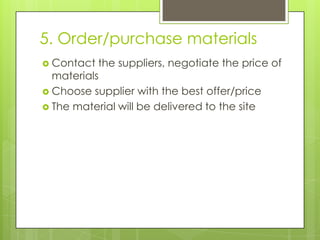

- 18. 5. Order/purchase materials Contact the suppliers, negotiate the price of materials Choose supplier with the best offer/price The material will be delivered to the site
- 19.
