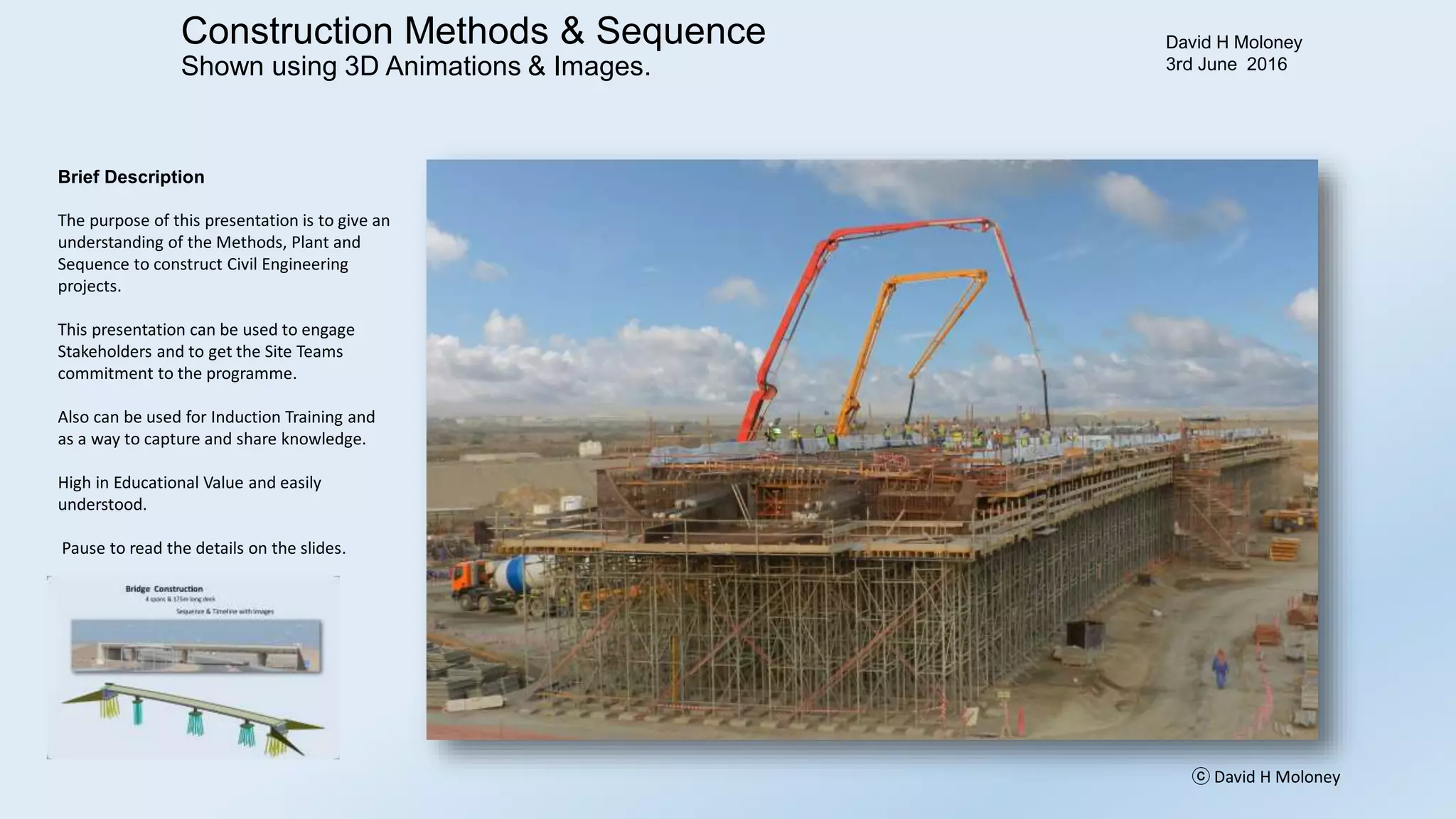

Construction Methods & Sequence
1. Construction Methods & Sequence
Shown using 3D Animations & Images.
David H Moloney
31st May 2016
Brief Description
The purpose of this presentation is to give an
understanding of the Methods, Plant and
Sequence to construct Civil Engineering
projects.
This presentation can be used to engage
Stakeholders and to get the Site Teams
commitment to the programme.
Also can be used for Induction Training and
as a way to capture and share knowledge.
High in Educational Value and easily
understood.
Pause to read the details on the slides.
ⓒ David H Moloney
7. Sheet Pile Temporary Shaft
ⓒ David H Moloney
GeneralItems
Brief Description
Sheet Pile Temporary shaft is used to enable an
excavation for a deep structure.
The construction sequence is:
Install sheet-piles.
Excavate and install bracing.
Excavate to final level.
Construct concrete structure.
Backfill, remove bracing and sheet-piles
8. Sheet pile Temporary Shaft
ⓒ David H Moloney
GeneralItems
3D Animation to show Sequence
9. Dewatering
ⓒ David H Moloney
GeneralItems
Brief Description
Construction dewatering is the removal or drainage of
groundwater and or surface / rain water usually by
pumping to keep the works dry.
12. Water Pollution Prevention
ⓒ David H Moloney
GeneralItems
Brief Description
Pumped and rain water that is contaminated with clay and
silt needs to be treated prior to discharge from site.
Settlement ponds and settlement tanks are two methods
25. Diaphragm Wall Construction - Sequence, Plant & MethodsGeotechnical
Brief Description
A diaphragm wall is a reinforced concrete wall that is
constructed underground insitu.
A deep narrow trench is excavated in panels and filled
with concrete.
A mechanical grab or cutter suspended from a special
tracked crane is used.
Ground anchors or Bracing used to
prevent wall collapsing inwards
27. Vibro Compaction - Sequence, Plant & Methods
ⓒ David H Moloney
Geotechnical
Brief Description
Vibro compaction is used to compact granular
ground to improve its load bearing capacity and
reduces the seismic liquefaction potential. Used
for the Palm Islands in Dubai.
A vibrator suspended from a crane is used and
inserted to a triangular grid pattern.
28. Vibro Compaction - Sequence, Plant & Methods
ⓒ David H Moloney
Geotechnical
29. Stone Columns ⓒ David H Moloney
Geotechnical
Brief Description
Stone columns are used to improve the load
bearing capacity of ground.
Top feed vibrators suspended from an excavator or
crane along with loading shovels are used.
The stone columns are constructed to a triangular
grid pattern.
33. Excavate & Load, Cart, Tip & Return
Brief Description
Cycle Time for 7km haulage distance
using an Excavator 45 tonne weight
and Dumper with a 40 tonne capacity,
the cycle time is 34 minutes
Earthworks
7 minutes
14 minutes
3 minutes
14 minutes 7 km
7 km
46. Rock - Excavability
Brief Description
The excavability of rock depends
mainly on the rock strength and the
layer thickness. This diagram shows
excavation methods for rock of
various strengths and thicknesses,
with a free face.
ⓒ David H Moloney
Earthworks
49. Excavate with Roadheader
Drill & Fit Rock Bolts
Spray Mortar as Lining
Excavators with Rock Breaker
& Rock Rotary Cutter
Roadheader
MiningEarthworks
Brief Description
Mining. Rock breaking
underground methods.
Rock Bolts installation
to strengthen the rock
and eliminate rock falls.
Spray mortar to line
rock face.
53. Diverting Existing Underground Utilities
ⓒ David H Moloney
Earthworks
Brief Description
Before digging
establish the location
and route of
underground cables.
55. Concrete Batching Plant David H Moloney
ⓒ David H Moloney
Brief Description
Concrete batching plant comprises -
concrete mixer, control cabin, silos for
cement and fly ash, aggregate bins and
conveyor belt system to feed the mixer.
Also aggregate storage bays and water
storage tanks.
Concrete
59. Concrete Batching Plant David H Moloney
ⓒ David H Moloney
Brief Description
.
The mixing is computer controlled
and has a dynamic screen display,
showing the process. The material
storage capacity is, to match two
days concrete production.
Concrete
61. Quarry & Aggregate Production
ⓒ David H Moloney
Concrete
Brief Description
Quarry and Aggregate Production. Rock is
blasted free from a quarry face and fragmented.
The blasted rock is crushed and screened to
produce different size ranges of aggregates
67. Reinforcement Cutting & Bending Yard David H Moloney
ⓒ David H Moloney
Reinforcement in 12 m lengths. Delivery in 3 ton Bundles Reinforcement cut to length by Shearing Machine
Reinforcement Bent to Shape by Bending Machine Reinforcement that is cut and bent is Bundled for delivery to work site
Concrete
68. Reinforced Wall Construction Sequence
ⓒ David H Moloney
Concrete
Brief Description
The sequence to construct a reinforced concrete wall is as
follows:
Tie the reinforcement.
Erect stop-ends and the wall shutters.
Pour and vibrate the concrete mix.
Remove the shutters after the concrete has hardened.
.
Cycle Time
Pour per Day
70. Reinforced Structure Construction Sequence
ⓒ David H Moloney
Concrete
Brief Description
The general sequence to construct a reinforced concrete tank
is as follows-
1. Construct the floor and wall panels in a hit and miss pattern.
2. Construct the floor and wall corners and T shape panels.
3. Construct the roof working outwards from the back.
73. Bridge & Post-tensioning
Concrete
Brief Description
The sequence to post-tension a bridge
deck is as follows;
Fix the ducts and anchorages.
Install the stressing strand.
Concrete the deck.
Stress the strands and lock at
anchorages.
Grout the ducts.
80. Viaduct
Concrete
Brief Description
Shown is the construction of a light rail viaduct where
an overhead gantry was used to lift and place the
precast concrete viaduct segments.
85. Quay Wall Construction
Concrete
Brief Description
The quay wall is 24 metres high and 2,250 metres
long.
The precast blocks weight up to 180 tonnes. The
coping blocks are cast insitu.
87. Precast Quay Wall Blocks
Concrete
Brief Description
A precast yard for casting, storage and
loading the quay blocks onto barges.
Cycles time to lift blocks of
their casting pads is 4 days
98. Onshore Gas Pipeline Construction Sequence
Gas Processing Facility
Pipework
Brief Description
Sequence, methods and plant to construct
a gas / oil pipeline across country.
102. Horizontal Directional Drilling
Pipework
Brief Description
Horizontal Directional Drilling under a taxiway.
Process
1. A pilot hole id drilled to the designed profile
2. A reamer is pulled back through the hole to enlarge it
3. A pipe string is pulled into the hole.
108. Cable Laying
ⓒ David H Moloney
Cable Drum Stand Cable pulled on rollers
Cable Winch
Cable Drum Unloading Cable on rollers Cable Testing prior to Backfilling
Miscellaneous
115. Structural Steel Building Multi Storey
ⓒ David H Moloney
Step 1 Set-out Grid Lines Step 2 Holding Down Bolts Step 3 Erect 1st level use core for stability
Step 4 Complete 1st Level Step 5 Erect following Levels Step 6 Plumb & Align Structure
3D images to show Construction Sequence.
StructuralSteel
116. Steel Building Single Storey
ⓒ David H Moloney
StructuralSteel
Brief Description
Sequence to erect a structural
steel single storey portal building.
118. Structural Steel Building Single Storey
3D images to show Construction Sequence.
ⓒ David H Moloney
Step 1 Set-out Grid Lines Step 2 Holding Down Bolts Step 3 Erect 1st Bay
Step 4 Erect 2nd Bay Step 5 Erect following Bays
StructuralSteel
119. Steel Storage Tank
ⓒ David H Moloney
StructuralSteel
Brief Description
Sequence and methods to construct a
steel circular tank.
122. Pipe Rack
ⓒ David H Moloney
StructuralSteel
Brief Description
Sequence, methods and plant to construct a steel pipe rack
that carriers the pipework and cables between the different
processes in a gas / oil refinery.
124. Airport Roof Truss
ⓒ David H Moloney
StructuralSteel
Brief Description
Roof Truss 190 tonne in weight. Sections welded together on
trestles and the truss is lifted into position.
132. Secant Pile Wall Construction - Sequence, Plant & Methods
ⓒ David H Moloney
Piling
Brief Description
Sequence, methods and plant to construct a
secant pile underground wall.
Ground anchors or Bracing used to
prevent wall collapsing inwardsGround anchors Bracing
163. Tunnel Boring Machine (TBM)
Cutting Head Rotates
Excavated material removed
by conveyor belt
Lifting muck to surface
with skip
Placing Concrete
Segments
Tunnels
Brief Description
Tunnelling construction methods
167. Micro Tunnelling
Brief Description
Micro tunnelling is used to dig small tunnels
where a tunnelling boring machine is
controlled from a cabin at ground level
Tunnels
176. Climbing Tower Cranes
Miscellaneous
Brief Description
A climbing tower crane lifts itself up using a climbing
attachment with hydraulic jacks that surrounds the
mast.
The climbing attachment lifts itself up off the erected
mast and inserts a new mast section.
193. Progress Monitoring & Reporting - Dashboard
ⓒ David H Moloney
Brief Description
Dashboard is a single page, graphical representation of current progress and historical trends
194. Histogram Charts for Resources & Outputs
Manpower per Discipline
Concrete per Location
Man-hours for each month of the Project
Quantity for each month of the Project
ⓒ David H Moloney
Brief Description
Histograms shows resources etc. for each month of a project.
196. Daily Work Record
Brief Description
Daily Work Records showing the
allocation of resources, materials and
work activities carried out daily.
197. Organogram
Brief Description
Shown are the line and
lateral relationships
between the various team
members and their relative
position in the site
organisation.
