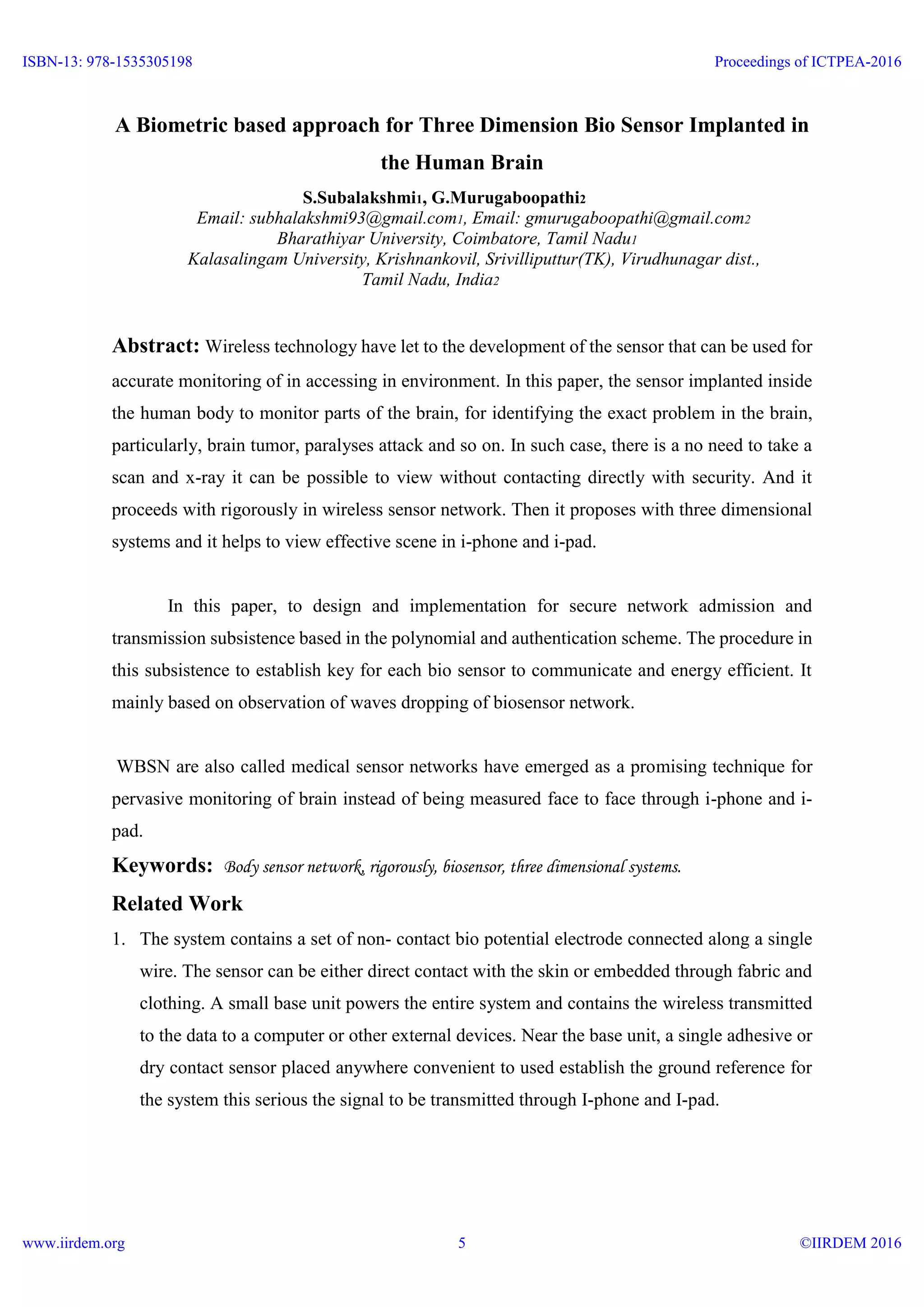

1. A Biometric based approach for Three Dimension Bio Sensor Implanted in
the Human Brain
S.Subalakshmi1, G.Murugaboopathi2
Email: subhalakshmi93@gmail.com1, Email: gmurugaboopathi@gmail.com2
Bharathiyar University, Coimbatore, Tamil Nadu1
Kalasalingam University, Krishnankovil, Srivilliputtur(TK), Virudhunagar dist.,
Tamil Nadu, India2
Abstract: Wireless technology have let to the development of the sensor that can be used for
accurate monitoring of in accessing in environment. In this paper, the sensor implanted inside
the human body to monitor parts of the brain, for identifying the exact problem in the brain,
particularly, brain tumor, paralyses attack and so on. In such case, there is a no need to take a
scan and x-ray it can be possible to view without contacting directly with security. And it
proceeds with rigorously in wireless sensor network. Then it proposes with three dimensional
systems and it helps to view effective scene in i-phone and i-pad.
In this paper, to design and implementation for secure network admission and
transmission subsistence based in the polynomial and authentication scheme. The procedure in
this subsistence to establish key for each bio sensor to communicate and energy efficient. It
mainly based on observation of waves dropping of biosensor network.
WBSN are also called medical sensor networks have emerged as a promising technique for
pervasive monitoring of brain instead of being measured face to face through i-phone and i-
pad.
Keywords: Body sensor network, rigorously, biosensor, three dimensional systems.
Related Work
1. The system contains a set of non- contact bio potential electrode connected along a single
wire. The sensor can be either direct contact with the skin or embedded through fabric and
clothing. A small base unit powers the entire system and contains the wireless transmitted
to the data to a computer or other external devices. Near the base unit, a single adhesive or
dry contact sensor placed anywhere convenient to used establish the ground reference for
the system this serious the signal to be transmitted through I-phone and I-pad.
ISBN-13: 978-1535305198
www.iirdem.org
Proceedings of ICTPEA-2016
©IIRDEM 20165

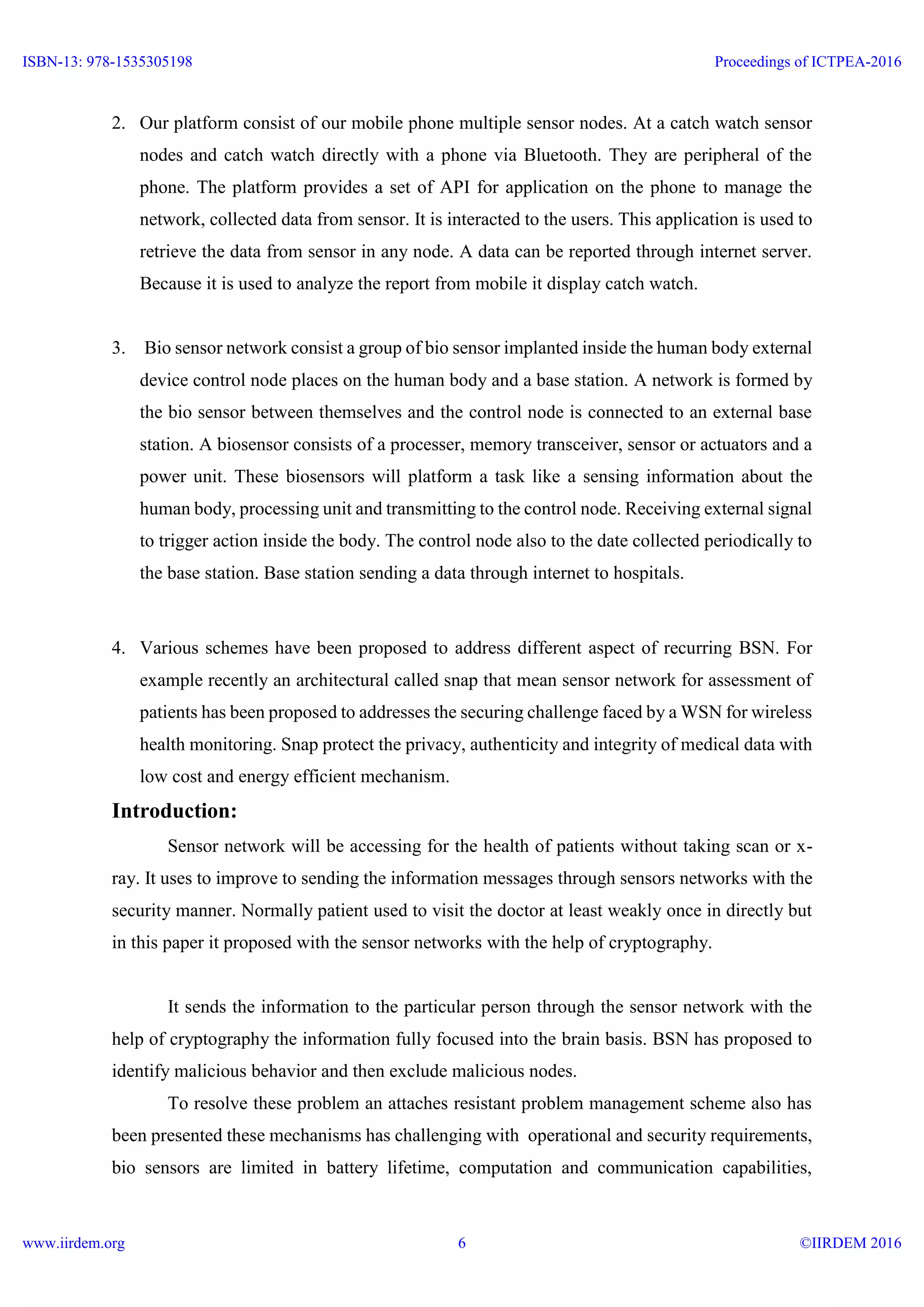

2. 2. Our platform consist of our mobile phone multiple sensor nodes. At a catch watch sensor
nodes and catch watch directly with a phone via Bluetooth. They are peripheral of the
phone. The platform provides a set of API for application on the phone to manage the
network, collected data from sensor. It is interacted to the users. This application is used to
retrieve the data from sensor in any node. A data can be reported through internet server.
Because it is used to analyze the report from mobile it display catch watch.
3. Bio sensor network consist a group of bio sensor implanted inside the human body external
device control node places on the human body and a base station. A network is formed by
the bio sensor between themselves and the control node is connected to an external base
station. A biosensor consists of a processer, memory transceiver, sensor or actuators and a
power unit. These biosensors will platform a task like a sensing information about the
human body, processing unit and transmitting to the control node. Receiving external signal
to trigger action inside the body. The control node also to the date collected periodically to
the base station. Base station sending a data through internet to hospitals.
4. Various schemes have been proposed to address different aspect of recurring BSN. For
example recently an architectural called snap that mean sensor network for assessment of
patients has been proposed to addresses the securing challenge faced by a WSN for wireless
health monitoring. Snap protect the privacy, authenticity and integrity of medical data with
low cost and energy efficient mechanism.
Introduction:
Sensor network will be accessing for the health of patients without taking scan or x-
ray. It uses to improve to sending the information messages through sensors networks with the
security manner. Normally patient used to visit the doctor at least weakly once in directly but
in this paper it proposed with the sensor networks with the help of cryptography.
It sends the information to the particular person through the sensor network with the
help of cryptography the information fully focused into the brain basis. BSN has proposed to
identify malicious behavior and then exclude malicious nodes.
To resolve these problem an attaches resistant problem management scheme also has
been presented these mechanisms has challenging with operational and security requirements,
bio sensors are limited in battery lifetime, computation and communication capabilities,
ISBN-13: 978-1535305198
www.iirdem.org
Proceedings of ICTPEA-2016
©IIRDEM 20166

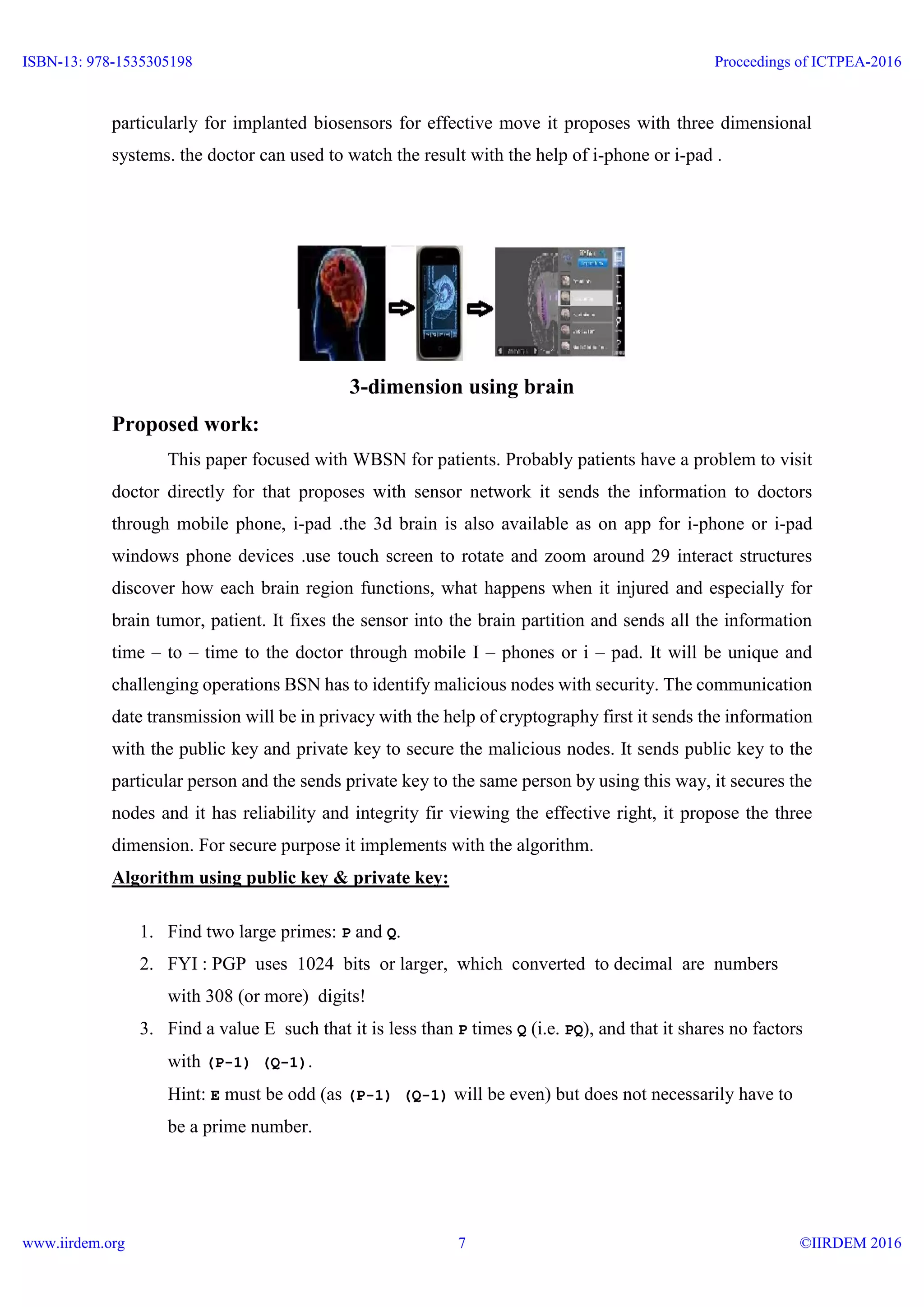

3. particularly for implanted biosensors for effective move it proposes with three dimensional
systems. the doctor can used to watch the result with the help of i-phone or i-pad .
3-dimension using brain
Proposed work:
This paper focused with WBSN for patients. Probably patients have a problem to visit
doctor directly for that proposes with sensor network it sends the information to doctors
through mobile phone, i-pad .the 3d brain is also available as on app for i-phone or i-pad
windows phone devices .use touch screen to rotate and zoom around 29 interact structures
discover how each brain region functions, what happens when it injured and especially for
brain tumor, patient. It fixes the sensor into the brain partition and sends all the information
time – to – time to the doctor through mobile I – phones or i – pad. It will be unique and
challenging operations BSN has to identify malicious nodes with security. The communication
date transmission will be in privacy with the help of cryptography first it sends the information
with the public key and private key to secure the malicious nodes. It sends public key to the
particular person and the sends private key to the same person by using this way, it secures the
nodes and it has reliability and integrity fir viewing the effective right, it propose the three
dimension. For secure purpose it implements with the algorithm.
Algorithm using public key & private key:
1. Find two large primes: P and Q.
2. FYI : PGP uses 1024 bits or larger, which converted to decimal are numbers
with 308 (or more) digits!
3. Find a value E such that it is less than P times Q (i.e. PQ), and that it shares no factors
with (P-1) (Q-1).
Hint: E must be odd (as (P-1) (Q-1) will be even) but does not necessarily have to
be a prime number.
ISBN-13: 978-1535305198
www.iirdem.org
Proceedings of ICTPEA-2016
©IIRDEM 20167

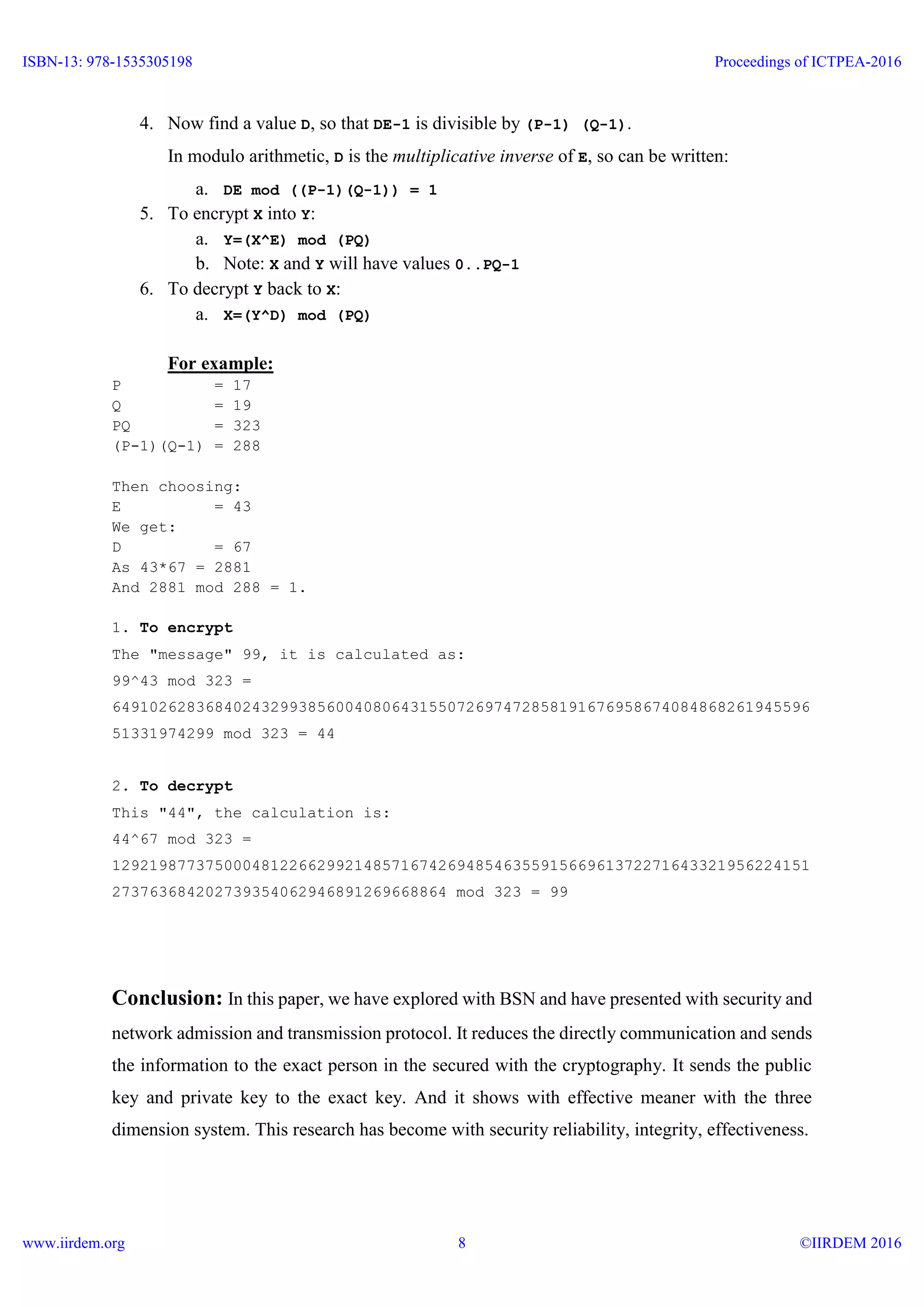

4. 4. Now find a value D, so that DE-1 is divisible by (P-1) (Q-1).
In modulo arithmetic, D is the multiplicative inverse of E, so can be written:
a. DE mod ((P-1)(Q-1)) = 1
5. To encrypt X into Y:
a. Y=(X^E) mod (PQ)
b. Note: X and Y will have values 0..PQ-1
6. To decrypt Y back to X:
a. X=(Y^D) mod (PQ)
For example:
P = 17
Q = 19
PQ = 323
(P-1)(Q-1) = 288
Then choosing:
E = 43
We get:
D = 67
As 43*67 = 2881
And 2881 mod 288 = 1.
1. To encrypt
The "message" 99, it is calculated as:
99^43 mod 323 =
649102628368402432993856004080643155072697472858191676958674084868261945596
51331974299 mod 323 = 44
2. To decrypt
This "44", the calculation is:
44^67 mod 323 =
129219877375000481226629921485716742694854635591566961372271643321956224151
273763684202739354062946891269668864 mod 323 = 99
Conclusion: In this paper, we have explored with BSN and have presented with security and
network admission and transmission protocol. It reduces the directly communication and sends
the information to the exact person in the secured with the cryptography. It sends the public
key and private key to the exact key. And it shows with effective meaner with the three
dimension system. This research has become with security reliability, integrity, effectiveness.
ISBN-13: 978-1535305198
www.iirdem.org
Proceedings of ICTPEA-2016
©IIRDEM 20168

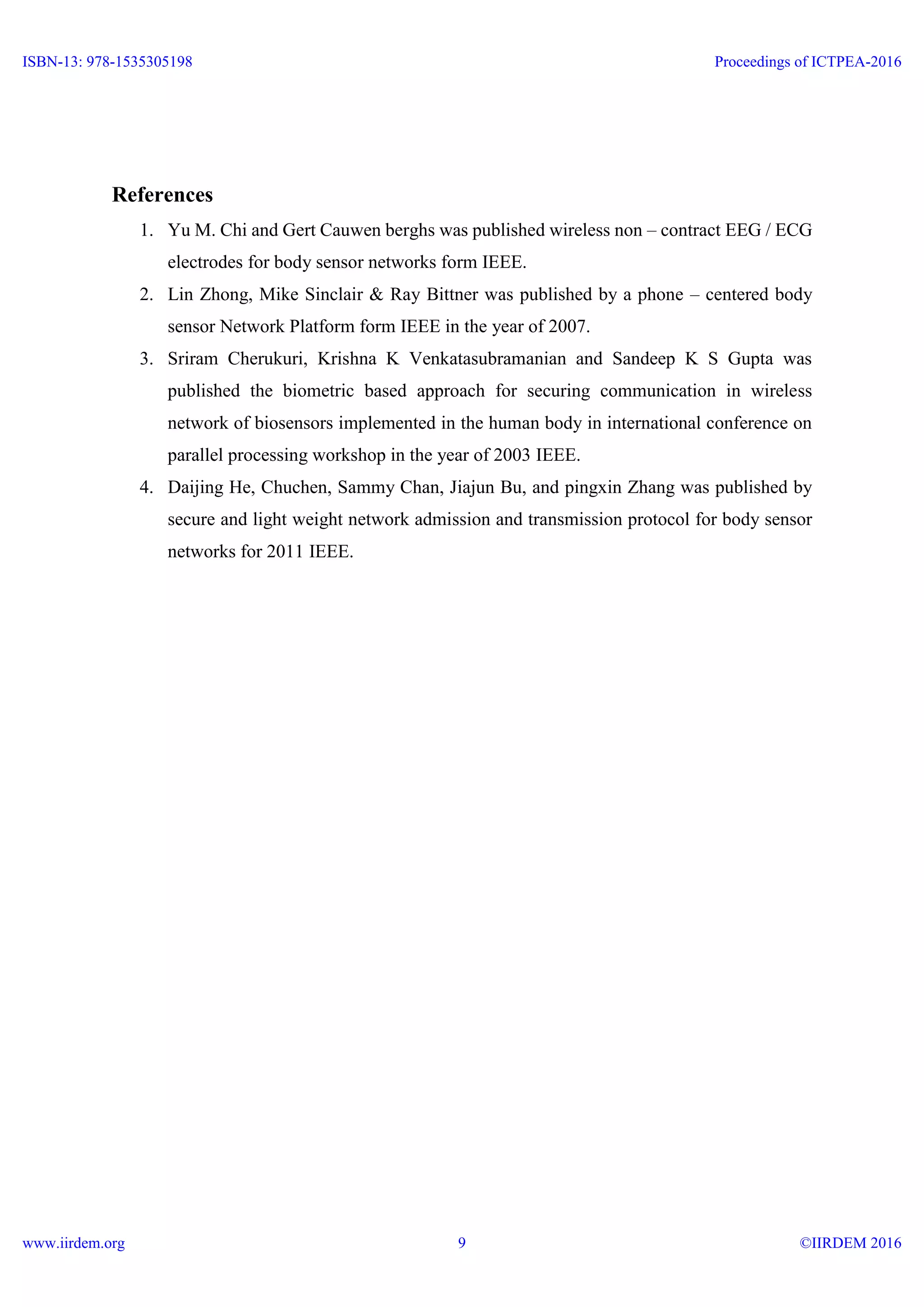

5. References
1. Yu M. Chi and Gert Cauwen berghs was published wireless non – contract EEG / ECG
electrodes for body sensor networks form IEEE.
2. Lin Zhong, Mike Sinclair & Ray Bittner was published by a phone – centered body
sensor Network Platform form IEEE in the year of 2007.
3. Sriram Cherukuri, Krishna K Venkatasubramanian and Sandeep K S Gupta was
published the biometric based approach for securing communication in wireless
network of biosensors implemented in the human body in international conference on
parallel processing workshop in the year of 2003 IEEE.
4. Daijing He, Chuchen, Sammy Chan, Jiajun Bu, and pingxin Zhang was published by
secure and light weight network admission and transmission protocol for body sensor
networks for 2011 IEEE.
