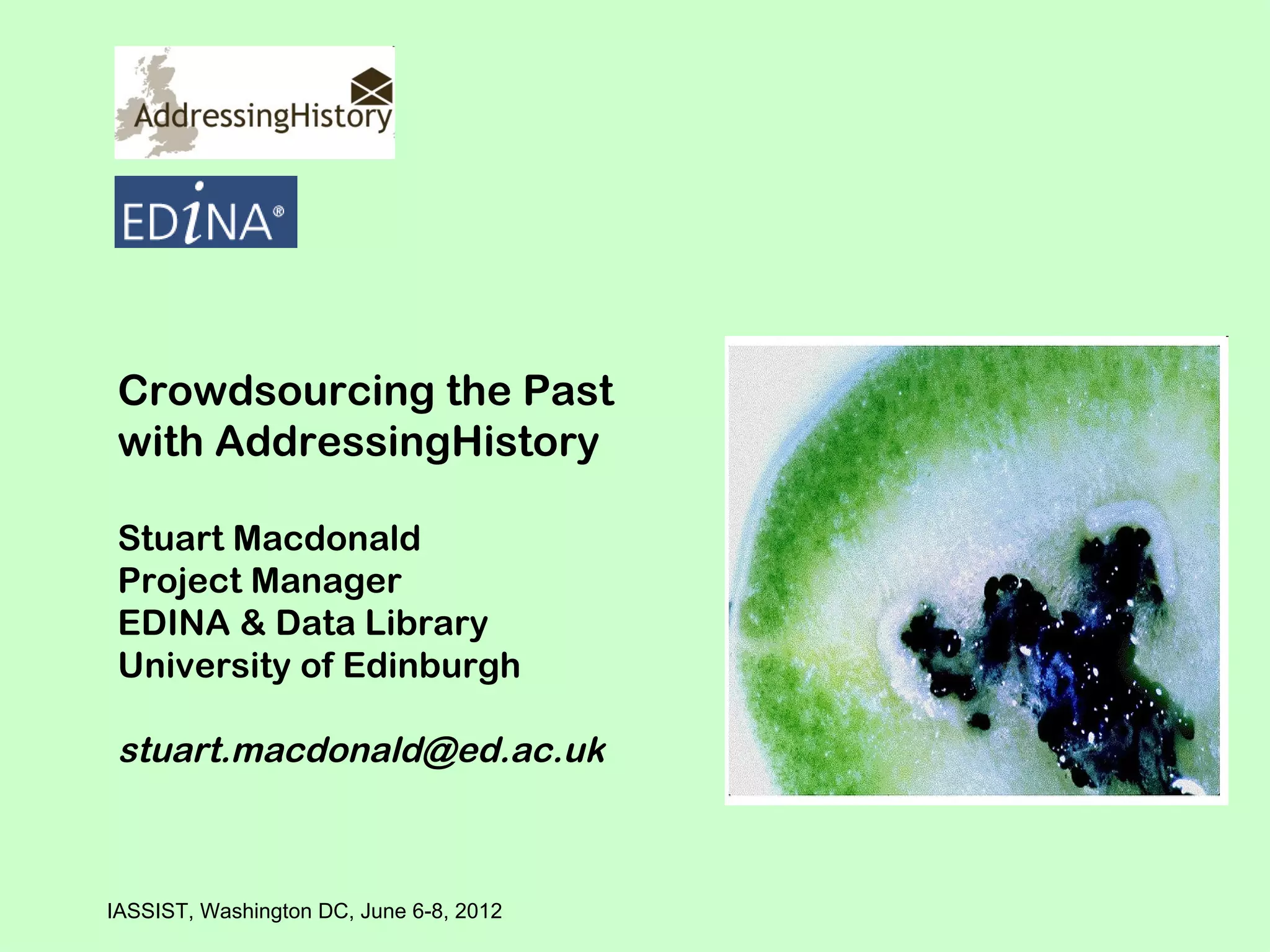

1. Crowdsourcing the Past
with AddressingHistory
Stuart Macdonald
Project Manager
EDINA & Data Library
University of Edinburgh
stuart.macdonald@ed.ac.uk
IASSIST, Washington DC, June 6-8, 2012

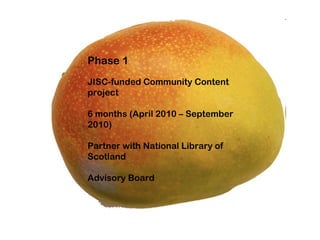

2. Phase 1
JISC-funded Community Content
project
6 months (April 2010 – September
2010)
Partner with National Library of
Scotland
Advisory Board

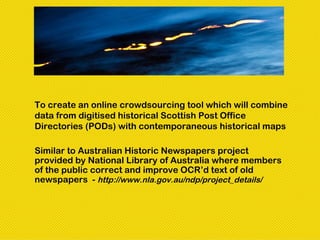

3. To create an online crowdsourcing tool which will combine
data from digitised historical Scottish Post Office
Directories (PODs) with contemporaneous historical maps
Similar to Australian Historic Newspapers project
provided by National Library of Australia where members
of the public correct and improve OCR’d text of old
newspapers - http://www.nla.gov.au/ndp/project_details/
4. PODs offer a fine-grained spatial
and temporal view on social,
economic and demographic
circumstances
They also provide residential
names, occupations, and
addresses.
Each contain 3 directories:
general, street, and trades
5. Phase 1 focussed on 3 vols. of
Edinburgh PODs: 1784-5; 1865;
1905-6
Historic Scottish maps geo-
referenced by NLS
PODs digitised by NLS in
conjunction with the Internet
Archive
694 PODs (1773 to 1911) covering
28 of Scotland's towns and
counties now online
Public domain (CC BY-NC-SA 2.5)

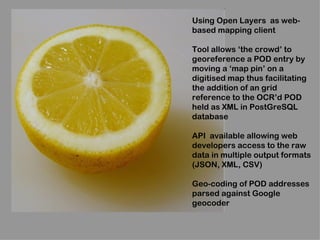

6. Using Open Layers as web-
based mapping client
Tool allows ‘the crowd’ to
georeference a POD entry by
moving a ‘map pin’ on a
digitised map thus facilitating
the addition of an grid
reference to the OCR’d POD
held as XML in PostGreSQL
database
API available allowing web
developers access to the raw
data in multiple output formats
(JSON, XML, CSV)
Geo-coding of POD addresses
parsed against Google
geocoder
7. Interface had to be easy-to-use for a
range of users
Robust and scalable to accommodate
c.700 digitised Scottish PODs
Mechanism to check user-generated
content such as geo-references, name or
address edits/annotations
View original scanned directory page
Amplification of tool and API via Social
Media Channels – Facebook, Twitter,
Blog, Flickr, YouTube
Image by yelnoc - http://www.flickr.com/photos/yelnoc/361303918/ - CC BY-NC-SA 2.0

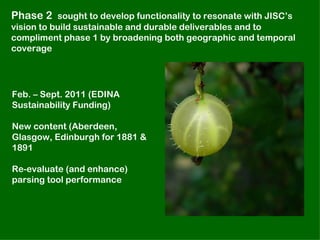

8. Phase 2 sought to develop functionality to resonate with JISC’s
vision to build sustainable and durable deliverables and to
compliment phase 1 by broadening both geographic and temporal
coverage
Feb. – Sept. 2011 (EDINA
Sustainability Funding)
New content (Aberdeen,
Glasgow, Edinburgh for 1881 &
1891
Re-evaluate (and enhance)
parsing tool performance

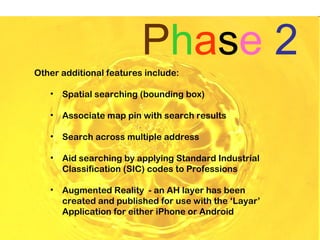

9. Phase 2
Other additional features include:
• Spatial searching (bounding box)
• Associate map pin with search results
• Search across multiple address
• Aid searching by applying Standard Industrial
Classification (SIC) codes to Professions
• Augmented Reality - an AH layer has been
created and published for use with the ‘Layar’
Application for either iPhone or Android

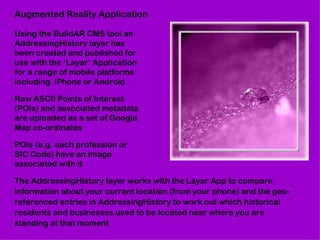

10. Augmented Reality Application
Using the BuildAR CMS tool an
AddressingHistory layer has
been created and published for
use with the ‘Layar’ Application
for a range of mobile platforms
including iPhone or Android
Raw ASCII Points of Interest
(POIs) and associated metadata
are uploaded as a set of Google
Map co-ordinates
POIs (e.g. each profession or
SIC Code) have an image
associated with it
The AddressingHistory layer works with the Layar App to compare
information about your current location (from your phone) and the geo-
referenced entries in AddressingHistory to work out which historical
residents and businesses used to be located near where you are
standing at that moment

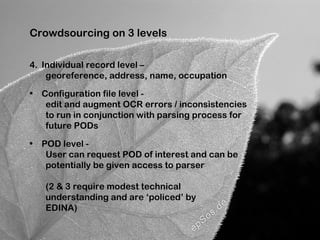

11. Crowdsourcing on 3 levels
4. Individual record level –
georeference, address, name, occupation
• Configuration file level -
edit and augment OCR errors / inconsistencies
to run in conjunction with parsing process for
future PODs
• POD level -
User can request POD of interest and can be
potentially be given access to parser
(2 & 3 require modest technical
understanding and are ‘policed’ by
EDINA)

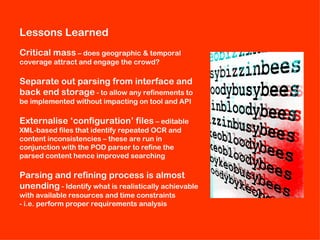

12. Lessons Learned
Critical mass – does geographic & temporal
coverage attract and engage the crowd?
Separate out parsing from interface and
back end storage - to allow any refinements to
be implemented without impacting on tool and API
Externalise ‘configuration’ files – editable
XML-based files that identify repeated OCR and
content inconsistencies – these are run in
conjunction with the POD parser to refine the
parsed content hence improved searching
Parsing and refining process is almost
unending - Identify what is realistically achievable
with available resources and time constraints
- i.e. perform proper requirements analysis

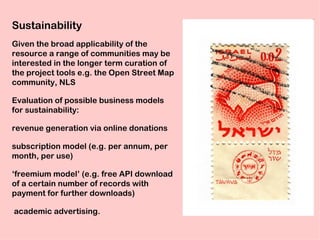

13. Sustainability
Given the broad applicability of the
resource a range of communities may be
interested in the longer term curation of
the project tools e.g. the Open Street Map
community, NLS
Evaluation of possible business models
for sustainability:
revenue generation via online donations
subscription model (e.g. per annum, per
month, per use)
‘freemium model’ (e.g. free API download
of a certain number of records with
payment for further downloads)
academic advertising.

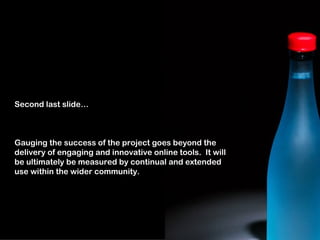

14. Second last slide…
Gauging the success of the project goes beyond the
delivery of engaging and innovative online tools. It will
be ultimately be measured by continual and extended
use within the wider community.

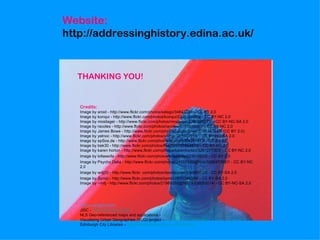

15. Website:
http://addressinghistory.edina.ac.uk/
THANKING YOU!
Credits:
Image by aroid - http://www.flickr.com/photos/selago/34843234/ - CC BY 2.0
Image by konqui - http://www.flickr.com/photos/konqui/2301314089/ - CC BY-NC 2.0
Image by mosilager - http://www.flickr.com/photos/mosilager/2260598271/ - CC BY-NC-SA 2.0
Image by racoles - http://www.flickr.com/photos/racoles/5719938981/ - CC BY-NC 2.0
Image by James Bowe - http://www.flickr.com/photos/jamesrbowe/3351247547/ (CC BY 2.0)
Image by yelnoc - http://www.flickr.com/photos/yelnoc/361303918/ - CC BY-NC-SA 2.0
Image by epSos.de - http://www.flickr.com/photos/epsos/3384297473/ - CC BY 2.0
Image by bek30 - http://www.flickr.com/photos/bek30/6107854810/ - CC BY-NC 2.0
Image by karen horton - http://www.flickr.com/photos/karenhorton/3261277303/ - CC BY-NC 2.0
Image by lofaesofa - http://www.flickr.com/photos/lofaesofa/227019975/ - CC BY 2.0
Image by Psycho Delia - http://www.flickr.com/photos/24557420@N05/5588473657/ - CC BY-NC
2.0
Image by wdj(0) - http://www.flickr .com/photos/davidjoyner/534893725/ - CC BY-SA 2.0
Image by Symic - http://www.flickr.com/photos/symic/2870349309/ - CC BY-SA 2.0
Image by ~milj - http://www.flickr.com/photos/21989292@N07/4938052014/ - CC BY-NC-SA 2.0
Acknowledgements:
JISC - http://www.jisc.ac.uk/
NLS Geo-referenced maps and applications - http://geo.nls.uk/
Visualising Urban Geographies (VUG) project – http://geo.nls.uk/urbhist/
Edinburgh City Libraries – http://www.edinburgh.gov.uk/libraries/
Editor's Notes
UK Digitisation programme Developing Community Content strand of the JISC Digitisation and e-Content programme Welsh Voices of the Great War in Wales – Cardiff University
Based on web 2.0 principles Galaxy Zoo is an online astronomy project which invites members of the public to assist in classifying over sixty million galaxies Old Weather is a web-based effort to transcribe weather observations made by Royal Navy ships around the time of World War I
Bank directory listing banks and banking companies Educational directory listing educational institutions and teachers by their subject Law directory listing juridical institutions and practitioners Medical directory listing medical and surgical institutions and practitioners Insurance directory listing insurance companies Rich source of adverts which give an idea as to lifestyles, spending habits, Of interest to genealogists, local or family historians, academic researchers
44,000 historical maps of Scotland, 500 of Edinburgh and its environs – county maps, town plans, admiralty charts (coastline), military maps, Historic OS series Images, OCR text Creative Commons licences - IPR free - Attribution-NonCommercial-ShareAlike 2.5 UK: Scotland Internet Archive team based at the National Library of Scotland for scanning the Scottish Post office Directories used in the project.
Registered users
Identify and fix line returns, identify which fields belong to which column, Fix OCR errors – list of search patters and their replace strings (for names, professions, addresses XML files) Name stop words to remove commercial entries
POI’s in this case are POD entries – namely Address, Name and profession
Act as an interface for Public and community engagement with academic research and research based deliverables We need the power of the crowd to ensure that the tool and sundry utilities reach their full potential
Critical Mass – it could be argued that the geographical & temporal coverage provided by AH doesn’t provide the critical mass of content required to attract and engage ‘the crowd’? This is borne out in our usage stats (and registered users) – which whilst not small were modest
