Hydrogen fuel cells generate electricity through an electrochemical reaction of hydrogen and oxygen without combustion. They work like batteries and can provide power as long as they have a source of hydrogen fuel. A hydrogen fuel cell uses hydrogen as fuel, oxygen as an oxidant, a proton exchange membrane as the electrolyte, and produces only water as a byproduct. It has the potential to be more efficient than combustion engines and emits no harmful emissions. However, hydrogen fuel cells still face challenges related to production, storage and transportation of hydrogen as well as the high cost of platinum catalysts.

1. Hydrogen Fuel Cells
From- Vipan Kumar
1307570
B.Tech EE,7th
sem
Submitted To:
Mr. Akshay Agnihotri
Asst. Prof. EEdepartment

2. • Simplest element in universe- one proton and one
electron.
• Occurs naturally as a gas.
• Can be used to create energy through combustion or
use in fuel cells.
• Colorless
• Tasteless
• Odorless
• Slightly soluble in water
• Highly explosive

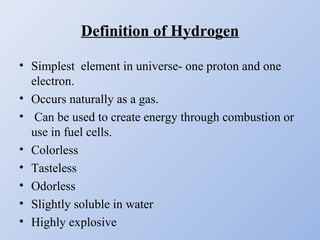

Definition of Hydrogen

3. Definition of Fuel Cell
• Produces electricity through a chemical reaction, but
without combustion.
• Converts hydrogen and oxygen into water.
2H2 + O2 → 2H2O
• Operates much like a battery, except they don’t
require electrical recharging.
• Can generate power almost indefinitely, as long as
they have fuel to use.

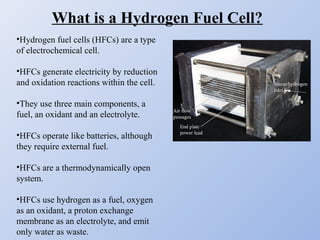

4. What is a Hydrogen Fuel Cell?
•Hydrogen fuel cells (HFCs) are a type
of electrochemical cell.
•HFCs generate electricity by reduction
and oxidation reactions within the cell.
•They use three main components, a
fuel, an oxidant and an electrolyte.
•HFCs operate like batteries, although
they require external fuel.
•HFCs are a thermodynamically open
system.
•HFCs use hydrogen as a fuel, oxygen
as an oxidant, a proton exchange
membrane as an electrolyte, and emit
only water as waste.

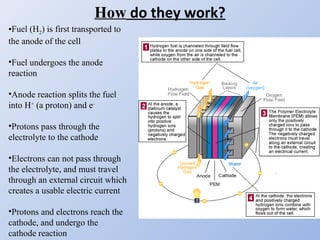

5. How do they work?
•Fuel (H2) is first transported to
the anode of the cell
•Fuel undergoes the anode
reaction
•Anode reaction splits the fuel
into H+
(a proton) and e-
•Protons pass through the
electrolyte to the cathode
•Electrons can not pass through
the electrolyte, and must travel
through an external circuit which
creates a usable electric current
•Protons and electrons reach the
cathode, and undergo the
cathode reaction

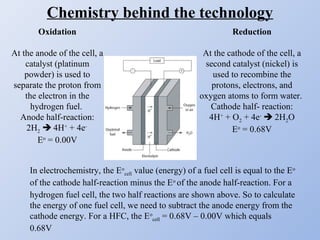

6. Chemistry behind the technology
Oxidation
At the anode of the cell, a
catalyst (platinum
powder) is used to
separate the proton from
the electron in the
hydrogen fuel.
Anode half-reaction:
2H2  4H+
+ 4e-
Eo
= 0.00V
Reduction
At the cathode of the cell, a
second catalyst (nickel) is
used to recombine the
protons, electrons, and
oxygen atoms to form water.
Cathode half- reaction:
4H+
+ O2 + 4e-
 2H2O
Eo
= 0.68V
In electrochemistry, the Eo
cell value (energy) of a fuel cell is equal to the Eo
of the cathode half-reaction minus the Eo
of the anode half-reaction. For a
hydrogen fuel cell, the two half reactions are shown above. So to calculate
the energy of one fuel cell, we need to subtract the anode energy from the
cathode energy. For a HFC, the Eo
cell = 0.68V – 0.00V which equals
0.68V

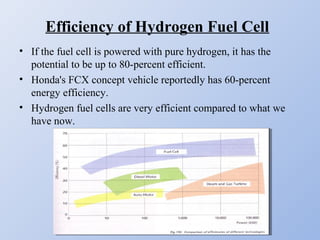

7. Efficiency of Hydrogen Fuel Cell
• If the fuel cell is powered with pure hydrogen, it has the
potential to be up to 80-percent efficient.
• Honda's FCX concept vehicle reportedly has 60-percent
energy efficiency.
• Hydrogen fuel cells are very efficient compared to what we
have now.

8. Hydrogen Technology Development in
India
• Production of hydrogen by photo electrolysis of water
using solar energy.
• Production of hydrogen by blue green algae & by
certain bacterial species.
• Storage of hydrogen through metal hydride/non-metal
hydride.
• Problems relating to utilization of hydrogen as a fuel,
i.e., developed for certain engines and fuel etc.
• Liquid hydrogen production, storage and utilization.

9. Uses of Hydrogen Fuel Cells
There are many different uses of fuel cells being utilized right now. Some of
these uses are:
•Power sources for vehicles such as cars, trucks, buses and even boats and
submarines
•Power sources for spacecraft, remote weather stations and military technology
•Batteries for electronics such as laptops and smart phones
•Sources for uninterruptable power supplies.

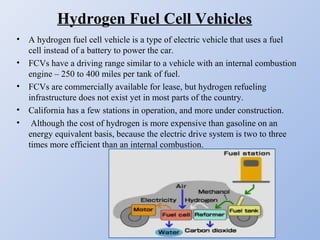

10. Hydrogen Fuel Cell Vehicles
• A hydrogen fuel cell vehicle is a type of electric vehicle that uses a fuel
cell instead of a battery to power the car.
• FCVs have a driving range similar to a vehicle with an internal combustion
engine – 250 to 400 miles per tank of fuel.
• FCVs are commercially available for lease, but hydrogen refueling
infrastructure does not exist yet in most parts of the country.
• California has a few stations in operation, and more under construction.
• Although the cost of hydrogen is more expensive than gasoline on an
energy equivalent basis, because the electric drive system is two to three
times more efficient than an internal combustion.

11. Hydrogen Fuel Cell Vehicles

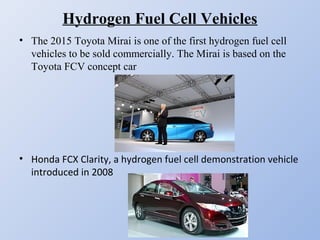

• The 2015 Toyota Mirai is one of the first hydrogen fuel cell
vehicles to be sold commercially. The Mirai is based on the
Toyota FCV concept car
• Honda FCX Clarity, a hydrogen fuel cell demonstration vehicle
introduced in 2008

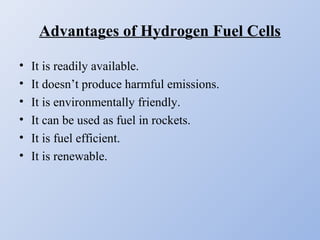

12. Advantages of Hydrogen Fuel Cells
• It is readily available.
• It doesn’t produce harmful emissions.
• It is environmentally friendly.
• It can be used as fuel in rockets.
• It is fuel efficient.
• It is renewable.

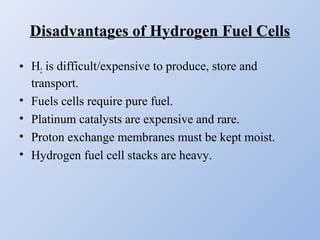

13. Disadvantages of Hydrogen Fuel Cells
• H2 is difficult/expensive to produce, store and
transport.
• Fuels cells require pure fuel.
• Platinum catalysts are expensive and rare.
• Proton exchange membranes must be kept moist.
• Hydrogen fuel cell stacks are heavy.

14. Problems regarding Hydrogen Fuel Cells
Lack of hydrogen infrastructure
•Need for refueling stations
•Lack of consumer distribution system
Cost of hydrogen fuel cells
•2009 Department of Energy estimated $61/kw
•Honda FCX Clarity costs about half a million dollars to make
Carbon cost of producing hydrogen
Problems with HFC cars
•Short range (~260 miles)
•Warm up time (~5 minutes)

15. The Future of Hydrogen
• In the future, hydrogen will join electricity as an
important energy carrier, since it can be made safely
from renewable energy sources and is virtually non-
polluting.
• It will also be used as a fuel for ‘zero-emissions’
vehicles, to heat homes and offices, to produce
electricity, and to fuel aircraft.
• Hydrogen has great potential as a way to reduce
reliance on imported energy sources such as oil

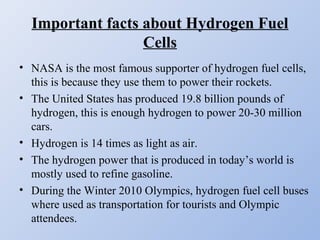

16. Important facts about Hydrogen Fuel
Cells
• NASA is the most famous supporter of hydrogen fuel cells,
this is because they use them to power their rockets.
• The United States has produced 19.8 billion pounds of
hydrogen, this is enough hydrogen to power 20-30 million
cars.
• Hydrogen is 14 times as light as air.
• The hydrogen power that is produced in today’s world is
mostly used to refine gasoline.
• During the Winter 2010 Olympics, hydrogen fuel cell buses
where used as transportation for tourists and Olympic
attendees.
