1. HIGH PERFORMANCE THIN LAYER
CHROMATOGRAPHY(HPTLC)
Presented By :
Swati .V. Sahani
First Year M.Pharm(sem-1)
Orential College Of Pharmacy
Under the guidance of
Mr Sayyed Mateen Sayyed Moin
1

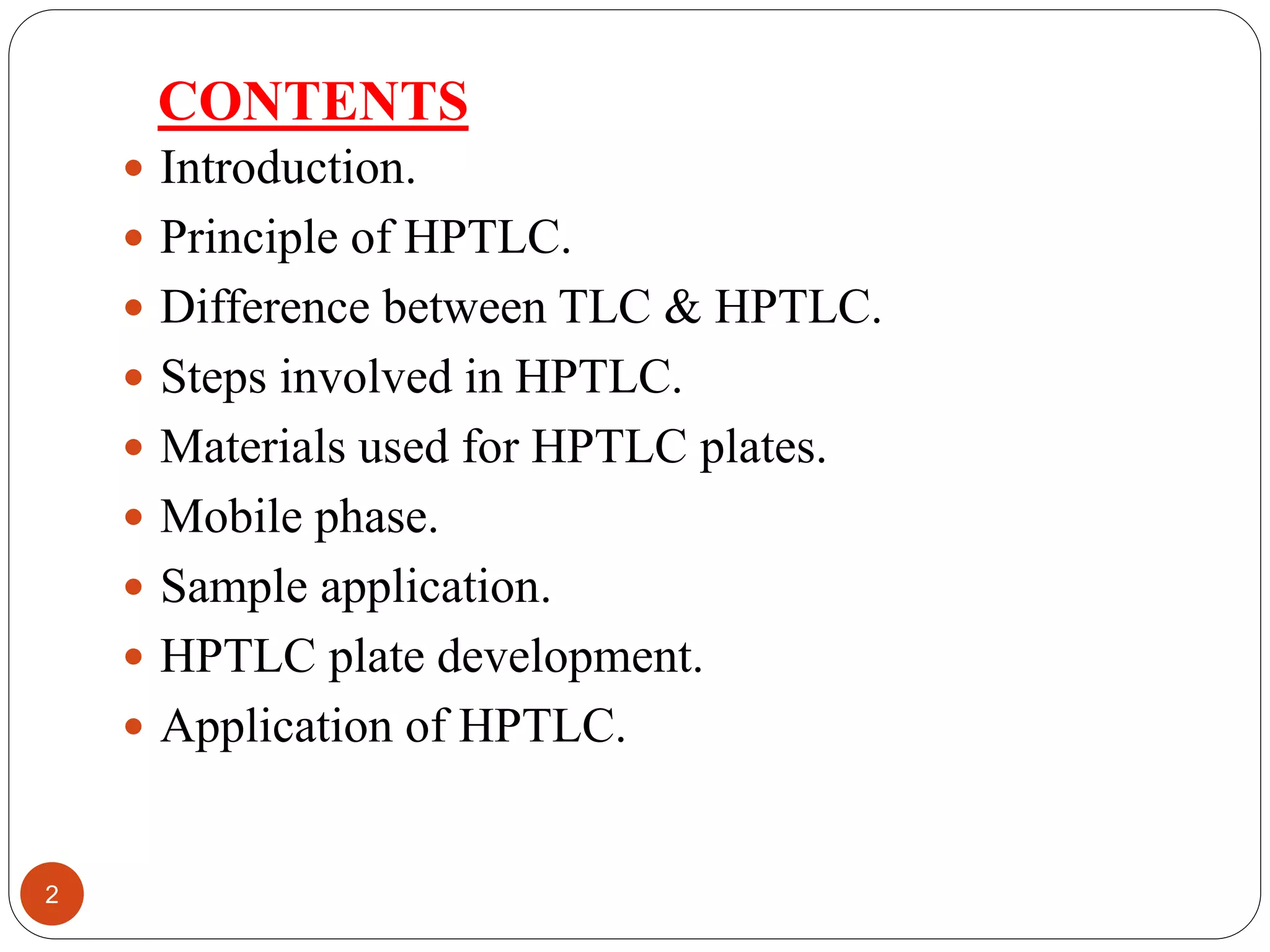

2. CONTENTS
Introduction.
Principle of HPTLC.
Difference between TLC & HPTLC.
Steps involved in HPTLC.
Materials used for HPTLC plates.
Mobile phase.
Sample application.
HPTLC plate development.
Application of HPTLC.
2
3. INTRODUCTION
Chromatography is physical method of separation in
which the components to be separated are distributed
between two phase, one of which is stationary phase
while the other mobile phase moves in a definite
direction
Types of Chromatographic Techniques
3

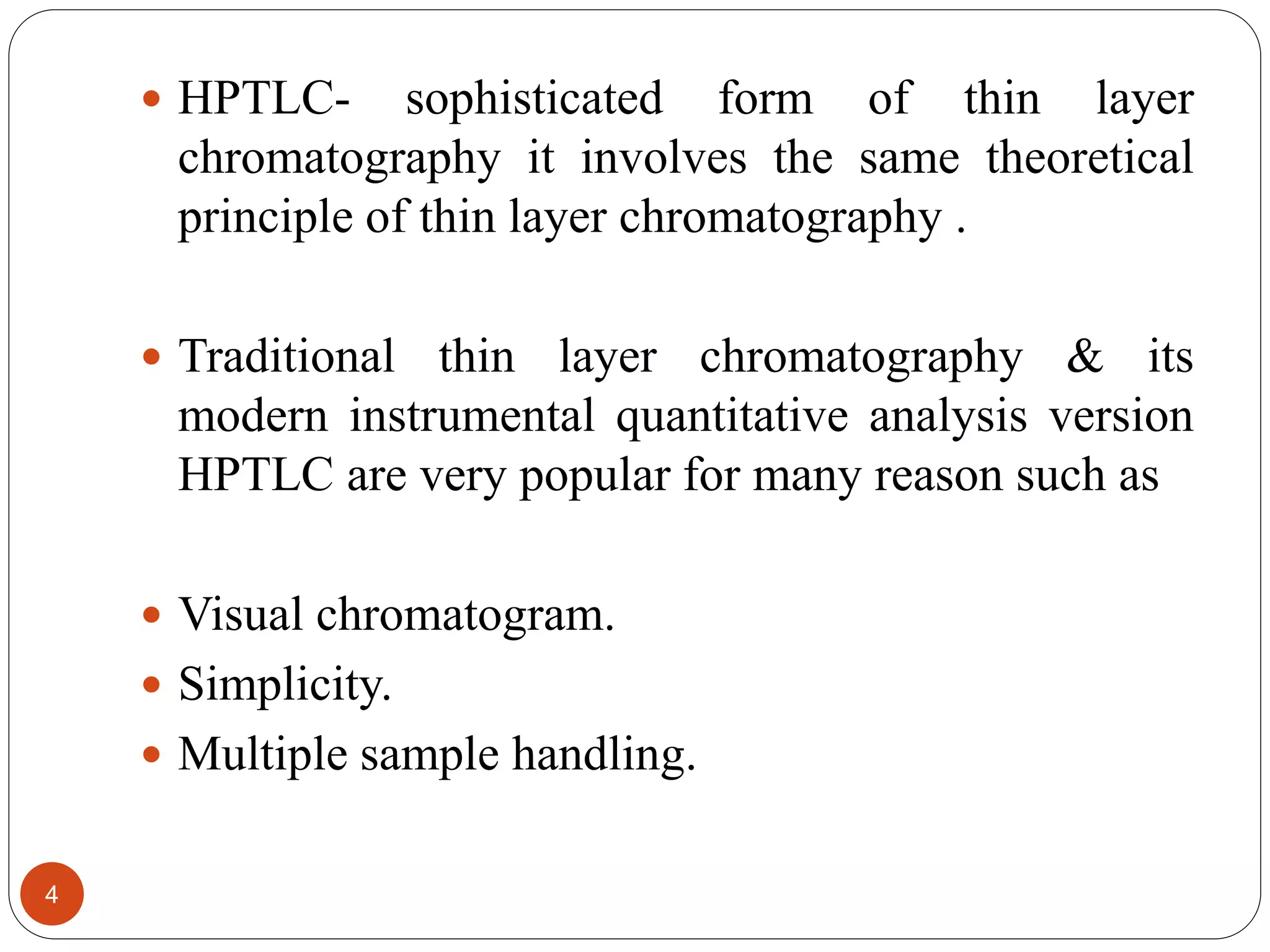

4. HPTLC- sophisticated form of thin layer
chromatography it involves the same theoretical
principle of thin layer chromatography .
Traditional thin layer chromatography & its
modern instrumental quantitative analysis version
HPTLC are very popular for many reason such as
Visual chromatogram.
Simplicity.
Multiple sample handling.
4

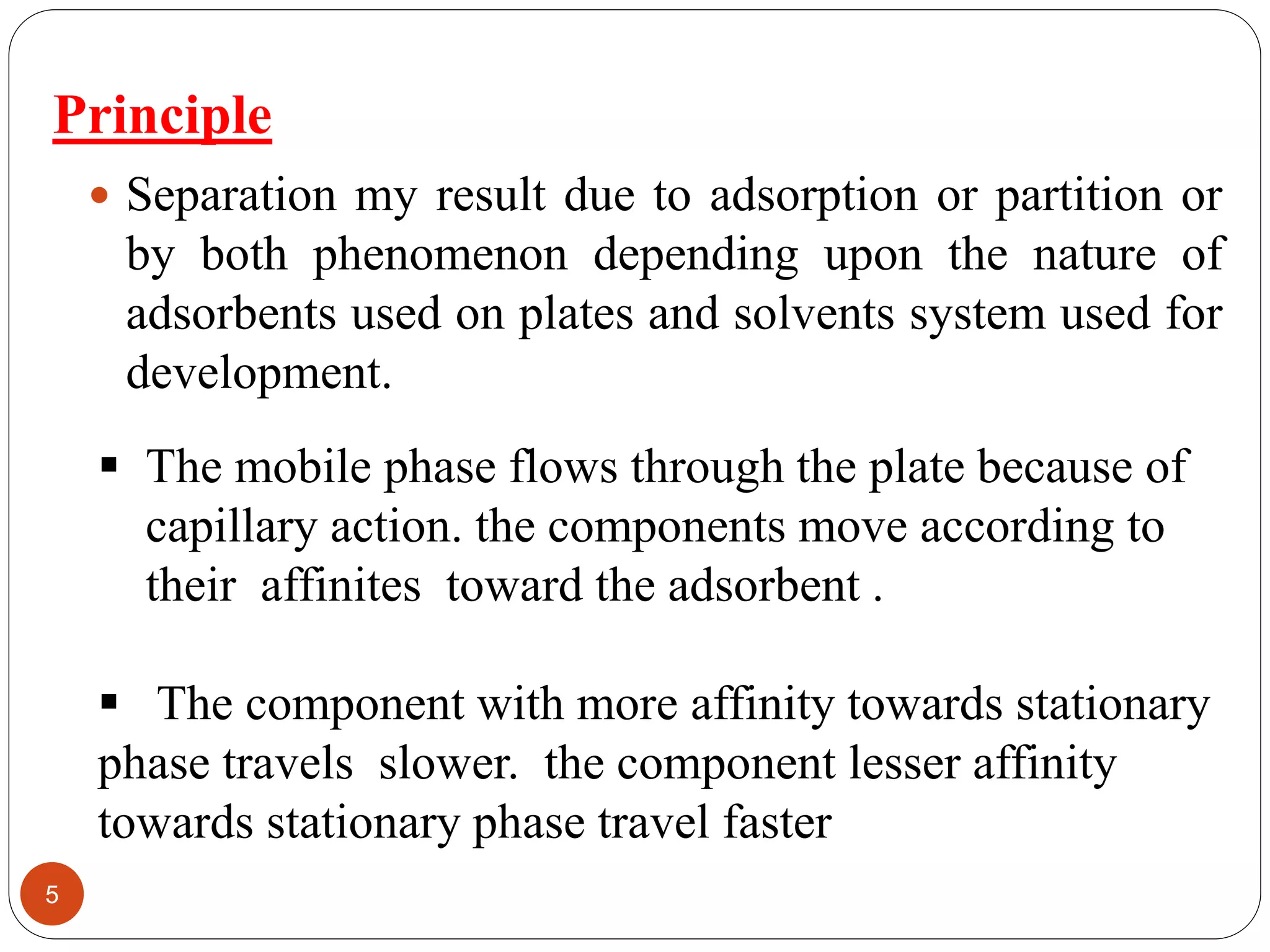

5. Principle
Separation my result due to adsorption or partition or
by both phenomenon depending upon the nature of
adsorbents used on plates and solvents system used for
development.
The mobile phase flows through the plate because of
capillary action. the components move according to
their affinites toward the adsorbent .
The component with more affinity towards stationary
phase travels slower. the component lesser affinity
towards stationary phase travel faster
5
7. Features of HPTLC
Simultaneous processing of sample and standard –better analytical.
precision and accuracy, less need of internal standard.
Low analysis time and less cost per analysis
Low maintenance cost.
Simple sample preparation.
Low mobile phase consumption per sample .
No interference for previous analysis –fresh stationary and mobile.
phase for each analysis-no contamination.
Visual detection possible.
7
8. Steps involved in HPTLC
Selection of chromatographic plates (HPTLC plates)
Selection of chromatographic layer
Pre washing of plates
Activation of HPTLC plates
Layer pre-conditioning
Application of sample and standard
Chromatographic development
Detection of spots
scanning
8

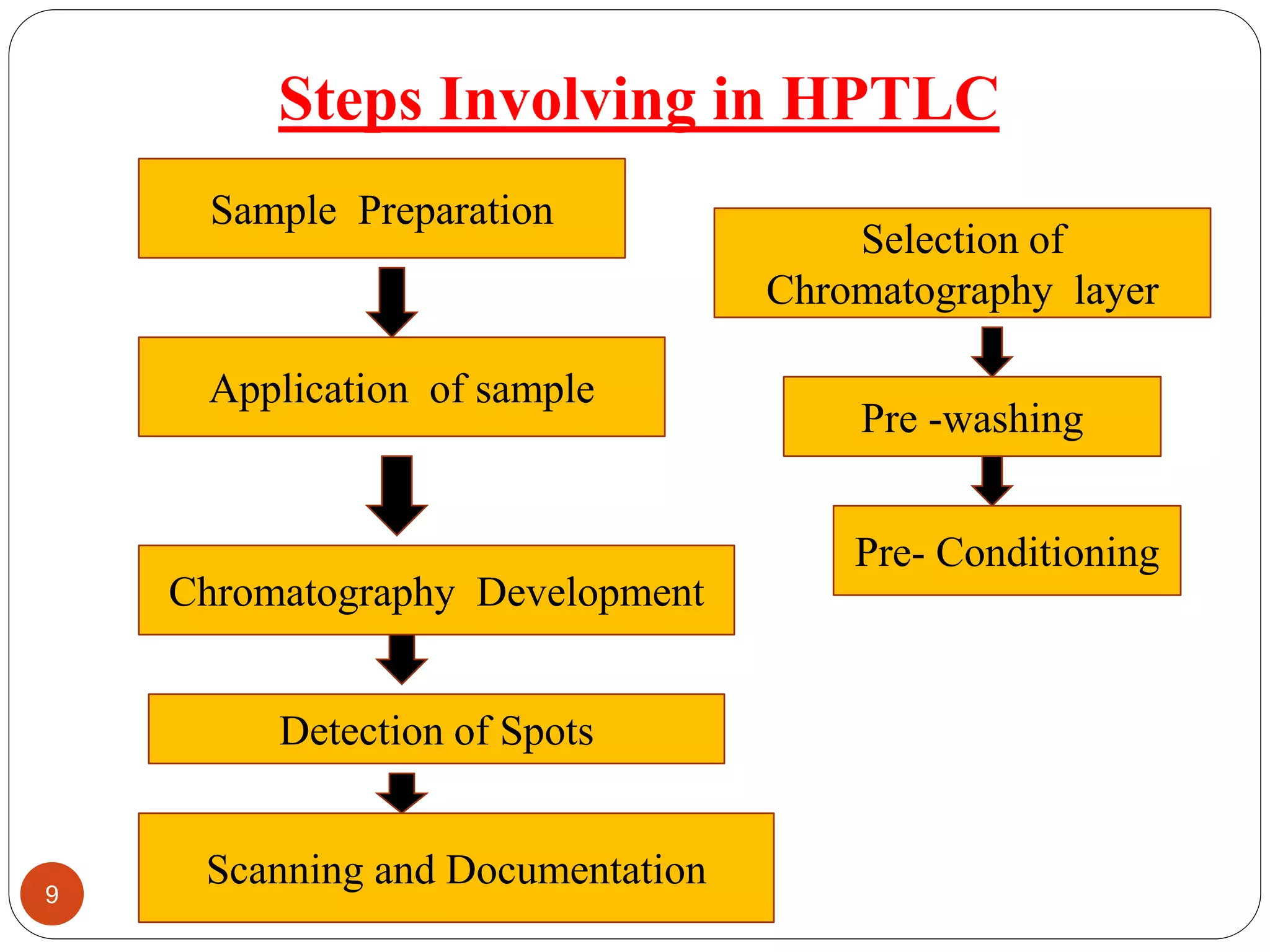

9. Steps Involving in HPTLC
Sample Preparation
Application of sample
Chromatography Development
Detection of Spots
Selection of
Chromatography layer
Pre -washing
Pre- Conditioning
Scanning and Documentation9
10. Selection Of Chromatography Plates
Hand Made Plates
Pre Coated Plates
Hand Made Plates
Cellulose
Cellulose with binder starch
Silica gel with starch
Acetylated cellulose + CaSO4 ½ H2O
10

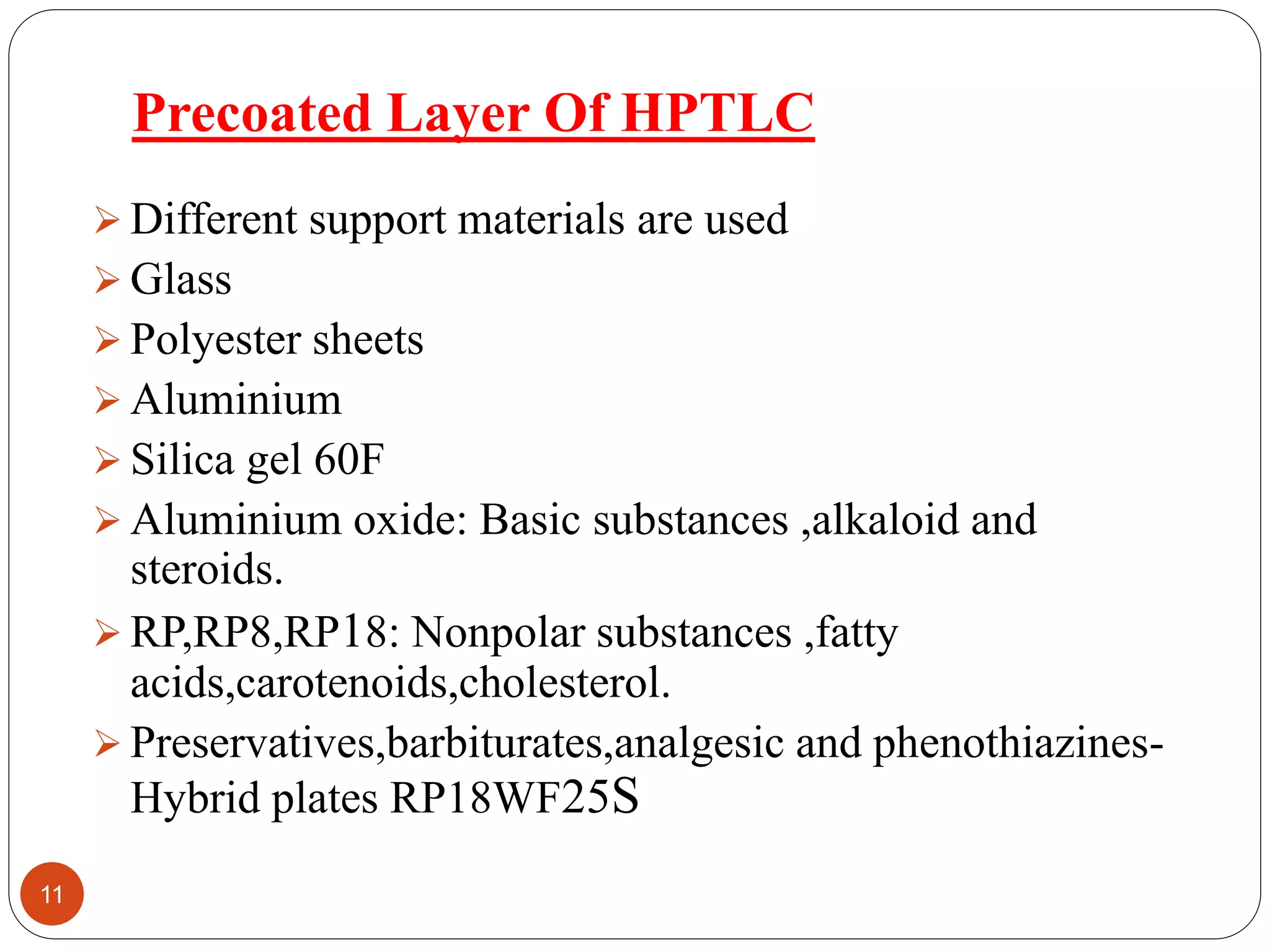

11. Precoated Layer Of HPTLC
Different support materials are used
Glass
Polyester sheets
Aluminium
Silica gel 60F
Aluminium oxide: Basic substances ,alkaloid and
steroids.
RP,RP8,RP18: Nonpolar substances ,fatty
acids,carotenoids,cholesterol.
Preservatives,barbiturates,analgesic and phenothiazines-
Hybrid plates RP18WF25S
11
12. Sample And Standard Preparation
Sample and standard should dissolved in the same
solvent to ensure comparable distribution at
stationary zones.
For normal phase chromatography solvent for
dissolving the sample should be non polar.
For reverse phase chromatography polar solvents
are used.
12

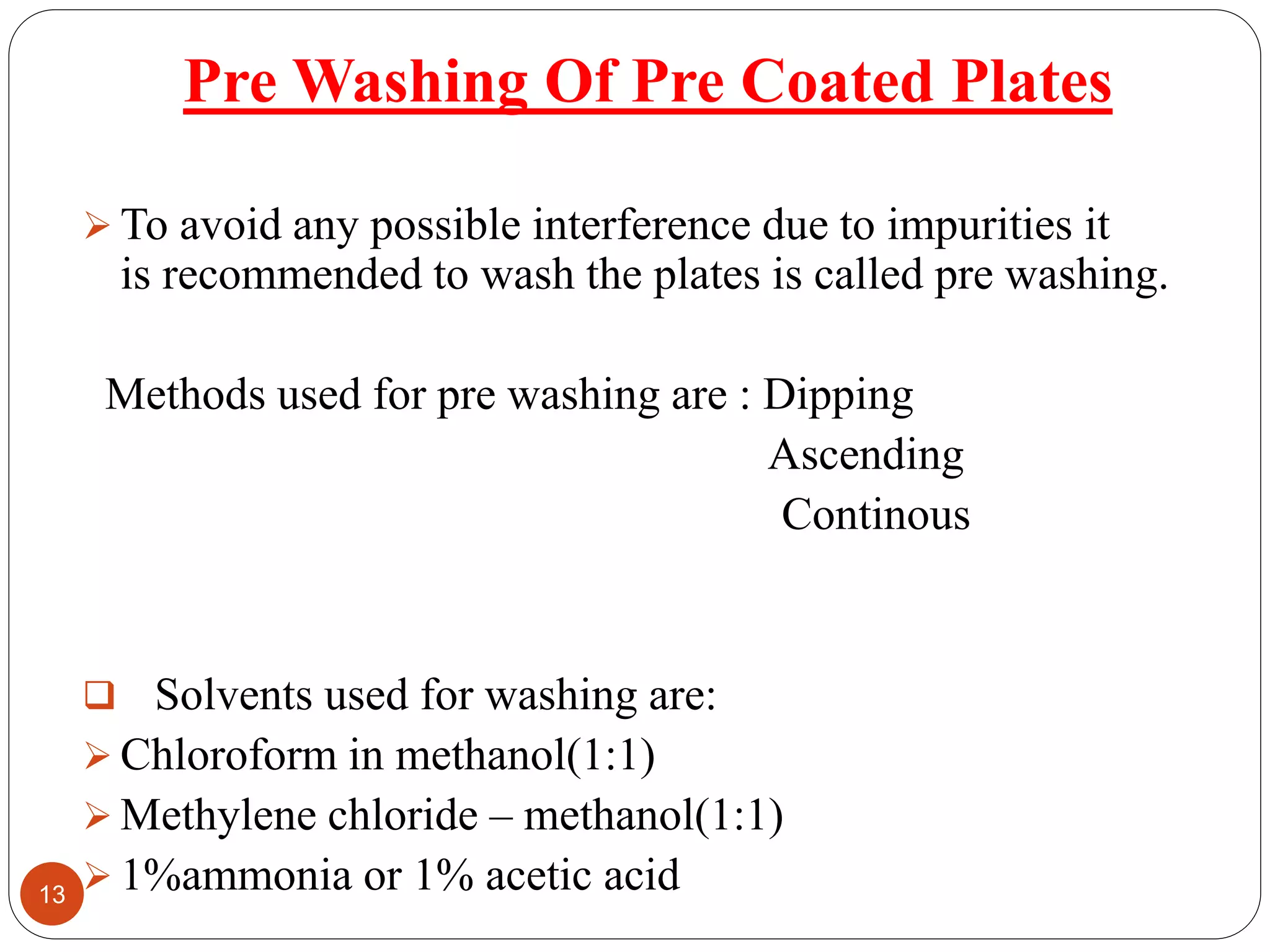

13. Pre Washing Of Pre Coated Plates
To avoid any possible interference due to impurities it
is recommended to wash the plates is called pre washing.
Methods used for pre washing are : Dipping
Ascending
Continous
Solvents used for washing are:
Chloroform in methanol(1:1)
Methylene chloride – methanol(1:1)
1%ammonia or 1% acetic acid13
14. Activation Of Pre-coated Plates
Freshly open box of plates do not require activation.
Plates exposed to high humidity or kept on hand for long time
to be activated
By placing in oven at 110-120ºc for 30 minutes prior to
spotting.
Aluminium sheets should be kept in between two glass plates
and placing in oven at 110-115ºc for 15 minutes.
14
16. Application Of Standard And Sample
Selection of sample application and devices used
depends on
Sample volume
Number of samples to be applied
Samples is applied by use of automatic devices and
graduated capillaries.
Volume recommended for HPTLC 0.5-5μl
Sample should not excess or not low
Over loading can be over come by applying sample as
band.
16
17. NANOMAT AND CAPILLARY DEVICES
The Nanomat serves for easy application
of samples in the form of spots on
HPTLC plates.
The Nanomat is suitable for HPTLC
plates 1Х10 cm and 20Х10 cm.
capillaries of 0.5, 1.2 and 5μl volume
available.
17
18. Selection Of Mobile Phase
Normal phase –
Stationary phase is polar
Mobile phase is non polar
Non polar compounds eluted first because of lower
affinity with stationary phase .
polar compound retained because of higher affinity
with the stationary phase
Reversed phase
Stationary phase is non polar
Mobile phase is polar
polar compound eluted first because of lower affinity
with stationary phase non polar compounds retained
because of higher affinity with the stationary phase.
18
19. Pre Conditioning ( Chamber Saturation)
Un-saturated chamber causes high Rf values
Saturated chamber by lining with filter paper
for 30 minutes prior to development.
Lead to uniform distribution of solvent vapours
and low Rf value
19
21. Chromatographic Development And
Drying
After development remove the
plate and mobile phase is
removed from the plate –to avoid
contamination of lab atmosphere.
Dry in vacuum desiccator
21
22. Chamber Development
Twin trough and flat bottom chamber
Horizontal development chamber
HPTLC various system
Automatic developing chamber(ADC2)
Automated multiple development (AMD)
22
24. Horizontal Developing
Chamber
It is developed from both opposing
sides towards the middle.
HPTLC Various System
Development with six different
solvents can be tested side by
side.
Six different conditions of pre-
equilibration , including relative
humidity , can be tested
simultaneously.
24
25. Automatic Developing
Chamber (ADC2)
The Automatic Developing Chamber
offers convenience , safety and
reproducibility for isocratic
development of TLC/HPTLC plates.
Automated Multiple
Development (AMD)
Employed for reproducible
gradient elution.
25

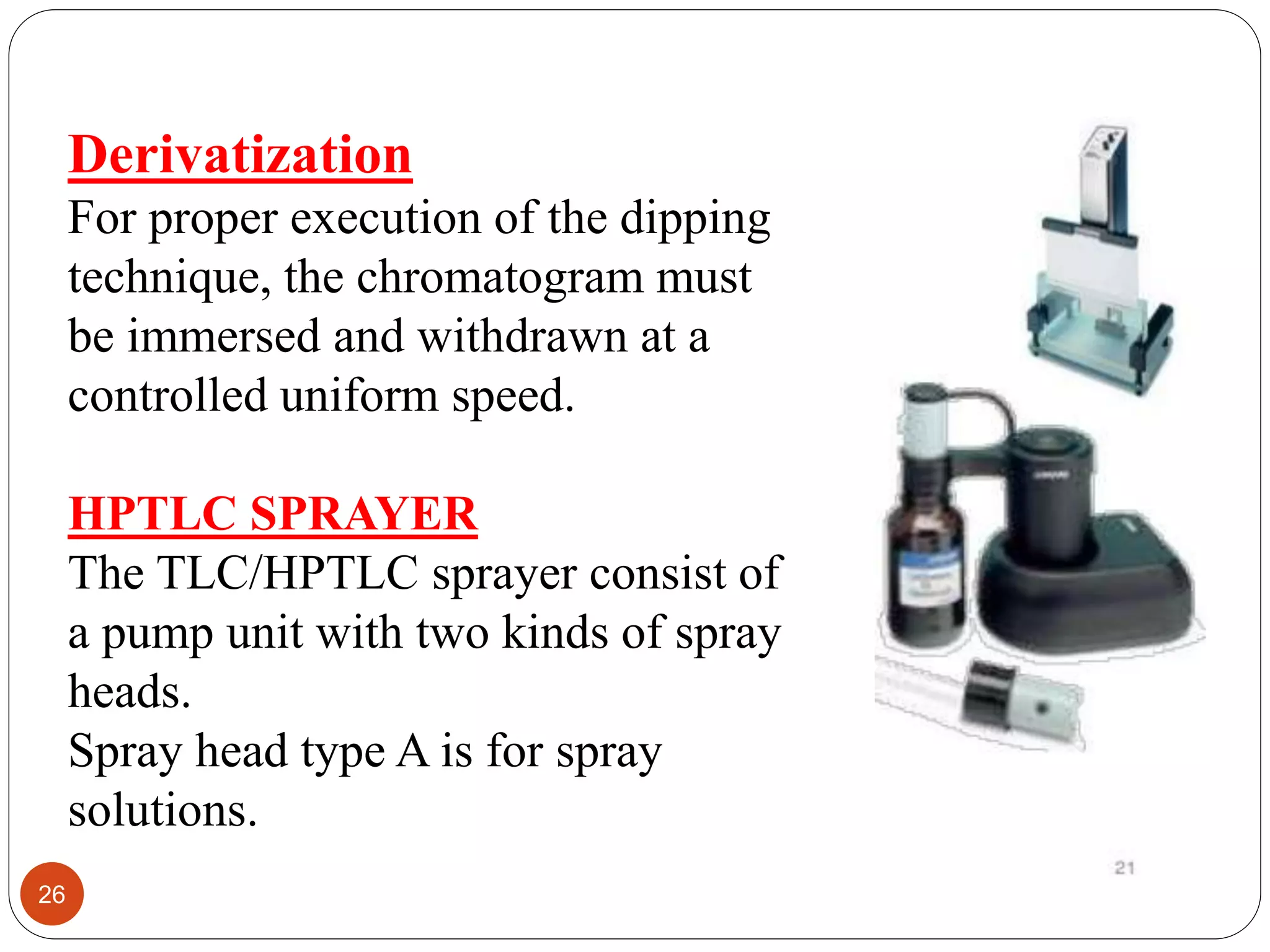

26. Derivatization
For proper execution of the dipping
technique, the chromatogram must
be immersed and withdrawn at a
controlled uniform speed.
HPTLC SPRAYER
The TLC/HPTLC sprayer consist of
a pump unit with two kinds of spray
heads.
Spray head type A is for spray
solutions.
26
27. Detection and visualization
Detection under UV light is first
choice –non destructive spots of
fluorescent compounds can be
seen at 254nm(near UV range)
27
28. Quantification
Sample and standard should be chromatographed on
sample plate after development chromatogram is scanned
Camag TLC scanner III scan the chromatogram in
reflectance or in transmittance mode by absorbance or by
fluorescent mode.
Scanning speed is selectable up to 100 mm/s –spectra
recording is fast -36 tracks with up to 100 peak windows
can be evaluated.
Calibration of single and multiple levels with linear or
nonlinear regressions are possible. When target values
are to be verified such as stability testing and dissolution
profile single level calibration is suitable.
28
29. TLC Scanner 3
It can also be used for densitometer
measurements of other planar objects
such as electrophoresis gels.
Key features
Scanning speed 1-100mm/s
Spectrum recording up to 100 mm/s.
29
30. Application of HPTLC
Pharmaceutical Industry : quality control, content
uniformity, identity/purity check.
Food Analysis: quality control, additives, pesticides,
stability testing.
Clinical Application :metabolism studies, drug
screening, stability testing etc.
Industrial Application: process development and
optimization, In-process check, validation etc.
Forensic : poisoning investigation.
Finger print analysis.
30
31. Reference:-
Sethi PD HPTLC High performance thin layer
chromatography, First edition, CBS Publisher and
Distrributers.
Reich, E.and Schhibli A.(2007)High performance liquid
chromatography for analysis of medicinal plant, Thieme.
Sherma J.Review of HPTLC in Drug Analysis:1996-2009. J
AOAC Int.2010;93:754-64.
Arup U, Ekman S , Lindblom L, Mattsson JE.High
performance Thin Layer
Chromatography(HPTLC),1993;25:61-71.
31
