JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 1
1.1 introduction to maps
• A map is a representation of all or part of the Earth drawn on a flat surface
at a specific scale.
• Maps use a variety of symbols and colours to represent selected features of
an area.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 2
1.2 Types of maps
1.General purpose maps (reference maps, )
show both natural and human-made features such as coastlines, lakes, rivers,
boundaries, settlements, roads, rail lines, and others.
2.Thematic maps, (special-purpose maps, )
illustrate the geographical distribution of a particular theme or phenomenon.
Landforms, aspects of climate, vegetation and soil types, demographics, industry,
manufacturing, and natural resources are examples of thematic map.
3. Topographic maps
As the term suggests, these maps show the topography or surface features of the
landscape through the use of contour lines.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 3
UK annual mean wind speed UK Bedrock Geology
Title
North
Point
Scale
Key
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 4

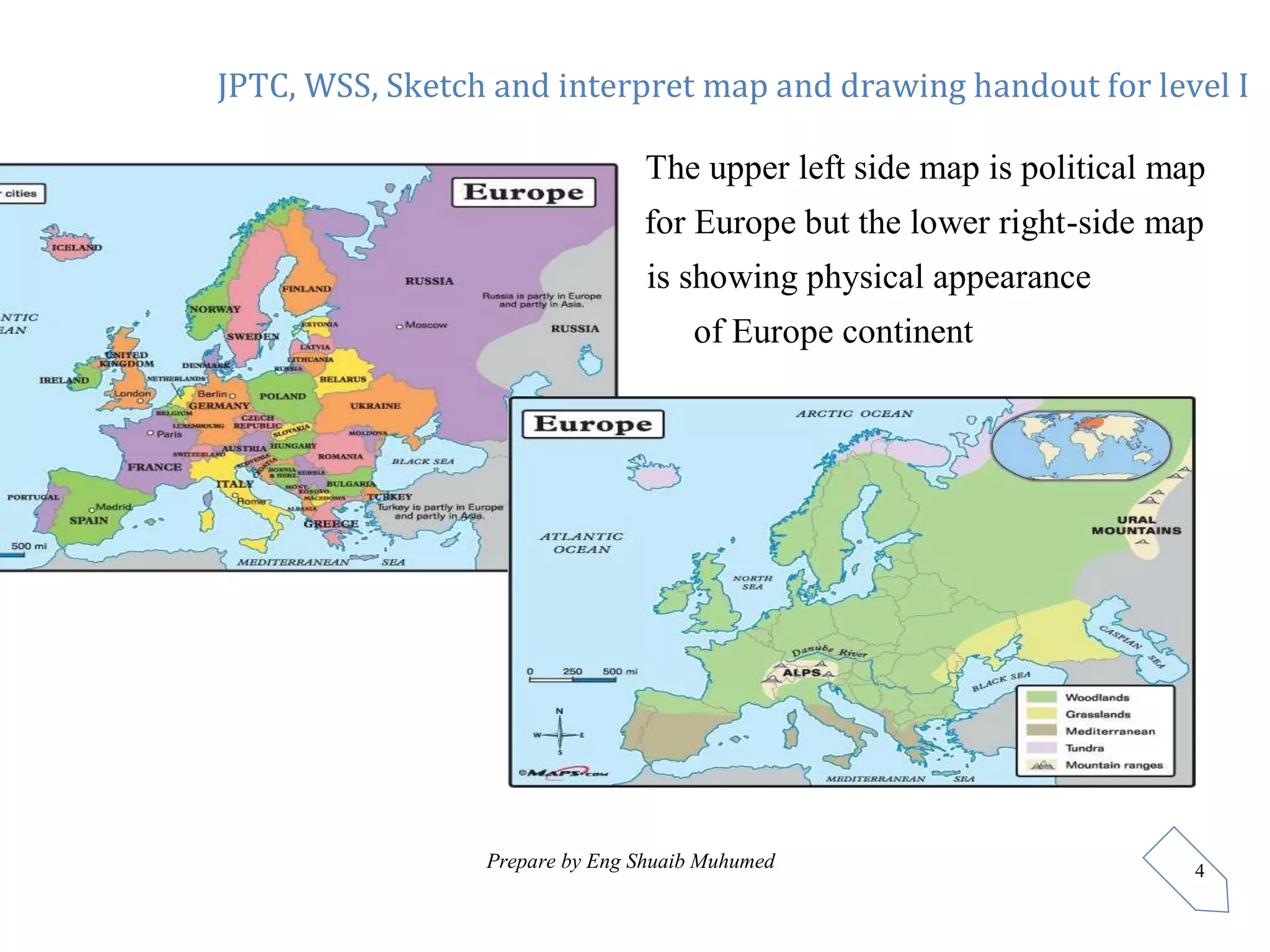

The upper left side map is political map
for Europe but the lower right-side map
is showing physical appearance
of Europe continent
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 5
• all maps share common properties or map basics that provide information to assist
the reader in studying and interpreting the maps. and they are called map elements
as listed below.
1.3 Basic Elements of Maps
• a title,
• scale,
• legend,
• date of publication,
• direction,
• information about the map projection. Etc.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 6
Direction:
Direction tells you which way to hold the map.
By convention, most maps are made with their top portion directed at North.
The North direction is generally indicated by an arrow in the maps
Legend:
is a guide which lists symbols and colours used on a map to represent different
geographic features.
Legend helps to identify what symbols and colours represent in the map.
Scale:
can be defined as the ratio of the distance between two points on the map and the same
two points on the Earth’s surface.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 7
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 8

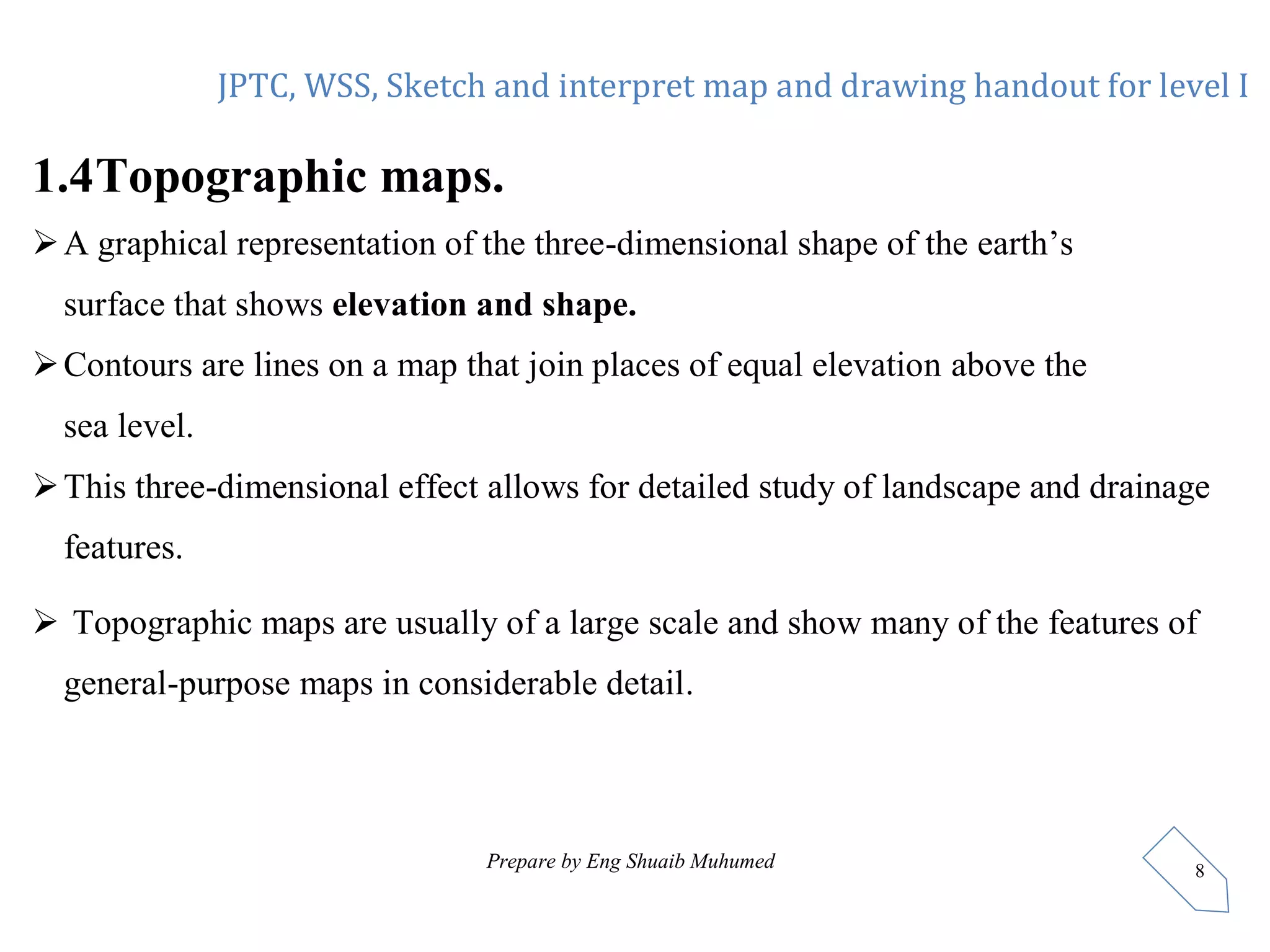

1.4Topographic maps.
A graphical representation of the three-dimensional shape of the earth’s
surface that shows elevation and shape.
Contours are lines on a map that join places of equal elevation above the
sea level.
This three-dimensional effect allows for detailed study of landscape and drainage
features.
 Topographic maps are usually of a large scale and show many of the features of
general-purpose maps in considerable detail.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 9

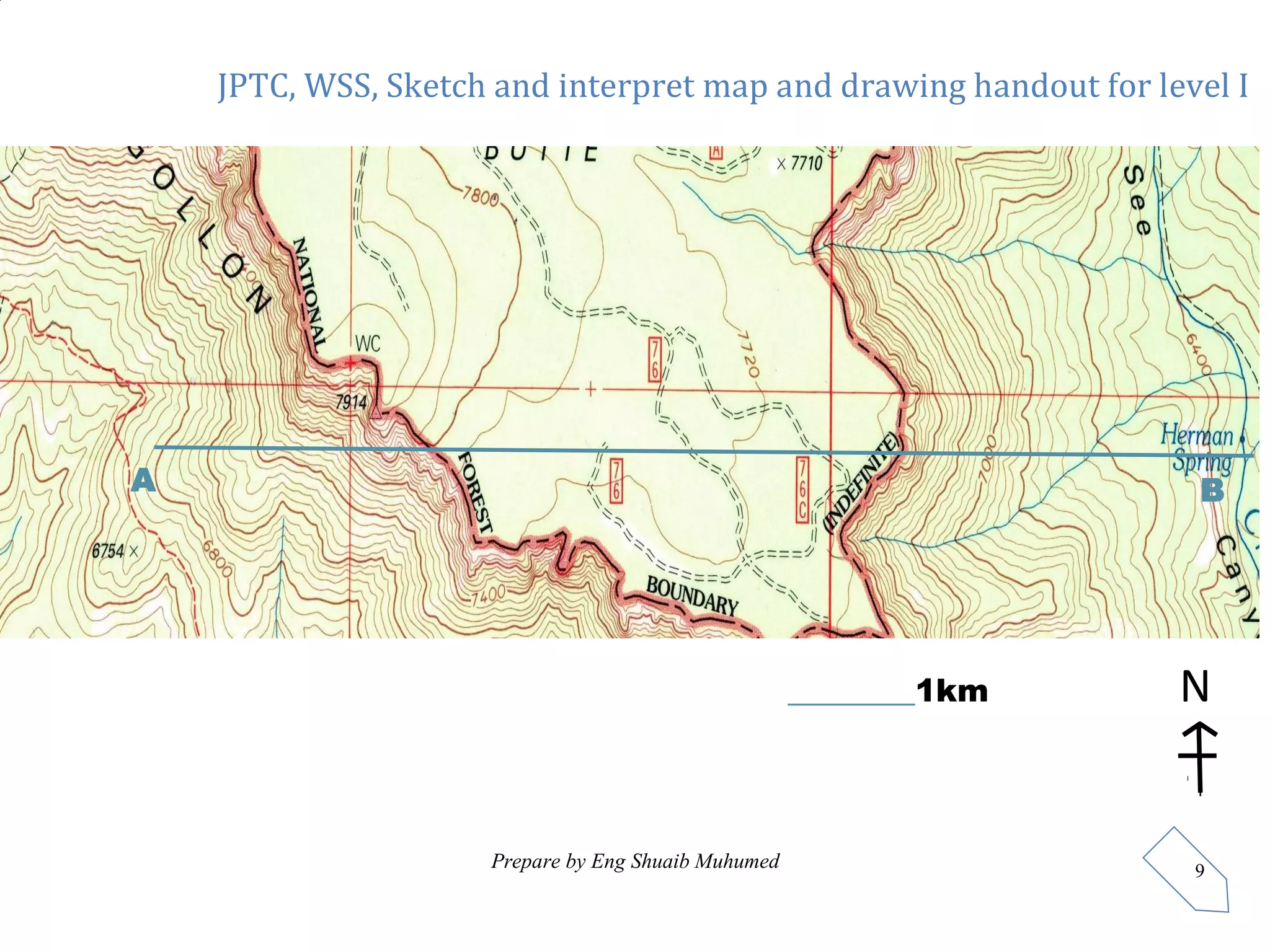

________1km N
A B
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 10
1.5. Topographic profile
topographic profile is a diagram that shows the change in elevation of the land
surface along anygiven line (an area “looked from the side”).
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 11
How to Make a Topographic Profile
This represents a very simple topographic map of a hill. The hill is steep on the left side
(thecontour lines are very close together) and has a gentle slope on the right side. The
numbers represent the elevation of the contour lines. (*)
What would the hill look like if you were to slice it from left to right? (*)
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 12
This is what the hill would look like if you were to cut italong the profile line and look at it from
the side. (*)
200 100
300
400
500 feet
400 feet
300 feet
200 feet
100 et
Normally, the Earth’s surface is not this blocky. In a topographic profile a line is drawn from these
points (red dots) producing a smooth transition. (*)
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepare by Eng Shuaib Muhumed 13
1.6 contour lines
 Contour line is an imaginary line on the ground surface joining the points of equal
elevation is known as contour.
It facilitates depiction of the relief of terrain in a two-dimensional plan or map.
 In other words, contour is a line in which the ground surface is intersected by a
level surface obtained by joining points of equal elevation. This line on the map
represents a contour and is called contour line.
Contouring is the science of representing the verticaldimension of the terrain on a
two-dimensional map.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 14
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 15

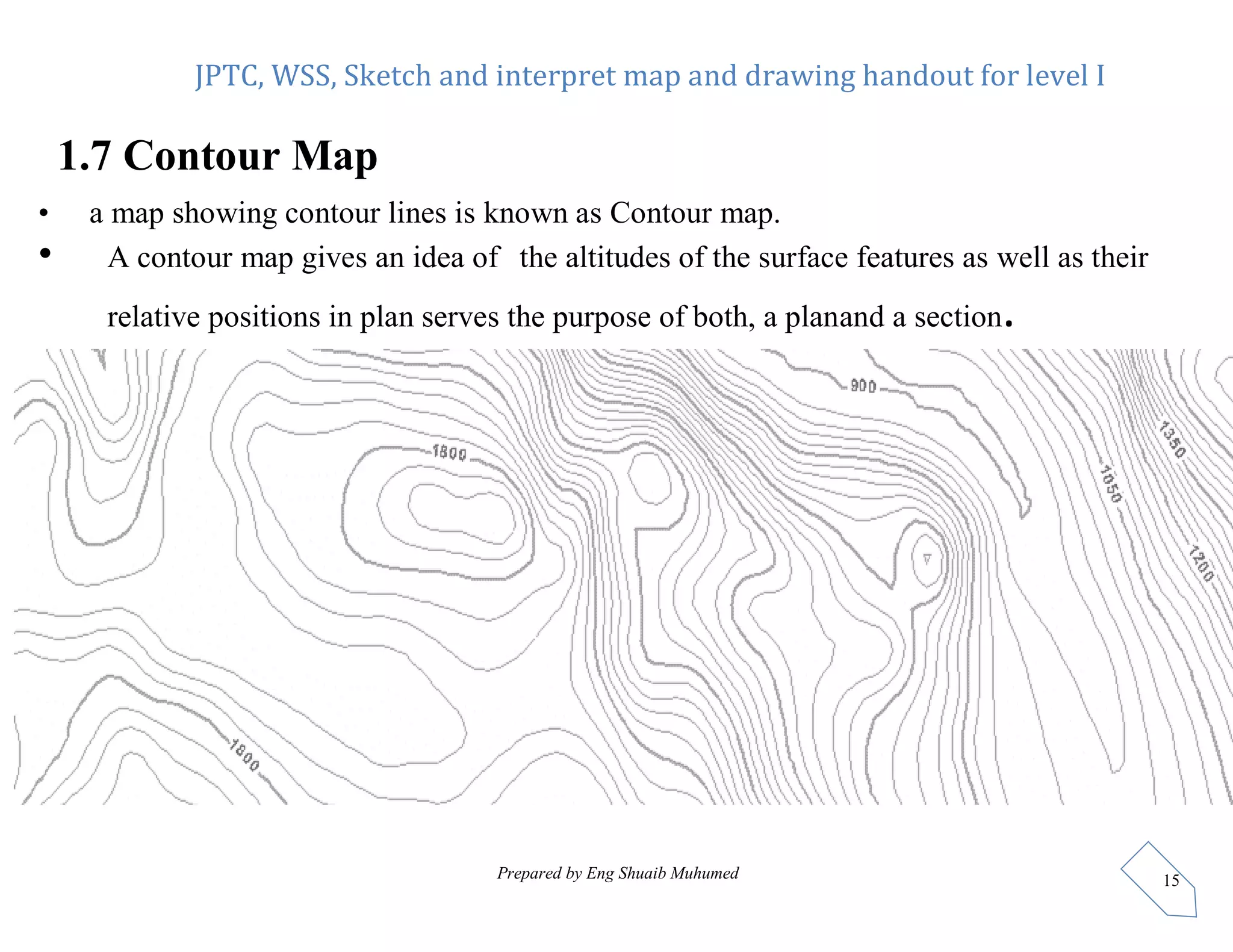

1.7 Contour Map
• a map showing contour lines is known as Contour map.
• A contour map gives an idea of the altitudes of the surface features as well as their
relative positions in plan serves the purpose of both, a planand a section.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 16
1.8Basicelementsofcontourmaps
indexContour Line is a bolded Contour lines with elevation numbers above the sea
level
Contour Interval (CI) – It is the vertical distance between any twoconsecutive contours.
This interval depends upon
(i) the nature of the ground (i.e. whether flat or sleep).
(ii) the scale of the map
(iii) the purpose of the survey.
Horizontal equivalent (he) Horizontal equivalent is the horizontal distance between two
consecutive contour lines measured tothe scale of the map.
 Gradient - The steepness of a slope as measured in degrees, percentage, or as a distance
ratio (rise/run).
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 17
The difference in elevation
between the two index
contours (800 - 700)is 100.
We cross five lines as we go
from the 700m line to the
800m line (NOTE:We count
the lines between the index
contours, then ADDone.
In this case, we have
4 lines + 1= 5).
Therefore, is we divide the
elevation difference
(100) by the numberof lines
(5) we will get the contour
interval. In this case it is 20.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 18

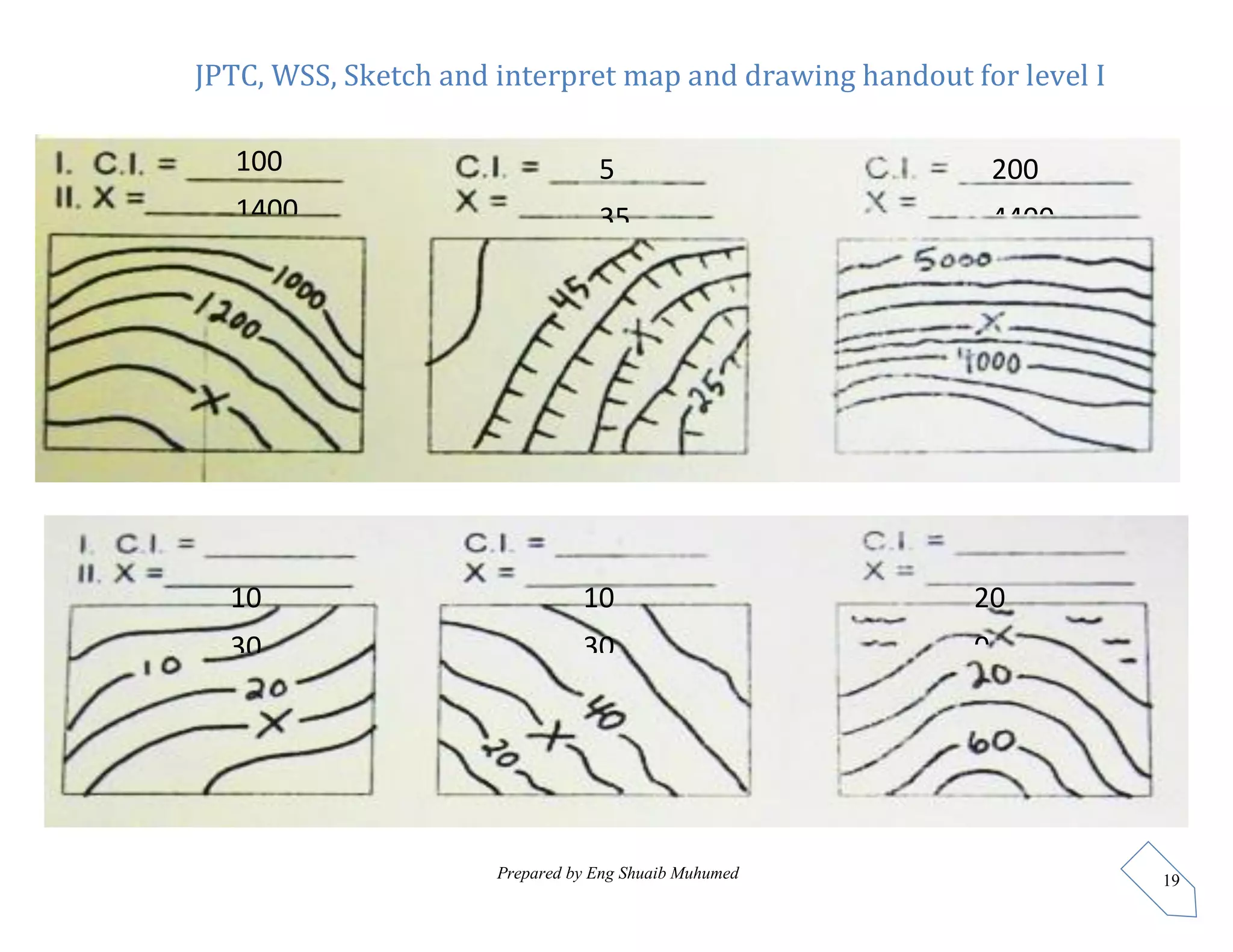

JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 19
10
30
10
30
20
0
100
1400
5
35
200
4400

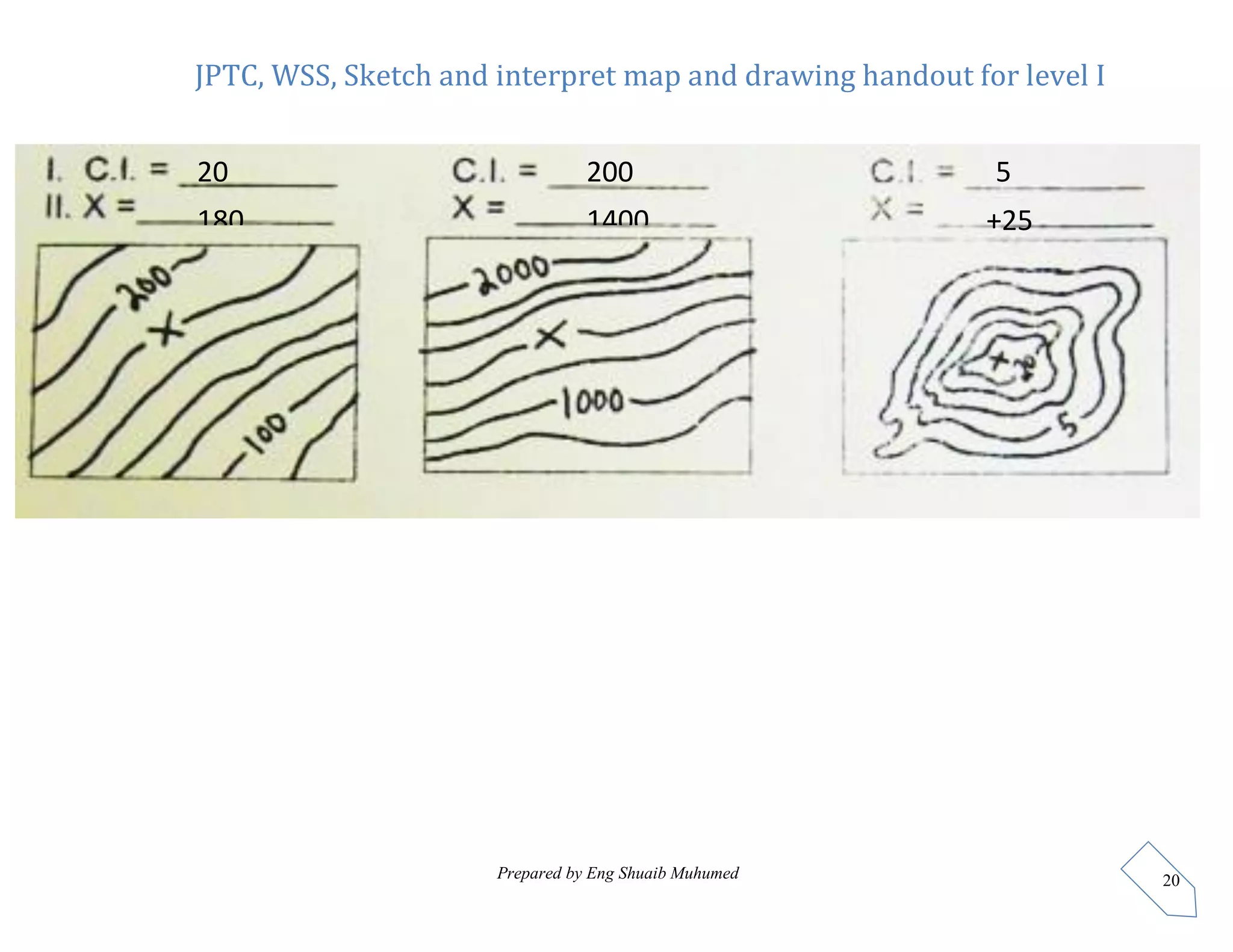

JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 20
20
180
200
1400
5
+25
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 21
1.9 General Features of Contour Line
Topographic Maps can show:elevation:
Contour lines connect points of equal
elevation.
 Topographic Maps can show:
if the land is steep or gentle
 Steep slopes are shown by
closely spaced contour line
 Gentle slopes are shown by
widely spaced contour lines.
 Contour lines do notintersect,
branch or cross.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 22
 Topographic Maps can show
whether it is a ridge or a valley,
and stream flow directions:
A valley on a topographic map is
represented by a series of V-shaped
contour lines pointing towards
higher elevations.
When contour lines cross streams
they bend in upstream; that
means, the contour line forms a
'V or U-shaped' with the apex at
the intersection with the stream,
and pointing in an upstream
direction.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 23

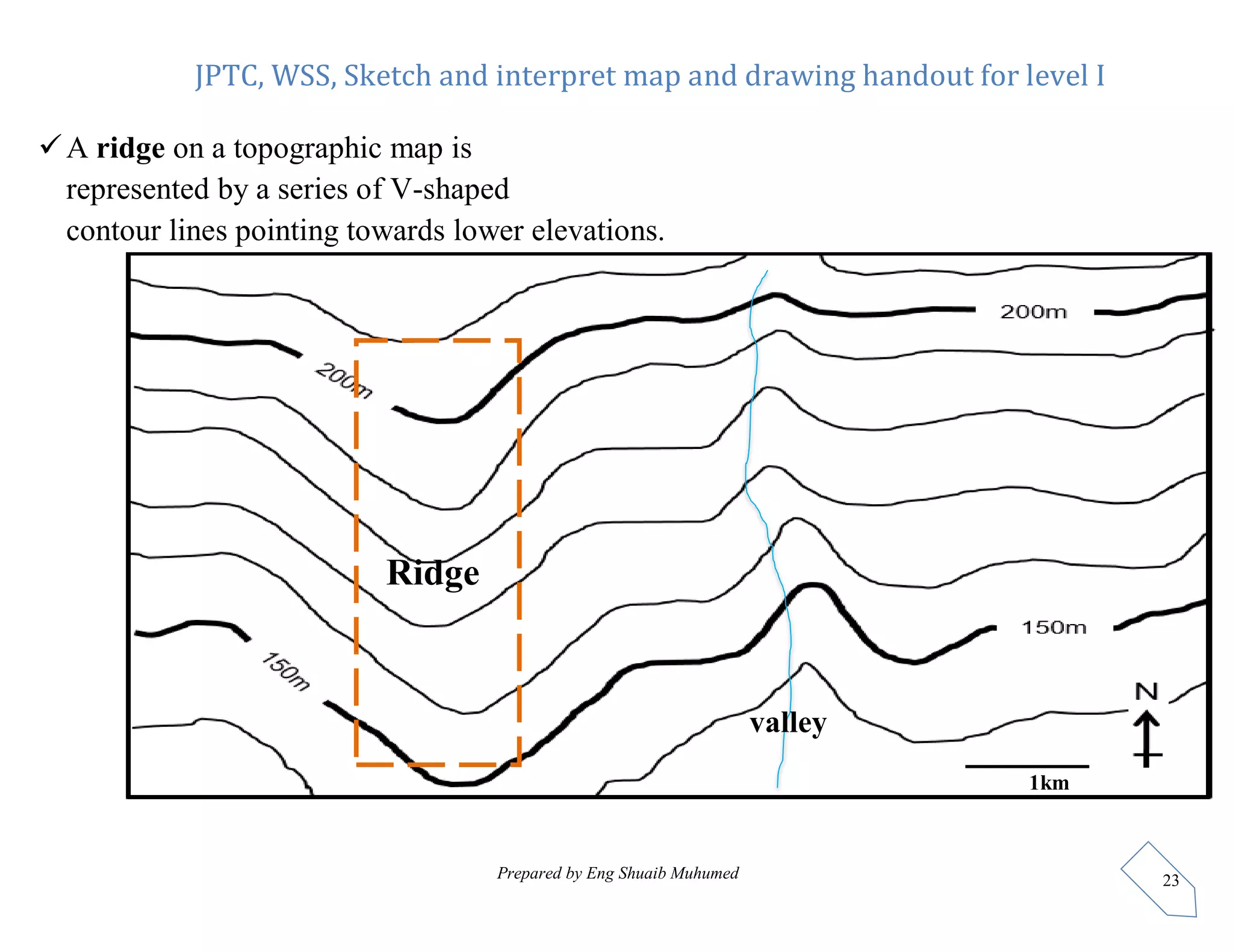

A ridge on a topographic map is
represented by a series of V-shaped
contour lines pointing towards lower elevations.
Ridge
valley
1km
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 24

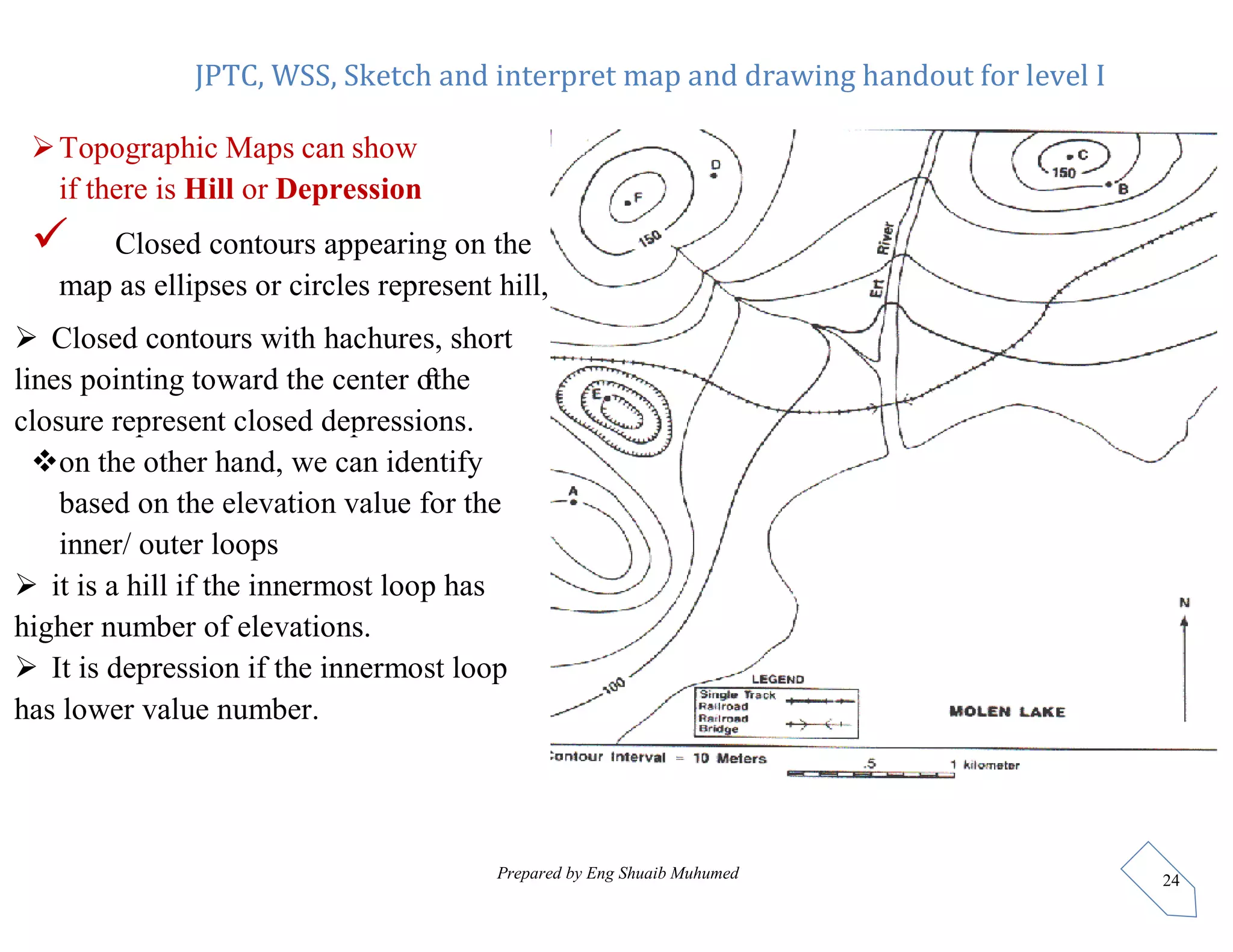

Topographic Maps can show
if there is Hill or Depression
 Closed contours appearing on the
map as ellipses or circles represent hill,
 Closed contours with hachures, short
lines pointing toward the center o
fthe
closure represent closed depressions.
on the other hand, we can identify
based on the elevation value for the
inner/ outer loops
 it is a hill if the innermost loop has
higher number of elevations.
 It is depression if the innermost loop
has lower value number.
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 25
1.10. Purpose (Uses) Of Contouring/Contour Map
 Contour survey is carried out at the starting of any engineering projects
such as a road, a railway, a canal, a dam, bridges a building etc.
 contour maps are prepared in order to select the mosteconomical or suitable site.
It helps to locate the alignment of a canal so that itshould follow a ridge line.
 It helps to mark the alignment of roads and railways so that the quantity of earthwork
both in cutting and fillingshould be minimum.
It helps for getting information about the groundwhether it is flat, undulating or
mountainous.
It helps to find the capacity of a reservoir and volumeof earthwork especially in a
mountainous region.
It helps to locate the physical features of the groundsuch as a pond depression, hill,
steep or small slopes
JPTC, WSS, Sketch and interpret map and drawing handout for level I
Prepared by Eng Shuaib Muhumed 26

More Related Content

Similar to handiout (3).pdf

Topographic maps for UDL lesson
Topographic maps for UDL lessonTopographic maps for UDL lesson
Topographic maps for UDL lesson
rbritton24

Topographic maps for UDL lesson
Topographic maps for UDL lessonTopographic maps for UDL lesson
Topographic maps for UDL lesson
rbritton24

Topo maps
Topo mapsTopo maps
Topo maps
kimberella

What is Map.pptx
What is Map.pptxWhat is Map.pptx
What is Map.pptx
shucaybcabdi

What is Map.pptx
What is Map.pptxWhat is Map.pptx
What is Map.pptx
shucaybcabdi

Cartography Unit_ 3.pptx
Cartography Unit_ 3.pptxCartography Unit_ 3.pptx
Cartography Unit_ 3.pptx
warkisafile1

Mapping
MappingMapping
1 How does a topographic map show the shape of the land sur.pdf
1 How does a topographic map show the shape of the land sur.pdf1 How does a topographic map show the shape of the land sur.pdf
1 How does a topographic map show the shape of the land sur.pdf
cbholla1

contouring.pptx
contouring.pptxcontouring.pptx
contouring.pptx
SaiSrija7

Chapter 3 gateway 123 combined
Chapter 3 gateway 123 combinedChapter 3 gateway 123 combined
Chapter 3 gateway 123 combined
MissST

About Topgrapic Map Details & know how to study topograpic map.
About Topgrapic Map Details & know how to study topograpic map.About Topgrapic Map Details & know how to study topograpic map.
About Topgrapic Map Details & know how to study topograpic map.
Shahid Hussain

Projections and coordinate system
Projections and coordinate systemProjections and coordinate system
Projections and coordinate system
Mohsin Siddique

Surveying II ajith sir class 1
Surveying II ajith sir class 1Surveying II ajith sir class 1
Surveying II ajith sir class 1
SHAMJITH KM

BOLTSS - Mapping Geography
BOLTSS - Mapping GeographyBOLTSS - Mapping Geography
BOLTSS - Mapping Geography
Yaryalitsa

Other map symbols on topographic maps Occasionally you will.pdf
Other map symbols on topographic maps Occasionally you will.pdfOther map symbols on topographic maps Occasionally you will.pdf
Other map symbols on topographic maps Occasionally you will.pdf
syedabdul78662

Contouring - Surveying...for civil Engineering and Architecture..
Contouring - Surveying...for civil Engineering and Architecture..Contouring - Surveying...for civil Engineering and Architecture..
Contouring - Surveying...for civil Engineering and Architecture..
Pramesh Hada

Continuing Our Look At Primary And Secondary Data
Continuing Our Look At Primary And Secondary DataContinuing Our Look At Primary And Secondary Data
Continuing Our Look At Primary And Secondary Data
guest9fa52

Continuing Our Look At Primary And Secondary Data
Continuing Our Look At Primary And Secondary DataContinuing Our Look At Primary And Secondary Data
Continuing Our Look At Primary And Secondary Data
guest2137aa

kegy305.pdf
kegy305.pdfkegy305.pdf
kegy305.pdf
shucaybcabdi

kegy305.pdf
kegy305.pdfkegy305.pdf
kegy305.pdf
noelthomas39


Similar to handiout (3).pdf (20)

Topographic maps for UDL lesson
Topographic maps for UDL lessonTopographic maps for UDL lesson
Topographic maps for UDL lesson

Topographic maps for UDL lesson
Topographic maps for UDL lessonTopographic maps for UDL lesson
Topographic maps for UDL lesson

Topo maps
Topo mapsTopo maps
Topo maps

What is Map.pptx
What is Map.pptxWhat is Map.pptx
What is Map.pptx

What is Map.pptx
What is Map.pptxWhat is Map.pptx
What is Map.pptx

Cartography Unit_ 3.pptx
Cartography Unit_ 3.pptxCartography Unit_ 3.pptx
Cartography Unit_ 3.pptx

Mapping
MappingMapping
Mapping

1 How does a topographic map show the shape of the land sur.pdf
1 How does a topographic map show the shape of the land sur.pdf1 How does a topographic map show the shape of the land sur.pdf
1 How does a topographic map show the shape of the land sur.pdf

contouring.pptx
contouring.pptxcontouring.pptx
contouring.pptx

Chapter 3 gateway 123 combined
Chapter 3 gateway 123 combinedChapter 3 gateway 123 combined
Chapter 3 gateway 123 combined

About Topgrapic Map Details & know how to study topograpic map.
About Topgrapic Map Details & know how to study topograpic map.About Topgrapic Map Details & know how to study topograpic map.
About Topgrapic Map Details & know how to study topograpic map.

Projections and coordinate system
Projections and coordinate systemProjections and coordinate system
Projections and coordinate system

Surveying II ajith sir class 1
Surveying II ajith sir class 1Surveying II ajith sir class 1
Surveying II ajith sir class 1

BOLTSS - Mapping Geography
BOLTSS - Mapping GeographyBOLTSS - Mapping Geography
BOLTSS - Mapping Geography

Other map symbols on topographic maps Occasionally you will.pdf
Other map symbols on topographic maps Occasionally you will.pdfOther map symbols on topographic maps Occasionally you will.pdf
Other map symbols on topographic maps Occasionally you will.pdf

Contouring - Surveying...for civil Engineering and Architecture..
Contouring - Surveying...for civil Engineering and Architecture..Contouring - Surveying...for civil Engineering and Architecture..
Contouring - Surveying...for civil Engineering and Architecture..

Continuing Our Look At Primary And Secondary Data
Continuing Our Look At Primary And Secondary DataContinuing Our Look At Primary And Secondary Data
Continuing Our Look At Primary And Secondary Data

Continuing Our Look At Primary And Secondary Data
Continuing Our Look At Primary And Secondary DataContinuing Our Look At Primary And Secondary Data
Continuing Our Look At Primary And Secondary Data

kegy305.pdf
kegy305.pdfkegy305.pdf
kegy305.pdf

kegy305.pdf
kegy305.pdfkegy305.pdf
kegy305.pdf


More from shucaybcabdi

introductiontoengineeringgraphics-170307045101.docx
introductiontoengineeringgraphics-170307045101.docxintroductiontoengineeringgraphics-170307045101.docx
introductiontoengineeringgraphics-170307045101.docx
shucaybcabdi

introductiontoengineeringgraphics-170307045101.pdf
introductiontoengineeringgraphics-170307045101.pdfintroductiontoengineeringgraphics-170307045101.pdf
introductiontoengineeringgraphics-170307045101.pdf
shucaybcabdi

socialstudiesgeographyskills-contours-online-120601012740-phpapp02.pdf
socialstudiesgeographyskills-contours-online-120601012740-phpapp02.pdfsocialstudiesgeographyskills-contours-online-120601012740-phpapp02.pdf
socialstudiesgeographyskills-contours-online-120601012740-phpapp02.pdf
shucaybcabdi

Maps-and-map-interpretation.pdf
Maps-and-map-interpretation.pdfMaps-and-map-interpretation.pdf
Maps-and-map-interpretation.pdf
shucaybcabdi

fin1_water_supply_slides.ppt
fin1_water_supply_slides.pptfin1_water_supply_slides.ppt
fin1_water_supply_slides.ppt
shucaybcabdi

chapter 4.pptx
chapter 4.pptxchapter 4.pptx
chapter 4.pptx
shucaybcabdi

STAUFFER 2012 Sewer System 120720.ppt
STAUFFER 2012 Sewer System 120720.pptSTAUFFER 2012 Sewer System 120720.ppt
STAUFFER 2012 Sewer System 120720.ppt
shucaybcabdi

chapter 5 (1).ppt
chapter 5 (1).pptchapter 5 (1).ppt
chapter 5 (1).ppt
shucaybcabdi

mathsproject-130321232400-phpapp02.pdf
mathsproject-130321232400-phpapp02.pdfmathsproject-130321232400-phpapp02.pdf
mathsproject-130321232400-phpapp02.pdf
shucaybcabdi

basicconstruction-120911090944-phpapp01.pdf
basicconstruction-120911090944-phpapp01.pdfbasicconstruction-120911090944-phpapp01.pdf
basicconstruction-120911090944-phpapp01.pdf
shucaybcabdi

topo explain 2 satellite images.pdf
topo explain 2 satellite images.pdftopo explain 2 satellite images.pdf
topo explain 2 satellite images.pdf
shucaybcabdi

engineeringdrawinggeometricconstructionlesson4-110831061736-phpapp02.pdf
engineeringdrawinggeometricconstructionlesson4-110831061736-phpapp02.pdfengineeringdrawinggeometricconstructionlesson4-110831061736-phpapp02.pdf
engineeringdrawinggeometricconstructionlesson4-110831061736-phpapp02.pdf
shucaybcabdi

introductiontoengineeringandprofessionethics-lecture5-engineeringdrawing-dr-1...
introductiontoengineeringandprofessionethics-lecture5-engineeringdrawing-dr-1...introductiontoengineeringandprofessionethics-lecture5-engineeringdrawing-dr-1...
introductiontoengineeringandprofessionethics-lecture5-engineeringdrawing-dr-1...
shucaybcabdi

contouring-180417110533.pdf
contouring-180417110533.pdfcontouring-180417110533.pdf
contouring-180417110533.pdf
shucaybcabdi

contourlines-130527092046-phpapp02.pdf
contourlines-130527092046-phpapp02.pdfcontourlines-130527092046-phpapp02.pdf
contourlines-130527092046-phpapp02.pdf
shucaybcabdi

topographicmapsnotes-130930200052-phpapp01 (1).docx
topographicmapsnotes-130930200052-phpapp01 (1).docxtopographicmapsnotes-130930200052-phpapp01 (1).docx
topographicmapsnotes-130930200052-phpapp01 (1).docx
shucaybcabdi

handiout.docx
handiout.docxhandiout.docx
handiout.docx
shucaybcabdi

whatisamap-140703092843-phpapp02.pdf
whatisamap-140703092843-phpapp02.pdfwhatisamap-140703092843-phpapp02.pdf
whatisamap-140703092843-phpapp02.pdf
shucaybcabdi

1605005768-topograph (1).pdf
1605005768-topograph (1).pdf1605005768-topograph (1).pdf
1605005768-topograph (1).pdf
shucaybcabdi

topographicmapsnotes-130930200052-phpapp01.pdf
topographicmapsnotes-130930200052-phpapp01.pdftopographicmapsnotes-130930200052-phpapp01.pdf
topographicmapsnotes-130930200052-phpapp01.pdf
shucaybcabdi


More from shucaybcabdi (20)

introductiontoengineeringgraphics-170307045101.docx
introductiontoengineeringgraphics-170307045101.docxintroductiontoengineeringgraphics-170307045101.docx
introductiontoengineeringgraphics-170307045101.docx

introductiontoengineeringgraphics-170307045101.pdf
introductiontoengineeringgraphics-170307045101.pdfintroductiontoengineeringgraphics-170307045101.pdf
introductiontoengineeringgraphics-170307045101.pdf

socialstudiesgeographyskills-contours-online-120601012740-phpapp02.pdf
socialstudiesgeographyskills-contours-online-120601012740-phpapp02.pdfsocialstudiesgeographyskills-contours-online-120601012740-phpapp02.pdf
socialstudiesgeographyskills-contours-online-120601012740-phpapp02.pdf

Maps-and-map-interpretation.pdf
Maps-and-map-interpretation.pdfMaps-and-map-interpretation.pdf
Maps-and-map-interpretation.pdf

fin1_water_supply_slides.ppt
fin1_water_supply_slides.pptfin1_water_supply_slides.ppt
fin1_water_supply_slides.ppt

chapter 4.pptx
chapter 4.pptxchapter 4.pptx
chapter 4.pptx

STAUFFER 2012 Sewer System 120720.ppt
STAUFFER 2012 Sewer System 120720.pptSTAUFFER 2012 Sewer System 120720.ppt
STAUFFER 2012 Sewer System 120720.ppt

chapter 5 (1).ppt
chapter 5 (1).pptchapter 5 (1).ppt
chapter 5 (1).ppt

mathsproject-130321232400-phpapp02.pdf
mathsproject-130321232400-phpapp02.pdfmathsproject-130321232400-phpapp02.pdf
mathsproject-130321232400-phpapp02.pdf

basicconstruction-120911090944-phpapp01.pdf
basicconstruction-120911090944-phpapp01.pdfbasicconstruction-120911090944-phpapp01.pdf
basicconstruction-120911090944-phpapp01.pdf

topo explain 2 satellite images.pdf
topo explain 2 satellite images.pdftopo explain 2 satellite images.pdf
topo explain 2 satellite images.pdf

engineeringdrawinggeometricconstructionlesson4-110831061736-phpapp02.pdf
engineeringdrawinggeometricconstructionlesson4-110831061736-phpapp02.pdfengineeringdrawinggeometricconstructionlesson4-110831061736-phpapp02.pdf
engineeringdrawinggeometricconstructionlesson4-110831061736-phpapp02.pdf

introductiontoengineeringandprofessionethics-lecture5-engineeringdrawing-dr-1...
introductiontoengineeringandprofessionethics-lecture5-engineeringdrawing-dr-1...introductiontoengineeringandprofessionethics-lecture5-engineeringdrawing-dr-1...
introductiontoengineeringandprofessionethics-lecture5-engineeringdrawing-dr-1...

contouring-180417110533.pdf
contouring-180417110533.pdfcontouring-180417110533.pdf
contouring-180417110533.pdf

contourlines-130527092046-phpapp02.pdf
contourlines-130527092046-phpapp02.pdfcontourlines-130527092046-phpapp02.pdf
contourlines-130527092046-phpapp02.pdf

topographicmapsnotes-130930200052-phpapp01 (1).docx
topographicmapsnotes-130930200052-phpapp01 (1).docxtopographicmapsnotes-130930200052-phpapp01 (1).docx
topographicmapsnotes-130930200052-phpapp01 (1).docx

handiout.docx
handiout.docxhandiout.docx
handiout.docx

whatisamap-140703092843-phpapp02.pdf
whatisamap-140703092843-phpapp02.pdfwhatisamap-140703092843-phpapp02.pdf
whatisamap-140703092843-phpapp02.pdf

1605005768-topograph (1).pdf
1605005768-topograph (1).pdf1605005768-topograph (1).pdf
1605005768-topograph (1).pdf

topographicmapsnotes-130930200052-phpapp01.pdf
topographicmapsnotes-130930200052-phpapp01.pdftopographicmapsnotes-130930200052-phpapp01.pdf
topographicmapsnotes-130930200052-phpapp01.pdf


Recently uploaded

Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !
KatiaHIMEUR1

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days
Adtran

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
Neo4j

GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
Neo4j

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
Neo4j

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
shyamraj55

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AIEnchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Vladimir Iglovikov, Ph.D.

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6
DianaGray10

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Albert Hoitingh

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events
Ana-Maria Mihalceanu

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment
Octavian Nadolu

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...
Zilliz

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Zilliz

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
SOFTTECHHUB


Recently uploaded (20)

Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !

Pushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 daysPushing the limits of ePRTC: 100ns holdover for 100 days
Pushing the limits of ePRTC: 100ns holdover for 100 days

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...

GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AIEnchancing adoption of Open Source Libraries. A case study on Albumentations.AI
Enchancing adoption of Open Source Libraries. A case study on Albumentations.AI

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024

Monitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR EventsMonitoring Java Application Security with JDK Tools and JFR Events
Monitoring Java Application Security with JDK Tools and JFR Events

Artificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopmentArtificial Intelligence for XMLDevelopment
Artificial Intelligence for XMLDevelopment

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...Building RAG with self-deployed Milvus vector database and Snowpark Container...
Building RAG with self-deployed Milvus vector database and Snowpark Container...

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...
Introducing Milvus Lite: Easy-to-Install, Easy-to-Use vector database for you...

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...


handiout (3).pdf

  • 1. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 1 1.1 introduction to maps • A map is a representation of all or part of the Earth drawn on a flat surface at a specific scale. • Maps use a variety of symbols and colours to represent selected features of an area.
  • 2. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 2 1.2 Types of maps 1.General purpose maps (reference maps, ) show both natural and human-made features such as coastlines, lakes, rivers, boundaries, settlements, roads, rail lines, and others. 2.Thematic maps, (special-purpose maps, ) illustrate the geographical distribution of a particular theme or phenomenon. Landforms, aspects of climate, vegetation and soil types, demographics, industry, manufacturing, and natural resources are examples of thematic map. 3. Topographic maps As the term suggests, these maps show the topography or surface features of the landscape through the use of contour lines.
  • 3. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 3 UK annual mean wind speed UK Bedrock Geology Title North Point Scale Key
  • 4. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 4 The upper left side map is political map for Europe but the lower right-side map is showing physical appearance of Europe continent
  • 5. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 5 • all maps share common properties or map basics that provide information to assist the reader in studying and interpreting the maps. and they are called map elements as listed below. 1.3 Basic Elements of Maps • a title, • scale, • legend, • date of publication, • direction, • information about the map projection. Etc.
  • 6. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 6 Direction: Direction tells you which way to hold the map. By convention, most maps are made with their top portion directed at North. The North direction is generally indicated by an arrow in the maps Legend: is a guide which lists symbols and colours used on a map to represent different geographic features. Legend helps to identify what symbols and colours represent in the map. Scale: can be defined as the ratio of the distance between two points on the map and the same two points on the Earth’s surface.
  • 7. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 7
  • 8. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 8 1.4Topographic maps. A graphical representation of the three-dimensional shape of the earth’s surface that shows elevation and shape. Contours are lines on a map that join places of equal elevation above the sea level. This three-dimensional effect allows for detailed study of landscape and drainage features.  Topographic maps are usually of a large scale and show many of the features of general-purpose maps in considerable detail.
  • 9. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 9 ________1km N A B
  • 10. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 10 1.5. Topographic profile topographic profile is a diagram that shows the change in elevation of the land surface along anygiven line (an area “looked from the side”).
  • 11. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 11 How to Make a Topographic Profile This represents a very simple topographic map of a hill. The hill is steep on the left side (thecontour lines are very close together) and has a gentle slope on the right side. The numbers represent the elevation of the contour lines. (*) What would the hill look like if you were to slice it from left to right? (*)
  • 12. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 12 This is what the hill would look like if you were to cut italong the profile line and look at it from the side. (*) 200 100 300 400 500 feet 400 feet 300 feet 200 feet 100 et Normally, the Earth’s surface is not this blocky. In a topographic profile a line is drawn from these points (red dots) producing a smooth transition. (*)
  • 13. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepare by Eng Shuaib Muhumed 13 1.6 contour lines  Contour line is an imaginary line on the ground surface joining the points of equal elevation is known as contour. It facilitates depiction of the relief of terrain in a two-dimensional plan or map.  In other words, contour is a line in which the ground surface is intersected by a level surface obtained by joining points of equal elevation. This line on the map represents a contour and is called contour line. Contouring is the science of representing the verticaldimension of the terrain on a two-dimensional map.
  • 14. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 14
  • 15. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 15 1.7 Contour Map • a map showing contour lines is known as Contour map. • A contour map gives an idea of the altitudes of the surface features as well as their relative positions in plan serves the purpose of both, a planand a section.
  • 16. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 16 1.8Basicelementsofcontourmaps indexContour Line is a bolded Contour lines with elevation numbers above the sea level Contour Interval (CI) – It is the vertical distance between any twoconsecutive contours. This interval depends upon (i) the nature of the ground (i.e. whether flat or sleep). (ii) the scale of the map (iii) the purpose of the survey. Horizontal equivalent (he) Horizontal equivalent is the horizontal distance between two consecutive contour lines measured tothe scale of the map.  Gradient - The steepness of a slope as measured in degrees, percentage, or as a distance ratio (rise/run).
  • 17. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 17 The difference in elevation between the two index contours (800 - 700)is 100. We cross five lines as we go from the 700m line to the 800m line (NOTE:We count the lines between the index contours, then ADDone. In this case, we have 4 lines + 1= 5). Therefore, is we divide the elevation difference (100) by the numberof lines (5) we will get the contour interval. In this case it is 20.
  • 18. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 18
  • 19. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 19 10 30 10 30 20 0 100 1400 5 35 200 4400
  • 20. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 20 20 180 200 1400 5 +25
  • 21. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 21 1.9 General Features of Contour Line Topographic Maps can show:elevation: Contour lines connect points of equal elevation.  Topographic Maps can show: if the land is steep or gentle  Steep slopes are shown by closely spaced contour line  Gentle slopes are shown by widely spaced contour lines.  Contour lines do notintersect, branch or cross.
  • 22. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 22  Topographic Maps can show whether it is a ridge or a valley, and stream flow directions: A valley on a topographic map is represented by a series of V-shaped contour lines pointing towards higher elevations. When contour lines cross streams they bend in upstream; that means, the contour line forms a 'V or U-shaped' with the apex at the intersection with the stream, and pointing in an upstream direction.
  • 23. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 23 A ridge on a topographic map is represented by a series of V-shaped contour lines pointing towards lower elevations. Ridge valley 1km
  • 24. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 24 Topographic Maps can show if there is Hill or Depression  Closed contours appearing on the map as ellipses or circles represent hill,  Closed contours with hachures, short lines pointing toward the center o fthe closure represent closed depressions. on the other hand, we can identify based on the elevation value for the inner/ outer loops  it is a hill if the innermost loop has higher number of elevations.  It is depression if the innermost loop has lower value number.
  • 25. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 25 1.10. Purpose (Uses) Of Contouring/Contour Map  Contour survey is carried out at the starting of any engineering projects such as a road, a railway, a canal, a dam, bridges a building etc.  contour maps are prepared in order to select the mosteconomical or suitable site. It helps to locate the alignment of a canal so that itshould follow a ridge line.  It helps to mark the alignment of roads and railways so that the quantity of earthwork both in cutting and fillingshould be minimum. It helps for getting information about the groundwhether it is flat, undulating or mountainous. It helps to find the capacity of a reservoir and volumeof earthwork especially in a mountainous region. It helps to locate the physical features of the groundsuch as a pond depression, hill, steep or small slopes
  • 26. JPTC, WSS, Sketch and interpret map and drawing handout for level I Prepared by Eng Shuaib Muhumed 26
