GlusterFS 3.3 includes several new features: - Granular locking allows block-by-block healing when servers fail and return. - Replication improvements include proactive self-healing where recovered nodes query peers and a synchronous translator API. - Unified file and object storage (UFO) provides S3- and Swift-style object access via HTTP or Gluster mounts. - HDFS compatibility allows running MapReduce jobs on GlusterFS and adding unstructured data to Hadoop.

1. GlusterFS 3.3 Deep-dive
AB Periasamy
Office of the CTO, Red Hat
John Mark Walker
Gluster Community Guy

2. Topics
Review
Community and Evolution of GlusterFS
Feature overview
Granular locking
Replication Improvements (AFR)
Unified file and object storage
HDFS compatibility
06/13/12

3. 1. Quick Review
06/13/12

4. Simple Economics
Simplicity, scalability, less cost
Virtualized Multi-Tenant Automated Commoditized
Scale on Demand In the Cloud Scale Out Open Source
06/13/12

5. What is GlusterFS,
Really?
Gluster is a unified, distributed
storage system
DHT, stackable, POSIX, Swift, HDFS
06/13/12

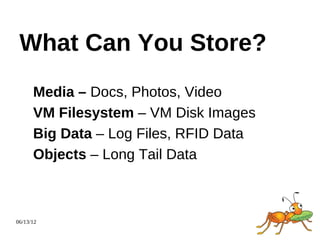

6. What Can You Store?
Media – Docs, Photos, Video
VM Filesystem – VM Disk Images
Big Data – Log Files, RFID Data
Objects – Long Tail Data
06/13/12

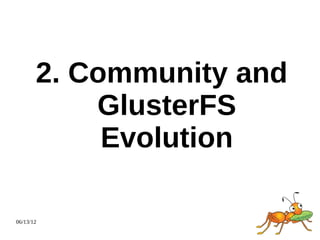

7. 2. Community and
GlusterFS
Evolution
06/13/12

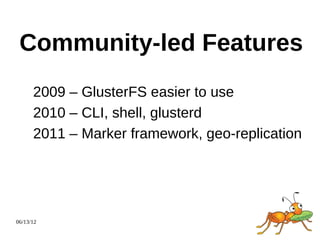

8. Community-led Features
2009 – GlusterFS easier to use
2010 – CLI, shell, glusterd
2011 – Marker framework, geo-replication
06/13/12

9. GlusterFS in 2011
Scale-out NAS
Distributed and replicated
NFS, CIFS and native GlusterFS
User-space, stackable architecture
→ A good platform to build on
06/13/12

10. GlusterFS in 2011: The
Gaps
Object storage – popularized by S3
Simplicity bias – GET & PUT
Combined with RESTful API
Used mostly in web-based applications
06/13/12

11. GlusterFS in 2011: The
Gaps
Big data, semi-structured data
No Hadoop, MapReduce capabilities
Structured data (databases)
No MongoDB, Oracle, MySQL capability
06/13/12

12. GlusterFS in 2011: The
Gaps
VM image hosting difficulties
Difficulty in self-heal, rebalancing
Small files
PHP-based web sites, primary email storage
06/13/12

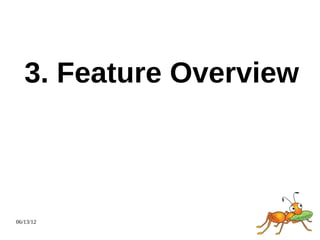

13. 3. Feature Overview
06/13/12

14. GlusterFS in 2012:
Filling the Gaps
Better replication
Granular locking
Proactive self-healing
Quorum enforcement
Synchronous translator API
06/13/12

15. Granular Locking
Server fails, comes back
Files evaluated
Block-by-block until healed
Blocks compared
Virtual Disk 1-1
Virtual Disk 1-2Virtual Disk 2-1
Virtual Disk 2-2
GlusterFS GlusterFS
Server 1 Server 2
06/13/12

16. Proactive Self-healing
Performed server-to-server
Recovered node queries peers
Server 1 - good Server 3 - good
/ Symlink 1
Hidden | Symlink 2
Distributed
Symlink 3
Replicated
Server 2 - recovered Server 4 - good
File 1 File 1
File 2 File 2
File 3 Self-healing File 3
06/13/12

17. Split Brain
Nodes cannot see each other, but can
all still write
Often due to network outages
Sometimes results in conflicts
Up to 3.2, GlusterFS had no concept of
“quorum”
06/13/12

18. Quorum Enforcement
Which node has valid data?
If quorum, keep writing, else stop
Configurable option
Server 1 Server 2 Server 3
-No quorum -Quorum -Quorum
-Stops writing -Keeps writing -Keeps writing
Broken
Connection
06/13/12

19. Quorum Enforcement
After connection restored, self-heal kicks off
Replica 1 Replica 2 Replica 3
-No quorum -Quorum -Quorum
-Stops writing Self-heal -Keeps writing -Keeps writing
-No quorum -Quorum -Quorum
-Stops writing -Keeps writing -Keeps writing
06/13/12

20. GlusterFS in 2012:
Filling the Gaps
Synchronous translator API
Unified File and Object Storage (UFO)
HDFS-compatible storage layer
06/13/12

21. Synchronous Translator
API
GlusterFS runs asynchronously
non-blocking I/O, for performance
Writing code for async I/O confusing
06/13/12

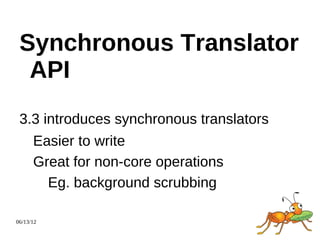

22. Synchronous Translator
API
3.3 introduces synchronous translators
Easier to write
Great for non-core operations
Eg. background scrubbing
06/13/12

23. Unified File and Object
(UFO)
S3, Swift-style object storage
Access via UFO or Gluster mount
HTTP Request
Client Account Volume
Proxy
ID=/dir/sub/sub2/file
Containe
Directory
r
NFS or
Client File
Object
GlusterFS Mount
06/13/12

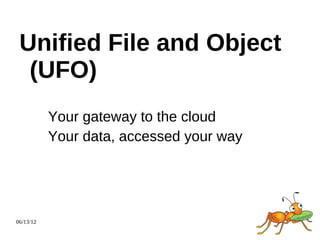

24. Unified File and Object
(UFO)
Your gateway to the cloud
Your data, accessed your way
06/13/12

25. HDFS Compatibility
Run MapReduce jobs on GlusterFS
Add unstructured data to Hadoop
Hadoop Server GlusterF GlusterF
S S
GlusterF GlusterF
Local Disk S S
HDFS
Connector
06/13/12 (Jar file)

26. Thank you!
AB Periasamy
Office of the CTO, Red Hat
ab@redhat.com
John Mark Walker
Gluster Community Guy
johnmark@redhat.com
