This document summarizes a webinar on performance tuning tips and tricks for GlusterFS. The webinar covered planning cluster hardware configuration to meet performance requirements, choosing the correct volume type for workloads, key tuning parameters, benchmarking techniques, and the top 5 causes of performance issues. The webinar provided guidance on optimizing GlusterFS performance through hardware sizing, configuration, implementation best practices, and tuning.

1. Gluster for Geeks:
Performance Tips &
Tricks
Jacob Shucart
August 25th, 2011

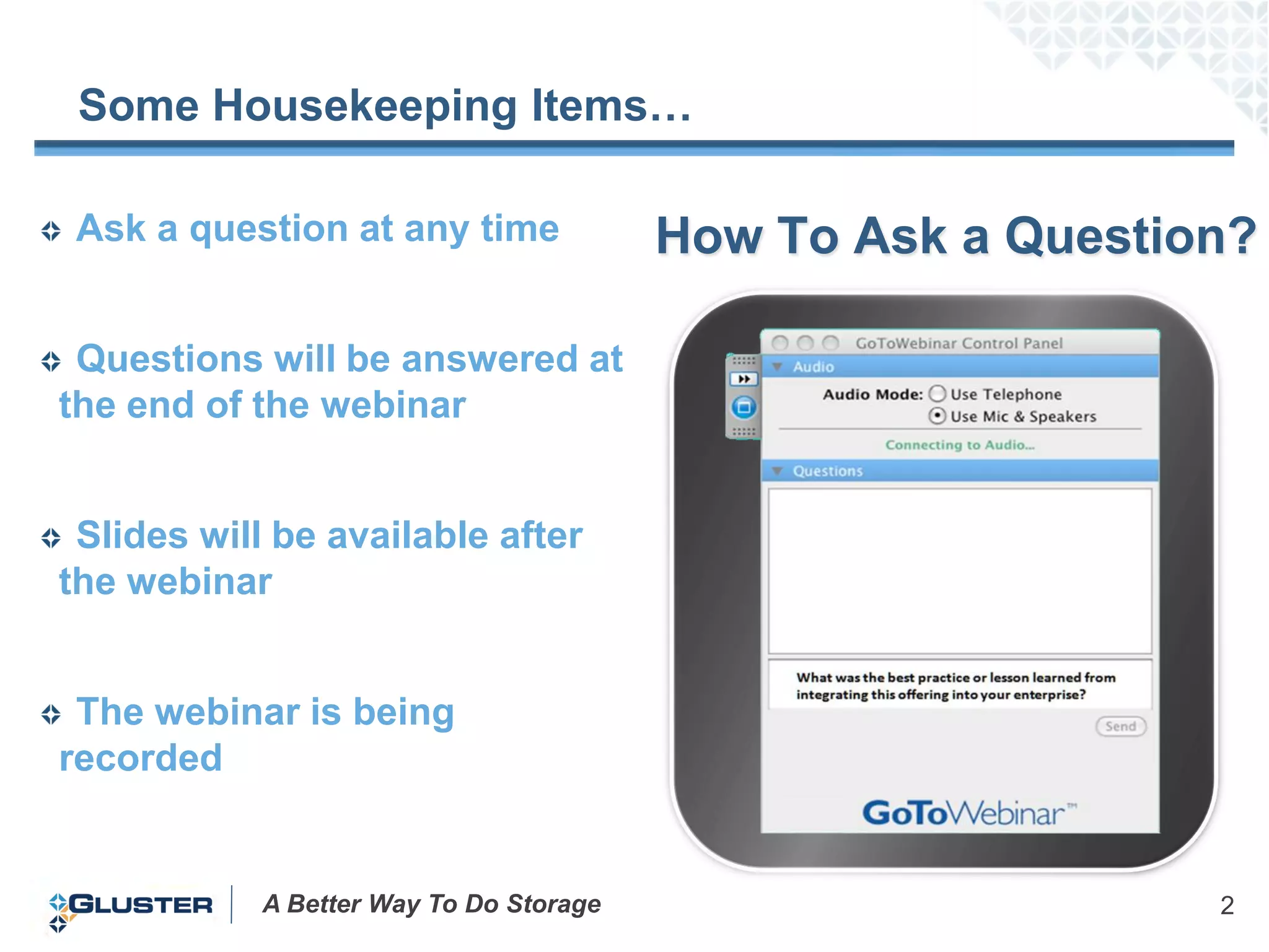

2. Some Housekeeping Items…
Ask a question at any time How To Ask a Question?
Questions will be answered at
the end of the webinar
Slides will be available after
the webinar
The webinar is being
recorded
A Better Way To Do Storage 2

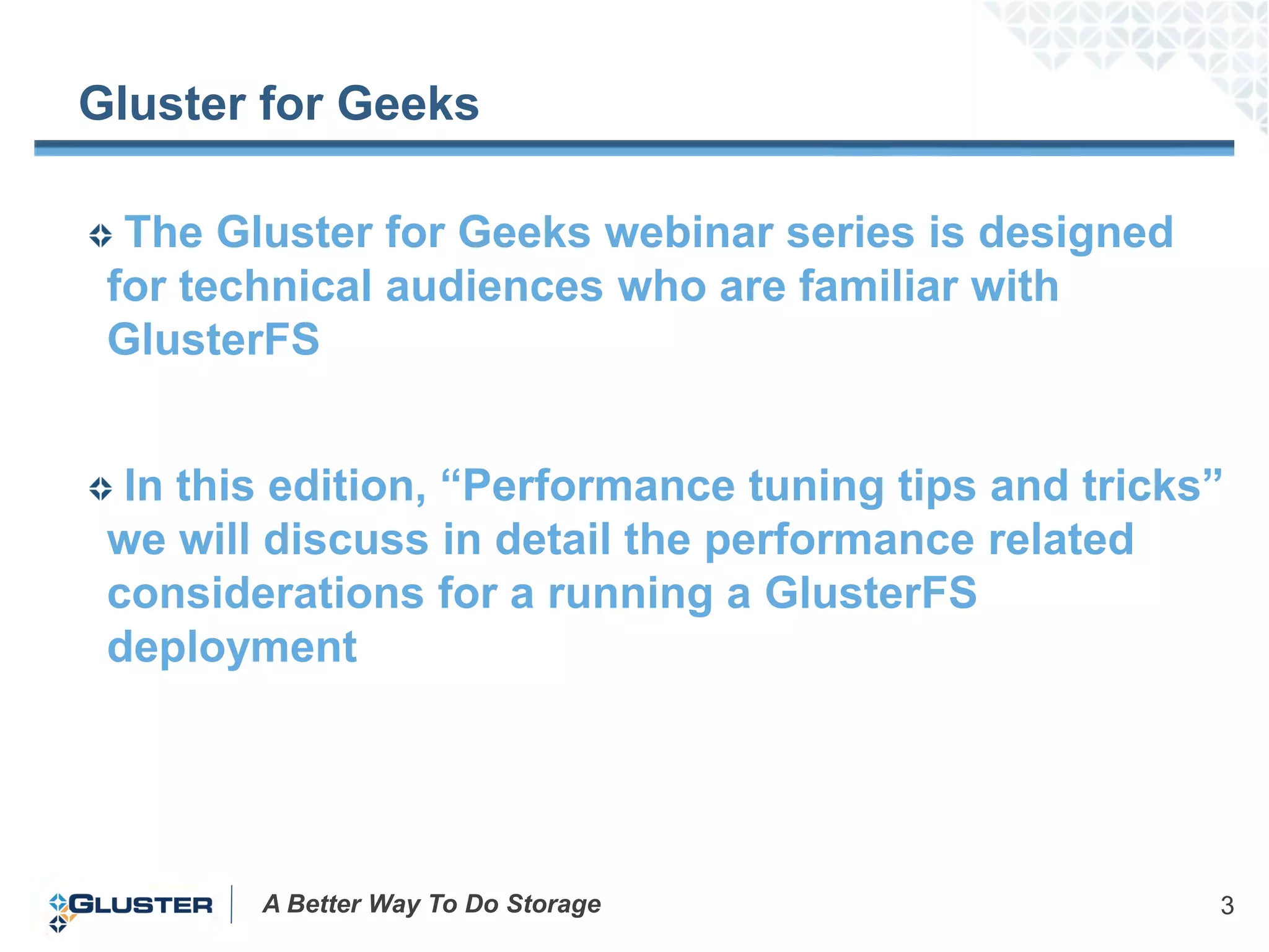

3. Gluster for Geeks
The Gluster for Geeks webinar series is designed
for technical audiences who are familiar with
GlusterFS
In this edition, “Performance tuning tips and tricks”
we will discuss in detail the performance related
considerations for a running a GlusterFS
deployment
A Better Way To Do Storage 3

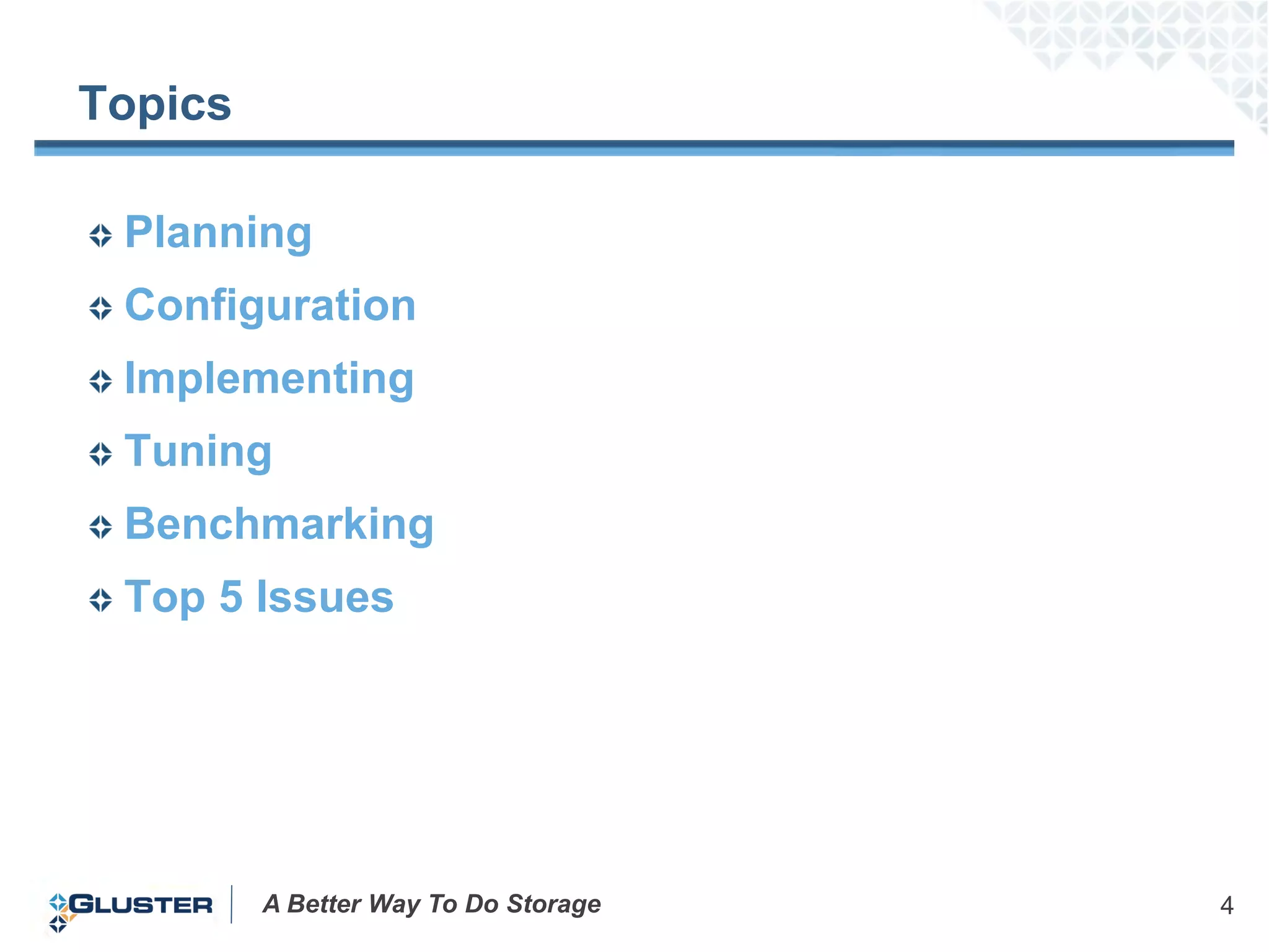

4. Topics
Planning
Configuration
Implementing
Tuning
Benchmarking
Top 5 Issues
A Better Way To Do Storage 4

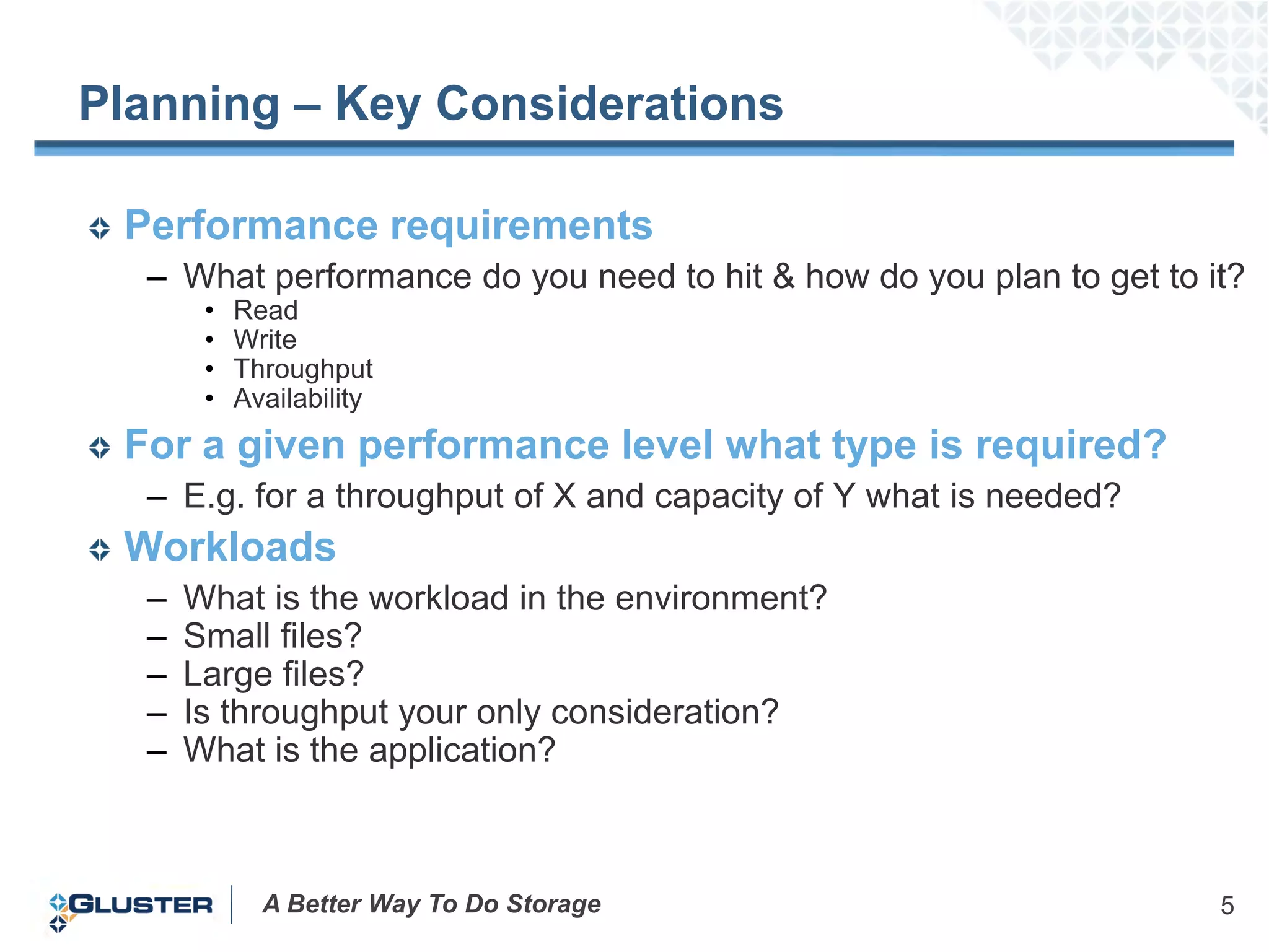

5. Planning – Key Considerations
Performance requirements
– What performance do you need to hit & how do you plan to get to it?
• Read
• Write
• Throughput
• Availability
For a given performance level what type is required?
– E.g. for a throughput of X and capacity of Y what is needed?
Workloads
– What is the workload in the environment?
– Small files?
– Large files?
– Is throughput your only consideration?
– What is the application?
A Better Way To Do Storage 5

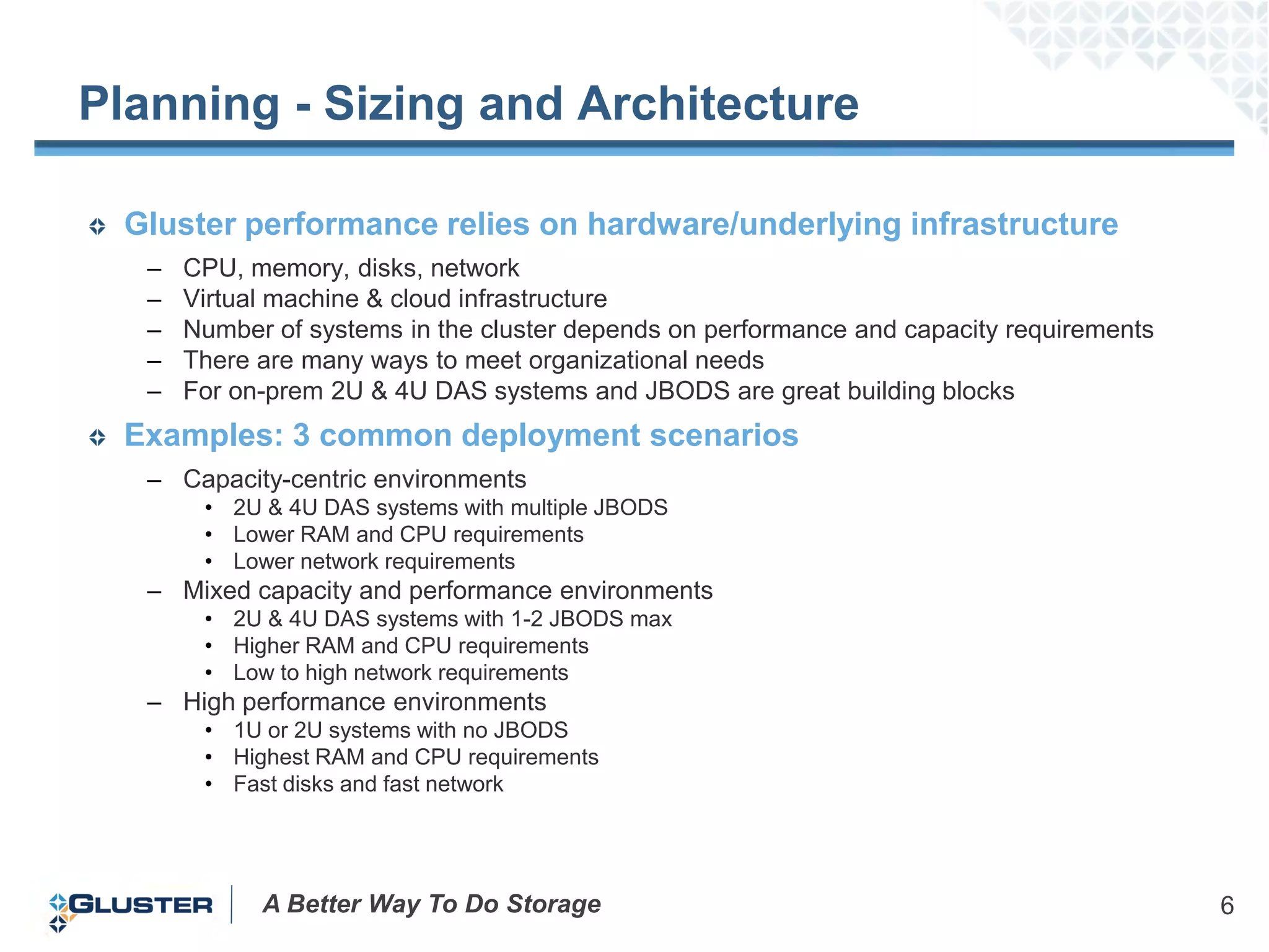

6. Planning - Sizing and Architecture
Gluster performance relies on hardware/underlying infrastructure
– CPU, memory, disks, network
– Virtual machine & cloud infrastructure
– Number of systems in the cluster depends on performance and capacity requirements
– There are many ways to meet organizational needs
– For on-prem 2U & 4U DAS systems and JBODS are great building blocks
Examples: 3 common deployment scenarios
– Capacity-centric environments
• 2U & 4U DAS systems with multiple JBODS
• Lower RAM and CPU requirements
• Lower network requirements
– Mixed capacity and performance environments
• 2U & 4U DAS systems with 1-2 JBODS max
• Higher RAM and CPU requirements
• Low to high network requirements
– High performance environments
• 1U or 2U systems with no JBODS
• Highest RAM and CPU requirements
• Fast disks and fast network
A Better Way To Do Storage 6

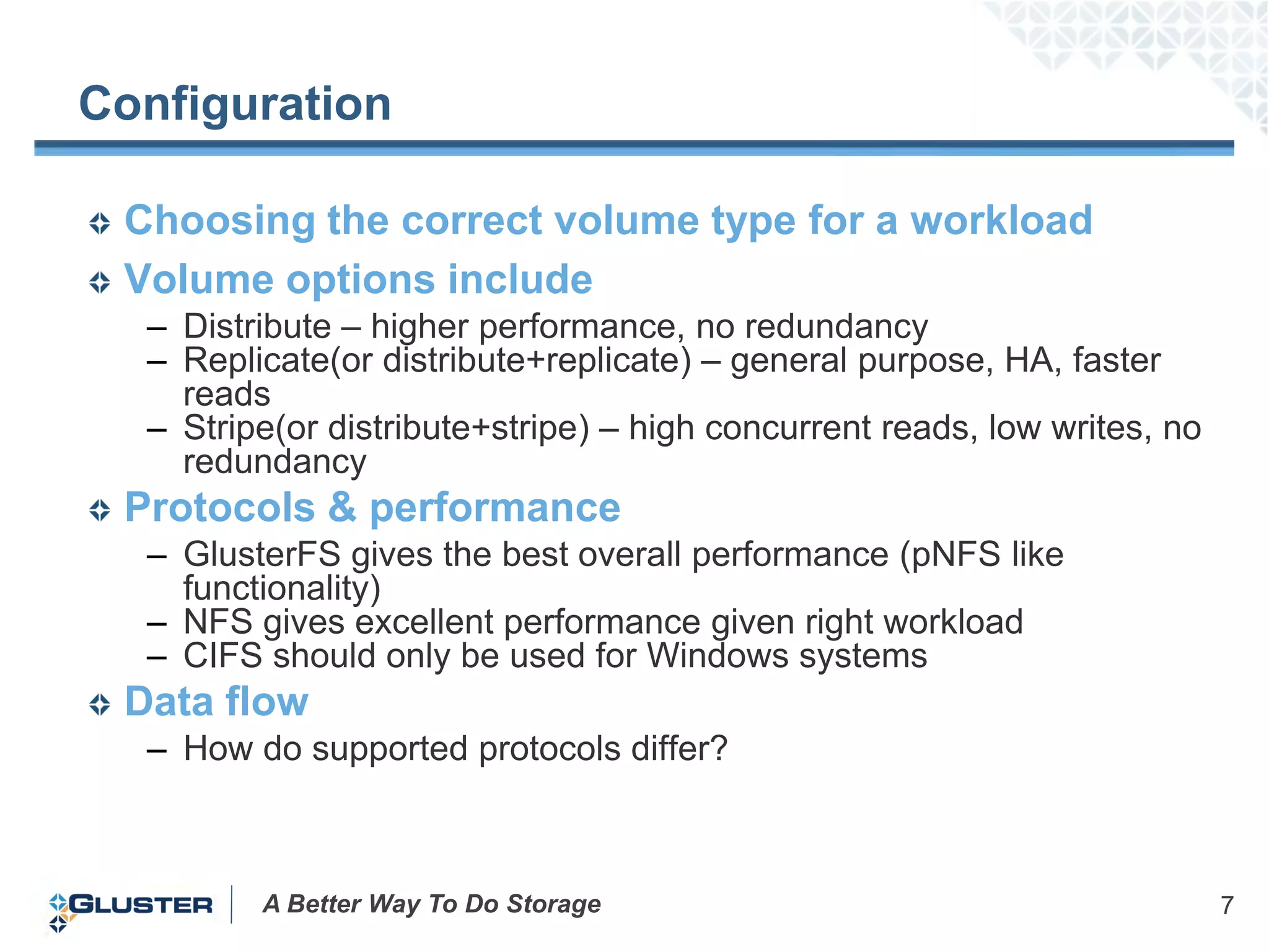

7. Configuration
Choosing the correct volume type for a workload
Volume options include
– Distribute – higher performance, no redundancy
– Replicate(or distribute+replicate) – general purpose, HA, faster
reads
– Stripe(or distribute+stripe) – high concurrent reads, low writes, no
redundancy
Protocols & performance
– GlusterFS gives the best overall performance (pNFS like
functionality)
– NFS gives excellent performance given right workload
– CIFS should only be used for Windows systems
Data flow
– How do supported protocols differ?
A Better Way To Do Storage 7

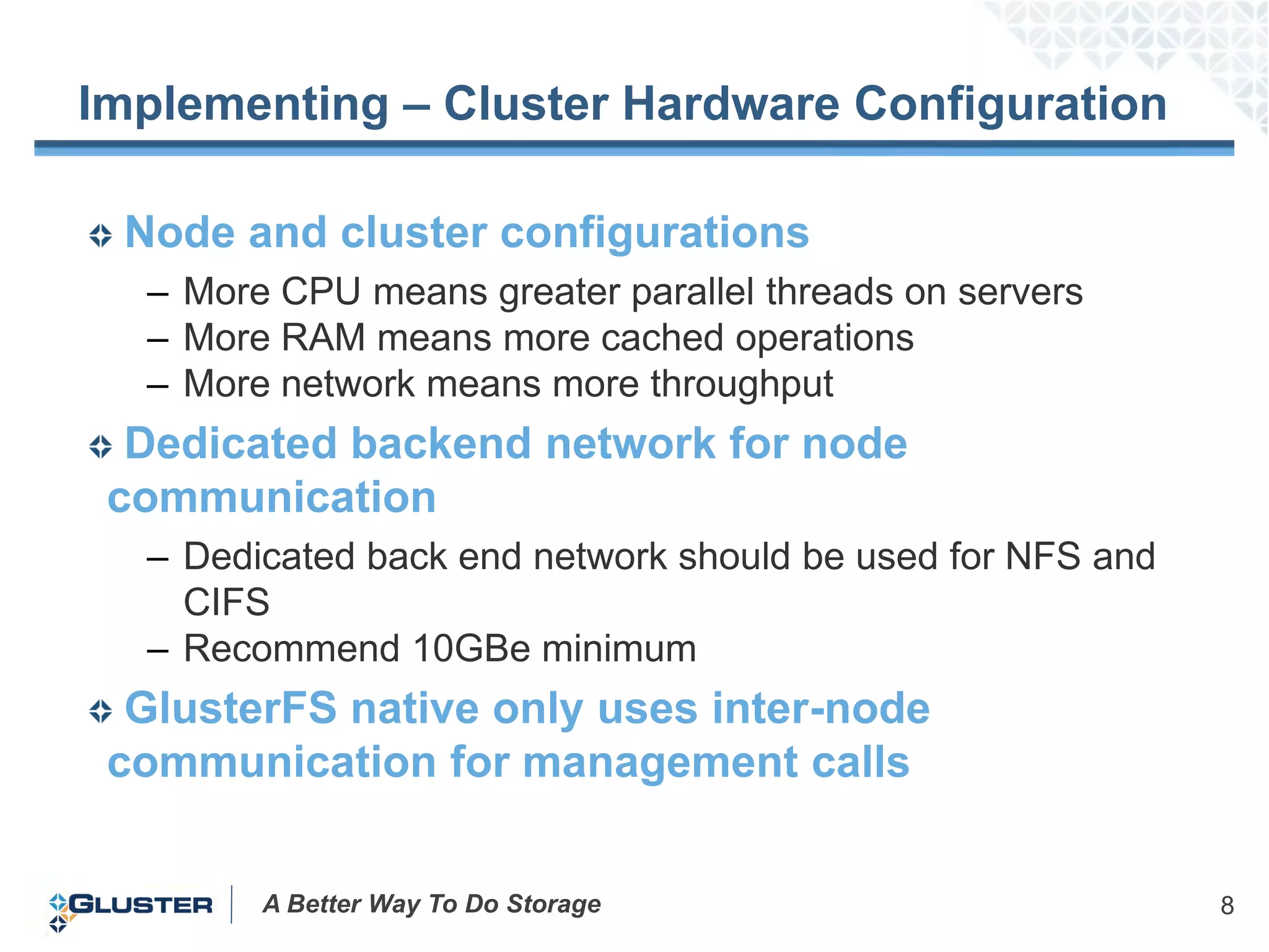

8. Implementing – Cluster Hardware Configuration
Node and cluster configurations
– More CPU means greater parallel threads on servers
– More RAM means more cached operations
– More network means more throughput
Dedicated backend network for node
communication
– Dedicated back end network should be used for NFS and
CIFS
– Recommend 10GBe minimum
GlusterFS native only uses inter-node
communication for management calls
A Better Way To Do Storage 8

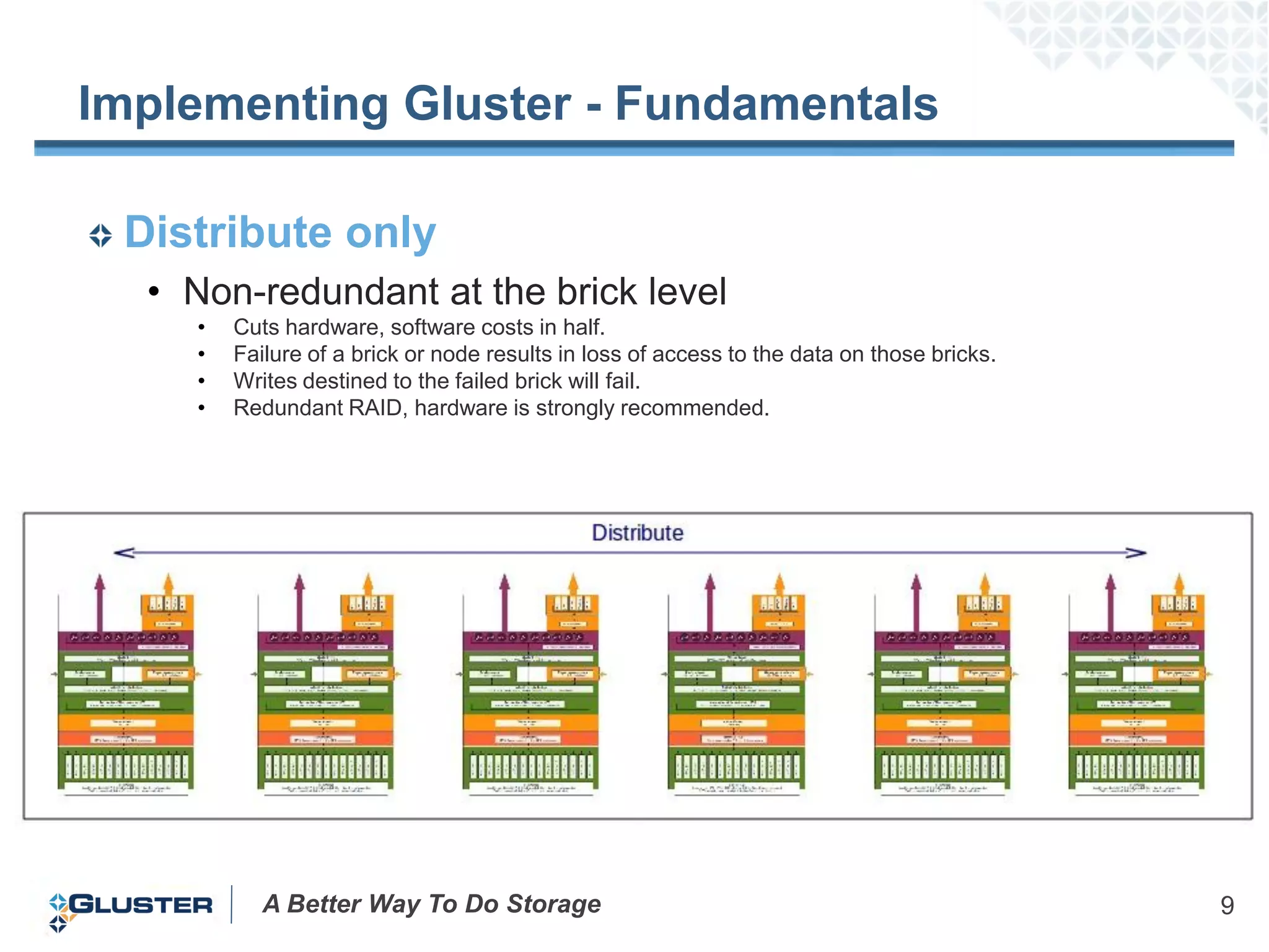

9. Implementing Gluster - Fundamentals
Distribute only
• Non-redundant at the brick level
• Cuts hardware, software costs in half.
• Failure of a brick or node results in loss of access to the data on those bricks.
• Writes destined to the failed brick will fail.
• Redundant RAID, hardware is strongly recommended.
A Better Way To Do Storage 9

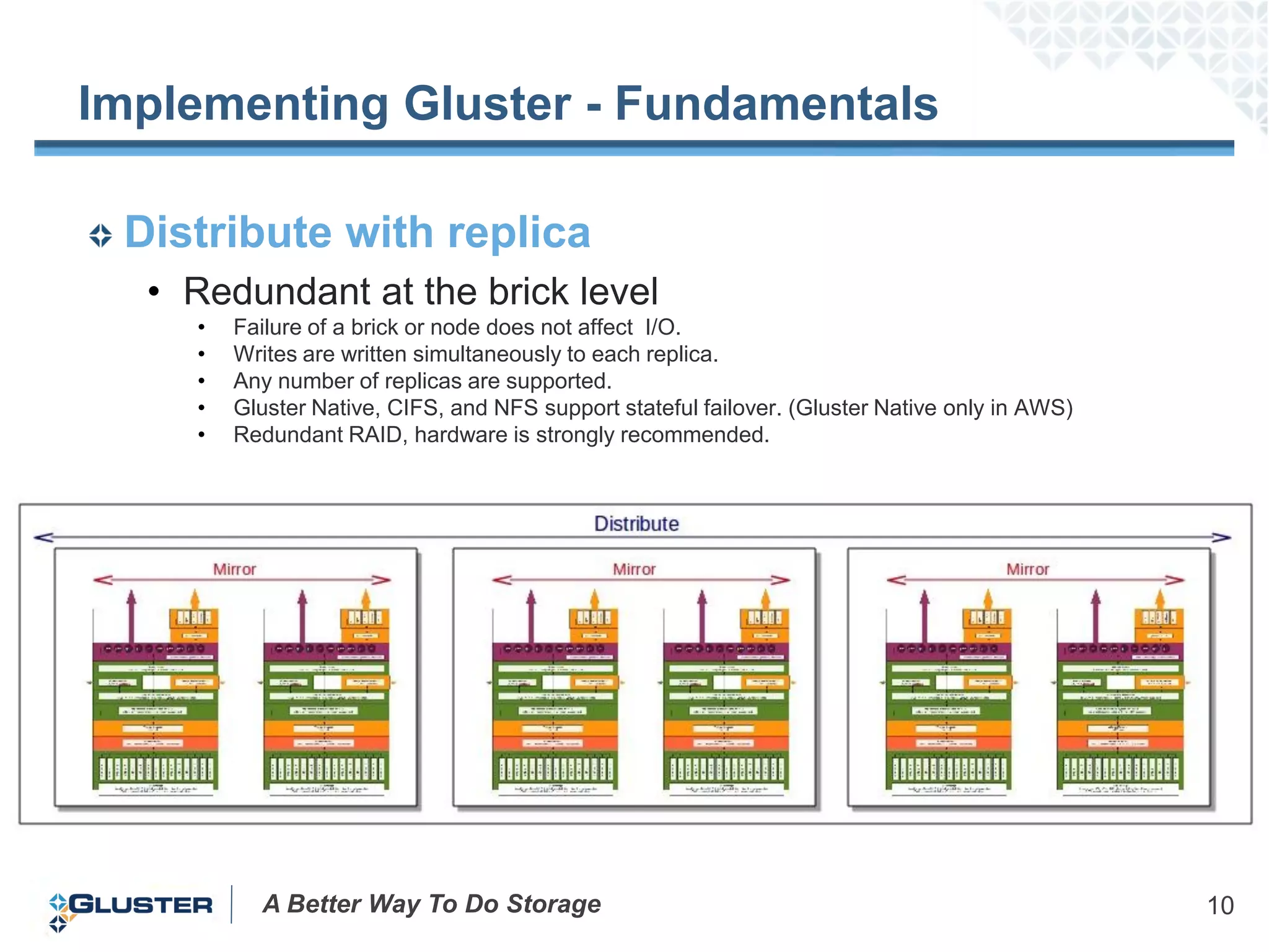

10. Implementing Gluster - Fundamentals
Distribute with replica
• Redundant at the brick level
• Failure of a brick or node does not affect I/O.
• Writes are written simultaneously to each replica.
• Any number of replicas are supported.
• Gluster Native, CIFS, and NFS support stateful failover. (Gluster Native only in AWS)
• Redundant RAID, hardware is strongly recommended.
A Better Way To Do Storage 10

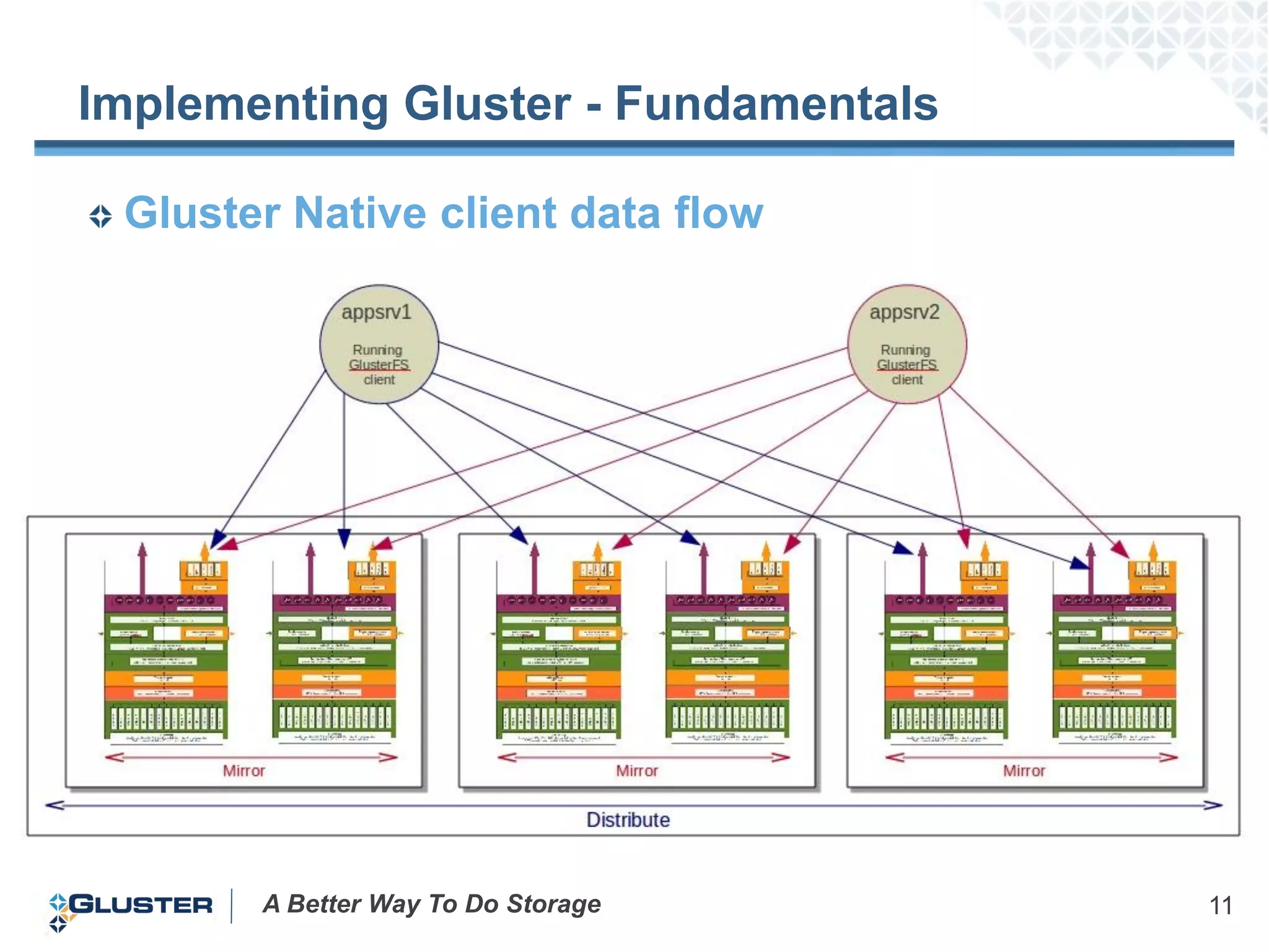

11. Implementing Gluster - Fundamentals
Gluster Native client data flow
A Better Way To Do Storage 11

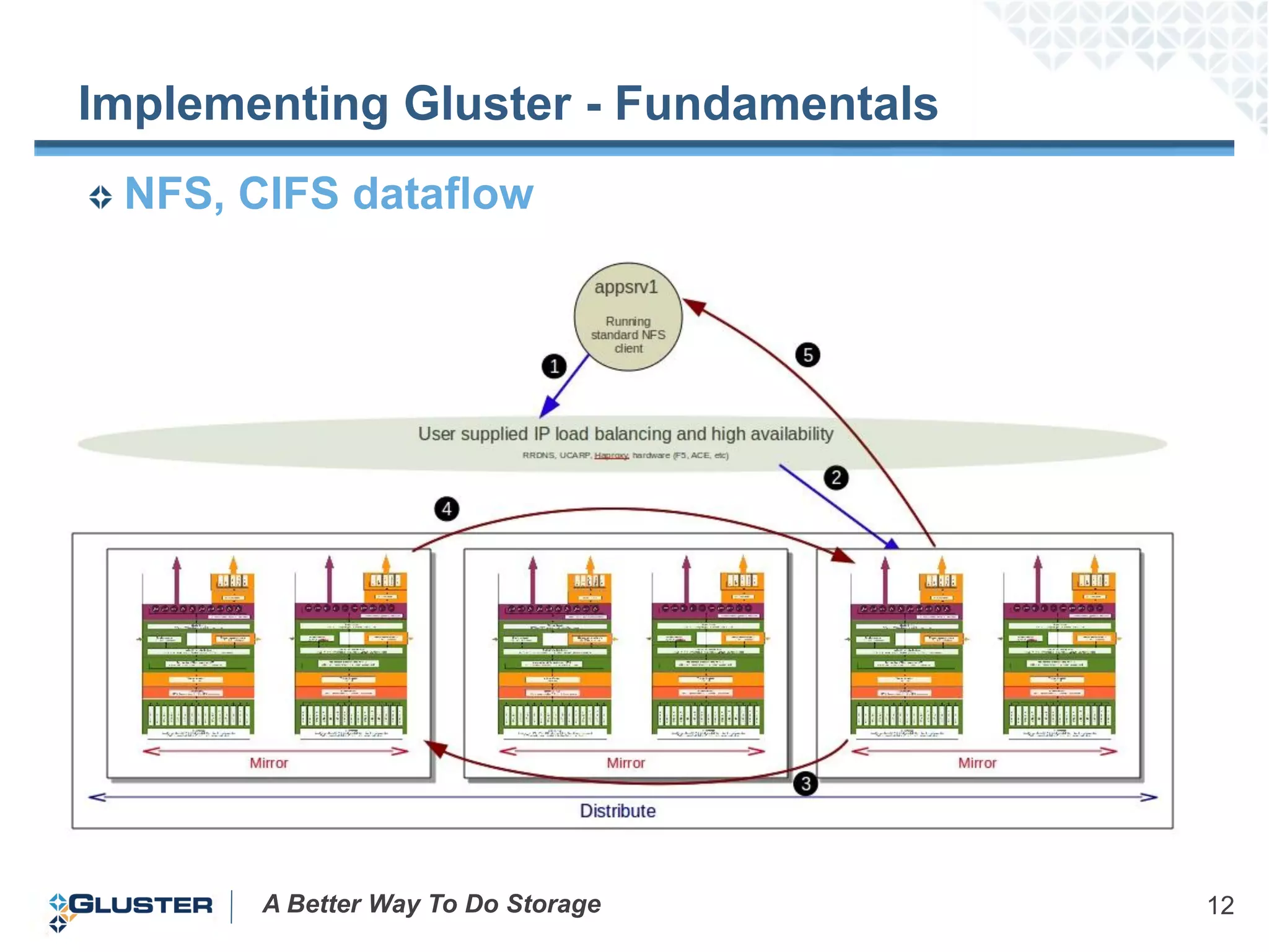

12. Implementing Gluster - Fundamentals
NFS, CIFS dataflow
A Better Way To Do Storage 12

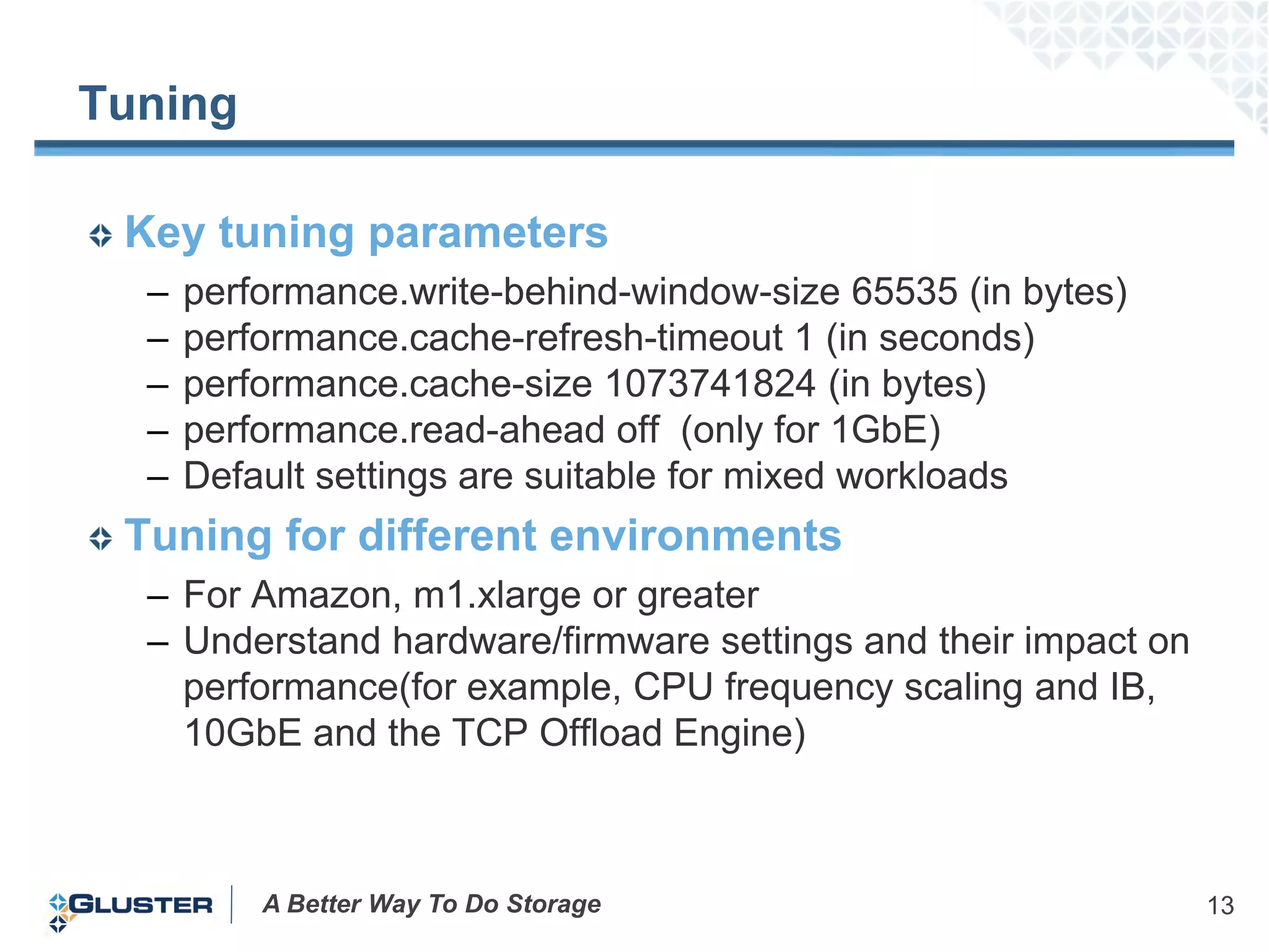

13. Tuning
Key tuning parameters
– performance.write-behind-window-size 65535 (in bytes)
– performance.cache-refresh-timeout 1 (in seconds)
– performance.cache-size 1073741824 (in bytes)
– performance.read-ahead off (only for 1GbE)
– Default settings are suitable for mixed workloads
Tuning for different environments
– For Amazon, m1.xlarge or greater
– Understand hardware/firmware settings and their impact on
performance(for example, CPU frequency scaling and IB,
10GbE and the TCP Offload Engine)
A Better Way To Do Storage 13

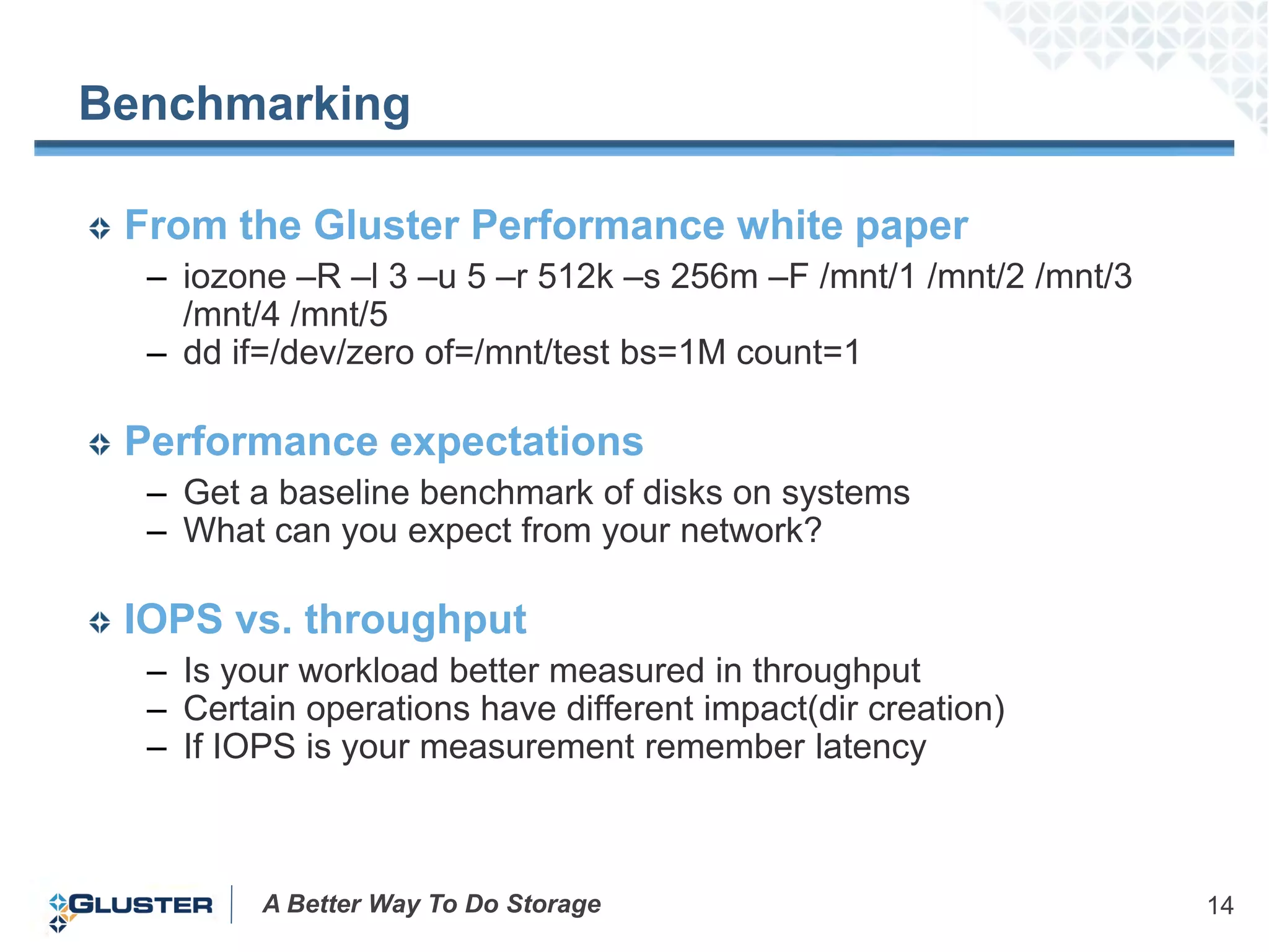

14. Benchmarking
From the Gluster Performance white paper
– iozone –R –l 3 –u 5 –r 512k –s 256m –F /mnt/1 /mnt/2 /mnt/3
/mnt/4 /mnt/5
– dd if=/dev/zero of=/mnt/test bs=1M count=1
Performance expectations
– Get a baseline benchmark of disks on systems
– What can you expect from your network?
IOPS vs. throughput
– Is your workload better measured in throughput
– Certain operations have different impact(dir creation)
– If IOPS is your measurement remember latency
A Better Way To Do Storage 14

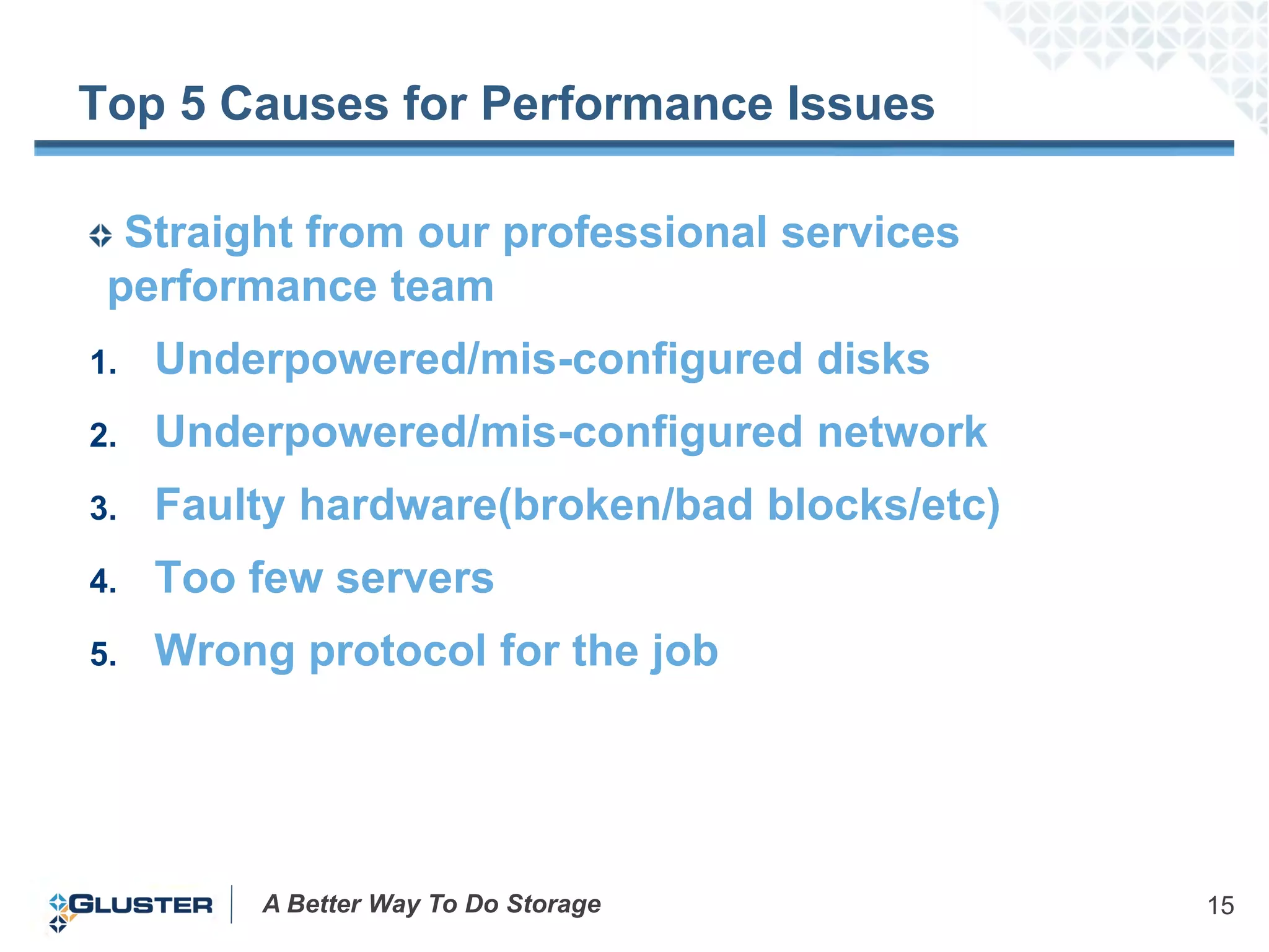

15. Top 5 Causes for Performance Issues
Straight from our professional services
performance team
1. Underpowered/mis-configured disks
2. Underpowered/mis-configured network
3. Faulty hardware(broken/bad blocks/etc)
4. Too few servers
5. Wrong protocol for the job
A Better Way To Do Storage 15

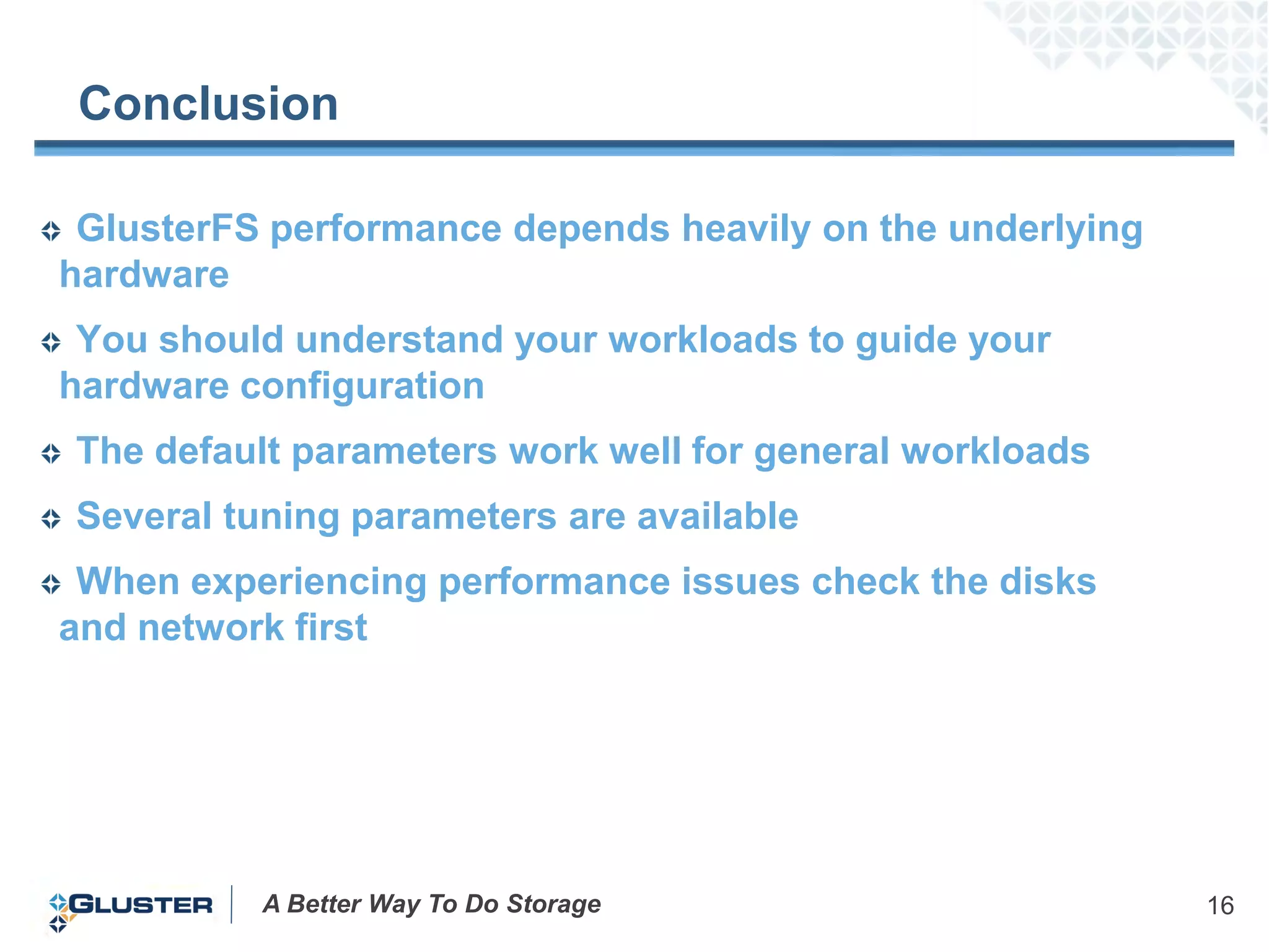

16. Conclusion
GlusterFS performance depends heavily on the underlying
hardware
You should understand your workloads to guide your
hardware configuration
The default parameters work well for general workloads
Several tuning parameters are available
When experiencing performance issues check the disks
and network first
A Better Way To Do Storage 16

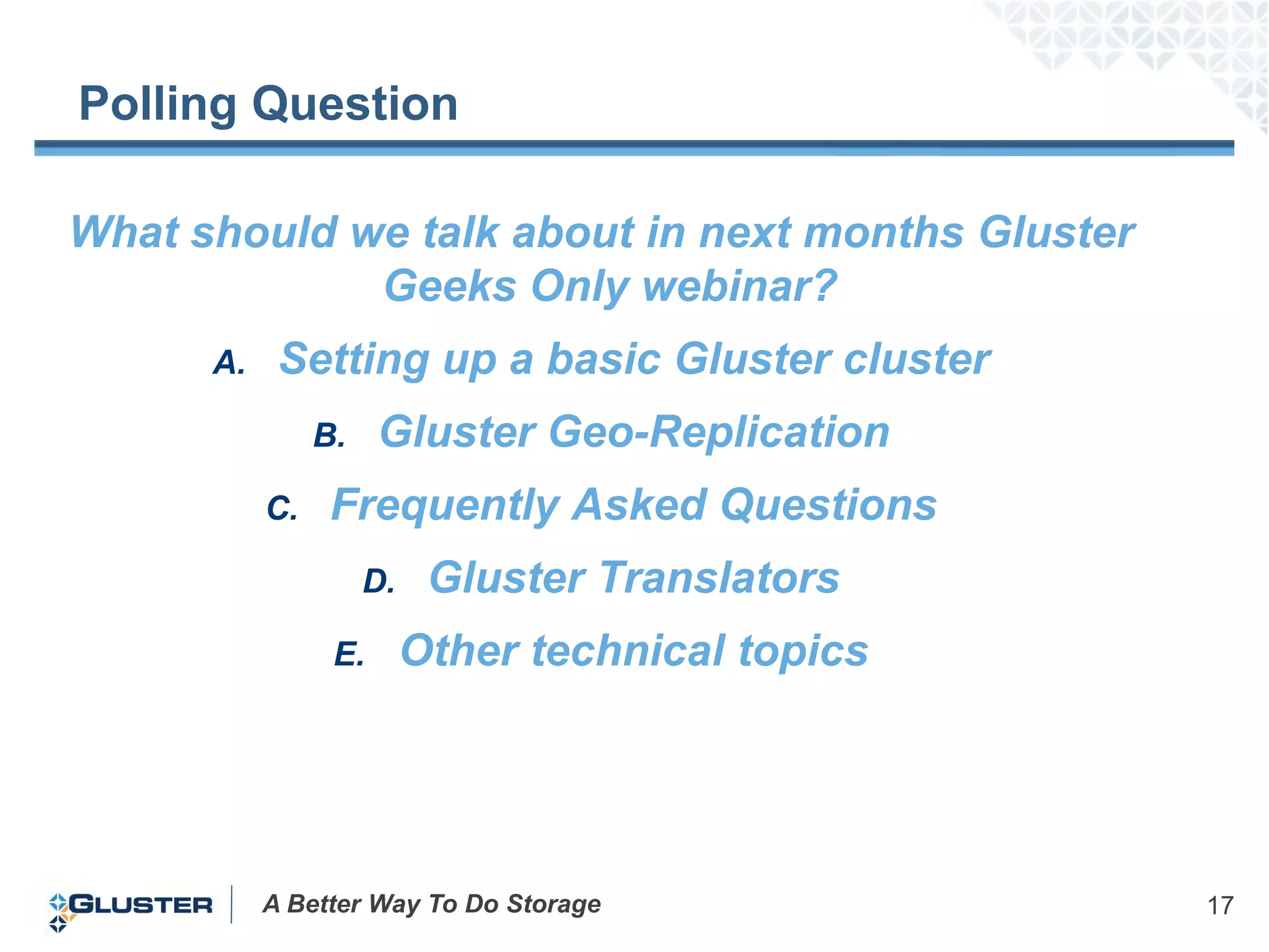

17. Polling Question
What should we talk about in next months Gluster
Geeks Only webinar?
A. Setting up a basic Gluster cluster
B. Gluster Geo-Replication
C. Frequently Asked Questions
D. Gluster Translators
E. Other technical topics
A Better Way To Do Storage 17

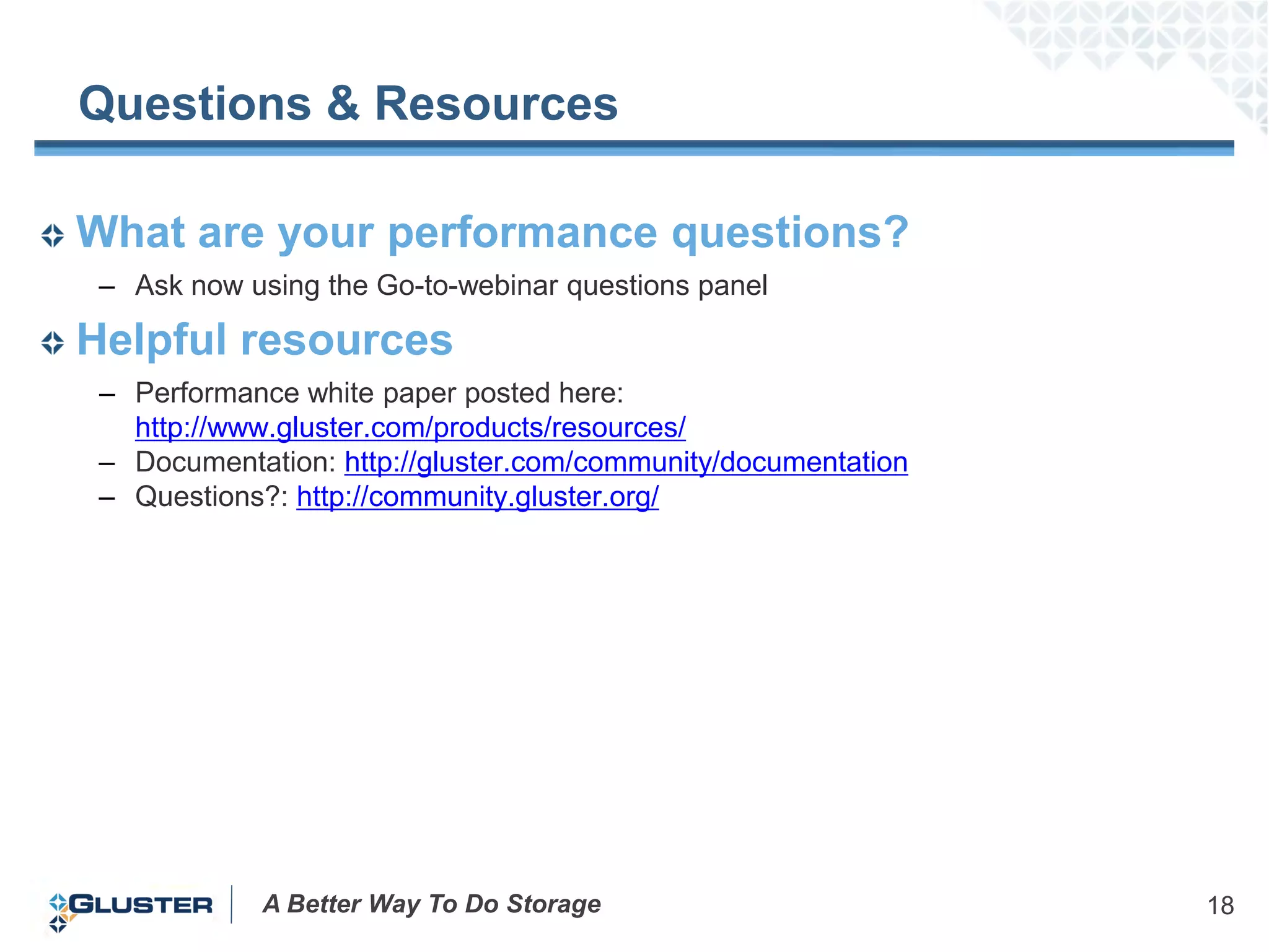

18. Questions & Resources
What are your performance questions?
– Ask now using the Go-to-webinar questions panel
Helpful resources
– Performance white paper posted here:
http://www.gluster.com/products/resources/
– Documentation: http://gluster.com/community/documentation
– Questions?: http://community.gluster.org/
A Better Way To Do Storage 18
