Ninja is a build system that focuses solely on speed. It aims to have the fastest possible build times by keeping things very simple - it has almost no built-in functionality and relies on external meta-build systems like GYP or CMake to generate the build specification files (ninja files). Ninja files describe dependencies between targets but don't include complex build logic. This keeps the overhead of the build system very low and allows builds to be highly parallelized.

1. ❝Ninja Build” Beginner’s Guide

2. Chang W. Doh
<hi> </hi>
GDG Korea WebTech Organizer
HTML5Rocks/KO Contributor/Coordinator

3. Ninja?
● Designed only for speed
● File Interdependencies
● Orchestrate buildings, quickly
● Minified load & evaluations

4. Philosophy
● Aimed to assembler, not high-level system.
● ‘Edit-compile cycle’ as fast as possible
● Barest functionality to describe dependency graph
− Cons. : impossible to complex decisions
− Instead, use ninja file Generator!
● e.g. GYP, GN or Cmake 2.8.8+

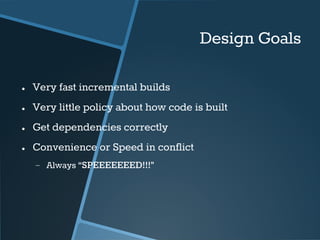

5. Design Goals
● Very fast incremental builds
● Very little policy about how code is built
● Get dependencies correctly
● Convenience or Speed in conflict
− Always “SPEEEEEEED!!!”

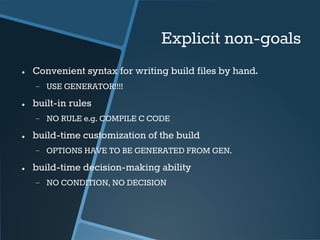

6. Explicit non-goals
● Convenient syntax for writing build files by hand.
− USE GENERATOR!!!!
● built-in rules
− NO RULE e.g. COMPILE C CODE
● build-time customization of the build
− OPTIONS HAVE TO BE GENERATED FROM GEN.
● build-time decision-making ability
− NO CONDITION, NO DECISION

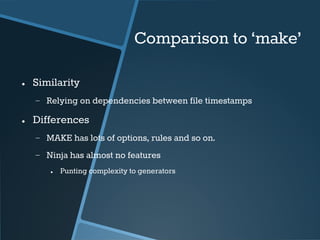

7. Comparison to ‘make’
● Similarity
− Relying on dependencies between file timestamps
● Differences
− MAKE has lots of options, rules and so on.
− Ninja has almost no features
● Punting complexity to generators

8. Comparison to ‘make’
● Discovering extra dependencies at build time, making it easy to get
header dependencies correct for C/C++ code.
● A build edge may have multiple outputs.
● Outputs implicitly depend on the command line.
● Output directories are always implicitly created before running the
command.
● Rules can provide shorter descriptions of the command being run.
● Builds are always run in parallel.
● Command output is always buffered.

9. Ninja is designed only for speed
● But, .ninja file is just human-readable ☹
● Recommends using Ninja in conjunction with other
meta-build system.

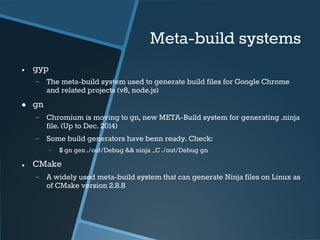

10. Meta-build systems
● gyp
− The meta-build system used to generate build files for Google Chrome
and related projects (v8, node.js)
● gn
− Chromium is moving to gn, new META-Build system for generating .ninja
file. (Up to Dec. 2014)
− Some build generators have benn ready. Check:
− $ gn gen ./out/Debug && ninja –C ./out/Debug gn
● CMake
− A widely used meta-build system that can generate Ninja files on Linux as
of CMake version 2.8.8

11. TL;DR;
● Ninja is FAST!
− No option, No decision, No built-ins to avoid slow edit-build
cycle.
− Only focused at ‘dependencies’ on your project
− But, you should GENERATE your .ninja file!

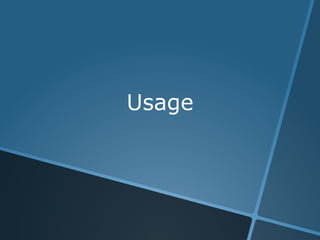

12. Usage

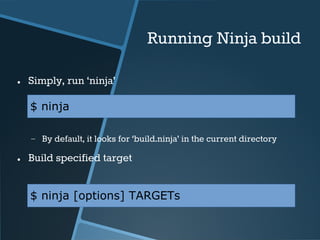

13. Running Ninja build
● Simply, run ‘ninja’
$ ninja
− By default, it looks for ‘build.ninja’ in the current directory
● Build specified target
$ ninja [options] TARGETs

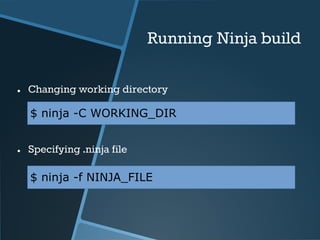

14. Running Ninja build
● Changing working directory
$ ninja -C WORKING_DIR
● Specifying .ninja file
$ ninja -f NINJA_FILE

15. Options
● Command-line options
Option Argument Description
-C WORKING_DIR Setting working directory
-f NINJA_FILE Specifying .ninja file
-j Integer Limitations of jobs in parallel
-l Integer Limitations of load average
-v Show all commands while building
-n Dryrun, but act like build succeeded
-d MODE Debug mode:
● ‘stat’ - Operation count/timing
● ‘explain’ - Print what cause command
● ‘keeprsp’ - Keep response files
-t TOOL Run a subtool:
•Mostly, $ ninja -t clean -r RULES

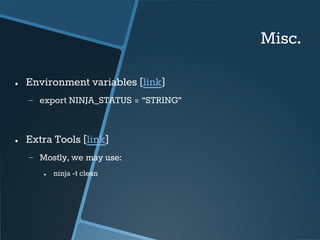

16. Misc.
● Environment variables [link]
− export NINJA_STATUS = “STRING”
● Extra Tools [link]
− Mostly, we may use:
● ninja -t clean

17. Writing .ninja file

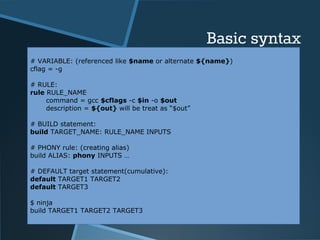

18. Basic syntax
# VARIABLE: (referenced like $name or alternate ${name})
cflag = -g
# RULE:
rule RULE_NAME
command = gcc $cflags -c $in -o $out
description = ${out} will be treat as “$out”
# BUILD statement:
build TARGET_NAME: RULE_NAME INPUTS
# PHONY rule: (creating alias)
build ALIAS: phony INPUTS …
# DEFAULT target statement(cumulative):
default TARGET1 TARGET2
default TARGET3
$ ninja
build TARGET1 TARGET2 TARGET3

19. Example
SAMPLE: build.ninja
# ninja version check, ‘ninja_required_version’ is a special variable,
# this variable is checked immediately when encountered in parsing.
ninja_required_version = 1.3
# variable
cc = g++
cflags = -Wall
# rule
rule cc
command = gcc $cflags -c $in -o $out
description = compile .cc
# build
build foo.o: cc foo.c

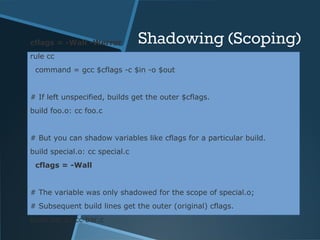

20. cflags = -Wall -Werror Shadowing (Scoping)
rule cc
command = gcc $cflags -c $in -o $out
# If left unspecified, builds get the outer $cflags.
build foo.o: cc foo.c
# But you can shadow variables like cflags for a particular build.
build special.o: cc special.c
cflags = -Wall
# The variable was only shadowed for the scope of special.o;
# Subsequent build lines get the outer (original) cflags.
build bar.o: cc bar.c

21. miscellaneous

22. .ninja_log
● Using this log Ninja can know when an existing output
was built with a different command line
− .ninja_log will be created in the outmost scope of builddir

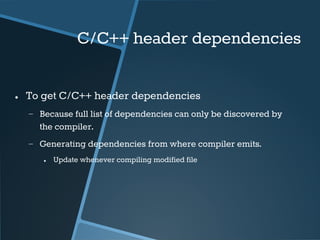

23. C/C++ header dependencies
● To get C/C++ header dependencies
− Because full list of dependencies can only be discovered by
the compiler.
− Generating dependencies from where compiler emits.
● Update whenever compiling modified file

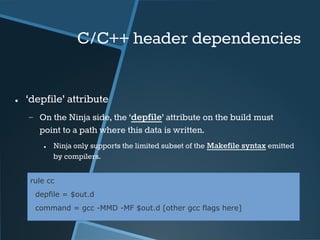

24. C/C++ header dependencies
● ‘depfile’ attribute
− On the Ninja side, the ‘depfile’ attribute on the build must
point to a path where this data is written.
● Ninja only supports the limited subset of the Makefile syntax emitted
by compilers.
rule cc
depfile = $out.d
command = gcc -MMD -MF $out.d [other gcc flags here]

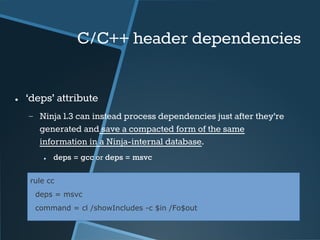

25. C/C++ header dependencies
● ‘deps’ attribute
− Ninja 1.3 can instead process dependencies just after they’re
generated and save a compacted form of the same
information in a Ninja-internal database.
● deps = gcc or deps = msvc
rule cc
deps = msvc
command = cl /showIncludes -c $in /Fo$out

26. pool
● To get C/C++ header dependencies
− Because full list of dependencies can only be discovered by
the compiler.
− Generating dependencies from where compiler emits.
● Update whenever compiling modified file

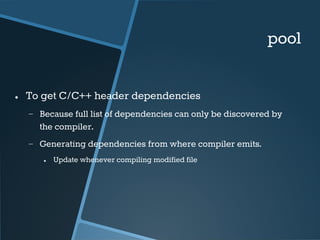

27. pool
● To get C/C++ header dependencies
− Because full list of dependencies can only be discovered by
the compiler.
− Generating dependencies from where compiler emits.
● Update whenever compiling modified file

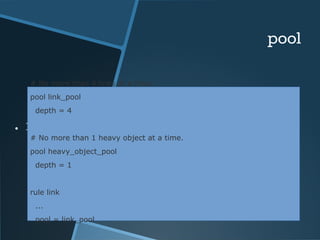

28. pool
# No more than 4 links at a time.
pool link_pool
depth = 4
● Declaring ‘pool’
# No more than 1 heavy object at a time.
pool heavy_object_pool
depth = 1
rule link
...
pool = link_pool

29. pool
# The link_pool is used here. Only 4 links will run concurrently.
build foo.exe: link input.obj
# empty pool, back into the default pool, which has infinite depth.
build other.exe: link input.obj
pool =
● Using ‘pool’
# A build statement can specify a pool directly. (and its scope)
build heavy_object1.obj: cc heavy_obj1.cc
pool = heavy_object_pool
build heavy_object2.obj: cc heavy_obj2.cc
pool = heavy_object_pool

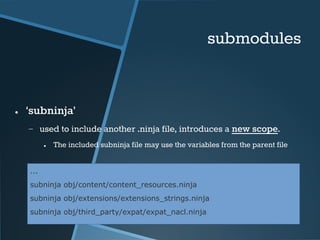

30. submodules
● ‘subninja’
− used to include another .ninja file, introduces a new scope.
● The included subninja file may use the variables from the parent file
...
subninja obj/content/content_resources.ninja
subninja obj/extensions/extensions_strings.ninja
subninja obj/third_party/expat/expat_nacl.ninja

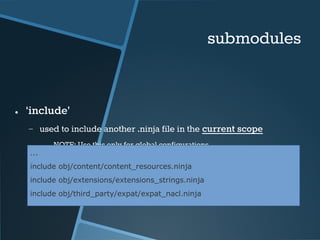

31. submodules
● ‘include’
− used to include another .ninja file in the current scope
● NOTE: Use this only for global configurations
...
include obj/content/content_resources.ninja
include obj/extensions/extensions_strings.ninja
include obj/third_party/expat/expat_nacl.ninja

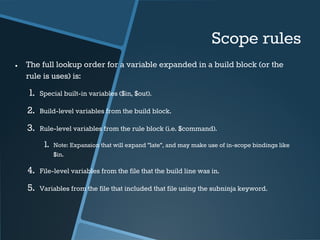

32. Scope rules
● The full lookup order for a variable expanded in a build block (or the
rule is uses) is:
1. Special built-in variables ($in, $out).
2. Build-level variables from the build block.
3. Rule-level variables from the rule block (i.e. $command).
1. Note: Expansion that will expand "late", and may make use of in-scope bindings like
$in.
4. File-level variables from the file that the build line was in.
5. Variables from the file that included that file using the subninja keyword.

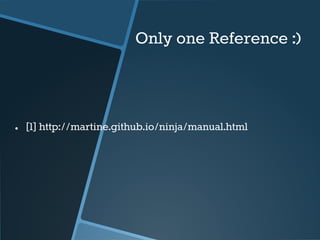

33. Only one Reference :)
● [1] http://martine.github.io/ninja/manual.html
