Advancements in Tiled-Based
Compute Rendering
Gareth Thomas
Developer Technology Engineer, AMD
Agenda
●Current Tech
●Culling Improvements
●Clustered Rendering
●Summary

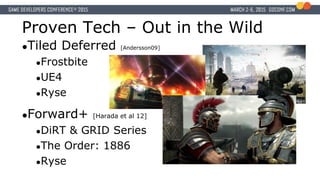

Proven Tech – Out in the Wild
●Tiled Deferred [Andersson09]
●Frostbite
●UE4
●Ryse
●Forward+ [Harada et al 12]
●DiRT & GRID Series
●The Order: 1886
●Ryse

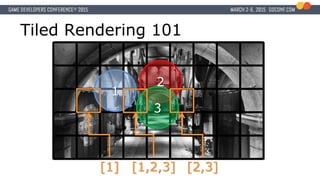

Tiled Rendering 101
1
2
3
[1] [1,2,3] [2,3]

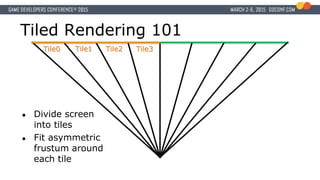

Tiled Rendering 101
● Divide screen
into tiles
● Fit asymmetric
frustum around
each tile
Tile0 Tile1 Tile3Tile2
Tiled Rendering 101
● Use z buffer from
depth pre-pass
as input
● Find min and max
depth per tile
● Use this frustum for
intersection testing

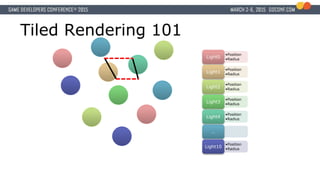

Tiled Rendering 101
•Position
•Radius
Light0
•Position
•Radius
Light1
•Position
•Radius
Light2
•Position
•Radius
Light3
•Position
•Radius
Light4
…
•Position
•Radius
Light10
Index1 •1

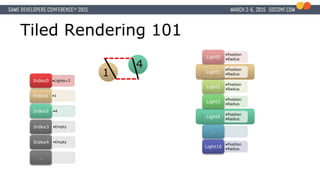

Tiled Rendering 101
•Position
•Radius
Light0
•Position
•Radius
Light1
•Position
•Radius
Light2
•Position
•Radius
Light3
•Position
•Radius
Light4
…
•Position
•Radius
Light10
•4Index2
•Lights=2Index0
Index3 •Empty
Index4 •Empty
…
1
4

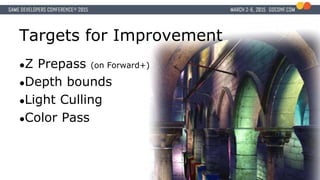

Targets for Improvement
●Z Prepass (on Forward+)
●Depth bounds
●Light Culling
●Color Pass

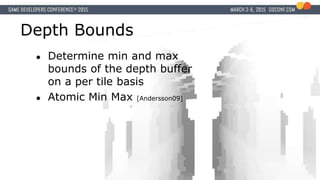

Depth Bounds
● Determine min and max
bounds of the depth buffer
on a per tile basis
● Atomic Min Max [Andersson09]

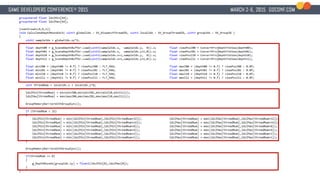

// read one depth sample per thread
// reinterpret as uint
// atomic min & max
// reinterpret back to float

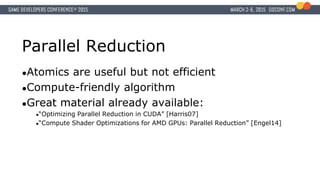

Parallel Reduction
●Atomics are useful but not efficient
●Compute-friendly algorithm
●Great material already available:
●“Optimizing Parallel Reduction in CUDA” [Harris07]
●“Compute Shader Optimizations for AMD GPUs: Parallel Reduction” [Engel14]

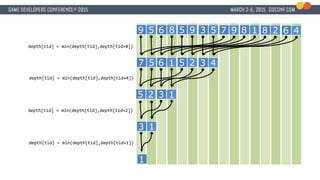

59 86 95 53 97 18 28 46
57 16 25 43
depth[tid] = min(depth[tid],depth[tid+8])
25 13
depth[tid] = min(depth[tid],depth[tid+4])
13
depth[tid] = min(depth[tid],depth[tid+2])
1
depth[tid] = min(depth[tid],depth[tid+1])

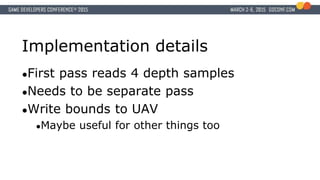

Implementation details
●First pass reads 4 depth samples
●Needs to be separate pass
●Write bounds to UAV
●Maybe useful for other things too
Advancements in-tiled-rendering

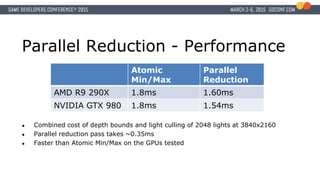

Parallel Reduction - Performance
Atomic
Min/Max
Parallel
Reduction
AMD R9 290X 1.8ms 1.60ms
NVIDIA GTX 980 1.8ms 1.54ms
● Combined cost of depth bounds and light culling of 2048 lights at 3840x2160
● Parallel reduction pass takes ~0.35ms
● Faster than Atomic Min/Max on the GPUs tested
Light Culling:
The Intersection Test

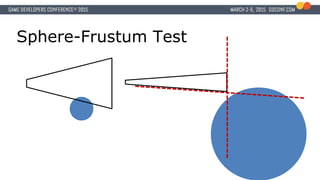

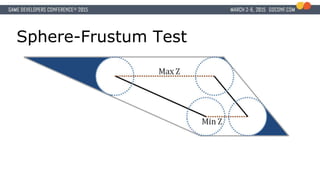

Sphere-Frustum Test
Sphere-Frustum Test

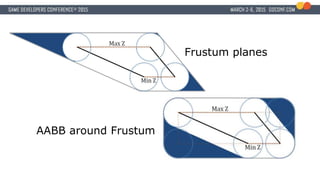

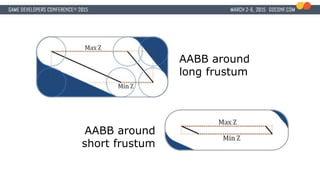

AABB around Frustum
Frustum planes
AABB around
long frustum
AABB around
short frustum

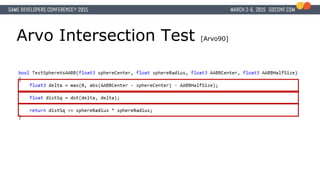

Arvo Intersection Test [Arvo90]

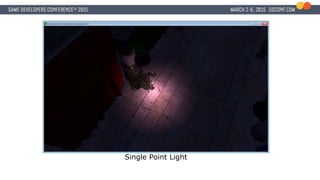

Single Point Light

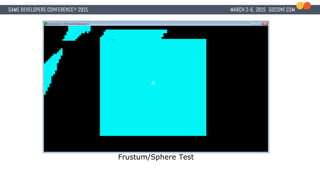

Frustum/Sphere Test

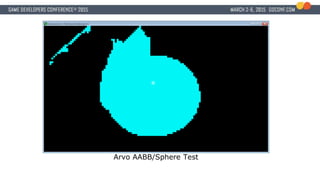

Arvo AABB/Sphere Test

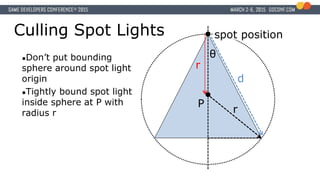

Culling Spot Lights
●Don’t put bounding
sphere around spot light
origin
●Tightly bound spot light
inside sphere at P with
radius r
spot position
P
r
θ
r
d

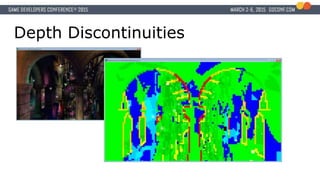

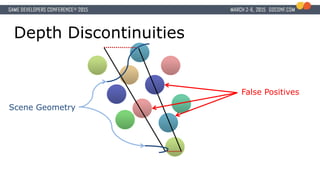

Depth Discontinuities
Depth Discontinuities
False Positives
Scene Geometry

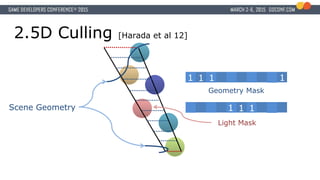

2.5D Culling [Harada et al 12]
Scene Geometry
Geometry Mask
1 1 1 1
1 1 1
Light Mask

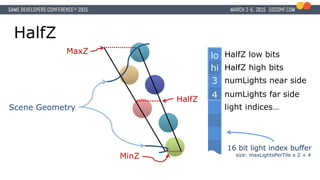

HalfZ
Scene Geometry
HalfZ
MinZ
MaxZ HalfZ low bits
HalfZ high bits
numLights near side
numLights far side
light indices…
3
4
lo
hi
16 bit light index buffer
size: maxLightsPerTile x 2 + 4

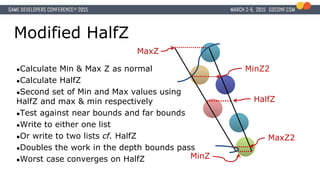

Modified HalfZ
HalfZ
MinZ
MaxZ
MinZ2
MaxZ2
●Calculate Min & Max Z as normal
●Calculate HalfZ
●Second set of Min and Max values using
HalfZ and max & min respectively
●Test against near bounds and far bounds
●Write to either one list
●Or write to two lists cf. HalfZ
●Doubles the work in the depth bounds pass
●Worst case converges on HalfZ

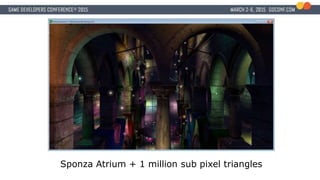

Sponza Atrium + 1 million sub pixel triangles
Advancements in-tiled-rendering
MinMax depth bounds, Frustum culling

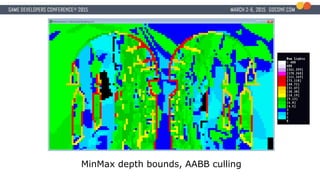

MinMax depth bounds, AABB culling

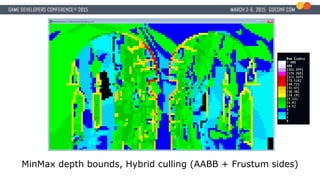

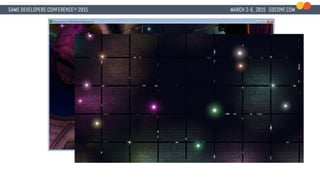

MinMax depth bounds, Hybrid culling (AABB + Frustum sides)

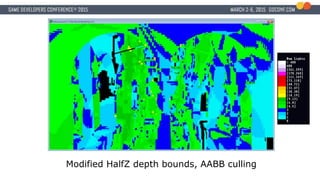

Modified HalfZ depth bounds, AABB culling

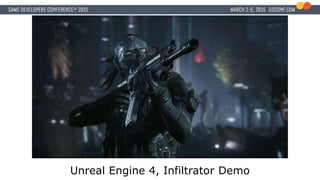

Unreal Engine 4, Infiltrator Demo

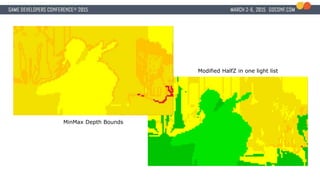

Modified HalfZ in one light list
MinMax Depth Bounds

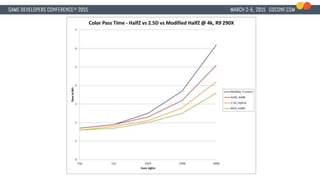

Advancements in-tiled-rendering
Advancements in-tiled-rendering
Advancements in-tiled-rendering

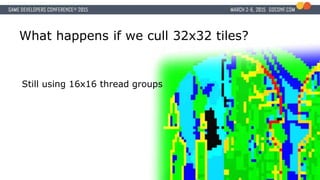

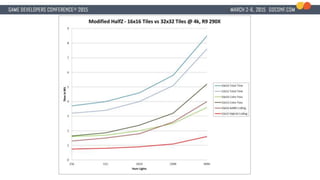

What happens if we cull 32x32 tiles?
Still using 16x16 thread groups
Advancements in-tiled-rendering

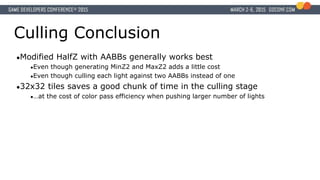

Culling Conclusion

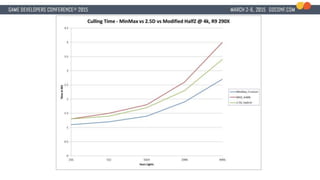

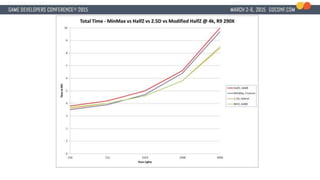

●Modified HalfZ with AABBs generally works best
●Even though generating MinZ2 and MaxZ2 adds a little cost
●Even though culling each light against two AABBs instead of one
●32x32 tiles saves a good chunk of time in the culling stage
●…at the cost of color pass efficiency when pushing larger number of lights

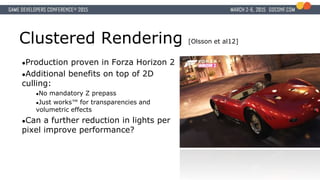

Clustered Rendering [Olsson et al12]
●Production proven in Forza Horizon 2
●Additional benefits on top of 2D
culling:
●No mandatory Z prepass
●Just works™ for transparencies and
volumetric effects
●Can a further reduction in lights per
pixel improve performance?

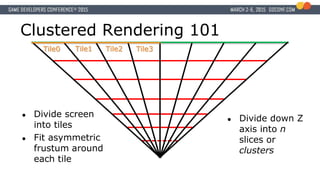

Clustered Rendering 101
● Divide screen
into tiles
● Fit asymmetric
frustum around
each tile
Tile0 Tile1 Tile3Tile2
● Divide down Z
axis into n
slices or
clusters

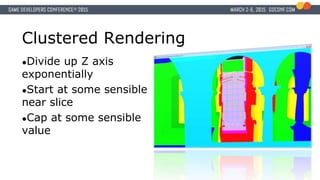

Clustered Rendering
●Divide up Z axis
exponentially
●Start at some sensible
near slice
●Cap at some sensible
value

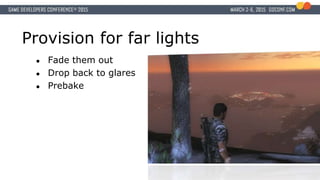

Provision for far lights
● Fade them out
● Drop back to glares
● Prebake
Light Culling

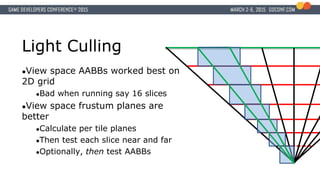

●View space AABBs worked best on
2D grid
●Bad when running say 16 slices
●View space frustum planes are
better
●Calculate per tile planes
●Then test each slice near and far
●Optionally, then test AABBs
VRAM Usage
●16x16 pixel 2D grid requires numTilesX x numTilesY x
maxLights
●1080p: 120x68x512xuint16 = 8MB
●4k: 240x135x512xuint16 = 32MB
●List for each light type (points & spots): 64MB
●So 32 slices: 1GB for point lights only 
●Either use coarser grid
●Or use a compacted list

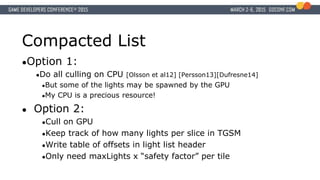

Compacted List
●Option 1:
●Do all culling on CPU [Olsson et al12] [Persson13][Dufresne14]
●But some of the lights may be spawned by the GPU
●My CPU is a precious resource!
● Option 2:
●Cull on GPU
●Keep track of how many lights per slice in TGSM
●Write table of offsets in light list header
●Only need maxLights x “safety factor” per tile

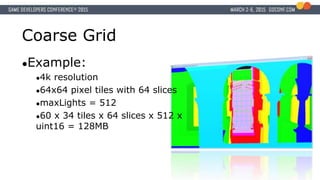

Coarse Grid
●Example:
●4k resolution
●64x64 pixel tiles with 64 slices
●maxLights = 512
●60 x 34 tiles x 64 slices x 512 x
uint16 = 128MB

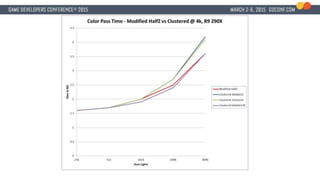

Advancements in-tiled-rendering

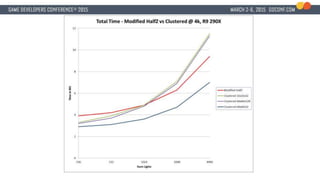

Advancements in-tiled-rendering

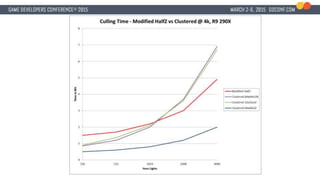

Advancements in-tiled-rendering

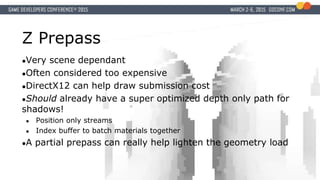

Z Prepass
●Very scene dependant
●Often considered too expensive
●DirectX12 can help draw submission cost
●Should already have a super optimized depth only path for
shadows!
● Position only streams
● Index buffer to batch materials together
●A partial prepass can really help lighten the geometry load

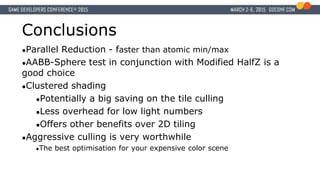

Conclusions
●Parallel Reduction - faster than atomic min/max
●AABB-Sphere test in conjunction with Modified HalfZ is a
good choice
●Clustered shading
●Potentially a big saving on the tile culling
●Less overhead for low light numbers
●Offers other benefits over 2D tiling
●Aggressive culling is very worthwhile
●The best optimisation for your expensive color scene

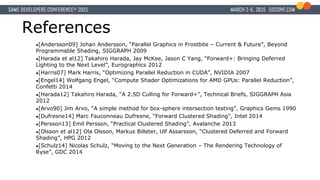

References
●[Andersson09] Johan Andersson, “Parallel Graphics in Frostbite – Current & Future”, Beyond
Programmable Shading, SIGGRAPH 2009
●[Harada et al12] Takahiro Harada, Jay McKee, Jason C Yang, “Forward+: Bringing Deferred
Lighting to the Next Level”, Eurographics 2012
●[Harris07] Mark Harris, “Optimizing Parallel Reduction in CUDA”, NVIDIA 2007
●[Engel14] Wolfgang Engel, “Compute Shader Optimizations for AMD GPUs: Parallel Reduction”,
Confetti 2014
●[Harada12] Takahiro Harada, “A 2.5D Culling for Forward+”, Technical Briefs, SIGGRAPH Asia
2012
●[Arvo90] Jim Arvo, “A simple method for box-sphere intersection testing”, Graphics Gems 1990
●[Dufresne14] Marc Fauconneau Dufresne, “Forward Clustered Shading”, Intel 2014
●[Persson13] Emil Persson, “Practical Clustered Shading”, Avalanche 2013
●[Olsson et al12] Ola Olsson, Markus Billeter, Ulf Assarsson, “Clustered Deferred and Forward
Shading”, HPG 2012
●[Schulz14] Nicolas Schulz, “Moving to the Next Generation – The Rendering Technology of
Ryse”, GDC 2014
Thanks
●Jason Stewart, AMD
●Epic Rendering Team
●Emil Persson, Avalanche Studios
Questions?
gareth.thomas@amd.com

More Related Content

What's hot

OpenGL 4.4 - Scene Rendering Techniques
OpenGL 4.4 - Scene Rendering TechniquesOpenGL 4.4 - Scene Rendering Techniques
OpenGL 4.4 - Scene Rendering Techniques
Narann29

Masked Occlusion Culling
Masked Occlusion CullingMasked Occlusion Culling
Masked Occlusion Culling
Intel® Software

Holy smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
Holy smoke! Faster Particle Rendering using Direct Compute by Gareth ThomasHoly smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
Holy smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
AMD Developer Central

Dissecting the Rendering of The Surge
Dissecting the Rendering of The SurgeDissecting the Rendering of The Surge
Dissecting the Rendering of The Surge
Philip Hammer

Approaching zero driver overhead
Approaching zero driver overheadApproaching zero driver overhead
Approaching zero driver overhead
Cass Everitt

A Bit More Deferred Cry Engine3
A Bit More Deferred   Cry Engine3A Bit More Deferred   Cry Engine3
A Bit More Deferred Cry Engine3
guest11b095

Destruction Masking in Frostbite 2 using Volume Distance Fields
Destruction Masking in Frostbite 2 using Volume Distance FieldsDestruction Masking in Frostbite 2 using Volume Distance Fields
Destruction Masking in Frostbite 2 using Volume Distance Fields
Electronic Arts / DICE

Physically Based and Unified Volumetric Rendering in Frostbite
Physically Based and Unified Volumetric Rendering in FrostbitePhysically Based and Unified Volumetric Rendering in Frostbite
Physically Based and Unified Volumetric Rendering in Frostbite
Electronic Arts / DICE

FrameGraph: Extensible Rendering Architecture in Frostbite
FrameGraph: Extensible Rendering Architecture in FrostbiteFrameGraph: Extensible Rendering Architecture in Frostbite
FrameGraph: Extensible Rendering Architecture in Frostbite
Electronic Arts / DICE

Screen Space Reflections in The Surge
Screen Space Reflections in The SurgeScreen Space Reflections in The Surge
Screen Space Reflections in The Surge
Michele Giacalone

Oit And Indirect Illumination Using Dx11 Linked Lists
Oit And Indirect Illumination Using Dx11 Linked ListsOit And Indirect Illumination Using Dx11 Linked Lists
Oit And Indirect Illumination Using Dx11 Linked Lists
Holger Gruen

Bindless Deferred Decals in The Surge 2
Bindless Deferred Decals in The Surge 2Bindless Deferred Decals in The Surge 2
Bindless Deferred Decals in The Surge 2
Philip Hammer

Efficient Rendering with DirectX* 12 on Intel® Graphics
Efficient Rendering with DirectX* 12 on Intel® GraphicsEfficient Rendering with DirectX* 12 on Intel® Graphics
Efficient Rendering with DirectX* 12 on Intel® Graphics
Gael Hofemeier

Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)
Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)
Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)
Johan Andersson

Secrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics TechnologySecrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics Technology
Tiago Sousa

OpenGL 3.2 and More
OpenGL 3.2 and MoreOpenGL 3.2 and More
OpenGL 3.2 and More
Mark Kilgard

SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3
SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3
SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3
Electronic Arts / DICE

Advanced Scenegraph Rendering Pipeline
Advanced Scenegraph Rendering PipelineAdvanced Scenegraph Rendering Pipeline
Advanced Scenegraph Rendering Pipeline
Narann29

Rendering Techniques in Rise of the Tomb Raider
Rendering Techniques in Rise of the Tomb RaiderRendering Techniques in Rise of the Tomb Raider
Rendering Techniques in Rise of the Tomb Raider
Eidos-Montréal

Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)
Takahiro Harada


What's hot (20)

OpenGL 4.4 - Scene Rendering Techniques
OpenGL 4.4 - Scene Rendering TechniquesOpenGL 4.4 - Scene Rendering Techniques
OpenGL 4.4 - Scene Rendering Techniques

Masked Occlusion Culling
Masked Occlusion CullingMasked Occlusion Culling
Masked Occlusion Culling

Holy smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
Holy smoke! Faster Particle Rendering using Direct Compute by Gareth ThomasHoly smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas
Holy smoke! Faster Particle Rendering using Direct Compute by Gareth Thomas

Dissecting the Rendering of The Surge
Dissecting the Rendering of The SurgeDissecting the Rendering of The Surge
Dissecting the Rendering of The Surge

Approaching zero driver overhead
Approaching zero driver overheadApproaching zero driver overhead
Approaching zero driver overhead

A Bit More Deferred Cry Engine3
A Bit More Deferred   Cry Engine3A Bit More Deferred   Cry Engine3
A Bit More Deferred Cry Engine3

Destruction Masking in Frostbite 2 using Volume Distance Fields
Destruction Masking in Frostbite 2 using Volume Distance FieldsDestruction Masking in Frostbite 2 using Volume Distance Fields
Destruction Masking in Frostbite 2 using Volume Distance Fields

Physically Based and Unified Volumetric Rendering in Frostbite
Physically Based and Unified Volumetric Rendering in FrostbitePhysically Based and Unified Volumetric Rendering in Frostbite
Physically Based and Unified Volumetric Rendering in Frostbite

FrameGraph: Extensible Rendering Architecture in Frostbite
FrameGraph: Extensible Rendering Architecture in FrostbiteFrameGraph: Extensible Rendering Architecture in Frostbite
FrameGraph: Extensible Rendering Architecture in Frostbite

Screen Space Reflections in The Surge
Screen Space Reflections in The SurgeScreen Space Reflections in The Surge
Screen Space Reflections in The Surge

Oit And Indirect Illumination Using Dx11 Linked Lists
Oit And Indirect Illumination Using Dx11 Linked ListsOit And Indirect Illumination Using Dx11 Linked Lists
Oit And Indirect Illumination Using Dx11 Linked Lists

Bindless Deferred Decals in The Surge 2
Bindless Deferred Decals in The Surge 2Bindless Deferred Decals in The Surge 2
Bindless Deferred Decals in The Surge 2

Efficient Rendering with DirectX* 12 on Intel® Graphics
Efficient Rendering with DirectX* 12 on Intel® GraphicsEfficient Rendering with DirectX* 12 on Intel® Graphics
Efficient Rendering with DirectX* 12 on Intel® Graphics

Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)
Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)
Parallel Graphics in Frostbite - Current & Future (Siggraph 2009)

Secrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics TechnologySecrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics Technology

OpenGL 3.2 and More
OpenGL 3.2 and MoreOpenGL 3.2 and More
OpenGL 3.2 and More

SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3
SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3
SPU-Based Deferred Shading in BATTLEFIELD 3 for Playstation 3

Advanced Scenegraph Rendering Pipeline
Advanced Scenegraph Rendering PipelineAdvanced Scenegraph Rendering Pipeline
Advanced Scenegraph Rendering Pipeline

Rendering Techniques in Rise of the Tomb Raider
Rendering Techniques in Rise of the Tomb RaiderRendering Techniques in Rise of the Tomb Raider
Rendering Techniques in Rise of the Tomb Raider

Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)


Viewers also liked

GDC 2012: Advanced Procedural Rendering in DX11
GDC 2012: Advanced Procedural Rendering in DX11GDC 2012: Advanced Procedural Rendering in DX11
GDC 2012: Advanced Procedural Rendering in DX11
smashflt

Bending the Graphics Pipeline
Bending the Graphics PipelineBending the Graphics Pipeline
Bending the Graphics Pipeline
Electronic Arts / DICE

Parallel Futures of a Game Engine (v2.0)
Parallel Futures of a Game Engine (v2.0)Parallel Futures of a Game Engine (v2.0)
Parallel Futures of a Game Engine (v2.0)
Johan Andersson

CG 論文講読会 2013/5/20 "Clustered deferred and forward shading"
CG 論文講読会 2013/5/20 "Clustered deferred and forward shading"CG 論文講読会 2013/5/20 "Clustered deferred and forward shading"
CG 論文講読会 2013/5/20 "Clustered deferred and forward shading"
Ryo Suzuki

Parallel Futures of a Game Engine
Parallel Futures of a Game EngineParallel Futures of a Game Engine
Parallel Futures of a Game Engine
Johan Andersson

How to Lead Customer Value Creation by Dan Olsen at Leading the Product Melbo...
How to Lead Customer Value Creation by Dan Olsen at Leading the Product Melbo...How to Lead Customer Value Creation by Dan Olsen at Leading the Product Melbo...
How to Lead Customer Value Creation by Dan Olsen at Leading the Product Melbo...
Dan Olsen

Unite2014: Mastering Physically Based Shading in Unity 5
Unite2014: Mastering Physically Based Shading in Unity 5Unite2014: Mastering Physically Based Shading in Unity 5
Unite2014: Mastering Physically Based Shading in Unity 5
Renaldas Zioma


Viewers also liked (7)

GDC 2012: Advanced Procedural Rendering in DX11
GDC 2012: Advanced Procedural Rendering in DX11GDC 2012: Advanced Procedural Rendering in DX11
GDC 2012: Advanced Procedural Rendering in DX11

Bending the Graphics Pipeline
Bending the Graphics PipelineBending the Graphics Pipeline
Bending the Graphics Pipeline

Parallel Futures of a Game Engine (v2.0)
Parallel Futures of a Game Engine (v2.0)Parallel Futures of a Game Engine (v2.0)
Parallel Futures of a Game Engine (v2.0)

CG 論文講読会 2013/5/20 "Clustered deferred and forward shading"
CG 論文講読会 2013/5/20 "Clustered deferred and forward shading"CG 論文講読会 2013/5/20 "Clustered deferred and forward shading"
CG 論文講読会 2013/5/20 "Clustered deferred and forward shading"

Parallel Futures of a Game Engine
Parallel Futures of a Game EngineParallel Futures of a Game Engine
Parallel Futures of a Game Engine

How to Lead Customer Value Creation by Dan Olsen at Leading the Product Melbo...
How to Lead Customer Value Creation by Dan Olsen at Leading the Product Melbo...How to Lead Customer Value Creation by Dan Olsen at Leading the Product Melbo...
How to Lead Customer Value Creation by Dan Olsen at Leading the Product Melbo...

Unite2014: Mastering Physically Based Shading in Unity 5
Unite2014: Mastering Physically Based Shading in Unity 5Unite2014: Mastering Physically Based Shading in Unity 5
Unite2014: Mastering Physically Based Shading in Unity 5


Similar to Advancements in-tiled-rendering

Offscreenparticle
OffscreenparticleOffscreenparticle
Offscreenparticle
ozlael ozlael

Rendering Tech of Space Marine
Rendering Tech of Space MarineRendering Tech of Space Marine
Rendering Tech of Space Marine
Pope Kim

Deferred shading
Deferred shadingDeferred shading
Deferred shading
ozlael ozlael

Unity: Next Level Rendering Quality
Unity: Next Level Rendering QualityUnity: Next Level Rendering Quality
Unity: Next Level Rendering Quality
Unity Technologies

Foveated Ray Tracing for VR on Multiple GPUs
Foveated Ray Tracing for VR on Multiple GPUsFoveated Ray Tracing for VR on Multiple GPUs
Foveated Ray Tracing for VR on Multiple GPUs
Takahiro Harada

NVIDIA effects GDC09
NVIDIA effects GDC09NVIDIA effects GDC09
NVIDIA effects GDC09
IGDA_London

GPU Accelerated Domain Decomposition
GPU Accelerated Domain DecompositionGPU Accelerated Domain Decomposition
GPU Accelerated Domain Decomposition
Richard Southern

Massive Point Light Soft Shadows
Massive Point Light Soft ShadowsMassive Point Light Soft Shadows
Massive Point Light Soft Shadows
Wolfgang Engel

High-Performance GPU Programming for Deep Learning
High-Performance GPU Programming for Deep LearningHigh-Performance GPU Programming for Deep Learning
High-Performance GPU Programming for Deep Learning
Intel Nervana

FlameWorks GTC 2014
FlameWorks GTC 2014FlameWorks GTC 2014
FlameWorks GTC 2014
Simon Green

Unite Berlin 2018 - Book of the Dead Optimizing Performance for High End Cons...
Unite Berlin 2018 - Book of the Dead Optimizing Performance for High End Cons...Unite Berlin 2018 - Book of the Dead Optimizing Performance for High End Cons...
Unite Berlin 2018 - Book of the Dead Optimizing Performance for High End Cons...
Unity Technologies

Shaders in Unity by Zoel
Shaders in Unity by ZoelShaders in Unity by Zoel
Shaders in Unity by Zoel
Agate Studio

CEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
CEDEC 2018 - Towards Effortless Photorealism Through Real-Time RaytracingCEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
CEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
Electronic Arts / DICE

SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time RaytracingSIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
Electronic Arts / DICE

Data Processing Using THEOS Satellite Imagery for Disaster Monitoring (Case S...
Data Processing Using THEOS Satellite Imagery for Disaster Monitoring (Case S...Data Processing Using THEOS Satellite Imagery for Disaster Monitoring (Case S...
Data Processing Using THEOS Satellite Imagery for Disaster Monitoring (Case S...
NopphawanTamkuan

Paris Master Class 2011 - 07 Dynamic Global Illumination
Paris Master Class 2011 - 07 Dynamic Global IlluminationParis Master Class 2011 - 07 Dynamic Global Illumination
Paris Master Class 2011 - 07 Dynamic Global Illumination
Wolfgang Engel

HPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
HPG 2018 - Game Ray Tracing: State-of-the-Art and Open ProblemsHPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
HPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
Electronic Arts / DICE

Deferred shading
Deferred shadingDeferred shading
Deferred shading
Frank Chao

GS-4152, AMD’s Radeon R9-290X, One Big dGPU, by Michael Mantor
GS-4152, AMD’s Radeon R9-290X, One Big dGPU, by Michael MantorGS-4152, AMD’s Radeon R9-290X, One Big dGPU, by Michael Mantor
GS-4152, AMD’s Radeon R9-290X, One Big dGPU, by Michael Mantor
AMD Developer Central

Optimized Multi-agent Box-pushing - 2017-10-24
Optimized Multi-agent Box-pushing - 2017-10-24Optimized Multi-agent Box-pushing - 2017-10-24
Optimized Multi-agent Box-pushing - 2017-10-24
Aritra Sarkar


Similar to Advancements in-tiled-rendering (20)

Offscreenparticle
OffscreenparticleOffscreenparticle
Offscreenparticle

Rendering Tech of Space Marine
Rendering Tech of Space MarineRendering Tech of Space Marine
Rendering Tech of Space Marine

Deferred shading
Deferred shadingDeferred shading
Deferred shading

Unity: Next Level Rendering Quality
Unity: Next Level Rendering QualityUnity: Next Level Rendering Quality
Unity: Next Level Rendering Quality

Foveated Ray Tracing for VR on Multiple GPUs
Foveated Ray Tracing for VR on Multiple GPUsFoveated Ray Tracing for VR on Multiple GPUs
Foveated Ray Tracing for VR on Multiple GPUs

NVIDIA effects GDC09
NVIDIA effects GDC09NVIDIA effects GDC09
NVIDIA effects GDC09

GPU Accelerated Domain Decomposition
GPU Accelerated Domain DecompositionGPU Accelerated Domain Decomposition
GPU Accelerated Domain Decomposition

Massive Point Light Soft Shadows
Massive Point Light Soft ShadowsMassive Point Light Soft Shadows
Massive Point Light Soft Shadows

High-Performance GPU Programming for Deep Learning
High-Performance GPU Programming for Deep LearningHigh-Performance GPU Programming for Deep Learning
High-Performance GPU Programming for Deep Learning

FlameWorks GTC 2014
FlameWorks GTC 2014FlameWorks GTC 2014
FlameWorks GTC 2014

Unite Berlin 2018 - Book of the Dead Optimizing Performance for High End Cons...
Unite Berlin 2018 - Book of the Dead Optimizing Performance for High End Cons...Unite Berlin 2018 - Book of the Dead Optimizing Performance for High End Cons...
Unite Berlin 2018 - Book of the Dead Optimizing Performance for High End Cons...

Shaders in Unity by Zoel
Shaders in Unity by ZoelShaders in Unity by Zoel
Shaders in Unity by Zoel

CEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
CEDEC 2018 - Towards Effortless Photorealism Through Real-Time RaytracingCEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
CEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing

SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time RaytracingSIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing

Data Processing Using THEOS Satellite Imagery for Disaster Monitoring (Case S...
Data Processing Using THEOS Satellite Imagery for Disaster Monitoring (Case S...Data Processing Using THEOS Satellite Imagery for Disaster Monitoring (Case S...
Data Processing Using THEOS Satellite Imagery for Disaster Monitoring (Case S...

Paris Master Class 2011 - 07 Dynamic Global Illumination
Paris Master Class 2011 - 07 Dynamic Global IlluminationParis Master Class 2011 - 07 Dynamic Global Illumination
Paris Master Class 2011 - 07 Dynamic Global Illumination

HPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
HPG 2018 - Game Ray Tracing: State-of-the-Art and Open ProblemsHPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
HPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems

Deferred shading
Deferred shadingDeferred shading
Deferred shading

GS-4152, AMD’s Radeon R9-290X, One Big dGPU, by Michael Mantor
GS-4152, AMD’s Radeon R9-290X, One Big dGPU, by Michael MantorGS-4152, AMD’s Radeon R9-290X, One Big dGPU, by Michael Mantor
GS-4152, AMD’s Radeon R9-290X, One Big dGPU, by Michael Mantor

Optimized Multi-agent Box-pushing - 2017-10-24
Optimized Multi-agent Box-pushing - 2017-10-24Optimized Multi-agent Box-pushing - 2017-10-24
Optimized Multi-agent Box-pushing - 2017-10-24


More from mistercteam

Preliminary xsx die_fact_finding
Preliminary xsx die_fact_findingPreliminary xsx die_fact_finding
Preliminary xsx die_fact_finding
mistercteam

20150207 howes-gpgpu8-dark secrets
20150207 howes-gpgpu8-dark secrets20150207 howes-gpgpu8-dark secrets
20150207 howes-gpgpu8-dark secrets
mistercteam

S0333 gtc2012-gmac-programming-cuda
S0333 gtc2012-gmac-programming-cudaS0333 gtc2012-gmac-programming-cuda
S0333 gtc2012-gmac-programming-cuda
mistercteam

201210 howes-hsa and-the_modern_gpu
201210 howes-hsa and-the_modern_gpu201210 howes-hsa and-the_modern_gpu
201210 howes-hsa and-the_modern_gpu
mistercteam

3 673 (1)
3 673 (1)3 673 (1)
3 673 (1)
mistercteam

3 boyd direct3_d12 (1)
3 boyd direct3_d12 (1)3 boyd direct3_d12 (1)
3 boyd direct3_d12 (1)
mistercteam

5 baker oxide (1)
5 baker oxide (1)5 baker oxide (1)
5 baker oxide (1)
mistercteam

The technology behind_the_elemental_demo_16x9-1248544805
The technology behind_the_elemental_demo_16x9-1248544805The technology behind_the_elemental_demo_16x9-1248544805
The technology behind_the_elemental_demo_16x9-1248544805
mistercteam

Lecture14
Lecture14Lecture14
Lecture14
mistercteam

01 intro-bps-2011
01 intro-bps-201101 intro-bps-2011
01 intro-bps-2011
mistercteam

Gdce 2010 dx11
Gdce 2010 dx11Gdce 2010 dx11
Gdce 2010 dx11
mistercteam

Hpg2011 papers kazakov
Hpg2011 papers kazakovHpg2011 papers kazakov
Hpg2011 papers kazakov
mistercteam

Dx11 performancereloaded
Dx11 performancereloadedDx11 performancereloaded
Dx11 performancereloaded
mistercteam

Mantle programming-guide-and-api-reference
Mantle programming-guide-and-api-referenceMantle programming-guide-and-api-reference
Mantle programming-guide-and-api-reference
mistercteam

D3 d12 a-new-meaning-for-efficiency-and-performance
D3 d12 a-new-meaning-for-efficiency-and-performanceD3 d12 a-new-meaning-for-efficiency-and-performance
D3 d12 a-new-meaning-for-efficiency-and-performance
mistercteam

D3 d12 a-new-meaning-for-efficiency-and-performance
D3 d12 a-new-meaning-for-efficiency-and-performanceD3 d12 a-new-meaning-for-efficiency-and-performance
D3 d12 a-new-meaning-for-efficiency-and-performance
mistercteam

Getting the-best-out-of-d3 d12
Getting the-best-out-of-d3 d12Getting the-best-out-of-d3 d12
Getting the-best-out-of-d3 d12
mistercteam


More from mistercteam (17)

Preliminary xsx die_fact_finding
Preliminary xsx die_fact_findingPreliminary xsx die_fact_finding
Preliminary xsx die_fact_finding

20150207 howes-gpgpu8-dark secrets
20150207 howes-gpgpu8-dark secrets20150207 howes-gpgpu8-dark secrets
20150207 howes-gpgpu8-dark secrets

S0333 gtc2012-gmac-programming-cuda
S0333 gtc2012-gmac-programming-cudaS0333 gtc2012-gmac-programming-cuda
S0333 gtc2012-gmac-programming-cuda

201210 howes-hsa and-the_modern_gpu
201210 howes-hsa and-the_modern_gpu201210 howes-hsa and-the_modern_gpu
201210 howes-hsa and-the_modern_gpu

3 673 (1)
3 673 (1)3 673 (1)
3 673 (1)

3 boyd direct3_d12 (1)
3 boyd direct3_d12 (1)3 boyd direct3_d12 (1)
3 boyd direct3_d12 (1)

5 baker oxide (1)
5 baker oxide (1)5 baker oxide (1)
5 baker oxide (1)

The technology behind_the_elemental_demo_16x9-1248544805
The technology behind_the_elemental_demo_16x9-1248544805The technology behind_the_elemental_demo_16x9-1248544805
The technology behind_the_elemental_demo_16x9-1248544805

Lecture14
Lecture14Lecture14
Lecture14

01 intro-bps-2011
01 intro-bps-201101 intro-bps-2011
01 intro-bps-2011

Gdce 2010 dx11
Gdce 2010 dx11Gdce 2010 dx11
Gdce 2010 dx11

Hpg2011 papers kazakov
Hpg2011 papers kazakovHpg2011 papers kazakov
Hpg2011 papers kazakov

Dx11 performancereloaded
Dx11 performancereloadedDx11 performancereloaded
Dx11 performancereloaded

Mantle programming-guide-and-api-reference
Mantle programming-guide-and-api-referenceMantle programming-guide-and-api-reference
Mantle programming-guide-and-api-reference

D3 d12 a-new-meaning-for-efficiency-and-performance
D3 d12 a-new-meaning-for-efficiency-and-performanceD3 d12 a-new-meaning-for-efficiency-and-performance
D3 d12 a-new-meaning-for-efficiency-and-performance

D3 d12 a-new-meaning-for-efficiency-and-performance
D3 d12 a-new-meaning-for-efficiency-and-performanceD3 d12 a-new-meaning-for-efficiency-and-performance
D3 d12 a-new-meaning-for-efficiency-and-performance

Getting the-best-out-of-d3 d12
Getting the-best-out-of-d3 d12Getting the-best-out-of-d3 d12
Getting the-best-out-of-d3 d12


Recently uploaded

The importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT StandardizationThe importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT Standardization
Axel Rennoch

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop
CEPTES Software Inc

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology
ldtexsolbl

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data
Safe Software

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
Neo4j

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
digitalxplive

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
shanihomely

Figma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdfFigma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdf
Management Institute of Skills Development

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
Edge AI and Vision Alliance

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
SynapseIndia

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
RaminGhanbari2

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
SynapseIndia

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf
Tatiana Al-Chueyr

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt
moinahousna

WhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring AppsWhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring Apps
HackersList


Recently uploaded (20)

The importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT StandardizationThe importance of Quality Assurance for ICT Standardization
The importance of Quality Assurance for ICT Standardization

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...

Figma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdfFigma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdf

“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...
“Deploying Large Language Models on a Raspberry Pi,” a Presentation from Usef...

RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptxRPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx
RPA In Healthcare Benefits, Use Case, Trend And Challenges 2024.pptx

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt

WhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring AppsWhatsApp Spy Online Trackers and Monitoring Apps
WhatsApp Spy Online Trackers and Monitoring Apps


Advancements in-tiled-rendering

Editor's Notes

  1. Max Z might also be useful for transparent light list or tiled-based particle rendering
  2. Simple test, prone to false positives
  3. Alternative approach – use AABBs. Still prone to false positives.
  4. AABB case is much better when depth bounds are small, but bad with large depth discontinuities. AABB suggested by Brian Karis from Epic
  5. Martin Mittring from Epic initially implemented this method
  6. Doesn’t require any changes to colour pixel shaders. Just trims light lists. Not perfect – consider purple light.
  7. HalfZ requires a code change at in the colour pixel shaders to determine which light list to read
  8. UE4 uses just one list, so like 2.5D, requires no extra work in colour pass. Probably a good idea if the number of lights per tile is low.
  9. Better results for small depth ranges. Long frusta generate large AABBs
  10. UE4 Infiltrator Demo
  11. Add diagrams
  12. Show diagram of layout. Mention that some lights might overlap slices, hence the safety factor Mention that TGSM needs to be kept under control or waves in flight will be reduced.
  13. Plug Jason’s GPU Pro article
