1. Genetic mutation
1
DR. JIBRIL IHSAN MUNZALI
REGISTRAR, DEPT OF HISTOPATHOLOGY
NHA
4/7/2013

2. Outline
2
 Introduction
A. What are genes?
B. What are mutations?
C. What does genetic mutation mean?
 Types of genetic mutation
 Causes of genetic mutation
 Diseases caused by genetic mutation
 Diagnosis/Treatment
 Conclusion
4/7/2013

3. Genes
3
 A gene is a segment of DNA
that encodes a specific
peptide or protein.
 DNA is the genetic material
within the nucleus or
mitochondria where an
individual’s genetic
information is stored.
4/7/2013

4. Nucleotides
4
 DNA is composed of sequence
of nucleotides
 Each nucleotide is made up of
three components.
 There are four types of
nucleotide bases.
4/7/2013

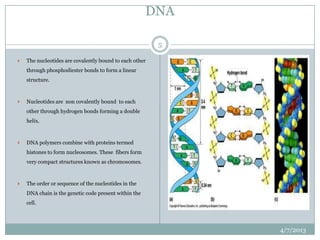

5. DNA
5
 The nucleotides are covalently bound to each other
through phosphodiester bonds to form a linear
structure.
 Nucleotides are non covalently bound to each
other through hydrogen bonds forming a double
helix.
 DNA polymers combine with proteins termed
histones to form nucleosomes. These fibers form
very compact structures known as chromosomes.
 The order or sequence of the nucleotides in the
DNA chain is the genetic code present within the
cell.
4/7/2013

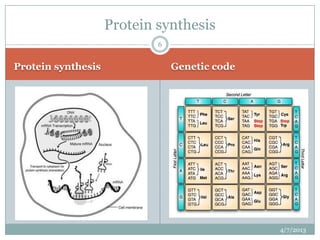

6. Protein synthesis
6
Protein synthesis Genetic code
4/7/2013

7. DNA Replication
7
 Replication of genetic
material occurs during the
S phase of the cell cycle
 DNA polymerase needs a
pre-existing DNA to form
two new double bond
strands identical to the
original strand
 Every new double strand is
semi-conservative (half old
and half new)
4/7/2013

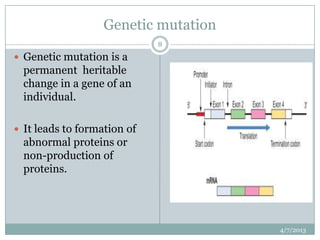

8. Genetic mutation
8
 Genetic mutation is a
permanent heritable
change in a gene of an
individual.
 It leads to formation of
abnormal proteins or
non-production of
proteins.
4/7/2013

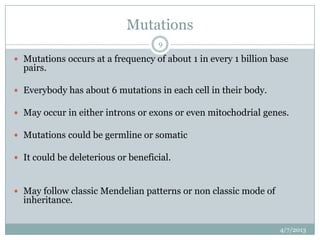

9. Mutations
9
 Mutations occurs at a frequency of about 1 in every 1 billion base
pairs.
 Everybody has about 6 mutations in each cell in their body.
 May occur in either introns or exons or even mitochodrial genes.
 Mutations could be germline or somatic
 It could be deleterious or beneficial.
 May follow classic Mendelian patterns or non classic mode of
inheritance.
4/7/2013

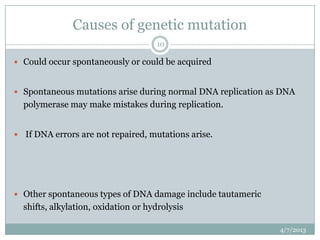

10. Causes of genetic mutation
10
 Could occur spontaneously or could be acquired
 Spontaneous mutations arise during normal DNA replication as DNA
polymerase may make mistakes during replication.
 If DNA errors are not repaired, mutations arise.
 Other spontaneous types of DNA damage include tautameric
shifts, alkylation, oxidation or hydrolysis
4/7/2013

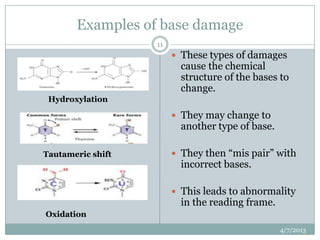

11. Examples of base damage
11
 These types of damages
cause the chemical
structure of the bases to
change.
Hydroxylation
 They may change to
another type of base.
Tautameric shift  They then “mis pair” with
incorrect bases.
 This leads to abnormality
in the reading frame.
Oxidation
4/7/2013

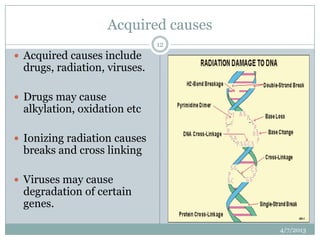

12. Acquired causes
12
 Acquired causes include
drugs, radiation, viruses.
 Drugs may cause
alkylation, oxidation etc
 Ionizing radiation causes
breaks and cross linking
 Viruses may cause
degradation of certain
genes.
4/7/2013

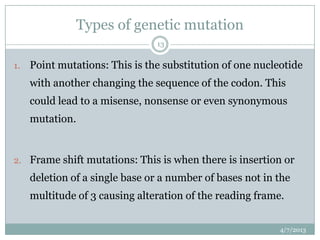

13. Types of genetic mutation
13
1. Point mutations: This is the substitution of one nucleotide
with another changing the sequence of the codon. This
could lead to a misense, nonsense or even synonymous
mutation.
2. Frame shift mutations: This is when there is insertion or
deletion of a single base or a number of bases not in the
multitude of 3 causing alteration of the reading frame.
4/7/2013

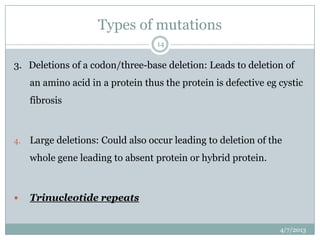

14. Types of mutations
14
3. Deletions of a codon/three-base deletion: Leads to deletion of
an amino acid in a protein thus the protein is defective eg cystic
fibrosis
4. Large deletions: Could also occur leading to deletion of the
whole gene leading to absent protein or hybrid protein.
 Trinucleotide repeats
4/7/2013

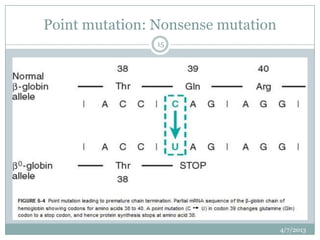

15. Point mutation: Nonsense mutation
15
4/7/2013

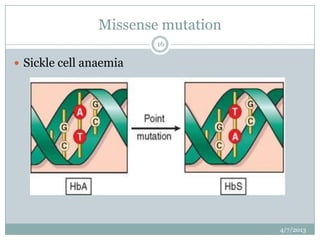

16. Missense mutation
16
 Sickle cell anaemia
4/7/2013

17. Frameshift mutation
17
4/7/2013

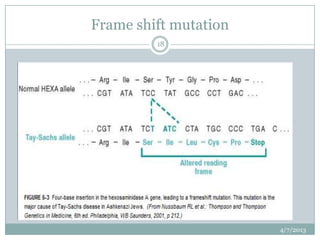

18. Frame shift mutation
18
4/7/2013

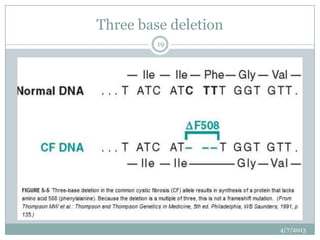

19. Three base deletion
19
4/7/2013

20. 20 4/7/2013

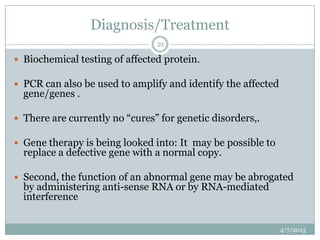

21. Diagnosis/Treatment
21
 Biochemical testing of affected protein.
 PCR can also be used to amplify and identify the affected
gene/genes .
 There are currently no “cures” for genetic disorders,.
 Gene therapy is being looked into: It may be possible to
replace a defective gene with a normal copy.
 Second, the function of an abnormal gene may be abrogated
by administering anti-sense RNA or by RNA-mediated
interference
4/7/2013

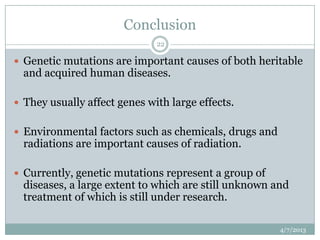

22. Conclusion
22
 Genetic mutations are important causes of both heritable
and acquired human diseases.
 They usually affect genes with large effects.
 Environmental factors such as chemicals, drugs and
radiations are important causes of radiation.
 Currently, genetic mutations represent a group of
diseases, a large extent to which are still unknown and
treatment of which is still under research.
4/7/2013

23. THANK YOU VERY MUCH.
23
4/7/2013
