This document discusses various types of security barriers and access control systems, including boom barriers, drop arm barriers, turnstiles, flap barriers, sliding gates, road blockers, rising bollards, and crash resistance barriers. It explains that automatic barriers can efficiently regulate traffic at entry and exit points of buildings to manage security. Different barrier types are suited for different applications depending on the space and expected traffic. The document also provides details on specific barrier models like drop arm turnstiles and tripod turnstiles, and concludes with contact information.

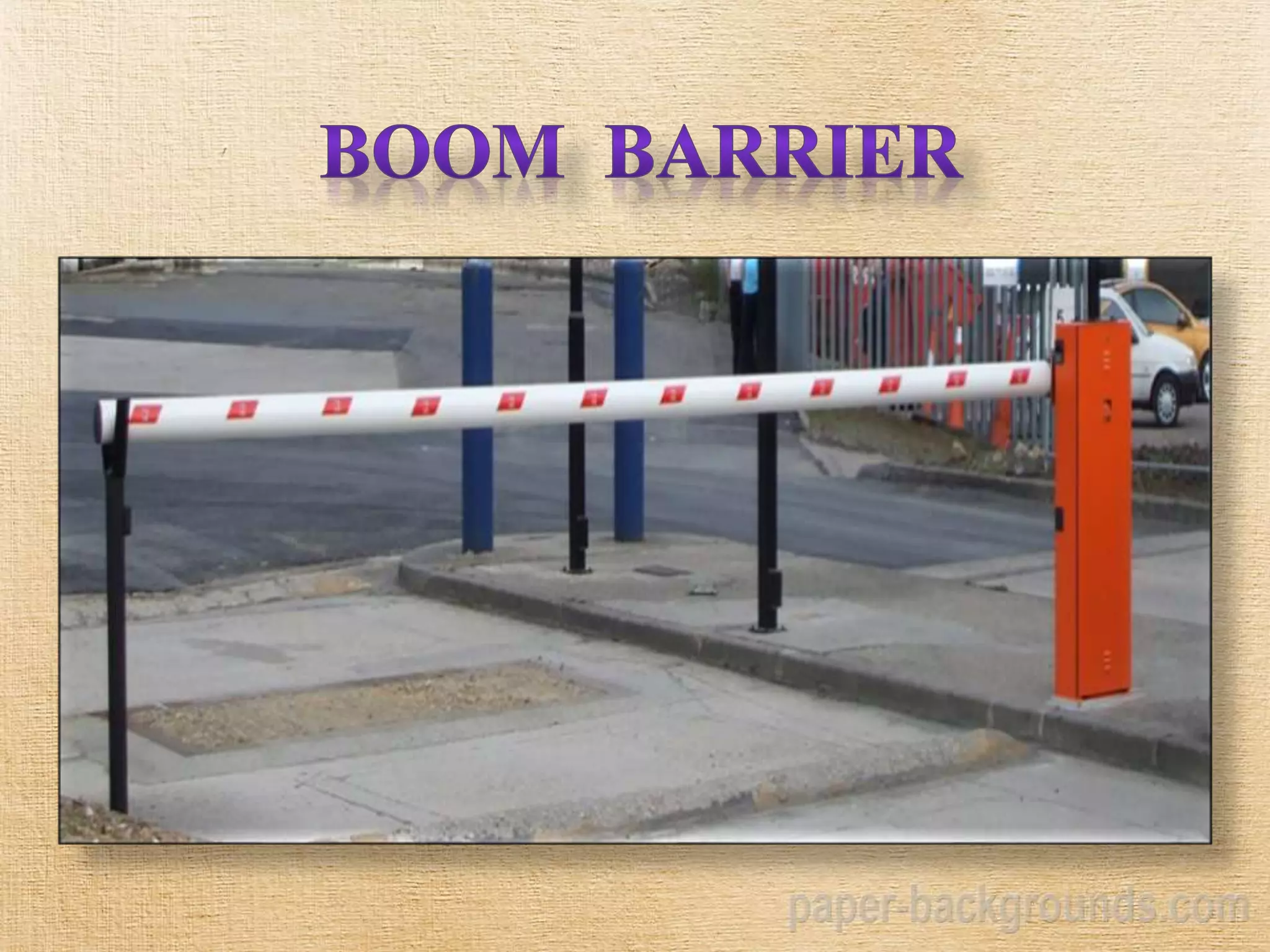

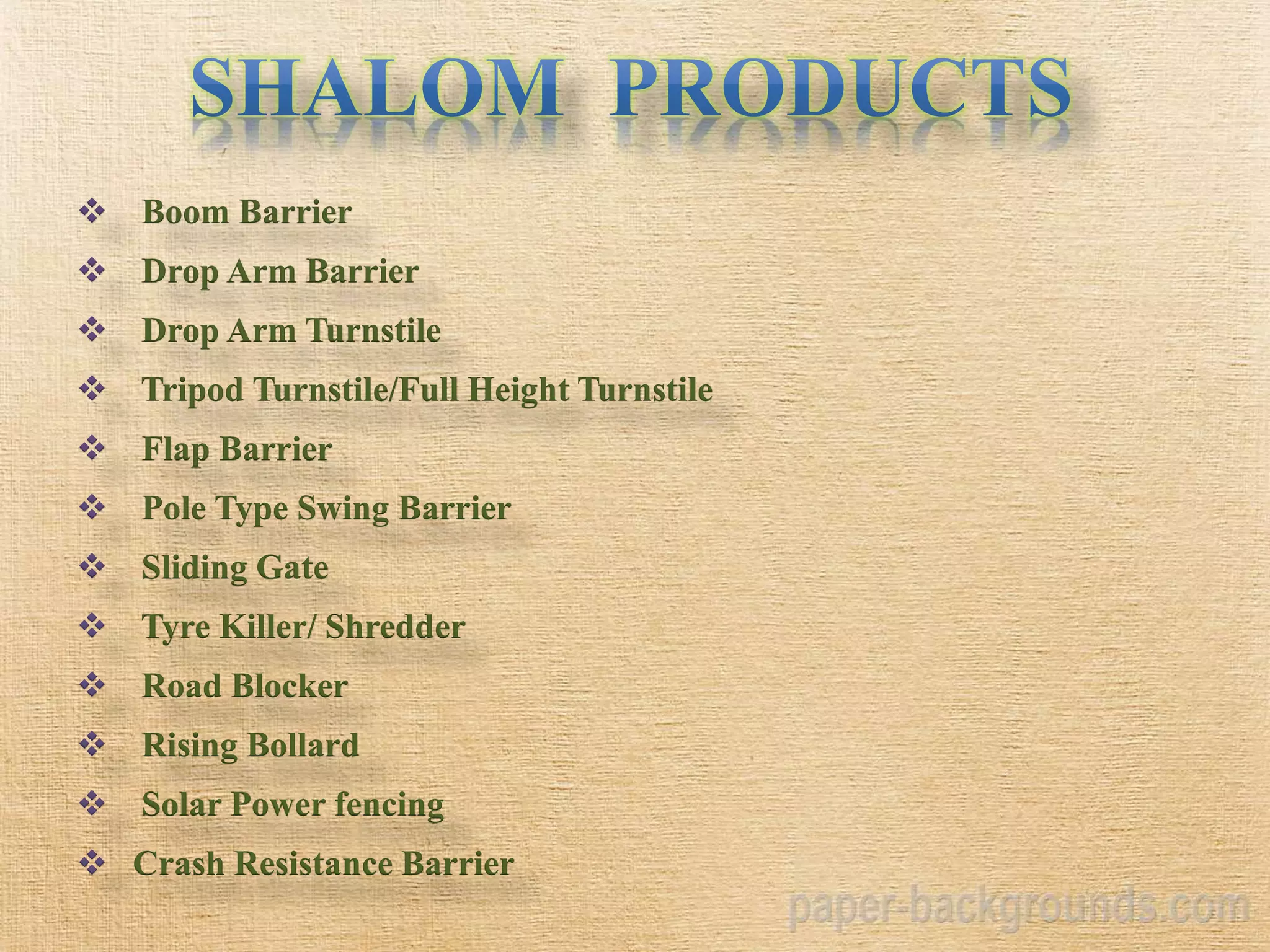

3.  Boom Barrier
 Drop Arm Barrier
 Drop Arm Turnstile
 Tripod Turnstile/Full Height Turnstile
 Flap Barrier
 Pole Type Swing Barrier
 Sliding Gate
 Tyre Killer/ Shredder
 Road Blocker
 Rising Bollard
 Solar Power fencing
 Crash Resistance Barrier

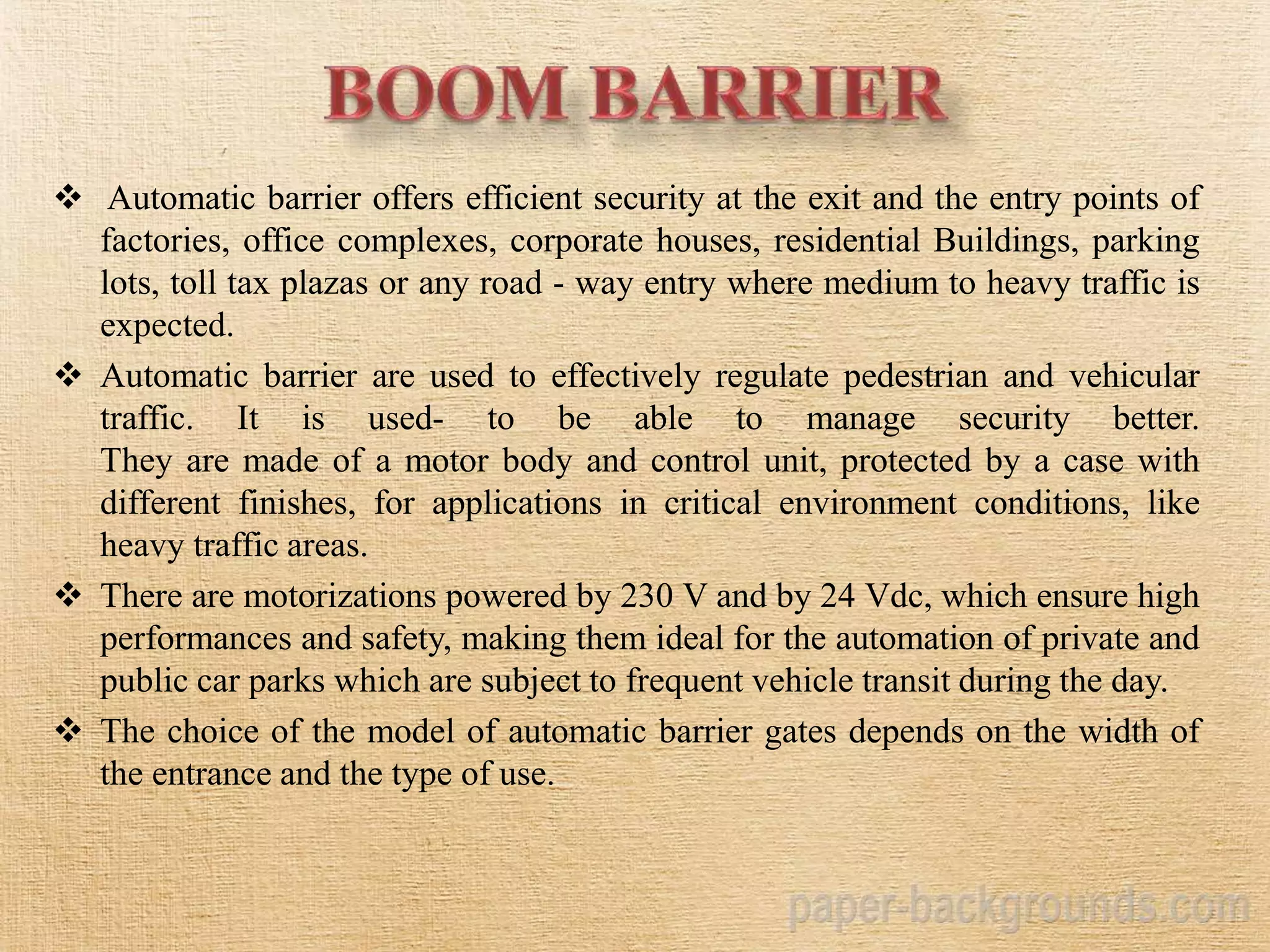

5.  Automatic barrier offers efficient security at the exit and the entry points of
factories, office complexes, corporate houses, residential Buildings, parking
lots, toll tax plazas or any road - way entry where medium to heavy traffic is
expected.
 Automatic barrier are used to effectively regulate pedestrian and vehicular
traffic. It is used- to be able to manage security better.
They are made of a motor body and control unit, protected by a case with
different finishes, for applications in critical environment conditions, like
heavy traffic areas.
 There are motorizations powered by 230 V and by 24 Vdc, which ensure high
performances and safety, making them ideal for the automation of private and
public car parks which are subject to frequent vehicle transit during the day.
 The choice of the model of automatic barrier gates depends on the width of
the entrance and the type of use.

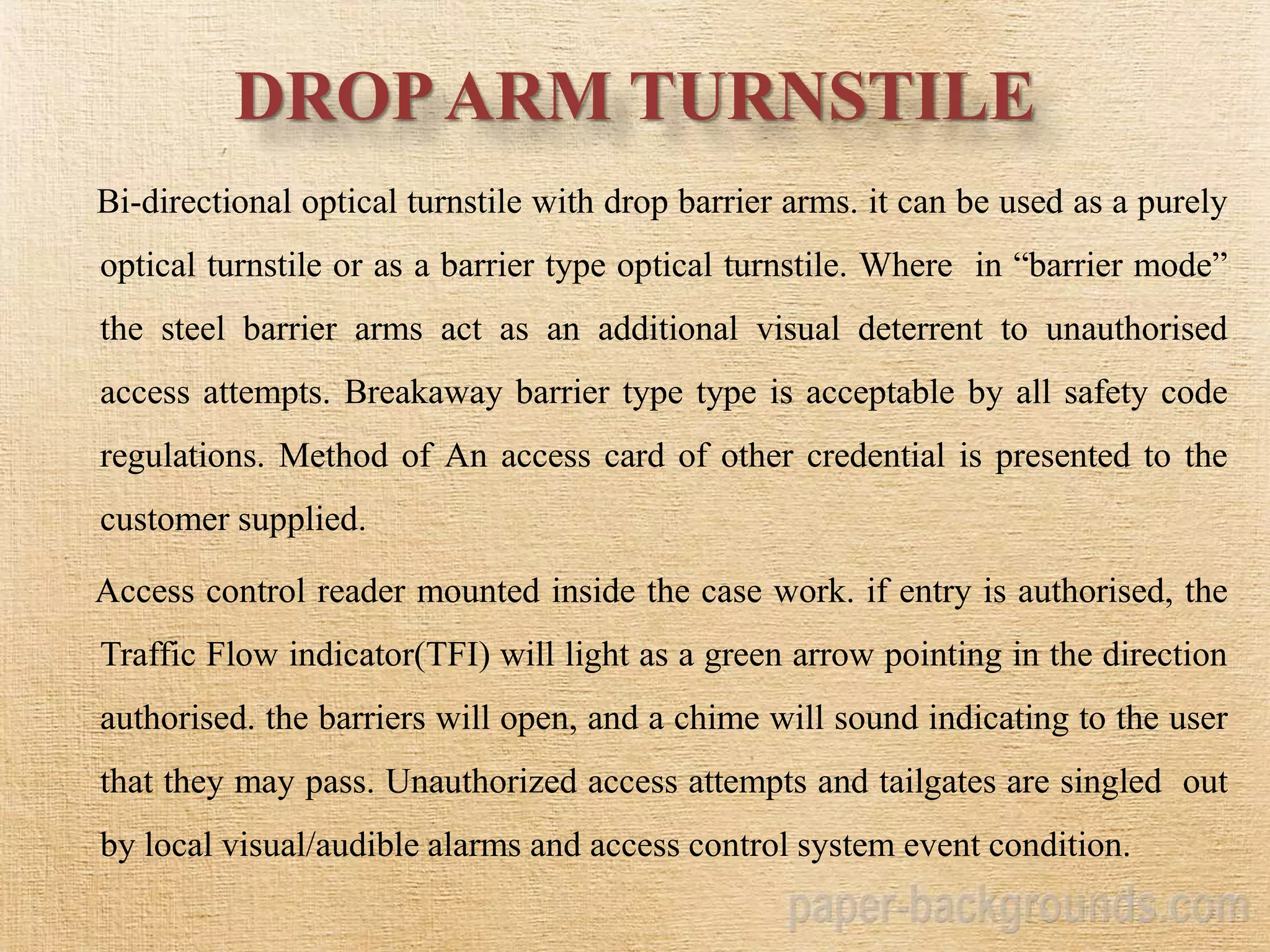

7. DROPARM TURNSTILE
Bi-directional optical turnstile with drop barrier arms. it can be used as a purely
optical turnstile or as a barrier type optical turnstile. Where in “barrier mode”
the steel barrier arms act as an additional visual deterrent to unauthorised
access attempts. Breakaway barrier type type is acceptable by all safety code
regulations. Method of An access card of other credential is presented to the
customer supplied.
Access control reader mounted inside the case work. if entry is authorised, the
Traffic Flow indicator(TFI) will light as a green arrow pointing in the direction
authorised. the barriers will open, and a chime will sound indicating to the user
that they may pass. Unauthorized access attempts and tailgates are singled out
by local visual/audible alarms and access control system event condition.

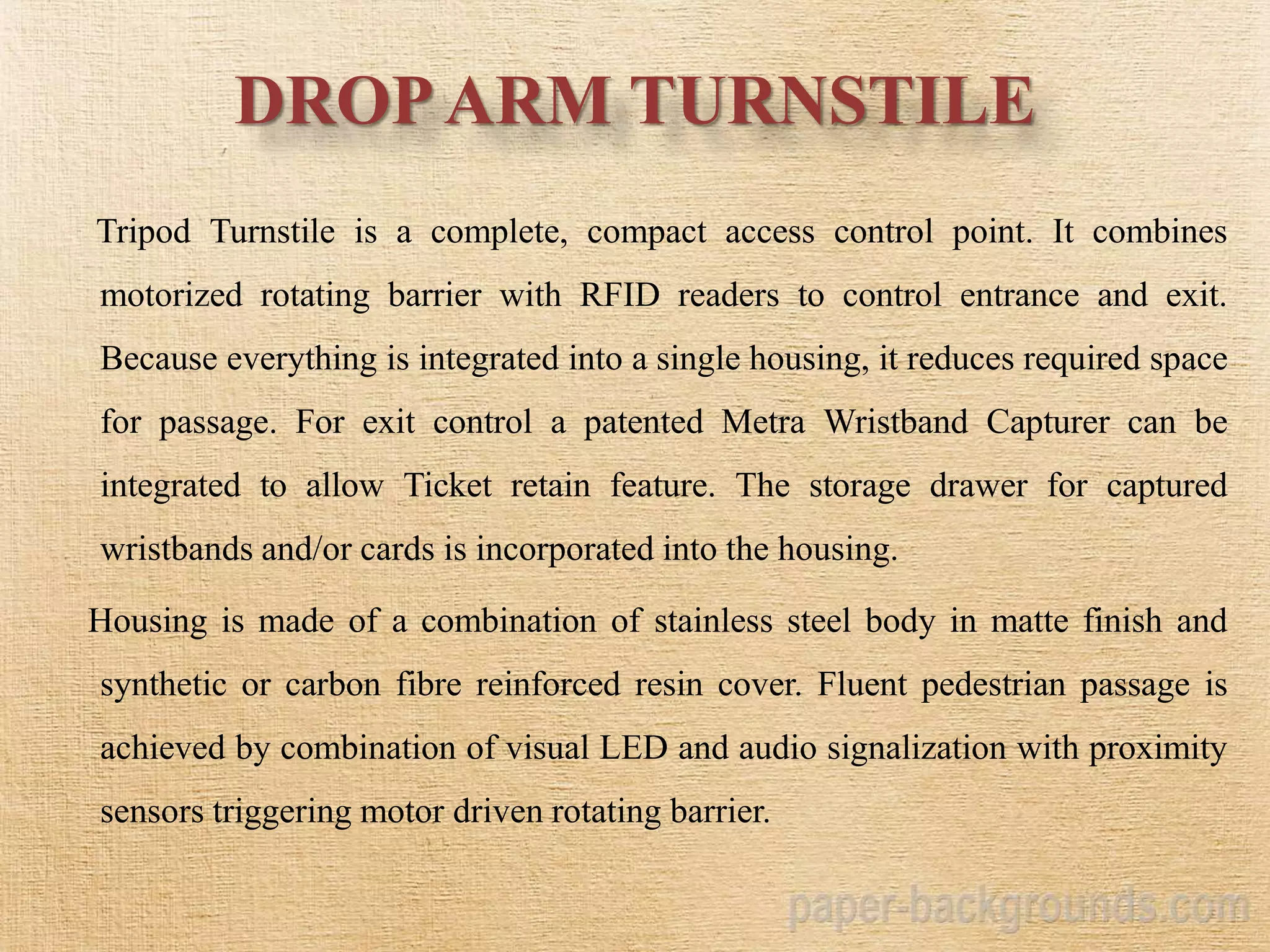

9. DROPARM TURNSTILE
Tripod Turnstile is a complete, compact access control point. It combines
motorized rotating barrier with RFID readers to control entrance and exit.
Because everything is integrated into a single housing, it reduces required space
for passage. For exit control a patented Metra Wristband Capturer can be
integrated to allow Ticket retain feature. The storage drawer for captured
wristbands and/or cards is incorporated into the housing.
Housing is made of a combination of stainless steel body in matte finish and
synthetic or carbon fibre reinforced resin cover. Fluent pedestrian passage is
achieved by combination of visual LED and audio signalization with proximity
sensors triggering motor driven rotating barrier.

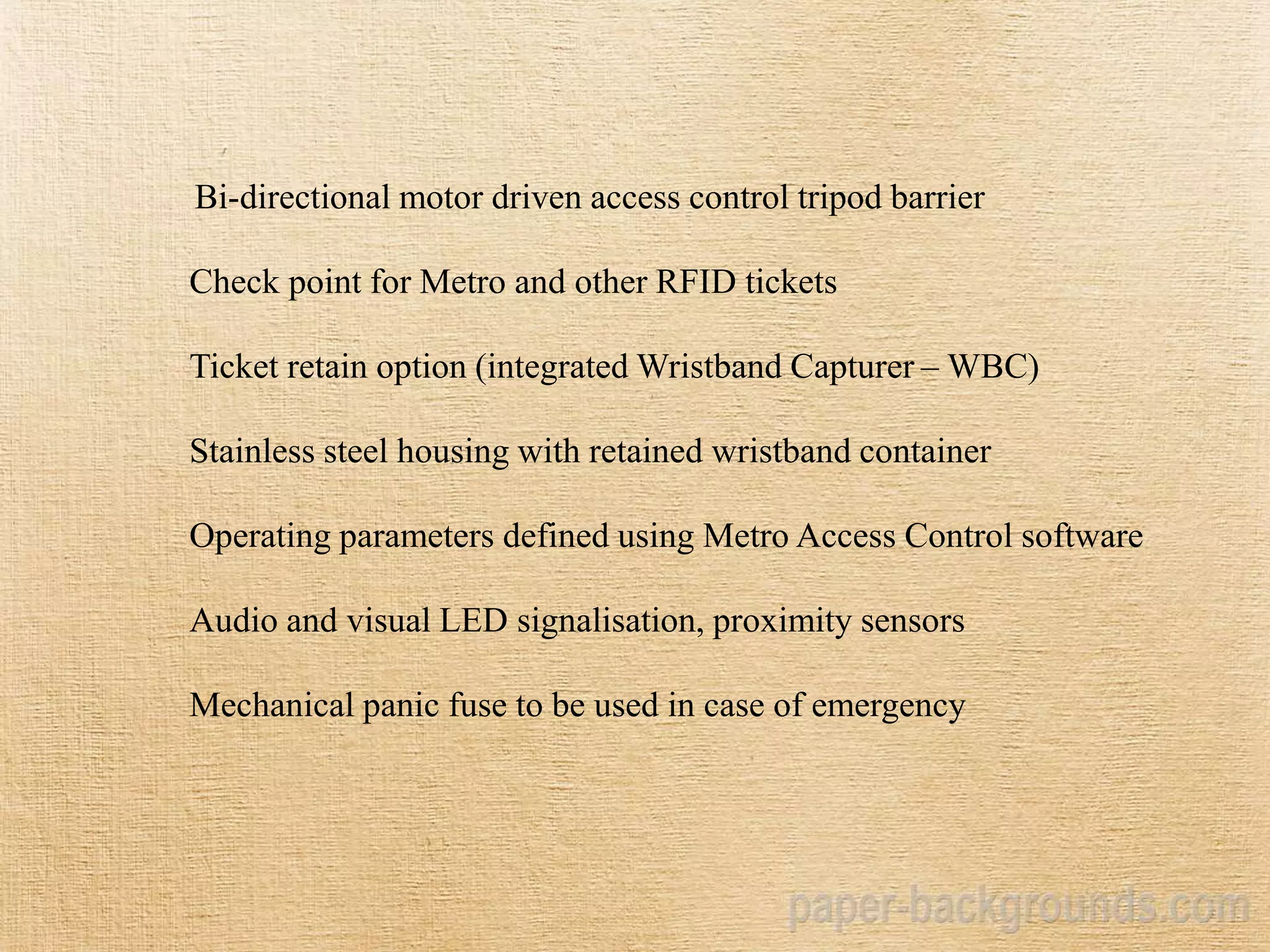

10. Bi-directional motor driven access control tripod barrier
Check point for Metro and other RFID tickets
Ticket retain option (integrated Wristband Capturer – WBC)
Stainless steel housing with retained wristband container
Operating parameters defined using Metro Access Control software
Audio and visual LED signalisation, proximity sensors
Mechanical panic fuse to be used in case of emergency

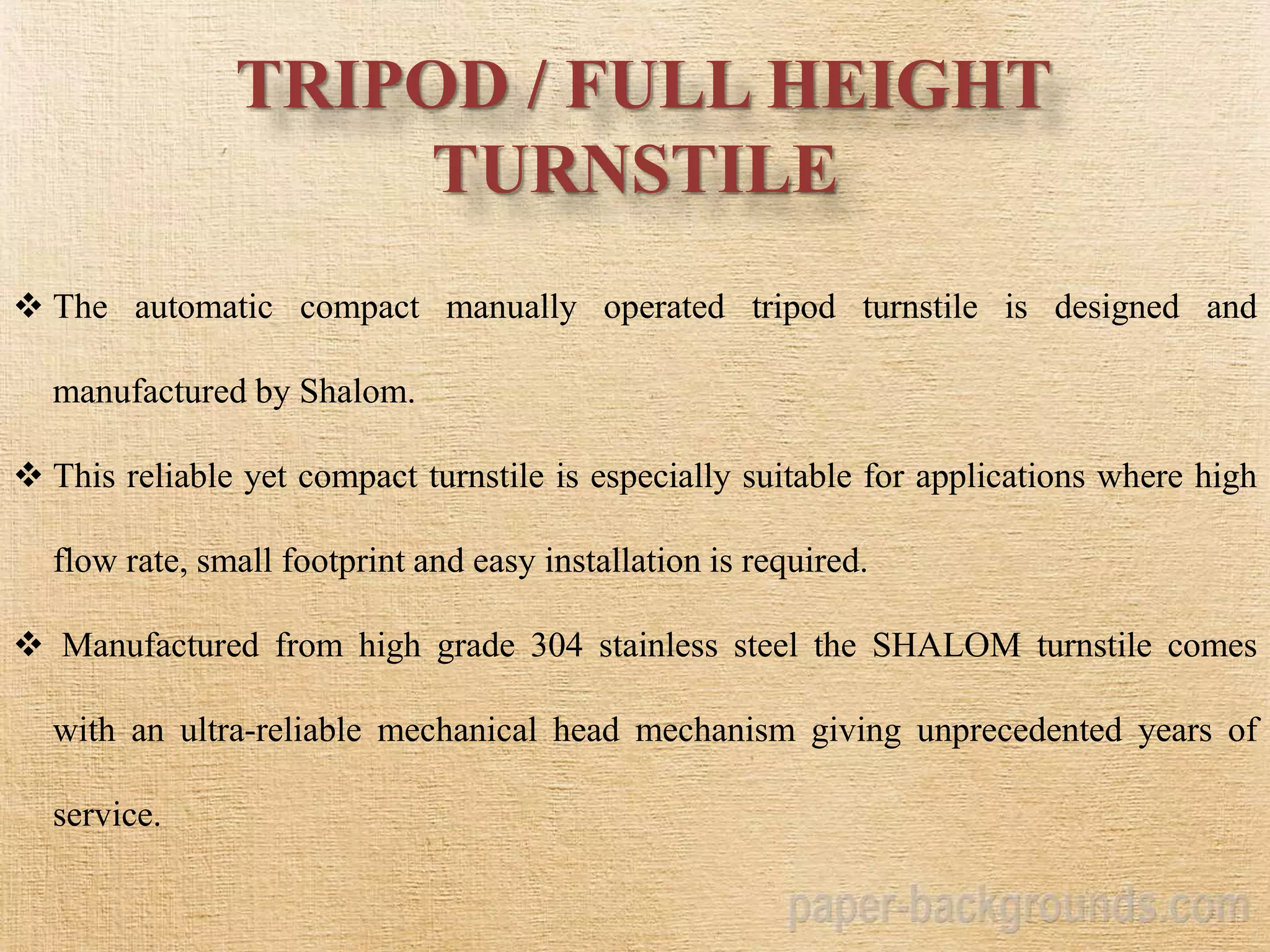

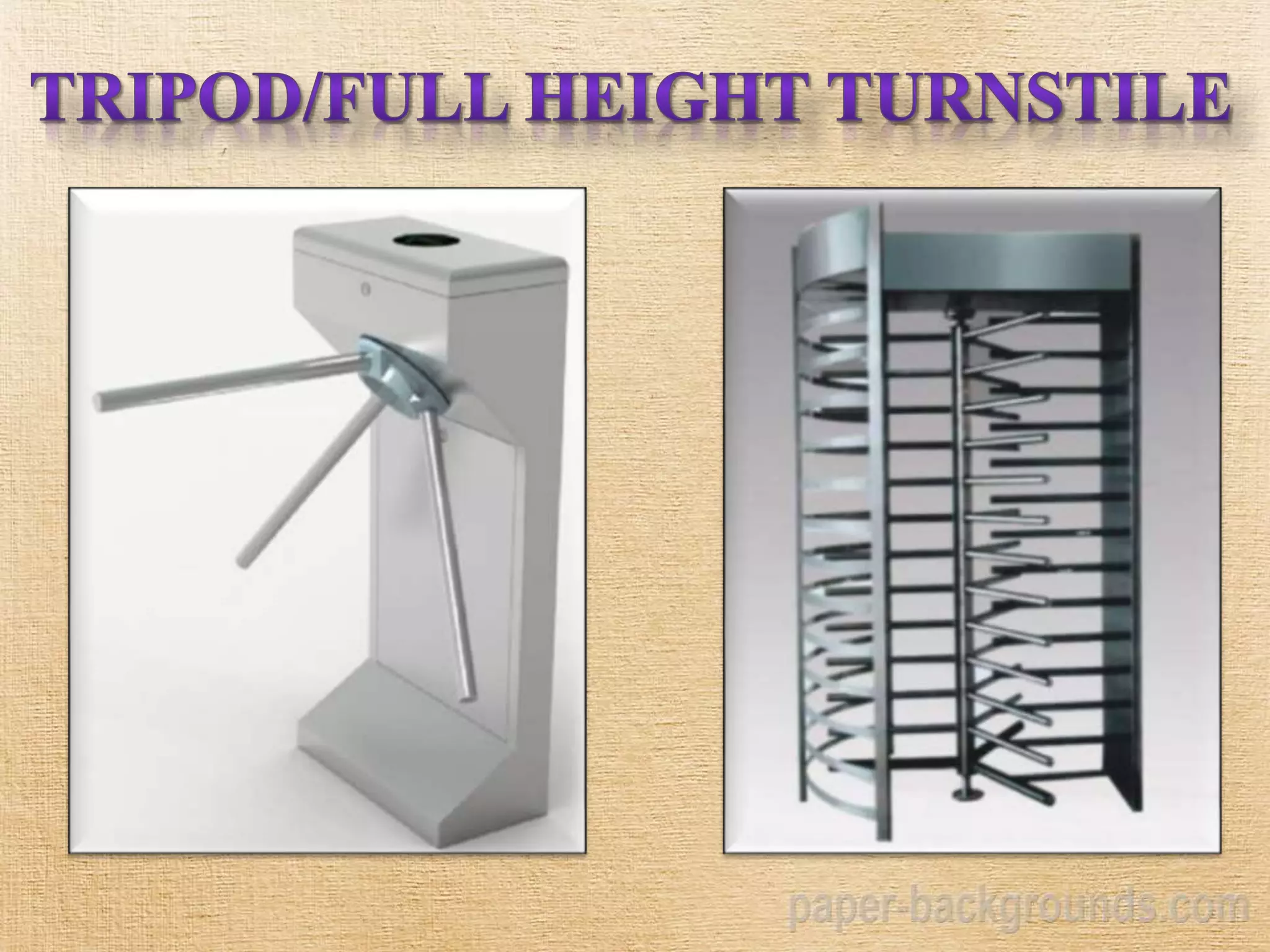

12. TRIPOD / FULL HEIGHT
TURNSTILE
 The automatic compact manually operated tripod turnstile is designed and
manufactured by Shalom.
 This reliable yet compact turnstile is especially suitable for applications where high
flow rate, small footprint and easy installation is required.
 Manufactured from high grade 304 stainless steel the SHALOM turnstile comes
with an ultra-reliable mechanical head mechanism giving unprecedented years of
service.

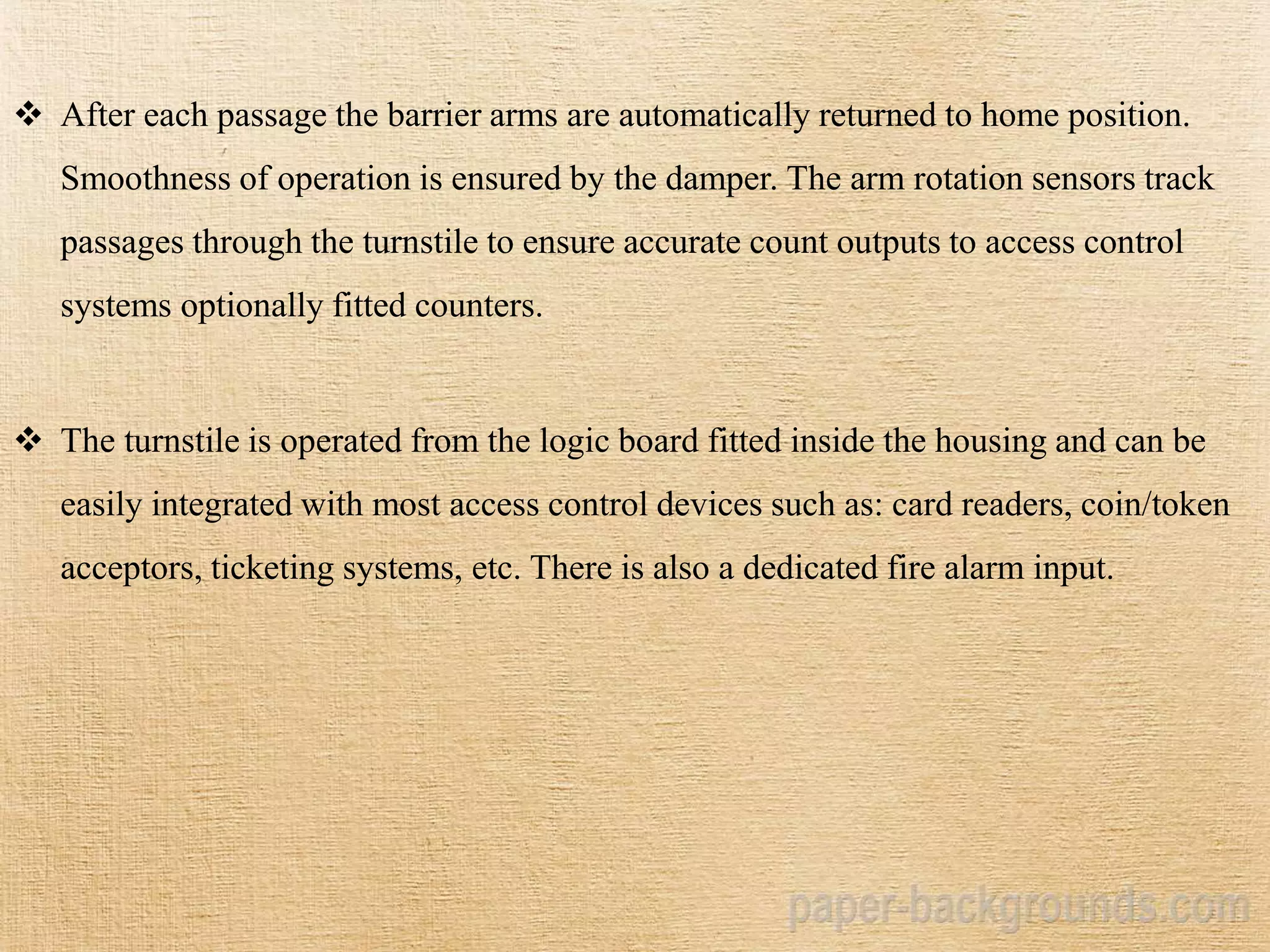

13.  After each passage the barrier arms are automatically returned to home position.
Smoothness of operation is ensured by the damper. The arm rotation sensors track
passages through the turnstile to ensure accurate count outputs to access control
systems optionally fitted counters.
 The turnstile is operated from the logic board fitted inside the housing and can be
easily integrated with most access control devices such as: card readers, coin/token
acceptors, ticketing systems, etc. There is also a dedicated fire alarm input.

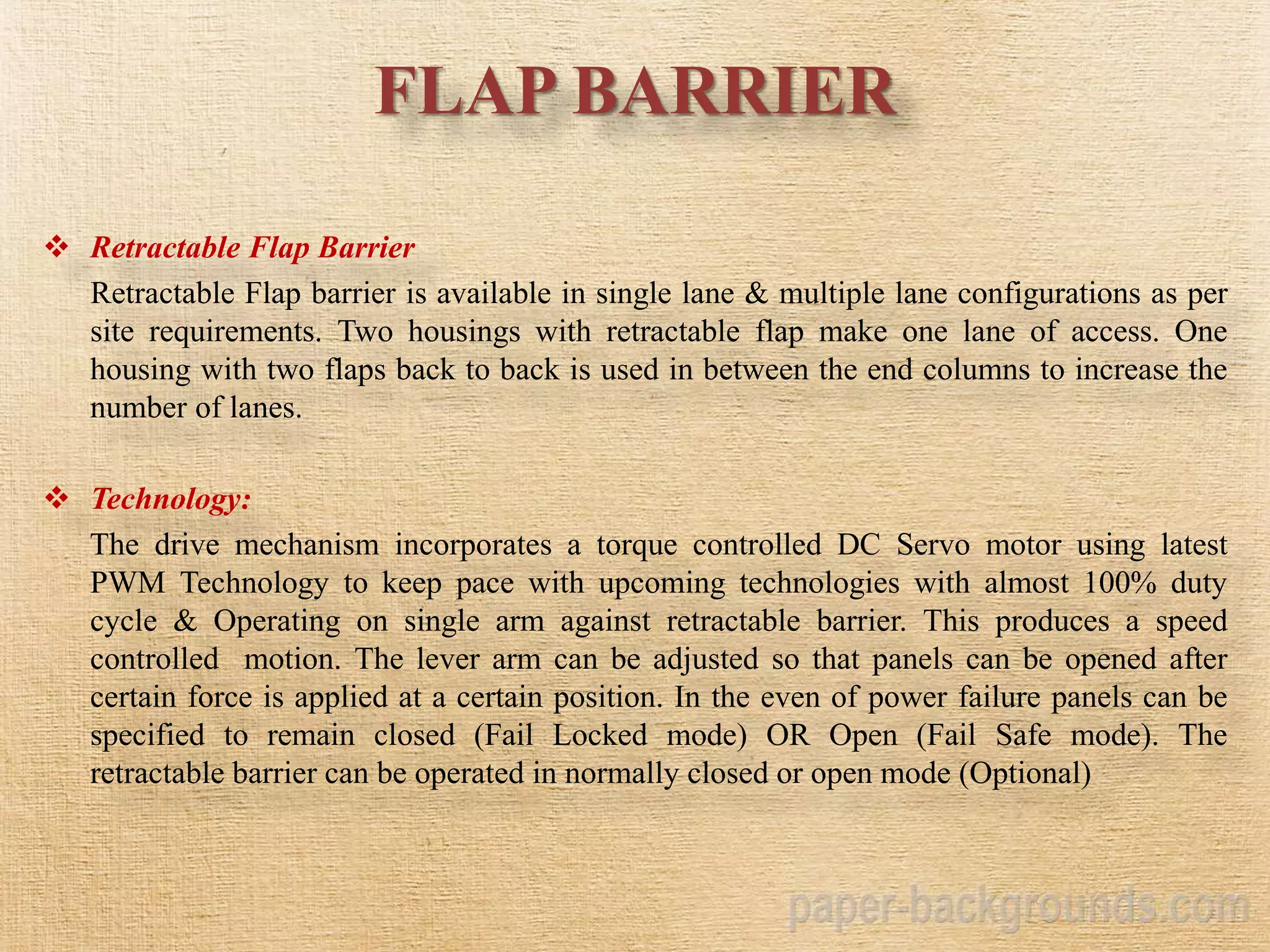

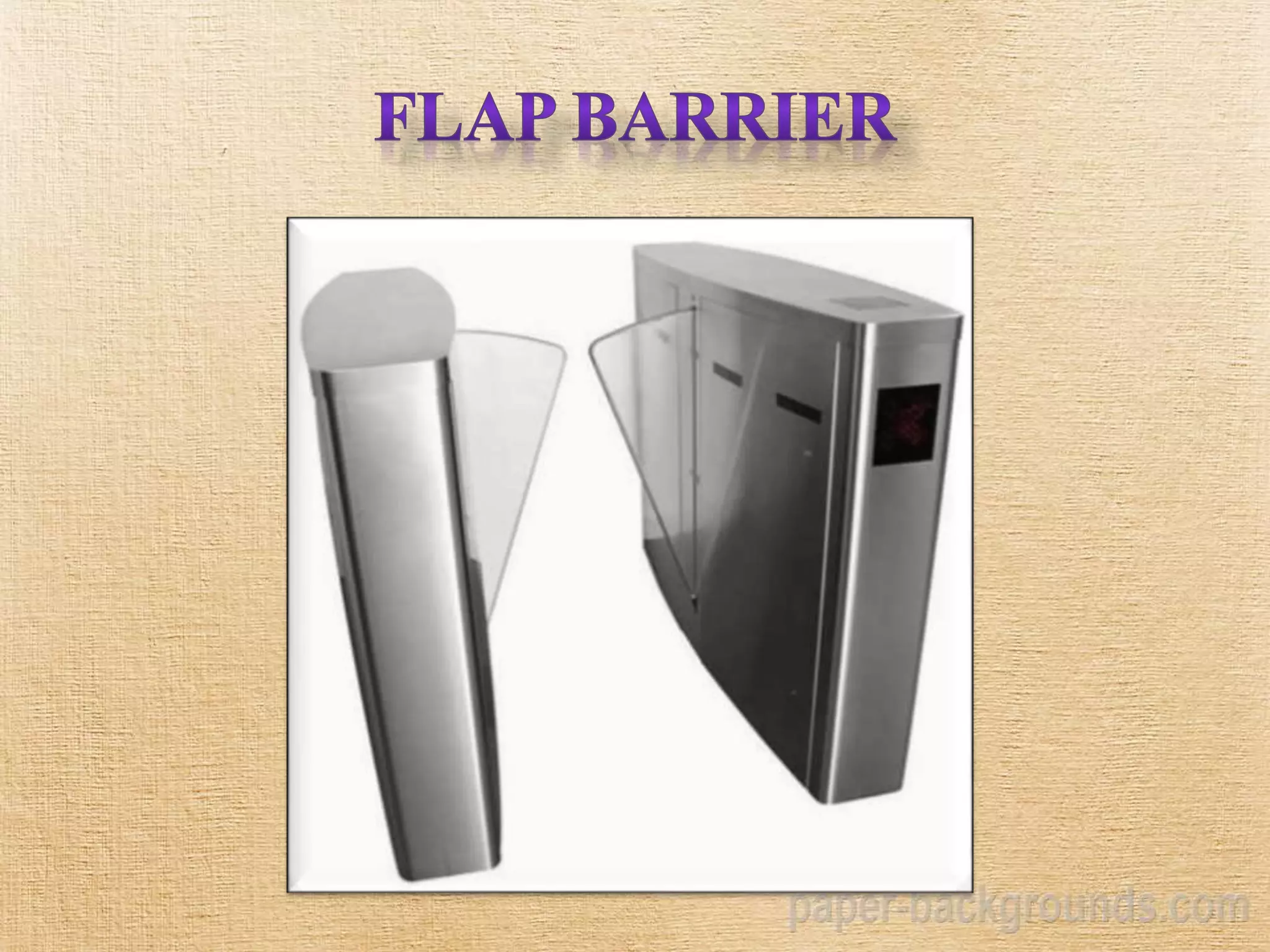

15. FLAP BARRIER
 Retractable Flap Barrier
Retractable Flap barrier is available in single lane & multiple lane configurations as per
site requirements. Two housings with retractable flap make one lane of access. One
housing with two flaps back to back is used in between the end columns to increase the
number of lanes.
 Technology:
The drive mechanism incorporates a torque controlled DC Servo motor using latest
PWM Technology to keep pace with upcoming technologies with almost 100% duty
cycle & Operating on single arm against retractable barrier. This produces a speed
controlled motion. The lever arm can be adjusted so that panels can be opened after
certain force is applied at a certain position. In the even of power failure panels can be
specified to remain closed (Fail Locked mode) OR Open (Fail Safe mode). The
retractable barrier can be operated in normally closed or open mode (Optional)

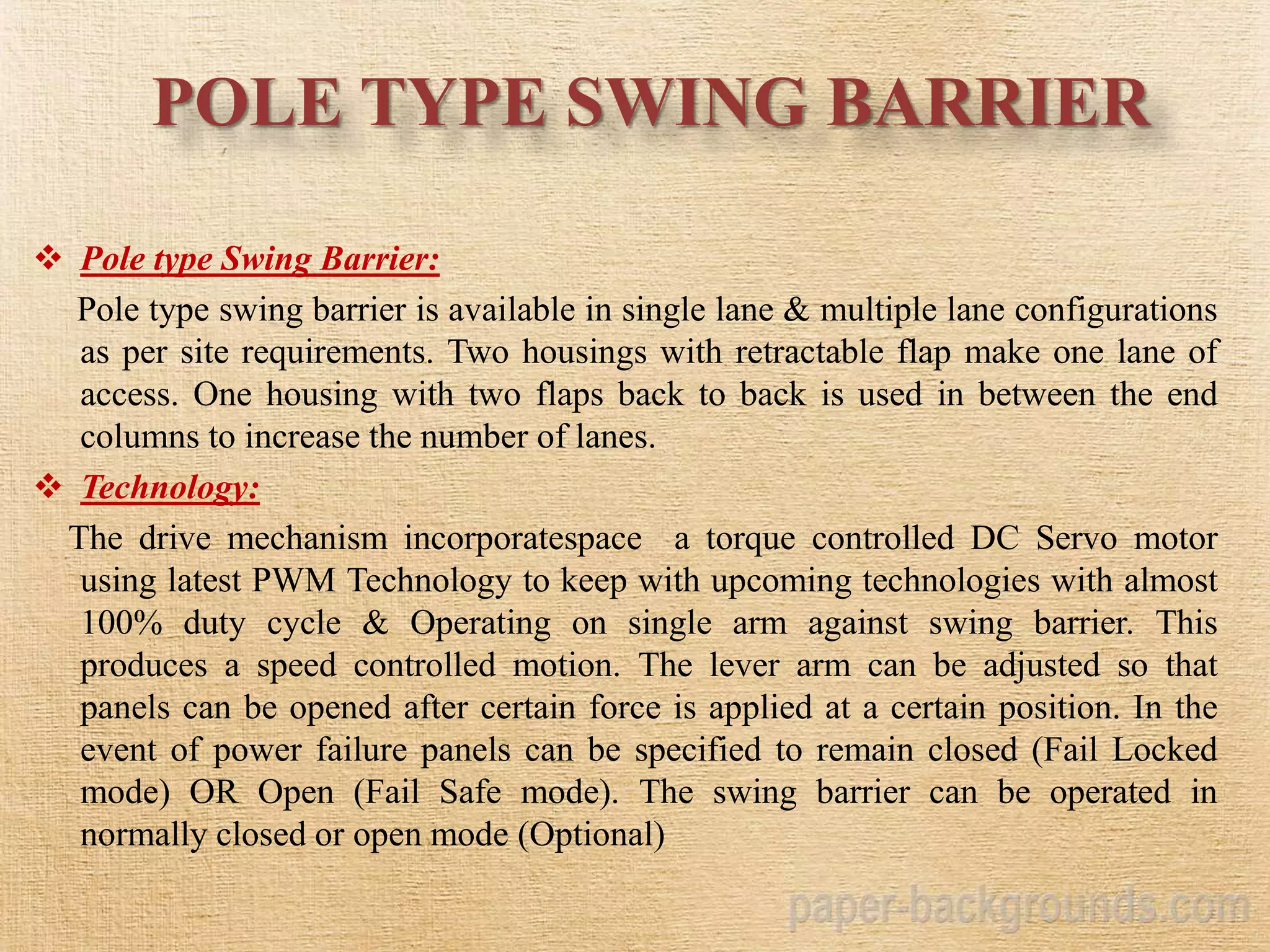

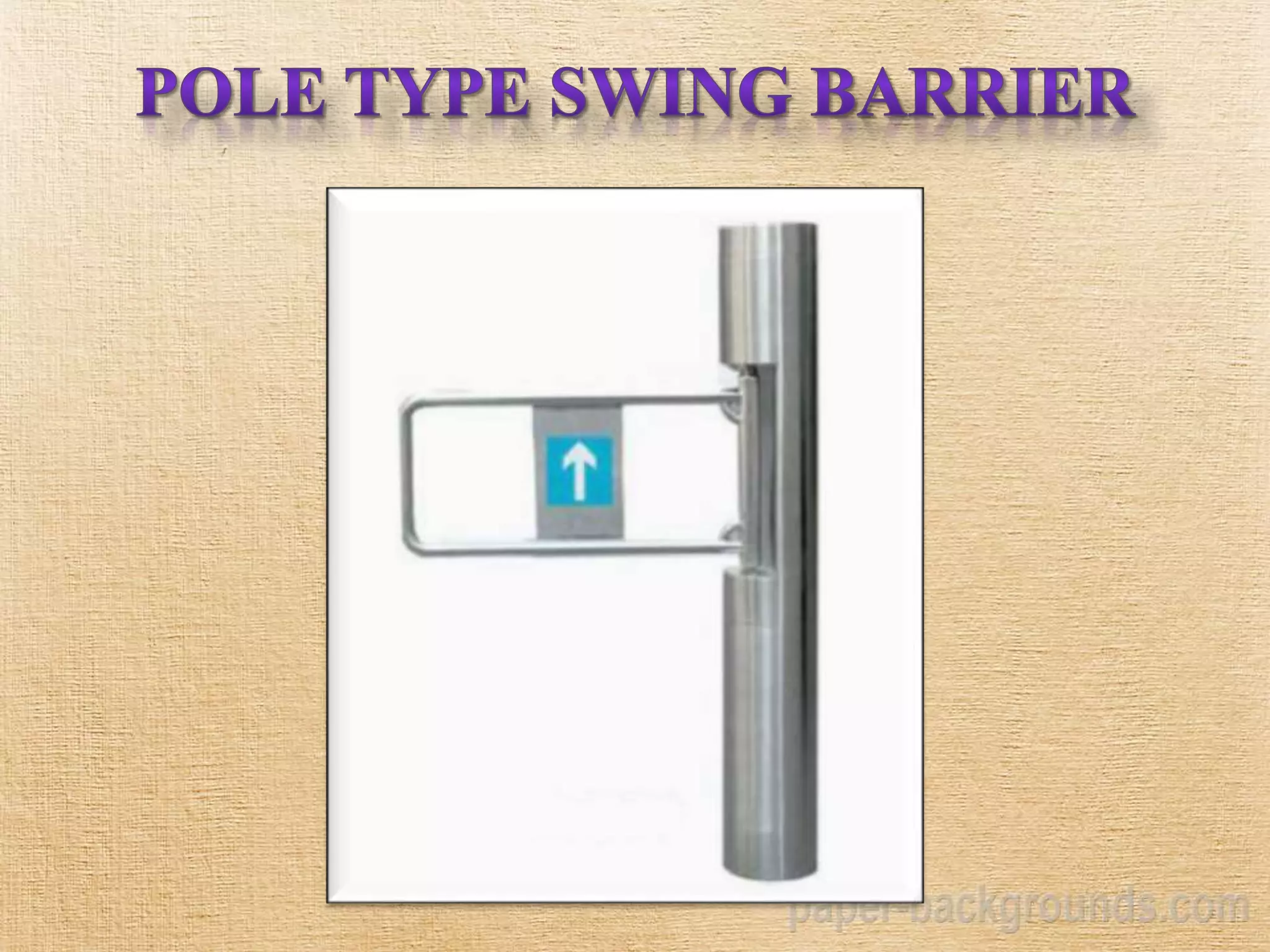

17. POLE TYPE SWING BARRIER
 Pole type Swing Barrier:
Pole type swing barrier is available in single lane & multiple lane configurations
as per site requirements. Two housings with retractable flap make one lane of
access. One housing with two flaps back to back is used in between the end
columns to increase the number of lanes.
 Technology:
The drive mechanism incorporatespace a torque controlled DC Servo motor
using latest PWM Technology to keep with upcoming technologies with almost
100% duty cycle & Operating on single arm against swing barrier. This
produces a speed controlled motion. The lever arm can be adjusted so that
panels can be opened after certain force is applied at a certain position. In the
event of power failure panels can be specified to remain closed (Fail Locked
mode) OR Open (Fail Safe mode). The swing barrier can be operated in
normally closed or open mode (Optional)

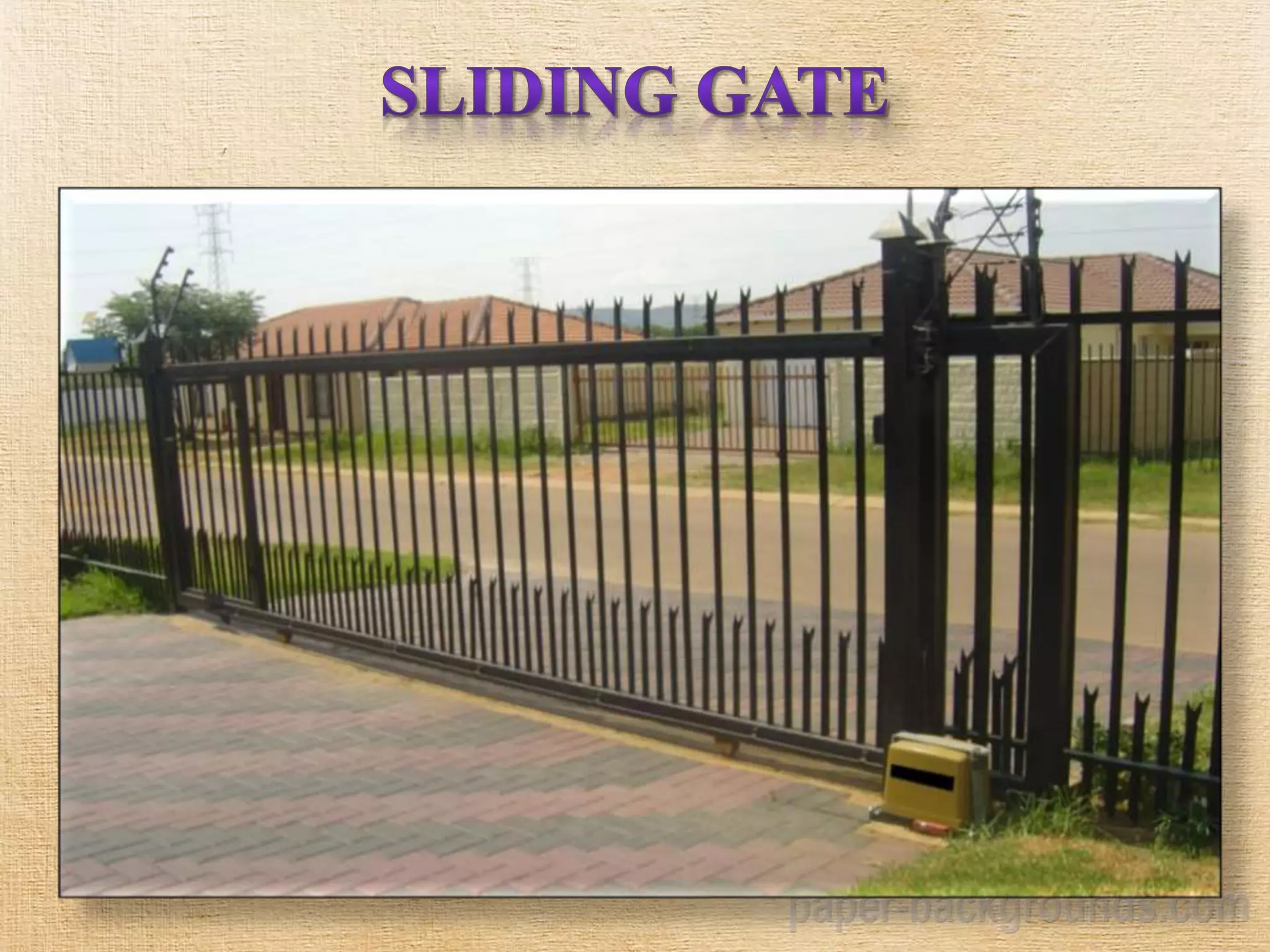

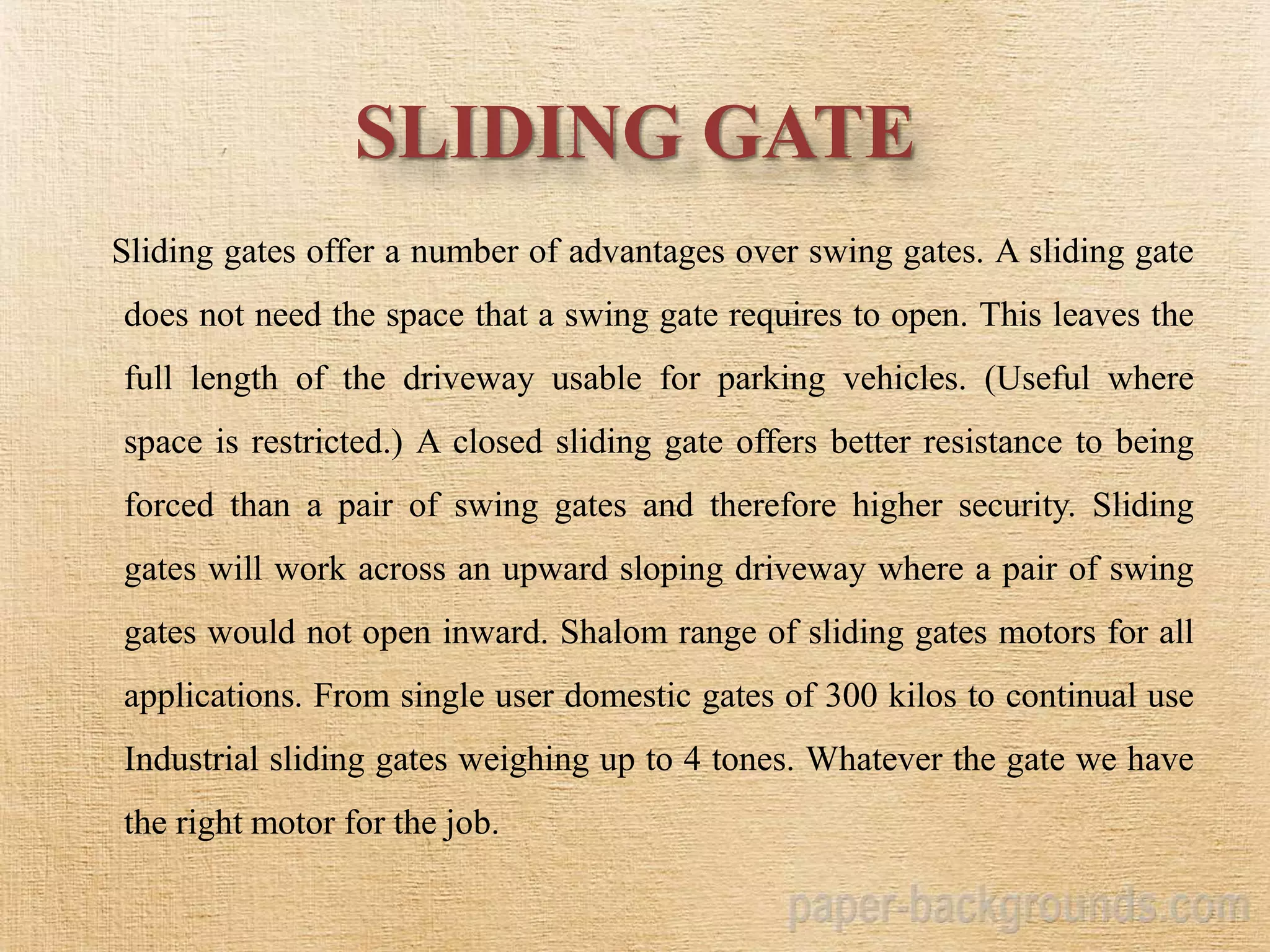

19. SLIDING GATE
Sliding gates offer a number of advantages over swing gates. A sliding gate
does not need the space that a swing gate requires to open. This leaves the
full length of the driveway usable for parking vehicles. (Useful where
space is restricted.) A closed sliding gate offers better resistance to being
forced than a pair of swing gates and therefore higher security. Sliding
gates will work across an upward sloping driveway where a pair of swing
gates would not open inward. Shalom range of sliding gates motors for all
applications. From single user domestic gates of 300 kilos to continual use
Industrial sliding gates weighing up to 4 tones. Whatever the gate we have
the right motor for the job.

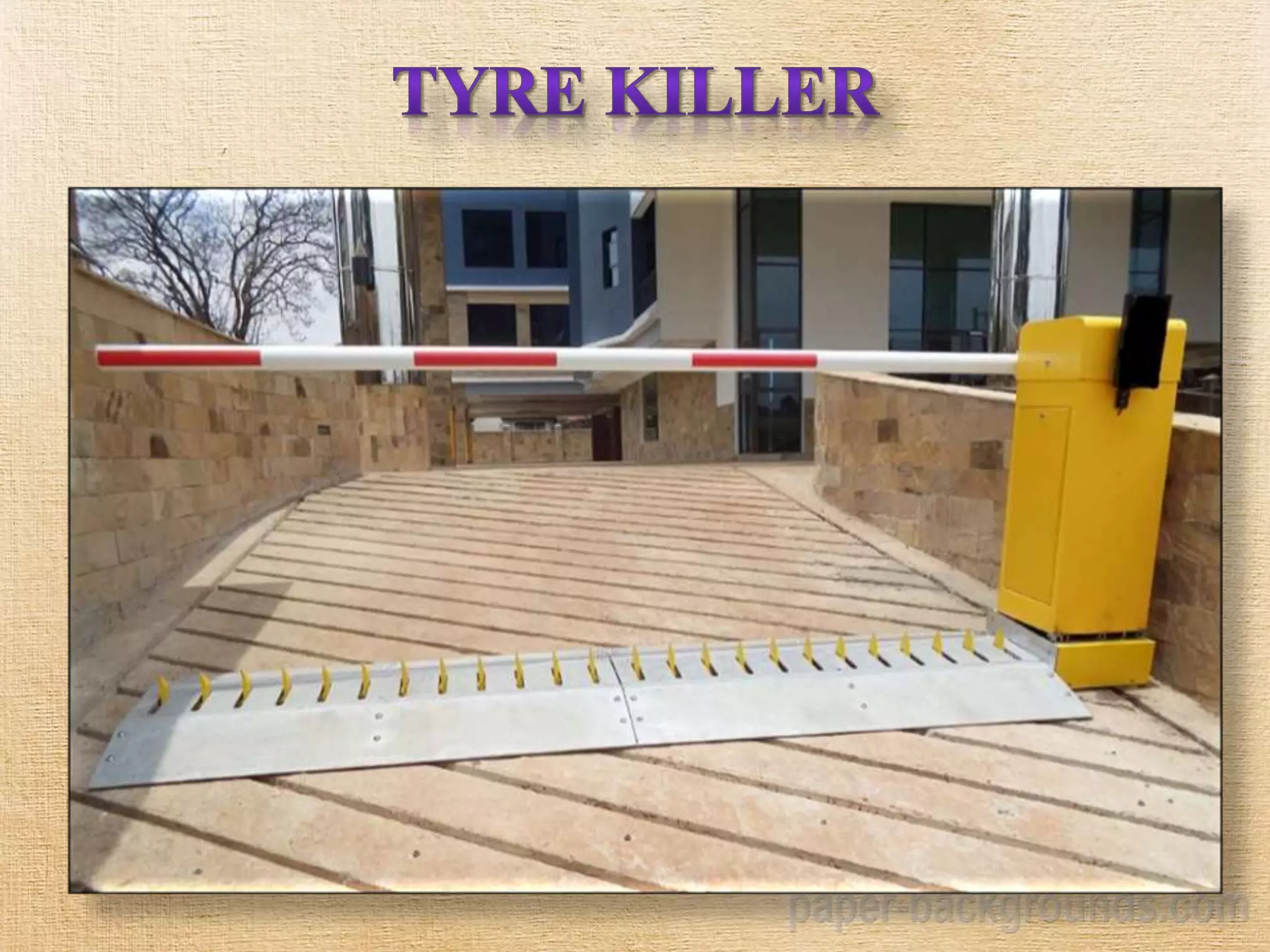

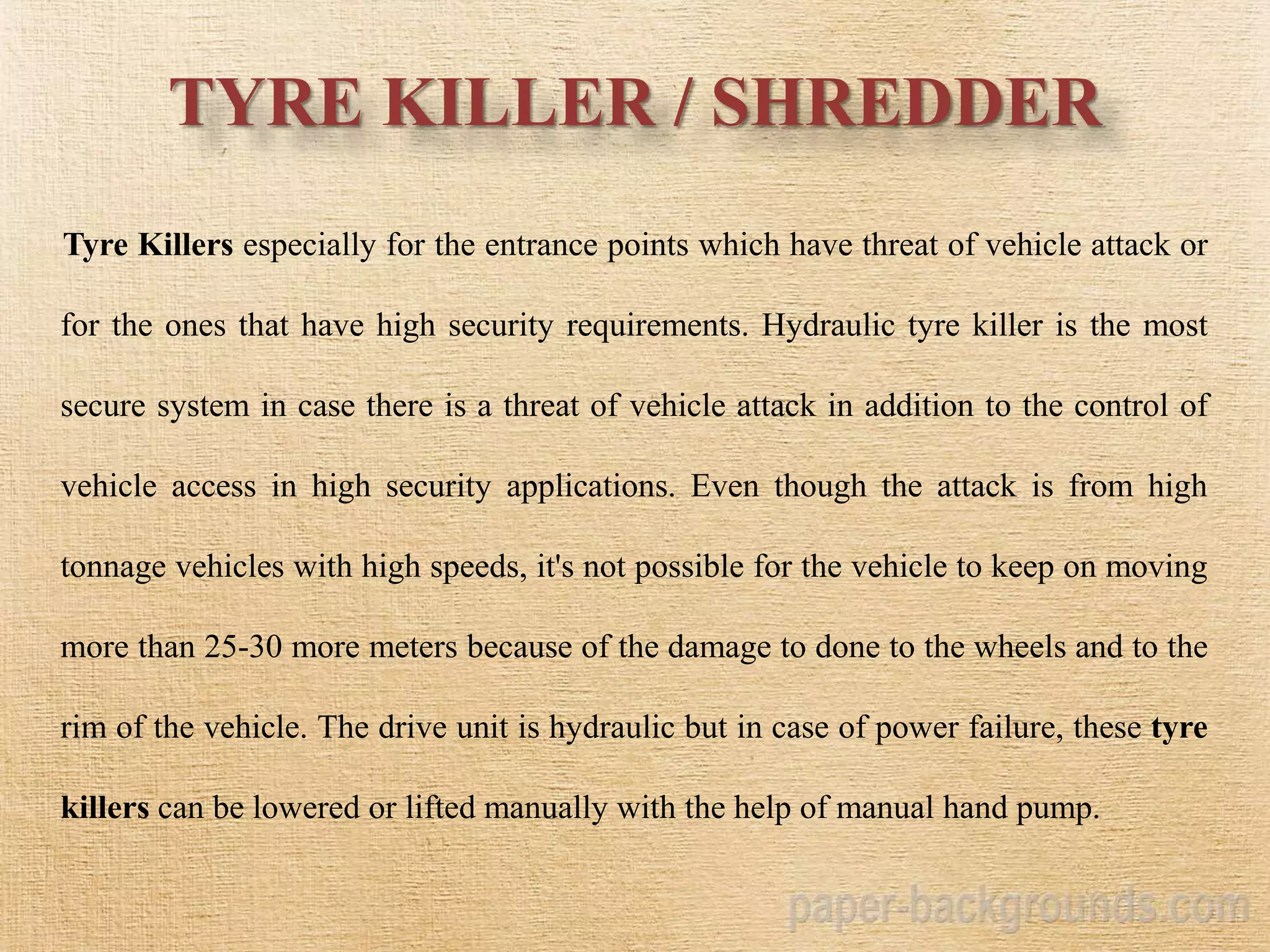

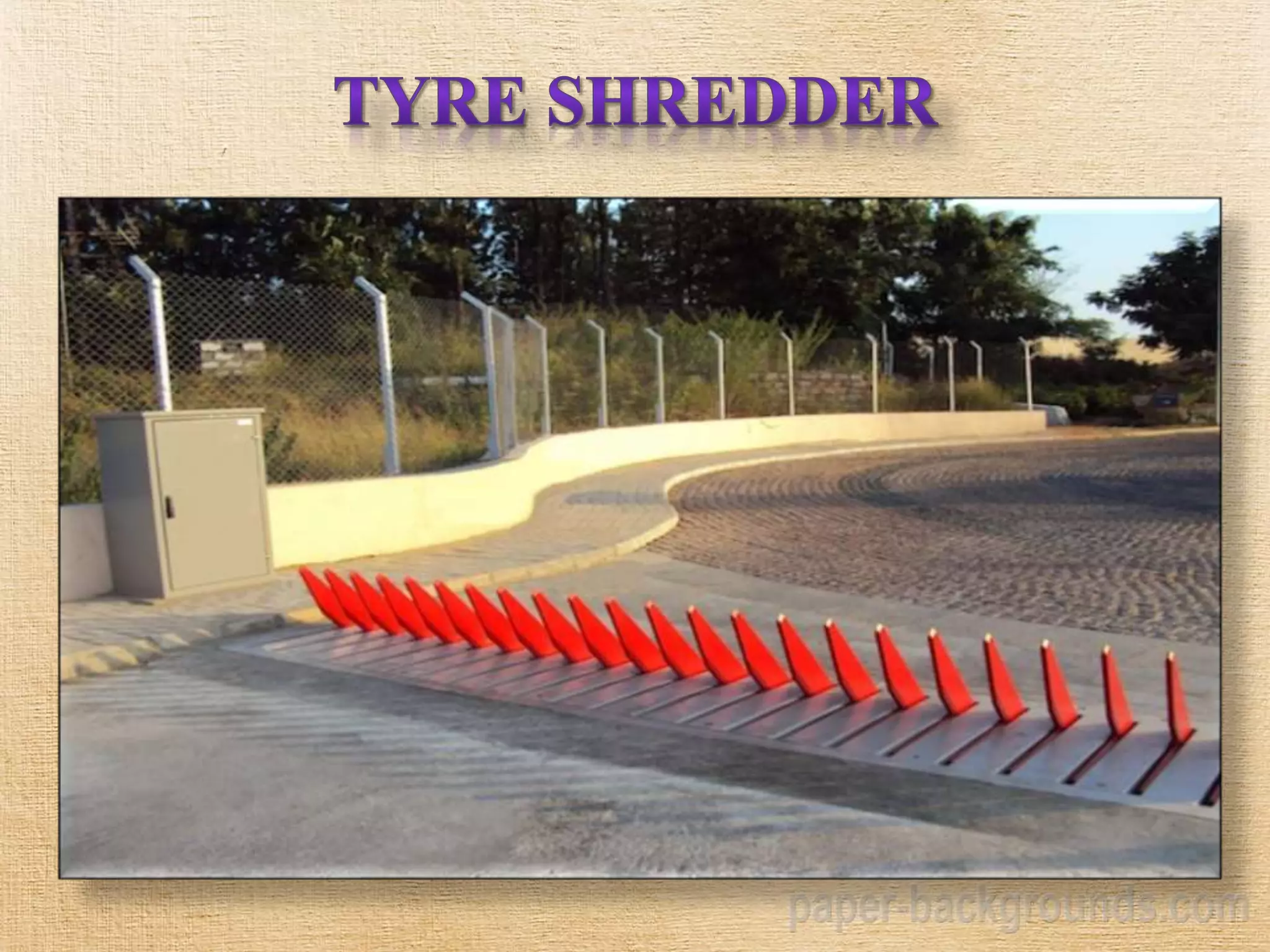

22. TYRE KILLER / SHREDDER
Tyre Killers especially for the entrance points which have threat of vehicle attack or
for the ones that have high security requirements. Hydraulic tyre killer is the most
secure system in case there is a threat of vehicle attack in addition to the control of
vehicle access in high security applications. Even though the attack is from high
tonnage vehicles with high speeds, it's not possible for the vehicle to keep on moving
more than 25-30 more meters because of the damage to done to the wheels and to the
rim of the vehicle. The drive unit is hydraulic but in case of power failure, these tyre
killers can be lowered or lifted manually with the help of manual hand pump.

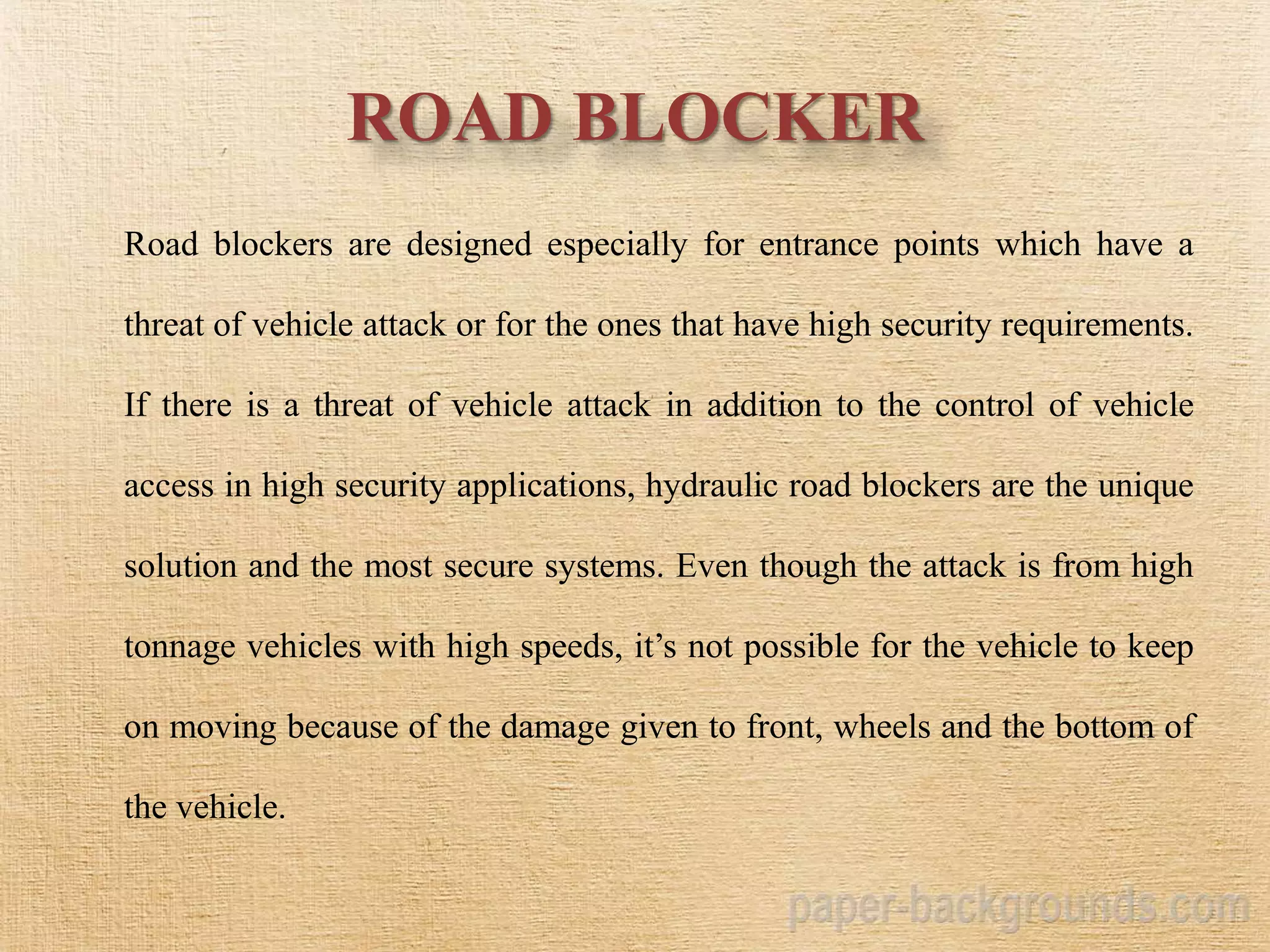

24. ROAD BLOCKER
Road blockers are designed especially for entrance points which have a
threat of vehicle attack or for the ones that have high security requirements.
If there is a threat of vehicle attack in addition to the control of vehicle
access in high security applications, hydraulic road blockers are the unique
solution and the most secure systems. Even though the attack is from high
tonnage vehicles with high speeds, it’s not possible for the vehicle to keep
on moving because of the damage given to front, wheels and the bottom of
the vehicle.

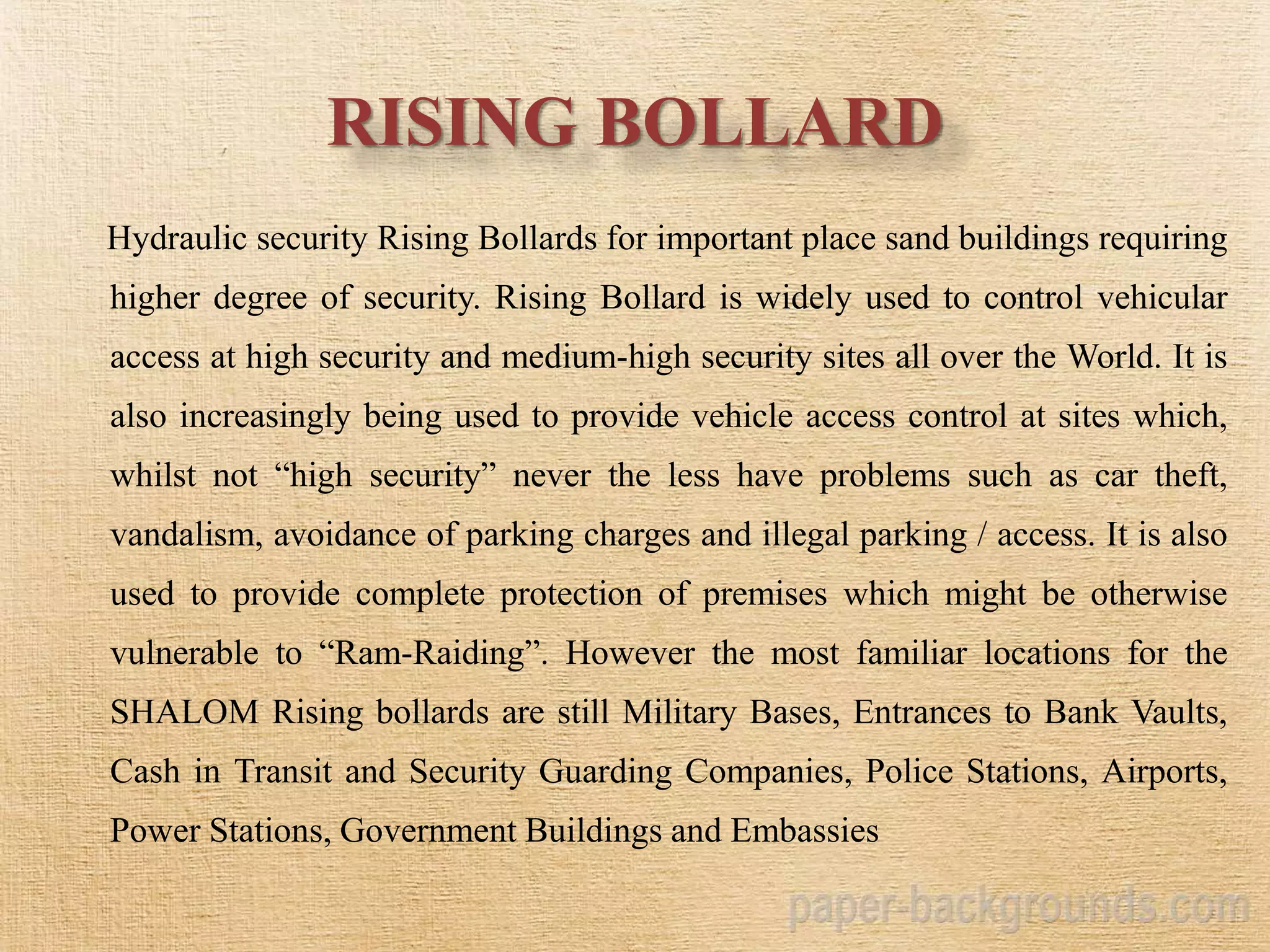

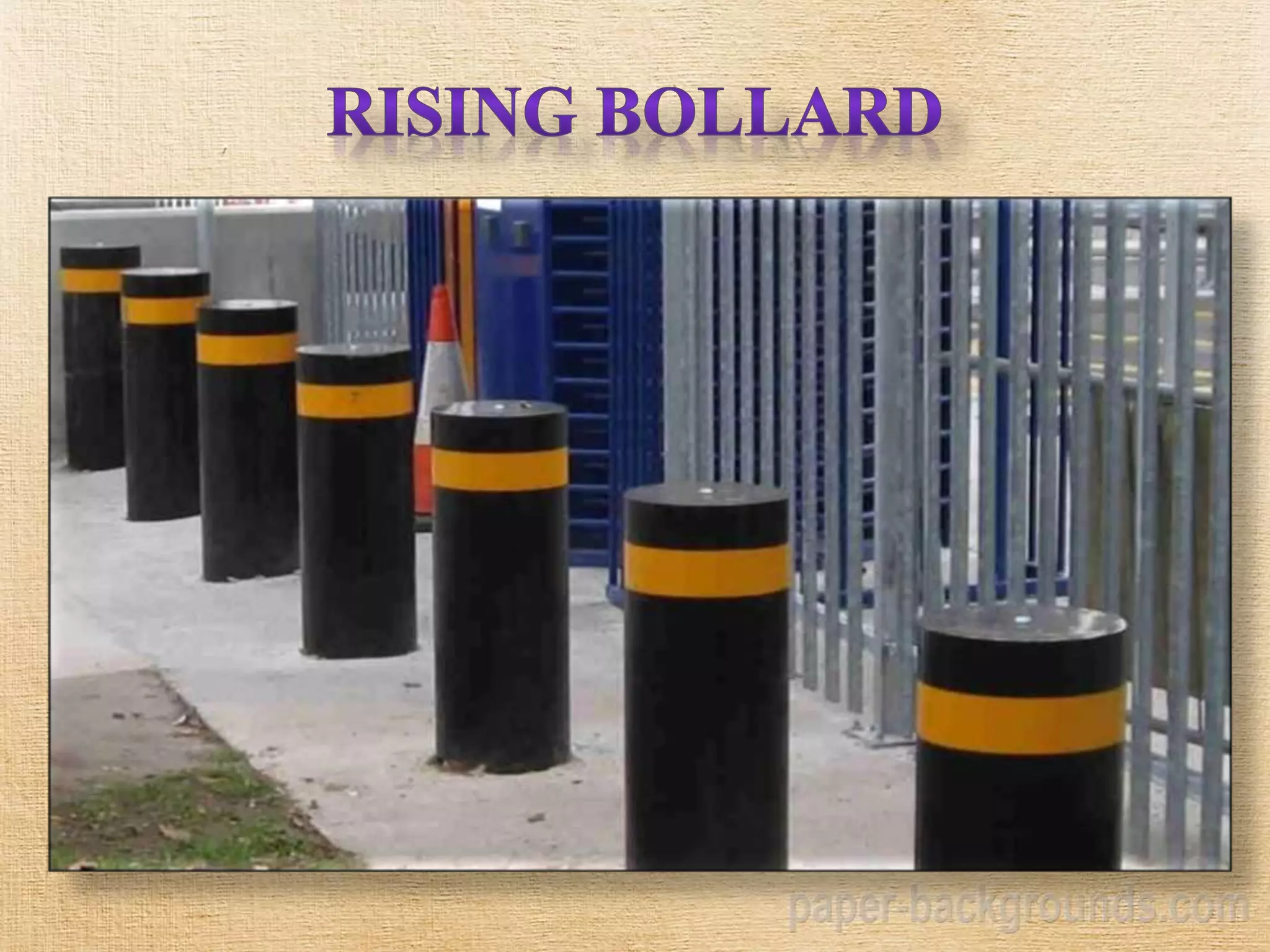

26. RISING BOLLARD
Hydraulic security Rising Bollards for important place sand buildings requiring
higher degree of security. Rising Bollard is widely used to control vehicular
access at high security and medium-high security sites all over the World. It is
also increasingly being used to provide vehicle access control at sites which,
whilst not “high security” never the less have problems such as car theft,
vandalism, avoidance of parking charges and illegal parking / access. It is also
used to provide complete protection of premises which might be otherwise
vulnerable to “Ram-Raiding”. However the most familiar locations for the
SHALOM Rising bollards are still Military Bases, Entrances to Bank Vaults,
Cash in Transit and Security Guarding Companies, Police Stations, Airports,
Power Stations, Government Buildings and Embassies

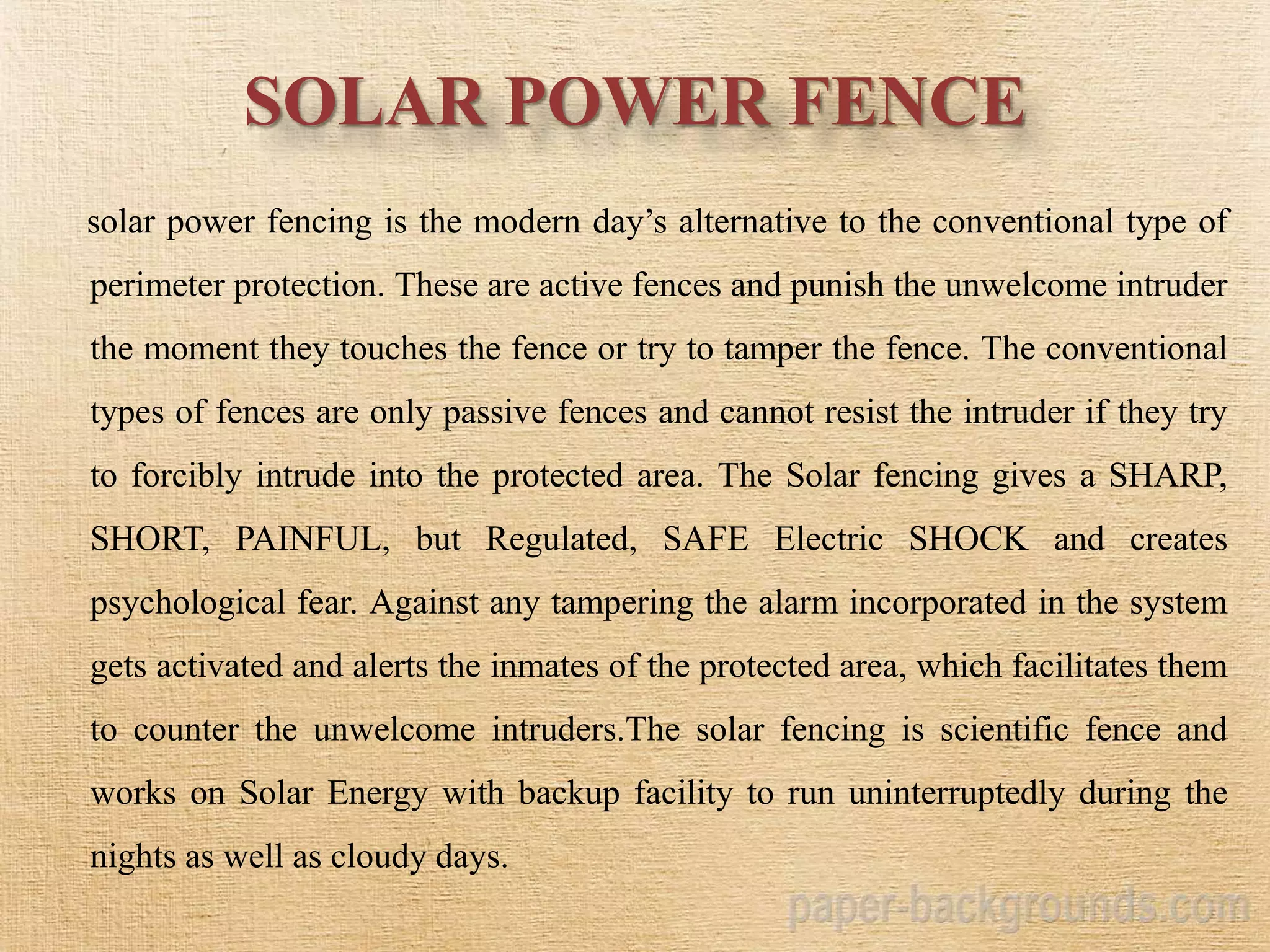

28. SOLAR POWER FENCE
solar power fencing is the modern day’s alternative to the conventional type of
perimeter protection. These are active fences and punish the unwelcome intruder
the moment they touches the fence or try to tamper the fence. The conventional
types of fences are only passive fences and cannot resist the intruder if they try
to forcibly intrude into the protected area. The Solar fencing gives a SHARP,
SHORT, PAINFUL, but Regulated, SAFE Electric SHOCK and creates
psychological fear. Against any tampering the alarm incorporated in the system
gets activated and alerts the inmates of the protected area, which facilitates them
to counter the unwelcome intruders.The solar fencing is scientific fence and
works on Solar Energy with backup facility to run uninterruptedly during the
nights as well as cloudy days.

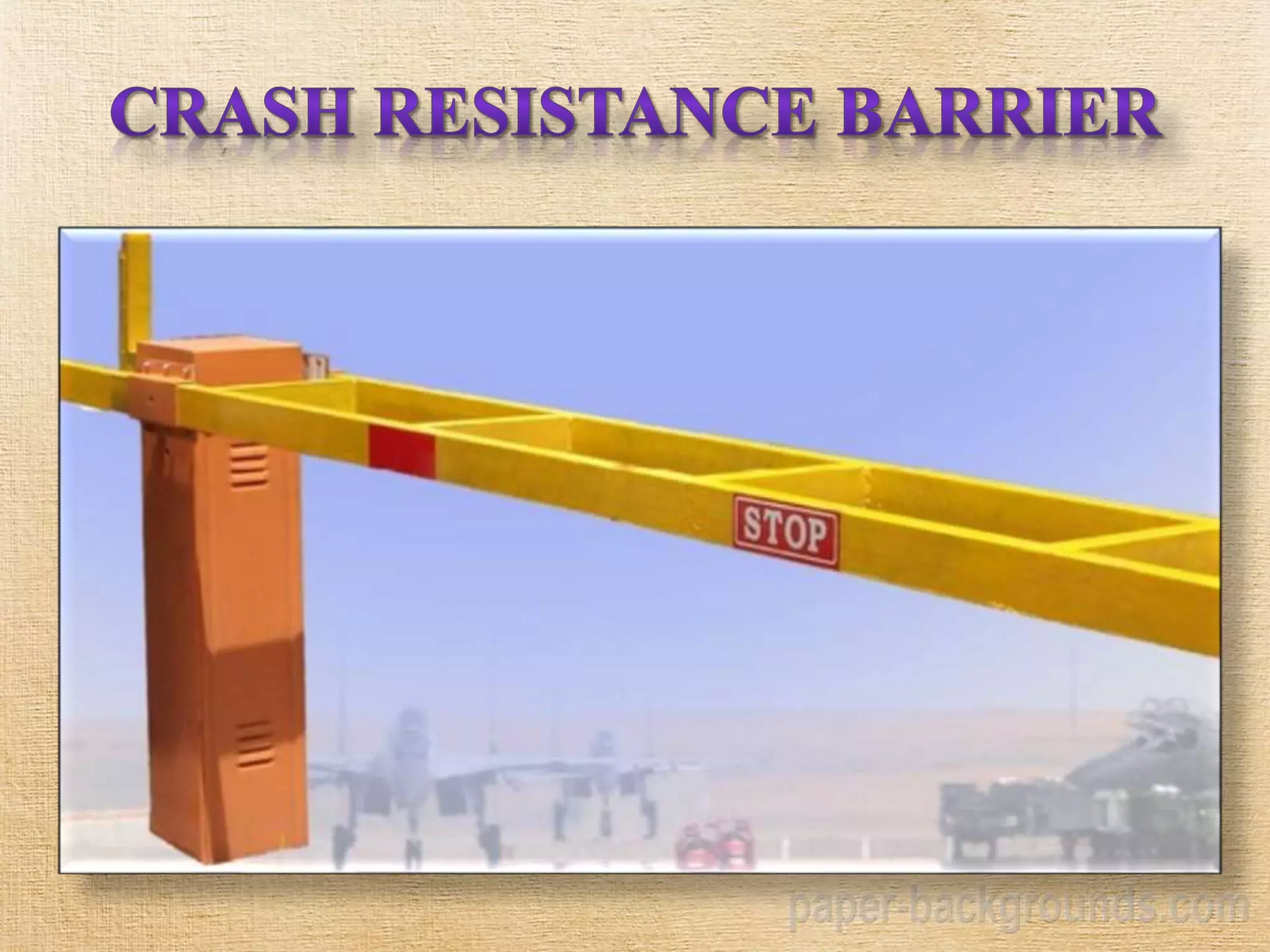

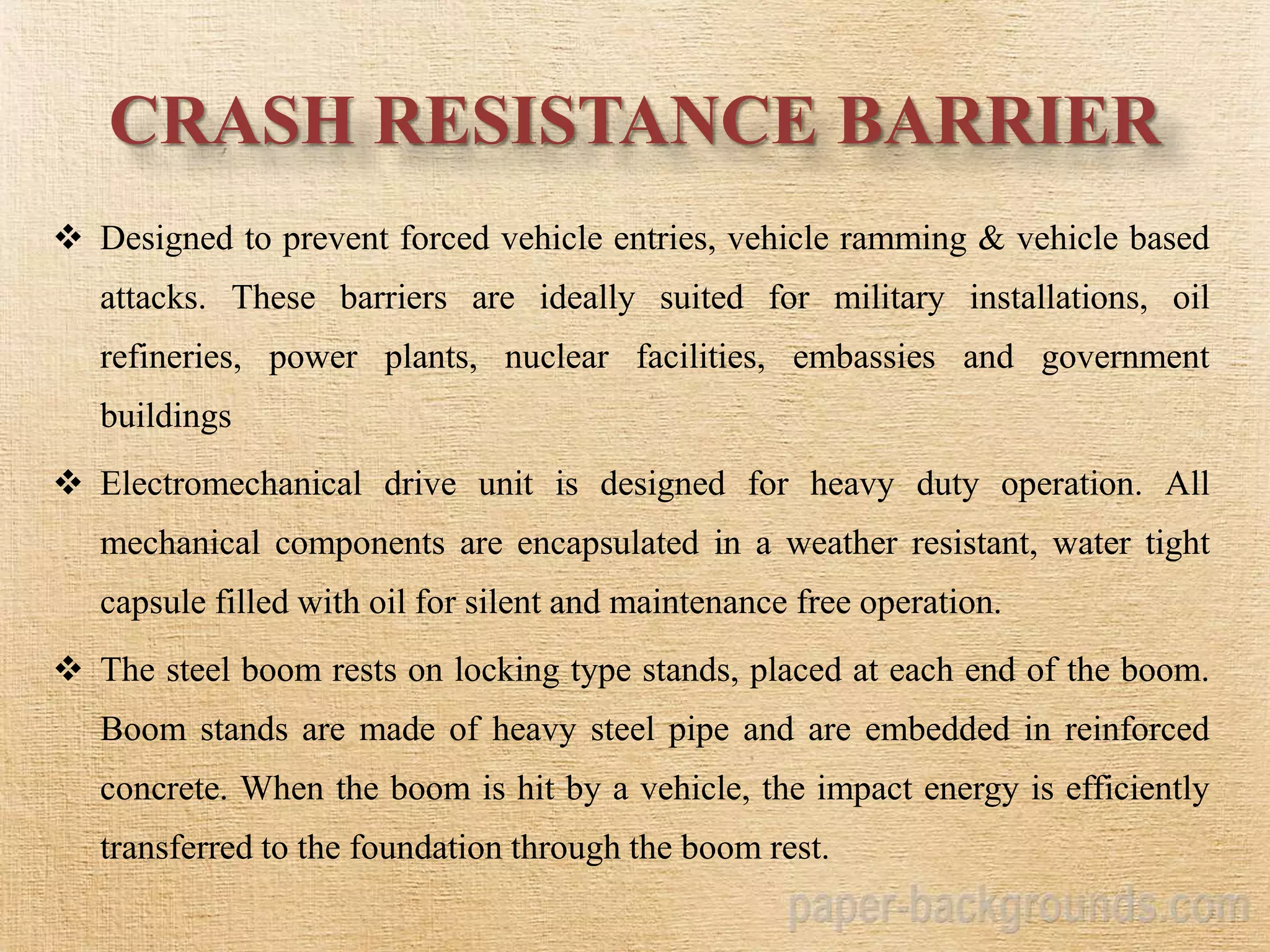

30. CRASH RESISTANCE BARRIER
 Designed to prevent forced vehicle entries, vehicle ramming & vehicle based
attacks. These barriers are ideally suited for military installations, oil
refineries, power plants, nuclear facilities, embassies and government
buildings
 Electromechanical drive unit is designed for heavy duty operation. All
mechanical components are encapsulated in a weather resistant, water tight
capsule filled with oil for silent and maintenance free operation.
 The steel boom rests on locking type stands, placed at each end of the boom.
Boom stands are made of heavy steel pipe and are embedded in reinforced
concrete. When the boom is hit by a vehicle, the impact energy is efficiently
transferred to the foundation through the boom rest.

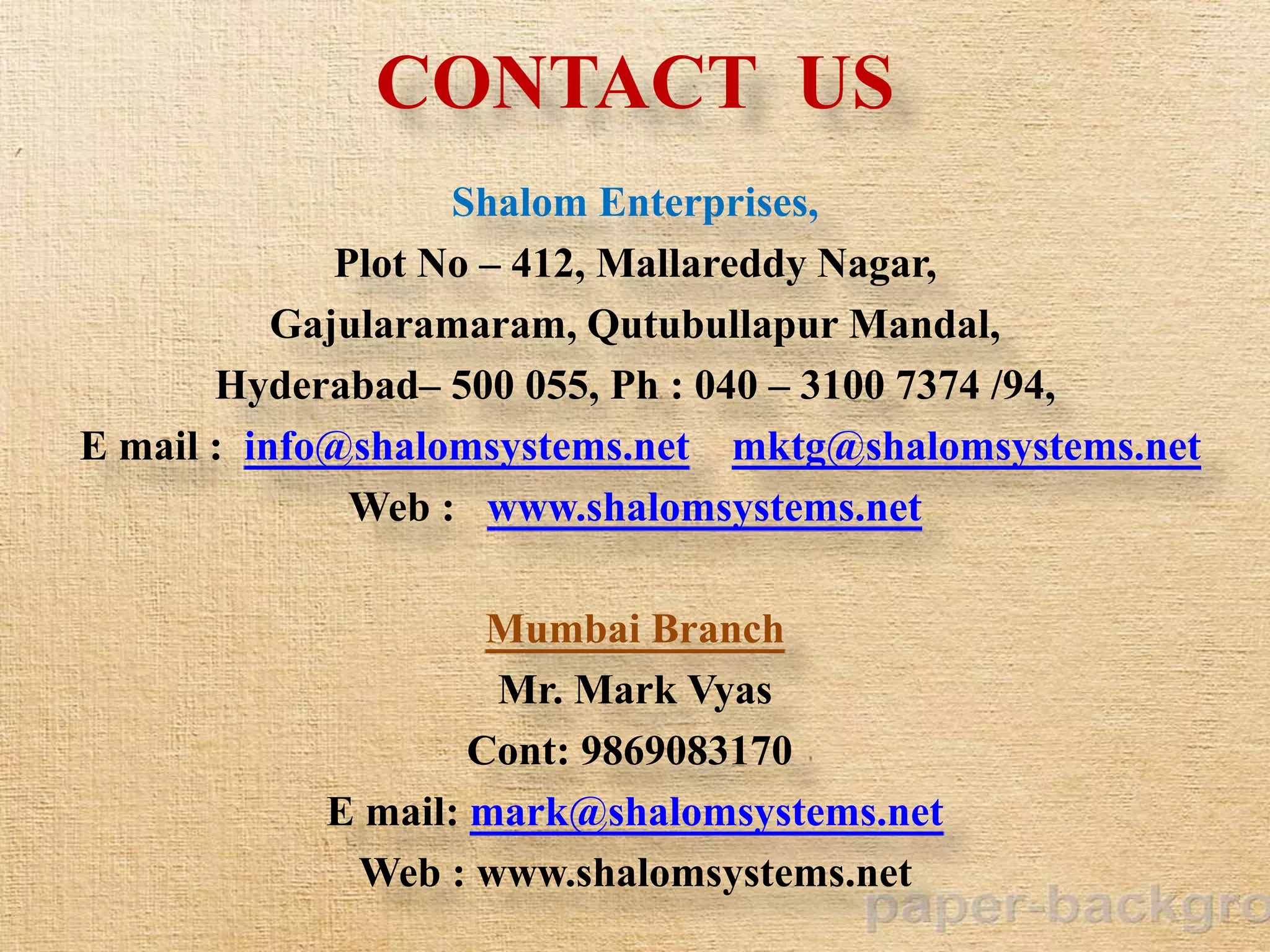

31. CONTACT US
