BGI specializes in advanced gate, barrier, and perimeter protection solutions, particularly anti-ramming bollards and gates, ensuring safety and efficiency for facility entrances worldwide. The company's innovative pneumatic operations offer high-speed, low-maintenance solutions suitable for traffic control, military, and government applications, with features designed to withstand vandalism and power failures. BGI provides tailored security solutions through consultation, focusing on the optimum design for specific protection needs.

2. ·
BGI is a leading provider of gate, barrier and perimeter protection solutions.
Specializing in anti-ramming bollards and gates, and advanced access control, BGI
protects facility perimeters worldwide.
·
SECURITY · RELIABILITY · EFFICIENCY · SAFETY

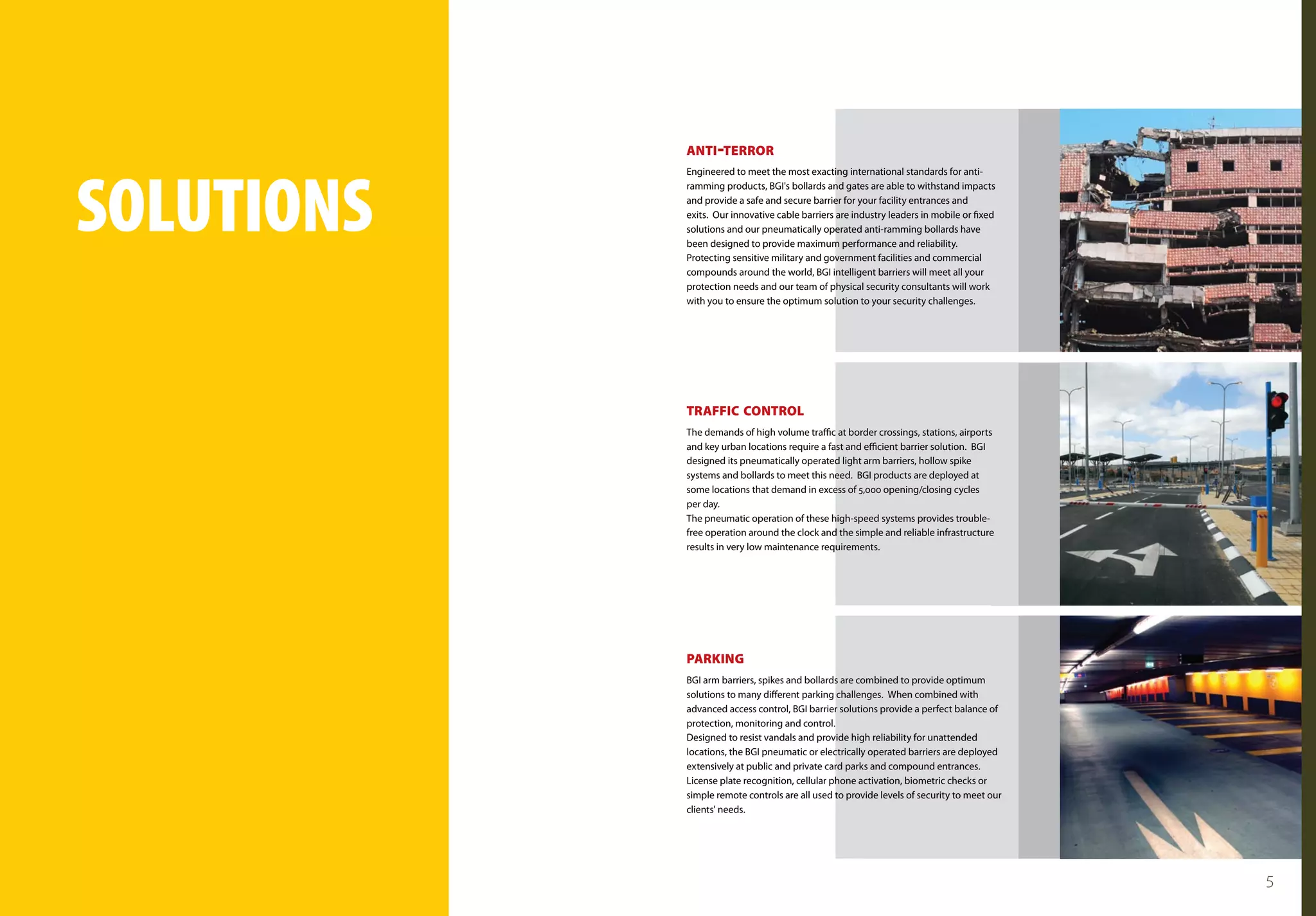

3. ANTI -TERROR
solutions
Engineered to meet the most exacting international standards for anti-
ramming products, BGI's bollards and gates are able to withstand impacts
and provide a safe and secure barrier for your facility entrances and
exits. Our innovative cable barriers are industry leaders in mobile or fixed
solutions and our pneumatically operated anti-ramming bollards have
been designed to provide maximum performance and reliability.
Protecting sensitive military and government facilities and commercial
compounds around the world, BGI intelligent barriers will meet all your
protection needs and our team of physical security consultants will work
with you to ensure the optimum solution to your security challenges.
TRAFFIC CONTROL
The demands of high volume traffic at border crossings, stations, airports
and key urban locations require a fast and efficient barrier solution. BGI
designed its pneumatically operated light arm barriers, hollow spike
systems and bollards to meet this need. BGI products are deployed at
some locations that demand in excess of 5,000 opening/closing cycles
per day.
The pneumatic operation of these high-speed systems provides trouble-
free operation around the clock and the simple and reliable infrastructure
results in very low maintenance requirements.
PARKING
BGI arm barriers, spikes and bollards are combined to provide optimum
solutions to many different parking challenges. When combined with
advanced access control, BGI barrier solutions provide a perfect balance of
protection, monitoring and control.
Designed to resist vandals and provide high reliability for unattended
locations, the BGI pneumatic or electrically operated barriers are deployed
extensively at public and private card parks and compound entrances.
License plate recognition, cellular phone activation, biometric checks or
simple remote controls are all used to provide levels of security to meet our
clients' needs.
5

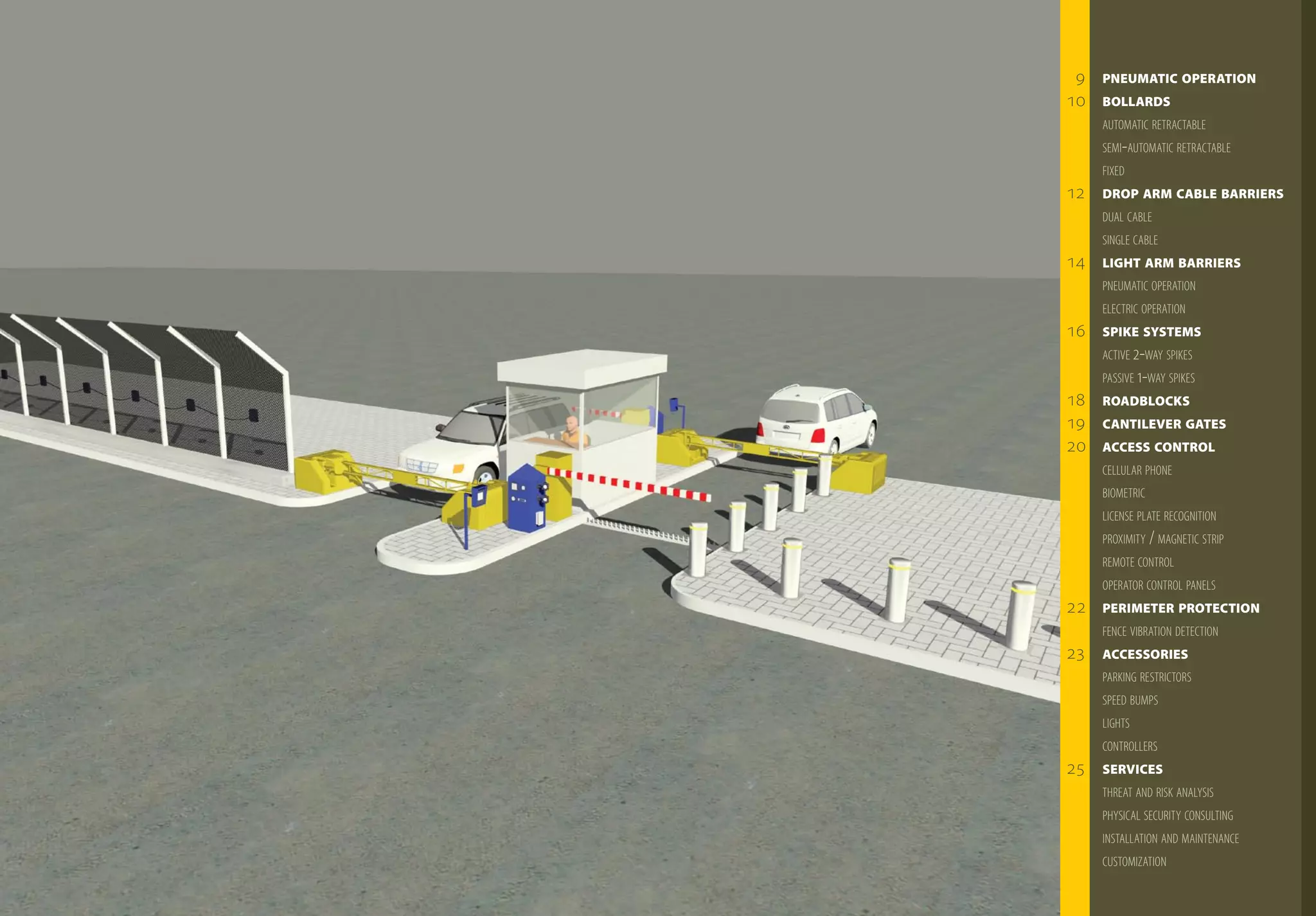

4. 9 PNEumATIC OPERATION
10 BOLLARds
AUTomATIC RETRACTABLE
SEmI-AUTomATIC RETRACTABLE
FIxEd
12 dROP ARm CABLE BARRIERs
dUAL CABLE
SINgLE CABLE
14 LIGhT ARm BARRIERs
PNEUmATIC oPERATIoN
ELECTRIC oPERATIoN
16 sPIKE sysTEms
ACTIvE 2-wAY SPIkES
PASSIvE 1-wAY SPIkES
18 ROAdBLOCKs
19 CANTILEvER GATEs
20 ACCEss CONTROL
CELLULAR PhoNE
BIomETRIC
LICENSE PLATE RECogNITIoN
PRoxImITY / mAgNETIC STRIP
REmoTE CoNTRoL
oPERAToR CoNTRoL PANELS
22 PERImETER PROTECTION
FENCE vIBRATIoN dETECTIoN
23 ACCEssORIEs
PARkINg RESTRICToRS
SPEEd BUmPS
LIghTS
CoNTRoLLERS
25 sERvICEs
ThREAT ANd RISk ANALYSIS
PhYSICAL SECURITY CoNSULTINg
INSTALLATIoN ANd mAINTENANCE
CUSTomIzATIoN

5. PNEumATIC OPERATION
RAPId CyCLE TImE
Pneumatic arm barriers and spikes can be raised and lowered
in an exceptionally short time of as little as 1.5 seconds. This
significantly improves traffic control where peak flows at the
Products
beginning and end of work days must be considered.
AdjusTABLE sPEEd
By regulating the air pressure, not only can the speed of the
barriers be finely adjusted, but different speeds can be set for
opening and closing.
RELIABLE
Pneumatic barriers contain very few moving parts since they are
operated by a piston powered by a remote compressor. There
are no motors or gears to maintain or jam.
FAsT ∙ RELIABLE ∙ sILENT ∙ EFFICIENT LOW mAINTENANCE
BGI is a pioneer in the innovative use of air pressure to power its The piston is rated to 10 million operations before the gaskets
products. Particularly suited to high volume traffic flows or multiple need replacing. This results in a very low MTBF.
barrier installations, pneumatic power has been selected for large
compound entrances, border crossings and smaller installations sImPLE INFRAsTRuCTuRE
where gates and bollards or spikes must be synchronized.
An air compressor can be sited at a location distant from the
barriers and a single air source can be used to power multiple
∙ High operating speeds sets of barriers or gates. The compressors and air tank are sized
∙ Reliable for each project creating a most efficient infrastructure.
∙ Low maintenance
∙ Continued operation after power failure EAsE OF syNChRONIzATION
∙ Simplicity With both the bollards and barrier arm operated by compressed
∙ Ease of synchronization air from the same power (air) source, it is possible to perfectly
synchronize the opening of the gate with the lowering of the
bollards or spikes. Achieving this same level of synchronization
with motors or hydraulics is challenging and is likely to be
difficult to maintain over time without regular adjustment and
extra expense.
vANdAL- PROOF
Vandalism and sabotage are much more difficult with the
pneumatic arm due to the simplicity of the mechanism. There
are no gears to jam or motors to burn out.
BACK- uP ON POWER LOss
In the event of loss of power to an electronic barrier, it becomes
inoperable. In the case of pneumatic barriers, since the
compressor feeds a cylinder which acts as a reservoir and does
not feed the arm/bollards directly, there is always a volume of
compressed air available as a back up. In the event of a power
failure, a pneumatic arm can typically continue to operate for
between 5 and 10 cycles.
9

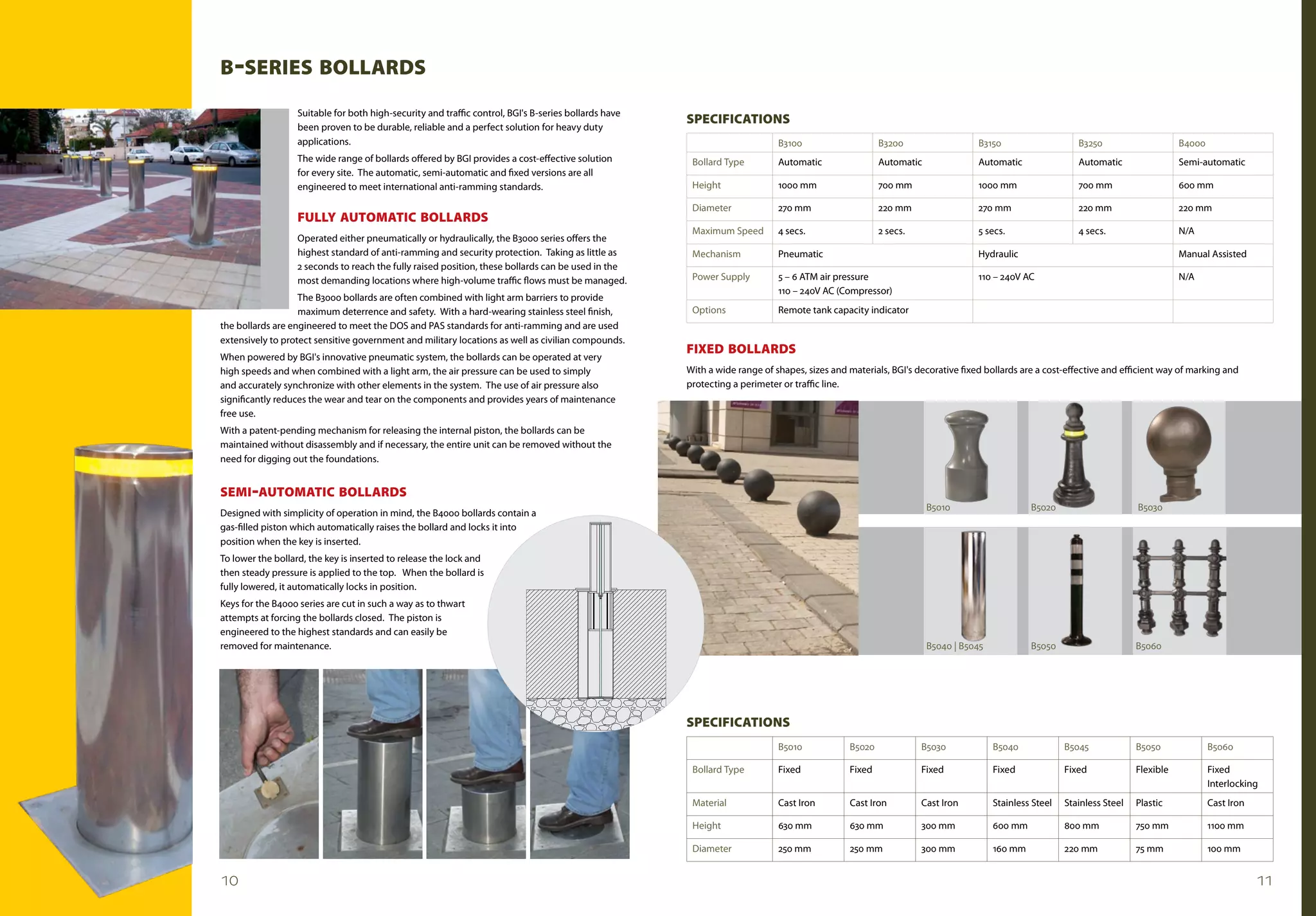

6. B -sERIEs BOLLARds
Suitable for both high-security and traffic control, BGI's B-series bollards have
sPECIFICATIONs
been proven to be durable, reliable and a perfect solution for heavy duty
applications. B3100 B3200 B3150 B3250 B4000
The wide range of bollards offered by BGI provides a cost-effective solution Bollard Type Automatic Automatic Automatic Automatic Semi-automatic
for every site. The automatic, semi-automatic and fixed versions are all
engineered to meet international anti-ramming standards. Height 1000 mm 700 mm 1000 mm 700 mm 600 mm
Diameter 270 mm 220 mm 270 mm 220 mm 220 mm
FuLLy AuTOmATIC BOLLARds
Maximum Speed 4 secs. 2 secs. 5 secs. 4 secs. N/A
Operated either pneumatically or hydraulically, the B3000 series offers the
highest standard of anti-ramming and security protection. Taking as little as Mechanism Pneumatic Hydraulic Manual Assisted
2 seconds to reach the fully raised position, these bollards can be used in the
most demanding locations where high-volume traffic flows must be managed. Power Supply 5 – 6 ATM air pressure 110 – 240V AC N/A
110 – 240V AC (Compressor)
The B3000 bollards are often combined with light arm barriers to provide
maximum deterrence and safety. With a hard-wearing stainless steel finish, Options Remote tank capacity indicator
the bollards are engineered to meet the DOS and PAS standards for anti-ramming and are used
extensively to protect sensitive government and military locations as well as civilian compounds.
FIxEd BOLLARds
When powered by BGI's innovative pneumatic system, the bollards can be operated at very
high speeds and when combined with a light arm, the air pressure can be used to simply With a wide range of shapes, sizes and materials, BGI's decorative fixed bollards are a cost-effective and efficient way of marking and
and accurately synchronize with other elements in the system. The use of air pressure also protecting a perimeter or traffic line.
significantly reduces the wear and tear on the components and provides years of maintenance
free use.
With a patent-pending mechanism for releasing the internal piston, the bollards can be
maintained without disassembly and if necessary, the entire unit can be removed without the
need for digging out the foundations.
sEmI -AuTOmATIC BOLLARds
B5010 B5020 B5030
Designed with simplicity of operation in mind, the B4000 bollards contain a
gas-filled piston which automatically raises the bollard and locks it into
position when the key is inserted.
To lower the bollard, the key is inserted to release the lock and
then steady pressure is applied to the top. When the bollard is
fully lowered, it automatically locks in position.
Keys for the B4000 series are cut in such a way as to thwart
attempts at forcing the bollards closed. The piston is
engineered to the highest standards and can easily be
removed for maintenance. B5040 | B5045 B5050 B5060
sPECIFICATIONs
B5010 B5020 B5030 B5040 B5045 B5050 B5060
Bollard Type Fixed Fixed Fixed Fixed Fixed Flexible Fixed
Interlocking
Material Cast Iron Cast Iron Cast Iron Stainless Steel Stainless Steel Plastic Cast Iron
Height 630 mm 630 mm 300 mm 600 mm 800 mm 750 mm 1100 mm
Diameter 250 mm 250 mm 300 mm 160 mm 220 mm 75 mm 100 mm
10 11

7. K-sERIEs dROP ARm CABLE BARRIERs
Designed to completely close an entrance line to
OPERATION
a facility and bring vehicles to a rapid halt, BGI's
K-series drop arm cable barriers are the barriers of The K6000 series barriers are operated by an electro-hydraulic mechanism providing superior operation and unprecedented reliability. The
choice for military, government and commercial K5000 barrier is operated by a unique pneumatic mechanism resulting in very low maintenance, fast and reliable operation.
installations around the world. In both cases, opening time is user definable between 5 and 180 seconds and the opening and closing speeds can be set independently.
The K-series barriers, with their unique dual cable The barriers are simple to install, require little maintenance and can be connected to 110 – 240V AC or 24V DC for a truly mobile solution
systems and hydraulic or pneumatic operation (K6000 only).
protect government and corporate compounds
and border crossings. With its unique cable system, CONFIGuRATIONs
the K-series barriers provide high-security to any
location where an anti-ramming or anti-theft Mobile - anchored ∙ Surface mounted anchors are placed on the ground at either end of the barrier. This allows for quick deployment of an
solution is required. anti-ramming solution and provides a particularly innovative solution to the varied and changing needs of the police and military.
Installation configurations suit all sites, and options Mobile - plate ∙ The barrier is mounted on a wide steel plate which can be easily deployed for mobile solutions or installed permanently
include surface-mounting for temporary or where deep foundations are not possible. On impact, the entire barrier tips up, thereby wedging the plate into the vehicle and bringing it
mobile use, side foundations or shallow cross-road to a stop.
foundations. End-point foundations ∙ In this fixed configuration, the anchors are installed underground in order to provide a more elegant appearance.
K6000 ∙ Engineered to meet the demanding requirements of the military, the K6000 series offers This solution is typically used in urban areas where the anchors must be hidden to preserve the aesthetics of the neighborhood.
maximum protection against a ramming vehicle. With configurations suitable for military or
civilian installations, this barrier has been proven in the field to stop vehicles in their tracks. sPECIFICATIONs
K5000 ∙ The K5000 was developed in response to a demand for a cable barrier which would close
K6000 K6005 K6010 K5000
a perimeter line and provide anti-ramming protection at lower threat levels than the K6000. The
single-cable design offers an elegant barrier with a low profile.
CABLE BARRIER sOLuTIONs
Barrier Type Dual cable drop arm Dual cable drop arm Dual cable drop arm Single cable drop arm
Mobile/Fixed Mobile Fixed or Mobile Fixed Fixed
Foundations End-point surface anchors Mobile: No foundation End-point foundations End-point foundations
Depth = 0 cm Fixed: Cross road plate Depth = 70 – 100 cm Depth = 70 – 100 cm
BGI's K-series cable barriers are constructed to provide the highest level of protection against (Depth = 4 cm)
ramming. In the event of an attempt to break through the barrier, the cables, which are hidden Mechanism Electro-hydraulic Electro-hydraulic Electro-hydraulic Pneumatic
in the body of the gate arms, capture the chassis of the vehicle and transfer the energy of the
Power 110 – 240V AC 5 – 6 ATM air pressure
moving vehicle to the concrete anchors. These anchors, which can be surface mounted or below-
Supply 12 or 24V DC 110 – 240V AC (Compressor)
surface, then wrap around the vehicle and bring it to a complete halt.
Dimensions Length: Up to 600 cm Length: Up to 500 cm
Width: 180 cm Width: 70 cm
PROTECTION
Height: 90 cm Height: 60 cm
Engineered to meet both the US DOS and UK
Options Battery backup Remote tank capacity
PAS standards, the unique K-series anti-
Manual hydraulic pump indicator
ramming design has been proven in the field
against threats including terror and theft.
The K-series barriers are installed across
the world and are the de-facto standard for
drop arm barrier solutions for the security
services and military in a number of countries.
The K6000 and K5000 are also used extensively
to protect commercial interests with the two-way
barriers preventing threats from entering or exiting.
12 13

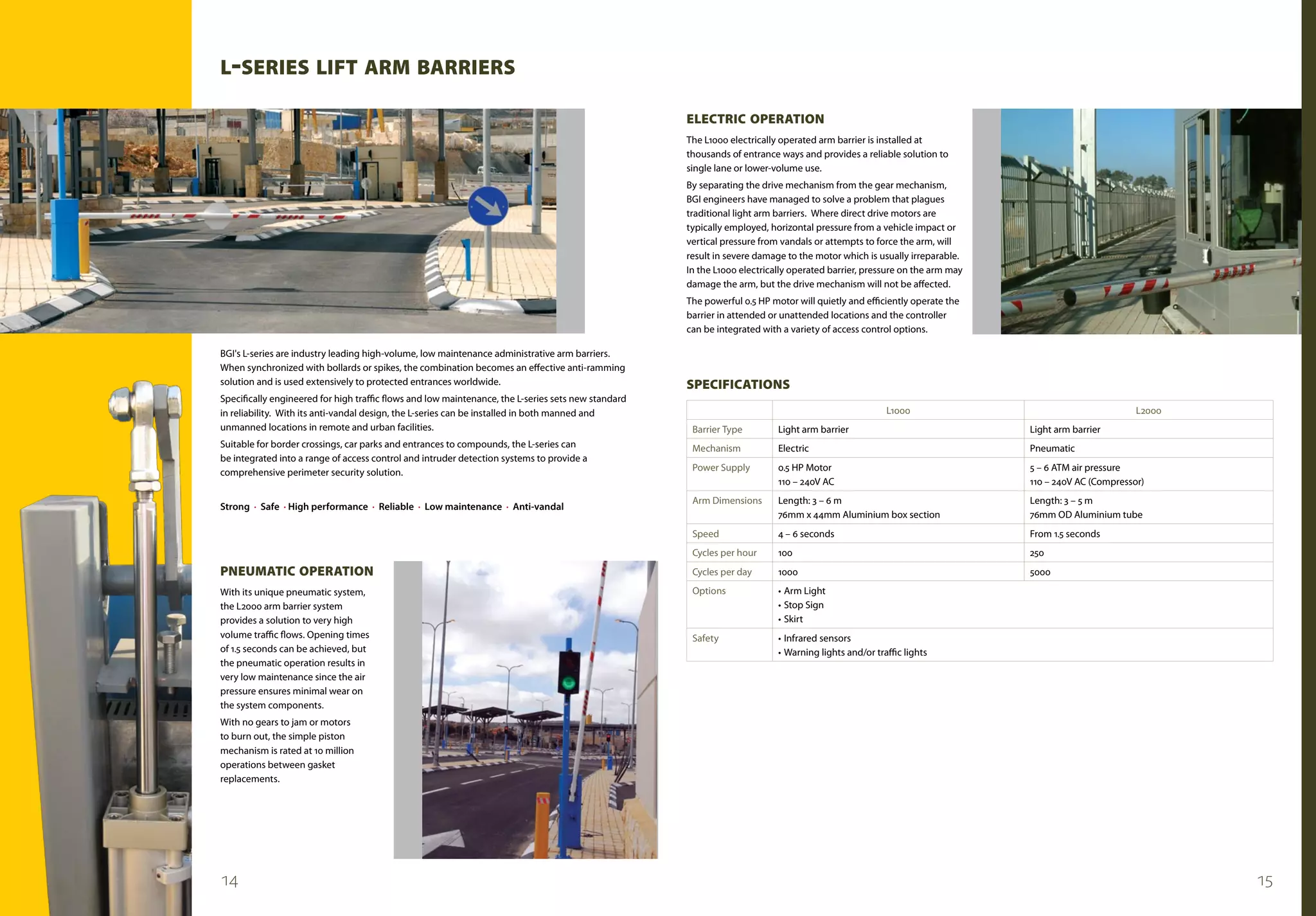

8. L-sERIEs LIFT ARm BARRIERs
ELECTRIC OPERATION
The L1000 electrically operated arm barrier is installed at
thousands of entrance ways and provides a reliable solution to
single lane or lower-volume use.
By separating the drive mechanism from the gear mechanism,
BGI engineers have managed to solve a problem that plagues
traditional light arm barriers. Where direct drive motors are
typically employed, horizontal pressure from a vehicle impact or
vertical pressure from vandals or attempts to force the arm, will
result in severe damage to the motor which is usually irreparable.
In the L1000 electrically operated barrier, pressure on the arm may
damage the arm, but the drive mechanism will not be affected.
The powerful 0.5 HP motor will quietly and efficiently operate the
barrier in attended or unattended locations and the controller
can be integrated with a variety of access control options.
BGI's L-series are industry leading high-volume, low maintenance administrative arm barriers.
When synchronized with bollards or spikes, the combination becomes an effective anti-ramming
solution and is used extensively to protected entrances worldwide. sPECIFICATIONs
Specifically engineered for high traffic flows and low maintenance, the L-series sets new standard
in reliability. With its anti-vandal design, the L-series can be installed in both manned and L1000 L2000
unmanned locations in remote and urban facilities. Barrier Type Light arm barrier Light arm barrier
Suitable for border crossings, car parks and entrances to compounds, the L-series can Mechanism Electric Pneumatic
be integrated into a range of access control and intruder detection systems to provide a
comprehensive perimeter security solution. Power Supply 0.5 HP Motor 5 – 6 ATM air pressure
110 – 240V AC 110 – 240V AC (Compressor)
Arm Dimensions Length: 3 – 6 m Length: 3 – 5 m
Strong ∙ Safe ∙ High performance ∙ Reliable ∙ Low maintenance ∙ Anti-vandal
76mm x 44mm Aluminium box section 76mm OD Aluminium tube
Speed 4 – 6 seconds From 1.5 seconds
Cycles per hour 100 250
PNEumATIC OPERATION Cycles per day 1000 5000
With its unique pneumatic system, Options • Arm Light
the L2000 arm barrier system • Stop Sign
provides a solution to very high • Skirt
volume traffic flows. Opening times Safety • Infrared sensors
of 1.5 seconds can be achieved, but • Warning lights and/or traffic lights
the pneumatic operation results in
very low maintenance since the air
pressure ensures minimal wear on
the system components.
With no gears to jam or motors
to burn out, the simple piston
mechanism is rated at 10 million
operations between gasket
replacements.
14 15

9. s -sERIEs sPIKE sysTEm
ACTIvE 2-WAy sPIKEs dEvELOPmENT
The unique and innovative S1000 spike Bollards, gates, roadblocks and cable barriers will bring a vehicle to a complete and immediate halt but passengers are likely to be severely
system was developed with the specific injured or killed by the impact.
aim of bringing a vehicle to a halt without It has been shown that for certain applications such as border crossings, a run on a barrier may be with criminal intent, but could also be
harming passengers. Designed to rip a result of driver error.
tires apart and even withstand the latest
BGI was therefore requested to design a system to effectively bring a vehicle to a halt whilst ensuring the safety of the passengers. The
generation of run-flat tires, the S1000 has
resulting spike system has been deployed extensively at border crossings and car parks to provide an effective solution to this problem.
been proven in the field as a particularly
effective solution for border crossings
and locations where vehicles pass at high OPERATION
speed. The S1000 spikes are powered by a pneumatic system resulting in fast and reliable operation.
Pneumatically operated and typically By regulating air pressure rather than power to gears and motors, the system controller is able to accurately synchronize the movement of
synchronized with a light arm barrier, the the spikes with the light arm barrier above.
S1000 system comprises a set of hollow
Safety features ensure that the barrier is always down when the spikes are in the raised position. Opening time can be as short as 2 seconds
spikes which cross the entire width of the
and the opening and closing speeds can be set independently.
lane. When the barrier is down, the spikes
are locked in the raised position and when the barrier is raised, the spikes are lowered into the
ground allowing cars to pass over safely. mAINTENANCE
The hollow spikes have been engineered to ensure that a vehicle will be disabled irrespective of The spikes are housed in 1 meter long segments which can easily be removed for maintenance. The spikes themselves can be individually
the approach direction. The height and width of the spikes have been specifically designed to rip replaced with little effort. Pneumatic operation of the system results in very low maintenance since there are no gears or motors and very
apart both small private vehicle tires and large commercial vehicle tires. Even run-flat tires which few moving parts.
use either the solid wall or wheel band method, are similarly disabled by this system which is Given the extreme conditions under which the S1000 spike system is installed, BGI engineers took special care to design for all weather
particularly ruthless in its ability to shred a tire and damage the wheel. conditions. The large diameter of the spikes prevents blockages and allows rain and snow to drain through the system.
Suitable for all weather conditions, the spike system incorporates a self-cleaning mechanism and
drainage.
PAssIvE 1-WAy sPIKEs
For lower security applications, surface mounted passive 1-way spikes can be installed which incorporate spring loaded spikes which are
lowered by the movement and weight of the car as it passes in the correct direction. Any attempt to pass over the spikes in the wrong
direction will result in multiple tire punctures. The spikes incorporate a screw mechanism to allow them to be manually locked in the down
position to temporarily enable vehicles to pass in the wrong direction.
sPECIFICATIONs
S1000 S2000
System Type Active 2-way spikes Passive 1-way spikes
Mobile/Fixed Fixed Fixed
Foundations 500 mm Surface mounted
Mechanism Pneumatic Spring-loaded manual
Dimensions L: 4.5 – 7 m L: 900 mm
W: 270 mm W: 230 mm
D: 330 mm H: 105 mm
Maximum Speed 2 secs. N/A
Power 5 – 6 ATM air pressure N/A
110 – 240V AC
(Compressor)
16 17

10. ROAdBLOCKs CANTILEvER GATEs
Engineered to meet the extreme
demands of large openings, BGI's
heavy duty cantilever gates have been
supplied with spans of up to 30 meters
to close 60 m wide border crossings.
The gate moves over steel roller bearings
fitted on a carrying frame, which allows
the wing to hover above the ground and
move across sloping or uneven surfaces
without the need for a track.
Suitable for large openings to
compounds, government or military
installations or border crossings, BGI's
cantilever gates are custom built
to meet all local topographical and
environmental constraints.
BGI's wedge roadblocks are the anti-ramming solution of choice for the highest security OPERATION
installations where full width lane protection is required. With their quick deployment and The gate is powered by a high-quality, heavy-duty 2.5 horsepower electric motor with a clutch that can be neutralized during a power
ability to bring a vehicle to a complete halt, the R1000 roadblocks are engineered to meet the outage. The rack and pinion track allows the gate to move smoothly and the exposed rollers can be serviced without the need to
most demanding security standards. disassemble the gate.
The R1000 roadblock is suitable for the protection of sensitive government and military locations
and of entrance ways to key infrastructure compounds.
sAFETy
With a shallow 53 cm foundation and an efficient hydraulic mechanism, the R1000 roadblock is
simple to install and operate and requires minimal maintenance. The roadblock can be activated Safety features include two pairs of photo electric sensors to halt movement if a vehicle or person passes during operation, and a clutch for
using a range of access control solutions and can be fully integrated into perimeter security neutralizing or reversing the motor in the event of a collision with a person, vehicle or any other object.
systems.
∙ Highest protection level
∙ Fast operation
∙ Reliable
∙ Low maintenance
sPECIFICATIONs
R1000
Barrier Type Wedge roadblock sPECIFICATIONs
Mechanism Hydraulic C1000
Power Supply 3 HP Motor Barrier Type Cantilever gate
110 – 240V AC
Mechanism Electric
Foundation Length: 4200 mm
Depth: 530 mm
Width: 2200 mm Power Supply 2.5 HP Motor
110 – 240V AC
Deployment Speed 4 seconds
Dimensions Length: Up to 30 m
Height: 2000 mm
Cycles per hour 80
Width: 350 mm
Cycles per day 800 Speed 20 m / sec
18 19

11. ACCEss CONTROL
BGI is proud to offer a selection
LICENsE PLATE RECOGNITION
of the most advanced systems
for access control. Any of our License Plate Recognition systems detect and read vehicle license plates for traffic enforcement, toll
hydraulically, electrically or roads, border control, security, access control, parking systems, and many other applications.
pneumatically operated bollards, BGI offers a sophisticated vision-based License Plate Recognition system that identifies number plates
gates, barriers or spikes can on stationary or slowly moving vehicles approaching a barrier or gate.
be controlled by these access The combined camera/illumination unit compares the recognition result to an authorization list and
control methods most of which opens the gate if the vehicle is authorized. Authorized vehicle numbers are stored on the unit's local
can in turn be integrated with database. Users can change the authorization list, as well as other parameters, using a special web
ease into other enterprise server application.
systems. The system in its typical configuration will recognize a license plate in less than 0.5 seconds and the
From simple push button detection range is 4.0 -to 7.0 meters with a standard lens. Multiple cameras can monitor a single lane
activation to advanced biometric for increased security and reliability.
control. BGI offers an access With its ability to operate continuously during the day and night, including adverse weather conditions,
control system to meet every BGI's LPR solution can be run as a standalone system or integrated into an enterprise IT environment
security level and budget. for full control and tracking of vehicle movement.
CELLuLAR PhONE
This innovative, reliable and effective system allows gates or barriers to be activated by using
cellular phones.
In order to open the gate, the cellular phone number of the caller must be pre-registered in the
system. Phone calls are free since the system does not answer the call and use air time, rather it
CONTACT ANd NON - CONTACT CONTROL sysTEms
uses the Caller ID of the calling phone which it checks against a predefined list.
A PC or phone based management console allows access to be defined on an hourly or daily
basis and one-time visitors can be granted access by registering their phone details and expected
arrival time/date in advance. The system can also be programmed using SMS text messages.
The system can store over 5000 phone numbers and is suitable for all types of installations
including car parks, closed residential communities, private homes and commercial compounds.
Celllular phone activation uses the GSM phone system and phones must have Caller ID enabled
in order to activate the gates.
BIOmETRIC
For world class security, a biometric solution ensures that only approved people enter the facility.
Our RF-based fingerprint identification system for physical access control incorporates high-
speed one-to-many matching, ensuring an unparalleled level of security and user-friendliness
∙ Encryption at the sensor level
Remote Control Magnetic Card / Proximity Card
∙ Innovative live sensing security features
∙ Sensor unit includes a proximity card reader
∙ Robust, suitable for diverse stand-alone, networked and integrated applications
∙ Wireless and wired solutions
BGI's biometric access control system ensures that fingerprints are actively read from the live
tissue (dermis) layer. The sensor is unaffected by abrasions, small cuts and dirt on fingers and 360°
fingerprint rotation results in a very user-friendly solution.
The reader is not sensitive to extreme temperatures or direct sunlight on the sensor and
information is stored only on the Biometric Processing Engine, which is installed at a protected
location, separately from the sensor. To prevent misuse and protect user privacy, encrypted
biometric templates cannot be converted back into the original fingerprint image.
A user friendly management application can maintain and control up to 150 reader units from a
single computer.
PIN Code Keypad Operator Panel
20 21

12. PERImETER PROTECTION ACCEssORIEs
BGI offers a complete perimeter BGI offers a complete range of accessories to complement its barriers, gates and access
protection solution in the form of a control systems. Some are off the shelf products whilst others are custom made according
new generation vibration perimeter to the client’s needs.
fence sensor system designed to handle
all aspects of perimeter protection. It PARKING REsTRICTOR
upgrades any existing fence to the status These durable parking restrictors provide an aesthetic and practical delimiter for parking
of an electric barrier with an exceptional spaces and will prevent damage to vehicles and buildings. Constructed entirely of rubber,
detection resolution of +/- 10 meters. they are long-lasting, easy to install and can withstand extremes of temperature.
Wherever perimeter protection and
intrusion detection are required, BGI T1100/T1150 sPEEd BumPs
provides a system that is easy to install, Ideal for slowing down vehicles without causing damage, these speed bumps are modular
operate and maintain. The long life and can be combined to provide the required width. Constructed entirely of rubber,
sensor units are easily attached to the they can withstand the pressure of constant vehicle passage and are suited to all weather
fence at approximately 3 meter intervals conditions.
and are highly immune to extraneous
environmental factors. sPECIFICATIONs
T1100 T1150 T1200
∙ Very low false-alarm rate due to a special software algorithm. Type Parking Restrictor Parking Restrictor Speed Bump
∙ All weather operation. Material Rubber Rubber Rubber
∙ User friendly interface. Height 135 mm 135 mm 56 mm
T1200
∙ Easy to install and maintain. Length 1780 mm 900 mm 1830 mm
∙ Can be installed on almost any type of existing fence
Width 152 mm 152 mm 300 mm
∙ Battery back-up.
∙ Allows manual or automatic sensitivity adjustment according to the protecting
perimeter characteristics and weather conditions.
∙ Allows neutralizing sections without affecting the detection capability of the
entire perimeter.
PRINCIPLE OF OPERATION LIGhTs
The perimeter intrusion detection principle is based on
Red/green traffic light are available in two sizes
"reflected wave technology" that works in a similar way
with either 200 mm or 35 mm diameter lenses
to radar.
Rotating warning lights are available in either yellow or red.
Each perimeter control unit (PCU) transmits electric pulses
into the sensor line. When an intrusion attempt occurs
along the perimeter, it will be detected by a reflected
wave from the nearest sensors. The time delay between
T1300/T1350 T1400 T1500
the transmitted and the reflected wave will determine the
location of the event within +/- 10 meters resolution.
This radar-like principle simplifies the structure of the
system while offering advantages that other technologies CONTROLLERs
are unable to provide. The sensor line, which consists of
Controllers are custom built according to the installation configuration.
only one twisted-pair cable, simplifies the installation and
maintenance and is protected by an end of the line resistor T1600
against any tampering with the system.
sysTEm CONFIGuRATION OPERATOR CONTROL PANELs
The system can be supplied stand-alone, or can be
Operator Control Panels are custom built according to the installation configuration.
integrated with any other security system such as IR
sensors, CCTV, PTZ cameras, access control systems, VMD T1700
solutions, wireless communication systems etc
22 23

13. ThREAT ANd RIsK ANALysIs
As the first step to planning an upgrade either to your perimeter security
services
or your facility's security in general, BGI recommends a complete threat
and risk analysis. Undertaken by leading physical security consultants,
this study is the first step to understanding the level of your current
protection and your vulnerability.
A threat and risk analysis report will tell you:
∙ Which threats are relevant to your facility and how seriously they
should be taken.
∙ Where are the vulnerabilities in your buildings, technology and
procedures.
∙ In what priority the vulnerabilities should be addressed.
The study can focus specifically on perimeter security or the scope can be
expanded to cover your entire facility.
PhysICAL sECuRITy CONsuLTING
BGI is able to call upon a team of world class security consultants to offer
a complete physical security consulting service. Specializing in physical
security, our experts are able to advise on a wide range of subjects
relating both to building and technology:
Physical ∙ Architecture, windows, structure, landscaping, perimeter,
entrances, exits and all other physical elements.
Technological ∙ Surveillance, control room, access control, screening
equipment, alarm, detection systems, information security, and security
related technology.
Our team of experts has worked with governments and corporations
world wide and will be happy to assist you with the design and
implementation of complete physical security solutions which
incorporates BGI perimeter security protection.
INsTALLATION ANd mAINTENANCE
Through our worldwide network of distributors and dealers, BGI are
pleased to be able to provide installation and maintenance for our entire
range of products. Installations for complex entrance designs can be
handled entirely by our team as turn-key projects, or alternatively the
products can be supplied for simple installation.
CusTOmIzATION
Many of our products can be customized to your needs. Our design and
engineering team will be happy to discuss your requirements and work
with you to develop a solution.
Access control often needs to be integrated with other security systems or
enterprise IT and our specialists will ensure seamless implementation and
integration with your existing environment.
25

14. For more information, please contact
·
BgI headquarter office
10 hasadan
holon
Israel 58815
·
Tel: +972 3 550-0465
Fax: +972 3 558-3113
·
email: info@bgilanit.com
www.bgilanit.com
