FRII’S FORMULA USING MATLAB
Project Report submitted to VIT University Chennai Campus in the partial
fulfillment of the Requirements for the completion of course
ANTENNAS AND WAVE PROPAGATION (ECE306)
By
KOTESWARA RAO – 11BEC1015
M.ARAVIND KUMAR –11BEC1032
VIDYANATH – 11BEC1035
HARSHAVARDHAN – 11BEC1074
BHARADWAJ – 11BEC1133
Under the esteemed guidance of
PROF.RAVI PRAKASH
School of Electronics Engineering (SENSE)
INDEX
Sl. No Contents Page no.
1 OBJECTIVE 3
2 MOTIVATION 3
3 INTRODUCTION 3
4 IMPORTANCE&LEARNING 5
5 DERIVATION 6
7 MATLAB CODES 9
8 CONCLUSION 16
9 FUTURE SCOPE 16
10 REFERENCES 17
OBJECTIVE:
The main objective of our project is to implement frii’s formula using matlab. In the
sense what we are going to do is we input all the parameters and then get the received
power.
MOTIVATION:
Why we are doing this project is because in antennas we see that the received power
is always less than the transmitted power. This is because of the losses that occur
during the propagation. So from our project we can basically know beforehand how
much power we are going to receive and based on that the power transmitted can be
adjusted and thus easing our work.
INTRODUCTION:
In its simplest form, the Friis transmission equation is as follows. Given two
antennas, the ratio of power available at the input of the receiving antenna, , to
output power to the transmitting antenna, , is given by
where and are the antenna gains (with respect to an isotropic radiator) of the
transmitting and receiving antennas respectively, is the wavelength, and is the
distance between the antennas. The inverse of the factor in parentheses is the so-
called free-space path loss. To use the equation as written, the antenna gain
may not be in units of decibels, and the wavelength and distance units must be the
same. If the gain has units of dB, the equation is slightly modified to:
(Gain has units of dB, and power
has units of dBm or dBW)
This simple form applies only under the following ideal conditions:
 (Reads as much greater than ). If , then the equation would
give the physically impossible result that the receive power is greater than the
transmit power, a violation of the law of conservation of energy.
 The antennas are in unobstructed free space, with no multipath.
 is understood to be the available power at the receive antenna terminals.
There is loss introduced by both the cable running to the antenna and the
connectors. Furthermore, the power at the output of the antenna will only be
fully delivered into the transmission line if the antenna and transmission line
are conjugate matched.
 is understood to be the power delivered to the transmit antenna. There is
loss introduced by both the cable running to the antenna and the connectors.
Furthermore, the power at the input of the antenna will only be fully delivered
into free space if the antenna and transmission line are conjugate matched.
 The antennas are correctly aligned and polarized.
 The bandwidth is narrow enough that a single value for the wavelength can
be assumed.
The ideal conditions are almost never achieved in ordinary terrestrial
communications, due to obstructions, reflections from buildings, and most
importantly reflections from the ground. One situation where the equation is
reasonably accurate is in satellite communications when there is negligible
atmospheric absorption; another situation is in anechoic chambers specifically
designed to minimize reflections.
IMPORTANCE & LEARNING
Transmission Formula of Friis Equation
Equation 1:
Equation [1] shows that more power is lost at higher frequencies. This is a
fundamental result of the Frii’s Transmission Equation. This means that for antennas
with specified gains, the energy transfer will be highest at lower frequencies. The
difference between the power received and the power transmitted is known as path
loss. Said in a different way, Frii’s Transmission Equation says that the path loss is
higher for higher frequencies.
The importance of this result from the Frii’s Transmission Formula cannot be
overstated. This is why mobile phones generally operate at less than 2 GHz. There
may be more frequency spectrum available at higher frequencies, but the associated
path loss will not enable quality reception. As a further consequence of Frii’s
Transmission Equation, suppose you are asked about 60 GHz antennas. Noting that
this frequency is very high, you might state that the path loss will be too high for
long range communication - and you are absolutely correct. At very high frequencies
(60 GHz is sometimes referred to as the mm (millimeter wave) region), the path loss
is very high, so only point-to-point communication is possible. This occurs when the
receiver and transmitter are in the same room, and facing each other.
As a further corollary of Frii’s Transmission Formula, do you think the mobile phone
operators are happy about the new LTE (4G) band that operates at 700MHz? The
answer is yes: this is a lower frequency than antennas traditionally operate at, but
from Equation [1], we note that the path loss will therefore be lower as well. Hence,
they can "cover more ground" with this frequency spectrum, and a Verizon Wireless
executive recently called this "high quality spectrum", precisely for this reason. Side
Note: On the other hand, the cell phone makers will have to fit an antenna with a
larger wavelength in a compact device (lower frequency = larger wavelength), so
the antenna designer's job got a little more complicated!
DERIVATION:
1. Let's imagine that there are two antennas, entirely in free space. There is no
Earth or any other object near enough to affect propagation. Let's also assume
that these antennas are far enough apart that the antennas interact only by their
far fields.
2. To start, let's assume that both antennas are isotropic, meaning that they
radiate equally in each direction. If we supply a pulse of energy to such an
antenna, this energy will spread out as a sphere, to infinity, at the speed of
light. It also means that if we supply a constant power to such an antenna, then
for any sized sphere centered on that antenna, the power passing through that
sphere is equal to the power being fed to the antenna.

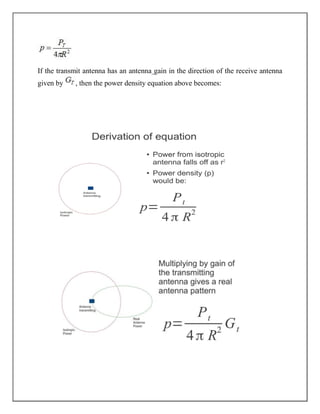

Assume that Watts of total power are delivered to the transmit antenna.
For the moment, assume that the transmit antenna is omnidirectional, lossless, and
that the receive antenna is in the far field of the transmit antenna. Then the power
density p (in Watts per square meter) of the plane wave incident on the receive
antenna a distance R from the transmit antenna is given by:
If the transmit antenna has an antenna gain in the direction of the receive antenna
given by , then the power density equation above becomes:
The gain term factors in the directionality and losses of a real antenna. Assume now
that the receive antenna has an effective aperture given by . Then the power
received by this antenna
Since the effective aperture for any antenna can also be expressed as:
The resulting received power can be written as:
This is known as the Friis Transmission Formula. It relates the free space path loss,
antenna gains and wavelength to the received and transmit powers.
• The Frii’s equation for radar is
Pr/Pt=GtGr((λ2
)*S/((4*π)3
*R4
)
S = target area cross section
MATLAB CODES:
PROGRAM 1:
For the conversion of values:
h=input('n 1. To convert from watt to db n 2. To convert from watt to dbm
n 3. To convert from db to watt n 4.To convert from dbm to watt n
5frequency to wavelenth ');
if (h==1)
value=input('enter the value to be converted =');
value_converted_db=10*log10(value);
fprintf('the converted value is %d',value_converted_db)
elseif(h==2)
value=input('enter the value to be converted =');
value_converted_dbm=10*log10(value/10^(-3));
fprintf('the converted value is %d',value_converted_dbm)
elseif(h==3)
value=input('enter the value to be converted =');
value_converted_watt=10^(value/10);
fprintf('the converted value is %d',value_converted_watt)
elseif(h==4)
value=input('enter the value to be converted=');
value_converted_watt=(10^(value/10))*10^(-3);
fprintf('the converted value is %d',value_converted_watt)
else
value=input('enter the value to be converted=');
value_converted_freq=(3*10^8)/(value);
fprintf('the converted value is %d',value_converted_freq)
end
PROGRAM 2:
MATLAB CODE FOR FRIIS FORMULA:
fprintf('n********************FRIIS TRANSMISSION FORMULA FOR RECEIVER POWER
**********************n ')
%%%%%% FRIIS Equation %%%%%%%%%
% Friis free space propagation model:
% Pt * Gt * Gr * (Wavelength^2)
% Pr = --------------------------
% (4 *pi * d)^2 * L
a=input('enter 1. if the values you are going to give are in decibles n 2.
if the values you are going to give are not in decibles n3. if The values
you are going to give are in dBmn 4.if if frequency is given ');
if(a==1)
P1=input(' enter the value of transmitted power in decibles =');
G1=input('enter the value of transmittor gain in decibles =');
G2=input('enter the value of receiver gain in decibles =');
Wavelength=input ('enter the value of wavelength =');
R=input('enter the distance between transmitter and receiver =');
Pt=10^(P1/10);
Gt=10^(G1/10);
Gr=10^(G2/10);
Pr=(Pt * Gt * Gr * (Wavelength^2))/((4 *pi * R)^2 );
fprintf('n the value of received power is %d n',Pr)
Prdbm=10*(log10(Pr/10^(-3)));
fprintf('n the value of received power in dbm %d n',Prdbm)
elseif(a==2)
Pt=input(' enter the value of transmitted power in watts =');
G1=input('enter the value of transmitter gain in watts=');
G2=input('enter the value of receiver gain in watts=');
Wavelength=input ('enter the value of wavelength=');
R=input('enter the distance between transmitter and receiver =');
Pr=(Pt * Gt * Gr * (Wavelength^2))/((4 *pi * R)^2 );
fprintf('n the value of received power is %d n',Pr)
Prdbm=10*(log10(Pr/10^(-3)));
fprintf('n the value of received power in dbm %d n',Prdbm)
elseif(a==3)
P1=input(' enter the value of transmitted power in dbm =');
G1=input('enter the value of transmittor gain in dbm =');
G2=input('enter the value of received power gain in dbm =');
Wavelength=input ('enter the value of wavelength =');
R=input('enter the distance between transmitter and receiver =');
Pt=(10^(P1/10))*10^(-3);
Gt=(10^(G1/10))*10^(-3);
Gr=(10^(G2/10))*10^(-3);
Pr=(Pt * Gt * Gr * (Wavelength^2))/((4 *pi * R)^2 );
fprintf('n the value of received power is %s n',Pr)
Prdbm=10*(log10(Pr/10^(-3)));
fprintf('n the value of received power in dbm %d n',Prdbm)
else
P1=input(' enter the value of transmitted power in watts =');
G1=input('enter the value of transmittor gain in decibles =');
G2=input('enter the value of received power gain in decibles =');
freq=input ('enter the value of freq =');
R=input('enter the distance between transmitter and receiver =');
Pt=P1;
Wavelength=(3*10^8)/(freq);
Gt=10^(G1/10);
Gr=10^(G2/10);
Pr=(Pt * Gt * Gr * (Wavelength^2))/((4 *pi * R)^2 );
fprintf('n the value of received power is %d n',Pr)
Prdbm=10*(log10(Pr/10^(-3)));
fprintf('n the value of received power in dbm %d n',Prdbm)
end
PROGRAM 3:
MATLAB CODE FOR FINDING RECEIVED POWER BETWEEN RADAR AND
TARGET
fprintf('n********************FRIIS TRANSMISSION FORMULA FOR RADAR AND
TARGET **********************n ')
a=input('enter 1. if the values you are going to give are in decibles = n 2.
if the values you are going to give are not in decibles = n 3. if the values
you are going to give are in dBm n 4. if frequency is given ');
if(a==1)
P1=input(' enter the value of transmitted power in watts =');
G1=input('enter the value of transmittor gain in decibles =');
G2=input('enter the value of receiver gain in decibles =');
Wavelength=input ('enter the value of wavelength =');
S=input('enter the value of the cross section area =');
R=input('enter the distance between transmitter and receiver =');
Pt=P1;
Gt=10^(G1/10);
Gr=10^(G2/10);
Pr=(Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* (R)^4 );
fprintf('n the value of received power is %d n',Pr)
Prdbm=10*(log10(Pr/10^(-3)));
fprintf('n the value of received power in dbm %d n',Prdbm)
elseif(a==2)
Pt=input(' enter the value of transmitted power in watts =');
G1=input('enter the value of transmittor gain =');
G2=input('enter the value of receiver gain =');
S=input('enter the value of the cross section area =');
Wavelength=input ('enter the value of wavelength =');
R=input('enter the distance between transmitter and receiver =');
Pr=(Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* (R)^4 );
fprintf('n the value of received power is %d n',Pr)
Prdbm=10*(log10(Pr/10^(-3)));
fprintf('n the value of received power in dbm %d n',Prdbm)
elseif(a==3)
P1=input(' enter the value of transmitted power in dbm =');
G1=input('enter the value of transmittor gain in dbm =');
G2=input('enter the value of receiver gain in dbm =');
S=input('enter the value of the cross section area =');
Wavelength=input ('enter the value of wavelength =');
R=input('enter the distance between transmitter and receiver =');
Pt=(10^(P1/10))*10^(-3);
Gt=(10^(G1/10))*10^(-3);
Gr=(10^(G2/10))*10^(-3);
Pr=(Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* (R)^4 );
fprintf('n the value of received power is %s n',Pr)
Prdbm=10*(log10(Pr/10^(-3)));
fprintf('n the value of received power in dbm %d n',Prdbm)
else
P1=input(' enter the value of transmitted power in watts =');
G1=input('enter the value of transmittor gain in decibles =');
G2=input('enter the value of receiver gain in decibles =');
freq=input ('enter the value of freq =');
S=input('enter the value of the cross section area =');
R=input('enter the distance between transmitter and receiver =');
Pt=P1;
Wavelength=(3*10^8)/(freq);
Gt=10^(G1/10);
Gr=10^(G2/10);
Pr=(Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* (R)^4 );
fprintf('n the value of received power is %d n',Pr)
Prdbm=10*(log10(Pr/10^(-3)));
fprintf('n the value of received power in dbm %d n',Prdbm)
end
PROGRAM 4:
MATLAB CODE FOR FINDING MAXIMUM DISTANCEBETWEEN RADAR
AND TARGET
fprintf('n********************FRIIS TRANSMISSION FORMULA FOR RADAR AND
TARGET MAXIMUM DISTANCE************************n ')
a=input('enter 1 if the values you are going to give are in decibles n 2 if
the values you are going to give are not in decibles n 3 if the values you
are going to give are in dBm n 4 if frequency is given ');
if(a==1)
P1=input(' enter the value of transmitted power in decibels =');
P2=input('enter the value of received power in decibles =');
G1=input('enter the value of transmittor gain in decibles =');
G2=input('enter the value of receiver gain in decibles =');
Wavelength=input('enter the value of wavelength =');
S=input('enter the value of the cross section area =');
Pt=10^(P1/10);
Gt=10^(G1/10);
Gr=10^(G2/10);
Pr=10^(P2/10);
R=((Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* Pr ))^0.25;
fprintf('n the distance is %d n',R)
elseif(a==2)
Pt=input(' enter the value of transmitted power in watts =');
Pr=input('enter the value of received power =');
G1=input('enter the value of transmittor gain =');
G2=input('enter the value of receiver gain =');
Wavelength=input ('enter the value of wavelength =');
S=input('enter the value of the cross section area =');
R=((Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* Pr ))^0.25;
fprintf('n the distance is %d n',R)
elseif(a==3)
P1=input(' enter the value of transmitted power in dbm =');
P2=input('enter the value of received power =');
G1=input('enter the value of transmittor gain in dbm =');
G2=input('enter the value of receiver gain in dbm =');
Wavelength=input ('enter the value of wavelength =');
S=input('enter the value of the cross section area =');
Pt=(10^(P1/10))*10^(-3);
Gt=(10^(G1/10))*10^(-3);
Gr=(10^(G2/10))*10^(-3);
Pr=(10^(P2/10))*10^(-3);
R=((Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* Pr ))^0.25;
fprintf('n the distance is %d n',R)
else
P1=input(' enter the value of transmitted power in watts =');
P2=input('enter the value of received power =');
G1=input('enter the value of transmittor gain in decibles =');
G2=input('enter the value of receiver gain in decibles =');
freq=input ('enter the value of freq =');
S=input('enter the value of the cross section area =');
Pt=P1;
Pr=P2;
Wavelength=(3*10^8)/(freq);
Gt=10^(G1/10);
Gr=10^(G2/10);
R=((Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* Pr ))^0.25;
fprintf('n the distance is %d n',R)
end
CONCLUSION:
With the help of matlab we successfully implemented frii’s transmission formula
FUTURE SCOPE:
The formula we implemented is the basic friis equation our future scope is to
implement the frii’s equation which was modified which includes effects of
mismatch, antenna pointing, polarization and absorption.
REFERENCES:
http://en.wikipedia.org/wiki/Friis_transmission_equation
http://www.random-science-tools.com/electronics/friis.htm
http://www.antennatheory.com
https://u.osu.edu/
www.mathworks.in/
Antenna Theory :Analysis and Design by Balanis

More Related Content

What's hot

EC6602-Antenna fundamentals new
EC6602-Antenna fundamentals new EC6602-Antenna fundamentals new
EC6602-Antenna fundamentals new
krishnamrm

FUNDAMENTAL PARAMETERS OF ANTENNA
FUNDAMENTAL PARAMETERS OF ANTENNAFUNDAMENTAL PARAMETERS OF ANTENNA
FUNDAMENTAL PARAMETERS OF ANTENNA
Engr KALIM ULLAH KHAN

Satellite link design
Satellite link designSatellite link design
Satellite link design
RAVIKIRAN ANANDE

Antenna presentation PPT
Antenna presentation PPTAntenna presentation PPT
Antenna presentation PPT
Sachin Kadam

Microwave link design
Microwave link designMicrowave link design
Microwave link design
Saif Ullah Khan

Traveling Wave Antenna
Traveling Wave Antenna  Traveling Wave Antenna
Traveling Wave Antenna
Abdelaziz Said

Transmission lines, Waveguide, Antennas
Transmission lines, Waveguide, AntennasTransmission lines, Waveguide, Antennas
Transmission lines, Waveguide, Antennas
Kumar Pawar

Satellite link design
Satellite link designSatellite link design
Path Loss and Shadowing
Path Loss and ShadowingPath Loss and Shadowing
Path Loss and Shadowing
Yash Gupta

Antenna arrays
Antenna arraysAntenna arrays
Antenna arrays
AJAL A J

Smart antenna systems
Smart antenna systems Smart antenna systems
Smart antenna systems
Apoorva Shetty

5. 2 ray propagation model part 1
5. 2 ray propagation model   part 15. 2 ray propagation model   part 1
5. 2 ray propagation model part 1
JAIGANESH SEKAR

Antenna system
Antenna systemAntenna system
Fundamentals of Array Antenna
Fundamentals of Array AntennaFundamentals of Array Antenna
Fundamentals of Array Antenna
Yong Heui Cho

Antennas - Array of point sources
Antennas - Array of point sourcesAntennas - Array of point sources
Antennas - Array of point sources
Anil Kumar

7. log distance and log normal shadowing
7. log distance and log normal shadowing7. log distance and log normal shadowing
7. log distance and log normal shadowing
JAIGANESH SEKAR

Rf fundamentals
Rf fundamentalsRf fundamentals
Rf fundamentals
Sura Satish Babu

Presentation on satellite antenna
Presentation on satellite antennaPresentation on satellite antenna
Presentation on satellite antenna
Naveen Jakhar, I.T.S

Reflector antennas
Reflector antennasReflector antennas
Reflector antennas
ramalakshmi54

Propagation mechanisms
Propagation mechanismsPropagation mechanisms
Propagation mechanisms
METHODIST COLLEGE OF ENGG & TECH


What's hot (20)

EC6602-Antenna fundamentals new
EC6602-Antenna fundamentals new EC6602-Antenna fundamentals new
EC6602-Antenna fundamentals new

FUNDAMENTAL PARAMETERS OF ANTENNA
FUNDAMENTAL PARAMETERS OF ANTENNAFUNDAMENTAL PARAMETERS OF ANTENNA
FUNDAMENTAL PARAMETERS OF ANTENNA

Satellite link design
Satellite link designSatellite link design
Satellite link design

Antenna presentation PPT
Antenna presentation PPTAntenna presentation PPT
Antenna presentation PPT

Microwave link design
Microwave link designMicrowave link design
Microwave link design

Traveling Wave Antenna
Traveling Wave Antenna  Traveling Wave Antenna
Traveling Wave Antenna

Transmission lines, Waveguide, Antennas
Transmission lines, Waveguide, AntennasTransmission lines, Waveguide, Antennas
Transmission lines, Waveguide, Antennas

Satellite link design
Satellite link designSatellite link design
Satellite link design

Path Loss and Shadowing
Path Loss and ShadowingPath Loss and Shadowing
Path Loss and Shadowing

Antenna arrays
Antenna arraysAntenna arrays
Antenna arrays

Smart antenna systems
Smart antenna systems Smart antenna systems
Smart antenna systems

5. 2 ray propagation model part 1
5. 2 ray propagation model   part 15. 2 ray propagation model   part 1
5. 2 ray propagation model part 1

Antenna system
Antenna systemAntenna system
Antenna system

Fundamentals of Array Antenna
Fundamentals of Array AntennaFundamentals of Array Antenna
Fundamentals of Array Antenna

Antennas - Array of point sources
Antennas - Array of point sourcesAntennas - Array of point sources
Antennas - Array of point sources

7. log distance and log normal shadowing
7. log distance and log normal shadowing7. log distance and log normal shadowing
7. log distance and log normal shadowing

Rf fundamentals
Rf fundamentalsRf fundamentals
Rf fundamentals

Presentation on satellite antenna
Presentation on satellite antennaPresentation on satellite antenna
Presentation on satellite antenna

Reflector antennas
Reflector antennasReflector antennas
Reflector antennas

Propagation mechanisms
Propagation mechanismsPropagation mechanisms
Propagation mechanisms


Viewers also liked

Communication Engineering - Chapter 6 - Noise
Communication Engineering - Chapter 6 - NoiseCommunication Engineering - Chapter 6 - Noise
Communication Engineering - Chapter 6 - Noise
mkazree

communication system Chapter 6
communication system Chapter 6communication system Chapter 6
communication system Chapter 6
moeen khan afridi

Noise in communication system
Noise in communication systemNoise in communication system
Noise in communication system
firdous006

Noise in Communication System
Noise in Communication SystemNoise in Communication System
Noise in Communication System
Izah Asmadi

Noise
NoiseNoise
Noise
bhavyaw

ECEN+5264 TERM PAPER_Mithul Thanu
ECEN+5264 TERM PAPER_Mithul ThanuECEN+5264 TERM PAPER_Mithul Thanu
ECEN+5264 TERM PAPER_Mithul Thanu
Mithul Thanu

10 1425 web_lec_11_gravitation
10 1425 web_lec_11_gravitation10 1425 web_lec_11_gravitation
10 1425 web_lec_11_gravitation
Leongpc

Inverse square law brenda ross_unit 4
Inverse square law brenda ross_unit 4Inverse square law brenda ross_unit 4
Inverse square law brenda ross_unit 4
Brenda Ross

18 Apr 2 Bg Radiation, Shielding, Inverse Square For Slideshare
18 Apr 2 Bg Radiation, Shielding, Inverse Square For Slideshare18 Apr 2 Bg Radiation, Shielding, Inverse Square For Slideshare
18 Apr 2 Bg Radiation, Shielding, Inverse Square For Slideshare
Steve Koch

Basic of Satellite Communication
Basic of Satellite CommunicationBasic of Satellite Communication
Basic of Satellite Communication
ABHINAV GUPTA

Design of the satellite link
Design of the satellite linkDesign of the satellite link
Design of the satellite link
AJAL A J

RF Module Design - [Chapter 2] Noises
RF Module Design - [Chapter 2] NoisesRF Module Design - [Chapter 2] Noises
RF Module Design - [Chapter 2] Noises
Simen Li

Types of noise
Types of noiseTypes of noise
Types of noise
Babul Reddy

Noise
NoiseNoise
Noise
Ravi Kant

Laws of illuminations
Laws of illuminationsLaws of illuminations
Laws of illuminations
Vijay Raskar

ASK,FSK and M-PSK using Matlab
ASK,FSK and M-PSK using MatlabASK,FSK and M-PSK using Matlab
ASK,FSK and M-PSK using Matlab
Amirah Nadrah Ghazali

Distributed System
Distributed System Distributed System
Distributed System
Nitesh Saitwal


Viewers also liked (17)

Communication Engineering - Chapter 6 - Noise
Communication Engineering - Chapter 6 - NoiseCommunication Engineering - Chapter 6 - Noise
Communication Engineering - Chapter 6 - Noise

communication system Chapter 6
communication system Chapter 6communication system Chapter 6
communication system Chapter 6

Noise in communication system
Noise in communication systemNoise in communication system
Noise in communication system

Noise in Communication System
Noise in Communication SystemNoise in Communication System
Noise in Communication System

Noise
NoiseNoise
Noise

ECEN+5264 TERM PAPER_Mithul Thanu
ECEN+5264 TERM PAPER_Mithul ThanuECEN+5264 TERM PAPER_Mithul Thanu
ECEN+5264 TERM PAPER_Mithul Thanu

10 1425 web_lec_11_gravitation
10 1425 web_lec_11_gravitation10 1425 web_lec_11_gravitation
10 1425 web_lec_11_gravitation

Inverse square law brenda ross_unit 4
Inverse square law brenda ross_unit 4Inverse square law brenda ross_unit 4
Inverse square law brenda ross_unit 4

18 Apr 2 Bg Radiation, Shielding, Inverse Square For Slideshare
18 Apr 2 Bg Radiation, Shielding, Inverse Square For Slideshare18 Apr 2 Bg Radiation, Shielding, Inverse Square For Slideshare
18 Apr 2 Bg Radiation, Shielding, Inverse Square For Slideshare

Basic of Satellite Communication
Basic of Satellite CommunicationBasic of Satellite Communication
Basic of Satellite Communication

Design of the satellite link
Design of the satellite linkDesign of the satellite link
Design of the satellite link

RF Module Design - [Chapter 2] Noises
RF Module Design - [Chapter 2] NoisesRF Module Design - [Chapter 2] Noises
RF Module Design - [Chapter 2] Noises

Types of noise
Types of noiseTypes of noise
Types of noise

Noise
NoiseNoise
Noise

Laws of illuminations
Laws of illuminationsLaws of illuminations
Laws of illuminations

ASK,FSK and M-PSK using Matlab
ASK,FSK and M-PSK using MatlabASK,FSK and M-PSK using Matlab
ASK,FSK and M-PSK using Matlab

Distributed System
Distributed System Distributed System
Distributed System


Similar to friis formula

Geoffrey80
Geoffrey80Geoffrey80
Trunking Radio Compatibility Issues New
Trunking Radio Compatibility Issues NewTrunking Radio Compatibility Issues New
Trunking Radio Compatibility Issues New
John Steffes

Basic antenna
Basic antennaBasic antenna
Basic antenna
Bilal Akram

Unit I Introduction of Wirelecc Channel.pdf
Unit I Introduction of Wirelecc Channel.pdfUnit I Introduction of Wirelecc Channel.pdf
Unit I Introduction of Wirelecc Channel.pdf
vpshinde2

antenna book.pdf
antenna book.pdfantenna book.pdf
antenna book.pdf
SandeepSran4

Chapter 3 -Wireless_Networks_Principles_Lec.pptx
Chapter 3 -Wireless_Networks_Principles_Lec.pptxChapter 3 -Wireless_Networks_Principles_Lec.pptx
Chapter 3 -Wireless_Networks_Principles_Lec.pptx
abenimelos

Channel Modeling.pptx
Channel Modeling.pptxChannel Modeling.pptx
Channel Modeling.pptx
HimansuShekharPradha1

Chap 4 (large scale propagation)
Chap 4 (large scale propagation)Chap 4 (large scale propagation)
Chap 4 (large scale propagation)
asadkhan1327

Presentation
PresentationPresentation
Presentation
Engr KALIM ULLAH KHAN

Microstrip patch antenna for pcs and wlan
Microstrip patch antenna for pcs and wlanMicrostrip patch antenna for pcs and wlan
Microstrip patch antenna for pcs and wlan
eSAT Journals

IRJET- Design and Analysis of LPDA Antenna for through the Wall Detection ...
IRJET- 	  Design and Analysis of LPDA Antenna for through the Wall Detection ...IRJET- 	  Design and Analysis of LPDA Antenna for through the Wall Detection ...
IRJET- Design and Analysis of LPDA Antenna for through the Wall Detection ...
IRJET Journal

A glimpse of fractal antenna design
A glimpse of fractal antenna designA glimpse of fractal antenna design
A glimpse of fractal antenna design
Sreekar Rompicharla

Govil sharma
Govil sharmaGovil sharma
Govil sharma
Govil Sharma

Semi-circular compact CPW-fed antenna for ultra-wideband applications
Semi-circular compact CPW-fed antenna for ultra-wideband applicationsSemi-circular compact CPW-fed antenna for ultra-wideband applications
Semi-circular compact CPW-fed antenna for ultra-wideband applications
TELKOMNIKA JOURNAL

Satellite Communication.ppt
Satellite Communication.pptSatellite Communication.ppt
Satellite Communication.ppt
Deepaksenthil4

Satellite communication 3
Satellite communication   3Satellite communication   3
Satellite communication 3
sardarwaleed3

Folded Shorted Patch Antenna with Slots for RF Energy Harvesting in Wireless ...
Folded Shorted Patch Antenna with Slots for RF Energy Harvesting in Wireless ...Folded Shorted Patch Antenna with Slots for RF Energy Harvesting in Wireless ...
Folded Shorted Patch Antenna with Slots for RF Energy Harvesting in Wireless ...
ijtsrd

Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
AIRCC Publishing Corporation

DESIGN AND OPTIMIZATION A CIRCULAR SHAPE NETWORK ANTENNA MICRO STRIP FOR SOME...
DESIGN AND OPTIMIZATION A CIRCULAR SHAPE NETWORK ANTENNA MICRO STRIP FOR SOME...DESIGN AND OPTIMIZATION A CIRCULAR SHAPE NETWORK ANTENNA MICRO STRIP FOR SOME...
DESIGN AND OPTIMIZATION A CIRCULAR SHAPE NETWORK ANTENNA MICRO STRIP FOR SOME...
ijcseit

Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
AIRCC Publishing Corporation


Similar to friis formula (20)

Geoffrey80
Geoffrey80Geoffrey80
Geoffrey80

Trunking Radio Compatibility Issues New
Trunking Radio Compatibility Issues NewTrunking Radio Compatibility Issues New
Trunking Radio Compatibility Issues New

Basic antenna
Basic antennaBasic antenna
Basic antenna

Unit I Introduction of Wirelecc Channel.pdf
Unit I Introduction of Wirelecc Channel.pdfUnit I Introduction of Wirelecc Channel.pdf
Unit I Introduction of Wirelecc Channel.pdf

antenna book.pdf
antenna book.pdfantenna book.pdf
antenna book.pdf

Chapter 3 -Wireless_Networks_Principles_Lec.pptx
Chapter 3 -Wireless_Networks_Principles_Lec.pptxChapter 3 -Wireless_Networks_Principles_Lec.pptx
Chapter 3 -Wireless_Networks_Principles_Lec.pptx

Channel Modeling.pptx
Channel Modeling.pptxChannel Modeling.pptx
Channel Modeling.pptx

Chap 4 (large scale propagation)
Chap 4 (large scale propagation)Chap 4 (large scale propagation)
Chap 4 (large scale propagation)

Presentation
PresentationPresentation
Presentation

Microstrip patch antenna for pcs and wlan
Microstrip patch antenna for pcs and wlanMicrostrip patch antenna for pcs and wlan
Microstrip patch antenna for pcs and wlan

IRJET- Design and Analysis of LPDA Antenna for through the Wall Detection ...
IRJET- 	  Design and Analysis of LPDA Antenna for through the Wall Detection ...IRJET- 	  Design and Analysis of LPDA Antenna for through the Wall Detection ...
IRJET- Design and Analysis of LPDA Antenna for through the Wall Detection ...

A glimpse of fractal antenna design
A glimpse of fractal antenna designA glimpse of fractal antenna design
A glimpse of fractal antenna design

Govil sharma
Govil sharmaGovil sharma
Govil sharma

Semi-circular compact CPW-fed antenna for ultra-wideband applications
Semi-circular compact CPW-fed antenna for ultra-wideband applicationsSemi-circular compact CPW-fed antenna for ultra-wideband applications
Semi-circular compact CPW-fed antenna for ultra-wideband applications

Satellite Communication.ppt
Satellite Communication.pptSatellite Communication.ppt
Satellite Communication.ppt

Satellite communication 3
Satellite communication   3Satellite communication   3
Satellite communication 3

Folded Shorted Patch Antenna with Slots for RF Energy Harvesting in Wireless ...
Folded Shorted Patch Antenna with Slots for RF Energy Harvesting in Wireless ...Folded Shorted Patch Antenna with Slots for RF Energy Harvesting in Wireless ...
Folded Shorted Patch Antenna with Slots for RF Energy Harvesting in Wireless ...

Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...

DESIGN AND OPTIMIZATION A CIRCULAR SHAPE NETWORK ANTENNA MICRO STRIP FOR SOME...
DESIGN AND OPTIMIZATION A CIRCULAR SHAPE NETWORK ANTENNA MICRO STRIP FOR SOME...DESIGN AND OPTIMIZATION A CIRCULAR SHAPE NETWORK ANTENNA MICRO STRIP FOR SOME...
DESIGN AND OPTIMIZATION A CIRCULAR SHAPE NETWORK ANTENNA MICRO STRIP FOR SOME...

Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...
Design and Optimization a Circular Shape Network Antenna Micro Strip for Some...


Recently uploaded

DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
thanhluan21

Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj TripathiPower of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Pankaj523992

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint
Julie Sarpy

How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17
Celine George

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cátedra Banco Santander

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Murugan Solaiyappan

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17
Celine George

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

What is Packaging of Products in Odoo 17
What is Packaging of Products in Odoo 17What is Packaging of Products in Odoo 17
What is Packaging of Products in Odoo 17
Celine George

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt
Dr. S. Bulomine Regi

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS
Celine George

"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ..."DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
thanhluan21

modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025
NurFitriah45

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook
Celine George

1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx
UmeshTimilsina1

modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254
NurFitriah45

Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Alvaro Barbosa

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat
Scholarhat

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research
Abhik Roychoudhury

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17
Celine George


Recently uploaded (20)

DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...

Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj TripathiPower of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi
Power of Ignored Skills: Change the Way You Think and Decide by Manoj Tripathi

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint

How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17How to Manage Shipping Connectors & Shipping Methods in Odoo 17
How to Manage Shipping Connectors & Shipping Methods in Odoo 17

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...

How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17How To Update One2many Field From OnChange of Field in Odoo 17
How To Update One2many Field From OnChange of Field in Odoo 17

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

What is Packaging of Products in Odoo 17
What is Packaging of Products in Odoo 17What is Packaging of Products in Odoo 17
What is Packaging of Products in Odoo 17

Introduction to Banking System in India.ppt
Introduction to Banking System in India.pptIntroduction to Banking System in India.ppt
Introduction to Banking System in India.ppt

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS

"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ..."DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...
"DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY ...

modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook

1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx

modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254

Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...

JavaScript Interview Questions PDF By ScholarHat
JavaScript Interview  Questions PDF By ScholarHatJavaScript Interview  Questions PDF By ScholarHat
JavaScript Interview Questions PDF By ScholarHat

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17


friis formula

  • 1. FRII’S FORMULA USING MATLAB Project Report submitted to VIT University Chennai Campus in the partial fulfillment of the Requirements for the completion of course ANTENNAS AND WAVE PROPAGATION (ECE306) By KOTESWARA RAO – 11BEC1015 M.ARAVIND KUMAR –11BEC1032 VIDYANATH – 11BEC1035 HARSHAVARDHAN – 11BEC1074 BHARADWAJ – 11BEC1133 Under the esteemed guidance of PROF.RAVI PRAKASH School of Electronics Engineering (SENSE)
  • 2. INDEX Sl. No Contents Page no. 1 OBJECTIVE 3 2 MOTIVATION 3 3 INTRODUCTION 3 4 IMPORTANCE&LEARNING 5 5 DERIVATION 6 7 MATLAB CODES 9 8 CONCLUSION 16 9 FUTURE SCOPE 16 10 REFERENCES 17
  • 3. OBJECTIVE: The main objective of our project is to implement frii’s formula using matlab. In the sense what we are going to do is we input all the parameters and then get the received power. MOTIVATION: Why we are doing this project is because in antennas we see that the received power is always less than the transmitted power. This is because of the losses that occur during the propagation. So from our project we can basically know beforehand how much power we are going to receive and based on that the power transmitted can be adjusted and thus easing our work. INTRODUCTION: In its simplest form, the Friis transmission equation is as follows. Given two antennas, the ratio of power available at the input of the receiving antenna, , to output power to the transmitting antenna, , is given by where and are the antenna gains (with respect to an isotropic radiator) of the transmitting and receiving antennas respectively, is the wavelength, and is the distance between the antennas. The inverse of the factor in parentheses is the so- called free-space path loss. To use the equation as written, the antenna gain may not be in units of decibels, and the wavelength and distance units must be the same. If the gain has units of dB, the equation is slightly modified to:
  • 4. (Gain has units of dB, and power has units of dBm or dBW) This simple form applies only under the following ideal conditions:  (Reads as much greater than ). If , then the equation would give the physically impossible result that the receive power is greater than the transmit power, a violation of the law of conservation of energy.  The antennas are in unobstructed free space, with no multipath.  is understood to be the available power at the receive antenna terminals. There is loss introduced by both the cable running to the antenna and the connectors. Furthermore, the power at the output of the antenna will only be fully delivered into the transmission line if the antenna and transmission line are conjugate matched.  is understood to be the power delivered to the transmit antenna. There is loss introduced by both the cable running to the antenna and the connectors. Furthermore, the power at the input of the antenna will only be fully delivered into free space if the antenna and transmission line are conjugate matched.  The antennas are correctly aligned and polarized.  The bandwidth is narrow enough that a single value for the wavelength can be assumed. The ideal conditions are almost never achieved in ordinary terrestrial communications, due to obstructions, reflections from buildings, and most importantly reflections from the ground. One situation where the equation is reasonably accurate is in satellite communications when there is negligible atmospheric absorption; another situation is in anechoic chambers specifically designed to minimize reflections.
  • 5. IMPORTANCE & LEARNING Transmission Formula of Friis Equation Equation 1: Equation [1] shows that more power is lost at higher frequencies. This is a fundamental result of the Frii’s Transmission Equation. This means that for antennas with specified gains, the energy transfer will be highest at lower frequencies. The difference between the power received and the power transmitted is known as path loss. Said in a different way, Frii’s Transmission Equation says that the path loss is higher for higher frequencies. The importance of this result from the Frii’s Transmission Formula cannot be overstated. This is why mobile phones generally operate at less than 2 GHz. There may be more frequency spectrum available at higher frequencies, but the associated path loss will not enable quality reception. As a further consequence of Frii’s Transmission Equation, suppose you are asked about 60 GHz antennas. Noting that this frequency is very high, you might state that the path loss will be too high for long range communication - and you are absolutely correct. At very high frequencies (60 GHz is sometimes referred to as the mm (millimeter wave) region), the path loss is very high, so only point-to-point communication is possible. This occurs when the receiver and transmitter are in the same room, and facing each other. As a further corollary of Frii’s Transmission Formula, do you think the mobile phone operators are happy about the new LTE (4G) band that operates at 700MHz? The answer is yes: this is a lower frequency than antennas traditionally operate at, but from Equation [1], we note that the path loss will therefore be lower as well. Hence, they can "cover more ground" with this frequency spectrum, and a Verizon Wireless executive recently called this "high quality spectrum", precisely for this reason. Side
  • 6. Note: On the other hand, the cell phone makers will have to fit an antenna with a larger wavelength in a compact device (lower frequency = larger wavelength), so the antenna designer's job got a little more complicated! DERIVATION: 1. Let's imagine that there are two antennas, entirely in free space. There is no Earth or any other object near enough to affect propagation. Let's also assume that these antennas are far enough apart that the antennas interact only by their far fields. 2. To start, let's assume that both antennas are isotropic, meaning that they radiate equally in each direction. If we supply a pulse of energy to such an antenna, this energy will spread out as a sphere, to infinity, at the speed of light. It also means that if we supply a constant power to such an antenna, then for any sized sphere centered on that antenna, the power passing through that sphere is equal to the power being fed to the antenna. Assume that Watts of total power are delivered to the transmit antenna. For the moment, assume that the transmit antenna is omnidirectional, lossless, and that the receive antenna is in the far field of the transmit antenna. Then the power density p (in Watts per square meter) of the plane wave incident on the receive antenna a distance R from the transmit antenna is given by:
  • 7. If the transmit antenna has an antenna gain in the direction of the receive antenna given by , then the power density equation above becomes:
  • 8. The gain term factors in the directionality and losses of a real antenna. Assume now that the receive antenna has an effective aperture given by . Then the power received by this antenna Since the effective aperture for any antenna can also be expressed as: The resulting received power can be written as: This is known as the Friis Transmission Formula. It relates the free space path loss, antenna gains and wavelength to the received and transmit powers. • The Frii’s equation for radar is Pr/Pt=GtGr((λ2 )*S/((4*π)3 *R4 ) S = target area cross section
  • 9. MATLAB CODES: PROGRAM 1: For the conversion of values: h=input('n 1. To convert from watt to db n 2. To convert from watt to dbm n 3. To convert from db to watt n 4.To convert from dbm to watt n 5frequency to wavelenth '); if (h==1) value=input('enter the value to be converted ='); value_converted_db=10*log10(value); fprintf('the converted value is %d',value_converted_db) elseif(h==2) value=input('enter the value to be converted ='); value_converted_dbm=10*log10(value/10^(-3)); fprintf('the converted value is %d',value_converted_dbm) elseif(h==3) value=input('enter the value to be converted ='); value_converted_watt=10^(value/10); fprintf('the converted value is %d',value_converted_watt) elseif(h==4) value=input('enter the value to be converted='); value_converted_watt=(10^(value/10))*10^(-3); fprintf('the converted value is %d',value_converted_watt) else value=input('enter the value to be converted='); value_converted_freq=(3*10^8)/(value); fprintf('the converted value is %d',value_converted_freq) end
  • 10. PROGRAM 2: MATLAB CODE FOR FRIIS FORMULA: fprintf('n********************FRIIS TRANSMISSION FORMULA FOR RECEIVER POWER **********************n ') %%%%%% FRIIS Equation %%%%%%%%% % Friis free space propagation model: % Pt * Gt * Gr * (Wavelength^2) % Pr = -------------------------- % (4 *pi * d)^2 * L a=input('enter 1. if the values you are going to give are in decibles n 2. if the values you are going to give are not in decibles n3. if The values you are going to give are in dBmn 4.if if frequency is given '); if(a==1) P1=input(' enter the value of transmitted power in decibles ='); G1=input('enter the value of transmittor gain in decibles ='); G2=input('enter the value of receiver gain in decibles ='); Wavelength=input ('enter the value of wavelength ='); R=input('enter the distance between transmitter and receiver ='); Pt=10^(P1/10); Gt=10^(G1/10); Gr=10^(G2/10); Pr=(Pt * Gt * Gr * (Wavelength^2))/((4 *pi * R)^2 ); fprintf('n the value of received power is %d n',Pr) Prdbm=10*(log10(Pr/10^(-3))); fprintf('n the value of received power in dbm %d n',Prdbm) elseif(a==2) Pt=input(' enter the value of transmitted power in watts ='); G1=input('enter the value of transmitter gain in watts='); G2=input('enter the value of receiver gain in watts='); Wavelength=input ('enter the value of wavelength='); R=input('enter the distance between transmitter and receiver ='); Pr=(Pt * Gt * Gr * (Wavelength^2))/((4 *pi * R)^2 ); fprintf('n the value of received power is %d n',Pr) Prdbm=10*(log10(Pr/10^(-3))); fprintf('n the value of received power in dbm %d n',Prdbm) elseif(a==3) P1=input(' enter the value of transmitted power in dbm ='); G1=input('enter the value of transmittor gain in dbm ='); G2=input('enter the value of received power gain in dbm ='); Wavelength=input ('enter the value of wavelength ='); R=input('enter the distance between transmitter and receiver ='); Pt=(10^(P1/10))*10^(-3); Gt=(10^(G1/10))*10^(-3); Gr=(10^(G2/10))*10^(-3);
  • 11. Pr=(Pt * Gt * Gr * (Wavelength^2))/((4 *pi * R)^2 ); fprintf('n the value of received power is %s n',Pr) Prdbm=10*(log10(Pr/10^(-3))); fprintf('n the value of received power in dbm %d n',Prdbm) else P1=input(' enter the value of transmitted power in watts ='); G1=input('enter the value of transmittor gain in decibles ='); G2=input('enter the value of received power gain in decibles ='); freq=input ('enter the value of freq ='); R=input('enter the distance between transmitter and receiver ='); Pt=P1; Wavelength=(3*10^8)/(freq); Gt=10^(G1/10); Gr=10^(G2/10); Pr=(Pt * Gt * Gr * (Wavelength^2))/((4 *pi * R)^2 ); fprintf('n the value of received power is %d n',Pr) Prdbm=10*(log10(Pr/10^(-3))); fprintf('n the value of received power in dbm %d n',Prdbm) end
  • 12. PROGRAM 3: MATLAB CODE FOR FINDING RECEIVED POWER BETWEEN RADAR AND TARGET fprintf('n********************FRIIS TRANSMISSION FORMULA FOR RADAR AND TARGET **********************n ') a=input('enter 1. if the values you are going to give are in decibles = n 2. if the values you are going to give are not in decibles = n 3. if the values you are going to give are in dBm n 4. if frequency is given '); if(a==1) P1=input(' enter the value of transmitted power in watts ='); G1=input('enter the value of transmittor gain in decibles ='); G2=input('enter the value of receiver gain in decibles ='); Wavelength=input ('enter the value of wavelength ='); S=input('enter the value of the cross section area ='); R=input('enter the distance between transmitter and receiver ='); Pt=P1; Gt=10^(G1/10); Gr=10^(G2/10); Pr=(Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* (R)^4 ); fprintf('n the value of received power is %d n',Pr) Prdbm=10*(log10(Pr/10^(-3))); fprintf('n the value of received power in dbm %d n',Prdbm) elseif(a==2) Pt=input(' enter the value of transmitted power in watts ='); G1=input('enter the value of transmittor gain ='); G2=input('enter the value of receiver gain ='); S=input('enter the value of the cross section area ='); Wavelength=input ('enter the value of wavelength ='); R=input('enter the distance between transmitter and receiver ='); Pr=(Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* (R)^4 ); fprintf('n the value of received power is %d n',Pr) Prdbm=10*(log10(Pr/10^(-3))); fprintf('n the value of received power in dbm %d n',Prdbm) elseif(a==3) P1=input(' enter the value of transmitted power in dbm ='); G1=input('enter the value of transmittor gain in dbm ='); G2=input('enter the value of receiver gain in dbm ='); S=input('enter the value of the cross section area ='); Wavelength=input ('enter the value of wavelength ='); R=input('enter the distance between transmitter and receiver ='); Pt=(10^(P1/10))*10^(-3); Gt=(10^(G1/10))*10^(-3); Gr=(10^(G2/10))*10^(-3); Pr=(Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* (R)^4 ); fprintf('n the value of received power is %s n',Pr)
  • 13. Prdbm=10*(log10(Pr/10^(-3))); fprintf('n the value of received power in dbm %d n',Prdbm) else P1=input(' enter the value of transmitted power in watts ='); G1=input('enter the value of transmittor gain in decibles ='); G2=input('enter the value of receiver gain in decibles ='); freq=input ('enter the value of freq ='); S=input('enter the value of the cross section area ='); R=input('enter the distance between transmitter and receiver ='); Pt=P1; Wavelength=(3*10^8)/(freq); Gt=10^(G1/10); Gr=10^(G2/10); Pr=(Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* (R)^4 ); fprintf('n the value of received power is %d n',Pr) Prdbm=10*(log10(Pr/10^(-3))); fprintf('n the value of received power in dbm %d n',Prdbm) end
  • 14. PROGRAM 4: MATLAB CODE FOR FINDING MAXIMUM DISTANCEBETWEEN RADAR AND TARGET fprintf('n********************FRIIS TRANSMISSION FORMULA FOR RADAR AND TARGET MAXIMUM DISTANCE************************n ') a=input('enter 1 if the values you are going to give are in decibles n 2 if the values you are going to give are not in decibles n 3 if the values you are going to give are in dBm n 4 if frequency is given '); if(a==1) P1=input(' enter the value of transmitted power in decibels ='); P2=input('enter the value of received power in decibles ='); G1=input('enter the value of transmittor gain in decibles ='); G2=input('enter the value of receiver gain in decibles ='); Wavelength=input('enter the value of wavelength ='); S=input('enter the value of the cross section area ='); Pt=10^(P1/10); Gt=10^(G1/10); Gr=10^(G2/10); Pr=10^(P2/10); R=((Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* Pr ))^0.25; fprintf('n the distance is %d n',R) elseif(a==2) Pt=input(' enter the value of transmitted power in watts ='); Pr=input('enter the value of received power ='); G1=input('enter the value of transmittor gain ='); G2=input('enter the value of receiver gain ='); Wavelength=input ('enter the value of wavelength ='); S=input('enter the value of the cross section area ='); R=((Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* Pr ))^0.25; fprintf('n the distance is %d n',R) elseif(a==3) P1=input(' enter the value of transmitted power in dbm ='); P2=input('enter the value of received power ='); G1=input('enter the value of transmittor gain in dbm ='); G2=input('enter the value of receiver gain in dbm ='); Wavelength=input ('enter the value of wavelength ='); S=input('enter the value of the cross section area ='); Pt=(10^(P1/10))*10^(-3); Gt=(10^(G1/10))*10^(-3); Gr=(10^(G2/10))*10^(-3); Pr=(10^(P2/10))*10^(-3); R=((Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* Pr ))^0.25; fprintf('n the distance is %d n',R)
  • 15. else P1=input(' enter the value of transmitted power in watts ='); P2=input('enter the value of received power ='); G1=input('enter the value of transmittor gain in decibles ='); G2=input('enter the value of receiver gain in decibles ='); freq=input ('enter the value of freq ='); S=input('enter the value of the cross section area ='); Pt=P1; Pr=P2; Wavelength=(3*10^8)/(freq); Gt=10^(G1/10); Gr=10^(G2/10); R=((Pt * Gt * Gr * (Wavelength^2)*S)/(((4 *pi )^3)* Pr ))^0.25; fprintf('n the distance is %d n',R) end
  • 16. CONCLUSION: With the help of matlab we successfully implemented frii’s transmission formula FUTURE SCOPE: The formula we implemented is the basic friis equation our future scope is to implement the frii’s equation which was modified which includes effects of mismatch, antenna pointing, polarization and absorption.
