This document summarizes 6 different studies on floating point unit designs. The studies examined fully pipelined single-precision units, energy efficient designs, fused add-subtract units, optimized logarithmic architectures, unified rectangular designs, and an FPGA implementation. The studies described the architectures, advantages like performance and power improvements, and disadvantages like increased complexity. Overall, the document reviews optimizations for floating point units across different technologies.
Study of Different Floating Point Unit Architectures

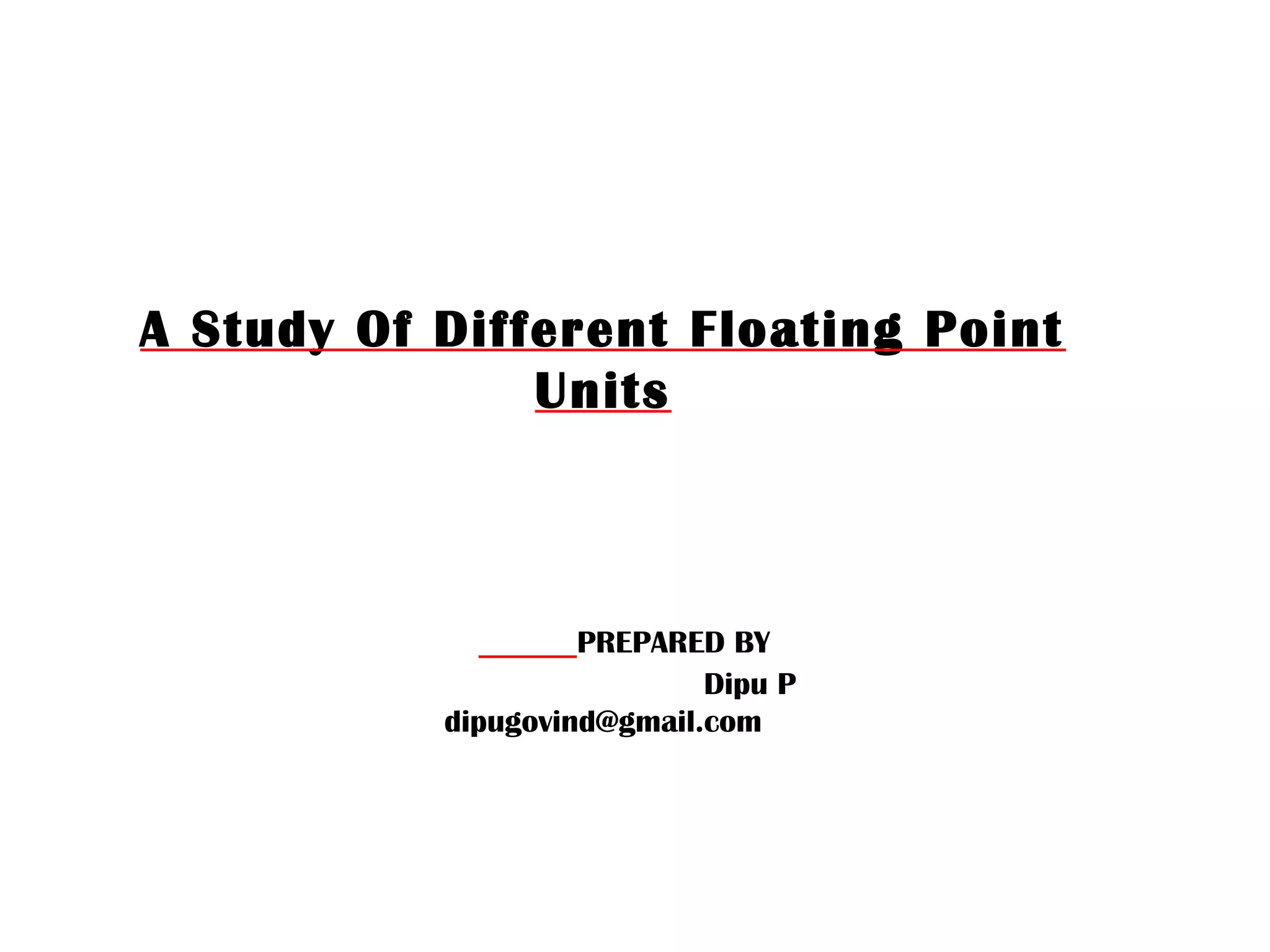

1. A Study Of Different Floating Point
Units
PREPARED BY
Dipu P
dipugovind@gmail.com

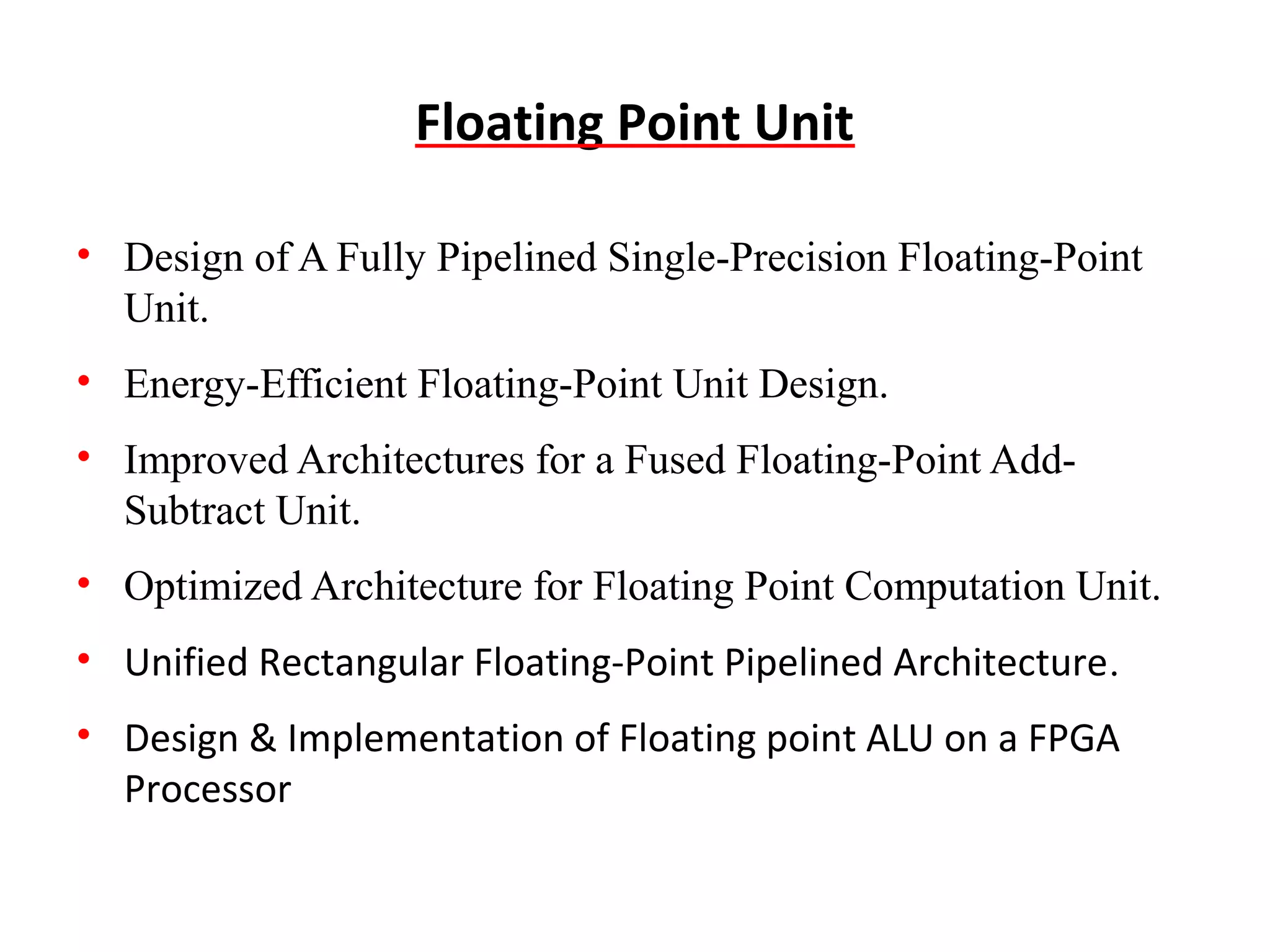

2. Floating Point Unit
• Design of A Fully Pipelined Single-Precision Floating-Point
Unit.
• Energy-Efficient Floating-Point Unit Design.
• Improved Architectures for a Fused Floating-Point AddSubtract Unit.
• Optimized Architecture for Floating Point Computation Unit.
• Unified Rectangular Floating-Point Pipelined Architecture.
• Design & Implementation of Floating point ALU on a FPGA
Processor

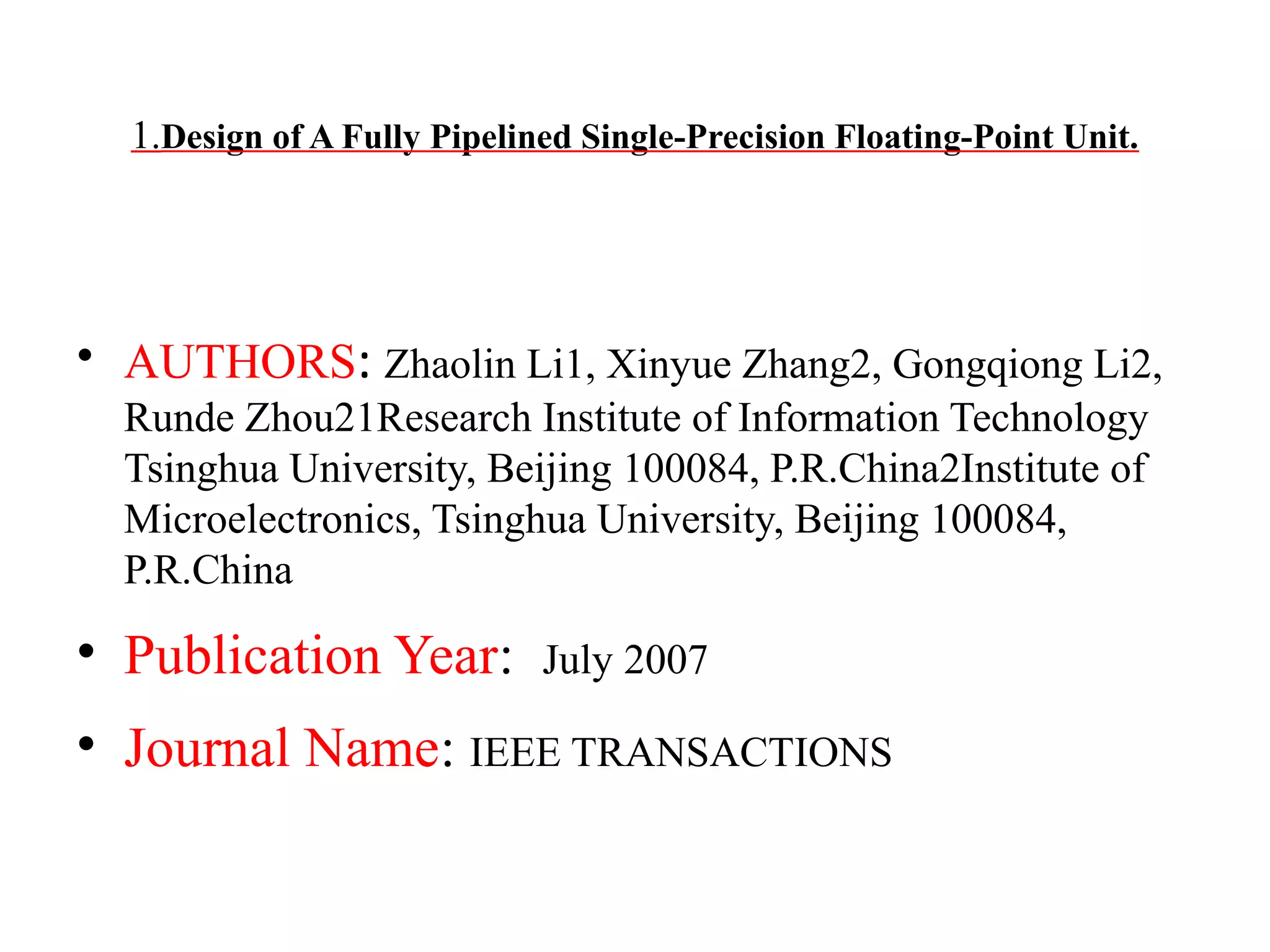

3. 1.Design of A Fully Pipelined Single-Precision Floating-Point Unit.
• AUTHORS: Zhaolin Li1, Xinyue Zhang2, Gongqiong Li2,
Runde Zhou21Research Institute of Information Technology
Tsinghua University, Beijing 100084, P.R.China2Institute of
Microelectronics, Tsinghua University, Beijing 100084,
P.R.China
• Publication Year:
July 2007
• Journal Name: IEEE TRANSACTIONS

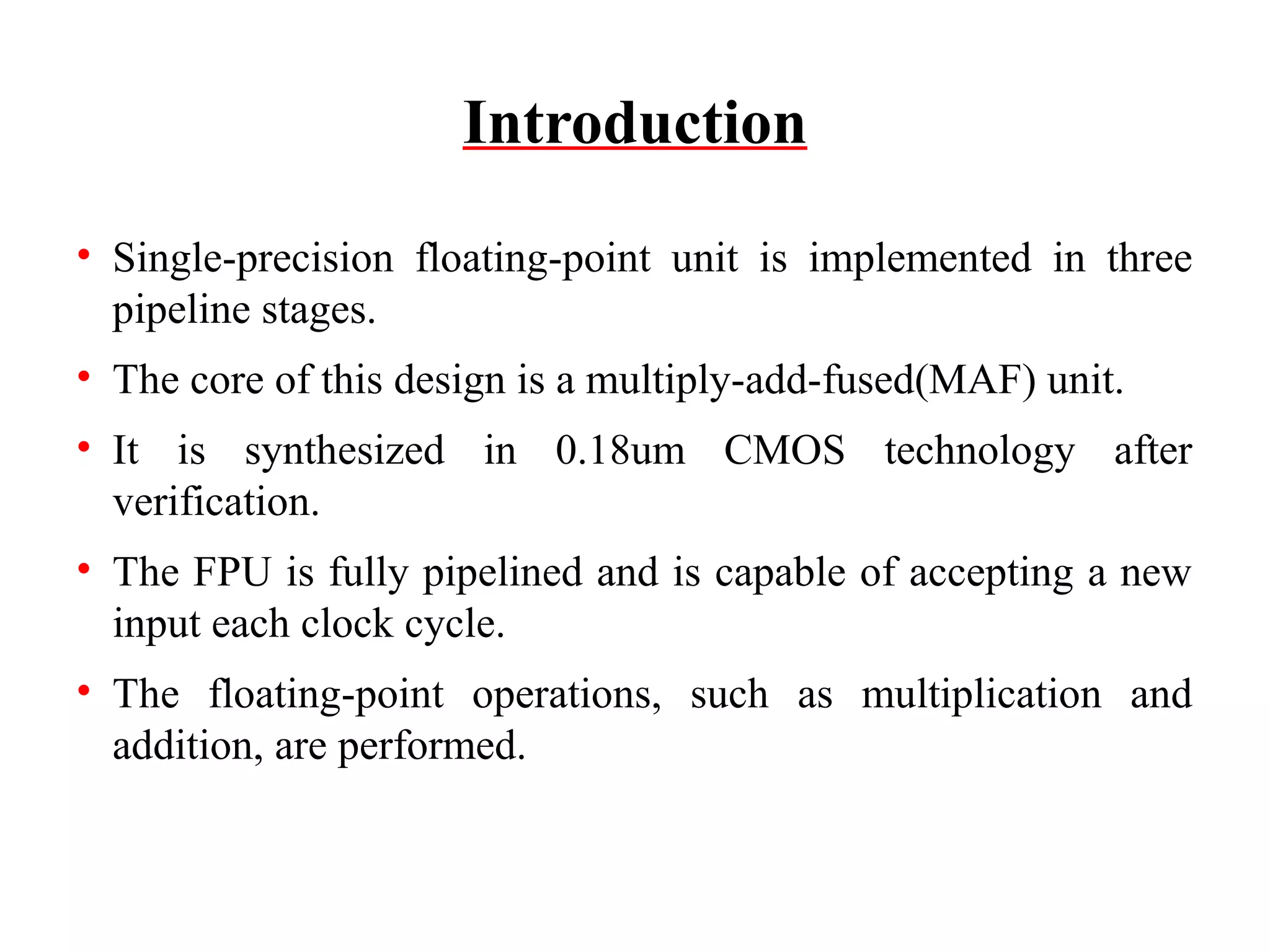

4. Introduction
• Single-precision floating-point unit is implemented in three
pipeline stages.
• The core of this design is a multiply-add-fused(MAF) unit.
• It is synthesized in 0.18um CMOS technology after
verification.
• The FPU is fully pipelined and is capable of accepting a new
input each clock cycle.
• The floating-point operations, such as multiplication and
addition, are performed.

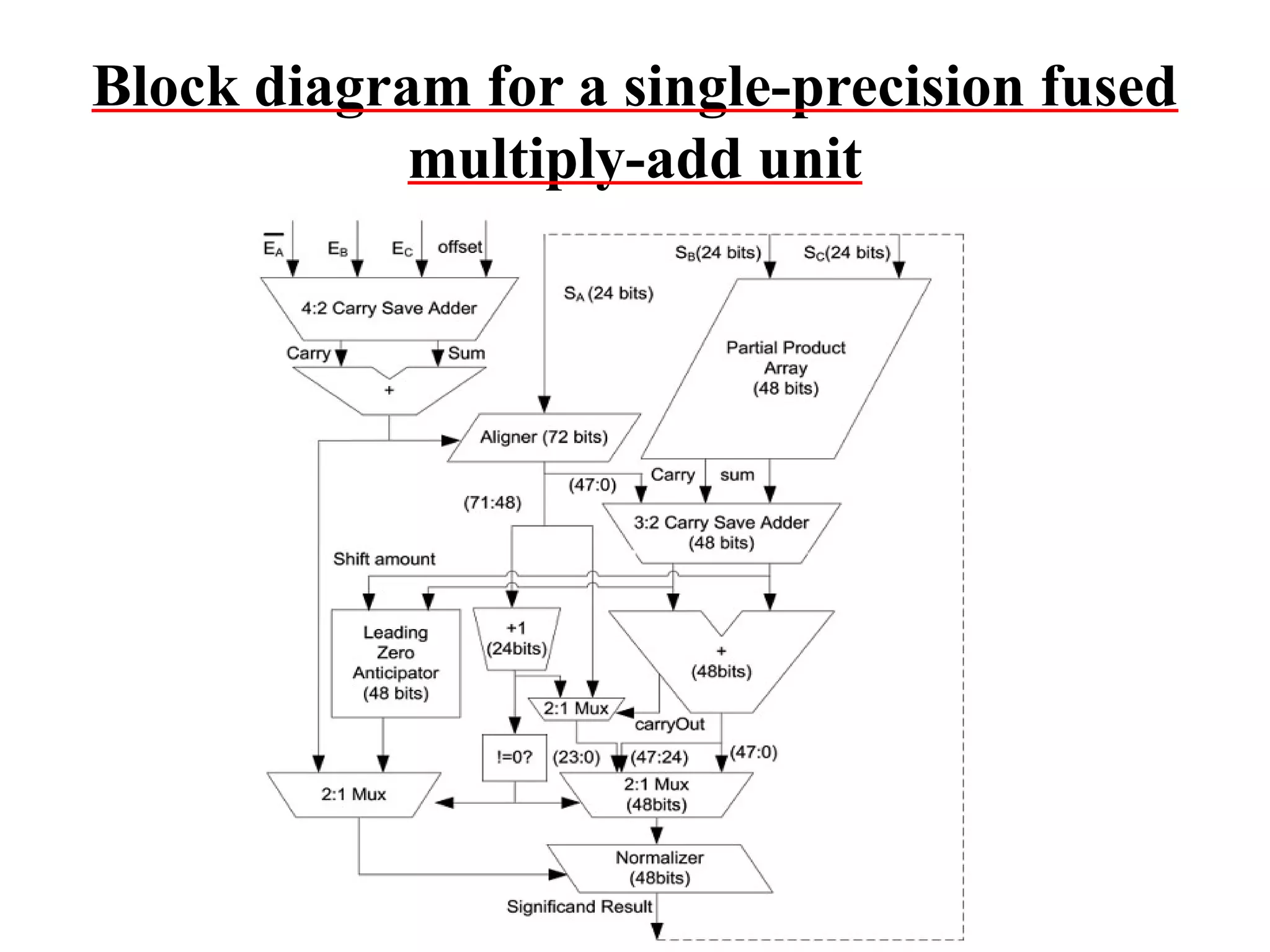

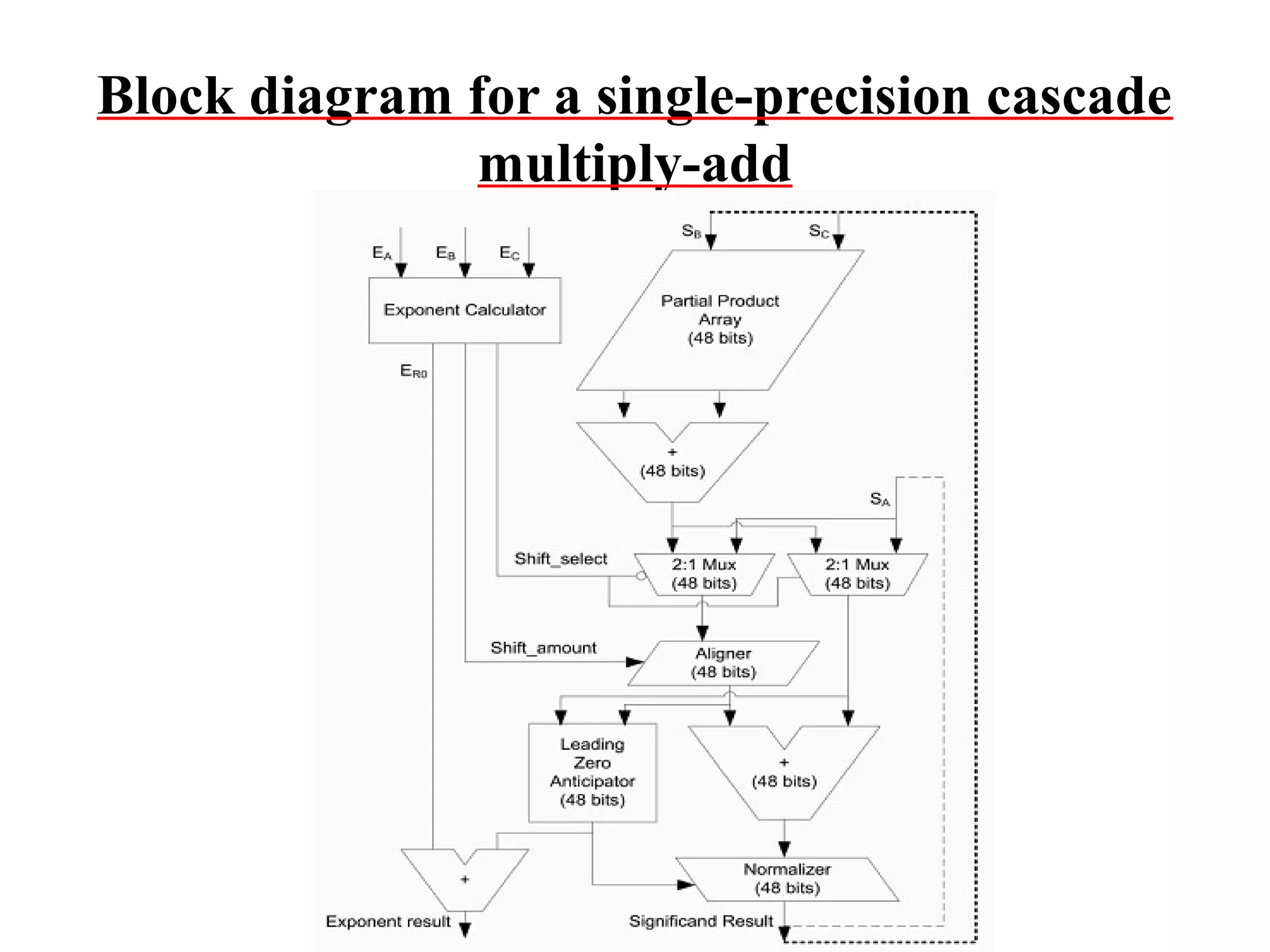

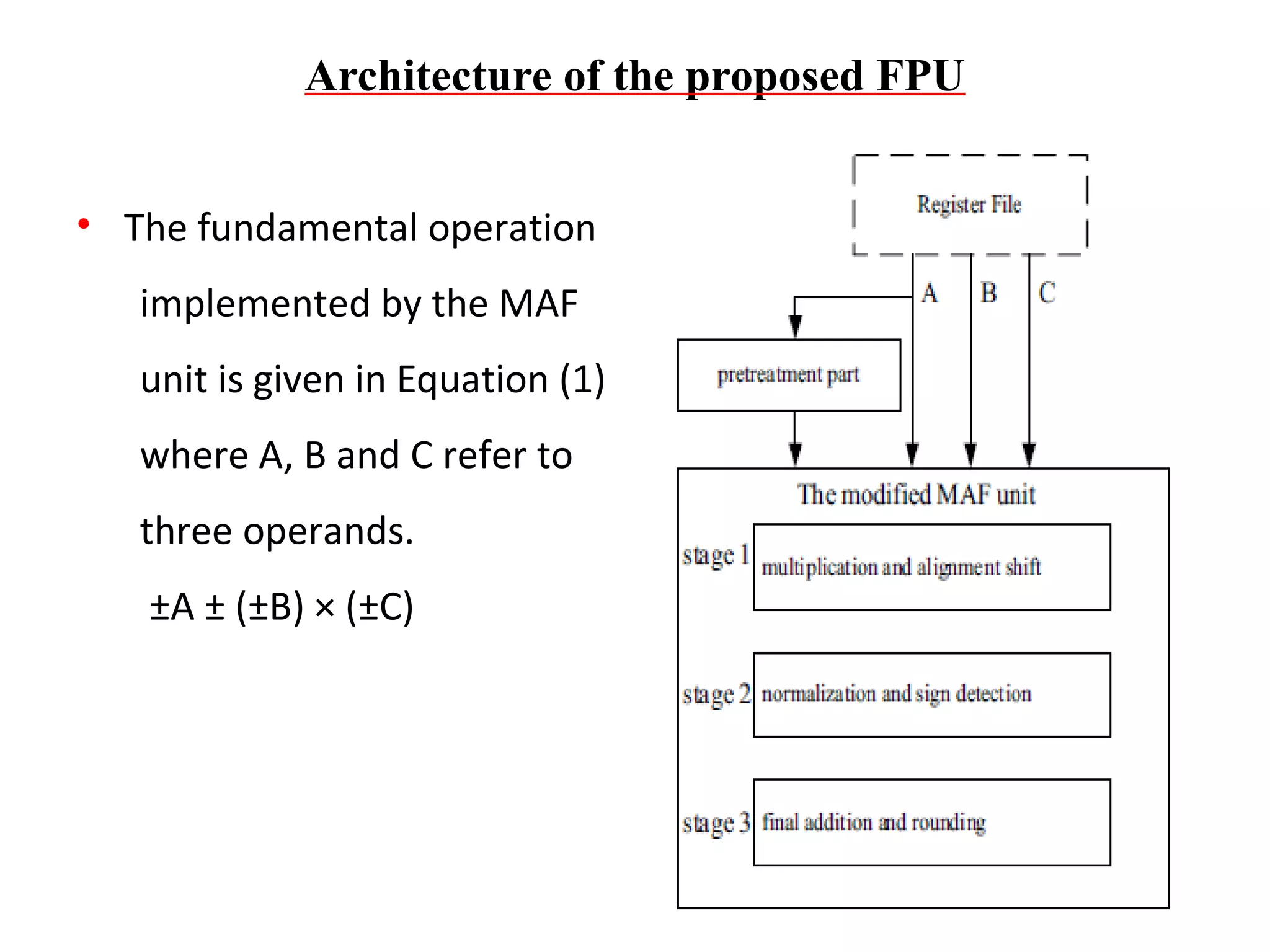

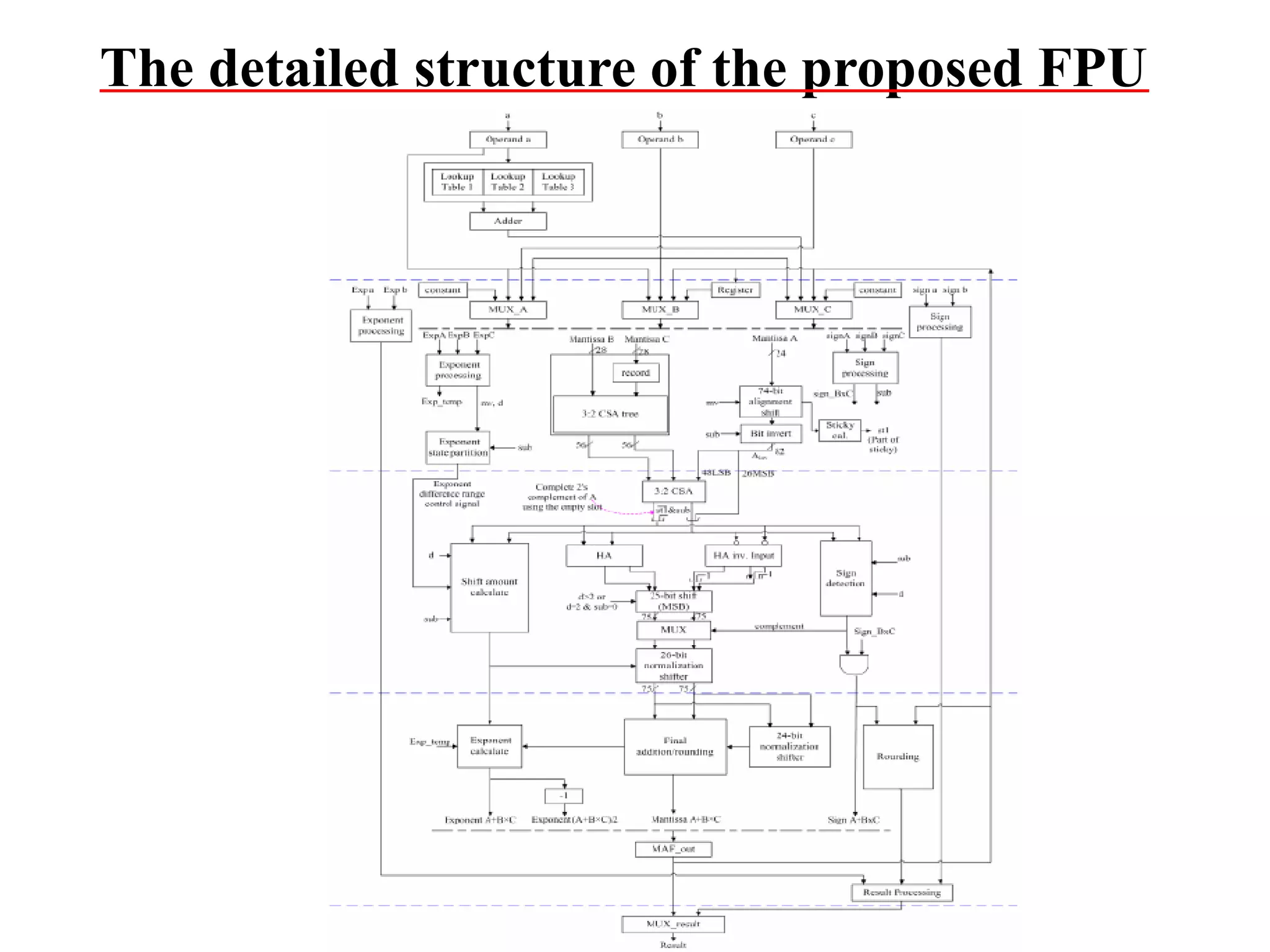

5. Architecture of the proposed FPU
• The fundamental operation
implemented by the MAF
unit is given in Equation (1),
where A, B and C refer to
three operands.
±A ± (±B) × (±C)

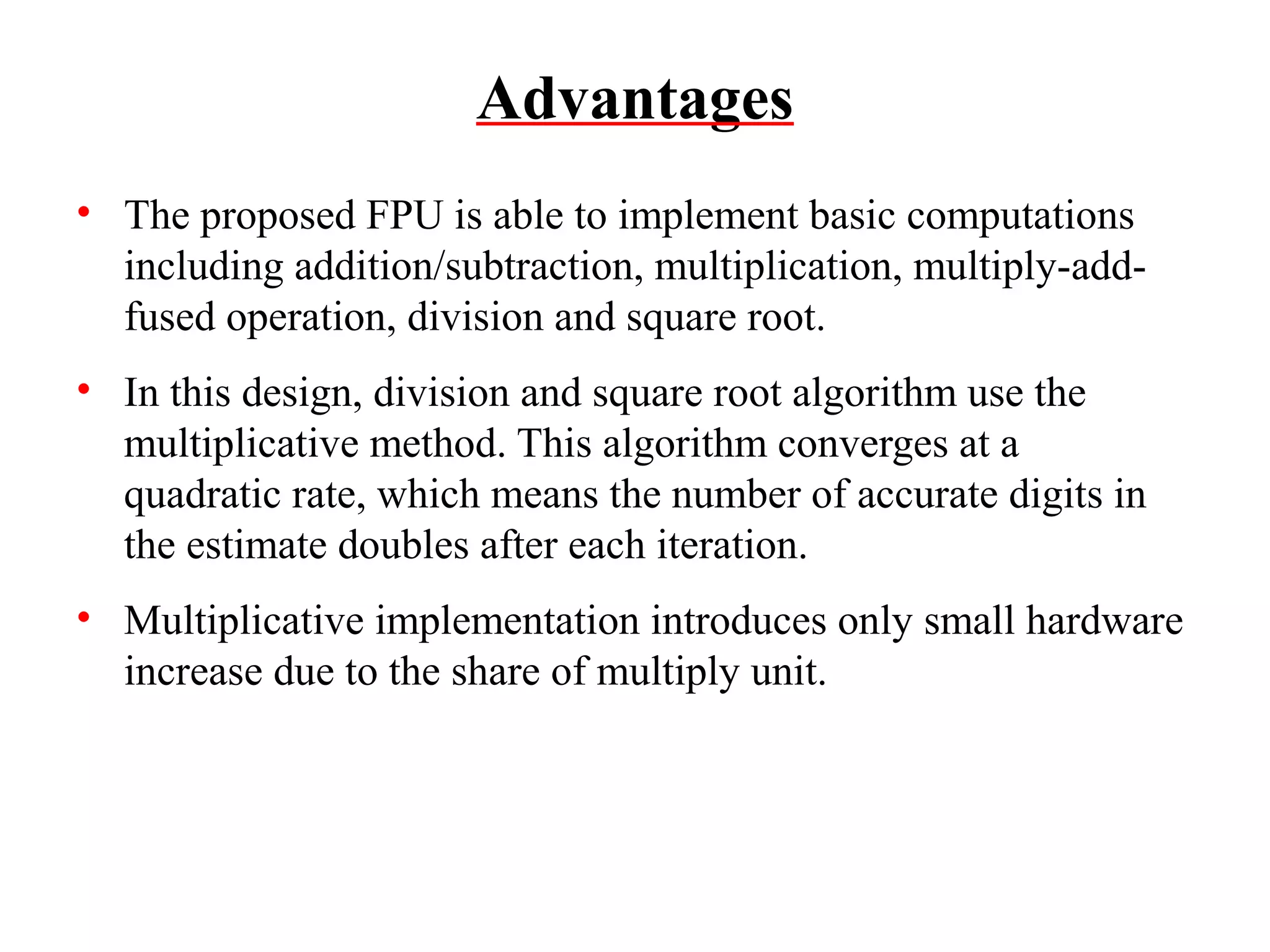

7. Advantages
• The proposed FPU is able to implement basic computations
including addition/subtraction, multiplication, multiply-addfused operation, division and square root.
• In this design, division and square root algorithm use the
multiplicative method. This algorithm converges at a
quadratic rate, which means the number of accurate digits in
the estimate doubles after each iteration.
• Multiplicative implementation introduces only small hardware
increase due to the share of multiply unit.

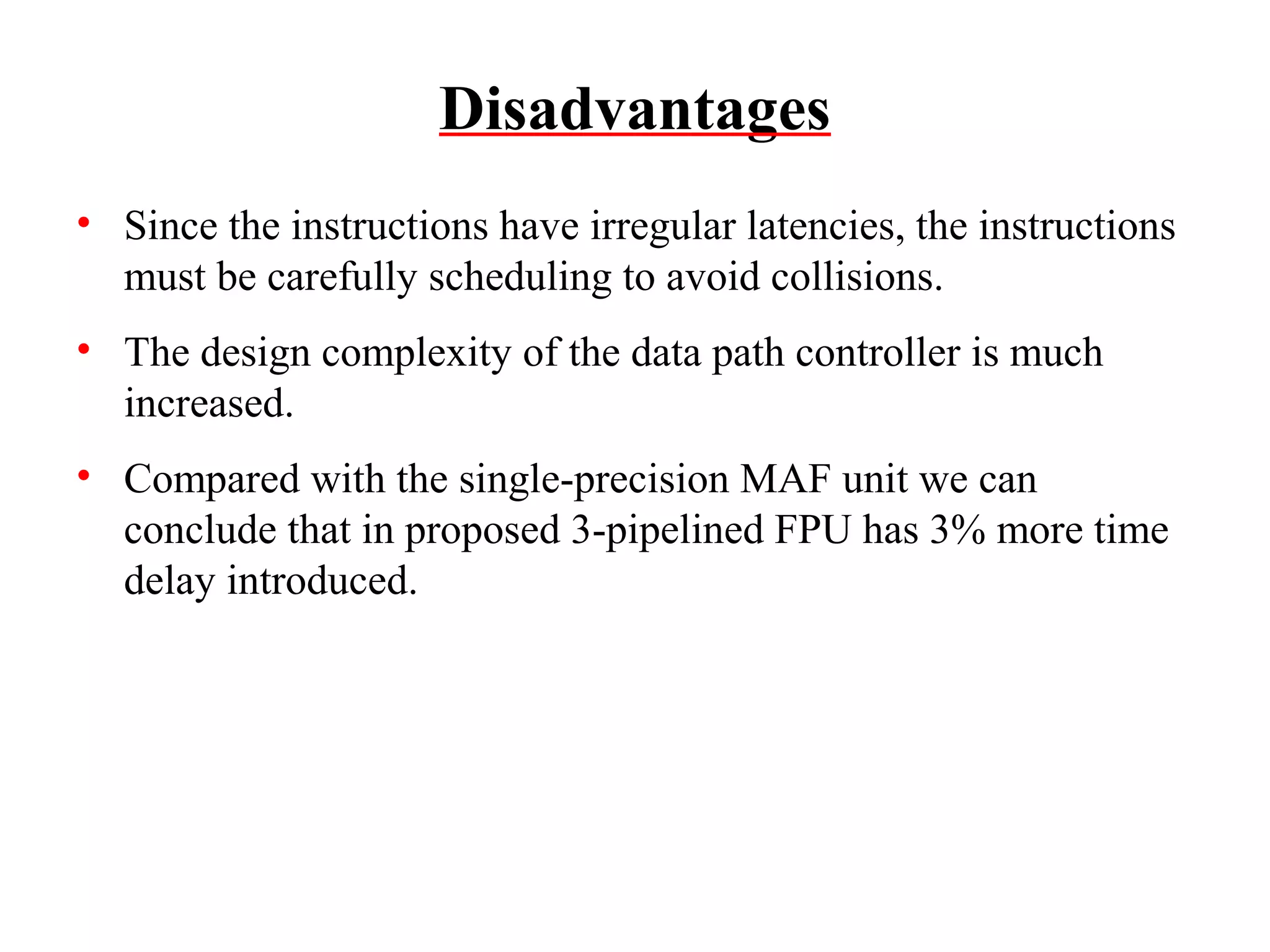

8. Disadvantages
• Since the instructions have irregular latencies, the instructions
must be carefully scheduling to avoid collisions.
• The design complexity of the data path controller is much
increased.
• Compared with the single-precision MAF unit we can
conclude that in proposed 3-pipelined FPU has 3% more time
delay introduced.

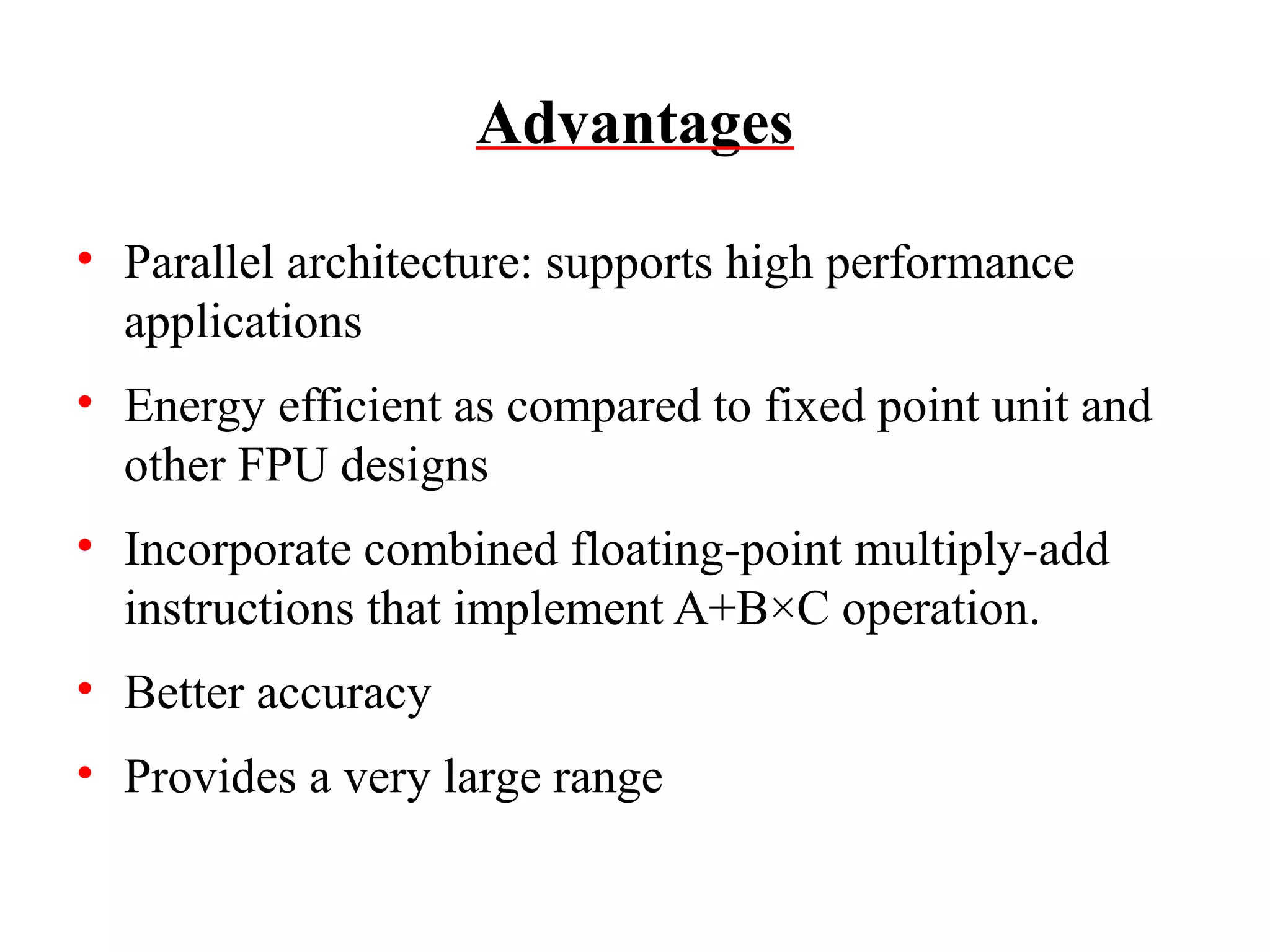

12. Advantages
• Parallel architecture: supports high performance
applications
• Energy efficient as compared to fixed point unit and
other FPU designs
• Incorporate combined floating-point multiply-add
instructions that implement A+B×C operation.
• Better accuracy
• Provides a very large range

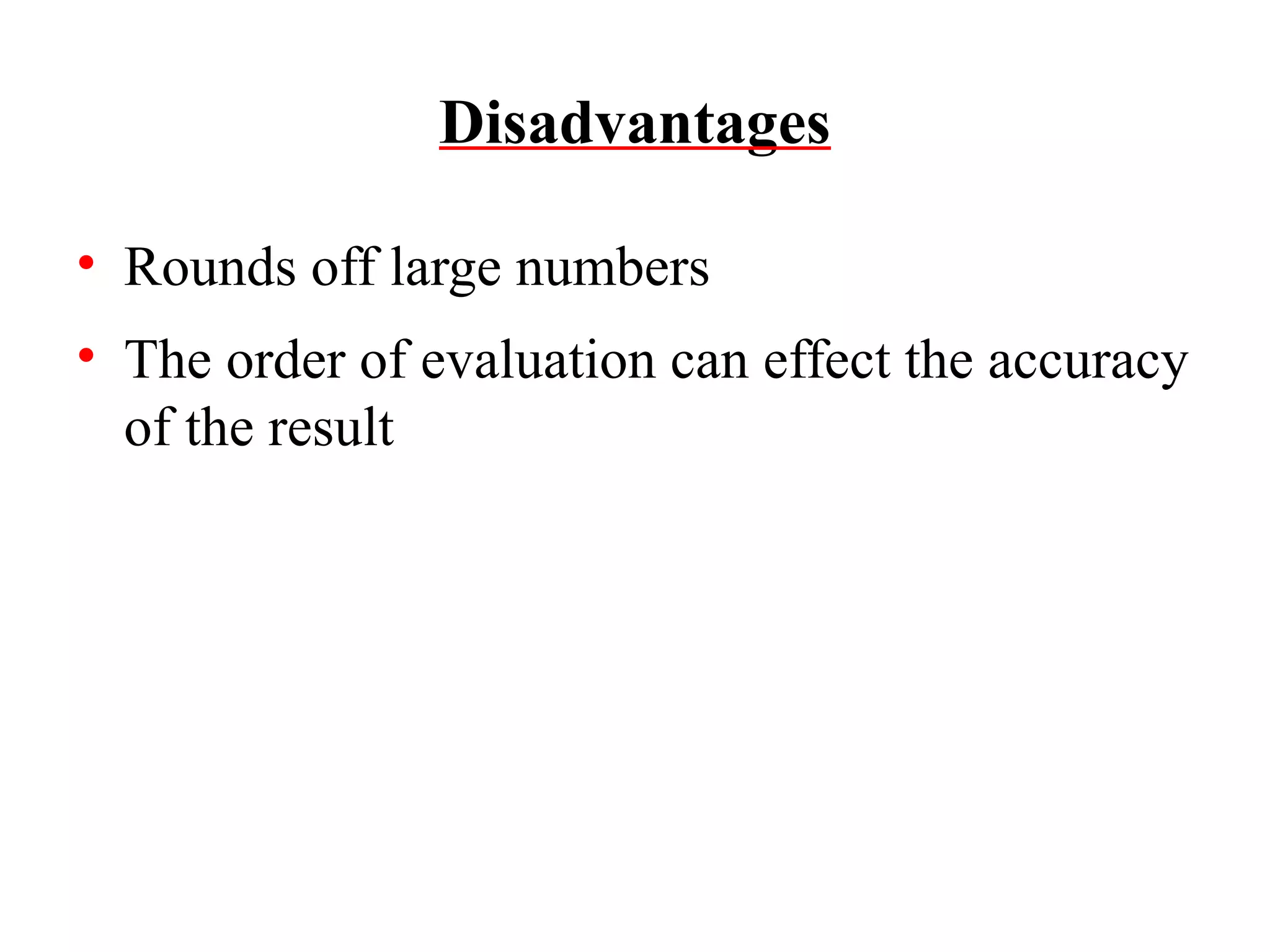

13. Disadvantages
• Rounds off large numbers
• The order of evaluation can effect the accuracy
of the result

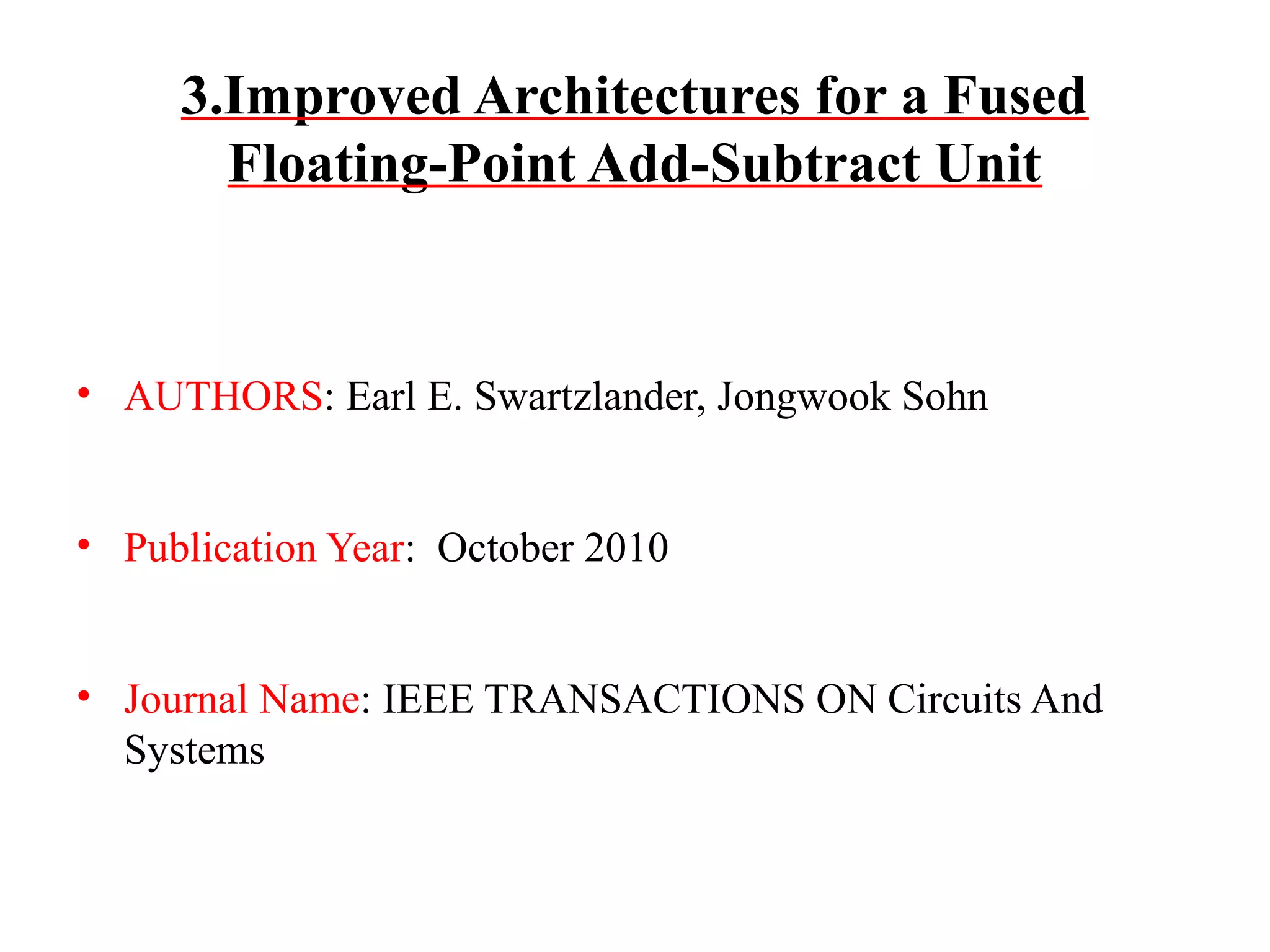

14. 3.Improved Architectures for a Fused
Floating-Point Add-Subtract Unit
• AUTHORS: Earl E. Swartzlander, Jongwook Sohn
• Publication Year: October 2010
• Journal Name: IEEE TRANSACTIONS ON Circuits And
Systems

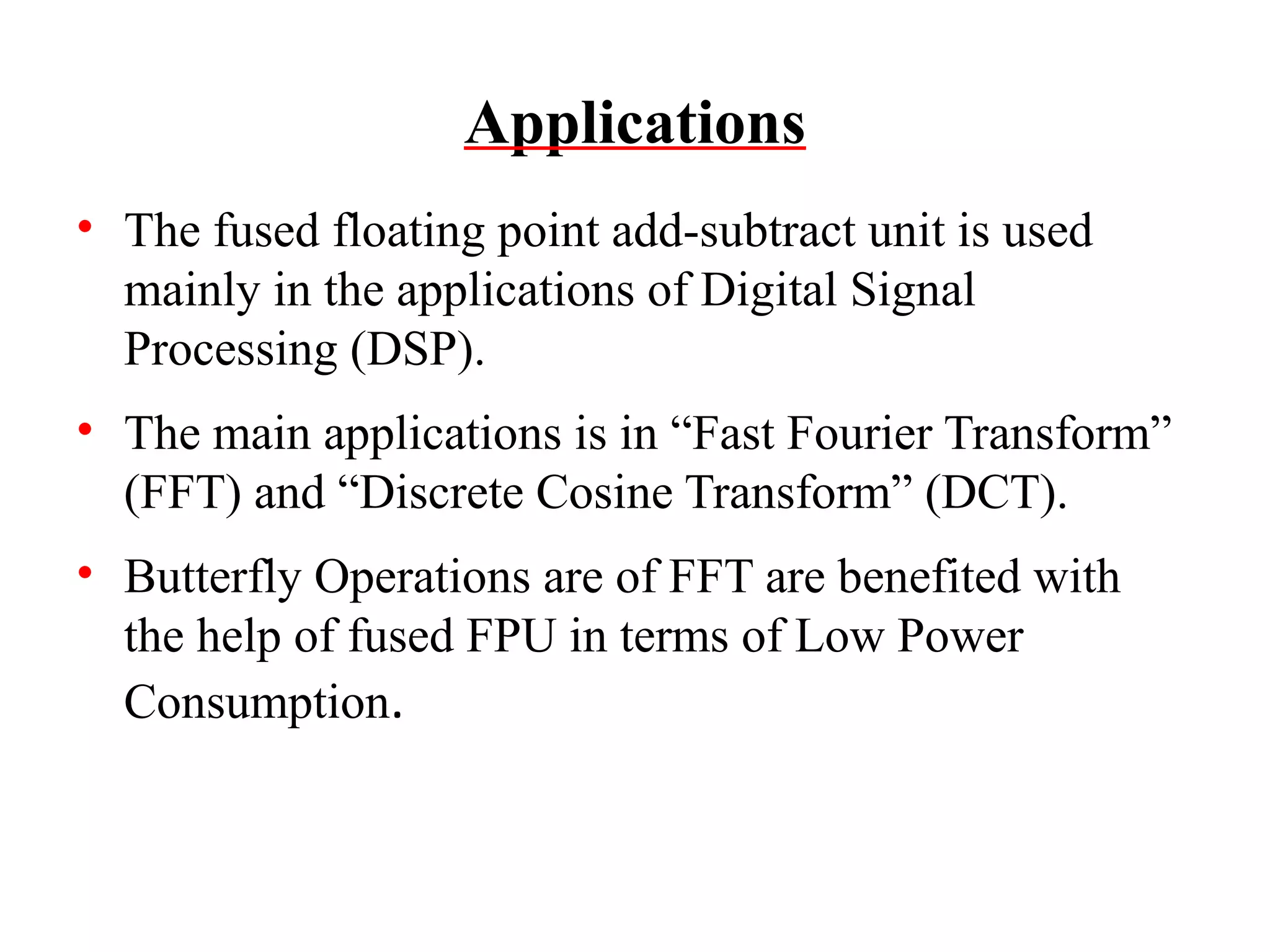

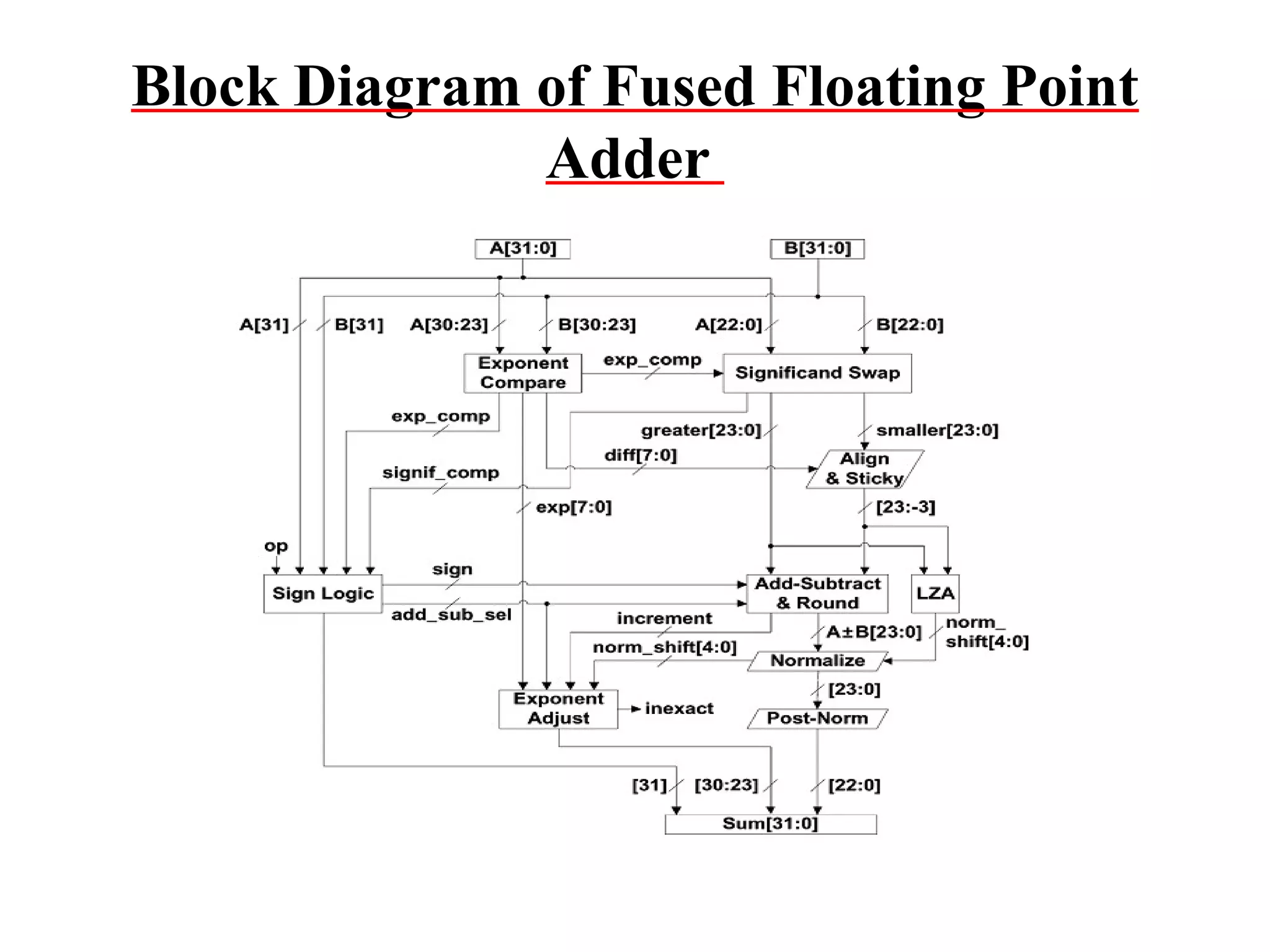

16. Applications
• The fused floating point add-subtract unit is used
mainly in the applications of Digital Signal
Processing (DSP).
• The main applications is in “Fast Fourier Transform”
(FFT) and “Discrete Cosine Transform” (DCT).
• Butterfly Operations are of FFT are benefited with
the help of fused FPU in terms of Low Power
Consumption.
17. Advantages and Disadvantages
• Highly optimized design for low power applications
in DSP field.
• Higher speed of computation due to fused
architecture.
• Design complexity is high.
• Very costly and difficult to implement.

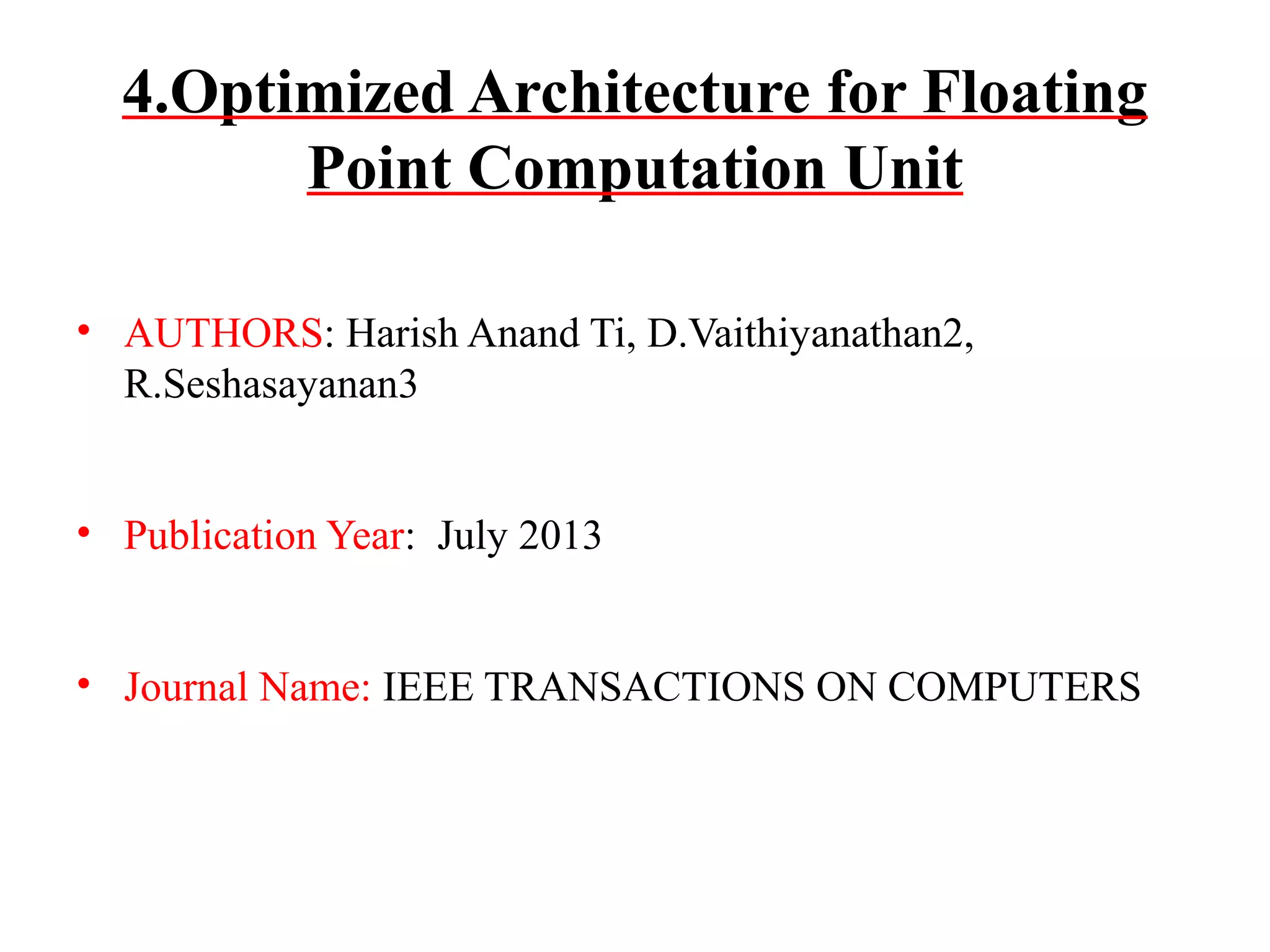

18. 4.Optimized Architecture for Floating
Point Computation Unit
• AUTHORS: Harish Anand Ti, D.Vaithiyanathan2,
R.Seshasayanan3
• Publication Year: July 2013
• Journal Name: IEEE TRANSACTIONS ON COMPUTERS

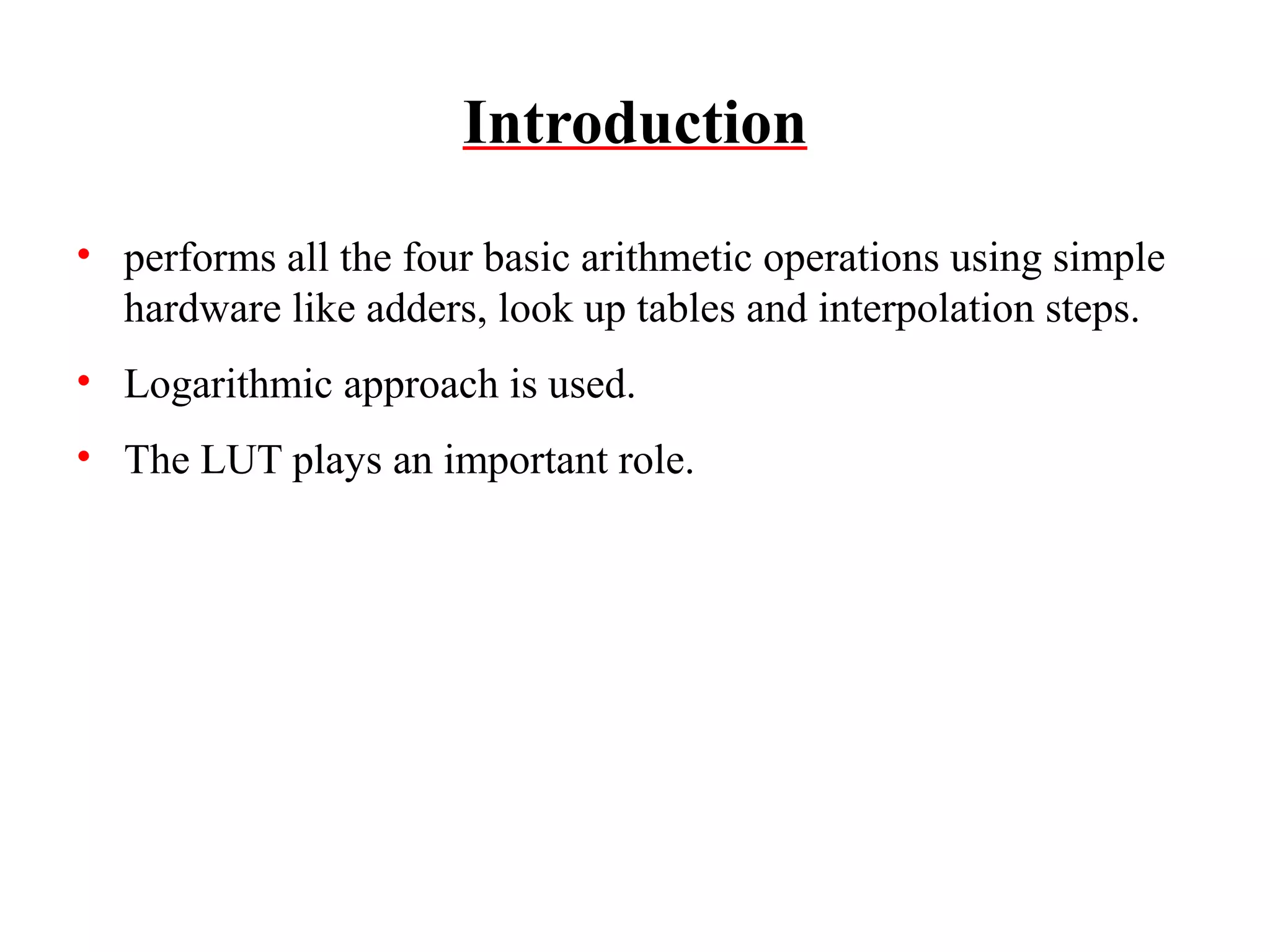

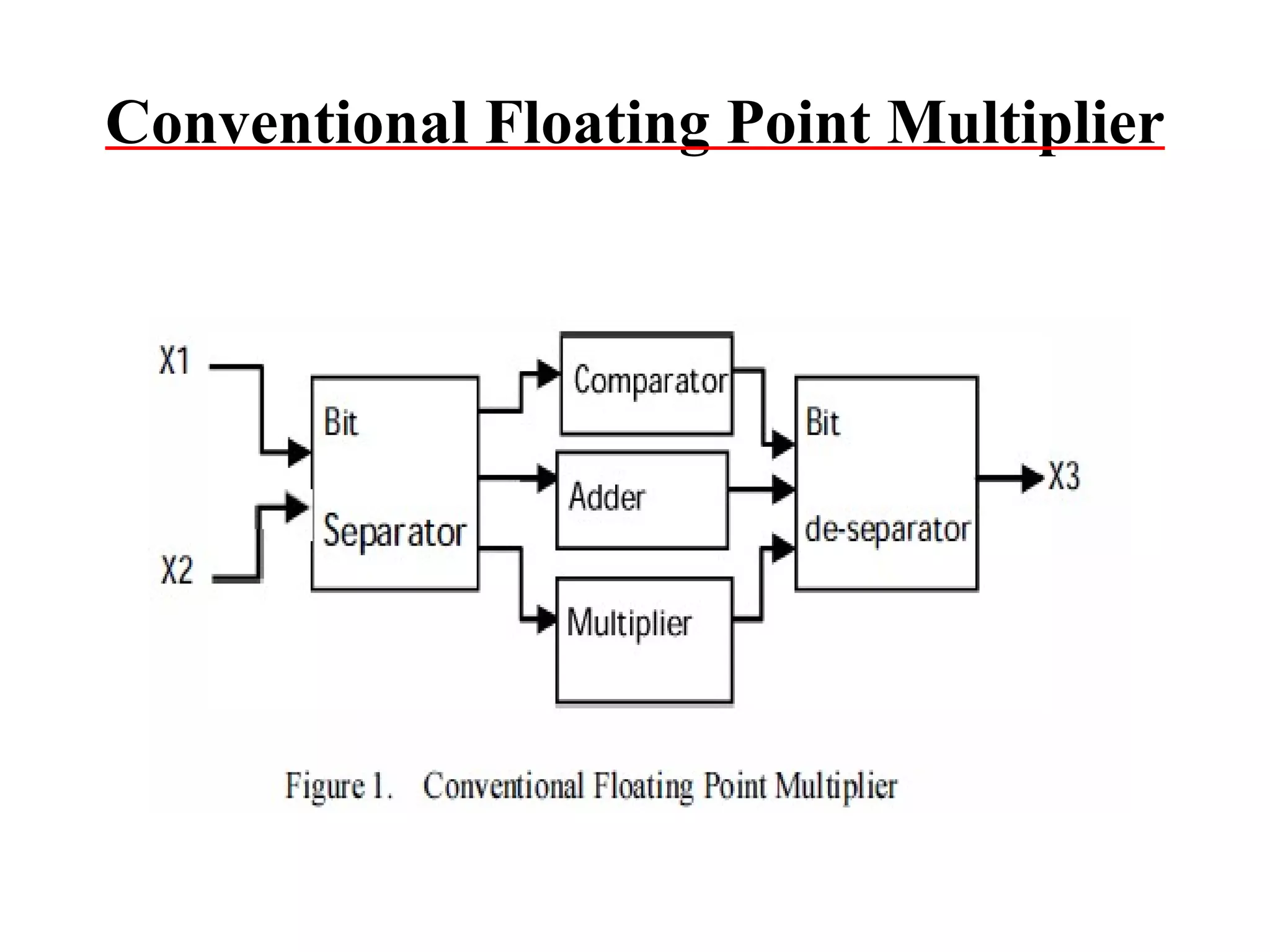

19. Introduction
• performs all the four basic arithmetic operations using simple
hardware like adders, look up tables and interpolation steps.
• Logarithmic approach is used.
• The LUT plays an important role.

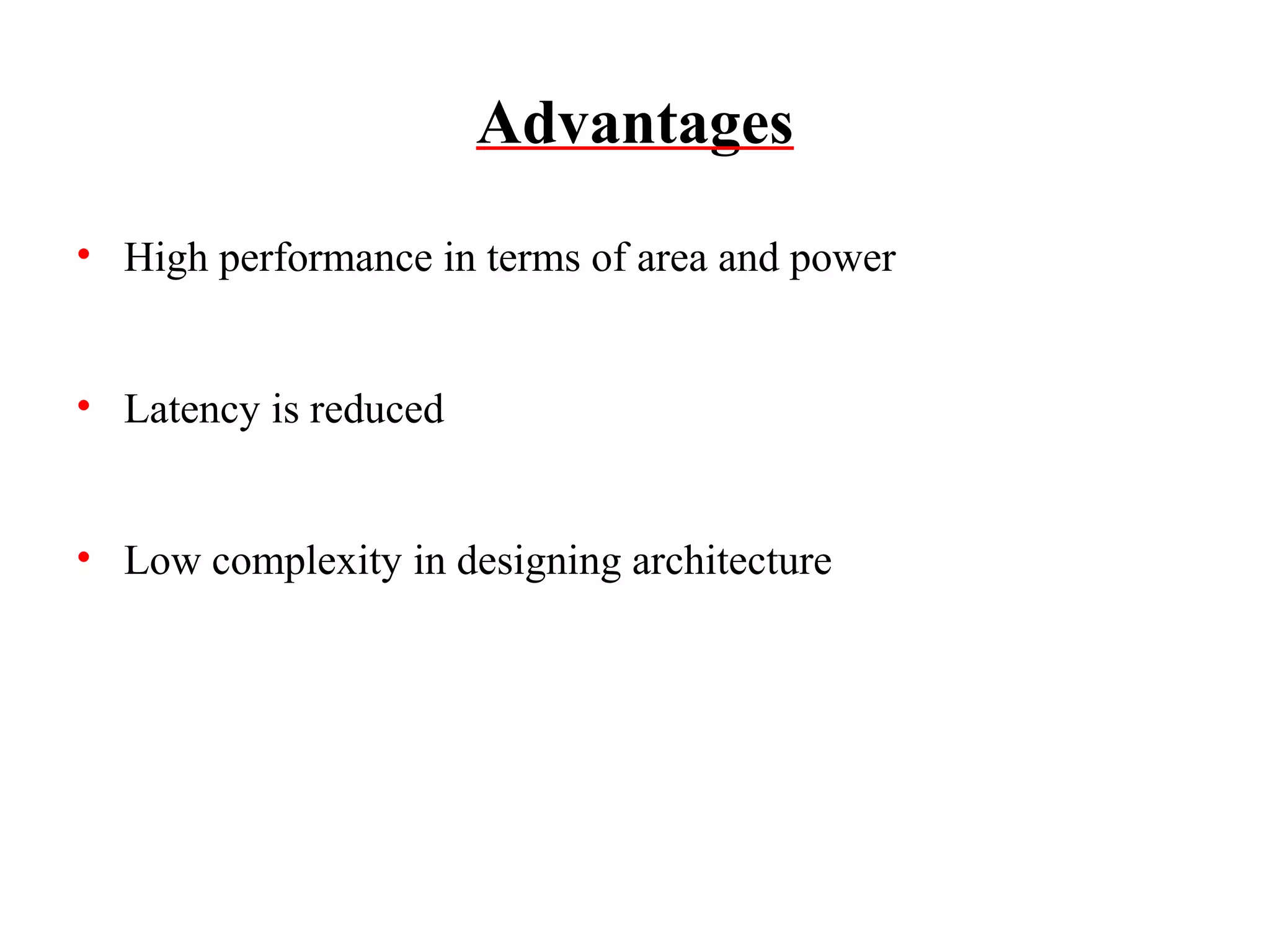

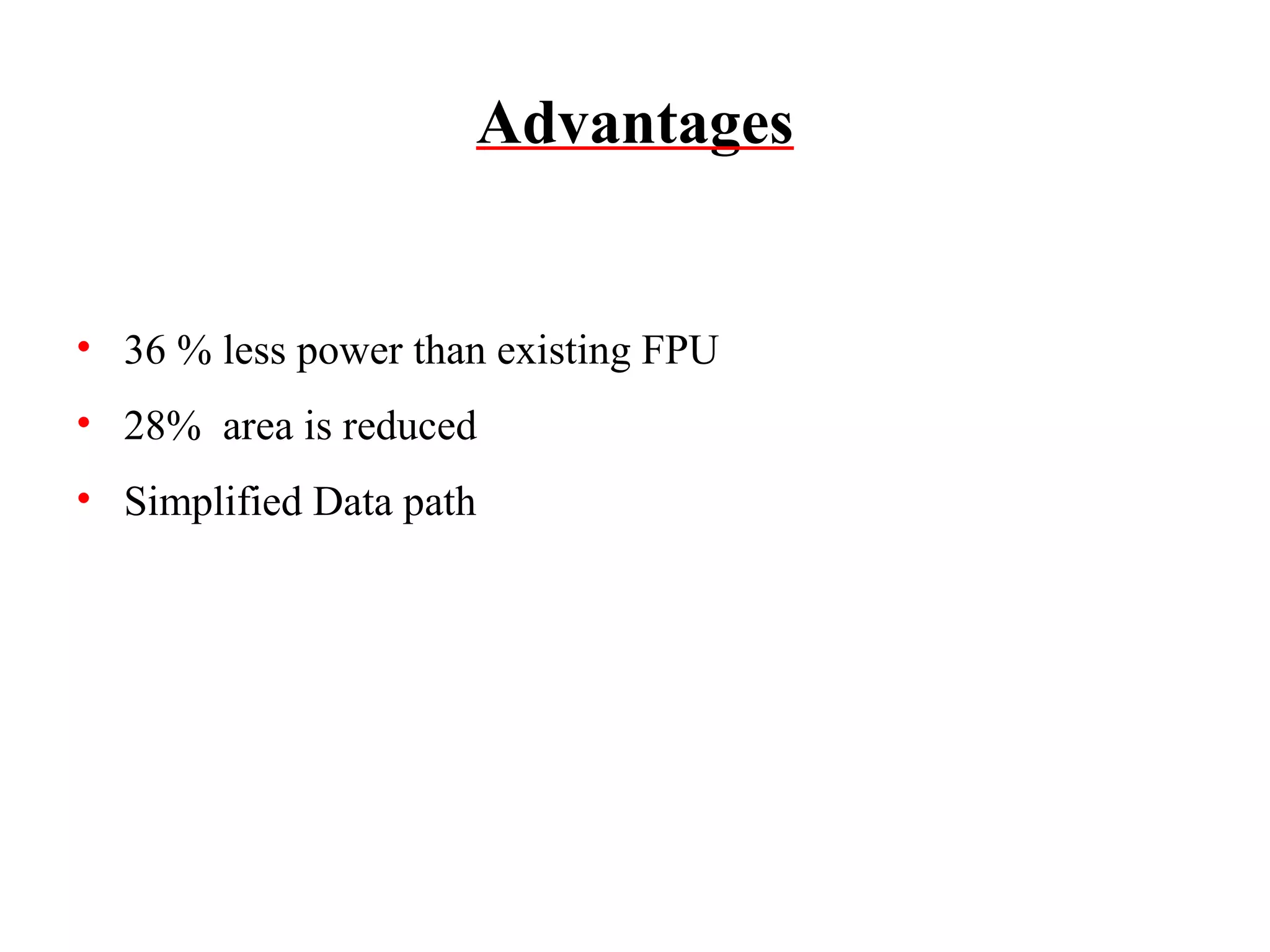

26. Advantages
• High performance in terms of area and power
• Latency is reduced
• Low complexity in designing architecture

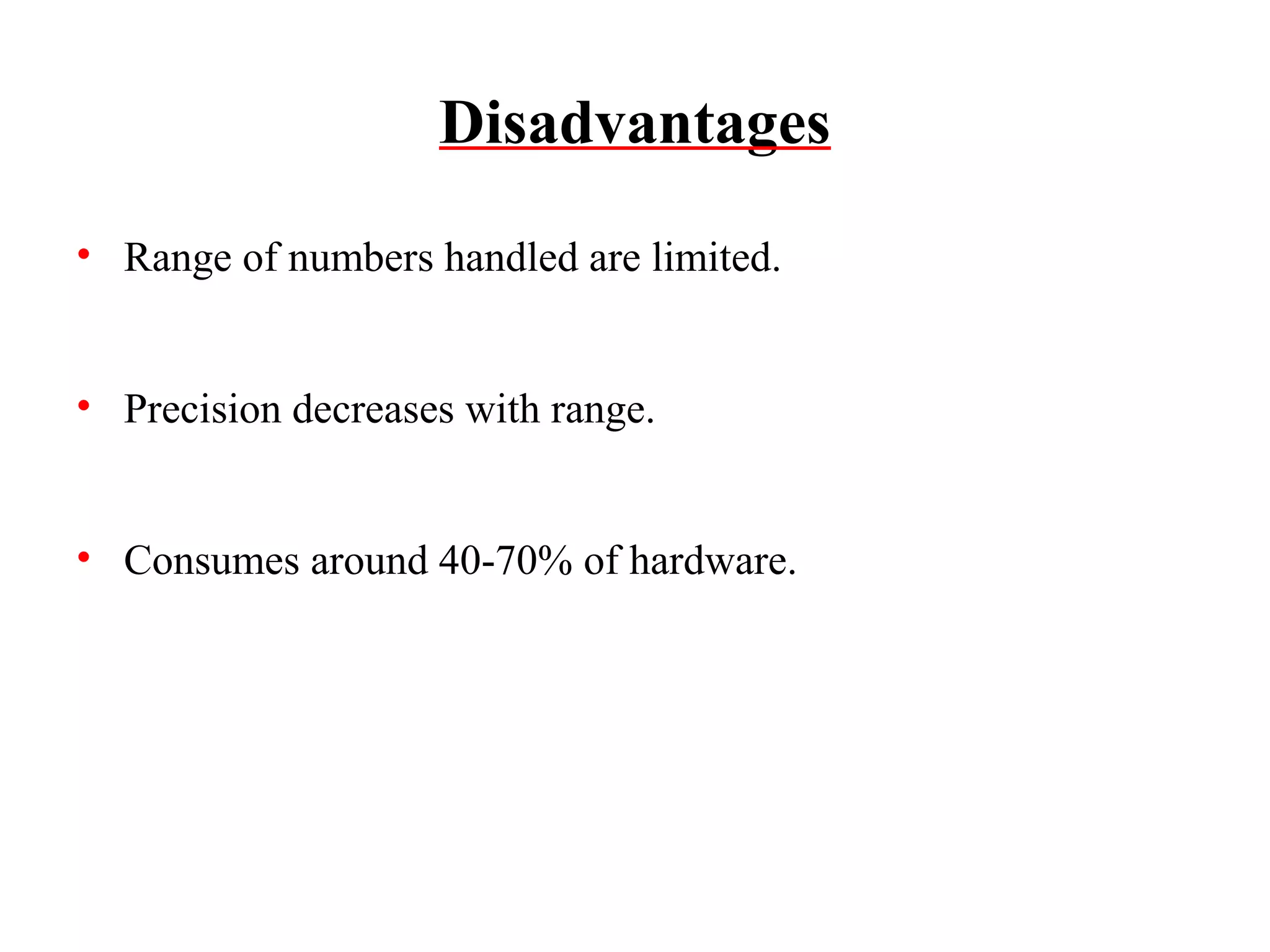

27. Disadvantages
• Range of numbers handled are limited.
• Precision decreases with range.
• Consumes around 40-70% of hardware.

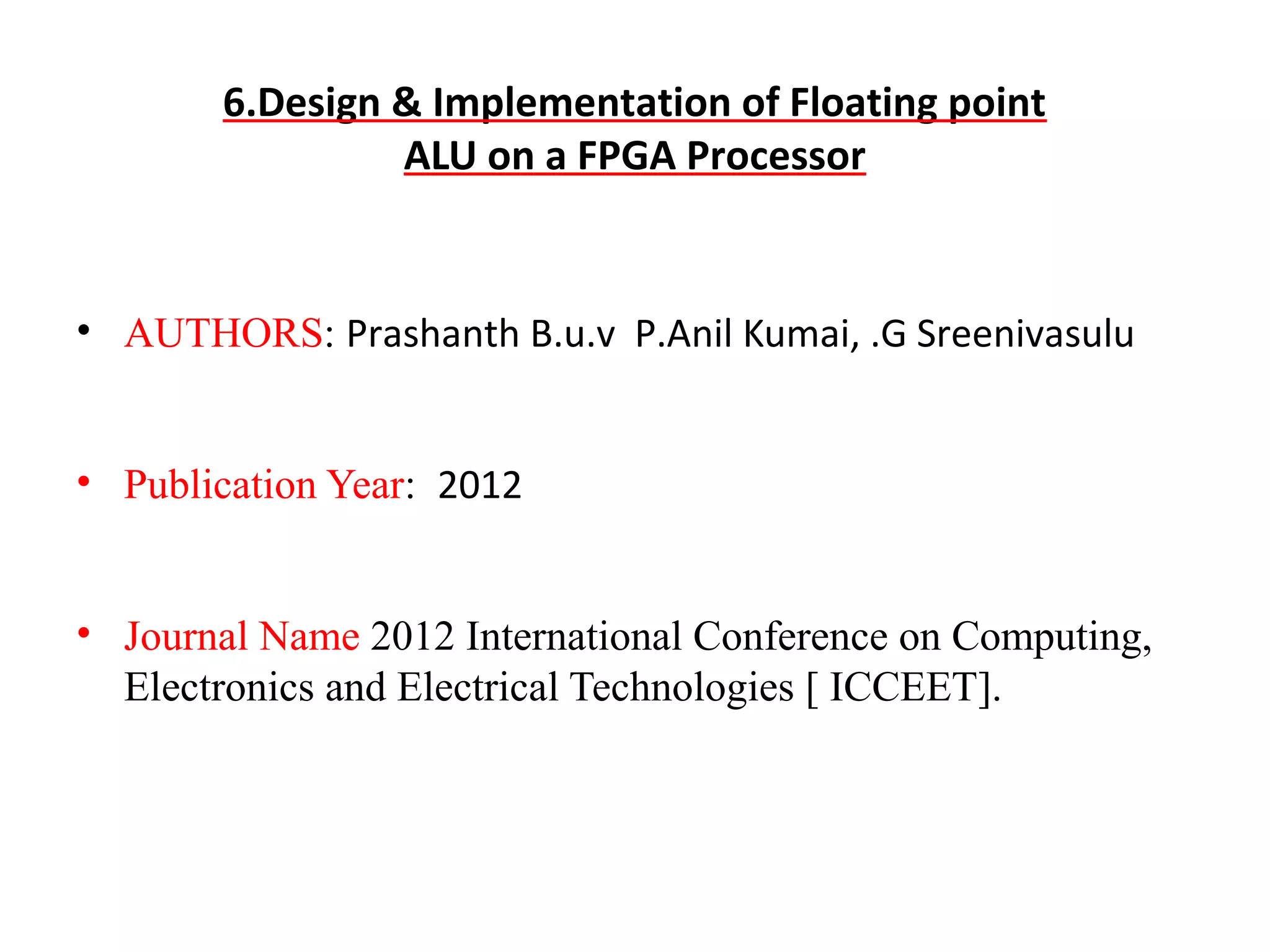

28. 6.Design & Implementation of Floating point
ALU on a FPGA Processor
• AUTHORS: Prashanth B.u.v P.Anil Kumai, .G Sreenivasulu
• Publication Year: 2012
• Journal Name 2012 International Conference on Computing,
Electronics and Electrical Technologies [ ICCEET].

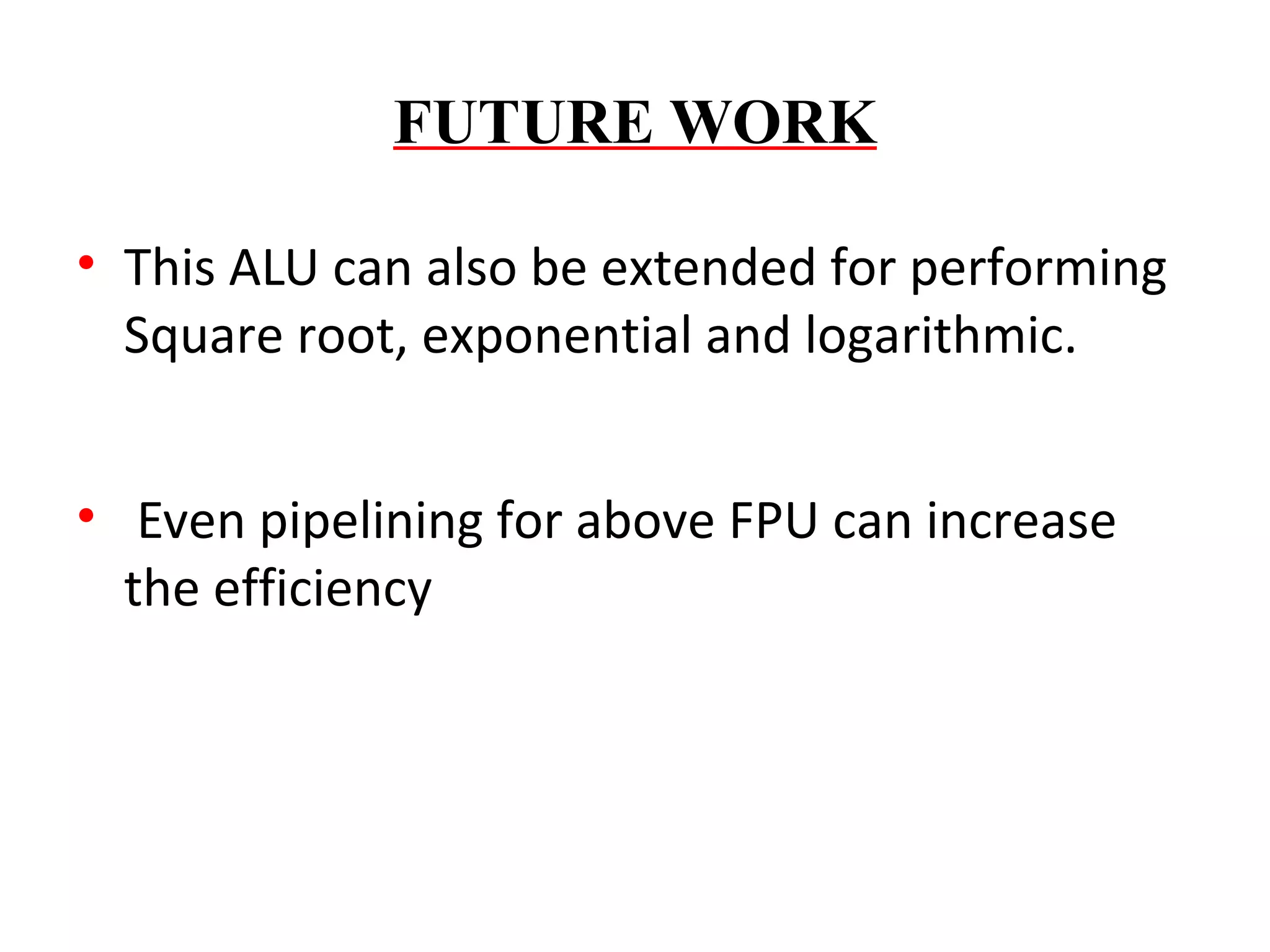

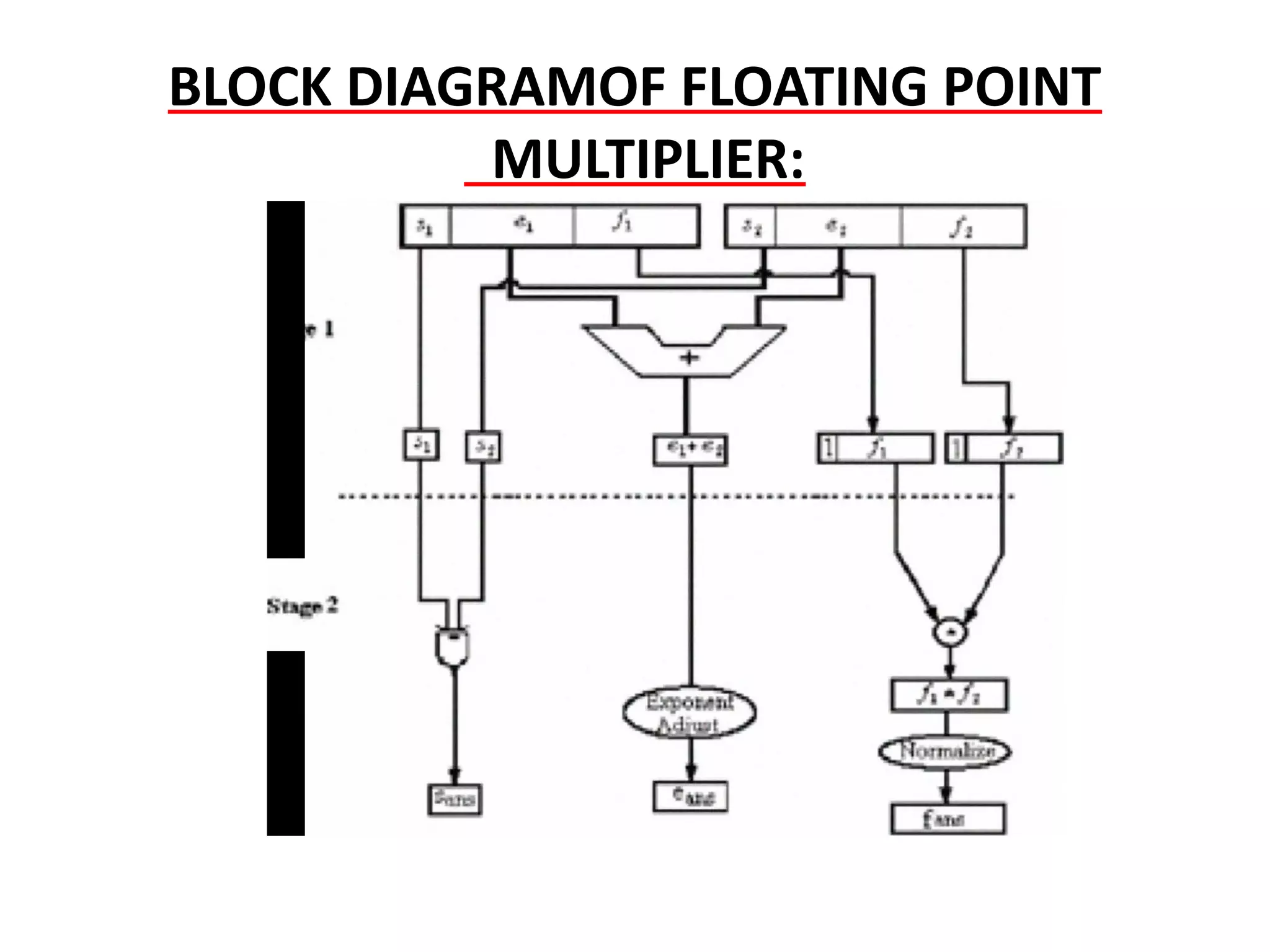

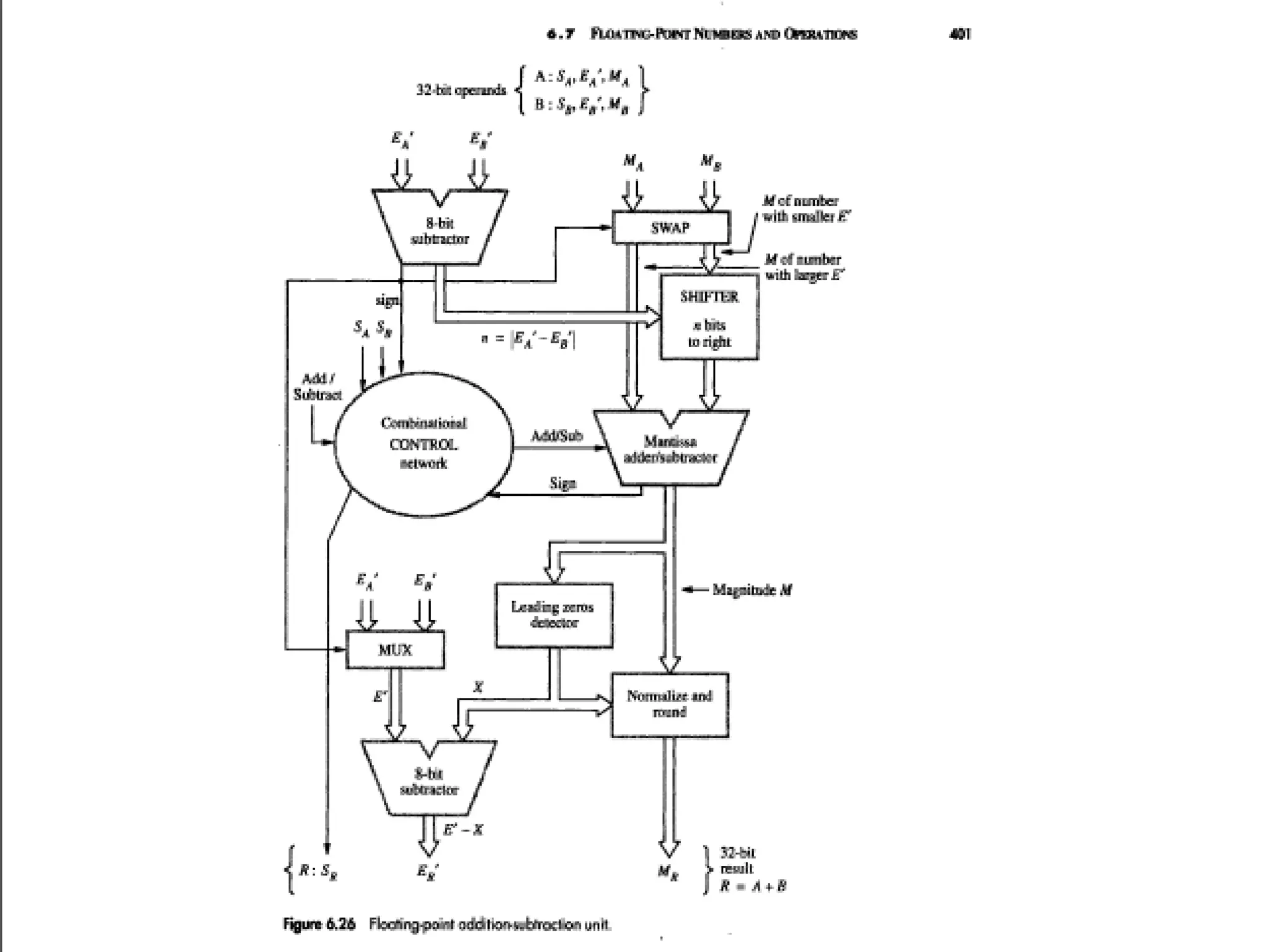

31. FUTURE WORK
• This ALU can also be extended for performing
Square root, exponential and logarithmic.
• Even pipelining for above FPU can increase
the efficiency

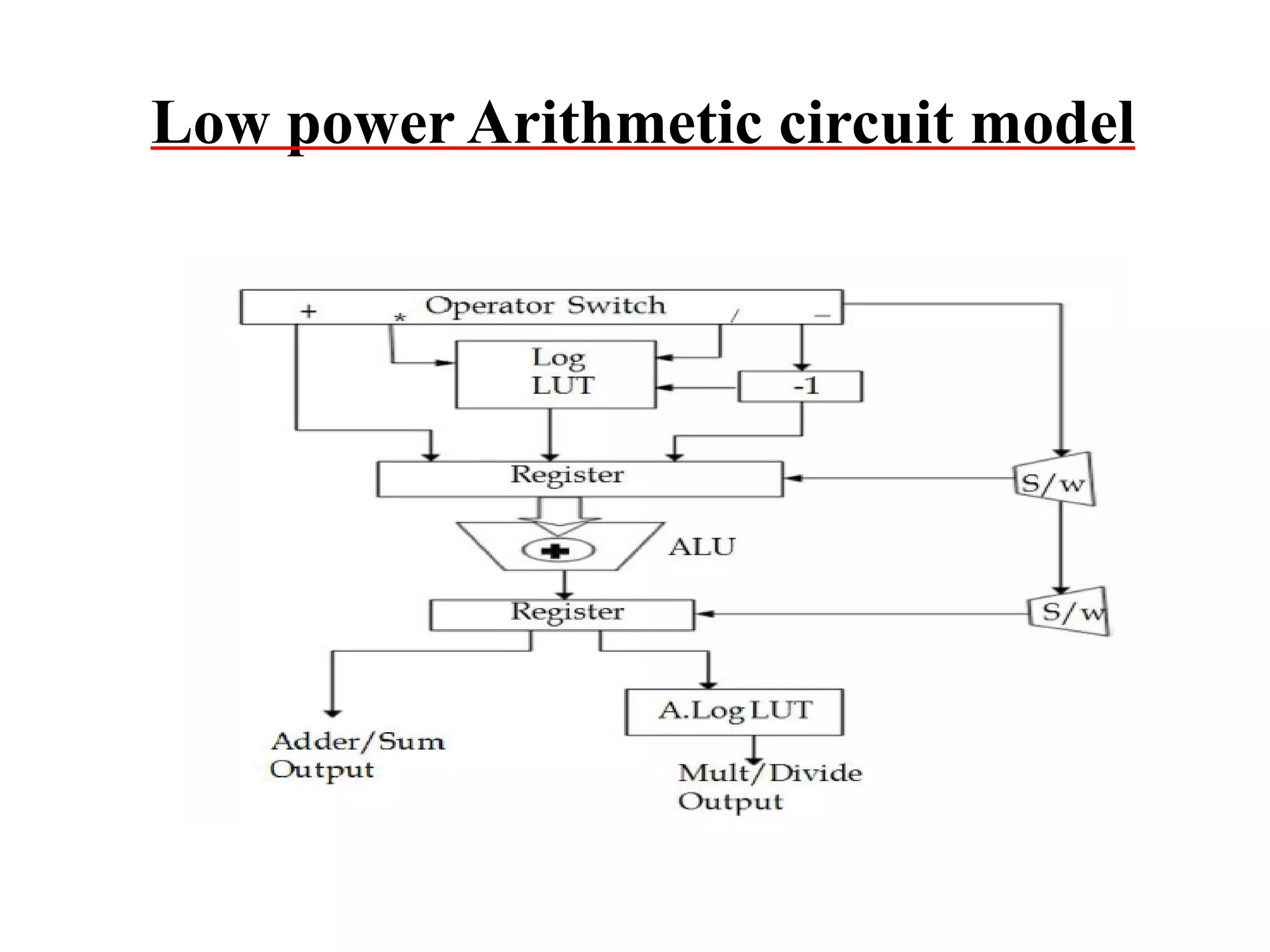

Numerical transformation to logarithmic domain and reduced the overall computation burden.
The LUT's size used is also have a major impact in the
performance of the model, as the whole multiplication
architecture barely depends on logarithmic principles size of
log values stored in the LUTs determines the accuracy of the
result. As given in [3]
<number>
<number>
the model to completely immune to unwanted glitches and
toggles .
Datapath is also one of the main factor that influence the
power consumption in the circuitry
<number>
