INTRODUCTION
MICHAEL HAMMOND ENGINEERING CO. LTD. was incorporated in 1974 as a
wholly indigenous company engaged in the supply, installation and maintenance of
a wide range of mechanical and electrical equipment.
Most of the equipment supplied and maintained by us are protective and
preventive in nature giving added lifespan to our customers’ investments. For
example, UNINTERRUPTIBLE POWER SUPPLY SYSTEMS and CLOSE
CONTROL AIRCONDITIONING, protect computers against power outages and
prevent them from environmental hazards, while STABILISERS protect sensitive
electronic equipment from the dangers of power variations.
This is why in the early Eighties we started to propagate the idea of providing
FIRE PROTECTION to our customers, to protect them and their investments
against the dangers of FIRES.

Syed Najaf Ali
We believe that FIRE PROTECTION has been one of the most neglected areas
of safety in Nigeria, and we have aligned ourselves with the global leaders in
this field CHEMETRON FIRE SYSTEMS, this is in order to provide our customers
with high quality products and services that are both efficient and cost
effective.

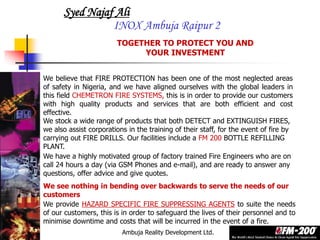

TOGETHER TO PROTECT YOU AND
YOUR INVESTMENT
We provide HAZARD SPECIFIC FIRE SUPPRESSING AGENTS to suite the needs
of our customers, this is in order to safeguard the lives of their personnel and to
minimise downtime and costs that will be incurred in the event of a fire.
We stock a wide range of products that both DETECT and EXTINGUISH FIRES,
we also assist corporations in the training of their staff, for the event of fire by
carrying out FIRE DRILLS. Our facilities include a FM 200 BOTTLE REFILLING
PLANT.
We have a highly motivated group of factory trained Fire Engineers who are on
call 24 hours a day (via GSM Phones and e-mail), and are ready to answer any
questions, offer advice and give quotes.
We see nothing in bending over backwards to serve the needs of our
customers

Syed Najaf Ali
EXTINGUISHING AGENTS
Volume of the room or area
Cause/ Nature of the fire
Contents of area (Flammable objects or materials)
The number of occupants of area
Some agents like Halon 1301 (banned in Montreal Protocol) are toxic to humans,
have adverse effects on the Ozone layer and leave residues that are damaging to
equipment and machinery. Also, conformity with international safety standards
like the Montreal Protocol, NFPA 2001 and ISO 14520 have to be made, and
taken into consideration before an appropriate agent can be chosen.
Extinguishing Agents are the gases used to put out fires. Specific agents will be
required for specific hazards, and in order for it to be completely effective
extinguishing agent must-
cause minimal or no damage to any equipment within the hazard area
not have any ill effects on personnel
put out the fire in a minimal amount of time (10 seconds)
The extinguishing agent depending on the following variables:

Syed Najaf Ali
EXTINGUISHING AGENTS
There are 3 Agents that conform to International Fire Safety Standards and that have been
found to be the best extinguishants, they are;
FM 200
Developed as a Halon replacement, it is the most human friendly clean agent fire protection
for critical facilities. We have designed many systems with FM 200 and our partners Chemetron
have developed an innovative Flow Calculation Software Program to aid us in designing systems
for all applications.
Argonite
Argonite is an inert gas that extinguishes fires based on the principle of oxygen depletion. It
is environmentally acceptable with Zero Ozone Depleting Potential and Zero Global Warming
Potential. There is no residue after discharge and thus not a danger to protected equipment.
Water Mist
Natural, non-toxic and efficient this risk specific agent is a fine spray mist that offers
effective protection without the deluge and damage of traditional water based systems.

Syed Najaf Ali
ARGONITE
ARGONITE is an inert gas that extinguishes fire based on the principle of oxygen depletion. In a
closed space almost all fires are extinguished in less than 60 seconds when the oxygen
concentration falls below 15%. ARGONITE reduces the oxygen concentration to approximately
12.5%, an acceptable level for human exposure over short periods of time.
ARGONITE extinguishes fire by physically removing oxygen from the atmosphere. In occupied
areas, people can breathe ARGONITE at extinguishing concentrations without fear. There are no
toxicological factors associated with the use of ARGONITE and ARGONITE will not decompose or
produce any by-products when exposed to a flame from a fire condition. It is environmentally
neutral, having zero ozone depletion potential (ODP) and zero global warming potential (GWP).
WORLDWIDE APPLICATIONS
Petrochemical Installations
Blast Furnace Hydraulic Cellar
Electrical Rooms
Telecommunications Facilities
Pharmaceutical & Medical Facilities
Document Records & Storage Areas
Electronics and Data Processing Equipment
Computer Operations
This alternative is inadequate for your needs due to excessive costs, space
constraints and slow extinguishing times.

Syed Najaf Ali
WATER MIST
The Chemetron Water Mist System features uniquely designed nozzles offering optimum droplet size, flow rates
and spray coverage, other features include;
Single Fluid Atomization, No moving parts in nozzle for maximum reliability, 350psi operating pressure at nozzle.
Stand Alone Systems
Fine Controlled Spray
Short Spray Duration
Little water used
Vs
Pumped Water System
Coarse/ Crude Spray
Long Spray Duration
Excessive Water Utilisation
Gas Turbines Machinery Spaces Steam Turbine Generator Bearings
The benefits of the Water Mist system include: Non-toxicity to human personnel, High rate off efficiency, Manual
or Automatic operation, Hazard Specific Discharge Timing sequences, Low Level Water Annunciation, Low
Nitrogen Pressure Annunciation.
WATER MIST SPRINKLERS
This alternative is inadequate for your needs due to the nature of your fire hazards
(Petrochemical), space constraints and damage that will be done to any mechanical
or electrcal equipment in the protected area.

Syed Najaf Ali
FM 200
FM-200 extinguishes fire via a combination of chemically-based fire inhibition and
cooling. It is environmentally acceptable, safe to use with sensitive equipment, fast-
acting, efficient and effective. Developed as a Halon replacement, FM-200 has been
selected by us as the best people-compatible, clean agent fire protection material
for vital facilities.
Computer Operations
Telecommunication Facilities
Refineries and Petrochemical
Installations
Control Rooms
Universities and Museums
Record & Storage Facilities
Pharmaceutical & Medical Facilities
Electronics & Data Processing Equipment
Chemetron FM-200 Fire Suppression Systems work hand-in-hand with state-of-the-
art control and detection components to identify and extinguish fires, long before
substantial fire damage can occur (10 seconds). Without expensive control panels
or detection systems, a unique system can be designed or an existing system
retrofitted to FM-200.

Syed Najaf Ali
WHY FM 200 IS THE BEST ALTERNATIVE TO HALON 1301
The FM-200 Fire Extinguishant was SPECIFICALLY developed as a replacement for
Halon 1301 and like Halon 1301, FM-200:
•Is delivered as a gas through a network of
pipes.
•Has the same rapid discharge time.
•Offers an improved safety profile.
•Leaves you ready to start operations minutes
after the fire.
Depending upon your unique hazard requirements, retrofitting an existing Halon system may
require anywhere from minor modifications to installing a fully integrated FM-200 suppression
system.
Today more than ever, people around the world are concerned with the effects of humankind on
our earth. FM-200 systems provide a cost effective solution to replacing ozone-depleting
Halon1301 with a fast, safe, and effective fire-fighting agent.
This retrofit capability grows more important as governments around the world
increasingly ban the sale and use of Halon.
•Efficiently stores as a liquid requiring minimal
floor space.
•Performs within the same enclosure design as
Halon 1301.
•Requires no expensive renovations to existing
rooms.

Syed Najaf Ali
ADVANTAGES OF FM 200 OVER OTHER AGENTS
The FM-200 fire extinguishing agent is suitable for protecting high-value and mission-critical assets
against most classifications of fire including;
•Ordinary combustible materials, such as wood, cloth, paper, rubber, and
many plastics. These materials are often referred to as Class A fires.
•Flammable and combustible liquids and gases such as gasoline, oil,
lacquers, paints, mineral spirits, and alcohols. FM-200 extinguishing
concentrations for these fuels are specific and unique to each individual
product.
•Energized electrical equipment. FM-200 is non-conductive making it safe
for use with live electrical equipment. Current international standards
recommend de-energizing high voltage circuits on agent discharge.
FM-200 has no Ozone Depletion Potential. Its ODP is zero. FM-200 has been found by leading
toxicologists to be safe for use when people are present. Unlike Halon 1301, people can be
exposed to normal extinguishing concentrations of FM 200 without any fear of health problems.

Syed Najaf Ali
FM 200 was designed as replacement for Halon systems, therefore keeping installation costs down, as
FM 200 systems can easily be incorporated in existing Halon systems.
A key advantage for the FM-200 extinguishing agent system is the small cylinder storage space
requirement. Floor space in critical sites is usually at a premium and, in some applications, such as
Refineries, Offshore Oil Platforms, Marine Vessels and Small Electronic Facilities, SPACE, WEIGHT, and
STORAGE CAPABILITY IS EXTREMELY LIMITED.
FM-200 is an active fire-fighting agent, requiring only a small quantity of agent to effectively stop the
fire. Most ordinary combustible fires are quickly extinguished with concentrations of only 7% of the
gas, by volume. Additionally, the FM-200 extinguishing agent is stored in the cylinders as a liquid.
Fact: no other commercially available fire suppression system works faster to extinguish fires (in
times of less than 10 seconds) than an FM-200 systems. In performance tests and real-world
applications across the globe, FM-200 fire suppressant has proven its effectiveness:
•Extinguishes ordinary combustible, electrical, flammable liquid and gas fires
•Stops fire without causing collateral damage to equipment, data or other
valuable items
•Approved and accepted by governments, health and safety organizations, and
performance monitoring agencies around the world

Syed Najaf Ali
This saves substantial storage space. Other gaseous fire suppression solutions require much higher
design concentrations, up to 40% by volume. Some agents, such as Argonite, cannot be effectively
stored as a liquid. These agents are stored as high pressure compressed gases and can require up
to seven times the storage space of an FM-200 system.

Syed Najaf Ali
UNSEEN DANGERS
FM 200 has no hazardous physio-chemical properties or health effects and it meets
all criteria laid down by Chemical (Hazard Information and Packaging) Regulations
1993.
Unlike Halon 1301, FM 200 has no long term physiological effects on the occupants of the
protected area, during and after flooding.
Occupants who inhale FM 200 will only need to be brought into fresh air, unlike exposure to
Halon 1301, which requires special medical attention to ventilate the lungs.
Eye contact with FM 200 requires the eyes to be simply rinsed with water for 10 – 15 minutes,
and because there in no chlorine in FM 200 there is no pain associated with exposure to it.
A combination of soap and water is all that is needed if FM 200 comes in contact with the skin.
The chemical properties of Halon 1301, make exposure to it dangerous if inhaled for prolonged
periods occupants will lose consciousness due to asphyxiation (suffocation), experience skin
irritations, and severe pain in the eyes.

Syed Najaf Ali
In tests the acute toxity of Fm 200 has been evaluated and approved by the United States Protection
Agency, as a total flooding agent in occupied spaces.
FM 200 is clean, it leaves no residue thereby cutting down after fire cleanup costs and keeps
down time to minimum. Most materials such as steel, stainless steel, aluminum, brass and other
metals as well as plastics, rubber and electronic components are unaffected by exposure to FM
200.
AN FM 200 SUPPRESSION SYSTEM IN ACTION

Syed Najaf Ali
DETECTION AND SUPPRESSION HARDWARE
Any efficient Fire Detection and Suppression System depends not only on the
Extinguishing Agent but also on the right combination of Fire panels, Smoke or Heat
Detectors, Fire Sensors and Accessories.
Alerting personnel in the event of a fire is also important and is a mandatory statute
in the industries safety standards, hence the need for Strobes, Sirens and Alarm
bells; these as well as strategically placed Manual Extinguishers, Fire Axes and
Fluorescent signs are what make up a COMPREHENSIVE FIRE PROTECTION
SYSTEM.
The smaller the time interval the better, that is why we stock only the most effective,
minimal error sensors and detectors available in the industry.
These are the controls of the system and in essence they are the brains while the
agent is the brawn behind the system. The time interval between the start of the fire
and the detection of the fire will determine how fast the fire can be extinguished and
how much equipment (if any) will be destroyed before the fire is put out.
Smoke Detector
Fire Panel
Heat Sensor
Accessory:
Manual Alarm Pull

Syed Najaf Ali
DETECTION AND SUPPRESSION HARDWARE
Fire Alarm Control Panels, Digital / Analogue Addresable Panels
Ionisation Smoke Detectors Duct Mounting Kits
Rate of Heat Rise Detectors Analogue Fire Sensors
Optical Smoke Detectors Callpoints
Combustable Gas Detectors Alarm Bells
Even the best fire-fighting agent is ineffective without the right detection package. FM-
200 fast agent discharge, combined with early fire detection, provides maximum asset
protection and limits the production of combustion and decomposition products.

In a typical system the extinguishing agent is typically stored in cylinders or spheres. It is delivered
to distribution nozzles through a system piping network.
Syed Najaf Ali
FM 200 INSTALLLATIONS
Assembling all the components together into a workable system optimized for your facility is the
work of trained fire protection engineers.
FM 200 Installed by Michael
Hammond Eng. at PETRODATA
MANAGEMENT SERVICES, Oregun,
Lagos State

Syed Najaf Ali
For an FM 200 to be comprehensively effective a thorough test for leakages known as
an ENCLOSURE INTEGRITY TEST must be carried out. It is this that will determine if,
when the FM 200 is released, it will either escape through minute holes in the wall,
open or cracked windows, gaps in raised floor or false ceiling installations or will
perform its function and extinguish the fire within the design time.
In the late 1980's enclosure integrity testing became the standard acceptance
procedure for approving new clean agent installations in lieu of a discharge test..
NFPA 2001 declares, "a discharge test is generally not recommended…" and
establishes a complete procedure for non-discharge approval testing in Appendix C of
the standard.
The enclosure-testing requirement is to locate any significant air leaks that might
result in a failure of the enclosure to hold the agent concentration for the required
amount of time. One benefit of room integrity testing is the ease of periodic re-
testing to determine if adverse changes have occurred in the protected space, a
common occurrence particularly in electronic and data facilities. Periodic testing can
be carried out at your request

It is only after an ENCLOSURE INTEGRITY TEST that the
amount of FM 200 needed to protect an area can truly be
determined.
Also periodical tests must be carried out to determine
whether any changes may have occurred, that would affect
the extinguishing capabilities of the FM 200 system.
The FM 200 design engineers must be consulted about any
renovations about to be made within a protected area, this
will enable them to adapt the FM 200 system to suit the
needs of the renovated area, after appropriate integrity tests
have been carried out.
Syed Najaf Ali
Integrity testing generally involves the use of a door fan and
computer to predict the retention time of the enclosure
FM 200 ENCLOSURE INTEGRITY TEST KIT
BEING USED AT CENTRAL BANK, LAGOS.

Syed Najaf Ali
FM 200 CYLINDERS
DETECTORS/
SENSORS
FIRE CONTROL
PANEL
DISCHARGE NOZZLES
BASIC FM 200 INSTALLATION
ELECTRICAL PIPEWORK
FM 200 GAS PIPEWORK
LEGEND

Syed Najaf Ali
A TYPICAL FIRE DETECTION SYSTEM

Syed Najaf Ali
SOME OF OUR SATISFIED CUSTOMERS
CLIENT No. OF KG’S
OF FM 200
LOCATION
PETRODATA MANAGEMENT SERVICES 600 KG MOTORWAYS PLAZA, OREGUN, LAGOS.
MTN LIMITED 150 KG MATORI MTN CUSTOMER SERVICE
CENTRE, ILUPEJU, LAGOS.
STARCOM LIMITED 70 KG LSDPC CELL SITE, LAGOS ISLAND.
STARCOM LIMITED 708 KG EXCHANGE HOUSE, VICTORIA ISLAND,
LAGOS.
AFRICAN INTERNATIONAL BANK 620 KG AIB HOUSE, VICTORIA ISLAND, LAGOS.
STANBIC MERCHANT BANK 400 KG IKOYI, LAGOS.
CENTRAL BANK 552 KG LAGOS ISLAND, LAGOS.
ZENITH INTERNATIONAL BANK 150 KG VICTORIA ISLAND, LAGOS.

At Michael Hammond Eng. our engineering group will design your system, prepare shop drawings,
flow and battery calculations, and provide you with the hard data you need to rest assured in the
confidence of a well designed fire protection system that possess the following features;
Broad Spectrum of Fire
Effectiveness
Safe for the Planet
Space Efficient
Syed Najaf Ali
CONCLUSION
Clean agent Decision criteria
Clean
Economical & Effective
Fast Acting
Ability to Retrofit Halon Systems
Commercially Available
Long-term Availability
Safe for People

Fire safety FM 200

More Related Content

What's hot

Similar to Fire safety FM 200

More from Er. EHS & Fire Advocate -Syed Ali

Recently uploaded

Fire safety FM 200
