This document provides an overview of fire protection recommendations for a thermal power plant. It identifies various areas of the plant and their associated fire risks. Recommendations are provided for both automatic and manual fire suppression systems in each area, including the coal yard, coal conveyor, boiler, turbine, cable gallery, electrical panel, central control room, transformer, lube oil tank, and switchyard. Detection methods and extinguishing agents are suggested based on the class of fire risk. The document also recommends an early warning manual call point fire alarm system, portable extinguishers, and water hydrant systems to provide common fire protection across the entire plant. Drawings, calculations and cost estimates would be prepared as part of the survey,

1. MOORTHY ASSOCIATES
(MOOVSEN)
Submitted By
MOORTHY OVSN

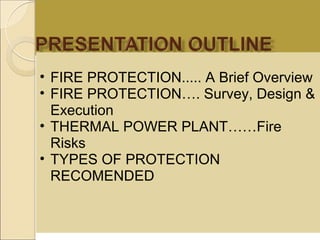

2. • FIRE PROTECTION..... A Brief Overview
• FIRE PROTECTION…. Survey, Design &
Execution
• THERMAL POWER PLANT……Fire
Risks
• TYPES OF PROTECTION
RECOMENDED

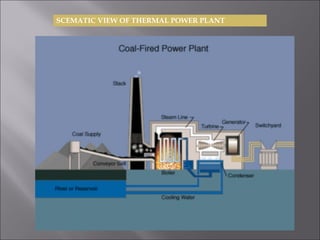

3. SCEMATIC VIEW OF THERMAL POWER PLANT

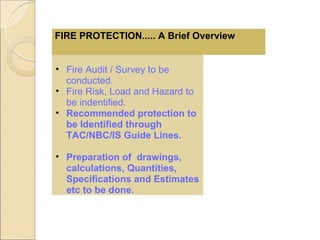

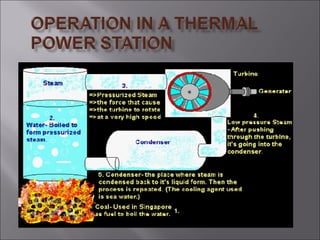

5. • Fire Audit / Survey to be
conducted.
• Fire Risk, Load and Hazard to
be indentified.
• Recommended protection to
be Identified through
TAC/NBC/IS Guide Lines.
• Preparation of drawings,
calculations, Quantities,
Specifications and Estimates
etc to be done.
FIRE PROTECTION..... A Brief Overview

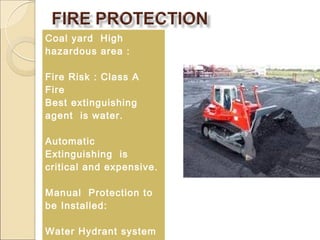

6. Coal yard High
hazardous area :
Fire Risk : Class A
Fire
Best extinguishing
agent is water.
Automatic
Extinguishing is
critical and expensive.
Manual Protection to
be Installed:
Water Hydrant system

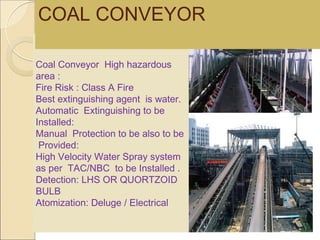

7. Coal Conveyor High hazardous
area :
Fire Risk : Class A Fire
Best extinguishing agent is water.
Automatic Extinguishing to be
Installed:
Manual Protection to be also to be
Provided:
High Velocity Water Spray system
as per TAC/NBC to be Installed .
Detection: LHS OR QUORTZOID
BULB
Atomization: Deluge / Electrical
COAL CONVEYOR

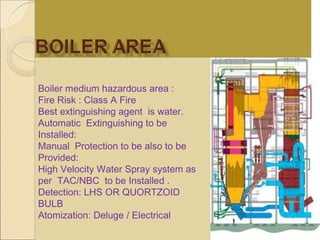

8. Boiler medium hazardous area :
Fire Risk : Class A Fire
Best extinguishing agent is water.
Automatic Extinguishing to be
Installed:
Manual Protection to be also to be
Provided:
High Velocity Water Spray system as
per TAC/NBC to be Installed .
Detection: LHS OR QUORTZOID
BULB
Atomization: Deluge / Electrical

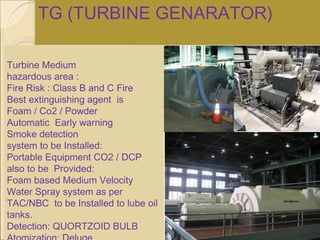

9. TG (TURBINE GENARATOR)
Turbine Medium
hazardous area :
Fire Risk : Class B and C Fire
Best extinguishing agent is
Foam / Co2 / Powder
Automatic Early warning
Smoke detection
system to be Installed:
Portable Equipment CO2 / DCP
also to be Provided:
Foam based Medium Velocity
Water Spray system as per
TAC/NBC to be Installed to lube oil
tanks.
Detection: QUORTZOID BULB

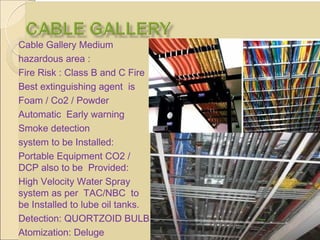

10. Cable Gallery Medium
hazardous area :
Fire Risk : Class B and C Fire
Best extinguishing agent is
Foam / Co2 / Powder
Automatic Early warning
Smoke detection
system to be Installed:
Portable Equipment CO2 /
DCP also to be Provided:
High Velocity Water Spray
system as per TAC/NBC to
be Installed to lube oil tanks.
Detection: QUORTZOID BULB
Atomization: Deluge

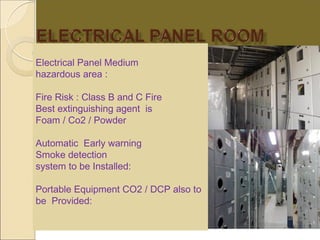

11. Electrical Panel Medium
hazardous area :
Fire Risk : Class B and C Fire
Best extinguishing agent is
Foam / Co2 / Powder
Automatic Early warning
Smoke detection
system to be Installed:
Portable Equipment CO2 / DCP also to
be Provided:

12. Central Control Room Light
hazardous area :
Fire Risk : Class A and C Fire
Best extinguishing agent is
Co2 / FM 200 / INERGEN
Automatic Early warning
Smoke detection
system and Clean agent Gas
suppression systems to be Installed:
Detection: Smoke (Cross zone
/addressable analogue )
Atomization: Solenoid
Portable Equipment CO2 also to be

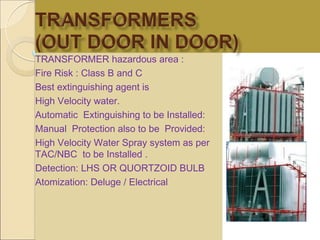

13. TRANSFORMER hazardous area :
Fire Risk : Class B and C
Best extinguishing agent is
High Velocity water.
Automatic Extinguishing to be Installed:
Manual Protection also to be Provided:
High Velocity Water Spray system as per
TAC/NBC to be Installed .
Detection: LHS OR QUORTZOID BULB
Atomization: Deluge / Electrical

14. LDO High
hazardous area :
Fire Risk : Class B
Best extinguishing agent is
Foam / Co2 / Powder
Automatic Early warning
Detection system to be
Installed:
Required Capacity Equipment
FOAM / DCP also to be
Provided:
Foam based Medium Velocity
Water Spray system as per
TAC/NBC to be Installed to
lube oil tanks.
Detection: LHS / QUORTZOID
BULB

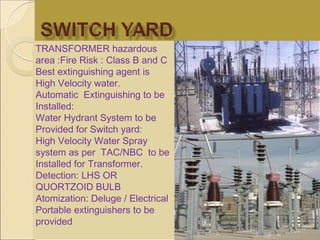

15. TRANSFORMER hazardous
area :Fire Risk : Class B and C
Best extinguishing agent is
High Velocity water.
Automatic Extinguishing to be
Installed:
Water Hydrant System to be
Provided for Switch yard:
High Velocity Water Spray
system as per TAC/NBC to be
Installed for Transformer.
Detection: LHS OR
QUORTZOID BULB
Atomization: Deluge / Electrical
Portable extinguishers to be
provided

16. COMMON FIRE PROTECTION
FOR TOTAL PLANT:
EARLY WARNING MANUAL CALL
POINT FIRE ALARM SYSTEM
PORTABLE EXTINGUISHERS
WATER HYDRANT SYSTEM

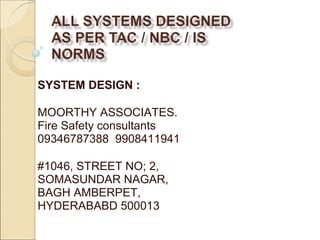

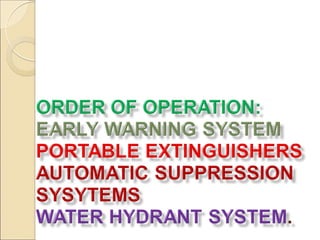

18. SYSTEM DESIGN :
