E-voting
This document discusses issues related to e-voting and proposes potential solutions. It addresses challenges like ensuring vote secrecy and preventing coercion while allowing for verifiability. Technical problems could include malware, DDoS attacks and network vulnerabilities. Proposed mitigations involve techniques such as blind signatures, mixnets, blockchains and paper audits. The document argues that with open development, testing and oversight, e-voting could help accessibility while reducing risks compared to entirely paper-based systems, but more research is still needed to solve security and usability challenges.
More Related Content
More from Bozhidar Bozhanov
E-voting
- 1.
- 2. Vanity slide • Stilla developer • http://blog.bozho.net • http://techblog.bozho.net • http://twitter.com/bozhobg • E-government adviser to the deputy prime minister of Bulgaria
- 3. E-voting • e-voting /i-voting / machine voting / remote e-voting • a.k.a. “let’s vote from home” • sounds tempting • ...and risky
- 4. Complicated task • uncontrolledenvironment • single vote AND vote secrecy • coercion prevention • verifiability • independent observers • results should not be replaceable • defence against attacks and viruses
- 5. Before technology A fundamentalquestion: • Is it required that every voter understands the whole voting process? • Does every voter understand fully the current process?
- 6. Identification • necessary precondition •e-id (“chip in the ID card”) • other practices • preliminary registration • scratch-cards • TAN
- 7. Who would developit? • companies with e-voting expertise • Cybernetica AS (Estonia) • Scytle (Switzerland, France, Norway) • ... • it’s “how” that’s important
- 8. How • open sourcefrom day 1 • peer-reviewed • audited • with pilots • in-person at first • 7 days before paper election day
- 9. Wait, wait... There areunanswered questions. There are problems to be solved. There is a lot of noise...
- 10. Invalid arguments “for” •if e-banking works, then e-voting should also work • breaches and fraud • different task • if anyone can hack voting, why doesn’t he hack banks instead? • why not both?
- 11. Invalid arguments “for” •“what can happen” • everything • we have many good software specialists • the task is complicated and niche • it will solve the problems of our democracy • no, it won’t (bit it can help)

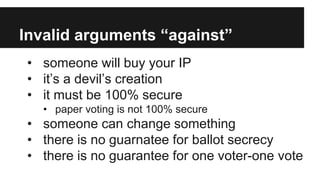

- 12. Invalid arguments “against” •someone will buy your IP • it’s a devil’s creation • it must be 100% secure • paper voting is not 100% secure • someone can change something • there is no guarnatee for ballot secrecy • there is no guarantee for one voter-one vote
- 13. Invalid arguments “against” •“It’s not being used in big countries” • “Germany banned it” • “The Estonian system doesn’t work” • mainly OpSec problems • client malware • Press-conference a week prior to the elections saying “it doesn’t work”? • “It will be developed by incompetent people”
- 14. Questions • vote secrecyand one voter = one vote • verifiability of the validity of the result • access for observers • coercion prevention • usability

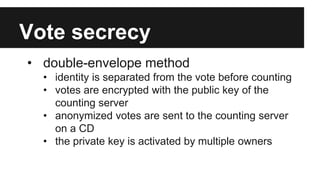

- 15. Vote secrecy • double-envelopemethod • identity is separated from the vote before counting • votes are encrypted with the public key of the counting server • anonymized votes are sent to the counting server on a CD • the private key is activated by multiple owners
- 16. Vote secrect • blindsignature • e.g. carbon paper envelope with your name used for blind stamping • confirms the vote without knowledge of it • requires trust in the client software
- 17. Vote secrecy • Mixnets •layers of decryption • receiver doesn’t know who the sender is • Tor-like
- 18. Revoting • е-voting beforethe paper voting • manual removal of the e-vote • automatically guarantees 1 man = 1 vote • with double envelope • the unanonymized (encrypted) ballot is replaced • with blind signature and mixnet • using a receipt code?
- 19. Verifiability • E2E verifiable •“stored as cast”, “counted as stored” • receipt, incl. a mobile phone • checking the vote for a limited period of time (risks the secrecy) • checking if receipt codes are matching
- 20. Validity of theresult • individual checks • independent counting • public bulletin board • public ledger (blockchain, votecoin?) • push to registered observers?

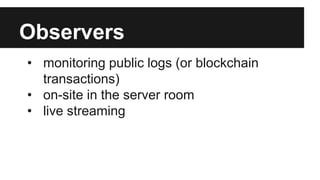

- 21. Observers • monitoring publiclogs (or blockchain transactions) • on-site in the server room • live streaming
- 22. Coercion prevention • panic/tamperPIN • PIN written backwards :) • hard to implement • webcam with face recognition • partial guarantee that nobody else is in front of the monitor • cooldown period • against multiple voting from a single machine
- 23. Usability • if papervoting is removed from polling stations as well • touch-screen is very intuitive • everyone can use it, even uneducated voters • UX-tests
- 24. Problems • client-side malware •DDoS attacks • network attacks (dropping packets) • remote penetration attacks • OpSec • insider attacks • 0-day vulnerabilities
- 25. Client-side malware • desktopclient vs browser • vote changing, not sending votes, compromising secrecy before encryption • solutions: • 2 factor (sms, app) • biometric confirmation • card reader with hardware keypad and display • voting from a virtualized environment
- 26.
- 27. DDoS attacks • DDoSprevention: • preparedness and adequate procedures • tier 1 providers, telecoms • blocking of command & control servers • scrubbing centers • cutting external traffic
- 28. Network attacks • packetanalysis => dropping the vote • solutions: • retry • detectable (no receipt/confirmation sent) • Tor / mixnets • paper voting if e-voting doesn’t work for you
- 29. OpSec • operational security •passwords • DMZ • HSM • intrusion detection, netflow anaylsis • audit trail • main criticism against Estonia • verifiability of results exposes intrusions
- 30. Insider attacks • OpSec,audit trail • verifiable using “virtual paper trail” (e.g. blockchain) • Security agencies should catch it
- 31. 0-day vulnerabilities • ...well,crap • general procedures for cancelling or postponing elections • if intrusions are detectable => patch
- 32. General procedures • annullingonline results • notification of online voters • postponing the eleciton (not as hard and expensive as they are in paper voting)
- 33. Paper voting? • someof the problems above are valid for paper voting as well • results of paper voting are ultimately aggregated on a computer • with checks and paper trail • …but what if it doesn’t match?
- 34. We must beparanoid • everything can go wrong • viruses are real • state-level attacks are real • manipulation attempts are real • “it just works” doesn’t work • “election security is national security”

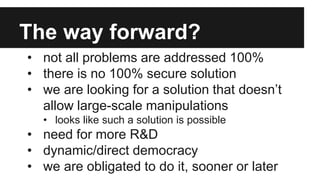

- 35. The way forward? •not all problems are addressed 100% • there is no 100% secure solution • we are looking for a solution that doesn’t allow large-scale manipulations • looks like such a solution is possible • need for more R&D • dynamic/direct democracy • we are obligated to do it, sooner or later
- 36.
- 37.
