1. Ethernet Cable
Configuration
SETTING-UP COMPUTER NETWORKS
LEARNING OBJECTIVES
After the end of the lesson, Student must be able to:
Identify and configure Ethernet cable
a. Straight Through (T568B) configuration
b. Straight Through (T568A) configuration
CORE COMPETENCY CSS NC II
LO 1 Install network cables
BY: JUANITO B. ESPLANA JR.

2. LOOKING BACK
CORE COMPETENCY CSS NC II
Network Switch
Patch Panel (front)
Patch Panel (back)
Modular box
(Ethernet RJ45)
Modular box
(Ethernet RJ45)
Server
(Linux/Windows)
Internet
T568B
Wireless access point
Router
T568B
WHAT IS A COMPUTER NETWORK?
Printer
Personal
Computer
(client)
Wireless
(Laptop)
Wireless
(Laptop)
 It is a group of
computers
interconnected
with one another
BY: JUANITO B. ESPLANA JR.

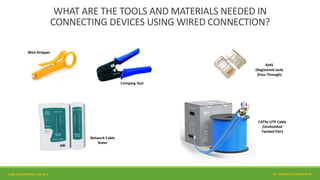

3. WHAT ARE THE TOOLS AND MATERIALS NEEDED IN
CONNECTING DEVICES USING WIRED CONNECTION?
CAT5e UTP Cable
(Unshielded
Twisted Pair)
RJ45
(Registered Jack)
(Pass Through)
Crimping Tool
Wire Stripper
Network Cable
Tester
CORE COMPETENCY CSS NC II BY: JUANITO B. ESPLANA JR.

4. INTRODUCTION
An effective Ethernet cable configuration
is one that provides stable and proper
wire crimp in every termination.
We need focus and awareness of the
safety in our workplace in performing
Ethernet cable configuration or the OHS
Standard. (Occupational Health and
Safety Standards)
CORE COMPETENCY CSS NC II BY: JUANITO B. ESPLANA JR.

5. A straight through cable is a type of
twisted pair cable that is used to
connect a computer to a local area
network, such as a switch.
What is Straight Through Cable?
It connects two dissimilar devices.
CORE COMPETENCY CSS NC II BY: JUANITO B. ESPLANA JR.

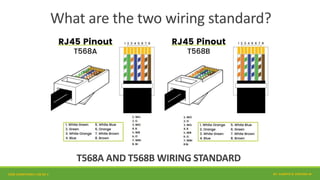

6. T568A AND T568B WIRING STANDARD
What are the two wiring standard?
CORE COMPETENCY CSS NC II BY: JUANITO B. ESPLANA JR.

7. HOW TO CONFIGURE
1. Strip the cable jacket one full
inch.
2. Untwist the wires.
3. Arrange the wires according to
the selected color-coding
scheme or pinout (T568B or
T568A).
4. Grasp the wires and flattened
them between your thumb and
forefinger.
5. While holding the wires firmly
cut-off the wires ½” from the
cable.
6. Insert the wire into the RJ45
connector.
7. Inspect each wire is flat even at
the front of the RJ45 Connector.
8. Carefully Insert into the
crimping tool and firmly crimp
the RJ45.
9. Use a network cable tester to
test your Ethernet cable.
10. DO Step 1 to 9 at the other end
of the Cable.
PROCEDURES
CORE COMPETENCY CSS NC II BY: JUANITO B. ESPLANA JR.

8. IMPORTANT NOTES
CORE COMPETENCY CSS NC II
•Ethernet cable configuration is the process of creating LAN
cable that is used for interconnecting computers, routers,
switches and other network devices.
•Straight Through Cable configuration is used to connect
different network devices.
•A straight-through cable uses one wiring standard in
terminating both ends of the cable.
BY: JUANITO B. ESPLANA JR.
