- 1. BUEE CONSTURACTION &INDUSTRIAL COLLEGE INFORMATION TECHNOLOGY SUPPORT SERVICE Level -II Learning Guide # 3 Unit of Competence: Administer Network Hardware Lo 3 - Color coding Prepared by Werkalem.H

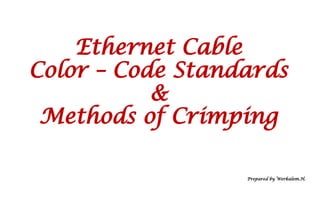

- 2. Ethernet Cable Color –Code Standards & Methods of Crimping Prepared by Werkalem.H.

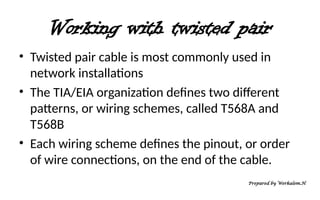

- 3. Working with twistedpair • Twisted pair cable is most commonly used in network installations • The TIA/EIA organization defines two different patterns, or wiring schemes, called T568A and T568B • Each wiring scheme defines the pinout, or order of wire connections, on the end of the cable. Prepared by Werkalem.H

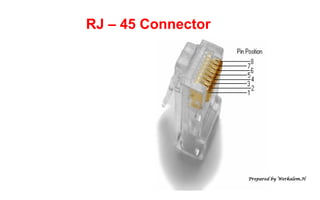

- 4. RJ – 45Connector Prepared by Werkalem.H

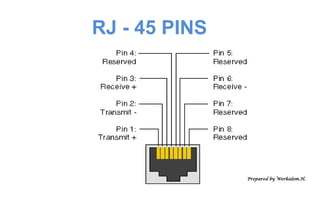

- 5. RJ - 45PINS Prepared by Werkalem.H.
- 6.

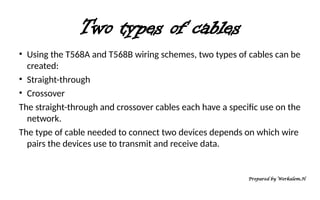

- 7. Two types ofcables • Using the T568A and T568B wiring schemes, two types of cables can be created: • Straight-through • Crossover The straight-through and crossover cables each have a specific use on the network. The type of cable needed to connect two devices depends on which wire pairs the devices use to transmit and receive data. Prepared by Werkalem.H

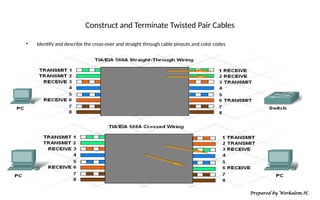

- 8. Construct and TerminateTwisted Pair Cables • Identify and describe the cross-over and straight through cable pinouts and color codes Prepared by Werkalem.H.

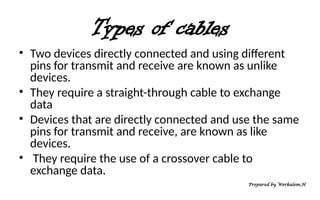

- 9. Types of cables •Two devices directly connected and using different pins for transmit and receive are known as unlike devices. • They require a straight-through cable to exchange data • Devices that are directly connected and use the same pins for transmit and receive, are known as like devices. • They require the use of a crossover cable to exchange data. Prepared by Werkalem.H

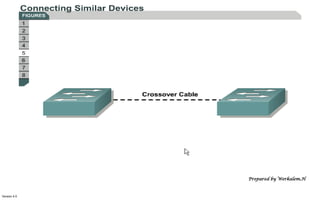

- 10. Version 4.0 Prepared byWerkalem.H
- 11. Version 4.0 Prepared byWerkalem.H

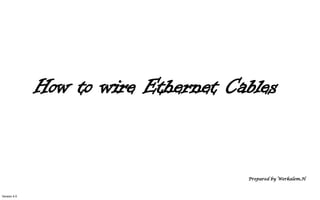

- 12. Version 4.0 How towire Ethernet Cables Prepared by Werkalem.H

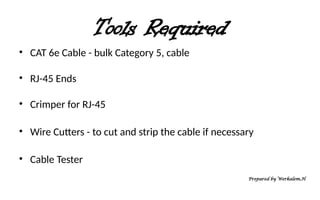

- 13. Tools Required • CAT6e Cable - bulk Category 5, cable • RJ-45 Ends • Crimper for RJ-45 • Wire Cutters - to cut and strip the cable if necessary • Cable Tester Prepared by Werkalem.H

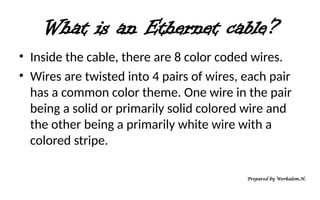

- 14. What is anEthernet cable? • Inside the cable, there are 8 color coded wires. • Wires are twisted into 4 pairs of wires, each pair has a common color theme. One wire in the pair being a solid or primarily solid colored wire and the other being a primarily white wire with a colored stripe. Prepared by Werkalem.H.

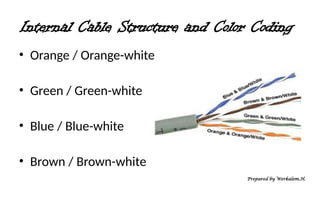

- 15. Internal Cable Structureand Color Coding • Orange / Orange-white • Green / Green-white • Blue / Blue-white • Brown / Brown-white Prepared by Werkalem.H.

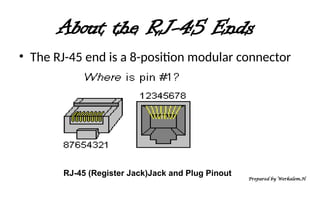

- 16. About the RJ-45Ends • The RJ-45 end is a 8-position modular connector RJ-45 (Register Jack)Jack and Plug Pinout Prepared by Werkalem.H

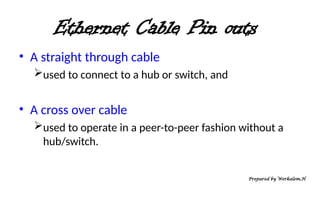

- 17. Ethernet Cable Pinouts • A straight through cable used to connect to a hub or switch, and • A cross over cable used to operate in a peer-to-peer fashion without a hub/switch. Prepared by Werkalem.H

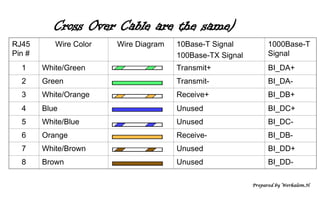

- 18. Cross Over Cableare the same) RJ45 Pin # Wire Color Wire Diagram 10Base-T Signal 100Base-TX Signal 1000Base-T Signal 1 White/Green Transmit+ BI_DA+ 2 Green Transmit- BI_DA- 3 White/Orange Receive+ BI_DB+ 4 Blue Unused BI_DC+ 5 White/Blue Unused BI_DC- 6 Orange Receive- BI_DB- 7 White/Brown Unused BI_DD+ 8 Brown Unused BI_DD- Prepared by Werkalem.H

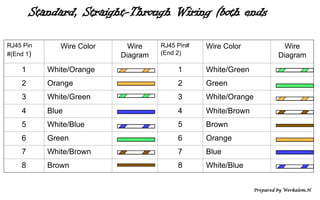

- 19. Standard, Straight-Through Wiring(both ends RJ45 Pin #(End 1) Wire Color Wire Diagram RJ45 Pin# (End 2) Wire Color Wire Diagram 1 White/Orange 1 White/Green 2 Orange 2 Green 3 White/Green 3 White/Orange 4 Blue 4 White/Brown 5 White/Blue 5 Brown 6 Green 6 Orange 7 White/Brown 7 Blue 8 Brown 8 White/Blue Prepared by Werkalem.H
- 20. Cat5e cable • 1000Mbpsdata capacity • For runs of up to 90 meters • Solid core cable ideal for structural installations (PVC or Plenum) • Stranded cable ideal for patch cables • Terminated with RJ-45 connectors Prepared by Werkalem.H

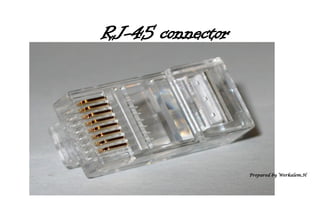

- 21. RJ-45 connector Prepared byWerkalem.H

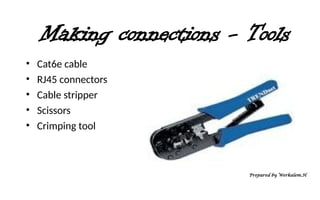

- 22. Making connections -Tools • Cat6e cable • RJ45 connectors • Cable stripper • Scissors • Crimping tool Prepared by Werkalem.H

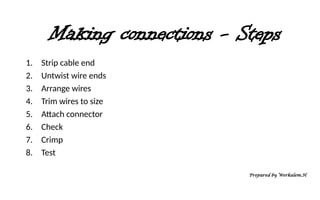

- 23. Making connections -Steps 1. Strip cable end 2. Untwist wire ends 3. Arrange wires 4. Trim wires to size 5. Attach connector 6. Check 7. Crimp 8. Test Prepared by Werkalem.H

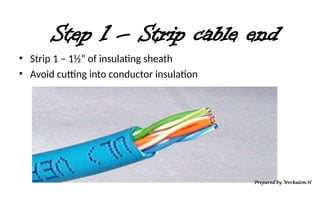

- 24. Step 1 –Strip cable end • Strip 1 – 1½” of insulating sheath • Avoid cutting into conductor insulation Prepared by Werkalem.H

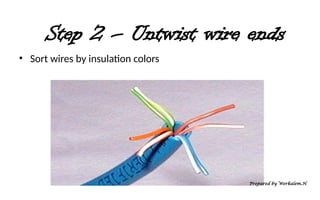

- 25. Step 2 –Untwist wire ends • Sort wires by insulation colors Prepared by Werkalem.H

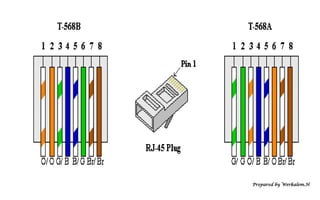

- 26. Step 3 –Arrange wires • TIA/EIA 568A: GW-G OW-Bl BlW-O BrW-Br • TIA/EIA 568B: OW-O GW-Bl BlW-G BrW-Br Prepared by Werkalem.H

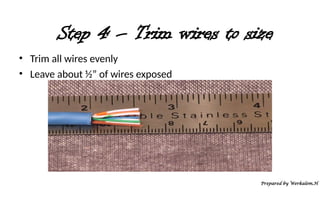

- 27. Step 4 –Trim wires to size • Trim all wires evenly • Leave about ½” of wires exposed Prepared by Werkalem.H
- 28. Step 5 –Attach connector • Maintain wire order, left- to-right, with RJ45 tab facing downward Prepared by Werkalem.H

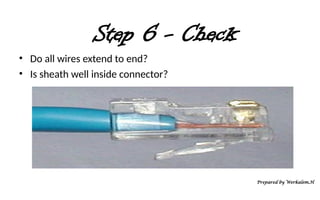

- 29. Step 6 -Check • Do all wires extend to end? • Is sheath well inside connector? Prepared by Werkalem.H

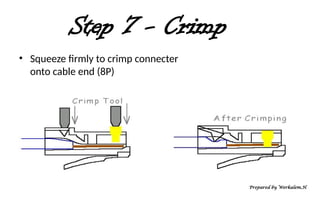

- 30. Step 7 -Crimp • Squeeze firmly to crimp connecter onto cable end (8P) Prepared by Werkalem.H
- 31. Step 8 –Test • Does the cable work? Prepared by Werkalem.H.
- 32. Thank You ... Preparedby Werkalem.H
