Java EE Pattern: Entity Control Boundary Pattern and Java EE

Copyright by Brockhaus GmbH, alle Rechte reserviert, unautorisierte Vervielfältigung untersagt
1
Session: Pragmatic Architecture
Java EE, latest brew
Entity, Control and Boundary

2

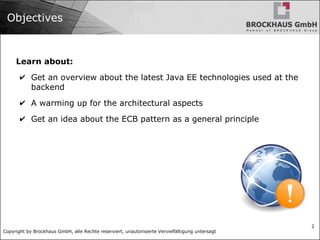

Objectives
Learn about:
✔ Get an overview about the latest Java EE technologies used at the
backend
✔ A warming up for the architectural aspects
✔ Get an idea about the ECB pattern as a general principle

3

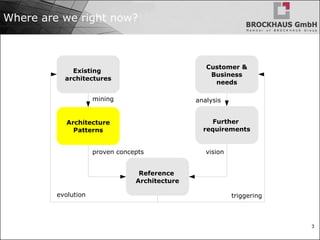

Where are we right now?
Existing
architectures
Architecture
Patterns
Customer &
Business
needs
Further
requirements
Reference
Architecture
mining
proven concepts vision
analysis
evolution triggering

4

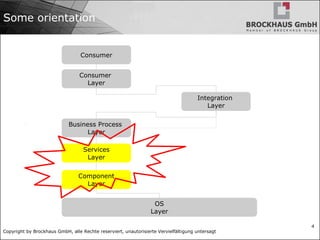

Some orientation
Consumer
Consumer
Layer
Integration
Layer
Business Process
Layer
Services
Layer
Component
Layer
OS
Layer

5

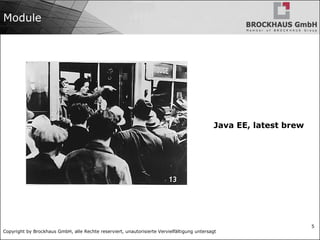

Module
Java EE, latest brew

6

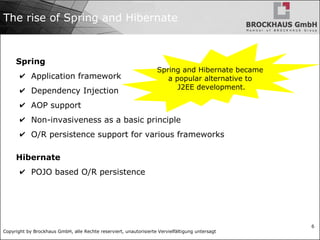

The rise of Spring and Hibernate
Spring
✔ Application framework
✔ Dependency Injection
✔ AOP support
✔ Non-invasiveness as a basic principle
✔ O/R persistence support for various frameworks
Hibernate
✔ POJO based O/R persistence
Spring and Hibernate became
a popular alternative to
J2EE development.

7

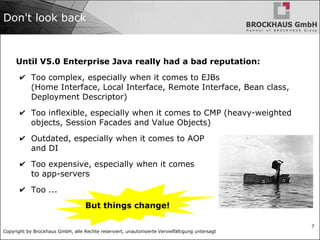

Don't look back
Until V5.0 Enterprise Java really had a bad reputation:
✔ Too complex, especially when it comes to EJBs
(Home Interface, Local Interface, Remote Interface, Bean class,
Deployment Descriptor)
✔ Too inflexible, especially when it comes to CMP (heavy-weighted
objects, Session Facades and Value Objects)
✔ Outdated, especially when it comes to AOP
and DI
✔ Too expensive, especially when it comes
to app-servers
✔ Too ...
But things change!

8

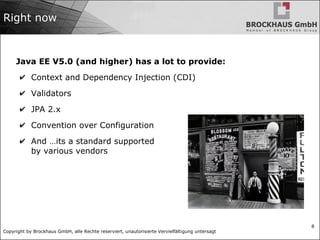

Right now
Java EE V5.0 (and higher) has a lot to provide:
✔ Context and Dependency Injection (CDI)
✔ Validators
✔ JPA 2.x
✔ Convention over Configuration
✔ And …its a standard supported
by various vendors

9

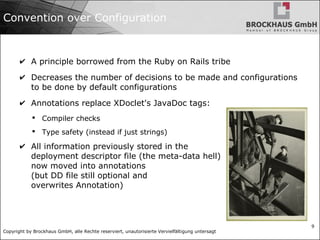

Convention over Configuration
✔ A principle borrowed from the Ruby on Rails tribe
✔ Decreases the number of decisions to be made and configurations
to be done by default configurations
✔ Annotations replace XDoclet's JavaDoc tags:
 Compiler checks
 Type safety (instead if just strings)
✔ All information previously stored in the
deployment descriptor file (the meta-data hell)
now moved into annotations
(but DD file still optional and
overwrites Annotation)

10

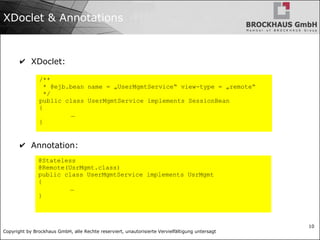

XDoclet & Annotations
✔ XDoclet:
✔ Annotation:
/**
* @ejb.bean name = „UserMgmtService“ view-type = „remote“
*/
public class UserMgmtService implements SessionBean
{
…
}
@Stateless
@Remote(UsrMgmt.class)
public class UserMgmtService implements UsrMgmt
{
…
}

11
Annotations
@Stateless:
✔ Marks the class as a Stateless Session Bean, no need to implement
an interface or to extend a class
✔ Provides a default transaction handling (every method will be
executed in a single transaction)
@LocalBean
✔ All public methods will be exposed to local clients, no need to
implement a dedicated interface
✔ Local clients - like Servlets or other EJBs – might obtain a
reference by means of dependecy injection.

12

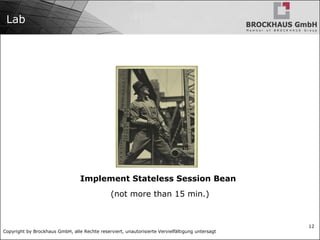

Lab
Implement Stateless Session Bean
(not more than 15 min.)

13

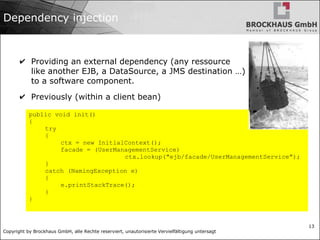

Dependency injection
✔ Providing an external dependency (any ressource
like another EJB, a DataSource, a JMS destination …)
to a software component.
✔ Previously (within a client bean)
public void init()
{
try
{
ctx = new InitialContext();
facade = (UserManagementService)
ctx.lookup("ejb/facade/UserManagementService");
}
catch (NamingException e)
{
e.printStackTrace();
}
}

14

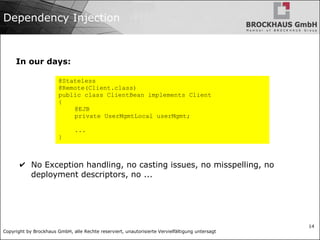

Dependency Injection
In our days:
✔ No Exception handling, no casting issues, no misspelling, no
deployment descriptors, no ...
@Stateless
@Remote(Client.class)
public class ClientBean implements Client
{
@EJB
private UserMgmtLocal userMgmt;
...
}

15
Lab
Implement Dependency Injection

16

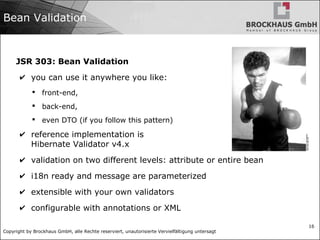

Bean Validation
JSR 303: Bean Validation
✔ you can use it anywhere you like:
 front-end,
 back-end,
 even DTO (if you follow this pattern)
✔ reference implementation is
Hibernate Validator v4.x
✔ validation on two different levels: attribute or entire bean
✔ i18n ready and message are parameterized
✔ extensible with your own validators
✔ configurable with annotations or XML

17

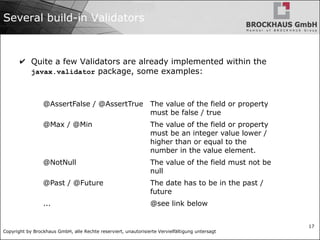

Several build-in Validators
✔ Quite a few Validators are already implemented within the
javax.validator package, some examples:
@AssertFalse / @AssertTrue The value of the field or property
must be false / true
@Max / @Min The value of the field or property
must be an integer value lower /
higher than or equal to the
number in the value element.
@NotNull The value of the field must not be
null
@Past / @Future The date has to be in the past /
future
... @see link below

18

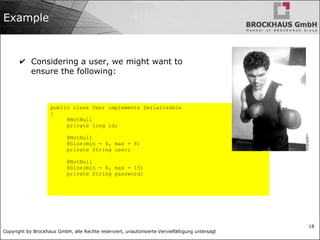

Example
✔ Considering a user, we might want to
ensure the following:
public class User implements Serializable
{
@NotNull
private long id;
@NotNull
@Size(min = 4, max = 8)
private String user;
@NotNull
private String password;

19

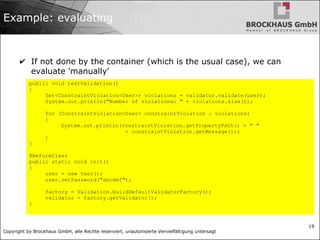

Example: evaluating
✔ If not done by the container (which is the usual case), we can
evaluate 'manually'
public void testValidation()
{
Set<ConstraintViolation<User>> violations = validator.validate(user);
System.out.println("Number of violations: " + violations.size());
for (ConstraintViolation<User> constraintViolation : violations)
{
System.out.println(constraintViolation.getPropertyPath() + " "
+ constraintViolation.getMessage());
}
}
@BeforeClass
public static void init()
{
user = new User();
user.setPassword("abcdef");
factory = Validation.buildDefaultValidatorFactory();
validator = factory.getValidator();
}

20

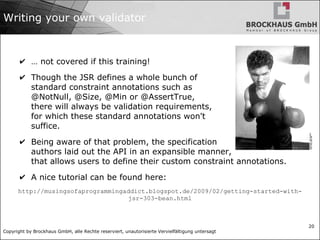

Writing your own validator
✔ … not covered if this training!
✔ Though the JSR defines a whole bunch of
standard constraint annotations such as
@NotNull, @Size, @Min or @AssertTrue,
there will always be validation requirements,
for which these standard annotations won't
suffice.
✔ Being aware of that problem, the specification
authors laid out the API in an expansible manner,
that allows users to define their custom constraint annotations.
✔ A nice tutorial can be found here:
http://musingsofaprogrammingaddict.blogspot.de/2009/02/getting-started-with-
jsr-303-bean.html

21
Lab
Implement Validator

22

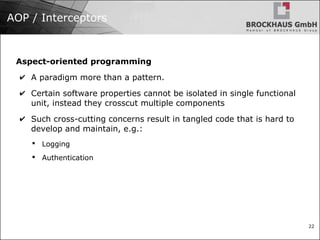

AOP / Interceptors
Aspect-oriented programming
✔ A paradigm more than a pattern.
✔ Certain software properties cannot be isolated in single functional
unit, instead they crosscut multiple components
✔ Such cross-cutting concerns result in tangled code that is hard to
develop and maintain, e.g.:
 Logging
 Authentication

23
Interceptor
Non UML:
EJB Container
Interceptor(s)
Request
Response

24

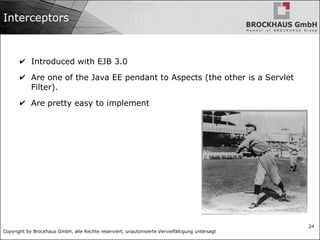

Interceptors
✔ Introduced with EJB 3.0
✔ Are one of the Java EE pendant to Aspects (the other is a Servlet
Filter).
✔ Are pretty easy to implement

25
Interceptors
✔ Provided EJBs with a rudimentary
Aspect Oriented Programming system.
✔ Enable a clean distinction of business logic
and meta or support code.
✔ Are classes (distinct form the beans themself).
✔ Interpose themselves on methods calls
or life cycle events.
✔ Have access to information about the business method that triggered it,
including method names an parameters.
✔ Can halt processing of the business method.
✔ Can be used on session and message-driven beans.
✔ A bean can have any number of Interceptors.
✔ Common uses for interceptors are security checking,
logging or auditing functions.
separation
of
concerns

26

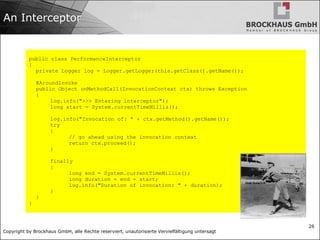

An Interceptor
public class PerformanceInterceptor
{
private Logger log = Logger.getLogger(this.getClass().getName());
@AroundInvoke
public Object onMethodCall(InvocationContext ctx) throws Exception
{
log.info(">>> Entering interceptor");
long start = System.currentTimeMillis();
log.info("Invocation of: " + ctx.getMethod().getName());
try
{
// go ahead using the invocation context
return ctx.proceed();
}
finally
{
long end = System.currentTimeMillis();
long duration = end - start;
log.info("Duration of invocation: " + duration);
}
}
}

27

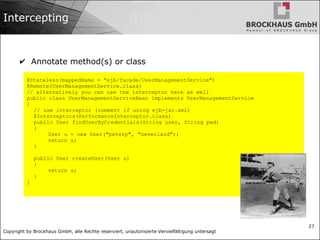

Intercepting
@Stateless(mappedName = "ejb/facade/UserManagementService")
@Remote(UserManagementService.class)
// alternatively you can use the interceptor here as well
public class UserManagementServiceBean implements UserManagementService
{
// use interceptor (comment if using ejb-jar.xml)
@Interceptors(PerformanceInterceptor.class)
public User findUserByCredentials(String user, String pwd)
{
User u = new User("peterp", "neverland");
return u;
}
public User createUser(User u)
{
return u;
}
}
✔ Annotate method(s) or class

28

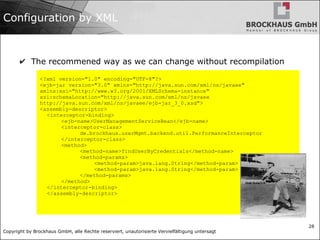

Configuration by XML
✔ The recommened way as we can change without recompilation
<?xml version="1.0" encoding="UTF-8"?>
<ejb-jar version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/ejb-jar_3_0.xsd">
<assembly-descriptor>
<interceptor-binding>
<ejb-name>UserManagementServiceBean</ejb-name>
<interceptor-class>
de.brockhaus.userMgmt.backend.util.PerformanceInterceptor
</interceptor-class>
<method>
<method-name>findUserByCredentials</method-name>
<method-params>
<method-param>java.lang.String</method-param>
<method-param>java.lang.String</method-param>
</method-params>
</method>
</interceptor-binding>
</assembly-descriptor>

29
Lab
Implement Interceptor

30
Persistent Entities / JPA 2.x
✔ JPA defines a way to map regular, plain old Java objects (POJOs)
to a database.
✔ These plain Java objects are called persistent entities (and no
longer EntityBeans):
 they can be used in regular Java applications outside of an
application server and can even be used to transfer data
between a client and a server.
 In EJB 2.1 specification, entity beans were „heavyweight“:
•
dependent on the application server.
•
dependent on the entire Java EE runtime
environment.
•
cause high memory consumption.

31

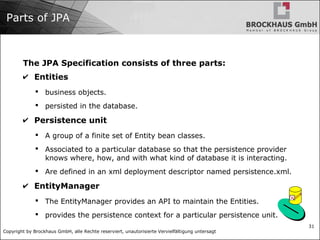

Parts of JPA
The JPA Specification consists of three parts:
✔ Entities
 business objects.
 persisted in the database.
✔ Persistence unit
 A group of a finite set of Entity bean classes.
 Associated to a particular database so that the persistence provider
knows where, how, and with what kind of database it is interacting.
 Are defined in an xml deployment descriptor named persistence.xml.
✔ EntityManager
 The EntityManager provides an API to maintain the Entities.
 provides the persistence context for a particular persistence unit.

32

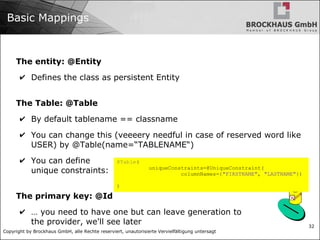

Basic Mappings
The entity: @Entity
✔ Defines the class as persistent Entity
The Table: @Table
✔ By default tablename == classname
✔ You can change this (veeeery needful in case of reserved word like
USER) by @Table(name=“TABLENAME“)
✔ You can define
unique constraints:
The primary key: @Id
✔ … you need to have one but can leave generation to
the provider, we'll see later
@Table(
uniqueConstraints=@UniqueConstraint(
columnNames={"FIRSTNAME", "LASTNAME"})
)

33

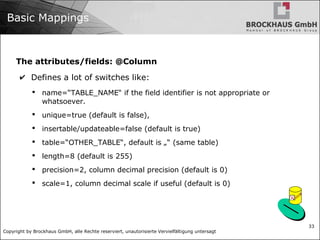

Basic Mappings
The attributes/fields: @Column
✔ Defines a lot of switches like:
 name=“TABLE_NAME“ if the field identifier is not appropriate or
whatsoever.
 unique=true (default is false),
 insertable/updateable=false (default is true)
 table=“OTHER_TABLE“, default is „“ (same table)
 length=8 (default is 255)
 precision=2, column decimal precision (default is 0)
 scale=1, column decimal scale if useful (default is 0)

34

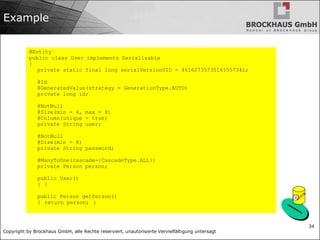

Example
@Entity
{
private static final long serialVersionUID = 4616273573516105734L;
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private long id;
@NotNull
@Column(unique = true)
private String user;
@NotNull
@Size(min = 8)
private String password;
@ManyToOne(cascade={CascadeType.ALL})
private Person person;
public User()
{ }
public Person getPerson()
{ return person; }

35
The EntityManager
✔ A service provided by JPA, all access to an entity goes through
this service.
✔ Provides a query API and life cycle methods for the entity.
✔ To interact with entity beans, just plain Java is needed.
✔ Entity beans and EntityManager do not require an application
server to be used.
 You can use Java persistence in unit tests and standalone Java
applications like any Java library.
✔ Two options for clients to use the EntityManager:
 container managed, container runtime is responsible for
providing and determining the EntityManager for
applications.
 application managed, the application is responsible for
the EntityManager itself.

36

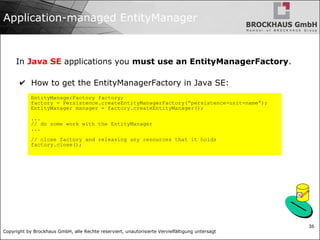

Application-managed EntityManager
In Java SE applications you must use an EntityManagerFactory.
✔ How to get the EntityManagerFactory in Java SE:
EntityManagerFactory factory;
factory = Persistence.createEntityManagerFactory(“persistence-unit-name”);
EntityManager manager = factory.createEntityManager();
...
// do some work with the EntityManager
...
// close factory and releasing any resources that it holds
factory.close();

37

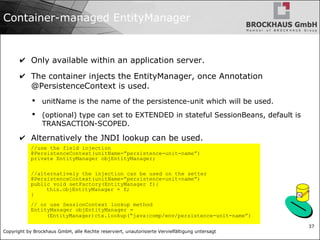

Container-managed EntityManager
✔ Only available within an application server.
✔ The container injects the EntityManager, once Annotation
@PersistenceContext is used.
 unitName is the name of the persistence-unit which will be used.
 (optional) type can set to EXTENDED in stateful SessionBeans, default is
TRANSACTION-SCOPED.
✔ Alternatively the JNDI lookup can be used.
//use the field injection
@PersistenceContext(unitName=”persistence-unit-name”)
private EntityManager objEntityManager;
//alternatively the injection can be used on the setter
@PersistenceContext(unitName=”persistence-unit-name”)
public void setFactory(EntityManager f){
this.objEntityManager = f;
}
// or use SessionContext lookup method
EntityManager objEntityManager =
(EntityManager)ctx.lookup(“java:comp/env/persistence-unit-name”)

38

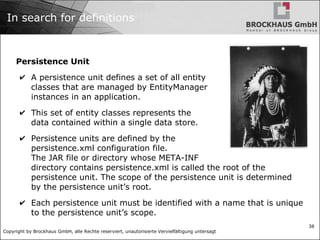

In search for definitions
Persistence Unit
✔ A persistence unit defines a set of all entity
classes that are managed by EntityManager
instances in an application.
✔ This set of entity classes represents the
data contained within a single data store.
✔ Persistence units are defined by the
persistence.xml configuration file.
The JAR file or directory whose META-INF
directory contains persistence.xml is called the root of the
persistence unit. The scope of the persistence unit is determined
by the persistence unit’s root.
✔ Each persistence unit must be identified with a name that is unique
to the persistence unit’s scope.

39

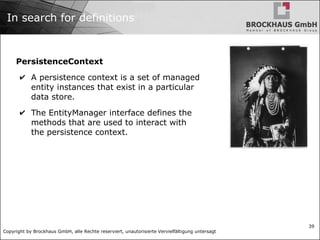

In search for definitions
PersistenceContext
✔ A persistence context is a set of managed
entity instances that exist in a particular
data store.
✔ The EntityManager interface defines the
methods that are used to interact with
the persistence context.

40

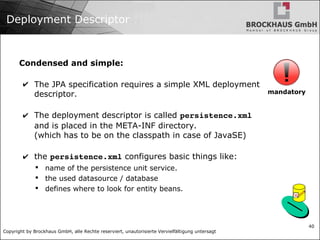

Deployment Descriptor
Condensed and simple:
✔ The JPA specification requires a simple XML deployment
descriptor.
✔ The deployment descriptor is called persistence.xml
and is placed in the META-INF directory.
(which has to be on the classpath in case of JavaSE)
✔ the persistence.xml configures basic things like:
 name of the persistence unit service.
 the used datasource / database
 defines where to look for entity beans.
mandatory

41

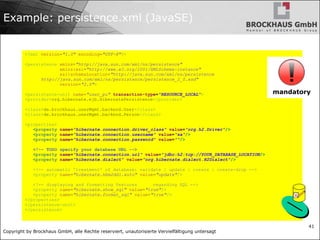

<?xml version="1.0" encoding="UTF-8"?>
<persistence xmlns="http://java.sun.com/xml/ns/persistence"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/persistence
http://java.sun.com/xml/ns/persistence/persistence_2_0.xsd"
version="2.0">
<persistence-unit name="user_pu" transaction-type="RESOURCE_LOCAL">
<provider>org.hibernate.ejb.HibernatePersistence</provider>
<class>de.brockhaus.userMgmt.backend.User</class>
<class>de.brockhaus.userMgmt.backend.Person</class>
<properties>
<property name="hibernate.connection.driver_class" value="org.h2.Driver"/>
<property name="hibernate.connection.username" value="sa"/>
<property name="hibernate.connection.password" value=""/>

<property name="hibernate.connection.url" value="jdbc:h2:tcp://YOUR_DATABASE_LOCATION/>
<property name="hibernate.dialect" value="org.hibernate.dialect.H2Dialect"/>

<property name="hibernate.hbm2ddl.auto" value="update"/>

<property name="hibernate.show_sql" value="true"/>
<property name="hibernate.format_sql" value="true"/>
</properties>
</persistence-unit>
</persistence>
Example: persistence.xml (JavaSE)
mandatory

42
The EntityManager Class
Three kinds of operations:
✔ Entity live cycle management
 persist() a new instance is managed and persistent.
 remove() destroy entities data in the database.
 merge() merge the state of the given entity into the current
persistence context.
✔ Database synchronisation operations
 flush() synchronize the persistence context.
 refresh() refreshes the instance from database.

43

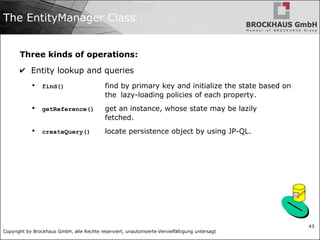

The EntityManager Class
Three kinds of operations:
✔ Entity lookup and queries
 find() find by primary key and initialize the state based on
the lazy-loading policies of each property.
 getReference() get an instance, whose state may be lazily
fetched.
 createQuery() locate persistence object by using JP-QL.

44

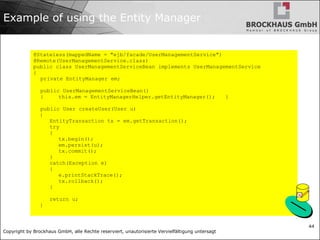

Example of using the Entity Manager
@Stateless(mappedName = "ejb/facade/UserManagementService")
@Remote(UserManagementService.class)
public class UserManagementServiceBean implements UserManagementService
{
private EntityManager em;
public UserManagementServiceBean()
{ this.em = EntityManagerHelper.getEntityManager(); }
public User createUser(User u)
{
EntityTransaction tx = em.getTransaction();
try
{
tx.begin();
em.persist(u);
tx.commit();
}
catch(Exception e)
{
e.printStackTrace();
tx.rollback();
}
return u;
}

45
Queries and JPQL
✔ Language to define queries for finder and select methods.
 compiled to the target language.
 is similar to SQL
✔ The query references the abstract schema name of a bean as its
model, defined as the classname of the entitiy (default mapping)
or overwritten with the @table annotation on class level.
✔ Used to define the query methods.
 Finder methods
 Select Methods
✔ In the JP-QL has four clauses:
- Select clause
 Optional From clause
 Optional Where clause
 Optional Order By clause

46

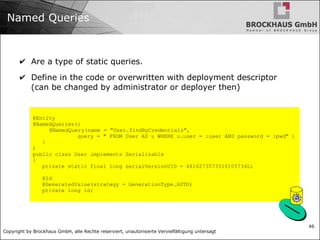

Named Queries
✔ Are a type of static queries.
✔ Define in the code or overwritten with deployment descriptor
(can be changed by administrator or deployer then)
@Entity
@NamedQueries({
@NamedQuery(name = "User.findByCredentials",
query = " FROM User AS u WHERE u.user = :user AND password = :pwd" )
}
)
{
private static final long serialVersionUID = 4616273573516105734L;
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private long id;

47

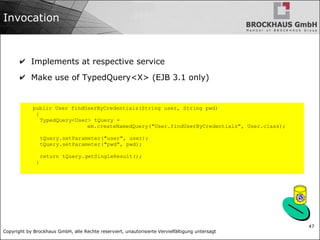

Invocation
✔ Implements at respective service
✔ Make use of TypedQuery<X> (EJB 3.1 only)
public User findUserByCredentials(String user, String pwd)
{
TypedQuery<User> tQuery =
em.createNamedQuery("User.findUserByCredentials", User.class);
tQuery.setParameter("user", user);
tQuery.setParameter("pwd", pwd);
return tQuery.getSingleResult();
}

48
Lab
Implement JPA

49
Module
Entity, Control
and Boundary

50

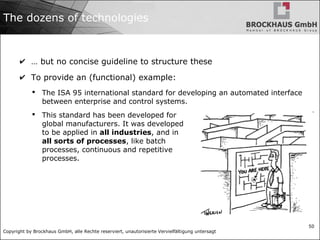

The dozens of technologies
✔ … but no concise guideline to structure these
✔ To provide an (functional) example:
 The ISA 95 international standard for developing an automated interface
between enterprise and control systems.
 This standard has been developed for
global manufacturers. It was developed
to be applied in all industries, and in
all sorts of processes, like batch
processes, continuous and repetitive
processes.

51

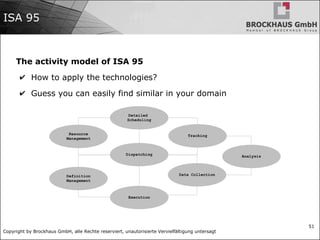

ISA 95
The activity model of ISA 95
✔ How to apply the technologies?
✔ Guess you can easily find similar in your domain
Detailed
Scheduling
Resource
Management
Tracking
Dispatching
Definition
Management
Data Collection
Execution
Analysis

52

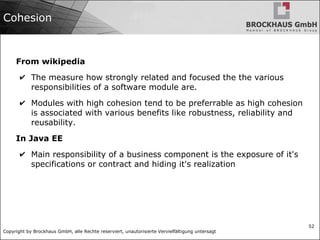

Cohesion
From wikipedia
✔ The measure how strongly related and focused the the various
responsibilities of a software module are.
✔ Modules with high cohesion tend to be preferrable as high cohesion
is associated with various benefits like robustness, reliability and
reusability.
In Java EE
✔ Main responsibility of a business component is the exposure of it's
specifications or contract and hiding it's realization

53

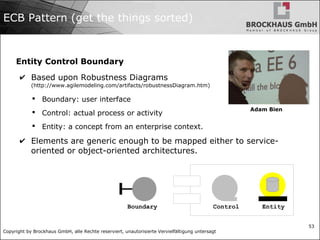

ECB Pattern (get the things sorted)
Entity Control Boundary
✔ Based upon Robustness Diagrams
(http://www.agilemodeling.com/artifacts/robustnessDiagram.htm)
 Boundary: user interface
 Control: actual process or activity
 Entity: a concept from an enterprise context.
✔ Elements are generic enough to be mapped either to service-
oriented or object-oriented architectures.
Boundary Control Entity
Adam Bien

54

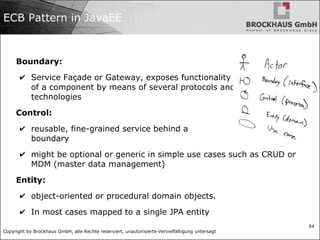

ECB Pattern in JavaEE
Boundary:
✔ Service Façade or Gateway, exposes functionality
of a component by means of several protocols and
technologies
Control:
✔ reusable, fine-grained service behind a
boundary
✔ might be optional or generic in simple use cases such as CRUD or
MDM (master data management)
Entity:
✔ object-oriented or procedural domain objects.
✔ In most cases mapped to a single JPA entity

55

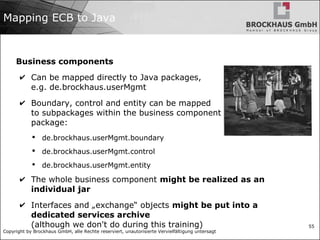

Mapping ECB to Java
Business components
✔ Can be mapped directly to Java packages,
e.g. de.brockhaus.userMgmt
✔ Boundary, control and entity can be mapped
to subpackages within the business component
package:
 de.brockhaus.userMgmt.boundary
 de.brockhaus.userMgmt.control
 de.brockhaus.userMgmt.entity
✔ The whole business component might be realized as an
individual jar
✔ Interfaces and „exchange“ objects might be put into a
dedicated services archive
(although we don't do during this training)

56

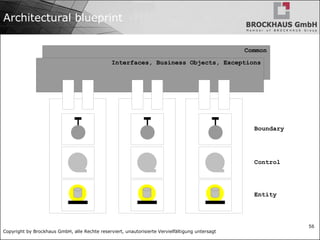

Common
Interfaces, Business Objects, Exceptions
Architectural blueprint
Boundary
Control
Entity

57

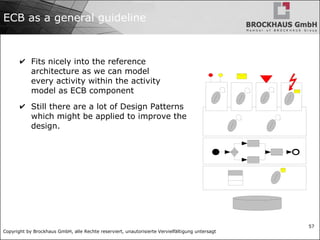

ECB as a general guideline
✔ Fits nicely into the reference
architecture as we can model
every activity within the activity
model as ECB component
✔ Still there are a lot of Design Patterns
which might be applied to improve the
design.

58

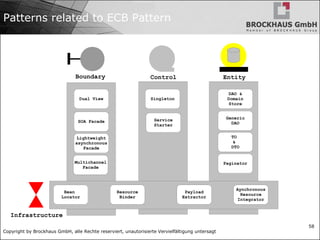

Boundary Control Entity
DAO &
Domain
Store
Generic
DAO
Singleton
Service
Starter
Dual View
SOA Facade
Lightweight
asynchronous
Facade
Multichannel
Facade
TO
&
DTO
Paginator
Bean
Locator
Multichannel
Facade
Resource
Binder
Payload
Extractor
Aynchronous
Resource
Integrator
Infrastructure
Patterns related to ECB Pattern

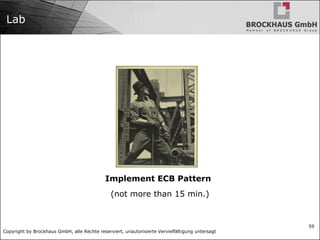

59
Lab
Implement ECB Pattern

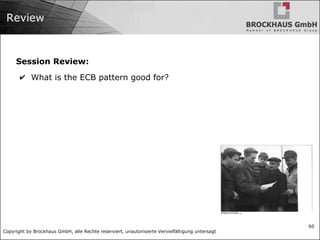

60
Review
Session Review:
✔ What is the ECB pattern good for?

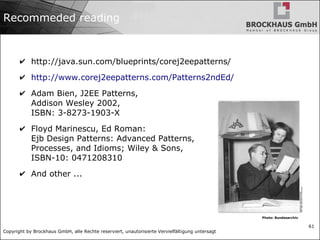

61
Recommeded reading
✔ http://java.sun.com/blueprints/corej2eepatterns/
✔ http://www.corej2eepatterns.com/Patterns2ndEd/
✔ Adam Bien, J2EE Patterns,
Addison Wesley 2002,
ISBN: 3-8273-1903-X
✔ Floyd Marinescu, Ed Roman:
Ejb Design Patterns: Advanced Patterns,
Processes, and Idioms; Wiley & Sons,
ISBN-10: 0471208310
✔ And other ...
Photo: Bundesarchiv

Java EE Pattern: Entity Control Boundary Pattern and Java EE

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Java EE Pattern: Entity Control Boundary Pattern and Java EE

Similar to Java EE Pattern: Entity Control Boundary Pattern and Java EE (20)

More from Brockhaus Consulting GmbH

More from Brockhaus Consulting GmbH (16)

Recently uploaded

Recently uploaded (20)

Java EE Pattern: Entity Control Boundary Pattern and Java EE

Editor's Notes
