Java EE Pattern: The Entity Layer

Copyright by Brockhaus GmbH, alle Rechte reserviert, unautorisierte Vervielfältigung untersagt
1

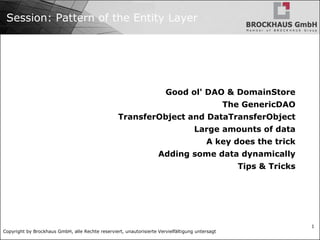

Session: Pattern of the Entity Layer
Good ol' DAO & DomainStore
The GenericDAO
TransferObject and DataTransferObject

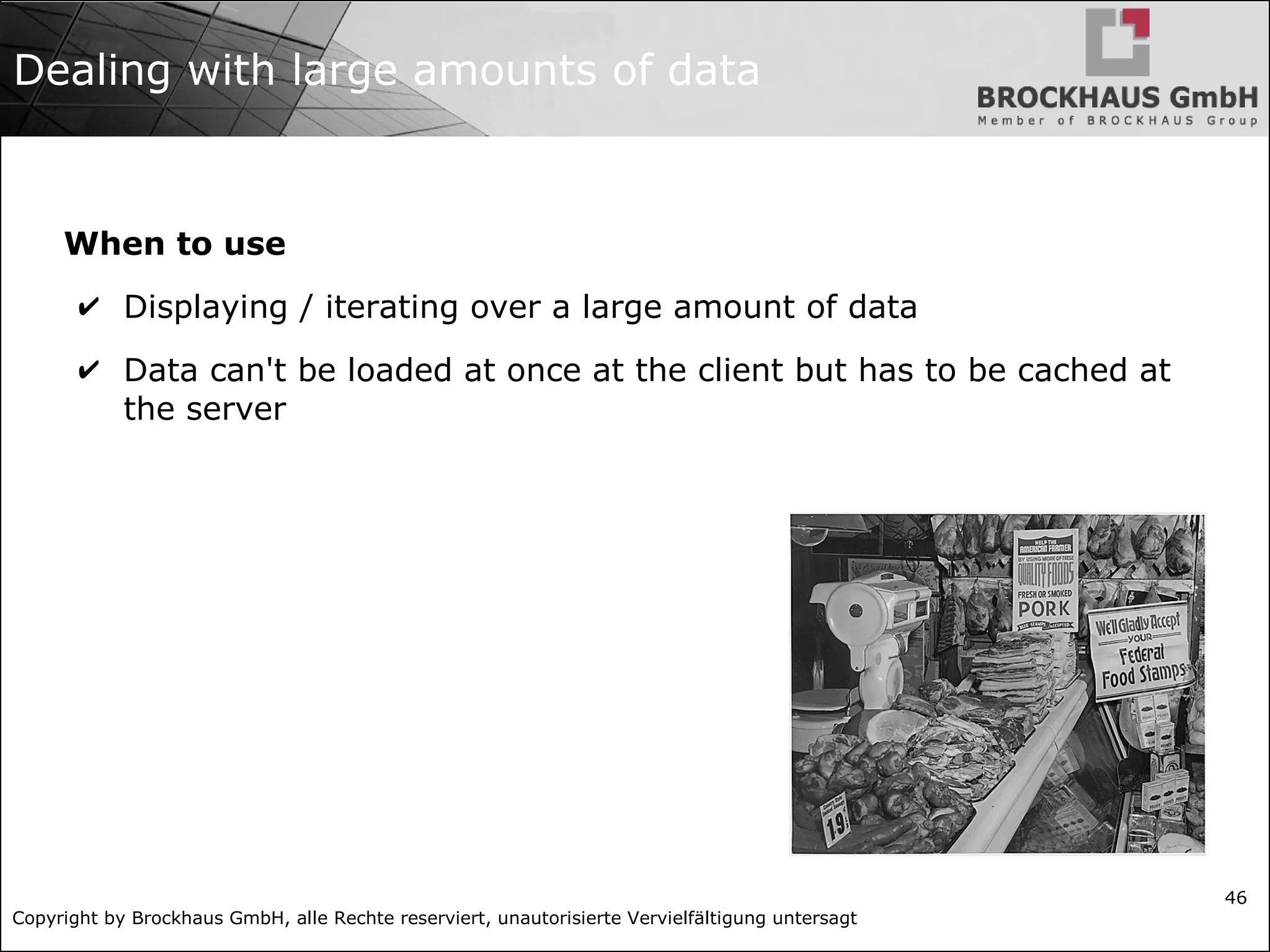

Large amounts of data
A key does the trick
Adding some data dynamically
Tips & Tricks

2

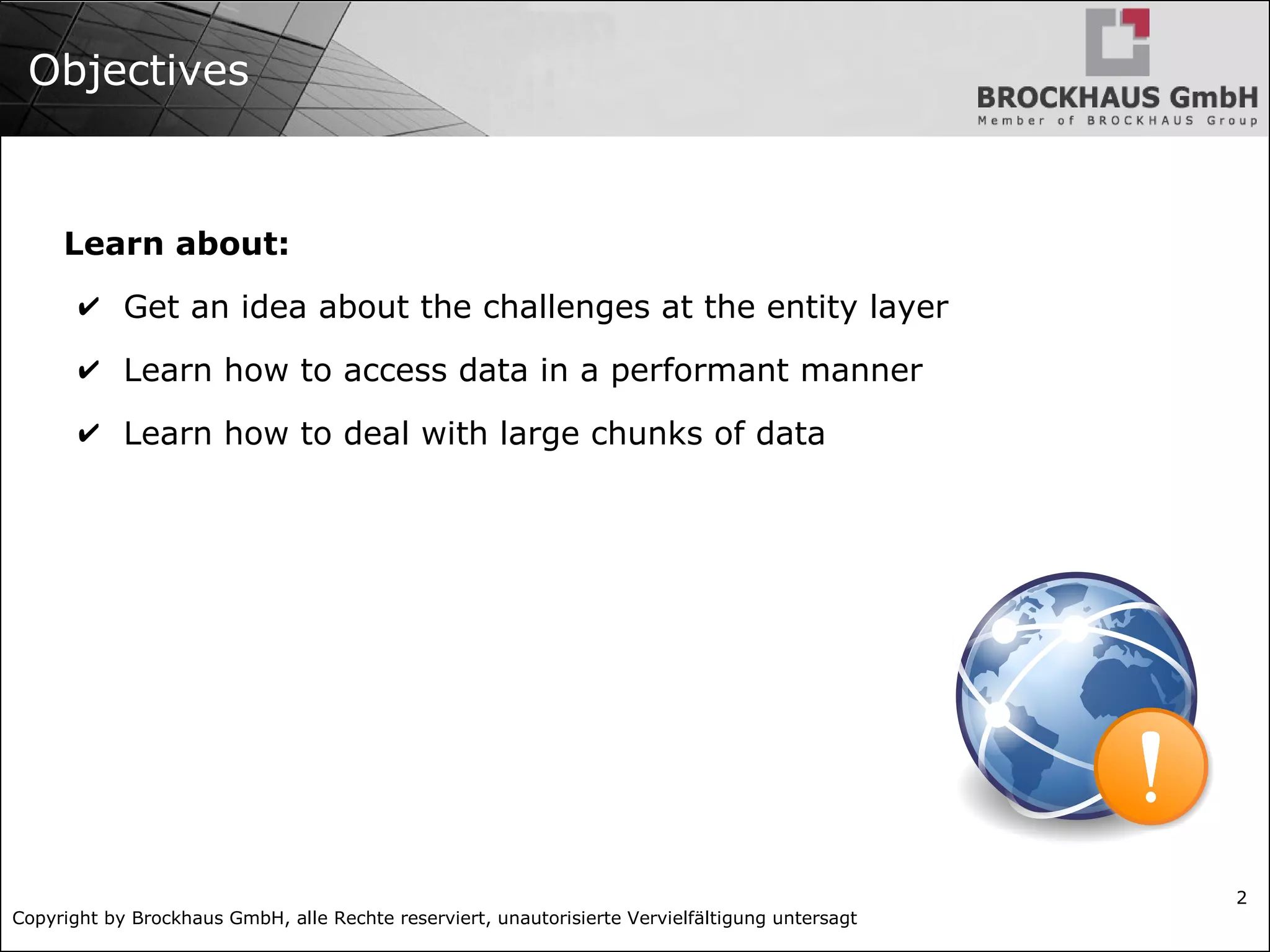

Objectives
Learn about:
✔ Get an idea about the challenges at the entity layer
✔ Learn how to access data in a performant manner
✔ Learn how to deal with large chunks of data

3

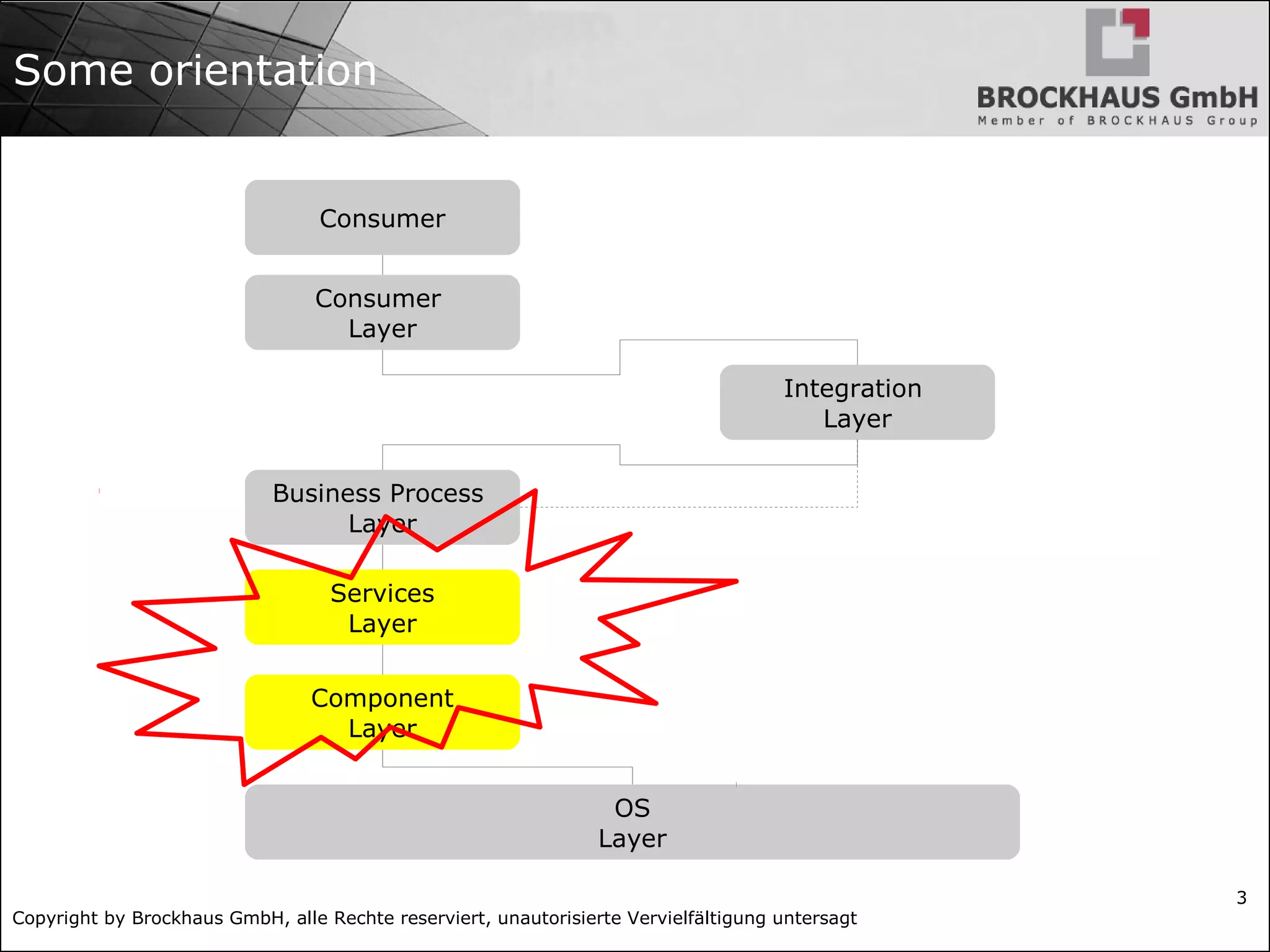

Some orientation
Consumer
Consumer
Layer
Integration
Layer
Business Process
Layer
Services
Layer
Component
Layer
OS
Layer

4

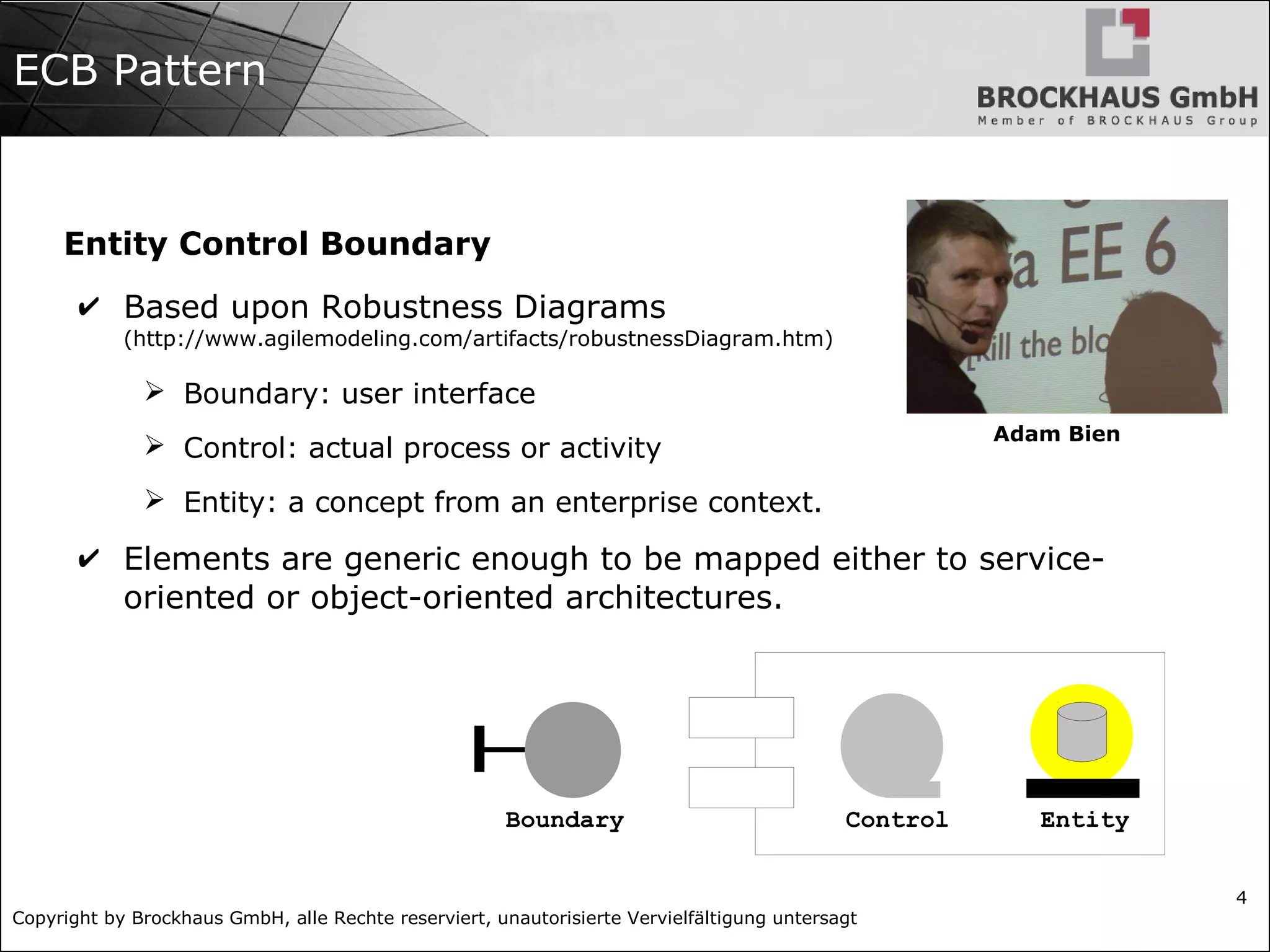

ECB Pattern
Entity Control Boundary
✔ Based upon Robustness Diagrams
(http://www.agilemodeling.com/artifacts/robustnessDiagram.htm)
➢ Boundary: user interface
➢ Control: actual process or activity
➢ Entity: a concept from an enterprise context.
✔ Elements are generic enough to be mapped either to service-
oriented or object-oriented architectures.
Boundary Control Entity
Adam Bien

5

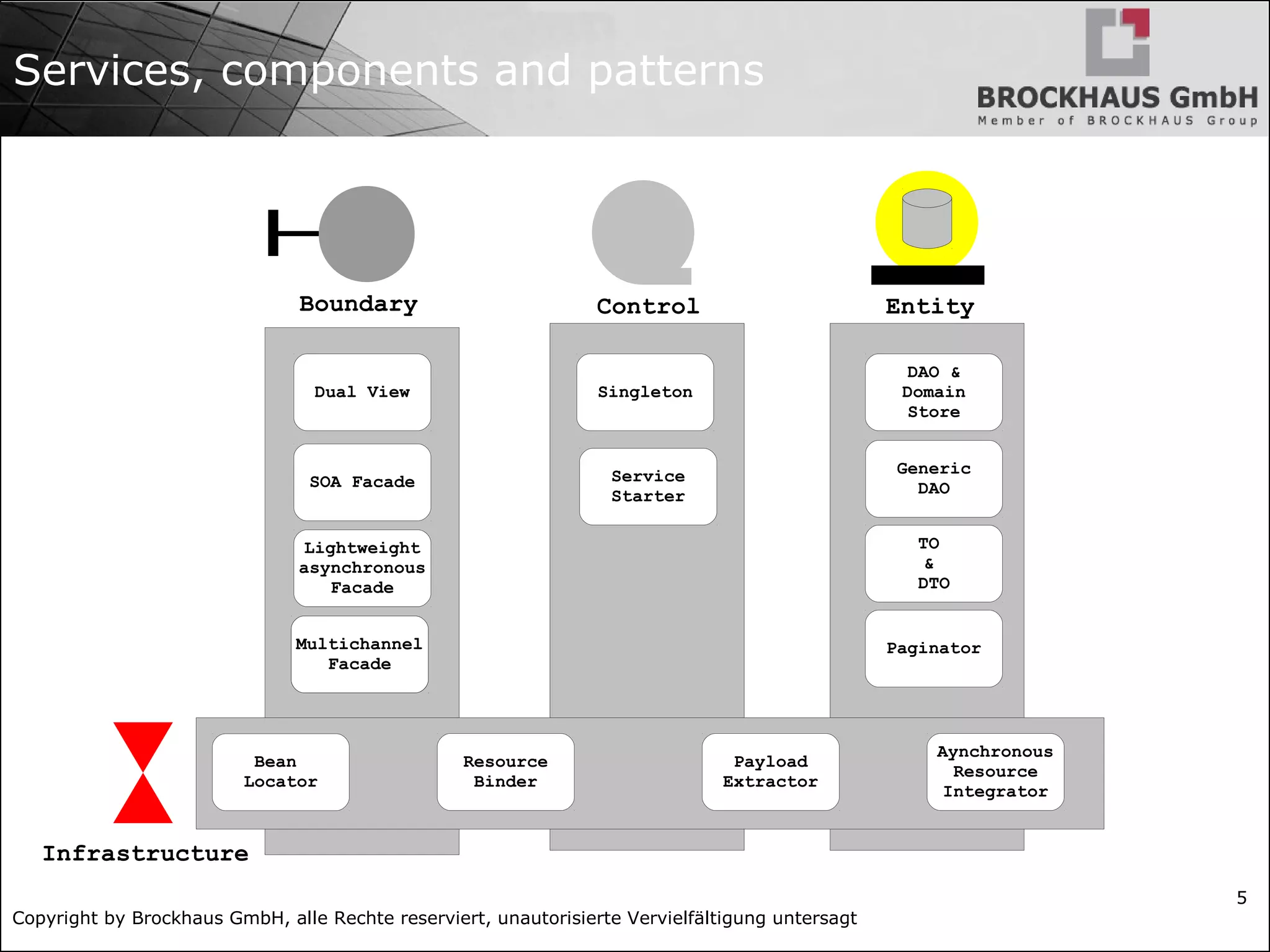

Services, components and patterns
DAO &
Domain
Store
Generic
DAO
Singleton
Service
Starter
Dual View
SOA Facade
Lightweight
asynchronous
Facade
Multichannel
Facade
TO
&
DTO
Paginator
Bean
Locator
Multichannel
Facade
Resource
Binder
Payload
Extractor
Aynchronous
Resource
Integrator
Infrastructure

6

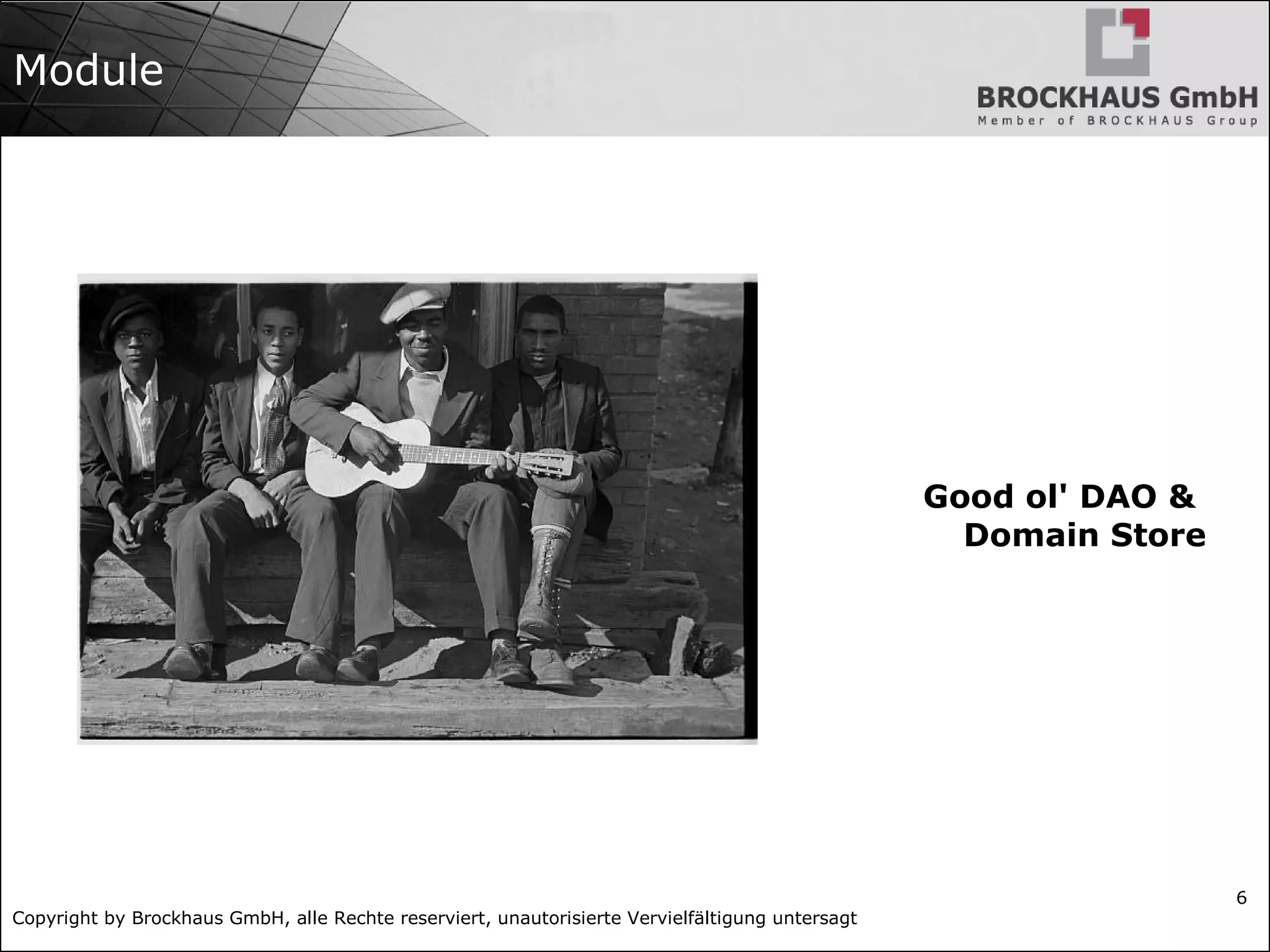

Module
Good ol' DAO &
Domain Store

7

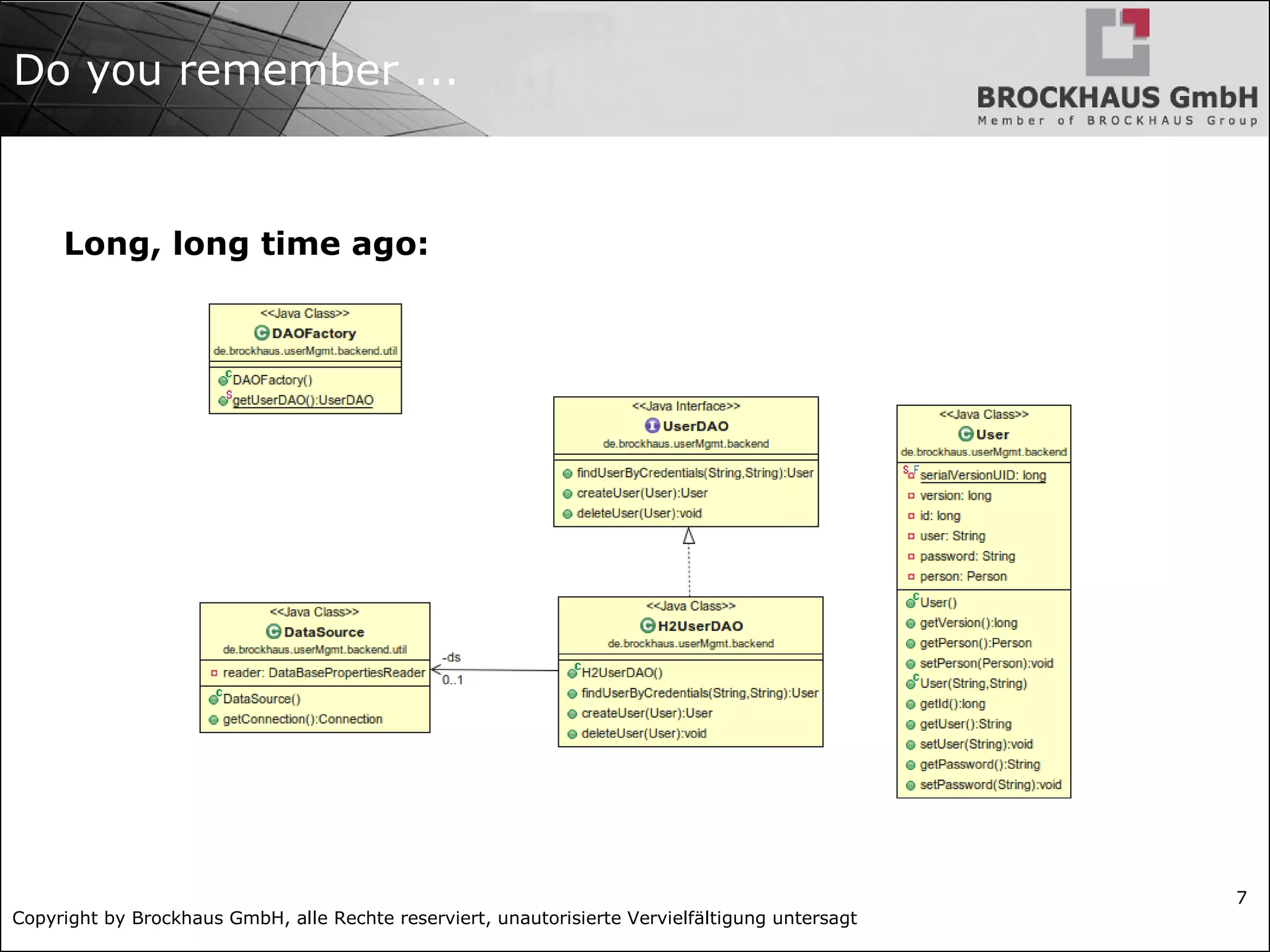

Do you remember ...
Long, long time ago:

8

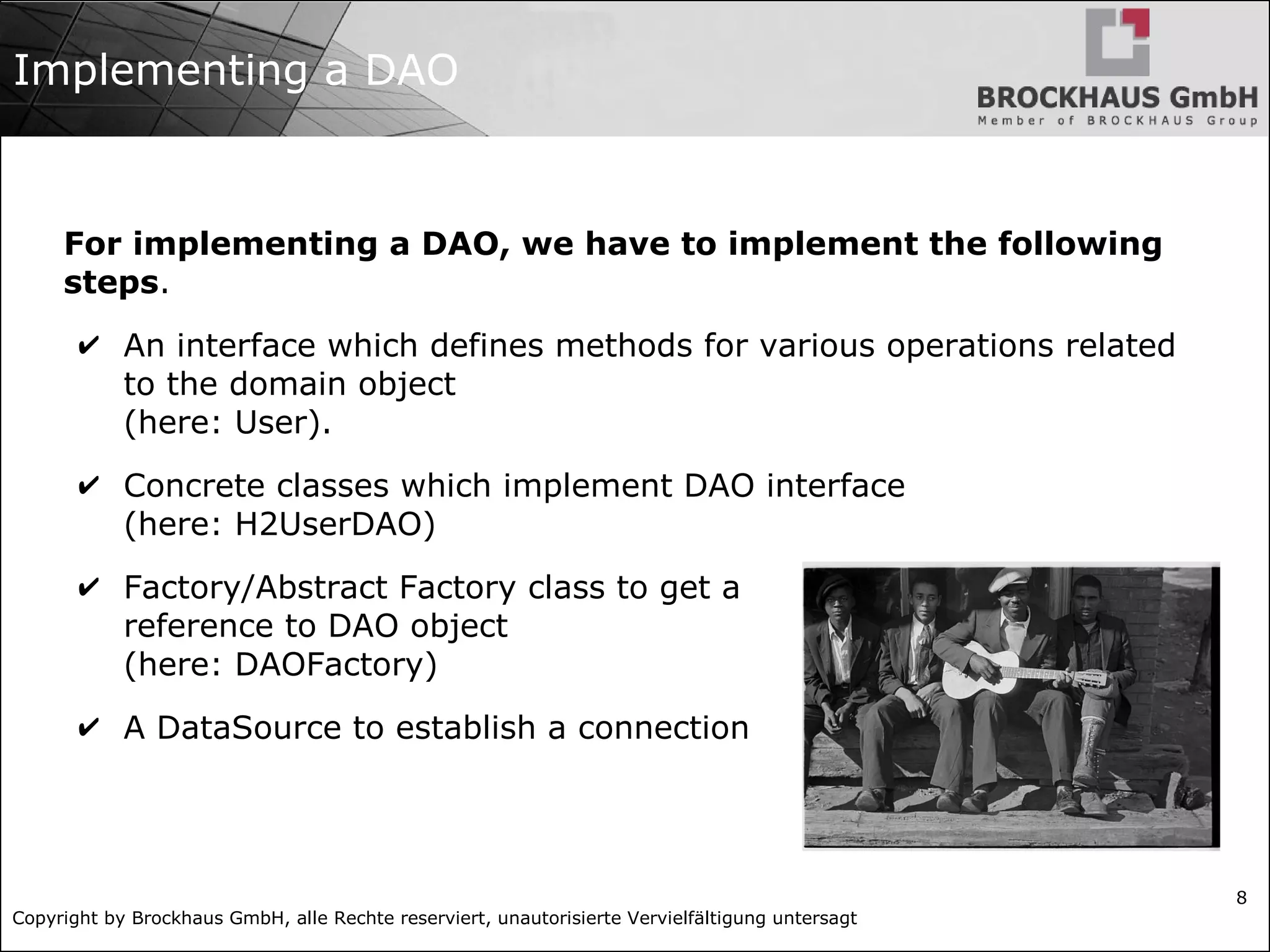

Implementing a DAO
For implementing a DAO, we have to implement the following
steps.
✔ An interface which defines methods for various operations related
to the domain object
(here: User).
✔ Concrete classes which implement DAO interface
(here: H2UserDAO)
✔ Factory/Abstract Factory class to get a
reference to DAO object
(here: DAOFactory)
✔ A DataSource to establish a connection

9

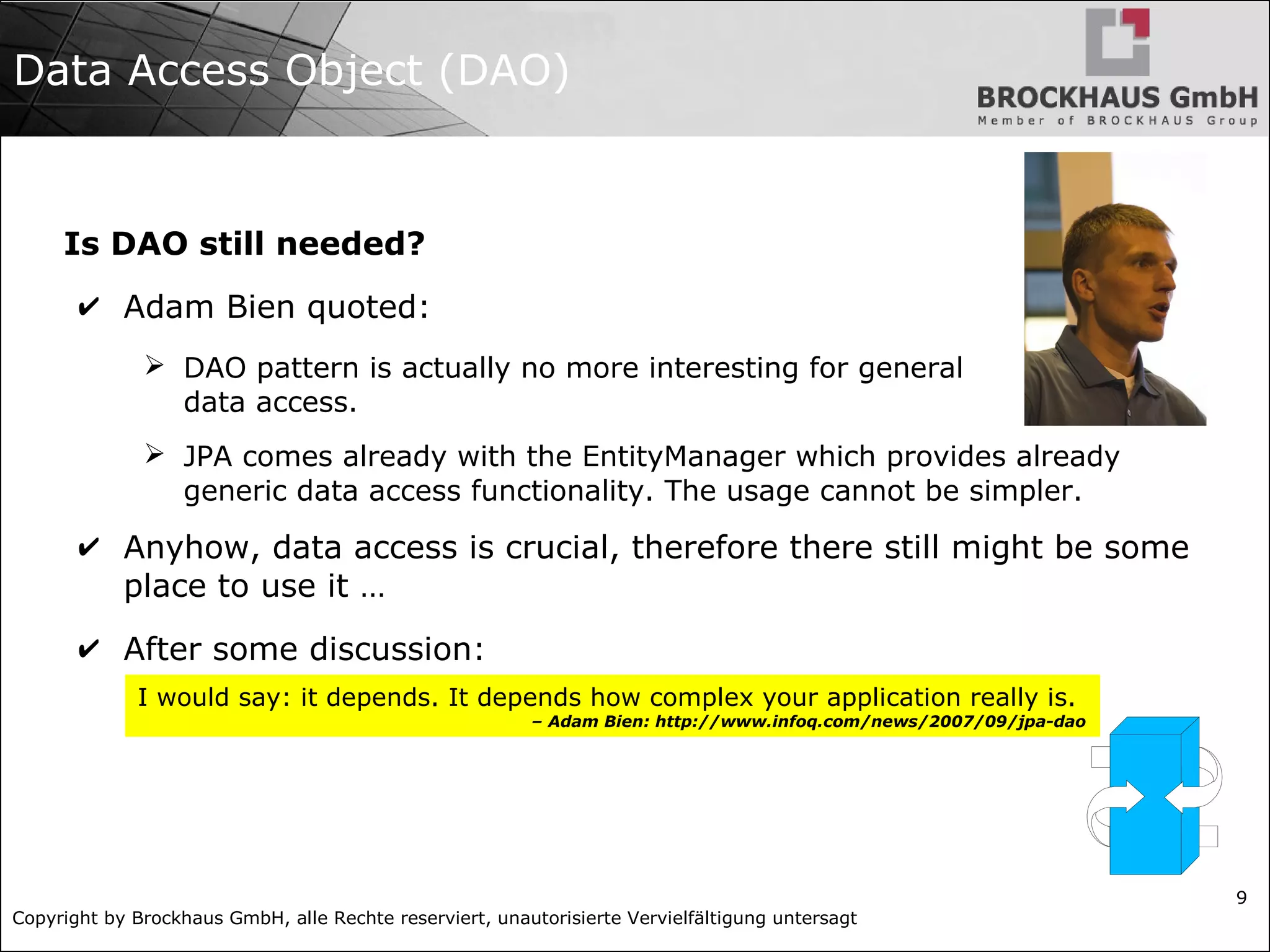

Data Access Object (DAO)
Is DAO still needed?
✔ Adam Bien quoted:
➢ DAO pattern is actually no more interesting for general
data access.
➢ JPA comes already with the EntityManager which provides already
generic data access functionality. The usage cannot be simpler.
✔ Anyhow, data access is crucial, therefore there still might be some
place to use it …
✔ After some discussion:
I would say: it depends. It depends how complex your application really is.
– Adam Bien: http://www.infoq.com/news/2007/09/jpa-dao

10

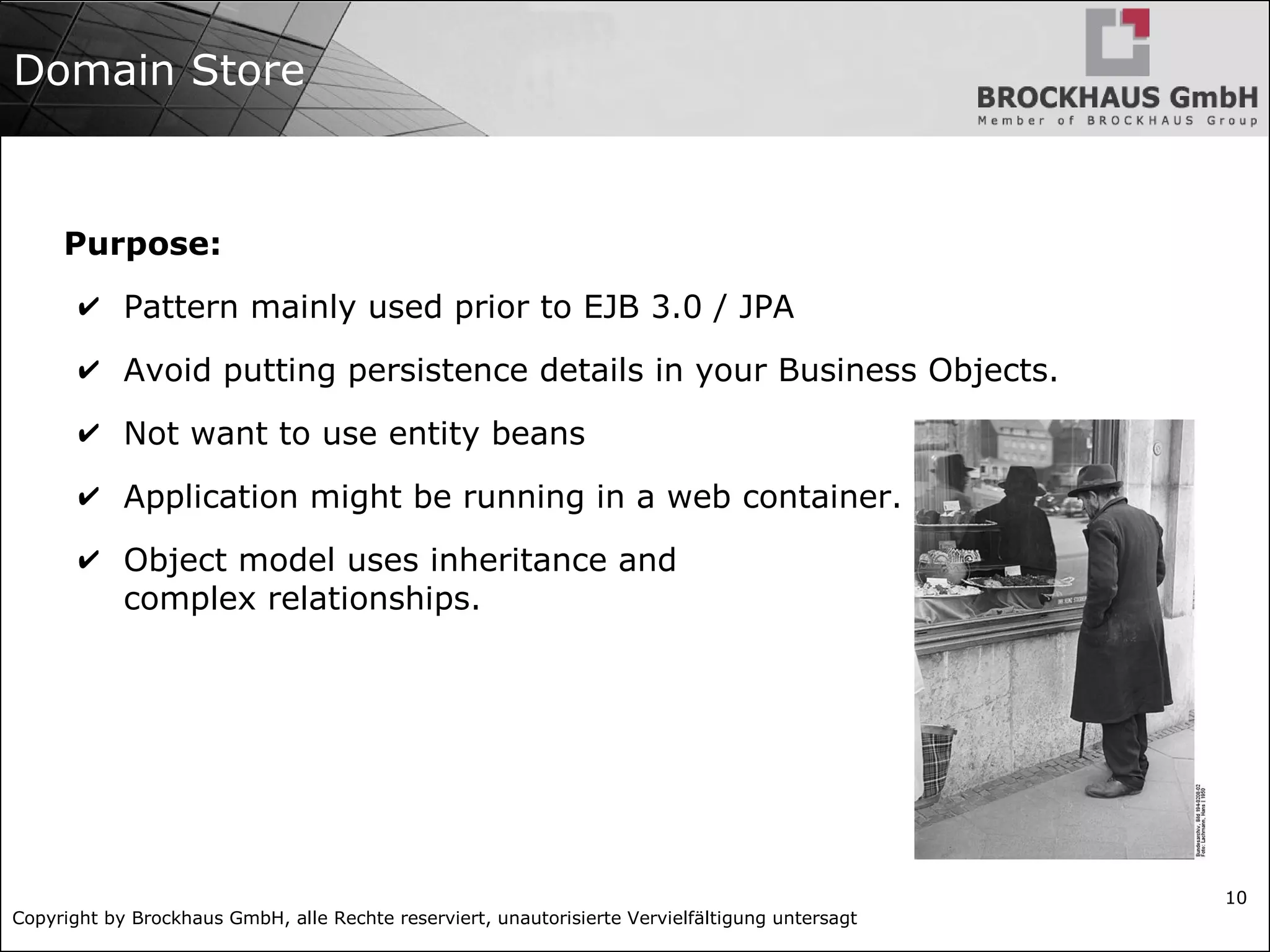

Domain Store
Purpose:
✔ Pattern mainly used prior to EJB 3.0 / JPA
✔ Avoid putting persistence details in your Business Objects.
✔ Not want to use entity beans
✔ Application might be running in a web container.
✔ Object model uses inheritance and
complex relationships.

11

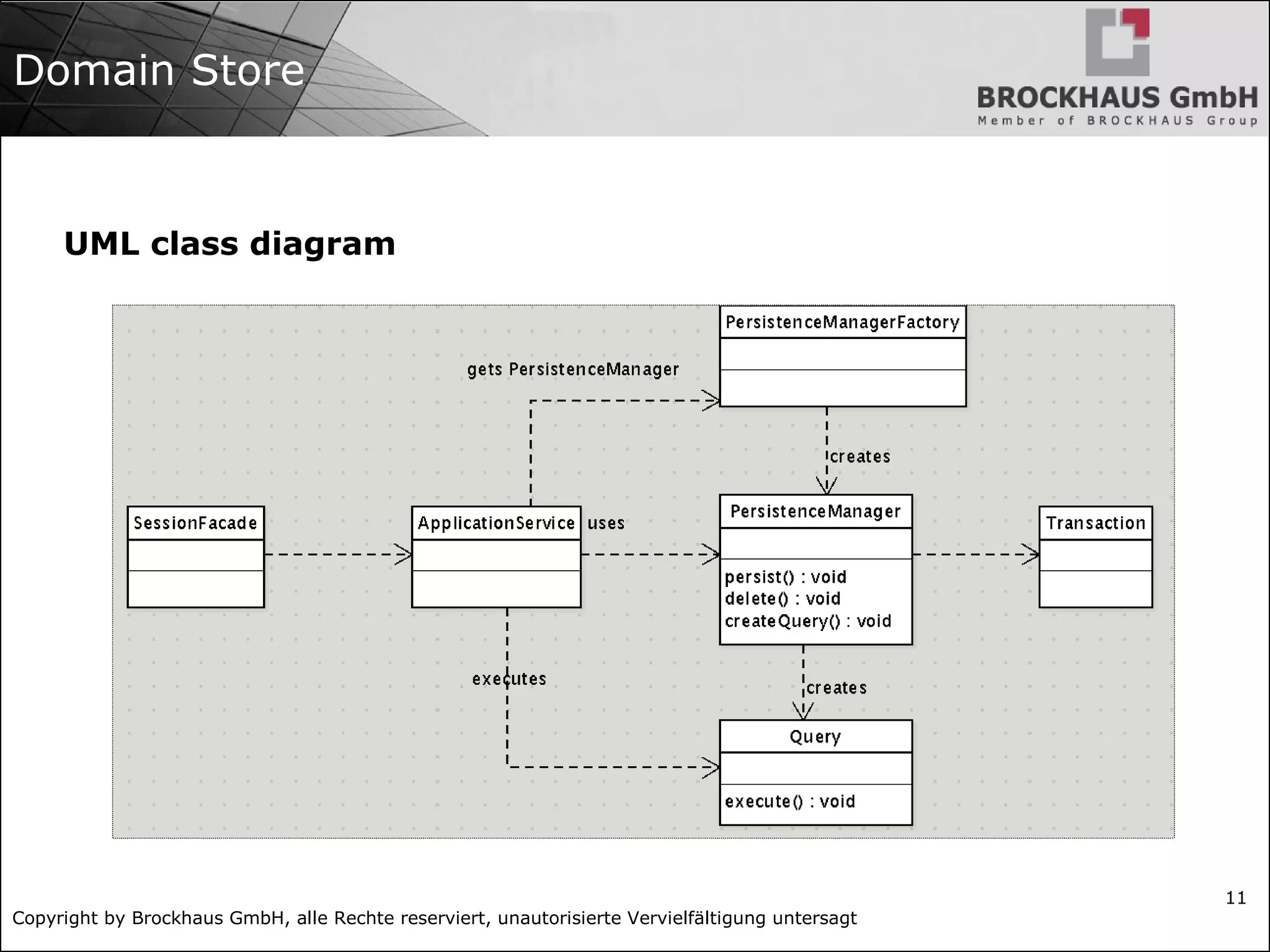

Domain Store
UML class diagram

12

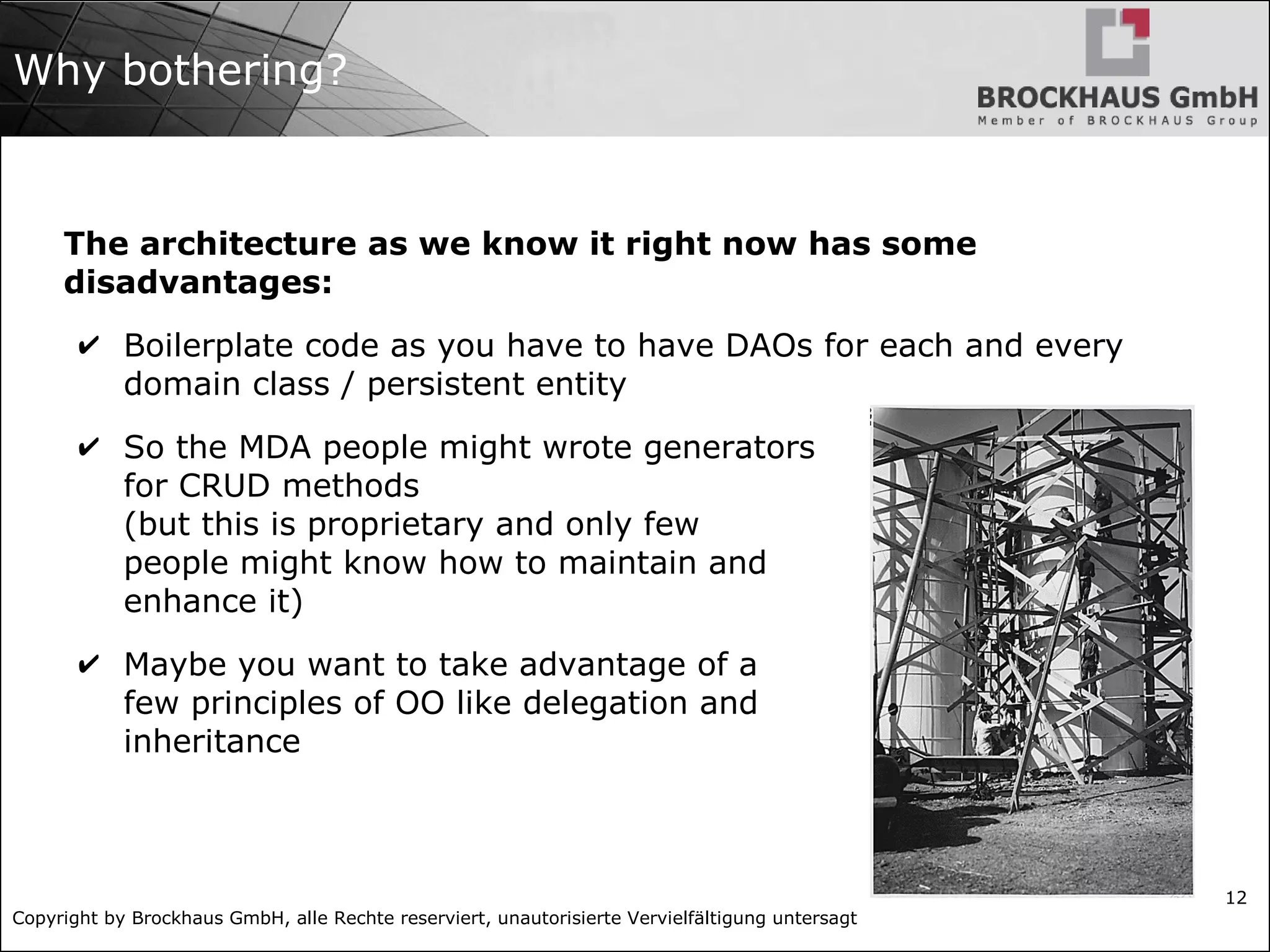

Why bothering?
The architecture as we know it right now has some
disadvantages:
✔ Boilerplate code as you have to have DAOs for each and every
domain class / persistent entity
✔ So the MDA people might wrote generators
for CRUD methods
(but this is proprietary and only few
people might know how to maintain and
enhance it)
✔ Maybe you want to take advantage of a
few principles of OO like delegation and
inheritance

13
Lab
Implement DataAccessObject
(not more than 15 min.)

14

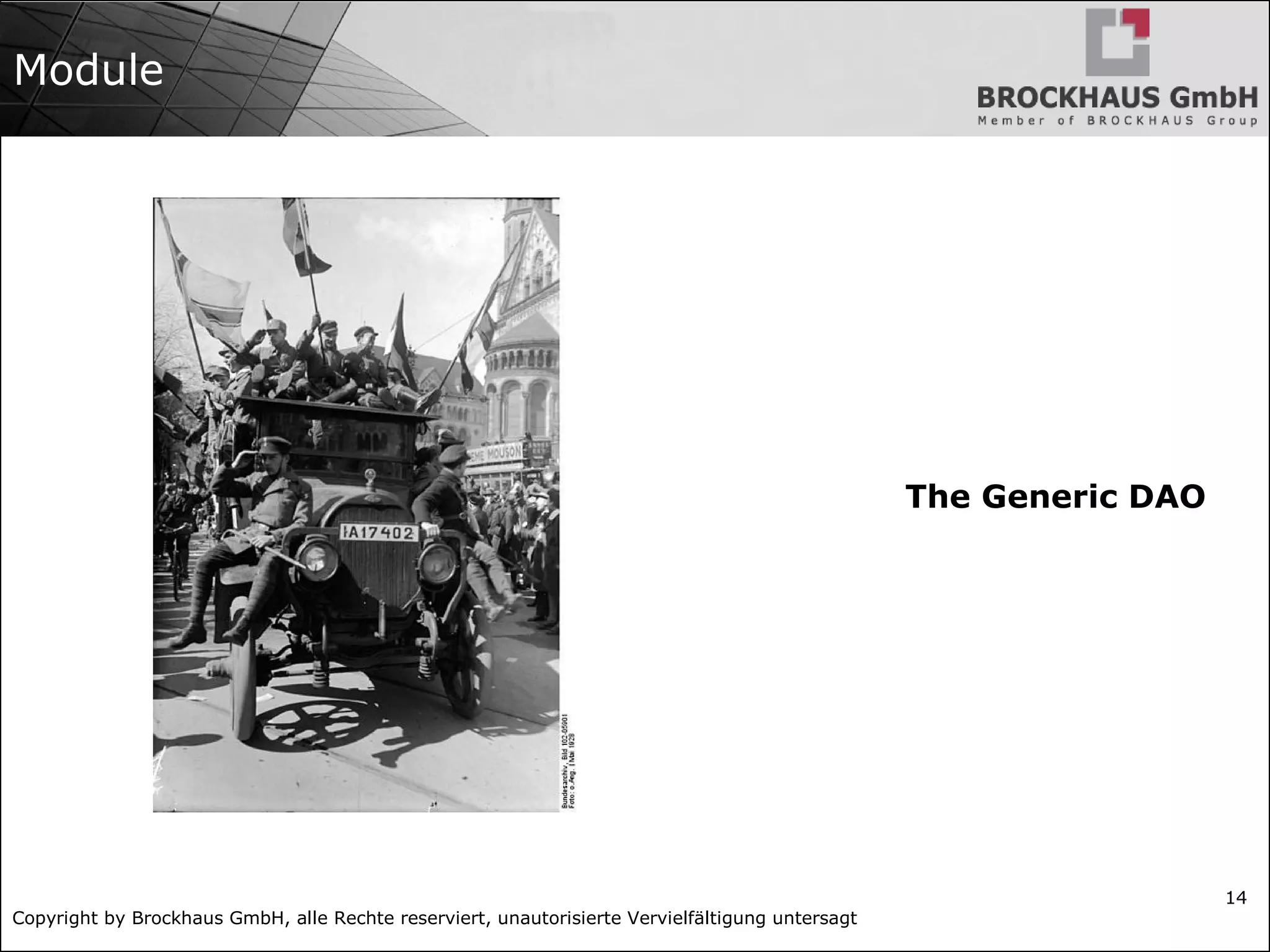

Module
The Generic DAO

15

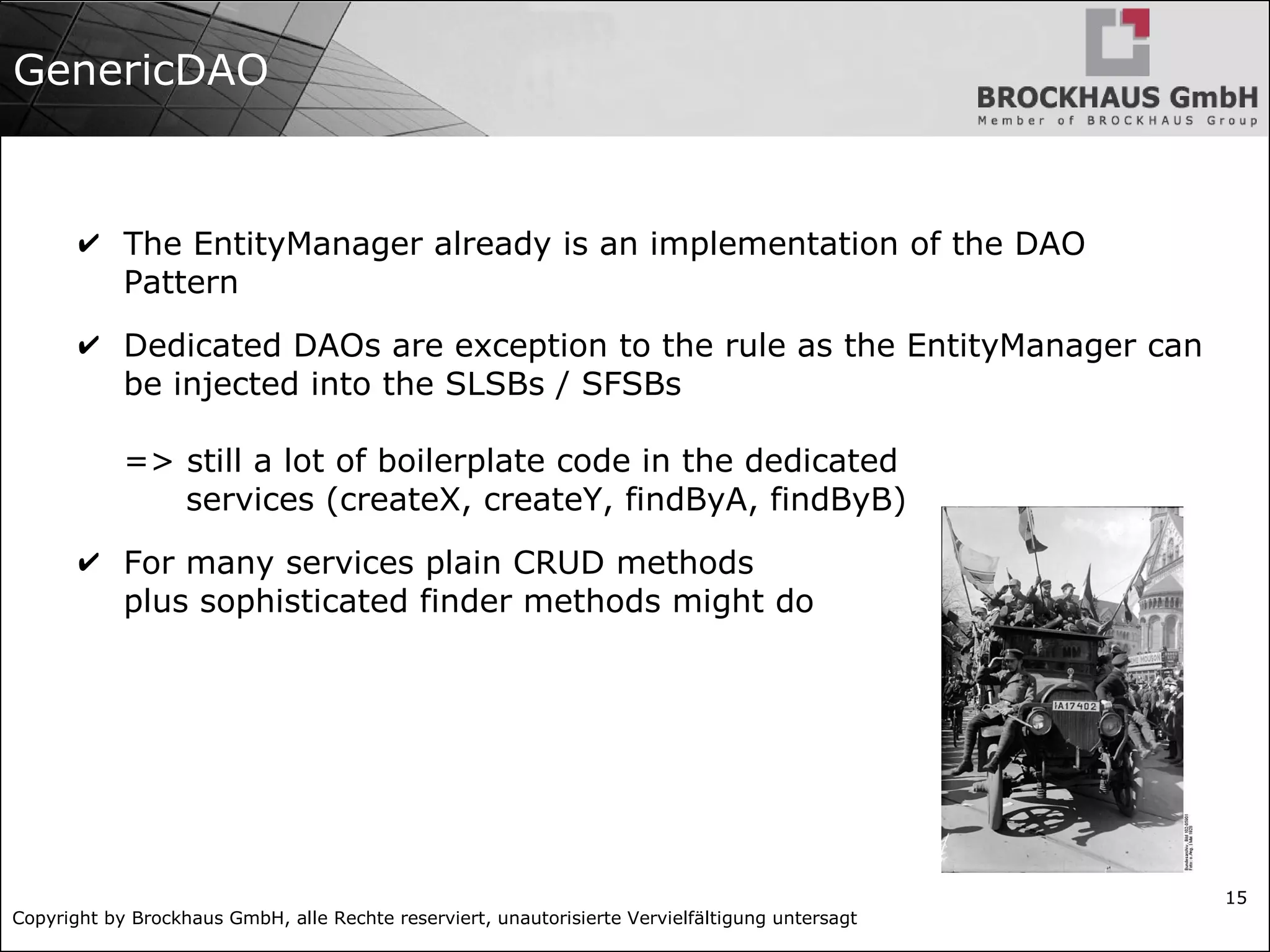

GenericDAO
✔ The EntityManager already is an implementation of the DAO
Pattern
✔ Dedicated DAOs are exception to the rule as the EntityManager can
be injected into the SLSBs / SFSBs
=> still a lot of boilerplate code in the dedicated
services (createX, createY, findByA, findByB)
✔ For many services plain CRUD methods
plus sophisticated finder methods might do

16

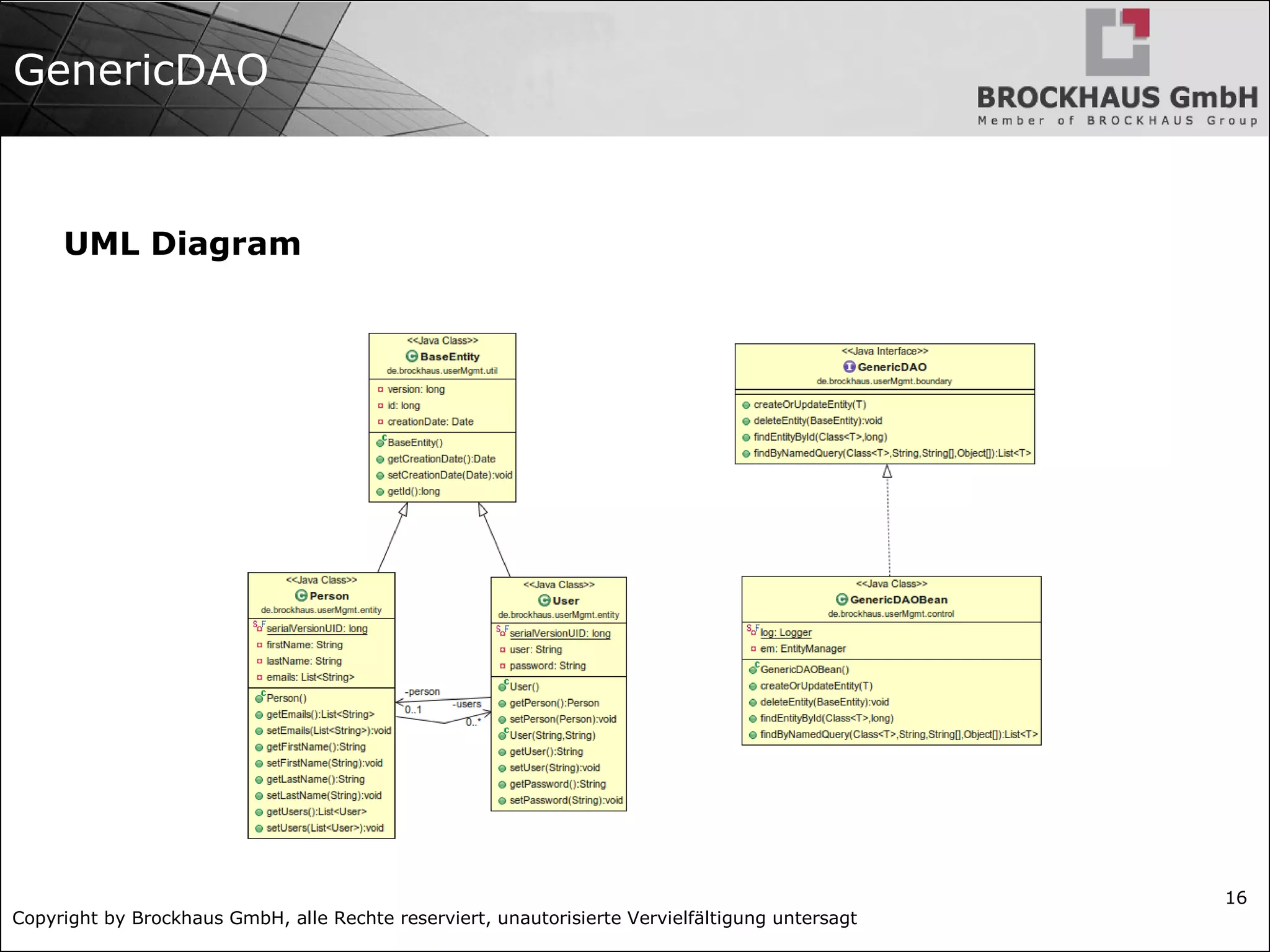

GenericDAO
UML Diagram

17
A common superclass
Might be helpful ...
@MappedSuperclass
public abstract class BaseEntity implements Serializable
{
@Version
private long version;
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
private long id;
@Temporal(TemporalType.DATE)
private Date creationDate;
public BaseEntity()
{ //lazy }
public Date getCreationDate()
{ return creationDate; }
public void setCreationDate(Date creationDate)
{ this.creationDate = creationDate; }
public long getId()
{ return id; }
}

18

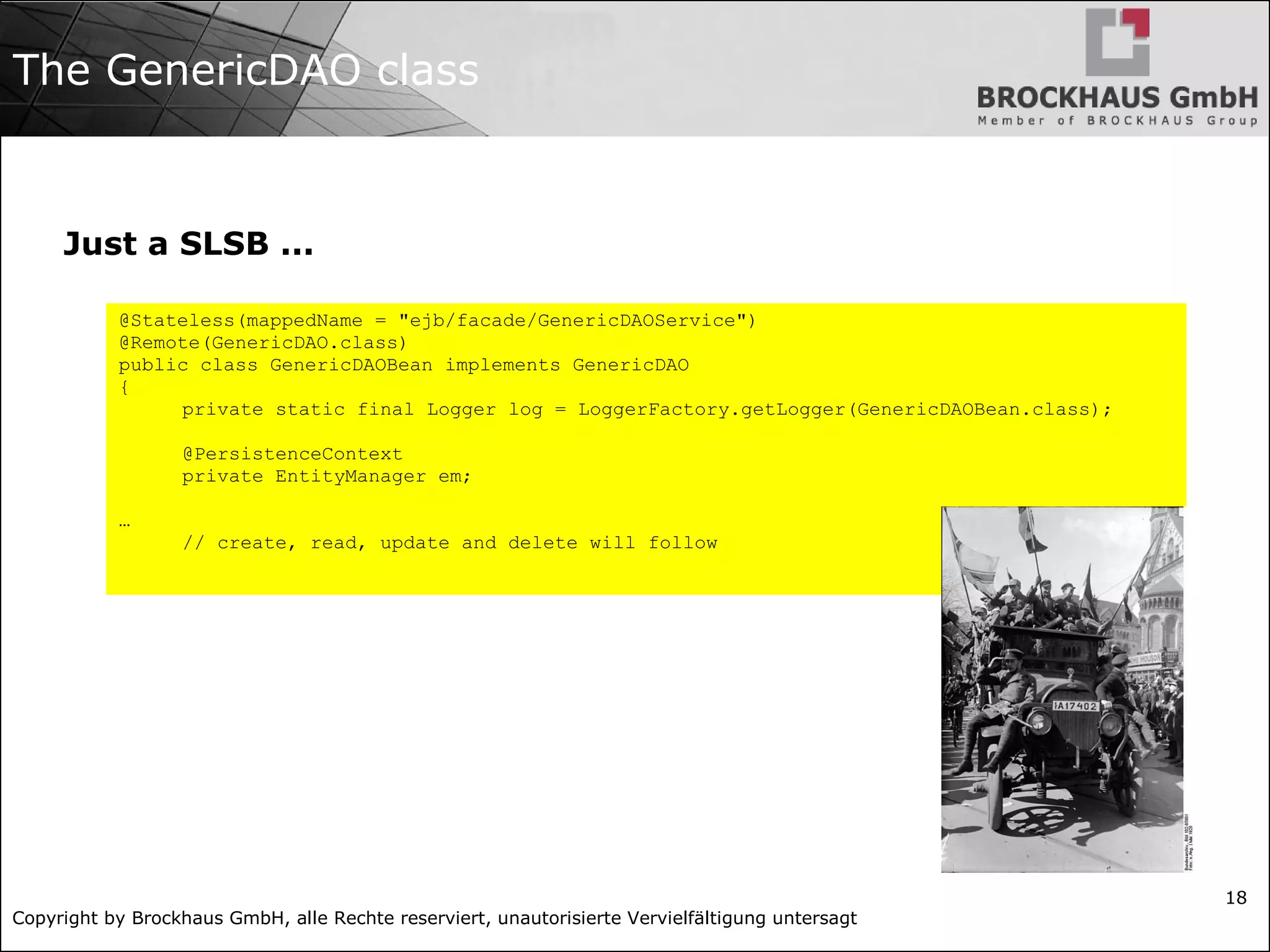

The GenericDAO class
Just a SLSB ...
@Stateless(mappedName = "ejb/facade/GenericDAOService")
@Remote(GenericDAO.class)
public class GenericDAOBean implements GenericDAO
{
private static final Logger log = LoggerFactory.getLogger(GenericDAOBean.class);
@PersistenceContext
private EntityManager em;
…
// create, read, update and delete will follow

19

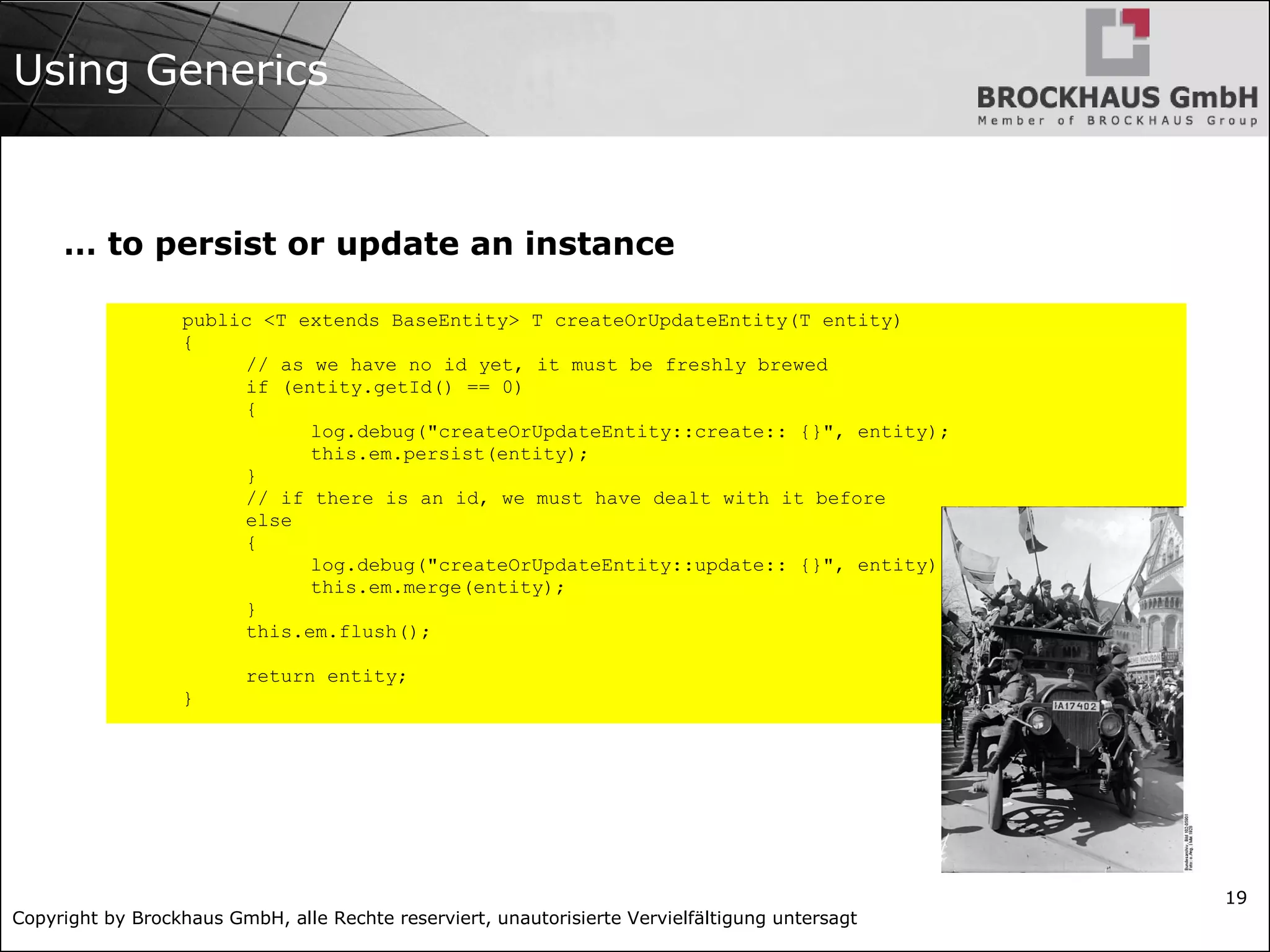

Using Generics
… to persist or update an instance
public <T extends BaseEntity> T createOrUpdateEntity(T entity)
{
// as we have no id yet, it must be freshly brewed
if (entity.getId() == 0)
{
log.debug("createOrUpdateEntity::create:: {}", entity);
this.em.persist(entity);
}
// if there is an id, we must have dealt with it before
else
{
log.debug("createOrUpdateEntity::update:: {}", entity);
this.em.merge(entity);
}
this.em.flush();
return entity;
}

20
Using Generics
✔ … find an instance by key
public <T extends BaseEntity> T findEntityById(Class<T> clazz, long id)
{
log.debug("findEntityById:: class= {}, id= {}", clazz, id);
return this.em.find(clazz, id);
}

21
Using Generics
✔ … to delete an instance
public void deleteEntity(BaseEntity entity)
{
log.debug("deleteEntity:: {}", entity);
// updating it first ...
entity = (BaseEntity) this.em.merge(entity);
// ... then killing it
this.em.remove(entity);
}

22

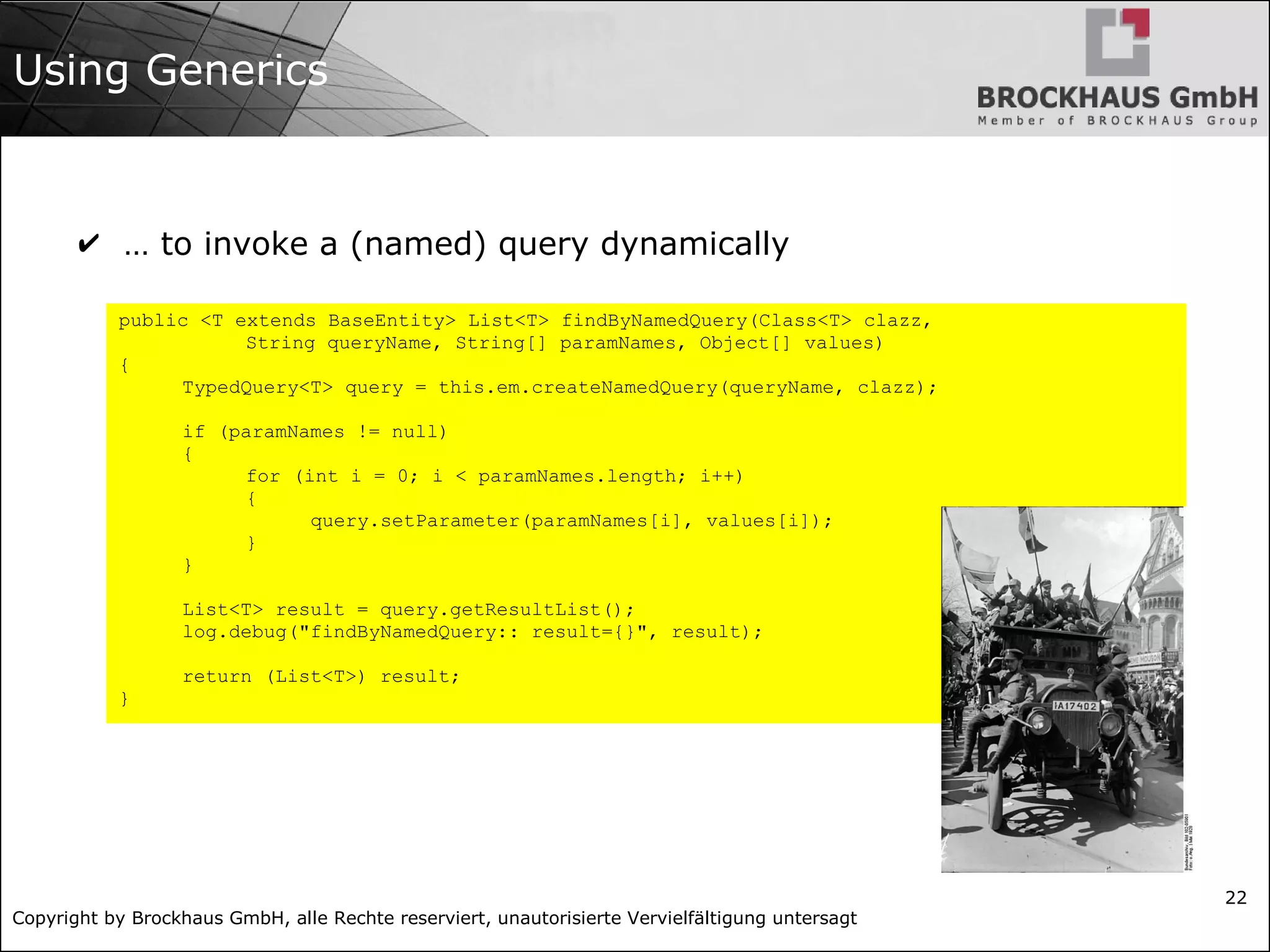

Using Generics
✔ … to invoke a (named) query dynamically
public <T extends BaseEntity> List<T> findByNamedQuery(Class<T> clazz,
String queryName, String[] paramNames, Object[] values)
{
TypedQuery<T> query = this.em.createNamedQuery(queryName, clazz);
if (paramNames != null)
{
for (int i = 0; i < paramNames.length; i++)
{
query.setParameter(paramNames[i], values[i]);
}
}
List<T> result = query.getResultList();
log.debug("findByNamedQuery:: result={}", result);
return (List<T>) result;
}

23
Lab
Implement GenericDAO

24
Module
The Domain-Specific DAO

25

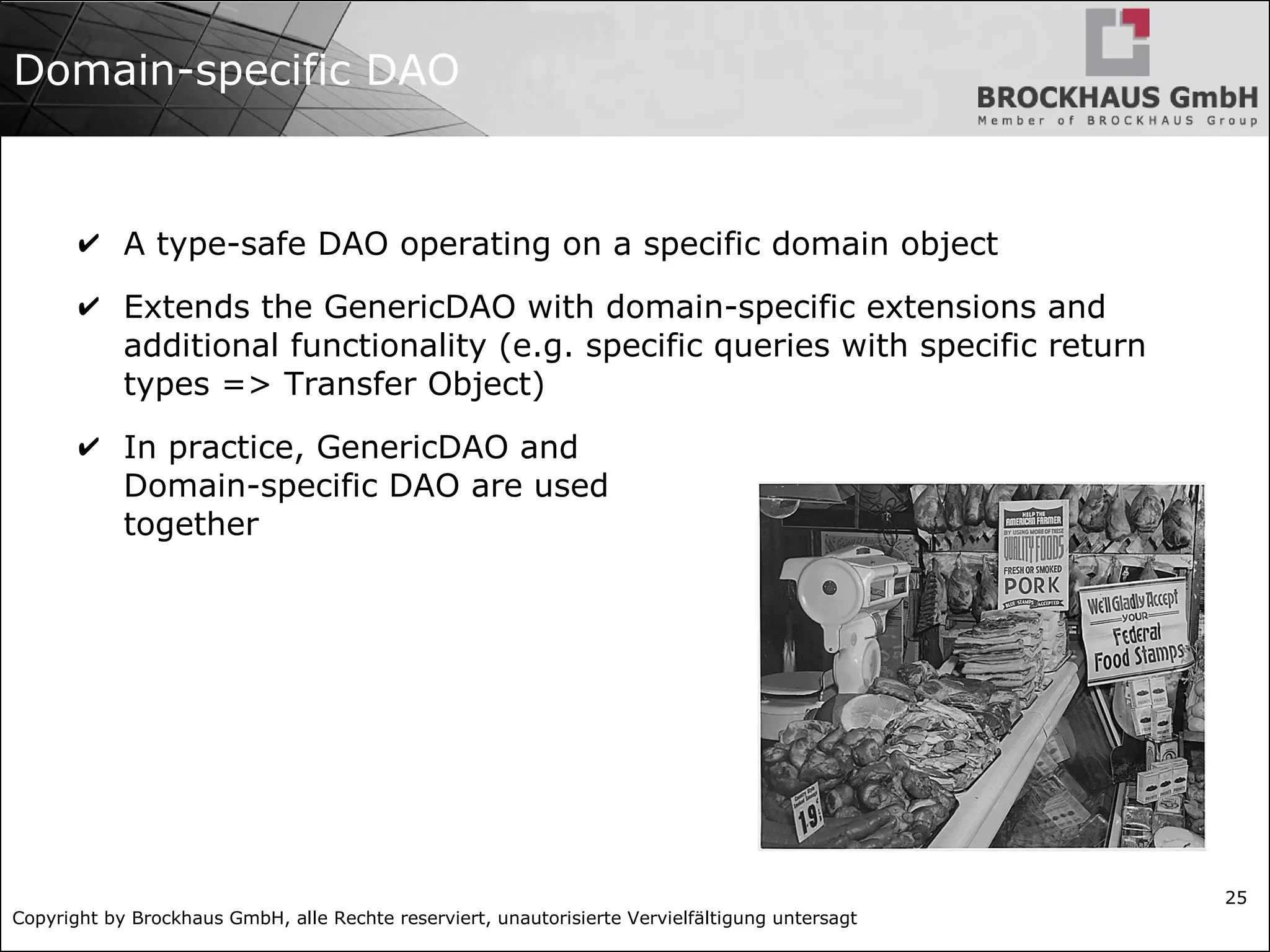

Domain-specific DAO
✔ A type-safe DAO operating on a specific domain object
✔ Extends the GenericDAO with domain-specific extensions and
additional functionality (e.g. specific queries with specific return
types => Transfer Object)
✔ In practice, GenericDAO and
Domain-specific DAO are used
together

26

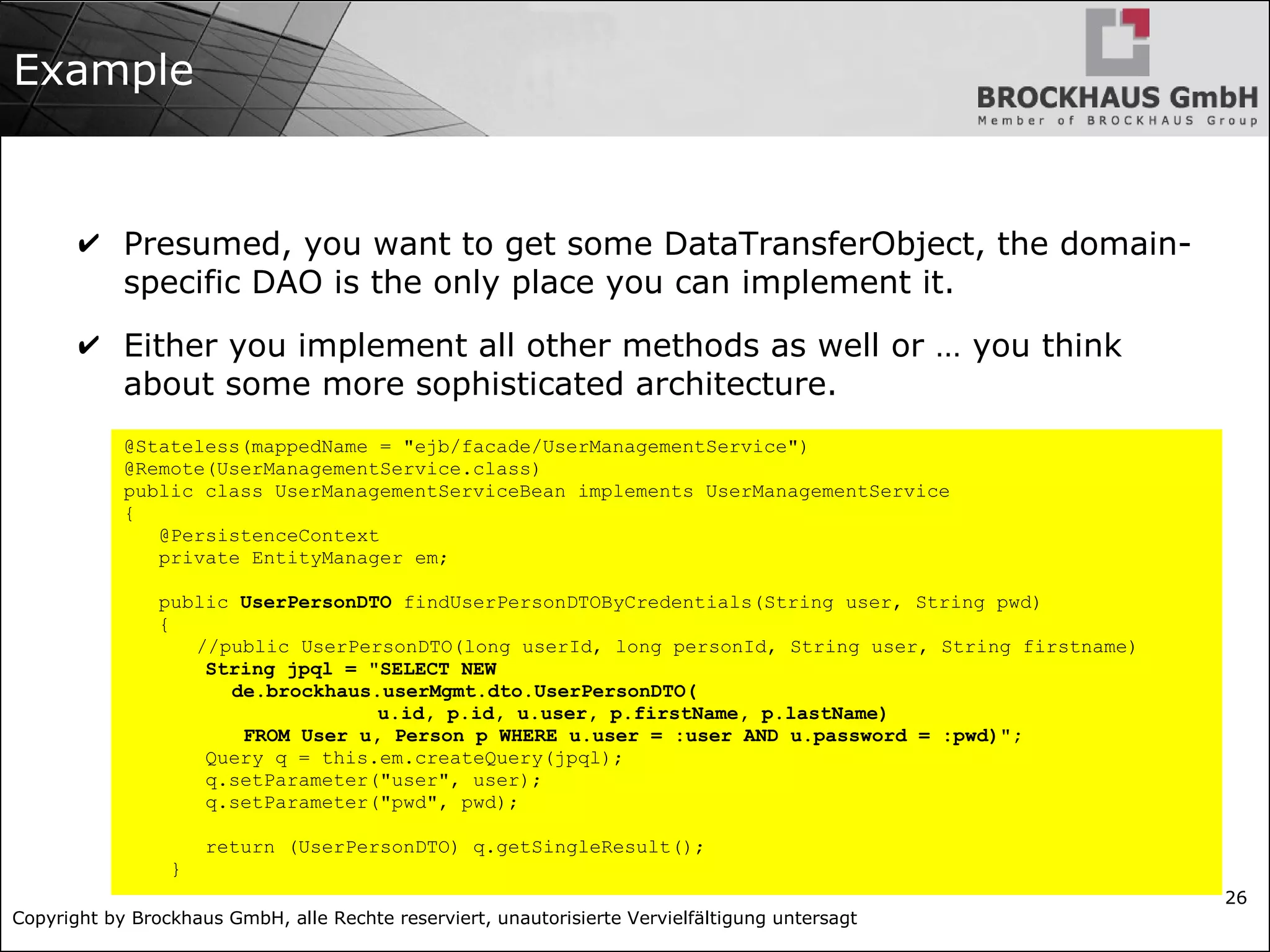

Example
✔ Presumed, you want to get some DataTransferObject, the domain-
specific DAO is the only place you can implement it.
✔ Either you implement all other methods as well or … you think
about some more sophisticated architecture.
@Stateless(mappedName = "ejb/facade/UserManagementService")
@Remote(UserManagementService.class)
public class UserManagementServiceBean implements UserManagementService
{
@PersistenceContext
public UserPersonDTO findUserPersonDTOByCredentials(String user, String pwd)
{
//public UserPersonDTO(long userId, long personId, String user, String firstname)
String jpql = "SELECT NEW
de.brockhaus.userMgmt.dto.UserPersonDTO(
u.id, p.id, u.user, p.firstName, p.lastName)
FROM User u, Person p WHERE u.user = :user AND u.password = :pwd)";
Query q = this.em.createQuery(jpql);
q.setParameter("user", user);
q.setParameter("pwd", pwd);
return (UserPersonDTO) q.getSingleResult();
}

27

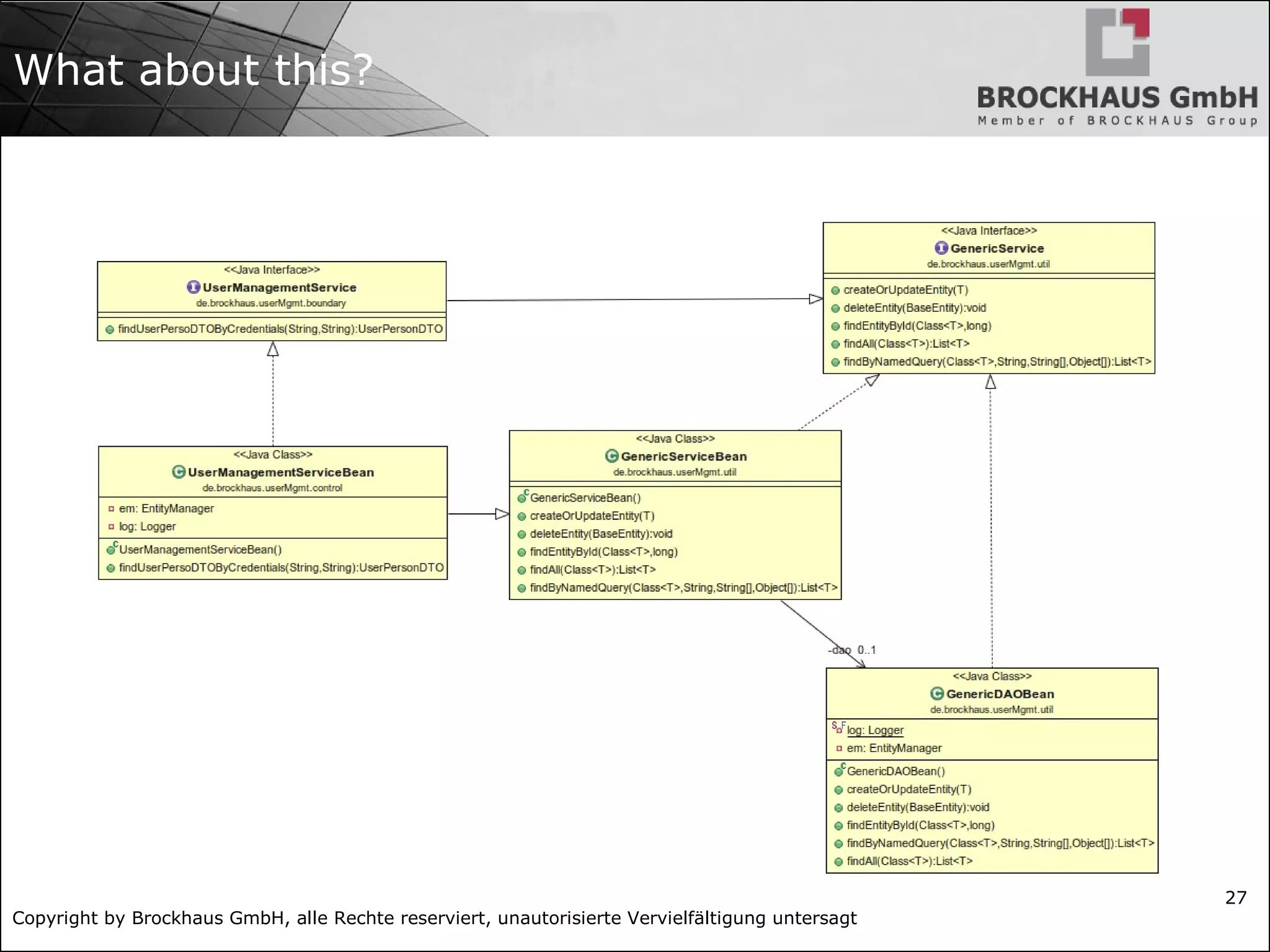

What about this?

28
Lab
Implement Domain-specific DAO

29
Module
TransferObject &
DataTransferObject

30

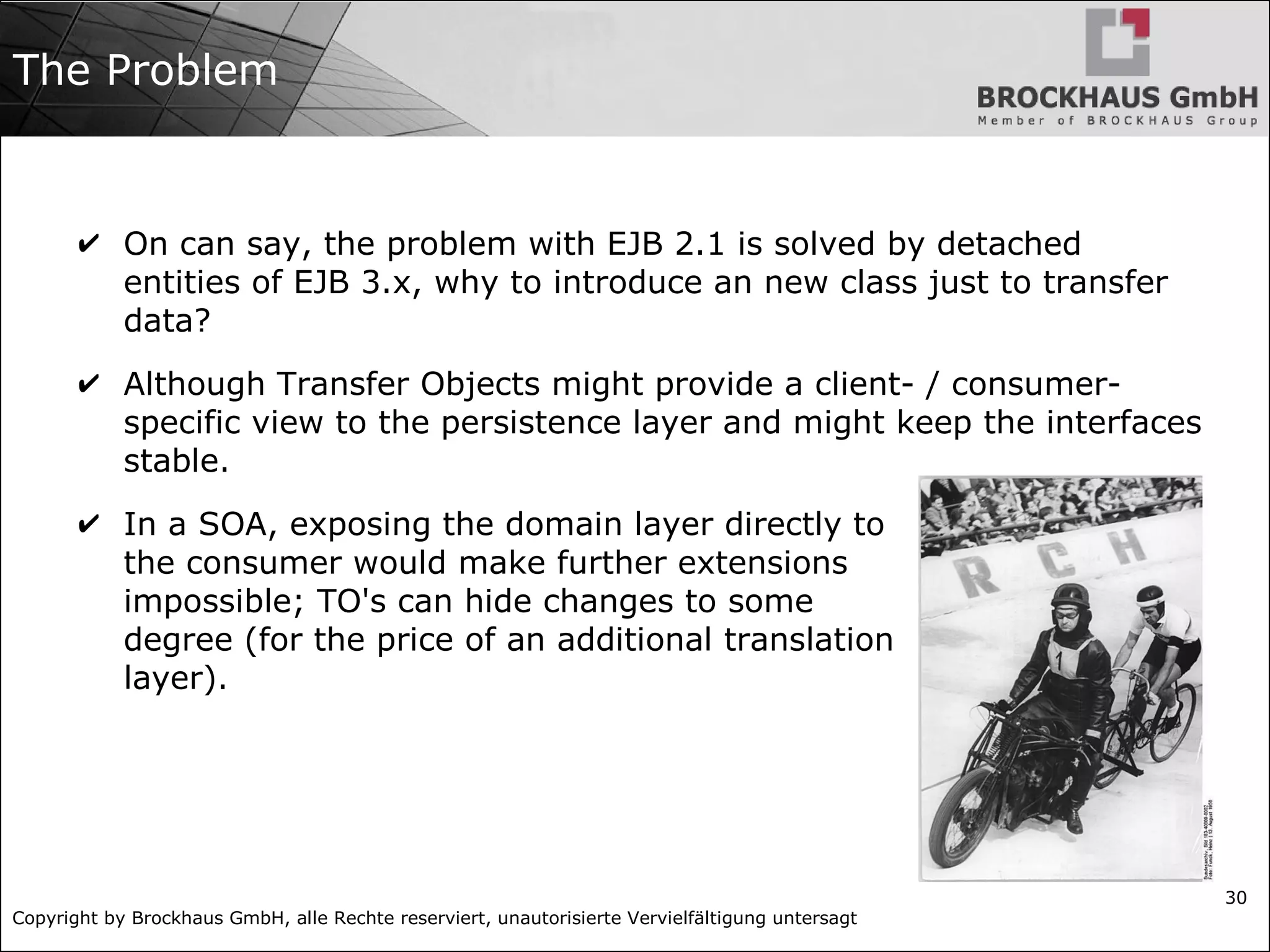

The Problem
✔ On can say, the problem with EJB 2.1 is solved by detached
entities of EJB 3.x, why to introduce an new class just to transfer
data?
✔ Although Transfer Objects might provide a client- / consumer-
specific view to the persistence layer and might keep the interfaces
stable.
✔ In a SOA, exposing the domain layer directly to
the consumer would make further extensions
impossible; TO's can hide changes to some
degree (for the price of an additional translation
layer).

31

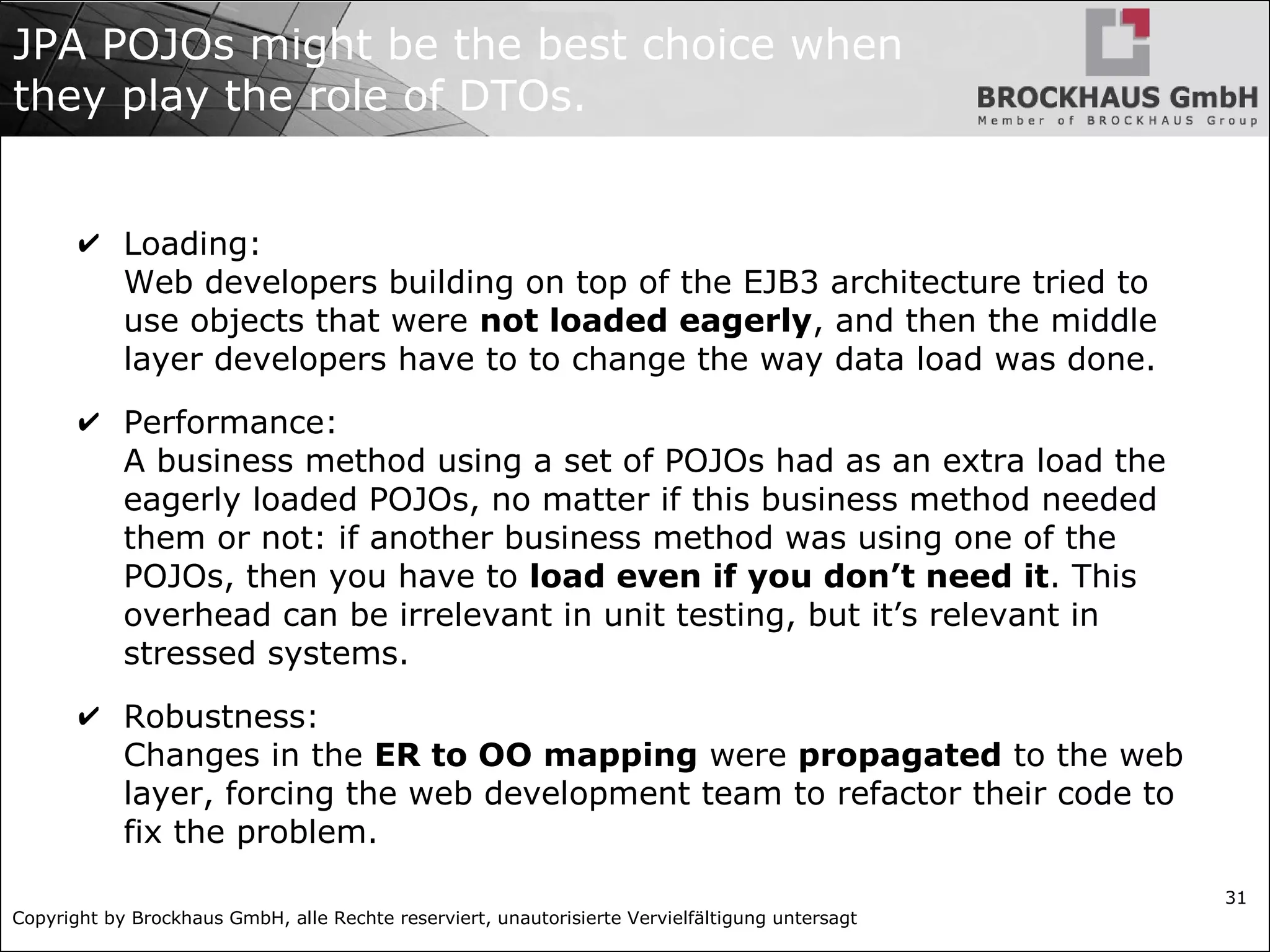

JPA POJOs might be the best choice when
they play the role of DTOs.
✔ Loading:
Web developers building on top of the EJB3 architecture tried to
use objects that were not loaded eagerly, and then the middle
layer developers have to to change the way data load was done.
✔ Performance:
A business method using a set of POJOs had as an extra load the
eagerly loaded POJOs, no matter if this business method needed
them or not: if another business method was using one of the
POJOs, then you have to load even if you don’t need it. This
overhead can be irrelevant in unit testing, but it’s relevant in
stressed systems.
✔ Robustness:
Changes in the ER to OO mapping were propagated to the web
layer, forcing the web development team to refactor their code to
fix the problem.

32
And now?
✔ Don't design lasagna architectures (dozens of layers with only little
beef)
✔ Decoupling is not a sufficient justification for using TOs (as they
are in most cases just duplicates of the original) and therefore
would violate the DRY principle.
✔ There are enough cases:
➢ Additional view to the domain model
➢ Abstracting von legacy data
➢ Enforcements of eager loading
✔ Store TOs in a dedicated subpackage

33

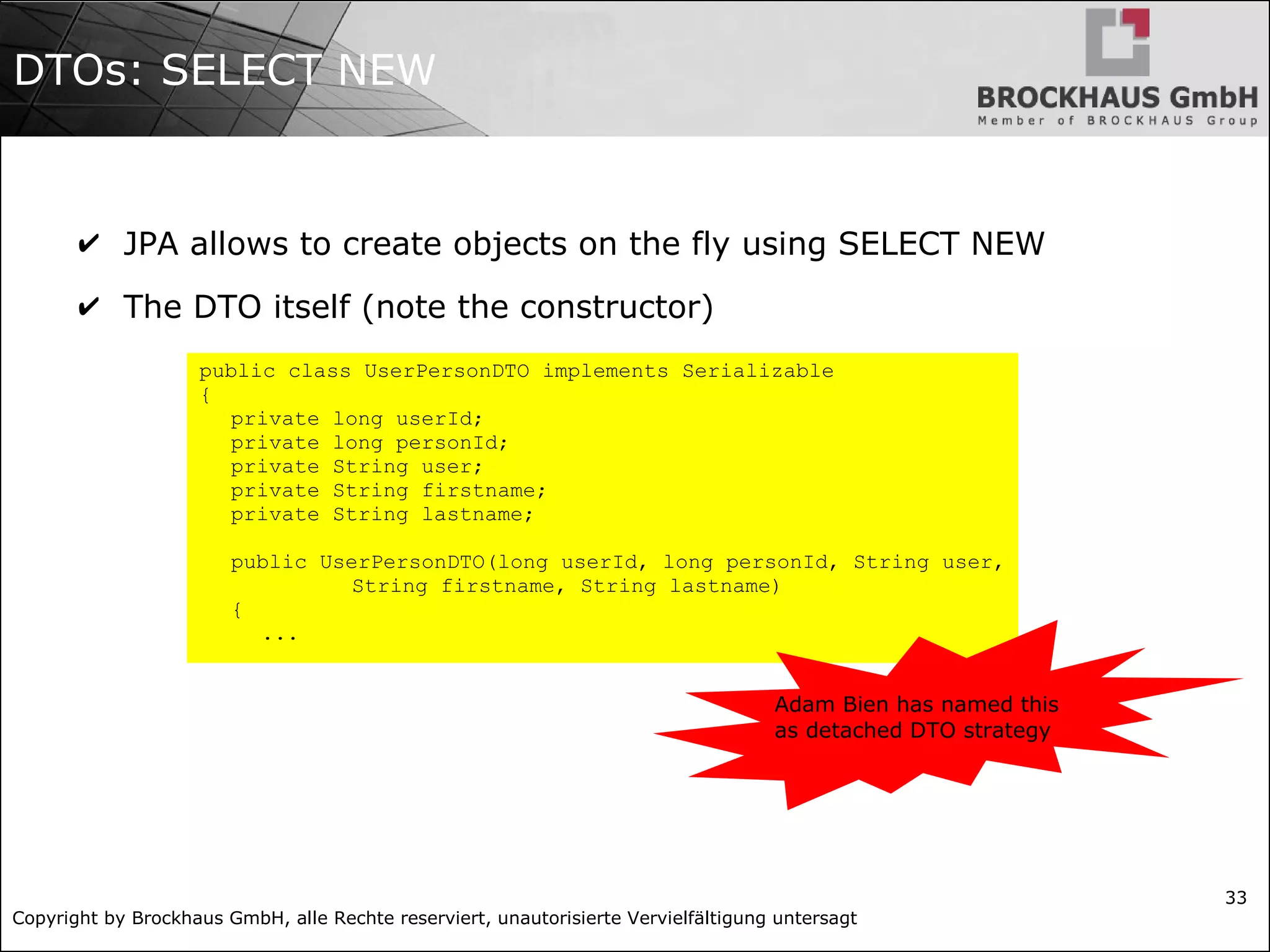

DTOs: SELECT NEW
✔ JPA allows to create objects on the fly using SELECT NEW
✔ The DTO itself (note the constructor)
public class UserPersonDTO implements Serializable
{
private long userId;
private long personId;
private String user;
private String firstname;
private String lastname;
public UserPersonDTO(long userId, long personId, String user,
String firstname, String lastname)
{
...
Adam Bien has named this
as detached DTO strategy

34

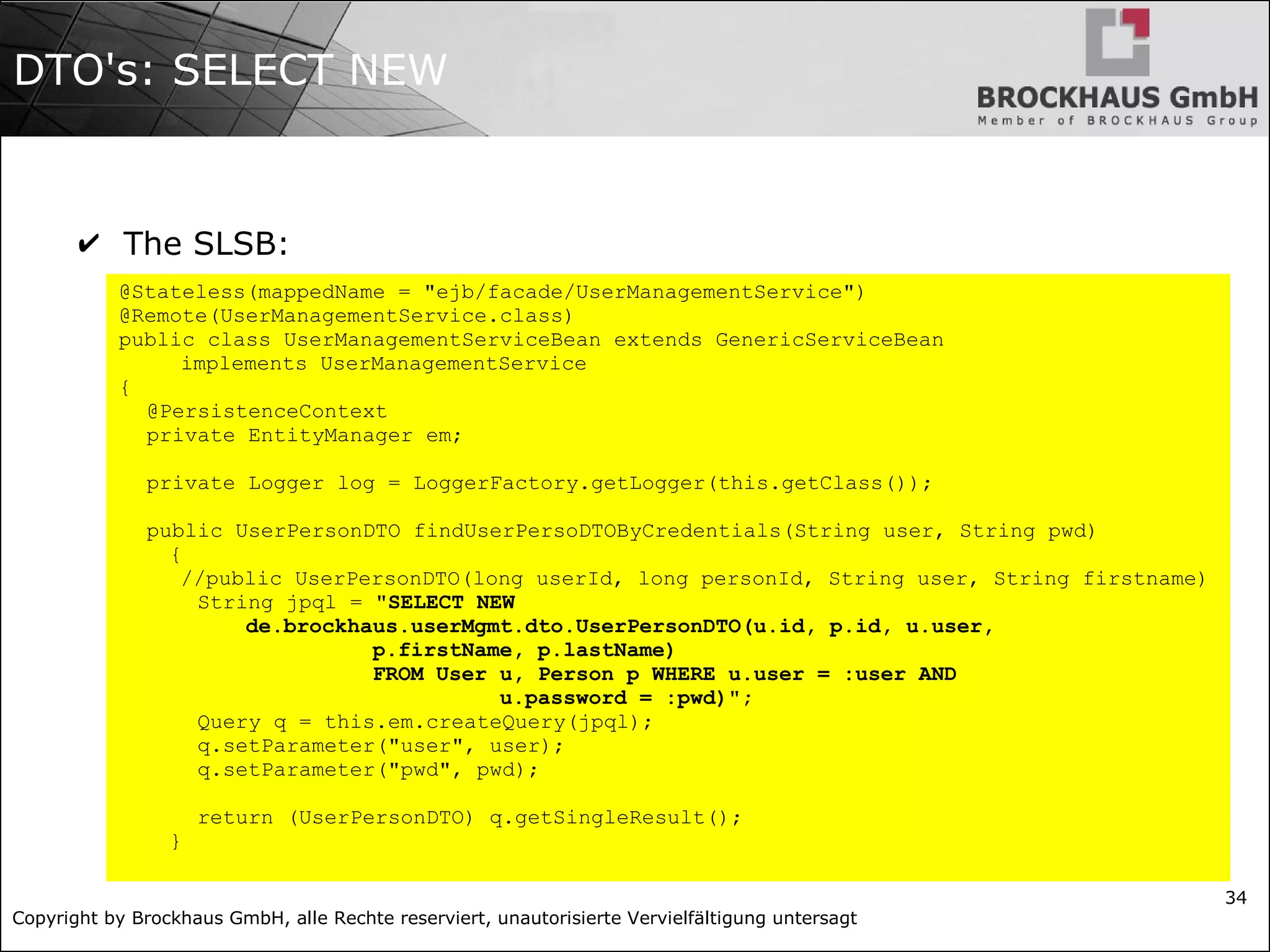

DTO's: SELECT NEW
✔ The SLSB:
@Stateless(mappedName = "ejb/facade/UserManagementService")
@Remote(UserManagementService.class)
public class UserManagementServiceBean extends GenericServiceBean
implements UserManagementService
{
@PersistenceContext
private Logger log = LoggerFactory.getLogger(this.getClass());
public UserPersonDTO findUserPersoDTOByCredentials(String user, String pwd)
{
//public UserPersonDTO(long userId, long personId, String user, String firstname)
String jpql = "SELECT NEW
de.brockhaus.userMgmt.dto.UserPersonDTO(u.id, p.id, u.user,
p.firstName, p.lastName)
FROM User u, Person p WHERE u.user = :user AND
u.password = :pwd)";
Query q = this.em.createQuery(jpql);
return (UserPersonDTO) q.getSingleResult();
}

35

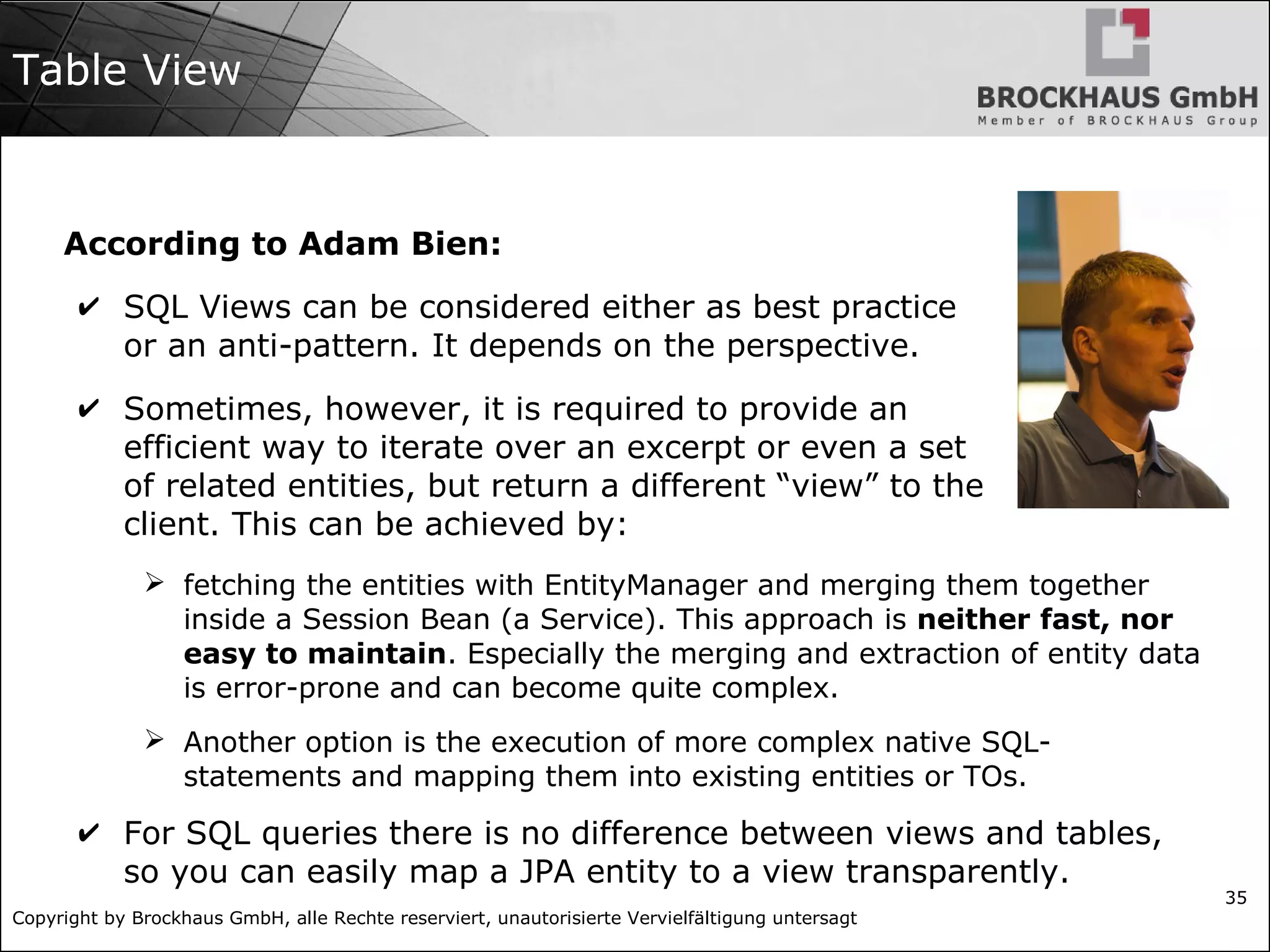

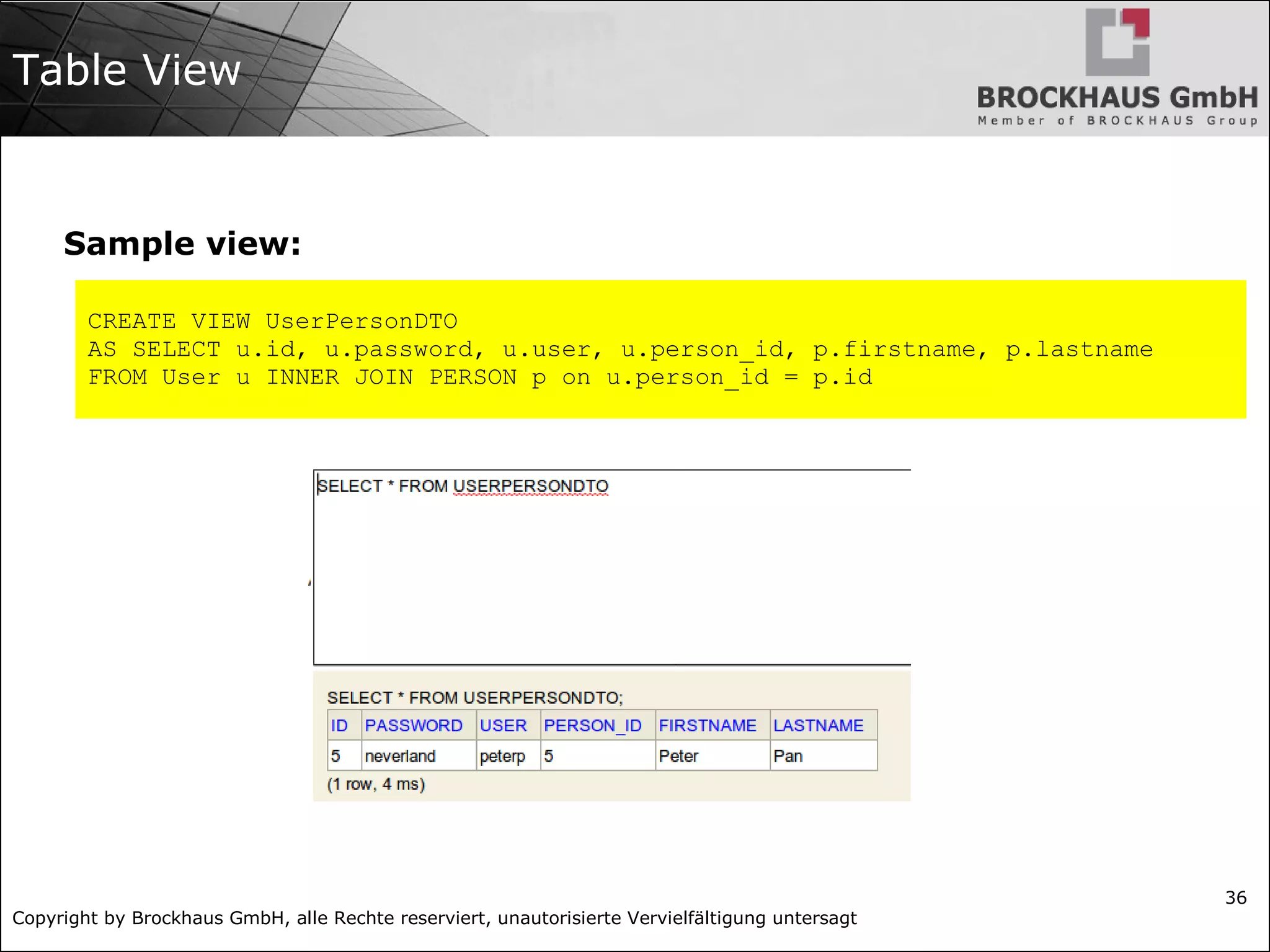

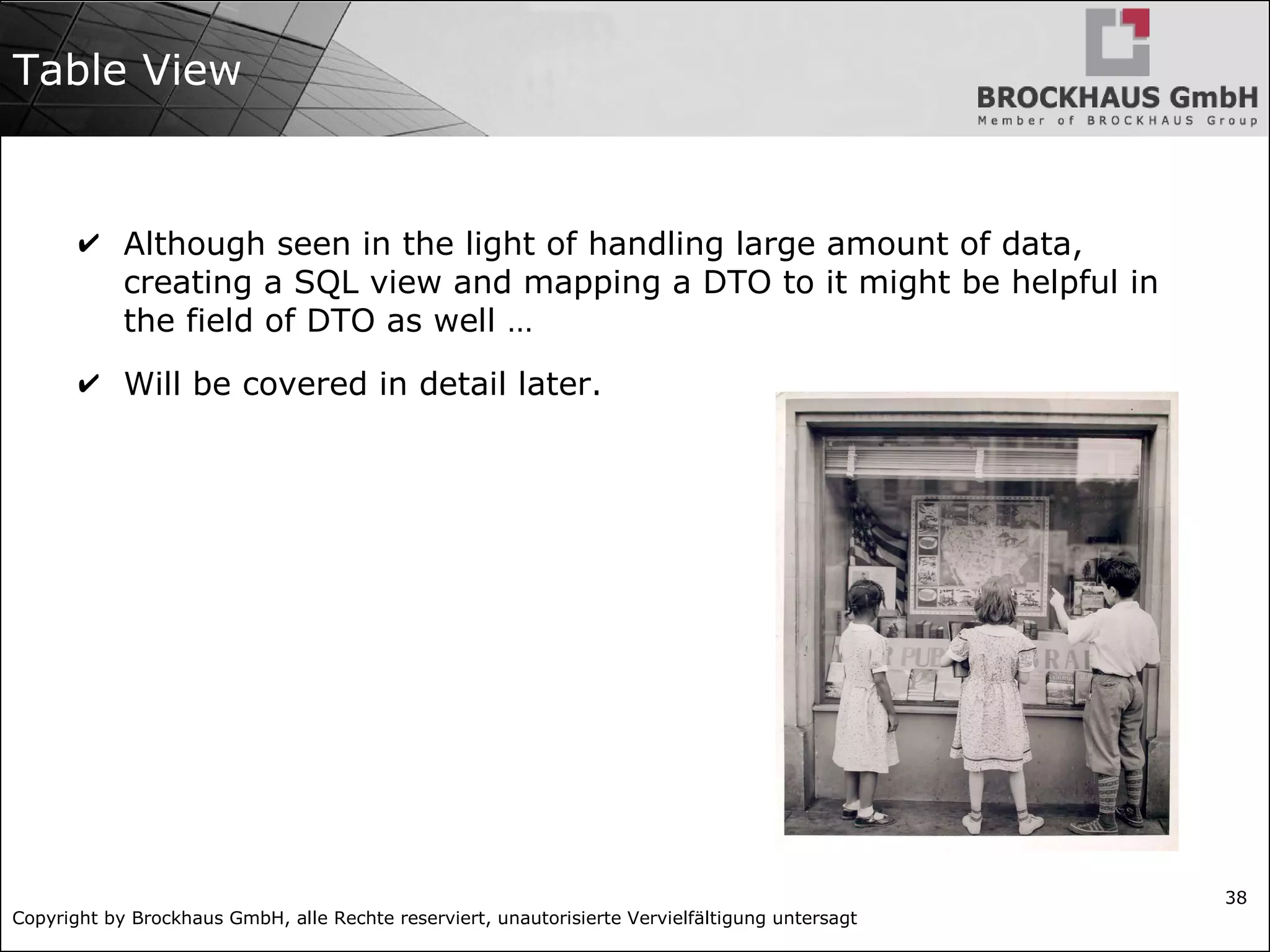

Table View
According to Adam Bien:
✔ SQL Views can be considered either as best practice
or an anti-pattern. It depends on the perspective.
✔ Sometimes, however, it is required to provide an
efficient way to iterate over an excerpt or even a set
of related entities, but return a different “view” to the
client. This can be achieved by:
➢ fetching the entities with EntityManager and merging them together
inside a Session Bean (a Service). This approach is neither fast, nor
easy to maintain. Especially the merging and extraction of entity data
is error-prone and can become quite complex.
➢ Another option is the execution of more complex native SQL-
statements and mapping them into existing entities or TOs.
✔ For SQL queries there is no difference between views and tables,
so you can easily map a JPA entity to a view transparently.

36
Table View
Sample view:
CREATE VIEW UserPersonDTO
AS SELECT u.id, u.password, u.user, u.person_id, p.firstname, p.lastname
FROM User u INNER JOIN PERSON p on u.person_id = p.id

37

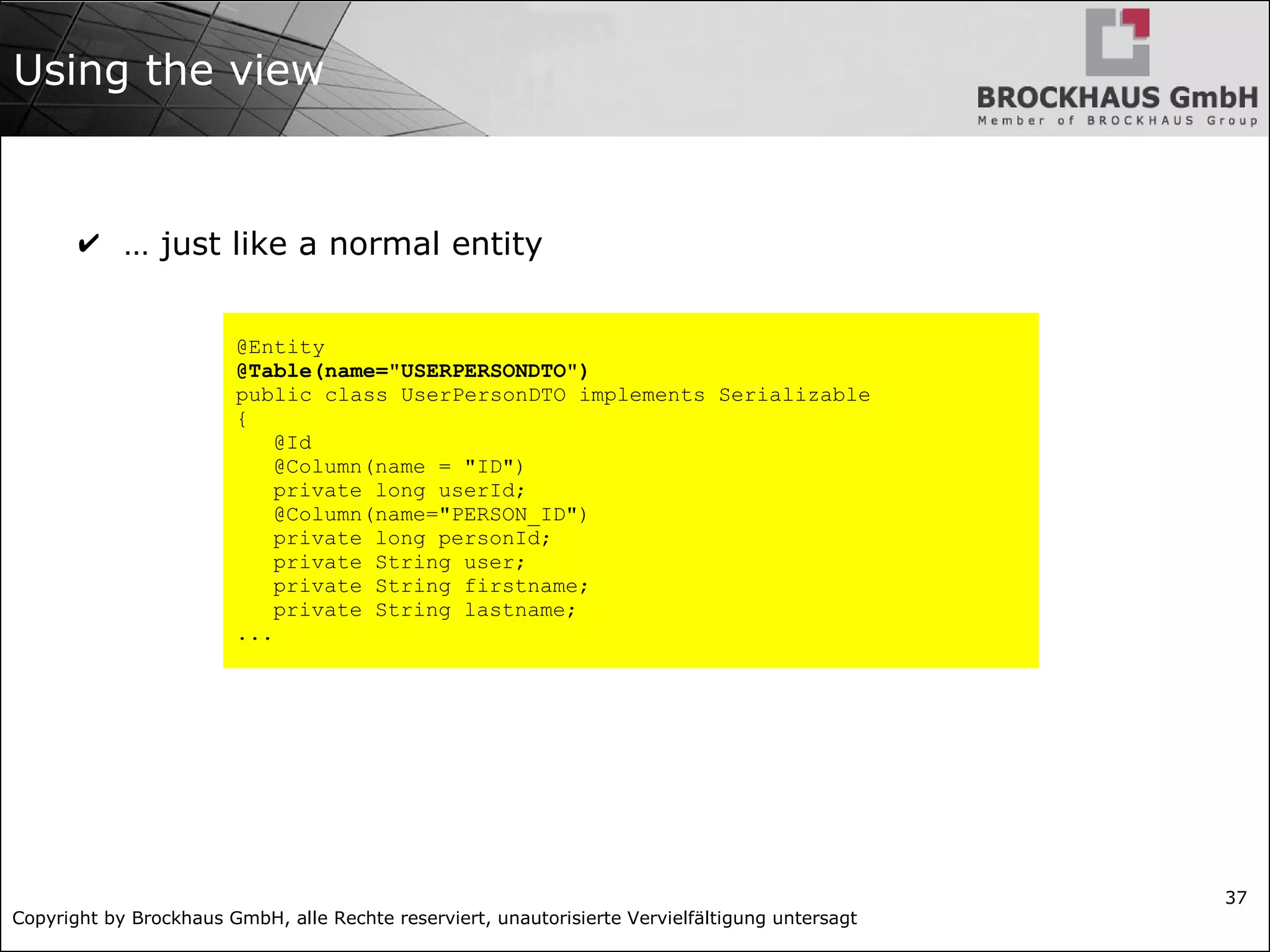

Using the view
✔ … just like a normal entity
@Entity
@Table(name="USERPERSONDTO")
public class UserPersonDTO implements Serializable
{
@Id
@Column(name = "ID")
@Column(name="PERSON_ID")
...

38
Table View
✔ Although seen in the light of handling large amount of data,
creating a SQL view and mapping a DTO to it might be helpful in
the field of DTO as well …
✔ Will be covered in detail later.

39

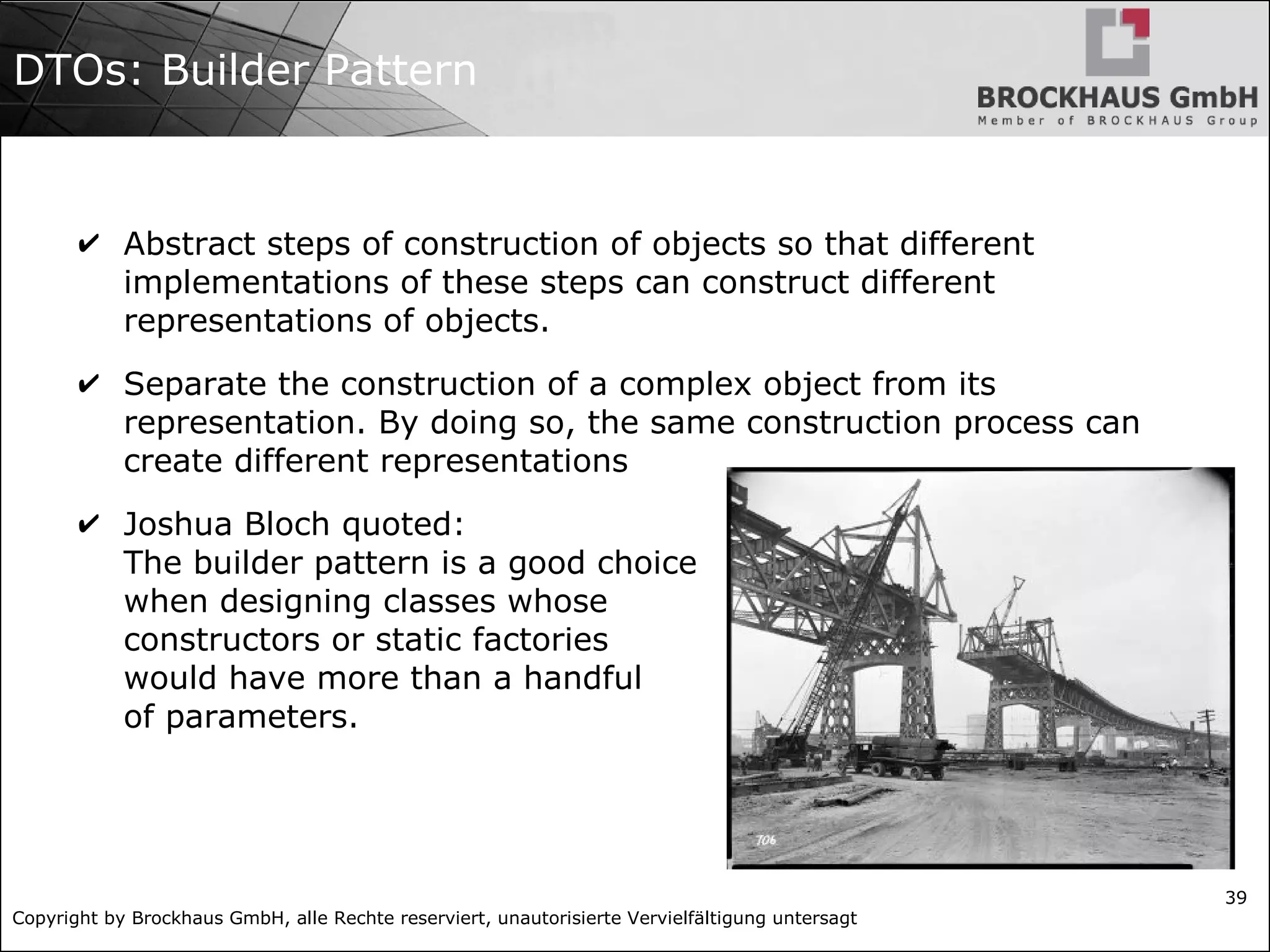

DTOs: Builder Pattern
✔ Abstract steps of construction of objects so that different
implementations of these steps can construct different
representations of objects.
✔ Separate the construction of a complex object from its
representation. By doing so, the same construction process can
create different representations
✔ Joshua Bloch quoted:
The builder pattern is a good choice
when designing classes whose
constructors or static factories
would have more than a handful
of parameters.

40

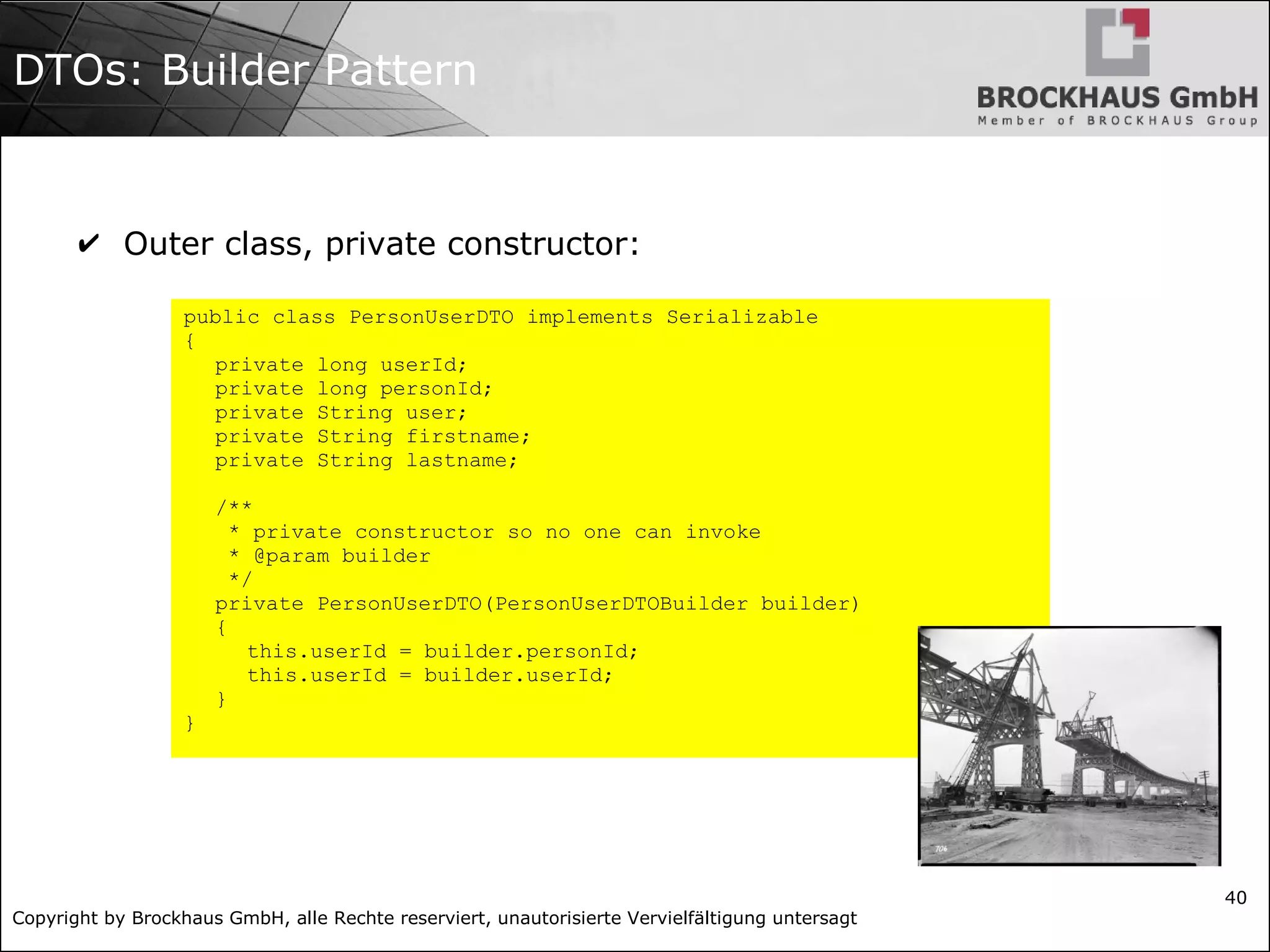

✔ Outer class, private constructor:
public class PersonUserDTO implements Serializable
{
/**
* private constructor so no one can invoke
* @param builder
*/
private PersonUserDTO(PersonUserDTOBuilder builder)
{
this.userId = builder.personId;
this.userId = builder.userId;
}
}

41

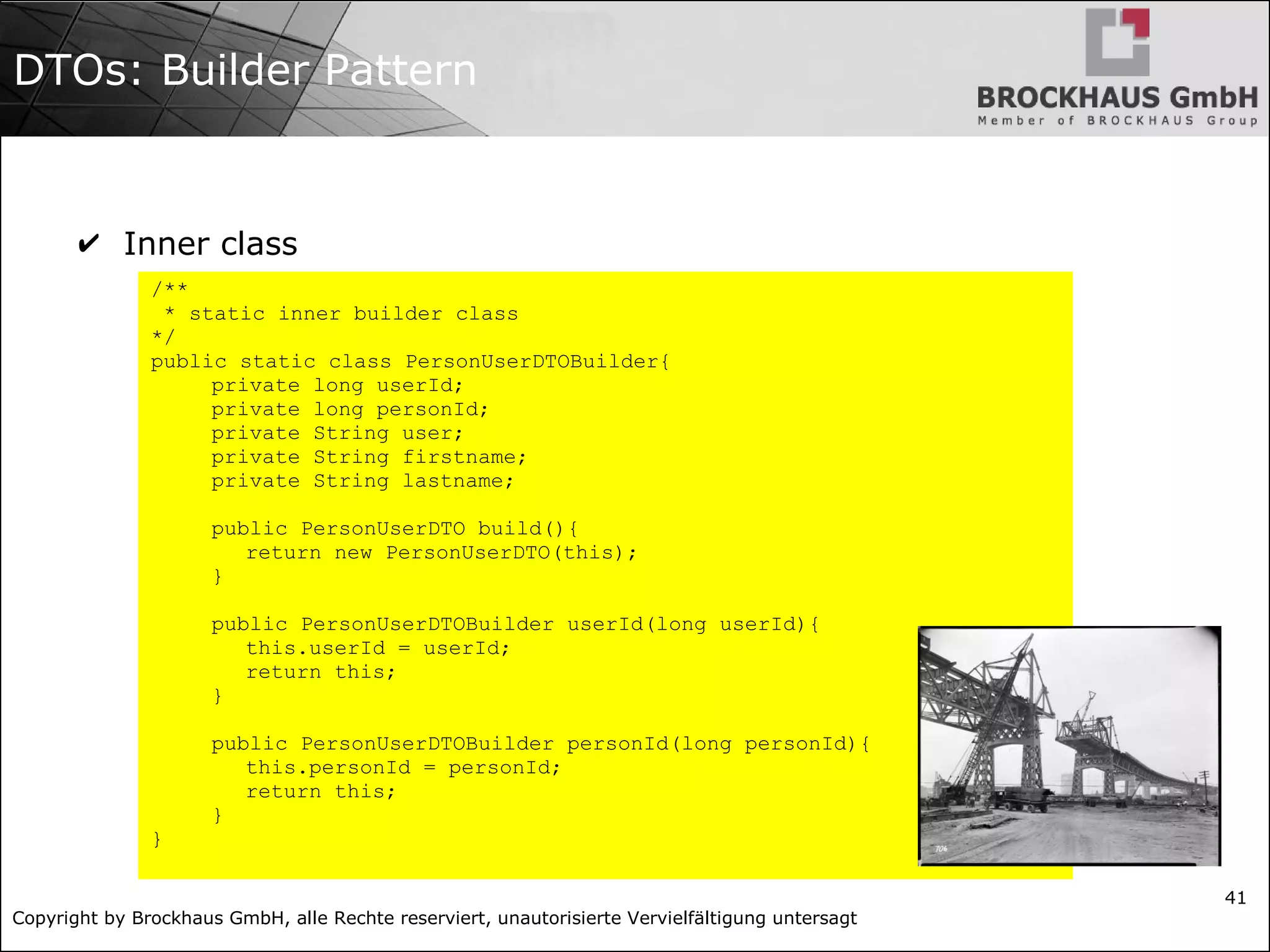

✔ Inner class
/**
* static inner builder class
*/
public static class PersonUserDTOBuilder{
public PersonUserDTO build(){
return new PersonUserDTO(this);
}
public PersonUserDTOBuilder userId(long userId){
this.userId = userId;
return this;
}
public PersonUserDTOBuilder personId(long personId){
this.personId = personId;
return this;
}
}

42

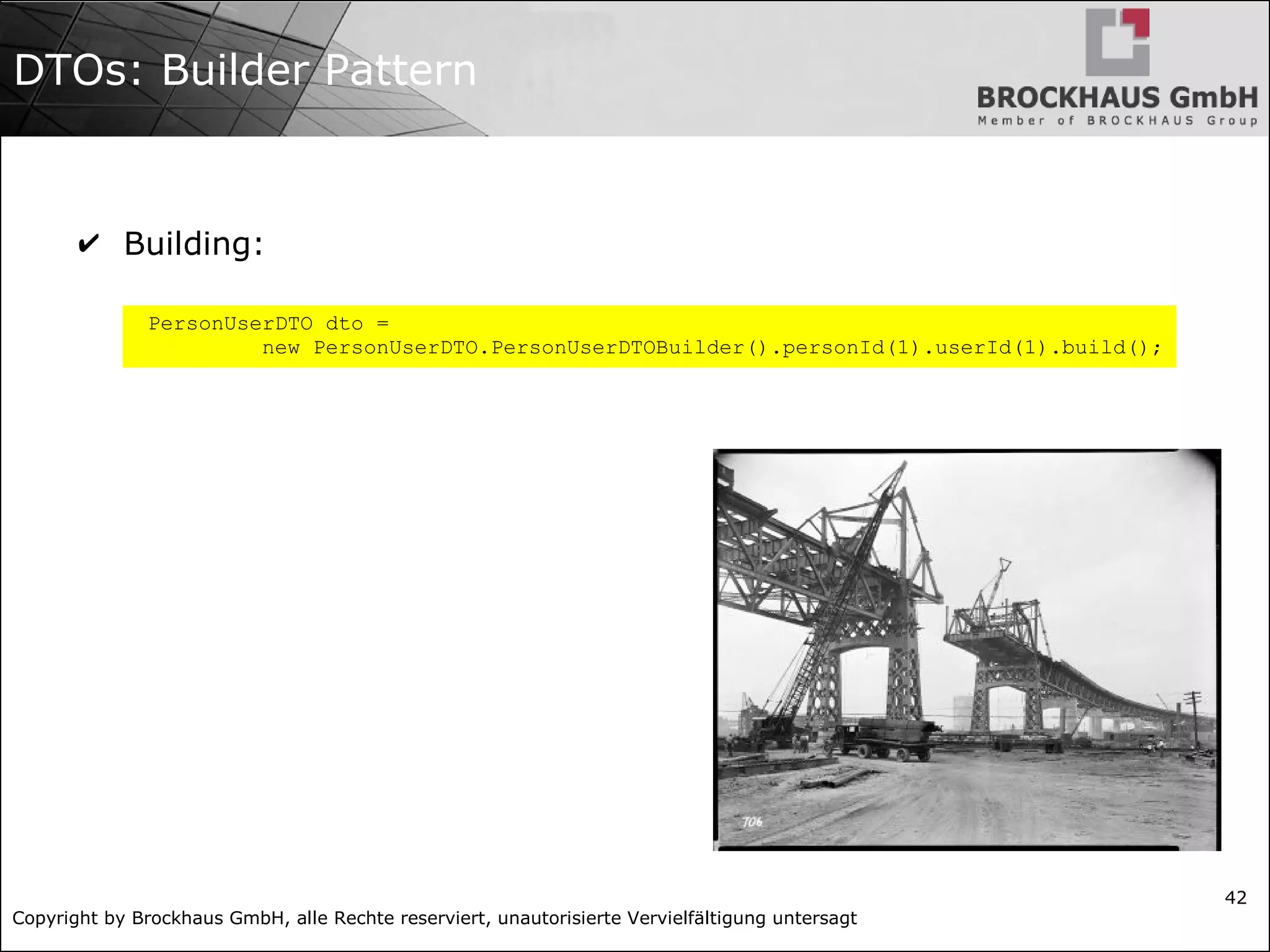

✔ Building:
PersonUserDTO dto =
new PersonUserDTO.PersonUserDTOBuilder().personId(1).userId(1).build();

43

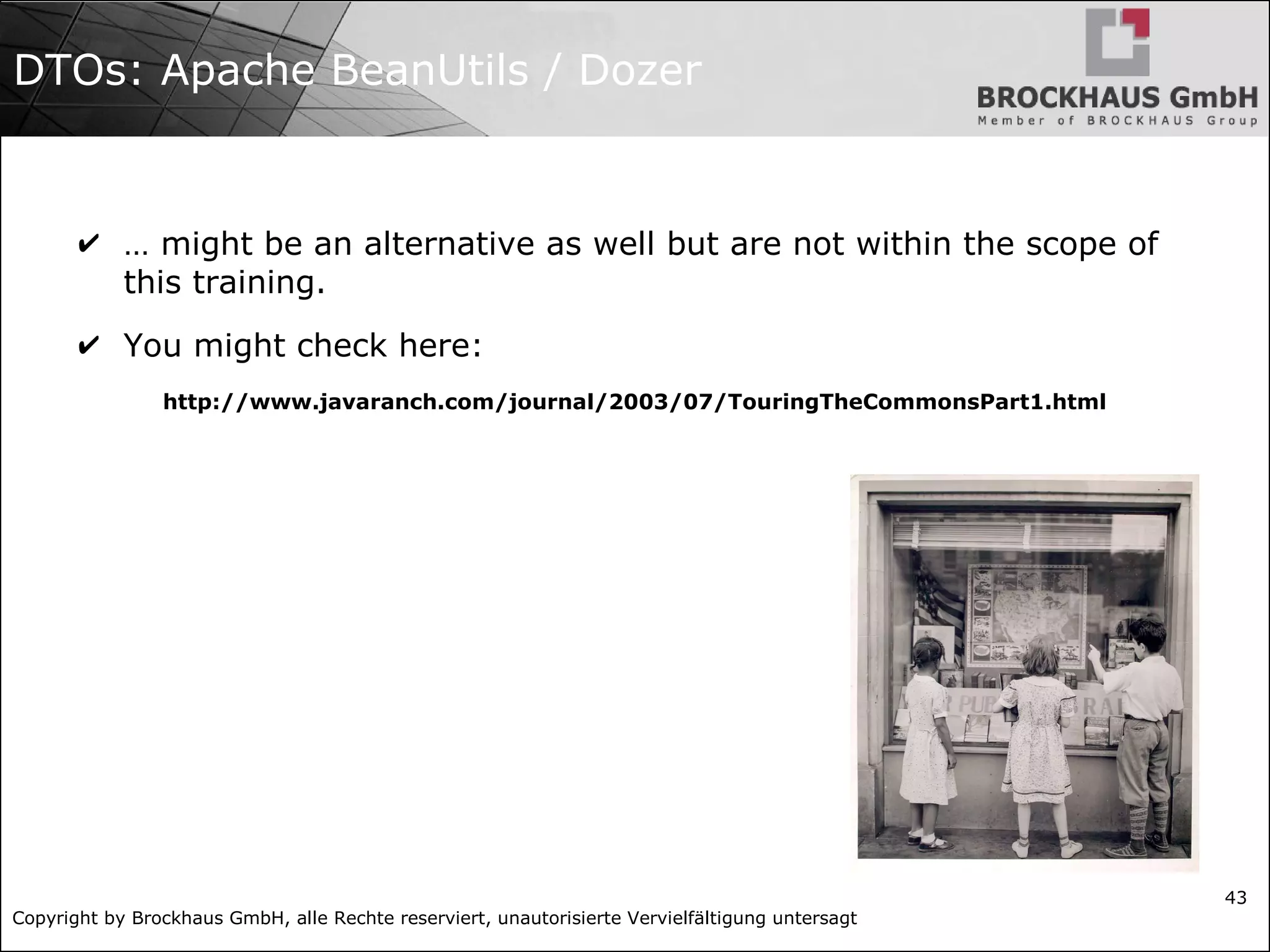

DTOs: Apache BeanUtils / Dozer
✔ … might be an alternative as well but are not within the scope of
this training.
✔ You might check here:
http://www.javaranch.com/journal/2003/07/TouringTheCommonsPart1.html

44
Lab
Implement DTO using SELECT NEW

45

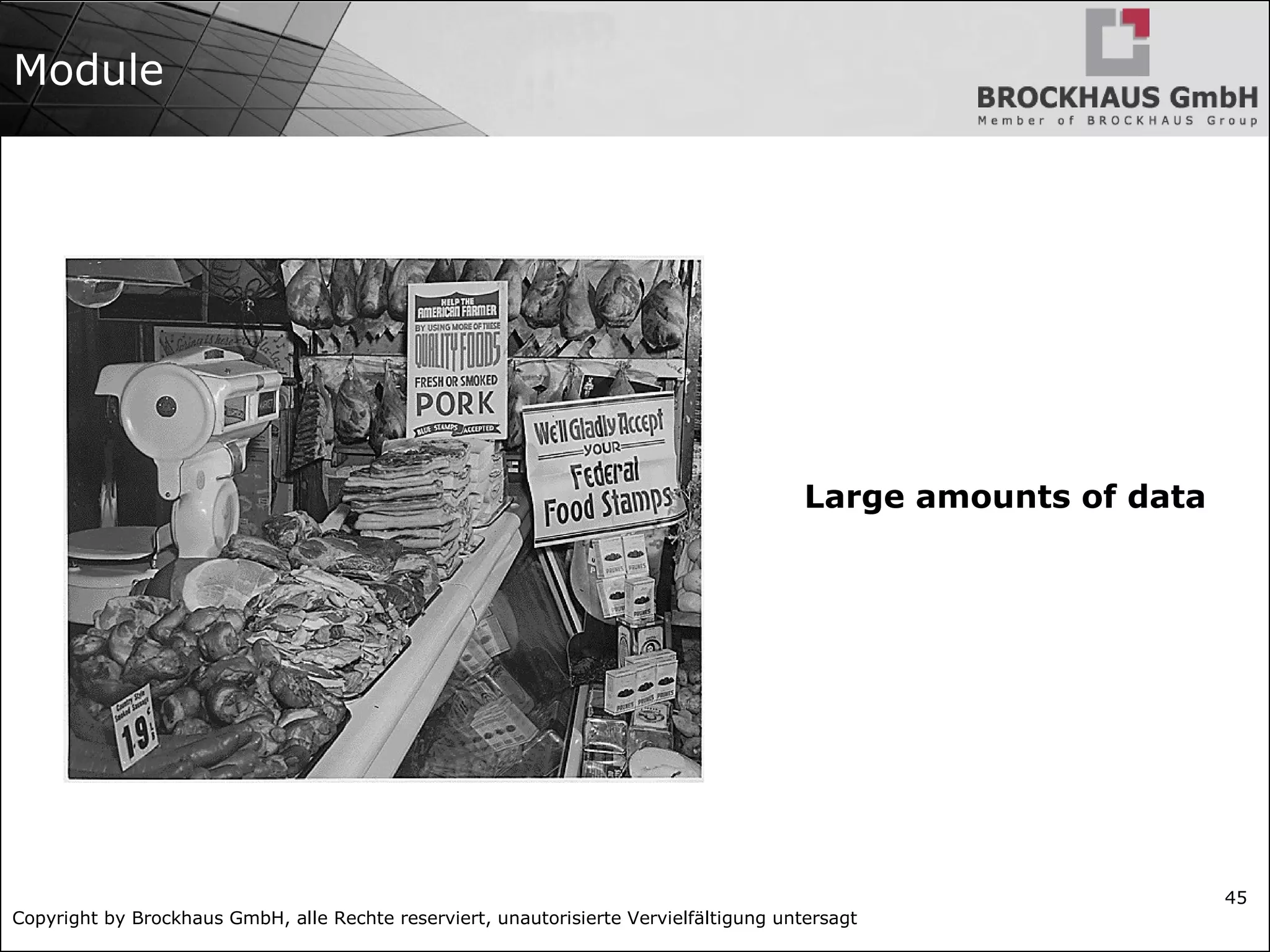

Module
Large amounts of data

46
Dealing with large amounts of data
When to use
✔ Displaying / iterating over a large amount of data
✔ Data can't be loaded at once at the client but has to be cached at
the server

47

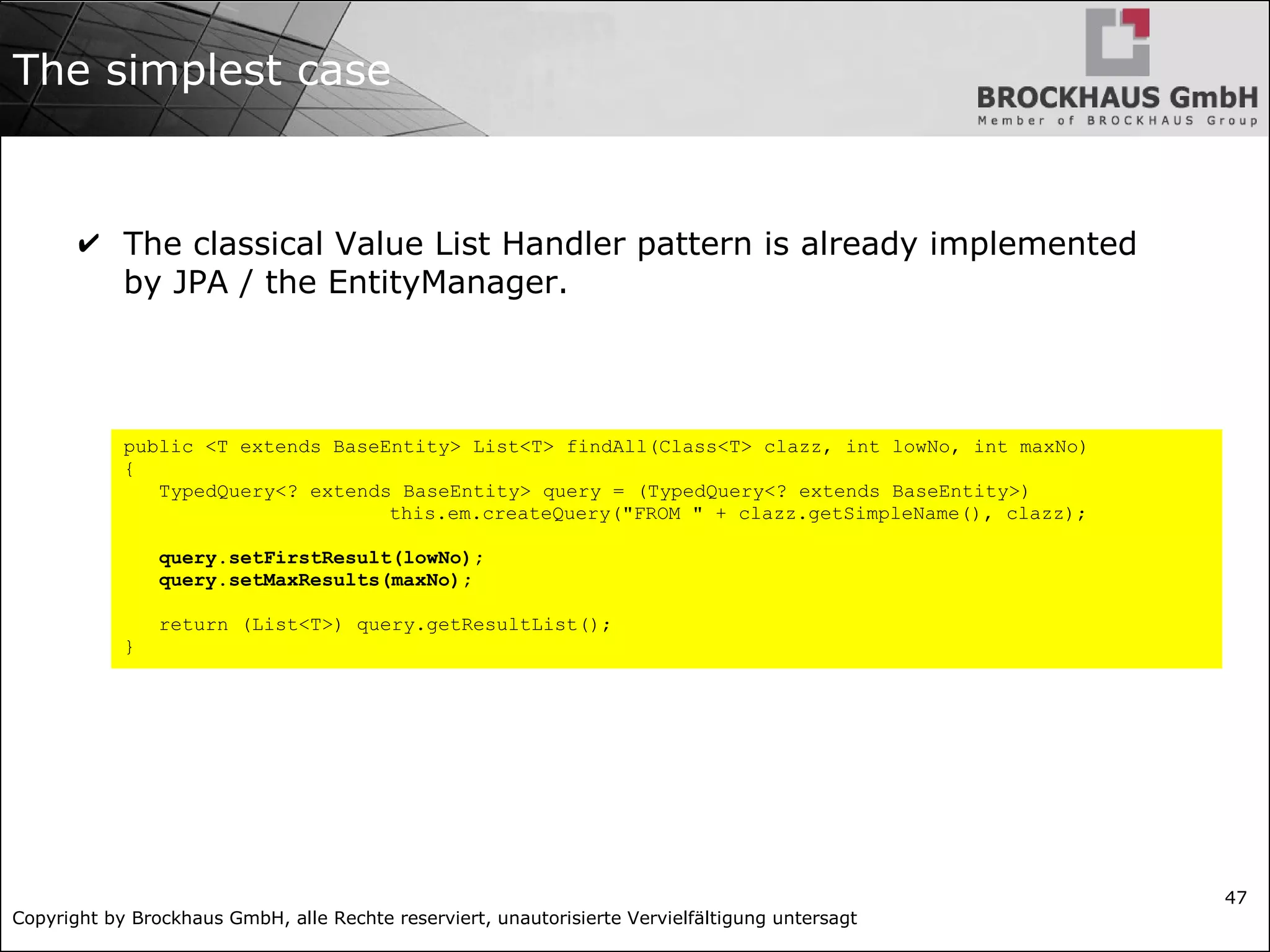

The simplest case
✔ The classical Value List Handler pattern is already implemented
by JPA / the EntityManager.
public <T extends BaseEntity> List<T> findAll(Class<T> clazz, int lowNo, int maxNo)
{
TypedQuery<? extends BaseEntity> query = (TypedQuery<? extends BaseEntity>)
this.em.createQuery("FROM " + clazz.getSimpleName(), clazz);
query.setFirstResult(lowNo);
query.setMaxResults(maxNo);
return (List<T>) query.getResultList();
}

48
Lab
Implement Value List Handler using JPA 2.0

49
Module
A key does the trick

50

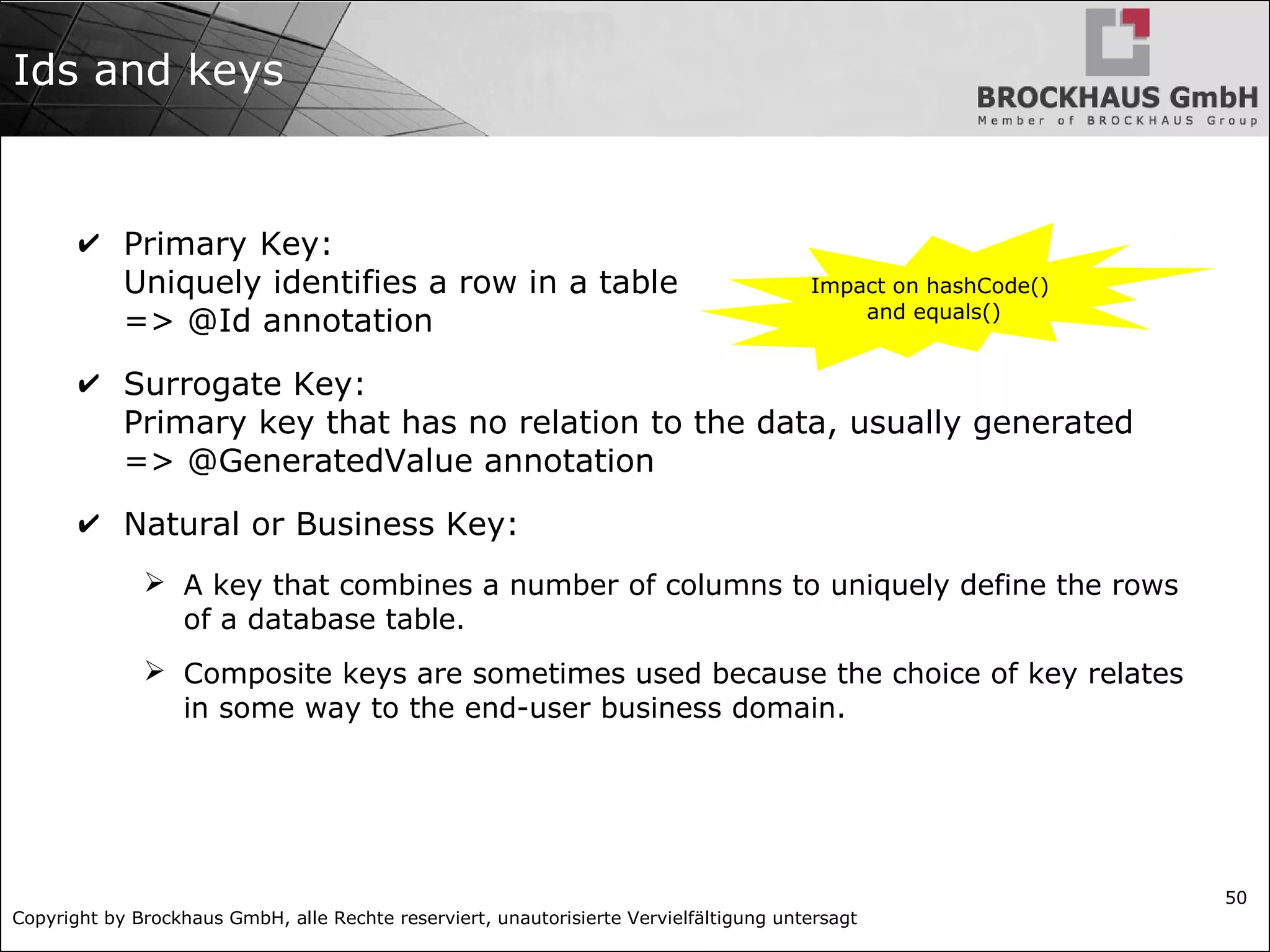

Ids and keys
✔ Primary Key:
Uniquely identifies a row in a table
=> @Id annotation
✔ Surrogate Key:
Primary key that has no relation to the data, usually generated
=> @GeneratedValue annotation
✔ Natural or Business Key:
➢ A key that combines a number of columns to uniquely define the rows
of a database table.
➢ Composite keys are sometimes used because the choice of key relates
in some way to the end-user business domain.
Impact on hashCode()
and equals()

51

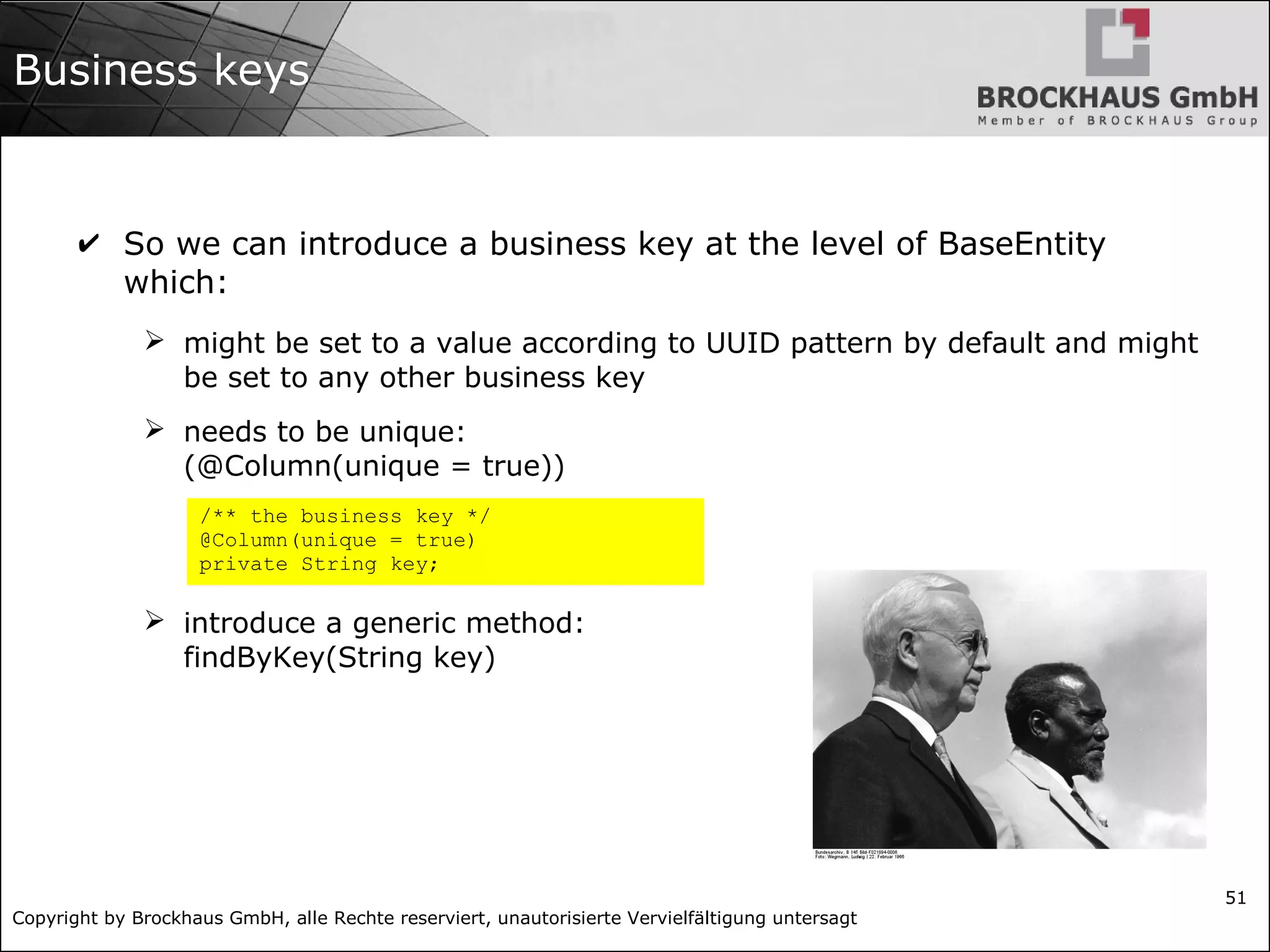

Business keys
✔ So we can introduce a business key at the level of BaseEntity
which:
➢ might be set to a value according to UUID pattern by default and might
be set to any other business key
➢ needs to be unique:
(@Column(unique = true))
➢ introduce a generic method:
findByKey(String key)
/** the business key */
@Column(unique = true)
private String key;

52

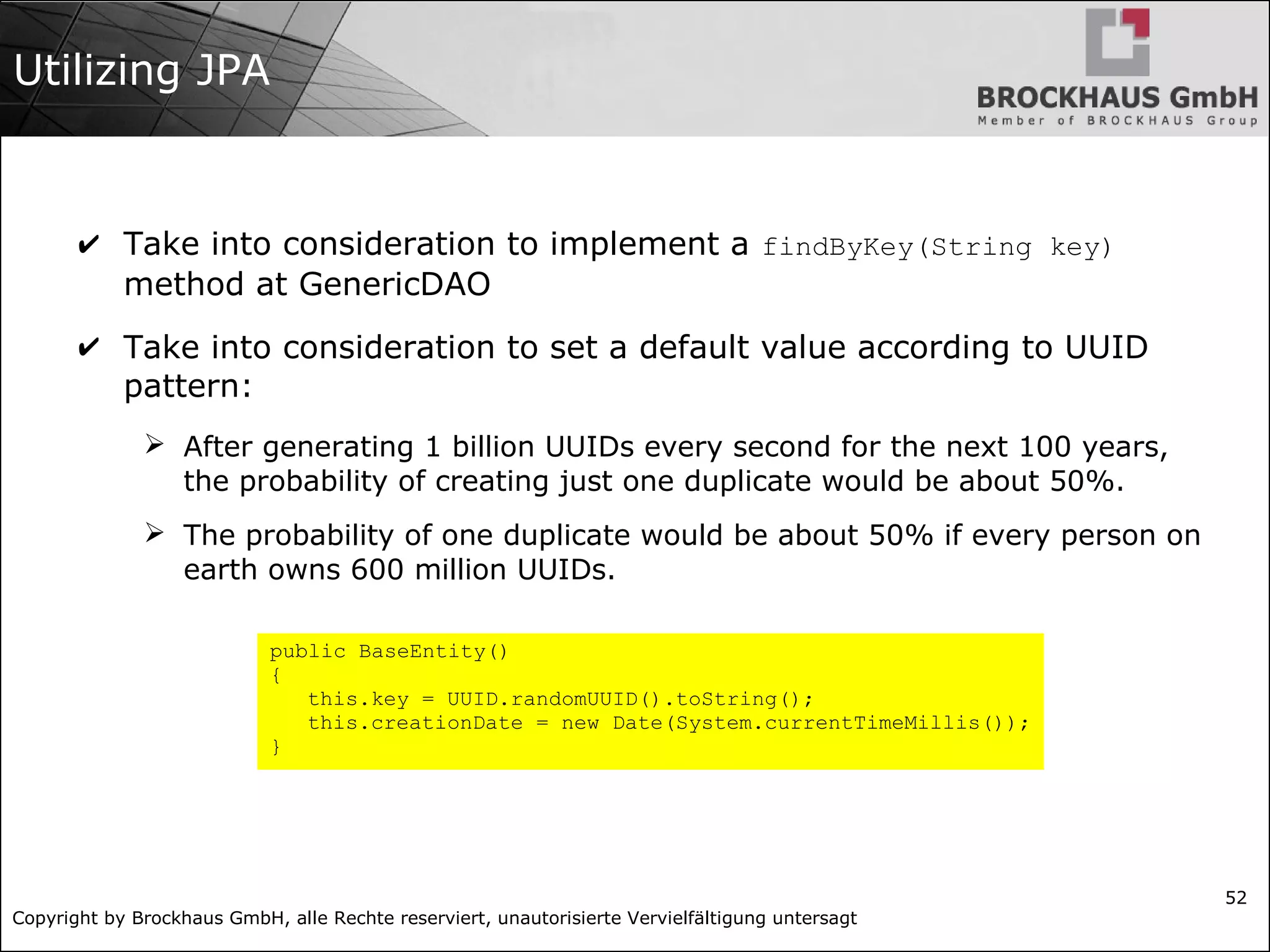

Utilizing JPA
✔ Take into consideration to implement a findByKey(String key)
method at GenericDAO
✔ Take into consideration to set a default value according to UUID
pattern:
➢ After generating 1 billion UUIDs every second for the next 100 years,
the probability of creating just one duplicate would be about 50%.
➢ The probability of one duplicate would be about 50% if every person on
earth owns 600 million UUIDs.
public BaseEntity()
{
this.key = UUID.randomUUID().toString();
this.creationDate = new Date(System.currentTimeMillis());
}

53

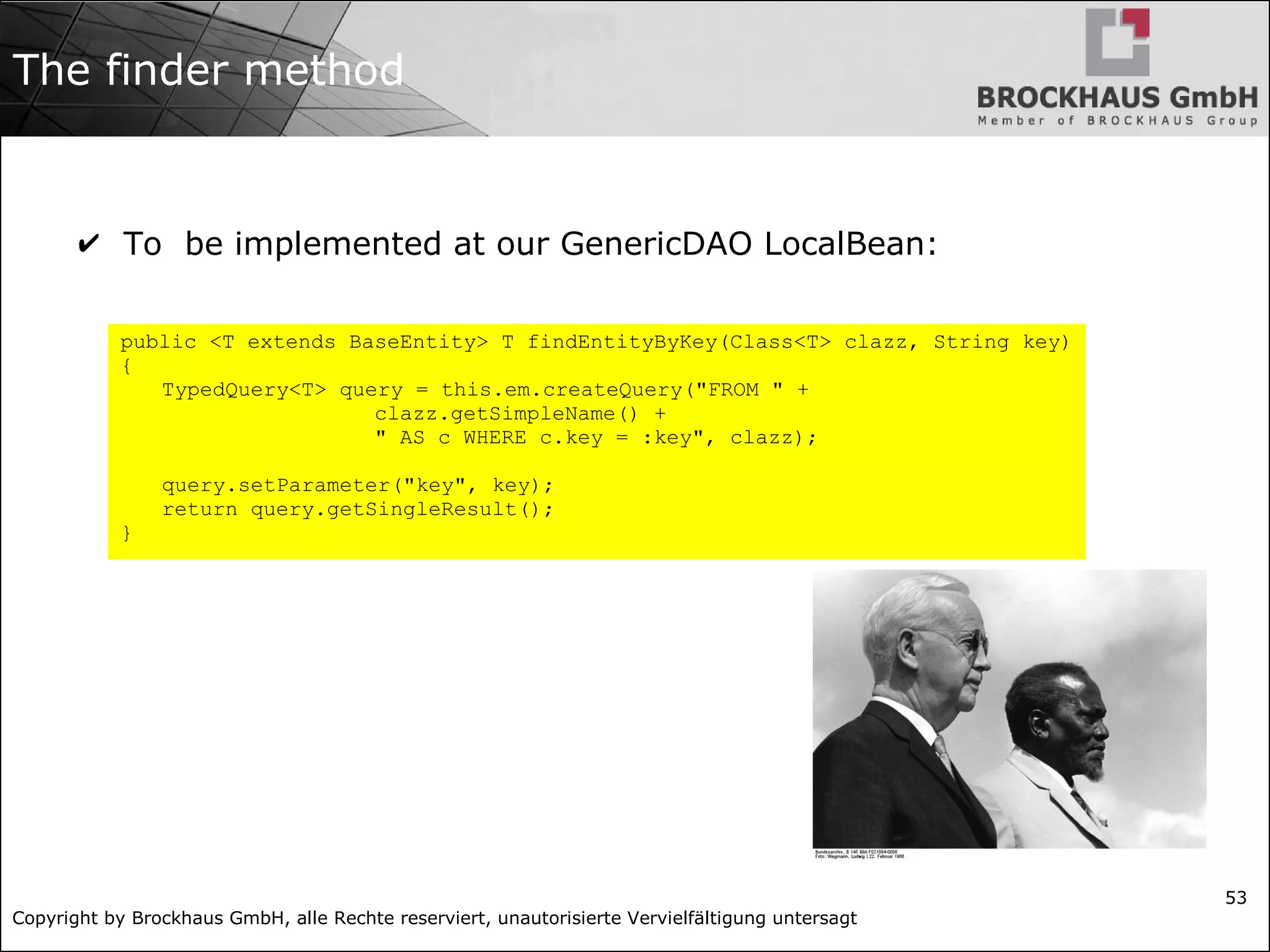

The finder method
✔ To be implemented at our GenericDAO LocalBean:
public <T extends BaseEntity> T findEntityByKey(Class<T> clazz, String key)
{
TypedQuery<T> query = this.em.createQuery("FROM " +
clazz.getSimpleName() +
" AS c WHERE c.key = :key", clazz);
query.setParameter("key", key);
return query.getSingleResult();
}

54

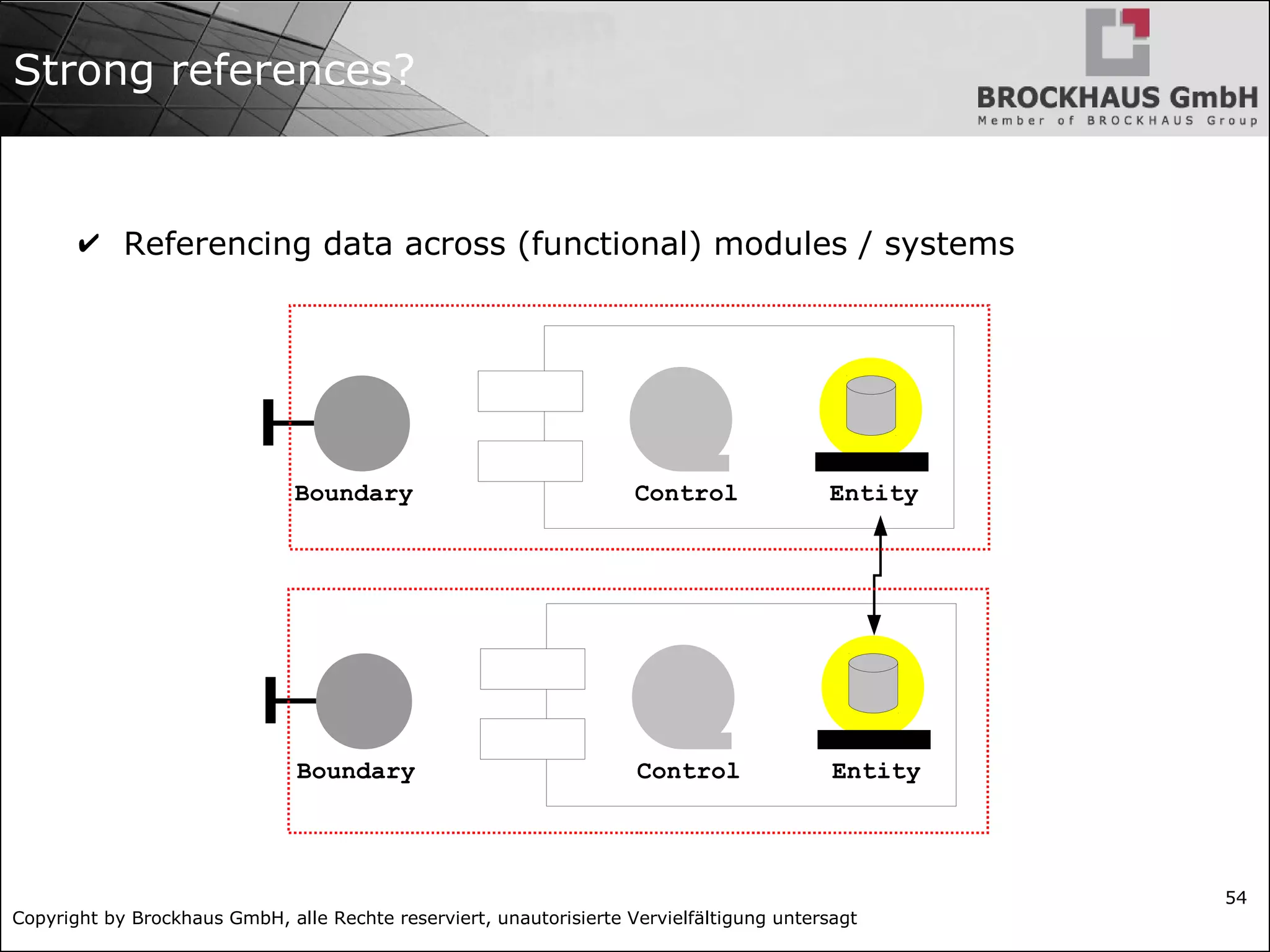

Strong references?
✔ Referencing data across (functional) modules / systems

55
Foreign key relationships
✔ Using foreign keys using JPA:
ID Key Name BAR_FK
1 One FooOne 1
2 Two FooTwo 1
3 Three FooThree 2
Foo
ID Key Name BAR_FK
1 One FooOne 1
2 Two FooTwo 1
3 Three FooThree 2
Foo
Bar
ID Key Name
1 One BarOne
2 Two BarTwo
3 Three BarThree

56

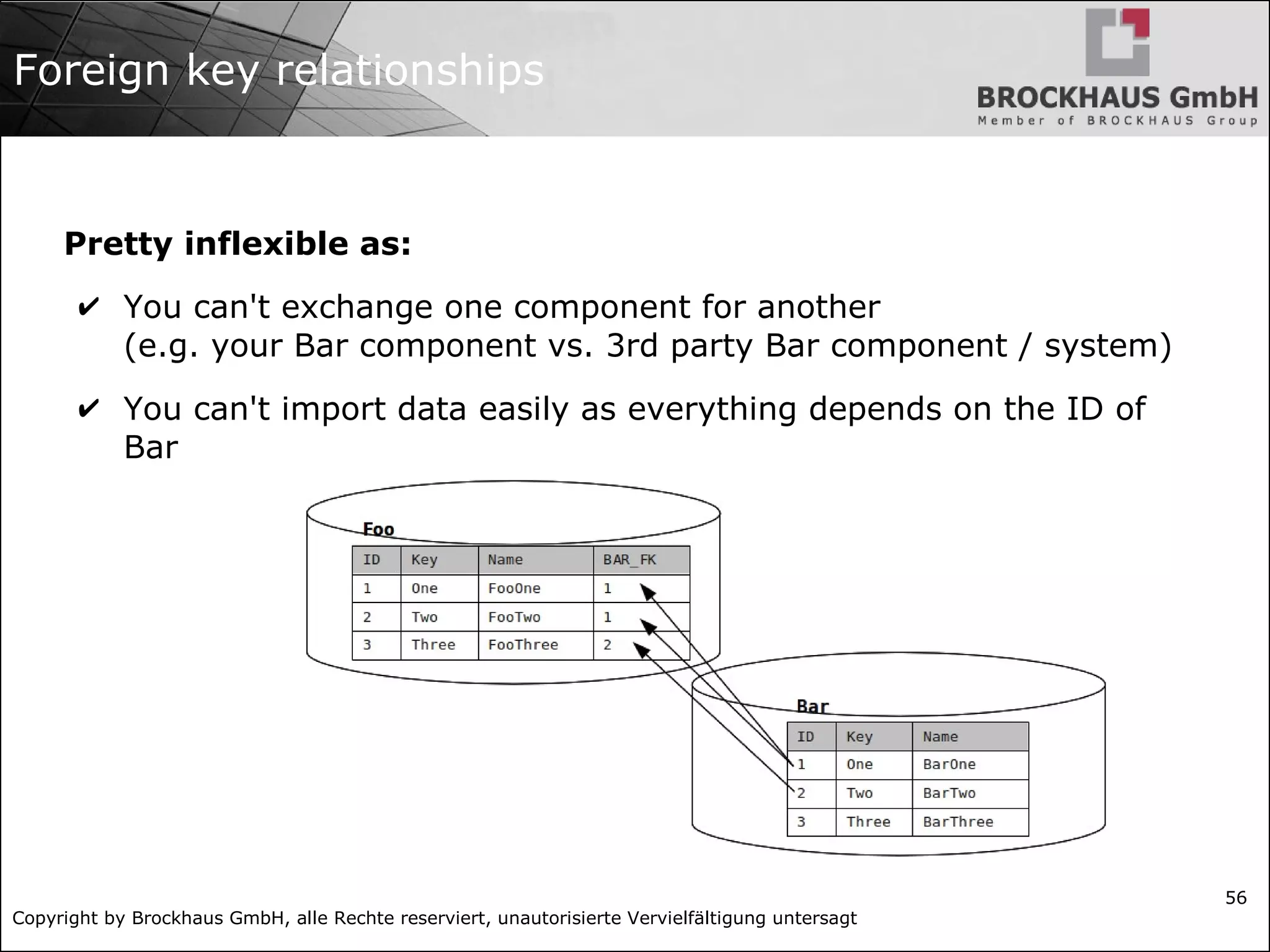

Foreign key relationships
Pretty inflexible as:
✔ You can't exchange one component for another
(e.g. your Bar component vs. 3rd party Bar component / system)
✔ You can't import data easily as everything depends on the ID of
Bar

57

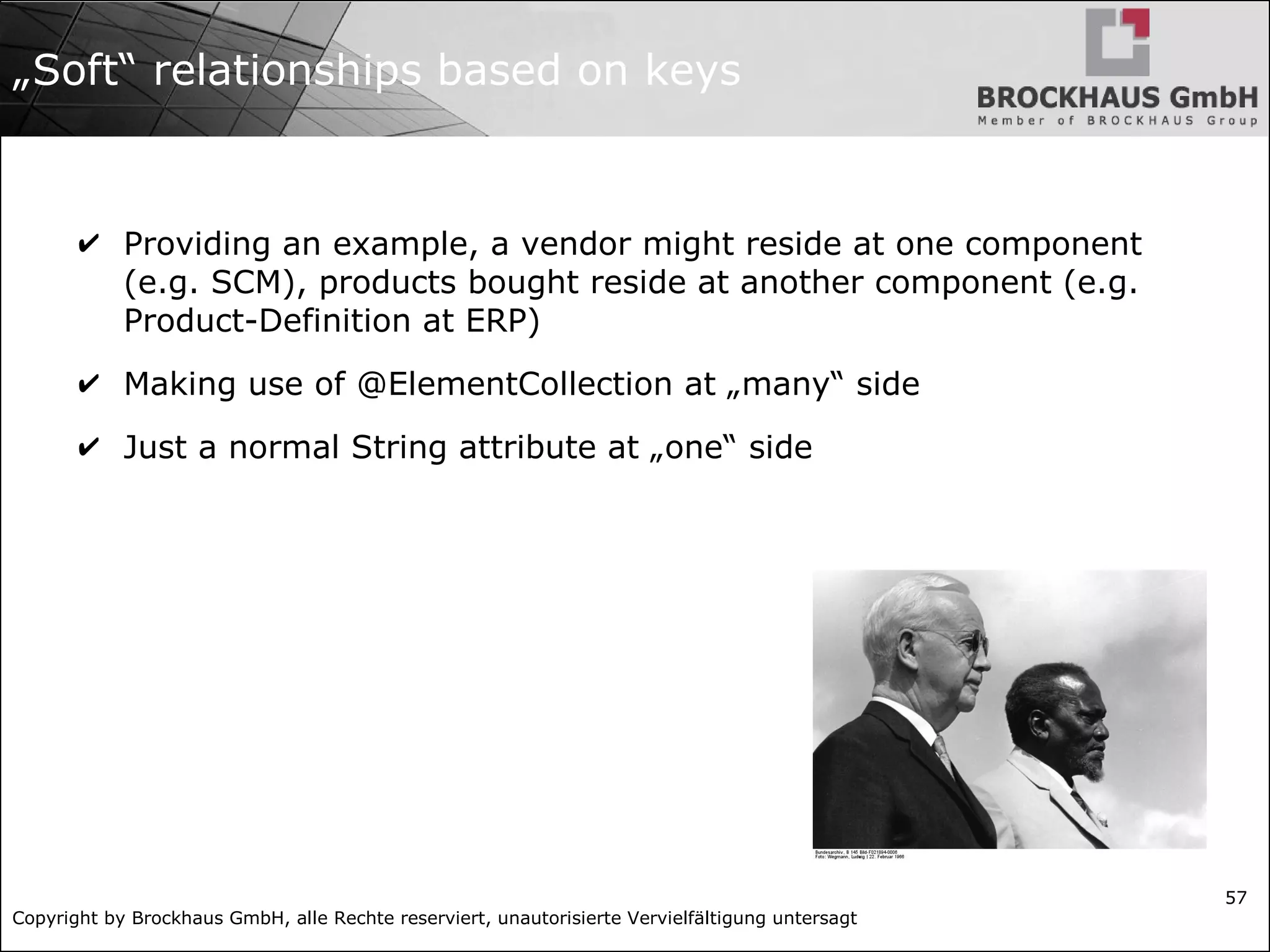

„Soft“ relationships based on keys
✔ Providing an example, a vendor might reside at one component
(e.g. SCM), products bought reside at another component (e.g.
Product-Definition at ERP)
✔ Making use of @ElementCollection at „many“ side
✔ Just a normal String attribute at „one“ side

58

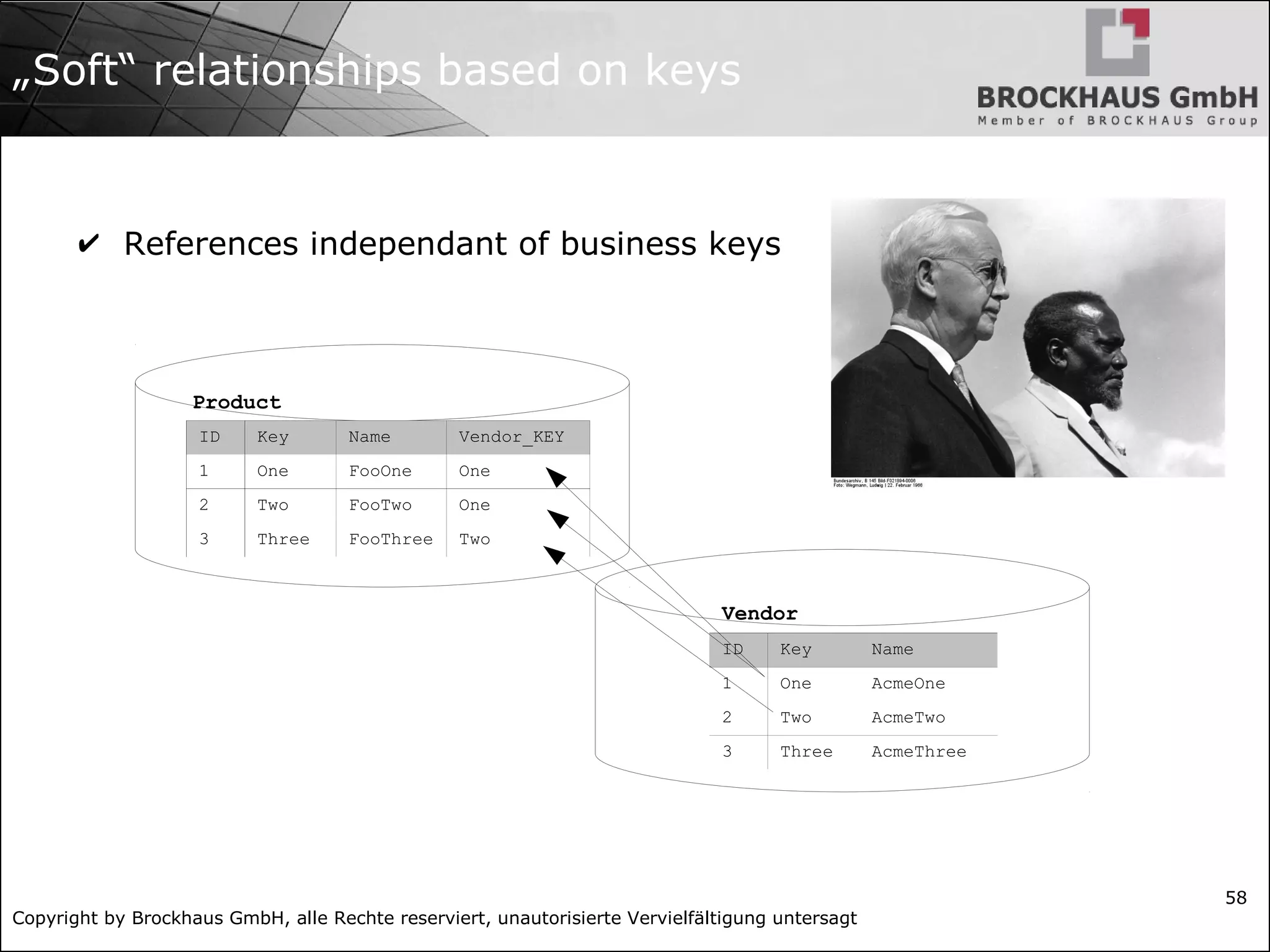

„Soft“ relationships based on keys
✔ References independant of business keys
ID Key Name Vendor_KEY
1 One FooOne One
2 Two FooTwo One
3 Three FooThree Two
Product
Vendor
ID Key Name
1 One AcmeOne
2 Two AcmeTwo
3 Three AcmeThree

59
Advantages/Disadvantages
✔ Pretty flexible
✔ No type safety within associations anymore
✔ Maybe some performance impact

60

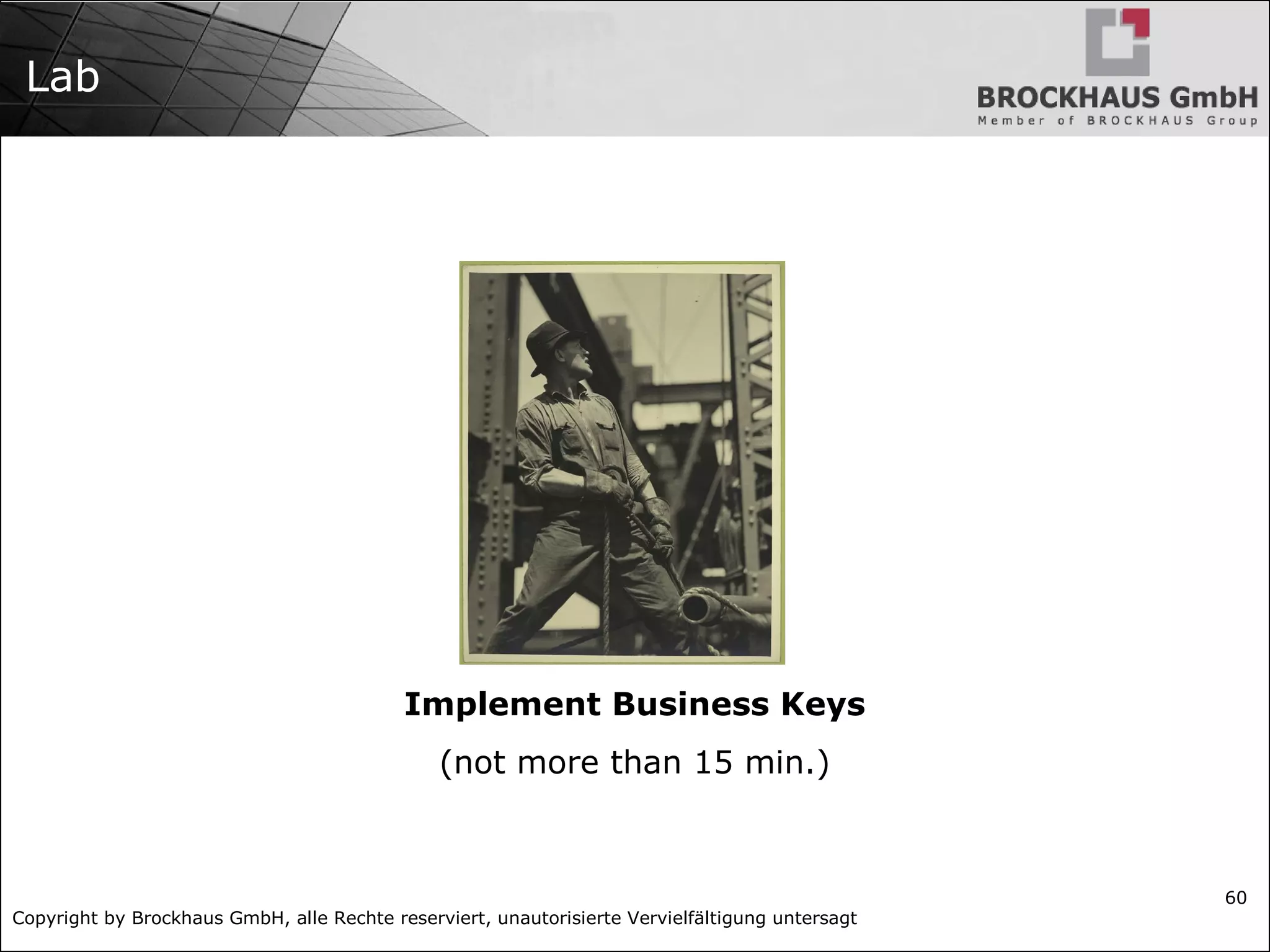

Lab
Implement Business Keys

61

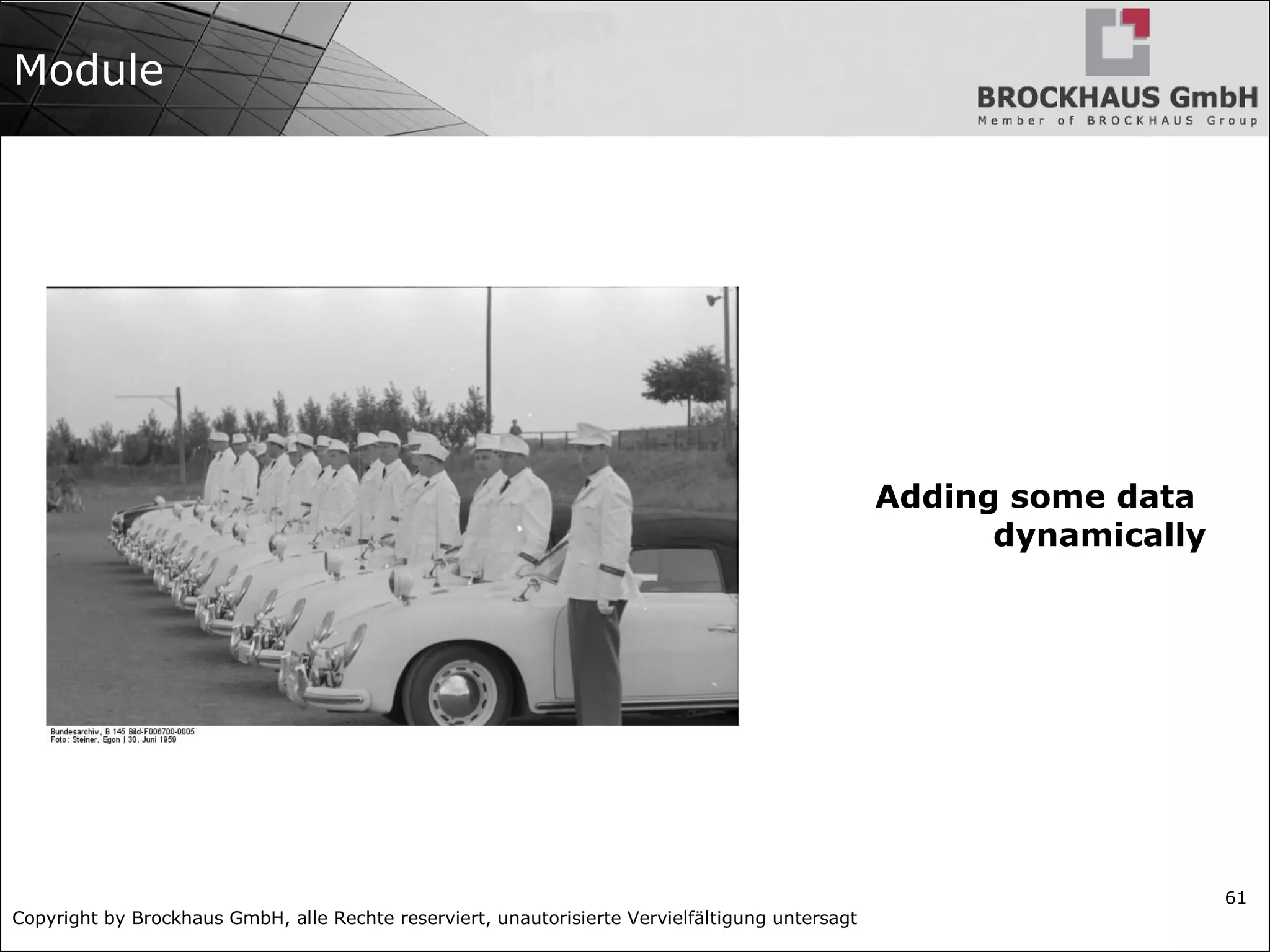

Module
Adding some data
dynamically

62

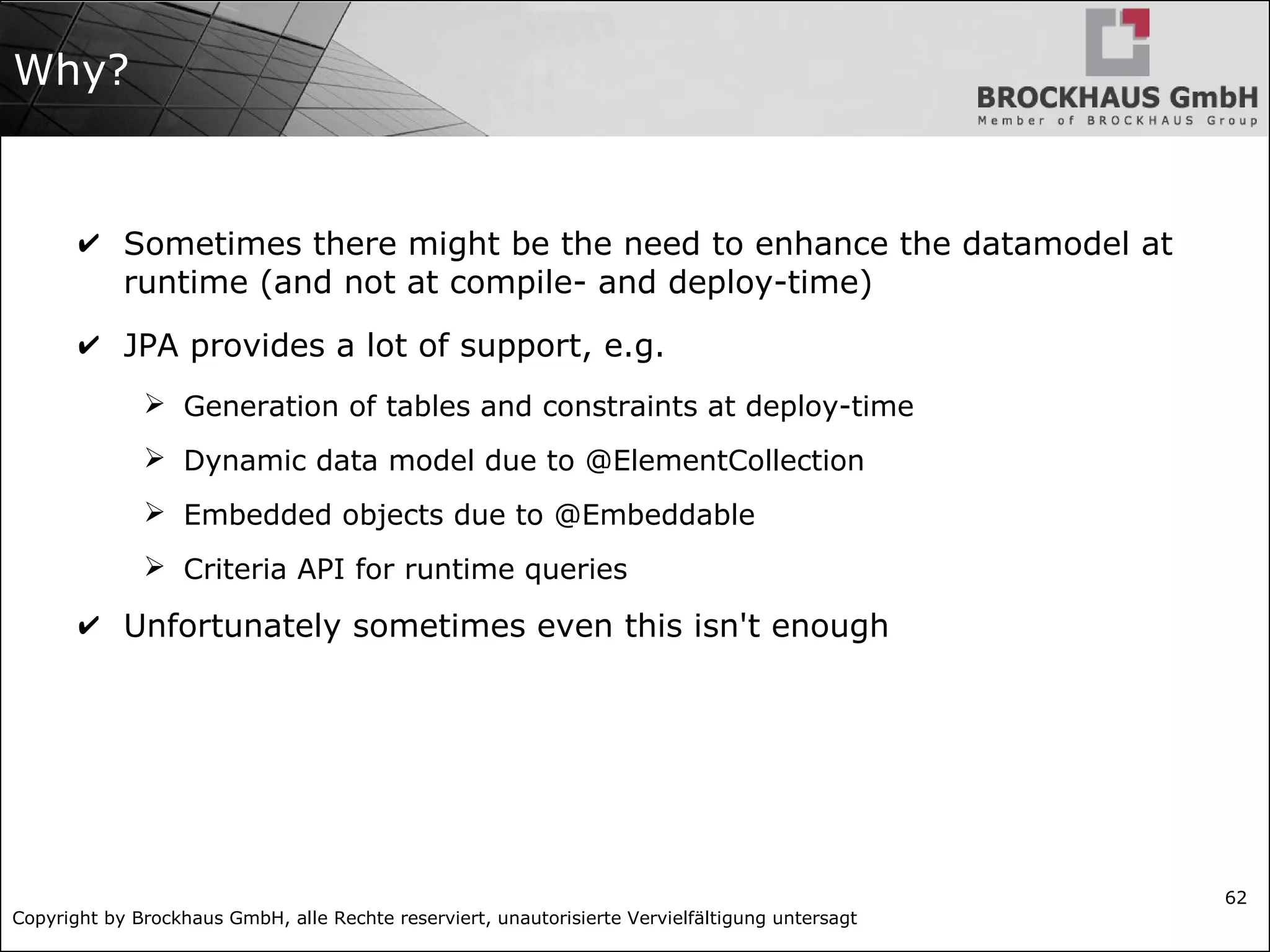

Why?
✔ Sometimes there might be the need to enhance the datamodel at
runtime (and not at compile- and deploy-time)
✔ JPA provides a lot of support, e.g.
➢ Generation of tables and constraints at deploy-time
➢ Dynamic data model due to @ElementCollection
➢ Embedded objects due to @Embeddable
➢ Criteria API for runtime queries
✔ Unfortunately sometimes even this isn't enough

63

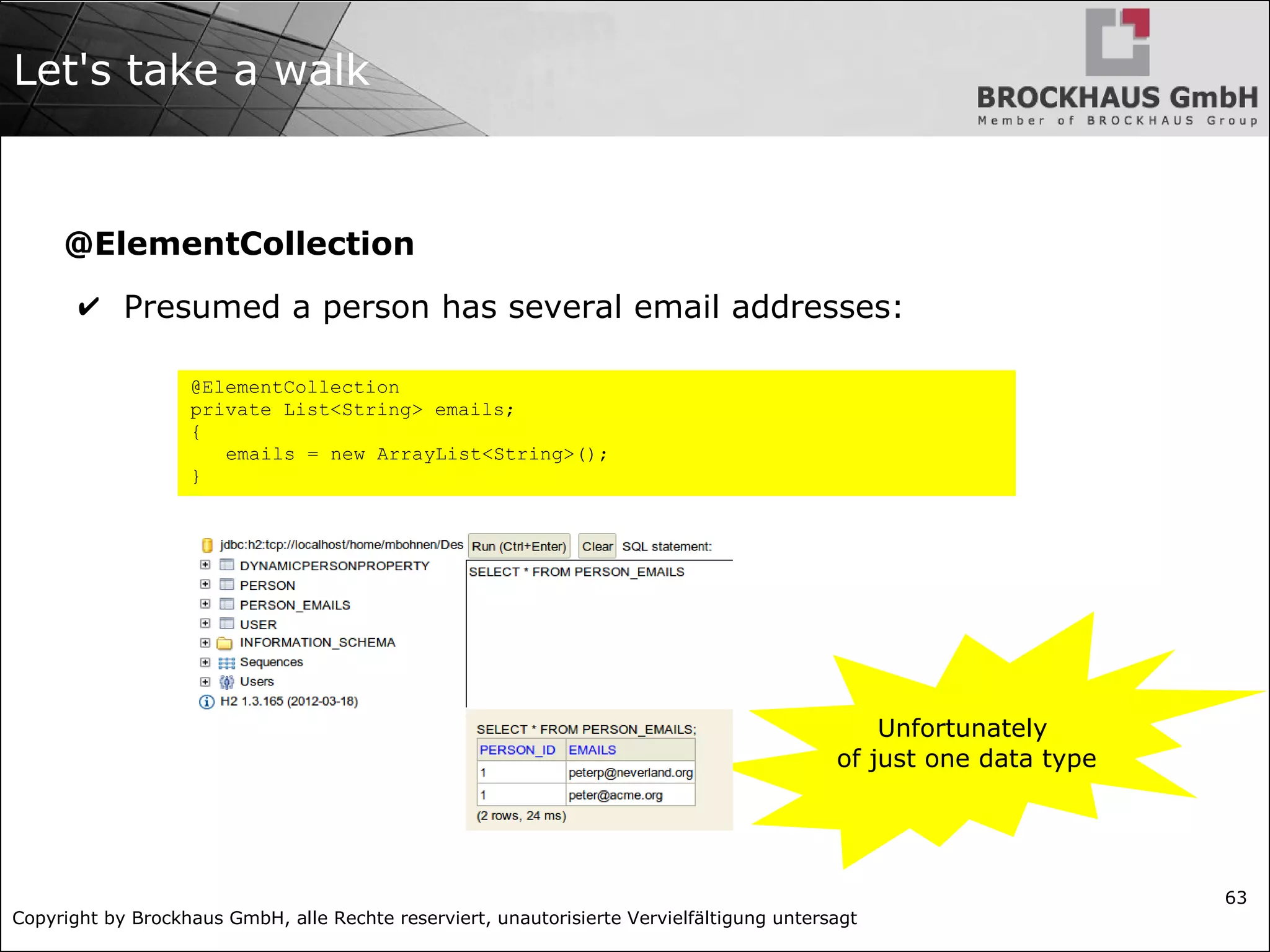

Let's take a walk
@ElementCollection
✔ Presumed a person has several email addresses:
Unfortunately
of just one data type
@ElementCollection
private List<String> emails;
{
emails = new ArrayList<String>();
}

64

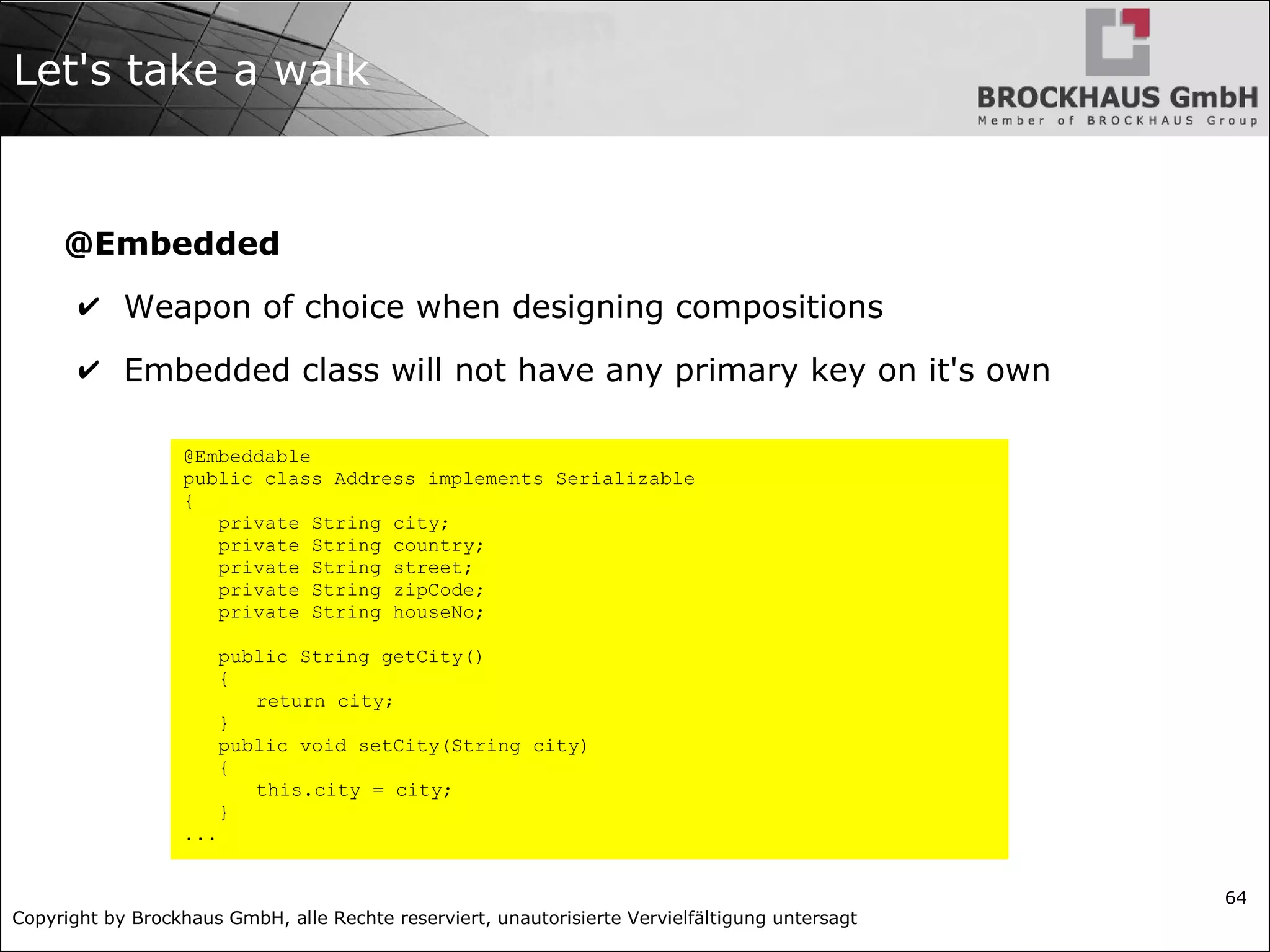

Let's take a walk
@Embedded
✔ Weapon of choice when designing compositions
✔ Embedded class will not have any primary key on it's own
@Embeddable
public class Address implements Serializable
{
private String city;
private String country;
private String street;
private String zipCode;
private String houseNo;
public String getCity()
{
return city;
}
public void setCity(String city)
{
this.city = city;
}
...

65

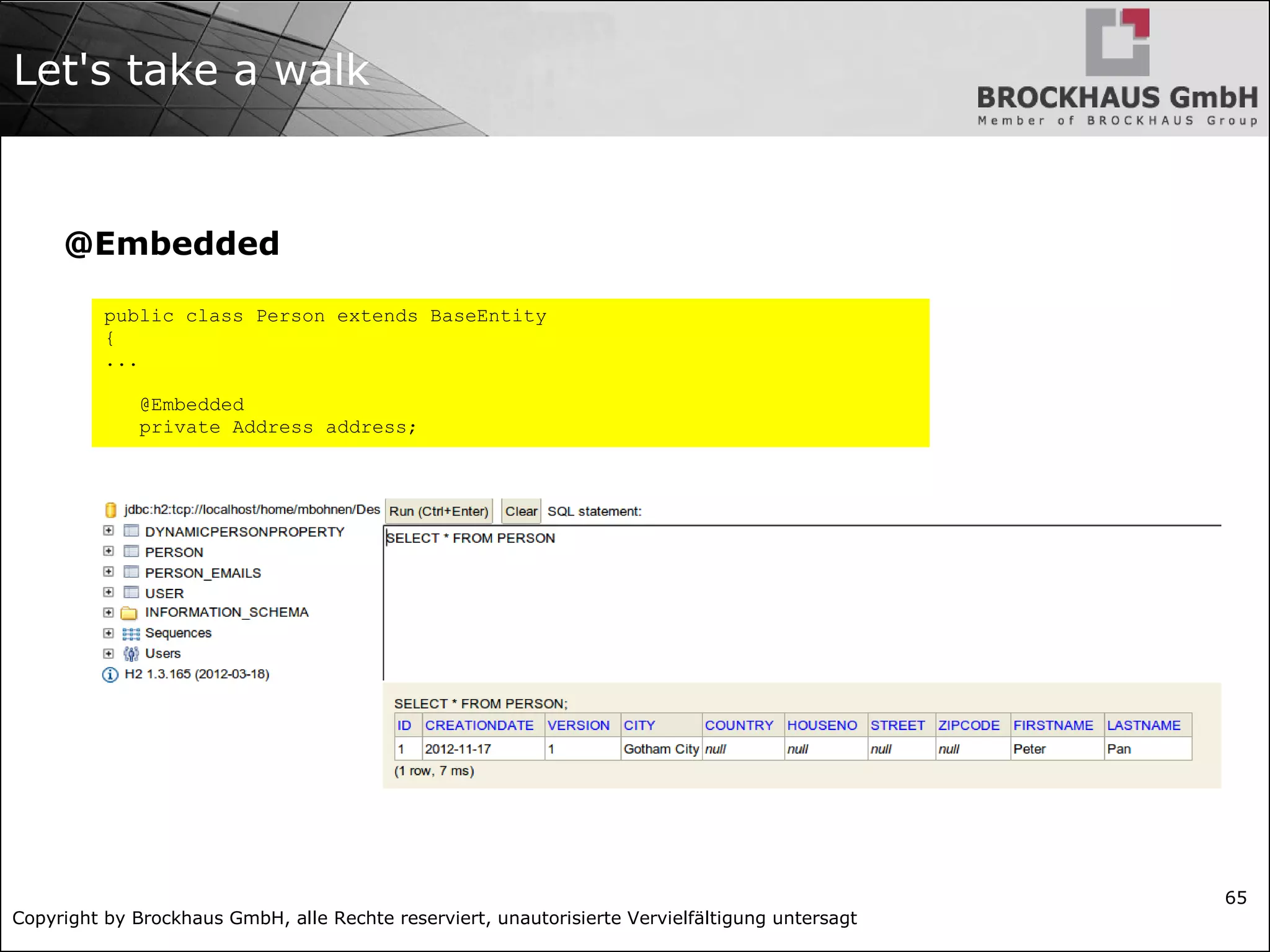

Let's take a walk
@Embedded
public class Person extends BaseEntity
{
...
@Embedded
private Address address;

66

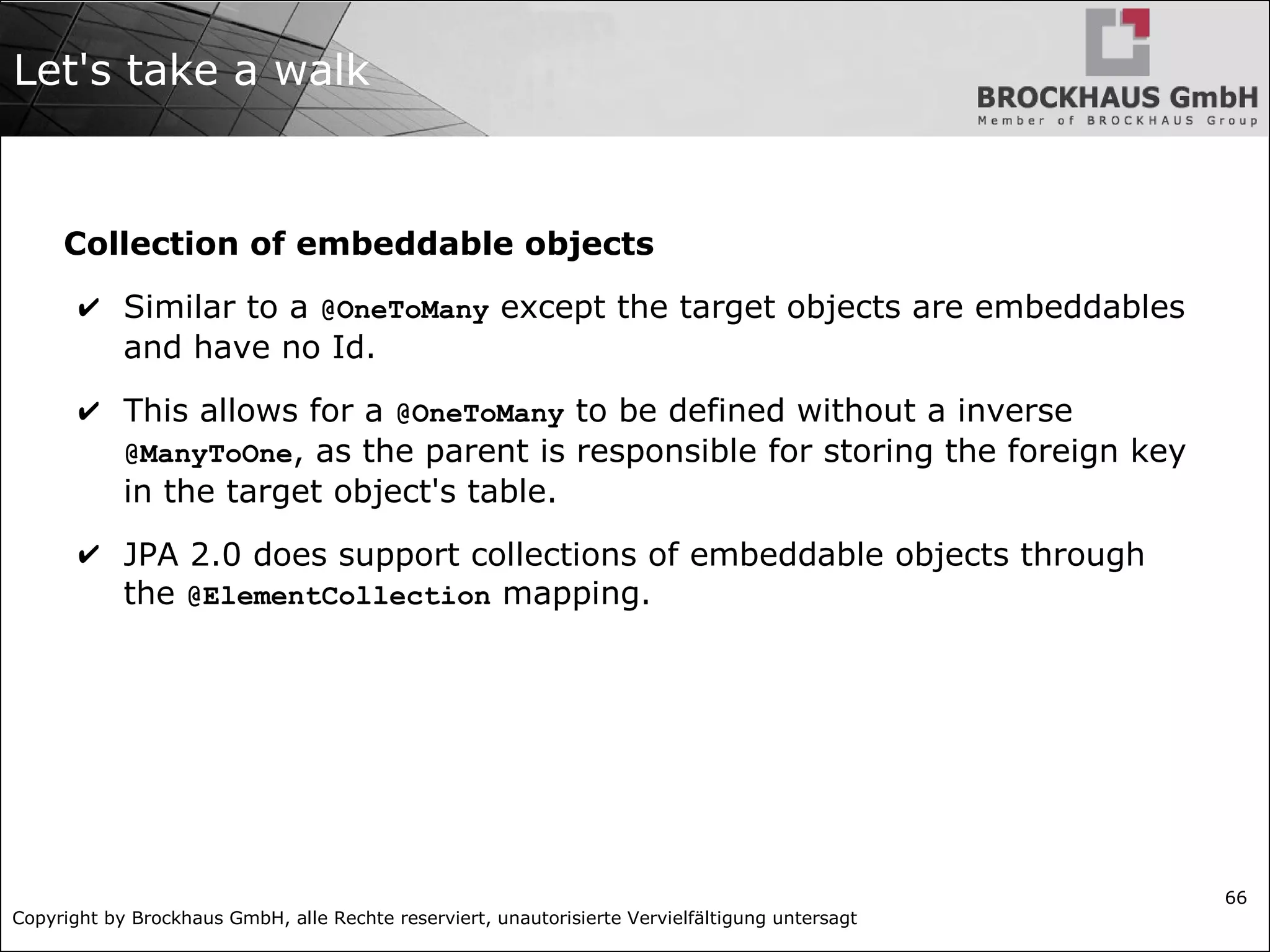

Let's take a walk
Collection of embeddable objects
✔ Similar to a @OneToMany except the target objects are embeddables
and have no Id.
✔ This allows for a @OneToMany to be defined without a inverse
@ManyToOne, as the parent is responsible for storing the foreign key
in the target object's table.
✔ JPA 2.0 does support collections of embeddable objects through
the @ElementCollection mapping.

67

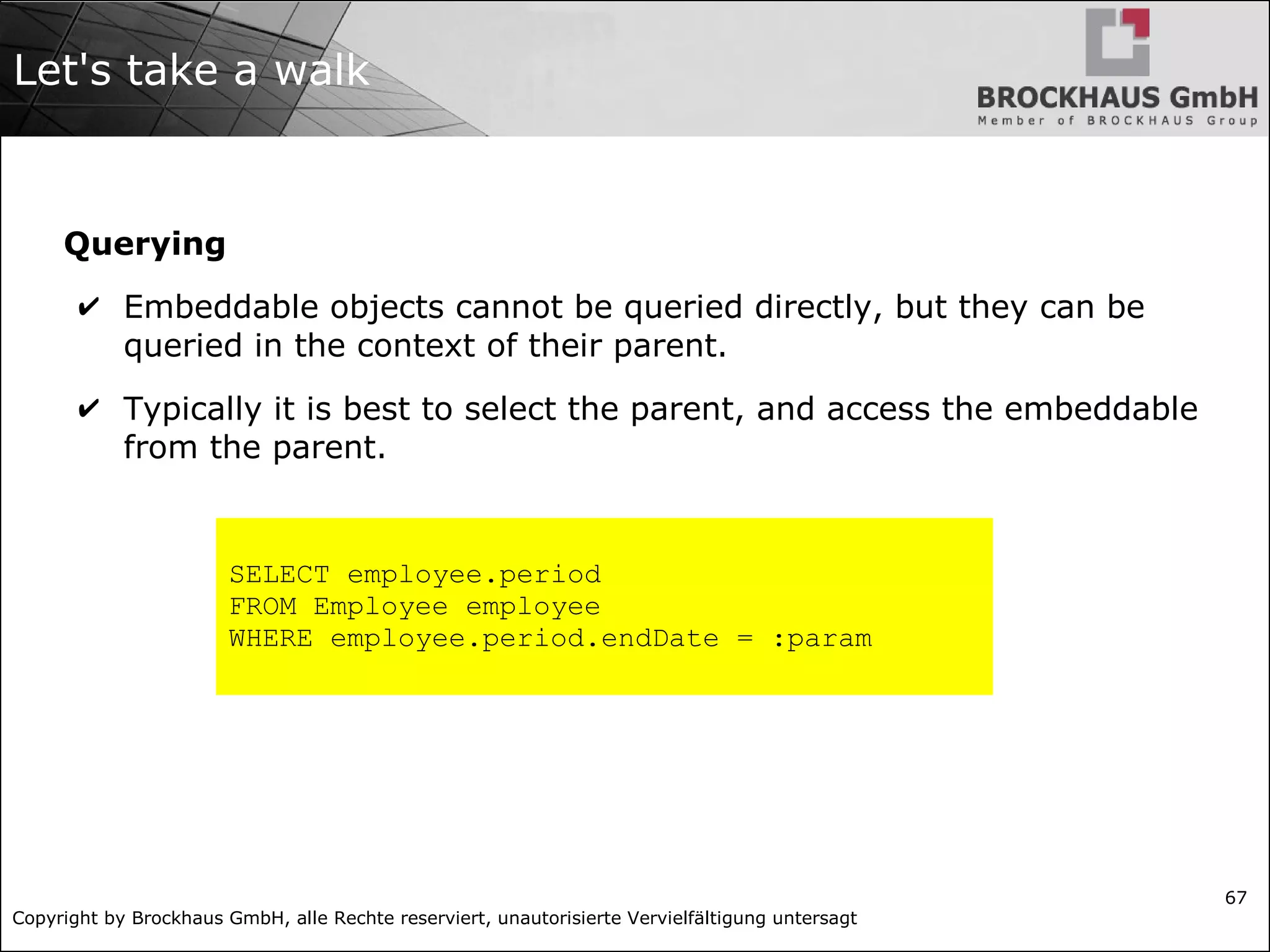

Let's take a walk
Querying
✔ Embeddable objects cannot be queried directly, but they can be
queried in the context of their parent.
✔ Typically it is best to select the parent, and access the embeddable
from the parent.
SELECT employee.period
FROM Employee employee
WHERE employee.period.endDate = :param

68

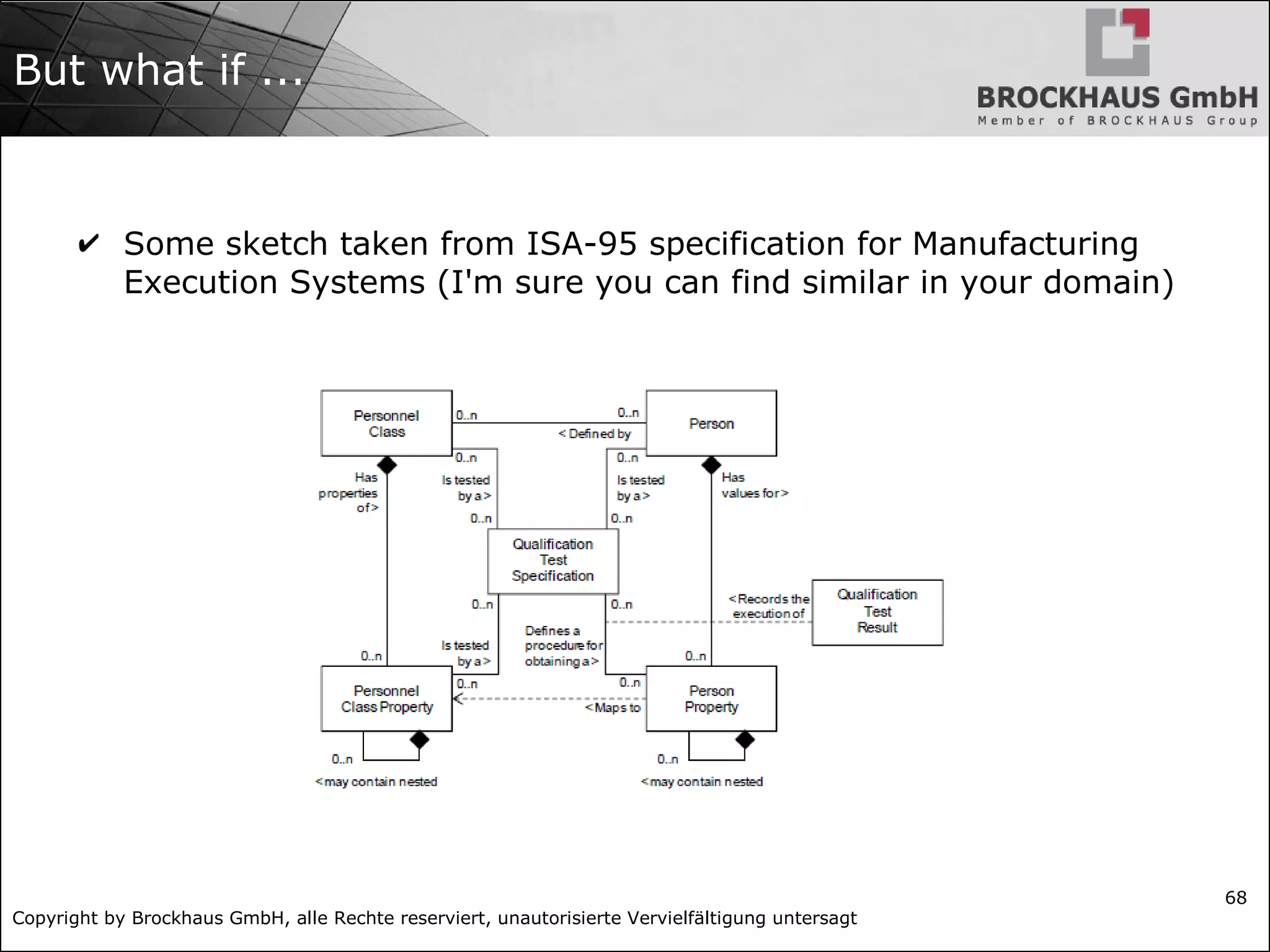

But what if ...
✔ Some sketch taken from ISA-95 specification for Manufacturing
Execution Systems (I'm sure you can find similar in your domain)

69

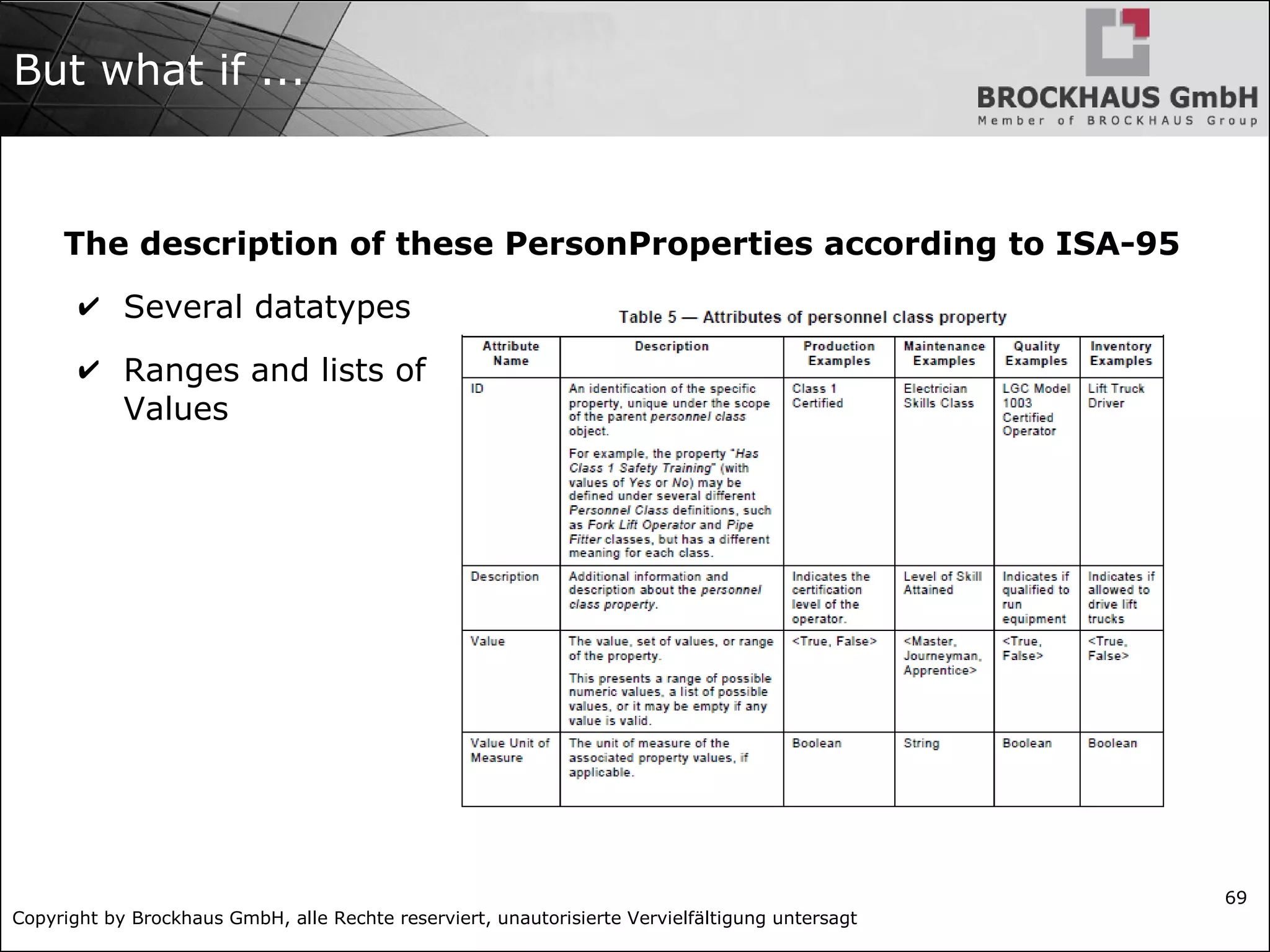

But what if ...
The description of these PersonProperties according to ISA-95
✔ Several datatypes
✔ Ranges and lists of
Values

70

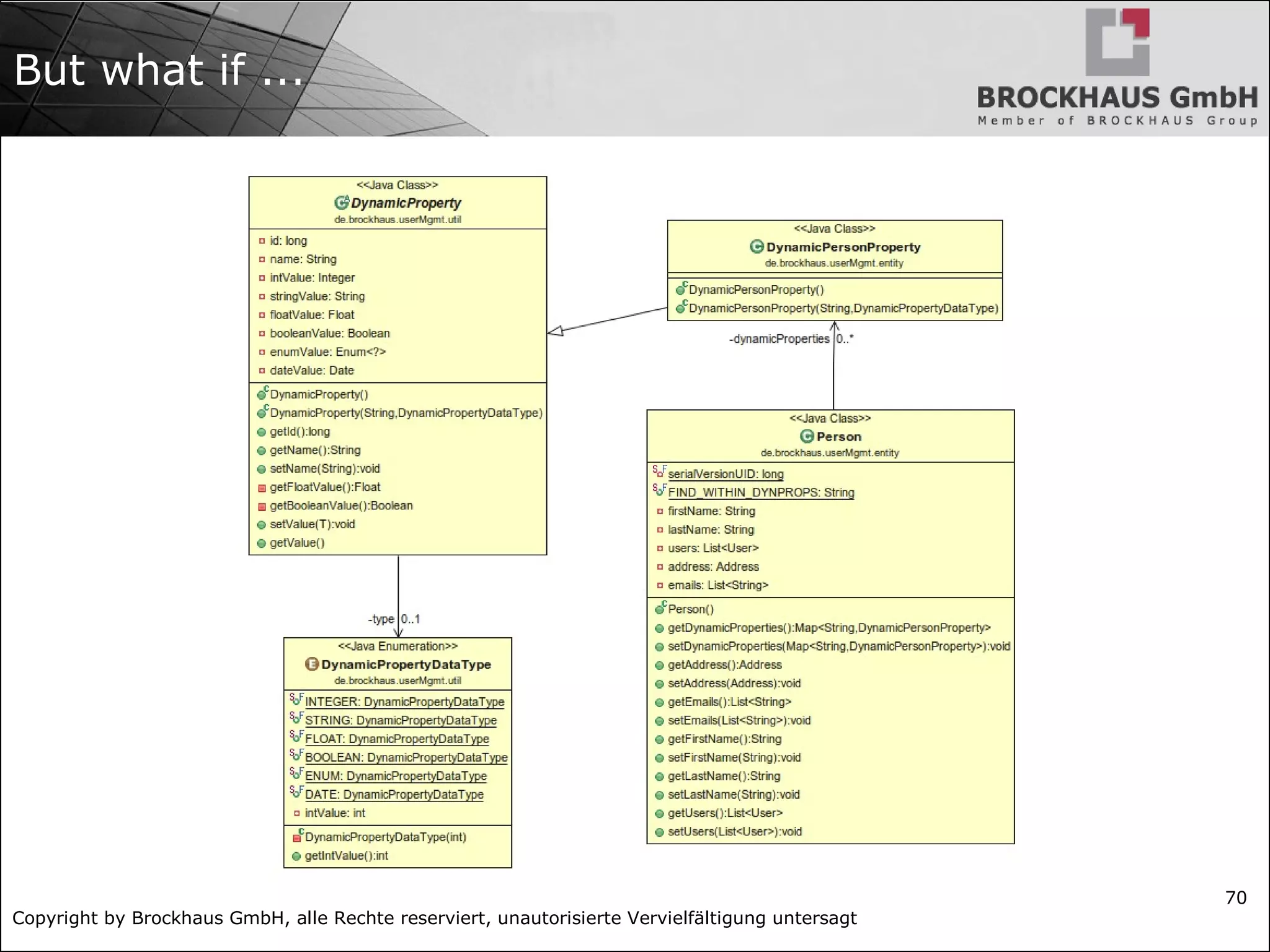

But what if ...

71
But what if ...
✔ Example provided within the solutions
✔ This approach leads to records with lot's of null values in it
✔ Experimental!

72

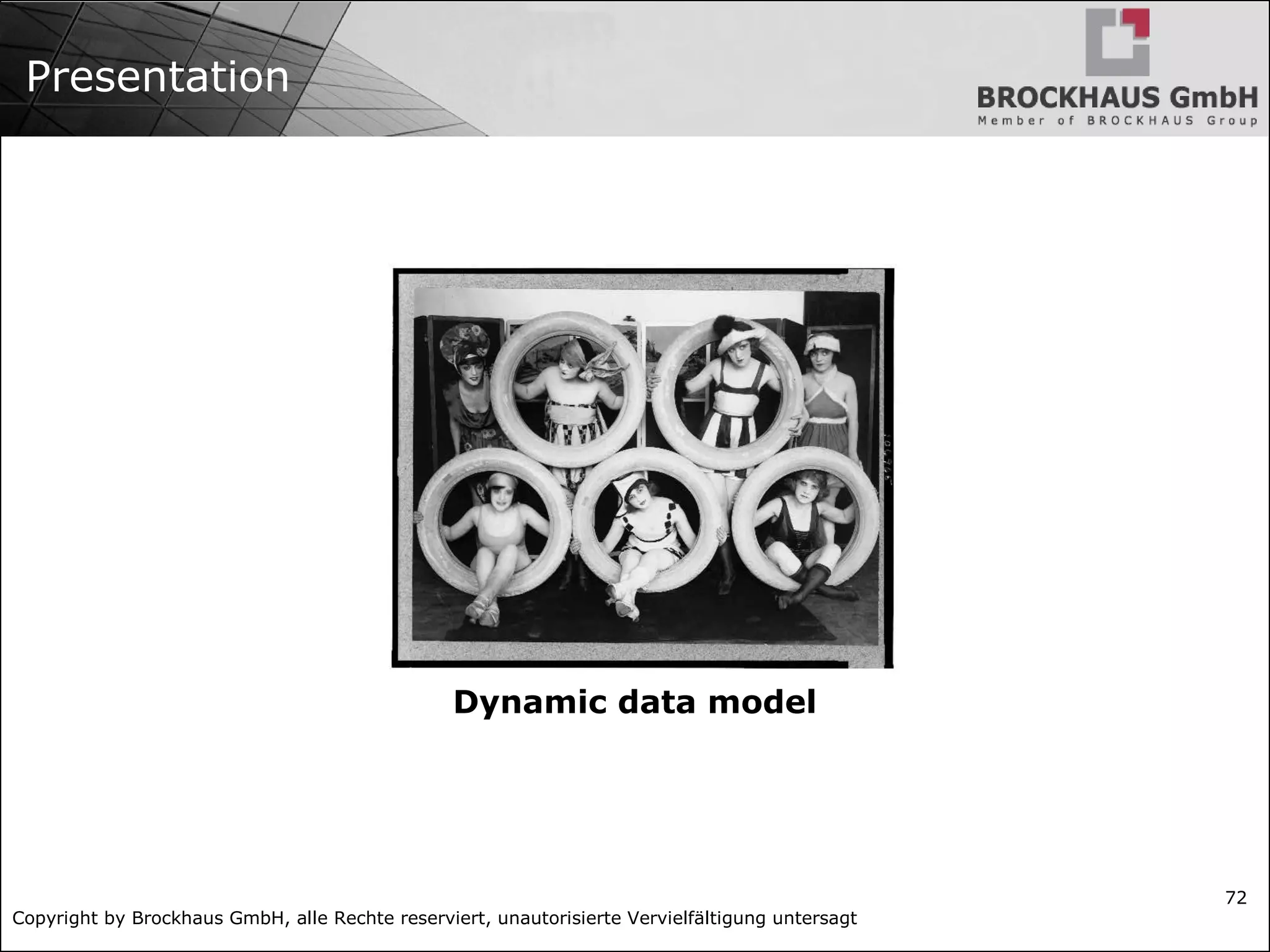

Presentation
Dynamic data model

73
Module
Tips and tricks

74

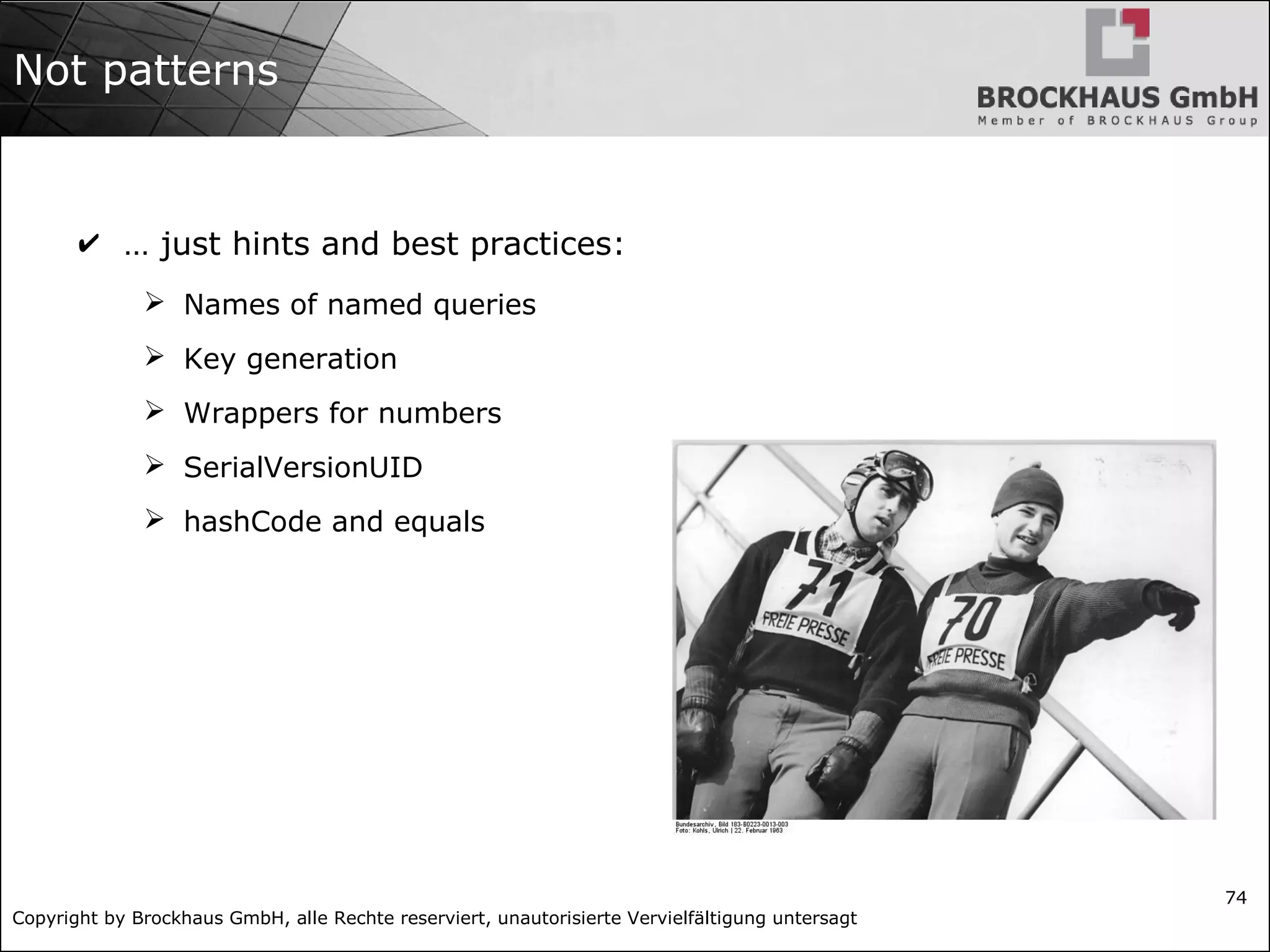

Not patterns
✔ … just hints and best practices:
➢ Names of named queries
➢ Key generation
➢ Wrappers for numbers
➢ SerialVersionUID
➢ hashCode and equals

75

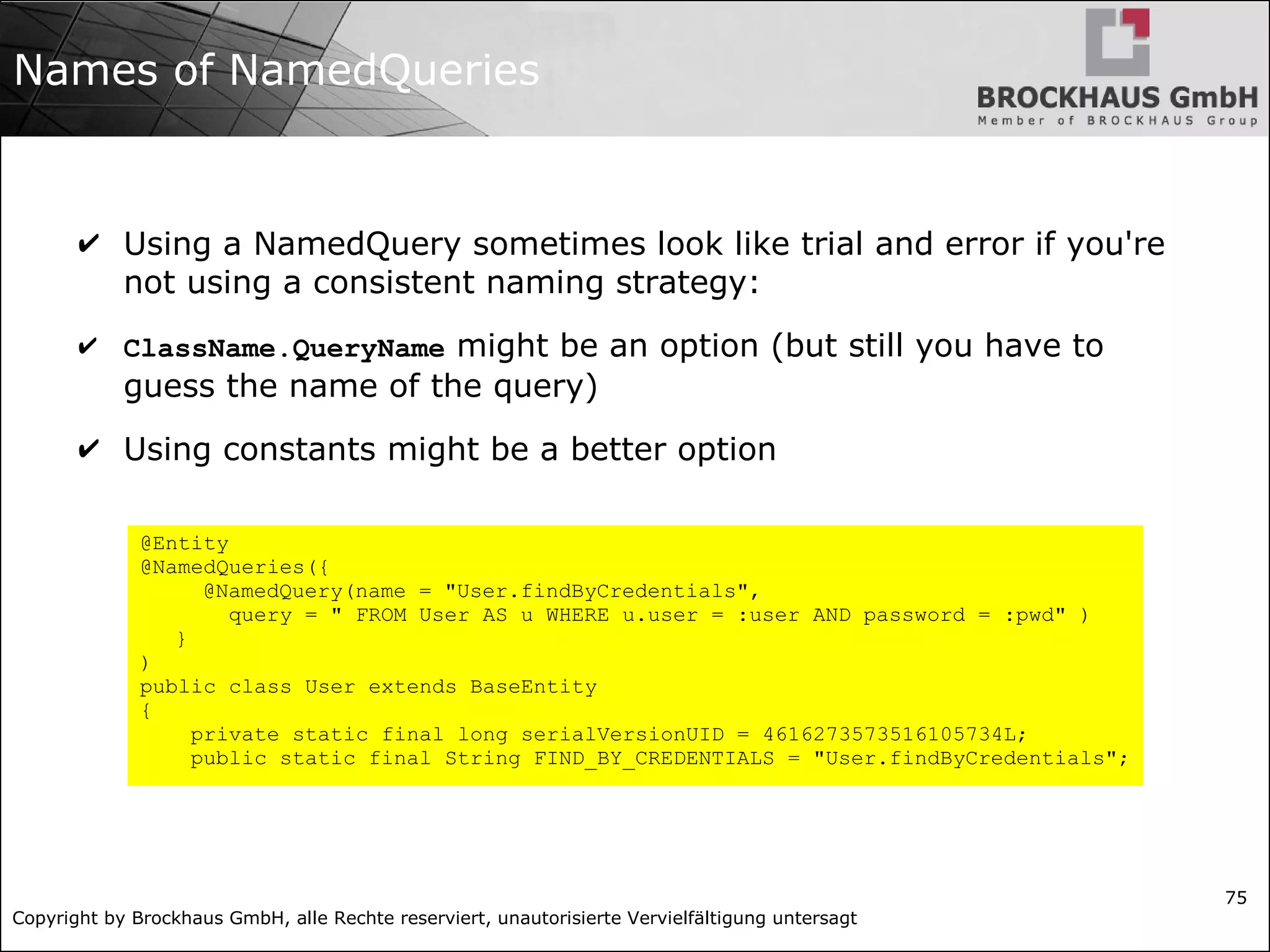

Names of NamedQueries
✔ Using a NamedQuery sometimes look like trial and error if you're
not using a consistent naming strategy:
✔ ClassName.QueryName might be an option (but still you have to
guess the name of the query)
✔ Using constants might be a better option
@Entity
@NamedQueries({
@NamedQuery(name = "User.findByCredentials",
query = " FROM User AS u WHERE u.user = :user AND password = :pwd" )
}
)
public class User extends BaseEntity
{
private static final long serialVersionUID = 4616273573516105734L;
public static final String FIND_BY_CREDENTIALS = "User.findByCredentials";

76

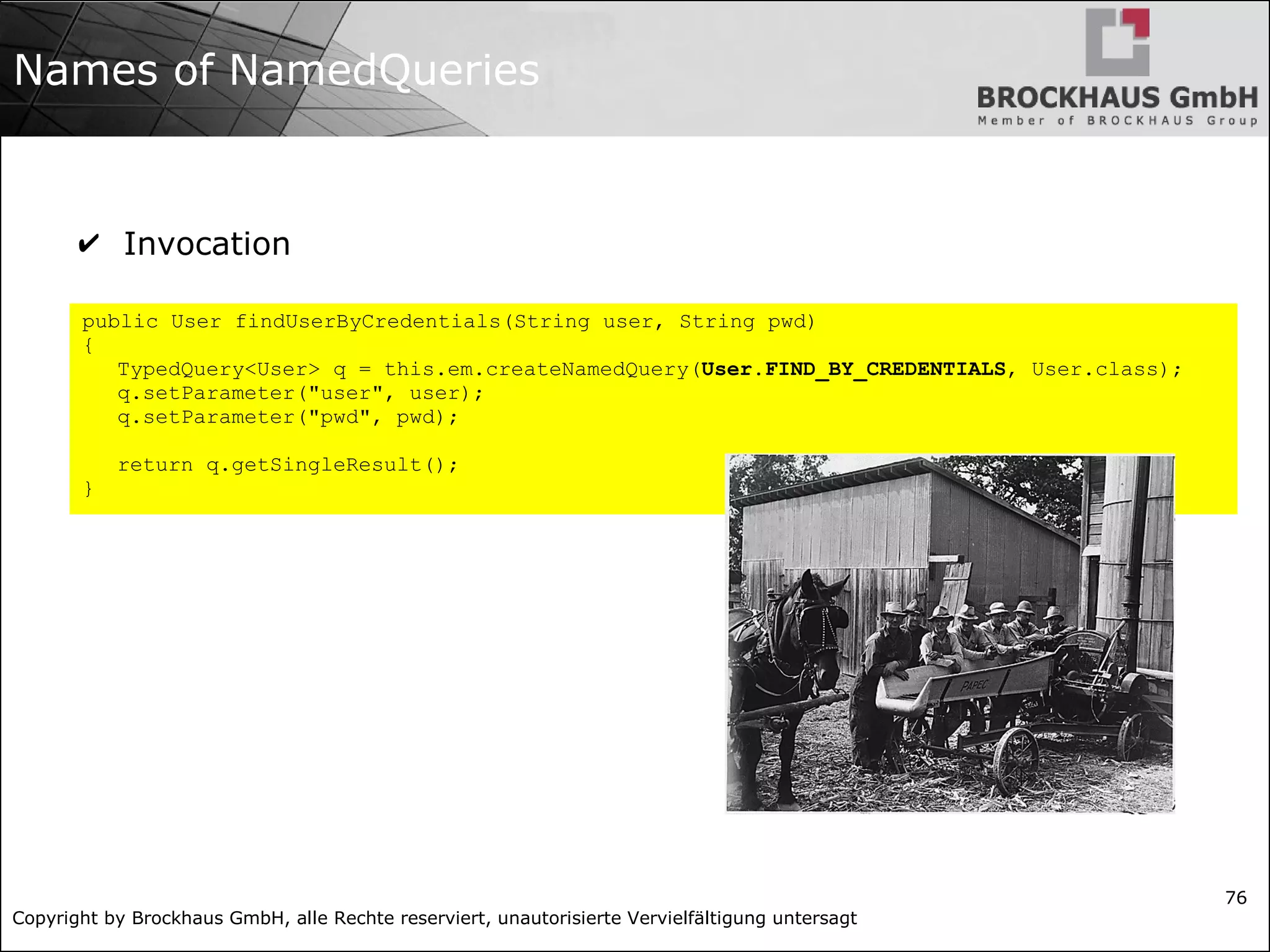

Names of NamedQueries
✔ Invocation
public User findUserByCredentials(String user, String pwd)
{
TypedQuery<User> q = this.em.createNamedQuery(User.FIND_BY_CREDENTIALS, User.class);
return q.getSingleResult();
}

77

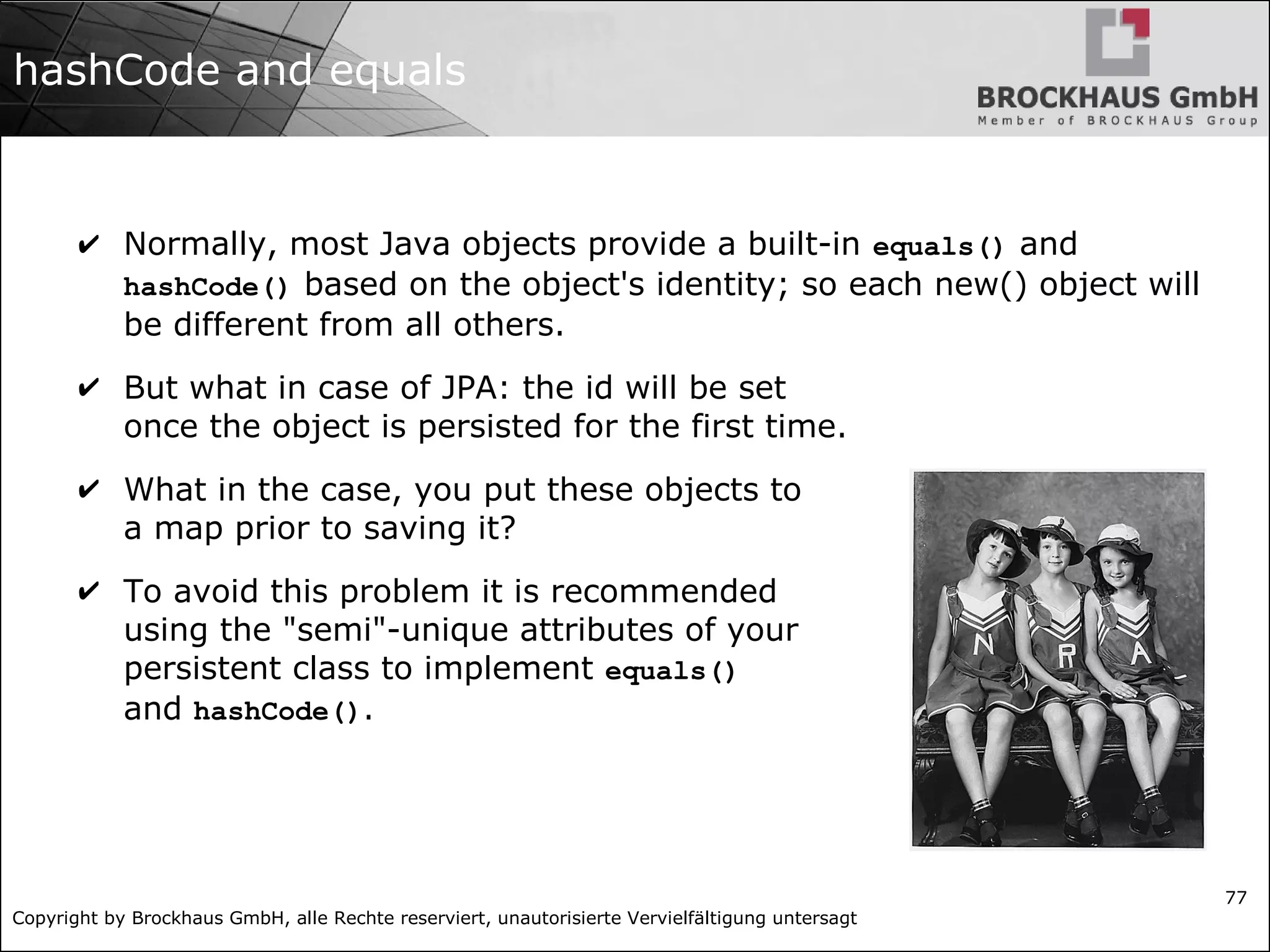

hashCode and equals
✔ Normally, most Java objects provide a built-in equals() and
hashCode() based on the object's identity; so each new() object will
be different from all others.
✔ But what in case of JPA: the id will be set
once the object is persisted for the first time.
✔ What in the case, you put these objects to
a map prior to saving it?
✔ To avoid this problem it is recommended
using the "semi"-unique attributes of your
persistent class to implement equals()
and hashCode().

78

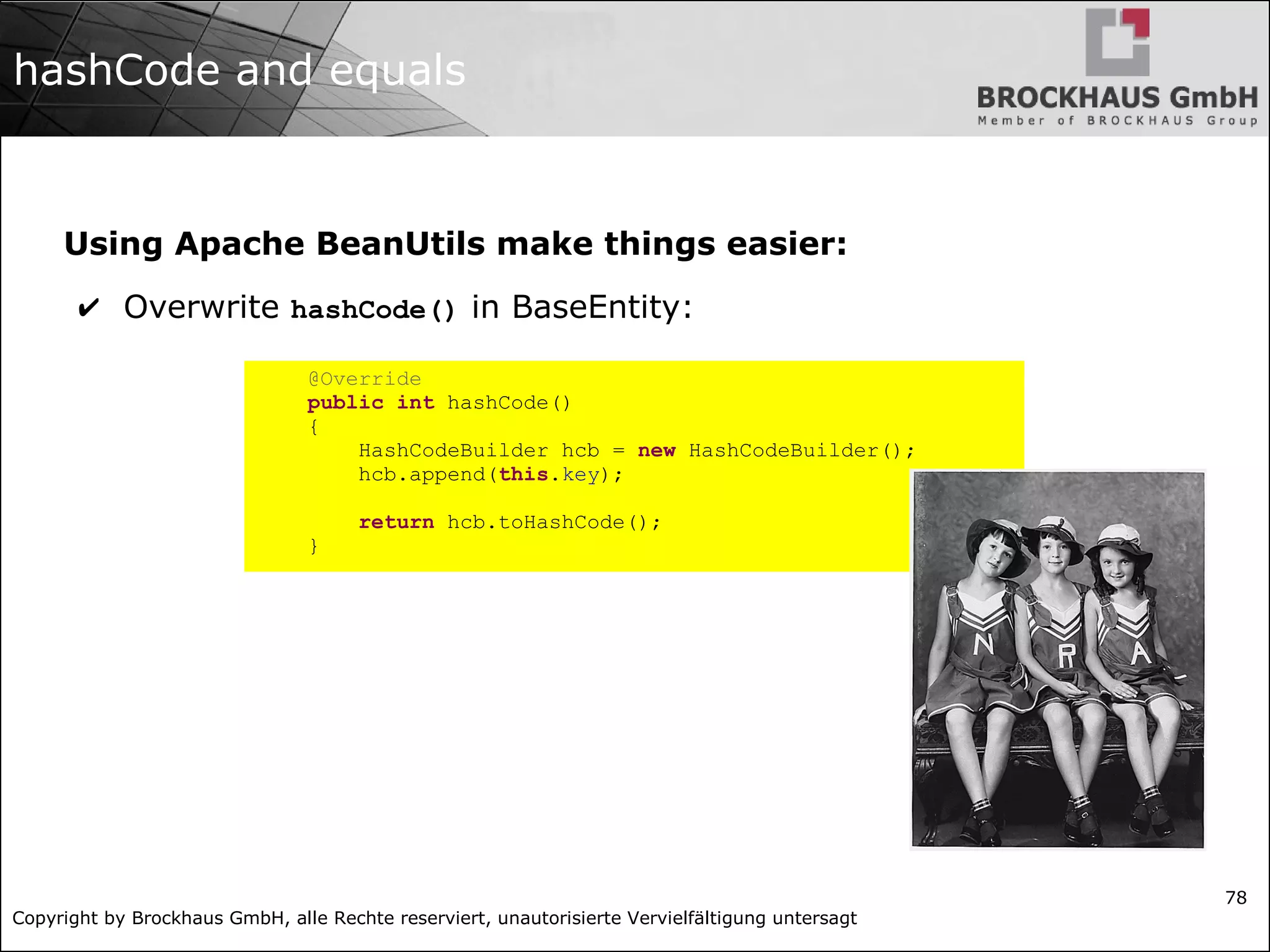

hashCode and equals
Using Apache BeanUtils make things easier:
✔ Overwrite hashCode() in BaseEntity:
@Override
public int hashCode()
{
HashCodeBuilder hcb = new HashCodeBuilder();
hcb.append(this.key);
return hcb.toHashCode();
}

79

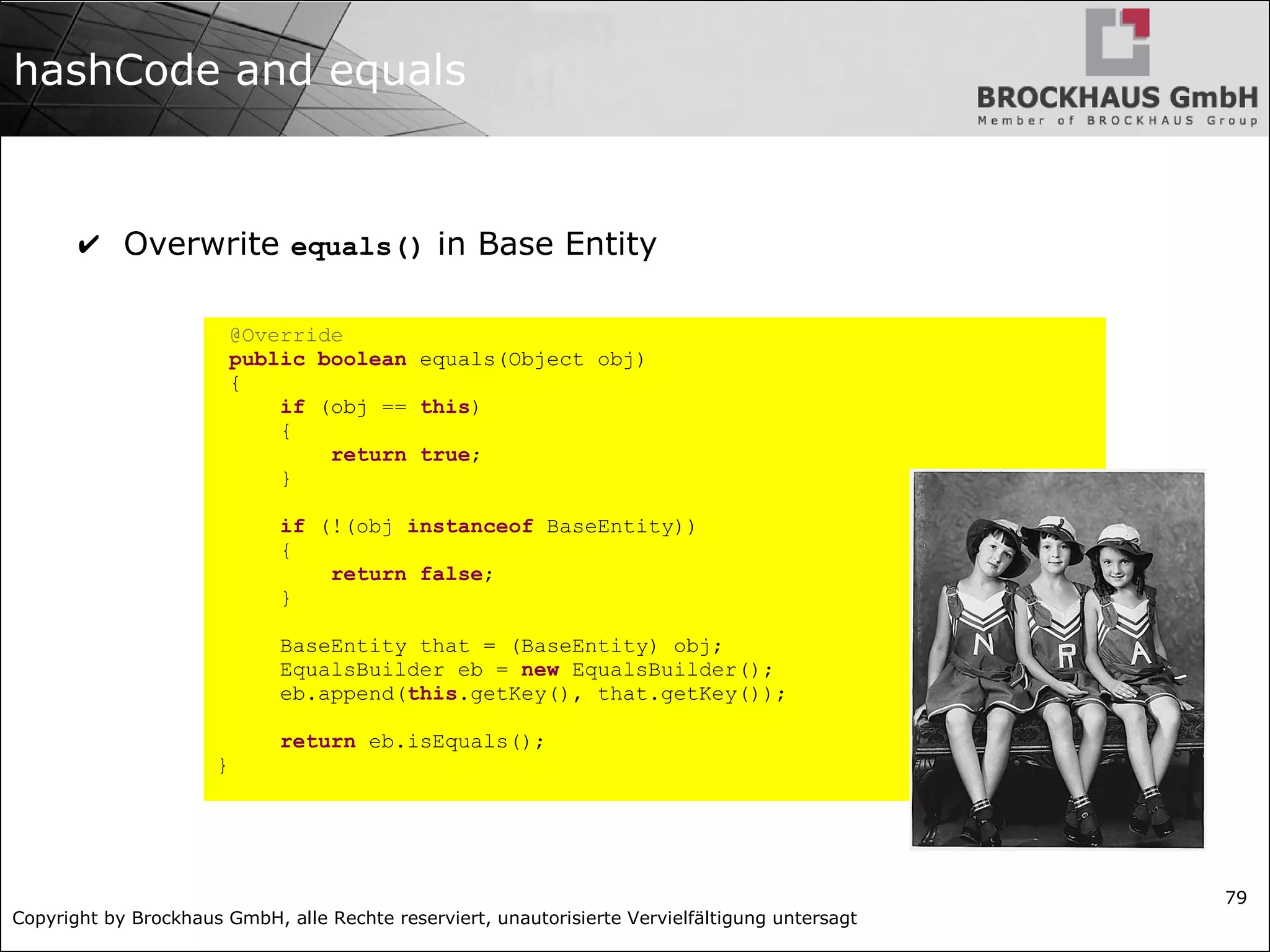

hashCode and equals
✔ Overwrite equals() in Base Entity
@Override
public boolean equals(Object obj)
{
if (obj == this)
{
return true;
}
if (!(obj instanceof BaseEntity))
{
return false;
}
BaseEntity that = (BaseEntity) obj;
EqualsBuilder eb = new EqualsBuilder();
eb.append(this.getKey(), that.getKey());
return eb.isEquals();
}

80

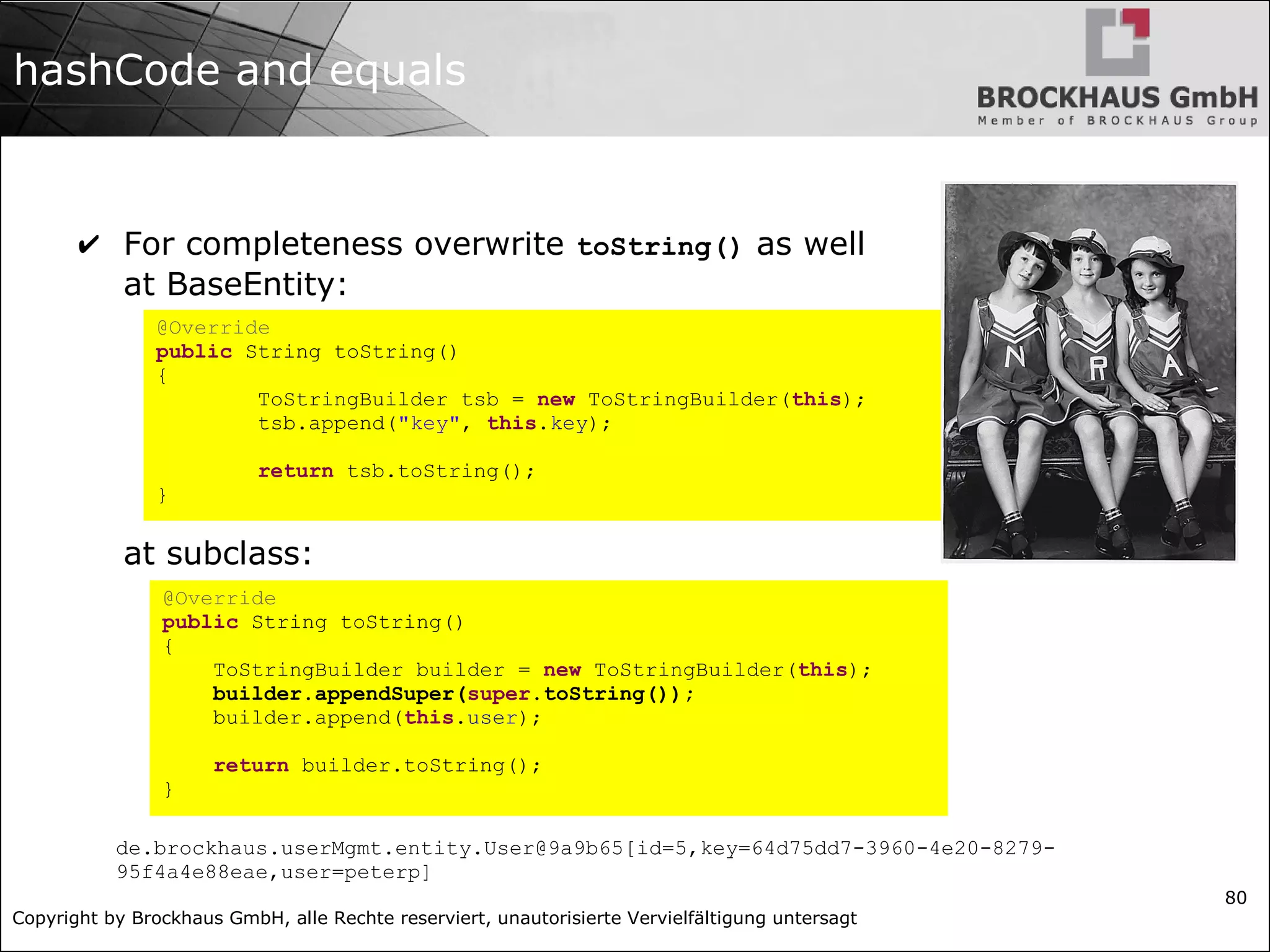

hashCode and equals
✔ For completeness overwrite toString() as well
at BaseEntity:
at subclass:
@Override
public String toString()
{
ToStringBuilder tsb = new ToStringBuilder(this);
tsb.append("key", this.key);
return tsb.toString();
}
@Override
public String toString()
{
ToStringBuilder builder = new ToStringBuilder(this);
builder.appendSuper(super.toString());
builder.append(this.user);
return builder.toString();
}
de.brockhaus.userMgmt.entity.User@9a9b65[id=5,key=64d75dd7-3960-4e20-8279-
95f4a4e88eae,user=peterp]

81

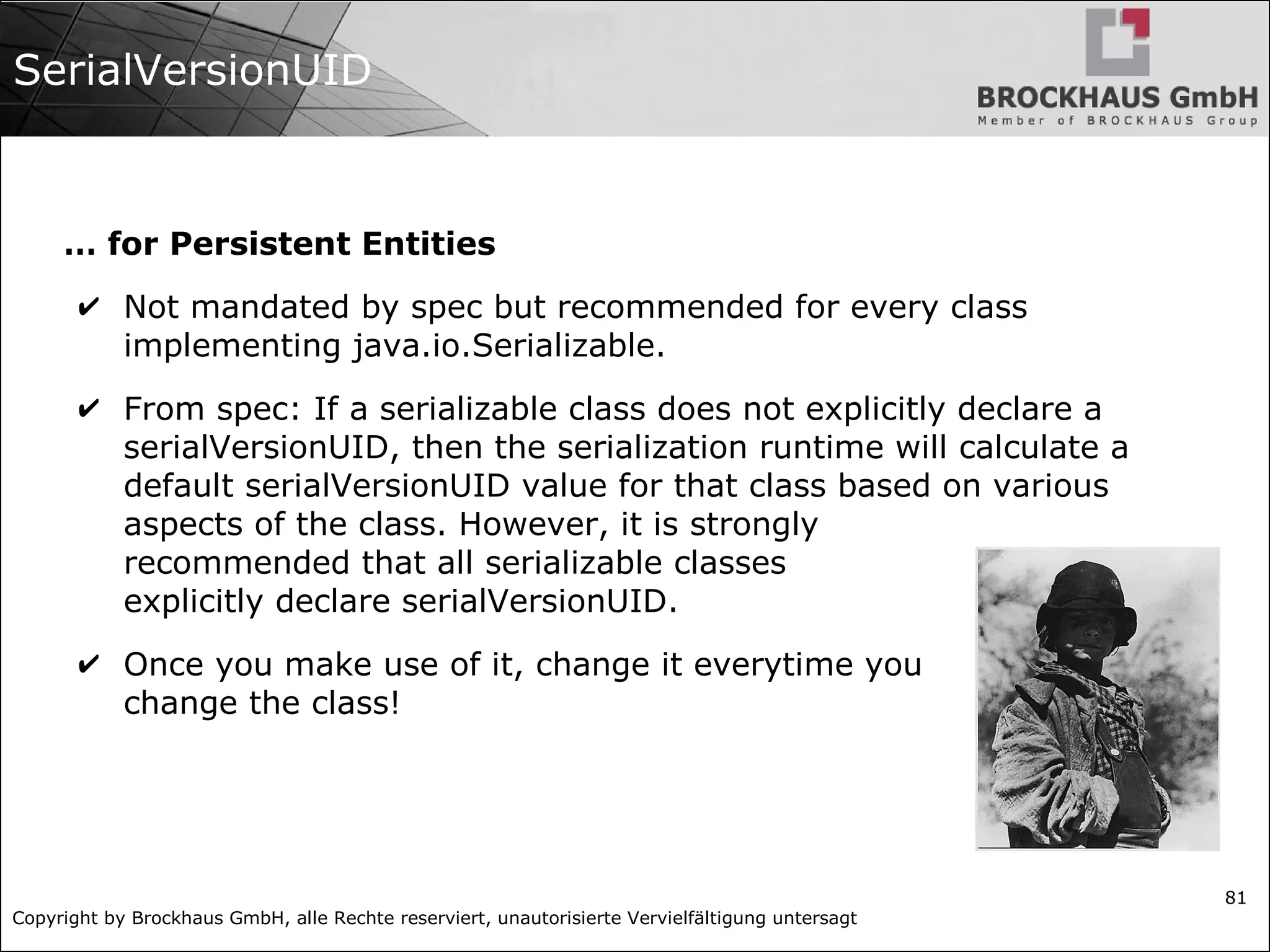

SerialVersionUID
… for Persistent Entities
✔ Not mandated by spec but recommended for every class
implementing java.io.Serializable.
✔ From spec: If a serializable class does not explicitly declare a
serialVersionUID, then the serialization runtime will calculate a
default serialVersionUID value for that class based on various
aspects of the class. However, it is strongly
recommended that all serializable classes
explicitly declare serialVersionUID.
✔ Once you make use of it, change it everytime you
change the class!

82

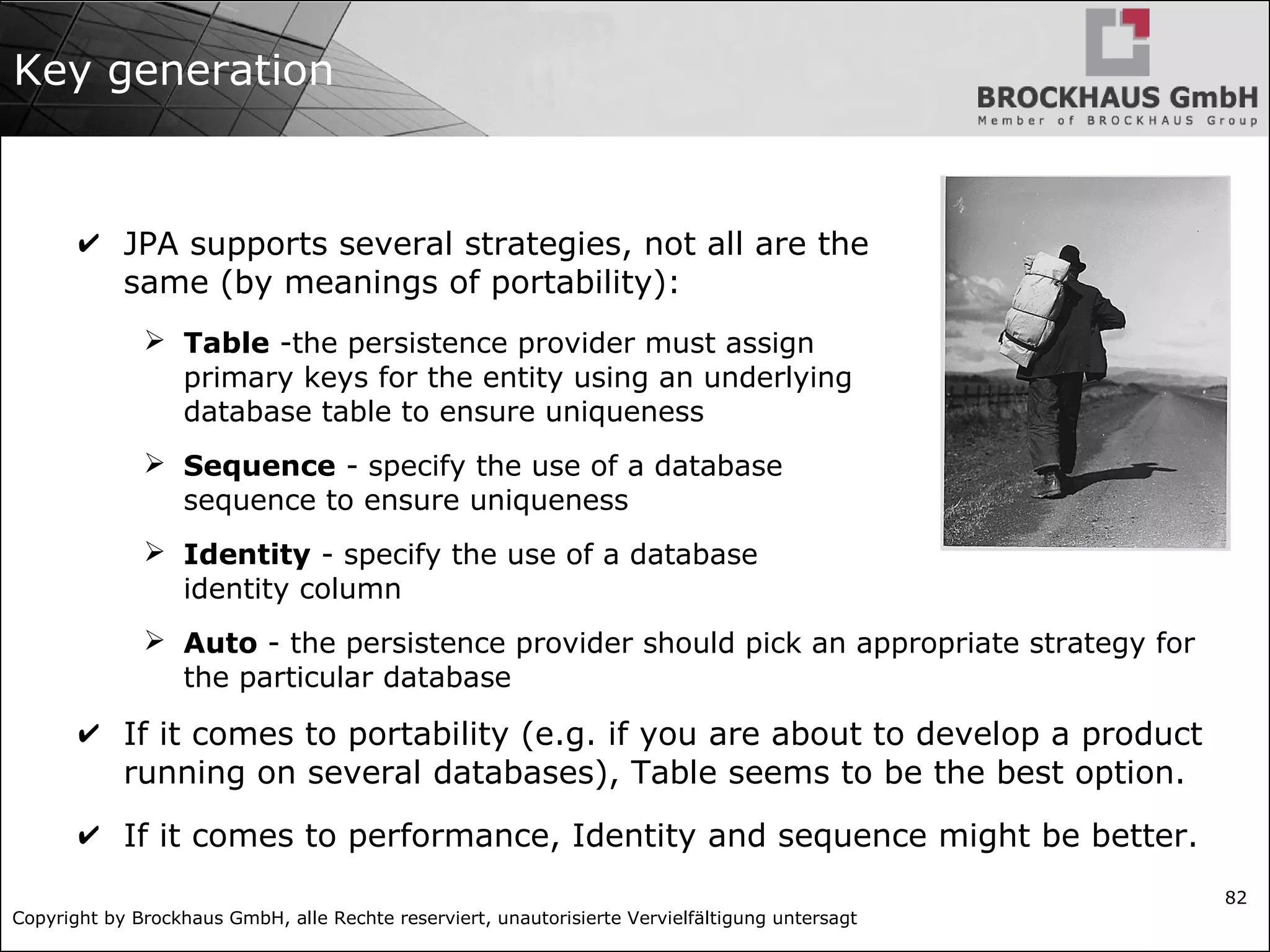

Key generation
✔ JPA supports several strategies, not all are the
same (by meanings of portability):
➢ Table -the persistence provider must assign
primary keys for the entity using an underlying
database table to ensure uniqueness
➢ Sequence - specify the use of a database
sequence to ensure uniqueness
➢ Identity - specify the use of a database
identity column
➢ Auto - the persistence provider should pick an appropriate strategy for
the particular database
✔ If it comes to portability (e.g. if you are about to develop a product
running on several databases), Table seems to be the best option.
✔ If it comes to performance, Identity and sequence might be better.

83

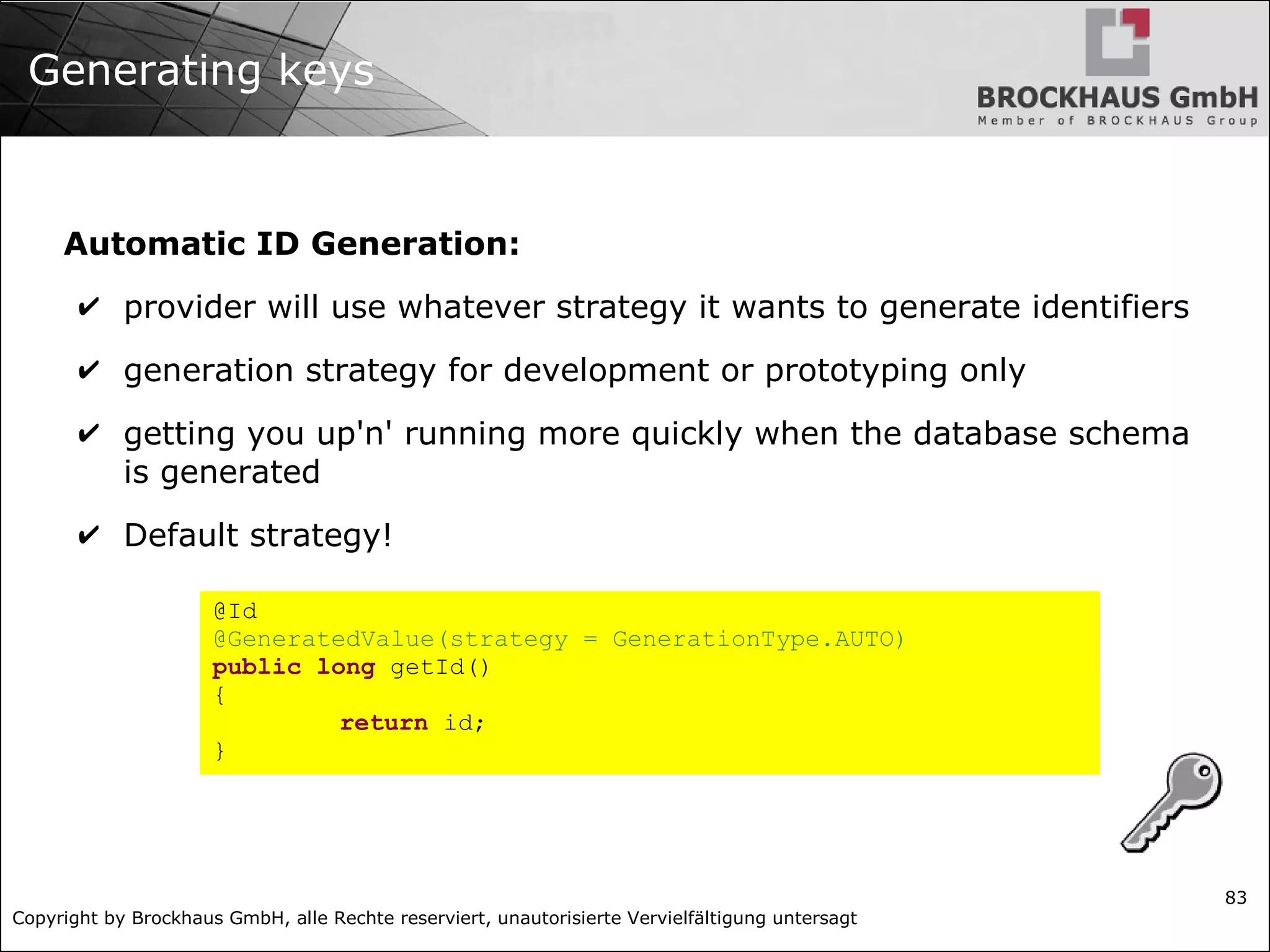

Generating keys
Automatic ID Generation:
✔ provider will use whatever strategy it wants to generate identifiers
✔ generation strategy for development or prototyping only
✔ getting you up'n' running more quickly when the database schema
is generated
✔ Default strategy!
@Id
@GeneratedValue(strategy = GenerationType.AUTO)
public long getId()
{
return id;
}

84

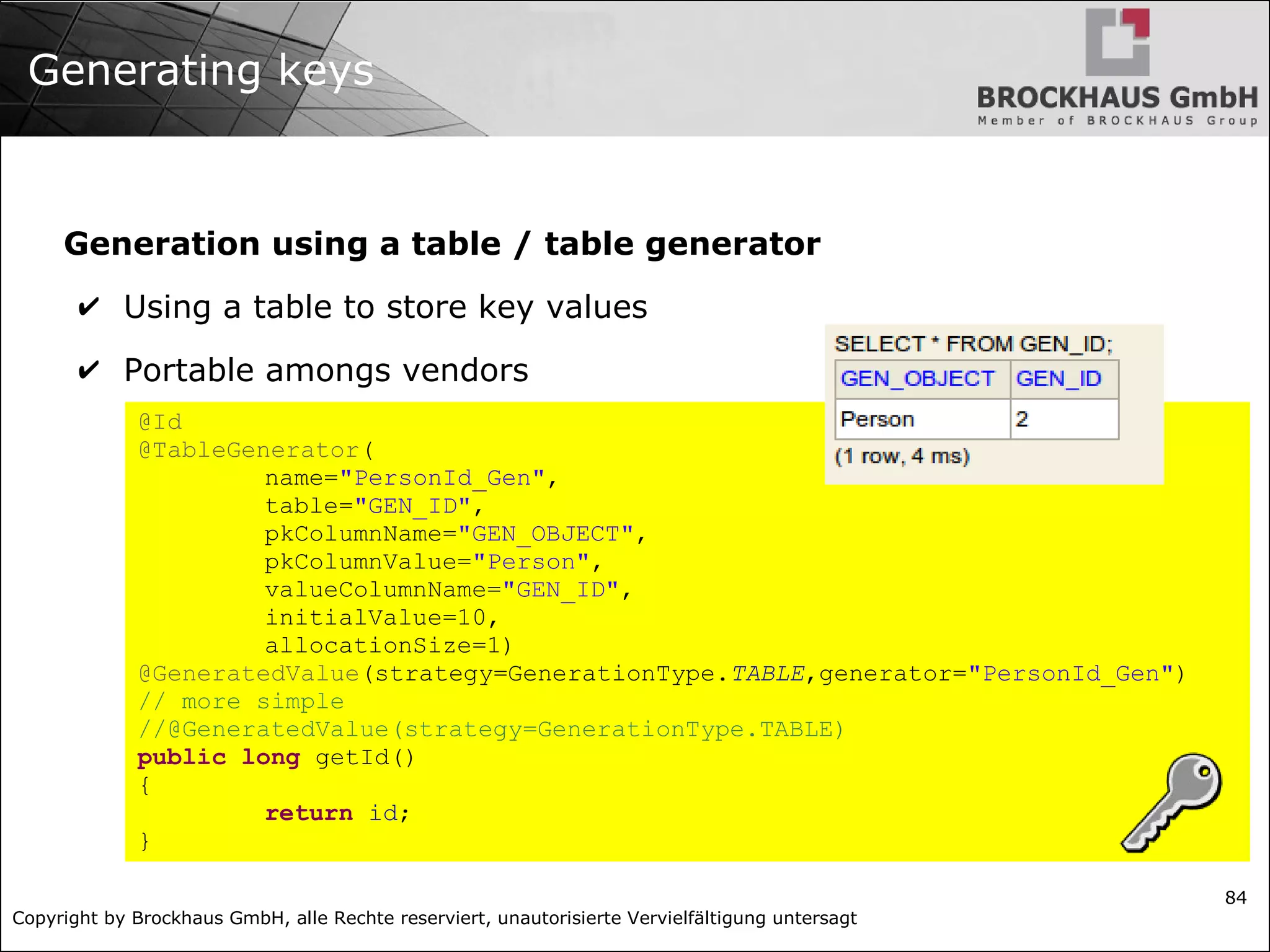

Generating keys
Generation using a table / table generator
✔ Using a table to store key values
✔ Portable amongs vendors
@Id
@TableGenerator(
name="PersonId_Gen",
table="GEN_ID",
pkColumnName="GEN_OBJECT",
pkColumnValue="Person",
valueColumnName="GEN_ID",
initialValue=10,
allocationSize=1)
@GeneratedValue(strategy=GenerationType.TABLE,generator="PersonId_Gen")
// more simple
//@GeneratedValue(strategy=GenerationType.TABLE)
public long getId()
{
return id;
}

85

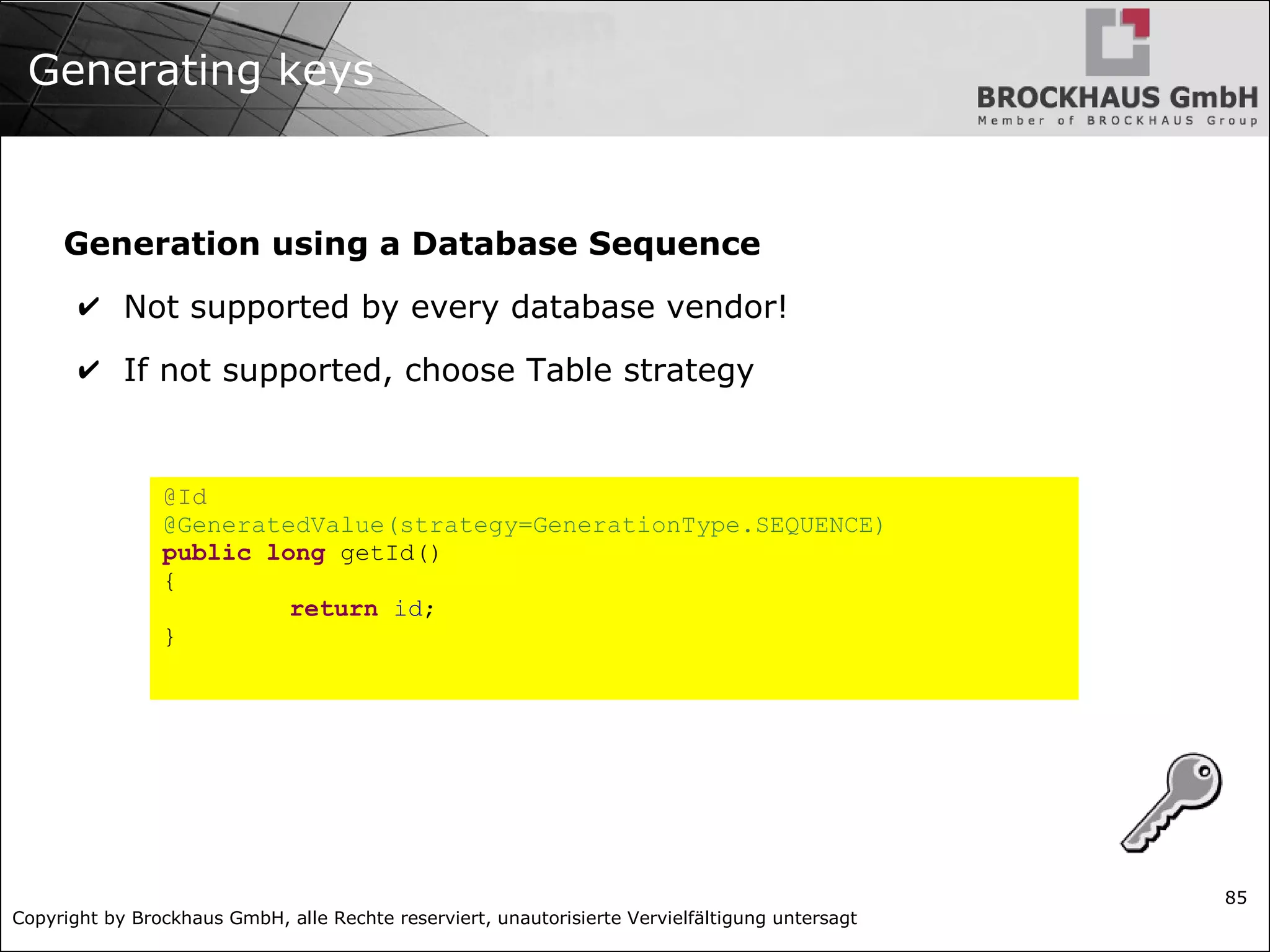

Generating keys
Generation using a Database Sequence
✔ Not supported by every database vendor!
✔ If not supported, choose Table strategy
@Id
@GeneratedValue(strategy=GenerationType.SEQUENCE)
public long getId()
{
return id;
}

86

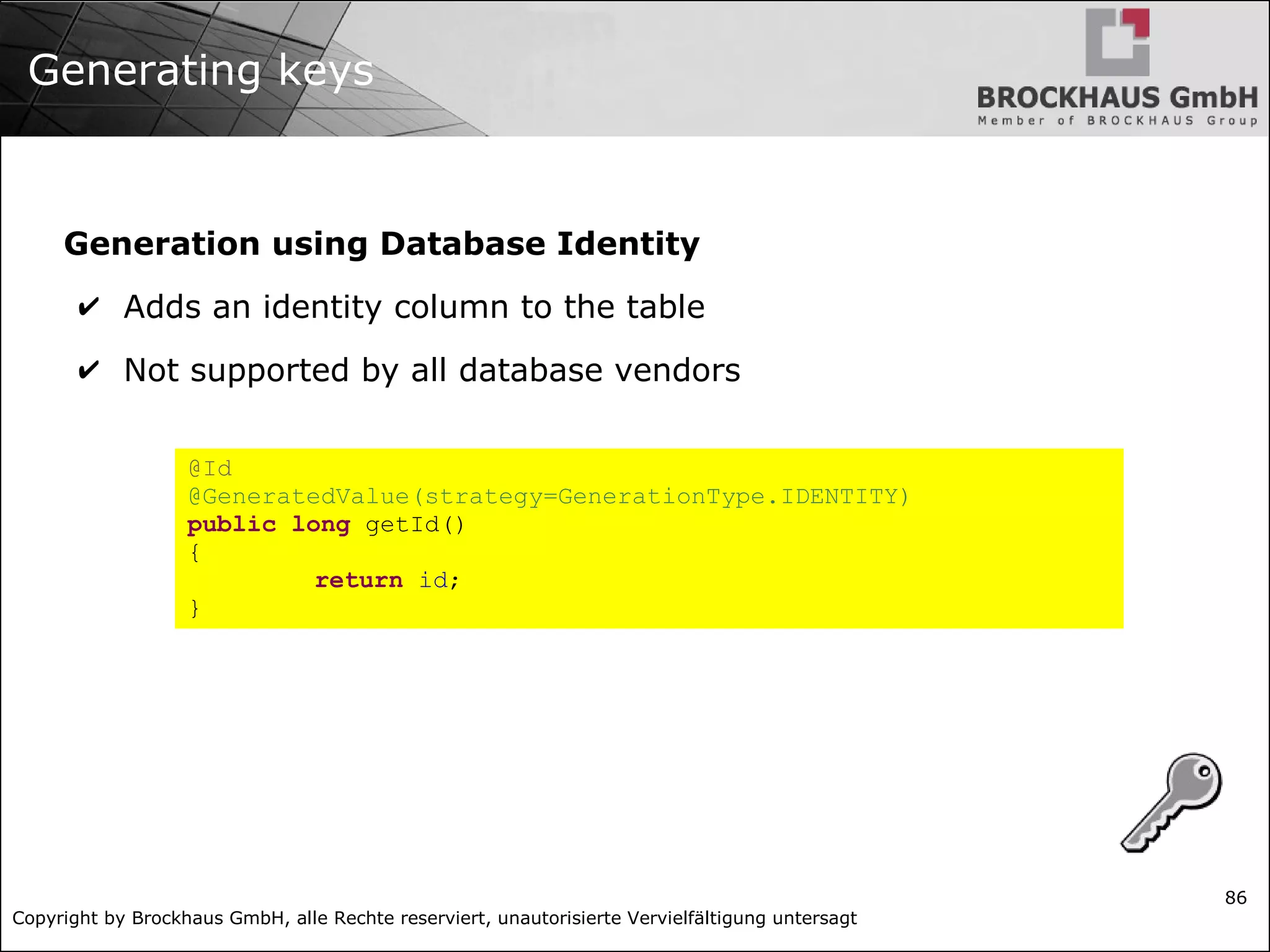

Generating keys
Generation using Database Identity
✔ Adds an identity column to the table
✔ Not supported by all database vendors
@Id
@GeneratedValue(strategy=GenerationType.IDENTITY)
public long getId()
{
return id;
}

87
Wrappers for numbers
✔ If you use a primitive on a nullable field JPA (at least using
Hibernate in JBoss) will throw an error when it reads a null value
from the database and attempts to put that value into a primitive
field.
✔ You can search for days to
find this error!

88
Lab
Implement some hints

89

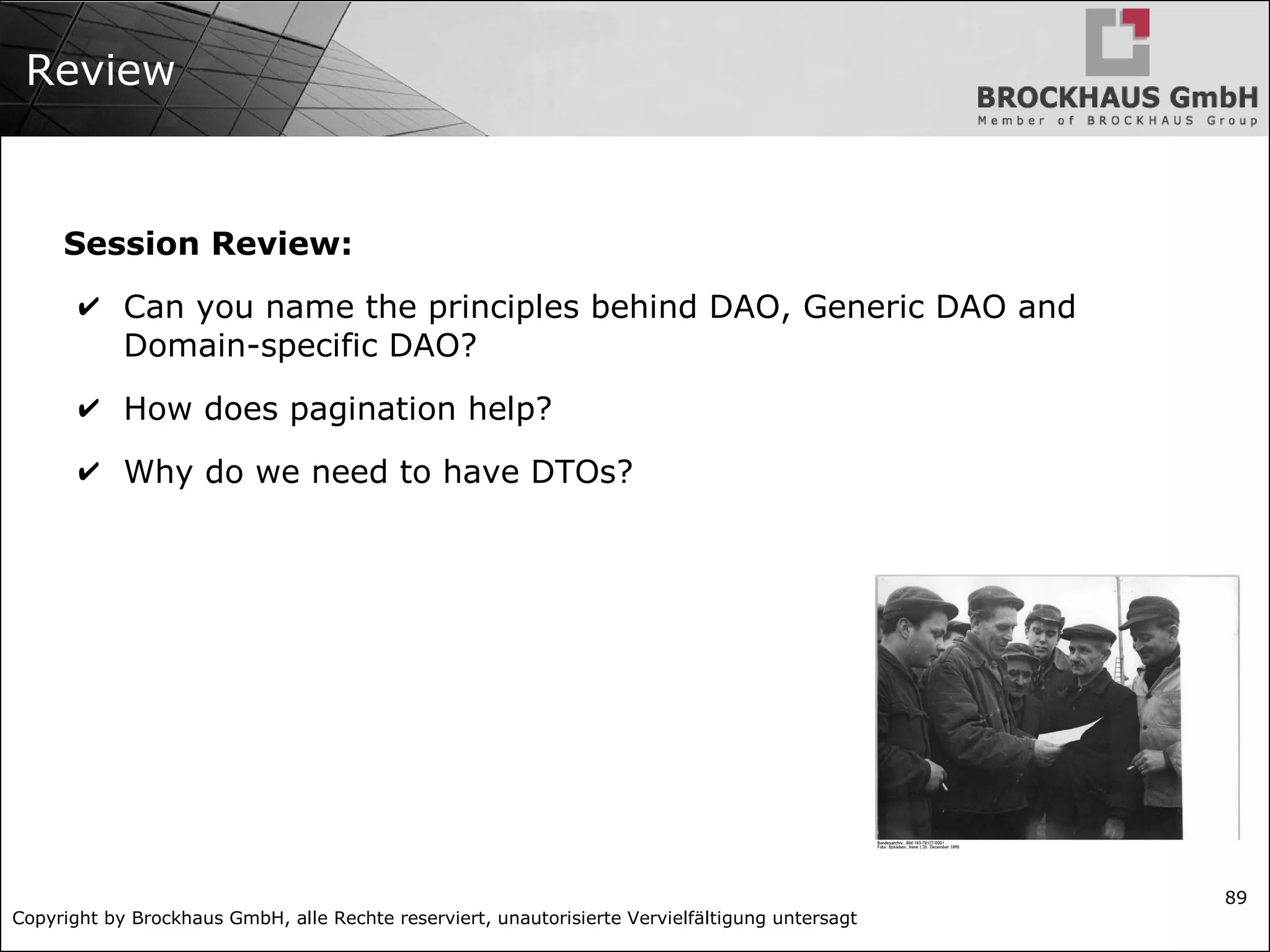

Review
Session Review:
✔ Can you name the principles behind DAO, Generic DAO and
Domain-specific DAO?
✔ How does pagination help?
✔ Why do we need to have DTOs?

90

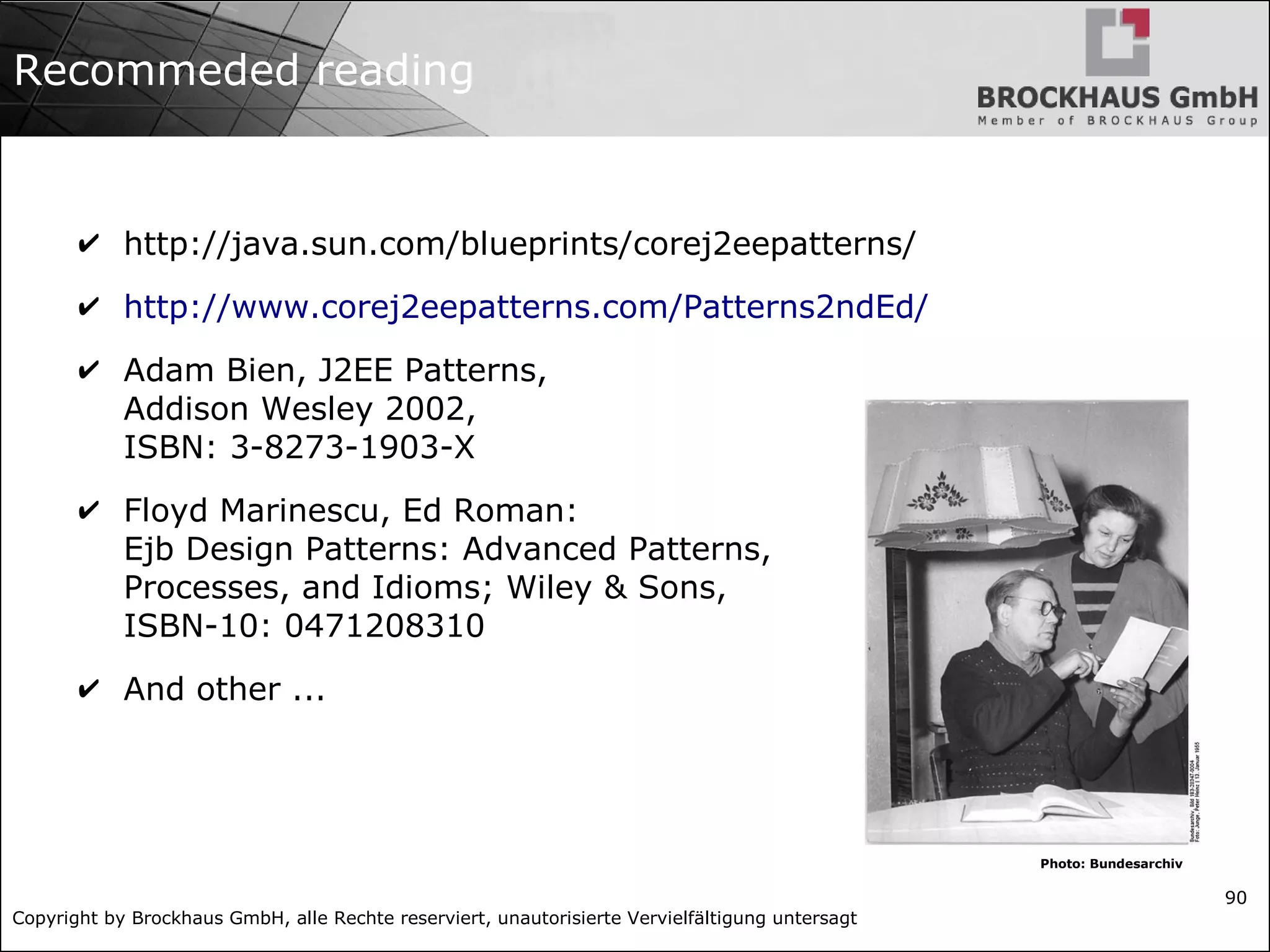

Recommeded reading
✔ http://java.sun.com/blueprints/corej2eepatterns/
✔ http://www.corej2eepatterns.com/Patterns2ndEd/
✔ Adam Bien, J2EE Patterns,
Addison Wesley 2002,
ISBN: 3-8273-1903-X
✔ Floyd Marinescu, Ed Roman:
Ejb Design Patterns: Advanced Patterns,
Processes, and Idioms; Wiley & Sons,
ISBN-10: 0471208310
✔ And other ...
Photo: Bundesarchiv

Java EE Pattern: The Entity Layer

More Related Content

Similar to Java EE Pattern: The Entity Layer

More from Brockhaus Consulting GmbH

Recently uploaded

Java EE Pattern: The Entity Layer

Editor's Notes
