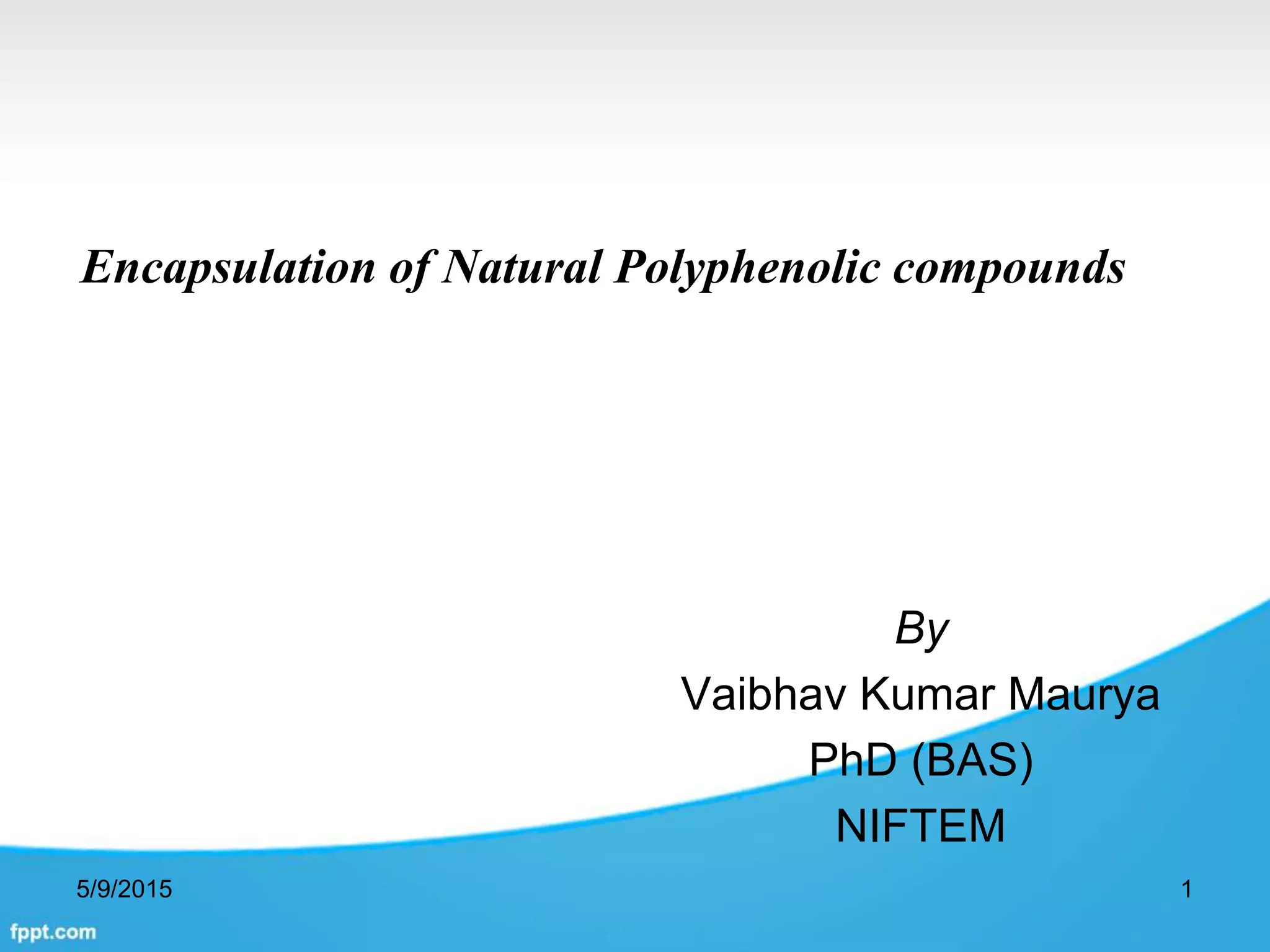

1. Encapsulation of Natural Polyphenolic compounds
By
Vaibhav Kumar Maurya
PhD (BAS)
NIFTEM
5/9/2015 1

2. Polyphenolic compounds
• Secondary metabolites of vascular plants
• Derived from the metabolism of shikimic acid and polyacetate
What are the health benefits from polyphenolic compounds?
• Reduce the inflammation by inhibition of the edema
• Stop the development of tumors
• Present proapoptotic and anti-angiogenic actions
• Increase the capillary resistance by acting on the constituents of
blood vessels
• Protect the cardiovascular system
• Protect retina
• Limit weight gain
5/9/2015 2

3. Economic implication of polyphenolic compound
• Natural coloring agent
• Conservative agents
• Natural antioxidants
• Nutritional additives
• Cosmetics and pharmaceutical application
Classes of polyphenol
5/9/2015 3
1. Hydrobenzoic acids
2. Hydroxycinnamic acids
3. Coumaries
4. Stilbenes
5. Flavanols
6. Flavones
7. Flavanones
8. Isoflavones
9. Flavanols
10. Proanthocyanidins
11. Anthocyanins
12. Lignans

4. Stability of polyphenol
• Instable during processing
• Very sensitive to environmental factors
What is encapsulation ?
• Shielding to evade chemical reactions or to facilitate the
regulated discharge of core bioactive ingredient from the
shell (capsule and coating) with efficient mass transport
behavior
5/9/2015 4

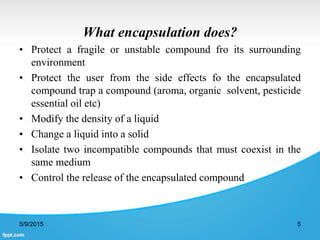

5. What encapsulation does?
• Protect a fragile or unstable compound fro its surrounding
environment
• Protect the user from the side effects fo the encapsulated
compound trap a compound (aroma, organic solvent, pesticide
essential oil etc)
• Modify the density of a liquid
• Change a liquid into a solid
• Isolate two incompatible compounds that must coexist in the
same medium
• Control the release of the encapsulated compound
5/9/2015 5

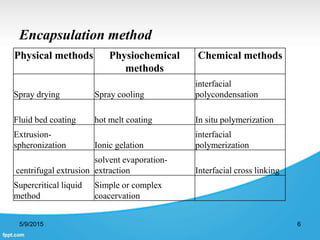

6. Encapsulation method
5/9/2015 6
Physical methods Physiochemical
methods
Chemical methods
Spray drying Spray cooling
interfacial
polycondensation
Fluid bed coating hot melt coating In situ polymerization
Extrusion-
spheronization Ionic gelation
interfacial
polymerization
centrifugal extrusion
solvent evaporation-
extraction Interfacial cross linking
Supercritical liquid
method
Simple or complex
coacervation

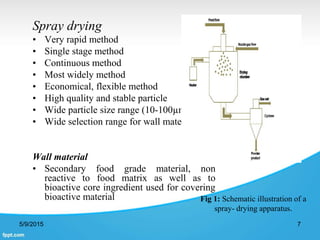

7. Spray drying
• Very rapid method
• Single stage method
• Continuous method
• Most widely method
• Economical, flexible method
• High quality and stable particle
• Wide particle size range (10-100µm)
• Wide selection range for wall material
Wall material
• Secondary food grade material, non
reactive to food matrix as well as to
bioactive core ingredient used for covering
bioactive material
5/9/2015 7
Fig 1: Schematic illustration of a
spray- drying apparatus.

8. Widely used wall material for polyphenols
• Protein (Sodium caseinate and gelatin)
• Hydrocolloid (gum arabic)
• Hydrolyzed starch ( starch, lactose and maltodextrin)
• Chitosan
Natural product encapsulated by Spray drying
• Soybean extract
• Grape seed extract
• Artichoke
• Oak extract
• Yerba mate
5/9/2015 8Fig 2: Scanning electron micrographs of (a) blank microspheres and (b)
microspheres loaded with olive tree leaves extract (OLE)

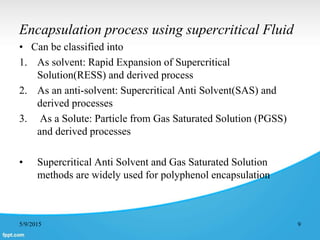

9. Encapsulation process using supercritical Fluid
• Can be classified into
1. As solvent: Rapid Expansion of Supercritical
Solution(RESS) and derived process
2. As an anti-solvent: Supercritical Anti Solvent(SAS) and
derived processes
3. As a Solute: Particle from Gas Saturated Solution (PGSS)
and derived processes
• Supercritical Anti Solvent and Gas Saturated Solution
methods are widely used for polyphenol encapsulation
5/9/2015 9

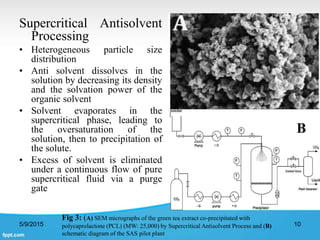

10. Supercritical Antisolvent
Processing
• Heterogeneous particle size
distribution
• Anti solvent dissolves in the
solution by decreasing its density
and the solvation power of the
organic solvent
• Solvent evaporates in the
supercritical phase, leading to
the oversaturation of the
solution, then to precipitation of
the solute.
• Excess of solvent is eliminated
under a continuous flow of pure
supercritical fluid via a purge
gate
5/9/2015 10
ss
Fig 3: (A) SEM micrographs of the green tea extract co-precipitated with
polycaprolactone (PCL) (MW: 25,000) by Supercritical Antisolvent Process and (B)
schematic diagram of the SAS pilot plant
B

11. Gas Saturated
Solutions Process
• Supercritical fluid plays the
role of a solute
• Under pressure gases can be
dissolved in liquids
• Gas-saturated solution
expanded through a nozzle
into the atomization chamber,
to form solid particles or
liquid droplets
5/9/2015 11
Fig 4: Schematic flowsheet of the particles from gas saturated
solutions (PGSS) process

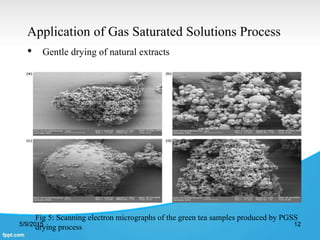

12. Application of Gas Saturated Solutions Process
• Gentle drying of natural extracts
5/9/2015 12
Fig 5: Scanning electron micrographs of the green tea samples produced by PGSS
drying process

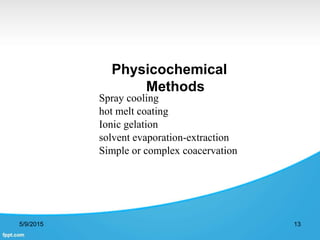

13. Physicochemical
Methods
5/9/2015 13
Spray cooling
hot melt coating
Ionic gelation
solvent evaporation-extraction
Simple or complex coacervation

14. Encapsulation by Cooling of Emulsions
• Dissolving or dispersing the active compound in a melted wall material
• melted phase is then emulsified in a continuous phase heated at a higher
temperature than the melting point of the coating material
• Then environment is suddenly cooled and particles solidify
• Allows the microencapsulation of hydrophilic or lipophilic molecules if a
continuous phase is chosen for which these molecules do not have enough
affinity
Polyphenolic compound encapsulated by Cooling
of emulsion
• Black currant (BCAs) (delphinidin-3-O-glucoside, delphinidin-3-O-
rutinoside, cyanidin-3-O-glucoside and cyanidin 3-O-rutinoside
• Epigallocatechin gallate
• Quercetin
5/9/2015 14

15. Emulsification-Solvent Removal Methods
• Evaporation or extraction of the internal phase of an emulsion
giving rise to the precipitation of the polymer coating
5/9/2015 15
Fig 6: Encapsulation by (A) Emulsion/Extraction and (B) Emulsion/Evaporation
methods

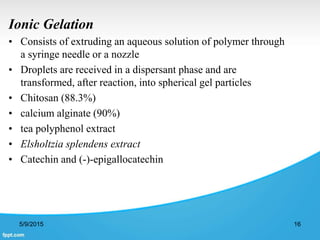

16. Ionic Gelation
• Consists of extruding an aqueous solution of polymer through
a syringe needle or a nozzle
• Droplets are received in a dispersant phase and are
transformed, after reaction, into spherical gel particles
• Chitosan (88.3%)
• calcium alginate (90%)
• tea polyphenol extract
• Elsholtzia splendens extract
• Catechin and (-)-epigallocatechin
5/9/2015 16

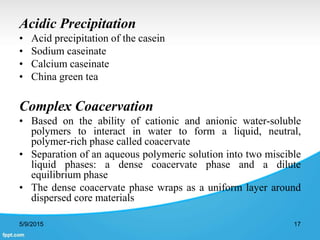

17. Acidic Precipitation
• Acid precipitation of the casein
• Sodium caseinate
• Calcium caseinate
• China green tea
Complex Coacervation
• Based on the ability of cationic and anionic water-soluble
polymers to interact in water to form a liquid, neutral,
polymer-rich phase called coacervate
• Separation of an aqueous polymeric solution into two miscible
liquid phases: a dense coacervate phase and a dilute
equilibrium phase
• The dense coacervate phase wraps as a uniform layer around
dispersed core materials
5/9/2015 17

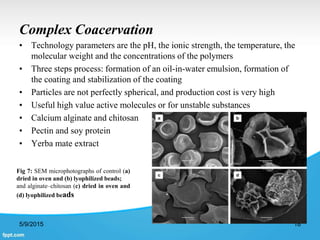

18. Complex Coacervation
• Technology parameters are the pH, the ionic strength, the temperature, the
molecular weight and the concentrations of the polymers
• Three steps process: formation of an oil-in-water emulsion, formation of
the coating and stabilization of the coating
• Particles are not perfectly spherical, and production cost is very high
• Useful high value active molecules or for unstable substances
• Calcium alginate and chitosan
• Pectin and soy protein
• Yerba mate extract
5/9/2015 18
Fig 7: SEM microphotographs of control (a)
dried in oven and (b) lyophilized beads;
and alginate–chitosan (c) dried in oven and
(d) lyophilized beads

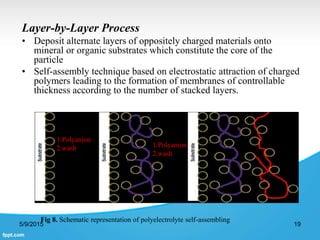

19. Layer-by-Layer Process
• Deposit alternate layers of oppositely charged materials onto
mineral or organic substrates which constitute the core of the
particle
• Self-assembly technique based on electrostatic attraction of charged
polymers leading to the formation of membranes of controllable
thickness according to the number of stacked layers.
5/9/2015 19
1.Polyanion
2.wash 1.Polyanion
2.wash
Fig 8. Schematic representation of polyelectrolyte self-assembling

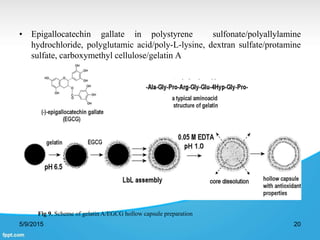

20. • Epigallocatechin gallate in polystyrene sulfonate/polyallylamine
hydrochloride, polyglutamic acid/poly-L-lysine, dextran sulfate/protamine
sulfate, carboxymethyl cellulose/gelatin A
5/9/2015 20
Fig 9. Scheme of gelatin A/EGCG hollow capsule preparation

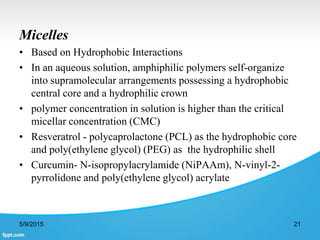

21. Micelles
• Based on Hydrophobic Interactions
• In an aqueous solution, amphiphilic polymers self-organize
into supramolecular arrangements possessing a hydrophobic
central core and a hydrophilic crown
• polymer concentration in solution is higher than the critical
micellar concentration (CMC)
• Resveratrol - polycaprolactone (PCL) as the hydrophobic core
and poly(ethylene glycol) (PEG) as the hydrophilic shell
• Curcumin- N-isopropylacrylamide (NiPAAm), N-vinyl-2-
pyrrolidone and poly(ethylene glycol) acrylate
5/9/2015 21

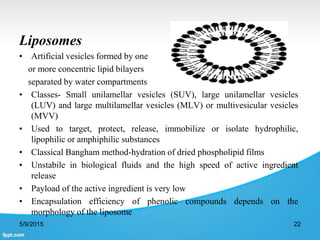

22. Liposomes
• Artificial vesicles formed by one
or more concentric lipid bilayers
separated by water compartments
• Classes- Small unilamellar vesicles (SUV), large unilamellar vesicles
(LUV) and large multilamellar vesicles (MLV) or multivesicular vesicles
(MVV)
• Used to target, protect, release, immobilize or isolate hydrophilic,
lipophilic or amphiphilic substances
• Classical Bangham method-hydration of dried phospholipid films
• Unstabile in biological fluids and the high speed of active ingredient
release
• Payload of the active ingredient is very low
• Encapsulation efficiency of phenolic compounds depends on the
morphology of the liposome
5/9/2015 22

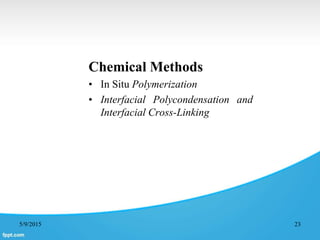

23. Chemical Methods
• In Situ Polymerization
• Interfacial Polycondensation and
Interfacial Cross-Linking
5/9/2015 23

24. In Situ Polymerization
• Process consists of emulsifying the monomer component in an
aqueous phase added with an appropriate surfactant
• Mostly vinylic and acrylic compounds such as styrene or
methyl methacrylate
• Polymerization having been started, the resulting water-
insoluble polymer gives microsphere
• Quercetin
5/9/2015 24

25. Interfacial Polycondensation and Interfacial
Cross-Linking
• Chemical reaction by which a membrane made of
polymers is created around emulsion droplets
• Reaction occurs at interface between the continuous and
dispersed phases. In the emulsion, each phase contains a
type of monomer
• Applied to aqueous or organic
active materials
5/9/2015 25
Fig 10: Principle of the microencapsulation by
interfacial polymerization. (A) The
oligomer is soluble in the droplet; (B) the
oligomer is insoluble in the droplet

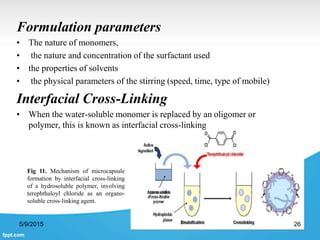

26. Formulation parameters
• The nature of monomers,
• the nature and concentration of the surfactant used
• the properties of solvents
• the physical parameters of the stirring (speed, time, type of mobile)
Interfacial Cross-Linking
• When the water-soluble monomer is replaced by an oligomer or
polymer, this is known as interfacial cross-linking
5/9/2015 26
Fig 11. Mechanism of microcapsule
formation by interfacial cross-linking
of a hydrosoluble polymer, involving
terephthaloyl chloride as an organo-
soluble cross-linking agent.

27. Interfacial Cross-Linking
• Cross-linked grape proanthocyanidin (GPO)
• GPO with terephthaloyl chloride (TC) involves hydroxyphenolic groups
leading to the establishment of ester bonds that were detected by infrared
spectroscopy
• Cross-linked GPO microcapsules, obtained at pH 9 and 11, had a size
lower than 10 μm
5/9/2015 27
Fig 12. Scanning electron micrographs of
proanthocyanidin microcapsules (a)
prepared at pH 9.8; (b) prepared at pH 11.

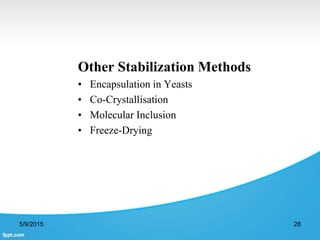

28. Other Stabilization Methods
• Encapsulation in Yeasts
• Co-Crystallisation
• Molecular Inclusion
• Freeze-Drying
5/9/2015 28

29. Encapsulation in Yeasts
• Yeast cells (Saccharomyces cerevisiae) as the
encapsulant material
• Cells were emptied out of their content by autolysis using a
• Clasmolyzing agent (NaCl 5%) and the empty cells were
dispersed in an aqueous phase containing
• Chlorogenic acid, and loaded by re-swelling in this
solution
• Cheap and very effective in terms of loading
• Encapsulation of small lipophilic molecules as found in
essential oils
• Stable towards a thermal and hydric stress, whereas it did
not hinder the in vitro rele
• Chlorogenic acid
5/9/2015 29

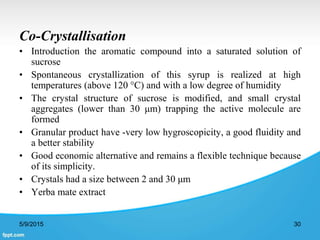

30. Co-Crystallisation
• Introduction the aromatic compound into a saturated solution of
sucrose
• Spontaneous crystallization of this syrup is realized at high
temperatures (above 120 °C) and with a low degree of humidity
• The crystal structure of sucrose is modified, and small crystal
aggregates (lower than 30 μm) trapping the active molecule are
formed
• Granular product have -very low hygroscopicity, a good fluidity and
a better stability
• Good economic alternative and remains a flexible technique because
of its simplicity.
• Crystals had a size between 2 and 30 μm
• Yerba mate extract
5/9/2015 30

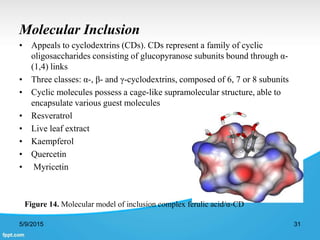

31. Molecular Inclusion
• Appeals to cyclodextrins (CDs). CDs represent a family of cyclic
oligosaccharides consisting of glucopyranose subunits bound through α-
(1,4) links
• Three classes: α-, β- and γ-cyclodextrins, composed of 6, 7 or 8 subunits
• Cyclic molecules possess a cage-like supramolecular structure, able to
encapsulate various guest molecules
• Resveratrol
• Live leaf extract
• Kaempferol
• Quercetin
• Myricetin
5/9/2015 31
Figure 14. Molecular model of inclusion complex ferulic acid/α-CD

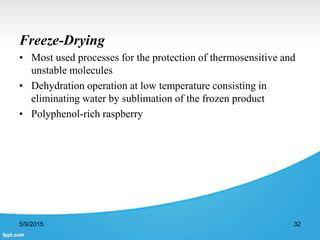

32. Freeze-Drying
• Most used processes for the protection of thermosensitive and
unstable molecules
• Dehydration operation at low temperature consisting in
eliminating water by sublimation of the frozen product
• Polyphenol-rich raspberry
5/9/2015 32

33. 5/9/2015 33
