Electromyography (EMG) is an electrodiagnostic technique used to evaluate and record the electrical activity of skeletal muscles using an electromyograph to generate an electromyogram. There are various types of EMG electrodes, including surface electrodes and inserted electrodes, each suited for different applications in analyzing muscle function and detecting abnormalities. EMG can provide insights into the biomechanics of human or animal movement, as well as medical conditions related to muscle activity.

1. EMG
ELECTROMYOGRAPHY
Prepared by Atheena Pandian

2. Electromyography (EMG) is an electrodiagnostic
medicine technique for evaluating and recording
the electrical activity produced by skeletal muscles

3. EMG is performed using an instrument
called an electromyograph to produce
a record called an electromyogram

4. An electromyograph
detects the electric
potential generated by
muscle cells

5. The signals can be
analyzed to detect
medical abnormalities,
activation level, or
recruitment order, or to
analyze
the biomechanics of
human or animal
movement

6. EMG
electrodes

7. Surface (or skin electrodes) and
Inserted electrodes
Needle and
Fine wire electrodes.
There are two main types of EMG
electrodes:
Inserted electrodes have further
two types:
1.
2.

8. Surface electrode measures the
potential available from the
surface of the skin.
Metal Plate Electrodes
Suction Cup Electrodes or Welsh Cup Electrodes
Adhesive Type Electrodes
Multipoint Type Electrodes
Floating Electrodes
Ear Clips and Scalp Electrodes
1.
2.
3.
4.
5.
6.

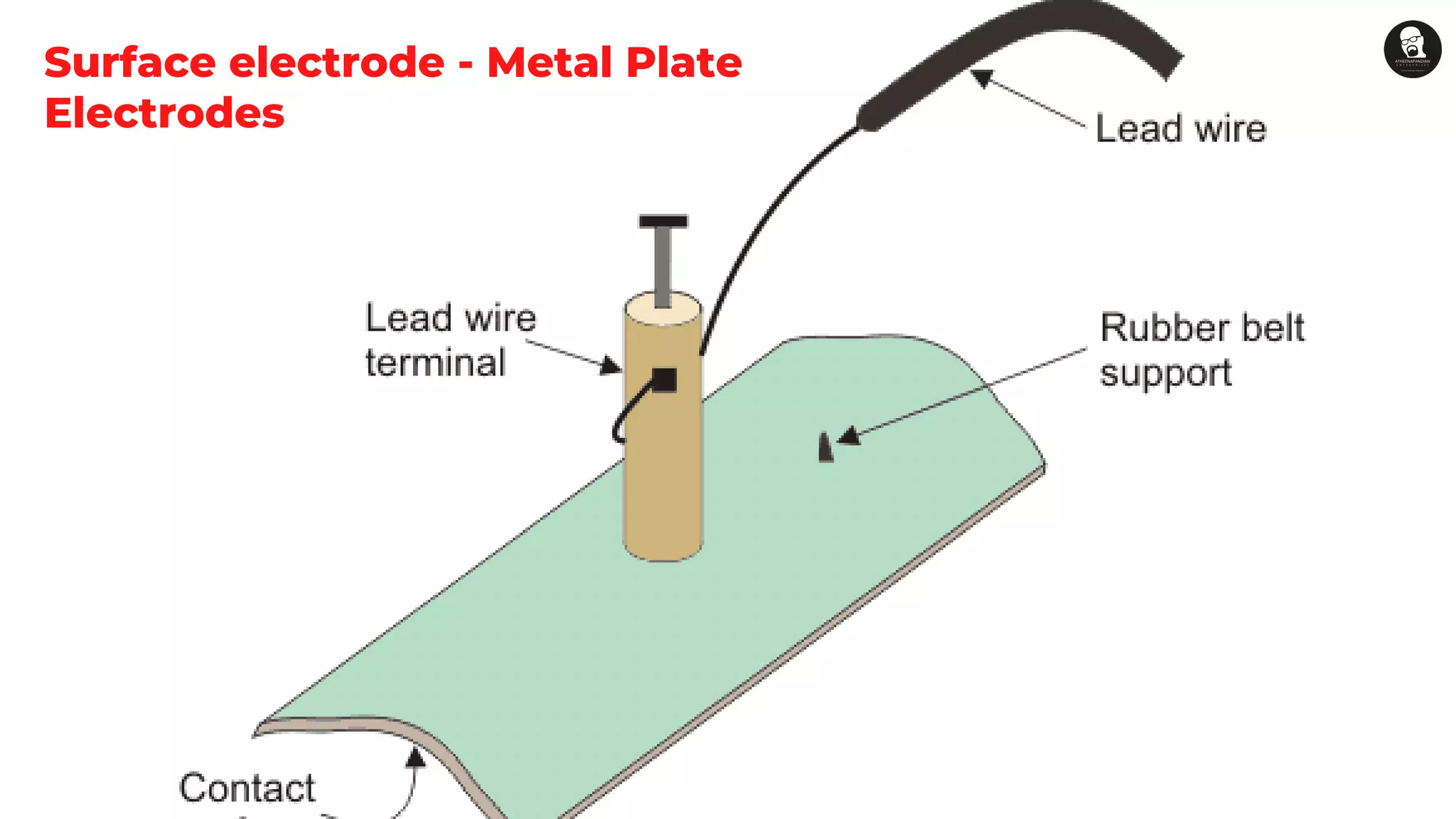

9. Surface electrode - Metal Plate
Electrodes

10. Surface electrode - Suction Cup Electrodes
or Welsh Cup Electrodes

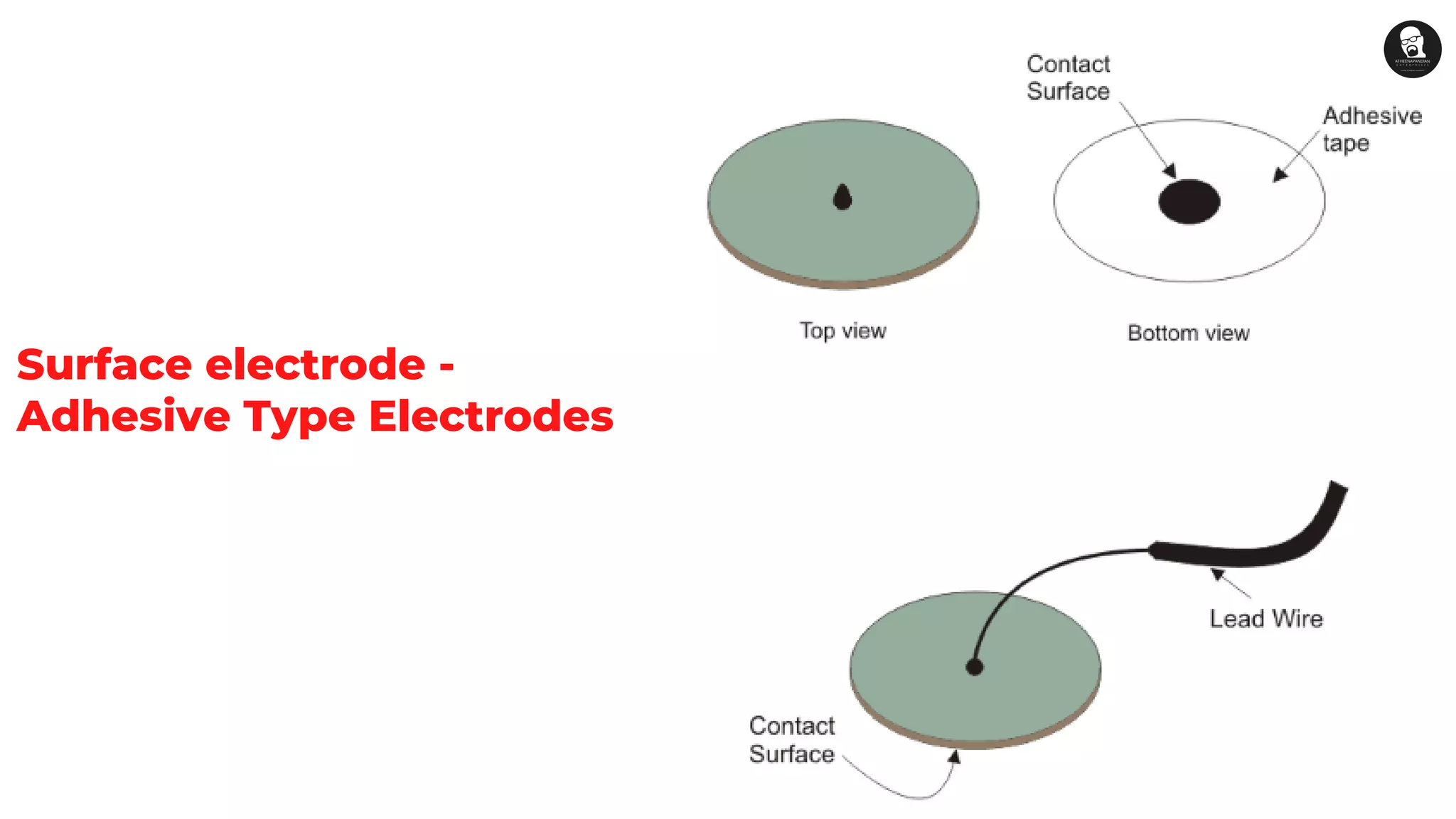

11. Surface electrode -
Adhesive Type Electrodes

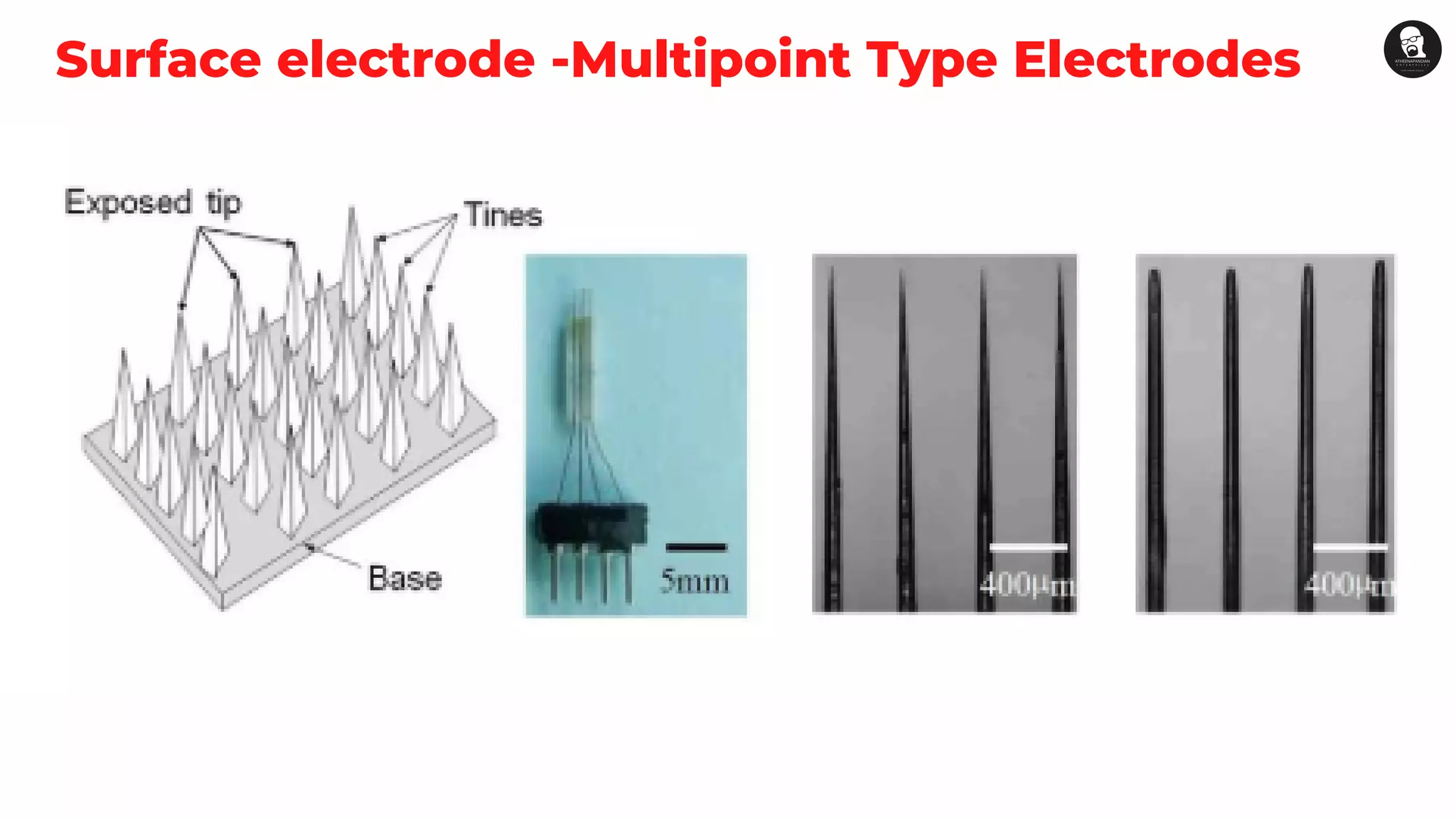

12. Surface electrode -Multipoint Type Electrodes

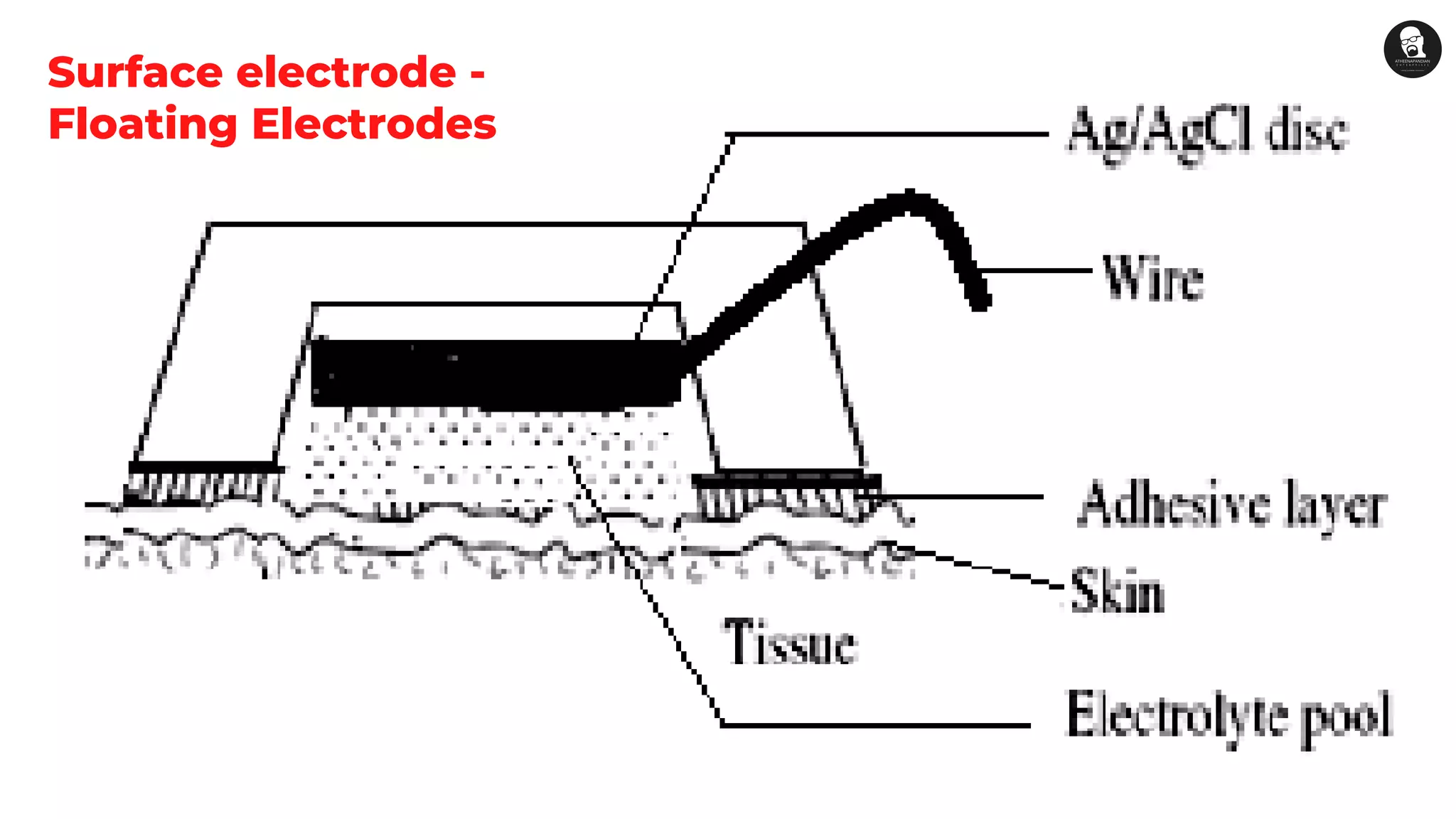

13. Surface electrode -
Floating Electrodes

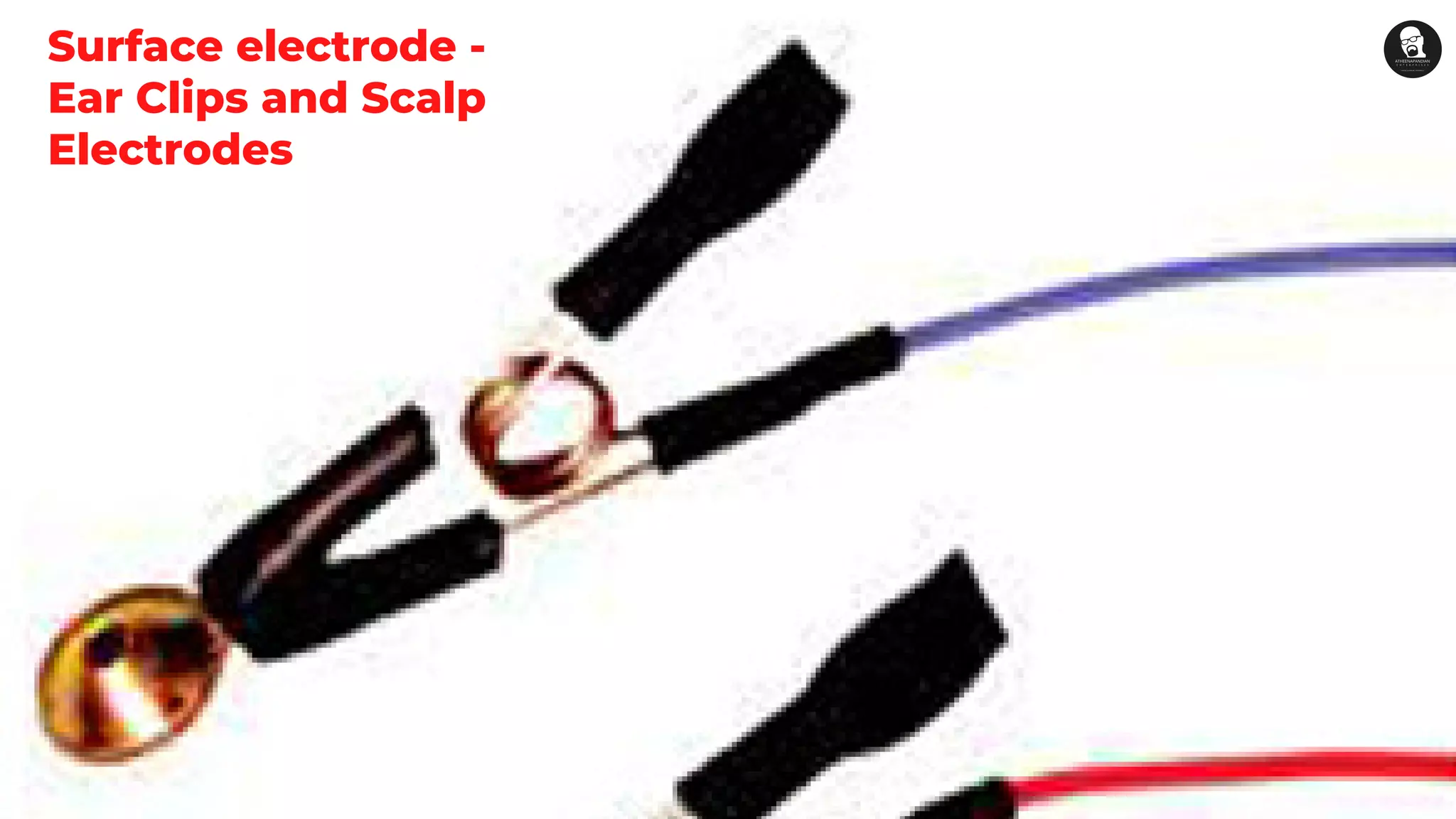

14. Surface electrode -
Ear Clips and Scalp
Electrodes

15. Needle Electrode
Fine Wire Electrode
Inserted Electrodes
1.
2.

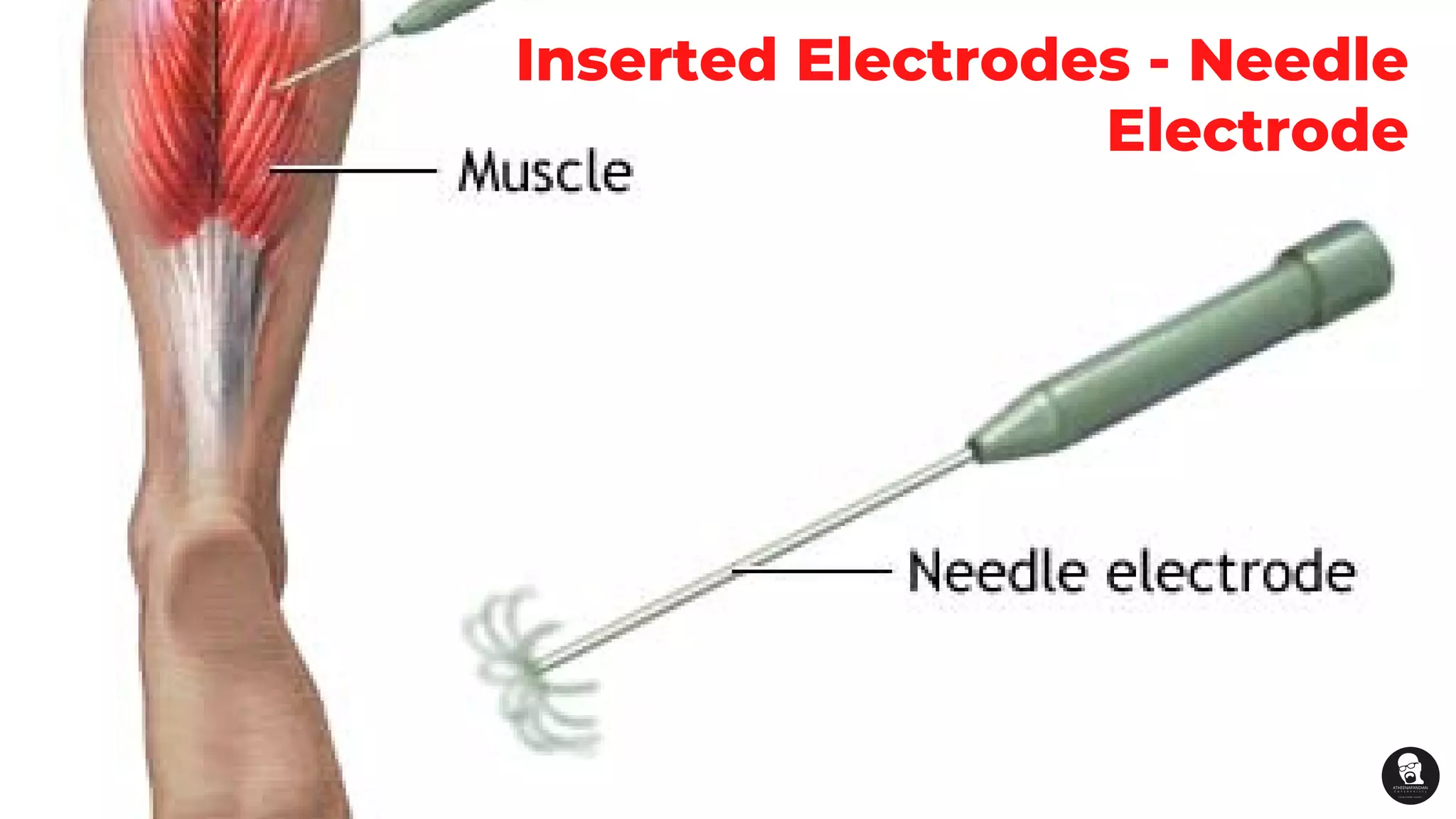

16. Inserted Electrodes - Needle
Electrode

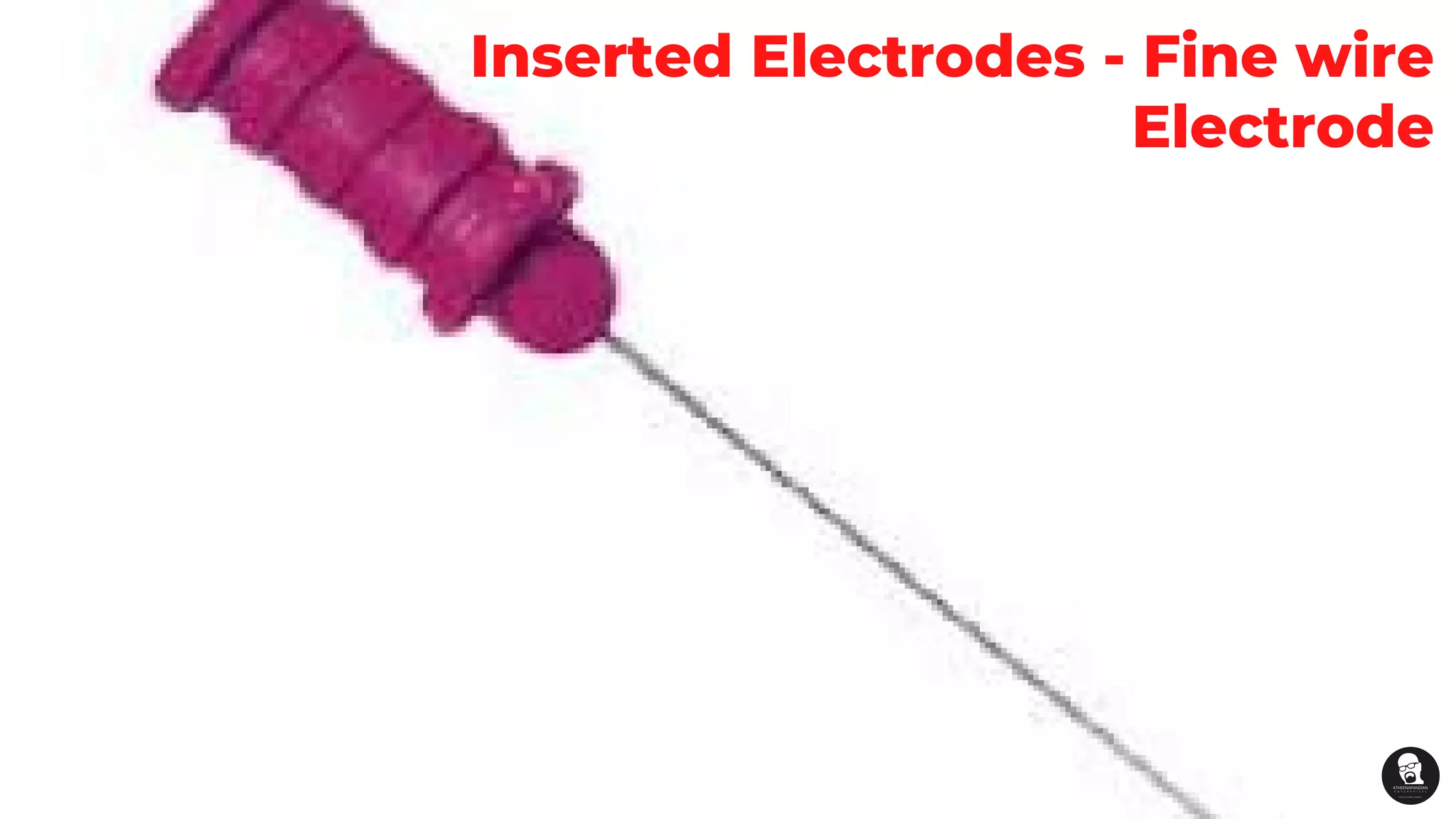

17. Inserted Electrodes - Fine wire
Electrode

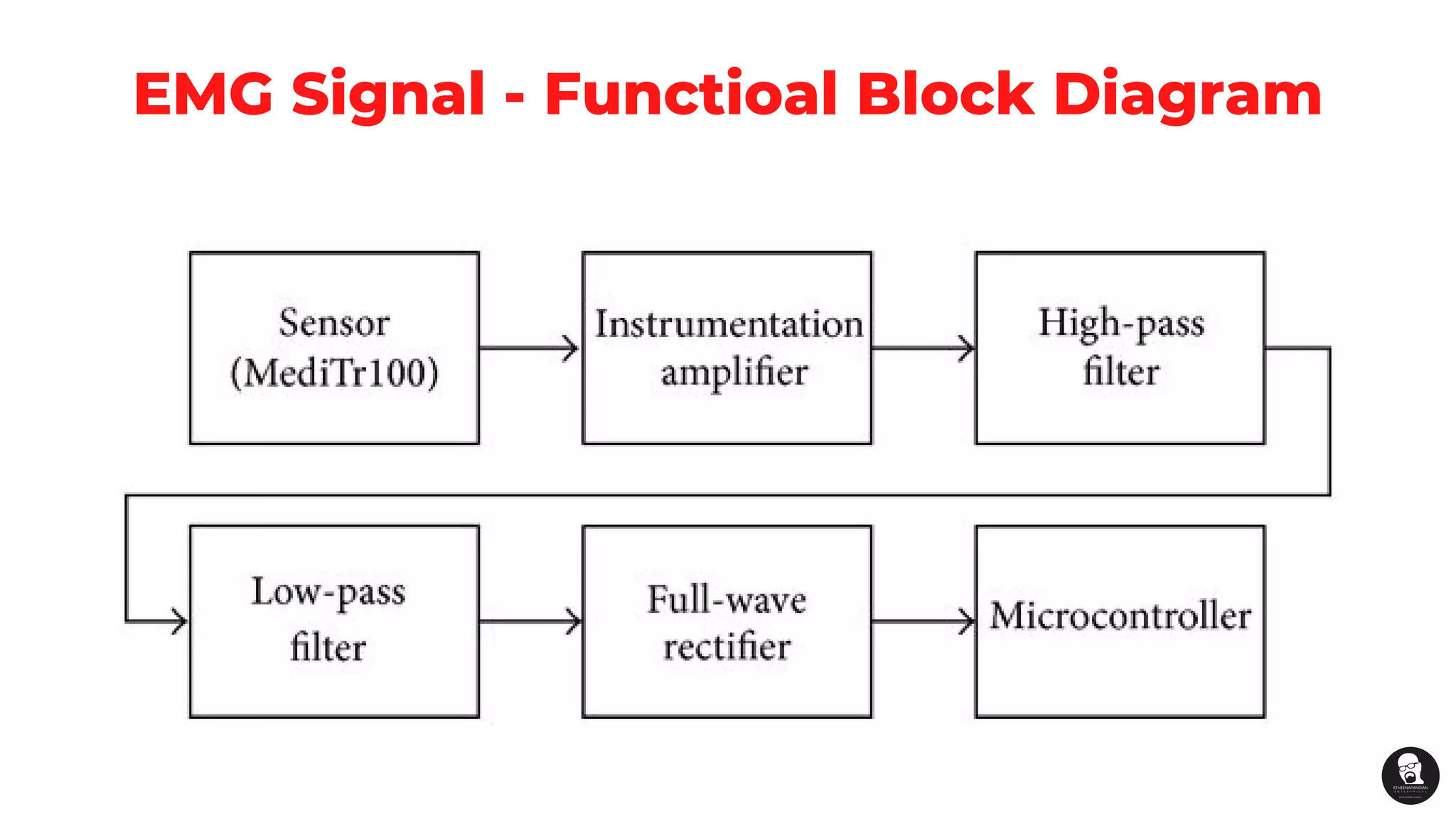

18. EMG Signal - Functioal Block Diagram

19. EMG Signal
