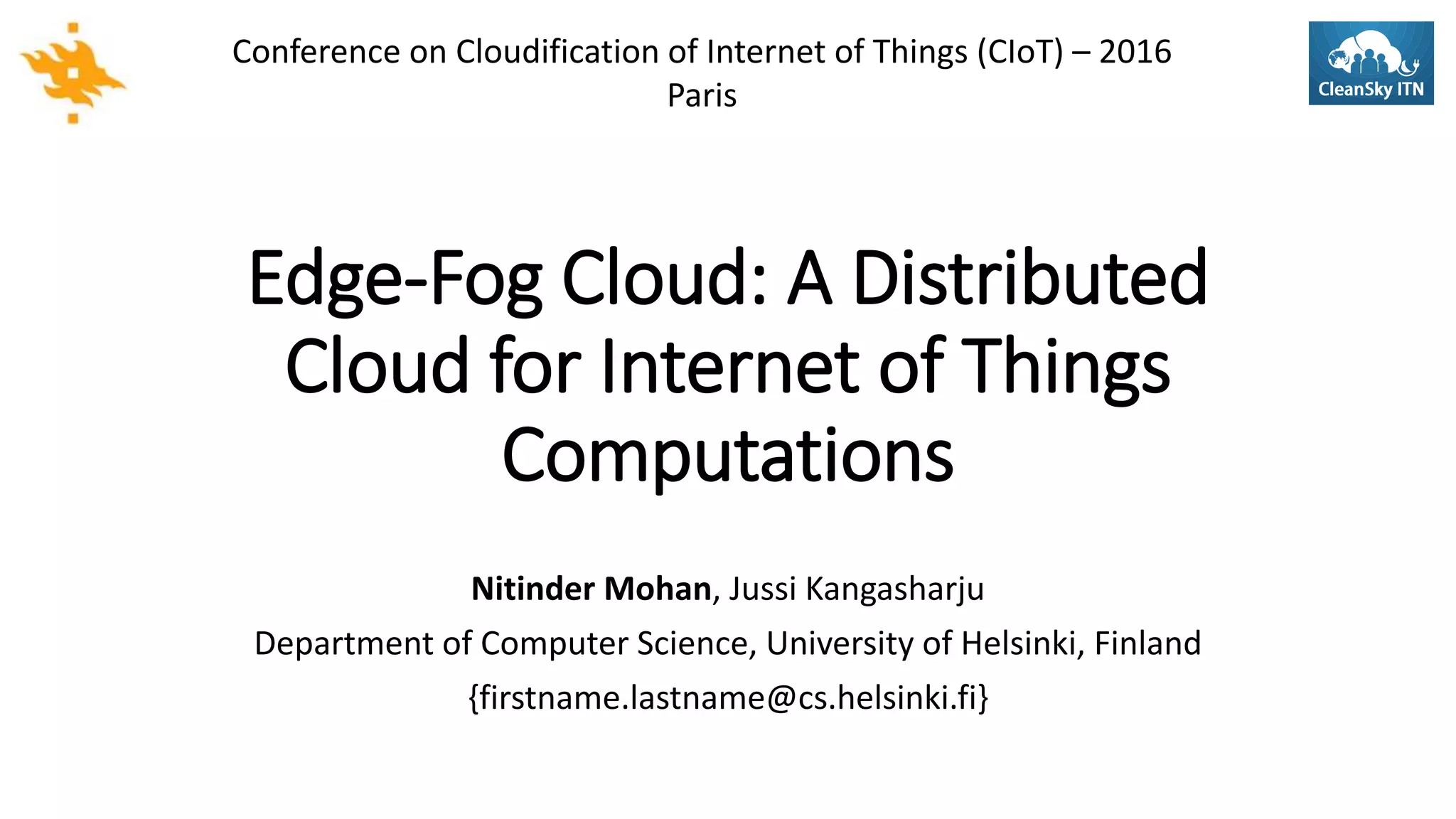

Edge-Fog Cloud: A Distributed
Cloud for Internet of Things
Computations
Nitinder Mohan, Jussi Kangasharju
Department of Computer Science, University of Helsinki, Finland
{firstname.lastname@cs.helsinki.fi}
Conference on Cloudification of Internet of Things (CIoT) – 2016
Paris
Rise of connected IoT devices
Projected number of IoT devices Average cost of a sensor
Broadband by the numbers (NCTA), https://www.ncta.com/broadband- by-the-numbers
2
Computational Data Centers
https://cloud.google.com/about/locations/
3
Problem: Network!
 High transport cost
 High data volume
 High network latency
https://cloud.google.com/about/locations/
4
Computational Data Centers
Fog Cloud Computing
Cloud
Fog
Devices
Hong, K., Lillethun, D., Ramachandran, U., Ottenwälder, B., & Koldehofe, B. (2013). Mobile fog. Proceedings of the Second ACM SIGCOMM Workshop on Mobile Cloud Computing - MCC ’13
Processing-capable network resources augment the cloud
4
Edge Cloud Computing
Processing-capable, voluntary, user-controlled devices augment the cloud
Lopez, P. G., Montresor, A., Epema, D., Iamnitchi, A., Felber, P., & Riviere, E. (2015). Edge-centric Computing : Vision and Challenges. Acm Ccr, 45(5), 37–42.
5
Edge & Fog Cloud: Problem
Computation requires routing data to a central cloud!
Cloud
Fog
Devices
6
Edge-Fog Cloud
Architecture
Data
Store
Fog
Edge
Edge
 Collection of devices:
i. Loosely-coupled
ii. Voluntary
iii. Human operated
 1-2 hops away from sensors & clients
 Ad-hoc device-to-device connectivity
within layer
 Varying processing capability
e.g. desktops, laptops, workstations,
nano data centers etc. 8
Data
Store
Fog
Edge
Architecture
Fog
 Network devices with high compute
capability
 Manufactured, managed and deployed
by cloud vendors such as CISCO*
 Lies farther from sensors but closer to
core
 Dense connectivity within layer
 Reliable connectivity to Edge
e.g. routers, switches etc.
*CISCO, “Cisco fog computing solutions: Unleash the power of the Internet of Things (whitepaper),” 2015
8
Data
Store
Fog
Edge
Architecture
Data Store
 Data archival and storage
 No computation on data
 Reliability and ease-of-access to
data in Edge and Fog layers
8
Data
Store
Fog
Edge
Benefits
1. Reduced network load
2. Native support for mobility
3. Context in computation
4. No single point-of-failure
9
Workload Assignment
D1 D2 D3
D4 D5
1
4 34
1
Edge-Fog Cloud
J1 J2 J3
J4
J5
Job Graph
*Haubenwaller, Andreas Moregård, and Konstantinos Vandikas. "Computations on the Edge in the Internet of Things." Procedia Computer Science 52 (2015)
Network Only Cost Assignment*
11
J1 J2 J3
J4
J5
J4 J5 J3
J1
J2
J2 J3 J4
J1
J5
I. Naïve Implementation
Iterative Search
𝒩 devices
𝒩 jobs
Worst Case: O(𝒩!)
D1 D2 D3
D4 D5
1
4 34
1
Network Only Cost Assignment
12
Network Only Cost Assignment
D1 D2 D3
D4 D5
1
4 34
1
J1 J2 J3
J4 J5
99 1 8 4 5
1 99 7 5 4
8 7 99 4 3
4 5 4 99 1
5 4 3 1 99
0 1 0 1 0
1 0 1 0 1
0 1 0 0 0
1 0 0 0 1
0 1 0 1 0
Dconn[ i, j ] =
Jconn[ i, j ] =
13
Network Only Cost Assignment
99 1 8 4 5
1 99 7 5 4
8 7 99 4 3
4 5 4 99 1
5 4 3 1 99
Dconn[ i, j ] =
0 1 0 1 0
1 0 1 0 1
0 1 0 0 0
1 0 0 0 1
0 1 0 1 0
Jconn[ i, j ] =
II. Quadratic Assignment Problem
Minimize:
NP-hard!
• Approximated using Kuhn-
Munkres or GLB bounds
• Optimal solution not guaranteed
𝑎(𝑖,𝑗)∈𝐴
𝐽𝑐𝑜𝑛𝑛 𝑖, 𝑗 ∗ 𝐷𝑐𝑜𝑛𝑛(𝑓 𝑖 , 𝑓(𝑗))
14
Least Processing Cost First (LPCF)
Device Processing Power [Dproc(i)]
D1: 3 D2: 2 D3: 2
D4: 5 D5: 6
1
4 34
1
J1: 4 J2: 2 J3: 5
J4: 4 J5: 2
Job Size [Jsize(i)]
15
D1 D2 D3
D4 D5
1
4 34
1
J1 J2 J3
J4
J5
Least Processing Cost First (LPCF)
D1:3 D2:2 D3:2
D4:5 D5:6
1
4 34
1
J1:4 J2:2 J3:5
J4:4 J5:2
3 2 2 5 6
4 2 5 4 2
Dproc [i] =
Jsize [i] =
16
Least Processing Cost First (LPCF)
3 2 2 5 6
4 2 5 4 2
Dproc [i] =
Jsize [i] =
I. Optimize Processing Cost
Minimize:
Linear Assignment Problem
• Solved using Kuhn-Munkres/
Hungarian algorithm
• Optimal solution guaranteed in
O(n3)
𝑖,𝑗∈𝐴
𝐶
𝐽𝑠𝑖𝑧𝑒(𝑖)
𝐷 𝑝𝑟𝑜𝑐(𝑗)
𝑥𝑖𝑗
16
Least Processing Cost First (LPCF)
I. Optimize Processing Cost
Minimize:
Linear Assignment Problem
• Solved using Kuhn-Munkres/
Hungarian algorithm
• Optimal solution guaranteed in
O(n3)
𝑖,𝑗∈𝐴
𝐶
𝐽𝑠𝑖𝑧𝑒(𝑖)
𝐷 𝑝𝑟𝑜𝑐(𝑗)
𝑥𝑖𝑗
D1:3 D2:2 D3:2
D4:5 D5:6
1
4 34
1
J1:4 J2:2 J5:2
J4:4 J3:5
Least Processing Cost: 4.966
16
Least Processing Cost First (LPCF)
II. Create sub-problem space
Edge-Fog Cloud composes of
several homogeneous devices
running homogeneous jobs
New Assignment Calculation:
1. Same processing power
→ interchange jobs
2. Same job size
→ interchange devices
D1:3 D2:2 D3:2
D4:5 D5:6
1
4 34
1
J1:4 J2:2 J5:2
J4:4 J3:5
Least Processing Cost: 4.966
J1:4 J5:2 J2:2
J4:4 J3:5
J4:4 J5:2 J2:2
J1:4 J3:5
17
Least Processing Cost First (LPCF)
D1 D2 D3 D4 D5
1. J1 J2 J5 J4 J3
2. J1 J5 J2 J4 J3
3. J4 J5 J2 J1 J3
4. J4 J2 J5 J1 J3
Least Processing Cost: 4.966
17
II. Create sub-problem space
Edge-Fog Cloud composes of
several homogeneous devices
running homogeneous jobs
New Assignment Calculation:
1. Same processing power
→ interchange jobs
2. Same job size
→ interchange devices
Least Processing Cost First (LPCF)
III. Account Network Cost
1. Compute network cost of
each assignment
2. Choose the assignment
with least network cost
D1 D2 D3 D4 D5
1. J1 J2 J5 J4 J3
2. J1 J5 J2 J4 J3
3. J4 J5 J2 J1 J3
4. J4 J2 J5 J1 J3
𝐽𝑐𝑜𝑛𝑛 𝑖, 𝑗 ∗ 𝐷𝑐𝑜𝑛𝑛(𝑓 𝑖 , 𝑓(𝑗))
Least Processing Cost: 4.966
N/W
20
27
19
28
18
Least Processing Cost First (LPCF)
Advantages
1. Computed assignment has least processing cost and
almost-optimal network cost
2. Task assignment accounts for processing cost of task
deployment
3. Assignment solution is guaranteed in polynomial time
19
Evaluation
Edge-Fog Cloud Simulator
Python-based Edge-Fog Cloud Simulator
1. Generates:
i. Edge and Fog node graphs with device
processing and network costs
ii. Job node graphs with variable job sizes
2. Incorporates LPCF for assignment computation
3. Open Source
21
LPCF vs NOC
Least Processing Cost
First
Network Only Cost
*solver available from QAPLIB, http://anjos.mgi.polymtl.ca/qaplib/
22
Edge-Fog Cloud Simulator
+
LPCF Solver
Edge-Fog Cloud Simulator
+
Kuhn-Munkres Solver*
LPCF vs NOC
I. Assignment computation time
1 hour
23
LPCF vs NOC
II. Network cost analysis
No time bound Time bounded
~10%
24
LPCF vs NOC
III. Processing cost analysis
25
Discussion
Q. How well connected should EF nodes be?
~21%
~17%
~9%
27
Q. How does deployed job impact overall cost?
28
Conclusion
Our contributions in this work are:
1. Formal architecture of Edge-Fog cloud
2. LPCF algorithm for assigning tasks on EF cloud
3. Open source Edge Fog cloud simulator & LPCF solver
4. Deployment analysis of Edge Fog cloud
Source code available at: www.github.com/nitinder-mohan/EdgeFogSimulator
29
Backup
LPCF Search Space Reduction
Topology Size 5 10 15 30 60 100 150
Original Space 5! 10! 15! 30! 60! 100! 150!
LPCF Space 1! 3! > 4! > 5! > 7! > 8! > 9!
37
EF Cloud Simulator Parameters
Property Value
Total number of devices/jobs Experiment Specific
Number of Edge devices 60% of total
Number of Fog devices 40% of total
Processing power of an Edge device 2-5
Processing power of a Fog device 7-9
Connection density of Edge layer (0-1) 0.2
Connection density of Fog layer (0-1) 0.6
Connection density between Edge and Fog layer (0-1) 0.5
Lowest job size in pool 2
Highest job size in pool 6
Inter-dependence density between jobs (0-1) 0.2
38

More Related Content

What's hot

What's hot (20)

Fog computing
Fog computingFog computing
Fog computing

Fog Computing and Cloud Computing
Fog Computing and Cloud ComputingFog Computing and Cloud Computing
Fog Computing and Cloud Computing

Fog computing
Fog computingFog computing
Fog computing

Fog computing
Fog computingFog computing
Fog computing

Introduction Cloud Computing
Introduction Cloud ComputingIntroduction Cloud Computing
Introduction Cloud Computing

Fog Computing
Fog ComputingFog Computing
Fog Computing

What Is Cloud Computing
What Is Cloud ComputingWhat Is Cloud Computing
What Is Cloud Computing

Edge Computing and Cloud Computing
Edge Computing and Cloud ComputingEdge Computing and Cloud Computing
Edge Computing and Cloud Computing

Fog computing
Fog computingFog computing
Fog computing

Fog computing technology
Fog computing technologyFog computing technology
Fog computing technology

Fog computing 000
Fog computing 000Fog computing 000
Fog computing 000

Fog Computing
Fog ComputingFog Computing
Fog Computing

Fog computing ( foggy cloud)
Fog computing  ( foggy cloud)Fog computing  ( foggy cloud)
Fog computing ( foggy cloud)

Fog Computing
Fog ComputingFog Computing
Fog Computing

Security in IoT
Security in IoTSecurity in IoT
Security in IoT

Introduction to Cloud Data Center and Network Issues
Introduction to Cloud Data Center and Network IssuesIntroduction to Cloud Data Center and Network Issues
Introduction to Cloud Data Center and Network Issues

Fog computing
Fog computingFog computing
Fog computing

FOG COMPUTING- Presentation
FOG COMPUTING- Presentation FOG COMPUTING- Presentation
FOG COMPUTING- Presentation

Fog computing provide security to data in cloud ppt
Fog computing provide security to data in cloud pptFog computing provide security to data in cloud ppt
Fog computing provide security to data in cloud ppt

Introduction to Cloud Computing
Introduction to Cloud ComputingIntroduction to Cloud Computing
Introduction to Cloud Computing


Viewers also liked

Cutting through the fog of cloud
Cutting through the fog of cloudCutting through the fog of cloud
Cutting through the fog of cloudKyle Rames

Edge-Fog Cloud: Scaling IoT computations on the edge
Edge-Fog Cloud: Scaling IoT computations on the edgeEdge-Fog Cloud: Scaling IoT computations on the edge
Edge-Fog Cloud: Scaling IoT computations on the edgeNitinder Mohan

Azure IoT Edge, the hybrid cloud answer for IoT (Glenn Colpaert @IoTFest NMCT...
Azure IoT Edge, the hybrid cloud answer for IoT (Glenn Colpaert @IoTFest NMCT...Azure IoT Edge, the hybrid cloud answer for IoT (Glenn Colpaert @IoTFest NMCT...
Azure IoT Edge, the hybrid cloud answer for IoT (Glenn Colpaert @IoTFest NMCT...Codit

Fluid IoT Architectures
Fluid IoT ArchitecturesFluid IoT Architectures
Fluid IoT ArchitecturesAngelo Corsaro

Big Data and Internet of Things: A Roadmap For Smart Environments, Fog Comput...
Big Data and Internet of Things: A Roadmap For Smart Environments, Fog Comput...Big Data and Internet of Things: A Roadmap For Smart Environments, Fog Comput...
Big Data and Internet of Things: A Roadmap For Smart Environments, Fog Comput...Jiang Zhu

Fog Computing is the Future of the Industrial Internet of Things
Fog Computing is the Future of the Industrial Internet of ThingsFog Computing is the Future of the Industrial Internet of Things
Fog Computing is the Future of the Industrial Internet of ThingsReal-Time Innovations (RTI)

Improving Web Siste Performance Using Edge Services in Fog Computing Architec...
Improving Web Siste Performance Using Edge Services in Fog Computing Architec...Improving Web Siste Performance Using Edge Services in Fog Computing Architec...
Improving Web Siste Performance Using Edge Services in Fog Computing Architec...Jiang Zhu

Io t world_2016_iot_smart_gateways_moe
Io t world_2016_iot_smart_gateways_moeIo t world_2016_iot_smart_gateways_moe
Io t world_2016_iot_smart_gateways_moeShawn Moe

Big data caching for networking : Moving from cloud to edge
Big data caching for networking : Moving from cloud to edgeBig data caching for networking : Moving from cloud to edge
Big data caching for networking : Moving from cloud to edgeHicham HAMMOUCHI

IoT Analytics from Edge to Cloud - using IBM Informix
IoT Analytics from Edge to Cloud - using IBM InformixIoT Analytics from Edge to Cloud - using IBM Informix
IoT Analytics from Edge to Cloud - using IBM InformixPradeep Muthalpuredathe

From Cloud Computing to Edge Computing
From Cloud Computing to Edge ComputingFrom Cloud Computing to Edge Computing
From Cloud Computing to Edge ComputingJulien SIMON

Fog computing and internet of things
Fog computing and internet of thingsFog computing and internet of things
Fog computing and internet of thingsRahul Yadav

IBM IoT Architecture and Capabilities at the Edge and Cloud
IBM IoT Architecture and Capabilities at the Edge and Cloud IBM IoT Architecture and Capabilities at the Edge and Cloud
IBM IoT Architecture and Capabilities at the Edge and Cloud Pradeep Natarajan

E3: Edge and Cloud Connectivity (Predix Transform 2016)
E3: Edge and Cloud Connectivity (Predix Transform 2016)E3: Edge and Cloud Connectivity (Predix Transform 2016)
E3: Edge and Cloud Connectivity (Predix Transform 2016)Predix

How Industry 4.0 Drives the Requirement for a Hybrid Cloud and Edge Architecture
How Industry 4.0 Drives the Requirement for a Hybrid Cloud and Edge ArchitectureHow Industry 4.0 Drives the Requirement for a Hybrid Cloud and Edge Architecture
How Industry 4.0 Drives the Requirement for a Hybrid Cloud and Edge ArchitectureM2M Alliance e.V.

IoT Systems: Technology, Architecture & Performance
IoT Systems: Technology, Architecture & PerformanceIoT Systems: Technology, Architecture & Performance
IoT Systems: Technology, Architecture & PerformanceAshu Joshi

Towards the extinction of mega data centres? To which extent should the Clou...
 Towards the extinction of mega data centres? To which extent should the Clou... Towards the extinction of mega data centres? To which extent should the Clou...
Towards the extinction of mega data centres? To which extent should the Clou...Thierry Coupaye

The data streaming paradigm and its use in Fog architectures
The data streaming paradigm and its use in Fog architecturesThe data streaming paradigm and its use in Fog architectures
The data streaming paradigm and its use in Fog architecturesVincenzo Gulisano

"Blending Cloud and Edge Machine Learning to Deliver Real-time Video Monitori...
"Blending Cloud and Edge Machine Learning to Deliver Real-time Video Monitori..."Blending Cloud and Edge Machine Learning to Deliver Real-time Video Monitori...
"Blending Cloud and Edge Machine Learning to Deliver Real-time Video Monitori...Edge AI and Vision Alliance

Security Issues of IoT with Fog
Security Issues of IoT with FogSecurity Issues of IoT with Fog
Security Issues of IoT with FogAchu Anna


Viewers also liked (20)

Cutting through the fog of cloud
Cutting through the fog of cloudCutting through the fog of cloud
Cutting through the fog of cloud

Edge-Fog Cloud: Scaling IoT computations on the edge
Edge-Fog Cloud: Scaling IoT computations on the edgeEdge-Fog Cloud: Scaling IoT computations on the edge
Edge-Fog Cloud: Scaling IoT computations on the edge

Azure IoT Edge, the hybrid cloud answer for IoT (Glenn Colpaert @IoTFest NMCT...
Azure IoT Edge, the hybrid cloud answer for IoT (Glenn Colpaert @IoTFest NMCT...Azure IoT Edge, the hybrid cloud answer for IoT (Glenn Colpaert @IoTFest NMCT...
Azure IoT Edge, the hybrid cloud answer for IoT (Glenn Colpaert @IoTFest NMCT...

Fluid IoT Architectures
Fluid IoT ArchitecturesFluid IoT Architectures
Fluid IoT Architectures

Big Data and Internet of Things: A Roadmap For Smart Environments, Fog Comput...
Big Data and Internet of Things: A Roadmap For Smart Environments, Fog Comput...Big Data and Internet of Things: A Roadmap For Smart Environments, Fog Comput...
Big Data and Internet of Things: A Roadmap For Smart Environments, Fog Comput...

Fog Computing is the Future of the Industrial Internet of Things
Fog Computing is the Future of the Industrial Internet of ThingsFog Computing is the Future of the Industrial Internet of Things
Fog Computing is the Future of the Industrial Internet of Things

Improving Web Siste Performance Using Edge Services in Fog Computing Architec...
Improving Web Siste Performance Using Edge Services in Fog Computing Architec...Improving Web Siste Performance Using Edge Services in Fog Computing Architec...
Improving Web Siste Performance Using Edge Services in Fog Computing Architec...

Io t world_2016_iot_smart_gateways_moe
Io t world_2016_iot_smart_gateways_moeIo t world_2016_iot_smart_gateways_moe
Io t world_2016_iot_smart_gateways_moe

Big data caching for networking : Moving from cloud to edge
Big data caching for networking : Moving from cloud to edgeBig data caching for networking : Moving from cloud to edge
Big data caching for networking : Moving from cloud to edge

IoT Analytics from Edge to Cloud - using IBM Informix
IoT Analytics from Edge to Cloud - using IBM InformixIoT Analytics from Edge to Cloud - using IBM Informix
IoT Analytics from Edge to Cloud - using IBM Informix

From Cloud Computing to Edge Computing
From Cloud Computing to Edge ComputingFrom Cloud Computing to Edge Computing
From Cloud Computing to Edge Computing

Fog computing and internet of things
Fog computing and internet of thingsFog computing and internet of things
Fog computing and internet of things

IBM IoT Architecture and Capabilities at the Edge and Cloud
IBM IoT Architecture and Capabilities at the Edge and Cloud IBM IoT Architecture and Capabilities at the Edge and Cloud
IBM IoT Architecture and Capabilities at the Edge and Cloud

E3: Edge and Cloud Connectivity (Predix Transform 2016)
E3: Edge and Cloud Connectivity (Predix Transform 2016)E3: Edge and Cloud Connectivity (Predix Transform 2016)
E3: Edge and Cloud Connectivity (Predix Transform 2016)

How Industry 4.0 Drives the Requirement for a Hybrid Cloud and Edge Architecture
How Industry 4.0 Drives the Requirement for a Hybrid Cloud and Edge ArchitectureHow Industry 4.0 Drives the Requirement for a Hybrid Cloud and Edge Architecture
How Industry 4.0 Drives the Requirement for a Hybrid Cloud and Edge Architecture

IoT Systems: Technology, Architecture & Performance
IoT Systems: Technology, Architecture & PerformanceIoT Systems: Technology, Architecture & Performance
IoT Systems: Technology, Architecture & Performance

Towards the extinction of mega data centres? To which extent should the Clou...
 Towards the extinction of mega data centres? To which extent should the Clou... Towards the extinction of mega data centres? To which extent should the Clou...
Towards the extinction of mega data centres? To which extent should the Clou...

The data streaming paradigm and its use in Fog architectures
The data streaming paradigm and its use in Fog architecturesThe data streaming paradigm and its use in Fog architectures
The data streaming paradigm and its use in Fog architectures

"Blending Cloud and Edge Machine Learning to Deliver Real-time Video Monitori...
"Blending Cloud and Edge Machine Learning to Deliver Real-time Video Monitori..."Blending Cloud and Edge Machine Learning to Deliver Real-time Video Monitori...
"Blending Cloud and Edge Machine Learning to Deliver Real-time Video Monitori...

Security Issues of IoT with Fog
Security Issues of IoT with FogSecurity Issues of IoT with Fog
Security Issues of IoT with Fog


Similar to Edge-Fog Cloud

Federated HPC Clouds Applied to Radiation Therapy
Federated HPC Clouds Applied to Radiation TherapyFederated HPC Clouds Applied to Radiation Therapy
Federated HPC Clouds Applied to Radiation TherapyAndrés Gómez

From Cloud to Fog: the Tao of IT Infrastructure Decentralization
From Cloud to Fog: the Tao of IT Infrastructure DecentralizationFrom Cloud to Fog: the Tao of IT Infrastructure Decentralization
From Cloud to Fog: the Tao of IT Infrastructure DecentralizationFogGuru MSCA Project

C++ neural networks and fuzzy logic
C++ neural networks and fuzzy logicC++ neural networks and fuzzy logic
C++ neural networks and fuzzy logicJamerson Ramos

Time and resource constrained offloading with multi-task in a mobile edge co...
Time and resource constrained offloading with multi-task  in a mobile edge co...Time and resource constrained offloading with multi-task  in a mobile edge co...
Time and resource constrained offloading with multi-task in a mobile edge co...IJECEIAES

FIWARE Global Summit - FogFlow GE: Intent-based Edge Programming
FIWARE Global Summit - FogFlow GE: Intent-based Edge ProgrammingFIWARE Global Summit - FogFlow GE: Intent-based Edge Programming
FIWARE Global Summit - FogFlow GE: Intent-based Edge ProgrammingFIWARE

Foog computing and iFogSim for sustainable smart city.
Foog computing and iFogSim for sustainable smart city.Foog computing and iFogSim for sustainable smart city.
Foog computing and iFogSim for sustainable smart city.sindhuRashmi1

Secure Outsourcing Mechanism for Linear Programming in Cloud Computing
Secure Outsourcing Mechanism for Linear Programming in Cloud ComputingSecure Outsourcing Mechanism for Linear Programming in Cloud Computing
Secure Outsourcing Mechanism for Linear Programming in Cloud ComputingIJMER

Deadline Monotonic Scheduling to Reduce Overhead of Superframe in ISA100.11a
Deadline Monotonic Scheduling to Reduce Overhead of Superframe in ISA100.11aDeadline Monotonic Scheduling to Reduce Overhead of Superframe in ISA100.11a
Deadline Monotonic Scheduling to Reduce Overhead of Superframe in ISA100.11aOka Danil

Research portfolio
Research portfolio Research portfolio
Research portfolio Mehdi Bennis

Green cloud computing
Green cloud computing Green cloud computing
Green cloud computing JauwadSyed

Green cloud computing
Green cloud computingGreen cloud computing
Green cloud computingNalini Mehta

Cloud Roundtable at Microsoft Switzerland
Cloud Roundtable at Microsoft Switzerland Cloud Roundtable at Microsoft Switzerland
Cloud Roundtable at Microsoft Switzerland mictc

Master Thesis on Cloud Computing Projects
Master Thesis on Cloud Computing ProjectsMaster Thesis on Cloud Computing Projects
Master Thesis on Cloud Computing ProjectsPhdtopiccom

Stochastic Computing Correlation Utilization in Convolutional Neural Network ...
Stochastic Computing Correlation Utilization in Convolutional Neural Network ...Stochastic Computing Correlation Utilization in Convolutional Neural Network ...
Stochastic Computing Correlation Utilization in Convolutional Neural Network ...TELKOMNIKA JOURNAL

Optimization of Time Restriction in Construction Project Management Using Lin...
Optimization of Time Restriction in Construction Project Management Using Lin...Optimization of Time Restriction in Construction Project Management Using Lin...
Optimization of Time Restriction in Construction Project Management Using Lin...IJERA Editor

(Im2col)accelerating deep neural networks on low power heterogeneous architec...
(Im2col)accelerating deep neural networks on low power heterogeneous architec...(Im2col)accelerating deep neural networks on low power heterogeneous architec...
(Im2col)accelerating deep neural networks on low power heterogeneous architec...Bomm Kim

Assessment to Delegate the Task to Cloud for Increasing Energy Efficiency of ...
Assessment to Delegate the Task to Cloud for Increasing Energy Efficiency of ...Assessment to Delegate the Task to Cloud for Increasing Energy Efficiency of ...
Assessment to Delegate the Task to Cloud for Increasing Energy Efficiency of ...IRJET Journal

UberCloud - From Project to Product
UberCloud - From Project to ProductUberCloud - From Project to Product
UberCloud - From Project to ProductThe UberCloud


Similar to Edge-Fog Cloud (20)

Federated HPC Clouds Applied to Radiation Therapy
Federated HPC Clouds Applied to Radiation TherapyFederated HPC Clouds Applied to Radiation Therapy
Federated HPC Clouds Applied to Radiation Therapy

Federated HPC Clouds applied to Radiation Therapy
Federated HPC Clouds applied to Radiation TherapyFederated HPC Clouds applied to Radiation Therapy
Federated HPC Clouds applied to Radiation Therapy

From Cloud to Fog: the Tao of IT Infrastructure Decentralization
From Cloud to Fog: the Tao of IT Infrastructure DecentralizationFrom Cloud to Fog: the Tao of IT Infrastructure Decentralization
From Cloud to Fog: the Tao of IT Infrastructure Decentralization

C++ neural networks and fuzzy logic
C++ neural networks and fuzzy logicC++ neural networks and fuzzy logic
C++ neural networks and fuzzy logic

Time and resource constrained offloading with multi-task in a mobile edge co...
Time and resource constrained offloading with multi-task  in a mobile edge co...Time and resource constrained offloading with multi-task  in a mobile edge co...
Time and resource constrained offloading with multi-task in a mobile edge co...

FIWARE Global Summit - FogFlow GE: Intent-based Edge Programming
FIWARE Global Summit - FogFlow GE: Intent-based Edge ProgrammingFIWARE Global Summit - FogFlow GE: Intent-based Edge Programming
FIWARE Global Summit - FogFlow GE: Intent-based Edge Programming

Foog computing and iFogSim for sustainable smart city.
Foog computing and iFogSim for sustainable smart city.Foog computing and iFogSim for sustainable smart city.
Foog computing and iFogSim for sustainable smart city.

Secure Outsourcing Mechanism for Linear Programming in Cloud Computing
Secure Outsourcing Mechanism for Linear Programming in Cloud ComputingSecure Outsourcing Mechanism for Linear Programming in Cloud Computing
Secure Outsourcing Mechanism for Linear Programming in Cloud Computing

Deadline Monotonic Scheduling to Reduce Overhead of Superframe in ISA100.11a
Deadline Monotonic Scheduling to Reduce Overhead of Superframe in ISA100.11aDeadline Monotonic Scheduling to Reduce Overhead of Superframe in ISA100.11a
Deadline Monotonic Scheduling to Reduce Overhead of Superframe in ISA100.11a

Research portfolio
Research portfolio Research portfolio
Research portfolio

Green cloud computing
Green cloud computing Green cloud computing
Green cloud computing

Green cloud computing
Green cloud computingGreen cloud computing
Green cloud computing

Cloud Roundtable at Microsoft Switzerland
Cloud Roundtable at Microsoft Switzerland Cloud Roundtable at Microsoft Switzerland
Cloud Roundtable at Microsoft Switzerland

Master Thesis on Cloud Computing Projects
Master Thesis on Cloud Computing ProjectsMaster Thesis on Cloud Computing Projects
Master Thesis on Cloud Computing Projects

Stochastic Computing Correlation Utilization in Convolutional Neural Network ...
Stochastic Computing Correlation Utilization in Convolutional Neural Network ...Stochastic Computing Correlation Utilization in Convolutional Neural Network ...
Stochastic Computing Correlation Utilization in Convolutional Neural Network ...

Optimization of Time Restriction in Construction Project Management Using Lin...
Optimization of Time Restriction in Construction Project Management Using Lin...Optimization of Time Restriction in Construction Project Management Using Lin...
Optimization of Time Restriction in Construction Project Management Using Lin...

(Im2col)accelerating deep neural networks on low power heterogeneous architec...
(Im2col)accelerating deep neural networks on low power heterogeneous architec...(Im2col)accelerating deep neural networks on low power heterogeneous architec...
(Im2col)accelerating deep neural networks on low power heterogeneous architec...

Assessment to Delegate the Task to Cloud for Increasing Energy Efficiency of ...
Assessment to Delegate the Task to Cloud for Increasing Energy Efficiency of ...Assessment to Delegate the Task to Cloud for Increasing Energy Efficiency of ...
Assessment to Delegate the Task to Cloud for Increasing Energy Efficiency of ...

Cloud, Fog, or Edge: Where and When to Compute?
Cloud, Fog, or Edge: Where and When to Compute?Cloud, Fog, or Edge: Where and When to Compute?
Cloud, Fog, or Edge: Where and When to Compute?

UberCloud - From Project to Product
UberCloud - From Project to ProductUberCloud - From Project to Product
UberCloud - From Project to Product


More from Nitinder Mohan

Pruning Edge Research with Latency Shears
Pruning Edge Research with Latency ShearsPruning Edge Research with Latency Shears
Pruning Edge Research with Latency ShearsNitinder Mohan

Edge Computing Platforms and Protocols - Ph.D. thesis
Edge Computing Platforms and Protocols - Ph.D. thesisEdge Computing Platforms and Protocols - Ph.D. thesis
Edge Computing Platforms and Protocols - Ph.D. thesisNitinder Mohan

DeCloud: Truthful Decentralized Double Auction for Edge Clouds
DeCloud: Truthful Decentralized Double Auction for Edge CloudsDeCloud: Truthful Decentralized Double Auction for Edge Clouds
DeCloud: Truthful Decentralized Double Auction for Edge CloudsNitinder Mohan

Big Data Frameworks: A primer on Apache Spark and MapReduce
Big Data Frameworks: A primer on Apache Spark and MapReduceBig Data Frameworks: A primer on Apache Spark and MapReduce
Big Data Frameworks: A primer on Apache Spark and MapReduceNitinder Mohan

Open Infrastructure for Edge: A Distributed Ledger Outlook
Open Infrastructure for Edge: A Distributed Ledger OutlookOpen Infrastructure for Edge: A Distributed Ledger Outlook
Open Infrastructure for Edge: A Distributed Ledger OutlookNitinder Mohan

ExEC: Elastic Extensible Edge Cloud
ExEC: Elastic Extensible Edge Cloud ExEC: Elastic Extensible Edge Cloud
ExEC: Elastic Extensible Edge Cloud Nitinder Mohan

ICON: Intelligent Container Overlays
ICON: Intelligent Container OverlaysICON: Intelligent Container Overlays
ICON: Intelligent Container OverlaysNitinder Mohan

Redesigning MPTCP in Edge clouds
Redesigning MPTCP in Edge cloudsRedesigning MPTCP in Edge clouds
Redesigning MPTCP in Edge cloudsNitinder Mohan

Anveshak: Placing Edge Servers In The Wild
Anveshak: Placing Edge Servers In The WildAnveshak: Placing Edge Servers In The Wild
Anveshak: Placing Edge Servers In The WildNitinder Mohan

MUTE: Multi-Tier Edge networks
MUTE: Multi-Tier Edge networksMUTE: Multi-Tier Edge networks
MUTE: Multi-Tier Edge networksNitinder Mohan

Managing data in computational edge clouds
Managing data in computational edge cloudsManaging data in computational edge clouds
Managing data in computational edge cloudsNitinder Mohan


More from Nitinder Mohan (11)

Pruning Edge Research with Latency Shears
Pruning Edge Research with Latency ShearsPruning Edge Research with Latency Shears
Pruning Edge Research with Latency Shears

Edge Computing Platforms and Protocols - Ph.D. thesis
Edge Computing Platforms and Protocols - Ph.D. thesisEdge Computing Platforms and Protocols - Ph.D. thesis
Edge Computing Platforms and Protocols - Ph.D. thesis

DeCloud: Truthful Decentralized Double Auction for Edge Clouds
DeCloud: Truthful Decentralized Double Auction for Edge CloudsDeCloud: Truthful Decentralized Double Auction for Edge Clouds
DeCloud: Truthful Decentralized Double Auction for Edge Clouds

Big Data Frameworks: A primer on Apache Spark and MapReduce
Big Data Frameworks: A primer on Apache Spark and MapReduceBig Data Frameworks: A primer on Apache Spark and MapReduce
Big Data Frameworks: A primer on Apache Spark and MapReduce

Open Infrastructure for Edge: A Distributed Ledger Outlook
Open Infrastructure for Edge: A Distributed Ledger OutlookOpen Infrastructure for Edge: A Distributed Ledger Outlook
Open Infrastructure for Edge: A Distributed Ledger Outlook

ExEC: Elastic Extensible Edge Cloud
ExEC: Elastic Extensible Edge Cloud ExEC: Elastic Extensible Edge Cloud
ExEC: Elastic Extensible Edge Cloud

ICON: Intelligent Container Overlays
ICON: Intelligent Container OverlaysICON: Intelligent Container Overlays
ICON: Intelligent Container Overlays

Redesigning MPTCP in Edge clouds
Redesigning MPTCP in Edge cloudsRedesigning MPTCP in Edge clouds
Redesigning MPTCP in Edge clouds

Anveshak: Placing Edge Servers In The Wild
Anveshak: Placing Edge Servers In The WildAnveshak: Placing Edge Servers In The Wild
Anveshak: Placing Edge Servers In The Wild

MUTE: Multi-Tier Edge networks
MUTE: Multi-Tier Edge networksMUTE: Multi-Tier Edge networks
MUTE: Multi-Tier Edge networks

Managing data in computational edge clouds
Managing data in computational edge cloudsManaging data in computational edge clouds
Managing data in computational edge clouds


Recently uploaded

Trauma-Informed Leadership - Five Practical Principles
Trauma-Informed Leadership - Five Practical PrinciplesTrauma-Informed Leadership - Five Practical Principles
Trauma-Informed Leadership - Five Practical PrinciplesPooky Knightsmith

會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽中 央社

The Liver & Gallbladder (Anatomy & Physiology).pptx
The Liver &  Gallbladder (Anatomy & Physiology).pptxThe Liver &  Gallbladder (Anatomy & Physiology).pptx
The Liver & Gallbladder (Anatomy & Physiology).pptxVishal Singh

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...Nguyen Thanh Tu Collection

male presentation...pdf.................
male presentation...pdf.................male presentation...pdf.................
male presentation...pdf.................MirzaAbrarBaig5

demyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxdemyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxMohamed Rizk Khodair

Transparency, Recognition and the role of eSealing - Ildiko Mazar and Koen No...
Transparency, Recognition and the role of eSealing - Ildiko Mazar and Koen No...Transparency, Recognition and the role of eSealing - Ildiko Mazar and Koen No...
Transparency, Recognition and the role of eSealing - Ildiko Mazar and Koen No...EADTU

The Story of Village Palampur Class 9 Free Study Material PDF
The Story of Village Palampur Class 9 Free Study Material PDFThe Story of Village Palampur Class 9 Free Study Material PDF
The Story of Village Palampur Class 9 Free Study Material PDFVivekanand Anglo Vedic Academy

An overview of the various scriptures in Hinduism
An overview of the various scriptures in HinduismAn overview of the various scriptures in Hinduism
An overview of the various scriptures in HinduismDabee Kamal

Major project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesMajor project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesAmanpreetKaur157993

Sternal Fractures & Dislocations - EMGuidewire Radiology Reading Room
Sternal Fractures & Dislocations - EMGuidewire Radiology Reading RoomSternal Fractures & Dislocations - EMGuidewire Radiology Reading Room
Sternal Fractures & Dislocations - EMGuidewire Radiology Reading RoomSean M. Fox

Improved Approval Flow in Odoo 17 Studio App
Improved Approval Flow in Odoo 17 Studio AppImproved Approval Flow in Odoo 17 Studio App
Improved Approval Flow in Odoo 17 Studio AppCeline George

Graduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxGraduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxneillewis46

e-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi Rajagopale-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi RajagopalEADTU

An Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppAn Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppCeline George


Recently uploaded (20)

Trauma-Informed Leadership - Five Practical Principles
Trauma-Informed Leadership - Five Practical PrinciplesTrauma-Informed Leadership - Five Practical Principles
Trauma-Informed Leadership - Five Practical Principles

會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽
會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽會考英聽

The Liver & Gallbladder (Anatomy & Physiology).pptx
The Liver &  Gallbladder (Anatomy & Physiology).pptxThe Liver &  Gallbladder (Anatomy & Physiology).pptx
The Liver & Gallbladder (Anatomy & Physiology).pptx

TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...
TỔNG HỢP HƠN 100 ĐỀ THI THỬ TỐT NGHIỆP THPT TOÁN 2024 - TỪ CÁC TRƯỜNG, TRƯỜNG...

OS-operating systems- ch05 (CPU Scheduling) ...
OS-operating systems- ch05 (CPU Scheduling) ...OS-operating systems- ch05 (CPU Scheduling) ...
OS-operating systems- ch05 (CPU Scheduling) ...

male presentation...pdf.................
male presentation...pdf.................male presentation...pdf.................
male presentation...pdf.................

demyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptxdemyelinated disorder: multiple sclerosis.pptx
demyelinated disorder: multiple sclerosis.pptx

Mattingly "AI & Prompt Design: Named Entity Recognition"
Mattingly "AI & Prompt Design: Named Entity Recognition"Mattingly "AI & Prompt Design: Named Entity Recognition"
Mattingly "AI & Prompt Design: Named Entity Recognition"

Transparency, Recognition and the role of eSealing - Ildiko Mazar and Koen No...
Transparency, Recognition and the role of eSealing - Ildiko Mazar and Koen No...Transparency, Recognition and the role of eSealing - Ildiko Mazar and Koen No...
Transparency, Recognition and the role of eSealing - Ildiko Mazar and Koen No...

The Story of Village Palampur Class 9 Free Study Material PDF
The Story of Village Palampur Class 9 Free Study Material PDFThe Story of Village Palampur Class 9 Free Study Material PDF
The Story of Village Palampur Class 9 Free Study Material PDF

Supporting Newcomer Multilingual Learners
Supporting Newcomer  Multilingual LearnersSupporting Newcomer  Multilingual Learners
Supporting Newcomer Multilingual Learners

An overview of the various scriptures in Hinduism
An overview of the various scriptures in HinduismAn overview of the various scriptures in Hinduism
An overview of the various scriptures in Hinduism

Major project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategiesMajor project report on Tata Motors and its marketing strategies
Major project report on Tata Motors and its marketing strategies

VAMOS CUIDAR DO NOSSO PLANETA! .
VAMOS CUIDAR DO NOSSO PLANETA!                    .VAMOS CUIDAR DO NOSSO PLANETA!                    .
VAMOS CUIDAR DO NOSSO PLANETA! .

Sternal Fractures & Dislocations - EMGuidewire Radiology Reading Room
Sternal Fractures & Dislocations - EMGuidewire Radiology Reading RoomSternal Fractures & Dislocations - EMGuidewire Radiology Reading Room
Sternal Fractures & Dislocations - EMGuidewire Radiology Reading Room

Mattingly "AI and Prompt Design: LLMs with NER"
Mattingly "AI and Prompt Design: LLMs with NER"Mattingly "AI and Prompt Design: LLMs with NER"
Mattingly "AI and Prompt Design: LLMs with NER"

Improved Approval Flow in Odoo 17 Studio App
Improved Approval Flow in Odoo 17 Studio AppImproved Approval Flow in Odoo 17 Studio App
Improved Approval Flow in Odoo 17 Studio App

Graduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxGraduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptx

e-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi Rajagopale-Sealing at EADTU by Kamakshi Rajagopal
e-Sealing at EADTU by Kamakshi Rajagopal

An Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppAn Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge App


Edge-Fog Cloud

  • 1. Edge-Fog Cloud: A Distributed Cloud for Internet of Things Computations Nitinder Mohan, Jussi Kangasharju Department of Computer Science, University of Helsinki, Finland {firstname.lastname@cs.helsinki.fi} Conference on Cloudification of Internet of Things (CIoT) – 2016 Paris
  • 2. Rise of connected IoT devices Projected number of IoT devices Average cost of a sensor Broadband by the numbers (NCTA), https://www.ncta.com/broadband- by-the-numbers 2
  • 4. Problem: Network!  High transport cost  High data volume  High network latency https://cloud.google.com/about/locations/ 4 Computational Data Centers
  • 5. Fog Cloud Computing Cloud Fog Devices Hong, K., Lillethun, D., Ramachandran, U., Ottenwälder, B., & Koldehofe, B. (2013). Mobile fog. Proceedings of the Second ACM SIGCOMM Workshop on Mobile Cloud Computing - MCC ’13 Processing-capable network resources augment the cloud 4
  • 6. Edge Cloud Computing Processing-capable, voluntary, user-controlled devices augment the cloud Lopez, P. G., Montresor, A., Epema, D., Iamnitchi, A., Felber, P., & Riviere, E. (2015). Edge-centric Computing : Vision and Challenges. Acm Ccr, 45(5), 37–42. 5
  • 7. Edge & Fog Cloud: Problem Computation requires routing data to a central cloud! Cloud Fog Devices 6
  • 9. Architecture Data Store Fog Edge Edge  Collection of devices: i. Loosely-coupled ii. Voluntary iii. Human operated  1-2 hops away from sensors & clients  Ad-hoc device-to-device connectivity within layer  Varying processing capability e.g. desktops, laptops, workstations, nano data centers etc. 8
  • 10. Data Store Fog Edge Architecture Fog  Network devices with high compute capability  Manufactured, managed and deployed by cloud vendors such as CISCO*  Lies farther from sensors but closer to core  Dense connectivity within layer  Reliable connectivity to Edge e.g. routers, switches etc. *CISCO, “Cisco fog computing solutions: Unleash the power of the Internet of Things (whitepaper),” 2015 8
  • 11. Data Store Fog Edge Architecture Data Store  Data archival and storage  No computation on data  Reliability and ease-of-access to data in Edge and Fog layers 8
  • 12. Data Store Fog Edge Benefits 1. Reduced network load 2. Native support for mobility 3. Context in computation 4. No single point-of-failure 9
  • 14. D1 D2 D3 D4 D5 1 4 34 1 Edge-Fog Cloud J1 J2 J3 J4 J5 Job Graph *Haubenwaller, Andreas Moregård, and Konstantinos Vandikas. "Computations on the Edge in the Internet of Things." Procedia Computer Science 52 (2015) Network Only Cost Assignment* 11
  • 15. J1 J2 J3 J4 J5 J4 J5 J3 J1 J2 J2 J3 J4 J1 J5 I. Naïve Implementation Iterative Search 𝒩 devices 𝒩 jobs Worst Case: O(𝒩!) D1 D2 D3 D4 D5 1 4 34 1 Network Only Cost Assignment 12
  • 16. Network Only Cost Assignment D1 D2 D3 D4 D5 1 4 34 1 J1 J2 J3 J4 J5 99 1 8 4 5 1 99 7 5 4 8 7 99 4 3 4 5 4 99 1 5 4 3 1 99 0 1 0 1 0 1 0 1 0 1 0 1 0 0 0 1 0 0 0 1 0 1 0 1 0 Dconn[ i, j ] = Jconn[ i, j ] = 13
  • 17. Network Only Cost Assignment 99 1 8 4 5 1 99 7 5 4 8 7 99 4 3 4 5 4 99 1 5 4 3 1 99 Dconn[ i, j ] = 0 1 0 1 0 1 0 1 0 1 0 1 0 0 0 1 0 0 0 1 0 1 0 1 0 Jconn[ i, j ] = II. Quadratic Assignment Problem Minimize: NP-hard! • Approximated using Kuhn- Munkres or GLB bounds • Optimal solution not guaranteed 𝑎(𝑖,𝑗)∈𝐴 𝐽𝑐𝑜𝑛𝑛 𝑖, 𝑗 ∗ 𝐷𝑐𝑜𝑛𝑛(𝑓 𝑖 , 𝑓(𝑗)) 14
  • 18. Least Processing Cost First (LPCF) Device Processing Power [Dproc(i)] D1: 3 D2: 2 D3: 2 D4: 5 D5: 6 1 4 34 1 J1: 4 J2: 2 J3: 5 J4: 4 J5: 2 Job Size [Jsize(i)] 15 D1 D2 D3 D4 D5 1 4 34 1 J1 J2 J3 J4 J5
  • 19. Least Processing Cost First (LPCF) D1:3 D2:2 D3:2 D4:5 D5:6 1 4 34 1 J1:4 J2:2 J3:5 J4:4 J5:2 3 2 2 5 6 4 2 5 4 2 Dproc [i] = Jsize [i] = 16
  • 20. Least Processing Cost First (LPCF) 3 2 2 5 6 4 2 5 4 2 Dproc [i] = Jsize [i] = I. Optimize Processing Cost Minimize: Linear Assignment Problem • Solved using Kuhn-Munkres/ Hungarian algorithm • Optimal solution guaranteed in O(n3) 𝑖,𝑗∈𝐴 𝐶 𝐽𝑠𝑖𝑧𝑒(𝑖) 𝐷 𝑝𝑟𝑜𝑐(𝑗) 𝑥𝑖𝑗 16
  • 21. Least Processing Cost First (LPCF) I. Optimize Processing Cost Minimize: Linear Assignment Problem • Solved using Kuhn-Munkres/ Hungarian algorithm • Optimal solution guaranteed in O(n3) 𝑖,𝑗∈𝐴 𝐶 𝐽𝑠𝑖𝑧𝑒(𝑖) 𝐷 𝑝𝑟𝑜𝑐(𝑗) 𝑥𝑖𝑗 D1:3 D2:2 D3:2 D4:5 D5:6 1 4 34 1 J1:4 J2:2 J5:2 J4:4 J3:5 Least Processing Cost: 4.966 16
  • 22. Least Processing Cost First (LPCF) II. Create sub-problem space Edge-Fog Cloud composes of several homogeneous devices running homogeneous jobs New Assignment Calculation: 1. Same processing power → interchange jobs 2. Same job size → interchange devices D1:3 D2:2 D3:2 D4:5 D5:6 1 4 34 1 J1:4 J2:2 J5:2 J4:4 J3:5 Least Processing Cost: 4.966 J1:4 J5:2 J2:2 J4:4 J3:5 J4:4 J5:2 J2:2 J1:4 J3:5 17
  • 23. Least Processing Cost First (LPCF) D1 D2 D3 D4 D5 1. J1 J2 J5 J4 J3 2. J1 J5 J2 J4 J3 3. J4 J5 J2 J1 J3 4. J4 J2 J5 J1 J3 Least Processing Cost: 4.966 17 II. Create sub-problem space Edge-Fog Cloud composes of several homogeneous devices running homogeneous jobs New Assignment Calculation: 1. Same processing power → interchange jobs 2. Same job size → interchange devices
  • 24. Least Processing Cost First (LPCF) III. Account Network Cost 1. Compute network cost of each assignment 2. Choose the assignment with least network cost D1 D2 D3 D4 D5 1. J1 J2 J5 J4 J3 2. J1 J5 J2 J4 J3 3. J4 J5 J2 J1 J3 4. J4 J2 J5 J1 J3 𝐽𝑐𝑜𝑛𝑛 𝑖, 𝑗 ∗ 𝐷𝑐𝑜𝑛𝑛(𝑓 𝑖 , 𝑓(𝑗)) Least Processing Cost: 4.966 N/W 20 27 19 28 18
  • 25. Least Processing Cost First (LPCF) Advantages 1. Computed assignment has least processing cost and almost-optimal network cost 2. Task assignment accounts for processing cost of task deployment 3. Assignment solution is guaranteed in polynomial time 19
  • 27. Edge-Fog Cloud Simulator Python-based Edge-Fog Cloud Simulator 1. Generates: i. Edge and Fog node graphs with device processing and network costs ii. Job node graphs with variable job sizes 2. Incorporates LPCF for assignment computation 3. Open Source 21
  • 28. LPCF vs NOC Least Processing Cost First Network Only Cost *solver available from QAPLIB, http://anjos.mgi.polymtl.ca/qaplib/ 22 Edge-Fog Cloud Simulator + LPCF Solver Edge-Fog Cloud Simulator + Kuhn-Munkres Solver*
  • 29. LPCF vs NOC I. Assignment computation time 1 hour 23
  • 30. LPCF vs NOC II. Network cost analysis No time bound Time bounded ~10% 24
  • 31. LPCF vs NOC III. Processing cost analysis 25
  • 33. Q. How well connected should EF nodes be? ~21% ~17% ~9% 27
  • 34. Q. How does deployed job impact overall cost? 28
  • 35. Conclusion Our contributions in this work are: 1. Formal architecture of Edge-Fog cloud 2. LPCF algorithm for assigning tasks on EF cloud 3. Open source Edge Fog cloud simulator & LPCF solver 4. Deployment analysis of Edge Fog cloud Source code available at: www.github.com/nitinder-mohan/EdgeFogSimulator 29
  • 37. LPCF Search Space Reduction Topology Size 5 10 15 30 60 100 150 Original Space 5! 10! 15! 30! 60! 100! 150! LPCF Space 1! 3! > 4! > 5! > 7! > 8! > 9! 37
  • 38. EF Cloud Simulator Parameters Property Value Total number of devices/jobs Experiment Specific Number of Edge devices 60% of total Number of Fog devices 40% of total Processing power of an Edge device 2-5 Processing power of a Fog device 7-9 Connection density of Edge layer (0-1) 0.2 Connection density of Fog layer (0-1) 0.6 Connection density between Edge and Fog layer (0-1) 0.5 Lowest job size in pool 2 Highest job size in pool 6 Inter-dependence density between jobs (0-1) 0.2 38

Editor's Notes

  1. Projected number of devices including sensors connected by networks. With time, sensor deployment may become location independent e.g. vehicles, drones, mobiles, embedded biometrics
  2. US-central, east, west EU-Belgium Asia-Taiwan, Tokyo
  3. Network resources running cloud application logic. Developed and Deployed by a cloud vendor. 3. aggregation/computation while routing data to cloud. Heavy computation is in central cloud
  4. Lie in 1-hop proximity to sensors. Pre-processing computation on the edge. Heavy in the cloud.
  5. Semi-dependence does not work well for applications which generate large amounts of data which is distributable.
  6. EF cloud is a completely decentralized architecture which decouples processing time from network delays. Imbibes the benefits of Edge and Fog clouds Handles data close to the generators and consumers Some edge devices support mobility natively Edge can combine data from sensors providing it location/application context Completely decentralized
  7. Deployment must map one job to one device node Find deployment without impacting overall processing time Trans1: j2 and j5 Trans2: j4 and j3
  8. F(i) signifies constraint of deploying a job to a particular device. 1. Computing the optimal deployment for a problem space of 30 nodes using QAP may take up to a week on a computational grid comprising of 2500 machines
  9. C is overall cost function, xij is binary job assignment variable
  10. C is overall cost function, xij is binary job assignment variable
  11. Based on property of EF cloud
  12. C is overall cost function, xij is binary job assignment variable
  13. As algorithm proceeds to compute network cost iteratively, a branch-and-bound version of LPCF could be used in large search space sizes
  14. For the list of parameters used by the simulator, I encourage you to check out the paper or simulator code available on Git
  15. Full name of NOC
  16. Corresponds to Table 3 in the paper. Nodes<40, LPCF finds assignment within 1 sec whereas both QAP and Naïve solvers reach the limit Nodes=150, LPCF reaches limit as search space is approximately 9!
  17. Graph 1: Max and mins are bounds obtained by choosing N smallest/largest link costs. Might not be valid assignment. NOC QAP require large time to complete, 100 node topology finished after 71 hours. Graph 2: Branch-and-bound QAP limited to time taken by LPCF
  18. LPCF always outperforms NOC QAP
  19. Edge has device-to-device connections so density cannot be drastically increased. E-F connection density can reduce overall network cost greatly
  20. Job density increased from 10% to 100%
