1. ECG
PATEL.YASH.GIRISHBHAI (KAPC)

2. TYOES IF CARDIAC CELLS
 MAYOCARDIAL CELLS
Working or mechanical cells
Contain contractile filaments
 PACEMAKER CAELLS
-specialized cell of the electrical conduction system
- Responsible for the spontaneous generation and conduction
of electrical impulses

3. Cardiac
Conduction

4. From Basic ECG Module - AACN
SA Node

5. Cardiac Cycle & the ECG
Isometric line
ST Segment

6. Lead Placement –
6 lead system
From Basic ECG Module - AACN

7. ECG Paper
 ECG paper is graph paper made
up of small and larger, heavy-
lined squares
 Smallest squares are 1 mm wide and 1 mm high
 5 small squares between the heavier black lines
 25 small squares within each large square

8. What Does the ECG Measure?
V
O
L
T
A
G
E
T I M E

9. PR INTERVAL
 Normal P wave – small, round,
Upright
PR INTERVAL:
Begins with the onset of the P
Wave and ends with the inset of QRS
Complex normally measures 0.12
To 0.20 seconds
5 small boxes

10. QRS COMPLEX
 A QRS complex normally
Follows each P wave
Consists of Q wave, R wave,
And S wave
Represents the spread of electrical
Impulse through the ventricles
normal – 0.04- 0.12 seconds

11. ST SEGMENT
 ST – segment
Begins with the end of the QRS complex and ends with the of
the onset of the T wave and is on the same line as the PR
interval
ST segment depression of more than 1 mm is suggestive of
myocardial ischemia
ST segment elevation of more then 1 mm is suggestive of
myocardial injury or pericarditis.

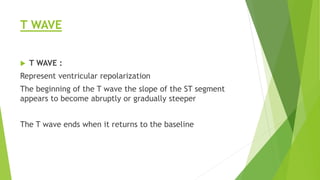

12. T WAVE
 T WAVE :
Represent ventricular repolarization
The beginning of the T wave the slope of the ST segment
appears to become abruptly or gradually steeper
The T wave ends when it returns to the baseline

13. ST Segment
 The ST segment is considered:
 “Elevated” if the segment deviates above the baseline of the
PR segment
 “Depressed” if the segment deviates below it

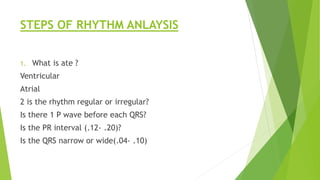

14. STEPS OF RHYTHM ANLAYSIS
1. What is ate ?
Ventricular
Atrial
2 is the rhythm regular or irregular?
Is there 1 P wave before each QRS?
Is the PR interval (.12- .20)?
Is the QRS narrow or wide(.04- .10)

15. Determining the Rate
 1500 ÷ No of small boxes within an RR interval (regular rhythms)
 300 ÷ No of Large boxes within an RR interval (regular rhythms)
 10 x No of R complexes in 6 seconds(30 large box)
 10 x No of R complexes in 6 seconds

16. Rhythm: Regular / Irregular
 Distance between the ‘R’ waves

17. Normal Sinus Rhythm
 Ventricular rate: 60-100; Regular rhythm
 Atrial: Same as ventricular
 P consistent shape – always positive
 P-R interval: 0.12-0.20
 QRS complex: 0.04-0.10
 1 P wave for every QRS

18. DYSRHYTHMIAS
 Disorders of electrical impulse:
Formation
Conduction
 Named by
Site of origin of impulse
Mechanism of formation or conduction involved

19. DYSRTHMIAS
 Site of origin
SA node
Bradycardia, tachycardia
AYRIAL tissue
Flutter, fibrillation
AV node
blocks

20. SINUS TACHYCARDIA
 ETIOLOGY
↑ CNS response : anxiety; pain; fever; anemia
INTERVANTION
Identify cause, select best treatment
Goal : ↓ HR to normal levels
β-blockers, ACE Inhibitors

21. Sinus Tachycardia
 Ventricular rate: > 100 (up to180);
Regular rhythm
 Atrial: Same as ventricular
 P consistent shape
 P wave for every QRS
 QRS complex: Normal
Sinus Tachycardia

22. Sinus Bradycardia
 Ventricular rate:< 60; regular rhythm
 Atrial: same as ventricular
 P consistent shape
 P wave for every QRS
 QRS complex: Normal

23. Sinus Bradycardia
 Etiology
 PNS dominant; Excessive vagal (Valsalva) stimulation to the heart (↓ SA node
discharge = ↓ HR, ↓ conduction)
 Interventions
 Atropine = Tx of choice
 Pacemaker placement

24. PAC (premature atraial
contractions):
Irregular P-R rhythms
 Premature, irregular P waves (sometimes “lost” in the T
Wave.

25. Premature Atrial Contractions:
 Triggered by: Alcohol, nicotine, anxiety, fatigue, fever, and
infections
 Clinical Manifestations: Palpitations or “skipped beats”

26. Flutter and Fibrillation

27. Atrial Flutter
 Etiology
 AV node selectively blocks # impulses that reach
ventricles (protective mechanism)
 Rheumatic Heart disease, CHF, AV valve disease, post
cardiac surgery
 Clinical manifestations dependent upon ventricular
response

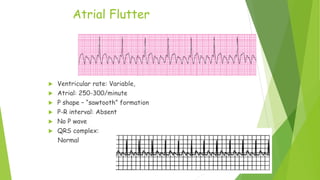

28. Atrial Flutter
 Ventricular rate: Variable,
 Atrial: 250-300/minute
 P shape – “sawtooth” formation
 P-R interval: Absent
 No P wave
 QRS complex:
Normal

29. Atrial Fibrillation
 Etiology
 Most common dysrhythmia in US
 Aging, MI, MS, Cardiomyopathy
 Multiple, rapid impulses many atrial foci;
Atrial depolarization disorganized

30. Atrial Fibrillation
 Commonly seen after cardiac
surgery (transient)
 Can be intermittent or chronic
 Symptoms:
 SOB
 Fatigue
 Weakness,
 Distended neck veins
 Anxiety
 Palpitations
 Chest discomfort
 Irregular pulse

31. Atrial Fibrillation
 Ventricular rate: < 100 (controlled)
 Atrial: Unable to determine (>350)
 No P waves (fibrillatory waves)
 P-R interval: Absent
 QRS complex: Normal

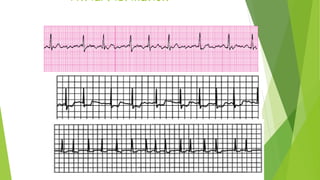

32. Atrial Fibrillation

33. Premature Ventricular Contractions
 Etiology
 Early ventricular complexes, followed by pause
 Ventricular contraction originating in an ectopic
focus outside ventricles
 Aging, MI, Caffeine, ↓ K+

34. Premature Ventricular Contractions
 No P wave
 QRS wide and unusual
 ST segment often slops in the opposite direction
PVC

35. Ventricular Tachycardia
 Etiology
 Repetitive firing of an irritated ventricular ectopic
focus
 Intermittent
 Sustained: > 15-30 sec

36. Ventricular Tachycardia (V Tach)
 Unable to determine rhythm
 No P waves present
 QRS complex > 0.10 sec

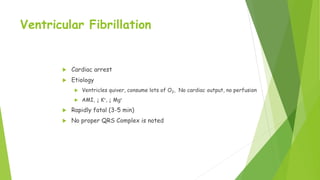

37. Ventricular Fibrillation
 Cardiac arrest
 Etiology
 Ventricles quiver, consume lots of O2, No cardiac output, no perfusion
 AMI, ↓ K+, ↓ Mg+
 Rapidly fatal (3-5 min)
 No proper QRS Complex is noted

38. Ventricular Fibrillation
 Assessment
 LOC, Absence of Pulse
 Apnea
 Seizures
 Development of respiratory & metabolic acidosis
 Treatment
 CPR (ACLS)
 Defibrillation

39. Ventricular Fibrillation (V Fib)
Coarse
Fine

40. Heart Blocks
 Occur when there is a delay in the conduction of the impulse
through the AV node
 PR is > 0.20 seconds
 SA node function is normal

41. Heart Block Overview
 1st degree –
 PR interval > 0.20 seconds
 All impulses reach the ventricles
 2nd degree – (2 types)
 Mobitz I – each impulses takes longer to conduct
until 1 is blocked and a QRS complex is dropped and
a pause occurs; then cycle repeats
 Mobitz II – None conduction to ventricles.2-4 p
waves between QRS.
 3rd degree –
 None of the atrial impulses reach the ventricles
 Activity of the atria and ventricles is ‘divorced’
 Results in inadequate cardiac output
 Requires pacemaker

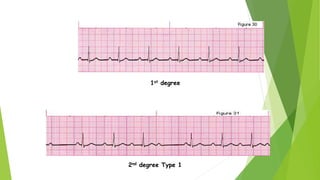

42. 2nd degree Type 1
1st degree

43. 3rd degree
2nd degree Type II

44. Pacemakers
