8.2 AERODYNAMICS



        www.part66.blogspot.com

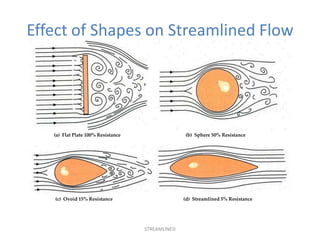

Effect of Shapes on Streamlined Flow




   (a) Flat Plate 100% Resistance                 (b) Sphere 50% Resistance




   (c) Ovoid 15% Resistance                       (d) Streamlined 5% Resistance




                                    STREAMLINED

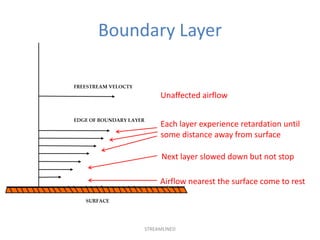

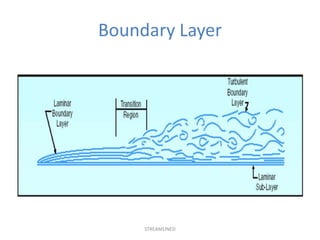

Boundary Layer


          Unaffected airflow


          Each layer experience retardation until
          some distance away from surface

           Next layer slowed down but not stop

          Airflow nearest the surface come to rest




     STREAMLINED
Boundary Layer




     STREAMLINED

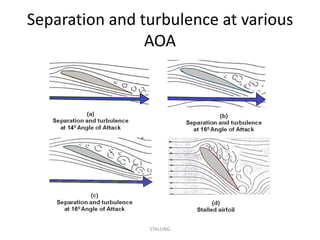

Separation and turbulence at various
                AOA




                STALLING
AERODYNAMIC TERM



Stagnation point
Velocity = 0m/s




                   Wing tip vortices

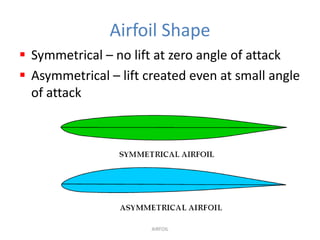

Airfoil Shape
 Symmetrical – no lift at zero angle of attack
 Asymmetrical – lift created even at small angle
  of attack




                       AIRFOIL

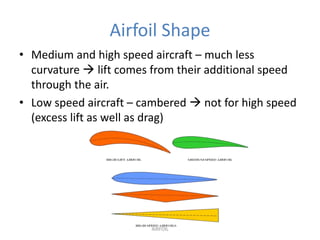

Airfoil Shape
• Medium and high speed aircraft – much less
  curvature  lift comes from their additional speed
  through the air.
• Low speed aircraft – cambered  not for high speed
  (excess lift as well as drag)




                        AIRFOIL

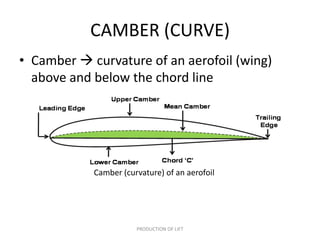

CAMBER (CURVE)
• Camber  curvature of an aerofoil (wing)
  above and below the chord line




            Camber (curvature) of an aerofoil




                       PRODUCTION OF LIFT
AIRFOIL @ AEROFOIL
• Any surface which produces a reaction (lift) as air
  passes over it
• The airfoil should provide this reaction (lift), whilst
  having a shape which presents the least possible
  resistance, or drag, to its passage through air




                             AIRFOIL

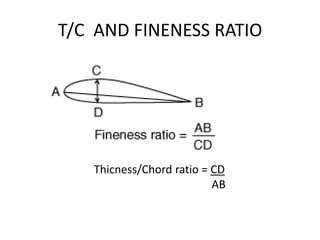

T/C AND FINENESS RATIO




   Thicness/Chord ratio = CD
                          AB

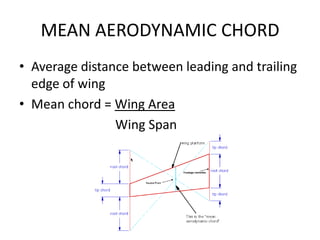

MEAN AERODYNAMIC CHORD
• Average distance between leading and trailing
  edge of wing
• Mean chord = Wing Area
                Wing Span

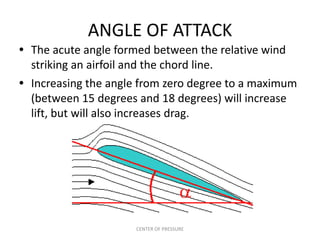

ANGLE OF ATTACK
• The acute angle formed between the relative wind
  striking an airfoil and the chord line.
• Increasing the angle from zero degree to a maximum
  (between 15 degrees and 18 degrees) will increase
  lift, but will also increases drag.




                     CENTER OF PRESSURE

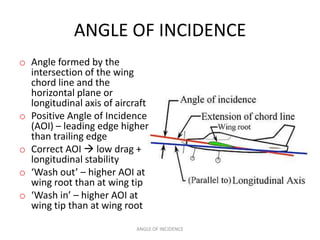

ANGLE OF INCIDENCE
o Angle formed by the
  intersection of the wing
  chord line and the
  horizontal plane or
  longitudinal axis of aircraft
o Positive Angle of Incidence
  (AOI) – leading edge higher
  than trailing edge
o Correct AOI  low drag +
  longitudinal stability
o ‘Wash out’ – higher AOI at
  wing root than at wing tip
o ‘Wash in’ – higher AOI at
  wing tip than at wing root

                            ANGLE OF INCIDENCE

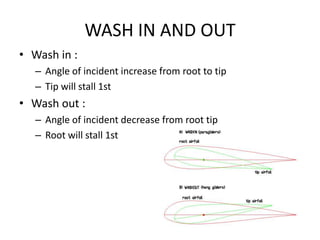

WASH IN AND OUT
• Wash in :
   – Angle of incident increase from root to tip
   – Tip will stall 1st
• Wash out :
   – Angle of incident decrease from root tip
   – Root will stall 1st

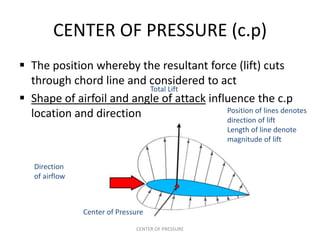

CENTER OF PRESSURE (c.p)
 The position whereby the resultant force (lift) cuts
  through chord line and considered to act
                          Total Lift
 Shape of airfoil and angle of attack influence the c.p
                                           Position of lines denotes
  location and direction                   direction of lift
                                                    Length of line denote
                                                    magnitude of lift


   Direction
   of airflow



                Center of Pressure

                               CENTER OF PRESSURE
CENTER OF PRESSURE (c.p)
o Position of c.p varies during flight as the angle of attack (AOA)
  altered
      a. Increase AOA – c.p moves forward
      b. Decrease AOA – c.p moves backward
o In normal flight the AOA usually between 2˚ and 4˚ (seldom
  below 0˚ or above 16˚)
              Small AOA            Medium AOA           Large AOA




       Nose Heavy         Balance OF PRESSURE
                             CENTER Flight      Tail Heavy

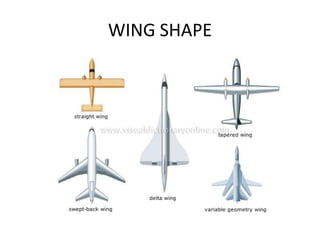

WING SHAPE

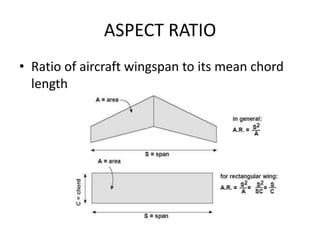

ASPECT RATIO
• Ratio of aircraft wingspan to its mean chord
  length

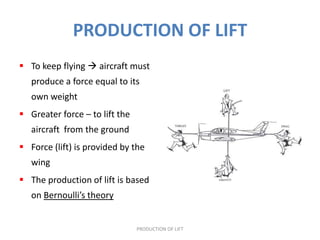

PRODUCTION OF LIFT
 To keep flying  aircraft must
   produce a force equal to its
   own weight
 Greater force – to lift the
   aircraft from the ground
 Force (lift) is provided by the
   wing
 The production of lift is based
   on Bernoulli’s theory

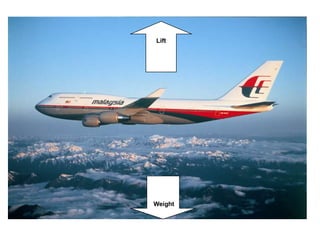

                                PRODUCTION OF LIFT
Lift




Weight

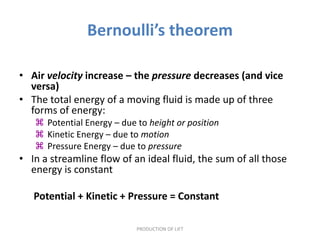

Bernoulli’s theorem

• Air velocity increase – the pressure decreases (and vice
  versa)
• The total energy of a moving fluid is made up of three
  forms of energy:
    Potential Energy – due to height or position
    Kinetic Energy – due to motion
    Pressure Energy – due to pressure
• In a streamline flow of an ideal fluid, the sum of all those
  energy is constant

   Potential + Kinetic + Pressure = Constant

                            PRODUCTION OF LIFT

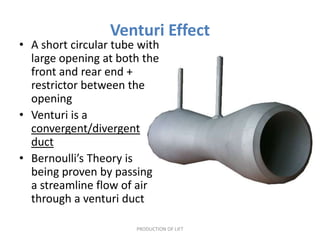

Venturi Effect
• A short circular tube with
  large opening at both the
  front and rear end +
  restrictor between the
  opening
• Venturi is a
  convergent/divergent
  duct
• Bernoulli’s Theory is
  being proven by passing
  a streamline flow of air
  through a venturi duct

                       PRODUCTION OF LIFT

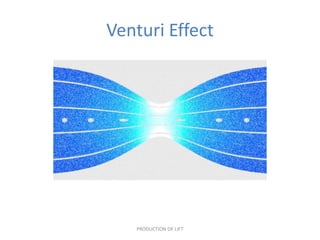

Venturi Effect

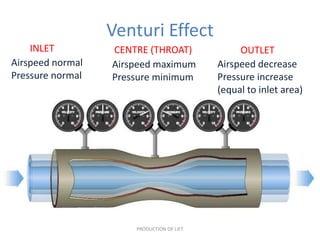

   PRODUCTION OF LIFT
Venturi Effect
    INLET         CENTRE (THROAT)               OUTLET
Airspeed normal   Airspeed maximum         Airspeed decrease
Pressure normal   Pressure minimum         Pressure increase
                                           (equal to inlet area)




                      PRODUCTION OF LIFT

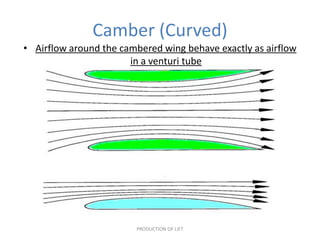

Camber (Curved)
• Airflow around the cambered wing behave exactly as airflow
                       in a venturi tube




                        PRODUCTION OF LIFT
Airflow on wing (Lift distribution)
              Increased Speed                Provide 70% of the wing’s Total Lift
              Decreased Speed
                                                  Decreased pressure
              70% of Total Lift




                                                  Increased pressure
                                             Providing 30% of the wing’s Total Lift
  Decreased Speed
  Increased Speed
  30% of Total Lift



                             PRODUCTION OF LIFT
STREAMLINED
 Streamline – shape or contour that presents a
  minimum resistance to the air
 A perfect streamlined form is similar to the top view
  of a fish
 Air flows around non-streamlined object  air swirls
  into eddies + streamline distorted  disappear
 Airstream becomes turbulent
 Streamline air appears as smooth parallel lines

• Smoke jets – introduce smoke into air  to observe
    and illustrate movement of air around object

                        STREAMLINED
Effect of Shapes on Streamlined Flow




               STREAMLINED

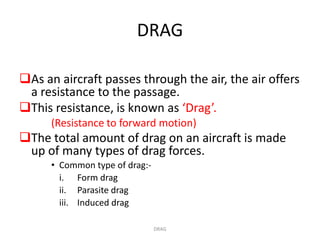

DRAG

As an aircraft passes through the air, the air offers
 a resistance to the passage.
This resistance, is known as ‘Drag’.
      (Resistance to forward motion)
The total amount of drag on an aircraft is made
 up of many types of drag forces.
      • Common type of drag:-
        i. Form drag
        ii. Parasite drag
        iii. Induced drag

                                DRAG

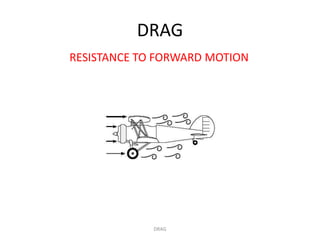

DRAG
RESISTANCE TO FORWARD MOTION




             DRAG

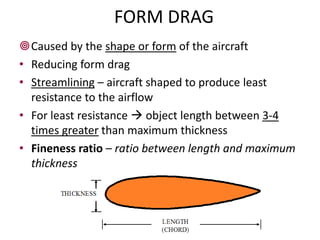

FORM DRAG
Caused by the shape or form of the aircraft
• Reducing form drag
• Streamlining – aircraft shaped to produce least
  resistance to the airflow
• For least resistance  object length between 3-4
  times greater than maximum thickness
• Fineness ratio – ratio between length and maximum
  thickness




                        DRAG

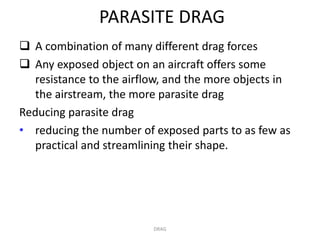

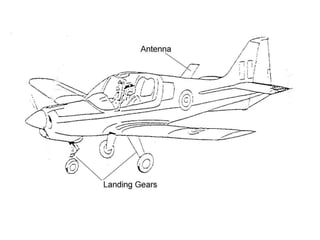

PARASITE DRAG
 A combination of many different drag forces
 Any exposed object on an aircraft offers some
  resistance to the airflow, and the more objects in
  the airstream, the more parasite drag
Reducing parasite drag
• reducing the number of exposed parts to as few as
  practical and streamlining their shape.




                         DRAG

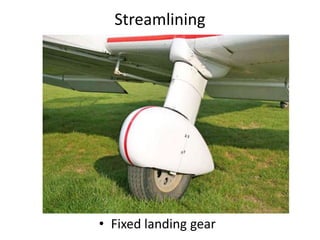

Streamlining




• Fixed landing gear

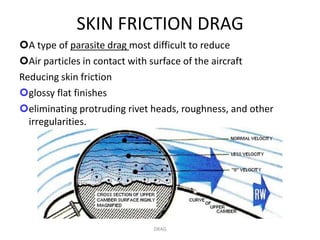

SKIN FRICTION DRAG
A type of parasite drag most difficult to reduce
Air particles in contact with surface of the aircraft
Reducing skin friction
glossy flat finishes
eliminating protruding rivet heads, roughness, and other
  irregularities.




                              DRAG

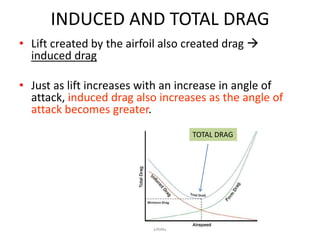

INDUCED AND TOTAL DRAG
• Lift created by the airfoil also created drag 
  induced drag

• Just as lift increases with an increase in angle of
  attack, induced drag also increases as the angle of
  attack becomes greater.
                                   TOTAL DRAG




                           DRAG

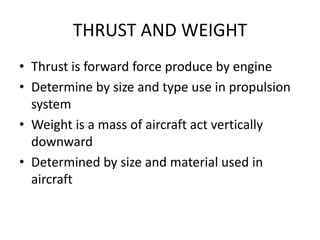

THRUST AND WEIGHT
• Thrust is forward force produce by engine
• Determine by size and type use in propulsion
  system
• Weight is a mass of aircraft act vertically
  downward
• Determined by size and material used in
  aircraft
FORCES ACTING ON AIRCRAFT IN
             THRUST    FLIGHT
• The aircraft’s propelling force              LIFT
• Arranged symmetrically to the                Acts at right angle to the line of
centre line                                    flight & through the Centre of
• Act parallel to the line of flight           Pressure of the wings




                                                             DRAG
                                                • Opposes the forward motion
         WEIGHT@ GRAVITY                        • Regarded as a rearward acting
         Acts vertically downwards through        force
         the Centre of Gravity

         FORCES ACTING ON AIRCRAFT IN FLIGHT

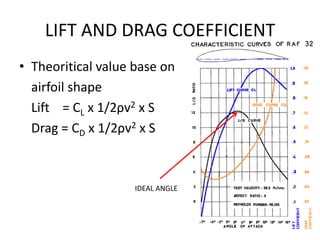

LIFT AND DRAG COEFFICIENT
• Theoritical value base on
  airfoil shape
  Lift = CL x 1/2ρv2 x S
  Drag = CD x 1/2ρv2 x S



                    IDEAL ANGLE
POLAR CURVE
• Drag Polar is the relationship between the lift
  and its drag interm on coefficeient
STALL

 ‘Sudden lost of lift’
i. Increase AOA – separation moves forward (turbulent)
     – Insufficient pressure drop on upper surface  no
       pressure differential to create lift
ii. Increase to higher AOA – excessive turbulence
     – Drag increase higher than lift created
 Critical Angle of Attack – airflow separate + turbulence
 Critical AOA = 15˚ and above


                             STALLING

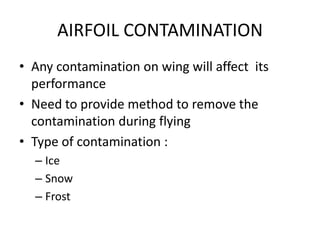

AIRFOIL CONTAMINATION
• Any contamination on wing will affect its
  performance
• Need to provide method to remove the
  contamination during flying
• Type of contamination :
  – Ice
  – Snow
  – Frost

More Related Content

What's hot

Basics on airfoils and lift generation
Basics on airfoils and lift generationBasics on airfoils and lift generation
Basics on airfoils and lift generationmayawwo

Aerodynamics flight force
Aerodynamics flight forceAerodynamics flight force
Aerodynamics flight forceRohiduzzaman7

Primary Flight Instruments | Flight Mechanics | GATE Aerospace
Primary Flight Instruments | Flight Mechanics | GATE AerospacePrimary Flight Instruments | Flight Mechanics | GATE Aerospace
Primary Flight Instruments | Flight Mechanics | GATE AerospaceAge of Aerospace

Flight Controls - Chapter 5
Flight Controls - Chapter 5Flight Controls - Chapter 5
Flight Controls - Chapter 5junio_oliveira

FM-Basics Topics Wise Solutions | Q & A | Flight Mechanics | GATE Aerospace
FM-Basics Topics Wise Solutions | Q & A | Flight Mechanics | GATE AerospaceFM-Basics Topics Wise Solutions | Q & A | Flight Mechanics | GATE Aerospace
FM-Basics Topics Wise Solutions | Q & A | Flight Mechanics | GATE AerospaceAge of Aerospace

Aircraft Systems and Instruments
Aircraft Systems and InstrumentsAircraft Systems and Instruments
Aircraft Systems and InstrumentsVarun Karthikeyan

Hydraulic System of Aircrafts
Hydraulic System of AircraftsHydraulic System of Aircrafts
Hydraulic System of Aircraftsalpha_sherdil

aircraft static and dynamic stability,longitudinal and lateral
 aircraft static and dynamic stability,longitudinal and lateral aircraft static and dynamic stability,longitudinal and lateral
aircraft static and dynamic stability,longitudinal and lateralJini Raj

Principles of flight
Principles of flightPrinciples of flight
Principles of flightThomas Bergen

Basic Aerodynamics and Flight Controls
Basic  Aerodynamics and Flight ControlsBasic  Aerodynamics and Flight Controls
Basic Aerodynamics and Flight ControlsKevin McNulty

Aircraft performance 2
Aircraft performance 2Aircraft performance 2
Aircraft performance 2Nazmul Alam

AE 8302 EOA MCQ QUESTIONS AND ANSWERS
AE 8302 EOA MCQ QUESTIONS AND ANSWERSAE 8302 EOA MCQ QUESTIONS AND ANSWERS
AE 8302 EOA MCQ QUESTIONS AND ANSWERSviswanath@viswa

Flight basics
Flight basicsFlight basics
Flight basicsSri Ramya

Weight & balance control
Weight & balance controlWeight & balance control
Weight & balance controlMohamed Tayfour

Angle of attack | Flight Mechanics | GATE Aerospace
Angle of attack | Flight Mechanics | GATE AerospaceAngle of attack | Flight Mechanics | GATE Aerospace
Angle of attack | Flight Mechanics | GATE AerospaceAge of Aerospace

Airplane (fixed wing aircraft) configuration and various parts | Flight Mecha...
Airplane (fixed wing aircraft) configuration and various parts | Flight Mecha...Airplane (fixed wing aircraft) configuration and various parts | Flight Mecha...
Airplane (fixed wing aircraft) configuration and various parts | Flight Mecha...Age of Aerospace


What's hot (20)

Basics on airfoils and lift generation
Basics on airfoils and lift generationBasics on airfoils and lift generation
Basics on airfoils and lift generation

Aircraft ctrl systems
Aircraft ctrl systemsAircraft ctrl systems
Aircraft ctrl systems

Aerodynamics flight force
Aerodynamics flight forceAerodynamics flight force
Aerodynamics flight force

Primary Flight Instruments | Flight Mechanics | GATE Aerospace
Primary Flight Instruments | Flight Mechanics | GATE AerospacePrimary Flight Instruments | Flight Mechanics | GATE Aerospace
Primary Flight Instruments | Flight Mechanics | GATE Aerospace

Flight Controls - Chapter 5
Flight Controls - Chapter 5Flight Controls - Chapter 5
Flight Controls - Chapter 5

FM-Basics Topics Wise Solutions | Q & A | Flight Mechanics | GATE Aerospace
FM-Basics Topics Wise Solutions | Q & A | Flight Mechanics | GATE AerospaceFM-Basics Topics Wise Solutions | Q & A | Flight Mechanics | GATE Aerospace
FM-Basics Topics Wise Solutions | Q & A | Flight Mechanics | GATE Aerospace

Aircraft Systems and Instruments
Aircraft Systems and InstrumentsAircraft Systems and Instruments
Aircraft Systems and Instruments

Hydraulic System of Aircrafts
Hydraulic System of AircraftsHydraulic System of Aircrafts
Hydraulic System of Aircrafts

Drag in aircrafts
Drag in aircraftsDrag in aircrafts
Drag in aircrafts

aircraft static and dynamic stability,longitudinal and lateral
 aircraft static and dynamic stability,longitudinal and lateral aircraft static and dynamic stability,longitudinal and lateral
aircraft static and dynamic stability,longitudinal and lateral

Principles of flight
Principles of flightPrinciples of flight
Principles of flight

Basic Aerodynamics and Flight Controls
Basic  Aerodynamics and Flight ControlsBasic  Aerodynamics and Flight Controls
Basic Aerodynamics and Flight Controls

Aircraft performance 2
Aircraft performance 2Aircraft performance 2
Aircraft performance 2

AE 8302 EOA MCQ QUESTIONS AND ANSWERS
AE 8302 EOA MCQ QUESTIONS AND ANSWERSAE 8302 EOA MCQ QUESTIONS AND ANSWERS
AE 8302 EOA MCQ QUESTIONS AND ANSWERS

Flight basics
Flight basicsFlight basics
Flight basics

Weight & balance control
Weight & balance controlWeight & balance control
Weight & balance control

Airfoil
AirfoilAirfoil
Airfoil

Angle of attack | Flight Mechanics | GATE Aerospace
Angle of attack | Flight Mechanics | GATE AerospaceAngle of attack | Flight Mechanics | GATE Aerospace
Angle of attack | Flight Mechanics | GATE Aerospace

Propeller
PropellerPropeller
Propeller

Airplane (fixed wing aircraft) configuration and various parts | Flight Mecha...
Airplane (fixed wing aircraft) configuration and various parts | Flight Mecha...Airplane (fixed wing aircraft) configuration and various parts | Flight Mecha...
Airplane (fixed wing aircraft) configuration and various parts | Flight Mecha...


Similar to Aerodynamics of Streamlining

CFD analysis of aerofoil
CFD analysis of aerofoilCFD analysis of aerofoil
CFD analysis of aerofoilNeel Thakkar

Lesson 2 basic aerodynamics
Lesson 2 basic aerodynamicsLesson 2 basic aerodynamics
Lesson 2 basic aerodynamicsHeather Howley

Unit I TYPES OF DRAGS
Unit I TYPES OF DRAGSUnit I TYPES OF DRAGS
Unit I TYPES OF DRAGSPradeep Kumar

AERODYNAMICS FORCES AND MOMENTS.ppt
AERODYNAMICS FORCES AND MOMENTS.pptAERODYNAMICS FORCES AND MOMENTS.ppt
AERODYNAMICS FORCES AND MOMENTS.ppttauraimamire

Aerodynamics of a_rotary_wing_type_aircraft
Aerodynamics of a_rotary_wing_type_aircraftAerodynamics of a_rotary_wing_type_aircraft
Aerodynamics of a_rotary_wing_type_aircraftdarshakb

Avb 2: Aerodynamics - CCPL G. Fleming
Avb 2: Aerodynamics - CCPL G. FlemingAvb 2: Aerodynamics - CCPL G. Fleming
Avb 2: Aerodynamics - CCPL G. Fleming715 Squadron

Materi Aircraft Lift Update Unsurya University
Materi Aircraft Lift  Update Unsurya UniversityMateri Aircraft Lift  Update Unsurya University
Materi Aircraft Lift Update Unsurya UniversityKrisnaBayu45

Third Year Mechanical Technical Paper Presentation
Third Year Mechanical Technical Paper Presentation Third Year Mechanical Technical Paper Presentation
Third Year Mechanical Technical Paper Presentation pkstanwar911

A Good Effect of Airfoil Design While Keeping Angle of Attack by 6 Degree
A Good Effect of Airfoil Design While Keeping Angle of Attack by 6 DegreeA Good Effect of Airfoil Design While Keeping Angle of Attack by 6 Degree
A Good Effect of Airfoil Design While Keeping Angle of Attack by 6 Degreepaperpublications3

Flow past and airfoil
Flow past and airfoilFlow past and airfoil
Flow past and airfoilPriyankaKg4

Mod2_Basic principles of flight.pdf
Mod2_Basic principles of flight.pdfMod2_Basic principles of flight.pdf
Mod2_Basic principles of flight.pdfParameshwarBanakar1

How aircraft fly and Component Parts of Aircraft and Engine
How aircraft fly and Component Parts of Aircraft and EngineHow aircraft fly and Component Parts of Aircraft and Engine
How aircraft fly and Component Parts of Aircraft and Enginemeiko

Principles of Flight_FINAL.pptx
Principles of Flight_FINAL.pptxPrinciples of Flight_FINAL.pptx
Principles of Flight_FINAL.pptxMiracle574616

Principles of Flight_FINAL.pptx
Principles of Flight_FINAL.pptxPrinciples of Flight_FINAL.pptx
Principles of Flight_FINAL.pptxMiracle574616


Similar to Aerodynamics of Streamlining (20)

CFD analysis of aerofoil
CFD analysis of aerofoilCFD analysis of aerofoil
CFD analysis of aerofoil

Lesson 2 basic aerodynamics
Lesson 2 basic aerodynamicsLesson 2 basic aerodynamics
Lesson 2 basic aerodynamics

Unit I TYPES OF DRAGS
Unit I TYPES OF DRAGSUnit I TYPES OF DRAGS
Unit I TYPES OF DRAGS

AERODYNAMICS FORCES AND MOMENTS.ppt
AERODYNAMICS FORCES AND MOMENTS.pptAERODYNAMICS FORCES AND MOMENTS.ppt
AERODYNAMICS FORCES AND MOMENTS.ppt

Aerodynamics of a_rotary_wing_type_aircraft
Aerodynamics of a_rotary_wing_type_aircraftAerodynamics of a_rotary_wing_type_aircraft
Aerodynamics of a_rotary_wing_type_aircraft

Avb 2: Aerodynamics - CCPL G. Fleming
Avb 2: Aerodynamics - CCPL G. FlemingAvb 2: Aerodynamics - CCPL G. Fleming
Avb 2: Aerodynamics - CCPL G. Fleming

Unit 1 Basic Aerodynamics ATPP 200
Unit 1 Basic Aerodynamics ATPP 200Unit 1 Basic Aerodynamics ATPP 200
Unit 1 Basic Aerodynamics ATPP 200

Class notes
Class notesClass notes
Class notes

Materi Aircraft Lift Update Unsurya University
Materi Aircraft Lift  Update Unsurya UniversityMateri Aircraft Lift  Update Unsurya University
Materi Aircraft Lift Update Unsurya University

Third Year Mechanical Technical Paper Presentation
Third Year Mechanical Technical Paper Presentation Third Year Mechanical Technical Paper Presentation
Third Year Mechanical Technical Paper Presentation

A Good Effect of Airfoil Design While Keeping Angle of Attack by 6 Degree
A Good Effect of Airfoil Design While Keeping Angle of Attack by 6 DegreeA Good Effect of Airfoil Design While Keeping Angle of Attack by 6 Degree
A Good Effect of Airfoil Design While Keeping Angle of Attack by 6 Degree

Drag 1.ppt
Drag 1.pptDrag 1.ppt
Drag 1.ppt

Flow past and airfoil
Flow past and airfoilFlow past and airfoil
Flow past and airfoil

Mod2_Basic principles of flight.pdf
Mod2_Basic principles of flight.pdfMod2_Basic principles of flight.pdf
Mod2_Basic principles of flight.pdf

Theory of flight midterm
Theory of flight midtermTheory of flight midterm
Theory of flight midterm

How aircraft fly and Component Parts of Aircraft and Engine
How aircraft fly and Component Parts of Aircraft and EngineHow aircraft fly and Component Parts of Aircraft and Engine
How aircraft fly and Component Parts of Aircraft and Engine

Principles of Flight_FINAL.pptx
Principles of Flight_FINAL.pptxPrinciples of Flight_FINAL.pptx
Principles of Flight_FINAL.pptx

Principles of Flight_FINAL.pptx
Principles of Flight_FINAL.pptxPrinciples of Flight_FINAL.pptx
Principles of Flight_FINAL.pptx

Fixed wing aircrafts
Fixed wing aircraftsFixed wing aircrafts
Fixed wing aircrafts

lift force
lift forcelift force
lift force


More from soulstalker

EASA PART 66 Module 15.10 : Lubrication Systems
EASA PART 66 Module 15.10 : Lubrication SystemsEASA PART 66 Module 15.10 : Lubrication Systems
EASA PART 66 Module 15.10 : Lubrication Systemssoulstalker

EASA Part 66 Module 15.8 : Bearings and Seals
EASA Part 66 Module 15.8 : Bearings and Seals EASA Part 66 Module 15.8 : Bearings and Seals
EASA Part 66 Module 15.8 : Bearings and Seals soulstalker

EASA Part 66 Module 15.7 : Exhausts
EASA Part 66 Module 15.7 : ExhaustsEASA Part 66 Module 15.7 : Exhausts
EASA Part 66 Module 15.7 : Exhaustssoulstalker

EASA Part 66 Module 15.6 : Turbine
EASA Part 66 Module 15.6 : TurbineEASA Part 66 Module 15.6 : Turbine
EASA Part 66 Module 15.6 : Turbinesoulstalker

EASA Part 66 Module 15.5 : Combustion Chamber
EASA Part 66 Module 15.5 : Combustion ChamberEASA Part 66 Module 15.5 : Combustion Chamber
EASA Part 66 Module 15.5 : Combustion Chambersoulstalker

EASA Part 66 Module 15.4 : Compressors
EASA Part 66 Module 15.4 : CompressorsEASA Part 66 Module 15.4 : Compressors
EASA Part 66 Module 15.4 : Compressorssoulstalker

EASA Part 66 Module 15.3 : Inlet
EASA Part 66 Module 15.3 : InletEASA Part 66 Module 15.3 : Inlet
EASA Part 66 Module 15.3 : Inletsoulstalker

EASA Part 66 Module 15.2 : Engine Performance
EASA Part 66 Module 15.2 : Engine PerformanceEASA Part 66 Module 15.2 : Engine Performance
EASA Part 66 Module 15.2 : Engine Performancesoulstalker

EASA Part 66 Module 15.1 : Fundamental
EASA Part 66 Module 15.1 : FundamentalEASA Part 66 Module 15.1 : Fundamental
EASA Part 66 Module 15.1 : Fundamentalsoulstalker

EASA PART-66 MODULE 5.15 : TYPICAL AIRCRAFT INSTRUMENT SYSTEMS
EASA PART-66 MODULE 5.15 : TYPICAL AIRCRAFT INSTRUMENT SYSTEMSEASA PART-66 MODULE 5.15 : TYPICAL AIRCRAFT INSTRUMENT SYSTEMS
EASA PART-66 MODULE 5.15 : TYPICAL AIRCRAFT INSTRUMENT SYSTEMSsoulstalker

EASA PART-66 MODULE 5.14 : ELECTROMAGNETIC ENVIRONMENT
EASA PART-66 MODULE 5.14 : ELECTROMAGNETIC ENVIRONMENTEASA PART-66 MODULE 5.14 : ELECTROMAGNETIC ENVIRONMENT
EASA PART-66 MODULE 5.14 : ELECTROMAGNETIC ENVIRONMENTsoulstalker

EASA PART-66 MODULE 5.12 : ELECTRONICS SENSITIVE DEVICES
EASA PART-66 MODULE 5.12 : ELECTRONICS SENSITIVE DEVICESEASA PART-66 MODULE 5.12 : ELECTRONICS SENSITIVE DEVICES
EASA PART-66 MODULE 5.12 : ELECTRONICS SENSITIVE DEVICESsoulstalker

EASA PART-66 MODULE 5.11 : ELECTRONIC DISPLAYS
EASA PART-66 MODULE 5.11 : ELECTRONIC DISPLAYSEASA PART-66 MODULE 5.11 : ELECTRONIC DISPLAYS
EASA PART-66 MODULE 5.11 : ELECTRONIC DISPLAYSsoulstalker

EASA PART-66 MODULE 5.4 : DATA BUSES
EASA PART-66 MODULE 5.4 : DATA BUSESEASA PART-66 MODULE 5.4 : DATA BUSES
EASA PART-66 MODULE 5.4 : DATA BUSESsoulstalker

EASA PART-66 MODULE 5.3 : DATA CONVERSION
EASA PART-66 MODULE 5.3 : DATA CONVERSIONEASA PART-66 MODULE 5.3 : DATA CONVERSION
EASA PART-66 MODULE 5.3 : DATA CONVERSIONsoulstalker

EASA PART 66 MODULE 5.1 : ELECTRONIC INSTRUMENT SYSTEMS
EASA PART 66 MODULE 5.1 : ELECTRONIC INSTRUMENT SYSTEMSEASA PART 66 MODULE 5.1 : ELECTRONIC INSTRUMENT SYSTEMS
EASA PART 66 MODULE 5.1 : ELECTRONIC INSTRUMENT SYSTEMSsoulstalker

EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : PhysicsEASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physicssoulstalker

EASA Part-66 Module 5.6 : Basic Computer Structure
EASA Part-66 Module  5.6 : Basic Computer StructureEASA Part-66 Module  5.6 : Basic Computer Structure
EASA Part-66 Module 5.6 : Basic Computer Structuresoulstalker

EASA Part 66 Module 5.13 : Software Management Control
EASA Part 66 Module 5.13 : Software Management ControlEASA Part 66 Module 5.13 : Software Management Control
EASA Part 66 Module 5.13 : Software Management Controlsoulstalker

EASA Part 66 Module 5.10 : Fibre Optic
EASA Part 66 Module 5.10 : Fibre OpticEASA Part 66 Module 5.10 : Fibre Optic
EASA Part 66 Module 5.10 : Fibre Opticsoulstalker


More from soulstalker (20)

EASA PART 66 Module 15.10 : Lubrication Systems
EASA PART 66 Module 15.10 : Lubrication SystemsEASA PART 66 Module 15.10 : Lubrication Systems
EASA PART 66 Module 15.10 : Lubrication Systems

EASA Part 66 Module 15.8 : Bearings and Seals
EASA Part 66 Module 15.8 : Bearings and Seals EASA Part 66 Module 15.8 : Bearings and Seals
EASA Part 66 Module 15.8 : Bearings and Seals

EASA Part 66 Module 15.7 : Exhausts
EASA Part 66 Module 15.7 : ExhaustsEASA Part 66 Module 15.7 : Exhausts
EASA Part 66 Module 15.7 : Exhausts

EASA Part 66 Module 15.6 : Turbine
EASA Part 66 Module 15.6 : TurbineEASA Part 66 Module 15.6 : Turbine
EASA Part 66 Module 15.6 : Turbine

EASA Part 66 Module 15.5 : Combustion Chamber
EASA Part 66 Module 15.5 : Combustion ChamberEASA Part 66 Module 15.5 : Combustion Chamber
EASA Part 66 Module 15.5 : Combustion Chamber

EASA Part 66 Module 15.4 : Compressors
EASA Part 66 Module 15.4 : CompressorsEASA Part 66 Module 15.4 : Compressors
EASA Part 66 Module 15.4 : Compressors

EASA Part 66 Module 15.3 : Inlet
EASA Part 66 Module 15.3 : InletEASA Part 66 Module 15.3 : Inlet
EASA Part 66 Module 15.3 : Inlet

EASA Part 66 Module 15.2 : Engine Performance
EASA Part 66 Module 15.2 : Engine PerformanceEASA Part 66 Module 15.2 : Engine Performance
EASA Part 66 Module 15.2 : Engine Performance

EASA Part 66 Module 15.1 : Fundamental
EASA Part 66 Module 15.1 : FundamentalEASA Part 66 Module 15.1 : Fundamental
EASA Part 66 Module 15.1 : Fundamental

EASA PART-66 MODULE 5.15 : TYPICAL AIRCRAFT INSTRUMENT SYSTEMS
EASA PART-66 MODULE 5.15 : TYPICAL AIRCRAFT INSTRUMENT SYSTEMSEASA PART-66 MODULE 5.15 : TYPICAL AIRCRAFT INSTRUMENT SYSTEMS
EASA PART-66 MODULE 5.15 : TYPICAL AIRCRAFT INSTRUMENT SYSTEMS

EASA PART-66 MODULE 5.14 : ELECTROMAGNETIC ENVIRONMENT
EASA PART-66 MODULE 5.14 : ELECTROMAGNETIC ENVIRONMENTEASA PART-66 MODULE 5.14 : ELECTROMAGNETIC ENVIRONMENT
EASA PART-66 MODULE 5.14 : ELECTROMAGNETIC ENVIRONMENT

EASA PART-66 MODULE 5.12 : ELECTRONICS SENSITIVE DEVICES
EASA PART-66 MODULE 5.12 : ELECTRONICS SENSITIVE DEVICESEASA PART-66 MODULE 5.12 : ELECTRONICS SENSITIVE DEVICES
EASA PART-66 MODULE 5.12 : ELECTRONICS SENSITIVE DEVICES

EASA PART-66 MODULE 5.11 : ELECTRONIC DISPLAYS
EASA PART-66 MODULE 5.11 : ELECTRONIC DISPLAYSEASA PART-66 MODULE 5.11 : ELECTRONIC DISPLAYS
EASA PART-66 MODULE 5.11 : ELECTRONIC DISPLAYS

EASA PART-66 MODULE 5.4 : DATA BUSES
EASA PART-66 MODULE 5.4 : DATA BUSESEASA PART-66 MODULE 5.4 : DATA BUSES
EASA PART-66 MODULE 5.4 : DATA BUSES

EASA PART-66 MODULE 5.3 : DATA CONVERSION
EASA PART-66 MODULE 5.3 : DATA CONVERSIONEASA PART-66 MODULE 5.3 : DATA CONVERSION
EASA PART-66 MODULE 5.3 : DATA CONVERSION

EASA PART 66 MODULE 5.1 : ELECTRONIC INSTRUMENT SYSTEMS
EASA PART 66 MODULE 5.1 : ELECTRONIC INSTRUMENT SYSTEMSEASA PART 66 MODULE 5.1 : ELECTRONIC INSTRUMENT SYSTEMS
EASA PART 66 MODULE 5.1 : ELECTRONIC INSTRUMENT SYSTEMS

EASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : PhysicsEASA PART 66 Module 2 : Physics
EASA PART 66 Module 2 : Physics

EASA Part-66 Module 5.6 : Basic Computer Structure
EASA Part-66 Module  5.6 : Basic Computer StructureEASA Part-66 Module  5.6 : Basic Computer Structure
EASA Part-66 Module 5.6 : Basic Computer Structure

EASA Part 66 Module 5.13 : Software Management Control
EASA Part 66 Module 5.13 : Software Management ControlEASA Part 66 Module 5.13 : Software Management Control
EASA Part 66 Module 5.13 : Software Management Control

EASA Part 66 Module 5.10 : Fibre Optic
EASA Part 66 Module 5.10 : Fibre OpticEASA Part 66 Module 5.10 : Fibre Optic
EASA Part 66 Module 5.10 : Fibre Optic


Recently uploaded

Healthy Minds, Flourishing Lives: A Philosophical Approach to Mental Health a...
Healthy Minds, Flourishing Lives: A Philosophical Approach to Mental Health a...Healthy Minds, Flourishing Lives: A Philosophical Approach to Mental Health a...
Healthy Minds, Flourishing Lives: A Philosophical Approach to Mental Health a...Osopher

DBMSArchitecture_QueryProcessingandOptimization.pdf
DBMSArchitecture_QueryProcessingandOptimization.pdfDBMSArchitecture_QueryProcessingandOptimization.pdf
DBMSArchitecture_QueryProcessingandOptimization.pdfChristalin Nelson

MS4 level being good citizen -imperative- (1) (1).pdf
MS4 level   being good citizen -imperative- (1) (1).pdfMS4 level   being good citizen -imperative- (1) (1).pdf
MS4 level being good citizen -imperative- (1) (1).pdfMr Bounab Samir

31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...
31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...
31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...Nguyen Thanh Tu Collection

Team Lead Succeed – Helping you and your team achieve high-performance teamwo...
Team Lead Succeed – Helping you and your team achieve high-performance teamwo...Team Lead Succeed – Helping you and your team achieve high-performance teamwo...
Team Lead Succeed – Helping you and your team achieve high-performance teamwo...Association for Project Management

Indexing Structures in Database Management system.pdf
Indexing Structures in Database Management system.pdfIndexing Structures in Database Management system.pdf
Indexing Structures in Database Management system.pdfChristalin Nelson

DiskStorage_BasicFileStructuresandHashing.pdf
DiskStorage_BasicFileStructuresandHashing.pdfDiskStorage_BasicFileStructuresandHashing.pdf
DiskStorage_BasicFileStructuresandHashing.pdfChristalin Nelson

Scientific Writing :Research Discourse
Scientific  Writing :Research  DiscourseScientific  Writing :Research  Discourse
Scientific Writing :Research DiscourseAnita GoswamiGiri

Q-Factor General Quiz-7th April 2024, Quiz Club NITW
Q-Factor General Quiz-7th April 2024, Quiz Club NITWQ-Factor General Quiz-7th April 2024, Quiz Club NITW
Q-Factor General Quiz-7th April 2024, Quiz Club NITWQuiz Club NITW

Unraveling Hypertext_ Analyzing Postmodern Elements in Literature.pptx
Unraveling Hypertext_ Analyzing  Postmodern Elements in  Literature.pptxUnraveling Hypertext_ Analyzing  Postmodern Elements in  Literature.pptx
Unraveling Hypertext_ Analyzing Postmodern Elements in Literature.pptxDhatriParmar

Mythology Quiz-4th April 2024, Quiz Club NITW
Mythology Quiz-4th April 2024, Quiz Club NITWMythology Quiz-4th April 2024, Quiz Club NITW
Mythology Quiz-4th April 2024, Quiz Club NITWQuiz Club NITW

PART 1 - CHAPTER 1 - CELL THE FUNDAMENTAL UNIT OF LIFE
PART 1 - CHAPTER 1 - CELL THE FUNDAMENTAL UNIT OF LIFEPART 1 - CHAPTER 1 - CELL THE FUNDAMENTAL UNIT OF LIFE
PART 1 - CHAPTER 1 - CELL THE FUNDAMENTAL UNIT OF LIFEMISSRITIMABIOLOGYEXP

CLASSIFICATION OF ANTI - CANCER DRUGS.pptx
CLASSIFICATION OF ANTI - CANCER DRUGS.pptxCLASSIFICATION OF ANTI - CANCER DRUGS.pptx
CLASSIFICATION OF ANTI - CANCER DRUGS.pptxAnupam32727

CHUYÊN ĐỀ ÔN THEO CÂU CHO HỌC SINH LỚP 12 ĐỂ ĐẠT ĐIỂM 5+ THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN THEO CÂU CHO HỌC SINH LỚP 12 ĐỂ ĐẠT ĐIỂM 5+ THI TỐT NGHIỆP THPT ...CHUYÊN ĐỀ ÔN THEO CÂU CHO HỌC SINH LỚP 12 ĐỂ ĐẠT ĐIỂM 5+ THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN THEO CÂU CHO HỌC SINH LỚP 12 ĐỂ ĐẠT ĐIỂM 5+ THI TỐT NGHIỆP THPT ...Nguyen Thanh Tu Collection

BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx
BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptxBIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx
BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptxSayali Powar


Recently uploaded (20)

Healthy Minds, Flourishing Lives: A Philosophical Approach to Mental Health a...
Healthy Minds, Flourishing Lives: A Philosophical Approach to Mental Health a...Healthy Minds, Flourishing Lives: A Philosophical Approach to Mental Health a...
Healthy Minds, Flourishing Lives: A Philosophical Approach to Mental Health a...

DBMSArchitecture_QueryProcessingandOptimization.pdf
DBMSArchitecture_QueryProcessingandOptimization.pdfDBMSArchitecture_QueryProcessingandOptimization.pdf
DBMSArchitecture_QueryProcessingandOptimization.pdf

MS4 level being good citizen -imperative- (1) (1).pdf
MS4 level   being good citizen -imperative- (1) (1).pdfMS4 level   being good citizen -imperative- (1) (1).pdf
MS4 level being good citizen -imperative- (1) (1).pdf

Chi-Square Test Non Parametric Test Categorical Variable
Chi-Square Test Non Parametric Test Categorical VariableChi-Square Test Non Parametric Test Categorical Variable
Chi-Square Test Non Parametric Test Categorical Variable

Plagiarism,forms,understand about plagiarism,avoid plagiarism,key significanc...
Plagiarism,forms,understand about plagiarism,avoid plagiarism,key significanc...Plagiarism,forms,understand about plagiarism,avoid plagiarism,key significanc...
Plagiarism,forms,understand about plagiarism,avoid plagiarism,key significanc...

31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...
31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...
31 ĐỀ THI THỬ VÀO LỚP 10 - TIẾNG ANH - FORM MỚI 2025 - 40 CÂU HỎI - BÙI VĂN V...

Team Lead Succeed – Helping you and your team achieve high-performance teamwo...
Team Lead Succeed – Helping you and your team achieve high-performance teamwo...Team Lead Succeed – Helping you and your team achieve high-performance teamwo...
Team Lead Succeed – Helping you and your team achieve high-performance teamwo...

Indexing Structures in Database Management system.pdf
Indexing Structures in Database Management system.pdfIndexing Structures in Database Management system.pdf
Indexing Structures in Database Management system.pdf

DiskStorage_BasicFileStructuresandHashing.pdf
DiskStorage_BasicFileStructuresandHashing.pdfDiskStorage_BasicFileStructuresandHashing.pdf
DiskStorage_BasicFileStructuresandHashing.pdf

Scientific Writing :Research Discourse
Scientific  Writing :Research  DiscourseScientific  Writing :Research  Discourse
Scientific Writing :Research Discourse

Q-Factor General Quiz-7th April 2024, Quiz Club NITW
Q-Factor General Quiz-7th April 2024, Quiz Club NITWQ-Factor General Quiz-7th April 2024, Quiz Club NITW
Q-Factor General Quiz-7th April 2024, Quiz Club NITW

Paradigm shift in nursing research by RS MEHTA
Paradigm shift in nursing research by RS MEHTAParadigm shift in nursing research by RS MEHTA
Paradigm shift in nursing research by RS MEHTA

Unraveling Hypertext_ Analyzing Postmodern Elements in Literature.pptx
Unraveling Hypertext_ Analyzing  Postmodern Elements in  Literature.pptxUnraveling Hypertext_ Analyzing  Postmodern Elements in  Literature.pptx
Unraveling Hypertext_ Analyzing Postmodern Elements in Literature.pptx

Introduction to Research ,Need for research, Need for design of Experiments, ...
Introduction to Research ,Need for research, Need for design of Experiments, ...Introduction to Research ,Need for research, Need for design of Experiments, ...
Introduction to Research ,Need for research, Need for design of Experiments, ...

Mythology Quiz-4th April 2024, Quiz Club NITW
Mythology Quiz-4th April 2024, Quiz Club NITWMythology Quiz-4th April 2024, Quiz Club NITW
Mythology Quiz-4th April 2024, Quiz Club NITW

PART 1 - CHAPTER 1 - CELL THE FUNDAMENTAL UNIT OF LIFE
PART 1 - CHAPTER 1 - CELL THE FUNDAMENTAL UNIT OF LIFEPART 1 - CHAPTER 1 - CELL THE FUNDAMENTAL UNIT OF LIFE
PART 1 - CHAPTER 1 - CELL THE FUNDAMENTAL UNIT OF LIFE

CLASSIFICATION OF ANTI - CANCER DRUGS.pptx
CLASSIFICATION OF ANTI - CANCER DRUGS.pptxCLASSIFICATION OF ANTI - CANCER DRUGS.pptx
CLASSIFICATION OF ANTI - CANCER DRUGS.pptx

CHUYÊN ĐỀ ÔN THEO CÂU CHO HỌC SINH LỚP 12 ĐỂ ĐẠT ĐIỂM 5+ THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN THEO CÂU CHO HỌC SINH LỚP 12 ĐỂ ĐẠT ĐIỂM 5+ THI TỐT NGHIỆP THPT ...CHUYÊN ĐỀ ÔN THEO CÂU CHO HỌC SINH LỚP 12 ĐỂ ĐẠT ĐIỂM 5+ THI TỐT NGHIỆP THPT ...
CHUYÊN ĐỀ ÔN THEO CÂU CHO HỌC SINH LỚP 12 ĐỂ ĐẠT ĐIỂM 5+ THI TỐT NGHIỆP THPT ...

Mattingly "AI & Prompt Design" - Introduction to Machine Learning"
Mattingly "AI & Prompt Design" - Introduction to Machine Learning"Mattingly "AI & Prompt Design" - Introduction to Machine Learning"
Mattingly "AI & Prompt Design" - Introduction to Machine Learning"

BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx
BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptxBIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx
BIOCHEMISTRY-CARBOHYDRATE METABOLISM CHAPTER 2.pptx


Aerodynamics of Streamlining

  • 1. 8.2 AERODYNAMICS www.part66.blogspot.com
  • 2. Effect of Shapes on Streamlined Flow (a) Flat Plate 100% Resistance (b) Sphere 50% Resistance (c) Ovoid 15% Resistance (d) Streamlined 5% Resistance STREAMLINED
  • 3. Boundary Layer Unaffected airflow Each layer experience retardation until some distance away from surface Next layer slowed down but not stop Airflow nearest the surface come to rest STREAMLINED
  • 4. Boundary Layer STREAMLINED
  • 5. Separation and turbulence at various AOA STALLING
  • 7. Airfoil Shape  Symmetrical – no lift at zero angle of attack  Asymmetrical – lift created even at small angle of attack AIRFOIL
  • 8. Airfoil Shape • Medium and high speed aircraft – much less curvature  lift comes from their additional speed through the air. • Low speed aircraft – cambered  not for high speed (excess lift as well as drag) AIRFOIL
  • 9. CAMBER (CURVE) • Camber  curvature of an aerofoil (wing) above and below the chord line Camber (curvature) of an aerofoil PRODUCTION OF LIFT
  • 10. AIRFOIL @ AEROFOIL • Any surface which produces a reaction (lift) as air passes over it • The airfoil should provide this reaction (lift), whilst having a shape which presents the least possible resistance, or drag, to its passage through air AIRFOIL
  • 11. T/C AND FINENESS RATIO Thicness/Chord ratio = CD AB
  • 12. MEAN AERODYNAMIC CHORD • Average distance between leading and trailing edge of wing • Mean chord = Wing Area Wing Span
  • 13. ANGLE OF ATTACK • The acute angle formed between the relative wind striking an airfoil and the chord line. • Increasing the angle from zero degree to a maximum (between 15 degrees and 18 degrees) will increase lift, but will also increases drag. CENTER OF PRESSURE
  • 14. ANGLE OF INCIDENCE o Angle formed by the intersection of the wing chord line and the horizontal plane or longitudinal axis of aircraft o Positive Angle of Incidence (AOI) – leading edge higher than trailing edge o Correct AOI  low drag + longitudinal stability o ‘Wash out’ – higher AOI at wing root than at wing tip o ‘Wash in’ – higher AOI at wing tip than at wing root ANGLE OF INCIDENCE
  • 15. WASH IN AND OUT • Wash in : – Angle of incident increase from root to tip – Tip will stall 1st • Wash out : – Angle of incident decrease from root tip – Root will stall 1st
  • 16. CENTER OF PRESSURE (c.p)  The position whereby the resultant force (lift) cuts through chord line and considered to act Total Lift  Shape of airfoil and angle of attack influence the c.p Position of lines denotes location and direction direction of lift Length of line denote magnitude of lift Direction of airflow Center of Pressure CENTER OF PRESSURE
  • 17. CENTER OF PRESSURE (c.p) o Position of c.p varies during flight as the angle of attack (AOA) altered a. Increase AOA – c.p moves forward b. Decrease AOA – c.p moves backward o In normal flight the AOA usually between 2˚ and 4˚ (seldom below 0˚ or above 16˚) Small AOA Medium AOA Large AOA Nose Heavy Balance OF PRESSURE CENTER Flight Tail Heavy
  • 19. ASPECT RATIO • Ratio of aircraft wingspan to its mean chord length
  • 20. PRODUCTION OF LIFT  To keep flying  aircraft must produce a force equal to its own weight  Greater force – to lift the aircraft from the ground  Force (lift) is provided by the wing  The production of lift is based on Bernoulli’s theory PRODUCTION OF LIFT
  • 22. Bernoulli’s theorem • Air velocity increase – the pressure decreases (and vice versa) • The total energy of a moving fluid is made up of three forms of energy:  Potential Energy – due to height or position  Kinetic Energy – due to motion  Pressure Energy – due to pressure • In a streamline flow of an ideal fluid, the sum of all those energy is constant Potential + Kinetic + Pressure = Constant PRODUCTION OF LIFT
  • 23. Venturi Effect • A short circular tube with large opening at both the front and rear end + restrictor between the opening • Venturi is a convergent/divergent duct • Bernoulli’s Theory is being proven by passing a streamline flow of air through a venturi duct PRODUCTION OF LIFT
  • 24. Venturi Effect PRODUCTION OF LIFT
  • 25. Venturi Effect INLET CENTRE (THROAT) OUTLET Airspeed normal Airspeed maximum Airspeed decrease Pressure normal Pressure minimum Pressure increase (equal to inlet area) PRODUCTION OF LIFT
  • 26. Camber (Curved) • Airflow around the cambered wing behave exactly as airflow in a venturi tube PRODUCTION OF LIFT
  • 27. Airflow on wing (Lift distribution) Increased Speed Provide 70% of the wing’s Total Lift Decreased Speed Decreased pressure 70% of Total Lift Increased pressure Providing 30% of the wing’s Total Lift Decreased Speed Increased Speed 30% of Total Lift PRODUCTION OF LIFT
  • 28. STREAMLINED  Streamline – shape or contour that presents a minimum resistance to the air  A perfect streamlined form is similar to the top view of a fish  Air flows around non-streamlined object  air swirls into eddies + streamline distorted  disappear  Airstream becomes turbulent  Streamline air appears as smooth parallel lines • Smoke jets – introduce smoke into air  to observe and illustrate movement of air around object STREAMLINED
  • 29. Effect of Shapes on Streamlined Flow STREAMLINED
  • 30. DRAG As an aircraft passes through the air, the air offers a resistance to the passage. This resistance, is known as ‘Drag’. (Resistance to forward motion) The total amount of drag on an aircraft is made up of many types of drag forces. • Common type of drag:- i. Form drag ii. Parasite drag iii. Induced drag DRAG
  • 32. FORM DRAG Caused by the shape or form of the aircraft • Reducing form drag • Streamlining – aircraft shaped to produce least resistance to the airflow • For least resistance  object length between 3-4 times greater than maximum thickness • Fineness ratio – ratio between length and maximum thickness DRAG
  • 33. PARASITE DRAG  A combination of many different drag forces  Any exposed object on an aircraft offers some resistance to the airflow, and the more objects in the airstream, the more parasite drag Reducing parasite drag • reducing the number of exposed parts to as few as practical and streamlining their shape. DRAG
  • 34.
  • 36. SKIN FRICTION DRAG A type of parasite drag most difficult to reduce Air particles in contact with surface of the aircraft Reducing skin friction glossy flat finishes eliminating protruding rivet heads, roughness, and other irregularities. DRAG
  • 37. INDUCED AND TOTAL DRAG • Lift created by the airfoil also created drag  induced drag • Just as lift increases with an increase in angle of attack, induced drag also increases as the angle of attack becomes greater. TOTAL DRAG DRAG
  • 38. THRUST AND WEIGHT • Thrust is forward force produce by engine • Determine by size and type use in propulsion system • Weight is a mass of aircraft act vertically downward • Determined by size and material used in aircraft
  • 39. FORCES ACTING ON AIRCRAFT IN THRUST FLIGHT • The aircraft’s propelling force LIFT • Arranged symmetrically to the Acts at right angle to the line of centre line flight & through the Centre of • Act parallel to the line of flight Pressure of the wings DRAG • Opposes the forward motion WEIGHT@ GRAVITY • Regarded as a rearward acting Acts vertically downwards through force the Centre of Gravity FORCES ACTING ON AIRCRAFT IN FLIGHT
  • 40. LIFT AND DRAG COEFFICIENT • Theoritical value base on airfoil shape Lift = CL x 1/2ρv2 x S Drag = CD x 1/2ρv2 x S IDEAL ANGLE
  • 41. POLAR CURVE • Drag Polar is the relationship between the lift and its drag interm on coefficeient
  • 42. STALL  ‘Sudden lost of lift’ i. Increase AOA – separation moves forward (turbulent) – Insufficient pressure drop on upper surface  no pressure differential to create lift ii. Increase to higher AOA – excessive turbulence – Drag increase higher than lift created  Critical Angle of Attack – airflow separate + turbulence  Critical AOA = 15˚ and above STALLING
  • 43. AIRFOIL CONTAMINATION • Any contamination on wing will affect its performance • Need to provide method to remove the contamination during flying • Type of contamination : – Ice – Snow – Frost
