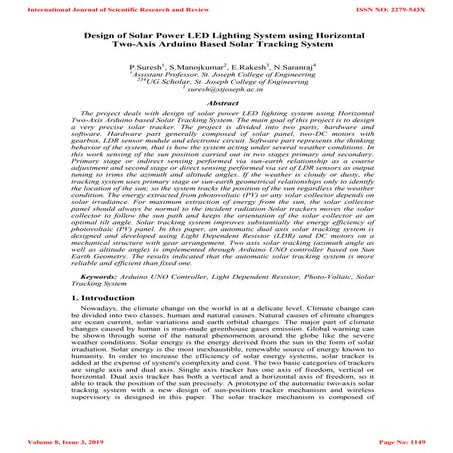

The project deals with design of solar power LED lighting system using Horizontal
Two-Axis Arduino based Solar Tracking System. The main goal of this project is to design
a very precise solar tracker. The project is divided into two parts; hardware and
software. Hardware part generally composed of solar panel, two-DC motors with
gearbox, LDR sensor module and electronic circuit. Software part represents the thinking
behavior of the system, that is how the system acting under several weather conditions. In
this work sensing of the sun position carried out in two stages primary and secondary.
Primary stage or indirect sensing performed via sun-earth relationship as a coarse
adjustment and second stage or direct sensing performed via set of LDR sensors as output
tuning to trims the azimuth and altitude angles. If the weather is cloudy or dusty, the
tracking system uses primary stage or sun-earth geometrical relationships only to identify
the location of the sun; so the system tracks the position of the sun regardless the weather
condition. The energy extracted from photovoltaic (PV) or any solar collector depends on
solar irradiance. For maximum extraction of energy from the sun, the solar collector
panel should always be normal to the incident radiation Solar trackers moves the solar
collector to follow the sun path and keeps the orientation of the solar collector at an
optimal tilt angle. Solar tracking system improves substantially the energy efficiency of
photovoltaic (PV) panel. In this paper, an automatic dual axis solar tracking system is
designed and developed using Light Dependent Resistor (LDR) and DC motors on a
mechanical structure with gear arrangement. Two axis solar tracking (azimuth angle as
well as altitude angle) is implemented through Arduino UNO controller based on Sun
Earth Geometry. The results indicated that the automatic solar tracking system is more
reliable and efficient than fixed one.
The Indian economy is classified into different sectors to simplify the analysis and understanding of economic activities. For Class 10, it's essential to grasp the sectors of the Indian economy, understand their characteristics, and recognize their importance. This guide will provide detailed notes on the Sectors of the Indian Economy Class 10, using specific long-tail keywords to enhance comprehension.
For more information, visit-www.vavaclasses.com
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
How to Split Bills in the Odoo 17 POS ModuleCeline George
Bills have a main role in point of sale procedure. It will help to track sales, handling payments and giving receipts to customers. Bill splitting also has an important role in POS. For example, If some friends come together for dinner and if they want to divide the bill then it is possible by POS bill splitting. This slide will show how to split bills in odoo 17 POS.
Operation “Blue Star” is the only event in the history of Independent India where the state went into war with its own people. Even after about 40 years it is not clear if it was culmination of states anger over people of the region, a political game of power or start of dictatorial chapter in the democratic setup.
The people of Punjab felt alienated from main stream due to denial of their just demands during a long democratic struggle since independence. As it happen all over the word, it led to militant struggle with great loss of lives of military, police and civilian personnel. Killing of Indira Gandhi and massacre of innocent Sikhs in Delhi and other India cities was also associated with this movement.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
We all have good and bad thoughts from time to time and situation to situation. We are bombarded daily with spiraling thoughts(both negative and positive) creating all-consuming feel , making us difficult to manage with associated suffering. Good thoughts are like our Mob Signal (Positive thought) amidst noise(negative thought) in the atmosphere. Negative thoughts like noise outweigh positive thoughts. These thoughts often create unwanted confusion, trouble, stress and frustration in our mind as well as chaos in our physical world. Negative thoughts are also known as “distorted thinking”.
1. DUAL AXIS SOLAR
TRACKER USING ARDUINO
Submitted to: - Submitted by: -
Mr. Vaibhav Sharma Mr. Swetansh M.
Shrivastava
ELECTRONICS & COMMUNICATION
RAJ KUMAR GOEL INSTITUTE OF TECHNOLOGY

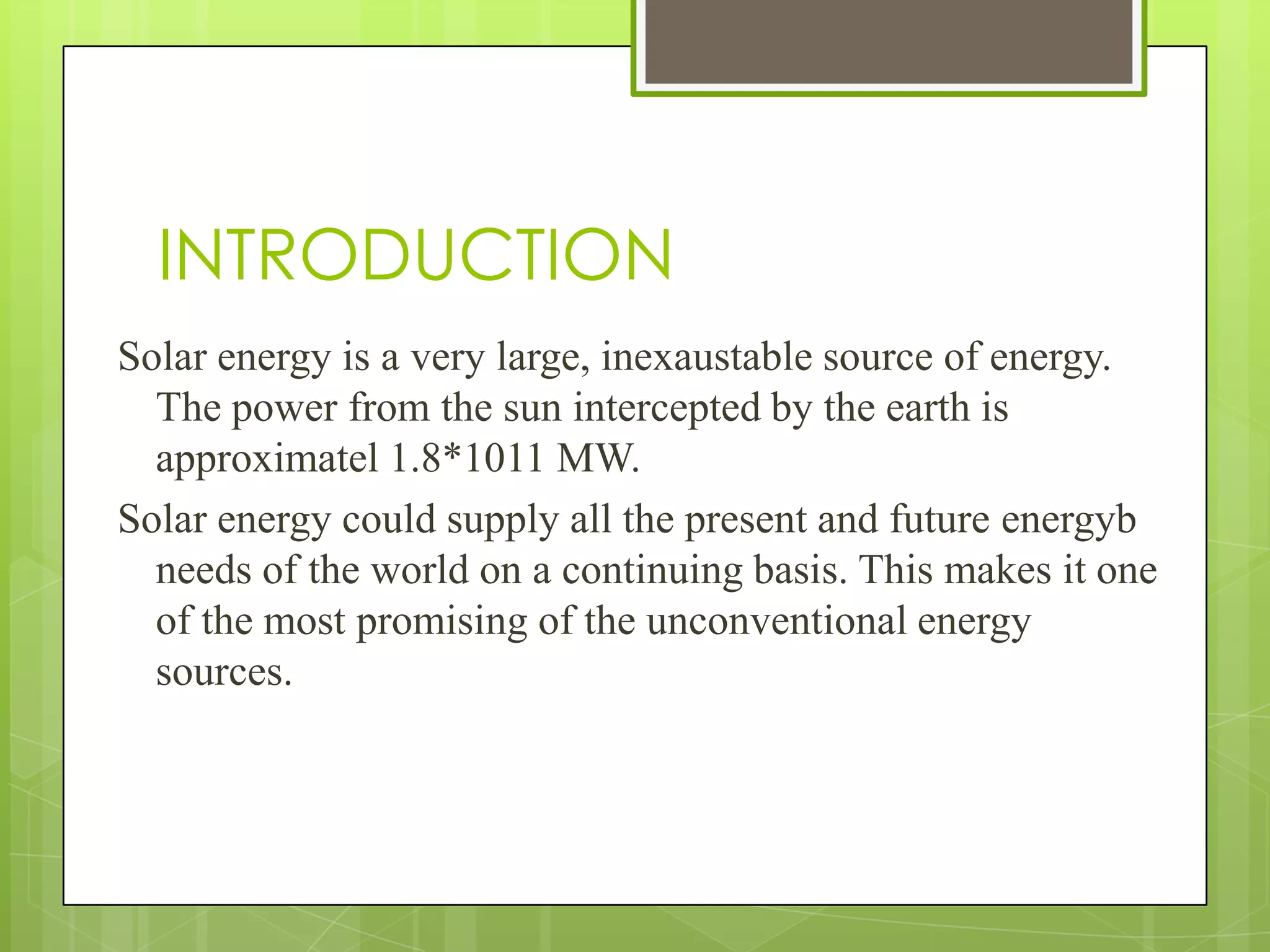

3. INTRODUCTION
Solar energy is a very large, inexaustable source of energy.
The power from the sun intercepted by the earth is
approximatel 1.8*1011 MW.
Solar energy could supply all the present and future energyb
needs of the world on a continuing basis. This makes it one
of the most promising of the unconventional energy
sources.

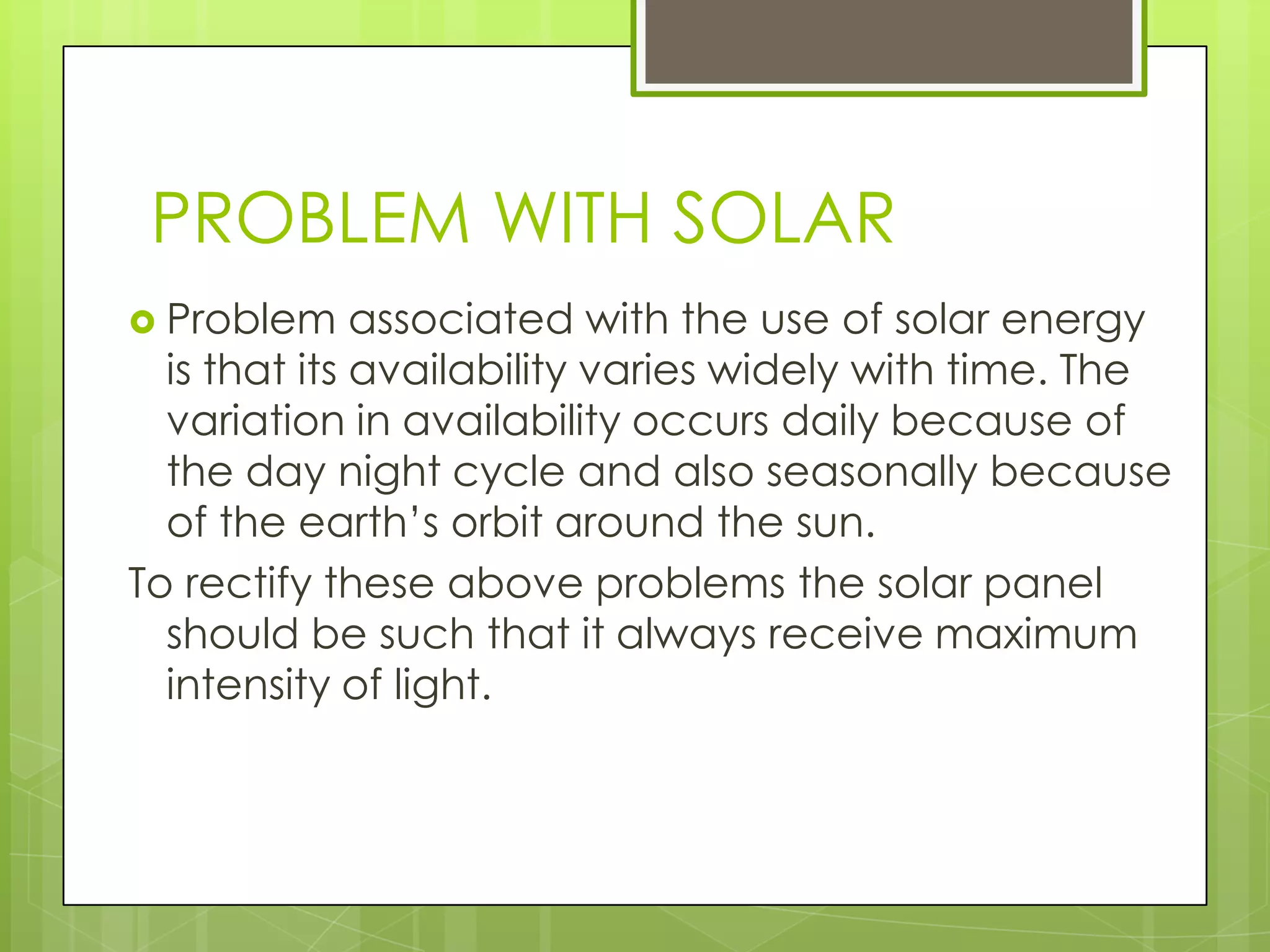

4. PROBLEM WITH SOLAR
Problem associated with the use of solar energy
is that its availability varies widely with time. The
variation in availability occurs daily because of
the day night cycle and also seasonally because
of the earth’s orbit around the sun.
To rectify these above problems the solar panel
should be such that it always receive maximum
intensity of light.
5. INTRODUCTION
Solar Tracker: -
Solar trackers are devices used to orient photovoltaic
panels, reflectors, lenses or other optical devices toward the
sun.
Since the sun’s position in the sky changes with the seasons
and the time of day, trackers are used to align the collection
system to maximize energy production.

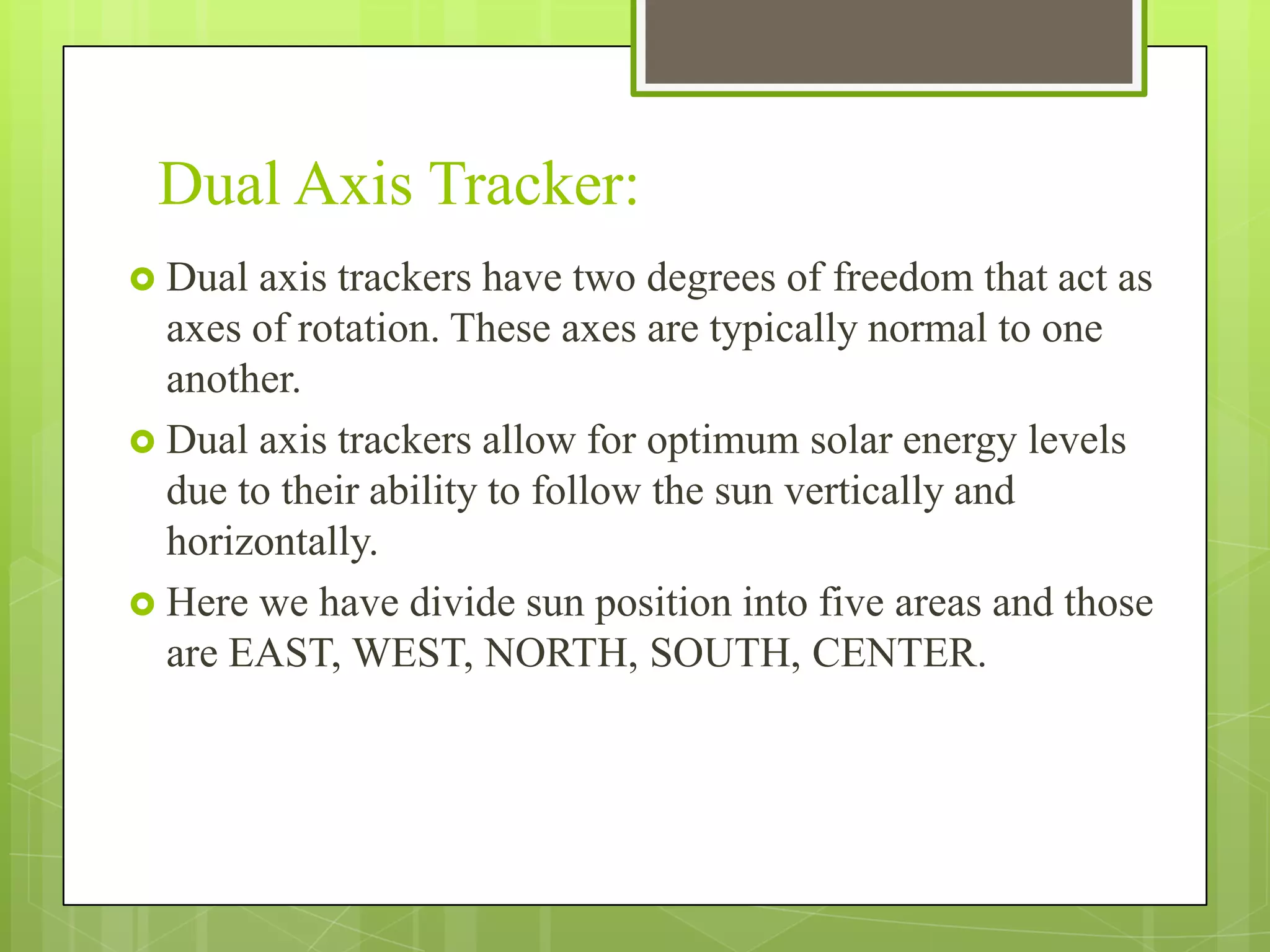

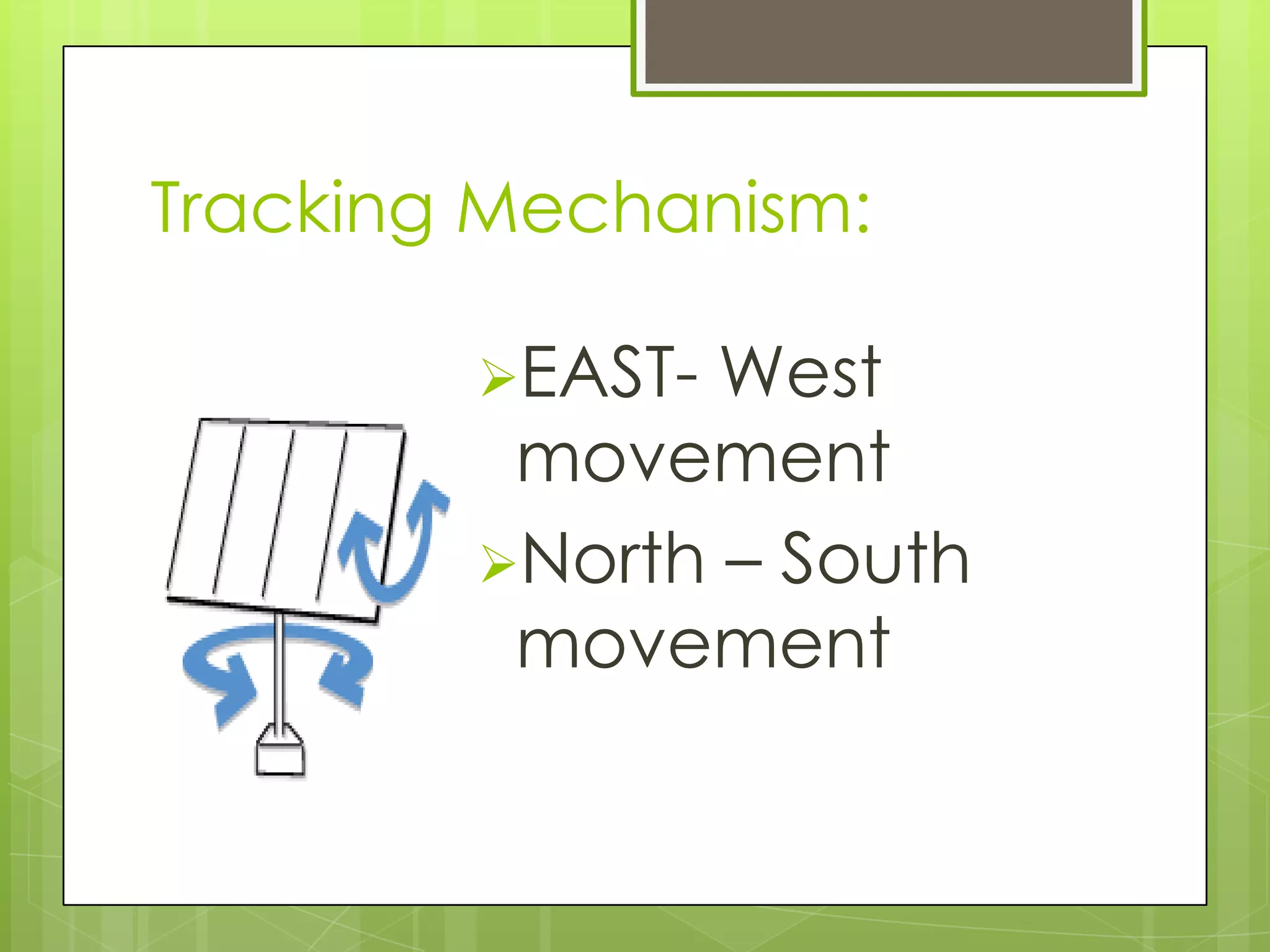

6. Dual Axis Tracker:
Dual axis trackers have two degrees of freedom that act as
axes of rotation. These axes are typically normal to one
another.
Dual axis trackers allow for optimum solar energy levels
due to their ability to follow the sun vertically and
horizontally.
Here we have divide sun position into five areas and those
are EAST, WEST, NORTH, SOUTH, CENTER.

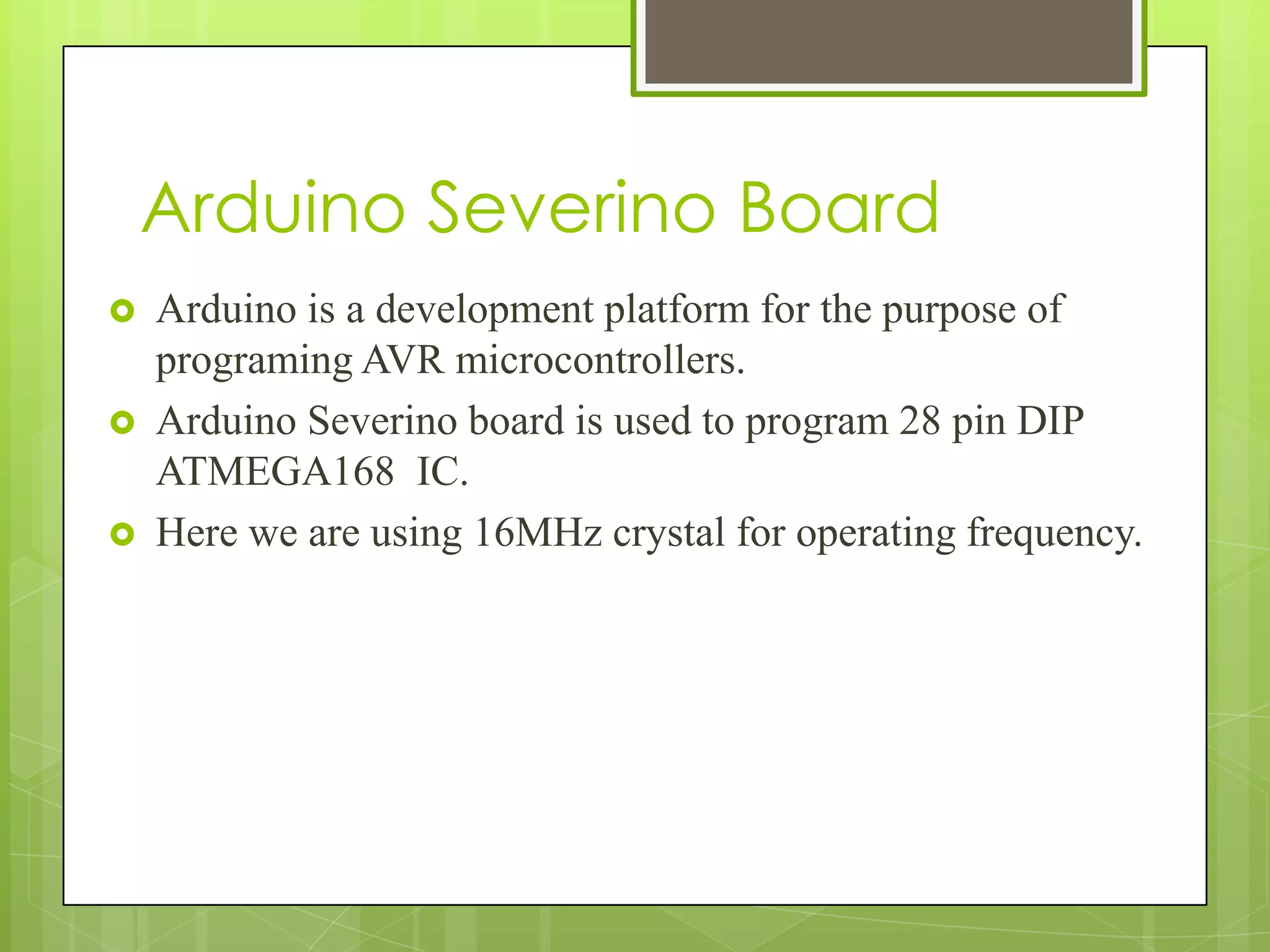

7. Arduino Severino Board
Arduino is a development platform for the purpose of
programing AVR microcontrollers.
Arduino Severino board is used to program 28 pin DIP
ATMEGA168 IC.
Here we are using 16MHz crystal for operating frequency.

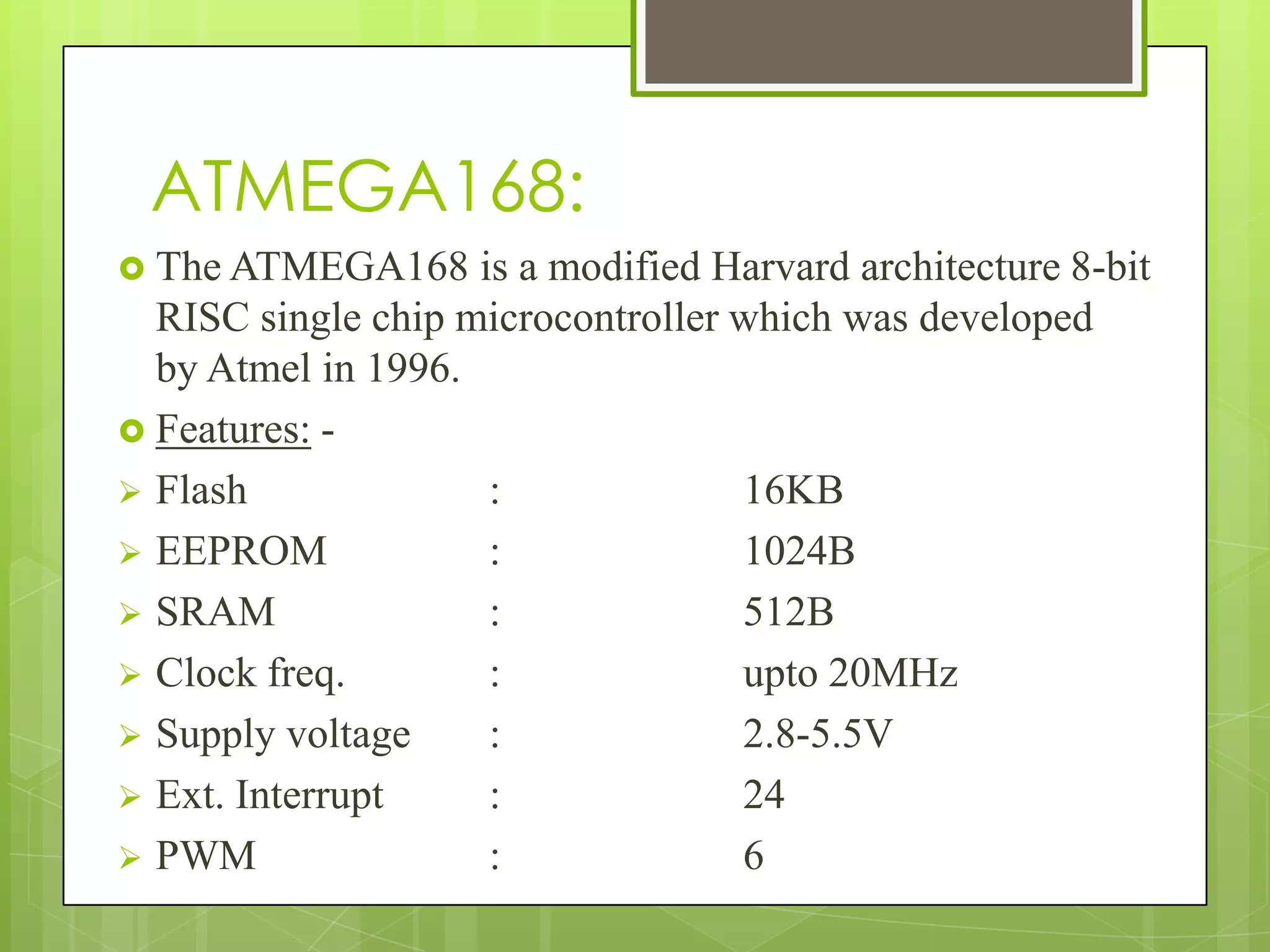

9. ATMEGA168:
The ATMEGA168 is a modified Harvard architecture 8-bit
RISC single chip microcontroller which was developed
by Atmel in 1996.
Features: -
Flash : 16KB
EEPROM : 1024B
SRAM : 512B
Clock freq. : upto 20MHz
Supply voltage : 2.8-5.5V
Ext. Interrupt : 24
PWM : 6
10.

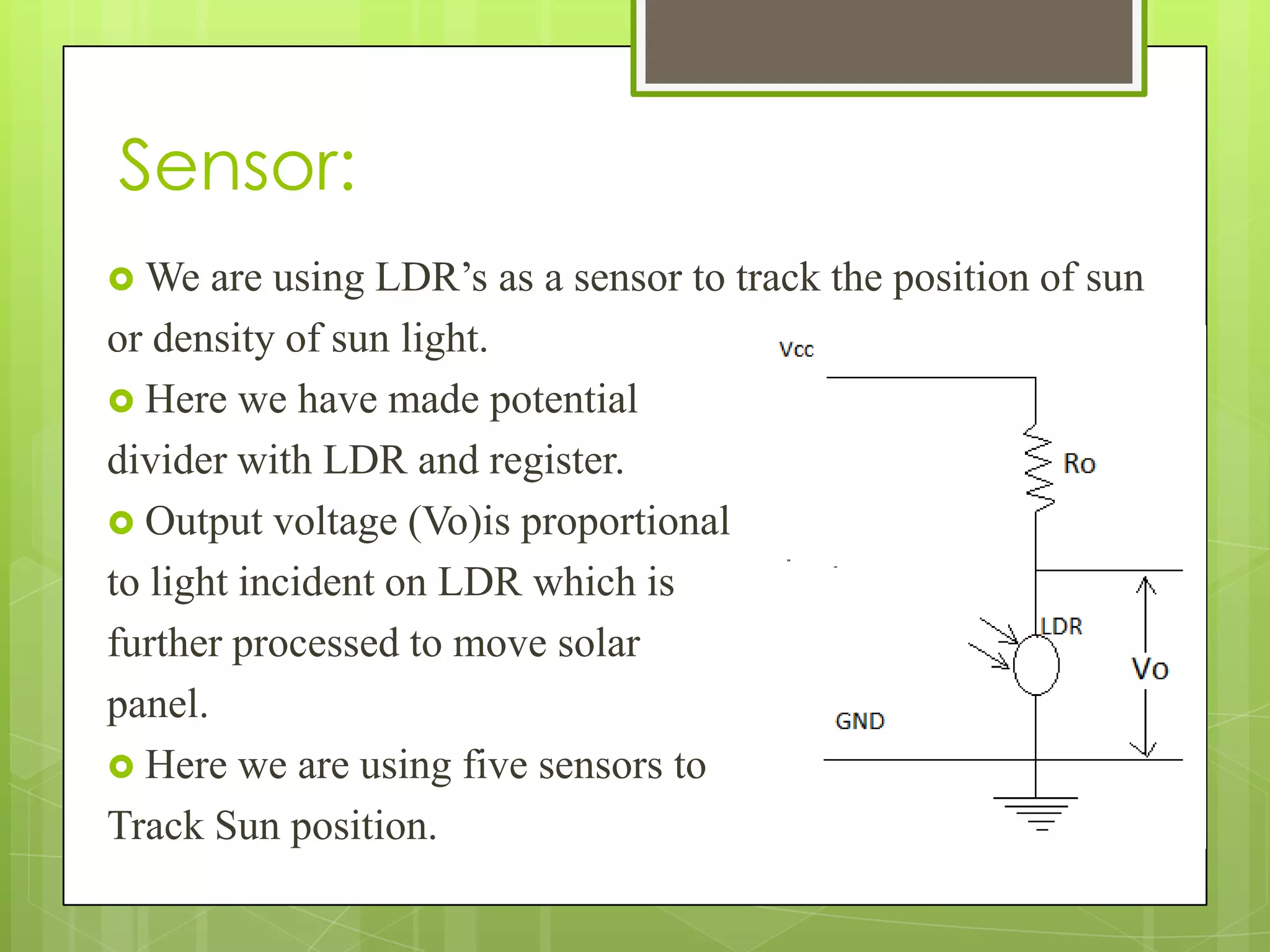

11. Sensor:
We are using LDR’s as a sensor to track the position of sun
or density of sun light.
Here we have made potential
divider with LDR and register.
Output voltage (Vo)is proportional
to light incident on LDR which is
further processed to move solar
panel.
Here we are using five sensors to
Track Sun position.

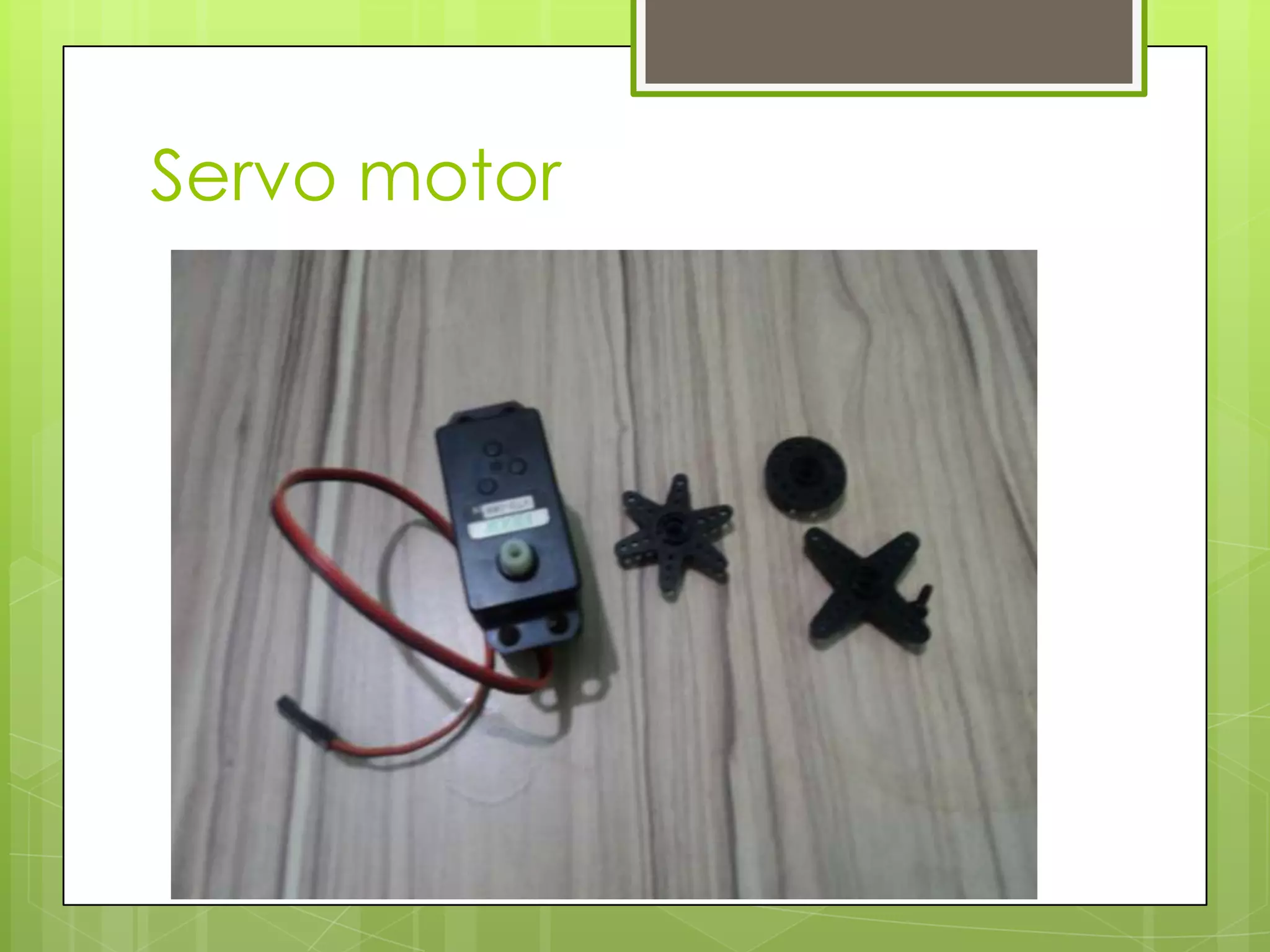

12. Servo Motor:
Servo motors has three wires.
Among those 3 wires, 2 wires provide power supply to the
motor and one is used to send PWM signals {50Hz (analog
servos) or 400-500Hz (digital servos)} to the motor for
required shaft positions.
Servo shaft is rotated by an angle depending on the ON-
Time and OFF-time of the pulse.

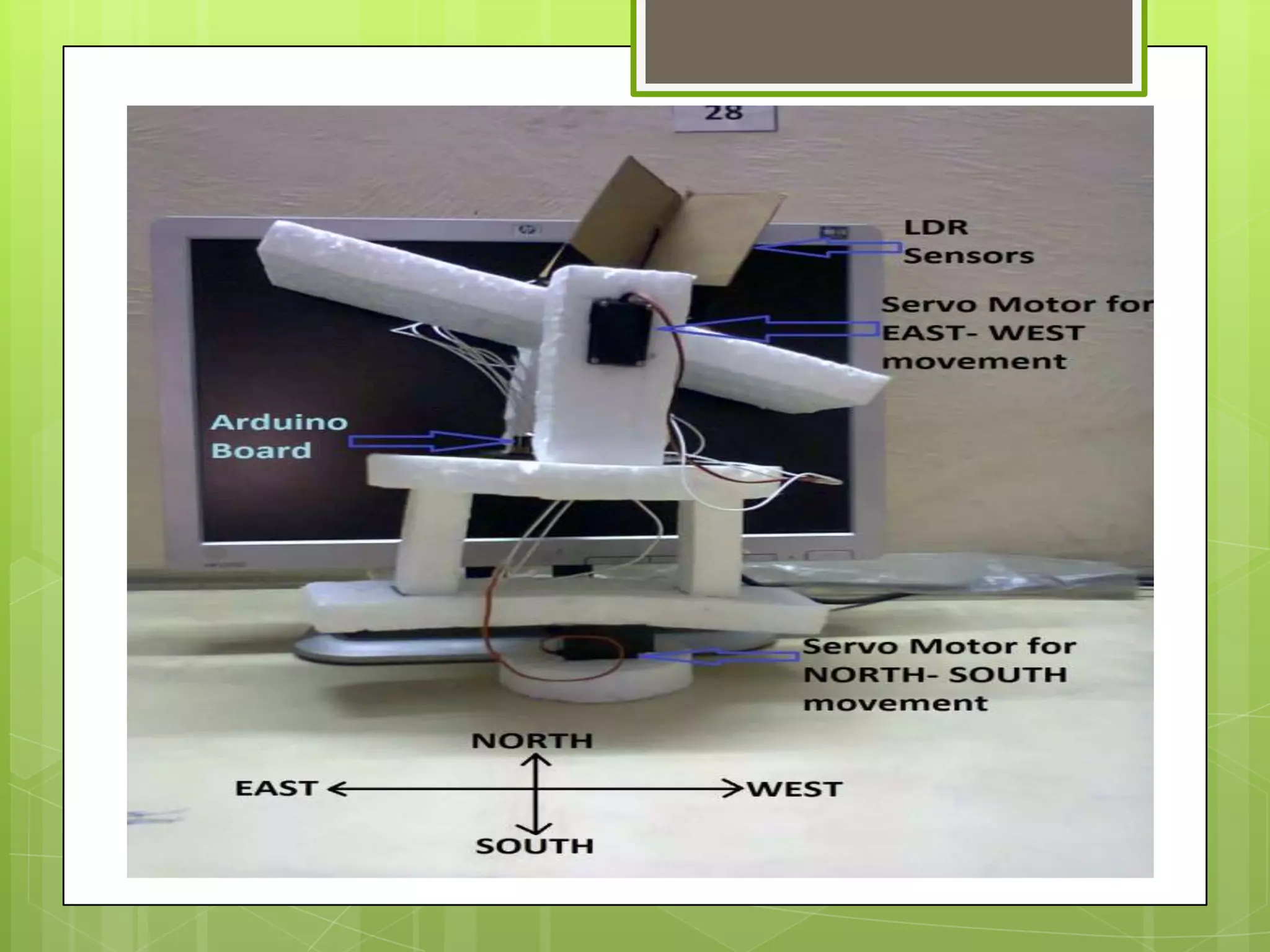

Here we are using two servo motors- One for Horizontal
movement and another for Vertical movement.
