Docker Security Workshop
David Lawrence
Riyaz Faizullabhoy
Viktor Stanchev
Goals of this workshop
Features
See what features are available in Docker
What do they do?
How do you use them?

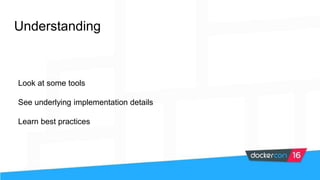

Understanding
Look at some tools
See underlying implementation details
Learn best practices
Do!
Don’t!

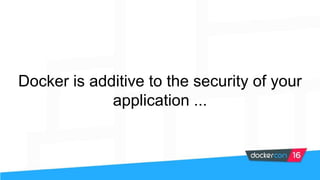

Docker is additive to the security of your
application ...
… even if you don’t use any of the
techniques we cover
Docker aims to be Secure by Default
https://docs.docker.com/engine/security/non-events/
CVE-2013-1956, 1957, 1958, 1959, 1979, CVE-2014-4014, 5206, 5207, 7970, 7975, CVE-2015-2925, 8543, CVE-
2016-3134, 3135, CVE-2014-0181, CVE-2015-3339, CVE-2014-4699, CVE-2014-9529, CVE-2015-3214, 4036,
CVE-2016-0728, CVE-2016-2383

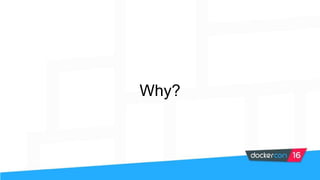

Why?

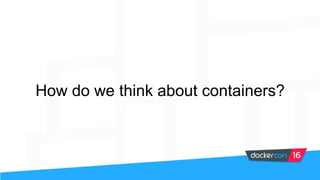

How do we think about containers?
How we talk about Docker

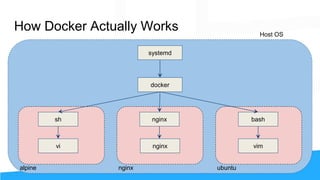

How Docker Actually Works
systemd
docker
Host OS
alpine ubuntunginx
sh nginx bash
vimvi nginx

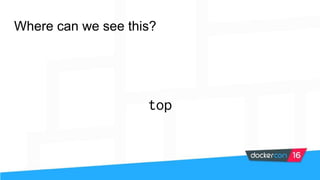

Where can we see this?
top
Anatomy of a Container

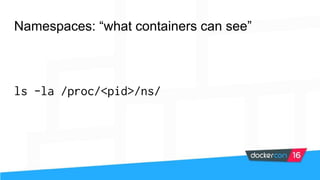

Namespaces: “what containers can see”
ls -la /proc/<pid>/ns/
What’s namespaced?
Cgroup CLONE_NEWCGROUP Cgroup root directory
IPC CLONE_NEWIPC System V IPC, POSIX message
queues
Network CLONE_NEWNET Network devices, stacks, ports, etc.
Mount CLONE_NEWNS Mount points
PID CLONE_NEWPID Process IDs
User CLONE_NEWUSER User and group IDs
UTS CLONE_NEWUTS Hostname and NIS domain name

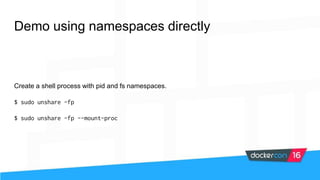

Demo using namespaces directly
Create a shell process with pid and fs namespaces.
$ sudo unshare -fp
$ sudo unshare -fp --mount-proc

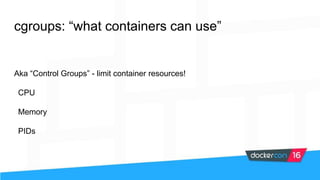

cgroups: “what containers can use”
Aka “Control Groups” - limit container resources!
CPU
Memory
PIDs
CPU 1 CPU 2 CPU 3 CPU 4

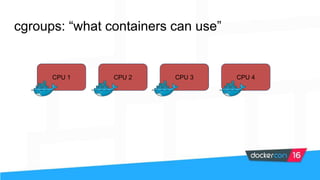

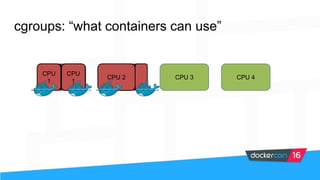

cgroups: “what containers can use”
CPU 1 CPU 2 CPU 3 CPU 4
CPU
1
CPU
1
CPU 2

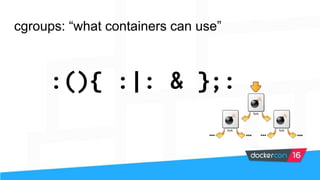

cgroups: “what containers can use”
:(){ :|: & };:
cgroups: “what containers can use”

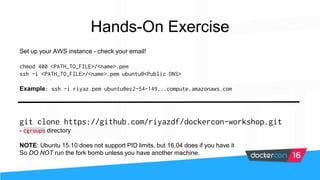

git clone https://github.com/riyazdf/dockercon-workshop.git
- cgroups directory
NOTE: Ubuntu 15.10 does not support PID limits, but 16.04 does if you have it
So DO NOT run the fork bomb unless you have another machine.
Set up your AWS instance - check your email!
chmod 400 <PATH_TO_FILE>/<name>.pem
ssh -i <PATH_TO_FILE>/<name>.pem ubuntu@<Public DNS>
Example: ssh -i riyaz.pem ubuntu@ec2-54-149...compute.amazonaws.com
Hands-On Exercise
Securing Client-Engine Communications
“My first 5 minutes…”
Docker Client Server Architecture
docker client docker engine
unix socket
tcp socket

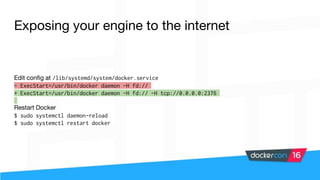

Exposing your engine to the internet
Edit config at /lib/systemd/system/docker.service
- ExecStart=/usr/bin/docker daemon -H fd://
+ ExecStart=/usr/bin/docker daemon -H fd:// -H tcp://0.0.0.0:2376
Restart Docker
$ sudo systemctl daemon-reload
$ sudo systemctl restart docker

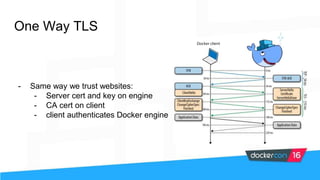

One Way TLS
- Same way we trust websites:
- Server cert and key on engine
- CA cert on client
- client authenticates Docker engine
Docker client

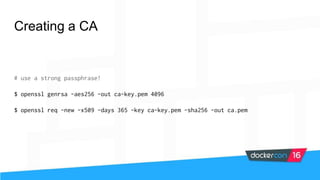

Creating a CA
# use a strong passphrase!
$ openssl genrsa -aes256 -out ca-key.pem 4096
$ openssl req -new -x509 -days 365 -key ca-key.pem -sha256 -out ca.pem
Creating the daemon cert and key
$ openssl genrsa -out server-key.pem 4096
$ openssl req -subj "/CN=$HOSTNAME" -sha256 -new -key server-key.pem
-out server.csr
$ echo subjectAltName = IP:10.10.10.20,IP:127.0.0.1 > extfile.cnf
$ openssl x509 -req -days 365 -sha256 -in server.csr -CA ca.pem
-CAkey ca-key.pem -CAcreateserial -out server-cert.pem
-extfile extfile.cnf
$ sudo cp ca.pem /root/.docker/ca.pem

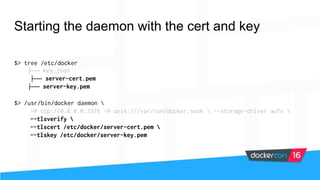

Starting the daemon with the cert and key
$> tree /etc/docker
├── key.json
├── server-cert.pem
├── server-key.pem
$> /usr/bin/docker daemon
-H tcp://0.0.0.0:2376 -H unix:///var/run/docker.sock  --storage-driver aufs
--tlsverify
--tlscert /etc/docker/server-cert.pem
--tlskey /etc/docker/server-key.pem
Trusting the daemon’s cert on the client
$> tree ~/.docker
├── config.json
├── ca.pem
OR
$> export DOCKER_CERT_PATH=~/my_cert_directory
$> tree ~/my_cert_directory
├── ca.pem

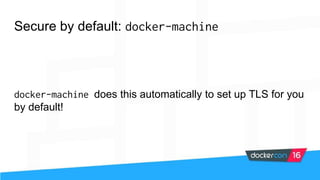

Secure by default: docker-machine
docker-machine does this automatically to set up TLS for you
by default!

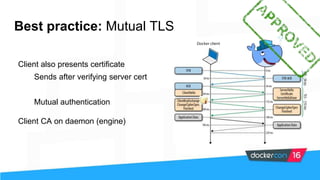

Best practice: Mutual TLS
Client also presents certificate
Sends after verifying server cert
Mutual authentication
Client CA on daemon (engine)
Docker client

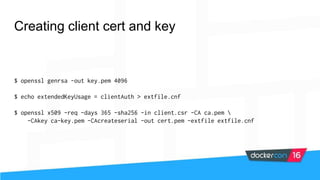

Creating client cert and key
$ openssl genrsa -out key.pem 4096
$ echo extendedKeyUsage = clientAuth > extfile.cnf
$ openssl x509 -req -days 365 -sha256 -in client.csr -CA ca.pem
-CAkey ca-key.pem -CAcreateserial -out cert.pem -extfile extfile.cnf

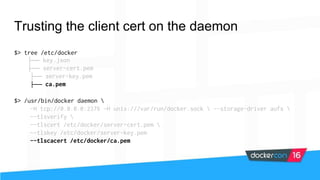

Trusting the client cert on the daemon
$> tree /etc/docker
├── key.json
├── server-cert.pem
├── server-key.pem
├── ca.pem
$> /usr/bin/docker daemon
-H tcp://0.0.0.0:2376 -H unix:///var/run/docker.sock  --storage-driver aufs
--tlsverify
--tlscert /etc/docker/server-cert.pem
--tlskey /etc/docker/server-key.pem
--tlscacert /etc/docker/ca.pem
Using the client certs on the client
$> tree ~/.docker
├── config.json
├── ca.pem
├── cert.pem
├── key.pem
OR
$> export DOCKER_CERT_PATH=~/my_cert_directory
$> tree ~/my_cert_directory
├── ca.pem
├── cert.pem
├── key.pem

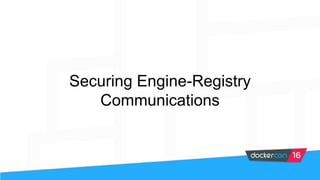

Securing Engine-Registry
Communications
Docker Security workshop slides

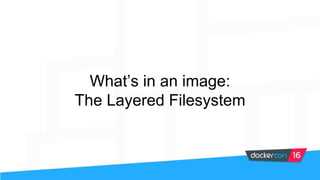

What’s in an image:
The Layered Filesystem

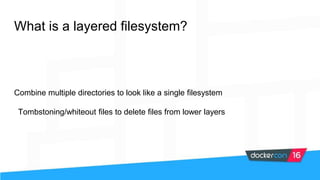

What is a layered filesystem?
Combine multiple directories to look like a single filesystem
Tombstoning/whiteout files to delete files from lower layers

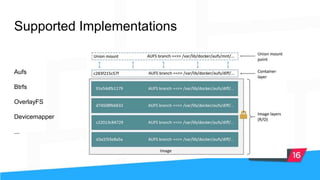

Supported Implementations
Aufs
Btrfs
OverlayFS
Devicemapper
...
Copy-on-write

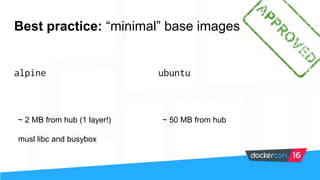

Best practice: “minimal” base images
alpine
~ 2 MB from hub (1 layer!)
musl libc and busybox
ubuntu
~ 50 MB from hub

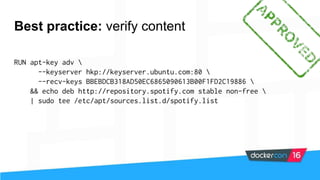

Best practice: verify content
RUN apt-key adv
--keyserver hkp://keyserver.ubuntu.com:80
--recv-keys BBEBDCB318AD50EC6865090613B00F1FD2C19886
&& echo deb http://repository.spotify.com stable non-free
| sudo tee /etc/apt/sources.list.d/spotify.list

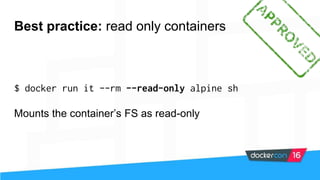

Best practice: read only containers
$ docker run it --rm --read-only alpine sh
Mounts the container’s FS as read-only

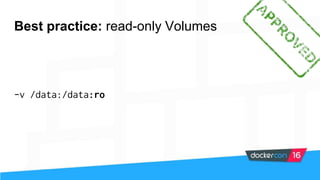

Best practice: read-only Volumes
-v /data:/data:ro

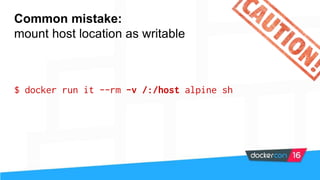

Common mistake:
mount host location as writable
$ docker run it --rm -v /:/host alpine sh

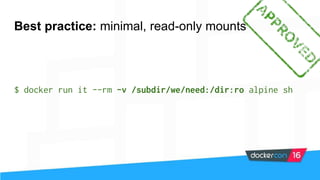

Best practice: minimal, read-only mounts
$ docker run it --rm -v /subdir/we/need:/dir:ro alpine sh
Networks

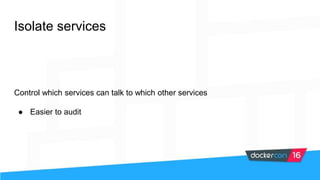

Isolate services
Control which services can talk to which other services
● Easier to audit

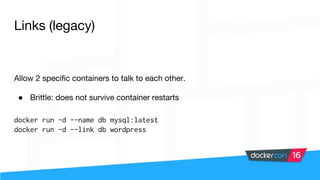

Links (legacy)
Allow 2 specific containers to talk to each other.
● Brittle: does not survive container restarts
docker run -d --name db mysql:latest
docker run -d --link db wordpress

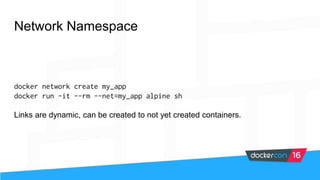

Network Namespace
docker network create my_app
docker run -it --rm --net=my_app alpine sh
Links are dynamic, can be created to not yet created containers.

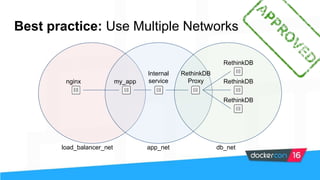

Best practice: Use Multiple Networks
nginx my_app
Internal
service
RethinkDB
Proxy RethinkDB
RethinkDB
RethinkDB
load_balancer_net app_net db_net

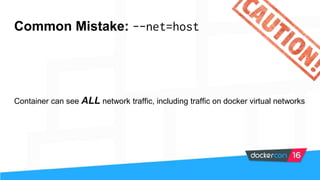

Common Mistake: --net=host
Container can see ALL network traffic, including traffic on docker virtual networks

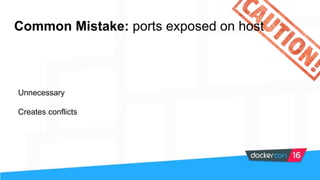

Common Mistake: ports exposed on host
Unnecessary
Creates conflicts

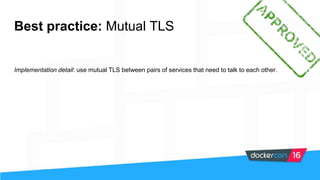

Best practice: Mutual TLS
Implementation detail: use mutual TLS between pairs of services that need to talk to each other.

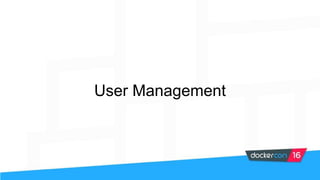

User Management
Default runs as root
$ docker run -v /bin:/host/bin -it --rm alpine sh
/ $ whoami
root
/ $ id
uid=0(root) gid=0(root)
/ $ # WREAK HAVOC TIME! Please don’t do this
/ $ rm /host/bin/sh # Again, please don’t do this

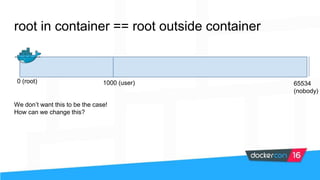

root in container == root outside container
We don’t want this to be the case!
How can we change this?
0 (root) 1000 (user) 65534
(nobody)

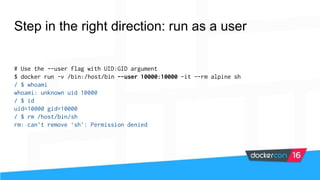

Step in the right direction: run as a user
# Use the --user flag with UID:GID argument
$ docker run -v /bin:/host/bin --user 10000:10000 -it --rm alpine sh
/ $ whoami
whoami: unknown uid 10000
/ $ id
uid=10000 gid=10000
/ $ rm /host/bin/sh
rm: can’t remove ‘sh’: Permission denied

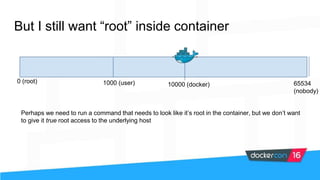

But I still want “root” inside container
Perhaps we need to run a command that needs to look like it’s root in the container, but we don’t want
to give it true root access to the underlying host
0 (root) 1000 (user) 65534
(nobody)
10000 (docker)

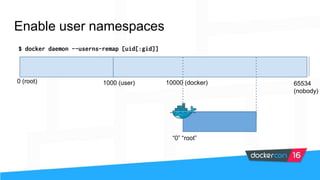

$ docker daemon --userns-remap [uid[:gid]]
Enable user namespaces
0 (root) 1000 (user) 65534
(nobody)
10000 (docker)
“0” “root”
$ docker daemon --userns-remap [uid[:gid]]
Will need to re-pull images and re-create volumes due to container resource and image layer
permissions
Leave this feature on in production; switching back and forth should only be done in
development

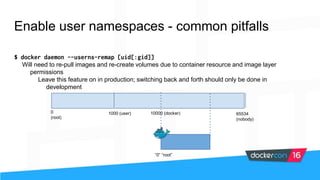

Enable user namespaces - common pitfalls
0
(root)
1000 (user) 65534
(nobody)
10000 (docker)
“0” “root”

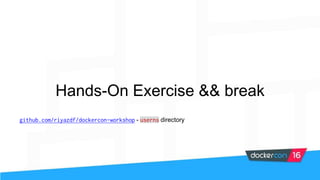

Hands-On Exercise && break
github.com/riyazdf/dockercon-workshop - userns directory
Image Distribution
Security Goals
Image Provenance and Trust
● Provenance: who made this image?
○ Verify the publisher of the image
● Trust: have the contents of this image been tampered with?
○ Verify the integrity of the image

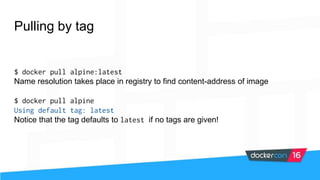

Pulling by tag
$ docker pull alpine:latest
Name resolution takes place in registry to find content-address of image
$ docker pull alpine
Using default tag: latest
Notice that the tag defaults to latest if no tags are given!

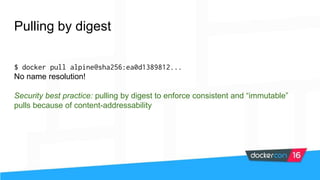

Pulling by digest
$ docker pull alpine@sha256:ea0d1389812...
No name resolution!
Security best practice: pulling by digest to enforce consistent and “immutable”
pulls because of content-addressability

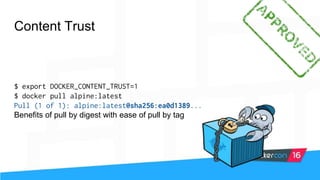

Content Trust
$ export DOCKER_CONTENT_TRUST=1
$ docker pull alpine:latest
Pull (1 of 1): alpine:latest@sha256:ea0d1389...
Benefits of pull by digest with ease of pull by tag

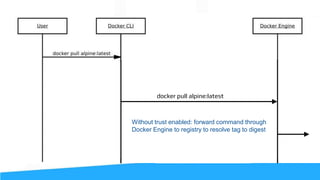

docker pull alpine:latest
Without trust enabled: forward command through
Docker Engine to registry to resolve tag to digest
Docker Security workshop slides

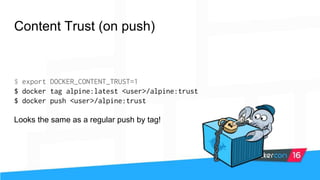

Content Trust (on push)
$ export DOCKER_CONTENT_TRUST=1
$ docker tag alpine:latest <user>/alpine:trust
$ docker push <user>/alpine:trust
Looks the same as a regular push by tag!

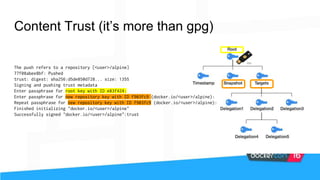

Content Trust (it’s more than gpg)
The push refers to a repository [<user>/alpine]
77f08abee8bf: Pushed
trust: digest: sha256:d5de850d728... size: 1355
Signing and pushing trust metadata
Enter passphrase for root key with ID e83f424:
Enter passphrase for new repository key with ID f903fc9 (docker.io/<user>/alpine):
Repeat passphrase for new repository key with ID f903fc9 (docker.io/<user>/alpine):
Finished initializing "docker.io/<user>/alpine"
Successfully signed "docker.io/<user>/alpine":trust

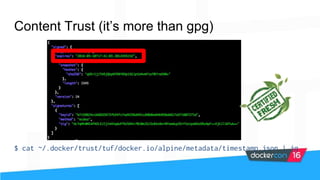

Content Trust (it’s more than gpg)
$ cat ~/.docker/trust/tuf/docker.io/alpine/metadata/timestamp.json | jq

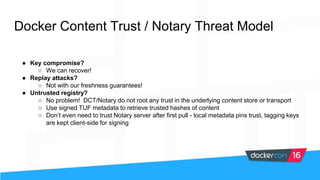

Docker Content Trust / Notary Threat Model
● Key compromise?
○ We can recover!
● Replay attacks?
○ Not with our freshness guarantees!
● Untrusted registry?
○ No problem! DCT/Notary do not root any trust in the underlying content store or transport
○ Use signed TUF metadata to retrieve trusted hashes of content
○ Don’t even need to trust Notary server after first pull - local metadata pins trust, tagging keys
are kept client-side for signing

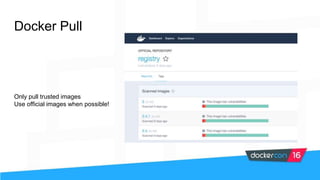

Docker Pull
Only pull trusted images
Use official images when possible!

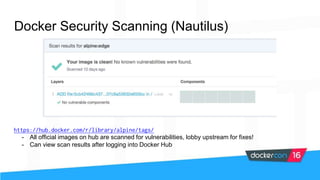

Docker Security Scanning (Nautilus)
Docker Security Scanning (Nautilus)
https://hub.docker.com/r/library/alpine/tags/
- All official images on hub are scanned for vulnerabilities, lobby upstream for fixes!
- Can view scan results after logging into Docker Hub

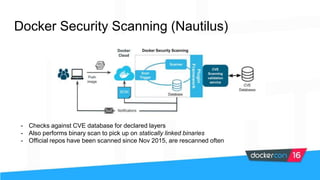

Docker Security Scanning (Nautilus)
- Checks against CVE database for declared layers
- Also performs binary scan to pick up on statically linked binaries
- Official repos have been scanned since Nov 2015, are rescanned often

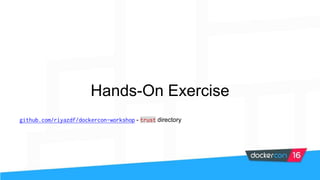

Hands-On Exercise
github.com/riyazdf/dockercon-workshop - trust directory
Capabilities

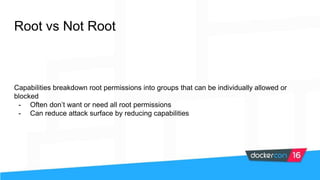

Root vs Not Root
Capabilities breakdown root permissions into groups that can be individually allowed or
blocked
- Often don’t want or need all root permissions
- Can reduce attack surface by reducing capabilities

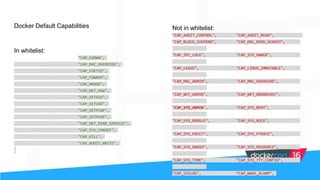

Docker Default Capabilities
In whitelist:
"CAP_CHOWN",
"CAP_DAC_OVERRIDE",
"CAP_FSETID",
"CAP_FOWNER",
"CAP_MKNOD",
"CAP_NET_RAW",
"CAP_SETGID",
"CAP_SETUID",
"CAP_SETFCAP",
"CAP_SETPCAP",
"CAP_NET_BIND_SERVICE",
"CAP_SYS_CHROOT",
"CAP_KILL",
"CAP_AUDIT_WRITE",
Not in whitelist:
"CAP_AUDIT_CONTROL", "CAP_AUDIT_READ",
"CAP_BLOCK_SUSPEND", "CAP_DAC_READ_SEARCH",
"CAP_IPC_LOCK", "CAP_ICP_OWNER",
"CAP_LEASE", "CAP_LINUX_IMMUTABLE",
"CAP_MAC_ADMIN", "CAP_MAC_OVERRIDE",
"CAP_NET_ADMIN", "CAP_NET_BROADCAST",
"CAP_SYS_ADMIN", "CAP_SYS_BOOT",
"CAP_SYS_MODULE", "CAP_SYS_NICE",
"CAP_SYS_PACCT", "CAP_SYS_PTRACE",
"CAP_SYS_RAWIO", "CAP_SYS_RESOURCE",
"CAP_SYS_TIME", "CAP_SYS_TTY_CONFIG",
"CAP_SYSLOG", “CAP_WAKE_ALARM",
How do we add/remove capabilities?
docker run --cap-add
docker run --cap-drop
docker run --cap-drop ALL --cap-add $CAP

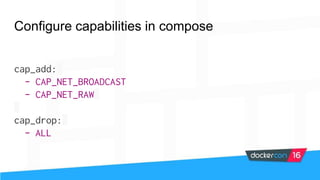

Configure capabilities in compose
cap_add:
- CAP_NET_BROADCAST
- CAP_NET_RAW
cap_drop:
- ALL
What to watch out for
- Read the fine print for each capability!
- man capabilities
- i.e. removing CAP_KILL only requires permissions checks and enabling
bypasses permissions checks. It doesn’t generically enable/disable the
ability to kill
- CAP_SYS_ADMIN is nearly root...

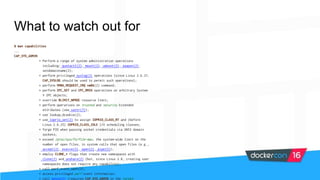

What to watch out for
$ man capabilities
...
CAP_SYS_ADMIN
* Perform a range of system administration operations
including: quotactl(2), mount(2), umount(2), swapon(2),
setdomainname(2);
* perform privileged syslog(2) operations (since Linux 2.6.37,
CAP_SYSLOG should be used to permit such operations);
* perform VM86_REQUEST_IRQ vm86(2) command;
* perform IPC_SET and IPC_RMID operations on arbitrary System
V IPC objects;
* override RLIMIT_NPROC resource limit;
* perform operations on trusted and security Extended
Attributes (see xattr(7));
* use lookup_dcookie(2);
* use ioprio_set(2) to assign IOPRIO_CLASS_RT and (before
Linux 2.6.25) IOPRIO_CLASS_IDLE I/O scheduling classes;
* forge PID when passing socket credentials via UNIX domain
sockets;
* exceed /proc/sys/fs/file-max, the system-wide limit on the
number of open files, in system calls that open files (e.g.,
accept(2), execve(2), open(2), pipe(2));
* employ CLONE_* flags that create new namespaces with
clone(2) and unshare(2) (but, since Linux 3.8, creating user
namespaces does not require any capability);
* call perf_event_open(2);
* access privileged perf event information;
* call setns(2) (requires CAP_SYS_ADMIN in the target

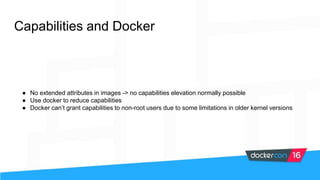

Capabilities and Docker
● No extended attributes in images -> no capabilities elevation normally possible
● Use docker to reduce capabilities
● Docker can’t grant capabilities to non-root users due to some limitations in older kernel versions

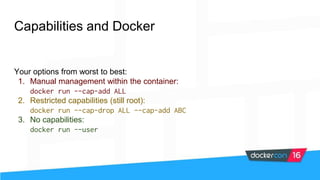

Capabilities and Docker
Your options from worst to best:
1. Manual management within the container:
docker run --cap-add ALL
2. Restricted capabilities (still root):
docker run --cap-drop ALL --cap-add ABC
3. No capabilities:
docker run --user

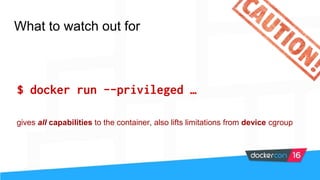

What to watch out for
$ docker run --privileged …
gives all capabilities to the container, also lifts limitations from device cgroup

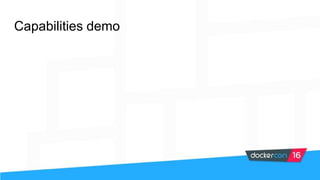

Capabilities demo

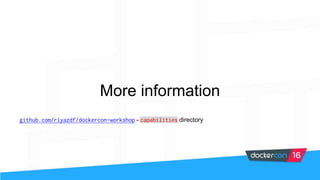

More information
github.com/riyazdf/dockercon-workshop - capabilities directory
Seccomp

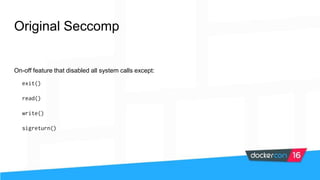

Original Seccomp
On-off feature that disabled all system calls except:
exit()
read()
write()
sigreturn()

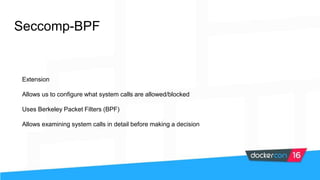

Seccomp-BPF
Extension
Allows us to configure what system calls are allowed/blocked
Uses Berkeley Packet Filters (BPF)
Allows examining system calls in detail before making a decision

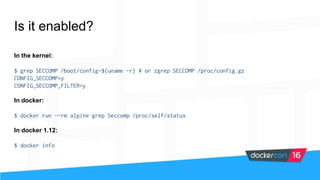

Is it enabled?
In the kernel:
$ grep SECCOMP /boot/config-$(uname -r) # or zgrep SECCOMP /proc/config.gz
CONFIG_SECCOMP=y
CONFIG_SECCOMP_FILTER=y
In docker:
$ docker run --rm alpine grep Seccomp /proc/self/status
In docker 1.12:
$ docker info

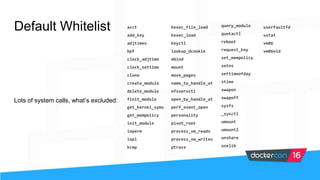

Default Whitelist
Lots of system calls, what’s excluded:
acct
add_key
adjtimex
bpf
clock_adjtime
clock_settime
clone
create_module
delete_module
finit_module
get_kernel_syms
get_mempolicy
init_module
ioperm
iopl
kcmp
kexec_file_load
kexec_load
keyctl
lookup_dcookie
mbind
mount
move_pages
name_to_handle_at
nfsservctl
open_by_handle_at
perf_event_open
personality
pivot_root
process_vm_readv
process_vm_writev
ptrace
query_module
quotactl
reboot
request_key
set_mempolicy
setns
settimeofday
stime
swapon
swapoff
sysfs
_sysctl
umount
umount2
unshare
uselib
userfaultfd
ustat
vm86
vm86old
The strace tool
$ strace -c -f -S name ls 2>&1 1>/dev/null | tail -n +3 | head -n -2 | awk '{print $(NF)}'
access
arch_prctl
brk
close
execve
fstat
getdents
ioctl
mmap
mprotect
munmap
open
read
write

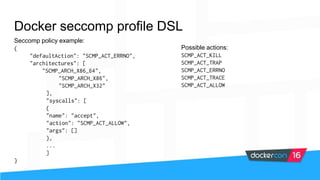

Docker seccomp profile DSL
Seccomp policy example:
{
"defaultAction": "SCMP_ACT_ERRNO",
"architectures": [
"SCMP_ARCH_X86_64",
"SCMP_ARCH_X86",
"SCMP_ARCH_X32"
],
"syscalls": [
{
"name": "accept",
"action": "SCMP_ACT_ALLOW",
"args": []
},
...
]
}
Possible actions:
SCMP_ACT_KILL
SCMP_ACT_TRAP
SCMP_ACT_ERRNO
SCMP_ACT_TRACE
SCMP_ACT_ALLOW

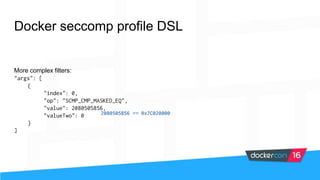

Docker seccomp profile DSL
More complex filters:
"args": [
{
"index": 0,
"op": "SCMP_CMP_MASKED_EQ",
"value": 2080505856,
"valueTwo": 0
}
]
2080505856 == 0x7C020000
Seccomp and the no-new-privileges option
Seccomp policies have to be applied before executing your container and be less specific unless you use:
--security-opt no-new-privileges
In this case you need to allow only futex stat execve.
This flag also disables setuid binaries:
$ sudo ls
sudo: effective uid is not 0, is /usr/bin/sudo on a file system with the 'nosuid' option set
or an NFS file system without root privileges?

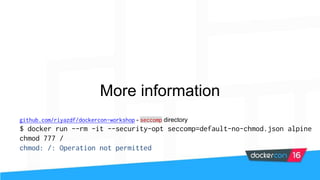

More information
github.com/riyazdf/dockercon-workshop - seccomp directory
$ docker run --rm -it --security-opt seccomp=default-no-chmod.json alpine
chmod 777 /
chmod: /: Operation not permitted

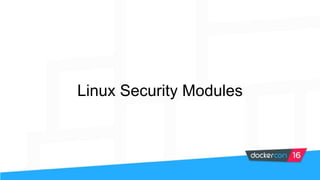

Linux Security Modules
What is a LSM?
A plugin to the linux kernel that allows us to set policies to restrict what a process can do.
Mandatory Access Control: instead of using user-defined permissions to specify access, the underlying
system describes permissions itself with labels

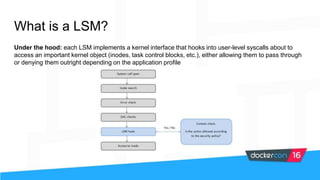

What is a LSM?
Under the hood: each LSM implements a kernel interface that hooks into user-level syscalls about to
access an important kernel object (inodes, task control blocks, etc.), either allowing them to pass through
or denying them outright depending on the application profile

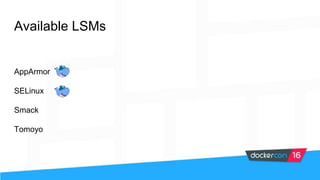

Available LSMs
AppArmor
SELinux
Smack
Tomoyo

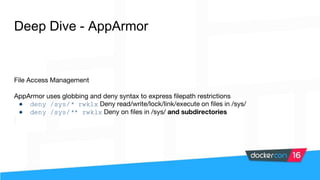

Deep Dive - AppArmor
File Access Management
AppArmor uses globbing and deny syntax to express filepath restrictions
● deny /sys/* rwklx Deny read/write/lock/link/execute on files in /sys/
● deny /sys/** rwklx Deny on files in /sys/ and subdirectories

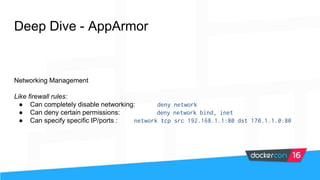

Deep Dive - AppArmor
Networking Management
Like firewall rules:
● Can completely disable networking: deny network
● Can deny certain permissions: deny network bind, inet
● Can specify specific IP/ports : network tcp src 192.168.1.1:80 dst 170.1.1.0:80

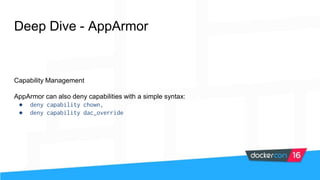

Deep Dive - AppArmor
Capability Management
AppArmor can also deny capabilities with a simple syntax:
● deny capability chown,
● deny capability dac_override

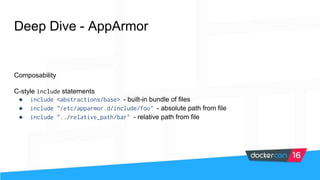

Deep Dive - AppArmor
Composability
C-style include statements
● include <abstractions/base> - built-in bundle of files
● include "/etc/apparmor.d/include/foo" - absolute path from file
● include "../relative_path/bar" - relative path from file

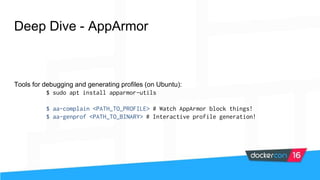

Deep Dive - AppArmor
Tools for debugging and generating profiles (on Ubuntu):
$ sudo apt install apparmor-utils
$ aa-complain <PATH_TO_PROFILE> # Watch AppArmor block things!
$ aa-genprof <PATH_TO_BINARY> # Interactive profile generation!

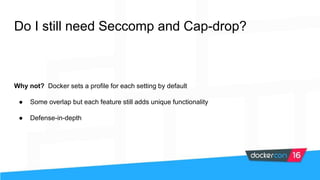

Do I still need Seccomp and Cap-drop?
Why not? Docker sets a profile for each setting by default
● Some overlap but each feature still adds unique functionality
● Defense-in-depth

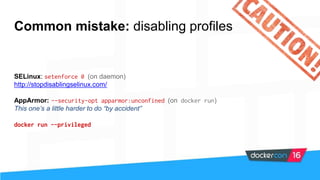

Common mistake: disabling profiles
SELinux: setenforce 0 (on daemon)
http://stopdisablingselinux.com/
AppArmor: --security-opt apparmor:unconfined (on docker run)
This one’s a little harder to do “by accident”
docker run --privileged

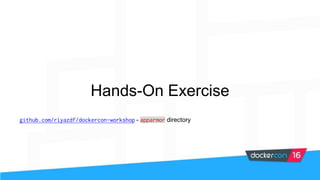

Hands-On Exercise
github.com/riyazdf/dockercon-workshop - apparmor directory
Docker Bench
https://dockerbench.com
- Open-source tool for running automated tests
- inspired by the CIS Docker 1.11 benchmark
- Runs against containers currently running on same host
- Checks for AppArmor, read-only volumes, etc...

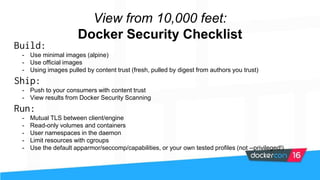

View from 10,000 feet:
Docker Security Checklist
Build:
- Use minimal images (alpine)
- Use official images
- Using images pulled by content trust (fresh, pulled by digest from authors you trust)
Ship:
- Push to your consumers with content trust
- View results from Docker Security Scanning
Run:
- Mutual TLS between client/engine
- Read-only volumes and containers
- User namespaces in the daemon
- Limit resources with cgroups
- Use the default apparmor/seccomp/capabilities, or your own tested profiles (not --privileged!)
Thank you!
- Please take the exercises home! We’ll accept issues and pull requests :)
- Learn more at https://docs.docker.com/engine/security/security/
Advanced Topics
“Extra for Experts”
AuthZ plugins

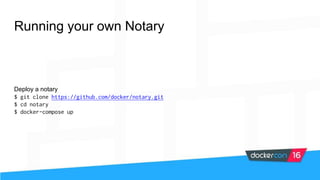

Running your own Notary
Deploy a notary
$ git clone https://github.com/docker/notary.git
$ cd notary
$ docker-compose up
Notary Delegations
(admin)$ notary key rotate <GUN> snapshot -r
(user)$ < generates private key and x509 cert, gives user.crt to admin >
(admin)$ notary delegation add <GUN> targets/user user.crt --all-paths
(admin)$ notary publish <GUN>
Docker engine >= 1.11 will sign with delegation keys if it detects them
Docker Security workshop slides

More Related Content

What's hot

Docker introduction &amp; benefits
Docker introduction &amp; benefitsDocker introduction &amp; benefits
Docker introduction &amp; benefits
Amit Manwade

Containers: The What, Why, and How
Containers: The What, Why, and HowContainers: The What, Why, and How
Containers: The What, Why, and How
Sneha Inguva

Docker Networking Deep Dive
Docker Networking Deep DiveDocker Networking Deep Dive
Docker Networking Deep Dive
Docker, Inc.

Docker and Devops
Docker and DevopsDocker and Devops
Docker and Devops
Docker, Inc.

Docker 101 - Nov 2016
Docker 101 - Nov 2016Docker 101 - Nov 2016
Docker 101 - Nov 2016
Docker, Inc.

Introduction to Docker
Introduction to DockerIntroduction to Docker
Introduction to Docker
Aditya Konarde

Docker Advanced registry usage
Docker Advanced registry usageDocker Advanced registry usage
Docker Advanced registry usage
Docker, Inc.

Docker introduction
Docker introductionDocker introduction
Docker introduction
Phuc Nguyen

Introduction to Docker Containers - Docker Captain
Introduction to Docker Containers - Docker CaptainIntroduction to Docker Containers - Docker Captain
Introduction to Docker Containers - Docker Captain
Ajeet Singh Raina

Docker Online Meetup #22: Docker Networking
Docker Online Meetup #22: Docker NetworkingDocker Online Meetup #22: Docker Networking
Docker Online Meetup #22: Docker Networking
Docker, Inc.

Docker 101 : Introduction to Docker and Containers
Docker 101 : Introduction to Docker and ContainersDocker 101 : Introduction to Docker and Containers
Docker 101 : Introduction to Docker and Containers
Yajushi Srivastava

Docker intro
Docker introDocker intro
Docker intro
Oleg Z

Docker Networking
Docker NetworkingDocker Networking
Docker Networking
Kingston Smiler

Docker Introduction
Docker IntroductionDocker Introduction
Docker Introduction
MANAOUIL Karim

Docker introduction
Docker introductionDocker introduction
Docker introduction
dotCloud

Docker and the Linux Kernel
Docker and the Linux KernelDocker and the Linux Kernel
Docker and the Linux Kernel
Docker, Inc.

Docker introduction for the beginners
Docker introduction for the beginnersDocker introduction for the beginners
Docker introduction for the beginners
Juneyoung Oh

Docker.pptx
Docker.pptxDocker.pptx
Docker.pptx
balaji257

Introduction to Docker Compose
Introduction to Docker ComposeIntroduction to Docker Compose
Introduction to Docker Compose
Ajeet Singh Raina

Introduction to Docker - VIT Campus
Introduction to Docker - VIT CampusIntroduction to Docker - VIT Campus
Introduction to Docker - VIT Campus
Ajeet Singh Raina


What's hot (20)

Docker introduction &amp; benefits
Docker introduction &amp; benefitsDocker introduction &amp; benefits
Docker introduction &amp; benefits

Containers: The What, Why, and How
Containers: The What, Why, and HowContainers: The What, Why, and How
Containers: The What, Why, and How

Docker Networking Deep Dive
Docker Networking Deep DiveDocker Networking Deep Dive
Docker Networking Deep Dive

Docker and Devops
Docker and DevopsDocker and Devops
Docker and Devops

Docker 101 - Nov 2016
Docker 101 - Nov 2016Docker 101 - Nov 2016
Docker 101 - Nov 2016

Introduction to Docker
Introduction to DockerIntroduction to Docker
Introduction to Docker

Docker Advanced registry usage
Docker Advanced registry usageDocker Advanced registry usage
Docker Advanced registry usage

Docker introduction
Docker introductionDocker introduction
Docker introduction

Introduction to Docker Containers - Docker Captain
Introduction to Docker Containers - Docker CaptainIntroduction to Docker Containers - Docker Captain
Introduction to Docker Containers - Docker Captain

Docker Online Meetup #22: Docker Networking
Docker Online Meetup #22: Docker NetworkingDocker Online Meetup #22: Docker Networking
Docker Online Meetup #22: Docker Networking

Docker 101 : Introduction to Docker and Containers
Docker 101 : Introduction to Docker and ContainersDocker 101 : Introduction to Docker and Containers
Docker 101 : Introduction to Docker and Containers

Docker intro
Docker introDocker intro
Docker intro

Docker Networking
Docker NetworkingDocker Networking
Docker Networking

Docker Introduction
Docker IntroductionDocker Introduction
Docker Introduction

Docker introduction
Docker introductionDocker introduction
Docker introduction

Docker and the Linux Kernel
Docker and the Linux KernelDocker and the Linux Kernel
Docker and the Linux Kernel

Docker introduction for the beginners
Docker introduction for the beginnersDocker introduction for the beginners
Docker introduction for the beginners

Docker.pptx
Docker.pptxDocker.pptx
Docker.pptx

Introduction to Docker Compose
Introduction to Docker ComposeIntroduction to Docker Compose
Introduction to Docker Compose

Introduction to Docker - VIT Campus
Introduction to Docker - VIT CampusIntroduction to Docker - VIT Campus
Introduction to Docker - VIT Campus


Viewers also liked

Docker London: Container Security
Docker London: Container SecurityDocker London: Container Security
Docker London: Container Security
Phil Estes

Open Source Tools for Container Security and Compliance @Docker LA Meetup 2/13
Open Source Tools for Container Security and Compliance @Docker LA Meetup 2/13Open Source Tools for Container Security and Compliance @Docker LA Meetup 2/13
Open Source Tools for Container Security and Compliance @Docker LA Meetup 2/13
Zach Hill

Docker Security: Are Your Containers Tightly Secured to the Ship?
Docker Security: Are Your Containers Tightly Secured to the Ship?Docker Security: Are Your Containers Tightly Secured to the Ship?
Docker Security: Are Your Containers Tightly Secured to the Ship?
Michael Boelen

Veer's Container Security
Veer's Container SecurityVeer's Container Security
Veer's Container Security
Jim Barlow

Understanding container security
Understanding container securityUnderstanding container security
Understanding container security
John Kinsella

Monetising Your Skill
Monetising Your SkillMonetising Your Skill
Monetising Your Skill
'Detola Amure

Introduction to Infrastructure as Code & Automation / Introduction to Chef
Introduction to Infrastructure as Code & Automation / Introduction to ChefIntroduction to Infrastructure as Code & Automation / Introduction to Chef
Introduction to Infrastructure as Code & Automation / Introduction to Chef
Nathen Harvey

How GitLab and HackerOne help organizations innovate faster without compromis...
How GitLab and HackerOne help organizations innovate faster without compromis...How GitLab and HackerOne help organizations innovate faster without compromis...
How GitLab and HackerOne help organizations innovate faster without compromis...
HackerOne

Atomic CLI scan
Atomic CLI scanAtomic CLI scan
Atomic CLI scan
Lalatendu Mohanty

ContainerDays NYC 2016: "The Secure Introduction Problem: Getting Secrets Int...
ContainerDays NYC 2016: "The Secure Introduction Problem: Getting Secrets Int...ContainerDays NYC 2016: "The Secure Introduction Problem: Getting Secrets Int...
ContainerDays NYC 2016: "The Secure Introduction Problem: Getting Secrets Int...
DynamicInfraDays

Why You Need to Rethink Container Security
Why You Need to Rethink Container SecurityWhy You Need to Rethink Container Security
Why You Need to Rethink Container Security
FlawCheck

Practical Approaches to Container Security
Practical Approaches to Container SecurityPractical Approaches to Container Security
Practical Approaches to Container Security
Shea Stewart

AWS Security Best Practices and Design Patterns
AWS Security Best Practices and Design PatternsAWS Security Best Practices and Design Patterns
AWS Security Best Practices and Design Patterns
Amazon Web Services

AWS Security Architecture - Overview
AWS Security Architecture - OverviewAWS Security Architecture - Overview
AWS Security Architecture - Overview
Sai Kesavamatham

Security best practices for kubernetes deployment
Security best practices for kubernetes deploymentSecurity best practices for kubernetes deployment
Security best practices for kubernetes deployment
Michael Cherny

Monitoring, Logging and Tracing on Kubernetes
Monitoring, Logging and Tracing on KubernetesMonitoring, Logging and Tracing on Kubernetes
Monitoring, Logging and Tracing on Kubernetes
Martin Etmajer

London HUG 19/5 - Kubernetes and vault
London HUG 19/5 - Kubernetes and vaultLondon HUG 19/5 - Kubernetes and vault
London HUG 19/5 - Kubernetes and vault
London HashiCorp User Group

Docker Security - Secure Container Deployment on Linux
Docker Security - Secure Container Deployment on LinuxDocker Security - Secure Container Deployment on Linux
Docker Security - Secure Container Deployment on Linux
Michael Boelen

Container Orchestration Wars
Container Orchestration WarsContainer Orchestration Wars
Container Orchestration Wars
Karl Isenberg

Docker Security Overview
Docker Security OverviewDocker Security Overview
Docker Security Overview
Sreenivas Makam


Viewers also liked (20)

Docker London: Container Security
Docker London: Container SecurityDocker London: Container Security
Docker London: Container Security

Open Source Tools for Container Security and Compliance @Docker LA Meetup 2/13
Open Source Tools for Container Security and Compliance @Docker LA Meetup 2/13Open Source Tools for Container Security and Compliance @Docker LA Meetup 2/13
Open Source Tools for Container Security and Compliance @Docker LA Meetup 2/13

Docker Security: Are Your Containers Tightly Secured to the Ship?
Docker Security: Are Your Containers Tightly Secured to the Ship?Docker Security: Are Your Containers Tightly Secured to the Ship?
Docker Security: Are Your Containers Tightly Secured to the Ship?

Veer's Container Security
Veer's Container SecurityVeer's Container Security
Veer's Container Security

Understanding container security
Understanding container securityUnderstanding container security
Understanding container security

Monetising Your Skill
Monetising Your SkillMonetising Your Skill
Monetising Your Skill

Introduction to Infrastructure as Code & Automation / Introduction to Chef
Introduction to Infrastructure as Code & Automation / Introduction to ChefIntroduction to Infrastructure as Code & Automation / Introduction to Chef
Introduction to Infrastructure as Code & Automation / Introduction to Chef

How GitLab and HackerOne help organizations innovate faster without compromis...
How GitLab and HackerOne help organizations innovate faster without compromis...How GitLab and HackerOne help organizations innovate faster without compromis...
How GitLab and HackerOne help organizations innovate faster without compromis...

Atomic CLI scan
Atomic CLI scanAtomic CLI scan
Atomic CLI scan

ContainerDays NYC 2016: "The Secure Introduction Problem: Getting Secrets Int...
ContainerDays NYC 2016: "The Secure Introduction Problem: Getting Secrets Int...ContainerDays NYC 2016: "The Secure Introduction Problem: Getting Secrets Int...
ContainerDays NYC 2016: "The Secure Introduction Problem: Getting Secrets Int...

Why You Need to Rethink Container Security
Why You Need to Rethink Container SecurityWhy You Need to Rethink Container Security
Why You Need to Rethink Container Security

Practical Approaches to Container Security
Practical Approaches to Container SecurityPractical Approaches to Container Security
Practical Approaches to Container Security

AWS Security Best Practices and Design Patterns
AWS Security Best Practices and Design PatternsAWS Security Best Practices and Design Patterns
AWS Security Best Practices and Design Patterns

AWS Security Architecture - Overview
AWS Security Architecture - OverviewAWS Security Architecture - Overview
AWS Security Architecture - Overview

Security best practices for kubernetes deployment
Security best practices for kubernetes deploymentSecurity best practices for kubernetes deployment
Security best practices for kubernetes deployment

Monitoring, Logging and Tracing on Kubernetes
Monitoring, Logging and Tracing on KubernetesMonitoring, Logging and Tracing on Kubernetes
Monitoring, Logging and Tracing on Kubernetes

London HUG 19/5 - Kubernetes and vault
London HUG 19/5 - Kubernetes and vaultLondon HUG 19/5 - Kubernetes and vault
London HUG 19/5 - Kubernetes and vault

Docker Security - Secure Container Deployment on Linux
Docker Security - Secure Container Deployment on LinuxDocker Security - Secure Container Deployment on Linux
Docker Security - Secure Container Deployment on Linux

Container Orchestration Wars
Container Orchestration WarsContainer Orchestration Wars
Container Orchestration Wars

Docker Security Overview
Docker Security OverviewDocker Security Overview
Docker Security Overview


Similar to Docker Security workshop slides

Running Docker in Development & Production (#ndcoslo 2015)
Running Docker in Development & Production (#ndcoslo 2015)Running Docker in Development & Production (#ndcoslo 2015)
Running Docker in Development & Production (#ndcoslo 2015)
Ben Hall

Running Docker in Development & Production (DevSum 2015)
Running Docker in Development & Production (DevSum 2015)Running Docker in Development & Production (DevSum 2015)
Running Docker in Development & Production (DevSum 2015)
Ben Hall

Things I've learned working with Docker Support
Things I've learned working with Docker SupportThings I've learned working with Docker Support
Things I've learned working with Docker Support
Sujay Pillai

DCSF 19 Building Your Development Pipeline
DCSF 19 Building Your Development Pipeline  DCSF 19 Building Your Development Pipeline
DCSF 19 Building Your Development Pipeline
Docker, Inc.

[Devconf.cz][2017] Understanding OpenShift Security Context Constraints
[Devconf.cz][2017] Understanding OpenShift Security Context Constraints[Devconf.cz][2017] Understanding OpenShift Security Context Constraints
[Devconf.cz][2017] Understanding OpenShift Security Context Constraints
Alessandro Arrichiello

Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境
Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境
Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境
謝 宗穎

桃園市教育局Docker技術入門與實作
桃園市教育局Docker技術入門與實作桃園市教育局Docker技術入門與實作
桃園市教育局Docker技術入門與實作
Philip Zheng

How to create your own hack environment
How to create your own hack environmentHow to create your own hack environment
How to create your own hack environment
Sumedt Jitpukdebodin

PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...
PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...
PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...
Puppet

Challenges of container configuration
Challenges of container configurationChallenges of container configuration
Challenges of container configuration
lutter

Troubleshooting Tips from a Docker Support Engineer
Troubleshooting Tips from a Docker Support EngineerTroubleshooting Tips from a Docker Support Engineer
Troubleshooting Tips from a Docker Support Engineer
Jeff Anderson

Troubleshooting Tips from a Docker Support Engineer - Jeff Anderson, Docker
Troubleshooting Tips from a Docker Support Engineer - Jeff Anderson, DockerTroubleshooting Tips from a Docker Support Engineer - Jeff Anderson, Docker
Troubleshooting Tips from a Docker Support Engineer - Jeff Anderson, Docker
Docker, Inc.

Real World Experience of Running Docker in Development and Production
Real World Experience of Running Docker in Development and ProductionReal World Experience of Running Docker in Development and Production
Real World Experience of Running Docker in Development and Production
Ben Hall

DevOps Workflow: A Tutorial on Linux Containers
DevOps Workflow: A Tutorial on Linux ContainersDevOps Workflow: A Tutorial on Linux Containers
DevOps Workflow: A Tutorial on Linux Containers
inside-BigData.com

Digital Forensics and Incident Response in The Cloud Part 3
Digital Forensics and Incident Response in The Cloud Part 3Digital Forensics and Incident Response in The Cloud Part 3
Digital Forensics and Incident Response in The Cloud Part 3
Velocidex Enterprises

Docker security
Docker securityDocker security
Docker security
Janos Suto

JDO 2019: Tips and Tricks from Docker Captain - Łukasz Lach
JDO 2019: Tips and Tricks from Docker Captain - Łukasz LachJDO 2019: Tips and Tricks from Docker Captain - Łukasz Lach
JDO 2019: Tips and Tricks from Docker Captain - Łukasz Lach
PROIDEA

Docker Introduction.pdf
Docker Introduction.pdfDocker Introduction.pdf
Docker Introduction.pdf
OKLABS

AWS와 Docker Swarm을 이용한 쉽고 빠른 컨테이너 오케스트레이션 - AWS Summit Seoul 2017
AWS와 Docker Swarm을 이용한 쉽고 빠른 컨테이너 오케스트레이션 - AWS Summit Seoul 2017AWS와 Docker Swarm을 이용한 쉽고 빠른 컨테이너 오케스트레이션 - AWS Summit Seoul 2017
AWS와 Docker Swarm을 이용한 쉽고 빠른 컨테이너 오케스트레이션 - AWS Summit Seoul 2017
Amazon Web Services Korea

Simple docker hosting in FIWARE Lab
Simple docker hosting in FIWARE LabSimple docker hosting in FIWARE Lab
Simple docker hosting in FIWARE Lab
Fernando Lopez Aguilar


Similar to Docker Security workshop slides (20)

Running Docker in Development & Production (#ndcoslo 2015)
Running Docker in Development & Production (#ndcoslo 2015)Running Docker in Development & Production (#ndcoslo 2015)
Running Docker in Development & Production (#ndcoslo 2015)

Running Docker in Development & Production (DevSum 2015)
Running Docker in Development & Production (DevSum 2015)Running Docker in Development & Production (DevSum 2015)
Running Docker in Development & Production (DevSum 2015)

Things I've learned working with Docker Support
Things I've learned working with Docker SupportThings I've learned working with Docker Support
Things I've learned working with Docker Support

DCSF 19 Building Your Development Pipeline
DCSF 19 Building Your Development Pipeline  DCSF 19 Building Your Development Pipeline
DCSF 19 Building Your Development Pipeline

[Devconf.cz][2017] Understanding OpenShift Security Context Constraints
[Devconf.cz][2017] Understanding OpenShift Security Context Constraints[Devconf.cz][2017] Understanding OpenShift Security Context Constraints
[Devconf.cz][2017] Understanding OpenShift Security Context Constraints

Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境
Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境
Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境

桃園市教育局Docker技術入門與實作
桃園市教育局Docker技術入門與實作桃園市教育局Docker技術入門與實作
桃園市教育局Docker技術入門與實作

How to create your own hack environment
How to create your own hack environmentHow to create your own hack environment
How to create your own hack environment

PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...
PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...
PuppetConf 2016: The Challenges with Container Configuration – David Lutterko...

Challenges of container configuration
Challenges of container configurationChallenges of container configuration
Challenges of container configuration

Troubleshooting Tips from a Docker Support Engineer
Troubleshooting Tips from a Docker Support EngineerTroubleshooting Tips from a Docker Support Engineer
Troubleshooting Tips from a Docker Support Engineer

Troubleshooting Tips from a Docker Support Engineer - Jeff Anderson, Docker
Troubleshooting Tips from a Docker Support Engineer - Jeff Anderson, DockerTroubleshooting Tips from a Docker Support Engineer - Jeff Anderson, Docker
Troubleshooting Tips from a Docker Support Engineer - Jeff Anderson, Docker

Real World Experience of Running Docker in Development and Production
Real World Experience of Running Docker in Development and ProductionReal World Experience of Running Docker in Development and Production
Real World Experience of Running Docker in Development and Production

DevOps Workflow: A Tutorial on Linux Containers
DevOps Workflow: A Tutorial on Linux ContainersDevOps Workflow: A Tutorial on Linux Containers
DevOps Workflow: A Tutorial on Linux Containers

Digital Forensics and Incident Response in The Cloud Part 3
Digital Forensics and Incident Response in The Cloud Part 3Digital Forensics and Incident Response in The Cloud Part 3
Digital Forensics and Incident Response in The Cloud Part 3

Docker security
Docker securityDocker security
Docker security

JDO 2019: Tips and Tricks from Docker Captain - Łukasz Lach
JDO 2019: Tips and Tricks from Docker Captain - Łukasz LachJDO 2019: Tips and Tricks from Docker Captain - Łukasz Lach
JDO 2019: Tips and Tricks from Docker Captain - Łukasz Lach

Docker Introduction.pdf
Docker Introduction.pdfDocker Introduction.pdf
Docker Introduction.pdf

AWS와 Docker Swarm을 이용한 쉽고 빠른 컨테이너 오케스트레이션 - AWS Summit Seoul 2017
AWS와 Docker Swarm을 이용한 쉽고 빠른 컨테이너 오케스트레이션 - AWS Summit Seoul 2017AWS와 Docker Swarm을 이용한 쉽고 빠른 컨테이너 오케스트레이션 - AWS Summit Seoul 2017
AWS와 Docker Swarm을 이용한 쉽고 빠른 컨테이너 오케스트레이션 - AWS Summit Seoul 2017

Simple docker hosting in FIWARE Lab
Simple docker hosting in FIWARE LabSimple docker hosting in FIWARE Lab
Simple docker hosting in FIWARE Lab


More from Docker, Inc.

Containerize Your Game Server for the Best Multiplayer Experience
Containerize Your Game Server for the Best Multiplayer Experience Containerize Your Game Server for the Best Multiplayer Experience
Containerize Your Game Server for the Best Multiplayer Experience
Docker, Inc.

How to Improve Your Image Builds Using Advance Docker Build
How to Improve Your Image Builds Using Advance Docker BuildHow to Improve Your Image Builds Using Advance Docker Build
How to Improve Your Image Builds Using Advance Docker Build
Docker, Inc.

Build & Deploy Multi-Container Applications to AWS
Build & Deploy Multi-Container Applications to AWSBuild & Deploy Multi-Container Applications to AWS
Build & Deploy Multi-Container Applications to AWS
Docker, Inc.

Securing Your Containerized Applications with NGINX
Securing Your Containerized Applications with NGINXSecuring Your Containerized Applications with NGINX
Securing Your Containerized Applications with NGINX
Docker, Inc.

How To Build and Run Node Apps with Docker and Compose
How To Build and Run Node Apps with Docker and ComposeHow To Build and Run Node Apps with Docker and Compose
How To Build and Run Node Apps with Docker and Compose
Docker, Inc.

Hands-on Helm
Hands-on Helm Hands-on Helm
Hands-on Helm
Docker, Inc.

Distributed Deep Learning with Docker at Salesforce
Distributed Deep Learning with Docker at SalesforceDistributed Deep Learning with Docker at Salesforce
Distributed Deep Learning with Docker at Salesforce
Docker, Inc.

The First 10M Pulls: Building The Official Curl Image for Docker Hub
The First 10M Pulls: Building The Official Curl Image for Docker HubThe First 10M Pulls: Building The Official Curl Image for Docker Hub
The First 10M Pulls: Building The Official Curl Image for Docker Hub
Docker, Inc.

Monitoring in a Microservices World
Monitoring in a Microservices WorldMonitoring in a Microservices World
Monitoring in a Microservices World
Docker, Inc.

COVID-19 in Italy: How Docker is Helping the Biggest Italian IT Company Conti...
COVID-19 in Italy: How Docker is Helping the Biggest Italian IT Company Conti...COVID-19 in Italy: How Docker is Helping the Biggest Italian IT Company Conti...
COVID-19 in Italy: How Docker is Helping the Biggest Italian IT Company Conti...
Docker, Inc.

Predicting Space Weather with Docker
Predicting Space Weather with DockerPredicting Space Weather with Docker
Predicting Space Weather with Docker
Docker, Inc.

Become a Docker Power User With Microsoft Visual Studio Code
Become a Docker Power User With Microsoft Visual Studio CodeBecome a Docker Power User With Microsoft Visual Studio Code
Become a Docker Power User With Microsoft Visual Studio Code
Docker, Inc.

How to Use Mirroring and Caching to Optimize your Container Registry
How to Use Mirroring and Caching to Optimize your Container RegistryHow to Use Mirroring and Caching to Optimize your Container Registry
How to Use Mirroring and Caching to Optimize your Container Registry
Docker, Inc.

Monolithic to Microservices + Docker = SDLC on Steroids!
Monolithic to Microservices + Docker = SDLC on Steroids!Monolithic to Microservices + Docker = SDLC on Steroids!
Monolithic to Microservices + Docker = SDLC on Steroids!
Docker, Inc.

Kubernetes at Datadog Scale
Kubernetes at Datadog ScaleKubernetes at Datadog Scale
Kubernetes at Datadog Scale
Docker, Inc.

Labels, Labels, Labels
Labels, Labels, Labels Labels, Labels, Labels
Labels, Labels, Labels
Docker, Inc.

Using Docker Hub at Scale to Support Micro Focus' Delivery and Deployment Model
Using Docker Hub at Scale to Support Micro Focus' Delivery and Deployment ModelUsing Docker Hub at Scale to Support Micro Focus' Delivery and Deployment Model
Using Docker Hub at Scale to Support Micro Focus' Delivery and Deployment Model
Docker, Inc.

Build & Deploy Multi-Container Applications to AWS
Build & Deploy Multi-Container Applications to AWSBuild & Deploy Multi-Container Applications to AWS
Build & Deploy Multi-Container Applications to AWS
Docker, Inc.

From Fortran on the Desktop to Kubernetes in the Cloud: A Windows Migration S...
From Fortran on the Desktop to Kubernetes in the Cloud: A Windows Migration S...From Fortran on the Desktop to Kubernetes in the Cloud: A Windows Migration S...
From Fortran on the Desktop to Kubernetes in the Cloud: A Windows Migration S...
Docker, Inc.

Developing with Docker for the Arm Architecture
Developing with Docker for the Arm ArchitectureDeveloping with Docker for the Arm Architecture
Developing with Docker for the Arm Architecture
Docker, Inc.


More from Docker, Inc. (20)

Containerize Your Game Server for the Best Multiplayer Experience
Containerize Your Game Server for the Best Multiplayer Experience Containerize Your Game Server for the Best Multiplayer Experience
Containerize Your Game Server for the Best Multiplayer Experience

How to Improve Your Image Builds Using Advance Docker Build
How to Improve Your Image Builds Using Advance Docker BuildHow to Improve Your Image Builds Using Advance Docker Build
How to Improve Your Image Builds Using Advance Docker Build

Build & Deploy Multi-Container Applications to AWS
Build & Deploy Multi-Container Applications to AWSBuild & Deploy Multi-Container Applications to AWS
Build & Deploy Multi-Container Applications to AWS

Securing Your Containerized Applications with NGINX
Securing Your Containerized Applications with NGINXSecuring Your Containerized Applications with NGINX
Securing Your Containerized Applications with NGINX

How To Build and Run Node Apps with Docker and Compose
How To Build and Run Node Apps with Docker and ComposeHow To Build and Run Node Apps with Docker and Compose
How To Build and Run Node Apps with Docker and Compose

Hands-on Helm
Hands-on Helm Hands-on Helm
Hands-on Helm

Distributed Deep Learning with Docker at Salesforce
Distributed Deep Learning with Docker at SalesforceDistributed Deep Learning with Docker at Salesforce
Distributed Deep Learning with Docker at Salesforce

The First 10M Pulls: Building The Official Curl Image for Docker Hub
The First 10M Pulls: Building The Official Curl Image for Docker HubThe First 10M Pulls: Building The Official Curl Image for Docker Hub
The First 10M Pulls: Building The Official Curl Image for Docker Hub

Monitoring in a Microservices World
Monitoring in a Microservices WorldMonitoring in a Microservices World
Monitoring in a Microservices World

COVID-19 in Italy: How Docker is Helping the Biggest Italian IT Company Conti...
COVID-19 in Italy: How Docker is Helping the Biggest Italian IT Company Conti...COVID-19 in Italy: How Docker is Helping the Biggest Italian IT Company Conti...
COVID-19 in Italy: How Docker is Helping the Biggest Italian IT Company Conti...

Predicting Space Weather with Docker
Predicting Space Weather with DockerPredicting Space Weather with Docker
Predicting Space Weather with Docker

Become a Docker Power User With Microsoft Visual Studio Code
Become a Docker Power User With Microsoft Visual Studio CodeBecome a Docker Power User With Microsoft Visual Studio Code
Become a Docker Power User With Microsoft Visual Studio Code

How to Use Mirroring and Caching to Optimize your Container Registry
How to Use Mirroring and Caching to Optimize your Container RegistryHow to Use Mirroring and Caching to Optimize your Container Registry
How to Use Mirroring and Caching to Optimize your Container Registry

Monolithic to Microservices + Docker = SDLC on Steroids!
Monolithic to Microservices + Docker = SDLC on Steroids!Monolithic to Microservices + Docker = SDLC on Steroids!
Monolithic to Microservices + Docker = SDLC on Steroids!

Kubernetes at Datadog Scale
Kubernetes at Datadog ScaleKubernetes at Datadog Scale
Kubernetes at Datadog Scale

Labels, Labels, Labels
Labels, Labels, Labels Labels, Labels, Labels
Labels, Labels, Labels

Using Docker Hub at Scale to Support Micro Focus' Delivery and Deployment Model
Using Docker Hub at Scale to Support Micro Focus' Delivery and Deployment ModelUsing Docker Hub at Scale to Support Micro Focus' Delivery and Deployment Model
Using Docker Hub at Scale to Support Micro Focus' Delivery and Deployment Model

Build & Deploy Multi-Container Applications to AWS
Build & Deploy Multi-Container Applications to AWSBuild & Deploy Multi-Container Applications to AWS
Build & Deploy Multi-Container Applications to AWS

From Fortran on the Desktop to Kubernetes in the Cloud: A Windows Migration S...
From Fortran on the Desktop to Kubernetes in the Cloud: A Windows Migration S...From Fortran on the Desktop to Kubernetes in the Cloud: A Windows Migration S...
From Fortran on the Desktop to Kubernetes in the Cloud: A Windows Migration S...

Developing with Docker for the Arm Architecture
Developing with Docker for the Arm ArchitectureDeveloping with Docker for the Arm Architecture
Developing with Docker for the Arm Architecture


Recently uploaded

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
ArgaBisma

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

Pigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending PlantPigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending Plant
LINUS PROJECTS (INDIA)

DealBook of Ukraine: 2024 edition
DealBook of Ukraine: 2024 editionDealBook of Ukraine: 2024 edition
DealBook of Ukraine: 2024 edition
Yevgen Sysoyev

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
Priyanka Aash

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck
Lidia A.

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx
ishalveerrandhawa1

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence
rajancomputerfbd

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf
Tatiana Al-Chueyr

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Zilliz

Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Bert Blevins

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdfARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
Inglês no Mundo Digital

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

Observability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetryObservability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetry
Eric D. Schabell

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
kumarjarun2010

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris


Recently uploaded (20)

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

Pigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending PlantPigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending Plant

DealBook of Ukraine: 2024 edition
DealBook of Ukraine: 2024 editionDealBook of Ukraine: 2024 edition
DealBook of Ukraine: 2024 edition

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence

Best Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdfBest Practices for Effectively Running dbt in Airflow.pdf
Best Practices for Effectively Running dbt in Airflow.pdf

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama

Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdfARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf
ARTIFICIAL INTELLIGENCE (AI) IN MUSIC.pdf

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

Observability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetryObservability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetry

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSECHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE
CHAPTER-8 COMPONENTS OF COMPUTER SYSTEM CLASS 9 CBSE

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...


Docker Security workshop slides

  • 1. Docker Security Workshop David Lawrence Riyaz Faizullabhoy Viktor Stanchev
  • 2. Goals of this workshop
  • 3. Features See what features are available in Docker What do they do? How do you use them?
  • 4. Understanding Look at some tools See underlying implementation details Learn best practices
  • 5. Do!
  • 7. Docker is additive to the security of your application ...
  • 8. … even if you don’t use any of the techniques we cover
  • 9. Docker aims to be Secure by Default https://docs.docker.com/engine/security/non-events/ CVE-2013-1956, 1957, 1958, 1959, 1979, CVE-2014-4014, 5206, 5207, 7970, 7975, CVE-2015-2925, 8543, CVE- 2016-3134, 3135, CVE-2014-0181, CVE-2015-3339, CVE-2014-4699, CVE-2014-9529, CVE-2015-3214, 4036, CVE-2016-0728, CVE-2016-2383
  • 10. Why?
  • 11. How do we think about containers?
  • 12. How we talk about Docker
  • 13. How Docker Actually Works systemd docker Host OS alpine ubuntunginx sh nginx bash vimvi nginx
  • 14. Where can we see this? top
  • 15. Anatomy of a Container
  • 16. Namespaces: “what containers can see” ls -la /proc/<pid>/ns/
  • 17. What’s namespaced? Cgroup CLONE_NEWCGROUP Cgroup root directory IPC CLONE_NEWIPC System V IPC, POSIX message queues Network CLONE_NEWNET Network devices, stacks, ports, etc. Mount CLONE_NEWNS Mount points PID CLONE_NEWPID Process IDs User CLONE_NEWUSER User and group IDs UTS CLONE_NEWUTS Hostname and NIS domain name
  • 18. Demo using namespaces directly Create a shell process with pid and fs namespaces. $ sudo unshare -fp $ sudo unshare -fp --mount-proc
  • 19. cgroups: “what containers can use” Aka “Control Groups” - limit container resources! CPU Memory PIDs
  • 20. CPU 1 CPU 2 CPU 3 CPU 4 cgroups: “what containers can use”
  • 21. CPU 1 CPU 2 CPU 3 CPU 4 CPU 1 CPU 1 CPU 2 cgroups: “what containers can use”
  • 22. :(){ :|: & };: cgroups: “what containers can use”
  • 23. git clone https://github.com/riyazdf/dockercon-workshop.git - cgroups directory NOTE: Ubuntu 15.10 does not support PID limits, but 16.04 does if you have it So DO NOT run the fork bomb unless you have another machine. Set up your AWS instance - check your email! chmod 400 <PATH_TO_FILE>/<name>.pem ssh -i <PATH_TO_FILE>/<name>.pem ubuntu@<Public DNS> Example: ssh -i riyaz.pem ubuntu@ec2-54-149...compute.amazonaws.com Hands-On Exercise
  • 25. Docker Client Server Architecture docker client docker engine unix socket tcp socket
  • 26. Exposing your engine to the internet Edit config at /lib/systemd/system/docker.service - ExecStart=/usr/bin/docker daemon -H fd:// + ExecStart=/usr/bin/docker daemon -H fd:// -H tcp://0.0.0.0:2376 Restart Docker $ sudo systemctl daemon-reload $ sudo systemctl restart docker
  • 27. One Way TLS - Same way we trust websites: - Server cert and key on engine - CA cert on client - client authenticates Docker engine Docker client
  • 28. Creating a CA # use a strong passphrase! $ openssl genrsa -aes256 -out ca-key.pem 4096 $ openssl req -new -x509 -days 365 -key ca-key.pem -sha256 -out ca.pem
  • 29. Creating the daemon cert and key $ openssl genrsa -out server-key.pem 4096 $ openssl req -subj "/CN=$HOSTNAME" -sha256 -new -key server-key.pem -out server.csr $ echo subjectAltName = IP:10.10.10.20,IP:127.0.0.1 > extfile.cnf $ openssl x509 -req -days 365 -sha256 -in server.csr -CA ca.pem -CAkey ca-key.pem -CAcreateserial -out server-cert.pem -extfile extfile.cnf $ sudo cp ca.pem /root/.docker/ca.pem
  • 30. Starting the daemon with the cert and key $> tree /etc/docker ├── key.json ├── server-cert.pem ├── server-key.pem $> /usr/bin/docker daemon -H tcp://0.0.0.0:2376 -H unix:///var/run/docker.sock --storage-driver aufs --tlsverify --tlscert /etc/docker/server-cert.pem --tlskey /etc/docker/server-key.pem
  • 31. Trusting the daemon’s cert on the client $> tree ~/.docker ├── config.json ├── ca.pem OR $> export DOCKER_CERT_PATH=~/my_cert_directory $> tree ~/my_cert_directory ├── ca.pem
  • 32. Secure by default: docker-machine docker-machine does this automatically to set up TLS for you by default!
  • 33. Best practice: Mutual TLS Client also presents certificate Sends after verifying server cert Mutual authentication Client CA on daemon (engine) Docker client
  • 34. Creating client cert and key $ openssl genrsa -out key.pem 4096 $ echo extendedKeyUsage = clientAuth > extfile.cnf $ openssl x509 -req -days 365 -sha256 -in client.csr -CA ca.pem -CAkey ca-key.pem -CAcreateserial -out cert.pem -extfile extfile.cnf
  • 35. Trusting the client cert on the daemon $> tree /etc/docker ├── key.json ├── server-cert.pem ├── server-key.pem ├── ca.pem $> /usr/bin/docker daemon -H tcp://0.0.0.0:2376 -H unix:///var/run/docker.sock --storage-driver aufs --tlsverify --tlscert /etc/docker/server-cert.pem --tlskey /etc/docker/server-key.pem --tlscacert /etc/docker/ca.pem
  • 36. Using the client certs on the client $> tree ~/.docker ├── config.json ├── ca.pem ├── cert.pem ├── key.pem OR $> export DOCKER_CERT_PATH=~/my_cert_directory $> tree ~/my_cert_directory ├── ca.pem ├── cert.pem ├── key.pem
  • 39. What’s in an image: The Layered Filesystem
  • 40. What is a layered filesystem? Combine multiple directories to look like a single filesystem Tombstoning/whiteout files to delete files from lower layers
  • 43. Best practice: “minimal” base images alpine ~ 2 MB from hub (1 layer!) musl libc and busybox ubuntu ~ 50 MB from hub
  • 44. Best practice: verify content RUN apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys BBEBDCB318AD50EC6865090613B00F1FD2C19886 && echo deb http://repository.spotify.com stable non-free | sudo tee /etc/apt/sources.list.d/spotify.list
  • 45. Best practice: read only containers $ docker run it --rm --read-only alpine sh Mounts the container’s FS as read-only
  • 46. Best practice: read-only Volumes -v /data:/data:ro
  • 47. Common mistake: mount host location as writable $ docker run it --rm -v /:/host alpine sh
  • 48. Best practice: minimal, read-only mounts $ docker run it --rm -v /subdir/we/need:/dir:ro alpine sh
  • 50. Isolate services Control which services can talk to which other services ● Easier to audit
  • 51. Links (legacy) Allow 2 specific containers to talk to each other. ● Brittle: does not survive container restarts docker run -d --name db mysql:latest docker run -d --link db wordpress
  • 52. Network Namespace docker network create my_app docker run -it --rm --net=my_app alpine sh Links are dynamic, can be created to not yet created containers.
  • 53. Best practice: Use Multiple Networks nginx my_app Internal service RethinkDB Proxy RethinkDB RethinkDB RethinkDB load_balancer_net app_net db_net
  • 54. Common Mistake: --net=host Container can see ALL network traffic, including traffic on docker virtual networks
  • 55. Common Mistake: ports exposed on host Unnecessary Creates conflicts
  • 56. Best practice: Mutual TLS Implementation detail: use mutual TLS between pairs of services that need to talk to each other.
  • 58. Default runs as root $ docker run -v /bin:/host/bin -it --rm alpine sh / $ whoami root / $ id uid=0(root) gid=0(root) / $ # WREAK HAVOC TIME! Please don’t do this / $ rm /host/bin/sh # Again, please don’t do this
  • 59. root in container == root outside container We don’t want this to be the case! How can we change this? 0 (root) 1000 (user) 65534 (nobody)
  • 60. Step in the right direction: run as a user # Use the --user flag with UID:GID argument $ docker run -v /bin:/host/bin --user 10000:10000 -it --rm alpine sh / $ whoami whoami: unknown uid 10000 / $ id uid=10000 gid=10000 / $ rm /host/bin/sh rm: can’t remove ‘sh’: Permission denied
  • 61. But I still want “root” inside container Perhaps we need to run a command that needs to look like it’s root in the container, but we don’t want to give it true root access to the underlying host 0 (root) 1000 (user) 65534 (nobody) 10000 (docker)
  • 62. $ docker daemon --userns-remap [uid[:gid]] Enable user namespaces 0 (root) 1000 (user) 65534 (nobody) 10000 (docker) “0” “root”
  • 63. $ docker daemon --userns-remap [uid[:gid]] Will need to re-pull images and re-create volumes due to container resource and image layer permissions Leave this feature on in production; switching back and forth should only be done in development Enable user namespaces - common pitfalls 0 (root) 1000 (user) 65534 (nobody) 10000 (docker) “0” “root”
  • 64. Hands-On Exercise && break github.com/riyazdf/dockercon-workshop - userns directory
  • 66. Security Goals Image Provenance and Trust ● Provenance: who made this image? ○ Verify the publisher of the image ● Trust: have the contents of this image been tampered with? ○ Verify the integrity of the image
  • 67. Pulling by tag $ docker pull alpine:latest Name resolution takes place in registry to find content-address of image $ docker pull alpine Using default tag: latest Notice that the tag defaults to latest if no tags are given!
  • 68. Pulling by digest $ docker pull alpine@sha256:ea0d1389812... No name resolution! Security best practice: pulling by digest to enforce consistent and “immutable” pulls because of content-addressability
  • 69. Content Trust $ export DOCKER_CONTENT_TRUST=1 $ docker pull alpine:latest Pull (1 of 1): alpine:latest@sha256:ea0d1389... Benefits of pull by digest with ease of pull by tag
  • 70. docker pull alpine:latest Without trust enabled: forward command through Docker Engine to registry to resolve tag to digest
  • 72. Content Trust (on push) $ export DOCKER_CONTENT_TRUST=1 $ docker tag alpine:latest <user>/alpine:trust $ docker push <user>/alpine:trust Looks the same as a regular push by tag!
  • 73. Content Trust (it’s more than gpg) The push refers to a repository [<user>/alpine] 77f08abee8bf: Pushed trust: digest: sha256:d5de850d728... size: 1355 Signing and pushing trust metadata Enter passphrase for root key with ID e83f424: Enter passphrase for new repository key with ID f903fc9 (docker.io/<user>/alpine): Repeat passphrase for new repository key with ID f903fc9 (docker.io/<user>/alpine): Finished initializing "docker.io/<user>/alpine" Successfully signed "docker.io/<user>/alpine":trust
  • 74. Content Trust (it’s more than gpg) $ cat ~/.docker/trust/tuf/docker.io/alpine/metadata/timestamp.json | jq
  • 75. Docker Content Trust / Notary Threat Model ● Key compromise? ○ We can recover! ● Replay attacks? ○ Not with our freshness guarantees! ● Untrusted registry? ○ No problem! DCT/Notary do not root any trust in the underlying content store or transport ○ Use signed TUF metadata to retrieve trusted hashes of content ○ Don’t even need to trust Notary server after first pull - local metadata pins trust, tagging keys are kept client-side for signing
  • 76. Docker Pull Only pull trusted images Use official images when possible!
  • 78. Docker Security Scanning (Nautilus) https://hub.docker.com/r/library/alpine/tags/ - All official images on hub are scanned for vulnerabilities, lobby upstream for fixes! - Can view scan results after logging into Docker Hub
  • 79. Docker Security Scanning (Nautilus) - Checks against CVE database for declared layers - Also performs binary scan to pick up on statically linked binaries - Official repos have been scanned since Nov 2015, are rescanned often
  • 82. Root vs Not Root Capabilities breakdown root permissions into groups that can be individually allowed or blocked - Often don’t want or need all root permissions - Can reduce attack surface by reducing capabilities
  • 83. Docker Default Capabilities In whitelist: "CAP_CHOWN", "CAP_DAC_OVERRIDE", "CAP_FSETID", "CAP_FOWNER", "CAP_MKNOD", "CAP_NET_RAW", "CAP_SETGID", "CAP_SETUID", "CAP_SETFCAP", "CAP_SETPCAP", "CAP_NET_BIND_SERVICE", "CAP_SYS_CHROOT", "CAP_KILL", "CAP_AUDIT_WRITE", Not in whitelist: "CAP_AUDIT_CONTROL", "CAP_AUDIT_READ", "CAP_BLOCK_SUSPEND", "CAP_DAC_READ_SEARCH", "CAP_IPC_LOCK", "CAP_ICP_OWNER", "CAP_LEASE", "CAP_LINUX_IMMUTABLE", "CAP_MAC_ADMIN", "CAP_MAC_OVERRIDE", "CAP_NET_ADMIN", "CAP_NET_BROADCAST", "CAP_SYS_ADMIN", "CAP_SYS_BOOT", "CAP_SYS_MODULE", "CAP_SYS_NICE", "CAP_SYS_PACCT", "CAP_SYS_PTRACE", "CAP_SYS_RAWIO", "CAP_SYS_RESOURCE", "CAP_SYS_TIME", "CAP_SYS_TTY_CONFIG", "CAP_SYSLOG", “CAP_WAKE_ALARM",
  • 84. How do we add/remove capabilities? docker run --cap-add docker run --cap-drop docker run --cap-drop ALL --cap-add $CAP
  • 85. Configure capabilities in compose cap_add: - CAP_NET_BROADCAST - CAP_NET_RAW cap_drop: - ALL
  • 86. What to watch out for - Read the fine print for each capability! - man capabilities - i.e. removing CAP_KILL only requires permissions checks and enabling bypasses permissions checks. It doesn’t generically enable/disable the ability to kill - CAP_SYS_ADMIN is nearly root...
  • 87. What to watch out for $ man capabilities ... CAP_SYS_ADMIN * Perform a range of system administration operations including: quotactl(2), mount(2), umount(2), swapon(2), setdomainname(2); * perform privileged syslog(2) operations (since Linux 2.6.37, CAP_SYSLOG should be used to permit such operations); * perform VM86_REQUEST_IRQ vm86(2) command; * perform IPC_SET and IPC_RMID operations on arbitrary System V IPC objects; * override RLIMIT_NPROC resource limit; * perform operations on trusted and security Extended Attributes (see xattr(7)); * use lookup_dcookie(2); * use ioprio_set(2) to assign IOPRIO_CLASS_RT and (before Linux 2.6.25) IOPRIO_CLASS_IDLE I/O scheduling classes; * forge PID when passing socket credentials via UNIX domain sockets; * exceed /proc/sys/fs/file-max, the system-wide limit on the number of open files, in system calls that open files (e.g., accept(2), execve(2), open(2), pipe(2)); * employ CLONE_* flags that create new namespaces with clone(2) and unshare(2) (but, since Linux 3.8, creating user namespaces does not require any capability); * call perf_event_open(2); * access privileged perf event information; * call setns(2) (requires CAP_SYS_ADMIN in the target
  • 88. Capabilities and Docker ● No extended attributes in images -> no capabilities elevation normally possible ● Use docker to reduce capabilities ● Docker can’t grant capabilities to non-root users due to some limitations in older kernel versions
  • 89. Capabilities and Docker Your options from worst to best: 1. Manual management within the container: docker run --cap-add ALL 2. Restricted capabilities (still root): docker run --cap-drop ALL --cap-add ABC 3. No capabilities: docker run --user
  • 90. What to watch out for $ docker run --privileged … gives all capabilities to the container, also lifts limitations from device cgroup
  • 94. Original Seccomp On-off feature that disabled all system calls except: exit() read() write() sigreturn()
  • 95. Seccomp-BPF Extension Allows us to configure what system calls are allowed/blocked Uses Berkeley Packet Filters (BPF) Allows examining system calls in detail before making a decision
  • 96. Is it enabled? In the kernel: $ grep SECCOMP /boot/config-$(uname -r) # or zgrep SECCOMP /proc/config.gz CONFIG_SECCOMP=y CONFIG_SECCOMP_FILTER=y In docker: $ docker run --rm alpine grep Seccomp /proc/self/status In docker 1.12: $ docker info
  • 97. Default Whitelist Lots of system calls, what’s excluded: acct add_key adjtimex bpf clock_adjtime clock_settime clone create_module delete_module finit_module get_kernel_syms get_mempolicy init_module ioperm iopl kcmp kexec_file_load kexec_load keyctl lookup_dcookie mbind mount move_pages name_to_handle_at nfsservctl open_by_handle_at perf_event_open personality pivot_root process_vm_readv process_vm_writev ptrace query_module quotactl reboot request_key set_mempolicy setns settimeofday stime swapon swapoff sysfs _sysctl umount umount2 unshare uselib userfaultfd ustat vm86 vm86old
  • 98. The strace tool $ strace -c -f -S name ls 2>&1 1>/dev/null | tail -n +3 | head -n -2 | awk '{print $(NF)}' access arch_prctl brk close execve fstat getdents ioctl mmap mprotect munmap open read write
  • 99. Docker seccomp profile DSL Seccomp policy example: { "defaultAction": "SCMP_ACT_ERRNO", "architectures": [ "SCMP_ARCH_X86_64", "SCMP_ARCH_X86", "SCMP_ARCH_X32" ], "syscalls": [ { "name": "accept", "action": "SCMP_ACT_ALLOW", "args": [] }, ... ] } Possible actions: SCMP_ACT_KILL SCMP_ACT_TRAP SCMP_ACT_ERRNO SCMP_ACT_TRACE SCMP_ACT_ALLOW
  • 100. Docker seccomp profile DSL More complex filters: "args": [ { "index": 0, "op": "SCMP_CMP_MASKED_EQ", "value": 2080505856, "valueTwo": 0 } ] 2080505856 == 0x7C020000
  • 101. Seccomp and the no-new-privileges option Seccomp policies have to be applied before executing your container and be less specific unless you use: --security-opt no-new-privileges In this case you need to allow only futex stat execve. This flag also disables setuid binaries: $ sudo ls sudo: effective uid is not 0, is /usr/bin/sudo on a file system with the 'nosuid' option set or an NFS file system without root privileges?
  • 102. More information github.com/riyazdf/dockercon-workshop - seccomp directory $ docker run --rm -it --security-opt seccomp=default-no-chmod.json alpine chmod 777 / chmod: /: Operation not permitted
  • 104. What is a LSM? A plugin to the linux kernel that allows us to set policies to restrict what a process can do. Mandatory Access Control: instead of using user-defined permissions to specify access, the underlying system describes permissions itself with labels
  • 105. What is a LSM? Under the hood: each LSM implements a kernel interface that hooks into user-level syscalls about to access an important kernel object (inodes, task control blocks, etc.), either allowing them to pass through or denying them outright depending on the application profile
  • 107. Deep Dive - AppArmor File Access Management AppArmor uses globbing and deny syntax to express filepath restrictions ● deny /sys/* rwklx Deny read/write/lock/link/execute on files in /sys/ ● deny /sys/** rwklx Deny on files in /sys/ and subdirectories
  • 108. Deep Dive - AppArmor Networking Management Like firewall rules: ● Can completely disable networking: deny network ● Can deny certain permissions: deny network bind, inet ● Can specify specific IP/ports : network tcp src 192.168.1.1:80 dst 170.1.1.0:80
  • 109. Deep Dive - AppArmor Capability Management AppArmor can also deny capabilities with a simple syntax: ● deny capability chown, ● deny capability dac_override
  • 110. Deep Dive - AppArmor Composability C-style include statements ● include <abstractions/base> - built-in bundle of files ● include "/etc/apparmor.d/include/foo" - absolute path from file ● include "../relative_path/bar" - relative path from file
  • 111. Deep Dive - AppArmor Tools for debugging and generating profiles (on Ubuntu): $ sudo apt install apparmor-utils $ aa-complain <PATH_TO_PROFILE> # Watch AppArmor block things! $ aa-genprof <PATH_TO_BINARY> # Interactive profile generation!
  • 112. Do I still need Seccomp and Cap-drop? Why not? Docker sets a profile for each setting by default ● Some overlap but each feature still adds unique functionality ● Defense-in-depth
  • 113. Common mistake: disabling profiles SELinux: setenforce 0 (on daemon) http://stopdisablingselinux.com/ AppArmor: --security-opt apparmor:unconfined (on docker run) This one’s a little harder to do “by accident” docker run --privileged
  • 115. Docker Bench https://dockerbench.com - Open-source tool for running automated tests - inspired by the CIS Docker 1.11 benchmark - Runs against containers currently running on same host - Checks for AppArmor, read-only volumes, etc...
  • 116. View from 10,000 feet: Docker Security Checklist Build: - Use minimal images (alpine) - Use official images - Using images pulled by content trust (fresh, pulled by digest from authors you trust) Ship: - Push to your consumers with content trust - View results from Docker Security Scanning Run: - Mutual TLS between client/engine - Read-only volumes and containers - User namespaces in the daemon - Limit resources with cgroups - Use the default apparmor/seccomp/capabilities, or your own tested profiles (not --privileged!)
  • 117. Thank you! - Please take the exercises home! We’ll accept issues and pull requests :) - Learn more at https://docs.docker.com/engine/security/security/
  • 120. Running your own Notary Deploy a notary $ git clone https://github.com/docker/notary.git $ cd notary $ docker-compose up
  • 121. Notary Delegations (admin)$ notary key rotate <GUN> snapshot -r (user)$ < generates private key and x509 cert, gives user.crt to admin > (admin)$ notary delegation add <GUN> targets/user user.crt --all-paths (admin)$ notary publish <GUN> Docker engine >= 1.11 will sign with delegation keys if it detects them

Editor's Notes

  1. David
  2. David
  3. David
  4. David
  5. David
  6. David
  7. David
  8. David
  9. David
  10. David
  11. David
  12. David
  13. David
  14. David
  15. David
  16. David
  17. David
  18. David
  19. Riyaz
  20. Riyaz
  21. Riyaz
  22. Riyaz
  23. TIME LIMIT: 20 mins (setup + cgroups) Riyaz
  24. David
  25. David
  26. David
  27. David
  28. David
  29. David
  30. David
  31. David
  32. David
  33. David
  34. David
  35. David
  36. David
  37. David
  38. David Note: this is TLS with a registry - should we include a separate section?
  39. David
  40. David
  41. David
  42. David
  43. David
  44. David
  45. David
  46. David
  47. David
  48. David
  49. David
  50. David
  51. David
  52. David
  53. David
  54. David
  55. David
  56. Riyaz
  57. Riyaz
  58. Riyaz
  59. Riyaz
  60. Riyaz
  61. Riyaz
  62. Riyaz
  63. TIME LIMIT: 30 minutes Riyaz
  64. Riyaz
  65. Riyaz
  66. Riyaz
  67. Riyaz Like git tags
  68. Riyaz
  69. Riyaz
  70. Riyaz
  71. Riyaz
  72. Riyaz Mention docker.io
  73. Riyaz
  74. Riyaz Gpg attack slides “Untrusted notary” - pin on local data after first pull
  75. Riyaz
  76. Riyaz
  77. Riyaz
  78. Riyaz
  79. TIME LIMIT: 20 minutes Riyaz
  80. Viktor
  81. Viktor
  82. Viktor
  83. Viktor
  84. Viktor
  85. Viktor
  86. Viktor
  87. Viktor
  88. Viktor
  89. Viktor
  90. This succeeds because by default root has the chown capability. $ docker run --rm -it alpine chown nobody / This shows that the chown command works when it has only the chown capability. $ docker run --rm -it --cap-drop ALL --cap-add CHOWN alpine chown nobody / This fails because we removed the chown capability from root. $ docker run --rm -it --cap-drop CHOWN alpine chown nobody / chown: /: Operation not permitted This shows that docker doesn't currently support adding capabilities to non-root users. $ docker run --rm -it --cap-add chown -u nobody alpine chown nobody / chown: /: Operation not permitted
  91. Viktor
  92. Viktor
  93. Viktor
  94. Viktor
  95. Viktor
  96. Viktor
  97. Viktor
  98. Viktor
  99. Riyaz
  100. Riyaz
  101. Riyaz
  102. Riyaz AppArmor - Ubuntu + Debian, SELinux - Red Hat distros (originally NSA)
  103. Riyaz
  104. Riyaz
  105. Riyaz Mount rules as well
  106. Riyaz
  107. Riyaz
  108. Riyaz
  109. Riyaz
  110. Riyaz
  111. Riyaz
  112. Riyaz
  113. Riyaz
