1. How to Build and Run Node Applications With
Docker and Compose
- Kathleen Juell, Developer @ DigitalOcean, @katjuell

6. ● Building containers
● Containerizing for development
with Compose
● Containerizing for deployment

10. Containers

11. Containers and VMs
● Container features
○ Lightweight
○ Portable
○ Isolated
Containers Virtual Machines

12. 1. Building an Image for a
Node App

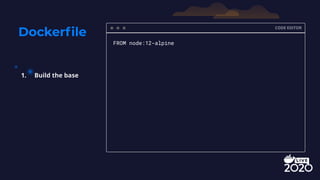

13. Dockerfile
CODE EDITOR
FROM node:12-alpine
1. Build the base

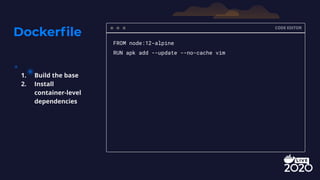

14. Dockerfile
CODE EDITOR
FROM node:12-alpine
RUN apk add --update --no-cache vim
1. Build the base
2. Install
container-level
dependencies

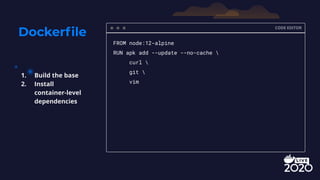

15. Dockerfile
CODE EDITOR
FROM node:12-alpine
RUN apk add --update --no-cache
curl
git
vim
1. Build the base
2. Install
container-level
dependencies

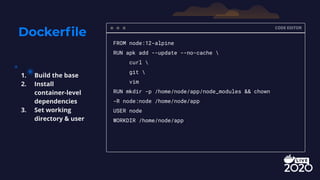

16. Dockerfile
CODE EDITOR
FROM node:12-alpine
RUN apk add --update --no-cache
curl
git
vim
RUN mkdir -p /home/node/app/node_modules && chown
-R node:node /home/node/app
USER node
WORKDIR /home/node/app
1. Build the base
2. Install
container-level
dependencies
3. Set working
directory & user

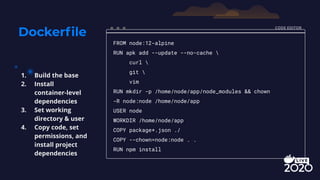

17. Dockerfile
CODE EDITOR
FROM node:12-alpine
RUN apk add --update --no-cache
curl
git
vim
RUN mkdir -p /home/node/app/node_modules && chown
-R node:node /home/node/app
USER node
WORKDIR /home/node/app
COPY package*.json ./
COPY --chown=node:node . .
RUN npm install
1. Build the base
2. Install
container-level
dependencies
3. Set working
directory & user
4. Copy code, set
permissions, and
install project
dependencies

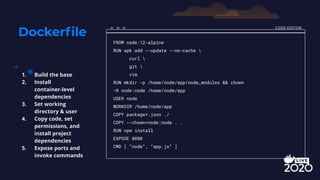

18. Dockerfile
CODE EDITOR
FROM node:12-alpine
RUN apk add --update --no-cache
curl
git
vim
RUN mkdir -p /home/node/app/node_modules && chown
-R node:node /home/node/app
USER node
WORKDIR /home/node/app
COPY package*.json ./
COPY --chown=node:node . .
RUN npm install
EXPOSE 8080
CMD [ “node”, “app.js” ]
1. Build the base
2. Install
container-level
dependencies
3. Set working
directory & user
4. Copy code, set
permissions, and
install project
dependencies
5. Expose ports and
invoke commands

19. Up & Running

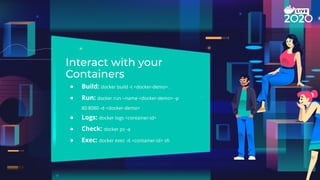

20. ● Build: docker build -t <docker-demo> .
● Run: docker run --name <docker-demo> -p
80:8080 -d <docker-demo>
● Logs: docker logs <container-id>
● Check: docker ps -a
● Exec: docker exec -it <container-id> sh

21. Demo Time

22. 2. Development Setup
with Compose

23. A. Prepare the Application

24. ● Service: A running container
● Service definition: Information
about how the container will run

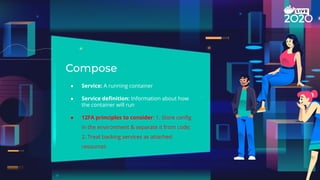

25. ● Service: A running container
● Service definition: Information about how
the container will run
● 12FA principles to consider: 1. Store config
in the environment & separate it from code;
2. Treat backing services as attached
resources

26. Where to look & what to do?
● Where are your database credentials defined?
● Anything else that talks to an attached service?

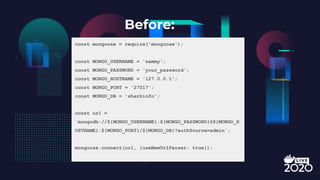

27. Before:
const mongoose = require('mongoose');
const MONGO_USERNAME = 'sammy';
const MONGO_PASSWORD = 'your_password';
const MONGO_HOSTNAME = '127.0.0.1';
const MONGO_PORT = '27017';
const MONGO_DB = 'sharkinfo';
const url =
`mongodb://${MONGO_USERNAME}:${MONGO_PASSWORD}@${MONGO_H
OSTNAME}:${MONGO_PORT}/${MONGO_DB}?authSource=admin`;
mongoose.connect(url, {useNewUrlParser: true});

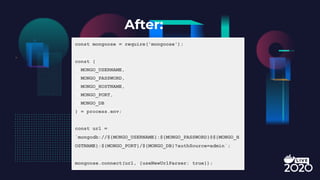

28. After:
const mongoose = require('mongoose');
const {
MONGO_USERNAME,
MONGO_PASSWORD,
MONGO_HOSTNAME,
MONGO_PORT,
MONGO_DB
} = process.env;
const url =
`mongodb://${MONGO_USERNAME}:${MONGO_PASSWORD}@${MONGO_H
OSTNAME}:${MONGO_PORT}/${MONGO_DB}?authSource=admin`;
mongoose.connect(url, {useNewUrlParser: true});

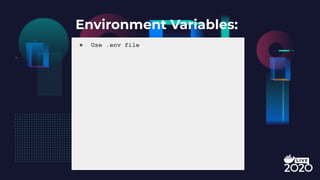

29. Environment Variables:
● Use .env file

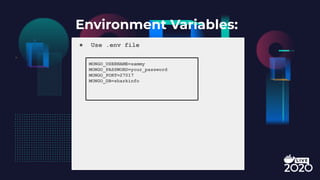

30. Environment Variables:
● Use .env file
MONGO_USERNAME=sammy
MONGO_PASSWORD=your_password
MONGO_PORT=27017
MONGO_DB=sharkinfo

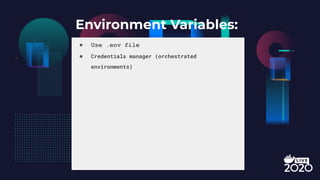

31. Environment Variables:
● Use .env file
● Credentials manager (orchestrated
environments)

32. One more stop at `db.js`:
. . .
const options = {
useNewUrlParser: true,
reconnectTries: Number.MAX_VALUE,
reconnectInterval: 500,
connectTimeoutMS: 10000,
};
const url =
`mongodb://${MONGO_USERNAME}:${MONGO_PASSWORD}@${MONGO_HOSTNAME}:${MO
NGO_PORT}/${MONGO_DB}?authSource=admin`;
mongoose.connect(url, options).then( function() {
console.log('MongoDB is connected');
})
.catch( function(err) {
console.log(err);
});

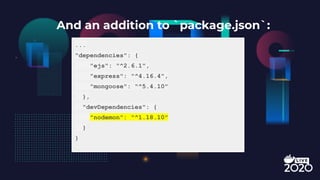

33. And an addition to `package.json`:
...
"dependencies": {
"ejs": "^2.6.1",
"express": "^4.16.4",
"mongoose": "^5.4.10"
},
"devDependencies": {
"nodemon": "^1.18.10"
}
}

34. B. Write the Compose File

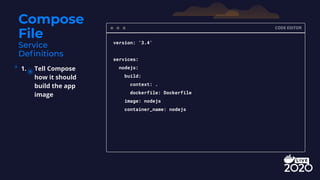

35. Compose
File
CODE EDITOR
version: '3.4'
services:
nodejs:
build:
context: .
dockerfile: Dockerfile
image: nodejs
container_name: nodejs
1. Tell Compose
how it should
build the app

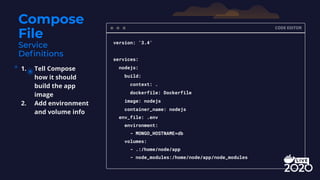

36. Compose
File
CODE EDITOR
version: '3.4'
services:
nodejs:
build:
context: .
dockerfile: Dockerfile
image: nodejs
container_name: nodejs
env_file: .env
environment:
- MONGO_HOSTNAME=db
volumes:
- .:/home/node/app
- node_modules:/home/node/app/node_modules
1. Tell Compose
how it should
build the app
2. Add environment
and volume info

37. Compose
File
CODE EDITOR
version: '3.4'
services:
nodejs:
build:
context: .
dockerfile: Dockerfile
image: nodejs
container_name: nodejs
env_file: .env
environment:
- MONGO_HOSTNAME=db
volumes:
- .:/home/node/app
- node_modules:/home/node/app/node_modules
1. Tell Compose
how it should
build the app
2. Add environment
and volume info

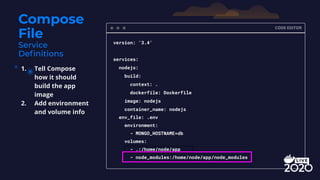

38. Compose
File
CODE EDITOR
version: '3.4'
services:
nodejs:
build:
context: .
dockerfile: Dockerfile
image: nodejs
container_name: nodejs
env_file: .env
environment:
- MONGO_HOSTNAME=db
volumes:
- .:/home/node/app
- node_modules:/home/node/app/node_modules
1. Tell Compose
how it should
build the app
2. Add environment
and volume info

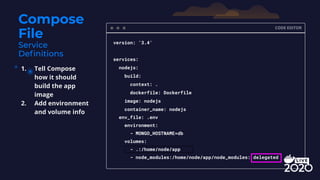

39. Compose
File
CODE EDITOR
version: '3.4'
services:
nodejs:
build:
context: .
dockerfile: Dockerfile
image: nodejs
container_name: nodejs
env_file: .env
environment:
- MONGO_HOSTNAME=db
volumes:
- .:/home/node/app
- node_modules:/home/node/app/node_modules: delegated
1. Tell Compose
how it should
build the app
2. Add environment
and volume info

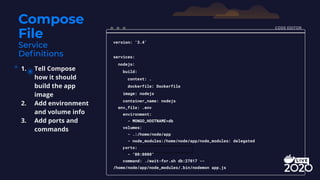

40. Compose
File
CODE EDITOR
version: '3.4'
services:
nodejs:
build:
context: .
dockerfile: Dockerfile
image: nodejs
container_name: nodejs
env_file: .env
environment:
- MONGO_HOSTNAME=db
volumes:
- .:/home/node/app
- node_modules:/home/node/app/node_modules: delegated
ports:
- "80:8080"
command: ./wait-for.sh db:27017 --
/home/node/app/node_modules/.bin/nodemon app.js
1. Tell Compose
how it should
build the app
2. Add environment
and volume info
3. Add ports and
commands

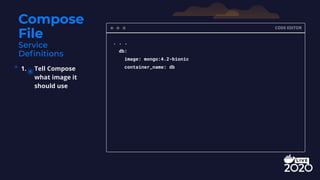

41. Compose
File
CODE EDITOR
. . .
db:
image: mongo:4.2-bionic
container_name: db1. Tell Compose
what image it
should use

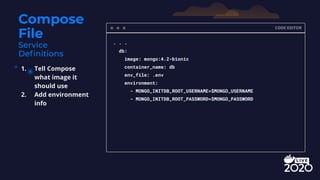

42. Compose
File
CODE EDITOR
. . .
db:
image: mongo:4.2-bionic
container_name: db
env_file: .env
environment:
- MONGO_INITDB_ROOT_USERNAME=$MONGO_USERNAME
- MONGO_INITDB_ROOT_PASSWORD=$MONGO_PASSWORD
1. Tell Compose
what image it
should use
2. Add environment
info

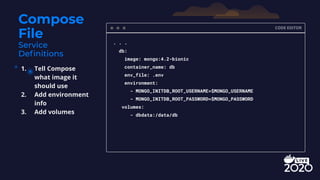

43. Compose
File
CODE EDITOR
. . .
db:
image: mongo:4.2-bionic
container_name: db
env_file: .env
environment:
- MONGO_INITDB_ROOT_USERNAME=$MONGO_USERNAME
- MONGO_INITDB_ROOT_PASSWORD=$MONGO_PASSWORD
volumes:
- dbdata:/data/db
1. Tell Compose
what image it
should use
2. Add environment
info
3. Add volumes

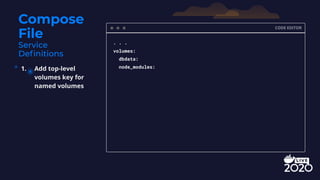

44. Compose
File
CODE EDITOR
. . .
volumes:
dbdata:
node_modules:1. Add top-level
volumes key for
named volumes

45. ● Run: docker-compose up -d
● List: docker-compose ps
● Logs: docker-compose logs <container>
● Exec: docker-compose exec <container>
<command>
● Down: docker-compose down

46. Demo Time

47. 3. Preparing to Deploy

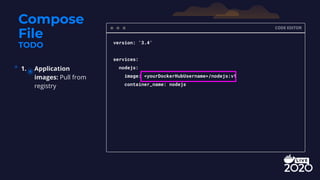

48. Compose
File
TODO
CODE EDITOR
version: '3.4'
services:
nodejs:
image: <yourDockerHubUsername>/nodejs:v1
container_name: nodejs
1. Application
images: Pull from
registry

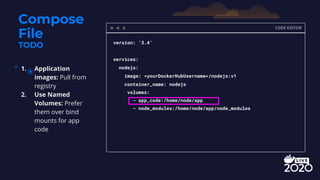

49. Compose
File
TODO
CODE EDITOR
version: '3.4'
services:
nodejs:
image: <yourDockerHubUsername>/nodejs:v1
container_name: nodejs
volumes:
- app_code:/home/node/app
- node_modules:/home/node/app/node_modules
1. Application
images: Pull from
registry
2. Use Named
Volumes: Prefer
them over bind
mounts for app
code

50. Compose
File
TODO
CODE EDITOR
webserver:
image: nginx:1.17-alpine
container_name: webserver
ports:
- "80:80"
volumes:
- app_code:/var/www/html
- ./nginx-conf:/etc/nginx/conf.d
depends_on:
- nodejs
1. Application
images: Pull from
registry
2. Use Named
Volumes: Prefer
them over bind
mounts for app code
3. Add a web server

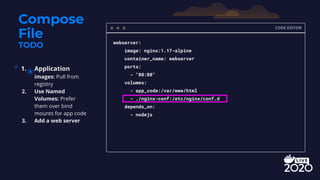

51. Compose
File
TODO
CODE EDITOR
webserver:
image: nginx:1.17-alpine
container_name: webserver
ports:
- "80:80"
volumes:
- app_code:/var/www/html
- ./nginx-conf:/etc/nginx/conf.d
depends_on:
- nodejs
1. Application
images: Pull from
registry
2. Use Named
Volumes: Prefer
them over bind
mounts for app code
3. Add a web server

52. Compose
File
TODO
CODE EDITOR

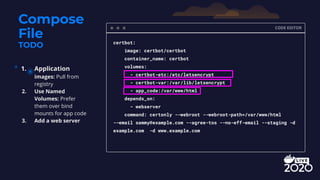

certbot:
image: certbot/certbot
container_name: certbot
volumes:
- certbot-etc:/etc/letsencrypt
- certbot-var:/var/lib/letsencrypt
- app_code:/var/www/html
depends_on:
- webserver
command: certonly --webroot --webroot-path=/var/www/html
--email sammy@example.com --agree-tos --no-eff-email --staging -d
example.com -d www.example.com
1. Application
images: Pull from
registry
2. Use Named
Volumes: Prefer
them over bind
mounts for app code
3. Add a web server

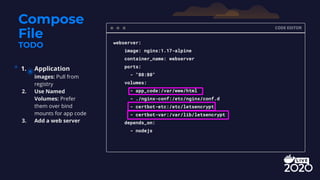

53. Compose
File
TODO
CODE EDITOR
webserver:
image: nginx:1.17-alpine
container_name: webserver
ports:
- "80:80"
volumes:
- app_code:/var/www/html
- ./nginx-conf:/etc/nginx/conf.d
- certbot-etc:/etc/letsencrypt
- certbot-var:/var/lib/letsencrypt
depends_on:
- nodejs
1. Application
images: Pull from
registry
2. Use Named
Volumes: Prefer
them over bind
mounts for app code
3. Add a web server

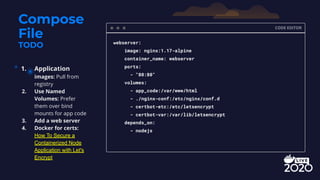

54. Compose
File
TODO
CODE EDITOR
webserver:
image: nginx:1.17-alpine
container_name: webserver
ports:
- "80:80"
volumes:
- app_code:/var/www/html
- ./nginx-conf:/etc/nginx/conf.d
- certbot-etc:/etc/letsencrypt
- certbot-var:/var/lib/letsencrypt
depends_on:
- nodejs
1. Application
images: Pull from
registry
2. Use Named
Volumes: Prefer
them over bind
mounts for app code
3. Add a web server
4. Docker for certs:
How To Secure a
Containerized Node
Application with Let's
Encrypt
