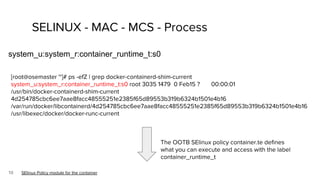

SELINUX - MAC - MCS - Process
system_u:system_r:container_runtime_t:s0
SElinux Policy module for the container
The OOTB SElinux policy container.te defines
what you can execute and access with the label
container_runtime_t
[root@osemaster ~]# ps -efZ | grep docker-containerd-shim-current
system_u:system_r:container_runtime_t:s0 root 3035 1479 0 Feb15 ? 00:00:01
/usr/bin/docker-containerd-shim-current
4d254785cbc6ee7aae8facc48555251e2385f65d89553b319b6324b1501e4b16
/var/run/docker/libcontainerd/4d254785cbc6ee7aae8facc48555251e2385f65d89553b319b6324b1501e4b16
/usr/libexec/docker/docker-runc-current](https://image.slidesharecdn.com/containersecurity-170902104642/85/Veer-s-Container-Security-10-320.jpg)

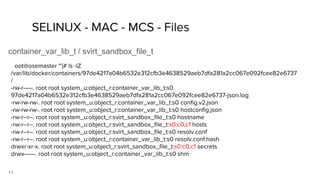

![11
SELINUX - MAC - MCS - Files
container_var_lib_t / svirt_sandbox_file_t
SElinux Policy module for the container
[root@osemaster ~]# ls -lZ
/var/lib/docker/containers/97de4217a04b6532e312cfb3e4638529aeb7dfa281a2cc067e092fcee82e6737
/
-rw-r-----. root root system_u:object_r:container_var_lib_t:s0
97de4217a04b6532e312cfb3e4638529aeb7dfa281a2cc067e092fcee82e6737-json.log
-rw-rw-rw-. root root system_u:object_r:container_var_lib_t:s0 config.v2.json
-rw-rw-rw-. root root system_u:object_r:container_var_lib_t:s0 hostconfig.json
-rw-r--r--. root root system_u:object_r:svirt_sandbox_file_t:s0 hostname
-rw-r--r--. root root system_u:object_r:svirt_sandbox_file_t:s0:c0,c1 hosts
-rw-r--r--. root root system_u:object_r:svirt_sandbox_file_t:s0 resolv.conf
-rw-r--r--. root root system_u:object_r:container_var_lib_t:s0 resolv.conf.hash
drwxr-xr-x. root root system_u:object_r:svirt_sandbox_file_t:s0:c0,c1 secrets
drwx------. root root system_u:object_r:container_var_lib_t:s0 shm](https://image.slidesharecdn.com/containersecurity-170902104642/85/Veer-s-Container-Security-11-320.jpg)
More Related Content
Veer's Container Security
- 1. @OpenShift RHOpenShift Container Security Presenter: VeerMuchandi Title: Principal Architect - Container Solutions Social Handle: @VeerMuchandi Blogs: https://blog.openshift.com/author/veermuchandi/

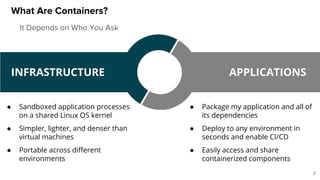

- 2. What Are Containers? ●Sandboxed application processes on a shared Linux OS kernel ● Simpler, lighter, and denser than virtual machines ● Portable across different environments ● Package my application and all of its dependencies ● Deploy to any environment in seconds and enable CI/CD ● Easily access and share containerized components INFRASTRUCTURE APPLICATIONS It Depends on Who You Ask 2
- 3.
- 4.

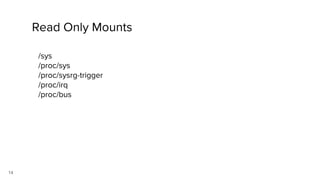

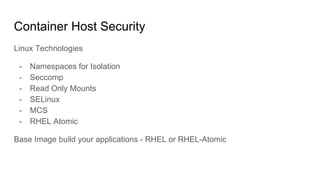

- 5. Container Host Security LinuxTechnologies - Namespaces for Isolation - Seccomp - Read Only Mounts - SELinux - MCS - RHEL Atomic Base Image build your applications - RHEL or RHEL-Atomic
- 6.
- 7. Kernel provides processisolation by creating separate namespaces for containers PID namespaces allow processes in different containers to have the same PID Network namespaces allows container to use separate virtual network stack, loopback device and process space Mount namespaces isolate the set of file system mount points UTS namespaces isolate system identifiers – nodename and domainname IPC namespaces isolate certain interprocess communication (IPC) resources User allow you to specify a range of host UIDs dedicated to the container. A process can have full root privileges for operations inside the container.

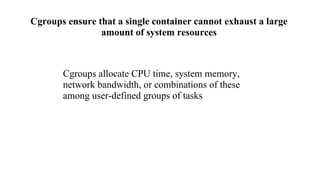

- 8. Cgroups ensure thata single container cannot exhaust a large amount of system resources Cgroups allocate CPU time, system memory, network bandwidth, or combinations of these among user-defined groups of tasks

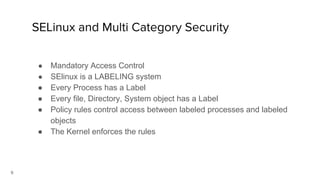

- 9. 9 SELinux and MultiCategory Security ● Mandatory Access Control ● SElinux is a LABELING system ● Every Process has a Label ● Every file, Directory, System object has a Label ● Policy rules control access between labeled processes and labeled objects ● The Kernel enforces the rules
- 10. 10 SELINUX - MAC- MCS - Process system_u:system_r:container_runtime_t:s0 SElinux Policy module for the container The OOTB SElinux policy container.te defines what you can execute and access with the label container_runtime_t [root@osemaster ~]# ps -efZ | grep docker-containerd-shim-current system_u:system_r:container_runtime_t:s0 root 3035 1479 0 Feb15 ? 00:00:01 /usr/bin/docker-containerd-shim-current 4d254785cbc6ee7aae8facc48555251e2385f65d89553b319b6324b1501e4b16 /var/run/docker/libcontainerd/4d254785cbc6ee7aae8facc48555251e2385f65d89553b319b6324b1501e4b16 /usr/libexec/docker/docker-runc-current
- 11. 11 SELINUX - MAC- MCS - Files container_var_lib_t / svirt_sandbox_file_t SElinux Policy module for the container [root@osemaster ~]# ls -lZ /var/lib/docker/containers/97de4217a04b6532e312cfb3e4638529aeb7dfa281a2cc067e092fcee82e6737 / -rw-r-----. root root system_u:object_r:container_var_lib_t:s0 97de4217a04b6532e312cfb3e4638529aeb7dfa281a2cc067e092fcee82e6737-json.log -rw-rw-rw-. root root system_u:object_r:container_var_lib_t:s0 config.v2.json -rw-rw-rw-. root root system_u:object_r:container_var_lib_t:s0 hostconfig.json -rw-r--r--. root root system_u:object_r:svirt_sandbox_file_t:s0 hostname -rw-r--r--. root root system_u:object_r:svirt_sandbox_file_t:s0:c0,c1 hosts -rw-r--r--. root root system_u:object_r:svirt_sandbox_file_t:s0 resolv.conf -rw-r--r--. root root system_u:object_r:container_var_lib_t:s0 resolv.conf.hash drwxr-xr-x. root root system_u:object_r:svirt_sandbox_file_t:s0:c0,c1 secrets drwx------. root root system_u:object_r:container_var_lib_t:s0 shm
- 12. 12 SECCOMP - DROPPINGPRIVILEGES FROM CONTAINERS CAP_SETPCAP CAP_SYS_MODULE CAP_SYS_RAWIO CAP_SYS_PACCT CAP_SYS_NICE CAP_SYS_RESOURCE CAP_SYS_TIME CAP_SYS_TTY_CONFIG CAP_AUDIT_WRITE CAP_AUDIT_CONTROL CAP_MAC_OVERRIDE CAP_MAC_ADMIN CAP_SYSLOG CAP_NET_ADMIN CAP_SYS_ADMIN Modify process capabilities Insert/Remove kernel modules Modify Kernel Memory Configure process accounting Modify Priority of processes Override Resource Limits Modify the system clock Configure tty devices Write the audit log Configure Audit Subsystem Ignore Kernel MAC Policy Configure MAC Configuration Modify Kernel printk behaviour Configure the network: - Setting the hostname/domainname - mount(),unmount() - nfsservctl - ….
- 13. 13 SECCOMP - REMOVEPRIVILEGES FROM CONTAINERS A root user inside a container running in OpenShift has none of the previous capabilities available!
- 14.

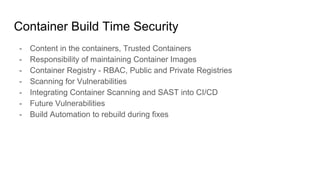

- 15. Container Build TimeSecurity - Content in the containers, Trusted Containers - Responsibility of maintaining Container Images - Container Registry - RBAC, Public and Private Registries - Scanning for Vulnerabilities - Integrating Container Scanning and SAST into CI/CD - Future Vulnerabilities - Build Automation to rebuild during fixes
- 16. ● Red HatContainer Registry ● Policies to control who can deploy which containers ● Certification Catalog ● Trusted content with security updates HOST OS CONTAINER OS RUNTIME APP HOST OS CONTAINER OS RUNTIME APP 16 Image governance and private registries ● What security meta-data is available for your images? ● Are the images in the registry updated regularly? ● Are there access controls on the registry? How strong are they? Trusting Container Content

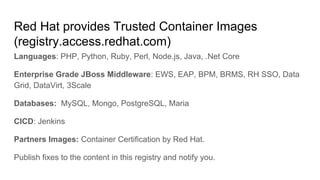

- 17. Red Hat providesTrusted Container Images (registry.access.redhat.com) Languages: PHP, Python, Ruby, Perl, Node.js, Java, .Net Core Enterprise Grade JBoss Middleware: EWS, EAP, BPM, BRMS, RH SSO, Data Grid, DataVirt, 3Scale Databases: MySQL, Mongo, PostgreSQL, Maria CICD: Jenkins Partners Images: Container Certification by Red Hat. Publish fixes to the content in this registry and notify you.

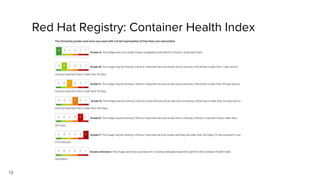

- 18. 18 Red Hat Registry:Container Health Index https://access.redhat.com/articles/2803031

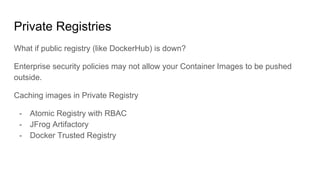

- 19. Private Registries What ifpublic registry (like DockerHub) is down? Enterprise security policies may not allow your Container Images to be pushed outside. Caching images in Private Registry - Atomic Registry with RBAC - JFrog Artifactory - Docker Trusted Registry
- 20. 20 RESTRICT WHERE YOURCONTAINERS COME FROM - name: allow-images-from-internal-registry onResources: - resource: pods - resource: builds matchIntegratedRegistry: false - name: allow-images-from-dockerhub onResources: - resource: pods - resource: builds matchRegistries: - docker.io

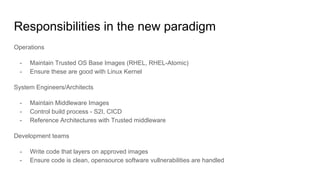

- 21. Responsibilities in thenew paradigm Operations - Maintain Trusted OS Base Images (RHEL, RHEL-Atomic) - Ensure these are good with Linux Kernel System Engineers/Architects - Maintain Middleware Images - Control build process - S2I, CICD - Reference Architectures with Trusted middleware Development teams - Write code that layers on approved images - Ensure code is clean, opensource software vullnerabilities are handled

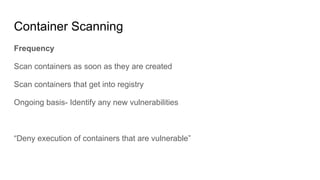

- 22. Container Scanning Frequency Scan containersas soon as they are created Scan containers that get into registry Ongoing basis- Identify any new vulnerabilities “Deny execution of containers that are vulnerable”

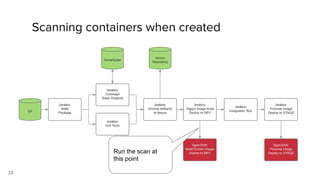

- 23. 23 Scanning containers whencreated https://www.youtube.com/watch?v=65BnTLcDAJI Run the scan at this point

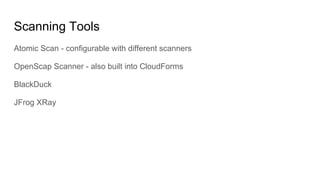

- 24. Scanning Tools Atomic Scan- configurable with different scanners OpenScap Scanner - also built into CloudForms BlackDuck JFrog XRay

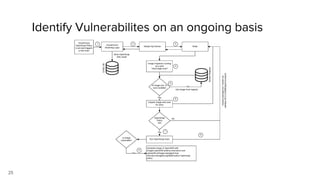

- 25. 25 Identify Vulnerabilites onan ongoing basis

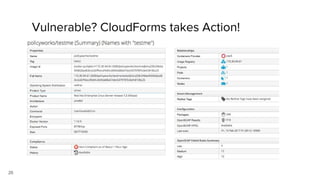

- 26.
- 27. 27 Prevent Image FromRunning

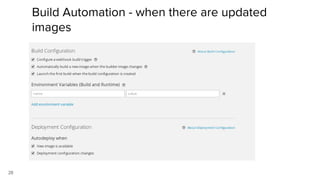

- 28. 28 Build Automation -when there are updated images

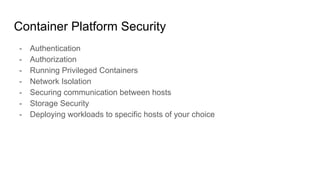

- 29. Container Platform Security -Authentication - Authorization - Running Privileged Containers - Network Isolation - Securing communication between hosts - Storage Security - Deploying workloads to specific hosts of your choice

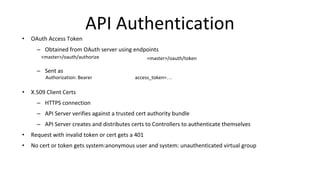

- 30. API Authentication • OAuthAccess Token – Obtained from OAuth server using endpoints – Sent as • X.509 Client Certs – HTTPS connection – API Server verifies against a trusted cert authority bundle – API Server creates and distributes certs to Controllers to authenticate themselves • Request with invalid token or cert gets a 401 • No cert or token gets system:anonymous user and system: unauthenticated virtual group <master>/oauth/authorize <master>/oauth/token Authorization: Bearer access_token=…

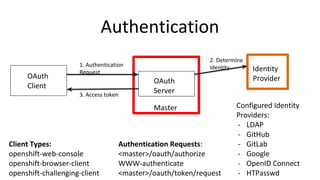

- 31. Authentication OAuth Client OAuth Server Master Client Types: openshift-web-console openshift-browser-client openshift-challenging-client Identity Provider 1. Authentication Request 2.Determine Identity 3. Access token Configured Identity Providers: - LDAP - GitHub - GitLab - Google - OpenID Connect - HTPasswd Authentication Requests: <master>/oauth/authorize WWW-authenticate <master>/oauth/token/request

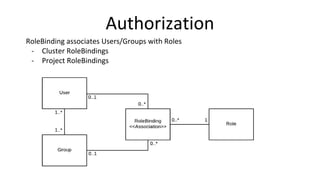

- 32. Authorization RoleBinding associates Users/Groupswith Roles - Cluster RoleBindings - Project RoleBindings
- 33.

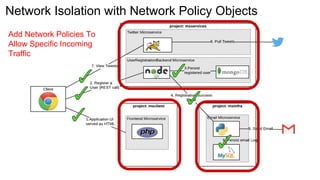

- 34. Network Isolation withNetwork Policy Objects Add Network Policies To Allow Specific Incoming Traffic

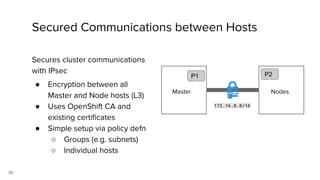

- 35. 35 Secured Communications betweenHosts Secures cluster communications with IPsec ● Encryption between all Master and Node hosts (L3) ● Uses OpenShift CA and existing certificates ● Simple setup via policy defn ○ Groups (e.g. subnets) ○ Individual hosts Master P1 Nodes P2 172.16.0.0/16

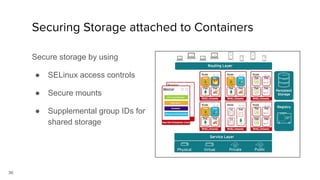

- 36. 36 Secure storage byusing ● SELinux access controls ● Secure mounts ● Supplemental group IDs for shared storage Securing Storage attached to Containers

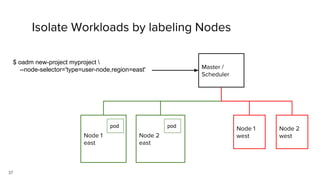

- 37. 37 Isolate Workloads bylabeling Nodes Node 1 east Node 2 east Node 1 west Node 2 west Master / Scheduler $ oadm new-project myproject --node-selector='type=user-node,region=east' pod pod
- 38. 38 Securing federated clusters acrossdata centers or environments ● Authentication and authorization ● API endpoints ● Secrets ● Namespaces FEDERATED CLUSTERS (Roadmap) ROLES & ACCESS MANAGEMENT Source: Building Globally Distributed Services using Kubernetes Cluster Federation. October 14, 2016

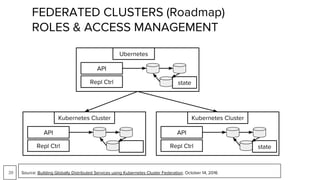

- 39. 39 FEDERATED CLUSTERS (Roadmap) ROLES& ACCESS MANAGEMENT Source: Building Globally Distributed Services using Kubernetes Cluster Federation. October 14, 2016 API Repl Ctrl Ubernetes state API Repl Ctrl Kubernetes Cluster state API Repl Ctrl Kubernetes Cluster state

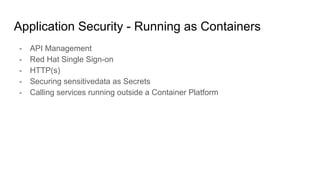

- 40. Application Security -Running as Containers - API Management - Red Hat Single Sign-on - HTTP(s) - Securing sensitivedata as Secrets - Calling services running outside a Container Platform
- 41. 41 Container platform &application APIs ● Authentication and authorization ● LDAP integration ● End-point access controls ● Rate limiting API Management
- 42.
- 43.
- 44.
- 45.

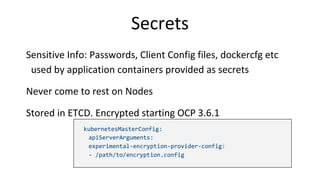

- 46. Secrets Sensitive Info: Passwords,Client Config files, dockercfg etc used by application containers provided as secrets Never come to rest on Nodes Stored in ETCD. Encrypted starting OCP 3.6.1 kubernetesMasterConfig: apiServerArguments: experimental-encryption-provider-config: - /path/to/encryption.config

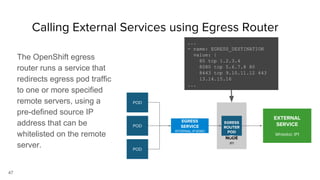

- 47. 47 Calling External Servicesusing Egress Router The OpenShift egress router runs a service that redirects egress pod traffic to one or more specified remote servers, using a pre-defined source IP address that can be whitelisted on the remote server. NODE IP1 EGRESS ROUTER POD IP1 EGRESS SERVICE INTERNAL-IP:8080 EXTERNAL SERVICE Whitelist: IP1 POD POD POD ... - name: EGRESS_DESTINATION value: | 80 tcp 1.2.3.4 8080 tcp 5.6.7.8 80 8443 tcp 9.10.11.12 443 13.14.15.16 ...

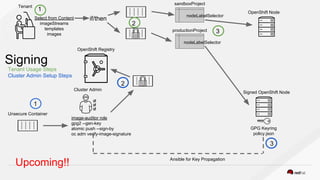

- 48. Signing GPG Keyring policy.json Signed OpenShiftNode OpenShift Registry image-auditor role gpg2 --gen-key atomic push --sign-by oc adm verify-image-signature Cluster Admin Unsecure Container Ansible for Key Propagation OpenShift Node Tenant Select from Content imageStreams templates images if/then sandboxProject productionProject nodeLabelSelector nodeLabelSelector 1 2 3 1 Tenant Usage Steps Cluster Admin Setup Steps 2 3 Upcoming!!
- 49.
