This document provides an extensive overview of diagnostic techniques in parasitology, detailing both conventional methods like microscopy and modern methods such as ELISA and PCR. It covers procedures for fecal examination, blood smears, and advanced techniques such as xenodiagnosis and the Knott technique, discussing their advantages and limitations. Additionally, it emphasizes the importance of macroscopic and microscopic examinations in veterinary parasitology for diagnosing infections.

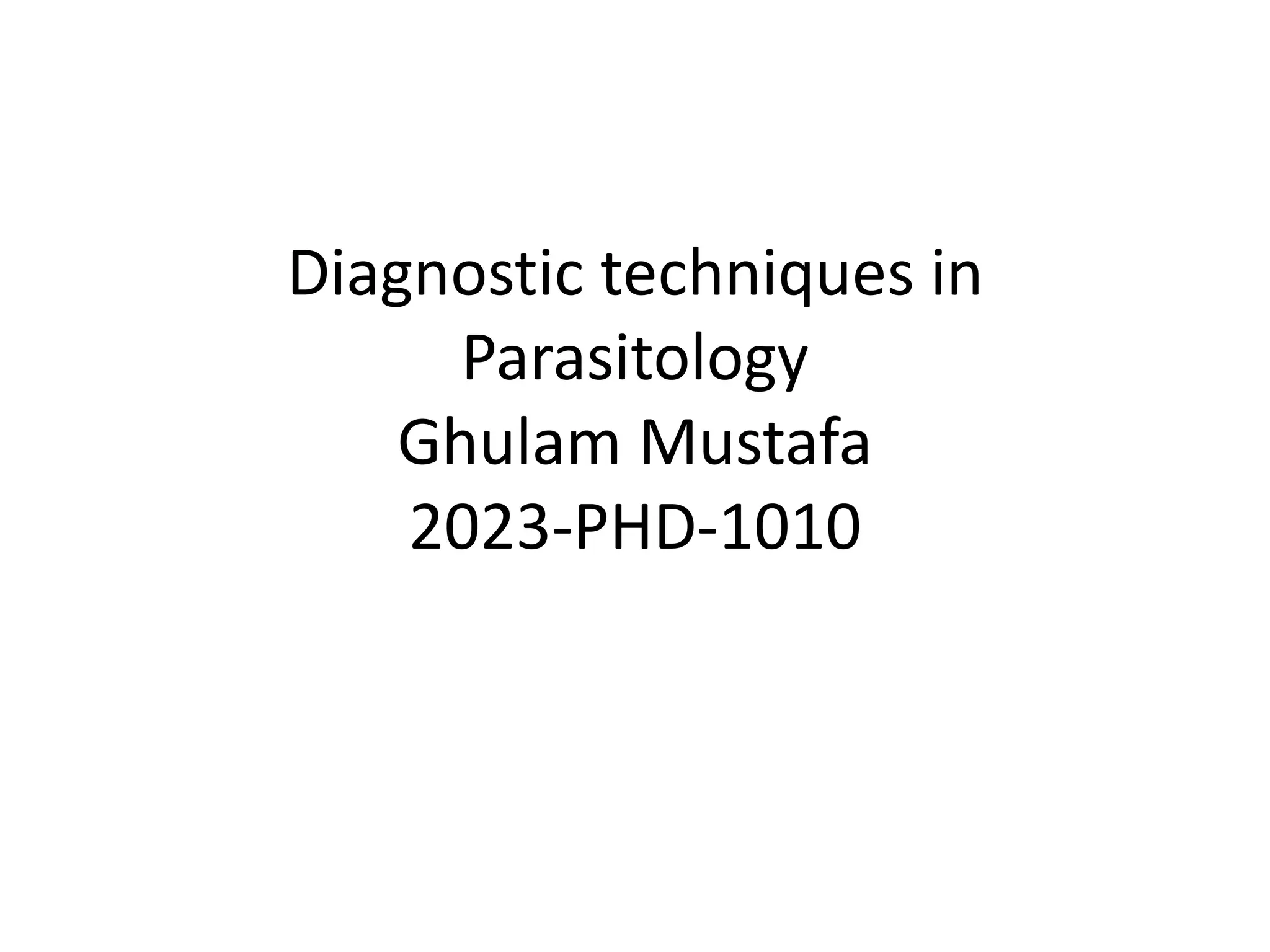

1. Diagnostic techniques in
Parasitology
Ghulam Mustafa
2023-PHD-1010

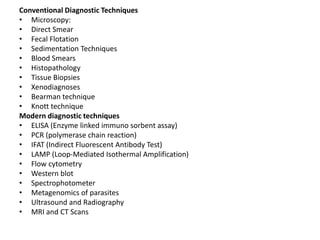

2. Conventional Diagnostic Techniques
• Microscopy:
• Direct Smear
• Fecal Flotation
• Sedimentation Techniques
• Blood Smears
• Histopathology
• Tissue Biopsies
• Xenodiagnoses
• Bearman technique
• Knott technique
Modern diagnostic techniques
• ELISA (Enzyme linked immuno sorbent assay)
• PCR (polymerase chain reaction)

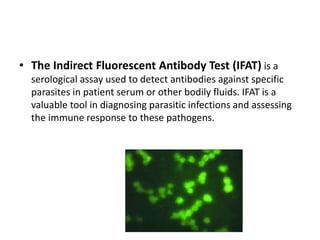

• IFAT (Indirect Fluorescent Antibody Test)
• LAMP (Loop-Mediated Isothermal Amplification)
• Flow cytometry
• Western blot
• Spectrophotometer

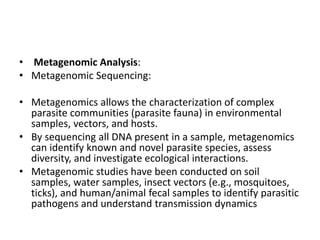

• Metagenomics of parasites
• Ultrasound and Radiography
• MRI and CT Scans

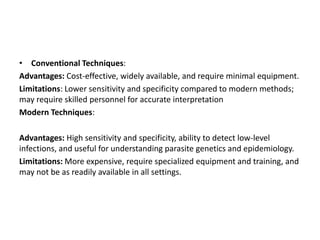

4. • Conventional Techniques:
Advantages: Cost-effective, widely available, and require minimal equipment.
Limitations: Lower sensitivity and specificity compared to modern methods;
may require skilled personnel for accurate interpretation
Modern Techniques:
Advantages: High sensitivity and specificity, ability to detect low-level
infections, and useful for understanding parasite genetics and epidemiology.
Limitations: More expensive, require specialized equipment and training, and
may not be as readily available in all settings.

5. Examination of feces
• Macroscopic
• Microscopic
• Macroscopic examination of feces is a fundamental step in veterinary
parasitology. It involves the visual inspection of fecal samples without the
aid of a microscope
• allowing for the detection of visible parasites, abnormalities, and other
indicators of parasitic infections.
Consistency:
• Normal: Firm and well-formed.
• Abnormal: Watery (diarrhea), soft, or very hard (constipation), which can
indicate various parasitic infections or digestive issues.

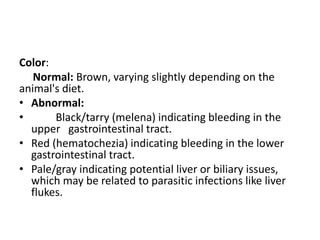

6. Color:
Normal: Brown, varying slightly depending on the
animal's diet.
• Abnormal:
• Black/tarry (melena) indicating bleeding in the
upper gastrointestinal tract.
• Red (hematochezia) indicating bleeding in the lower
gastrointestinal tract.
• Pale/gray indicating potential liver or biliary issues,
which may be related to parasitic infections like liver
flukes.

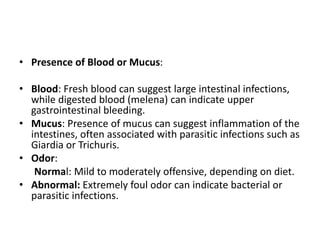

7. • Presence of Blood or Mucus:
• Blood: Fresh blood can suggest large intestinal infections,
while digested blood (melena) can indicate upper
gastrointestinal bleeding.
• Mucus: Presence of mucus can suggest inflammation of the
intestines, often associated with parasitic infections such as
Giardia or Trichuris.
• Odor:
Normal: Mild to moderately offensive, depending on diet.
• Abnormal: Extremely foul odor can indicate bacterial or
parasitic infections.

8. • Foreign Bodies:
• Undigested Food: Can indicate malabsorption issues.
• Parasites: Visible worms or segments.
• Roundworms (Ascarids): Long, cylindrical, and often visible
in vomit or feces.
• Tapeworm Segments (Proglottids): Rice-like segments that
may be seen around the anus or in the feces.
• Liver Flukes (Fasciola spp.): Flattened, leaf-shaped bodies
in severe infestations.
• Botfly Larvae (Gasterophilus spp.): In horses, these larvae
might be visible in the feces during a heavy infestation.

9. • Procedures for Macroscopic Examination
• Collection of Sample:
• Collect a fresh fecal sample in a clean, dry container.
• Ensure the sample is free from contaminants like soil or bedding material.
• Visual Inspection:
• Place the fecal sample on a clean surface (e.g., a tray or piece of paper).
• Use gloves to handle the sample to avoid contamination and zoonotic
transmission.
• Inspect the sample under good lighting.
Documentation:
• Record the color, consistency, presence of blood, mucus, and any visible
parasites or abnormalities.
• Note any undigested food or foreign bodies.

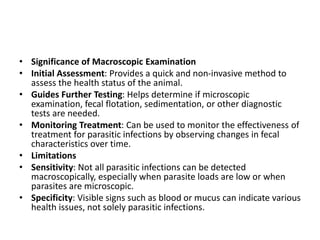

10. • Significance of Macroscopic Examination
• Initial Assessment: Provides a quick and non-invasive method to
assess the health status of the animal.
• Guides Further Testing: Helps determine if microscopic
examination, fecal flotation, sedimentation, or other diagnostic
tests are needed.
• Monitoring Treatment: Can be used to monitor the effectiveness of
treatment for parasitic infections by observing changes in fecal
characteristics over time.
• Limitations
• Sensitivity: Not all parasitic infections can be detected
macroscopically, especially when parasite loads are low or when
parasites are microscopic.
• Specificity: Visible signs such as blood or mucus can indicate various
health issues, not solely parasitic infections.

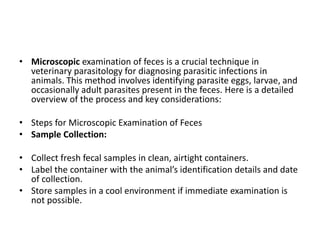

11. • Microscopic examination of feces is a crucial technique in
veterinary parasitology for diagnosing parasitic infections in
animals. This method involves identifying parasite eggs, larvae, and
occasionally adult parasites present in the feces. Here is a detailed
overview of the process and key considerations:
• Steps for Microscopic Examination of Feces
• Sample Collection:
• Collect fresh fecal samples in clean, airtight containers.
• Label the container with the animal’s identification details and date
of collection.
• Store samples in a cool environment if immediate examination is
not possible.

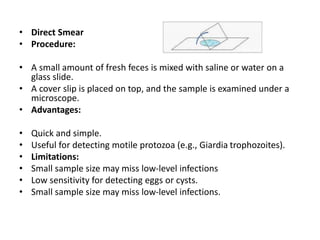

12. • Direct Smear
• Procedure:
• A small amount of fresh feces is mixed with saline or water on a
glass slide.
• A cover slip is placed on top, and the sample is examined under a
microscope.
• Advantages:
• Quick and simple.
• Useful for detecting motile protozoa (e.g., Giardia trophozoites).
• Limitations:
• Small sample size may miss low-level infections
• Low sensitivity for detecting eggs or cysts.
• Small sample size may miss low-level infections.

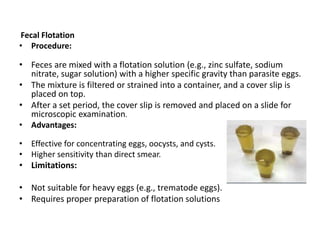

13. Fecal Flotation
• Procedure:
• Feces are mixed with a flotation solution (e.g., zinc sulfate, sodium
nitrate, sugar solution) with a higher specific gravity than parasite eggs.
• The mixture is filtered or strained into a container, and a cover slip is
placed on top.
• After a set period, the cover slip is removed and placed on a slide for
microscopic examination.
• Advantages:
• Effective for concentrating eggs, oocysts, and cysts.
• Higher sensitivity than direct smear.
• Limitations:
• Not suitable for heavy eggs (e.g., trematode eggs).
• Requires proper preparation of flotation solutions

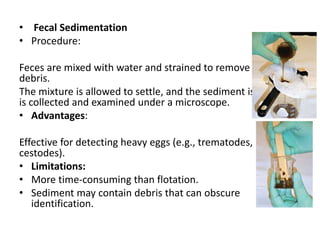

14. • Fecal Sedimentation
• Procedure:
Feces are mixed with water and strained to remove large
debris.
The mixture is allowed to settle, and the sediment is collected
is collected and examined under a microscope.
• Advantages:
Effective for detecting heavy eggs (e.g., trematodes,
cestodes).
• Limitations:
• More time-consuming than flotation.
• Sediment may contain debris that can obscure
identification.

15. • Baermann Technique
• Procedure:
• Fresh feces are placed in a funnel apparatus with warm water.
• The setup allows larvae to migrate out of the feces into the water.
• After a set period, the water is collected and examined under a
microscope.
• Advantages:
• Highly effective for detecting nematode larvae
• (e.g., lungworm).
• Limitations:
• Requires fresh feces.
• Time-consuming and requires special equipment.

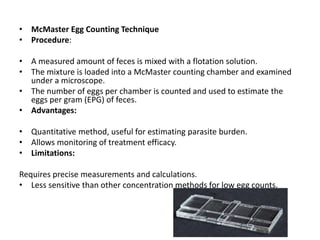

16. • McMaster Egg Counting Technique
• Procedure:
• A measured amount of feces is mixed with a flotation solution.
• The mixture is loaded into a McMaster counting chamber and examined
under a microscope.
• The number of eggs per chamber is counted and used to estimate the
eggs per gram (EPG) of feces.
• Advantages:
• Quantitative method, useful for estimating parasite burden.
• Allows monitoring of treatment efficacy.
• Limitations:
Requires precise measurements and calculations.
• Less sensitive than other concentration methods for low egg counts.

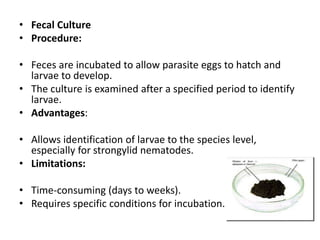

17. • Fecal Culture
• Procedure:
• Feces are incubated to allow parasite eggs to hatch and
larvae to develop.
• The culture is examined after a specified period to identify
larvae.
• Advantages:
• Allows identification of larvae to the species level,
especially for strongylid nematodes.
• Limitations:
• Time-consuming (days to weeks).
• Requires specific conditions for incubation.

18. • Wet mount preparation is a simple and quick method for examining live
parasites and their stages in various samples, such as feces, urine, or body
fluids. This technique is commonly used in veterinary parasitology to
detect motile forms of parasites like protozoa and helminth larvae. Here's
an overview of the wet mount preparation and examination process for
parasitic detection:
• Steps for Wet Mount Preparation and Examination
• Sample Collection:
• Collect the sample (feces, urine, or body fluid) in a clean, airtight
container.
• Label the container with the animal’s identification details and the date of
collection.
• Store the sample in a cool environment if immediate examination is not
possible.

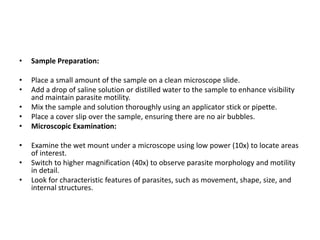

19. • Sample Preparation:
• Place a small amount of the sample on a clean microscope slide.
• Add a drop of saline solution or distilled water to the sample to enhance visibility
and maintain parasite motility.
• Mix the sample and solution thoroughly using an applicator stick or pipette.
• Place a cover slip over the sample, ensuring there are no air bubbles.
• Microscopic Examination:
• Examine the wet mount under a microscope using low power (10x) to locate areas
of interest.
• Switch to higher magnification (40x) to observe parasite morphology and motility
in detail.
• Look for characteristic features of parasites, such as movement, shape, size, and
internal structures.

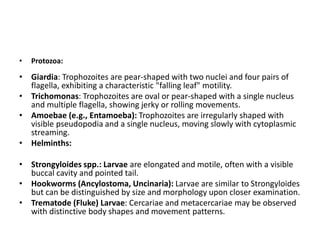

20. • Protozoa:
• Giardia: Trophozoites are pear-shaped with two nuclei and four pairs of
flagella, exhibiting a characteristic "falling leaf" motility.
• Trichomonas: Trophozoites are oval or pear-shaped with a single nucleus
and multiple flagella, showing jerky or rolling movements.
• Amoebae (e.g., Entamoeba): Trophozoites are irregularly shaped with
visible pseudopodia and a single nucleus, moving slowly with cytoplasmic
streaming.
• Helminths:
• Strongyloides spp.: Larvae are elongated and motile, often with a visible
buccal cavity and pointed tail.
• Hookworms (Ancylostoma, Uncinaria): Larvae are similar to Strongyloides
but can be distinguished by size and morphology upon closer examination.
• Trematode (Fluke) Larvae: Cercariae and metacercariae may be observed
with distinctive body shapes and movement patterns.

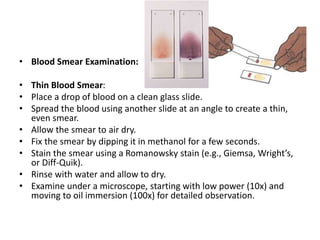

21. • Blood Smear Examination:
• Thin Blood Smear:
• Place a drop of blood on a clean glass slide.
• Spread the blood using another slide at an angle to create a thin,
even smear.
• Allow the smear to air dry.
• Fix the smear by dipping it in methanol for a few seconds.
• Stain the smear using a Romanowsky stain (e.g., Giemsa, Wright’s,
or Diff-Quik).
• Rinse with water and allow to dry.
• Examine under a microscope, starting with low power (10x) and
moving to oil immersion (100x) for detailed observation.

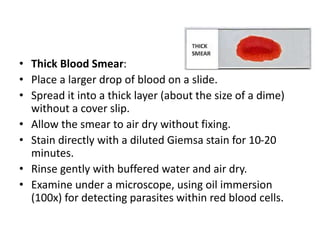

22. • Thick Blood Smear:
• Place a larger drop of blood on a slide.
• Spread it into a thick layer (about the size of a dime)
without a cover slip.
• Allow the smear to air dry without fixing.
• Stain directly with a diluted Giemsa stain for 10-20
minutes.
• Rinse gently with buffered water and air dry.
• Examine under a microscope, using oil immersion
(100x) for detecting parasites within red blood cells.

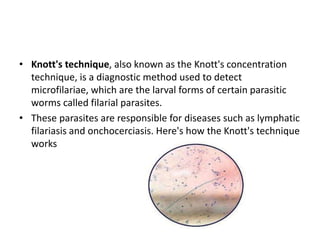

23. • Knott's technique, also known as the Knott's concentration
technique, is a diagnostic method used to detect
microfilariae, which are the larval forms of certain parasitic
worms called filarial parasites.
• These parasites are responsible for diseases such as lymphatic
filariasis and onchocerciasis. Here's how the Knott's technique
works

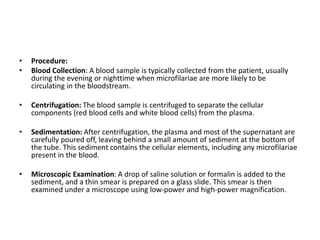

24. • Procedure:
• Blood Collection: A blood sample is typically collected from the patient, usually
during the evening or nighttime when microfilariae are more likely to be
circulating in the bloodstream.
• Centrifugation: The blood sample is centrifuged to separate the cellular
components (red blood cells and white blood cells) from the plasma.
• Sedimentation: After centrifugation, the plasma and most of the supernatant are
carefully poured off, leaving behind a small amount of sediment at the bottom of
the tube. This sediment contains the cellular elements, including any microfilariae
present in the blood.
• Microscopic Examination: A drop of saline solution or formalin is added to the
sediment, and a thin smear is prepared on a glass slide. This smear is then
examined under a microscope using low-power and high-power magnification.

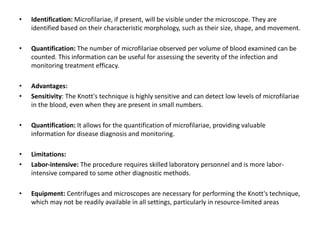

25. • Identification: Microfilariae, if present, will be visible under the microscope. They are
identified based on their characteristic morphology, such as their size, shape, and movement.
• Quantification: The number of microfilariae observed per volume of blood examined can be
counted. This information can be useful for assessing the severity of the infection and
monitoring treatment efficacy.
• Advantages:
• Sensitivity: The Knott's technique is highly sensitive and can detect low levels of microfilariae
in the blood, even when they are present in small numbers.
• Quantification: It allows for the quantification of microfilariae, providing valuable
information for disease diagnosis and monitoring.
• Limitations:
• Labor-intensive: The procedure requires skilled laboratory personnel and is more labor-
intensive compared to some other diagnostic methods.
• Equipment: Centrifuges and microscopes are necessary for performing the Knott's technique,
which may not be readily available in all settings, particularly in resource-limited areas

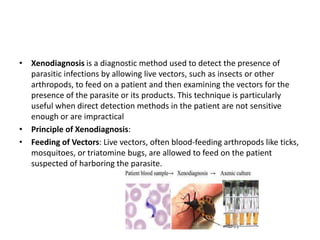

26. • Xenodiagnosis is a diagnostic method used to detect the presence of
parasitic infections by allowing live vectors, such as insects or other
arthropods, to feed on a patient and then examining the vectors for the
presence of the parasite or its products. This technique is particularly
useful when direct detection methods in the patient are not sensitive
enough or are impractical
• Principle of Xenodiagnosis:
• Feeding of Vectors: Live vectors, often blood-feeding arthropods like ticks,
mosquitoes, or triatomine bugs, are allowed to feed on the patient
suspected of harboring the parasite.

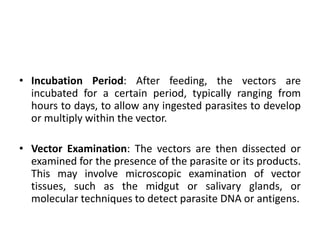

27. • Incubation Period: After feeding, the vectors are
incubated for a certain period, typically ranging from
hours to days, to allow any ingested parasites to develop
or multiply within the vector.
• Vector Examination: The vectors are then dissected or
examined for the presence of the parasite or its products.
This may involve microscopic examination of vector
tissues, such as the midgut or salivary glands, or
molecular techniques to detect parasite DNA or antigens.

28. • Applications of Xenodiagnosis:
• Trypanosoma cruzi (Chagas Disease): Xenodiagnosis is commonly used to
diagnose Chagas disease, caused by the protozoan parasite Trypanosoma
cruzi. Triatomine bugs, the natural vectors of T. cruzi, are allowed to feed
on patients, and the bugs are subsequently examined for the presence of
the parasite.
• Babesia spp. (Babesiosis): Xenodiagnosis has been used to detect Babesia
spp., protozoan parasites that cause babesiosis, by allowing infected ticks
to feed on patients and then examining the ticks for the presence of
Babesia parasites.
• Leishmania spp. (Leishmaniasis): Xenodiagnosis has been explored as a
diagnostic method for certain forms of leishmaniasis. Sandflies, the
vectors of Leishmania parasites, are allowed to feed on patients, and the
sandflies are then examined for the presence of Leishmania parasites

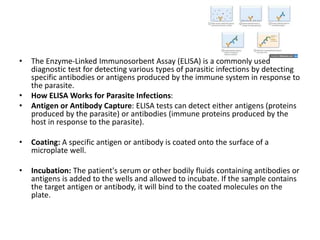

29. • The Enzyme-Linked Immunosorbent Assay (ELISA) is a commonly used
diagnostic test for detecting various types of parasitic infections by detecting
specific antibodies or antigens produced by the immune system in response to
the parasite.
• How ELISA Works for Parasite Infections:
• Antigen or Antibody Capture: ELISA tests can detect either antigens (proteins
produced by the parasite) or antibodies (immune proteins produced by the
host in response to the parasite).
• Coating: A specific antigen or antibody is coated onto the surface of a
microplate well.
• Incubation: The patient's serum or other bodily fluids containing antibodies or
antigens is added to the wells and allowed to incubate. If the sample contains
the target antigen or antibody, it will bind to the coated molecules on the
plate.

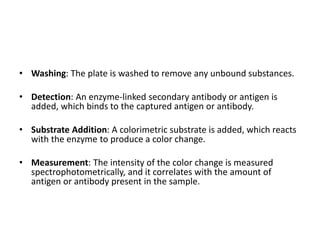

30. • Washing: The plate is washed to remove any unbound substances.
• Detection: An enzyme-linked secondary antibody or antigen is
added, which binds to the captured antigen or antibody.
• Substrate Addition: A colorimetric substrate is added, which reacts
with the enzyme to produce a color change.
• Measurement: The intensity of the color change is measured
spectrophotometrically, and it correlates with the amount of
antigen or antibody present in the sample.

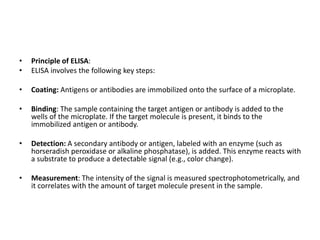

31. • Principle of ELISA:
• ELISA involves the following key steps:
• Coating: Antigens or antibodies are immobilized onto the surface of a microplate.
• Binding: The sample containing the target antigen or antibody is added to the
wells of the microplate. If the target molecule is present, it binds to the
immobilized antigen or antibody.
• Detection: A secondary antibody or antigen, labeled with an enzyme (such as
horseradish peroxidase or alkaline phosphatase), is added. This enzyme reacts with
a substrate to produce a detectable signal (e.g., color change).
• Measurement: The intensity of the signal is measured spectrophotometrically, and
it correlates with the amount of target molecule present in the sample.

32. • Types of ELISA:
• Direct ELISA: Detects antigens directly using labeled
antibodies.
• Indirect ELISA: Detects antibodies indirectly using
labeled secondary antibodies.
• Sandwich ELISA: Detects antigens by sandwiching
them between two antibodies.
• Competitive ELISA: Measures the concentration of
an unlabeled antigen by competition with a labeled
antigen for binding to a limited amount of antibody.

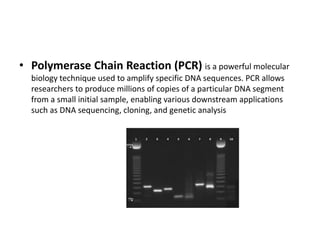

33. • Polymerase Chain Reaction (PCR) is a powerful molecular
biology technique used to amplify specific DNA sequences. PCR allows
researchers to produce millions of copies of a particular DNA segment
from a small initial sample, enabling various downstream applications
such as DNA sequencing, cloning, and genetic analysis

34. • Principle of PCR:
• Denaturation: The double-stranded DNA template is heated to around 94-98°C,
causing the DNA strands to separate and denature into single strands.
• Annealing: The reaction temperature is lowered to around 50-65°C, allowing
specific DNA primers to anneal to complementary sequences on the single-
stranded DNA template.
• Extension: The temperature is raised to around 72°C, and a heat-stable DNA
polymerase (such as Taq polymerase) synthesizes new DNA strands by extending
from the primers.
• Repeat Cycles: The denaturation, annealing, and extension steps are repeated for
multiple cycles (typically 20-40 cycles), resulting in exponential amplification of the
target DNA sequence.

35. • PCR Protocol:
• DNA Template: Start with a DNA template containing the target sequence to be
amplified.
• Primers: Design and add specific oligonucleotide primers that flank the target
sequence.
• Nucleotides: Add deoxynucleotide triphosphates (dNTPs) as building blocks for
DNA synthesis.
• DNA Polymerase: Include a heat-stable DNA polymerase (e.g., Taq polymerase)
that can withstand the high temperatures required for denaturation.
• Buffer: Provide an appropriate buffer solution to maintain the optimal pH and
ionic conditions for the PCR reaction.
• Thermal Cycler: Perform PCR in a thermal cycler that can precisely control the
temperature cycling required for denaturation, annealing, and extension

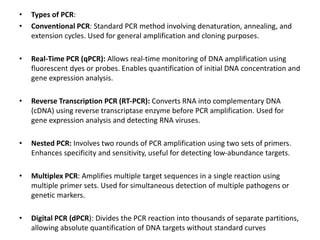

36. • Types of PCR:
• Conventional PCR: Standard PCR method involving denaturation, annealing, and
extension cycles. Used for general amplification and cloning purposes.
• Real-Time PCR (qPCR): Allows real-time monitoring of DNA amplification using
fluorescent dyes or probes. Enables quantification of initial DNA concentration and
gene expression analysis.
• Reverse Transcription PCR (RT-PCR): Converts RNA into complementary DNA
(cDNA) using reverse transcriptase enzyme before PCR amplification. Used for
gene expression analysis and detecting RNA viruses.
• Nested PCR: Involves two rounds of PCR amplification using two sets of primers.
Enhances specificity and sensitivity, useful for detecting low-abundance targets.
• Multiplex PCR: Amplifies multiple target sequences in a single reaction using
multiple primer sets. Used for simultaneous detection of multiple pathogens or
genetic markers.
• Digital PCR (dPCR): Divides the PCR reaction into thousands of separate partitions,
allowing absolute quantification of DNA targets without standard curves

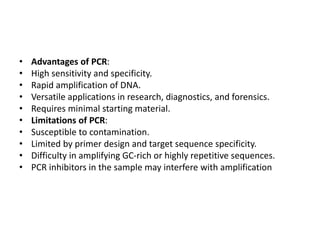

37. • Advantages of PCR:
• High sensitivity and specificity.
• Rapid amplification of DNA.
• Versatile applications in research, diagnostics, and forensics.
• Requires minimal starting material.
• Limitations of PCR:
• Susceptible to contamination.
• Limited by primer design and target sequence specificity.
• Difficulty in amplifying GC-rich or highly repetitive sequences.
• PCR inhibitors in the sample may interfere with amplification

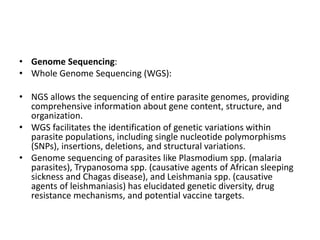

38. • Genome Sequencing:
• Whole Genome Sequencing (WGS):
• NGS allows the sequencing of entire parasite genomes, providing
comprehensive information about gene content, structure, and
organization.
• WGS facilitates the identification of genetic variations within
parasite populations, including single nucleotide polymorphisms
(SNPs), insertions, deletions, and structural variations.
• Genome sequencing of parasites like Plasmodium spp. (malaria
parasites), Trypanosoma spp. (causative agents of African sleeping
sickness and Chagas disease), and Leishmania spp. (causative
agents of leishmaniasis) has elucidated genetic diversity, drug
resistance mechanisms, and potential vaccine targets.

39. • Metagenomic Analysis:
• Metagenomic Sequencing:
• Metagenomics allows the characterization of complex
parasite communities (parasite fauna) in environmental
samples, vectors, and hosts.
• By sequencing all DNA present in a sample, metagenomics
can identify known and novel parasite species, assess
diversity, and investigate ecological interactions.
• Metagenomic studies have been conducted on soil
samples, water samples, insect vectors (e.g., mosquitoes,
ticks), and human/animal fecal samples to identify parasitic
pathogens and understand transmission dynamics

40. • The Indirect Fluorescent Antibody Test (IFAT) is a
serological assay used to detect antibodies against specific
parasites in patient serum or other bodily fluids. IFAT is a
valuable tool in diagnosing parasitic infections and assessing
the immune response to these pathogens.

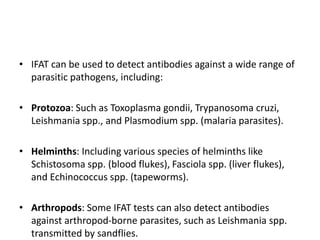

41. • IFAT can be used to detect antibodies against a wide range of
parasitic pathogens, including:
• Protozoa: Such as Toxoplasma gondii, Trypanosoma cruzi,
Leishmania spp., and Plasmodium spp. (malaria parasites).
• Helminths: Including various species of helminths like
Schistosoma spp. (blood flukes), Fasciola spp. (liver flukes),
and Echinococcus spp. (tapeworms).
• Arthropods: Some IFAT tests can also detect antibodies
against arthropod-borne parasites, such as Leishmania spp.
transmitted by sandflies.

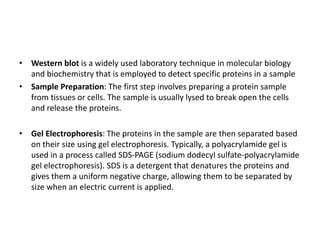

42. • Western blot is a widely used laboratory technique in molecular biology
and biochemistry that is employed to detect specific proteins in a sample
• Sample Preparation: The first step involves preparing a protein sample
from tissues or cells. The sample is usually lysed to break open the cells
and release the proteins.
• Gel Electrophoresis: The proteins in the sample are then separated based
on their size using gel electrophoresis. Typically, a polyacrylamide gel is
used in a process called SDS-PAGE (sodium dodecyl sulfate-polyacrylamide
gel electrophoresis). SDS is a detergent that denatures the proteins and
gives them a uniform negative charge, allowing them to be separated by
size when an electric current is applied.

43. • Transfer to Membrane: After separation, the proteins
are transferred from the gel onto a membrane (usually
made of nitrocellulose or polyvinylidene difluoride
(PVDF)).
• This step is done because the membrane provides a
solid support that can be easily handled and probed.
• Blocking: To prevent non-specific binding of antibodies
to the membrane, it is incubated with a blocking
solution (such as non-fat dry milk or bovine serum
albumin) that covers the surface of the membrane.

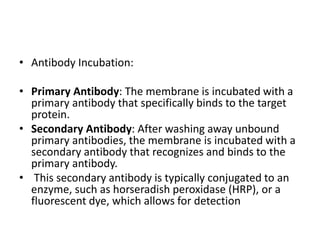

44. • Antibody Incubation:
• Primary Antibody: The membrane is incubated with a
primary antibody that specifically binds to the target
protein.
• Secondary Antibody: After washing away unbound
primary antibodies, the membrane is incubated with a
secondary antibody that recognizes and binds to the
primary antibody.
• This secondary antibody is typically conjugated to an
enzyme, such as horseradish peroxidase (HRP), or a
fluorescent dye, which allows for detection

45. • Detection: The target protein is visualized through a
detection method appropriate for the secondary antibody.
If the secondary antibody is enzyme-conjugated, a
substrate is added that produces a detectable signal (such
as a chemiluminescent or colorimetric reaction).
• For fluorescently labeled antibodies, the membrane is
scanned using a fluorescence imaging system.
• Analysis: The signal detected corresponds to the presence
and abundance of the target protein. The intensity of the
bands on the blot can be quantified using software for
more detailed analysis.

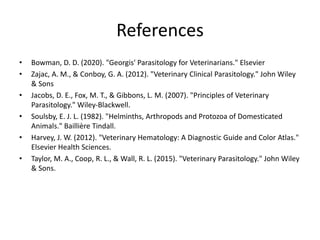

46. References
• Bowman, D. D. (2020). "Georgis' Parasitology for Veterinarians." Elsevier
• Zajac, A. M., & Conboy, G. A. (2012). "Veterinary Clinical Parasitology." John Wiley
& Sons
• Jacobs, D. E., Fox, M. T., & Gibbons, L. M. (2007). "Principles of Veterinary
Parasitology." Wiley-Blackwell.
• Soulsby, E. J. L. (1982). "Helminths, Arthropods and Protozoa of Domesticated
Animals." Baillière Tindall.
• Harvey, J. W. (2012). "Veterinary Hematology: A Diagnostic Guide and Color Atlas."
Elsevier Health Sciences.
• Taylor, M. A., Coop, R. L., & Wall, R. L. (2015). "Veterinary Parasitology." John Wiley
& Sons.
