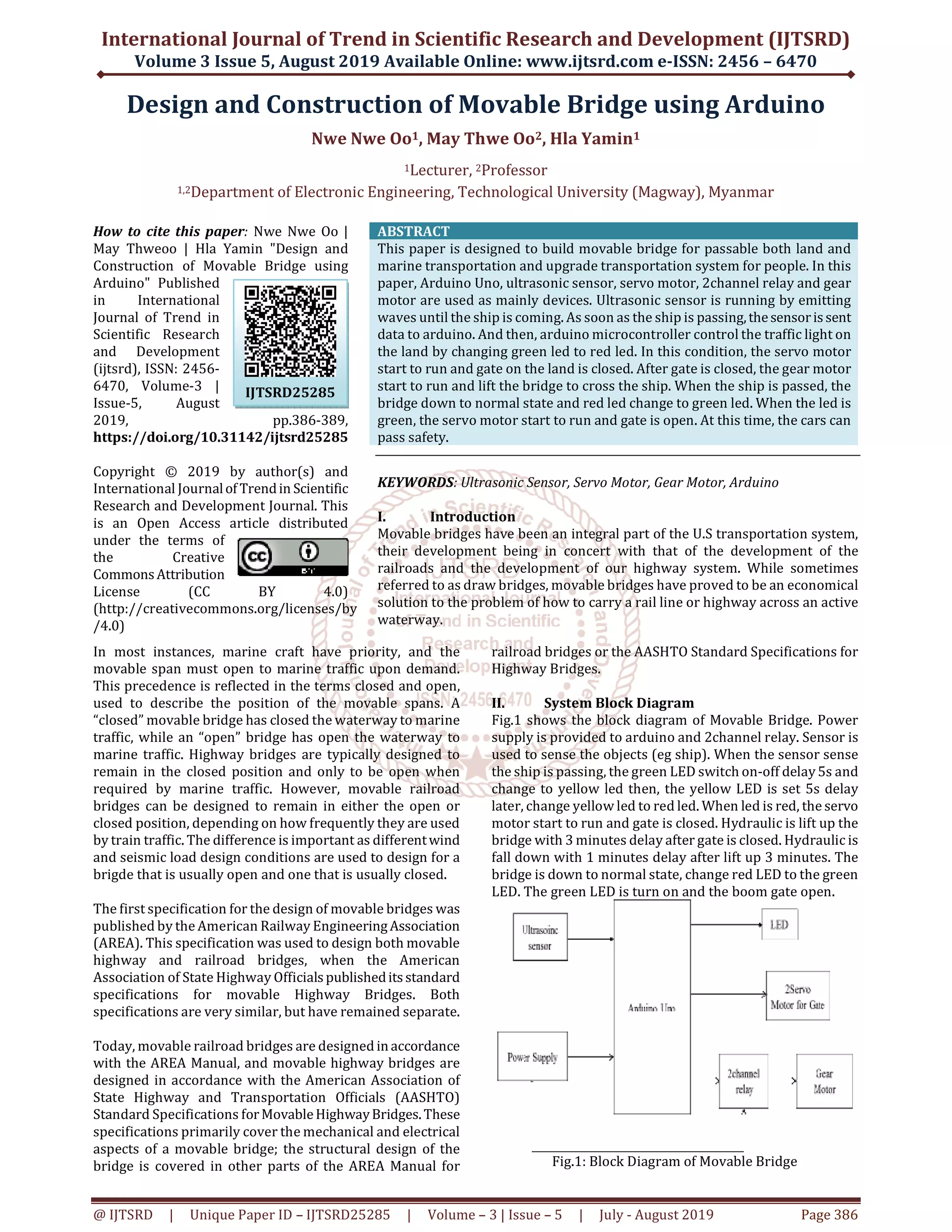

This paper is designed to build movable bridge for passable both land and marine transportation and upgrade transportation system for people. In this paper, Arduino Uno, ultrasonic sensor, servo motor, 2channel relay and gear motor are used as mainly devices. Ultrasonic sensor is running by emitting waves until the ship is coming. As soon as the ship is passing, the sensor is sent data to arduino. And then, arduino microcontroller control the traffic light on the land by changing green led to red led. In this condition, the servo motor start to run and gate on the land is closed. After gate is closed, the gear motor start to run and lift the bridge to cross the ship. When the ship is passed, the bridge down to normal state and red led change to green led. When the led is green, the servo motor start to run and gate is open. At this time, the cars can pass safety. Nwe Nwe Oo | May Thwe Oo | Hla Yamin "Design and Construction of Movable Bridge using Arduino" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-3 | Issue-5 , August 2019, URL: https://www.ijtsrd.com/papers/ijtsrd25285.pdfPaper URL: https://www.ijtsrd.com/engineering/electronics-and-communication-engineering/25285/design-and-construction-of-movable-bridge-using-arduino/nwe-nwe-oo
This project is used to develop a fire fighting robot using Android remote. The robotic vehicle is filled with water in tank and pumped through wireless communication.
For more details: http://goo.gl/Nxtc5P
A line follower robot, as the name suggests, is an automated guided vehicle, which follow a visual line embedded on the floor or ceiling.
Usually, the visual line is the path in which the line follower robot goes and it will be a black line on a white surface but the other way (white line on a black surface) is also possible.
Certain advanced line follower robots use the invisible magnetic fields as their paths.
This project is used to develop a fire fighting robot using Android remote. The robotic vehicle is filled with water in tank and pumped through wireless communication.
For more details: http://goo.gl/Nxtc5P
A line follower robot, as the name suggests, is an automated guided vehicle, which follow a visual line embedded on the floor or ceiling.
Usually, the visual line is the path in which the line follower robot goes and it will be a black line on a white surface but the other way (white line on a black surface) is also possible.
Certain advanced line follower robots use the invisible magnetic fields as their paths.
Obstacle Avoiding Robot
Robotics is a branch of science that deals with Mechanical, Electrical and Software fields. Robots are the machines that are used in our day-to-day to life to reduce men power and work accurately without any distortions. Robots can be classified into two different sections basing upon their skills as Automated and Manual. Obstacle detector is a Automated robot which itself recognizes the obstacle in its path and moves in free direction. Robot detects the obstacle by using two IR Sensors placed in front.
The IR sensors are placed on left and right side of the robot through which continuous Infrared radiation is emitted for detection of obstacles in the path. These IR Sensors are connected to a controlling element AT89c51 µc. When a obstacle is placed in the path of robot IR beam is reflected to the sensor from the obstacle. On detecting obstacle in the path sensor sends 0 volts to µc. This 0 voltage is detected by Microcontroller which avoids the obstacle by taking left or right turn. Similarly if the sensor sends +5v to Microcontroller, the Microcontroller assumes it as clear path and makes the robot to move in straight.
Two motors namely right motor and left motor are connected to Motor driver IC (L293D). L293D is interface with Microcontroller. Microcontroller sends logic 0 & logic 1 as per the programming to driver IC which makes motors to rotate in clockwise and anticlockwise direction. Wheels attached to the motors rotate accordingly with the motor shaft causing in the moment of the robot by wheels. In front portion of the robot a free wheel is attached to move the robot easily in any direction as per the requirement.
A 12Volts DC battery is attached to the circuit. As the microcontroller and sensors requires only 5v, set of resistors and capacitors are used to supply 5v DC to them. Power Management System is not maintained in the circuit as the battery can be removed after the usage of robot. So it does not cause any loss in the power of battery.
This type of robots has multiple applications in various fields. They can be used to know the strength of the opposite army in defense system. They can be used as floor and wall cleaners. They are used in automated GPS vehicles to calculate the moment of the vehicle overhead. These robots are easy to construct and cheaper in cost with long durability.
Presented here is a home automation system using a simple Android app, which you can use to control electrical appliances with clicks or voice commands. Commands are sent via Bluetooth to Arduino Uno. So you need not get up to switch on or switch off the device while watching a movie or doing some work.
This Presentation describes the ARM CORTEX M3 core processor with the details of the core peripherals. Soon a CORTEX base controller(STM32F100RBT6) ppt will be uploaded. For more information mail me at:gaurav.iitkg@gmail.com.
Robo India in this PPT is exlaining IR sensor. Their working principles, theory and concept. It is also explaining how to use them in embedded system, robotics and engineering project.
Report on Automatic Heart Rate monitoring using Arduino UnoAshfaqul Haque John
Automatic heart rate monitoring using Arduino. This is a report based on project. It includes the circuit diagram and the PCB layout diagram of the circuit
Radar Arduino system is a simulation of radar using various micro-components. Ultrasonic sensor is used to detect and measure the distance of an obstacle. Simulation has been performed on Tinkercad software.
According to the World Federation of the Deaf, only 10 percent of the worlds Deaf population receives any education, and only 3 percent receives this education in sign language. Another problem these deaf and face is inability to communicate with a person who does not understand the sign language. This project aims to reduce these problems by presenting a Sign Language. The project uses a hepatic glove to acquire signals corresponding to various hand gestures. The glove is interfaced with robot using an Arduino. Accelerometers are used to measure the angular displacement of human hand motion .The accelerometer controls the movement of the robot. Device is made of mainly two parts, one is RF transmitter and another is RF receiver. The RF transmitter will transmit the signal according to the position of accelerometer attached on your hand and the RF receiver will receive the signal and make the robot move in respective direction. Deepanshu Kiran | Himanshu Singh | Kushal Kant Singh Saxeriya ""Gesture Control Robot using Arduino"" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-3 | Issue-3 , April 2019, URL: https://www.ijtsrd.com/papers/ijtsrd23411.pdf
Paper URL: https://www.ijtsrd.com/engineering/electrical-engineering/23411/gesture-control-robot-using-arduino/deepanshu-kiran
Obstacle Avoiding Robot
Robotics is a branch of science that deals with Mechanical, Electrical and Software fields. Robots are the machines that are used in our day-to-day to life to reduce men power and work accurately without any distortions. Robots can be classified into two different sections basing upon their skills as Automated and Manual. Obstacle detector is a Automated robot which itself recognizes the obstacle in its path and moves in free direction. Robot detects the obstacle by using two IR Sensors placed in front.
The IR sensors are placed on left and right side of the robot through which continuous Infrared radiation is emitted for detection of obstacles in the path. These IR Sensors are connected to a controlling element AT89c51 µc. When a obstacle is placed in the path of robot IR beam is reflected to the sensor from the obstacle. On detecting obstacle in the path sensor sends 0 volts to µc. This 0 voltage is detected by Microcontroller which avoids the obstacle by taking left or right turn. Similarly if the sensor sends +5v to Microcontroller, the Microcontroller assumes it as clear path and makes the robot to move in straight.
Two motors namely right motor and left motor are connected to Motor driver IC (L293D). L293D is interface with Microcontroller. Microcontroller sends logic 0 & logic 1 as per the programming to driver IC which makes motors to rotate in clockwise and anticlockwise direction. Wheels attached to the motors rotate accordingly with the motor shaft causing in the moment of the robot by wheels. In front portion of the robot a free wheel is attached to move the robot easily in any direction as per the requirement.
A 12Volts DC battery is attached to the circuit. As the microcontroller and sensors requires only 5v, set of resistors and capacitors are used to supply 5v DC to them. Power Management System is not maintained in the circuit as the battery can be removed after the usage of robot. So it does not cause any loss in the power of battery.
This type of robots has multiple applications in various fields. They can be used to know the strength of the opposite army in defense system. They can be used as floor and wall cleaners. They are used in automated GPS vehicles to calculate the moment of the vehicle overhead. These robots are easy to construct and cheaper in cost with long durability.
Presented here is a home automation system using a simple Android app, which you can use to control electrical appliances with clicks or voice commands. Commands are sent via Bluetooth to Arduino Uno. So you need not get up to switch on or switch off the device while watching a movie or doing some work.
This Presentation describes the ARM CORTEX M3 core processor with the details of the core peripherals. Soon a CORTEX base controller(STM32F100RBT6) ppt will be uploaded. For more information mail me at:gaurav.iitkg@gmail.com.
Robo India in this PPT is exlaining IR sensor. Their working principles, theory and concept. It is also explaining how to use them in embedded system, robotics and engineering project.
Report on Automatic Heart Rate monitoring using Arduino UnoAshfaqul Haque John
Automatic heart rate monitoring using Arduino. This is a report based on project. It includes the circuit diagram and the PCB layout diagram of the circuit
Radar Arduino system is a simulation of radar using various micro-components. Ultrasonic sensor is used to detect and measure the distance of an obstacle. Simulation has been performed on Tinkercad software.
According to the World Federation of the Deaf, only 10 percent of the worlds Deaf population receives any education, and only 3 percent receives this education in sign language. Another problem these deaf and face is inability to communicate with a person who does not understand the sign language. This project aims to reduce these problems by presenting a Sign Language. The project uses a hepatic glove to acquire signals corresponding to various hand gestures. The glove is interfaced with robot using an Arduino. Accelerometers are used to measure the angular displacement of human hand motion .The accelerometer controls the movement of the robot. Device is made of mainly two parts, one is RF transmitter and another is RF receiver. The RF transmitter will transmit the signal according to the position of accelerometer attached on your hand and the RF receiver will receive the signal and make the robot move in respective direction. Deepanshu Kiran | Himanshu Singh | Kushal Kant Singh Saxeriya ""Gesture Control Robot using Arduino"" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-3 | Issue-3 , April 2019, URL: https://www.ijtsrd.com/papers/ijtsrd23411.pdf
Paper URL: https://www.ijtsrd.com/engineering/electrical-engineering/23411/gesture-control-robot-using-arduino/deepanshu-kiran
speed control of three phase induction motor using IOTswaroop009
The main aim is to control and monitor the speed of the three-phase induction motor by using the Arduino, node MCU controller and 3-phase inverter circuits.
OBSTACLE AVOIDACE ROBOT USING ARDUINO UNO AND ULTRASONIC SENSORLeTsKnOw1
IN THIS PROJECT I HAVE DONE THE OBSTACLE AVOIDANCE ROBOT USING ARDUINO UNO AND ULTRASONIC SENSOR.
ARDUINO UNO IS USED IN MANY PROJECTS LIKE MAKING WATCH,WRITING MACHINE, LED GAMES ETC. BECAUSE OF ITS RELIABILITY AND EASY TO USE AND ULRASONIC SENSOR IS USED TO DETECT THE OBJECT AND ACT ACCORDING TO THAT. I HAVE DONE THIS PROJECT AND SUBMITTED IT IN ECE 1006 CLASS UNDER
MRS ARIVARASI MAM FOR THIS PROJECT I HAVE WORKED FOR 4 MONTHS TO KNOW DEEP INSIDE ABOUT ALL THE GADGETS AND UNDERSTAND THE CONCEPT OF WORKING
One of the greatest challenges engineers face is the safe operation of the existing civil infrastructure. Tunnels progressively deteriorate due to ageing ,environmental factors ,increased loading ,damages caused by the human/natural factors ,inadequate poor maintenance
• As now a days railway accidents are occuring more and more, large amount of people lost their lives, and economical impact of it is also very high. This all happens due to improper management, and less control available!!
Due to this project lot of information gets gather about train, and so it will help for BETTER MANAGEMENT.
• Due to this, human labor can be minimized, so government can plant this labor at other work and it can improve other system also.
• By automatic signals, accidents of train on same track will get minimized so health of people traveling through train gets highly ensured.
A simple project on Obstacle Avoiding Robot is designed here. Robotics is an interesting and fast-growing field. Being a branch of engineering, the applications of robotics are increasing with the advancement of technology.
Similar to Design and Construction of Movable Bridge using Arduino (20)
‘Six Sigma Technique’ A Journey Through its Implementationijtsrd
The manufacturing industries all over the world are facing tough challenges for growth, development and sustainability in today’s competitive environment. They have to achieve apex position by adapting with the global competitive environment by delivering goods and services at low cost, prime quality and better price to increase wealth and consumer satisfaction. Cost Management ensures profit, growth and sustainability of the business with implementation of Continuous Improvement Technique like Six Sigma. This leads to optimize Business performance. The method drives for customer satisfaction, low variation, reduction in waste and cycle time resulting into a competitive advantage over other industries which did not implement it. The main objective of this paper ‘Six Sigma Technique A Journey Through Its Implementation’ is to conceptualize the effectiveness of Six Sigma Technique through the journey of its implementation. Aditi Sunilkumar Ghosalkar "‘Six Sigma Technique’: A Journey Through its Implementation" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64546.pdf Paper Url: https://www.ijtsrd.com/other-scientific-research-area/other/64546/‘six-sigma-technique’-a-journey-through-its-implementation/aditi-sunilkumar-ghosalkar
Edge Computing in Space Enhancing Data Processing and Communication for Space...ijtsrd
Edge computing, a paradigm that involves processing data closer to its source, has gained significant attention for its potential to revolutionize data processing and communication in space missions. With the increasing complexity and data volume generated by modern space missions, traditional centralized computing approaches face challenges related to latency, bandwidth, and security. Edge computing in space, involving on board processing and analysis of data, offers promising solutions to these challenges. This paper explores the concept of edge computing in space, its benefits, applications, and future prospects in enhancing space missions. Manish Verma "Edge Computing in Space: Enhancing Data Processing and Communication for Space Missions" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64541.pdf Paper Url: https://www.ijtsrd.com/computer-science/artificial-intelligence/64541/edge-computing-in-space-enhancing-data-processing-and-communication-for-space-missions/manish-verma
Dynamics of Communal Politics in 21st Century India Challenges and Prospectsijtsrd
Communal politics in India has evolved through centuries, weaving a complex tapestry shaped by historical legacies, colonial influences, and contemporary socio political transformations. This research comprehensively examines the dynamics of communal politics in 21st century India, emphasizing its historical roots, socio political dynamics, economic implications, challenges, and prospects for mitigation. The historical perspective unravels the intricate interplay of religious identities and power dynamics from ancient civilizations to the impact of colonial rule, providing insights into the evolution of communalism. The socio political dynamics section delves into the contemporary manifestations, exploring the roles of identity politics, socio economic disparities, and globalization. The economic implications section highlights how communal politics intersects with economic issues, perpetuating disparities and influencing resource allocation. Challenges posed by communal politics are scrutinized, revealing multifaceted issues ranging from social fragmentation to threats against democratic values. The prospects for mitigation present a multifaceted approach, incorporating policy interventions, community engagement, and educational initiatives. The paper conducts a comparative analysis with international examples, identifying common patterns such as identity politics and economic disparities. It also examines unique challenges, emphasizing Indias diverse religious landscape, historical legacy, and secular framework. Lessons for effective strategies are drawn from international experiences, offering insights into inclusive policies, interfaith dialogue, media regulation, and global cooperation. By scrutinizing historical epochs, contemporary dynamics, economic implications, and international comparisons, this research provides a comprehensive understanding of communal politics in India. The proposed strategies for mitigation underscore the importance of a holistic approach to foster social harmony, inclusivity, and democratic values. Rose Hossain "Dynamics of Communal Politics in 21st Century India: Challenges and Prospects" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64528.pdf Paper Url: https://www.ijtsrd.com/humanities-and-the-arts/history/64528/dynamics-of-communal-politics-in-21st-century-india-challenges-and-prospects/rose-hossain
Assess Perspective and Knowledge of Healthcare Providers Towards Elehealth in...ijtsrd
Background and Objective Telehealth has become a well known tool for the delivery of health care in Saudi Arabia, and the perspective and knowledge of healthcare providers are influential in the implementation, adoption and advancement of the method. This systematic review was conducted to examine the current literature base regarding telehealth and the related healthcare professional perspective and knowledge in the Kingdom of Saudi Arabia. Materials and Methods This systematic review was conducted by searching 7 databases including, MEDLINE, CINHAL, Web of Science, Scopus, PubMed, PsycINFO, and ProQuest Central. Studies on healthcare practitioners telehealth knowledge and perspectives published in English in Saudi Arabia from 2000 to 2023 were included. Boland directed this comprehensive review. The researchers examined each connected study using the AXIS tool, which evaluates cross sectional systematic reviews. Narrative synthesis was used to summarise and convey the data. Results Out of 1840 search results, 10 studies were included. Positive outlook and limited knowledge among providers were seen across trials. Healthcare professionals like telehealth for its ability to improve quality, access, and delivery, save time and money, and be successful. Age, gender, occupation, and work experience also affect health workers knowledge. In Saudi Arabia, healthcare professionals face inadequate expert assistance, patient privacy, internet connection concerns, lack of training courses, lack of telehealth understanding, and high costs while performing telemedicine. Conclusions Healthcare practitioners telehealth perceptions and knowledge were examined in this systematic study. Its collection of concerned experts different personal attitudes and expertise would help enhance telehealths implementation in Saudi Arabia, develop its healthcare delivery alternative, and eliminate frequent problems. Badriah Mousa I Mulayhi | Dr. Jomin George | Judy Jenkins "Assess Perspective and Knowledge of Healthcare Providers Towards Elehealth in Saudi Arabia: A Systematic Review" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64535.pdf Paper Url: https://www.ijtsrd.com/medicine/other/64535/assess-perspective-and-knowledge-of-healthcare-providers-towards-elehealth-in-saudi-arabia-a-systematic-review/badriah-mousa-i-mulayhi
The Impact of Digital Media on the Decentralization of Power and the Erosion ...ijtsrd
The impact of digital media on the distribution of power and the weakening of traditional gatekeepers has gained considerable attention in recent years. The adoption of digital technologies and the internet has resulted in declining influence and power for traditional gatekeepers such as publishing houses and news organizations. Simultaneously, digital media has facilitated the emergence of new voices and players in the media industry. Digital medias impact on power decentralization and gatekeeper erosion is visible in several ways. One significant aspect is the democratization of information, which enables anyone with an internet connection to publish and share content globally, leading to citizen journalism and bypassing traditional gatekeepers. Another aspect is the disruption of conventional media industry business models, as traditional organizations struggle to adjust to the decrease in advertising revenue and the rise of digital platforms. Alternative business models, such as subscription models and crowdfunding, have become more prevalent, leading to the emergence of new players. Overall, the impact of digital media on the distribution of power and the weakening of traditional gatekeepers has brought about significant changes in the media landscape and the way information is shared. Further research is required to fully comprehend the implications of these changes and their impact on society. Dr. Kusum Lata "The Impact of Digital Media on the Decentralization of Power and the Erosion of Traditional Gatekeepers" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64544.pdf Paper Url: https://www.ijtsrd.com/humanities-and-the-arts/political-science/64544/the-impact-of-digital-media-on-the-decentralization-of-power-and-the-erosion-of-traditional-gatekeepers/dr-kusum-lata
Online Voices, Offline Impact Ambedkars Ideals and Socio Political Inclusion ...ijtsrd
This research investigates the nexus between online discussions on Dr. B.R. Ambedkars ideals and their impact on social inclusion among college students in Gurugram, Haryana. Surveying 240 students from 12 government colleges, findings indicate that 65 actively engage in online discussions, with 80 demonstrating moderate to high awareness of Ambedkars ideals. Statistically significant correlations reveal that higher online engagement correlates with increased awareness p 0.05 and perceived social inclusion. Variations across colleges and a notable effect of college type on perceived social inclusion highlight the influence of contextual factors. Furthermore, the intersectional analysis underscores nuanced differences based on gender, caste, and socio economic status. Dr. Kusum Lata "Online Voices, Offline Impact: Ambedkar's Ideals and Socio-Political Inclusion - A Study of Gurugram District" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64543.pdf Paper Url: https://www.ijtsrd.com/humanities-and-the-arts/political-science/64543/online-voices-offline-impact-ambedkars-ideals-and-sociopolitical-inclusion--a-study-of-gurugram-district/dr-kusum-lata
Problems and Challenges of Agro Entreprenurship A Studyijtsrd
Noting calls for contextualizing Agro entrepreneurs problems and challenges of the agro entrepreneurs and for greater attention to the Role of entrepreneurs in agro entrepreneurship research, we conduct a systematic literature review of extent research in agriculture entrepreneurship to overcome the study objectives of complications of agro entrepreneurs through various factors, Development of agriculture products is a key factor for the overall economic growth of agro entrepreneurs Agro Entrepreneurs produces firsthand large scale employment, utilizes the labor and natural resources, This research outlines the problems of Weather and Soil Erosions, Market price fluctuation, stimulates labor cost problems, reduces concentration of Price volatility, Dependency on Intermediaries, induces Limited Bargaining Power, and Storage and Transportation Costs. This paper mainly devoted to highlight Problems and challenges faced for the sustainable of Agro Entrepreneurs in India. Vinay Prasad B "Problems and Challenges of Agro Entreprenurship - A Study" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64540.pdf Paper Url: https://www.ijtsrd.com/other-scientific-research-area/other/64540/problems-and-challenges-of-agro-entreprenurship--a-study/vinay-prasad-b
Comparative Analysis of Total Corporate Disclosure of Selected IT Companies o...ijtsrd
Disclosure is a process through which a business enterprise communicates with external parties. A corporate disclosure is communication of financial and non financial information of the activities of a business enterprise to the interested entities. Corporate disclosure is done through publishing annual reports. So corporate disclosure through annual reports plays a vital role in the life of all the companies and provides valuable information to investors. The basic objectives of corporate disclosure is to give a true and fair view of companies to the parties related either directly or indirectly like owner, government, creditors, shareholders etc. in the companies act, provisions have been made about mandatory and voluntary disclosure. The IT sector in India is rapidly growing, the trend to invest in the IT sector is rising and employment opportunities in IT sectors are also increasing. Therefore the IT sector is expected to have fair, full and adequate disclosure of all information. Unfair and incomplete disclosure may adversely affect the entire economy. A research study on disclosure practices of IT companies could play an important role in this regard. Hence, the present research study has been done to study and review comparative analysis of total corporate disclosure of selected IT companies of India and to put forward overall findings and suggestions with a view to increase disclosure score of these companies. The researcher hopes that the present research study will be helpful to all selected Companies for improving level of corporate disclosure through annual reports as well as the government, creditors, investors, all business organizations and upcoming researcher for comparative analyses of level of corporate disclosure with special reference to selected IT companies. Dr. Vaibhavi D. Thaker "Comparative Analysis of Total Corporate Disclosure of Selected IT Companies of India" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64539.pdf Paper Url: https://www.ijtsrd.com/other-scientific-research-area/other/64539/comparative-analysis-of-total-corporate-disclosure-of-selected-it-companies-of-india/dr-vaibhavi-d-thaker
The Impact of Educational Background and Professional Training on Human Right...ijtsrd
This study investigated the impact of educational background and professional training on human rights awareness among secondary school teachers in the Marathwada region of Maharashtra, India. The key findings reveal that higher levels of education, particularly a master’s degree, and fields of study related to education, humanities, or social sciences are associated with greater human rights awareness among teachers. Additionally, both pre service teacher training and in service professional development programs focused on human rights education significantly enhance teacher’s knowledge, skills, and competencies in promoting human rights principles in their classrooms. Baig Ameer Bee Mirza Abdul Aziz | Dr. Syed Azaz Ali Amjad Ali "The Impact of Educational Background and Professional Training on Human Rights Awareness among Secondary School Teachers" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64529.pdf Paper Url: https://www.ijtsrd.com/humanities-and-the-arts/education/64529/the-impact-of-educational-background-and-professional-training-on-human-rights-awareness-among-secondary-school-teachers/baig-ameer-bee-mirza-abdul-aziz
A Study on the Effective Teaching Learning Process in English Curriculum at t...ijtsrd
“One Language sets you in a corridor for life. Two languages open every door along the way” Frank Smith English as a foreign language or as a second language has been ruling in India since the period of Lord Macaulay. But the question is how much we teach or learn English properly in our culture. Is there any scope to use English as a language rather than a subject How much we learn or teach English without any interference of mother language specially in the classroom teaching learning scenario in West Bengal By considering all these issues the researcher has attempted in this article to focus on the effective teaching learning process comparing to other traditional strategies in the field of English curriculum at the secondary level to investigate whether they fulfill the present teaching learning requirements or not by examining the validity of the present curriculum of English. The purpose of this study is to focus on the effectiveness of the systematic, scientific, sequential and logical transaction of the course between the teachers and the learners in the perspective of the 5Es programme that is engage, explore, explain, extend and evaluate. Sanchali Mondal | Santinath Sarkar "A Study on the Effective Teaching Learning Process in English Curriculum at the Secondary Level of West Bengal" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd62412.pdf Paper Url: https://www.ijtsrd.com/humanities-and-the-arts/education/62412/a-study-on-the-effective-teaching-learning-process-in-english-curriculum-at-the-secondary-level-of-west-bengal/sanchali-mondal
The Role of Mentoring and Its Influence on the Effectiveness of the Teaching ...ijtsrd
This paper reports on a study which was conducted to investigate the role of mentoring and its influence on the effectiveness of the teaching of Physics in secondary schools in the South West Region of Cameroon. The study adopted the convergent parallel mixed methods design, focusing on respondents in secondary schools in the South West Region of Cameroon. Both quantitative and qualitative data were collected, analysed separately, and the results were compared to see if the findings confirm or disconfirm each other. The quantitative analysis found that majority of the respondents 72 of Physics teachers affirmed that they had more experienced colleagues as mentors to help build their confidence, improve their teaching, and help them improve their effectiveness and efficiency in guiding learners’ achievements. Only 28 of the respondents disagreed with these statements. With majority respondents 72 agreeing with the statements, it implies that in most secondary schools, experienced Physics teachers act as mentors to build teachers’ confidence in teaching and improving students’ learning. The interview qualitative data analysis summarized how secondary school Principals use meetings with mentors and mentees to promote mentorship in the school milieu. This has helped strengthen teachers’ classroom practices in secondary schools in the South West Region of Cameroon. With the results confirming each other, the study recommends that mentoring should focus on helping teachers employ social interactions and instructional practices feedback and clarity in teaching that have direct measurable impact on students’ learning achievements. Andrew Ngeim Sumba | Frederick Ebot Ashu | Peter Agborbechem Tambi "The Role of Mentoring and Its Influence on the Effectiveness of the Teaching of Physics in Secondary Schools in the South West Region of Cameroon" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64524.pdf Paper Url: https://www.ijtsrd.com/management/management-development/64524/the-role-of-mentoring-and-its-influence-on-the-effectiveness-of-the-teaching-of-physics-in-secondary-schools-in-the-south-west-region-of-cameroon/andrew-ngeim-sumba
Design Simulation and Hardware Construction of an Arduino Microcontroller Bas...ijtsrd
This study primarily focuses on the design of a high side buck converter using an Arduino microcontroller. The converter is specifically intended for use in DC DC applications, particularly in standalone solar PV systems where the PV output voltage exceeds the load or battery voltage. To evaluate the performance of the converter, simulation experiments are conducted using Proteus Software. These simulations provide insights into the input and output voltages, currents, powers, and efficiency under different state of charge SoC conditions of a 12V,70Ah rechargeable lead acid battery. Additionally, the hardware design of the converter is implemented, and practical data is collected through operation, monitoring, and recording. By comparing the simulation results with the practical results, the efficiency and performance of the designed converter are assessed. The findings indicate that while the buck converter is suitable for practical use in standalone PV systems, its efficiency is compromised due to a lower output current. Chan Myae Aung | Dr. Ei Mon "Design Simulation and Hardware Construction of an Arduino-Microcontroller Based DC-DC High-Side Buck Converter for Standalone PV System" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64518.pdf Paper Url: https://www.ijtsrd.com/engineering/mechanical-engineering/64518/design-simulation-and-hardware-construction-of-an-arduinomicrocontroller-based-dcdc-highside-buck-converter-for-standalone-pv-system/chan-myae-aung
Sustainable Energy by Paul A. Adekunte | Matthew N. O. Sadiku | Janet O. Sadikuijtsrd
Energy becomes sustainable if it meets the needs of the present without compromising the ability of future generations to meet their own needs. Some of the definitions of sustainable energy include the considerations of environmental aspects such as greenhouse gas emissions, social, and economic aspects such as energy poverty. Generally far more sustainable than fossil fuel are renewable energy sources such as wind, hydroelectric power, solar, and geothermal energy sources. Worthy of note is that some renewable energy projects, like the clearing of forests to produce biofuels, can cause severe environmental damage. The sustainability of nuclear power which is a low carbon source is highly debated because of concerns about radioactive waste, nuclear proliferation, and accidents. The switching from coal to natural gas has environmental benefits, including a lower climate impact, but could lead to delay in switching to more sustainable options. “Carbon capture and storage” can be built into power plants to remove the carbon dioxide CO2 emissions, but this technology is expensive and has rarely been implemented. Leading non renewable energy sources around the world is fossil fuels, coal, petroleum, and natural gas. Nuclear energy is usually considered another non renewable energy source, although nuclear energy itself is a renewable energy source, but the material used in nuclear power plants is not. The paper addresses the issue of sustainable energy, its attendant benefits to the future generation, and humanity in general. Paul A. Adekunte | Matthew N. O. Sadiku | Janet O. Sadiku "Sustainable Energy" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64534.pdf Paper Url: https://www.ijtsrd.com/engineering/electrical-engineering/64534/sustainable-energy/paul-a-adekunte
Concepts for Sudan Survey Act Implementations Executive Regulations and Stand...ijtsrd
This paper aims to outline the executive regulations, survey standards, and specifications required for the implementation of the Sudan Survey Act, and for regulating and organizing all surveying work activities in Sudan. The act has been discussed for more than 5 years. The Land Survey Act was initiated by the Sudan Survey Authority and all official legislations were headed by the Sudan Ministry of Justice till it was issued in 2022. The paper presents conceptual guidelines to be used for the Survey Act implementation and to regulate the survey work practice, standardizing the field surveys, processing, quality control, procedures, and the processes related to survey work carried out by the stakeholders and relevant authorities in Sudan. The conceptual guidelines are meant to improve the quality and harmonization of geospatial data and to aid decision making processes as well as geospatial information systems. The established comprehensive executive regulations will govern and regulate the implementation of the Sudan Survey Geomatics Act in all surveying and mapping practices undertaken by the Sudan Survey Authority SSA and state local survey departments for public or private sector organizations. The targeted standards and specifications include the reference frame, projection, coordinate systems, and the guidelines and specifications that must be followed in the field of survey work, processes, and mapping products. In the last few decades, there has been a growing awareness of the importance of geomatics activities and measurements on the Earths surface in space and time, together with observing and mapping the changes. In such cases, data must be captured promptly, standardized, and obtained with more accuracy and specified in much detail. The paper will also highlight the current situation in Sudan, the degree to which survey standards are used, the problems encountered, and the errors that arise from not using the standards and survey specifications. Kamal A. A. Sami "Concepts for Sudan Survey Act Implementations - Executive Regulations and Standards" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd63484.pdf Paper Url: https://www.ijtsrd.com/engineering/civil-engineering/63484/concepts-for-sudan-survey-act-implementations--executive-regulations-and-standards/kamal-a-a-sami
Towards the Implementation of the Sudan Interpolated Geoid Model Khartoum Sta...ijtsrd
The discussions between ellipsoid and geoid have invoked many researchers during the recent decades, especially during the GNSS technology era, which had witnessed a great deal of development but still geoid undulation requires more investigations. To figure out a solution for Sudans local geoid, this research has tried to intake the possibility of determining the geoid model by following two approaches, gravimetric and geometrical geoid model determination, by making use of GNSS leveling benchmarks at Khartoum state. The Benchmarks are well distributed in the study area, in which, the horizontal coordinates and the height above the ellipsoid have been observed by GNSS while orthometric heights were carried out using precise leveling. The Global Geopotential Model GGM represented in EGM2008 has been exploited to figure out the geoid undulation at the benchmarks in the study area. This is followed by a fitting process, that has been done to suit the geoid undulation data which has been computed using GNSS leveling data and geoid undulation inspired by the EGM2008. Two geoid surfaces were created after the fitting process to ensure that they are identical and both of them could be counted for getting the same geoid undulation with an acceptable accuracy. In this respect, statistical operation played an important role in ensuring the consistency and integrity of the model by applying cross validation techniques splitting the data into training and testing datasets for building the geoid model and testing its eligibility. The geometrical solution for geoid undulation computation has been utilized by applying straightforward equations that facilitate the calculation of the geoid undulation directly through applying statistical techniques for the GNSS leveling data of the study area to get the common equation parameters values that could be utilized to calculate geoid undulation of any position in the study area within the claimed accuracy. Both systems were checked and proved eligible to be used within the study area with acceptable accuracy which may contribute to solving the geoid undulation problem in the Khartoum area, and be further generalized to determine the geoid model over the entire country, and this could be considered in the future, for regional and continental geoid model. Ahmed M. A. Mohammed. | Kamal A. A. Sami "Towards the Implementation of the Sudan Interpolated Geoid Model (Khartoum State Case Study)" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd63483.pdf Paper Url: https://www.ijtsrd.com/engineering/civil-engineering/63483/towards-the-implementation-of-the-sudan-interpolated-geoid-model-khartoum-state-case-study/ahmed-m-a-mohammed
Activating Geospatial Information for Sudans Sustainable Investment Mapijtsrd
Sudan is witnessing an acceleration in the processes of development and transformation in the performance of government institutions to raise the productivity and investment efficiency of the government sector. The development plans and investment opportunities have focused on achieving national goals in various sectors. This paper aims to illuminate the path to the future and provide geospatial data and information to develop the investment climate and environment for all sized businesses, and to bridge the development gap between the Sudan states. The Sudan Survey Authority SSA is the main advisor to the Sudan Government in conducting surveying, mappings, designing, and developing systems related to geospatial data and information. In recent years, SSA made a strategic partnership with the Ministry of Investment to activate Geospatial Information for Sudans Sustainable Investment and in particular, for the preparation and implementation of the Sudan investment map, based on the directives and objectives of the Ministry of Investment MI in Sudan. This paper comes within the framework of activating the efforts of the Ministry of Investment to develop technical investment services by applying techniques adopted by the Ministry and its strategic partners for advancing investment processes in the country. Kamal A. A. Sami "Activating Geospatial Information for Sudan's Sustainable Investment Map" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd63482.pdf Paper Url: https://www.ijtsrd.com/engineering/information-technology/63482/activating-geospatial-information-for-sudans-sustainable-investment-map/kamal-a-a-sami
Educational Unity Embracing Diversity for a Stronger Societyijtsrd
In a rapidly changing global landscape, the importance of education as a unifying force cannot be overstated. This paper explores the crucial role of educational unity in fostering a stronger and more inclusive society through the embrace of diversity. By examining the benefits of diverse learning environments, the paper aims to highlight the positive impact on societal strength. The discussion encompasses various dimensions, from curriculum design to classroom dynamics, and emphasizes the need for educational institutions to become catalysts for unity in diversity. It highlights the need for a paradigm shift in educational policies, curricula, and pedagogical approaches to ensure that they are reflective of the diverse fabric of society. This paper also addresses the challenges associated with implementing inclusive educational practices and offers practical strategies for overcoming barriers. It advocates for collaborative efforts between educational institutions, policymakers, and communities to create a supportive ecosystem that promotes diversity and unity. Mr. Amit Adhikari | Madhumita Teli | Gopal Adhikari "Educational Unity: Embracing Diversity for a Stronger Society" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64525.pdf Paper Url: https://www.ijtsrd.com/humanities-and-the-arts/education/64525/educational-unity-embracing-diversity-for-a-stronger-society/mr-amit-adhikari
Integration of Indian Indigenous Knowledge System in Management Prospects and...ijtsrd
The diversity of indigenous knowledge systems in India is vast and can vary significantly between different communities and regions. Preserving and respecting these knowledge systems is crucial for maintaining cultural heritage, promoting sustainable practices, and fostering cross cultural understanding. In this paper, an overview of the prospects and challenges associated with incorporating Indian indigenous knowledge into management is explored. It is found that IIKS helps in management in many areas like sustainable development, tourism, food security, natural resource management, cultural preservation and innovation, etc. However, IIKS integration with management faces some challenges in the form of a lack of documentation, cultural sensitivity, language barriers legal framework, etc. Savita Lathwal "Integration of Indian Indigenous Knowledge System in Management: Prospects and Challenges" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd63500.pdf Paper Url: https://www.ijtsrd.com/management/accounting-and-finance/63500/integration-of-indian-indigenous-knowledge-system-in-management-prospects-and-challenges/savita-lathwal
DeepMask Transforming Face Mask Identification for Better Pandemic Control in...ijtsrd
The COVID 19 pandemic has highlighted the crucial need of preventive measures, with widespread use of face masks being a key method for slowing the viruss spread. This research investigates face mask identification using deep learning as a technological solution to be reducing the risk of coronavirus transmission. The proposed method uses state of the art convolutional neural networks CNNs and transfer learning to automatically recognize persons who are not wearing masks in a variety of circumstances. We discuss how this strategy improves public health and safety by providing an efficient manner of enforcing mask wearing standards. The report also discusses the obstacles, ethical concerns, and prospective applications of face mask detection systems in the ongoing fight against the pandemic. Dilip Kumar Sharma | Aaditya Yadav "DeepMask: Transforming Face Mask Identification for Better Pandemic Control in the COVID-19 Era" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd64522.pdf Paper Url: https://www.ijtsrd.com/engineering/electronics-and-communication-engineering/64522/deepmask-transforming-face-mask-identification-for-better-pandemic-control-in-the-covid19-era/dilip-kumar-sharma
Streamlining Data Collection eCRF Design and Machine Learningijtsrd
Efficient and accurate data collection is paramount in clinical trials, and the design of Electronic Case Report Forms eCRFs plays a pivotal role in streamlining this process. This paper explores the integration of machine learning techniques in the design and implementation of eCRFs to enhance data collection efficiency. We delve into the synergies between eCRF design principles and machine learning algorithms, aiming to optimize data quality, reduce errors, and expedite the overall data collection process. The application of machine learning in eCRF design brings forth innovative approaches to data validation, anomaly detection, and real time adaptability. This paper discusses the benefits, challenges, and future prospects of leveraging machine learning in eCRF design for streamlined and advanced data collection in clinical trials. Dhanalakshmi D | Vijaya Lakshmi Kannareddy "Streamlining Data Collection: eCRF Design and Machine Learning" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-8 | Issue-1 , February 2024, URL: https://www.ijtsrd.com/papers/ijtsrd63515.pdf Paper Url: https://www.ijtsrd.com/biological-science/biotechnology/63515/streamlining-data-collection-ecrf-design-and-machine-learning/dhanalakshmi-d
The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe.
For more information, visit-www.vavaclasses.com
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
A Strategic Approach: GenAI in EducationPeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Introduction to AI for Nonprofits with Tapp NetworkTechSoup
Dive into the world of AI! Experts Jon Hill and Tareq Monaur will guide you through AI's role in enhancing nonprofit websites and basic marketing strategies, making it easy to understand and apply.
Synthetic Fiber Construction in lab .pptxPavel ( NSTU)
Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.
Safalta Digital marketing institute in Noida, provide complete applications that encompass a huge range of virtual advertising and marketing additives, which includes search engine optimization, virtual communication advertising, pay-per-click on marketing, content material advertising, internet analytics, and greater. These university courses are designed for students who possess a comprehensive understanding of virtual marketing strategies and attributes.Safalta Digital Marketing Institute in Noida is a first choice for young individuals or students who are looking to start their careers in the field of digital advertising. The institute gives specialized courses designed and certification.
for beginners, providing thorough training in areas such as SEO, digital communication marketing, and PPC training in Noida. After finishing the program, students receive the certifications recognised by top different universitie, setting a strong foundation for a successful career in digital marketing.
2. International Journal of Trend in Scientific Research and Development (IJTSRD) @ www.ijtsrd.com eISSN: 2456-6470
@ IJTSRD | Unique Paper ID – IJTSRD25285 | Volume – 3 | Issue – 5 | July - August 2019 Page 387

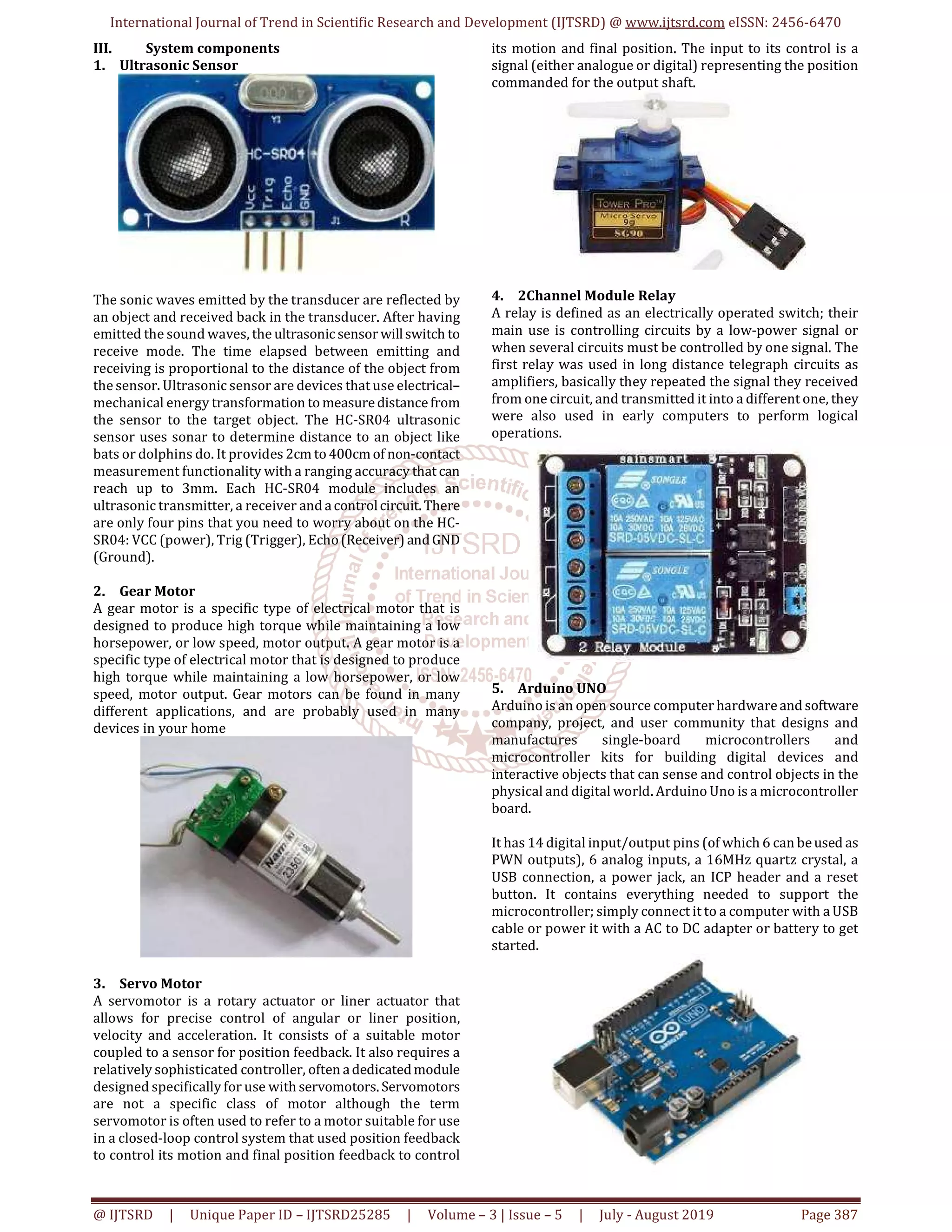

III. System components
1. Ultrasonic Sensor
The sonic waves emitted by the transducer are reflected by
an object and received back in the transducer. After having
emitted the sound waves, the ultrasonicsensor willswitch to
receive mode. The time elapsed between emitting and
receiving is proportional to the distance of the object from
the sensor. Ultrasonic sensor are devices that use electrical–
mechanical energy transformation tomeasuredistancefrom
the sensor to the target object. The HC-SR04 ultrasonic
sensor uses sonar to determine distance to an object like
bats or dolphins do. It provides 2cm to400cmof non-contact
measurement functionality with a ranging accuracy that can
reach up to 3mm. Each HC-SR04 module includes an
ultrasonic transmitter, a receiver and acontrolcircuit.There
are only four pins that you need to worry about on the HC-
SR04: VCC (power), Trig (Trigger), Echo(Receiver) andGND
(Ground).
2. Gear Motor
A gear motor is a specific type of electrical motor that is
designed to produce high torque while maintaining a low
horsepower, or low speed, motor output. A gear motor is a
specific type of electrical motor that is designed to produce
high torque while maintaining a low horsepower, or low
speed, motor output. Gear motors can be found in many
different applications, and are probably used in many
devices in your home
3. Servo Motor
A servomotor is a rotary actuator or liner actuator that
allows for precise control of angular or liner position,
velocity and acceleration. It consists of a suitable motor
coupled to a sensor for position feedback. It also requires a
relatively sophisticated controller, often adedicatedmodule
designed specifically for use with servomotors. Servomotors
are not a specific class of motor although the term
servomotor is often used to refer to a motor suitable for use
in a closed-loop control system that used position feedback
to control its motion and final position feedback to control
its motion and final position. The input to its control is a
signal (either analogue or digital) representing the position
commanded for the output shaft.
4. 2Channel Module Relay
A relay is defined as an electrically operated switch; their
main use is controlling circuits by a low-power signal or
when several circuits must be controlled by one signal. The
first relay was used in long distance telegraph circuits as
amplifiers, basically they repeated the signal they received
from one circuit, and transmitted it into a different one, they
were also used in early computers to perform logical
operations.
5. Arduino UNO
Arduino is an open source computer hardwareand software
company, project, and user community that designs and
manufactures single-board microcontrollers and
microcontroller kits for building digital devices and
interactive objects that can sense and control objects in the
physical and digital world. Arduino Uno is a microcontroller
board.
It has 14 digital input/output pins (of which 6 can beused as
PWN outputs), 6 analog inputs, a 16MHz quartz crystal, a
USB connection, a power jack, an ICP header and a reset
button. It contains everything needed to support the
microcontroller; simply connect it to a computer with a USB
cable or power it with a AC to DC adapter or battery to get
started.
3. International Journal of Trend in Scientific Research and Development (IJTSRD) @ www.ijtsrd.com eISSN: 2456-6470
@ IJTSRD | Unique Paper ID – IJTSRD25285 | Volume – 3 | Issue – 5 | July - August 2019 Page 388

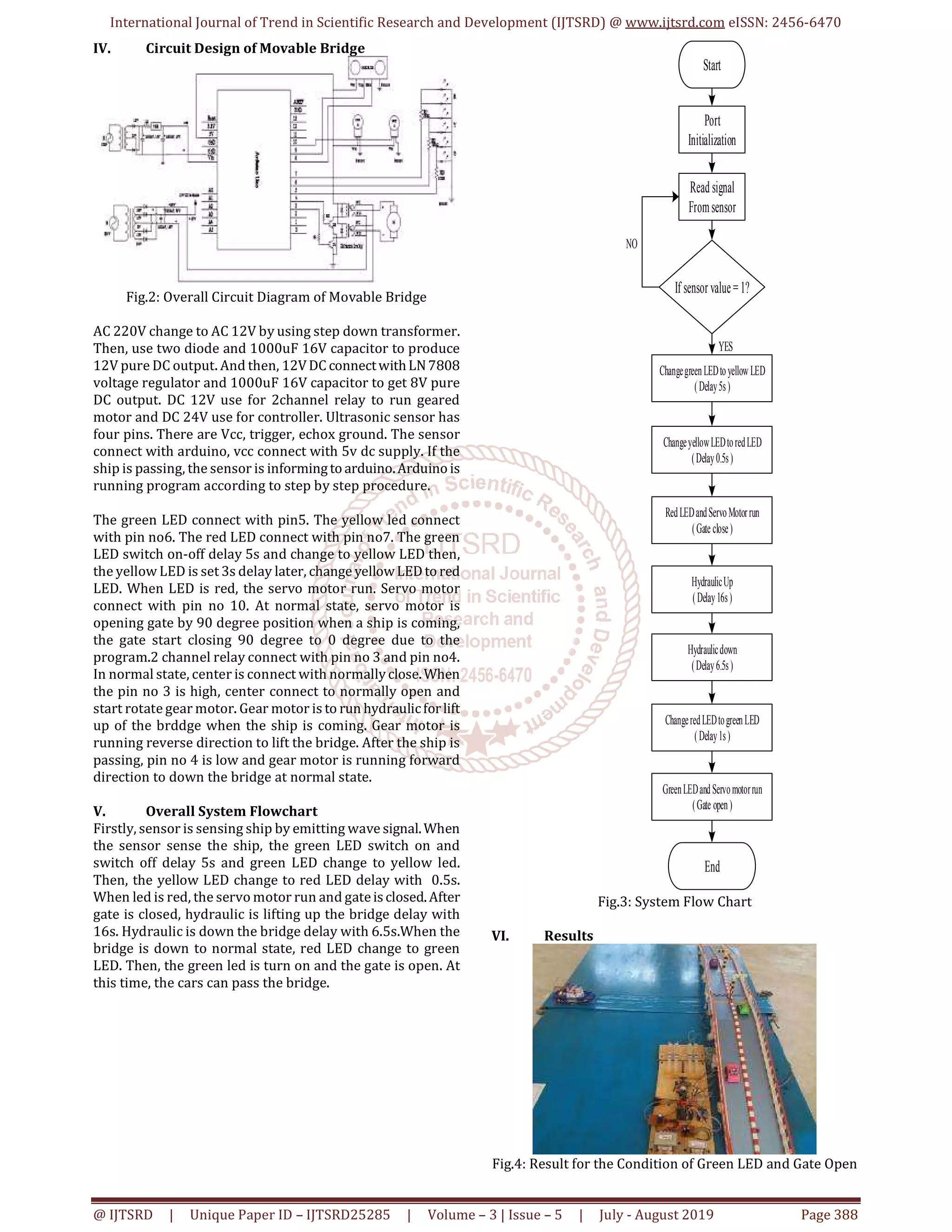

IV. Circuit Design of Movable Bridge
Fig.2: Overall Circuit Diagram of Movable Bridge
AC 220V change to AC 12V by using step down transformer.
Then, use two diode and 1000uF 16V capacitor to produce
12V pure DC output. And then, 12VDC connectwithLN7808
voltage regulator and 1000uF 16V capacitor to get 8V pure
DC output. DC 12V use for 2channel relay to run geared
motor and DC 24V use for controller. Ultrasonic sensor has
four pins. There are Vcc, trigger, echox ground. The sensor
connect with arduino, vcc connect with 5v dc supply. If the
ship is passing, the sensor is informingtoarduino.Arduinois
running program according to step by step procedure.
The green LED connect with pin5. The yellow led connect
with pin no6. The red LED connect with pin no7. The green
LED switch on-off delay 5s and change to yellow LED then,
the yellow LED is set 3s delay later, change yellowLEDtored
LED. When LED is red, the servo motor run. Servo motor
connect with pin no 10. At normal state, servo motor is
opening gate by 90 degree position when a ship is coming,
the gate start closing 90 degree to 0 degree due to the
program.2 channel relay connect with pin no 3 and pin no4.
In normal state, center is connect with normally close.When
the pin no 3 is high, center connect to normally open and
start rotate gear motor. Gear motor is to run hydraulicforlift
up of the brddge when the ship is coming. Gear motor is
running reverse direction to lift the bridge. After the ship is
passing, pin no 4 is low and gear motor is running forward
direction to down the bridge at normal state.
V. Overall System Flowchart
Firstly, sensor is sensing ship by emitting wave signal.When
the sensor sense the ship, the green LED switch on and
switch off delay 5s and green LED change to yellow led.
Then, the yellow LED change to red LED delay with 0.5s.
When led is red, the servo motor run and gateisclosed.After
gate is closed, hydraulic is lifting up the bridge delay with
16s. Hydraulic is down the bridge delay with 6.5s.When the
bridge is down to normal state, red LED change to green
LED. Then, the green led is turn on and the gate is open. At
this time, the cars can pass the bridge.
Start
Port
Initialization
Read signal
Fromsensor
If sensor value= 1?
ChangegreenLEDtoyellowLED
(Delay5s)
ChangeyellowLEDtoredLED
(Delay0.5s)
RedLEDandServoMotorrun
(Gate close)
HydraulicUp
(Delay16s)
Hydraulicdown
(Delay6.5s)
ChangeredLEDtogreenLED
(Delay1s)
End
NO
YES
GreenLEDandServomotorrun
(Gate open)
Fig.3: System Flow Chart
VI. Results
Fig.4: Result for the Condition of Green LED and Gate Open
4. International Journal of Trend in Scientific Research and Development (IJTSRD) @ www.ijtsrd.com eISSN: 2456-6470
@ IJTSRD | Unique Paper ID – IJTSRD25285 | Volume – 3 | Issue – 5 | July - August 2019 Page 389

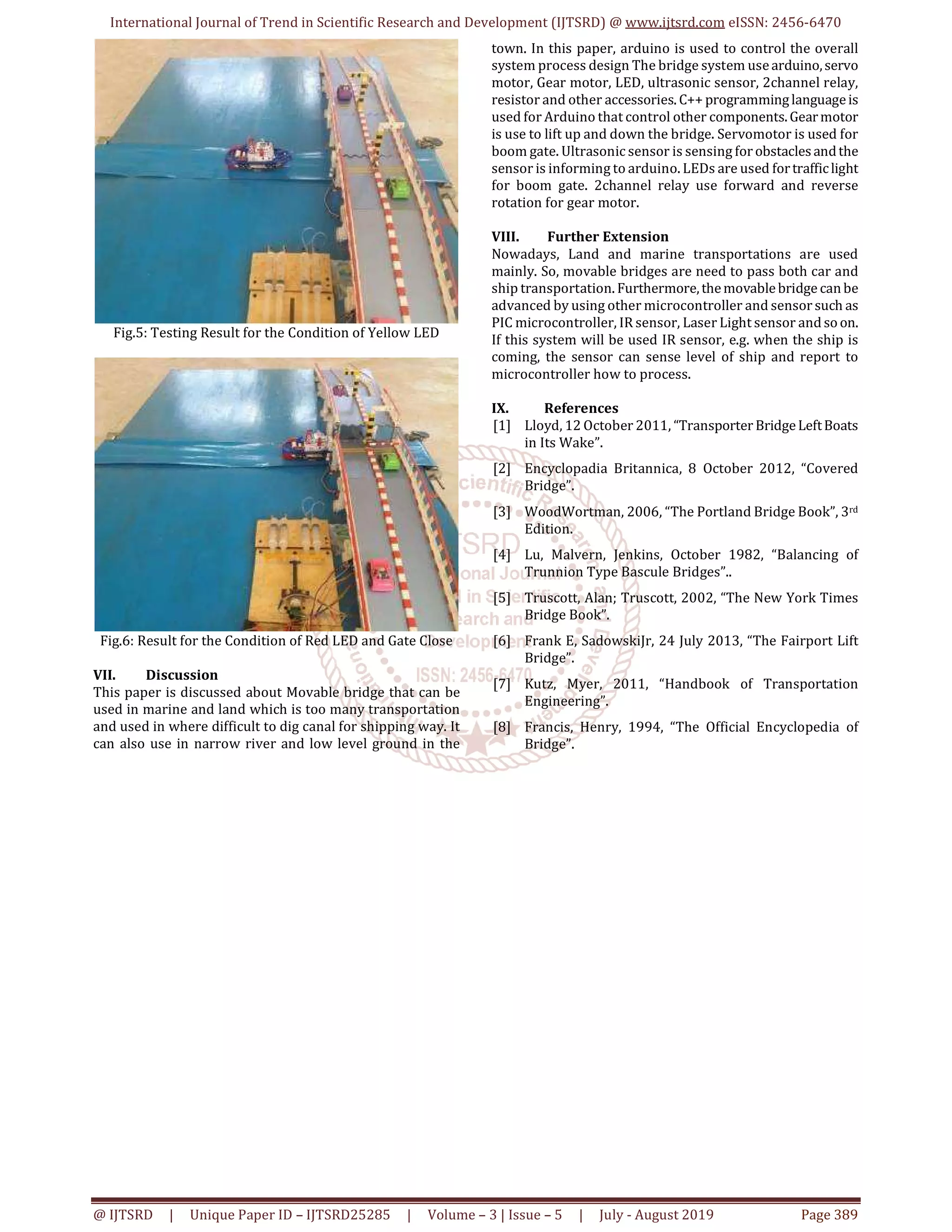

Fig.5: Testing Result for the Condition of Yellow LED
Fig.6: Result for the Condition of Red LED and Gate Close
VII. Discussion
This paper is discussed about Movable bridge that can be
used in marine and land which is too many transportation
and used in where difficult to dig canal for shipping way. It
can also use in narrow river and low level ground in the
town. In this paper, arduino is used to control the overall
system process design The bridge system usearduino,servo
motor, Gear motor, LED, ultrasonic sensor, 2channel relay,
resistor and other accessories. C++ programminglanguageis
used for Arduino that control other components.Gearmotor
is use to lift up and down the bridge. Servomotor is used for
boom gate. Ultrasonic sensor is sensing for obstaclesandthe
sensor is informing to arduino. LEDs are used fortrafficlight
for boom gate. 2channel relay use forward and reverse
rotation for gear motor.
VIII. Further Extension
Nowadays, Land and marine transportations are used
mainly. So, movable bridges are need to pass both car and
ship transportation. Furthermore,themovablebridge canbe
advanced by using other microcontroller and sensor such as
PIC microcontroller, IR sensor, Laser Light sensor and soon.
If this system will be used IR sensor, e.g. when the ship is
coming, the sensor can sense level of ship and report to
microcontroller how to process.
IX. References
[1] Lloyd, 12 October 2011, “Transporter BridgeLeftBoats
in Its Wake”.
[2] Encyclopadia Britannica, 8 October 2012, “Covered
Bridge”.
[3] WoodWortman, 2006, “The Portland Bridge Book”, 3rd
Edition.
[4] Lu, Malvern, Jenkins, October 1982, “Balancing of
Trunnion Type Bascule Bridges”..
[5] Truscott, Alan; Truscott, 2002, “The New York Times
Bridge Book”.
[6] Frank E, SadowskiJr, 24 July 2013, “The Fairport Lift
Bridge”.
[7] Kutz, Myer, 2011, “Handbook of Transportation
Engineering”.
[8] Francis, Henry, 1994, “The Official Encyclopedia of
Bridge”.
