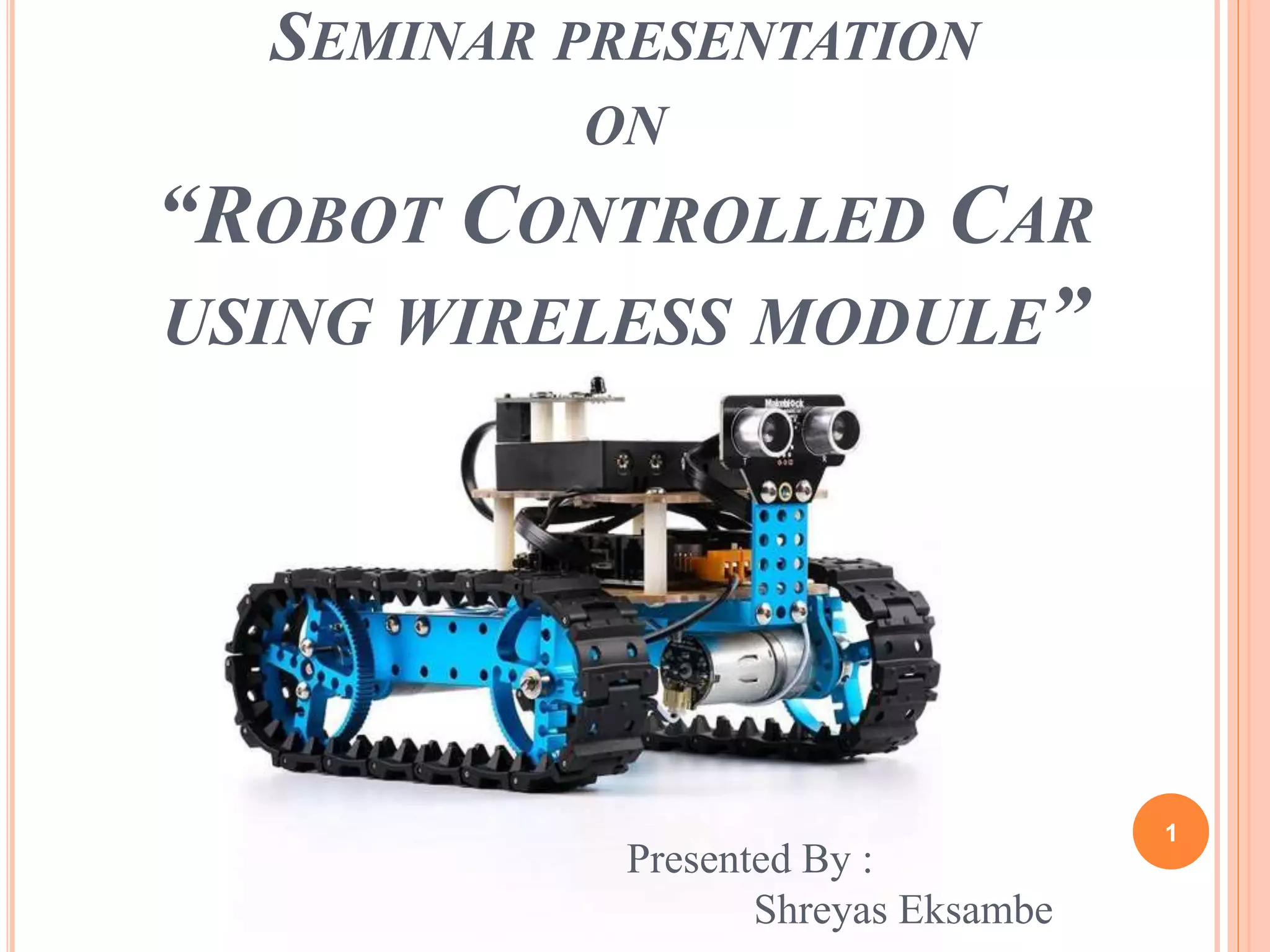

SEMINAR PRESENTATION
ON
“ROBOT CONTROLLED CAR
USING WIRELESS MODULE”
Presented By :
Shreyas Eksambe

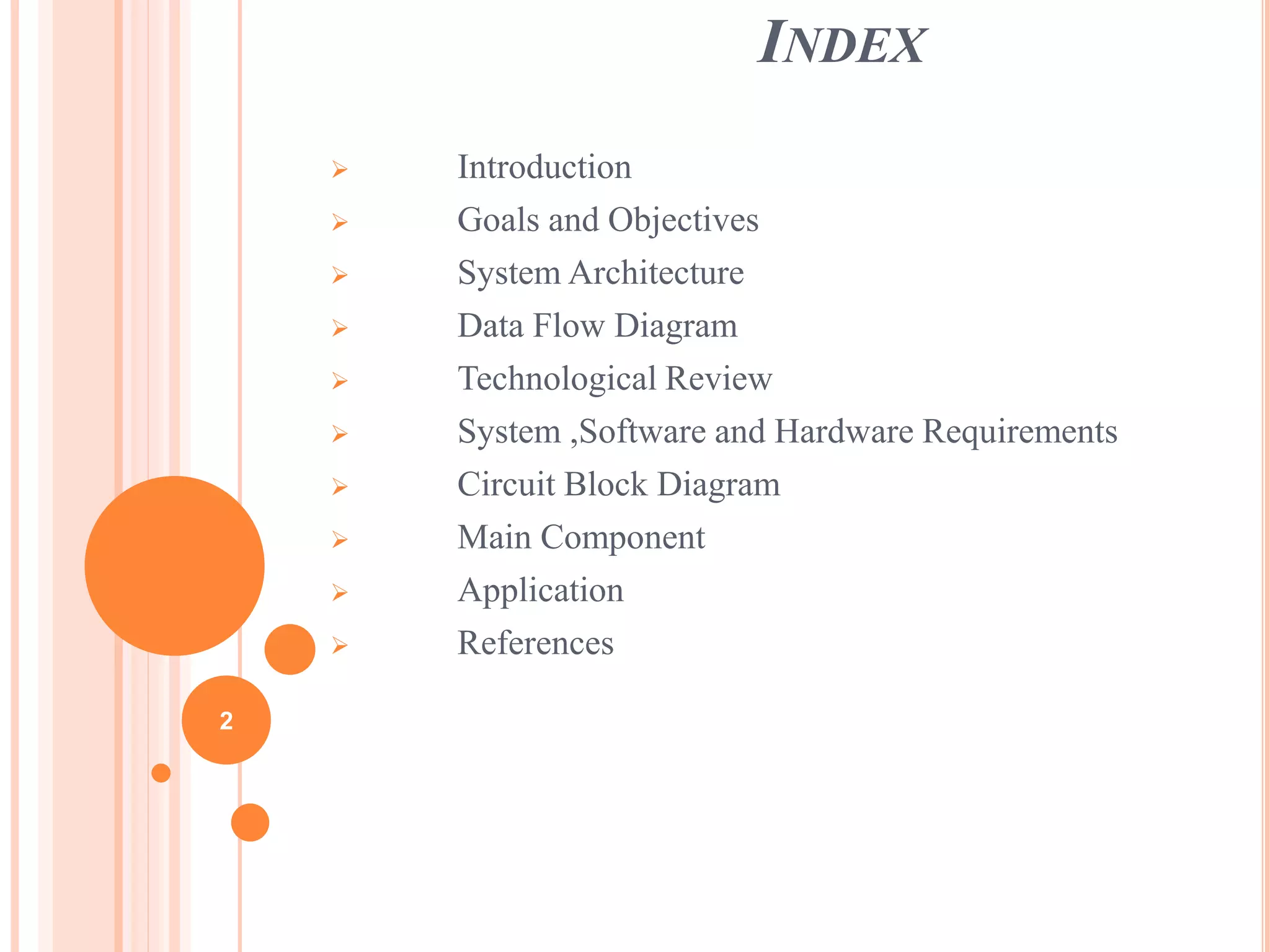

2. INDEX
 Introduction
 Goals and Objectives
 System Architecture
 Data Flow Diagram
 Technological Review
 System ,Software and Hardware Requirements
 Circuit Block Diagram
 Main Component
 Application
 References
2

3. INTRODUCTION
• A robot is a mechanical or virtual artificial agent,
usually an electro-mechanical machine that is guided by a
computer program or electronic circuitry. Robots can be
autonomous or semi-autonomous
• The robot car can be easily moved from one place to
another just by a single device. Robot car can be used for
security purpose with the installation of a camera.
3

4. GOALS AND OBJECTIVES
“Robot Controlled Car Using Wireless Module” at the title
suggests is aimed to construct a control system that enables the
complete control of the interface of Machine.
It include two separate units :-
1. The Android Phone
2. Control Unit.
Two Operating Environments :-
1. The android phone will operate indoors
2. Outdoors whereas the control unit will operate
indoors within the temperature and humidity limits for proper
operation of the hardware.
4

5. SYSTEM ARCHITECTURE
5

6. CONTINUE
System Architecture consists of following blocks :
1. Blue-tooth module
2. Micro-Controller
3. DC motors
4. Motor Driver H-Bridge
5. 9v DC battery
The circuit is built controller board, Blue-tooth module ,
motor driver , DC motors and a few common components. The
circuit uses two 9V batteries. First battery is used to power the
controller board and the other is used to power the motors.
The regulated 5V supply for the rest of the circuit is
provided by the controller board itself. LED on the board
indicates presence of power supply. Motor Driver H-Bridge is
used to drive two motors which work on 9v DC batteries.
6

7. DATA FLOW DIAGRAM
7

8. TECHNOLOGICAL REVIEW
Technological Components
1. Android(Operating System)
2. Arduino Board
3. Bluetooth
4. Wi-Fi
8

9. SYSTEM REQUIREMENTS
Platform Requirement :
1.Windows :-
• Window 7 and above Microsoft Windows is a series of
graphical interface operating systems developed, marketed,
and sold by Microsoft.
• Microsoft introduced an operating environment named
Windows on November 20, 1985 as a graphical operating
system shell for MS-DOS in response to the growing interest
in graphical user interfaces(GUIs).
9

10. 2. Android :-
• Android OS Android is a mobile operating system (OS)
based on the Linux kernel and currently developed by
Google.
• Android is designed primarily for touch screen mobile
devices such as smart phones and table computers, with
specialized user interfaces.
CONTINUE
10

11. SOFTWARE REQUIREMENT
The Software Requirements in this project include:
1. JDK
2. Arduino
3. Android Studio
Eclipse :
Eclipse is an integrated development
environment (IDE). It contains a base workspace and an
extensible plug-in system for customizing the
environment.11

12. JDK : Java Platform (JDK)
The Java Development Kit (JDK) is an implementation
of either one of the Java SE, Java EE or Java ME platforms
released by Oracle Corporation in the form of a binary product
aimed at Java developers on Solaris, Linux, Mac OS X or
Windows.
The JDK includes a private JVM and a few other
resources to finish the recipe to a Java Application.
CONTINUE
12

13. CONTINUE
Arduino :
Arduino is a tool for making computers that can
sense and control more of the physical world than your
desktop computer.
It’s an open-source physical computing platform
based on a simple microcontroller board, and a
development environment for writing software for the
board.
13

14. ARDUINO CODING PLATFORM
(SYSTEM LEVEL)
14

15. 15
ARDUINO CODING PLATFORM
(ANDROID LEVEL)

16. HARDWARE REQUIREMENT
The Hardware components required for our
project are Min 1 GB of RAM,10 GB HDD, Dual core
processor for the machine on which development will be
done, Robot kit, IP Camera, Bluetooth Module etc for
developing the robot.
Hardware Requirement
a) Android Smartphone
b) Bluetooth module
c) Microcontroller(Arduino)
d) DC power supply
e) Motor Driver
f) DC motor
g) Wires, Breadboard, Small PCB.
16

17. CIRCUIT BLOCK DIAGRAM
17

18. CIRCUIT DIAGRAM
18

19. ARDUINO UNO
19
MAIN COMPONENT

20. PROJECT IMAGE EXAMPLE
20
ARDUINO UNO
KIT
CABLES
DC POWER SUPPLY
BATTERY
BREAD BOARD
BASE
WHEELS
IC
MC14174BCP/TC40G9UBCP/
MC14024BCP

21. APPLICATIONS
1. Scientific
2. Space Probes
3. Submarines
4. Military and Law Enforcement
5. Recreation and Hobby
21
