Data normalization weaknesses
This document discusses weaknesses in data normalization that can lead to vulnerabilities. It covers issues at various levels including protocol (e.g. double URL encoding bypassing validation), filesystem (e.g. path traversal using unusual encodings), databases (e.g. truncation or encoding issues), and applications (e.g. bypassing input sanitization with multibyte encodings). The key message is that input validation needs to consider challenges across all these levels from protocols to storage to properly prevent attacks exploiting normalization weaknesses.
More Related Content
Similar to Data normalization weaknesses
Data normalization weaknesses
- 1.
- 2. Intro • Researcher, bug-hunter,CEO • Web application security in depth • @d0znpp personal twitter • lab.onsec.ru our blog (@ONsec_lab)
- 3. What is normalization? •Transferring and storing data are always accompanied by their formatting • First normalization than formatting • Encoding (different charsets) • Truncation (limited sizes) • Trims • Canonizations • ...
- 4. Data normalization orinput validation weaknesses?
- 5. Web application basics •Client-Server model • Client is browser (Chrome, Safari, IE, FF) • Server is web server software (Nginx, Apache) • Application server (FastCGI,Tomcat) • Database storage (SQL or noSQL)

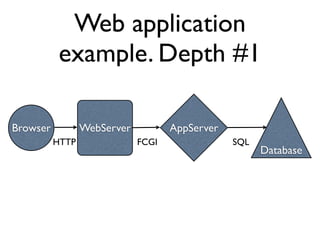

- 6. Web application example. Depth#1 Browser WebServer Database AppServer HTTP FCGI SQL
- 7. Web application example. Depth#2 Browser WebServer Database AppServer HTTP FCGI SQL Operation System File System FS driver
- 8. Web application example. Depth#3 Browser WebServer Database AppServer HTTP FCGI SQL OS File System FS driver Network layer
- 9. Protocol level normalization Browser WebServer Database AppServer HTTPFCGI SQL OS File System FS driver Network layer
- 10. Protocol level normalization • Urlencoding- what could be simpler? • %22 to « • %23 to # • %25 to % • Double url-encoding is basic bypass for many input validators, right?
- 11. 2+ urlencoding Why not?! BrowserFrontend Backend HTTP FCGI OS Balancer HTTP %252527 %2527 %27 Input validator
- 12. Protocol level normalization Browser WebServer Database AppServer HTTPFCGI SQL OS File System FS driver Network layer
- 13. Protocol level normalization • HTTPparameter pollution • https://www.owasp.org/images/b/ba/ AppsecEU09_CarettoniDiPaola_v0.8.pdf • ?id=1&id=2 id=1,2 • HTTP parameter contamination • http://netsec.rs/files/Http%20Parameter %20Contamination%20-%20Ivan%20Markovic %20NSS.pdf • ?load[file ?load_file
- 14. Protocol level normalization • Somethingnew? • Why only parameters? • Let’s try to fuzz smth else! :) • GET{F}/{F}HTTP.1.1 • {F} = 0x09, 0x0b, 0x0c, 0x0d, 0x32 • Apache/2.2.22 (Unix) • GET / bla-bla bla bla bla ehohoh Valid packet!
- 15. File paths normalization BrowserWebServer Database AppServer HTTP FCGI SQL OS File System FS driver Network layer
- 16. Filesystem names canonization • PathTraversal • /../../../../../../etc/passwd • Normalization • http://www.ush.it/2009/02/08/php- filesystem-attack-vectors/ • http://onsec.ru/ onsec.whitepaper-02.eng.pdf
- 17. Filesystem names canonization • Normalization •/etc/passwd//////////////////////////////////.php • C:boot.<< • C:boot’‘ini • C:boot.in>

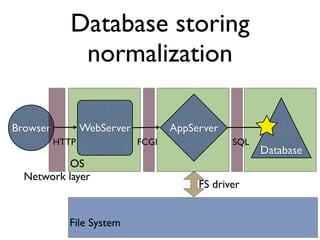

- 18. Database storing normalization Browser WebServer Database AppServer HTTPFCGI SQL OS File System FS driver Network layer
- 19. Database storing normalization • Encodings •Client encoding • Storing encoding • Trim • Size limited truncation
- 20. Database storing normalization • VARCHARor BLOB ? • What size limit of CREATE TABLE t1 (login TEXT) ? • INSERT INTO loginsVALUES (:id, :login, :password) • $login = « admin aa»
- 21. Application layer normalization Browser WebServer Database AppServer HTTPFCGI SQL OS File System FS driver Network layer
- 22. Application layer normalization • SSRFbible. Cheatsheet • https://docs.google.com/document/d/ 1v1TkWZtrhzRLy0bYXBcdLUedXGb9nj TNIJXa3u9akHM/# • PHP fsockopen() url parsing tricks
- 23. Application layer normalization • Portoverwriting, formatting • localhost:81 • localhost:+81AAAAA • localhost: 00081 AAA
- 24.
- 25. Multibyte encodings • Onebyte for one char • More bytes for one char ! • á • 0xE1 • 0xC3A1 UTF-8 C-form • 0x61CC81 UTF-8 D-form
- 26. addslashes() bypass • http://shiflett.org/blog/2006/jan/addslashes- versus-mysql-real-escape-string •’ to ’ • Replace 0x27 byte to 0x5c27 • But what about multibyte? • 0xbf5c - valid char for GBK encoding • 0xbf5c27 -> 0xbf5c 0x27
- 27. addslashes() bypass • http://kuza55.blogspot.ru/2007/06/mysql- injection-encoding-attacks.html •Find all encodings where 0x5c is valid second byte at any char • big5, [A1-F9] • sjis, [81-9F], [E0-FC] • gbk, [81-FE] • cp932, [81-9F], [E0-FC]
- 28. Homework! escapeshellarg/cmd() • Note that: •PHP use SH by default at system(), not BASH • SH have no multibyte encoding • escapeshellarg cut bytes 0x80-0xFF
- 29. But... escapeshellarg() • http://lab.onsec.ru/2013/03/breaking- escapeshellarg-news.html •for shell no differences between • ls -la • ls ‘’-la’’ • ls ‘-la’ • unzip ‘-d/var/www’ - escaped, but arg!
- 30. PHP string encoding http://www.php.net/manual/ language.types.string.php#language.types.string.details •String will be encoded in whatever fashion it is encoded in the script file • If Zend Multibyte is enabled, the script may be written in an arbitrary encoding (which is explicity declared or is detected) and then converted to a certain internal encoding, which is then the encoding that will be used for the string literals • State-dependent encodings where the same byte values can be used in initial and non-initial shift states may be problematic
- 31. Multibyte problems • Lengthsin chars or bytes? • State-dependent encodings • 0x0102 char • 0x0203 char • 0x01020203 two chars • But what about case when 0x0202 is valid char also? • Try to find 0x0202 in this string ;)
- 32.
